Husqvarna FE 350 EU (2014), FE 350 AUS (2014), FE 350 USA (2014) Owner's Manual

Download
Page 1
OWNER'S MANUAL 2014
FE 350 EU FE 350 AUS FE 350 USA
Art. no. 3402007en
Page 2
Page 3
DEAR HUSQVARNA CUSTOMER 1
DEARHUSQVARNA CUSTOME R
Congratulations on your decision to purchase a Husqvarna motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will give you enormous pleasure if you service and maintain it accordingly.
Please enter the serial number of your vehicle below.
Chassis number ( p. 12) Stamp of dealer
Engine number ( p. 12)
Key number (FE 350 EU, FE 350 AUS) ( p. 12)
The Owner's Manual contained the latest information for this model at the time of going to print. Slight deviations resulting from continu­ing development and design of the motorcycles can, however, not be completely excluded.
All specifications are non-binding. Husqvarna Motorcycles GmbH specifically reserves the right to modify or delete technical specifications, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to local conditions, as well as to stop production of a particular model without prior notice. Husqvarna accepts no liability for delivery options, deviations from illustrations and descriptions or misprints and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.
© 2013 Husqvarna Motorcycles GmbH, Mattighofen Austria All rights reserved Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061) Husqvarna applies quality assurance processes that lead to the highest possible product quality as defined in the ISO 9001 international quality management standard. Issued by: TÜV Management Service
Husqvarna Motorcycles GmbH 5230 Mattighofen, Austria
Page 4
TABLE OF CONTENTS 2
TABLEOF CONTENTS
1 MEANS OF REPRESENTATION ......................................... 5
1.1 Symbols used ........................................................ 5
1.2 Formats used......................................................... 5
2 SAFETY ADVICE ................................................................ 6
2.1 Use definition - intended use.................................. 6
2.2 Safety advice ......................................................... 6
2.3 Degrees of risk and symbols .................................. 6
2.4 Tampering warning ................................................ 6
2.5 Safe operation........................................................ 7
2.6 Protective clothing ................................................. 7
2.7 Work rules.............................................................. 7
2.8 Environment........................................................... 7
2.9 Owner's Manual..................................................... 8
3 IMPORTANT INFORMATION .............................................. 9
3.1 Manufacturer and implied warranty ........................ 9
3.2 Operating and auxiliary substances ........................ 9
3.3 Spare parts, accessories........................................ 9
3.4 Service................................................................... 9
3.5 Figures................................................................... 9
3.6 Customer service ................................................... 9
4 VIEW OF VEHICLE ........................................................... 10
4.1 View of vehicle, front left (example)....................... 10
4.2 View of vehicle, rear right (example)...................... 11
5 SERIAL NUMBERS........................................................... 12
5.1 Chassis number ................................................... 12
5.2 Type label (FE 350 EU, FE 350 AUS).................... 12
5.3 Key number (FE 350 EU, FE 350 AUS)................. 12
5.4 Engine number..................................................... 12
5.5 Fork part number ................................................. 12
5.6 Shock absorber part number ............................... 13
6 CONTROLS...................................................................... 14
6.1 Clutch lever.......................................................... 14
6.2 Hand brake lever.................................................. 14
6.3 Throttle grip ......................................................... 14
6.4 Kill switch (FE 350 EU, FE 350 AUS) .................... 14
6.5 Kill switch (FE 350 USA) ....................................... 14
6.6 Horn button (FE 350 EU, FE 350 AUS)................. 15
6.7 Light switch (FE 350 EU, FE 350 AUS) ................. 15
6.8 Light switch (FE 350 USA).................................... 15
6.9 Turn signal switch (FE 350 EU, FE 350 AUS)........ 15
6.10 Emergency OFF switch (FE 350 AUS) .................. 15
6.11 Electric starter button (FE 350 EU,
FE 350 USA) ........................................................ 16
6.12 Electric starter button (FE 350 AUS) ..................... 16
6.13 Overview of indicator lamps (FE 350 EU,
FE 350 AUS) ........................................................ 16
6.14 Overview of indicator lamps (FE 350 USA)............ 16
6.15 Opening filler cap ................................................. 16
6.16 Closing filler cap................................................... 17
6.17 Idle speed adjusting screw ................................... 17
6.18 Shift lever ............................................................. 18
6.19 Foot brake lever ................................................... 18
6.20 Side stand............................................................ 18
6.21 Steering lock (FE 350 EU, FE 350 AUS) ............... 19
6.22 Locking the steering (FE 350 EU, FE 350 AUS) .... 19
6.23 Unlocking the steering (FE 350 EU,
FE 350 AUS) ........................................................ 19
7 SPEEDOMETER............................................................... 20
7.1 Overview.............................................................. 20
7.2 Activation............................................................. 20
7.3 Message on the speedometer.............................. 20
7.4 Setting the speedometer...................................... 20
7.5 Setting kilometers or miles ................................... 21
7.6 Setting the clock .................................................. 22
7.7 Setting the service display.................................... 22
7.8 Speed, time, and DST distance 1......................... 23
7.9 Speed, time, and DST2 distance 2....................... 23
7.10 AVG average speed, ART operating hours, and
ODO total distance covered ................................. 23
8 PREPARING FOR USE..................................................... 24
8.1 Advice on first use................................................ 24
8.2 Running-in the engine .......................................... 25
8.3 Preparing the vehicle for difficult riding
conditions ............................................................ 25
8.4 Preparing for rides on dry sand ............................ 26
8.5 Preparing for rides on wet sand ........................... 26
8.6 Preparing for rides on wet and muddy surfaces ... 27
8.7 Preparing for rides at high temperature and slow
speed .................................................................. 27
8.8 Preparing for rides at low temperature or in
snow.................................................................... 27
9 RIDING INSTRUCTIONS................................................... 28
9.1 Checks and maintenance work when preparing
for use ................................................................. 28
9.2 Starting................................................................ 28
9.3 Starting off ........................................................... 29
9.4 Shifting, riding ...................................................... 29
9.5 Braking ................................................................ 29
9.6 Stopping, parking................................................. 30

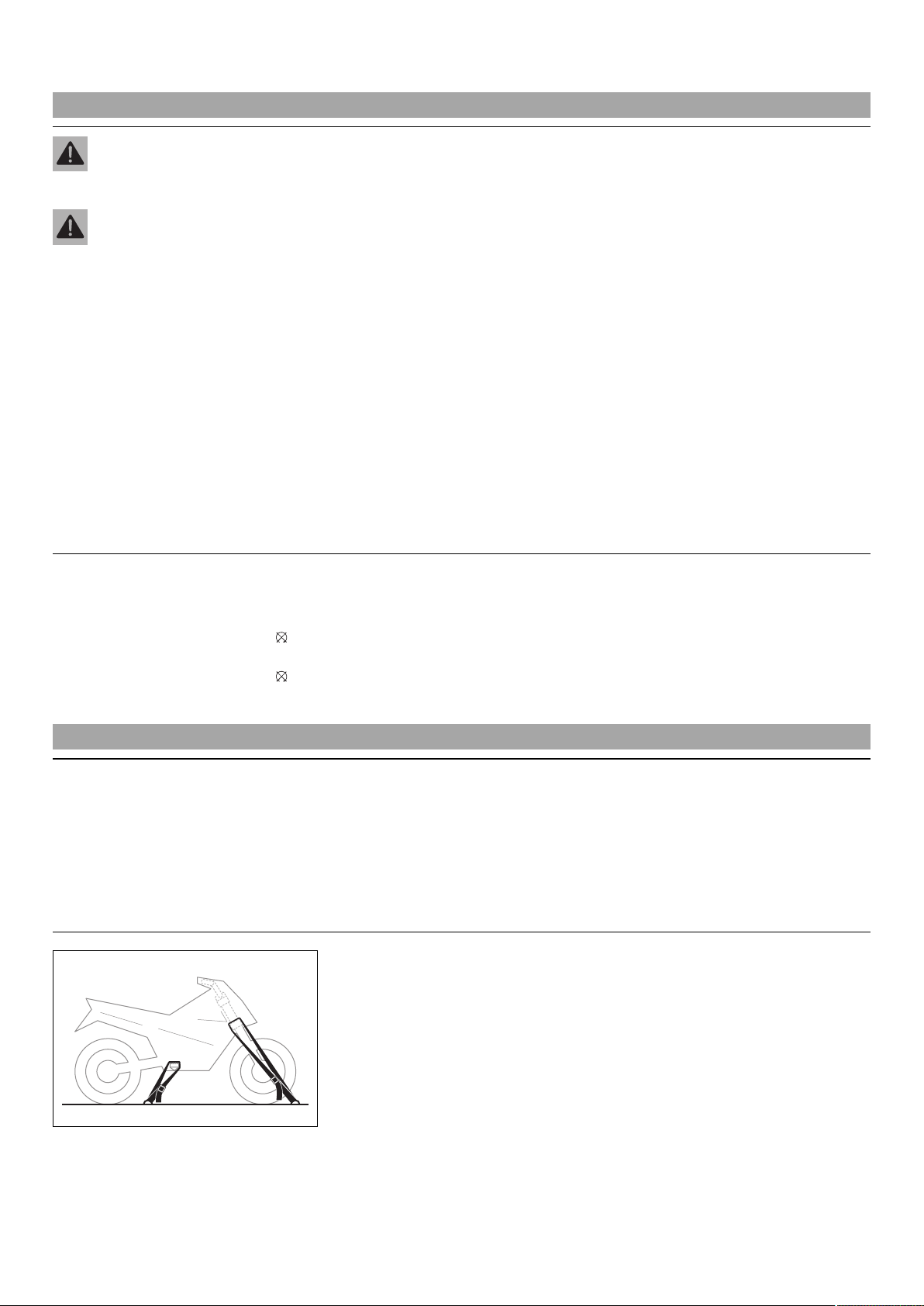

9.7 Transport ............................................................. 30
9.8 Refueling.............................................................. 31
10 SERVICE SCHEDULE....................................................... 32
10.1 Service schedule.................................................. 32
10.2 Service work (as additional order)......................... 33
11 TUNING THE CHASSIS.................................................... 34
11.1 Checking the basic chassis setting with the
rider's weight ....................................................... 34
11.2 Compression damping of shock absorber............ 34
11.3 Adjusting the low-speed compression damping
of the shock absorber .......................................... 34
11.4 Adjusting the high-speed compression damping
of the shock absorber .......................................... 35
11.5 Adjusting the rebound damping of the shock
absorber .............................................................. 35
11.6 Measuring rear wheel sag unloaded..................... 36
11.7 Checking the static sag of the shock absorber..... 36
11.8 Checking the riding sag of the shock absorber..... 36
11.9 Adjusting the spring preload of the shock
absorber x......................................................... 37
11.10 Adjusting the riding sag x................................... 37
11.11 Checking basic setting of fork .............................. 38
11.12 Adjusting the compression damping of the fork.... 38
11.13 Adjusting the rebound damping of the fork........... 39

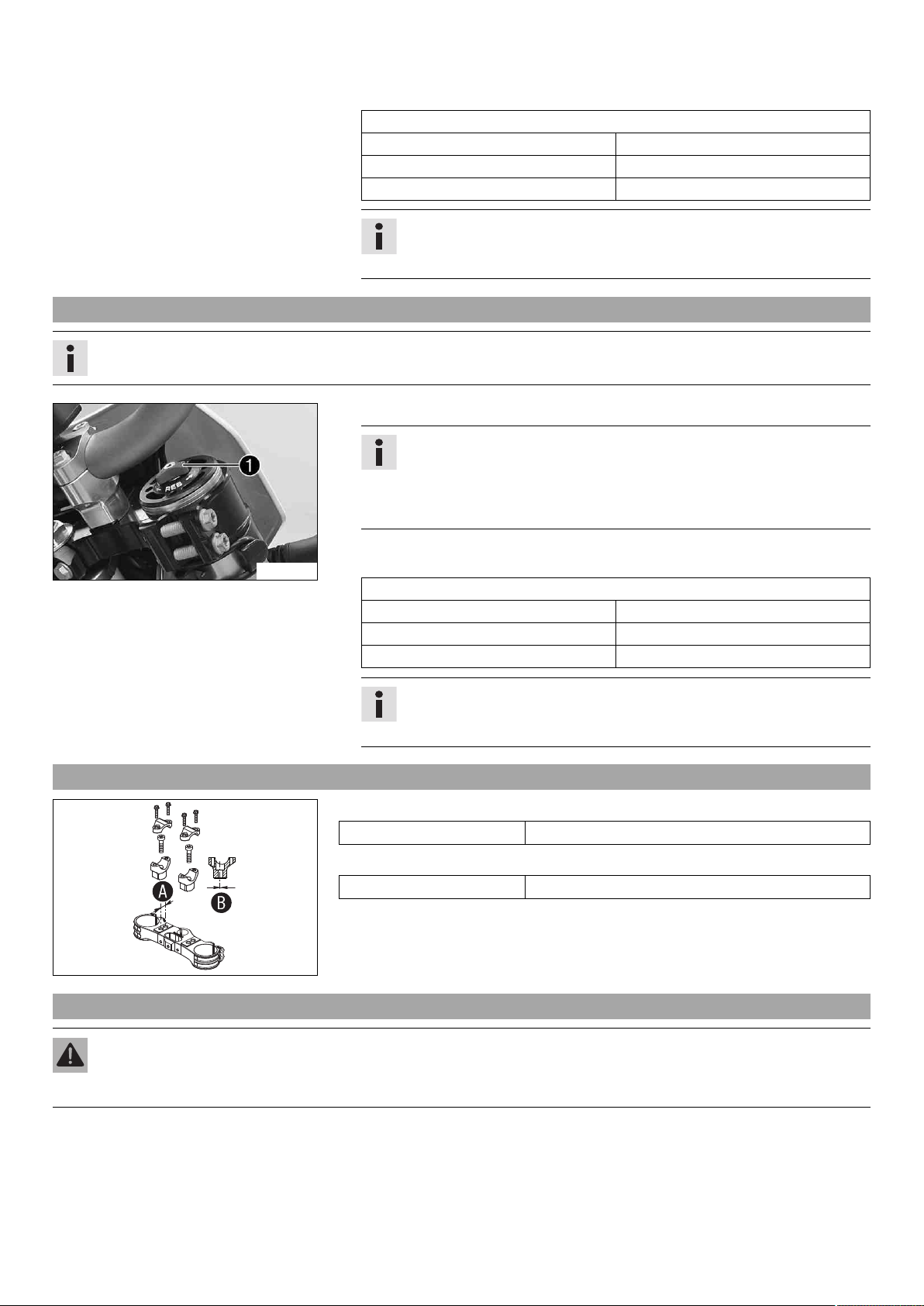

11.14 Handlebar position ............................................... 39

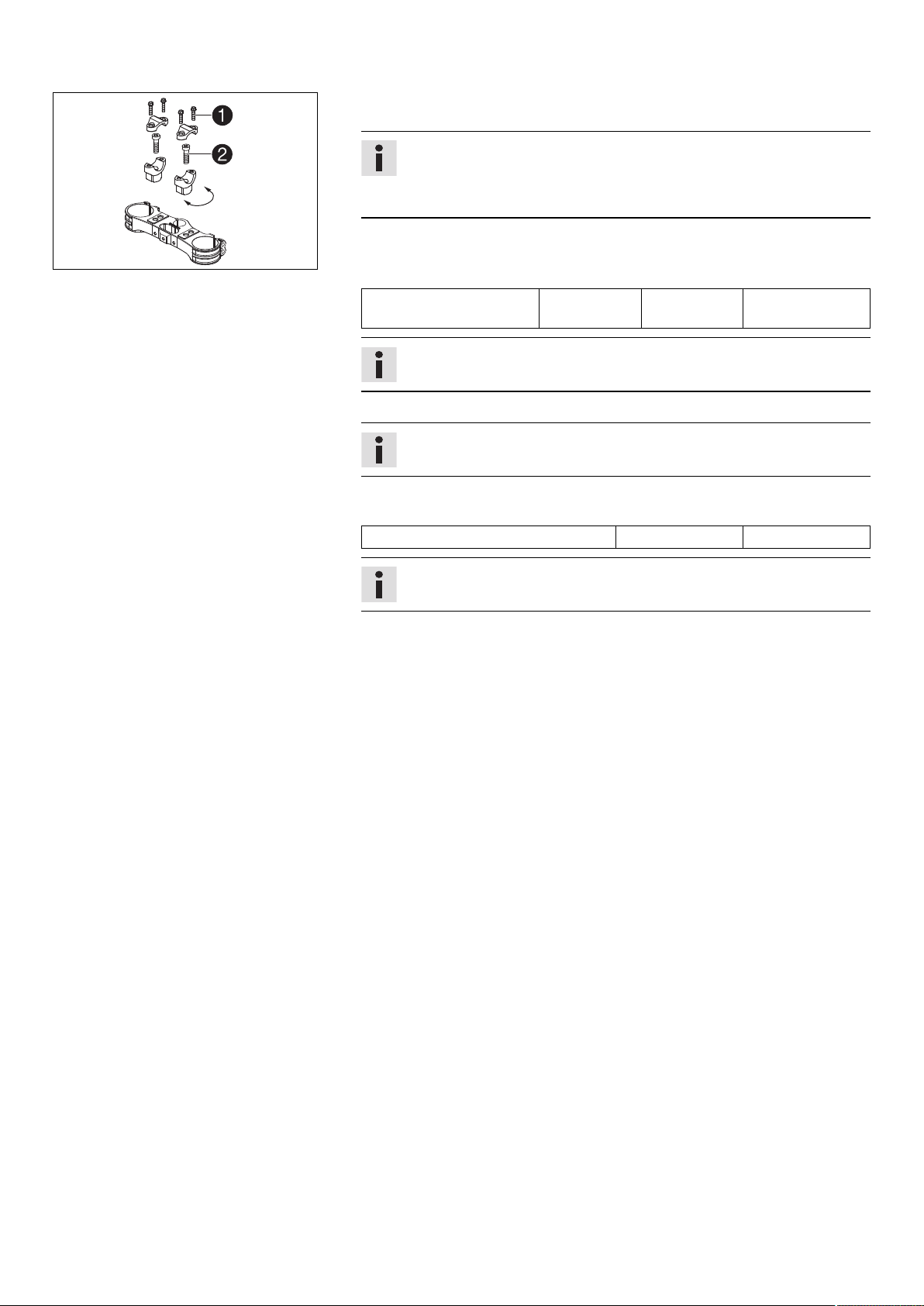

11.15 Adjusting the handlebar position x..................... 39
12 SERVICE WORK ON THE CHASSIS................................. 41
12.1 Raising the motorcycle with a lift stand................. 41
12.2 Removing the motorcycle from the lift stand......... 41
12.3 Bleeding fork legs ................................................ 41
Page 5
TABLE OF CONTENTS 3
12.4 Cleaning the dust boots of the fork legs ............... 41
12.5 Loosening the fork protector ................................ 42
12.6 Positioning the fork protector ............................... 42
12.7 Removing the fork legs......................................... 42
12.8 Installing the fork legs x...................................... 43
12.9 Removing the fork protector x ........................... 43
12.10 Installing the fork protector x.............................. 44
12.11 Removing the lower triple clamp x ..................... 44
12.12 Installing the lower triple clamp x ....................... 45
12.13 Checking the steering head bearing play.............. 46
12.14 Adjusting the play of the steering head
bearing x ........................................................... 47
12.15 Lubricating the steering head bearing x ............. 47
12.16 Removing the front fender.................................... 48
12.17 Installing the front fender ...................................... 48

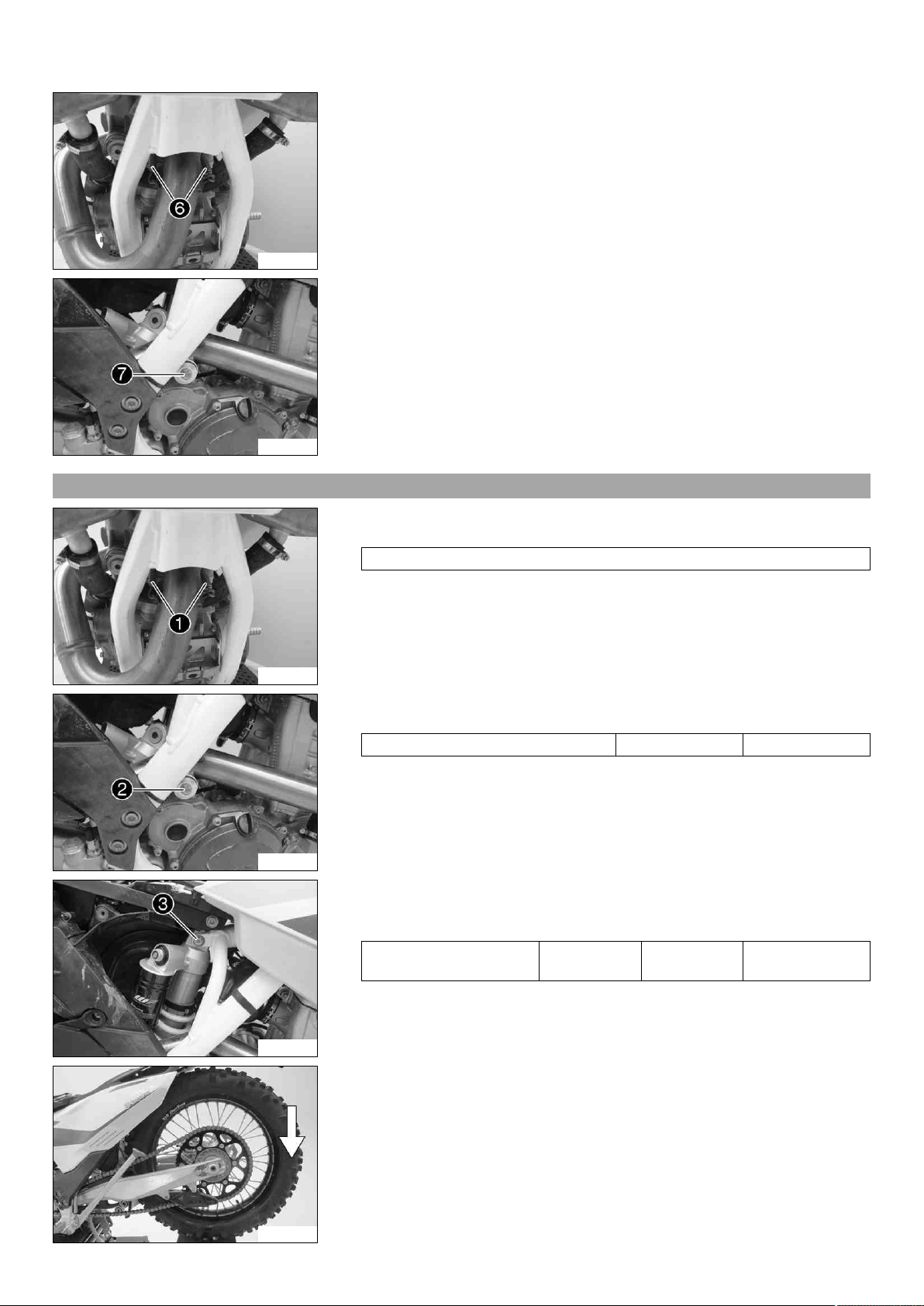

12.18 Removing the shock absorber x ........................ 49
12.19 Installing the shock absorber x .......................... 49

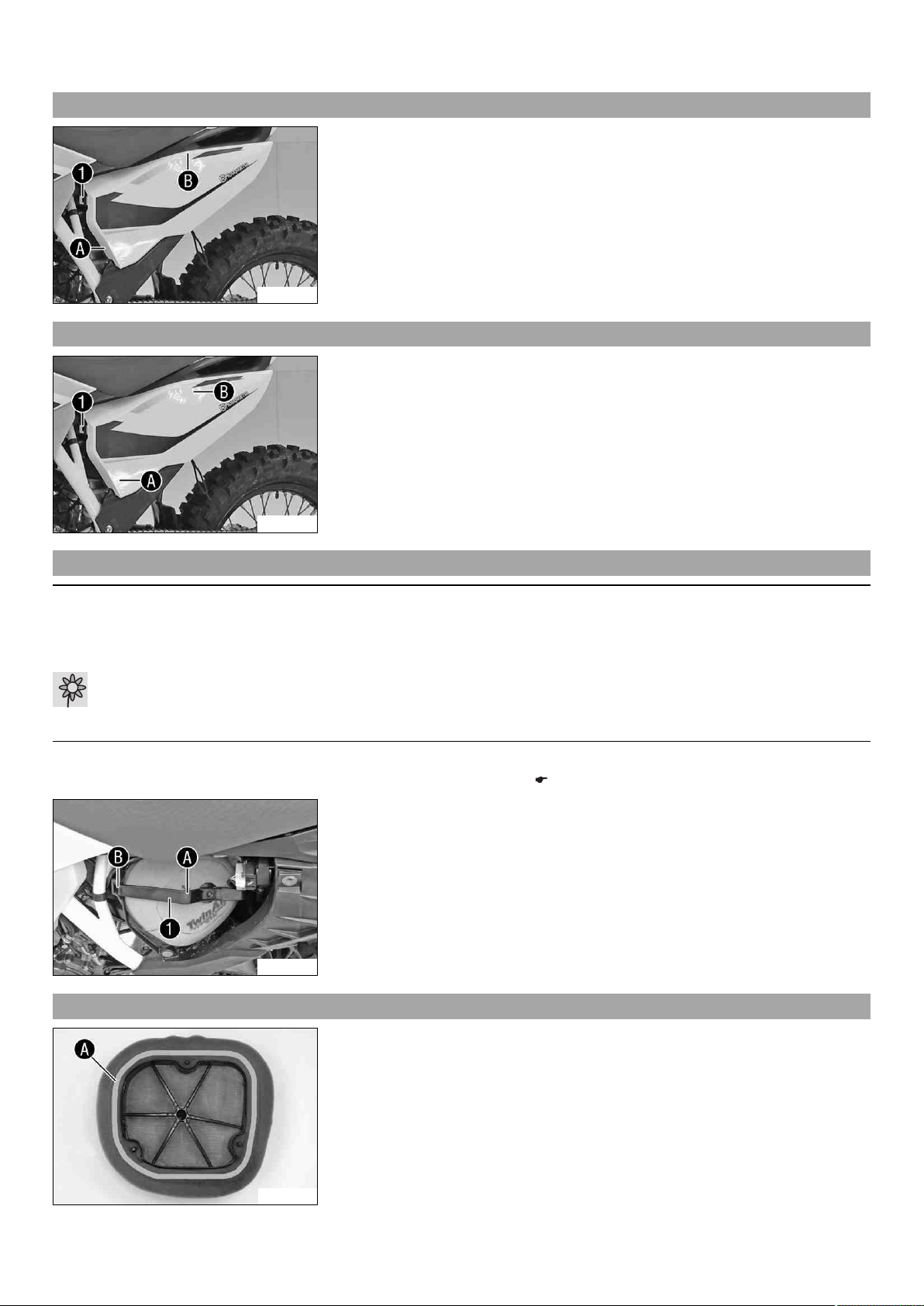

12.20 Removing the seat ............................................... 49
12.21 Mounting the seat ................................................ 49
12.22 Removing the air filter box lid ............................... 50
12.23 Installing the air filter box lid.................................. 50
12.24 Removing the air filter x ..................................... 50
12.25 Installing the air filter x........................................ 50
12.26 Cleaning the air filter and air filter box x.............. 51
12.27 Sealing the air filter box x................................... 51
12.28 Removing the manifold x ................................... 52
12.29 Installing the manifold x...................................... 53

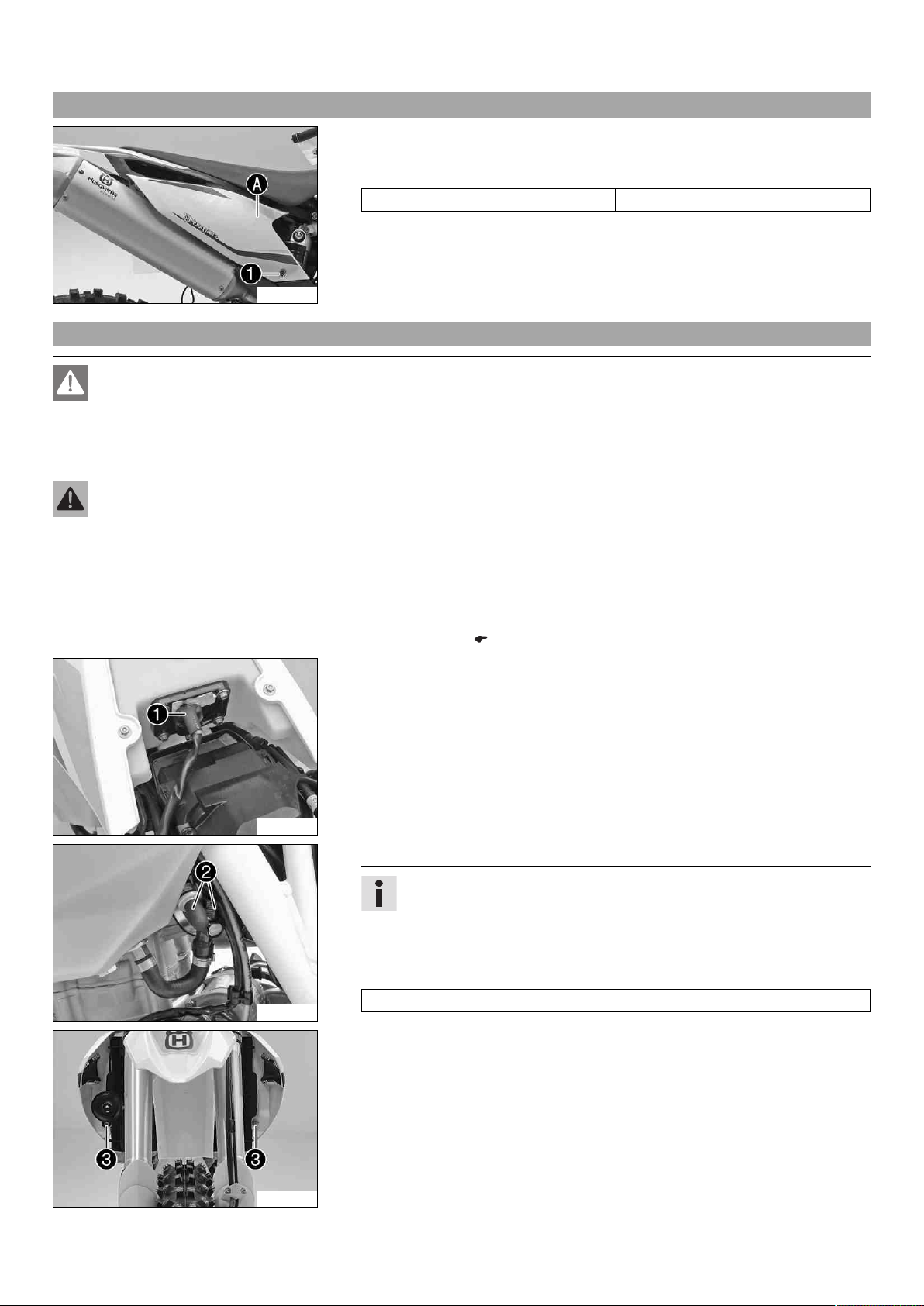

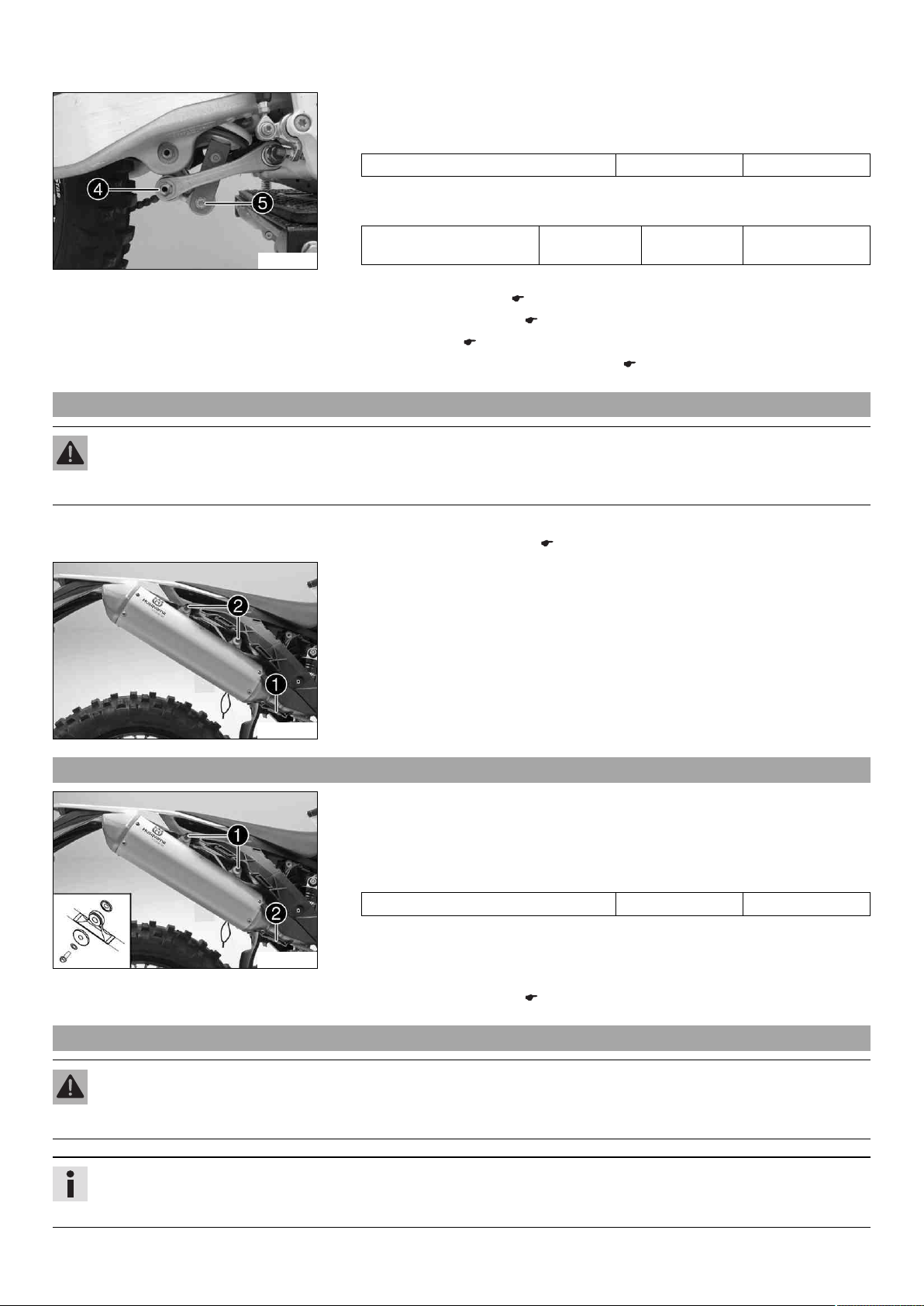

12.30 Removing the main silencer ................................. 54
12.31 Installing the main silencer.................................... 54

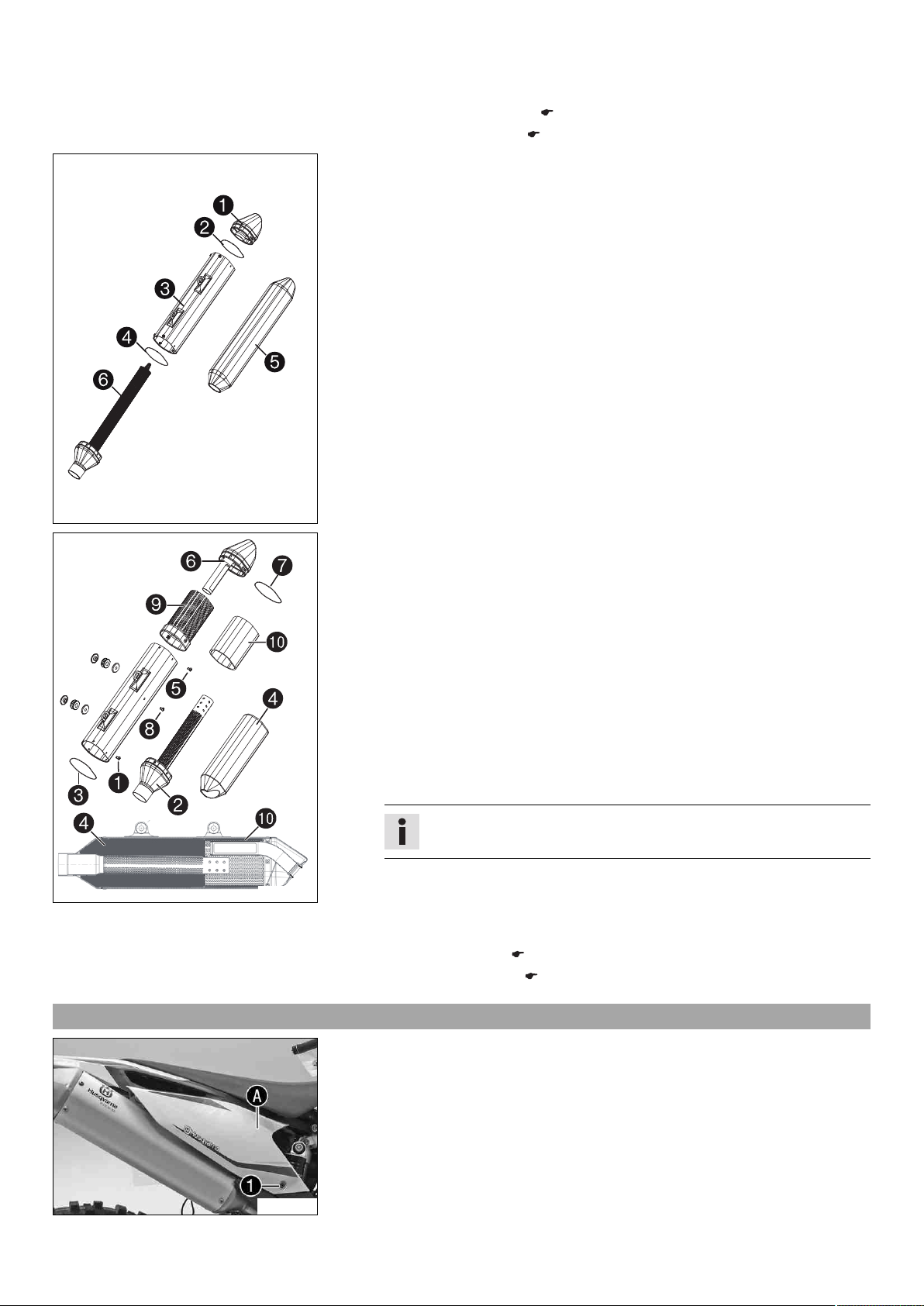

12.32 Changing the glass fiber yarn filling of the main
silencer x ........................................................... 54
12.33 Removing the right side cover .............................. 55
12.34 Installing the right side cover ................................ 56
12.35 Removing the fuel tank x ................................... 56
12.36 Installing the fuel tank x...................................... 57

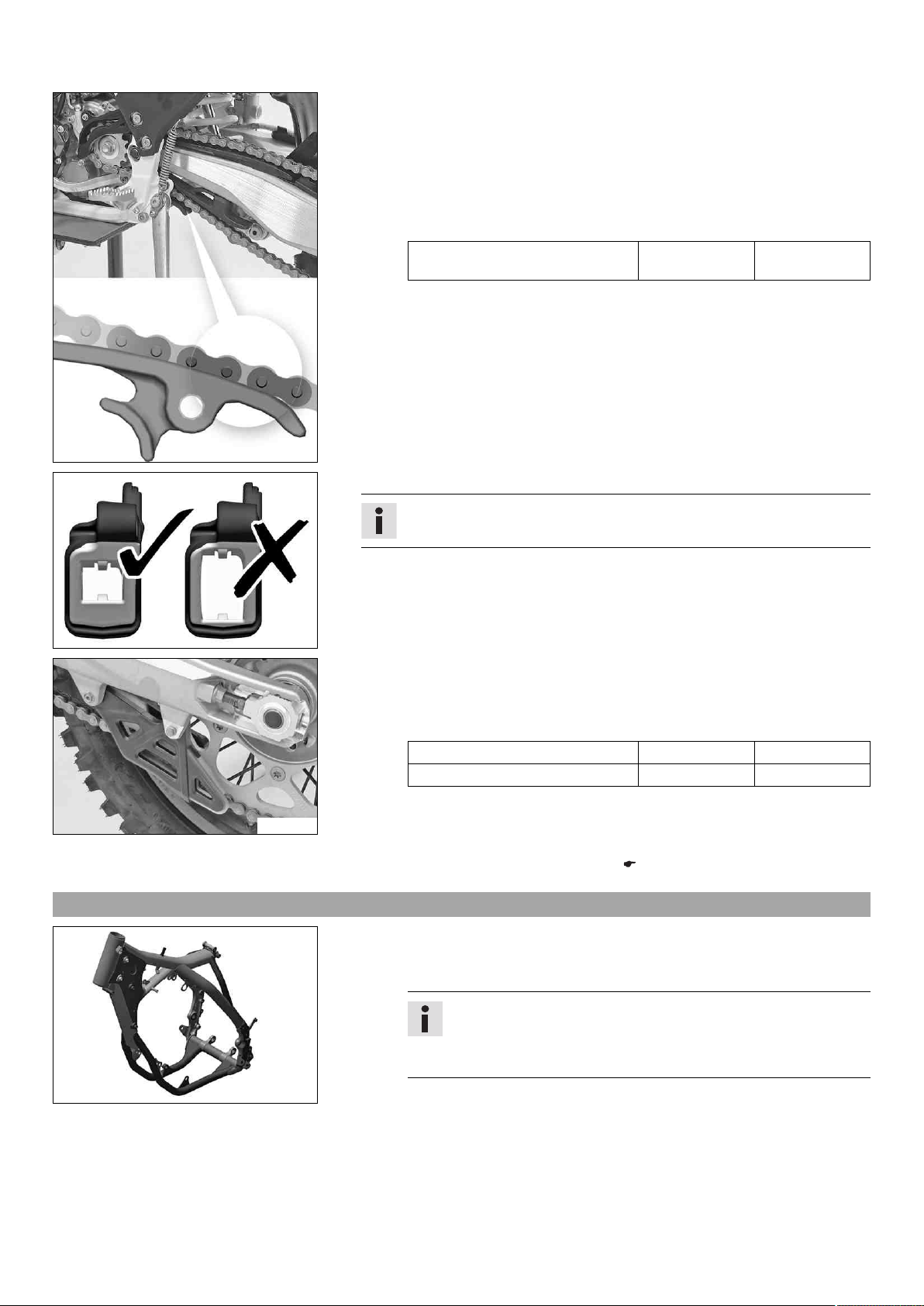

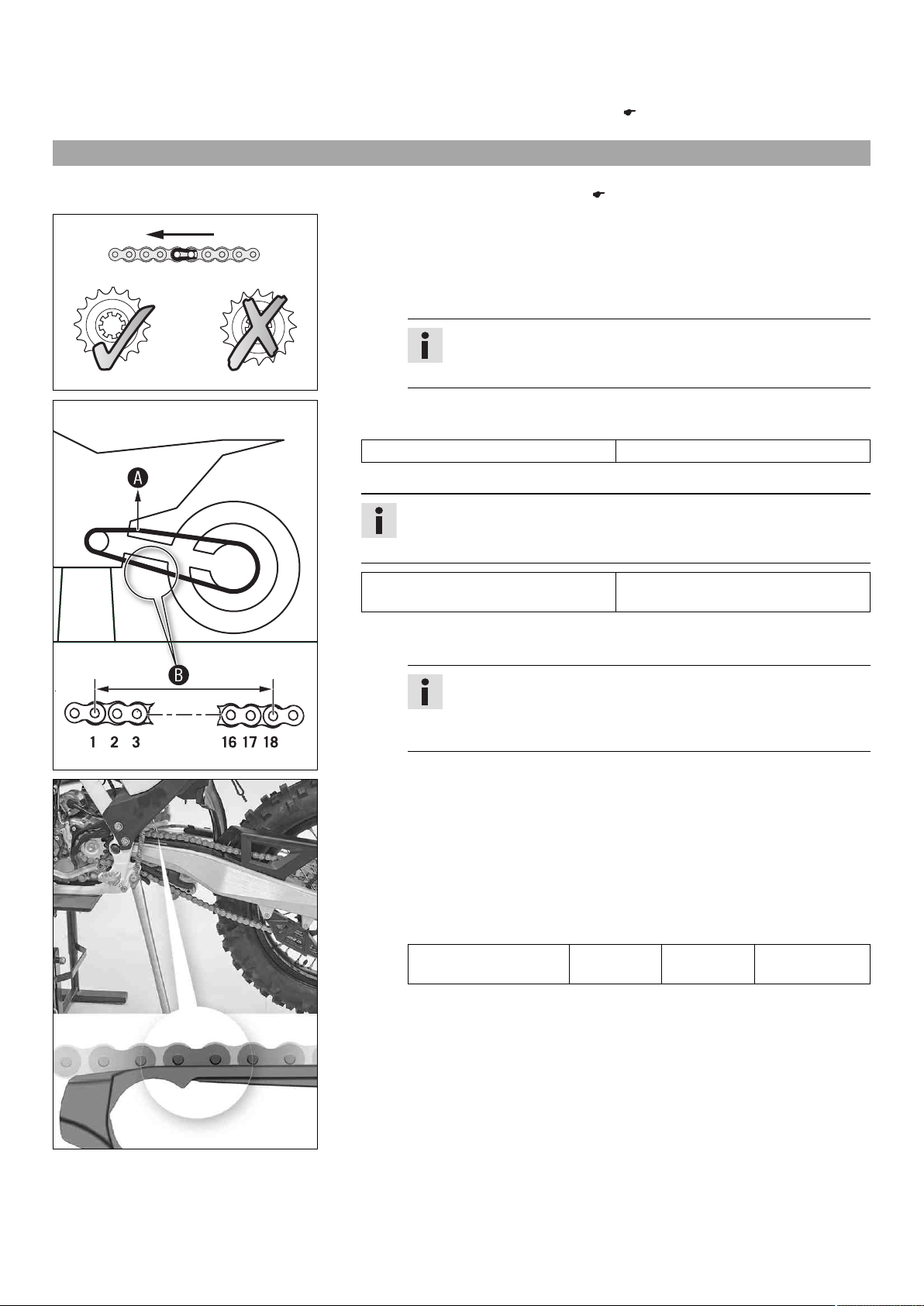

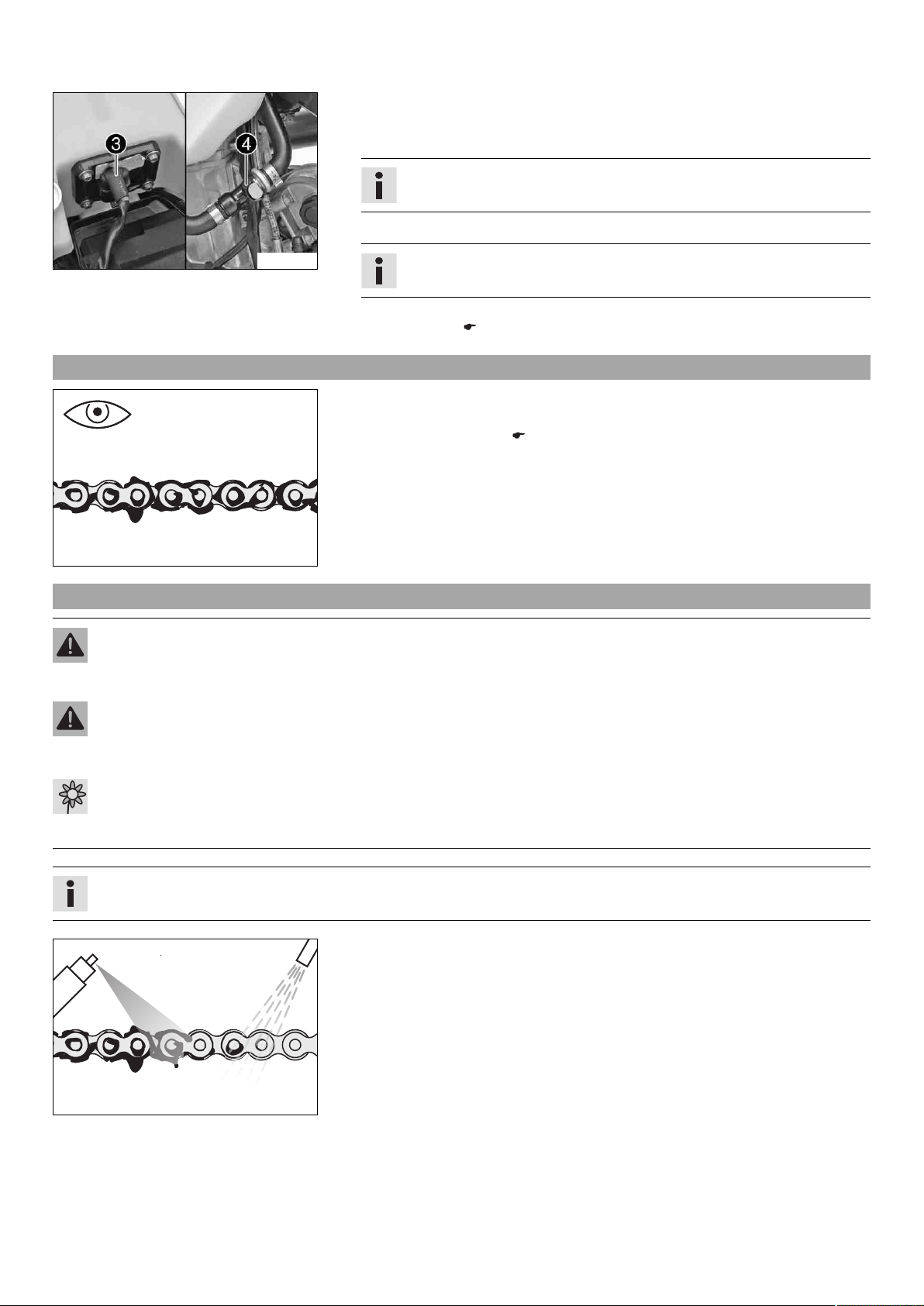

12.37 Checking for chain dirt accumulation.................... 58
12.38 Cleaning the chain ............................................... 58
12.39 Checking the chain tension .................................. 59
12.40 Adjusting the chain tension .................................. 59
12.41 Checking the chain, rear sprocket, engine
sprocket and chain guide ..................................... 60
12.42 Checking the frame x......................................... 61
12.43 Checking the swingarm x .................................. 62
12.44 Checking the routing of the throttle cable ............. 62
12.45 Checking the rubber grip...................................... 62
12.46 Additionally securing the rubber grip .................... 63
12.47 Adjusting the basic position of the clutch lever ..... 63
12.48 Checking/rectifying the fluid level of the
hydraulic clutch .................................................... 63
12.49 Changing the hydraulic clutch fluid x.................. 63
12.50 Removing the engine guard ................................. 64
12.51 Installing the engine guard.................................... 64
13 BRAKE SYSTEM .............................................................. 65
13.1 Checking free travel of hand brake lever............... 65
13.2 Adjusting free travel of hand brake lever
(FE 350 EU, FE 350 AUS)..................................... 65
13.3 Adjusting the basic position of the hand brake
lever (FE 350 USA) ............................................... 65
13.4 Checking the brake discs..................................... 66
13.5 Checking the front brake fluid level ....................... 66
13.6 Adding front brake fluid x................................... 66
13.7 Checking the front brake linings ........................... 67
13.8 Changing the front brake linings x...................... 68
13.9 Checking the free travel of foot brake lever........... 69
13.10 Adjusting the basic position of the foot brake
lever x................................................................ 69
13.11 Checking the rear brake fluid level ........................ 70

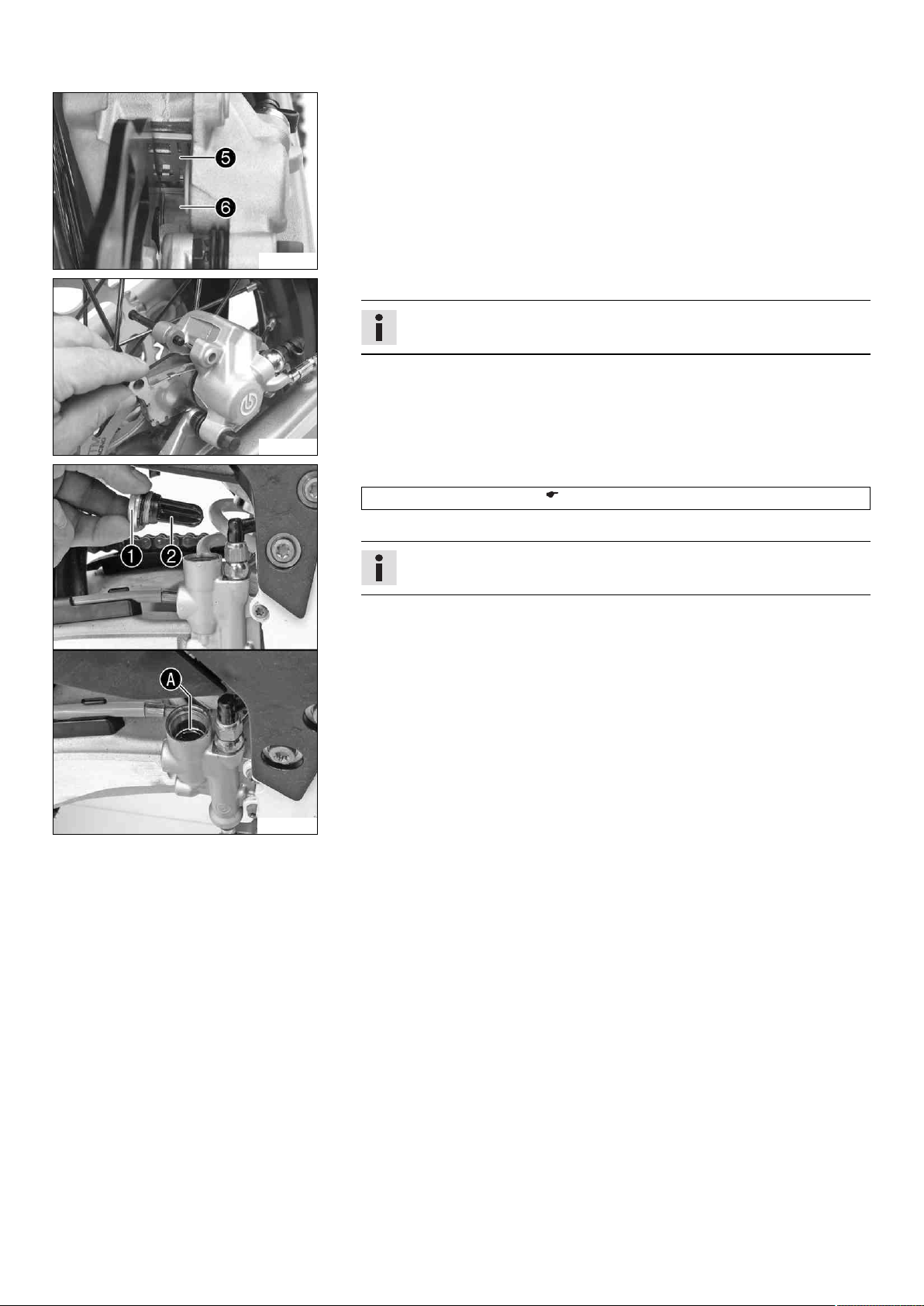

13.12 Adding rear brake fluid x.................................... 70
13.13 Checking the rear brake linings ............................ 71
13.14 Changing the rear brake linings x....................... 72
14 WHEELS, TIRES............................................................... 74

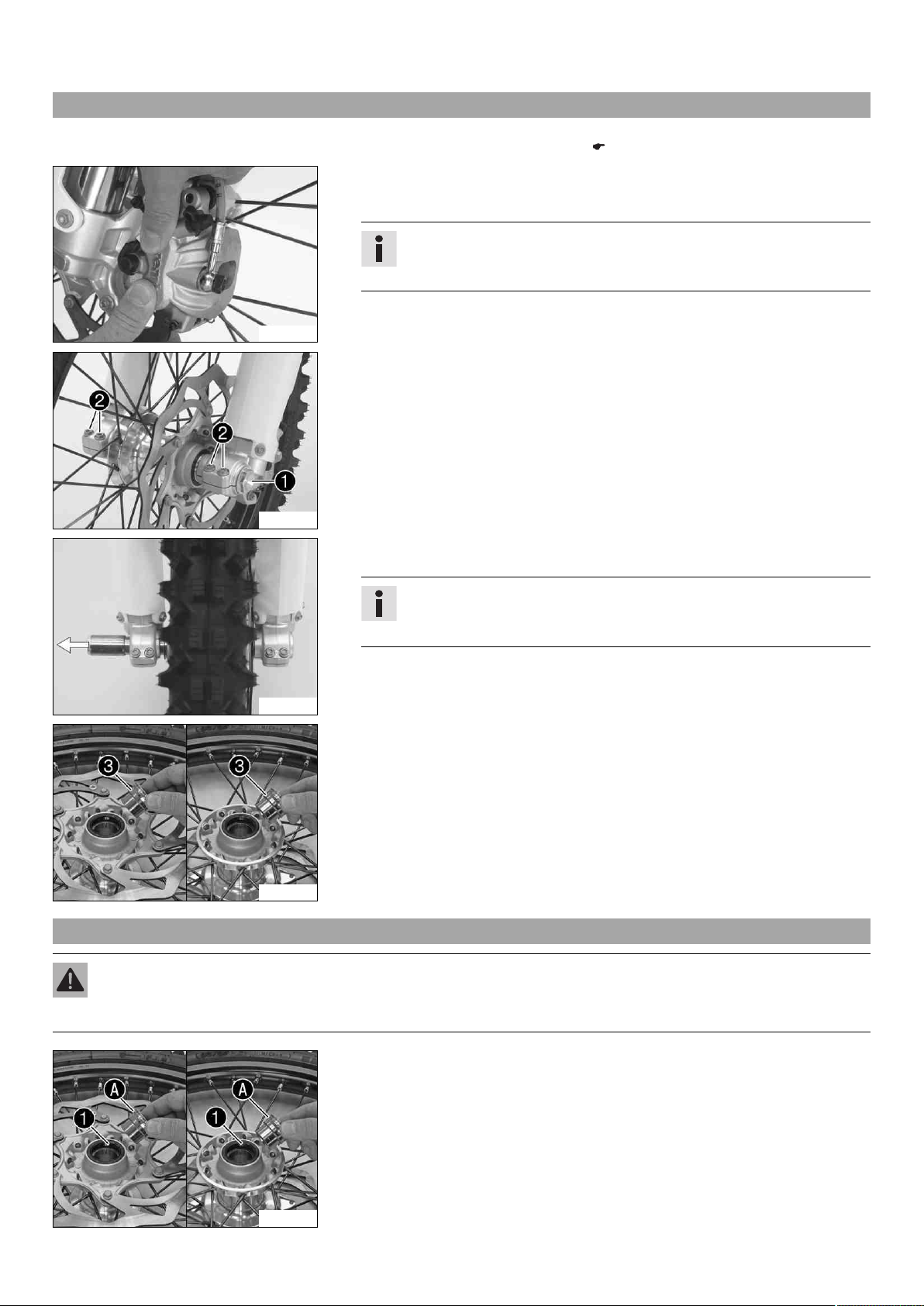

14.1 Removing the front wheel x ............................... 74
14.2 Installing the front wheel x.................................. 74
14.3 Removing the rear wheel x ................................ 75

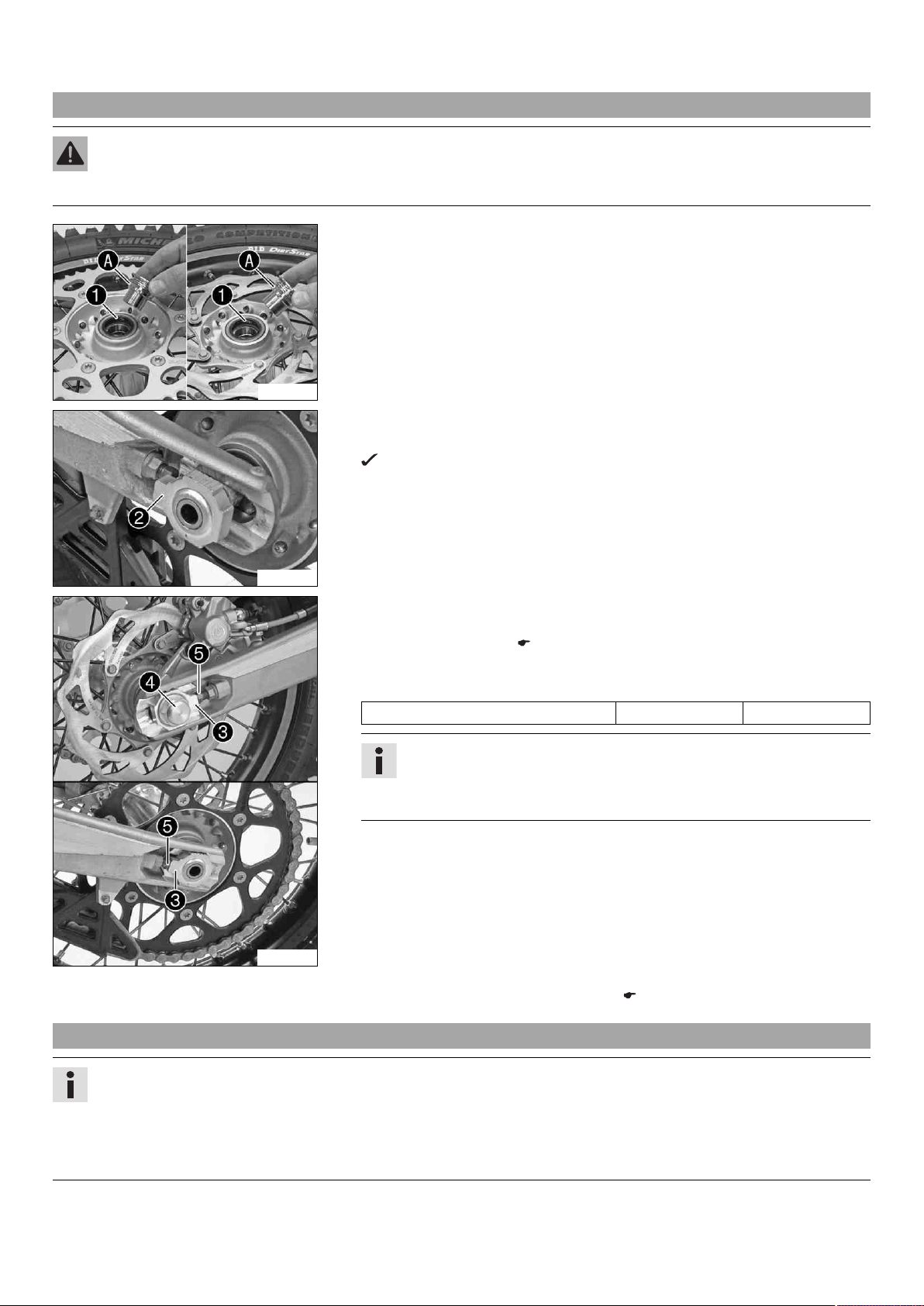

14.4 Installing the rear wheel x................................... 76
14.5 Checking the tire condition................................... 76
14.6 Checking the tire air pressure............................... 77
14.7 Checking spoke tension....................................... 77
15 ELECTRICAL SYSTEM ..................................................... 79

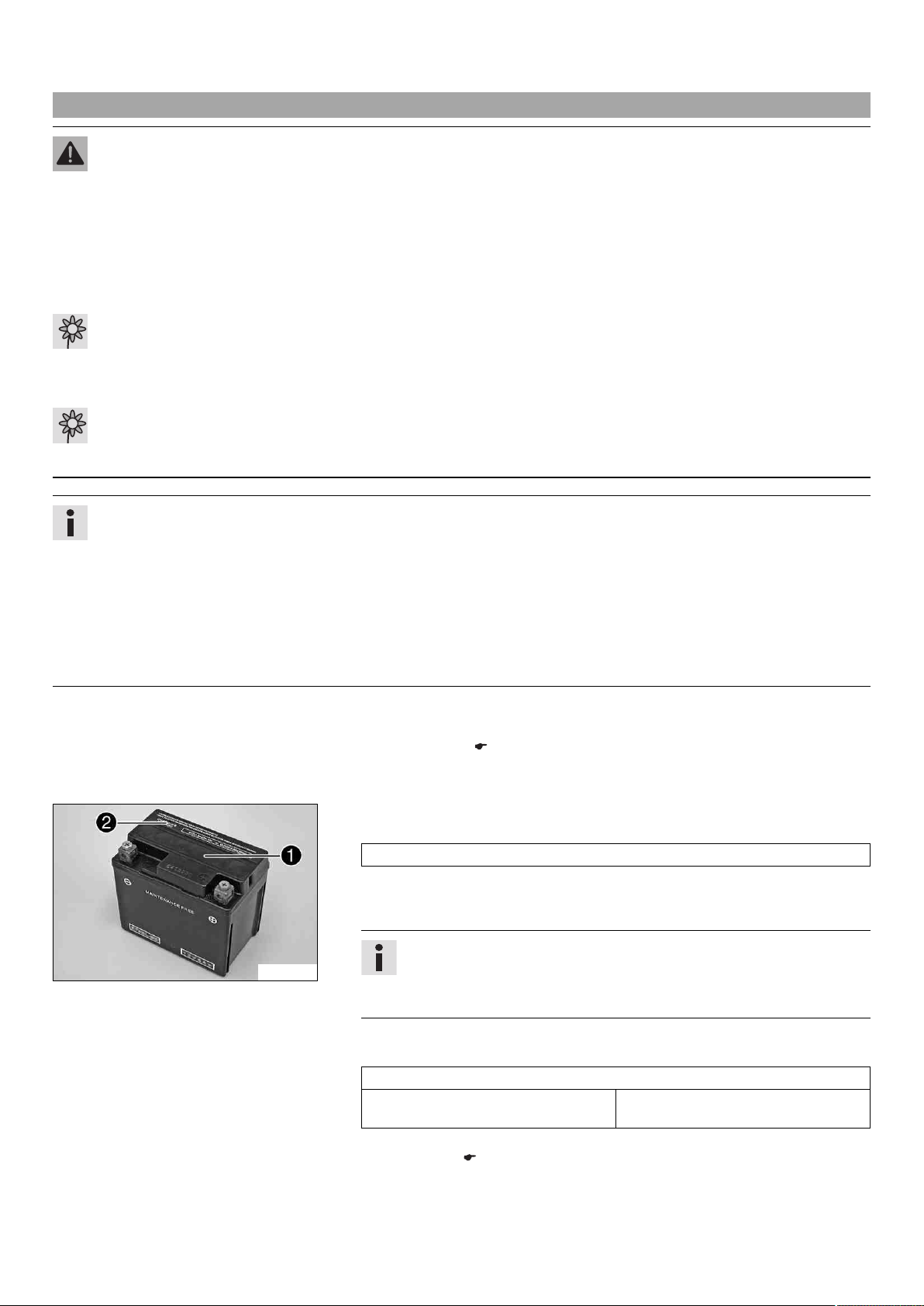

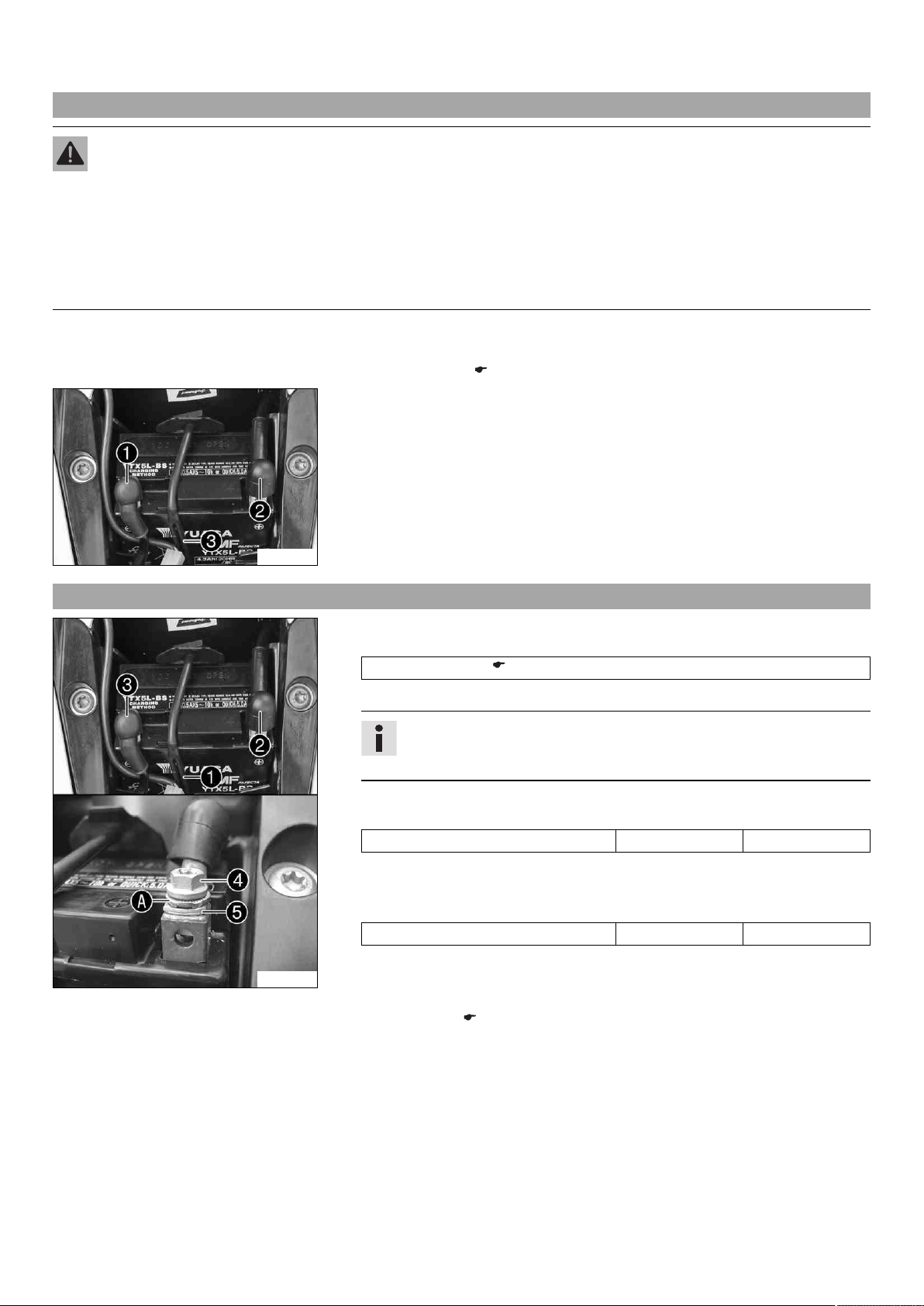

15.1 Removing the battery x...................................... 79
15.2 Installing the battery x........................................ 79
15.3 Charging the battery x ....................................... 80
15.4 Changing the main fuse ....................................... 81

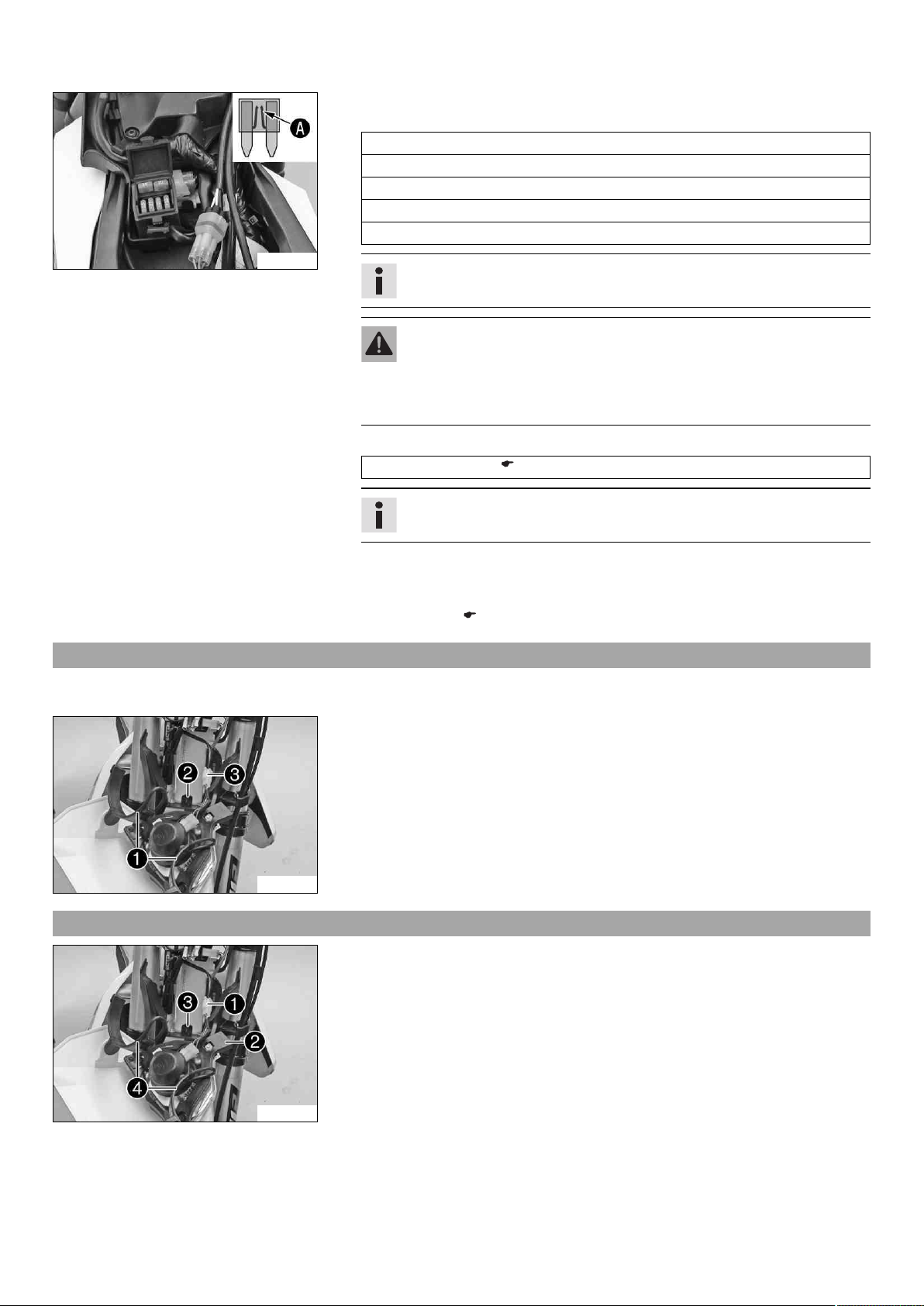

15.5 Changing the fuses of individual power
consumers........................................................... 81
15.6 Removing the headlight mask with the
headlight.............................................................. 82
15.7 Installing the headlight mask with the headlight .... 82

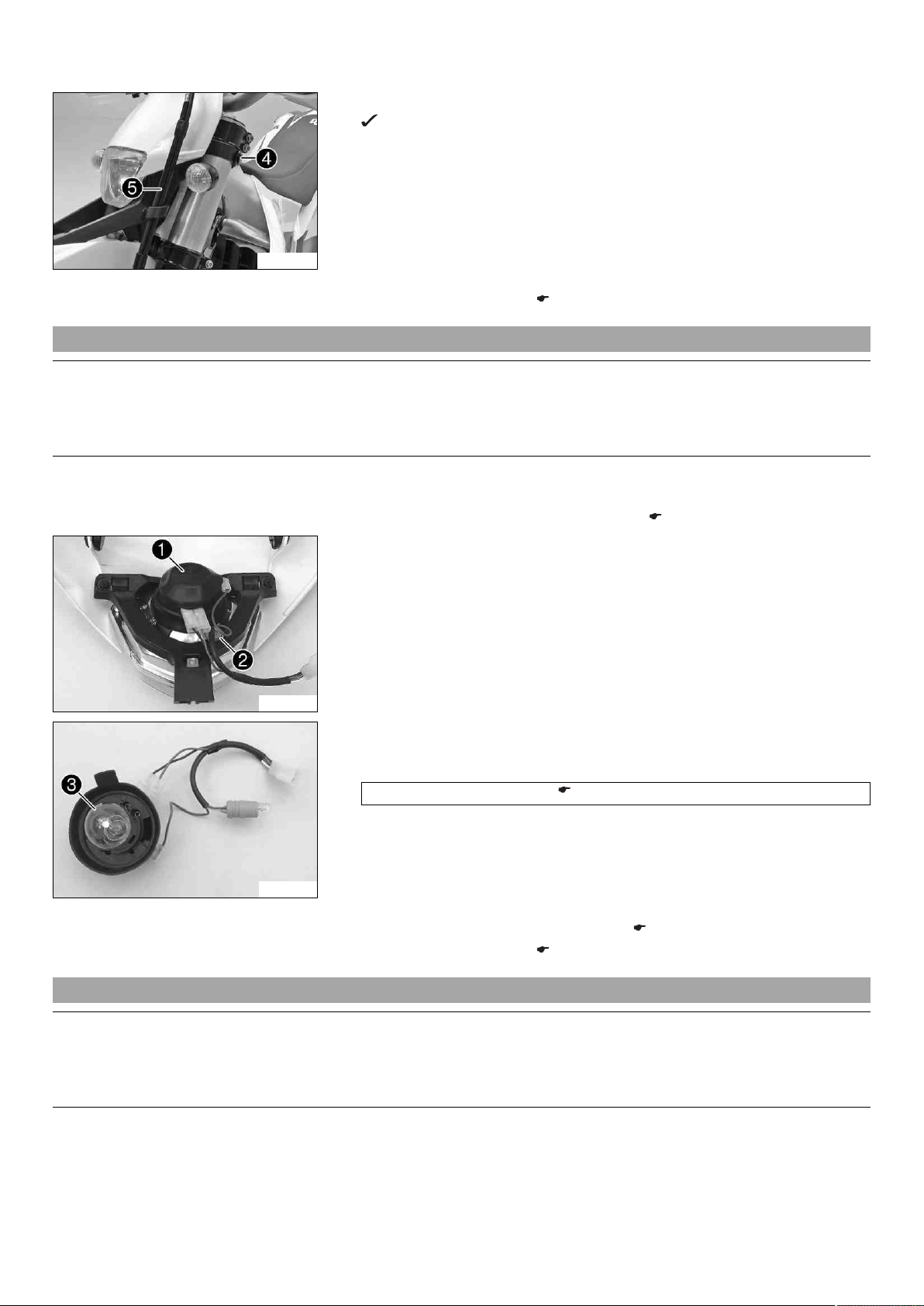

15.8 Changing the headlight bulb................................. 83
15.9 Changing the turn signal bulb (FE 350 EU,
FE 350 AUS) ........................................................ 83
15.10 Checking the headlight setting ............................. 84
15.11 Adjusting the headlight range ............................... 84

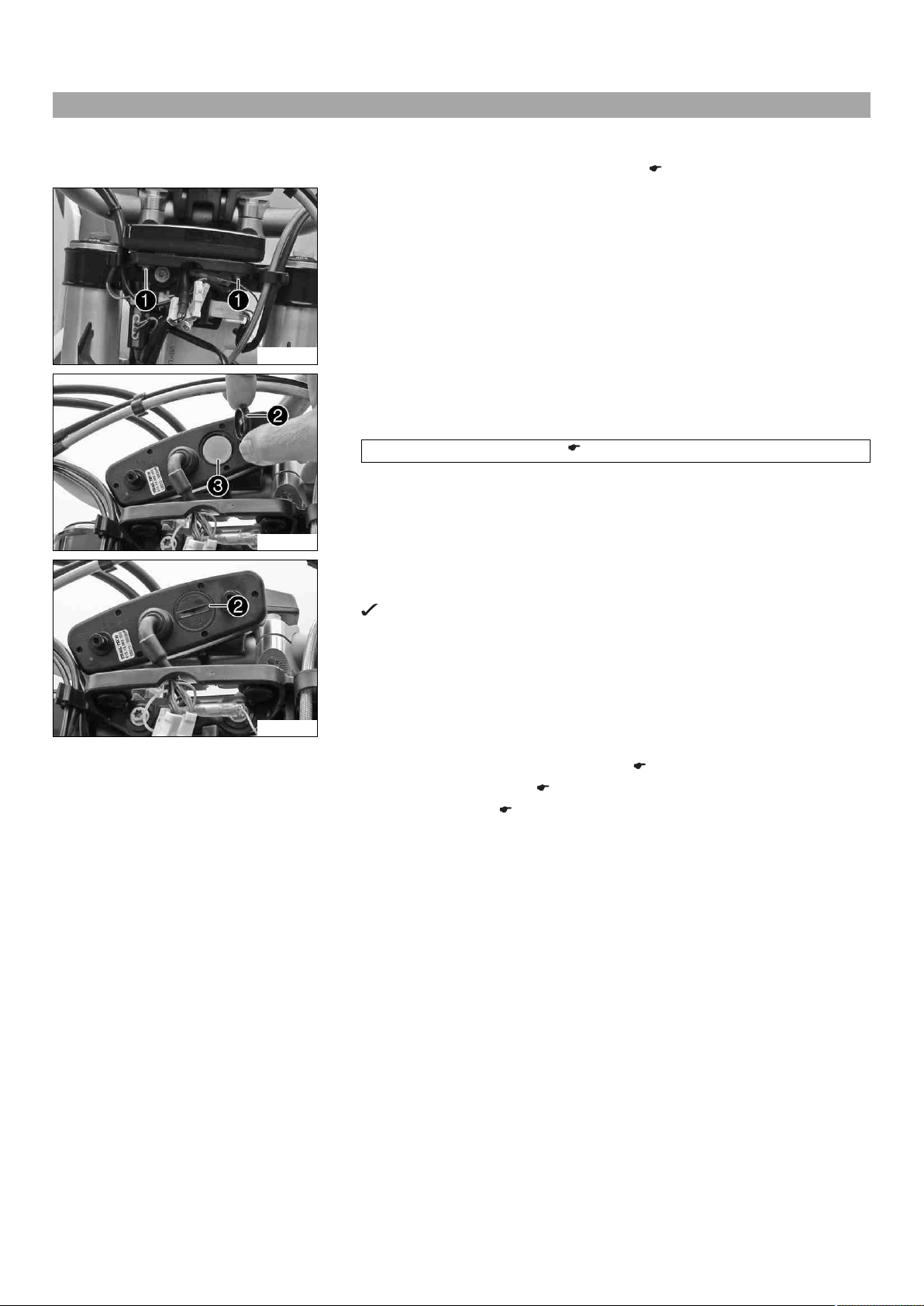

15.12 Changing the speedometer battery ...................... 85
16 COOLING SYSTEM.......................................................... 86
16.1 Cooling system .................................................... 86
16.2 Checking the antifreeze and coolant level............. 86
16.3 Checking the coolant level ................................... 87
16.4 Draining the coolant x........................................ 87
16.5 Refilling coolant x............................................... 88
17 TUNING THE ENGINE ...................................................... 89
17.1 Checking the play in the throttle cable.................. 89
17.2 Adjusting the play in the throttle cable x............. 89
17.3 Adjusting the idle speed x.................................. 90
17.4 Checking the basic position of the shift lever........ 90
17.5 Adjusting the basic position of the shift lever x... 90
18 SERVICE WORK ON THE ENGINE................................... 91
18.1 Changing the fuel screen x ................................ 91
18.2 Checking the engine oil level ................................ 91
18.3 Changing the engine oil and oil filter, cleaning
the oil screen x .................................................. 92

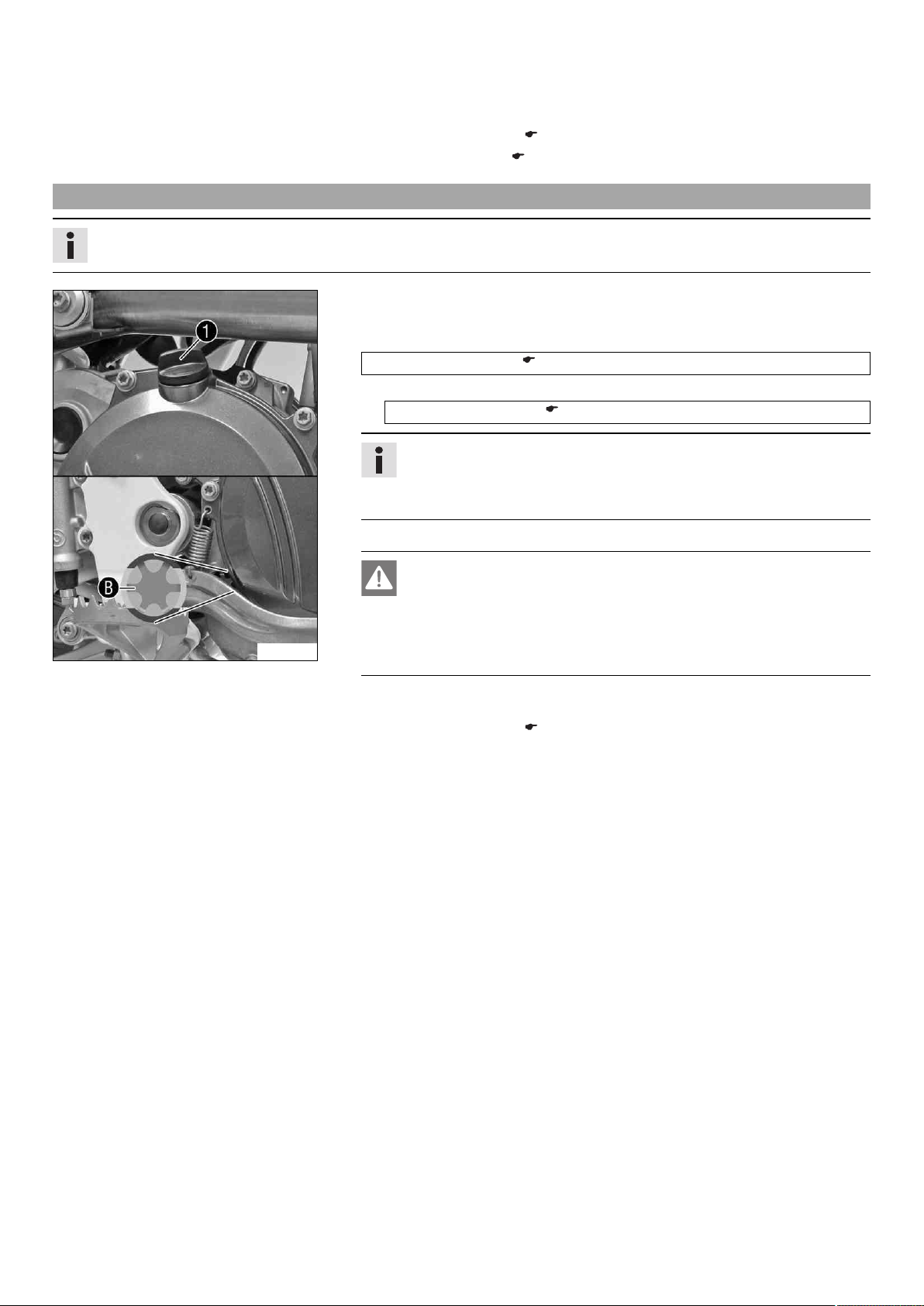

18.4 Adding engine oil ................................................. 94
19 CLEANING, CARE............................................................ 95

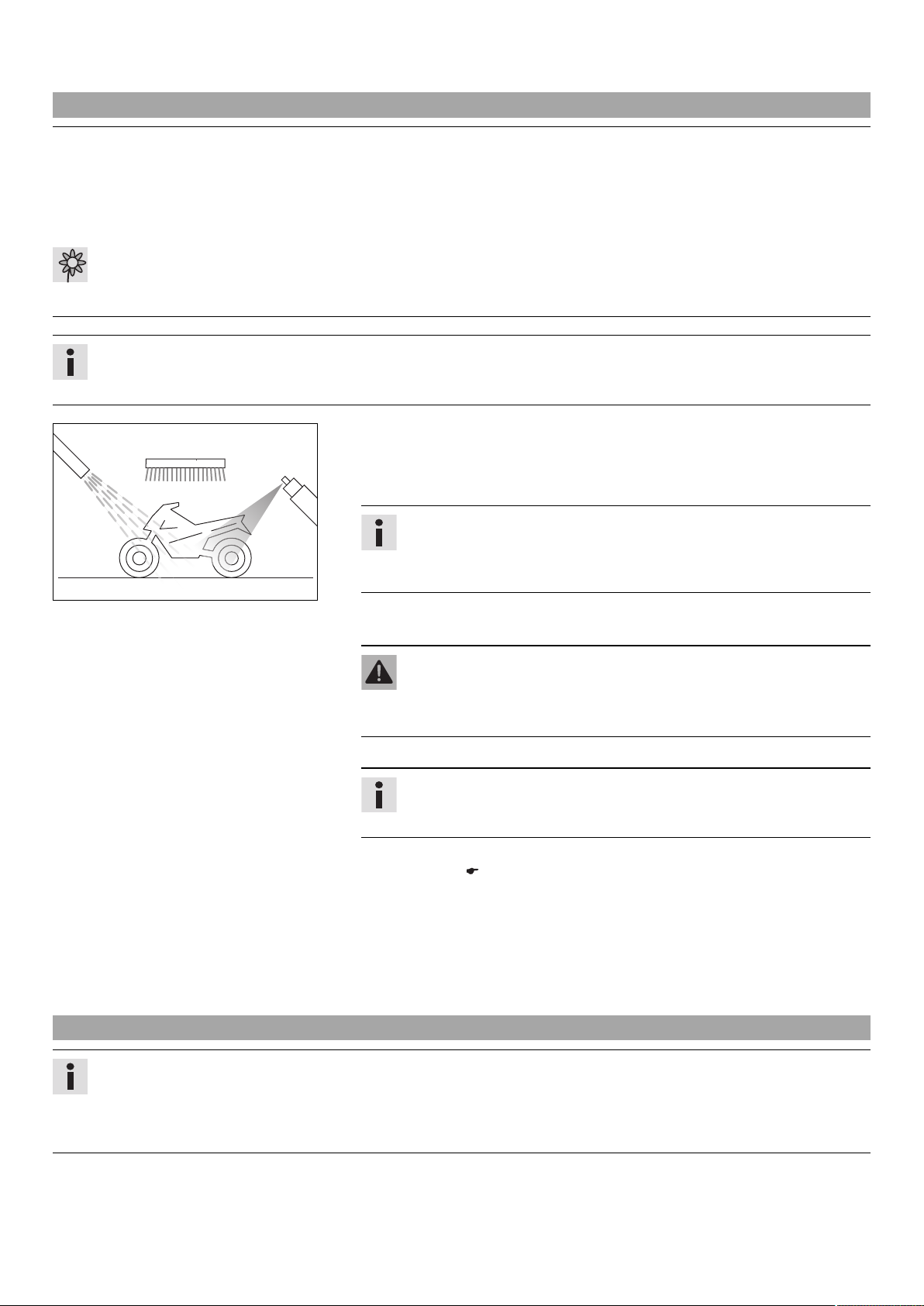

19.1 Cleaning the motorcycle....................................... 95
19.2 Checks and maintenance steps for winter
operation ............................................................. 95
20 STORAGE ........................................................................ 97
20.1 Storage................................................................ 97
20.2 Preparing for use after storage ............................. 97
21 TROUBLESHOOTING ...................................................... 98
Page 6
TABLE OF CONTENTS 4
22 BLINK CODE.................................................................. 100
23 TECHNICAL DATA ......................................................... 102
23.1 Engine................................................................ 102
23.2 Engine tightening torques................................... 102
23.3 Capacities.......................................................... 104
23.3.1 Engine oil....................................................... 104
23.3.2 Coolant ......................................................... 104
23.3.3 Fuel ............................................................... 104
23.4 Chassis.............................................................. 104
23.5 Electrical system ................................................ 105
23.6 Tires................................................................... 105
23.7 Fork ................................................................... 105
23.8 Shock absorber ................................................. 106
23.9 Chassis tightening torques................................. 106
24 SUBSTANCES ............................................................... 108
25 AUXILIARY SUBSTANCES ............................................. 110
26 STANDARDS.................................................................. 111
INDEX..................................................................................... 112
Page 7

1 MEANS OF REPRESENTATION 5

1.1 Symbols used

The meaning of specific symbols is described below.
Identifies an expected reaction (e.g. of a work step or a function).
Identifies an unexpected reaction (e.g. of a work step or a function).
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of your own safety, have these jobs performed by an authorized Husqvarna workshop. There, your motorcycle will be opti­mally cared for by specially trained experts using the specialist tools required.
Identifies a page reference (more information is provided on the specified page).

1.2 Formats used

The typographical formats used in this document are explained below.
Specific name Identifies a proprietary name.
®
Name
Brand™ Identifies a brand available on the open market.
Identifies a protected name.
Page 8

2 SAFETY ADVICE 6

2.1 Use definition - intended use

(FE 350 EU, FE 350 AUS)
Husqvarna sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcy­cles comply with currently valid regulations and categories of the top international motorsport organizations.
Info
The vehicle should only be used by trained persons. The motorcycle is authorized for public road traffic in the homologous (reduced) version only. In the derestricted version, the motorcycle must be used only on closed off properties remote from public road traffic. This motorcycle is designed for use in offroad endurance competition and not primarily for use in motocross.
(FE 350 USA)
Husqvarna sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcy­cles comply with currently valid regulations and categories of the top international motorsport organizations.
Info
The motorcycle may only be used in closed off areas remote from public road traffic. This motorcycle is designed for use in offroad endurance competition and not primarily for use in motocross.

2.2 Safety advice

A number of safety instructions need to be followed to operate the vehicle safely. Therefore, read this manual carefully. The safety instructions are highlighted in the text and are referred to at the relevant passages.
Info
The vehicle has various information and warning labels at prominent locations. Do not remove information/warning labels. If they are missing, you or others may not recognize dangers and may therefore be injured.

2.3 Degrees of risk and symbols

Danger
Identifies a danger that will immediately and invariably lead to fatal or serious permanent injury if the appropriate measures are not taken.
Warning
Identifies a danger that is likely to lead to fatal or serious injury if the appropriate measures are not taken.
Caution
Identifies a danger that may lead to minor injuries if the appropriate measures are not taken.
Note
Identifies a danger that will lead to considerable machine and material damage if the appropriate measures are not taken.
Warning
Identifies a danger that will lead to environmental damage if the appropriate measures are not taken.

2.4 Tampering warning

Tampering with the noise control system is prohibited. Federal law prohibits the following acts or the causing thereof:
1 The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or
element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate pur­chaser or while it is in use, or
2 the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.
Among those acts presumed to constitute tampering are the acts listed below:
Page 9
2 SAFETY ADVICE 7
1 Removal or puncturing of the main silencer, baffles, header pipes or any other components which conduct exhaust gases. 2 Removal or puncturing of parts of the intake system. 3 Lack of proper maintenance. 4 Replacing moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufac-
turer.

2.5 Safe operation

Danger
Danger of accidents Danger arising from the rider's judgement being impaired.
– Do not operate the vehicle while under the influence of alcohol, drugs and certain medications or physically or mentally
impaired.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed
space without an effective exhaust extraction system.
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
– Do not touch hot components such as exhaust system, radiator, engine, shock absorber, and the brake system. Allow these
components to cool down before starting work on them.
Only operate the vehicle when it is in perfect technical condition, in accordance with its intended use, and in a safe and environmentally compatible manner. An appropriate driver's license is needed to ride the vehicle on public roads. Have malfunctions that impair safety promptly eliminated by an authorized Husqvarna workshop. Adhere to the information and warning labels on the vehicle.

2.6 Protective clothing

Warning
Risk of injury Missing or poor protective clothing presents an increased safety risk.
– Wear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the vehicle. Always
wear protective clothing that is in good condition and meets the legal requirements.
In the interest of your own safety, Husqvarna recommends that you only operate the vehicle while wearing protective clothing.

2.7 Work rules

Special tools are necessary for certain tasks. The tools are not contained in the vehicle but can be ordered under the number in paren­theses. E.g.: bearing puller (15112017000) During assembly, non-reusable parts (e.g. self-locking screws and nuts, seals and seal rings, O-rings, pins, lock washers) must be replaced by new parts. In some instances, a thread locker (e.g. Loctite®) is required. The manufacturer instructions for use must be followed. After disassembly, clean the parts that are to be reused and check them for damage and wear. Change damaged or worn parts. After you complete the repair or service work, check the operating safety of the vehicle.

2.8 Environment

If you use your motorcycle responsibly, you can ensure that problems and conflicts do not occur. To protect the future of the motorcycle sport, make sure that you use your motorcycle legally, display environmental consciousness, and respect the rights of others. When disposing of used oil, other operating and auxiliary fluids, and used components, comply with the laws and regulations of the respective country. Because motorcycles are not subject to the EU regulations governing the disposal of used vehicles, there are no legal regulations that pertain to the disposal of an end-of-life motorcycle. Your authorized Husqvarna dealer will be glad to advise you.
Page 10
2 SAFETY ADVICE 8

2.9 Owner's Manual

It is important that you read this Owner's Manual carefully and completely before making your first trip. The Owner's Manual contains useful information and many tips on how to operate, handle, and maintain your motorcycle. Only then will you find out how to customize the vehicle ideally for your own use and how you can protect yourself from injury. Keep the Owner's Manual in an accessible place to enable you to refer to it as needed. If you would like to know more about the vehicle or have questions on the material you read, please contact an authorized Husqvarna dealer. The Owner's Manual is an important component of the vehicle and should be handed over to the new owner if the vehicle is sold.
Page 11

3 IMPORTANT INFORMATION 9

3.1 Manufacturer and implied warranty

The work prescribed in the service schedule must be carried out by an authorized Husqvarna workshop only and confirmed in the cus­tomer's service record and in the Husqvarna dealer.net; otherwise, all warranty claims will be void. No warranty claims can be consid­ered for damage resulting from manipulations and/or alterations to the vehicle. Additional information on the manufacturer or implied warranty and the procedures involved can be found in the service booklet.

3.2 Operating and auxiliary substances

Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
Use operating and auxiliary substances (such as fuel and lubricants) as specified in the Owner's Manual.

3.3 Spare parts, accessories

For your own safety, only use spare parts and accessory products that are approved and/or recommended by Husqvarna and have them installed by an authorized Husqvarna workshop. Husqvarna accepts no liability for other products and any resulting damage or loss. Certain spare parts and accessory products are specified in parentheses in the descriptions. Your Husqvarna dealer will be glad to advise you.
The current Husky Power for your vehicle can be found on the Husqvarna website. International Husqvarna website: www.husqvarna-motorcycles.com

3.4 Service

A prerequisite for perfect operation and prevention of premature wear is that the service, care, and tuning work on the engine and chas­sis is properly carried out as described in the Owner's Manual. Incorrect adjustment and tuning of the engine and chassis can lead to damage and breakage of components. Use of the vehicle under difficult conditions, such as on sand or on wet and muddy surfaces, can lead to considerably more rapid wear of components such as the drive train, brake system, or suspension components. For this reason, it may be necessary to inspect or replace parts before the next scheduled service. It is imperative that you adhere to the stipulated run-in times and service intervals. If you observe these exactly, you will ensure a much longer service life for your motorcycle.

3.5 Figures

The figures contained in the manual may depict special equipment. In the interest of clarity, some components may be shown disassembled or may not be shown at all. It is not always necessary to disas­semble the component to perform the activity in question. Please follow the instructions in the text.

3.6 Customer service

Your authorized Husqvarna dealer will be happy to answer any questions you may have on your vehicle and Husqvarna.
A list of authorized Husqvarna dealers can be found on the Husqvarna website. International Husqvarna website: www.husqvarna-motorcycles.com
Page 12

4 VIEW OF VEHICLE 10

4.1 View of vehicle, front left (example)

1 Filler cap 2 Air filter box lid 3 Shift lever ( p. 18) 4 Engine number ( p. 12) 5 Side stand ( p. 18)
C00576-10
Page 13
4 VIEW OF VEHICLE 11

4.2 View of vehicle, rear right (example)

1 Fork compression adjustment 2 Kill switch ( p. 14) 2 Horn button ( p. 15) 2 Light switch ( p. 15) 2 Turn signal switch ( p. 15) 3 Emergency OFF switch ( p. 15) 3 Electric starter button ( p. 16) 4 Throttle grip ( p. 14) 5 Fork rebound adjustment 6 Shock absorber rebound adjustment 7 Level viewer for brake fluid, rear 8 Shock absorber compression adjustment 9 Level viewer, engine oil 10 Foot brake lever ( p. 18)
C00575-10
Page 14

5 SERIAL NUMBERS 12

5.1 Chassis number

The chassis number1is stamped on the steering head on the right.
401945-10

5.2 Type label (FE 350 EU, FE 350 AUS)

The type label1is fixed to the front of the steering head.
401946-10

5.3 Key number (FE 350 EU, FE 350 AUS)

The key number1for the steering lock is stamped onto the key connector.
500125-10

5.4 Engine number

The engine number1is stamped on the left side of the engine under the engine sprocket.

5.5 Fork part number

401949-10
The fork part number1is stamped on the inner side of the fork stub.
401947-10
Page 15
5 SERIAL NUMBERS 13
0011

5.6 Shock absorber part number

The shock absorber part number1is stamped on the top of the shock absorber above the adjusting ring on the engine side.
401948-10
Page 16

6 CONTROLS 14

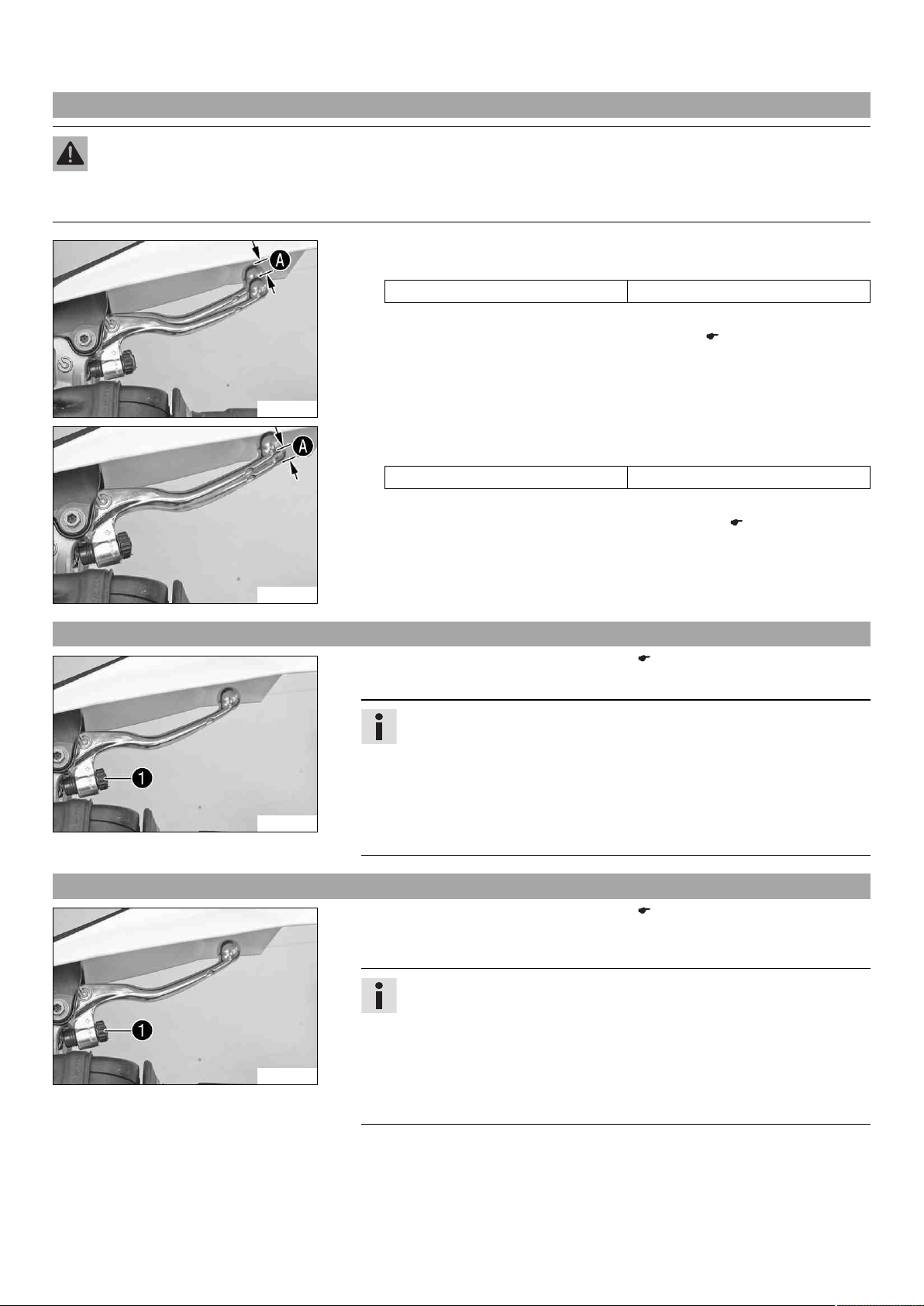

6.1 Clutch lever

The clutch lever1is fitted on the left side of the handlebar. The clutch is hydraulically operated and self-adjusting.
C00530-10

6.2 Hand brake lever

Hand brake lever1is located on the right side of the handlebar. The hand brake lever is used to activate the front brake.
C00545-10

6.3 Throttle grip

The throttle grip1is fitted on the right side of the handlebar.
C00531-10

6.4 Kill switch (FE 350 EU, FE 350 AUS)

Kill switch1is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – the ignition circuit is closed in this position and the engine can be started.
• Kill switch pressed – the ignition circuit is open in this position, the engine goes out if it was running, or does not start if it was off.
C00590-10

6.5 Kill switch (FE 350 USA)

C00593-10
Kill switch1is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – the ignition circuit is closed in this position and the engine can be started.
• Kill switch pressed – the ignition circuit is open in this position, the engine goes out if it was running, or does not start if it was off.
Page 17
6 CONTROLS 15

6.6 Horn button (FE 350 EU, FE 350 AUS)

The horn button1is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – the horn is actuated in this position.
C00590-11

6.7 Light switch (FE 350 EU, FE 350 AUS)

The light switch1is fitted on the left side of the handlebar.
Possible states
Light off – Light switch is turned to the right. In this position, the light is switched off.
Low beam on – Light switch is in the central position. In this position, the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the high beam and the tail light are switched on.
C00590-12

6.8 Light switch (FE 350 USA)

The light switch1is on the left of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam and tail light are switched on.
B01648-10

6.9 Turn signal switch (FE 350 EU, FE 350 AUS)

Turn signal switch1is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position. Turn signal light, left, on – Turn signal switch is turned to the left.
Turn signal light, right, on – Turn signal switch is turned to the right.
C00591-10

6.10 Emergency OFF switch (FE 350 AUS)

The emergency OFF switch1is fitted on the right side of the handlebar.
Possible states
C00592-10
Ignition off – the ignition circuit is open in this position, the engine goes out if it was running, or does not start if it was off.
Ignition on – the ignition circuit is closed in this position and the engine can be started.
Page 18
6 CONTROLS 16

6.11 Electric starter button (FE 350 EU, FE 350 USA)

The electric starter button1is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
C00550-10

6.12 Electric starter button (FE 350 AUS)

The electric starter button1is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – the electric starter is actuated in this position.
C00592-11

6.13 Overview of indicator lamps (FE 350 EU, FE 350 AUS)

Possible states
High beam indicator light lights up blue – High beam is switched on.
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has reached the reserve mark.
C00551-01
Turn signal indicator light flashes green – Turn signal is switched on.

6.14 Overview of indicator lamps (FE 350 USA)

Possible states
FI warning lamp (MIL) lights up/flashes orange – The OBD has detected
an emission- or safety-critical fault.
The fuel level warning lamp lights up orange – The fuel level has reached the reserve mark.
B01648-01

6.15 Opening filler cap

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Page 19
6 CONTROLS 17
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
– Press release button1, turn filler cap counterclockwise and lift it upwards and
remove.
C00532-10

6.16 Closing filler cap

C00532-11

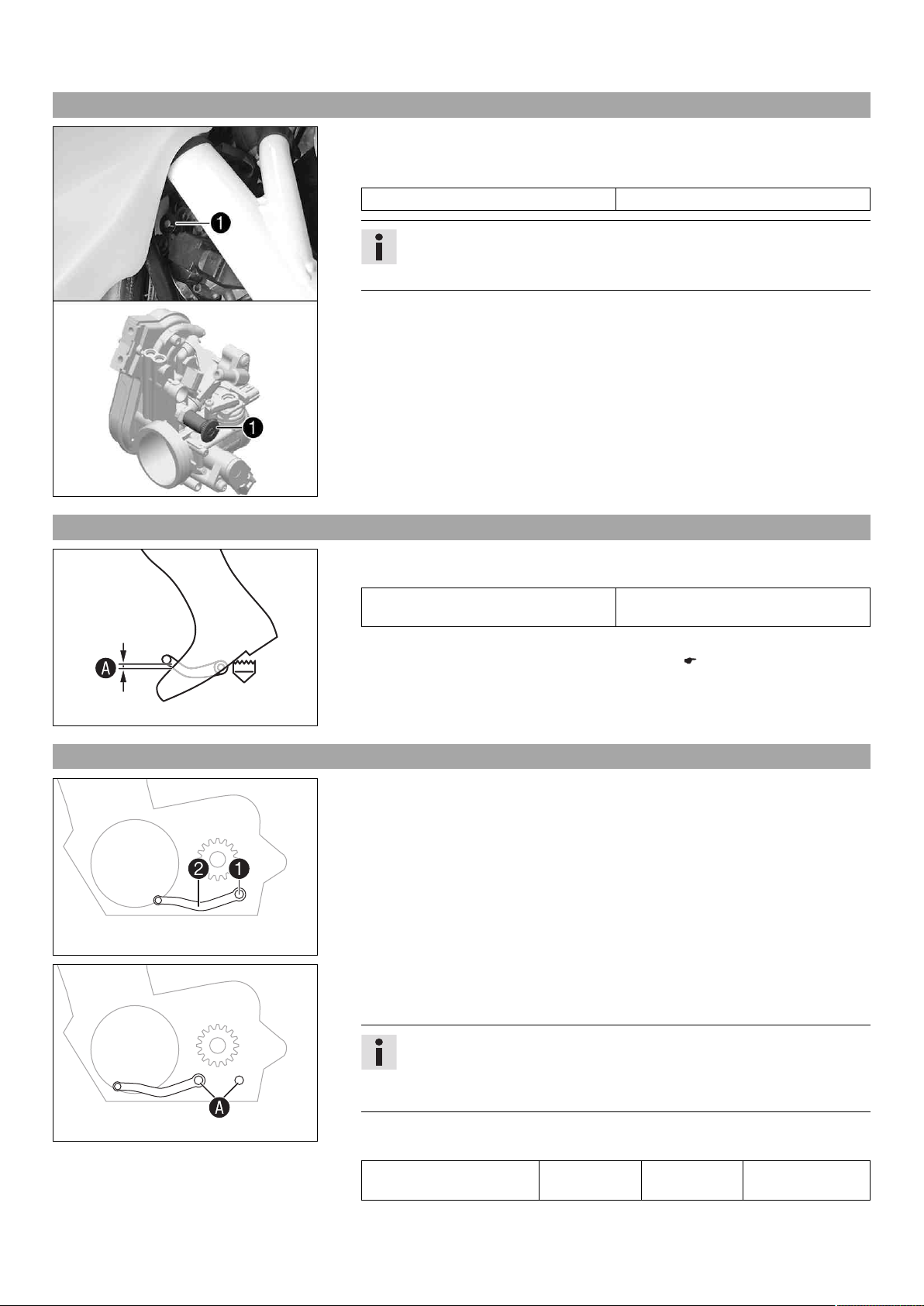

6.17 Idle speed adjusting screw

– Replace the filler cap and turn clockwise until the release button1locks in place.
Info
Route the fuel tank breather hose2without kinking.
The idle speed adjusting screw1is located on the throttle valve body at the top left. The idle speed adjusting screw has two functions. Turning it controls the idle speed. Pulling it out all the way raises the idle speed during a cold start.
Possible states
• RPM increase activated – Idle speed adjusting screw is pulled out all the way.
• RPM increase deactivated – Idle speed adjusting screw is pushed in all the way.
C00533-10
Page 20
6 CONTROLS 18

6.18 Shift lever

Shift lever1is mounted on the left side of the engine.
401950-10
The gear positions can be seen in the photograph. The neutral or idle position is between the first and second gears.
401950-11

6.19 Foot brake lever

6.20 Side stand

Foot brake lever1is located in front of the right footrest. The foot brake lever is used to activate the rear brake.
C00595-10
The side stand1is located on the left side of the vehicle.
C00536-10
The side stand is used for parking the motorcycle.
C00537-10
Info
When you are riding, the side stand1must be folded up and secured with rub­ber band2.
Page 21
6 CONTROLS 19

6.21 Steering lock (FE 350 EU, FE 350 AUS)

Steering lock1is fitted on the left side of the steering head. The steering lock is used to lock the steering. Steering, and therefore riding, is no longer possible.
C00538-10

6.22 Locking the steering (FE 350 EU, FE 350 AUS)

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
– Park the vehicle. – Turn the handlebar as far as possible to the right. – Insert the key in the steering lock, turn it to the left, press it in and turn it to the right.
Remove the key.
Steering is no longer possible.
Info
Never leave the key in the steering lock.
400732-01

6.23 Unlocking the steering (FE 350 EU, FE 350 AUS)

– Insert the key in the steering lock, turn it to the left, pull it out and turn it to the right.
Remove the key.
You can now steer the bike again.
Info
Never leave the key in the steering lock.
400731-01
Page 22

7 SPEEDOMETER 20

7.1 Overview

1 Overview of indicator lamps ( p. 16) 2 Left button 3 Display 4 Right button
401908-10

7.2 Activation

Activating the speedometer
The speedometer is activated when one of the buttons is pressed or an impulse comes from the wheel speed sensor.
401908-01

7.3 Message on the speedometer

Possible states
401901-01

7.4 Setting the speedometer

Condition
The motorcycle is stationary.
– Press both buttons for 3–5 seconds.
– Press one of the buttons to select UNIT for the speed in kilometers KM/H or miles
Battery voltage of the speedometer – Battery voltage of the speedometer is too low. Change the battery.
Service – Service is due. Contact an authorized Husqvarna workshop.
The Setup menu is displayed. The UNIT display flashes.
M/H.
401909-01
401911-01
– Wait for 5 seconds.
The speedometer changes to the next menu item. The symbol flashes.
– Press one of the buttons to select the 24h or 12h display of the clock.
Page 23
7 SPEEDOMETER 21
– Wait for 5 seconds.
The speedometer changes to the next menu item. The symbol flashes.
Resetting the time
– Press the left button.
The value decreases.
Advancing the time
– Press the right button.
The value increases.
401912-01
– Wait for 5 seconds.
The speedometer changes to the next menu item. The symbol flashes.
– Set the service.
Guideline
One-time service after 1 h Service every 15 h
Shortening the service interval
401913-01
– Press the left button.
The value decreases.
Extending the service interval
– Press the right button.
The value increases.
Switching off the service interval display
– Press and hold the left button.
off appears on the display.
401914-01

7.5 Setting kilometers or miles

Info
If you change the unit of measure, the ODO value is retained and converted accordingly.
Condition
The motorcycle is stationary. – Press both buttons for 3–5 seconds.
The Setup menu is displayed. The UNIT display flashes.
– Press one of the buttons to select UNIT for the speed in kilometers KM/H or miles
M/H.
401909-01
Page 24
7 SPEEDOMETER 22

7.6 Setting the clock

Condition
The motorcycle is stationary. – Press both buttons for 3–5 seconds.
The Setup menu is displayed. The UNIT display flashes.
– Wait for the menu of the clock to flash. – Press one of the buttons to select the 24h or 12h display of the clock.
401911-01
– Wait for 5 seconds.
The speedometer changes to the next menu item. The symbol flashes.
Resetting the time
– Press the left button.
The value decreases.
Advancing the time
– Press the right button.
The value increases.
401912-01

7.7 Setting the service display

401913-01
Condition
The motorcycle is stationary. – Press both buttons for 3–5 seconds.
The Setup menu is displayed. The UNIT display flashes.
– Wait for the menu of the service display to flash. – Set the service.
Guideline
One-time service after 1 h Service every 15 h
Shortening the service interval
– Press the left button.
The value decreases.
Extending the service interval
– Press the right button.
The value increases.
Switching off the service interval display
– Press and hold the left button.
off appears on the display.
401914-01
Page 25
7 SPEEDOMETER 23

7.8 Speed, time, and DST distance 1

– Press one of the buttons until DST appears on the speedometer. KM/H or M/H shows the speed.
shows the time.
DST shows the distance since the last reset, such as between two refueling stops.
Info
If the value of 39999.9 is exceeded, DST is automatically reset to 0.0.
401901-01
Press the left but­ton briefly.
Press the left but­ton for 3 – 5 sec­onds.
Press the right but­ton briefly.
Press the right but­ton for 3 – 5 sec­onds.

7.9 Speed, time, and DST2 distance 2

– Press one of the buttons until DST2 appears on the speedometer. KM/H or M/H shows the speed.
shows the time.
DST2 shows the distance 2 since the last reset, such as between two refueling stops.
Info
If the value of 39999.9 is exceeded, DST2 is automatically reset to 0.0.
401902-01
Press the left but­ton briefly.
Press the left but­ton for 3 – 5 sec­onds.
Press the right but­ton briefly.
Press the right but­ton for 3 – 5 sec­onds.
Next display mode
DST can be preset to a value between 0.0 and 39999.9 by pressing the buttons.
Next display mode
DST is reset to 0.0.
Next display mode
DST2 can be preset to a value between 0.0 and 39999.9 by pressing the buttons.
Next display mode
DST2 is reset to 0.0.

7.10 AVG average speed, ART operating hours, and ODO total distance covered

– Press one of the buttons until AVG, ART and ODO appear in the speedometer. AVG shows the average speed since the last reset.
ART shows the operating hours. ODO shows the total distance covered.
401903-01
Press the left but­ton briefly.
Press the left but­ton for 3 – 5 sec­onds.
Press the right but­ton briefly.
Press the right but­ton for 3 – 5 sec­onds.
Next display mode
The OPEN END WRENCH SYMBOL shows the remaining oper­ating hours until the next service is due.
Next display mode
AVG is reset to 0.0.
Page 26

8 PREPARING FOR USE 24

8.1 Advice on first use

Danger
Danger of accidents Danger arising from the rider's judgement being impaired.
– Do not operate the vehicle while under the influence of alcohol, drugs and certain medications or physically or mentally
impaired.
Warning
Risk of injury Missing or poor protective clothing presents an increased safety risk.
– Wear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the vehicle. Always
wear protective clothing that is in good condition and meets the legal requirements.
Warning
Danger of crashing Poor vehicle handling due to different tire tread patterns on front and rear wheels.
– The front and rear wheels must be fitted with tires with similar tread patterns to prevent loss of control over the vehicle.
Warning
Danger of accidents Critical riding behavior due to inappropriate riding.
– Adapt your riding speed to the road conditions and your riding ability.
Warning
Danger of accidents Accident risk caused by presence of a passenger.
– Your vehicle is not designed to carry passengers. Do not ride with a passenger.
Warning
Danger of accidents Failure of brake system.
– If the foot brake lever is not released, the brake linings drag continuously. The rear brake may fail due to overheating. Take
your foot off the foot brake lever when you are not braking.
Warning
Danger of accidents Unstable riding behavior.
– Do not exceed the maximum permissible weight and axle loads.
Warning
Risk of misappropriation Usage by unauthorized persons.
– Never leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons.
Info
When using your motorcycle, remember that others may feel disturbed by excessive noise.
– Make sure that the pre-delivery inspection work has been carried out by an authorized Husqvarna workshop.
You receive a delivery certificate and the service record at vehicle handover.
– Before your first trip, read the entire operating instructions carefully. – Get to know the controls. – Adjust the basic position of the clutch lever. ( p. 63)
(FE 350 EU, FE 350 AUS)
– Adjust the free travel of the hand brake lever. ( p. 65)
(FE 350 USA)
– Adjust the basic position of the hand brake lever. ( p. 65)
– Adjust the basic position of the foot brake lever. x ( p. 69) – Adjust the basic position of the shift lever. x ( p. 90)
– Get used to handling the motorcycle on a suitable piece of land before making a longer trip.
Info
Offroad, you should be accompanied by another person on another machine so that you can help each other.
– Try also to ride as slowly as possible and in a standing position to get a better feeling for the vehicle. – Do not make any offroad trips that exceed your ability and experience.
Page 27
8 PREPARING FOR USE 25
– Hold the handlebar firmly with both hands and keep your feet on the footrests when riding. – If you carry any baggage, make sure it is fixed firmly as close as possible to the center of the vehicle and ensure even weight distribu-
tion between the front and rear wheels.
Info
Motorcycles react sensitively to any changes in weight distribution.
– Do not exceed the overall maximum permitted weight and the axle loads.
Guideline
Maximum permissible overall weight 335 kg (739 lb.) Maximum permissible front axle load 145 kg (320 lb.) Maximum permissible rear axle load 190 kg (419 lb.)
– Run in the engine. ( p. 25)

8.2 Running-in the engine

– During the running-in phase, do not exceed the specified engine speed and engine performance.
Guideline
Maximum engine speed
During the first operating hour 7,000 rpm
Maximum engine performance
During the first 3 operating hours ≤ 75 %
– Avoid fully opening the throttle!

8.3 Preparing the vehicle for difficult riding conditions

Info
Use of the vehicle under difficult conditions, such as on sand or on wet and muddy surfaces, can lead to considerably more rapid wear of components such as the drive train, brake system, or suspension components. For this reason, it may be necessary to inspect or replace parts before the next scheduled service.
– Husqvarna recommends using the specified engine oil when operating the vehicle under harsh conditions and to increase motorcycle
performance.
Engine oil (SAE 10W/60) ( p. 108)
– Clean the air filter and air filter box. x ( p. 51)
Info
Check the air filter approx. every 30 minutes.
– Seal the air filter box. x ( p. 51)
– Additionally secure the rubber grip. ( p. 63) – Check the electrical connector for humidity and corrosion and to ensure it is firmly seated.
» If humidity, corrosion or damage is found:
– Clean and dry the connector, or change it if necessary.
Difficult riding conditions are:
– Rides on dry sand. ( p. 26) – Rides on wet sand. ( p. 26) – Rides on wet and muddy surfaces. ( p. 27) – Rides at high temperature and slow speed. ( p. 27) – Rides at low temperature or in snow. ( p. 27)
Page 28
8 PREPARING FOR USE 26

8.4 Preparing for rides on dry sand

– Fit a dust cover on the air filter.
Dust protection device for air filter (77206920000)
Info
Observe the Husky Power fitting instructions.
B00435-01
– Fit a sand cover on the air filter.
Sand protection device for air filter (59006022000)
Info
Observe the Husky Power fitting instructions.
B00436-01
– Clean the chain. – Fit the steel sprocket.
– Clean the radiator fins. – Straighten bent radiator fins carefully.
600868-01

8.5 Preparing for rides on wet sand

– Fit a rain cover on the air filter.
B00437-01
– Clean the chain. – Fit the steel sprocket.
Tip
Do not grease the chain.
Waterproofing device for air filter (77206921000)
Info
Observe the Husky Power fitting instructions.
Tip
Do not grease the chain.
600868-01
– Clean the radiator fins. – Straighten bent radiator fins carefully.
Page 29
8 PREPARING FOR USE 27

8.6 Preparing for rides on wet and muddy surfaces

– Fit a rain cover on the air filter.
Waterproofing device for air filter (77206921000)
Info
Observe the Husky Power fitting instructions.
B00437-01
– Fit the steel sprocket. – Clean the motorcycle. ( p. 95) – Straighten bent radiator fins carefully.
600868-01

8.7 Preparing for rides at high temperature and slow speed

– Adjust the secondary drive to the road conditions.
Info
The engine oil heats up quickly when the clutch is operated frequently due to an excessively high secondary drive.
– Clean the chain. – Clean the radiator fins. – Straighten bent radiator fins carefully.
600868-01
– Check the coolant level. ( p. 87)

8.8 Preparing for rides at low temperature or in snow

– Fit a rain cover on the air filter.
Waterproofing device for air filter (77206921000)
Info
Observe the Husky Power fitting instructions.
B00437-01
Page 30

9 RIDING INSTRUCTIONS 28

9.1 Checks and maintenance work when preparing for use

Info
Before riding the vehicle, always check its condition and operating safety. The vehicle must be in perfect technical condition when used.
– Check the engine oil level. ( p. 91) – Check the electrical system. – Check the front brake fluid level. ( p. 66) – Check the rear brake fluid level. ( p. 70) – Check the front brake linings. ( p. 67) – Check the rear brake linings. ( p. 71) – Check that the brake system is functioning properly. – Check the coolant level. ( p. 87) – Check for chain dirt accumulation. ( p. 58) – Check the chain, rear sprocket, engine sprocket and chain guide. ( p. 60) – Check the chain tension. ( p. 59) – Check the tire condition. ( p. 76) – Check the tire air pressure. ( p. 77) – Check the spoke tension. ( p. 77) – Clean the dust boots of the fork legs. ( p. 41) – Bleed fork legs. ( p. 41) – Check the air filter. – Check the settings of all controls and ensure that they can be operated smoothly. – Check all screws, nuts, and hose clamps regularly for tightness. – Check the fuel supply.

9.2 Starting

Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed
space without an effective exhaust extraction system.
Note
Engine failure High engine speeds in cold engines have a negative effect on the service life of the engine.
– Always warm up the engine at low engine speeds.
– Raise the motorcycle off of the stand and secure the stand with the rubber band1. – Shift transmission to neutral.
(FE 350 AUS)
– Turn the emergency OFF switch to the position .
Condition
Ambient temperature: < 20 °C (< 68 °F) – Pull the idle speed adjusting screw all the way out.
C00537-11
– Press the electric starter button.
Info
Press the electric starter button for at most 5 seconds. Wait for a least 5 sec­onds before trying again. Warning lamp FI lights up briefly as a functional control when starting.
400733-01
Page 31
9 RIDING INSTRUCTIONS 29

9.3 Starting off

Info
If your bike has lights, switch them on before riding. You will then be seen earlier by other motorists. When you are riding, the side stand must be folded up and secured with the rubber band.
– Pull the clutch lever, engage 1st gear, release the clutch lever slowly and simultaneously open the throttle carefully.

9.4 Shifting, riding

Warning
Danger of accidents If you change down at high engine speed, the rear wheel can lock up.
– Do not change into a low gear at high engine speed. The engine races and the rear wheel can lock up.
Info
If you hear unusual noises while riding, stop immediately, switch off the engine and contact an authorized Husqvarna workshop. First gear is used for starting off or for steep inclines.
– When conditions allow (incline, road situation, etc.), you can shift into a higher gear. To do so, release the throttle while simultane-
ously pulling the clutch lever, shift into the next gear, release the clutch, and open the throttle.
– After reaching maximum speed by fully opening the throttle grip, turn the throttle back so it is ¾ open. This will barely reduce the
speed but fuel consumption will be considerably lower.
– Always open the throttle only as much as the engine can handle – abrupt throttle opening increases fuel consumption. – To shift down, brake and close the throttle at the same time. – Pull the clutch lever and shift into a lower gear, release the clutch lever slowly, and open the throttle or shift again. – Switch off the engine if you expect to be standing for a long time.
Guideline
≥ 2 min
– Avoid frequent and longer slipping of the clutch. This heats the engine oil, the engine, and the cooling system. – Ride with a lower engine speed instead of with a high engine speed and a slipping clutch.

9.5 Braking

Warning
Danger of accidents If you brake too hard, the wheels can lock.
– Adapt your braking to the traffic situation and the road conditions.
Warning
Danger of accidents Reduced braking efficiency caused by spongy pressure point of front or rear brake.
– Check the brake system and do not continue riding. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to a wet or dirty brake system.
– Clean or dry a dirty or wet brake system by riding and braking gently.
– On sandy, wet or slippery surfaces, use the rear brake. – Braking should always be completed before you go into a bend. Change down to a lower gear appropriate to your road speed. – Make use of the braking effect of the engine when driving down long downhill stretches. To do so, shift back one or two gears, but
do not overrev the engine. You will need to apply the brakes far less often and the brake system will not overheat.
Page 32
9 RIDING INSTRUCTIONS 30

9.6 Stopping, parking

Warning
Risk of misappropriation Usage by unauthorized persons.
– Never leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons.
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
– Do not touch hot components such as exhaust system, radiator, engine, shock absorber, and the brake system. Allow these
components to cool down before starting work on them.
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Note
Fire hazard Some vehicle components become very hot when the vehicle is operated.
– Do not park the vehicle near flammable or explosive substances. Do not place objects on the vehicle while it is still warm from being
run. Always let the vehicle cool first.
Note
Material damage Damage to or destruction of components due to excessive load.
– The side stand is only designed for the weight of the motorcycle. Do no sit on the motorcycle when it is resting on the side stand.
The side stand or the frame may become damaged and the motorcycle may fall over.
– Brake the motorcycle. – Shift transmission to neutral.
(FE 350 EU, FE 350 AUS)
– Press and hold the kill switch while the engine is idling until the engine stops.
(FE 350 USA)
– Press and hold the kill switch while the engine is idling until the engine stops.
– Park the motorcycle on firm ground.

9.7 Transport

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Note
Fire hazard Some vehicle components become very hot when the vehicle is operated.
– Do not park the vehicle near flammable or explosive substances. Do not place objects on the vehicle while it is still warm from being
run. Always let the vehicle cool first.
– Switch off the engine. – Use tension belts or other suitable devices to secure the motorcycle against acci-
dents or falling over.
401475-01
Page 33
9 RIDING INSTRUCTIONS 31

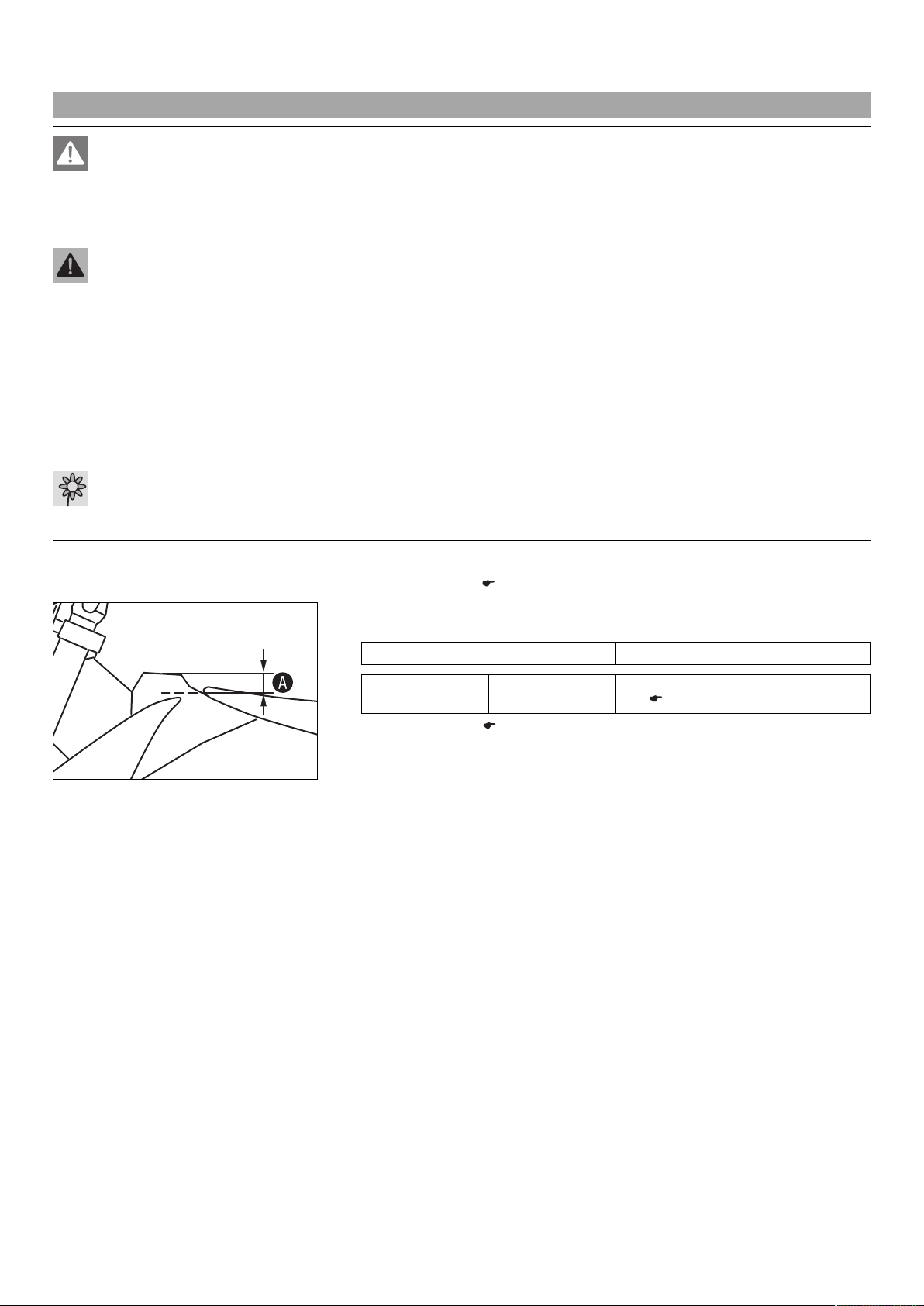

9.8 Refueling

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Note
Material damage Premature clogging of the fuel filter.
– In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel
system. (Your authorized Husqvarna workshop will be glad to help.)
– Only refuel with clean fuel that meets the specified standards.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
401226-10
– Switch off engine. – Open the filler cap. ( p. 16) – Fill the fuel tank with fuel up to measurementA.
Guideline
Measurement of
Total fuel tank capacity, approx.
– Close the filler cap. ( p. 17)
A
9.5 l (2.51 US gal) Super unleaded (ROZ 95/RON 95/PON
35 mm (1.38 in)
91) ( p. 109)
Page 34

10 SERVICE SCHEDULE 32

10.1 Service schedule

Every 30 operating hours/after every race
Every 15 operating hours
Once after 1 operating hour
Read out the fault memory using the Husqvarna diagnostics tool. x ○ ● ●
Check that the electrical equipment is functioning properly. ○ ● ●
Check and charge the battery. x ● ●

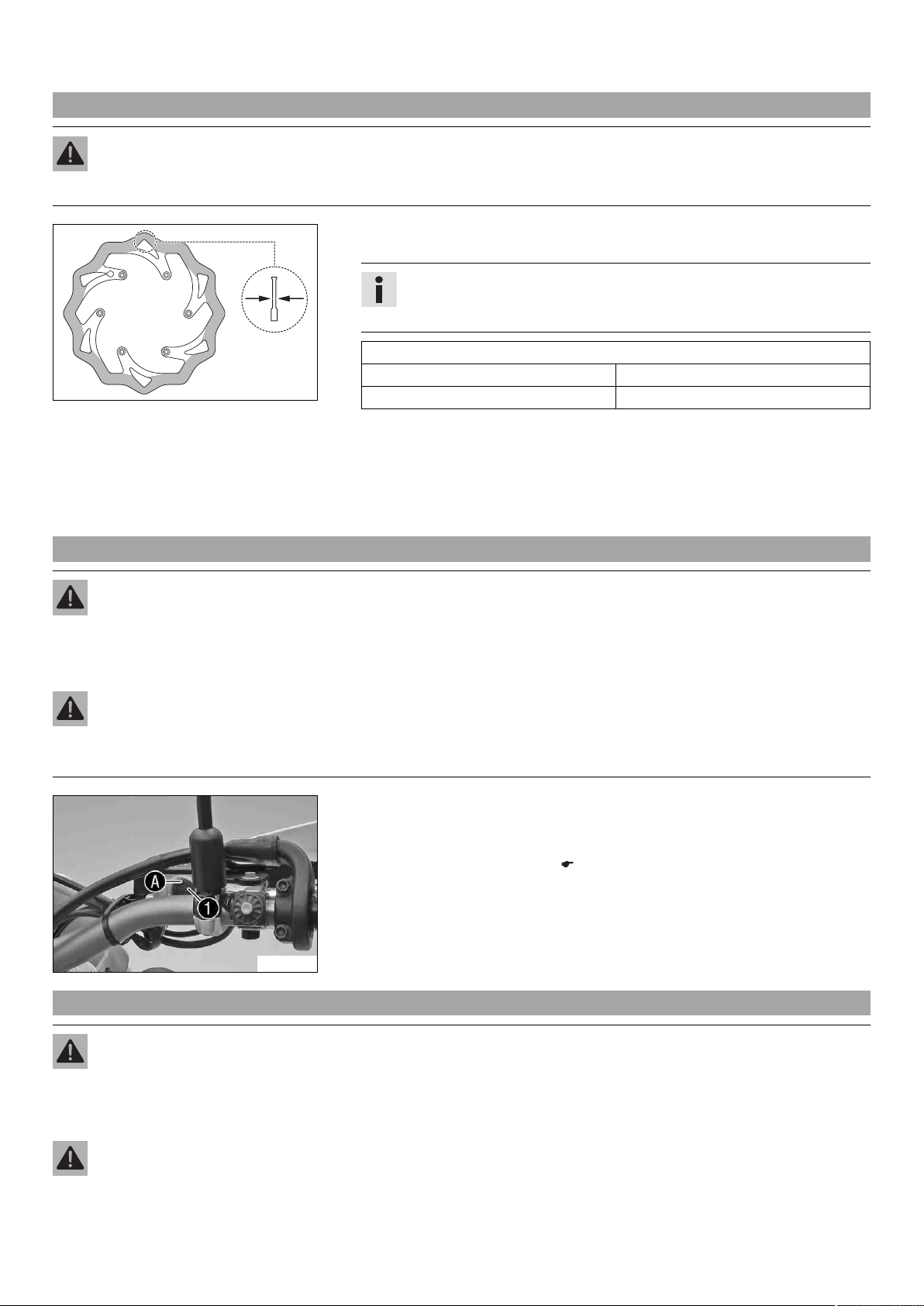

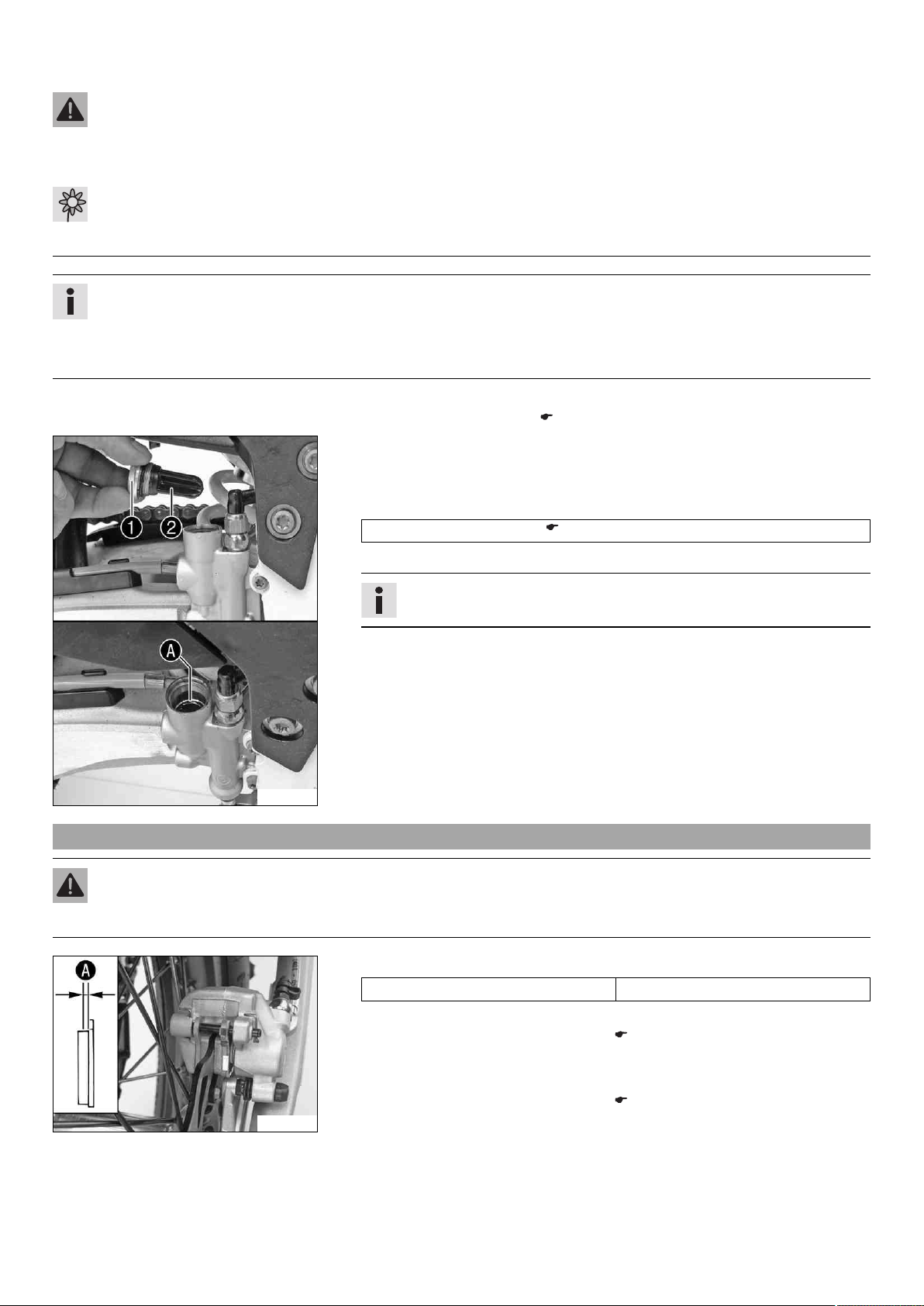

Check the front brake linings. ( p. 67) ● ● Check the rear brake linings. ( p. 71) ● ● Check the brake discs. ( p. 66) ● ● Check the brake lines for damage and leakage. ● ● Check the rear brake fluid level. ( p. 70) ● ● Check the free travel of the foot brake lever. ( p. 69) ● ●
Check the frame and swingarm. x ● ● Check the swingarm bearing. x ● Check the heim joints at the top of the shock absorber. x ● ●
Check the tire condition. ( p. 76) ○ ● ● Check the tire air pressure. ( p. 77) ○ ● ●

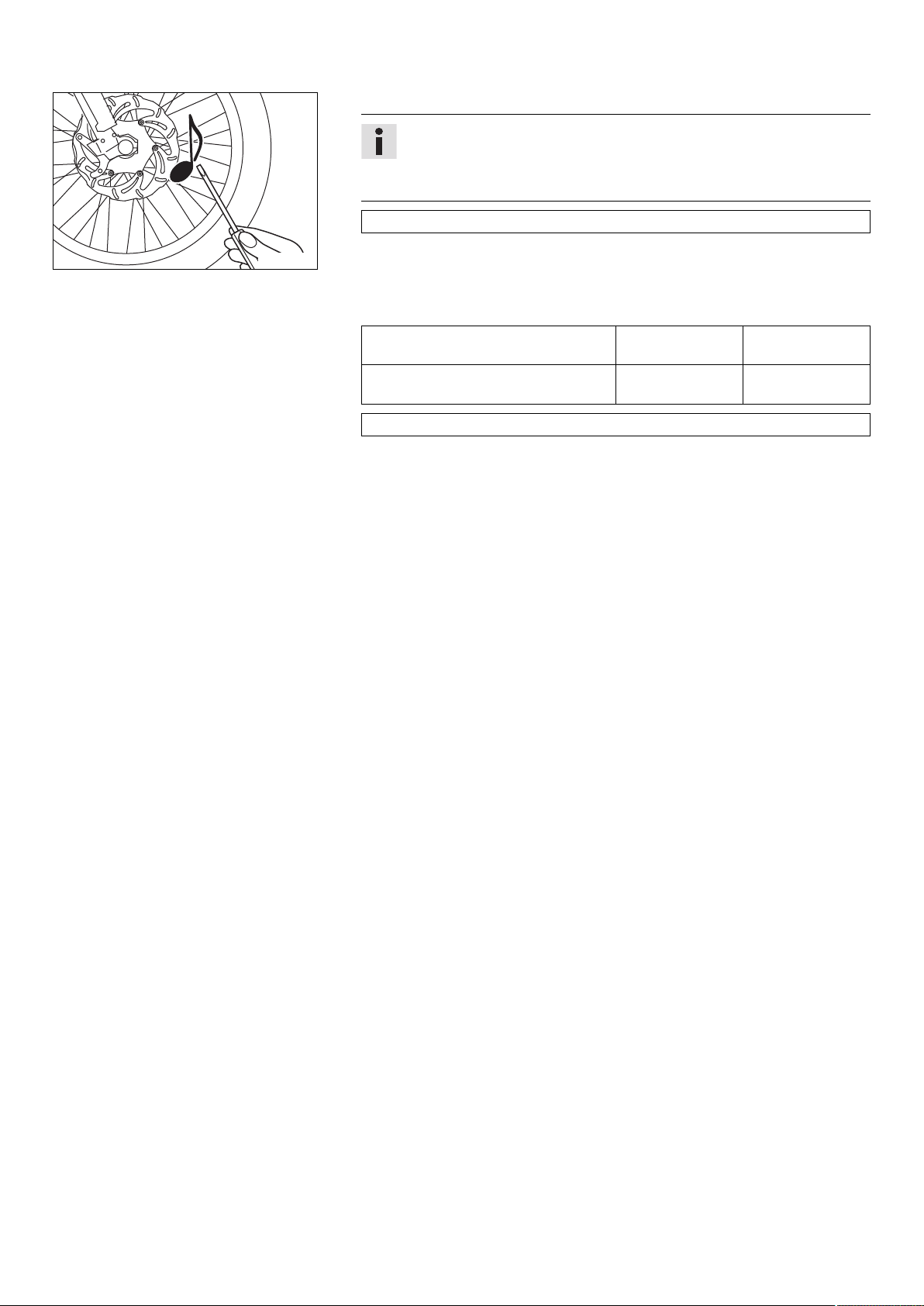

Check the wheel bearing for play. x ● ● Check the wheel hubs. x ● ● Check the rim run-out. x ○ ● ●

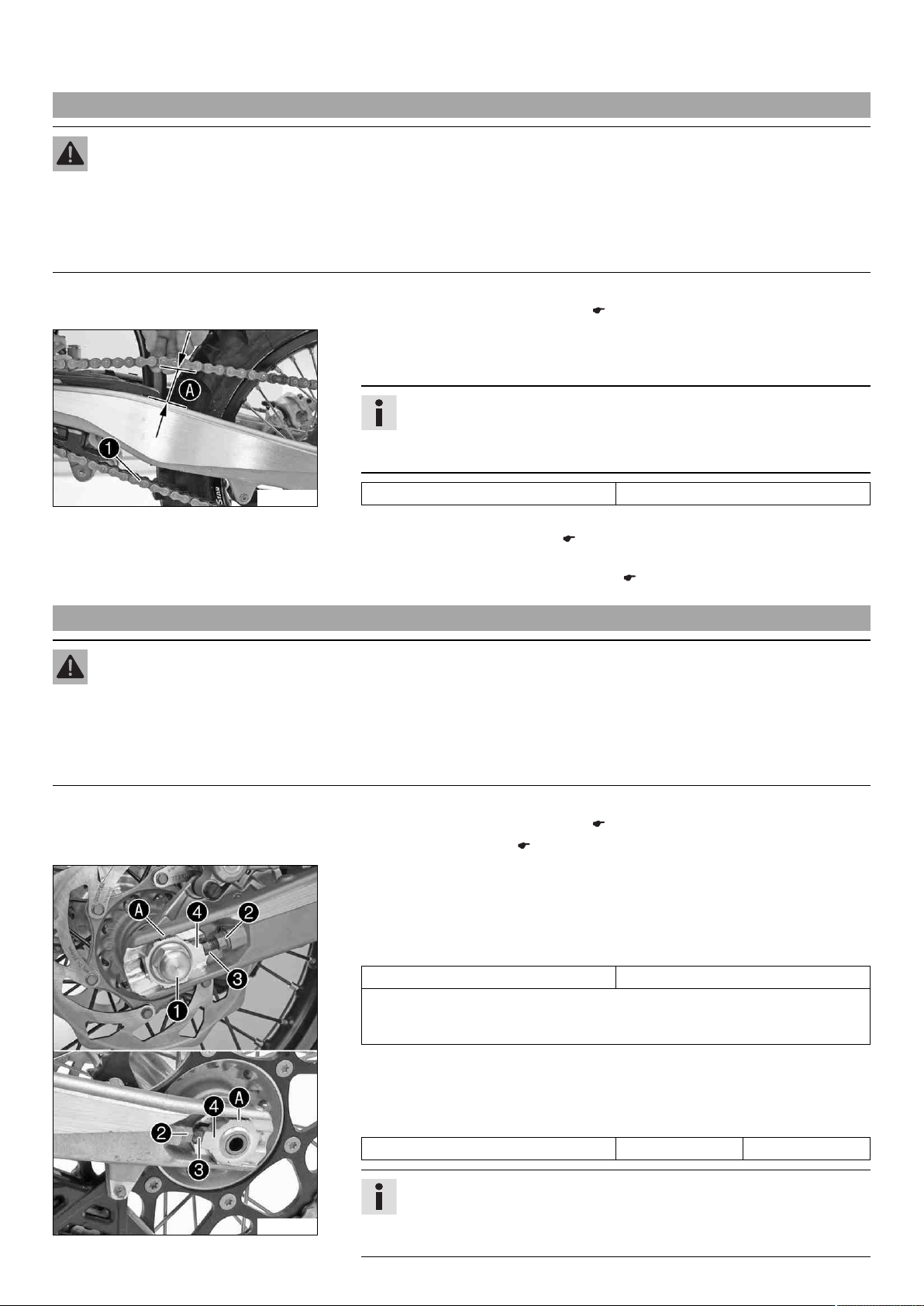

Check the spoke tension. ( p. 77) ○ ● ● Check the chain, rear sprocket, engine sprocket and chain guide. ( p. 60) ● ● Check the chain tension. ( p. 59) ○ ● ●
Grease all moving parts (e.g., side stand, hand lever, chain, ...) and check for smooth operation. x ● ●
Check/rectify the fluid level of the hydraulic clutch. ( p. 63) ● ● Check the front brake fluid level. ( p. 66) ● ● Check the free travel of the hand brake lever. ( p. 65) ● ● Check the steering head bearing play. ( p. 46) ○ ● ●
Check the valve clearance. x ○ ● Check the clutch. x ● Change the shaft seal rings of the water pump. x ● Change the engine oil and oil filter, clean the oil screen. x ( p. 92) ○ ● ● Check all hoses (e. g., fuel, cooling, bleeding, drainage) and sleeves for cracking, leaks, and incorrect routing. x ○ ● ●
Check the antifreeze and coolant level. ( p. 86) ○ ● ●
Check the cables for damage and routing without sharp bends. x ● ●
Check that the cables are undamaged, routed without sharp bends and set correctly. ○ ● ●
Clean the air filter and air filter box. x ● ● Change the glass fiber yarn filling of the main silencer. x ( p. 54) ● Check the screws and nuts for tightness. x ○ ● ●
Check the headlight setting. ( p. 84) ○ ● ●
Change the fuel screen. x ( p. 91) ○ ● ● Check the fuel pressure. x ● ● Adjust the idle speed. x ( p. 90) ○ ● ● Check that the radiator fan is functioning properly. x ○ ● ●
Final check: Check the vehicle for roadworthiness and take a test ride. ○ ● ●
Read out the fault memory using the Husqvarna diagnostics tool after a test ride. x ○ ● ● Make the service entry in Husqvarna Dealer.net and in the service booklet. x ○ ● ●
○ One-time interval
Page 35
10 SERVICE SCHEDULE 33
● Periodic interval

10.2 Service work (as additional order)

Annually
Every 135 operating hours/every 70 operating hours when used for motorsports
Every 45 operating hours
Once after 15 operating hours
Change the front brake fluid. x ● Change the rear brake fluid. x ● Change the hydraulic clutch fluid. x ( p. 63) ● Lubricate the steering head bearing. x ( p. 47) ● Clean the spark arrestor. x (FE 350 USA) ● Perform a fork service. x ○ ● ● Service the shock absorber. x ● ● Change the spark plug and spark plug connector. x ● Change the piston. x ● Check/measure the cylinder. x ● Check the cylinder head. x ● Change the valves, valve springs and valve spring seats. x ● Check the camshaft and cam lever. x ● Change the connecting rod, conrod bearing and crank pin. x ● Check the transmission and shift mechanism. x ● Check the oil pressure regulator valve. x ● Change the suction pump. x ● Check the pressure pump and lubrication system. x ● Replace the timing chain. x ● Check the timing assembly. x ● Change all engine bearings. x ●
○ One-time interval
● Periodic interval
Page 36

11 TUNING THE CHASSIS 34

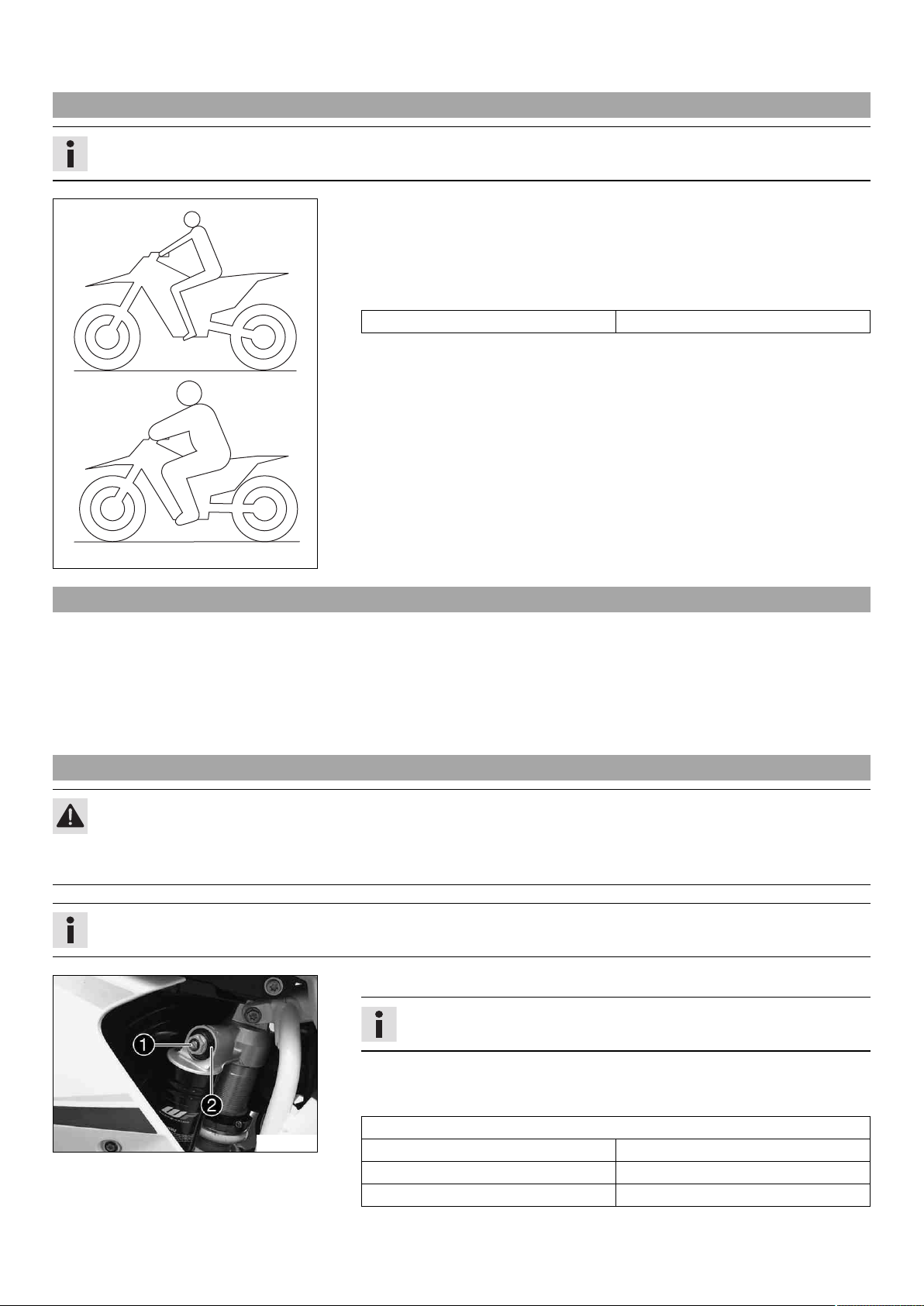

11.1 Checking the basic chassis setting with the rider's weight

Info
When adjusting the basic chassis setting, first adjust the shock absorber and then the fork.
– For optimal motorcycle riding characteristics and to avoid damage to forks, shock
absorbers, swingarm, and frame, the basic settings of the suspension components must match the rider's weight.
– As delivered, Husqvarna offroad motorcycles are adjusted for an average rider's
weight (with full protective clothing). Guideline
Standard rider weight 75… 85 kg (165… 187 lb.)
– If the rider's weight is above or below this range, the basic setting of the suspension
components must be adjusted accordingly.
– Small weight differences can be compensated by adjusting the spring preload, but in
the case of large weight differences, the springs must be replaced.
401030-01

11.2 Compression damping of shock absorber

The compression damping of the shock absorber is divided into two ranges: high-speed and low-speed. High-speed and low-speed refer to the compression speed of the rear wheel suspension and not to the vehicle speed. The high-speed setting, for example, has an effect on the landing after a jump: the rear wheel suspension compresses more quickly. The low-speed setting, for example, has an effect when riding over long ground swells: the rear wheel suspension compresses more slowly. These two ranges can be adjusted separately, although the transition between high-speed and low-speed is gradual. Thus, changes in the high-speed range affect the compression damping in the low-speed range and vice versa.

11.3 Adjusting the low-speed compression damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
The low-speed setting can be seen during the slow to normal compression of the shock absorber.
– Turn adjusting screw1clockwise with a screwdriver up to the last perceptible click.
C00557-10
Info
Do not loosen nut2!
– Turn counterclockwise by the number of clicks corresponding to the shock absorber
type. Guideline
Compression damping, low-speed
Comfort 20 clicks Standard 18 clicks Sport 16 clicks
Page 37
11 TUNING THE CHASSIS 35
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

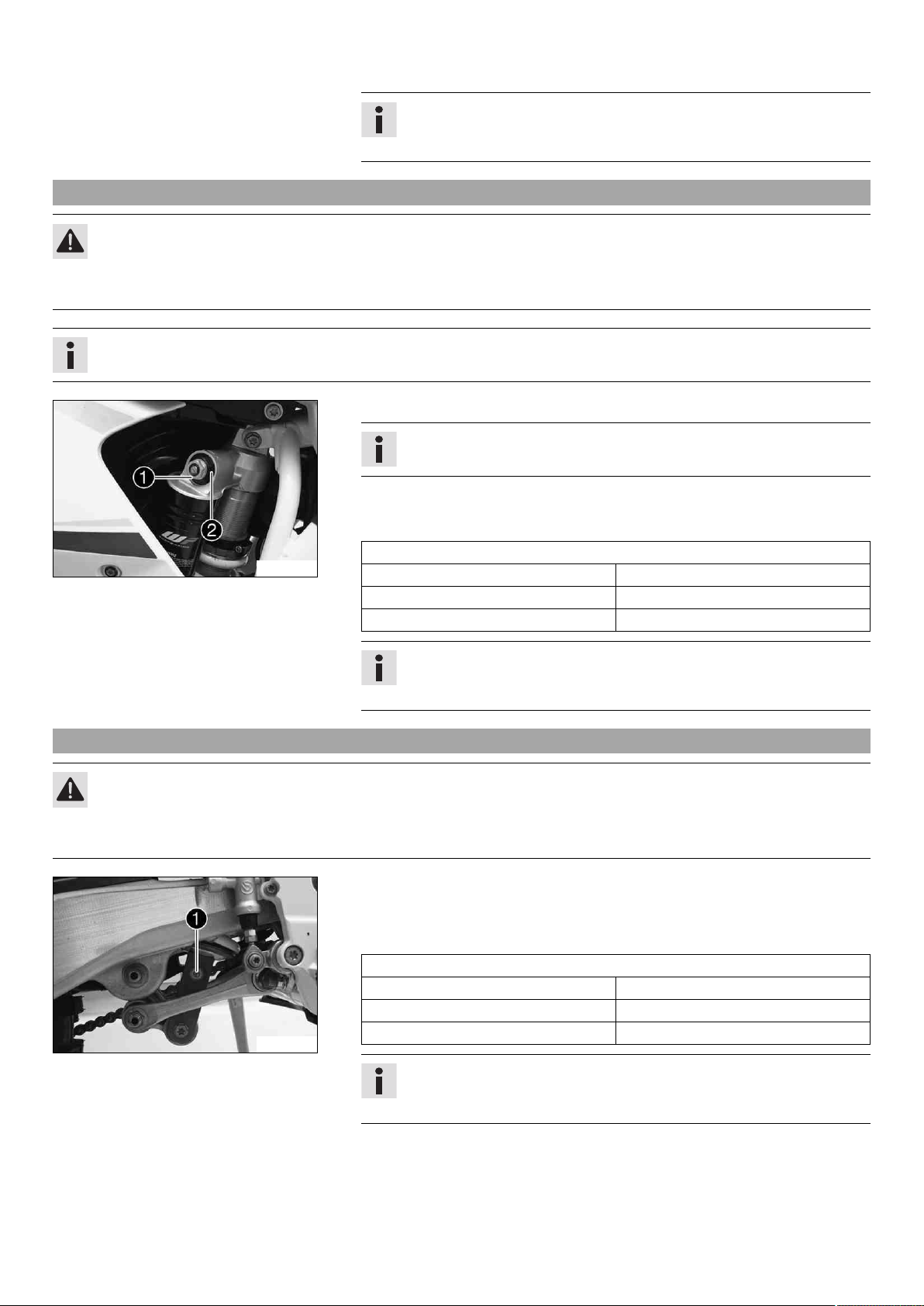

11.4 Adjusting the high-speed compression damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
The high-speed setting can be seen during the fast compression of the shock absorber.
– Turn adjusting screw1all the way clockwise with a socket wrench.
Info
Do not loosen nut2!
– Turn counterclockwise by the number of turns corresponding to the shock absorber
type. Guideline
Compression damping, high-speed
C00557-11
Comfort 2.5 turns Standard 2 turns Sport 1.5 turns
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

11.5 Adjusting the rebound damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
– Turn adjusting screw1clockwise up to the last perceptible click. – Turn counterclockwise by the number of clicks corresponding to the shock absorber
type. Guideline
Rebound damping
Comfort 20 clicks Standard 18 clicks
C00558-10
Sport 16 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.
Page 38
11 TUNING THE CHASSIS 36

11.6 Measuring rear wheel sag unloaded

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Measure the distance – as vertically as possible – between the rear axle and a fixed
point such as a mark on the side cover.
– Make note of the value as measurementA.
400988-10
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

11.7 Checking the static sag of the shock absorber

– Measure distanceAof rear wheel unloaded. ( p. 36) – Hold the motorcycle upright with the aid of an assistant. – Measure the distance between the rear axle and the fixed point again. – Note down the value as dimensionB.
Info
The static sag is the difference between measurementsAandB.
– Check the static sag.
Static sag 30 mm (1.18 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber. x ( p. 37)
400989-10

11.8 Checking the riding sag of the shock absorber

– Measure distanceAof rear wheel unloaded. ( p. 36) – With another person holding the motorcycle, the rider, wearing full protective cloth-
ing, sits on the seat in a normal sitting position (feet on footrests) and bounces up and down a few times.
The rear wheel suspension levels out.
– Another person now measures the distance between the rear axle and a fixed point. – Note down the value as dimensionC.
400990-10
Info
The riding sag is the difference between measurementsAandC.
– Check the riding sag.
Riding sag 100 mm (3.94 in)
» If the riding sag differs from the specified measurement:
– Adjust the riding sag. x ( p. 37)
Page 39
11 TUNING THE CHASSIS 37

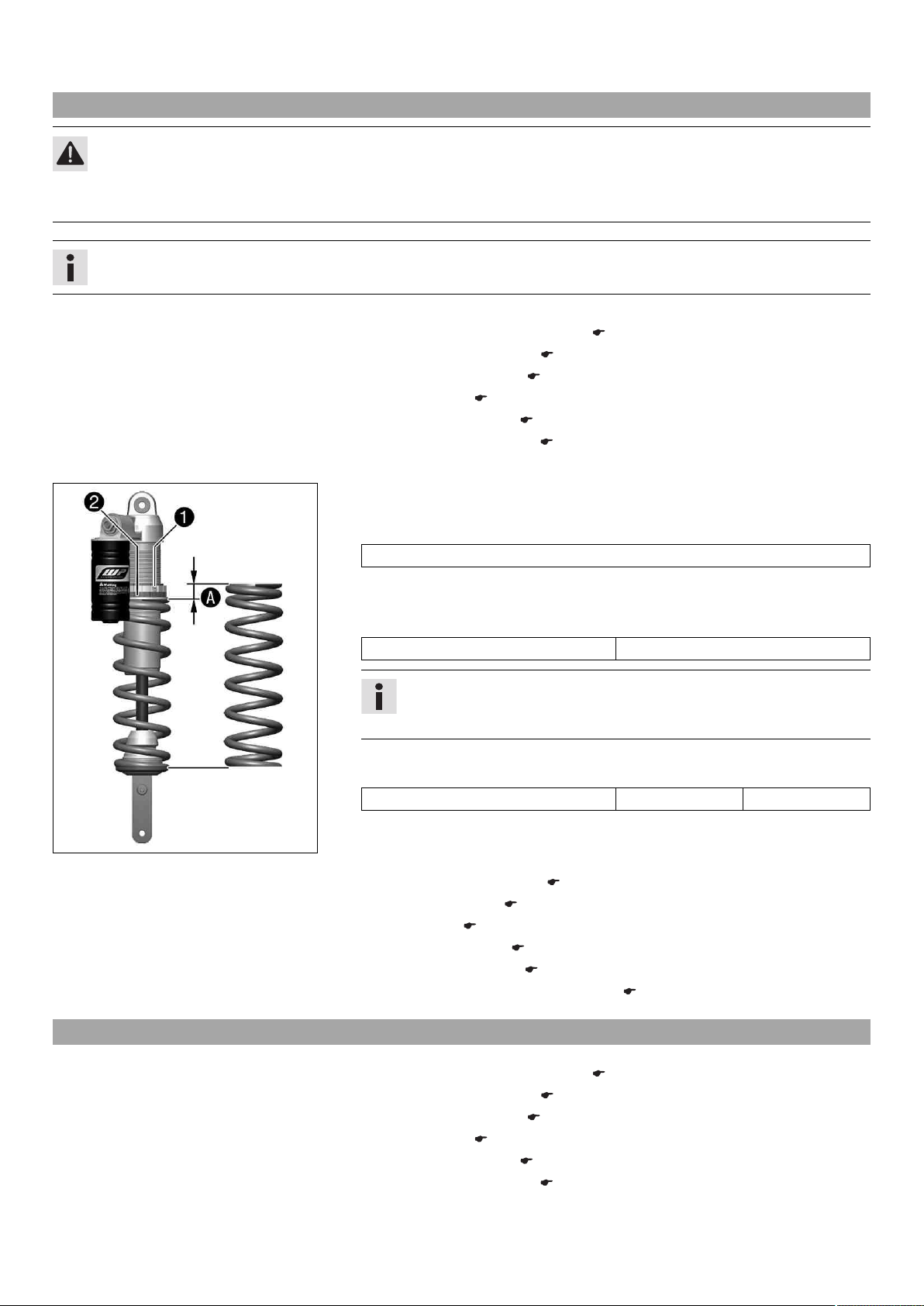

11.9 Adjusting the spring preload of the shock absorber x

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
Before changing the spring preload, make a note of the present setting, e.g., by measuring the length of the spring.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41) – Remove the right side cover. ( p. 55) – Remove the main silencer. ( p. 54) – Remove the seat. ( p. 49)
– Remove the manifold. x ( p. 52) – Remove shock absorber. x ( p. 49)
– After removing the shock absorber, clean it thoroughly.
Main work
– Loosen screw1. – Turn adjusting ring2until the spring is no longer under tension.
401025-10
Hook wrench (T106S)
– Measure the overall spring length while the spring is not under tension. – Tighten the spring by turning adjusting ring2to measurementA.
Guideline
Spring preload 13 mm (0.51 in)
Info
Depending on the static sag and/or the riding sag, it may be necessary to increase or decrease the spring preload.
– Tighten screw1.
Guideline
Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft)
Finishing work
– Install the shock absorber. x ( p. 49) – Install the manifold. x ( p. 53)
– Mount the seat. ( p. 49) – Install the main silencer. ( p. 54) – Install the right side cover. ( p. 56) – Remove the motorcycle from the lift stand. ( p. 41)

11.10 Adjusting the riding sag x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41) – Remove the right side cover. ( p. 55) – Remove the main silencer. ( p. 54) – Remove the seat. ( p. 49)
– Remove the manifold. x ( p. 52) – Remove shock absorber. x ( p. 49)
– After removing the shock absorber, clean it thoroughly.
Page 40
11 TUNING THE CHASSIS 38
Main work

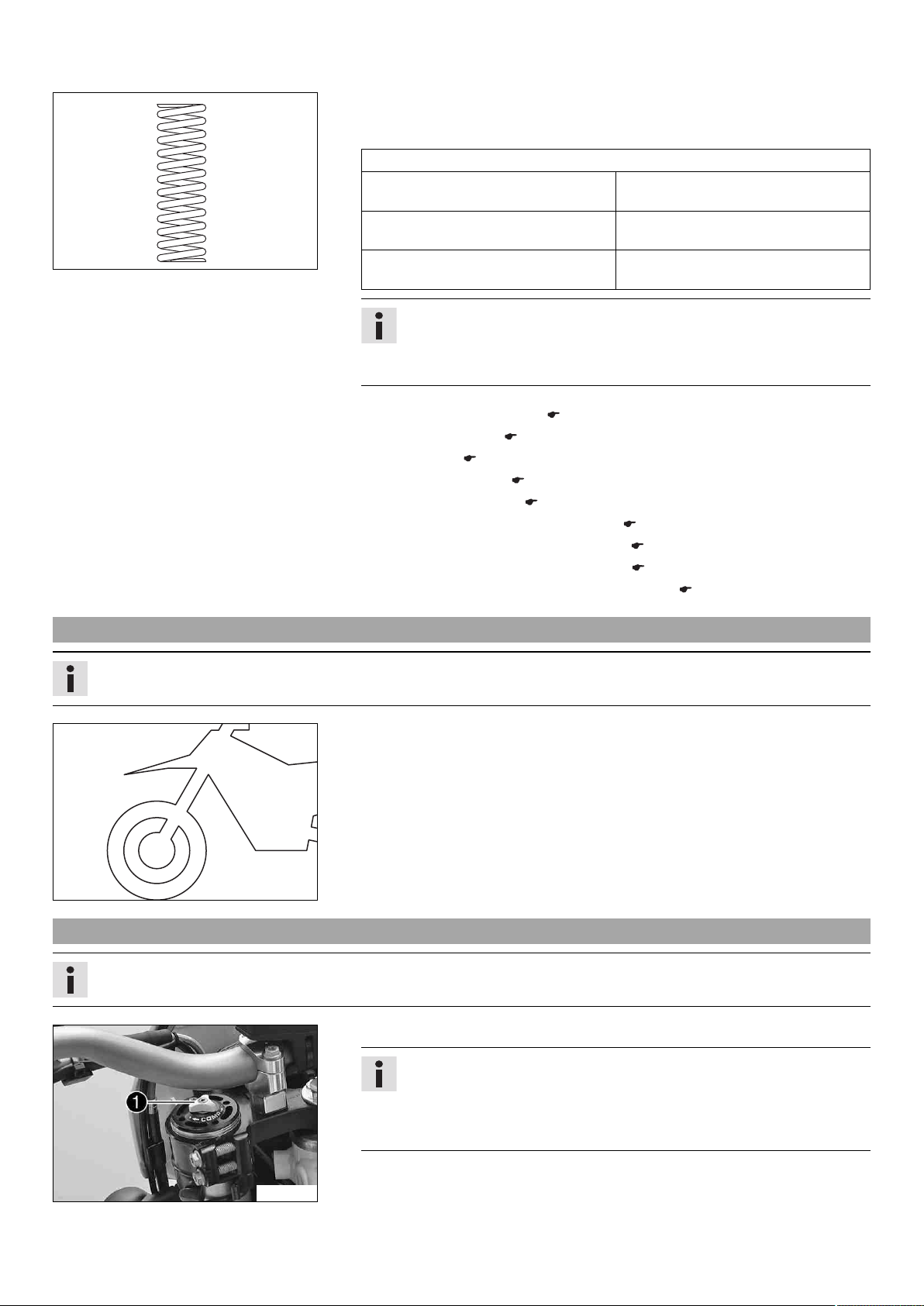

– Choose and mount a suitable spring.
Guideline
Spring rate
B00292-10
Weight of rider: 65… 75 kg (143… 165 lb.)
Weight of rider: 75… 85 kg (165… 187 lb.)
Weight of rider: 85… 95 kg (187… 209 lb.)
Info
The spring rate is shown on the outside of the spring. Smaller weight differences can be compensated by changing the spring preload.
Finishing work
– Install the shock absorber. x ( p. 49) – Install the manifold. x ( p. 53)
– Mount the seat. ( p. 49) – Install the main silencer. ( p. 54) – Install the right side cover. ( p. 56) – Remove the motorcycle from the lift stand. ( p. 41) – Check the static sag of the shock absorber. ( p. 36) – Check the riding sag of the shock absorber. ( p. 36) – Adjust the rebound damping of the shock absorber. ( p. 35)
51 N/mm (291 lb/in)
54 N/mm (308 lb/in)
57 N/mm (325 lb/in)

11.11 Checking basic setting of fork

Info
For various reasons, no exact riding sag can be determined for the forks.
– As with the shock absorber, smaller differences in the rider's weight can be compen-
sated by the spring preload.
– However, if the fork is often overloaded (hard end stop on compression), harder
springs must be fit to avoid damage to the fork and frame.
401000-01

11.12 Adjusting the compression damping of the fork

Info
The hydraulic compression damping determines the fork suspension behavior.
– Turn the white adjusting screw1all the way clockwise.
Info
Adjusting screw1is located at the upper end of the left fork leg. The compression damping is located in the left fork leg COMP (white adjust­ing screw). The rebound damping is located in the right fork leg REB (red adjusting screw).
C00559-10
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Page 41
11 TUNING THE CHASSIS 39
Guideline
Compression damping
Comfort 15 clicks Standard 13 clicks Sport 11 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

11.13 Adjusting the rebound damping of the fork

Info
The hydraulic rebound damping determines the fork suspension behavior.
– Turn the red adjusting screw1all the way clockwise.
Info
Adjusting screw1is located at the upper end of the right fork leg. The rebound damping is located in the right fork leg REB (red adjusting screw). The compression damping is located in the left fork leg COMP (white adjusting screw).
C00560-10

11.14 Handlebar position

101859-10
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping
Comfort 15 clicks Standard 13 clicks Sport 11 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.
On the upper triple clamp, there are two holes at a distance ofAto each other.
Hole distance
The holes on the handlebar supports are placed at a distance ofBfrom the center.
Hole distance
The handlebar supports can be mounted in four different positions.
A
B
15 mm (0.59 in)
3.5 mm (0.138 in)

11.15 Adjusting the handlebar position x

Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handlebar.
Page 42
11 TUNING THE CHASSIS 40
– Remove screws1. Take off the handlebar clamps. Take off the handlebar and lay it
to one side.
Info
Protect the motorcycle and its attachments against damage by covering them. Do not bend the cables and lines.
– Remove screws2. Take off the handlebar supports.
101860-10
– Place the handlebar supports in the required position. Mount and tighten screws2.
Guideline
Screw, handlebar holder M10 40 Nm
(29.5 lbf ft)
Loctite®243™
Info
Position the left and right handlebar holders evenly.
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
– Position the handlebar clamps. Mount and tighten screws1evenly.
Guideline
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
Info
Make sure the gap width is even.
Page 43

12 SERVICE WORK ON THE CHASSIS 41

12.1 Raising the motorcycle with a lift stand

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
– Raise the motorcycle at the frame underneath the engine.
Lift stand (81329955000)
The wheels must no longer touch the ground.
401942-01

12.2 Removing the motorcycle from the lift stand

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
– Secure the motorcycle against falling over.
– Remove the motorcycle from the lift stand. – Remove the lift stand. – To park the motorcycle, press side stand1to the ground with your foot and lean
the motorcycle on it.
Info
When you are riding, the side stand must be folded up and secured with the rubber band.
401943-10

12.3 Bleeding fork legs

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Release bleeder screws1.
Any excess pressure escapes from the interior of the fork.
– Mount and tighten bleeder screws.
C00562-10
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

12.4 Cleaning the dust boots of the fork legs

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41) – Loosen the fork protector. ( p. 42)
Main work
– Push dust boot1downward of both fork legs.
C00563-10
Info
The dust boots remove dust and coarse dirt particles from the inside fork tubes. Over time, dirt can penetrate behind the dust boots. If this dirt is not removed, the oil seals behind can start to leak.
Page 44
12 SERVICE WORK ON THE CHASSIS 42
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on
the brake discs. – Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
– Clean and oil the dust boots and inner fork tube of both fork legs. – Press the dust boots back into their normal position. – Remove excess oil.
Finishing work
– Position the fork protector. ( p. 42) – Remove the motorcycle from the lift stand. ( p. 41)

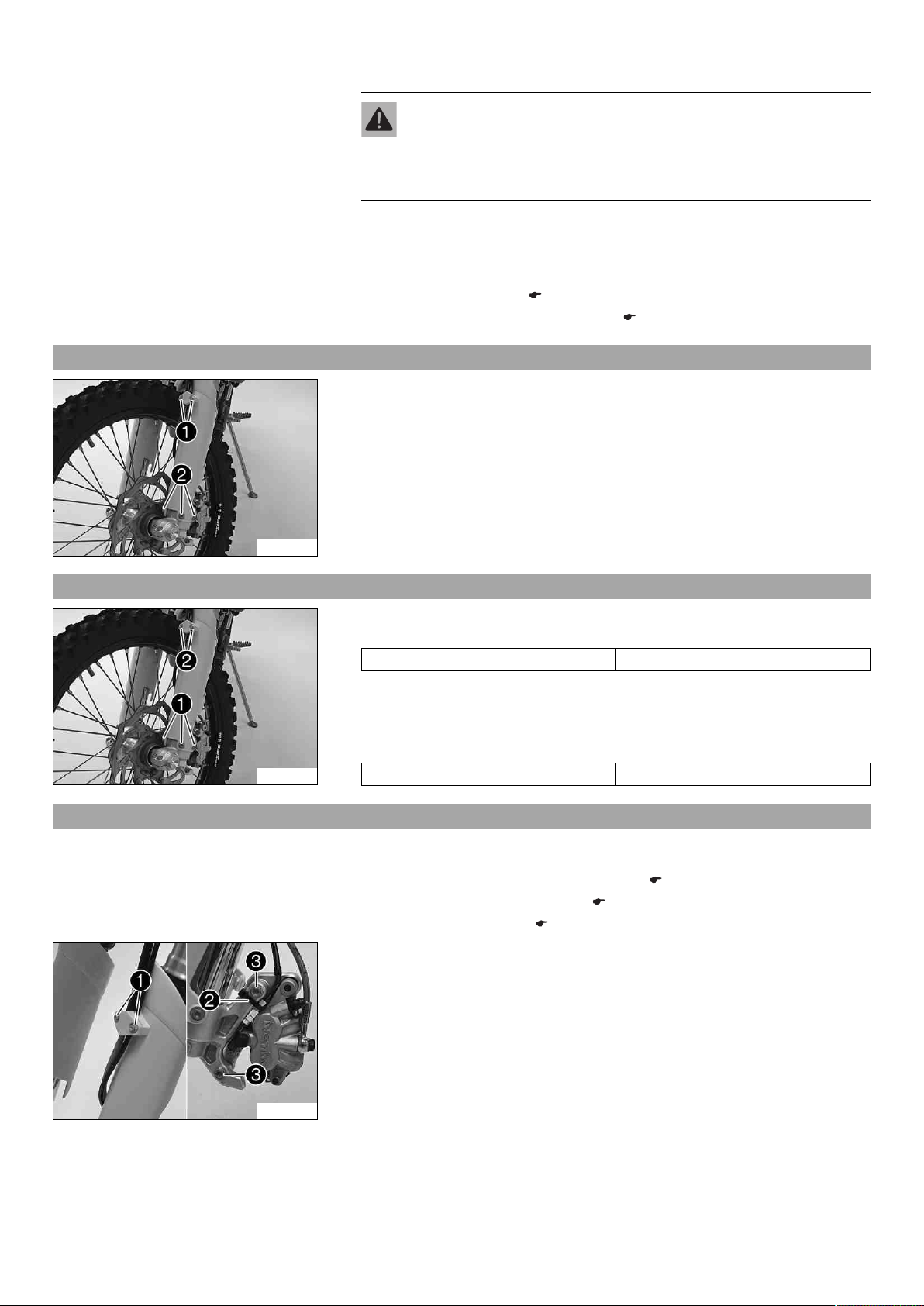

12.5 Loosening the fork protector

– Remove screws1and remove the clamp. – Remove screws2on the left fork leg. Push the fork protector downwards. – Remove the screws on the right fork leg. Push the fork protector downwards.
C00564-10

12.6 Positioning the fork protector

– Position the fork protector on the left fork leg. Mount and tighten screws1.
– Position the wiring harness. – Position the brake line. Put the clamp on, and mount and tighten screws2. – Position the fork protector on the right fork leg. Mount and tighten the screws.
C00564-11

12.7 Removing the fork legs

Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82) – Raise the motorcycle with a lift stand. ( p. 41)
– Remove the front wheel. x ( p. 74)
Main work
– Remove screws1and take off the clamp. – Remove cable binder2. – Remove screws3and take off the brake caliper. – Allow the brake caliper and brake line to hang tension-free to the side.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
C00577-10
Page 45
12 SERVICE WORK ON THE CHASSIS 43
– Release screws4. Take out the left fork leg. – Release screws5. Take out the right fork leg.
C00579-10

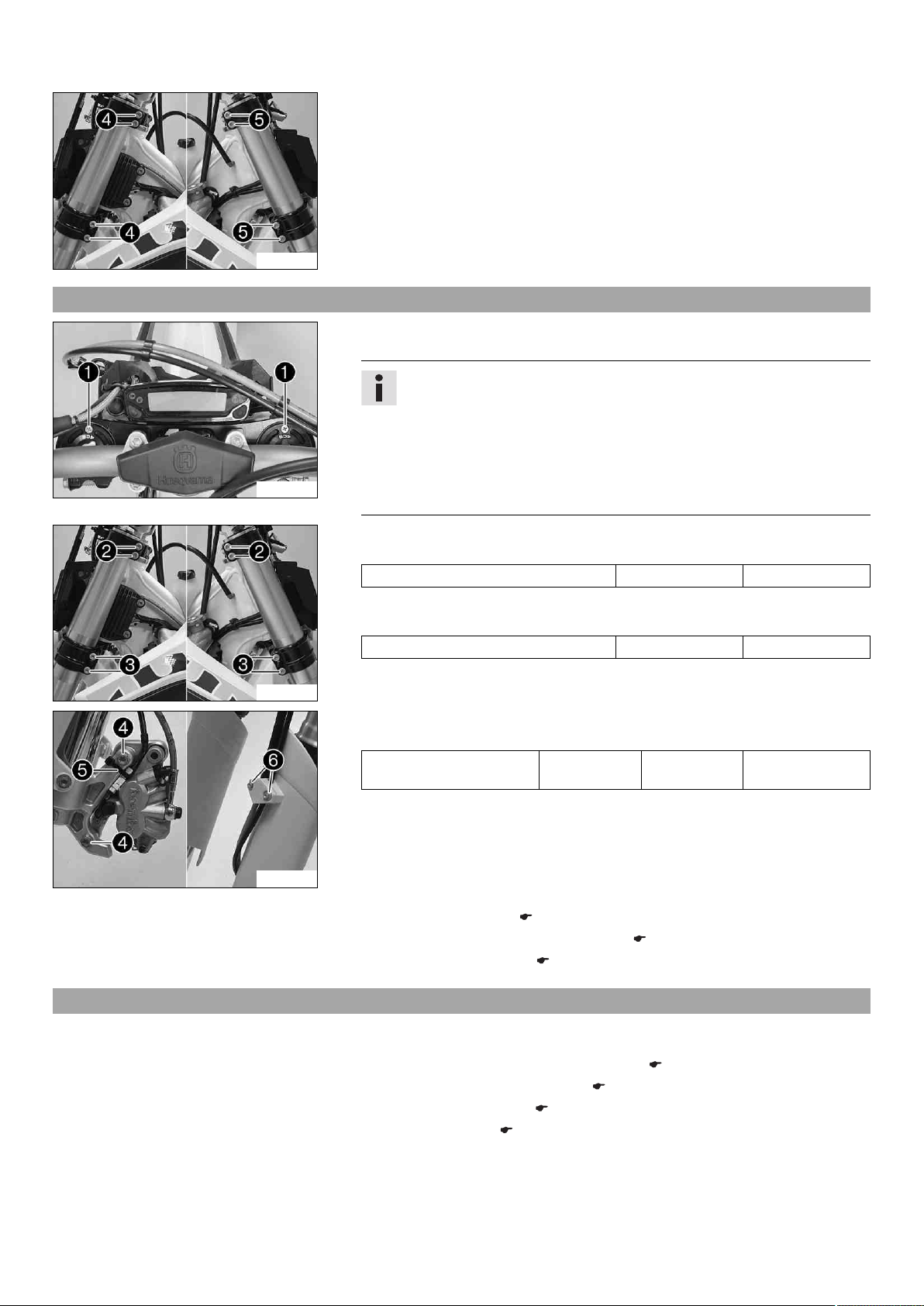

12.8 Installing the fork legs x

Main work
– Position the fork legs.
Info
The compression damping is located in the left fork leg COMP (white adjust­ing screw). The rebound damping is located in the right fork leg REB (red adjusting screw). Grooves are milled into the side of the upper end of the fork legs. The sec­ond milled groove (from the top) must be flush with the top edge of the upper
C00580-10
triple clamp. Position bleeder screws1toward the front.
C00579-11
C00578-10
– Tighten screws2.
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
– Tighten screws3.
Guideline
Screw, bottom triple clamp M8 15 Nm (11.1 lbf ft)
– Position the brake caliper and mount and tighten screws4.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
– Mount cable binder5. – Position the brake line, wiring harness, and clamp. Mount and tighten screws6.
Finishing work
– Install the front wheel. x ( p. 74)
– Install the headlight mask with the headlight. ( p. 82) – Check the headlight setting. ( p. 84)
Loctite®243™

12.9 Removing the fork protector x

Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82) – Raise the motorcycle with a lift stand. ( p. 41)
– Remove the front wheel. x ( p. 74)
– Remove the fork legs. ( p. 42)
Page 46
12 SERVICE WORK ON THE CHASSIS 44
Main work
– Remove screws1on the left fork leg. Remove the fork protector upwards. – Remove the screws on the right fork leg. Remove the fork protector upwards.
C00565-10

12.10 Installing the fork protector x

Main work
– Position the fork protector on the left fork leg. Mount and tighten screws1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the fork protector on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
C00565-10
Finishing work
– Install the fork legs. x ( p. 43) – Install the front wheel. x ( p. 74)
– Install the headlight mask with the headlight. ( p. 82) – Check the headlight setting. ( p. 84)

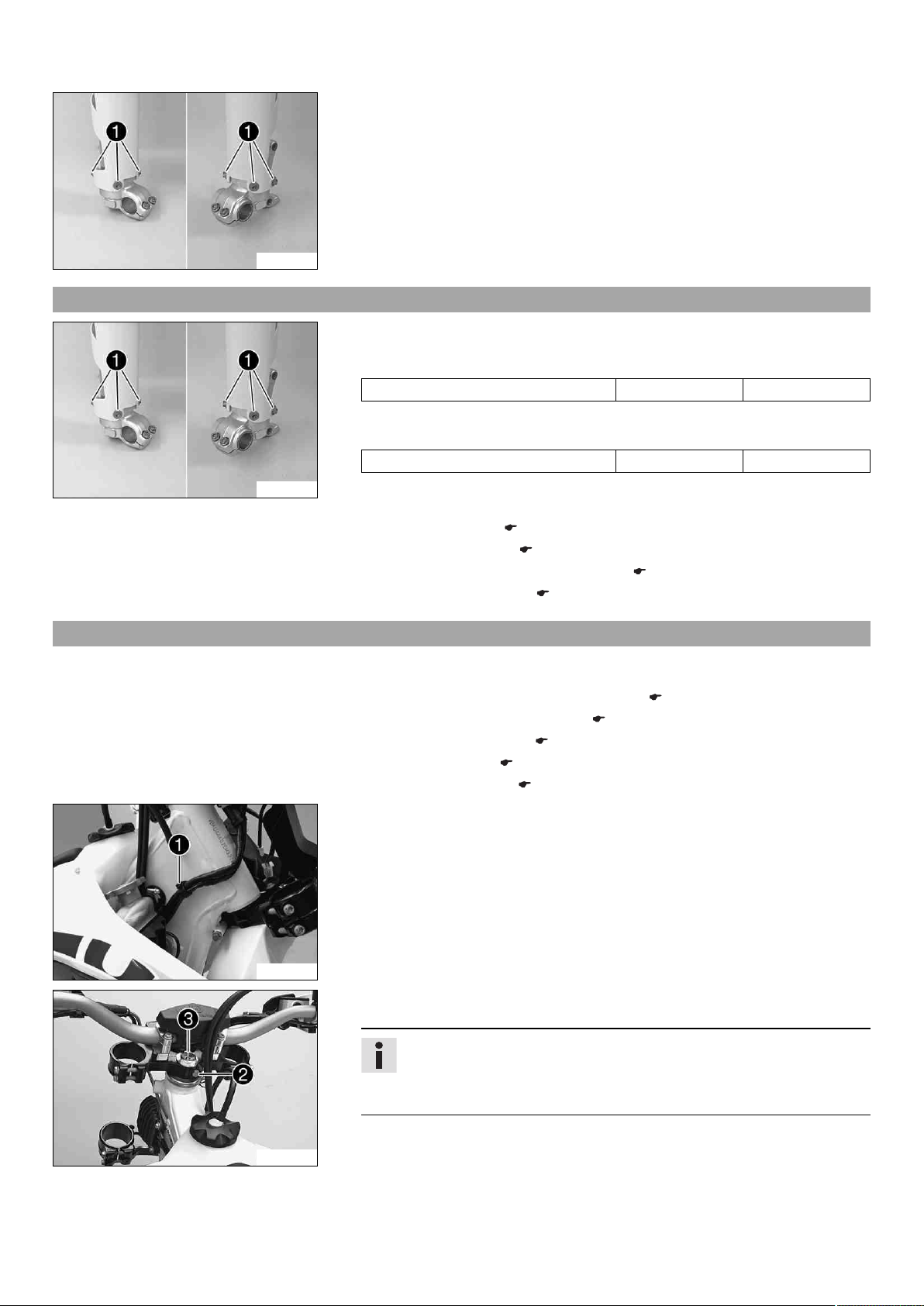

12.11 Removing the lower triple clamp x

Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82) – Raise the motorcycle with a lift stand. ( p. 41)
– Remove the front wheel. x ( p. 74)
– Remove the fork legs. ( p. 42) – Remove the front fender. ( p. 48)
Main work
– Open cable holder1in front of the right radiator and detach the wiring harness.
C00599-10
– Remove screw2. Remove screw3, take off the upper triple clamp with the han-
dlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering them. Do not bend the cables and lines.
C00566-13
Page 47
12 SERVICE WORK ON THE CHASSIS 45

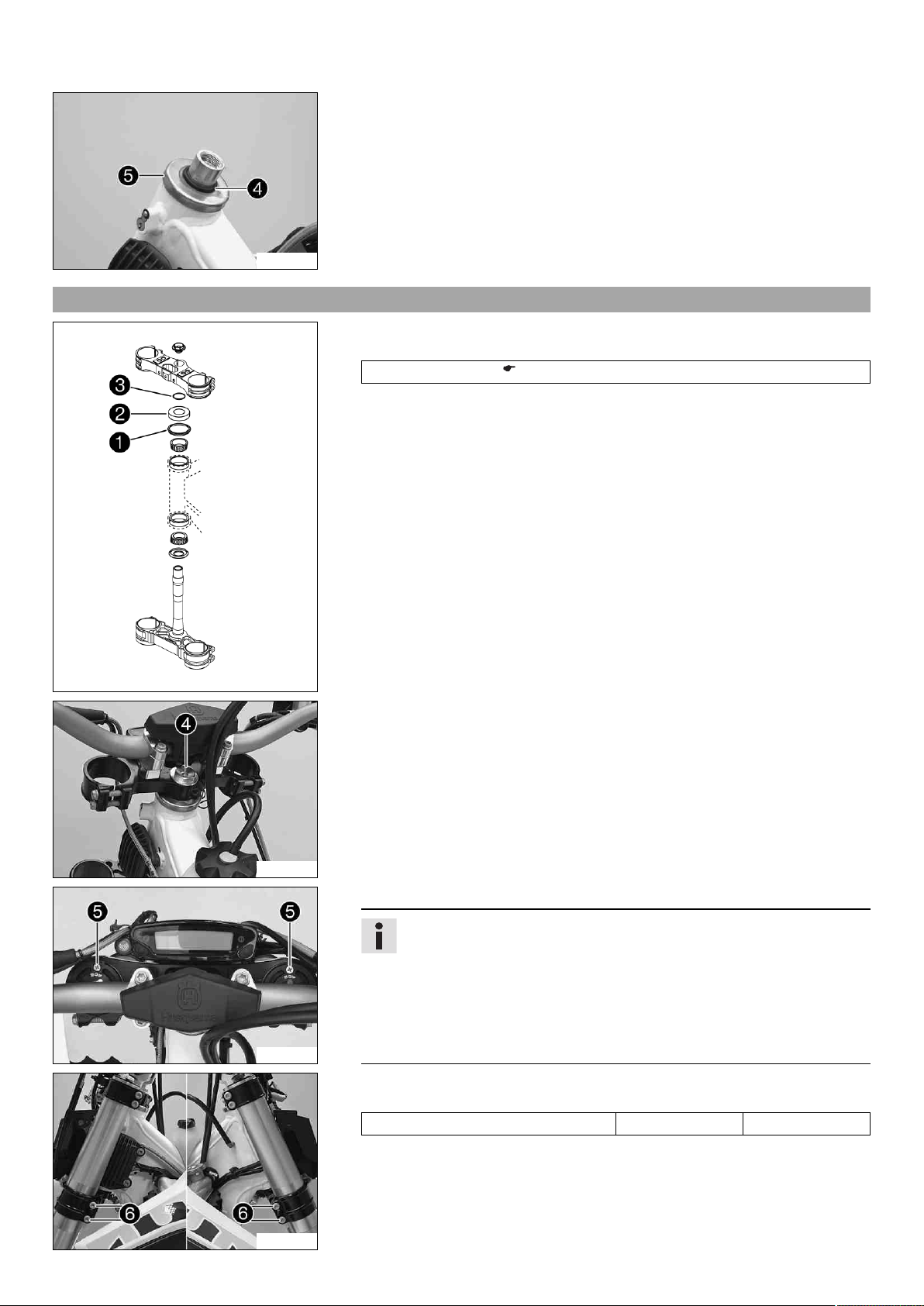

– Remove O-ring4. Remove protective ring5. – Take off the lower triple clamp with the steering stem. – Remove the upper steering head bearing.
C00567-11

12.12 Installing the lower triple clamp x

Main work
– Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease ( p. 110)
– Position the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
– Check whether the top steering head seal1is correctly positioned. – Mount protective ring2and O-ring3.
B01632-10
C00585-10
C00598-10
– Position the upper triple clamp with the steering. – Mount screw4but do not tighten yet. – Position the clutch line next to the voltage regulator.
– Position the fork legs.
Info
The compression damping is located in the left fork leg COMP (white adjust­ing screw). The rebound damping is located in the right fork leg REB (red adjusting screw). Grooves are milled into the side of the upper end of the fork legs. The sec­ond milled groove (from the top) must be flush with the top edge of the upper triple clamp. Position bleeder screws5toward the front.
– Tighten screws6.
Guideline
Screw, bottom triple clamp M8 15 Nm (11.1 lbf ft)
C00586-10
Page 48
12 SERVICE WORK ON THE CHASSIS 46

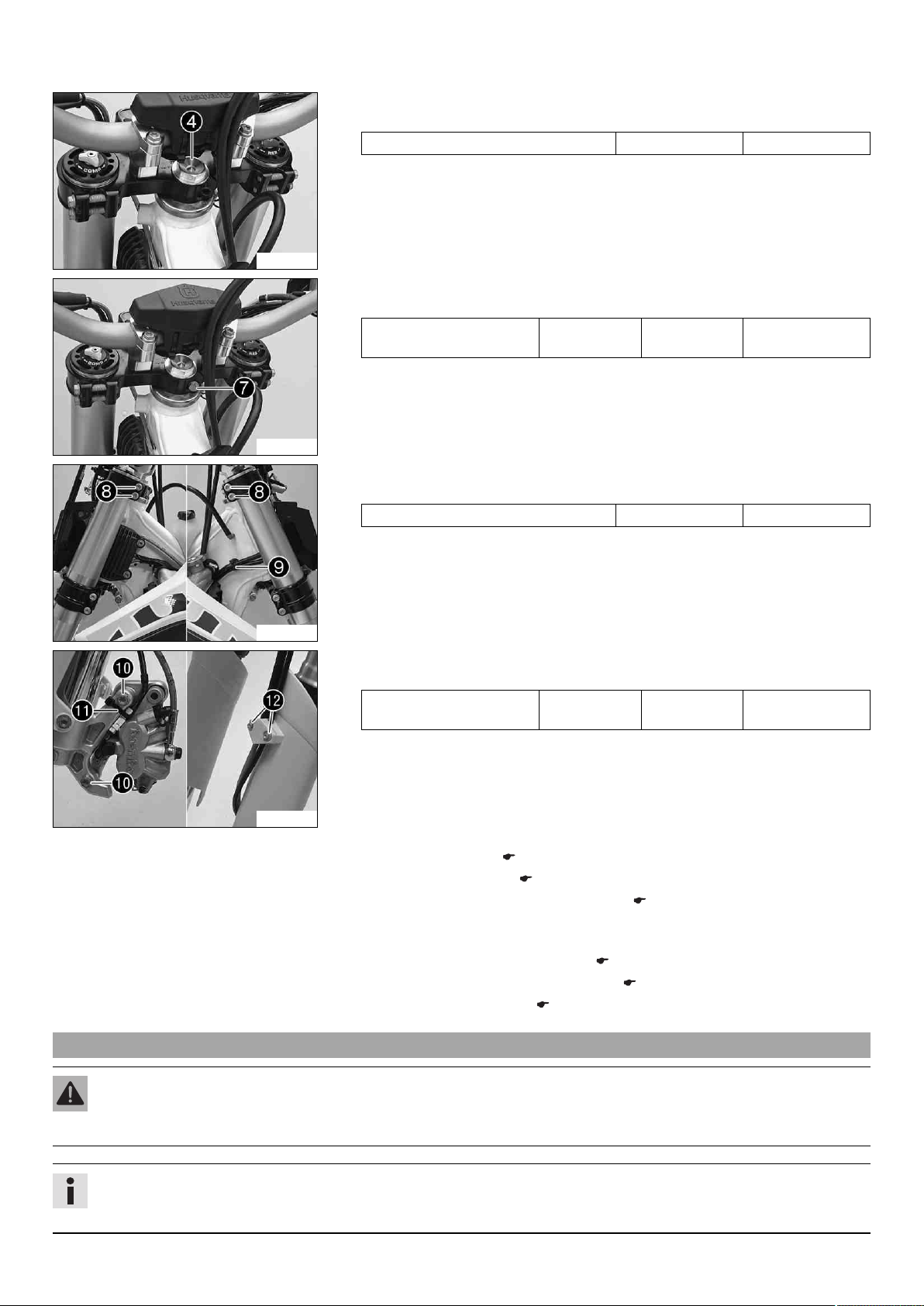

– Tighten screw4.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
C00569-10
– Mount and tighten screw7.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
C00587-10
– Tighten screws8.
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
Loctite®243™
C00586-11
C00578-11
– Secure the wiring harness with cable holder9.
– Position the brake caliper. Mount and tighten screwsbk.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
– Mount cable binderbl. – Position the brake line, wiring harness, and clamp. Mount and tighten screwsbm.
Finishing work
– Install the front fender. ( p. 48)
– Install the front wheel. x ( p. 74)
– Install the headlight mask with the headlight. ( p. 82) – Check that the wiring harness, throttle cables and brake and clutch lines can move
freely and are routed correctly.
– Check the steering head bearing play. ( p. 46) – Remove the motorcycle from the lift stand. ( p. 41) – Check the headlight setting. ( p. 84)
Loctite®243™

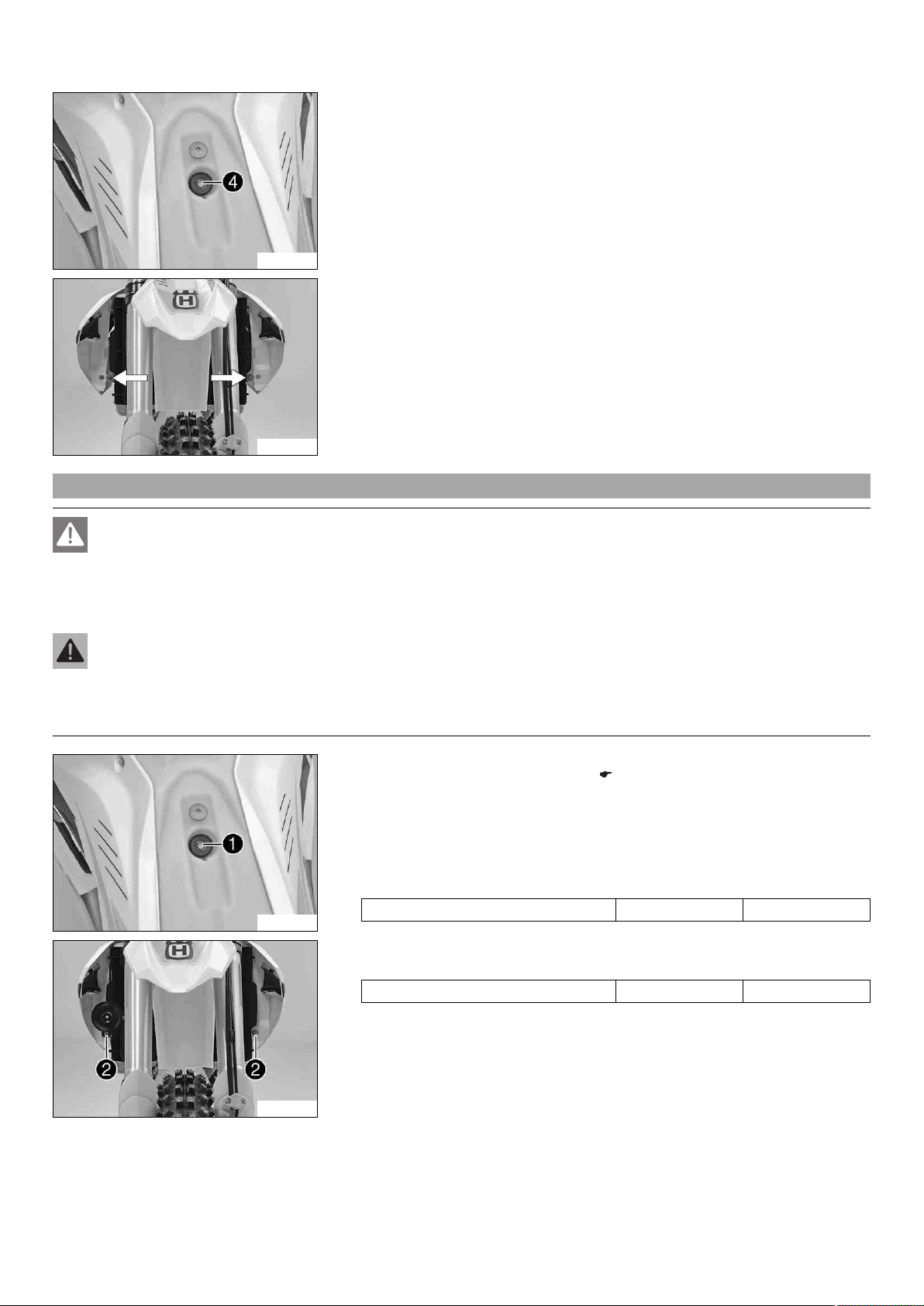

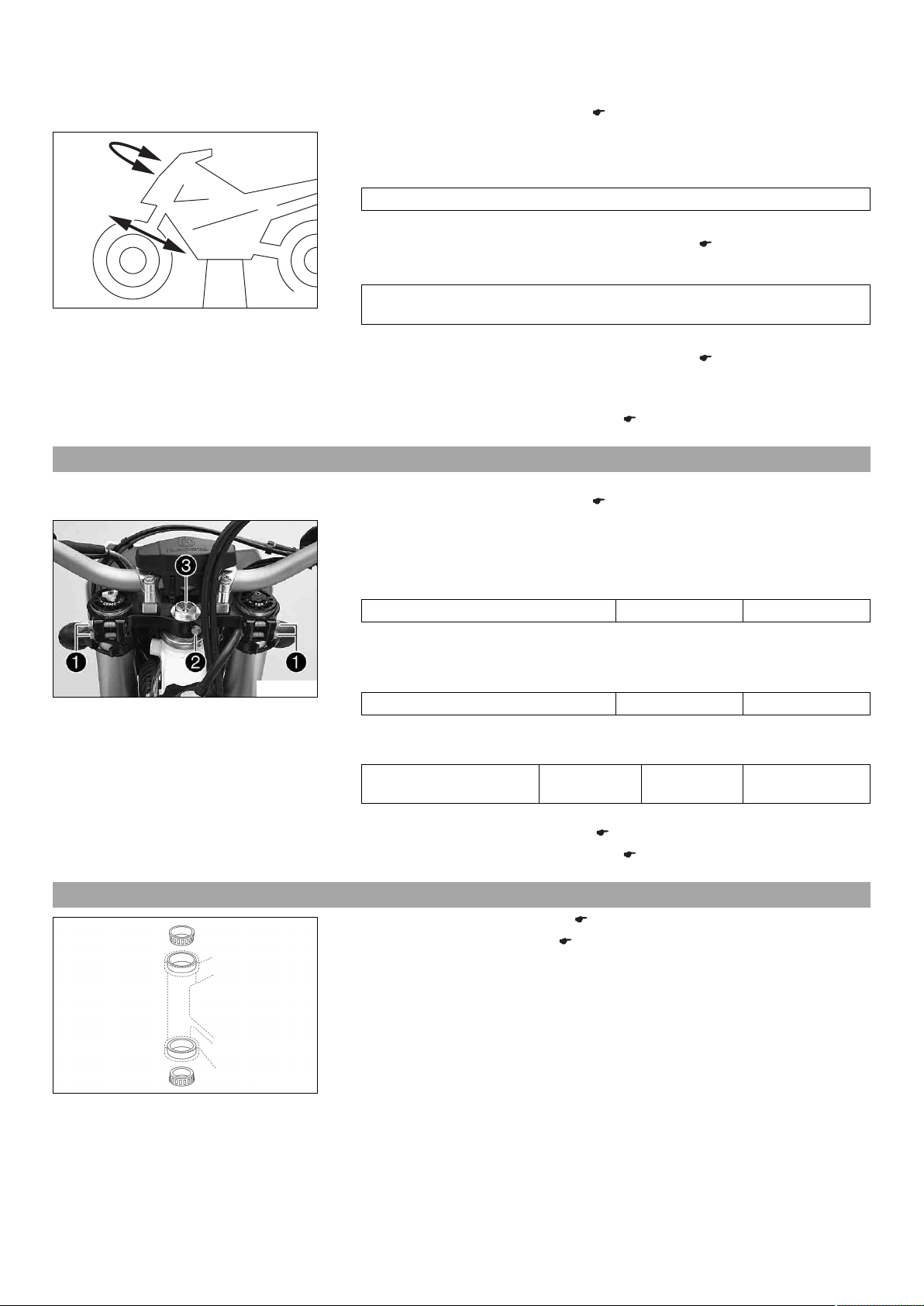

12.13 Checking the steering head bearing play

Warning
Danger of accidents Unstable vehicle handling from incorrect steering head bearing play.
– Adjust the steering head bearing play without delay. (Your authorized Husqvarna workshop will be glad to help.)
Info
If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become damaged over time.
Page 49
12 SERVICE WORK ON THE CHASSIS 47
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Move the handlebar to the straight-ahead position. Move the fork legs to and fro in
the direction of travel.
No play should be noticeable in the steering head bearing.
» If there is noticeable play present:
– Adjust the play of the steering head bearing. x ( p. 47)
– Move the handlebar to and fro over the entire steering range.
400738-11
The handlebar must be able to move easily over the entire steering range. No rest­ing locations should be noticeable.
» If click positions are noticeable:
– Adjust the play of the steering head bearing. x ( p. 47)
– Check the steering head bearing and replace if required.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

12.14 Adjusting the play of the steering head bearing x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Loosen screws1. Remove screw2. – Loosen and retighten screw3.
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains. – Tighten screws1.
C00570-10
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
– Mount and tighten screw2.
Guideline
Screw, top steering stem M8 17 Nm
Loctite®243™
(12.5 lbf ft)
Finishing work
– Check the steering head bearing play. ( p. 46) – Remove the motorcycle from the lift stand. ( p. 41)

12.15 Lubricating the steering head bearing x

– Remove the lower triple clamp. x ( p. 44) – Install the lower triple clamp. x ( p. 45)
800010-10
Page 50
12 SERVICE WORK ON THE CHASSIS 48

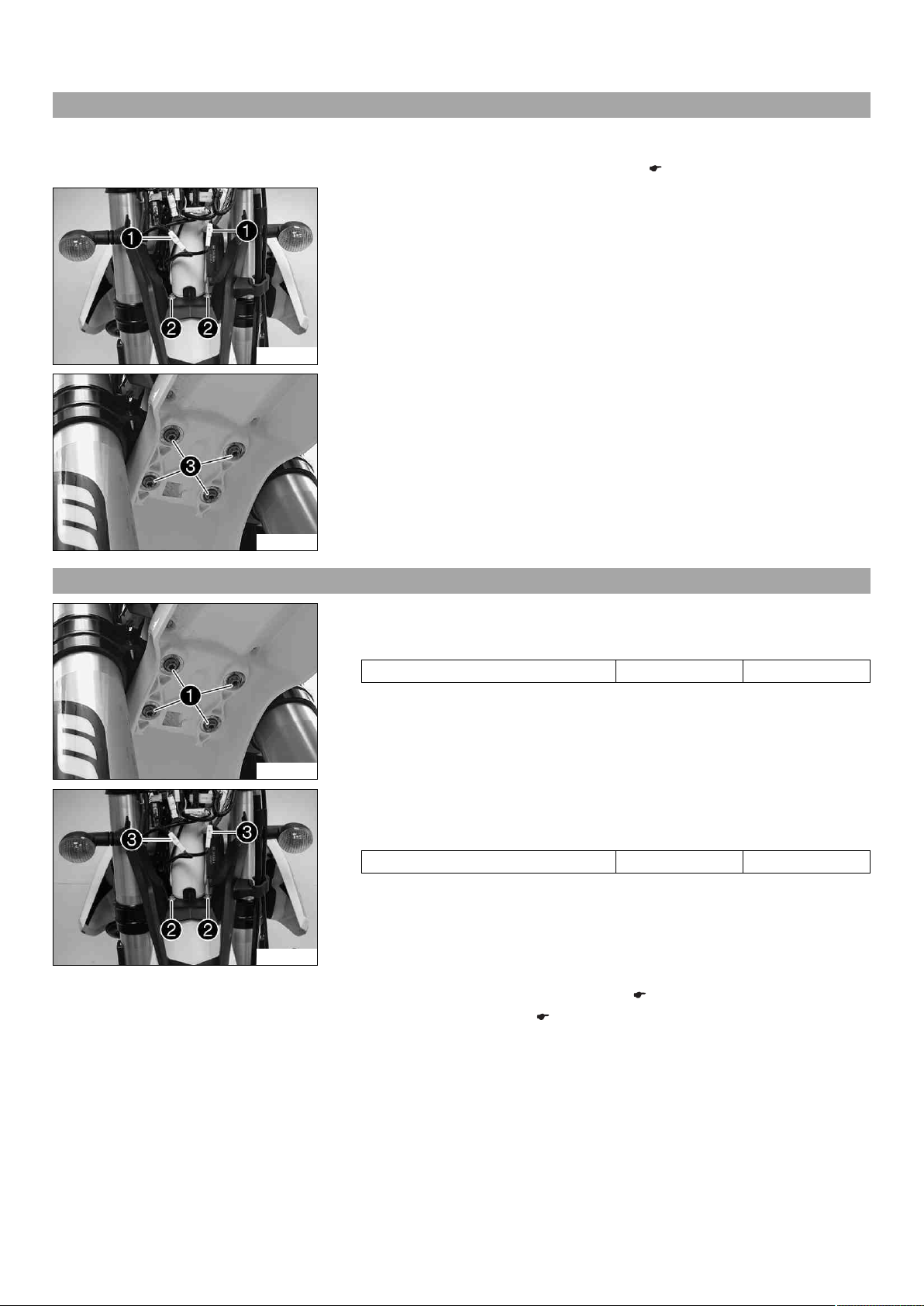

12.16 Removing the front fender

Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82)
Main work
– Disconnect plug-in connectors1of the turn signals. – Remove screws2. – Take the brake line and wiring harness out of the brake line guide.
C00596-10
– Remove screws3. Take off the fender.
C00572-12

12.17 Installing the front fender

C00572-11
C00596-11
Main work
– Position the front fender. Mount and tighten screws1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line and wiring harness in the brake line guide. – Mount and tighten screws2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Connect plug-in connectors3of the turn signals.
Finishing work
– Install the headlight mask with the headlight. ( p. 82) – Check the headlight setting. ( p. 84)
Page 51
12 SERVICE WORK ON THE CHASSIS 49

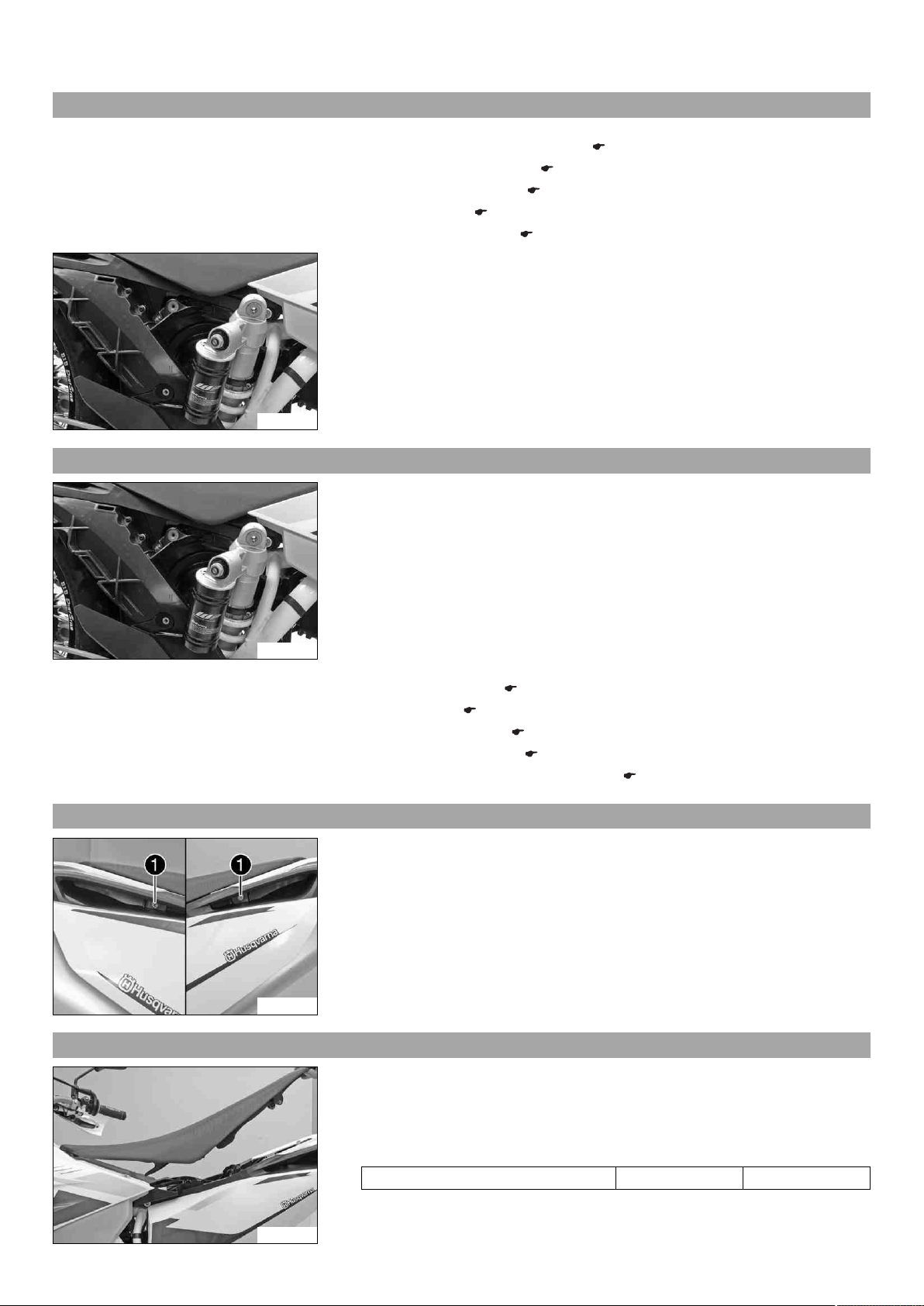

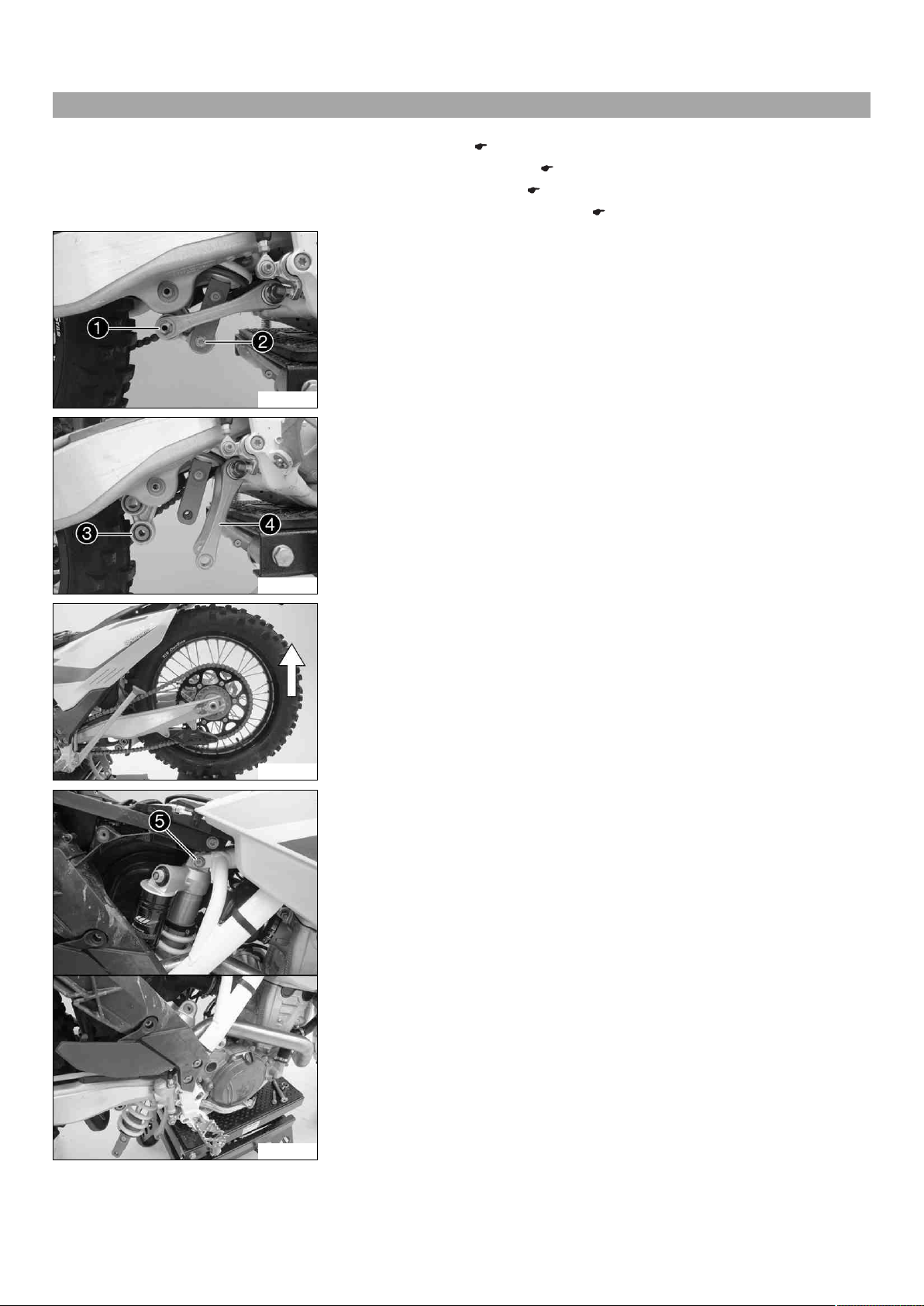

12.18 Removing the shock absorber x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41) – Remove the right side cover. ( p. 55) – Remove the main silencer. ( p. 54) – Remove the seat. ( p. 49)
– Remove the manifold. x ( p. 52)
Main work
– Carefully take the shock absorber out of the vehicle toward the top.
B01820-01

12.19 Installing the shock absorber x

Main work
– Carefully position the shock absorber into the vehicle from above.
B01820-01

12.20 Removing the seat

B01819-10

12.21 Mounting the seat

Finishing work
– Install the manifold. x ( p. 53)
– Mount the seat. ( p. 49) – Install the main silencer. ( p. 54) – Install the right side cover. ( p. 56) – Remove the motorcycle from the lift stand. ( p. 41)
– Remove screws1in the recessed grips on the left and right. – Lift up the seat at the rear, pull it back, and then lift it off.
– Attach the front of the seat to the collar bushing of the fuel tank and lower the seat at
the rear while pushing forward.
– Make sure that the seat is correctly locked in. – Mount and tighten the screws for securing the seat.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01818-01
Page 52
12 SERVICE WORK ON THE CHASSIS 50

12.22 Removing the air filter box lid

– Release catch1, pull off the air filter box lid sideways in areasAandBand
remove toward the rear.
B01817-10

12.23 Installing the air filter box lid

– Position the air filter box lid and tab1. Engage the air filter box lid in areas
andB.
– Engage tab1.
A
B01817-11

12.24 Removing the air filter x

Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 50)
Main work
– Push air filter holder1toward the air filter at positionAand detach it at endB.
Swing the air filter holder to one side and remove the air filter with the air filter sup­port.
– Remove the air filter from the air filter support.
B01816-11

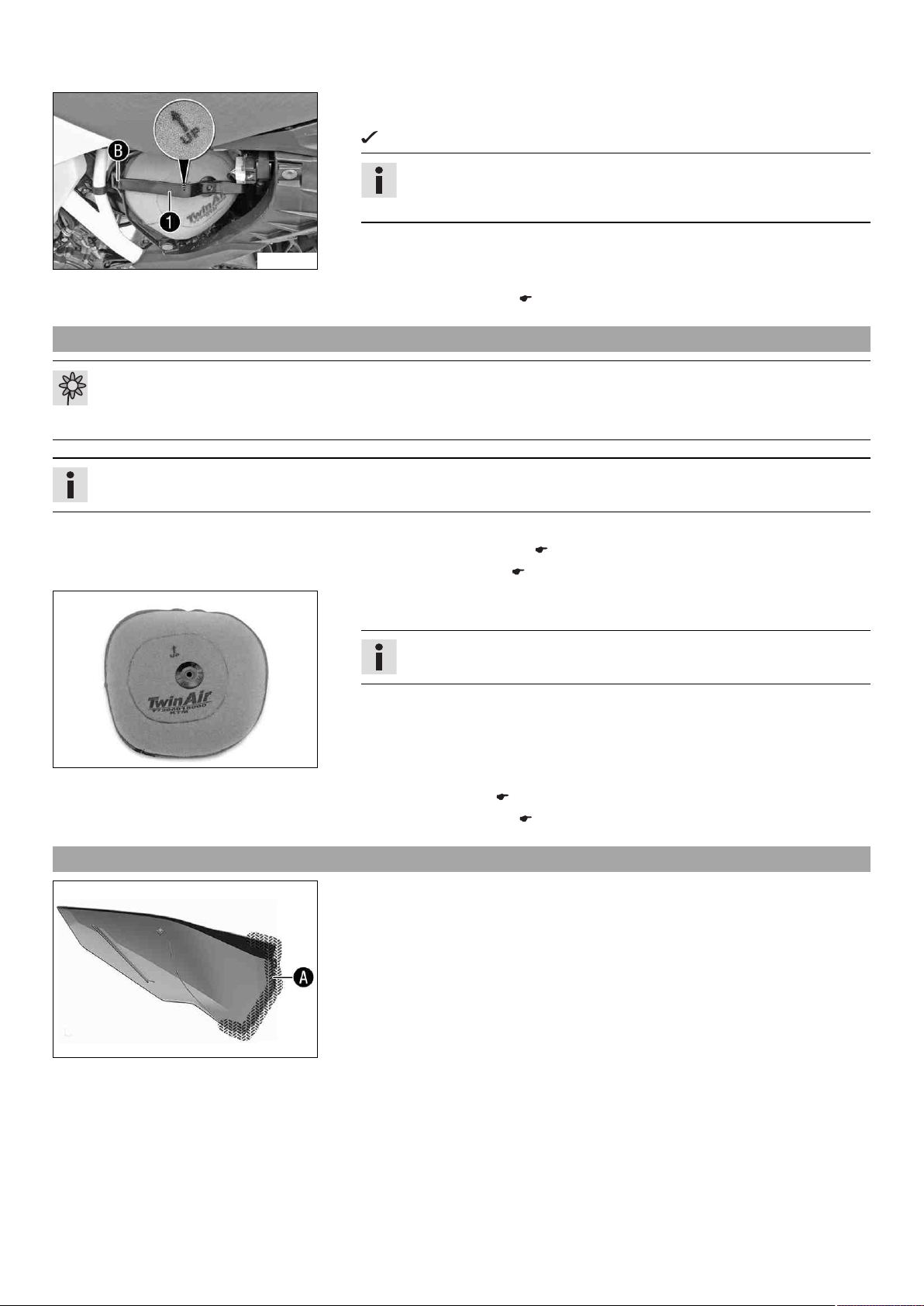

12.25 Installing the air filter x

101351-10
Main work
– Mount the clean air filter on the air filter support. – Grease the air filter in areaA.
Page 53
12 SERVICE WORK ON THE CHASSIS 51
– Insert both parts together, position them, and fasten them using air filter holder1in
areaB.
The arrow of marking UP faces up.
Info
If the air filter is not correctly mounted, dust and dirt can enter the engine and cause damage.
B01816-10
Finishing work
– Install the air filter box lid. ( p. 50)

12.26 Cleaning the air filter and air filter box x

Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
L00189-10

12.27 Sealing the air filter box x

Preparatory work
– Remove the air filter box lid. ( p. 50)
– Remove the air filter. x ( p. 50)
Main work
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Info
Only press the air filter to dry it, never wring it out.
– Oil the dry air filter with a high quality filter oil. – Clean the air filter box. – Check the intake flange for damage and looseness.
Finishing work
– Install the air filter. x ( p. 50)
– Install the air filter box lid. ( p. 50)
– Seal the air filter box in the marked areaA.
401559-01
Page 54
12 SERVICE WORK ON THE CHASSIS 52

12.28 Removing the manifold x

Preparatory work
– Remove the seat. ( p. 49) – Remove the right side cover. ( p. 55) – Remove the main silencer. ( p. 54) – Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Remove fitting1. – Remove screw2.
309345-10
– Press angle lever3toward the rear. – Press linkage lever4downward.
309346-10
309347-10
– Raise the swingarm.
– Remove screw5. – Lower the shock absorber.
309348-10
Page 55
12 SERVICE WORK ON THE CHASSIS 53
– Remove springs6.
309349-10
– Remove screw7and take off the manifold.
309350-10

12.29 Installing the manifold x

Main work
– Position the manifold and mount springs1.
309349-11
309350-11
Spring hooks (50305017000)
– Mount and tighten screw2.
Guideline
Remaining screws, chassis M8 25 Nm (18.4 lbf ft)
– Position the shock absorber. – Mount and tighten screw3.
Guideline
Screw, top shock absorber M10 60 Nm
Loctite®2701™
(44.3 lbf ft)
309352-10
309347-11
– Lower the swingarm.
Page 56
12 SERVICE WORK ON THE CHASSIS 54
– Position the angle lever and linkage lever. – Mount and tighten fitting4.
Guideline
Nut, linkage lever on angle lever M14x1.5 80 Nm (59 lbf ft)
– Mount and tighten screw5.
Guideline
Screw, bottom shock
309345-11
absorber
Finishing work
– Install the main silencer. ( p. 54) – Install the right side cover. ( p. 56) – Mount the seat. ( p. 49) – Remove the motorcycle from the lift stand. ( p. 41)

12.30 Removing the main silencer

Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
M10 60 Nm
(44.3 lbf ft)
Loctite®2701™
B01814-11

12.31 Installing the main silencer

B01814-10
Preparatory work
– Remove the right side cover. ( p. 55)
Main work
– Disconnect spring1. – Remove screws2and take off the main silencer.
Main work
– Mount the main silencer. Mount screws1but do not tighten yet. – Reconnect spring2. – Tighten screws1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the right side cover. ( p. 56)

12.32 Changing the glass fiber yarn filling of the main silencer x

Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Info
Over time, the fibers of the glass fiber yarn escape and the damper "burns" out. Not only is the noise level higher, the performance characteristic changes.
Page 57
12 SERVICE WORK ON THE CHASSIS 55
Preparatory work
– Remove the right side cover. ( p. 55) – Remove the main silencer. ( p. 54)
Main work (FE 350 EU, FE 350 AUS)
– Remove all screws on the main silencer. – Take off silencer cap1and O-ring2. – Take off outer tube3and O-ring4. – Pull glass fiber yarn filling5off of inner tube6. – Clean the parts that need to be reinstalled. – Mount the new glass fiber yarn filling5on the inner tube. – Slide O-ring4and outer tube3over the glass fiber yarn filling. – Insert O-ring2and silencer cap1into the outer tube. – Mount and tighten all of the screws.
B01815-10
101426-10
(FE 350 USA)
– Remove screws1of connecting cap2. – Take off connecting cap2with perforated pipe, O-ring3and glass fiber yarn
filling4.
– Remove screws5and silencer cap6with O-ring7. – Remove screws8and insert9together with the insulating padbk. – Clean the parts that need to be reinstalled and check for damage. – Mount the new insulating padbkon insert9and secure it with adhesive tape. – Slide insert9with insulating padbkinto the main silencer and secure with
screws8.
– Mount O-ring3onto connecting cap2. – Slide the new glass fiber yarn filling4over the perforated pipe. – Mount connecting cap2and glass fiber yarn filling4in the main silencer.
Info
Slide the glass fiber yarn filling into the main silencer with a blunt tool.
– Mount and tighten screws1. – Mount O-ring7on silencer cap6. – Position silencer cap6. Mount and tighten screws5.
Finishing work
– Install the main silencer. ( p. 54) – Install the right side cover. ( p. 56)

12.33 Removing the right side cover

– Remove screw1. – Pull off the side cover in areaAsideways and remove it toward the rear.
B01813-10
Page 58
12 SERVICE WORK ON THE CHASSIS 56

12.34 Installing the right side cover

– Position the side cover and engage in areaA. – Mount and tighten screw1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01813-10

12.35 Removing the fuel tank x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
B01812-10
B01811-10
Preparatory work
– Remove the seat. ( p. 49)
Main work
– Detach connector1of the fuel pump. – Remove the tube from the fuel tank breather.
– Thoroughly clean the plug-in connection of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel line clogs the injection valve.
– Disconnect the plug-in connection of the fuel line. – Mount wash cap set2.
Wash cap set (81212016100)
– Detach the connector for the horn. – Remove screws3with the collar bushings and horn.
B01808-11
Page 59
12 SERVICE WORK ON THE CHASSIS 57
– Remove screw4with the rubber bushing.
B01809-11
– Pull both spoilers off of the sides of the radiator bracket and lift off the fuel tank.
B01810-01

12.36 Installing the fuel tank x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Main work
– Check the routing of the throttle cable. ( p. 62) – Position the fuel tank and fit the two spoilers to the sides of the radiator bracket. – Make sure that no cables are trapped or damaged. – Mount the fuel tank breather. – Mount and tighten screw1with the rubber bushing.
Guideline
B01809-10
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the horn, and fit and tighten screws2with collar bushings.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01808-10
– Attach the connector of the horn.
Page 60
12 SERVICE WORK ON THE CHASSIS 58
– Attach connector3of the fuel pump. – Remove the wash cap set. – Thoroughly clean the plug-in connection of the fuel line using compressed air.
Info
Never let dirt enter the fuel line. Dirt in the fuel line clogs the injection valve.
– Lubricate the O-ring and connect plug-in connection4of the fuel line.
B01807-10
Finishing work
– Mount the seat. ( p. 49)
Info
Route the cable and fuel line at a safe distance from the exhaust system.

12.37 Checking for chain dirt accumulation

– Check the chain for coarse dirt accumulation.
» If the chain is very dirty:
– Clean the chain. ( p. 58)
400678-01

12.38 Cleaning the chain

Warning
Danger of accidents Oil or grease on the tires reduces their grip.
– Remove oil and grease with a suitable cleaning material.
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
The service life of the chain depends largely on its maintenance.
– Clean the chain regularly and then treat with chain spray.
400725-01
Page 61
12 SERVICE WORK ON THE CHASSIS 59

12.39 Checking the chain tension

Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings
in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it if necessary.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Push the chain at the end of the chain sliding component upwards to measure the
chain tensionA.
Info
The lower chain section1must be taut. Chain wear is not always even, so you should repeat this measurement at different chain positions.
B01806-10
Chain tension 55… 58 mm (2.17… 2.28 in)
» If the chain tension does not meet specifications:
– Adjust the chain tension. ( p. 59)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

12.40 Adjusting the chain tension

Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings
in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it if necessary.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41) – Check the chain tension. ( p. 59)
Main work
– Loosen nut1. – Loosen nuts2. – Adjust the chain tension by turning adjusting screws3left and right.
Guideline
Chain tension 55… 58 mm (2.17… 2.28 in) Turn adjusting screws3on the left and right so that the markings on the left and
right chain adjusters are in the same position relative to the reference marksA. The rear wheel is then correctly aligned.
B01805-10
– Tighten nuts2. – Make sure that the chain adjusters4are fitted correctly on the adjusting screws3. – Tighten nut1.
Guideline
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters (32 mm (1.26 in)) enables different secondary ratios with the same chain length. Chain adjusters4can be turned by 180°.
Page 62
12 SERVICE WORK ON THE CHASSIS 60
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

12.41 Checking the chain, rear sprocket, engine sprocket and chain guide

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Shift gear to neutral. – Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket or engine sprocket is worn:
– Change the power set. x
Info
The engine sprocket, rear sprocket and chain should always be
400227-01
– Pull on the upper part of the chain with the specified weightA.
Guideline
Weight of chain wear measurement 10… 15 kg (22… 33 lb.)
– Measure the distanceBof 18 chain links in the lower chain section.
replaced together.
400987-10
Info
Chain wear is not always even, so you should repeat this measurement at different chain positions.
Maximum distanceBat the longest chain section
» If the distanceBis greater than the specified measurement:
– Change the power set. x
272 mm (10.71 in)
Info
When the chain is replaced, the rear sprocket and engine sprocket should also be changed. New chains wear out faster on old, worn sprockets.
– Check the chain sliding guard for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding
guard:
– Change the chain sliding guard. x
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding guard
M6 6 Nm
(4.4 lbf ft)
Loctite®243™
C00600-01
Page 63
12 SERVICE WORK ON THE CHASSIS 61
– Check the chain sliding piece for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding piece:
– Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
C00601-01
– Check the chain guide for wear.
400985-01
B01634-01

12.42 Checking the frame x

Info
Wear is visible on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide. x
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft) Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
– Change the frame. x
401799-01
Info
A frame that has been damaged due to a mechanical impact must always be changed. Repair of the frame is not authorized by Husq­varna.
Page 64
12 SERVICE WORK ON THE CHASSIS 62

12.43 Checking the swingarm x

– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
– Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the swingarm is not authorized by Husqvarna.
401520-01

12.44 Checking the routing of the throttle cable

Preparatory work
– Remove the seat. ( p. 49)
– Remove the fuel tank. x ( p. 56)
Main work
– Check the routing of the throttle cable.
Both throttle cables must be routed to the throttle valve body side by side behind the handlebars and above the fuel tank bearing.
B01801-10

12.45 Checking the rubber grip

» If the throttle cable is not routed as specified:
– Correct the routing of the throttle cable.
Finishing work
– Install the fuel tank. x ( p. 57)
– Mount the seat. ( p. 49)
– Check the rubber grips on the handlebar for damage, wear, and looseness.
» If a rubber grip is damaged, worn, or loose:
– Change and secure the rubber grip.
401197-01
Rubber grip adhesive (00062030051) ( p. 110)
Page 65
12 SERVICE WORK ON THE CHASSIS 63

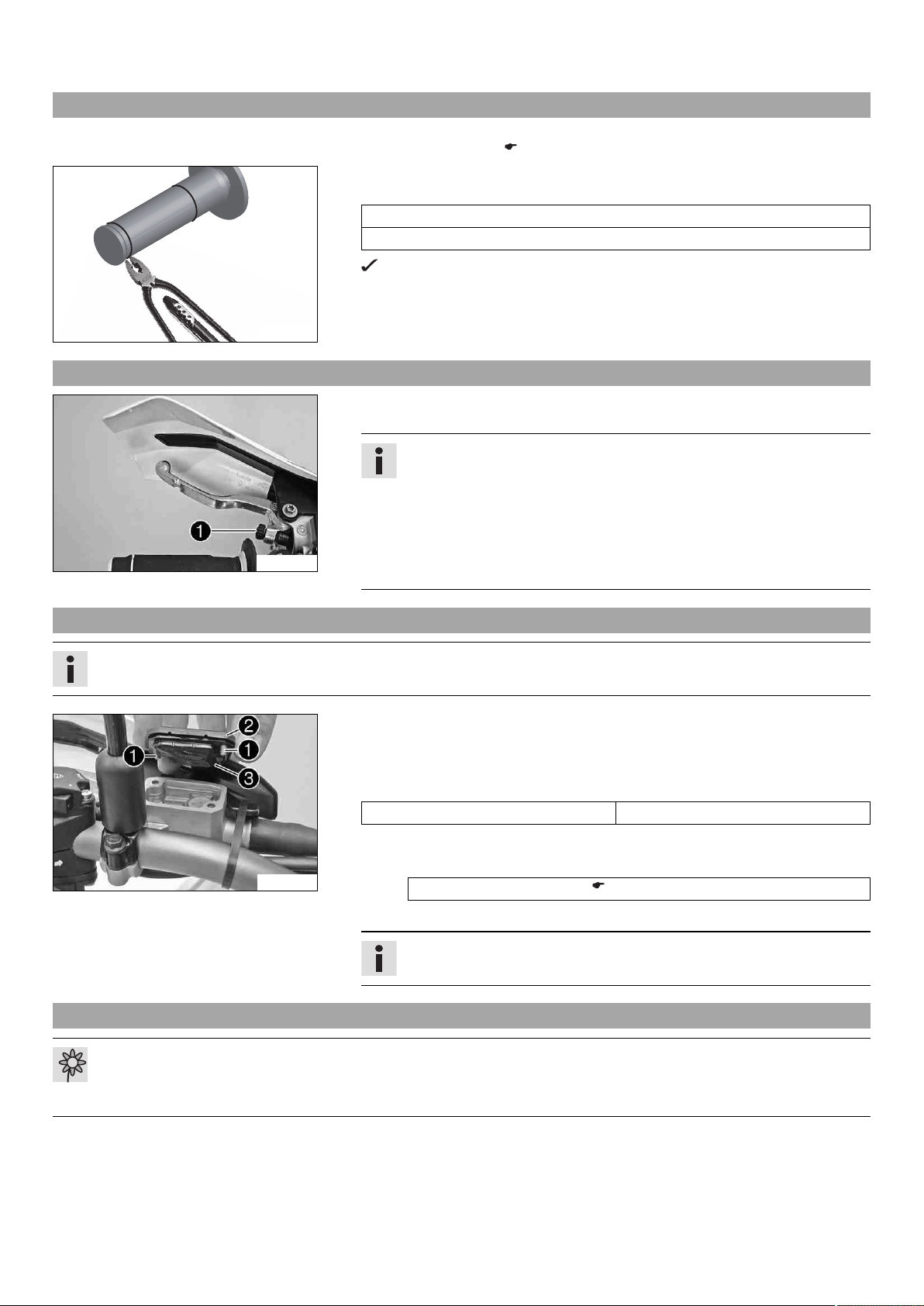

12.46 Additionally securing the rubber grip

Preparatory work
– Check the rubber grip. ( p. 62)
Main work
– Secure the rubber grip at two points using the securing wire.
Securing wire (54812016000) Wire twister forceps (U6907854)
The twisted wire ends face away from the hands and are bent toward the rubber grip.
401198-01

12.47 Adjusting the basic position of the clutch lever

– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw1.
Info
Turn the adjusting screw clockwise to increase the distance between the clutch lever and the handlebar. Turn the adjusting screw counterclockwise to decrease the distance between the clutch lever and the handlebar. The range of adjustment is limited.
C00530-11
Turn the adjusting screw by hand only, and do not apply any force. Do not make any adjustments while riding!

12.48 Checking/rectifying the fluid level of the hydraulic clutch

Info
The fluid level rises with increased wear of the clutch lining discs.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position. – Remove screws1. – Remove cover2with membrane3. – Check the fluid level.
Fluid level below container rim 4 mm (0.16 in)
» If the fluid level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
B01538-10
– Position the cover with the membrane. Mount and tighten the screws.
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
Info
Clean up overflowed or spilt brake fluid immediately with water.

12.49 Changing the hydraulic clutch fluid x

Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Page 66
12 SERVICE WORK ON THE CHASSIS 64

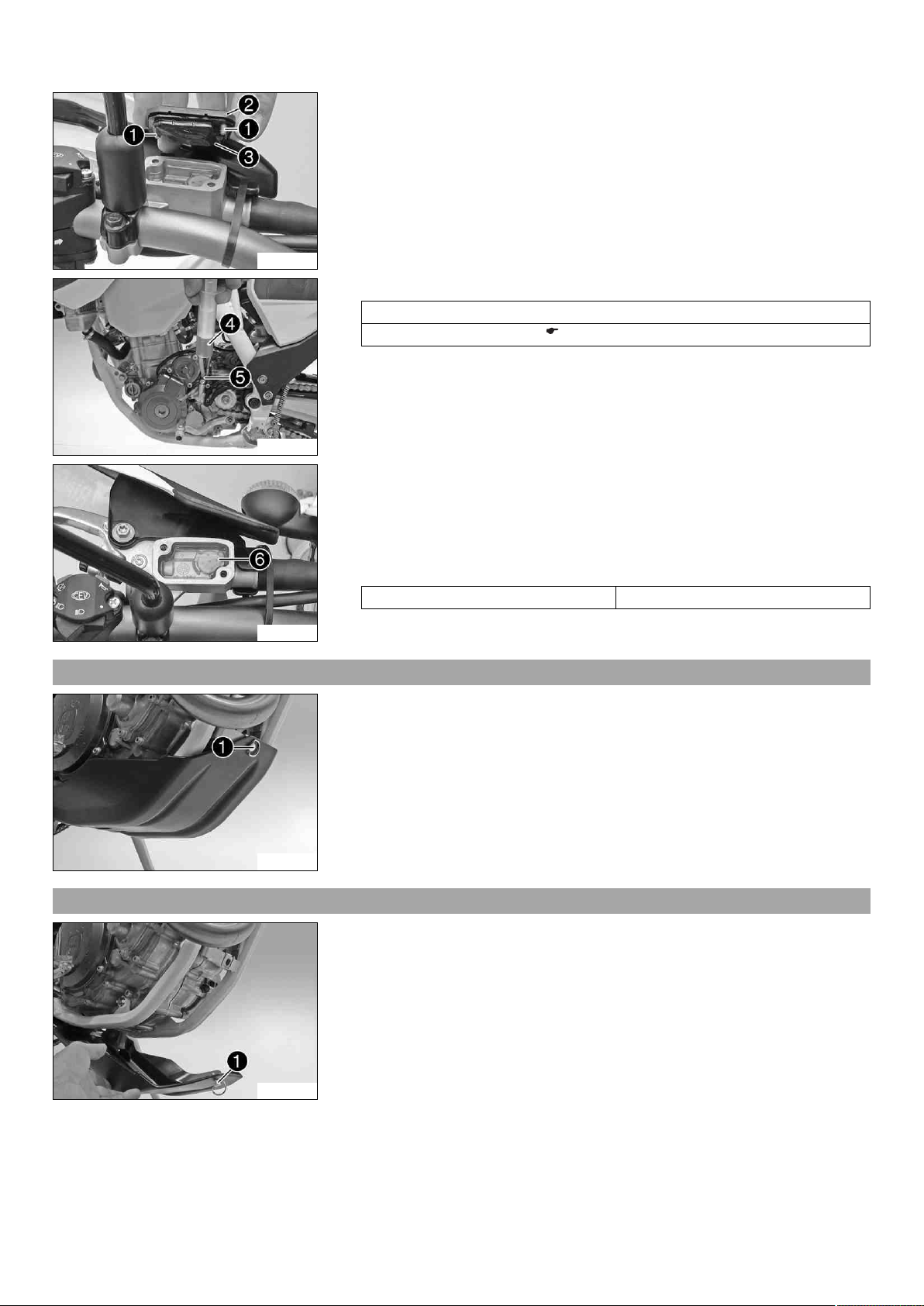

– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position. – Remove screws1. – Remove cover2with membrane3.
B01538-10
– Fill bleeding syringe4with the appropriate hydraulic fluid.
Bleed syringe (50329050000) Brake fluid DOT 4 / DOT 5.1 ( p. 108)
– On the clutch slave cylinder, remove bleeder screw5and mount bleeding
syringe4.
B01800-10
– Inject the liquid into the system until it escapes from openings6of the master cylin-
der without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir. – Remove the bleeding syringe. Mount and tighten the bleeder screw. – Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below top edge of container 4 mm (0.16 in)
B01540-10

12.50 Removing the engine guard

B01799-10

12.51 Installing the engine guard

– Position the cover with the membrane. Mount and tighten the screws.
– Turn quick release1counterclockwise until it disengages. Remove the engine
guard.
– Attach the engine guard on the frame at the rear and swing up at the front. – Turn quick release1clockwise all the way.
B01798-10
Page 67

13 BRAKE SYSTEM 65

13.1 Checking free travel of hand brake lever

Warning
Danger of accidents Brake system failure.
– If there is no free travel on the hand brake lever, pressure builds up on the front brake circuit. The front brake can fail due to
overheating. Adjust the free travel on hand brake lever according to specifications.
(FE 350 EU, FE 350 AUS)
– Push the hand brake to the handlebar and check free travelA.
Free travel of hand brake lever ≥ 3 mm (≥ 0.12 in)
» If the free travel does not meet specifications:
– Adjust the free travel of the hand brake lever. ( p. 65)
B01636-10
(FE 350 USA)
– Push the hand brake lever forwards and check free travelA.
Free travel of hand brake lever ≥ 3 mm (≥ 0.12 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the hand brake lever. ( p. 65)
B01637-10

13.2 Adjusting free travel of hand brake lever (FE 350 EU, FE 350 AUS)

– Check the free travel of the hand brake lever. ( p. 65) – Adjust the free travel of the hand brake lever with adjusting screw1.
Info
Turn the adjusting screw clockwise to reduce free travel. The pressure point moves away from the handlebar. Turn the adjusting screw counterclockwise to increase free travel. The pres­sure point moves towards the handlebar. The range of adjustment is limited.
B01638-10
Turn the adjusting screw by hand only, and do not apply any force. Do not make any adjustments while riding!

13.3 Adjusting the basic position of the hand brake lever (FE 350 USA)

– Check the free travel of the hand brake lever. ( p. 65) – Adjust the basic setting of the hand brake lever to your hand size by turning adjusting
screw1.
B01638-10
Info
Turn the adjusting screw clockwise to increase the distance between the hand brake lever and the handlebar. Turn the adjusting screw counterclockwise to decrease the distance between the hand brake lever and the handlebar. The range of adjustment is limited. Turn the adjusting screw by hand only, and do not apply any force. Do not make any adjustments while riding!
Page 68
13 BRAKE SYSTEM 66
A
A

13.4 Checking the brake discs

Warning
Danger of accidents Reduced braking efficiency due to worn brake disc(s).
– Change the worn brake disc(s) without delay. (Your authorized Husqvarna workshop will be glad to help.)
– Check the thickness of the front and rear brake discs at several places on the disk to
see if it conforms to measurementA.
Info
Wear reduces the thickness of the brake disc around the area used by the brake linings.
Brake discs - wear limit
Front 2.5 mm (0.098 in)
400257-10
– Check the front and rear brake discs for damage, cracking and deformation.
Rear 3.5 mm (0.138 in)
» If the brake disc thickness is less than the specified value:
– Change the brake disc.
» If the brake disc shows signs of damage, cracking, or deformation:
– Change the brake disc.

13.5 Checking the front brake fluid level

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position. – Check the brake fluid level in the viewer1.
» If the brake fluid level has dropped below markingA:
– Add front brake fluid. x ( p. 66)
B01544-10

13.6 Adding front brake fluid x

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Page 69
13 BRAKE SYSTEM 67
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.

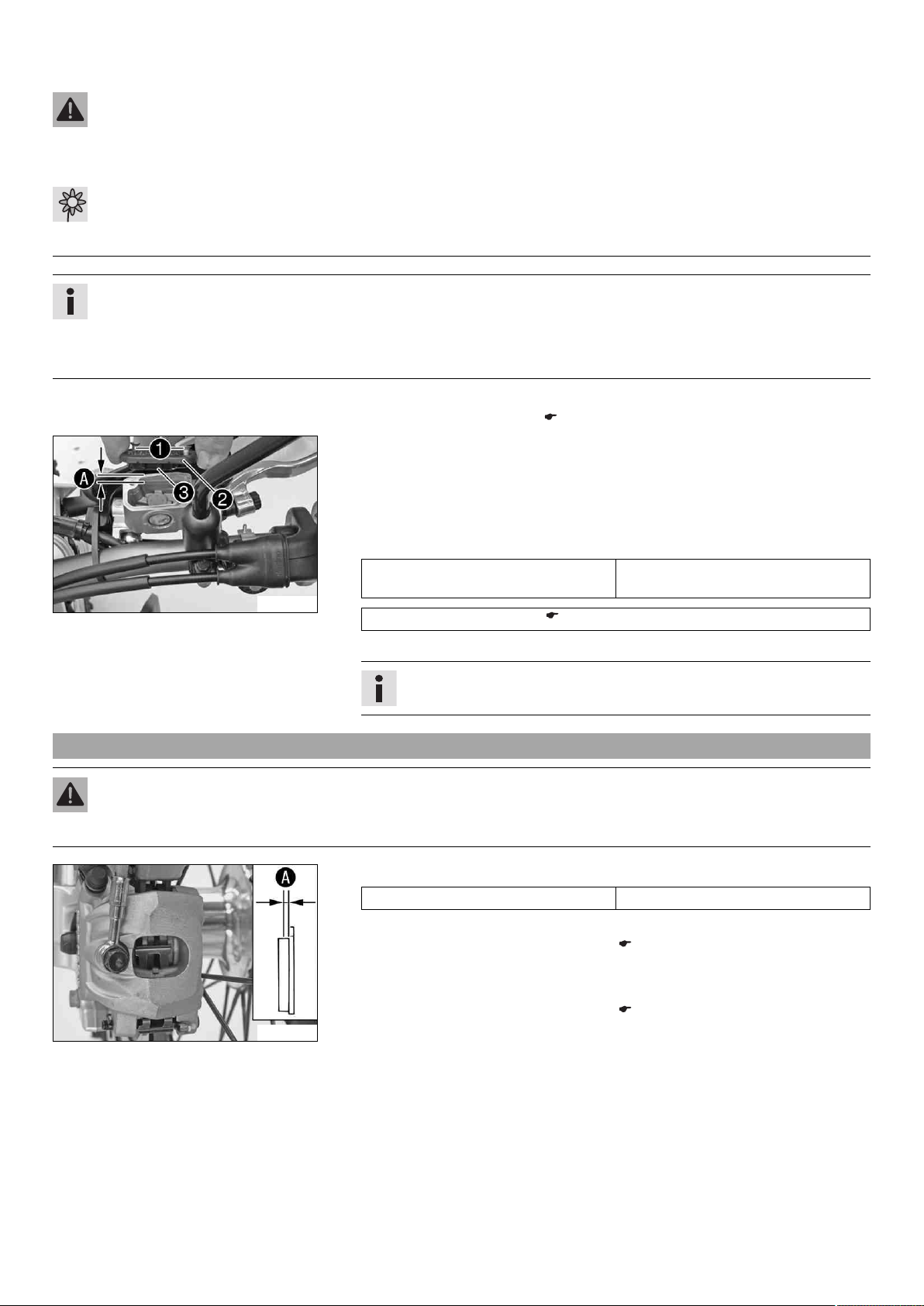

Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
Preparatory work
– Check the front brake linings. ( p. 67)
Main work
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position. – Remove screws1. – Remove cover2with membrane3. – Add brake fluid to levelA.
Guideline
LevelA(brake fluid level below con­tainer rim)
B01639-10
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
5 mm (0.2 in)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.

13.7 Checking the front brake linings

Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized Husqvarna workshop will be glad to help.)
– Check the brake linings for minimum thicknessA.
Minimum thickness
» If the minimum thickness is less than specified:
– Change the front brake linings. x ( p. 68)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the front brake linings. x ( p. 68)
B01842-10
A
≥ 1 mm (≥ 0.04 in)
Page 70
13 BRAKE SYSTEM 68

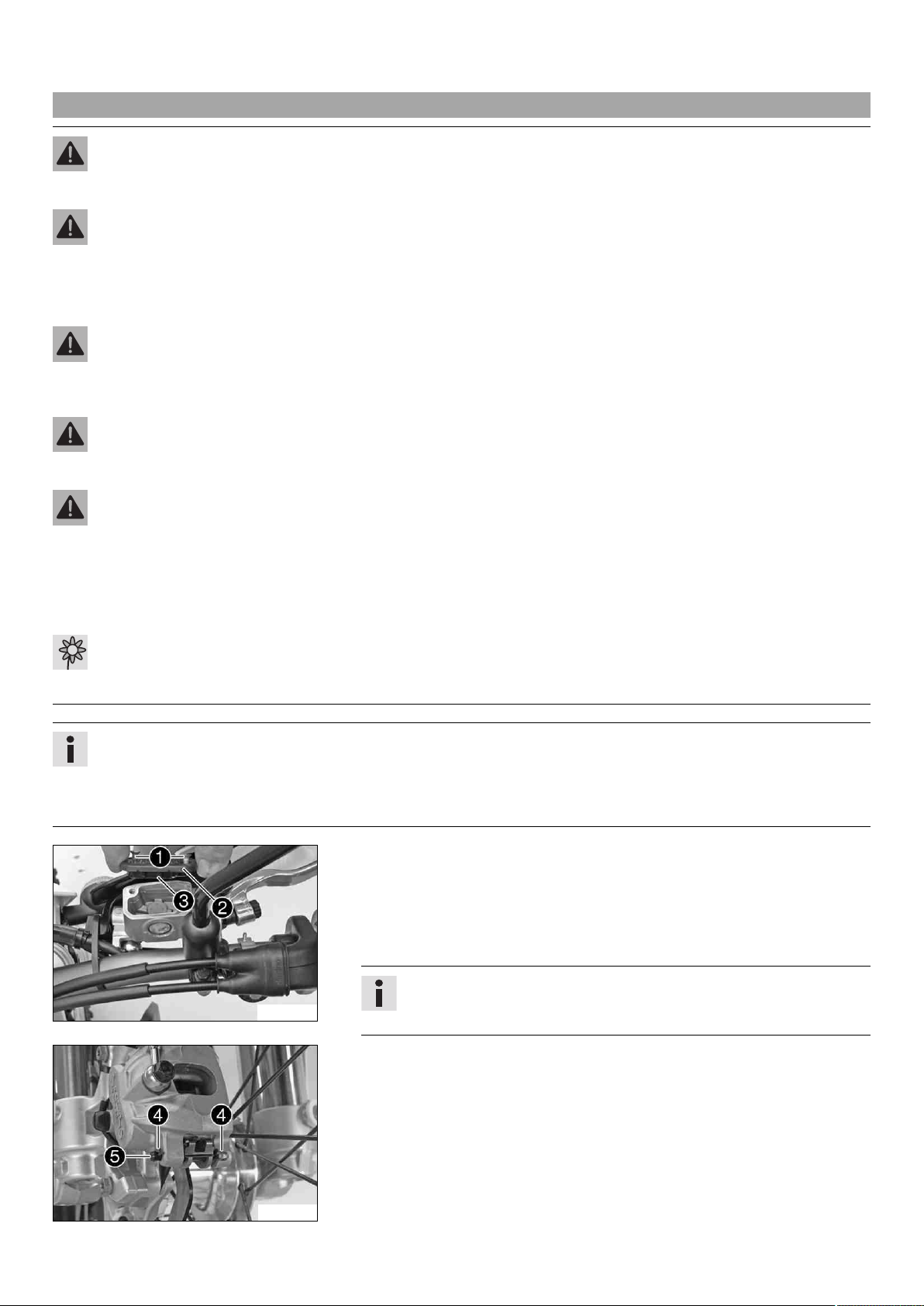

13.8 Changing the front brake linings x

Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking efficiency due to the use of non-approved brake linings.
– Brake linings available in accessories stores often have not been tested and approved for use in Husqvarna vehicles. The
structure and fiction coefficient of the brake linings and thus their brake power may vary greatly from that of original Husq­varna bake linings. If brake linings that differ from the original equipment are used, it cannot be guaranteed that these are in keeping with the original homologation. In this case, the vehicle will not correspond to its condition at delivery and the war­ranty shall be void.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position. – Remove screws1. – Remove cover2with membrane3. – Press the brake caliper onto the brake disc by hand in order to push back the brake
pistons. Ensure that brake fluid does not flow out of the brake fluid reservoir, extract­ing it by suction if it does.
Info
B01639-11
– Remove cotter pins4, pull out pin5, and remove the brake linings. – Clean the brake caliper and brake caliper support.
Make sure when pushing back the brake pistons that you do not press the brake caliper against the spokes.
101844-10
Page 71
13 BRAKE SYSTEM 69

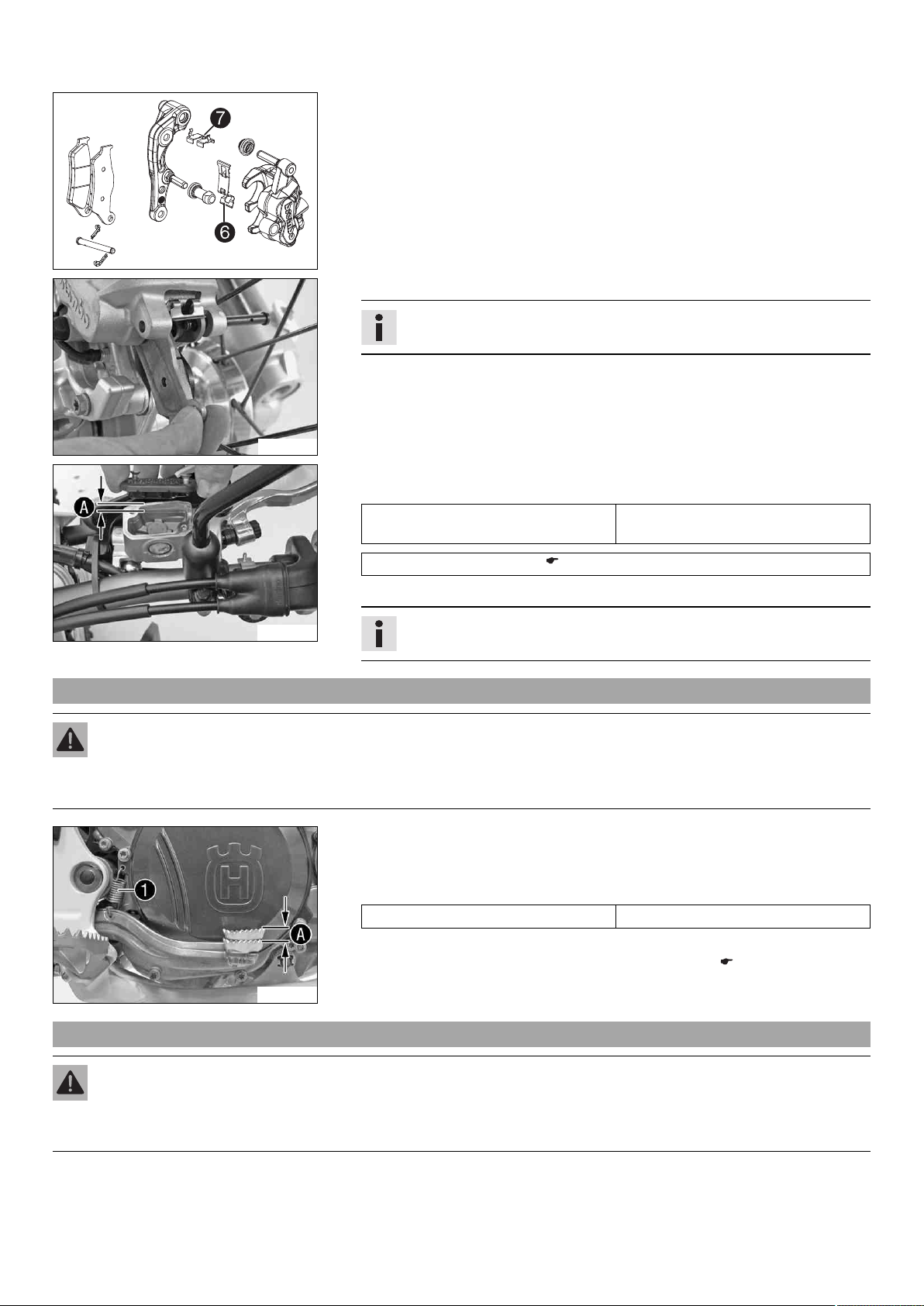

– Check that leaf spring6in the brake caliper and sliding plate7in the brake caliper
support are seated correctly.
100397-01
– Insert the new brake linings, insert the pin, and mount the cotter pin.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
101845-01
– Adjust the brake fluid level to levelA.
Guideline
LevelA(brake fluid level below con­tainer rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
– Position the cover with the membrane. Mount and tighten the screws.
B01639-12
Info
Clean up overflowed or spilt brake fluid immediately with water.

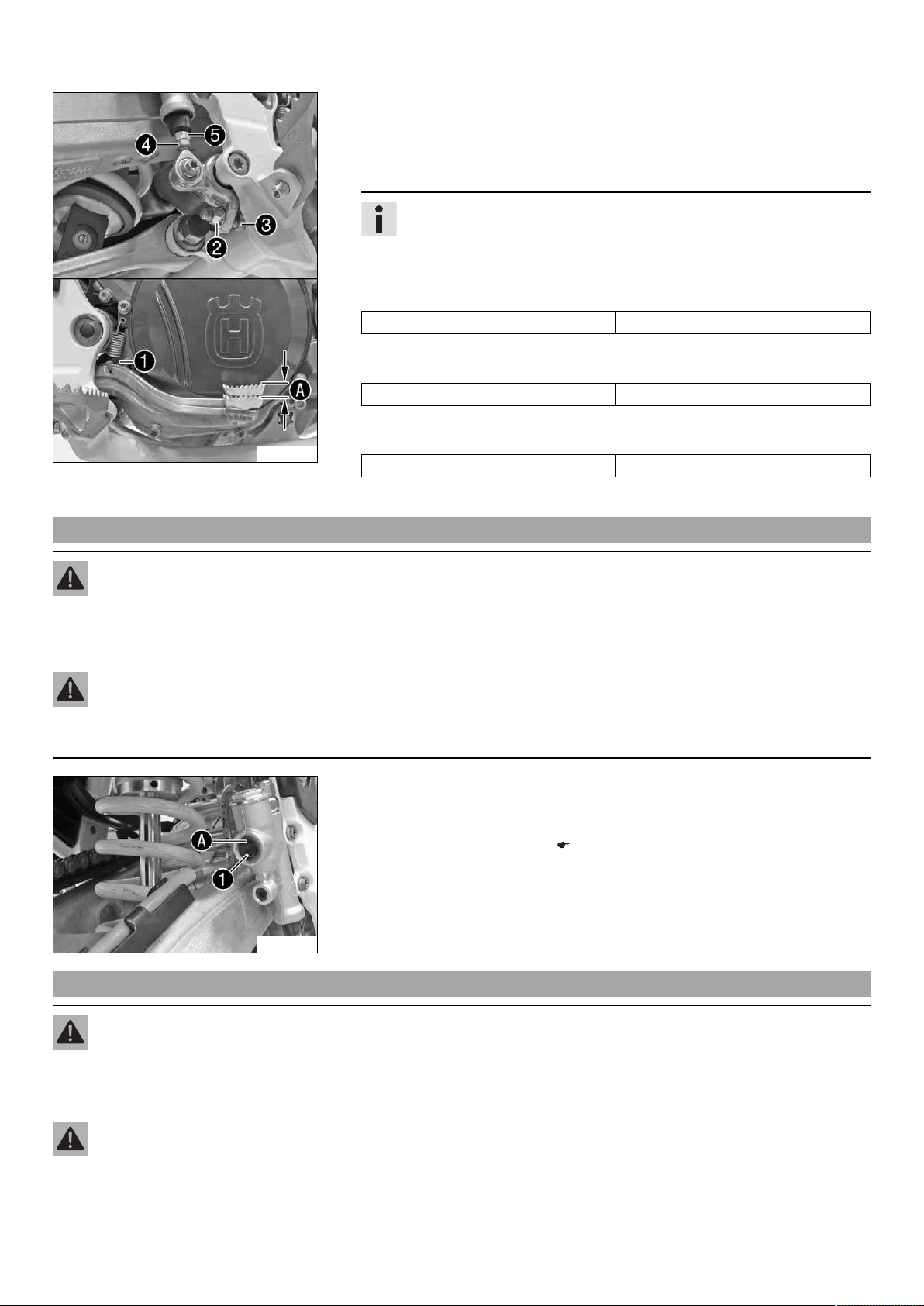

13.9 Checking the free travel of foot brake lever

Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
– Disconnect spring1. – Move the foot brake lever back and forth between the end stop and the contact to
the foot brake cylinder piston and check free travelA. Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever. x ( p. 69)
B01796-10
– Reconnect spring1.

13.10 Adjusting the basic position of the foot brake lever x

Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
Page 72
13 BRAKE SYSTEM 70
– Disconnect spring1. – Loosen nut4and, with push rod5, turn it back until you have maximum free
travel.
– To adjust the basic position of the foot brake lever individually, loosen nut2and
turn screw3accordingly.
Info
The range of adjustment is limited.
– Turn push rod5accordingly until you have free travelA. If necessary, adjust the
basic position of the foot brake lever. Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
– Hold screw3and tighten nut2.
Guideline
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft)
– Hold push rod5and tighten nut4.
B01797-10
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
– Reconnect spring1.

13.11 Checking the rear brake fluid level

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
– Stand the vehicle upright. – Check the brake fluid level in level viewer1.
» If the brake fluid level has dropped below markingA:
– Add rear brake fluid. x ( p. 70)
B01795-10

13.12 Adding rear brake fluid x

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Page 73
13 BRAKE SYSTEM 71
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
Preparatory work
– Check the rear brake linings. ( p. 71)
Main work
– Stand the vehicle upright. – Remove screw cap1with membrane2and the O-ring. – Add brake fluid to levelA.
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
– Mount the screw cap with the membrane and O-ring.
Info
Clean up overflowed or spilt brake fluid immediately with water.
B01794-10

13.13 Checking the rear brake linings

Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized Husqvarna workshop will be glad to help.)
– Check the brake linings for minimum thicknessA.
B01843-10
Minimum thickness
» If the minimum thickness is less than specified:
– Change the rear brake linings. x ( p. 72)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. x ( p. 72)
A
≥ 1 mm (≥ 0.04 in)
Page 74
13 BRAKE SYSTEM 72

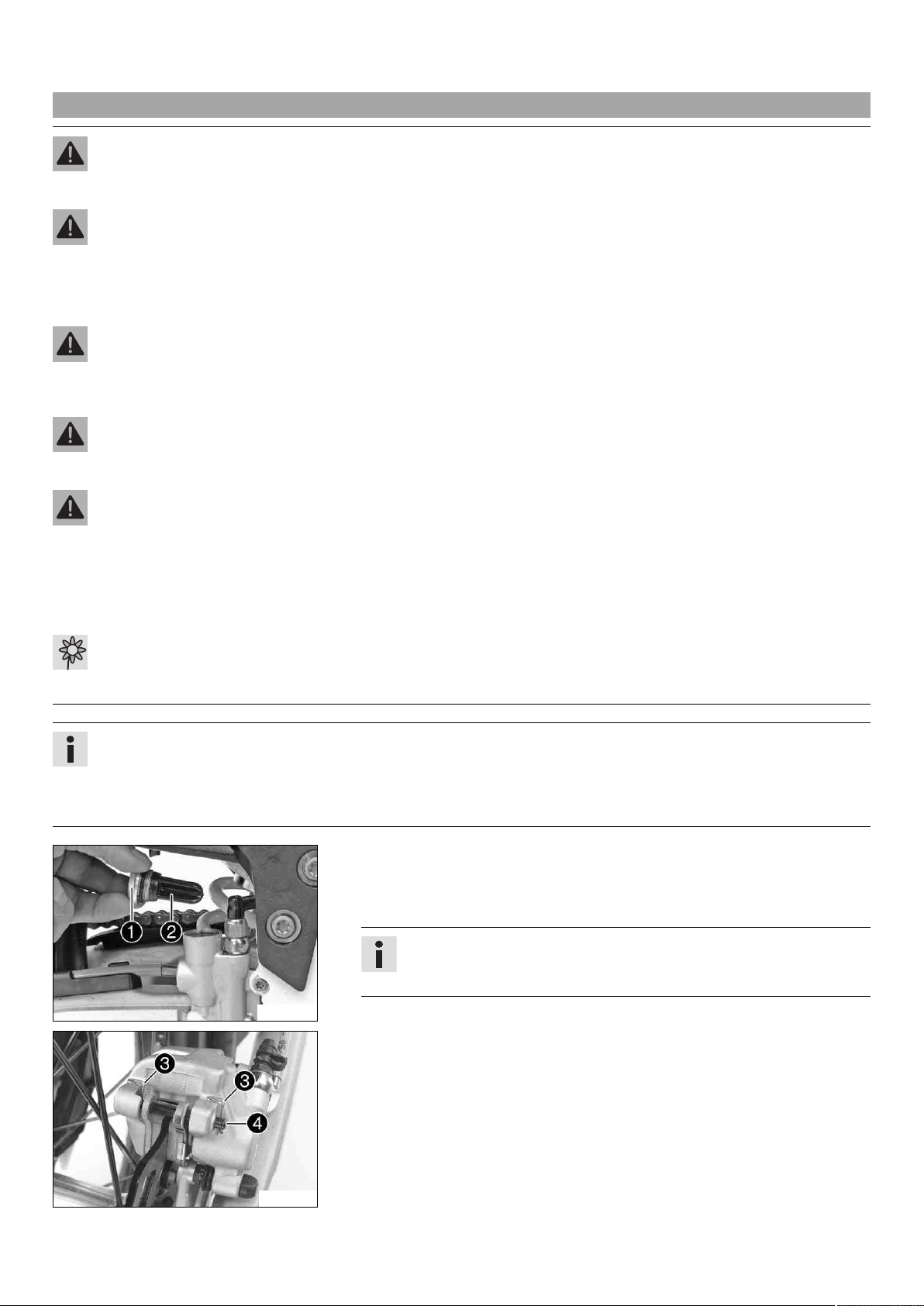

13.14 Changing the rear brake linings x

Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danger of accidents Reduced braking efficiency due to the use of non-approved brake linings.
– Brake linings available in accessories stores often have not been tested and approved for use in Husqvarna vehicles. The
structure and fiction coefficient of the brake linings and thus their brake power may vary greatly from that of original Husq­varna bake linings. If brake linings that differ from the original equipment are used, it cannot be guaranteed that these are in keeping with the original homologation. In this case, the vehicle will not correspond to its condition at delivery and the war­ranty shall be void.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
– Stand the vehicle upright. – Remove screw cap1with membrane2and the O-ring. – Press the brake piston back to its basic position and make sure that no brake fluid
overflows from the brake fluid reservoir, extracting it if necessary.
Info
Ensure that the brake caliper is not pressed against the spokes when pushing back the brake piston.
B01793-10
– Remove cotter pin3, pull out pin4and remove the brake linings. – Clean the brake caliper and brake caliper support.
L00262-10
Page 75
13 BRAKE SYSTEM 73
– Check that leaf spring5in the brake caliper and sliding plate6in the brake caliper
support are seated properly.
L00194-10
– Insert the new brake linings, insert the pin, and mount the cotter pin.
Info
Always change the brake linings in pairs.
– Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
L00196-10
– Add brake fluid to levelA.
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
B01794-10
– Mount screw cap1with membrane2and O-ring.
Info
Clean up overflowed or spilt brake fluid immediately with water.
Page 76

14 WHEELS, TIRES 74

14.1 Removing the front wheel x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Press the brake caliper onto the brake disc by hand in order to push back the brake
pistons.
Info
Make sure when pushing back the brake pistons that you do not press the brake caliper against the spokes.
L00215-10
– Loosen screw1by several turns. – Release screws2. – Press on screw1to push the wheel spindle out of the axle clamp. – Remove screw1.
L00212-10
L00213-10
L00214-10

14.2 Installing the front wheel x

– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of the
fork.
Info
Do not pull the hand brake lever when the front wheel is removed. Always lay the wheel down in such a way that the brake disc is not damaged.
– Remove spacers3.
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the wheel bearing. x
– Clean and grease the shaft seal rings1and bearing surfaceAof the spacers. – Insert the spacers.
L00214-11
Page 77
14 WHEELS, TIRES 75

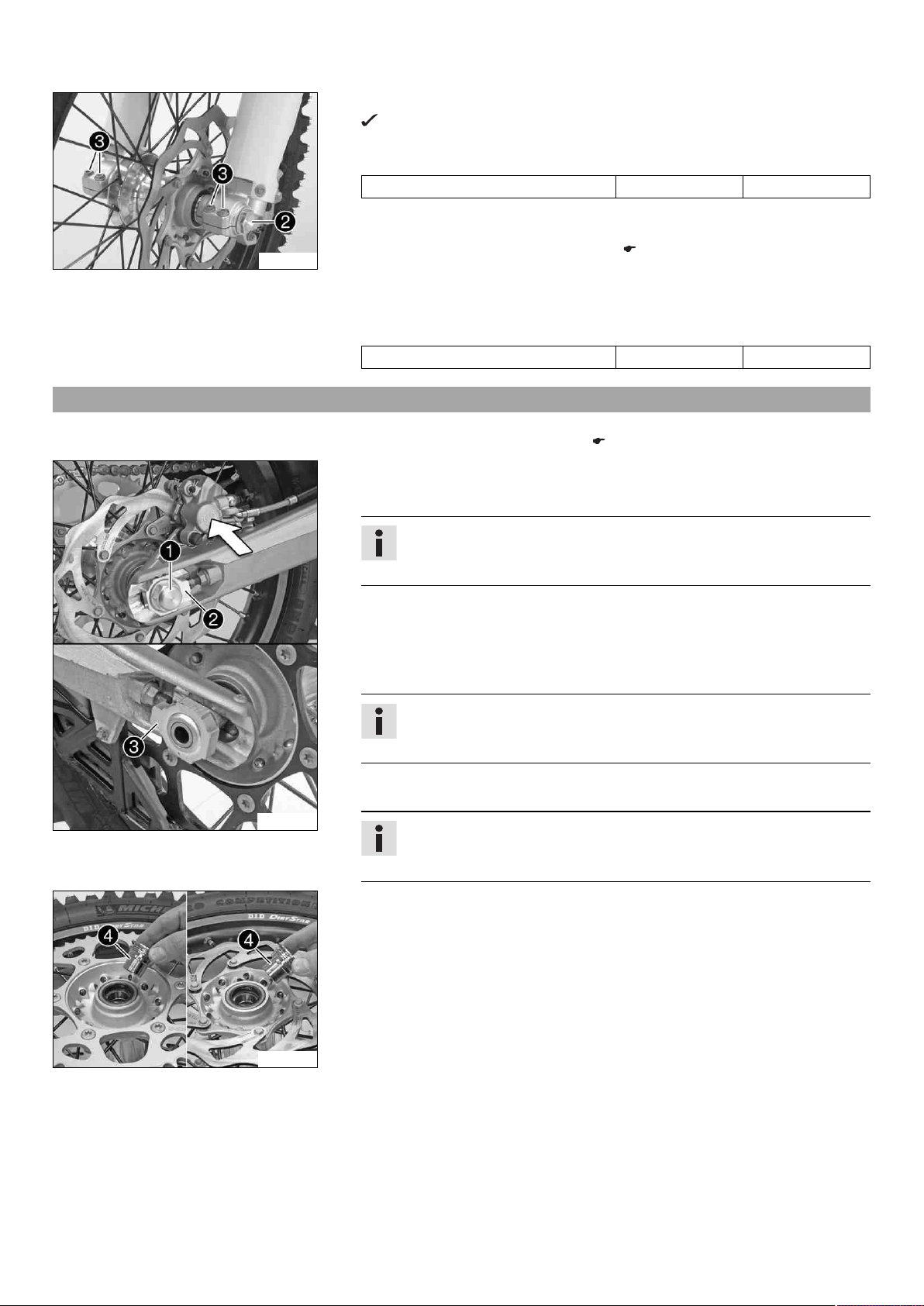

– Lift the front wheel into the fork, position it, and insert the wheel spindle.
The brake linings are positioned.
– Mount and tighten screw2.
Guideline
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft)
– Activate the hand brake lever multiple times until the brake linings are in contact with
the brake disc.
L00212-11

14.3 Removing the rear wheel x

– Remove the motorcycle from the lift stand. ( p. 41) – Pull the front wheel brake and push down hard on the fork several times to align the
fork legs.
– Tighten screws3.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 41)
Main work
– Press the brake caliper by hand on to the brake disc in order to press back the brake
piston.
B01790-10
Info
Make sure when pushing back the brake piston that you do not press the brake caliper against the spokes.
– Remove nut1. – Remove chain adjuster2. Withdraw wheel spindle3only enough to allow the rear
wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Remove the chain from the rear
sprocket.
Info
Protect the motorcycle and its attachments against damage by covering them.
– Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swingarm.
Info
Do not operate the foot brake when the rear wheel is removed. Always lay the wheel down in such a way that the brake disc is not damaged.
– Remove spacers4.
101848-10
Page 78
14 WHEELS, TIRES 76

14.4 Installing the rear wheel x

Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the wheel bearing. x
– Clean and grease the shaft seal rings1and bearing surfaceAof the spacers. – Insert the spacers.
101848-11
– Lift the rear wheel into the swingarm, position it, and insert wheel spindle2. – Attach the chain.
The brake linings are positioned.
B01791-10
B01792-10
– Position chain adjusters3. Mount nut4, but do not tighten it yet. – Make sure that chain adjusters3are fitted correctly on adjusting screws5. – Check the chain tension. ( p. 59) – Tighten nut4.
Guideline
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters (32 mm (1.26 in)) enables different secondary ratios with the same chain length. Chain adjusters3can be turned by 180°.
– Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)

14.5 Checking the tire condition

Info
Only mount tires approved and/or recommended by Husqvarna. Other tires could have a negative effect on handling characteristics. The type, condition, and air pressure of the tires all have a significant impact on the handling characteristics of the motorcycle. The tires mounted on the front and rear wheels must have a similar profile. Worn tires have a negative effect on handling characteristics, especially on wet surfaces.
Page 79
14 WHEELS, TIRES 77
– Check the front and rear tires for cuts, run-in objects, and other damage.
» If the tire exhibits cuts, run-in objects, or other damage:
– Change the tire.
– Check the depth of the tread.
Info
Note local national regulations concerning the minimum tread depth.
400602-10
Minimum tread depth ≥ 2 mm (≥ 0.08 in)
» If the tread depth is less than the minimum permissible depth:
– Change the tire.
– Check the tire age.
Info
The tire's date of manufacture is usually part of the tire markings and is indi­cated by the last four digits of the DOT marking. The first two digits indicate the week of manufacture and the last two digits the year of manufacture. Husqvarna recommends that the tires be changed after 5 years at the latest, regardless of the actual state of wear.
» If the tire is older than five years:
– Change the tire.

14.6 Checking the tire air pressure

Info
Low tire air pressure leads to abnormal wear and overheating of the tire. Correct tire air pressure ensures optimal riding comfort and maximum tire service life.
– Remove the protection cap. – Check the tire air pressure when the tires are cold.
Tire air pressure off road
Front 1.0 bar (15 psi) Rear 1.0 bar (15 psi)
Road tire pressure (FE 350 EU, FE 350 AUS)
400695-01
– Mount protection cap.
Front 1.5 bar (22 psi) Rear 1.5 bar (22 psi)
» If the tire air pressure does not meet specifications:
– Correct the tire air pressure.

14.7 Checking spoke tension

Warning
Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct. (Your authorized Husqvarna workshop will be glad to help.)
Info
A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time. If the spokes are too tight, they can break due to local overload. Check the spoke tension regularly, especially on a new motorcycle.
Page 80
14 WHEELS, TIRES 78
– Tap each spoke with a screwdriver.
Info
The sound frequency depends on the length and thickness of the spoke. If there are different sound frequencies in spokes with the same length and thickness, this indicates different spoke tensions.
You should hear a high note.
400694-01
» If the spoke tension varies:
– Correct the spoke tension. x
– Check the spoke torque.
Guideline
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7…
4.4 lbf ft)
Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7…
4.4 lbf ft)
Torque wrench with various accessories in set (58429094000)
Page 81

15 ELECTRICAL SYSTEM 79

15.1 Removing the battery x

Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. – Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms. – In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 49)
Main work
– Pull back the negative terminal cover1and disconnect the negative cable from the
battery.
– Pull back the positive terminal cover2and disconnect the positive cable from the
battery.
– Detach rubber band3at the bottom. – Lift the battery up and out.
B01788-10

15.2 Installing the battery x

B01789-10
Main work
– Insert battery into the battery compartment with the terminals facing to the front.
Battery (YTX5L-BS) ( p. 105)
– Reconnect rubber band1.
Info
Contact diskAmust be mounted between screw4and cable socket with the claws facing down.
– Position the positive cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
– Slide positive terminal cover2over the positive terminal. – Position the negative cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
– Slide negative terminal cover3over the negative terminal.
Finishing work
– Mount the seat. ( p. 49)
5
Page 82
15 ELECTRICAL SYSTEM 80

15.3 Charging the battery x

Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. – Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms. – In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Warning
Environmental hazard Battery components and acid are harmful to the environment.
– Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner.
Give it to your Husqvarna dealer or to a disposal center for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily. The charge state and the type of charge are very important for the service life of the battery. Rapid recharging with a high charging current shortens the battery's service life. If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This reduces the battery capacity. If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately. If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the bat­tery. The battery is maintenance-free, which means that the acid level does not need to be checked.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 49) – Disconnect the negative cable of the battery to avoid damage to the onboard elec-
tronics.
Main work
– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (81229074000)
You can also use the battery charger to test the open-circuit voltage and starting voltage of the battery, and to test the alternator. With this device, you cannot over­charge the battery.
Info
400240-10
Never remove lid1. Charge the battery with a maximum of 10% of the capacity specified on bat­tery housing2.
– Switch off the battery charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage, and charge time must not be exceeded. Charge the battery regularly when the
motorcycle is not in use
Finishing work
– Mount the seat. ( p. 49)
3 months
Page 83
15 ELECTRICAL SYSTEM 81

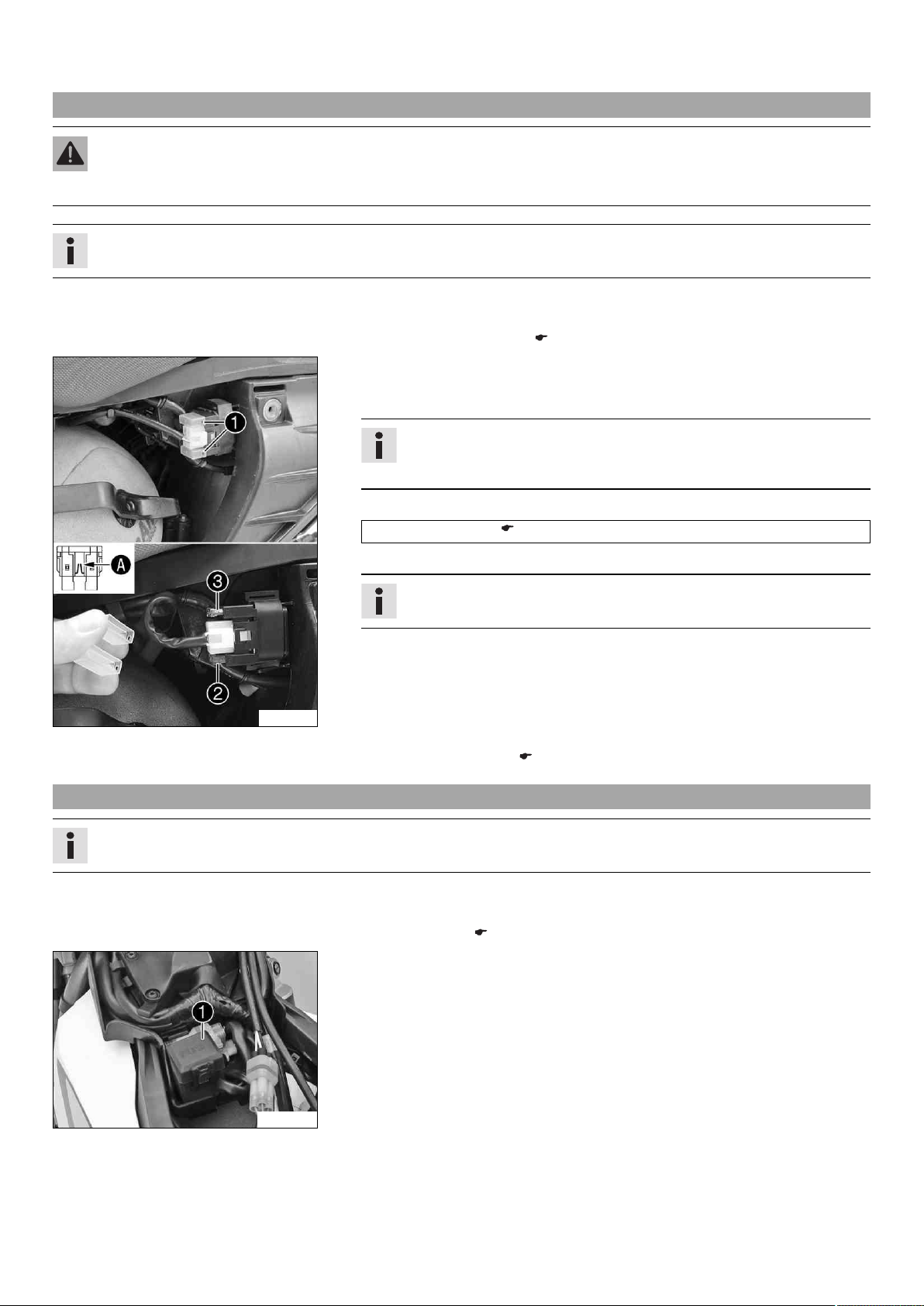

15.4 Changing the main fuse

Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under the air filter box lid.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the air filter box lid. ( p. 50)
Main work
– Remove protection caps1. – Remove the faulty main fuse2.
Info
A defective fuse can be identified by the burned-out fuse wireA. A reserve fuse3is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 105)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps. – Mount the starter relay onto the holder and lay the cable.
L01651-10
Finishing work
– Install the air filter box lid. ( p. 50)

15.5 Changing the fuses of individual power consumers

Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 49)
Main work
– Open fuse box cover1.
B01641-10
Page 84
15 ELECTRICAL SYSTEM 82
– Remove the defective fuse.
Guideline
Fuse 1 - 10 A - EFI control unit Fuse 2 - 10 A - fuel pump Fuse 3 - 10 A - high beam, low beam, parking light, tail light, license plate lamp Fuse 4 - 10 A - horn, brake light, turn signal, radiator fan (optional) Fuses res - 10 A - spare fuses
B01642-10
Info
A defective fuse can be identified by the burned-out fuse wireA.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used. – Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Use spare fuses with the correct rating only.
Fuse (75011088010) ( p. 105)
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
– Check that the power consumer is functioning properly. – Close the fuse box cover.
Finishing work
– Mount the seat. ( p. 49)

15.6 Removing the headlight mask with the headlight

Preparatory work
– Switch off all power consumers and switch off the engine.
Main work
– Open rubber bands1on the fork legs. – Tilt the headlight mask forward and detach at catch2. – Disconnect connector3. – Take off the headlight mask with headlight.
B01787-10

15.7 Installing the headlight mask with the headlight

Main work
– Plug in connector1. – Check that the lighting is functioning properly. – Attach headlight holder2at catch3and position the headlight mask.
B01787-11
Page 85
15 ELECTRICAL SYSTEM 83
– Position rubber bands4around the fork legs and close them.
The wiring harness and brake line5are routed in front of the headlight mask.
B01784-10
Finishing work
– Check the headlight setting. ( p. 84)

15.8 Changing the headlight bulb

Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82)
Main work
– Turn protection cap1with the bulb socket beneath it all the way counterclockwise
and lift it off.
– Pull bulb socket2of the parking light out of the reflector.
L00269-10
– Press headlight bulb3lightly into the bulb socket, turn it all the way counterclock-
wise, and pull it out.
– Insert the new headlight bulb.
Headlight (S2 / socket BA20d) ( p. 105)
– Insert the protection cap with the bulb socket into the reflector and turn it all the way
clockwise.
– Insert the bulb socket of the parking light into the reflector.
L00270-10
Finishing work
– Install the headlight mask with the headlight. ( p. 82) – Check the headlight setting. ( p. 84)

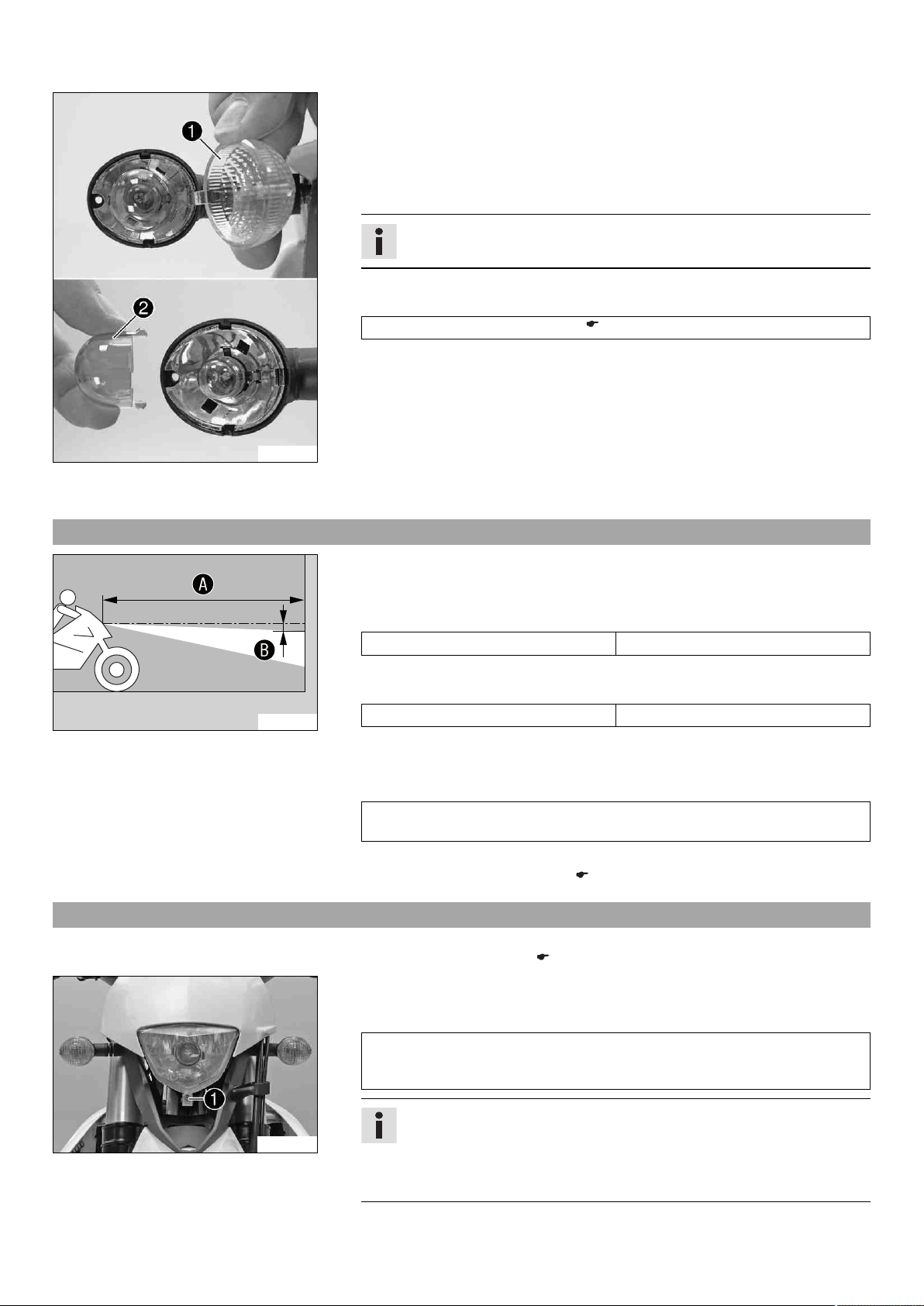

15.9 Changing the turn signal bulb (FE 350 EU, FE 350 AUS)

Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Page 86
15 ELECTRICAL SYSTEM 84
Main work
– Remove the screw on the rear of the turn signal housing. – Carefully remove diffuser1. – Lightly squeeze orange cap2in the area of the holding lugs and take it off. – Press the turn signal bulb lightly into the socket, turn it counterclockwise by about
30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise until it
stops.
Turn signal (R10W / socket BA15s) ( p. 105)
– Mount the orange cap. – Position the diffuser. – Insert the screw and turn it counterclockwise first until it engages in the thread with a
light jerk. Tighten the screw slightly.
101722-10
Finishing work
– Check that the turn signal system is functioning properly.

15.10 Checking the headlight setting

– Position the vehicle upright on a horizontal surface in front of a light wall and make a
– Make another mark a distanceBunder the first mark.
– Position the vehicle vertically a distanceAaway from the wall.
400726-10
– The rider now sits down on the motorcycle. – Switch on the low beam. – Check the headlight setting.

15.11 Adjusting the headlight range

Preparatory work
– Check the headlight setting. ( p. 84)
Main work
– Adjust the headlight range of the headlight by turning adjusting screw1.
mark at the height of the center of the low beam headlight.
Guideline
Distance
Guideline
Distance
The boundary between light and dark must be exactly on the lower mark for a motorcycle with driver.
» If the light-dark border does not meet specifications:
Guideline
The boundary between light and dark must be exactly on the lower mark for a motorcycle with driver (instructions on how to apply the mark: Checking the head­light setting).
B
A
– Adjust the headlight range. ( p. 84)
5 cm (2 in)
5 m (16 ft)
B01783-10
Info
Turn clockwise to reduce the headlight range; turn counterclockwise to increase the headlight range. A change in weight on the vehicle may require a correction of the headlight range.
Page 87
15 ELECTRICAL SYSTEM 85

15.12 Changing the speedometer battery

Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the headlight mask with the headlight. ( p. 82)
Main work
– Remove screws1. – Pull the speedometer upward out of the holder.
B01786-10
– Using a coin, turn protection cap2all the way counterclockwise and remove it. – Remove speedometer battery3. – Insert the new battery with the label facing outward.
Speedometer battery (CR 2032) ( p. 105)
– Check the O-ring of the protection cap for correct seating.
B01644-10
B01645-10
– Position protection cap2and turn all the way clockwise using a coin. – Press any button on the speedometer.
The speedometer is activated.
– Position the speedometer in the holder. – Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 82) – Check the headlight setting. ( p. 84) – Set the speedometer. ( p. 20)
Page 88

16 COOLING SYSTEM 86

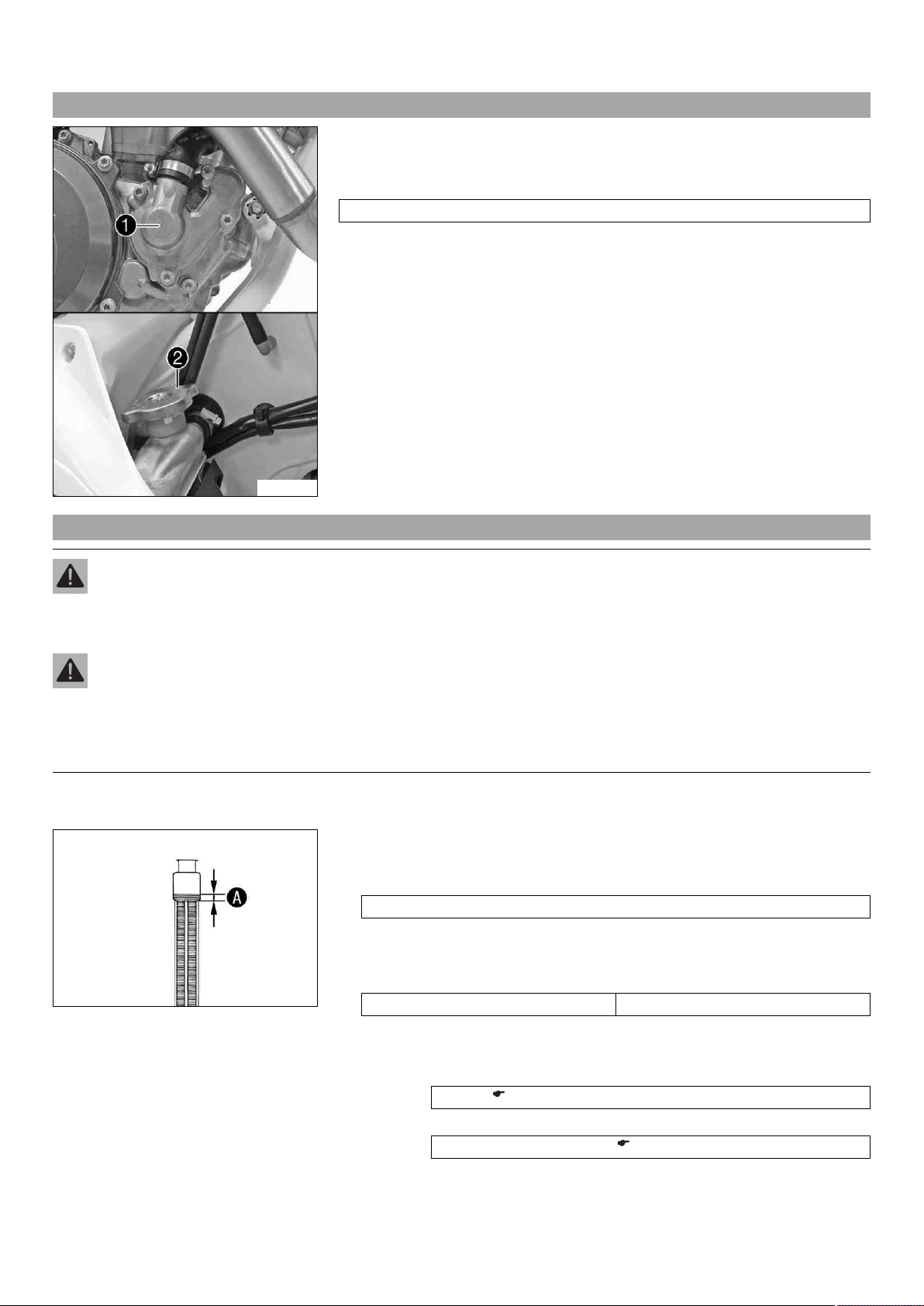

16.1 Cooling system

The water pump1in the engine forces the coolant to flow. The pressure resulting from the warming of the cooling system is regulated by a valve in radiator cap2. The specified coolant temperature is therefore permissible without the danger of malfunctions.
120 °C (248 °F)
Cooling is effected by the air stream. The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the cooling effect. The radiator fan provides extra cooling. It is controlled by a thermoswitch.
B01782-10

16.2 Checking the antifreeze and coolant level

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Condition
The engine is cold.
– Stand the motorcycle upright on a horizontal surface. – Remove the radiator cap. – Check antifreeze of coolant.
−25… −45 °C (−13… −49 °F)
» If the antifreeze of the coolant does not meet specifications:
– Correct the antifreeze of the coolant.
– Check the coolant level in the radiator.
400243-10
Coolant levelAabove radiator fins. 10 mm (0.39 in)
» If the coolant level does not meet specifications:
– Correct the coolant level.
Alternative 1
Coolant ( p. 108)
Alternative 2
Coolant (mixed ready to use) ( p. 108)
– Mount the radiator cap.
Page 89
16 COOLING SYSTEM 87

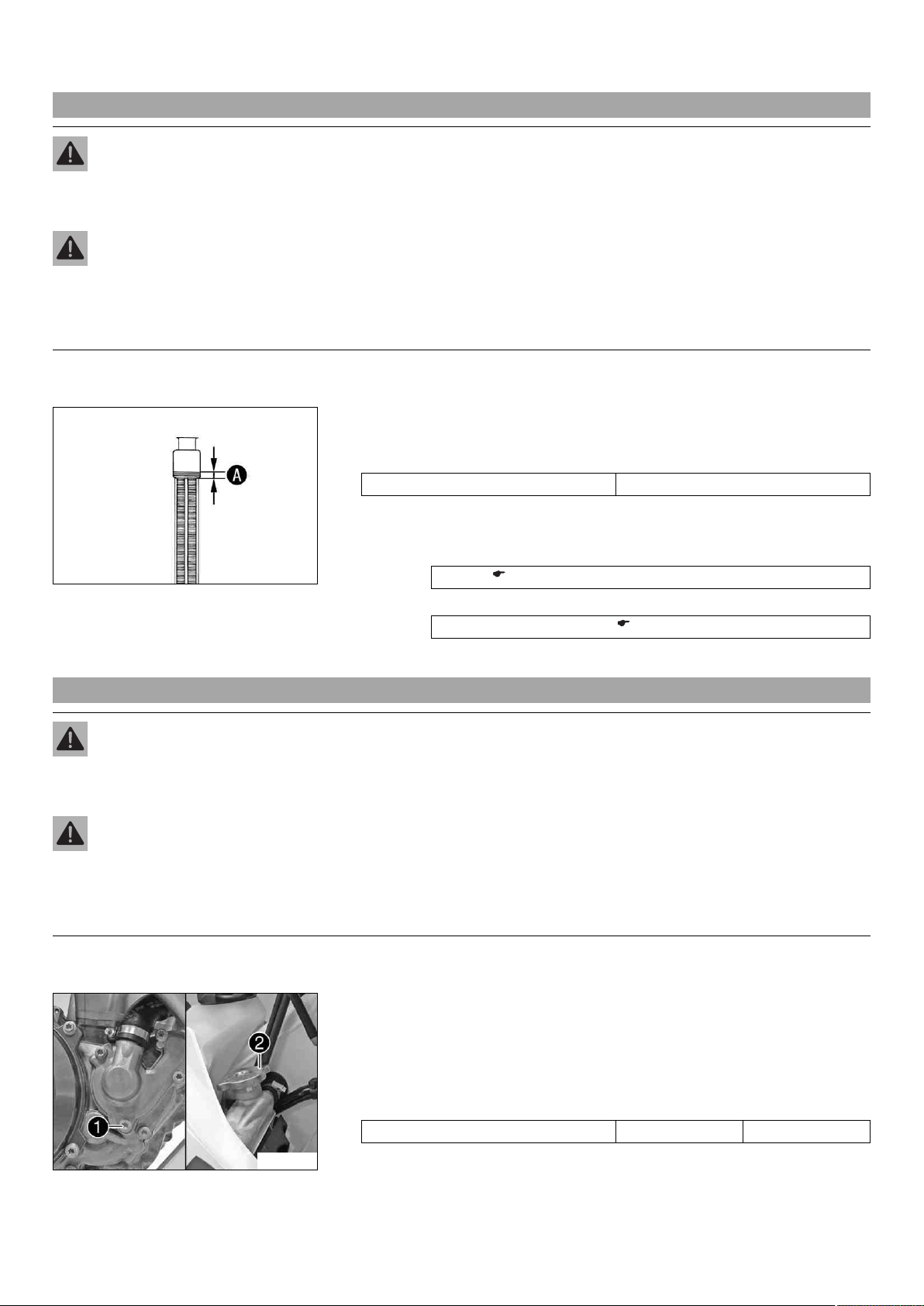

16.3 Checking the coolant level

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Condition
The engine is cold.
– Stand the motorcycle upright on a horizontal surface. – Remove the radiator cap. – Check the coolant level in the radiator.
Coolant levelAabove radiator fins. 10 mm (0.39 in)
» If the coolant level does not meet specifications:
– Correct the coolant level.
Alternative 1
400243-10
– Mount the radiator cap.
Coolant ( p. 108)
Alternative 2
Coolant (mixed ready to use) ( p. 108)

16.4 Draining the coolant x

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Condition
The engine is cold.
– Position the motorcycle upright. – Place a suitable container under the water pump cover. – Remove screw1. Take off radiator cap2. – Completely drain the coolant. – Mount and tighten screw1with a new seal ring.
Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
B01781-10
Page 90
16 COOLING SYSTEM 88

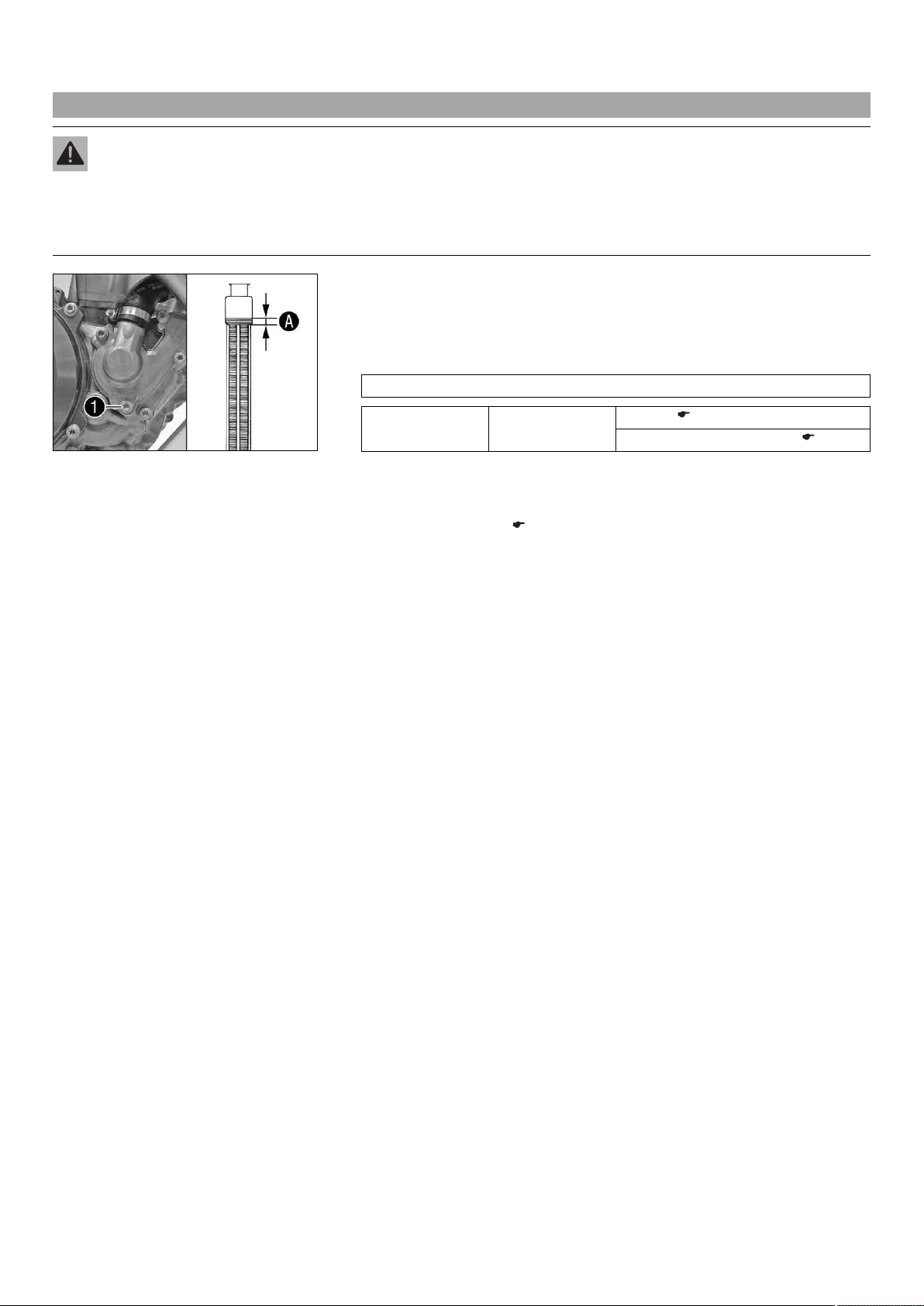

16.5 Refilling coolant x

Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Main work
– Make sure that the screw1is tightened. – Stand the vehicle upright. – Pour coolant in up to measurementAabove the radiator fins.
Guideline
10 mm (0.39 in)
Coolant 1.2 l (1.3 qt.) Coolant ( p. 108)
B01780-10
– Refit the radiator cap.
Finishing work
– Take a short test ride. – Check the coolant level. ( p. 87)
Coolant (mixed ready to use) ( p. 108)
Page 91

17 TUNING THE ENGINE 89

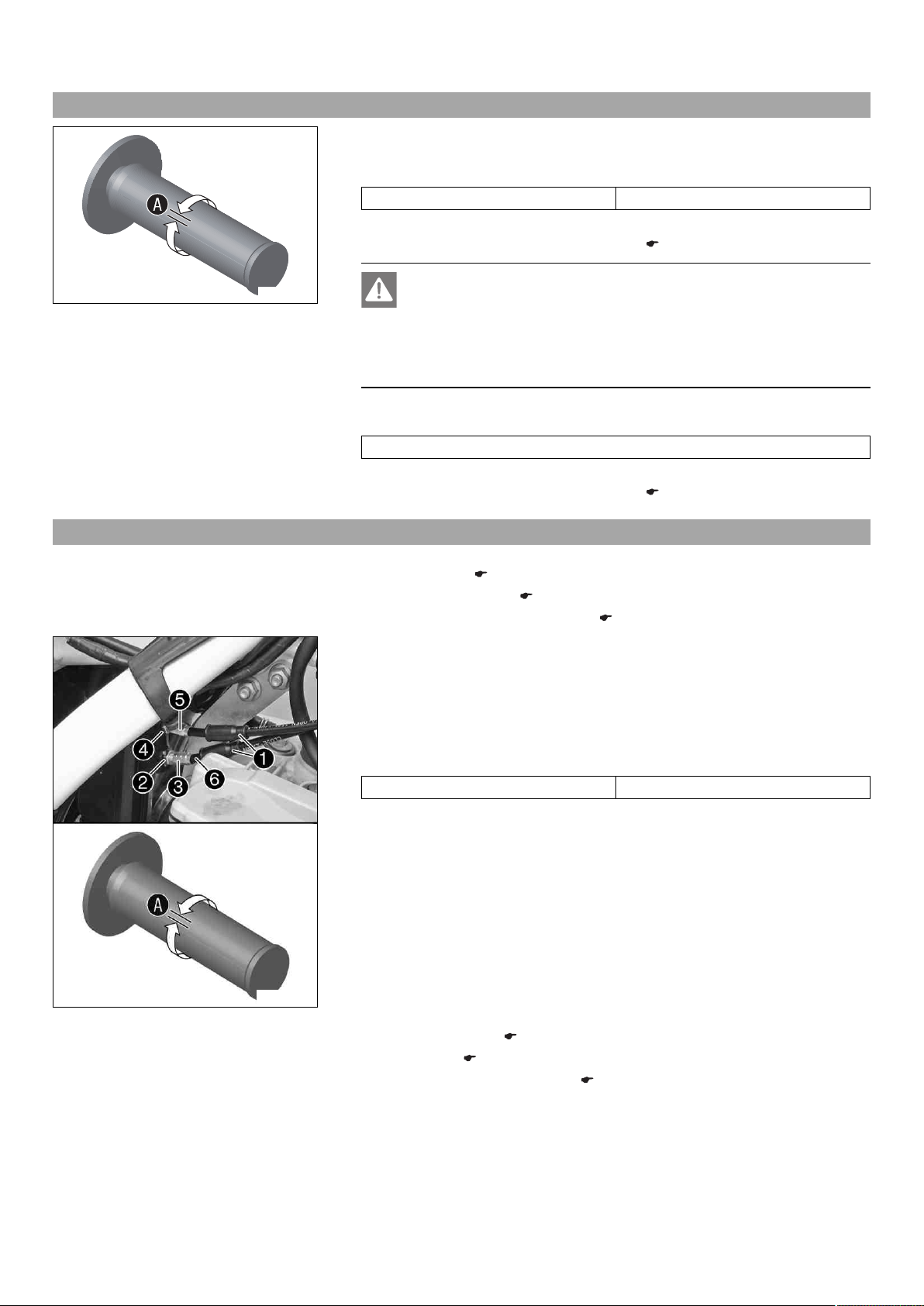

17.1 Checking the play in the throttle cable

– Check the throttle grip for smooth operation. – Move the handlebar to the straight-ahead position. Move the throttle grip back and
forth slightly to ascertain playAin the throttle cable.
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
» If the throttle cable play does not meet specifications:
– Adjust the play in the throttle cable. x ( p. 89)
400192-11
– Start the engine and let it run idle. Move the handlebar to and fro over the entire
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
steering range.
The idle speed must not change.
» If the idle speed changes:
– Adjust the play in the throttle cable. x ( p. 89)

17.2 Adjusting the play in the throttle cable x

Preparatory work
– Remove the seat. ( p. 49)
– Remove the fuel tank. x ( p. 56)
– Check the routing of the throttle cable. ( p. 62)
Main work
– Move the handlebar to the straight-ahead position. – Push back sleeves1. – Loosen nut2. Turn adjusting screw3in as far as possible. – Loosen nut4. Turn adjusting screw5so that there is playAin the throttle cable
at the throttle grip. Guideline
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
Danger
– Tighten nut4. – Press and hold the throttle grip in the closed setting. Turn adjusting screw3out
until there is no play in throttle cable6.
– Tighten nut2. – Push sleeves1on. Check the throttle grip for smooth operation.
C00588-10
Finishing work
– Install the fuel tank. x ( p. 57)
– Mount the seat. ( p. 49) – Check the play in the throttle cable. ( p. 89)
Page 92
17 TUNING THE ENGINE 90

17.3 Adjusting the idle speed x

– Run the engine warm and push the idle speed adjusting screw1all the way in. – Set the desired idle speed by turning the idle speed adjusting screw.
Guideline
Idle speed 1,950… 2,050 rpm
Info
Turn counterclockwise to increase the idle speed. Turn clockwise to decrease the idle speed.
C00533-10

17.4 Checking the basic position of the shift lever

– Sit on the vehicle in the riding position and determine the distanceAbetween the
upper edge of your boot and the shift lever.
Gap between the shift lever and the top of the boot
» If the distance does not meet the specifications:
– Adjust the basic position of the shift lever. x ( p. 90)
400692-10

17.5 Adjusting the basic position of the shift lever x

– Remove screw1and take off shift lever2.
401950-12
– Clean gear teethAof the shift lever and shift shaft. – Mount the shift lever on the shift shaft in the required position and engage the gear-
ing.
10… 20 mm (0.39… 0.79 in)
401951-10
Info
The range of adjustment is limited. The shift lever must not come into contact with any other vehicle components during the shift procedure.
– Mount and tighten the screw.
Guideline
Screw, shift lever M6 14 Nm
Loctite®243™
(10.3 lbf ft)
Page 93

18 SERVICE WORK ON THE ENGINE 91

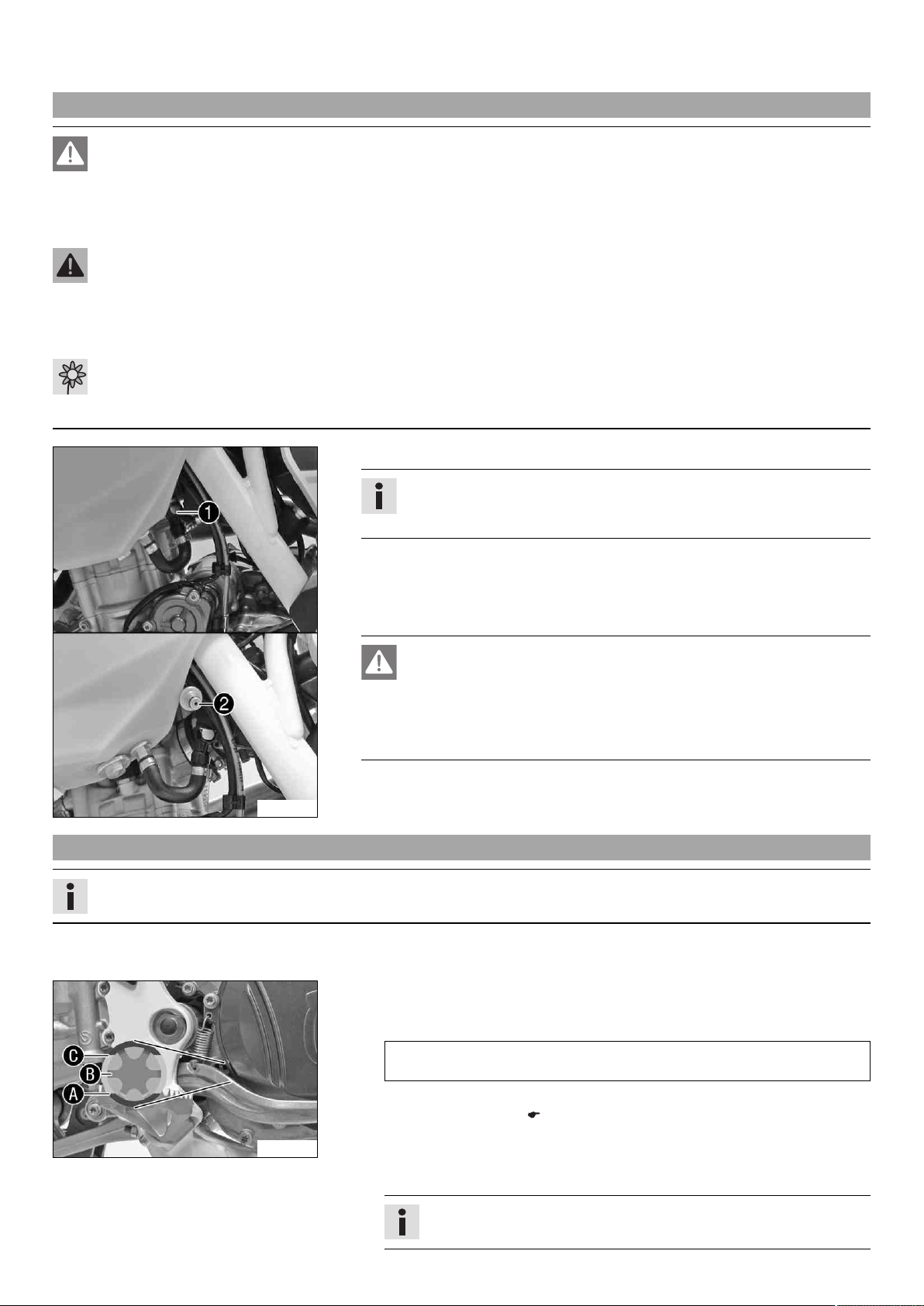

18.1 Changing the fuel screen x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
– Clean the plug-in connection1of the fuel line thoroughly with compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel line clogs the injection valve.
– Disconnect the plug-in connection of the fuel line. – Pull fuel screen2out of the connecting piece. – Insert the new fuel screen all the way into the connecting piece. – Lubricate the O-ring and connect plug-in connection of the fuel line.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation,
– Start the motor and check the response.
B01777-10

18.2 Checking the engine oil level

Info
The engine oil level can be checked when the engine is cold or warm.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
Condition
The engine is cold. – Check the engine oil level.
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
B01776-10
The engine oil is at a level between the lower edgeAand the middleBof the level viewer.
» If the engine oil is not up to the lower edgeAof the level viewer:
– Add engine oil. ( p. 94)
Condition
The engine is at operating temperature. – Check the engine oil level.
Info
After switching off the engine, wait one minute before checking the level.
Page 94
18 SERVICE WORK ON THE ENGINE 92
The engine oil is at a level between the lower edgeAand the upper edge of the level viewer.
» If the engine oil is not up to the lower edgeAof the level viewer:
– Add engine oil. ( p. 94)

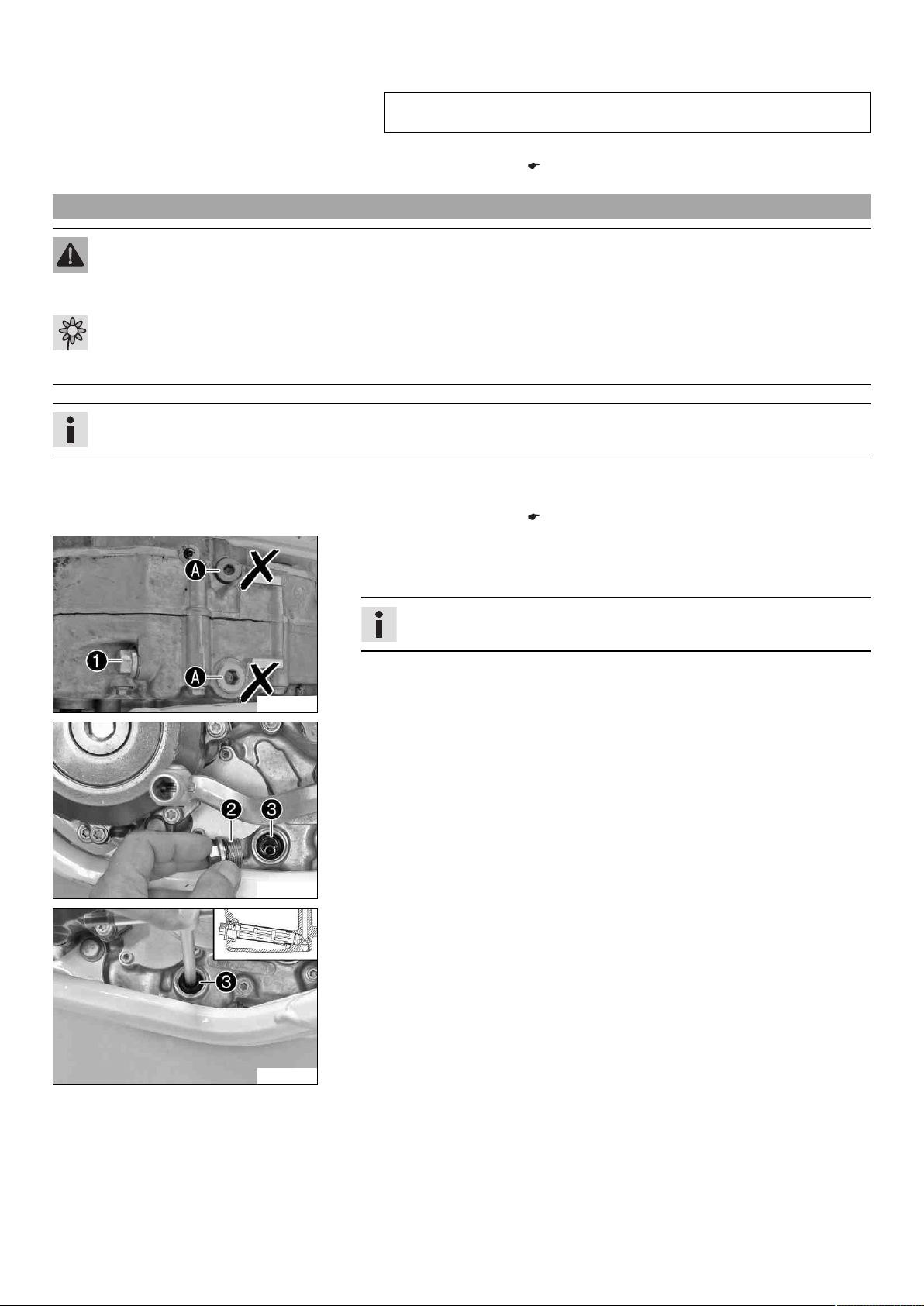

18.3 Changing the engine oil and oil filter, cleaning the oil screen x

Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the engine oil only when the engine is warm.
Preparatory work
– Park the motorcycle on a level surface. – Remove the engine guard. ( p. 64)
Main work
– Place a suitable container under the engine. – Remove oil drain plug1with the magnet and seal ring.
C
B01769-10
B01770-10
Info
Do not remove screwsAon both sides.
– Remove plug2with oil screen3and the O-rings. – Completely drain the engine oil. – Thoroughly clean the parts and sealing surfaces.
– Position oil screen3with the O-rings on a pin wrench. – Insert the pin wrench through the drill hole of the screw plug and into the engine
case on the opposite side.
– Push the oil screen all the way into the engine case.
B01771-10
Page 95
18 SERVICE WORK ON THE ENGINE 93

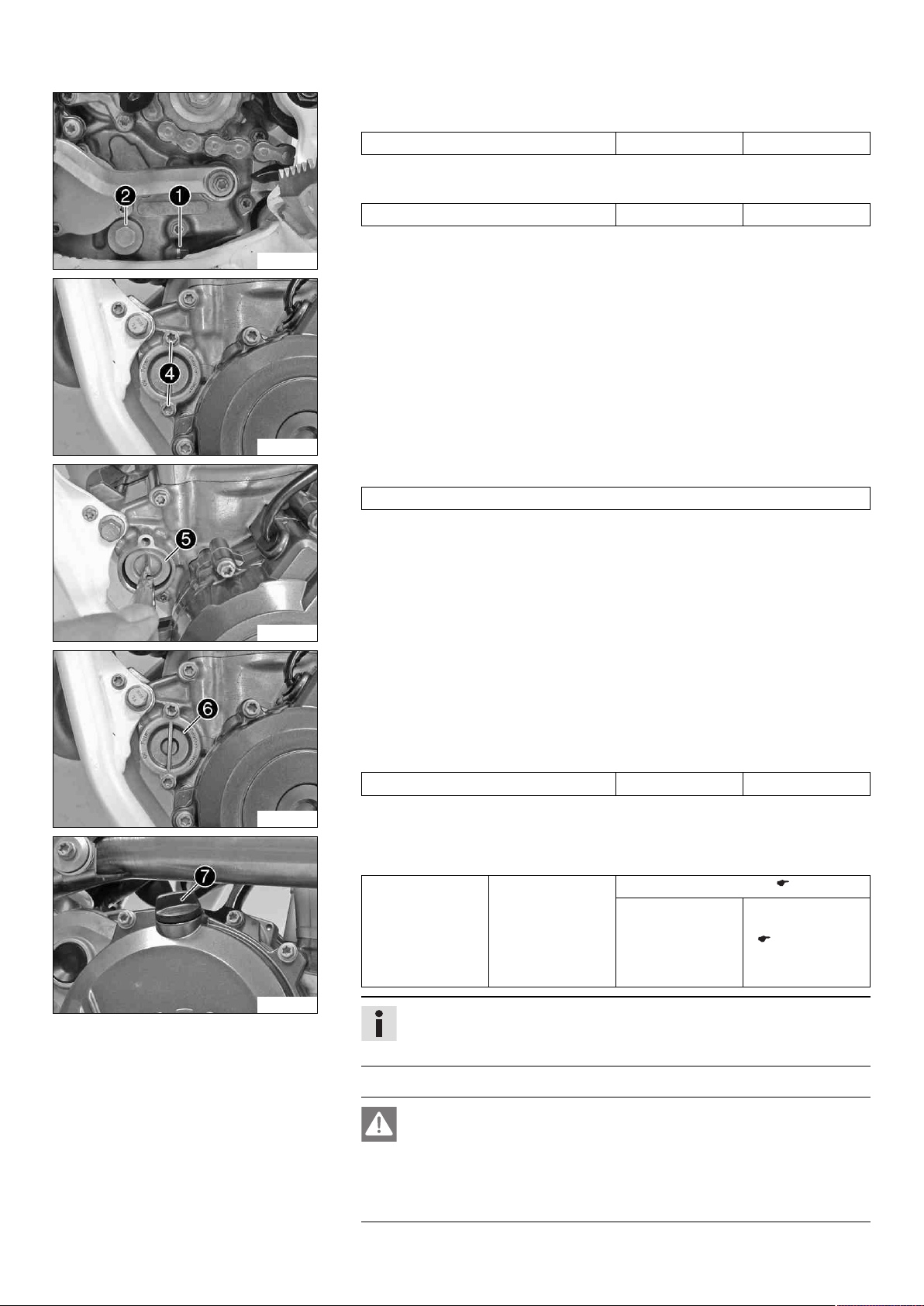

– Mount and tighten screw plug2with the O-ring.
Guideline
Screw plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
– Mount and tighten the oil drain plug1with the magnet and a new seal ring.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm (14.8 lbf ft)
B01772-10
– Remove screws4. Remove the oil filter cover with the O-ring.
B01773-10
– Pull oil filter5out of the oil filter housing.
Circlip pliers reverse (51012011000)
B01774-10
B01773-11
– Completely drain the engine oil. – Thoroughly clean the parts and sealing area.
– Lay the motorcycle on its side and fill the oil filter housing to about ⅓ full with engine
oil.
– Fill the oil filter with engine oil and place it in the oil filter housing. – Lubricate the O-ring of the oil filter cover and mount it with the oil filter cover6. – Mount and tighten the screws.
Guideline
Screw, oil filter cover M6 10 Nm (7.4 lbf ft)
– Stand the motorcycle upright.
– Remove the oil filler plug7with the O-ring from the clutch cover and fill up with
engine oil.
Engine oil 1.20 l (1.27 qt.) Engine oil (SAE 10W/50) ( p. 108)
Alternative engine oil for harsh oper­ating conditions and increased per­formance
Engine oil (SAE 10W/60)
( p. 108)
B01775-10
Info
Too little engine oil or poor-quality engine oil results in premature wear to the engine.
– Install and tighten the oil filler plug with O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
Page 96
18 SERVICE WORK ON THE ENGINE 94
– Start the engine and check that it is oil-tight.
Finishing work
– Check the engine oil level. ( p. 91) – Install the engine guard. ( p. 64)

18.4 Adding engine oil

Info
Too little engine oil or poor-quality engine oil results in premature wear to the engine.
Main work
– Remove the oil filler plug1with the O-ring from the clutch cover. – Fill engine oil to the middleBof the level viewer.
Engine oil (SAE 10W/50) ( p. 108)
Alternative 1
Engine oil (SAE 10W/60) ( p. 108)
Info
For optimal performance of the engine oil, do not mix different types of engine oil. If appropriate, change the engine oil.
B01768-10
– Install and tighten the oil filler plug with O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
– Start the engine and check that it is oil-tight.
Finishing work
– Check the engine oil level. ( p. 91)
Page 97

19 CLEANING, CARE 95

19.1 Cleaning the motorcycle

Note
Material damage Damage and destruction of components by high-pressure cleaning equipment.
– When cleaning the vehicle with a pressure cleaner, do not point the water jet directly onto electrical components, connectors, cables,
bearings, etc. Maintain a minimum distance of 60 cm between the nozzle of the pressure cleaner and the component. Excessive pressure can cause malfunctions or destroy these parts.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
If you clean the motorcycle regularly, its value and appearance will be maintained over a long period. Avoid direct sunshine on the motorcycle during cleaning.
– Close off the exhaust system to prevent water from entering. – Remove coarse dirt particles with a gentle spray of water. – Spray very dirty areas with a normal motorcycle cleaner and then clean with a paint-
brush.
401061-01
Info
Use warm water containing normal motorcycle cleaner and a soft sponge. Never apply motorcycle cleaner to a dry vehicle; always rinse the vehicle with water first.
– After rinsing the motorcycle with a gentle spray of water, allow it to dry thoroughly. – Remove the closure of the exhaust system.
Warning
Danger of accidents Reduced braking efficiency due to a wet or dirty
brake system.
– Clean or dry a dirty or wet brake system by riding and braking gently.
– After cleaning, ride a short distance until the engine reaches operating temperature.
Info
The heat produced causes water at inaccessible locations in the engine and on the brake system to evaporate.
– After the motorcycle has cooled off, lubricate all moving parts and bearings. – Clean the chain. ( p. 58) – Treat bare metal parts (except for brake discs and exhaust system) with
anti-corrosion materials.
– Treat all plastic parts and powder-coated parts with a mild cleaning and care prod-
uct.
(FE 350 EU, FE 350 AUS)
– Lubricate the steering lock.

19.2 Checks and maintenance steps for winter operation

Info
If the motorcycle is used in the winter, salt can be expected on the roads. Precautions need to be taken against road salt corro­sion. If the vehicle was operated in road salt, clean it with cold water after riding. Warm water would enhance the corrosive effects of salt.
Page 98
19 CLEANING, CARE 96
– Clean the motorcycle. ( p. 95) – Clean the brake system.
Info
After EVERY trip on salted roads, thoroughly wash the brake calipers and brake linings with cold water and dry carefully. This should be done after the parts are cooled down and while they are installed. After riding on salted roads, thoroughly wash the motorcycle with cold water and dry it well.
401060-01
– Treat the engine, swingarm, and all other bright and zinc-plated parts (except for the
brake discs) with a wax-based corrosion inhibitor.
Info
Corrosion inhibitor is not permitted to come in contact with the brake discs as this would greatly reduce the braking force.
– Clean the chain. ( p. 58)
Page 99

20 STORAGE 97

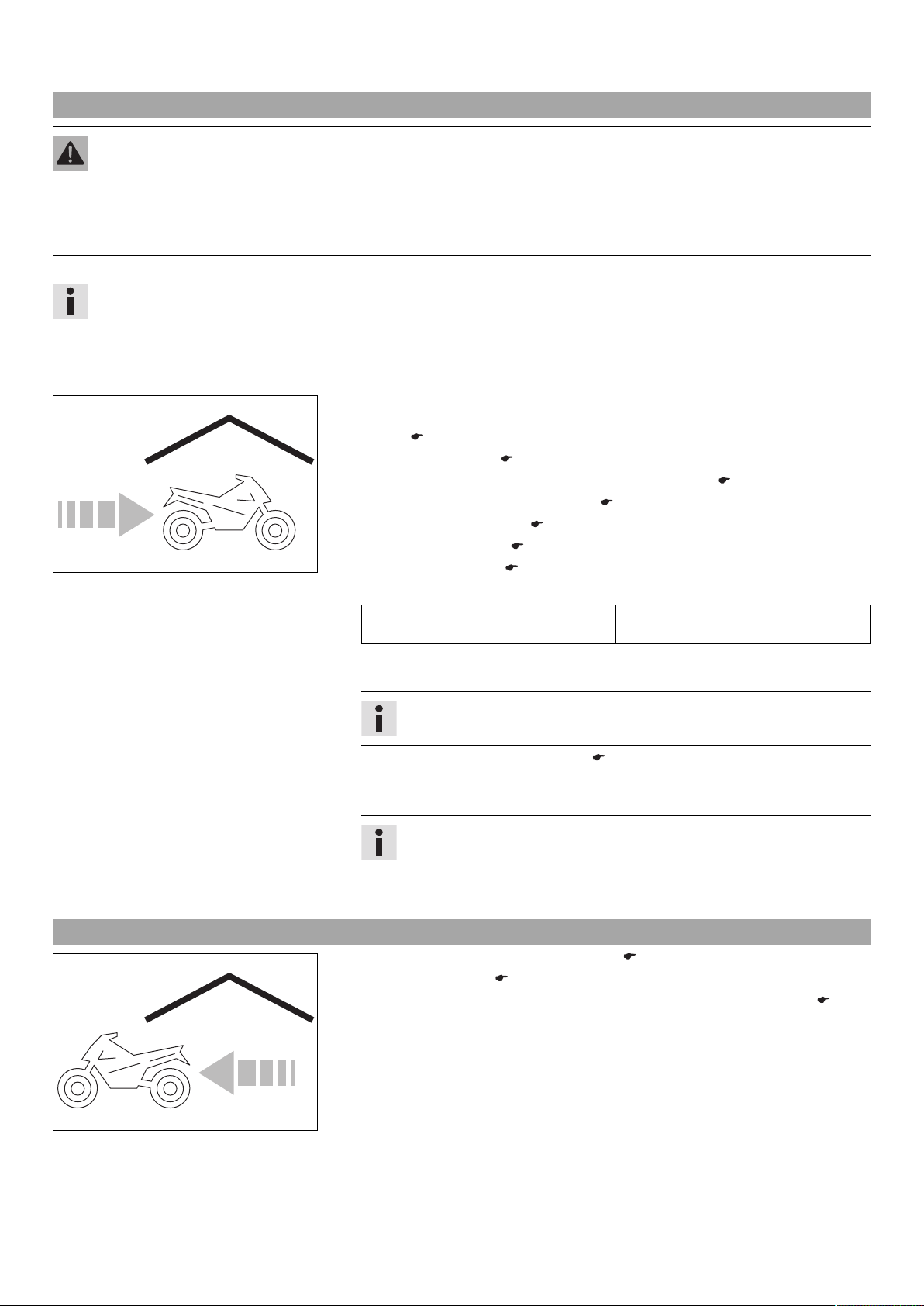

20.1 Storage

Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
Info
If you want to garage the motorcycle for a longer period, take the following steps. Before storing the motorcycle, check all parts for function and wear. If service, repairs or replacements are necessary, you should do this during the storage period (less workshop overload). In this way, you can avoid long workshop waiting times at the start of the new season.
– When refueling for the last time before taking the motorcycle out of service, add fuel
additive.
– Refuel. ( p. 31) – Clean the motorcycle. ( p. 95)
– Change the engine oil and oil filter, clean the oil screen. x ( p. 92)
– Check the antifreeze and coolant level. ( p. 86) – Check the tire air pressure. ( p. 77)
401058-01
– Remove the battery. x ( p. 79) – Charge the battery. x ( p. 80)
Guideline
Storage temperature of battery without direct sunlight
0… 35 °C (32… 95 °F)
– Store the vehicle in a dry location that is not subject to large fluctuations in tempera-
– Raise the motorcycle with a lift stand. ( p. 41) – Cover the motorcycle with a porous sheet or blanket. Do not use non-porous materi-

20.2 Preparing for use after storage

– Remove the motorcycle from the lift stand. ( p. 41)
– Install the battery. x ( p. 79)
– Perform checks and maintenance work when preparing the vehicle for use. ( p. 28) – Take a test ride.
ture.
Info
Husqvarna recommends raising the motorcycle.
als since they prevent humidity from escaping, thus causing corrosion.
Info
Avoid running the engine for a short time only. Since the engine cannot warm up properly, the water vapor produced during combustion condenses and causes valves and exhaust system to rust.
401059-01
Page 100

21 TROUBLESHOOTING 98

Faults Possible cause Action
The engine cannot be cranked (elec­tric starter)
Engine turns but does not start Operating error – Carry out the start procedure. ( p. 28)
Engine does not speed up Defect in fuel injection system – Read out the fault memory using the Husqvarna
Engine has too little power Air filter heavily contaminated – Clean the air filter and air filter box. x ( p. 51)
Engine dies during the trip Lack of fuel – Refuel. ( p. 31)
Engine overheats Coolant level low in cooling system – Check the cooling system for leaks.
Operating error – Carry out the start procedure. ( p. 28)
Battery is discharged – Charge the battery. x ( p. 80)
– Check the charging voltage. x – Check the closed current. x – Check the stator winding of the alternator. x
Main fuse blown – Change the main fuse. ( p. 81)
Starter relay defective – Check the starter relay. x Starter motor defective – Check the starter motor. x
Coupling of fuel hose connection not joined together
Fuse 1 blown – Change the fuses of individual power
Fuse 2 blown – Change the fuses of individual power
Idle speed is not set correctly – Adjust the idle speed. x ( p. 90)
Spark plug oily or wet – Clean and dry the spark plug or replace if nec-
Electrode distance (plug gap) of spark plug too wide
Ignition system defective – Check the ignition system. x
Short-circuit cable in wiring harness frayed, kill switch or emergency OFF switch defective
Defect in fuel injection system – Read out the fault memory using the Husqvarna
Ignition system defective – Ignition coil - check the secondary winding. x
Fuel filter is very dirty – Change the fuel filter. x Fuel screen is very dirty – Change the fuel screen. x ( p. 91)
Defect in fuel injection system – Read out the fault memory using the Husqvarna
Exhaust system leaky, deformed or too little glass fiber yarn filling in main silencer
Valve clearance too little – Adjust the valve clearance. x Ignition system defective – Ignition coil - check the secondary winding. x
Fuse 1 blown – Change the fuses of individual power
Fuse 2 blown – Change the fuses of individual power
Insufficient airflow – Switch off engine when stationary. Radiator fins very dirty – Clean radiator fins.
– Join the fuel hose connection.
consumers. ( p. 81)
consumers. ( p. 81)
essary.
– Adjust the plug gap.
Guideline Spark plug electrode gap
0.8 mm (0.031 in)
– Check the wiring harness. (visual check) – Check the electrical system.
diagnostics tool. x diagnostics tool. x
– Check the spark plug connector. x – Check the stator winding of the alternator. x
diagnostics tool. x
– Check exhaust system for damage. – Change the glass fiber yarn filling of the main
silencer. x ( p. 54)
– Check the spark plug connector. x – Check the stator winding of the alternator. x
consumers. ( p. 81)
consumers. ( p. 81)
– Check the coolant level. ( p. 87)
