Husqvarna FC 450 EU (2014) Owner's Manual

Download
Page 1
OWNER'S MANUAL 2014
FC 450 EU
Art. no. 3402004en
Page 2
Page 3
DEAR HUSQVARNA CUSTOMER 1
DEARHUSQVARNA CUSTOMER
Congratulations on your decision to purchase a Husqvarna motorcycle. You are now the owner of a state-of-the-art sports motorcycle that will give you enormous pleasure if you service and maintain it accordingly.
We wish you a lot of enjoyment in riding this vehicle.
Chassis number ( p. 10) Dealer's stamp
Engine number ( p. 10)
The Owner's Manual contained the latest information for this model series at the time of going to print. Slight deviations resulting from continuing development and design can, however, not be completely excluded.
All specifications are non-binding. Husqvarna Motorcycles GmbH specifically reserves the right to modify or delete technical specifica­tions, prices, colors, forms, materials, services, designs, equipment, etc., without prior notice and without specifying reasons, to adapt these to local conditions, as well as to stop production of a particular model without prior notice. Husqvarna accepts no liability for deliv­ery options, deviations from illustrations and descriptions, as well as misprints and other errors. The models portrayed partly contain spe­cial equipment that does not belong to the regular scope of supply.
© 2013 Husqvarna Motorcycles GmbH, Mattighofen Austria All rights reserved Reproduction, even in part, as well as copying of all kinds, is permitted only with the express written permission of the copyright owner.
ISO 9001(12 100 6061) Husqvarna applies quality assurance processes that lead to the highest possible product quality as defined in the ISO 9001 international quality management standard. Issued by: TÜV Management Service
Husqvarna Motorcycles GmbH 5230 Mattighofen, Austria
Page 4
TABLE OF CONTENTS 2
TABLEOF CONTENTS
1 MEANS OF REPRESENTATION ......................................... 4
1.1 Symbols used ........................................................ 4
1.2 Formats used......................................................... 4
2 SAFETY ADVICE ................................................................ 5
2.1 Use definition - intended use.................................. 5
2.2 Safety advice ......................................................... 5
2.3 Degrees of risk and symbols .................................. 5
2.4 Tampering warning ................................................ 5
2.5 Safe operation........................................................ 5
2.6 Protective clothing ................................................. 6
2.7 Work rules.............................................................. 6
2.8 Environment........................................................... 6
2.9 Owner's Manual..................................................... 6
3 IMPORTANT INFORMATION .............................................. 7
3.1 Manufacturer and implied warranty ........................ 7
3.2 Operating and auxiliary substances ........................ 7
3.3 Spare parts, accessories........................................ 7
3.4 Service................................................................... 7
3.5 Figures................................................................... 7
3.6 Customer service ................................................... 7
4 VIEW OF VEHICLE ............................................................. 8
4.1 View of vehicle, front left (example)......................... 8
4.2 View of vehicle, rear right (example)........................ 9
5 SERIAL NUMBERS........................................................... 10
5.1 Chassis number ................................................... 10
5.2 Type label ............................................................ 10
5.3 Engine number..................................................... 10
5.4 Fork part number ................................................. 10
5.5 Shock absorber part number ............................... 10
6 CONTROLS...................................................................... 11
6.1 Clutch lever.......................................................... 11
6.2 Hand brake lever.................................................. 11
6.3 Throttle grip ......................................................... 11
6.4 Kill switch............................................................. 11
6.5 Electric starter button........................................... 11
6.6 Map‑Select switch for the basic setting ................ 12
6.7 Map‑Select switch for vehicle operation ............... 12
6.8 Overview of indicator lamps ................................. 12
6.9 Opening the filler cap ........................................... 12
6.10 Closing the filler cap ............................................. 13
6.11 Cold start button.................................................. 13
6.12 Idle speed adjusting screw ................................... 14
6.13 Shift lever ............................................................. 14
6.14 Foot brake lever ................................................... 14
6.15 Plug-in stand........................................................ 15
7 PREPARING FOR USE..................................................... 16
7.1 Advice on first use................................................ 16
7.2 Running in the engine........................................... 17
7.3 Preparing the vehicle for difficult riding
conditions ............................................................ 17
7.4 Preparing for rides on dry sand ............................ 17
7.5 Preparing for rides on wet sand ........................... 18
7.6 Preparing for rides on wet and muddy surfaces ... 18
7.7 Preparing for rides at high temperature and slow
speed .................................................................. 19
7.8 Preparing for rides at low temperatures or in
snow.................................................................... 19
8 RIDING INSTRUCTIONS................................................... 20
8.1 Checks and maintenance work when preparing
for use ................................................................. 20
8.2 Starting................................................................ 20
8.3 Starting off ........................................................... 21
8.4 Shifting, riding ...................................................... 21
8.5 Applying the brakes ............................................. 21
8.6 Stopping, parking................................................. 21

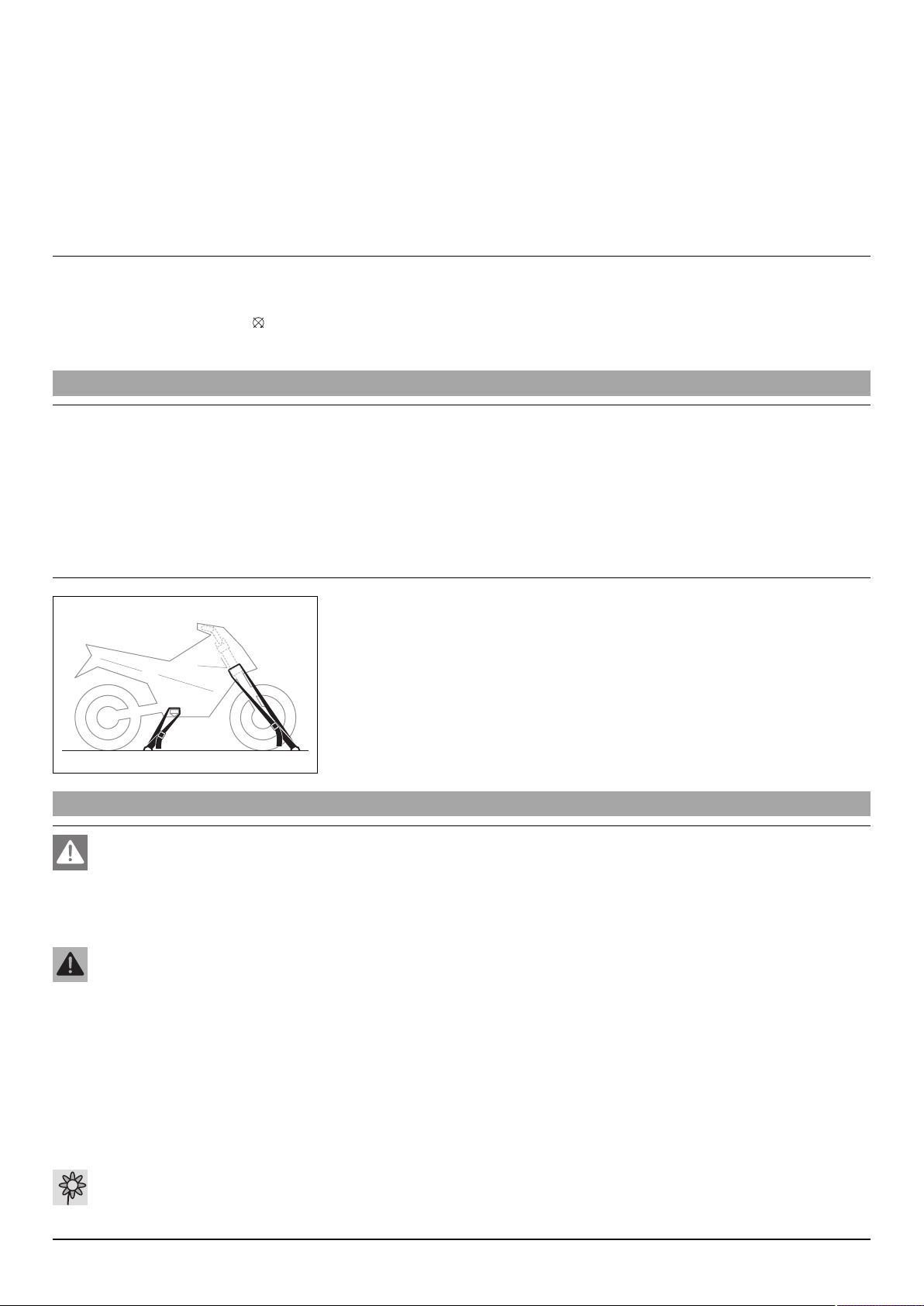

8.7 Transport ............................................................. 22
8.8 Refueling.............................................................. 22
9 SERVICE SCHEDULE....................................................... 24
9.1 Service schedule.................................................. 24
9.2 Service work (as additional order)......................... 25
10 TUNING THE CHASSIS.................................................... 26
10.1 Checking the basic chassis setting with the
rider's weight ....................................................... 26
10.2 Compression damping of the shock absorber...... 26
10.3 Adjusting the low-speed compression damping
of the shock absorber .......................................... 26
10.4 Adjusting the high-speed compression damping
of the shock absorber .......................................... 27
10.5 Adjusting the rebound damping of the shock
absorber .............................................................. 27

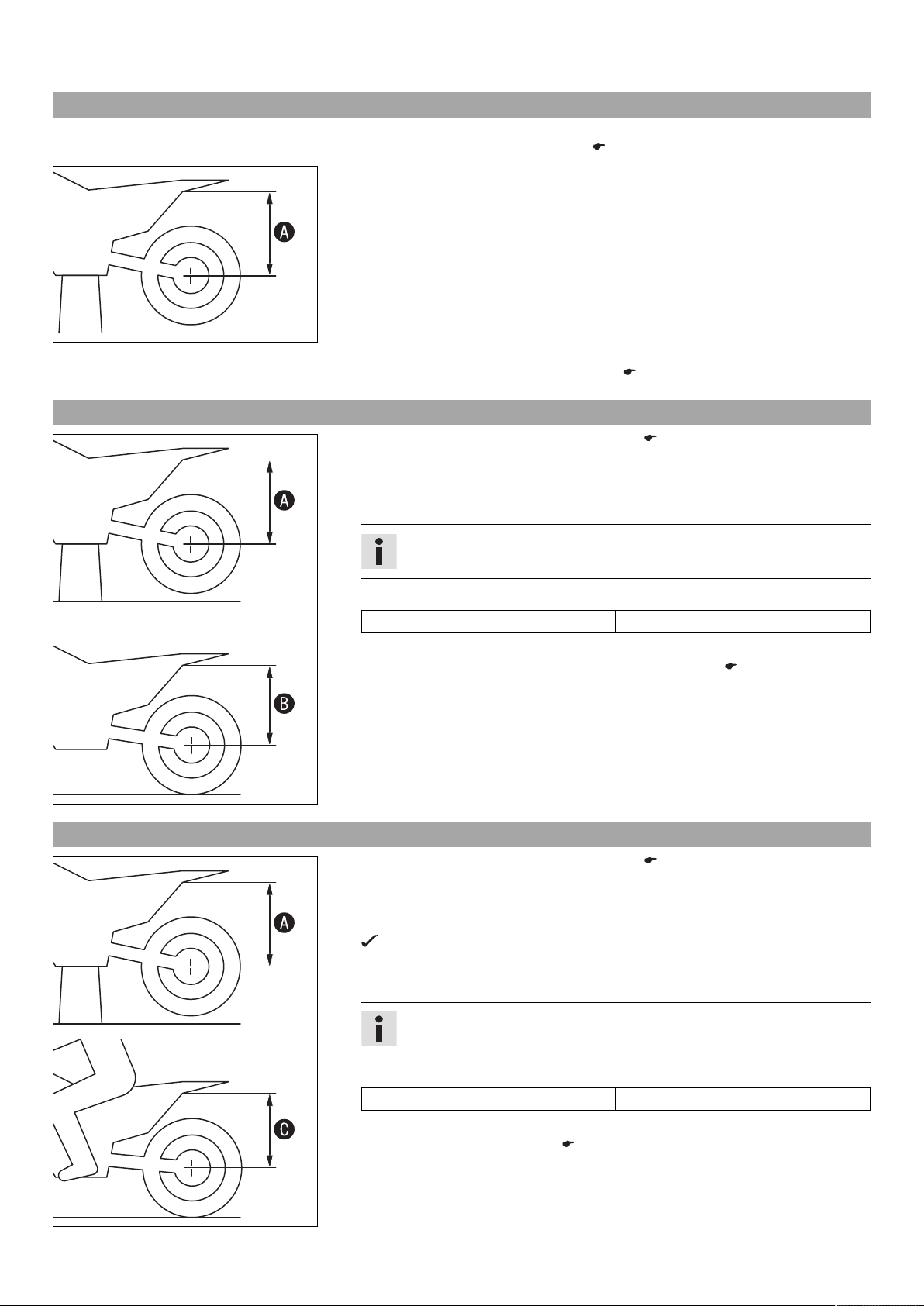

10.6 Measuring rear wheel sag unloaded..................... 28
10.7 Checking the static sag of the shock absorber..... 28
10.8 Checking the riding sag of the shock absorber..... 28
10.9 Adjusting the spring preload of the shock
absorber x......................................................... 29
10.10 Adjusting the riding sag x................................... 29
10.11 Checking the basic setting of the fork .................. 30
10.12 Adjusting the compression damping of the fork.... 30
10.13 Adjusting the rebound damping of the fork........... 30
10.14 Handlebar position ............................................... 31
10.15 Adjusting the handlebar position x..................... 31
11 SERVICE WORK ON THE CHASSIS................................. 32
11.1 Raising the motorcycle with a lift stand................. 32
11.2 Removing the motorcycle from the lift stand......... 32
11.3 Bleeding the fork legs........................................... 32
11.4 Cleaning the dust boots of the fork legs ............... 33
11.5 Loosening the fork protection............................... 33
11.6 Positioning the fork protection.............................. 33
11.7 Removing the fork legs x ................................... 33
11.8 Installing the fork legs x...................................... 34
11.9 Removing the fork protector x ........................... 35
11.10 Installing the fork protector x.............................. 35
11.11 Removing the lower triple clamp x ..................... 35
11.12 Installing the lower triple clamp x ....................... 36
11.13 Checking the steering head bearing play.............. 37
11.14 Adjusting the play of the steering head
bearing x ........................................................... 38
11.15 Greasing the steering head bearing x................. 38
11.16 Removing the start number plate ......................... 38
11.17 Installing the start number plate............................ 39
11.18 Removing the front fender.................................... 39
11.19 Installing the front fender ...................................... 39
11.20 Removing the shock absorber x ........................ 40
11.21 Installing the shock absorber x .......................... 41
11.22 Removing the seat ............................................... 42
11.23 Mounting the seat ................................................ 42
11.24 Removing the air filter box lid ............................... 42
Page 5
TABLE OF CONTENTS 3
11.25 Installing the air filter box lid.................................. 42
11.26 Removing the air filter x ..................................... 43
11.27 Installing the air filter x........................................ 43

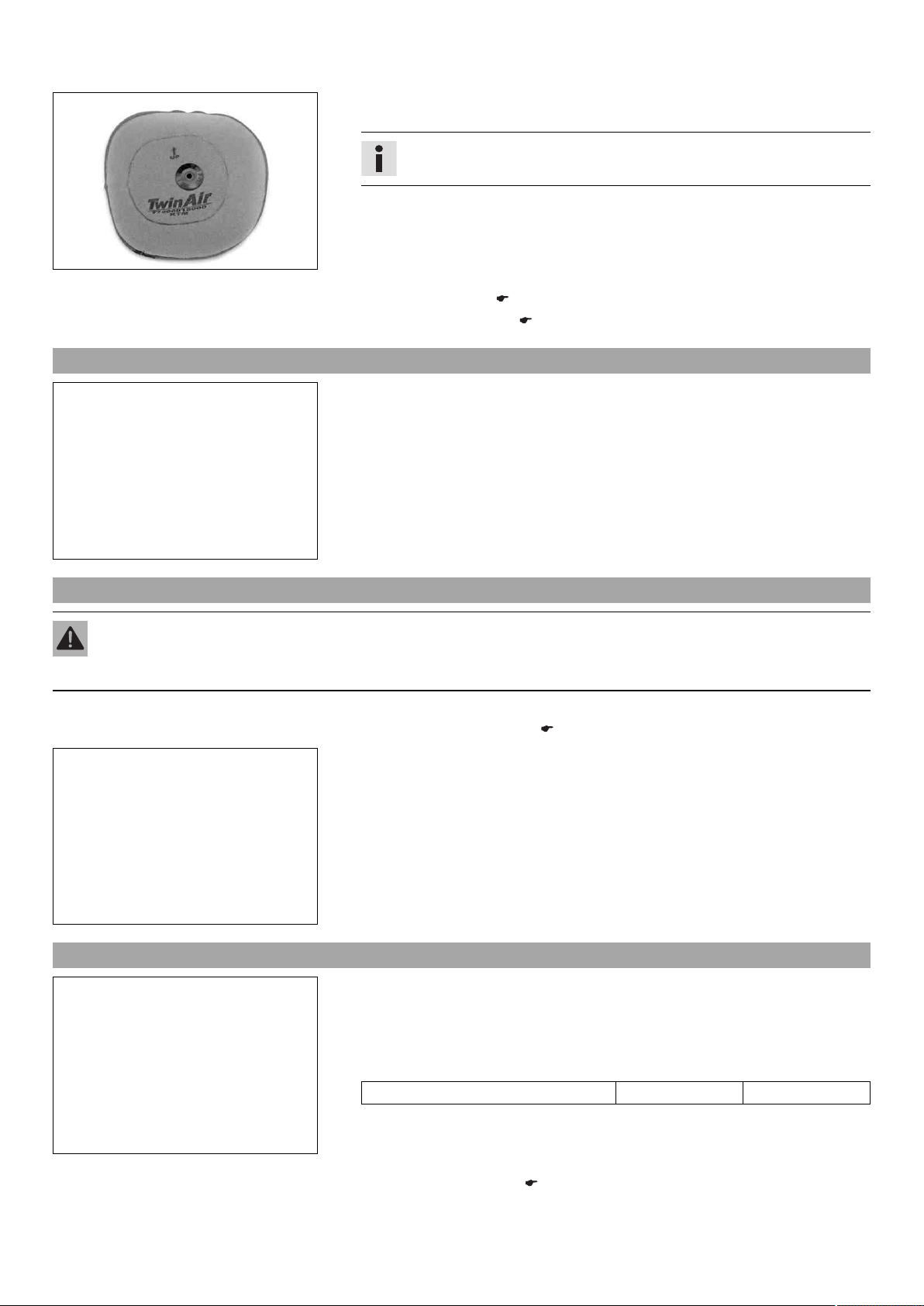

11.28 Cleaning the air filter and air filter box x.............. 43
11.29 Sealing the air filter box x................................... 44
11.30 Removing the main silencer ................................. 44
11.31 Installing the main silencer.................................... 44
11.32 Changing the glass fiber yarn filling of the main
silencer x ........................................................... 45
11.33 Removing the right side cover .............................. 45
11.34 Installing the right side cover ................................ 46
11.35 Removing the fuel tank x ................................... 46
11.36 Installing the fuel tank x...................................... 47
11.37 Checking for chain dirt accumulation.................... 48

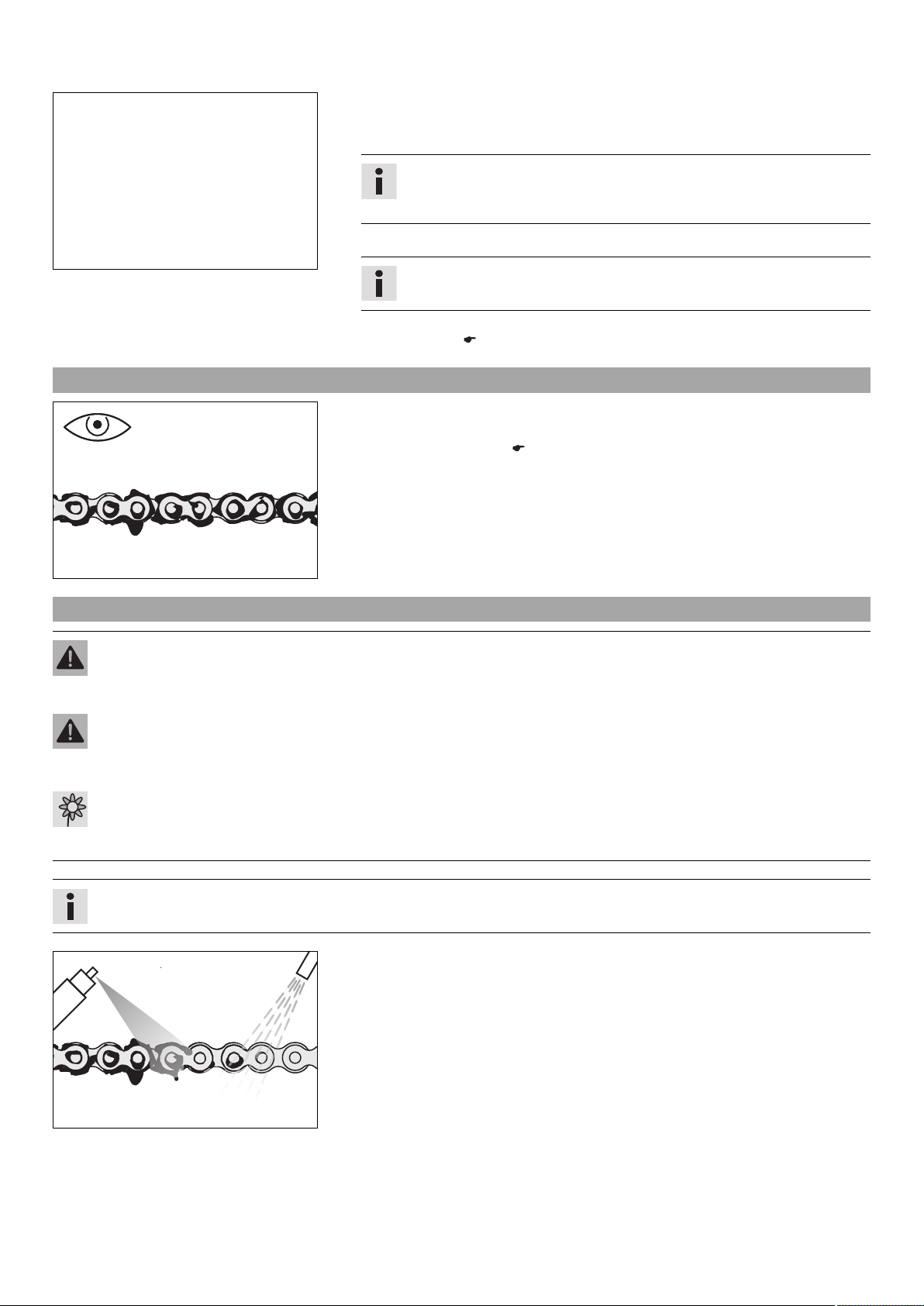

11.38 Cleaning the chain ............................................... 48
11.39 Checking the chain tension .................................. 49
11.40 Adjusting the chain tension .................................. 49
11.41 Checking the chain, rear sprocket, engine
sprocket, and chain guide .................................... 50
11.42 Checking the frame x......................................... 51
11.43 Checking the swingarm x .................................. 52
11.44 Checking the throttle cable routing....................... 52
11.45 Checking the rubber grip...................................... 52
11.46 Additionally securing the rubber grip .................... 53
11.47 Adjusting the basic position of the clutch lever ..... 53
11.48 Checking/correcting the fluid level of the
hydraulic clutch .................................................... 53
11.49 Changing the hydraulic clutch fluid x.................. 53
12 BRAKE SYSTEM .............................................................. 55
12.1 Checking the free travel of the hand brake
lever..................................................................... 55
12.2 Adjusting the basic position of the hand brake
lever..................................................................... 55
12.3 Checking the brake discs..................................... 55
12.4 Checking the brake fluid level of the front brake ... 56
12.5 Adding front brake fluid x................................... 56
12.6 Checking the front brake linings ........................... 57
12.7 Changing the front brake linings x...................... 57
12.8 Checking the free travel of foot brake lever........... 59
12.9 Adjusting the basic position of the foot brake
lever x................................................................ 59
12.10 Checking the rear brake fluid level ........................ 60
12.11 Adding rear brake fluid x.................................... 60
12.12 Checking the rear brake linings ............................ 61
12.13 Changing the rear brake linings x....................... 62
13 WHEELS, TIRES............................................................... 64
13.1 Removing the front wheel x ............................... 64
13.2 Installing the front wheel x.................................. 64
13.3 Removing the rear wheel x ................................ 65
13.4 Installing the rear wheel x................................... 65
13.5 Checking the tire condition................................... 66

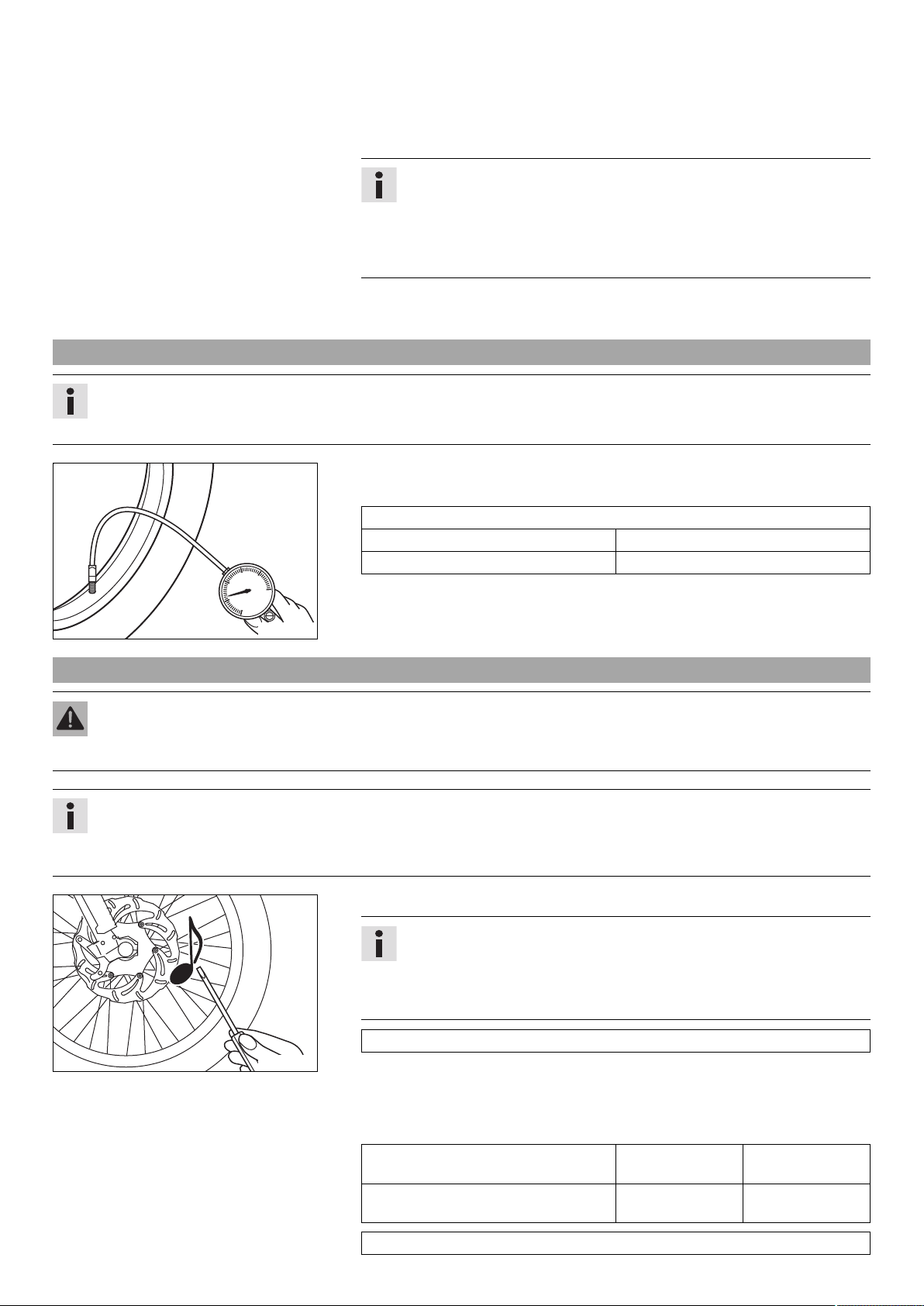

13.6 Checking the tire air pressure............................... 67
13.7 Checking the spoke tension ................................. 67
14 ELECTRICAL SYSTEM ..................................................... 68
14.1 Removing the battery x...................................... 68
14.2 Installing the battery x........................................ 68
14.3 Charging the battery x ....................................... 69
14.4 Changing the main fuse ....................................... 70
15 COOLING SYSTEM.......................................................... 71
15.1 Cooling system .................................................... 71
15.2 Checking the antifreeze and coolant level............. 71
15.3 Checking the coolant level ................................... 72
15.4 Draining the coolant x........................................ 72
15.5 Refilling coolant x............................................... 73
16 TUNING THE ENGINE ...................................................... 74
16.1 Checking the play in the throttle cable.................. 74
16.2 Adjusting the play in the throttle cable x............. 74
16.3 Adjusting the idle speed x.................................. 75
16.4 Checking the basic position of the shift lever........ 75
16.5 Adjusting the basic position of the shift lever x... 75
17 SERVICE WORK ON THE ENGINE................................... 76
17.1 Changing the fuel screen x ................................ 76
17.2 Checking the engine oil level ................................ 76
17.3 Changing the engine oil and oil filter, cleaning
the oil screens x................................................. 77
17.4 Adding engine oil ................................................. 79
18 CLEANING, CARE............................................................ 80
18.1 Cleaning the motorcycle....................................... 80
19 STORAGE ........................................................................ 81
19.1 Storage................................................................ 81
19.2 Preparing for use after storage ............................. 81
20 TROUBLESHOOTING ...................................................... 82
21 BLINK CODE.................................................................... 84
22 TECHNICAL DATA ........................................................... 85
22.1 Engine.................................................................. 85
22.2 Engine tightening torques..................................... 85
22.3 Capacities............................................................ 86
22.3.1 Engine oil......................................................... 86
22.3.2 Coolant ........................................................... 86
22.3.3 Fuel ................................................................. 87
22.4 Chassis................................................................ 87
22.5 Electrical system .................................................. 87
22.6 Tires..................................................................... 88
22.7 Fork ..................................................................... 88
22.8 Shock absorber ................................................... 88
22.9 Chassis tightening torques................................... 89
23 SUBSTANCES ................................................................. 91
24 AUXILIARY SUBSTANCES ............................................... 92
25 STANDARDS.................................................................... 93
INDEX....................................................................................... 94
Page 6

1 MEANS OF REPRESENTATION 4

1.1 Symbols used

The symbols used are explained in the following.
Identifies an expected reaction (e.g. to a work step or a function).
Identifies an unexpected reaction (e.g. to a work step or a function).
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of your own safety, have these jobs performed by an authorized Husqvarna workshop. There, your motorcycle will be opti­mally cared for by specially trained experts using the special tools required.
Identifies a page reference (more information is provided on the specified page).

1.2 Formats used

The following typographical formats are used.
Specific name Identifies a proprietary name.
®
Name
Brand™ Identifies a brand available on the open market.
Identifies a protected name.
Page 7

2 SAFETY ADVICE 5

2.1 Use definition - intended use

Husqvarna sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcycles comply with currently valid regulations and categories of the top international motorsport organizations.
Info
The motorcycle may only be used in closed off areas remote from public road traffic.

2.2 Safety advice

A number of safety instructions need to be followed to operate the vehicle safely. Therefore, read this manual carefully. The safety instructions are highlighted in the text and are referred to at the relevant passages.
Info
The vehicle has various information and warning labels at prominent locations. Do not remove information/warning labels. If they are missing, you or others may not recognize dangers and may therefore be injured.

2.3 Degrees of risk and symbols

Danger
Identifies a danger that will immediately and invariably lead to fatal or serious permanent injury if the appropriate measures are not taken.
Warning
Identifies a danger that is likely to lead to fatal or serious injury if the appropriate measures are not taken.
Caution
Identifies a danger that may lead to minor injuries if the appropriate measures are not taken.
Note
Identifies a danger that will lead to considerable machine and material damage if the appropriate measures are not taken.
Warning
Identifies a danger that will lead to environmental damage if the appropriate measures are not taken.

2.4 Tampering warning

Tampering with the noise control system is prohibited. Federal law prohibits the following acts or the causing thereof:
1 The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or
element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate pur­chaser or while it is in use, or
2 the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.
Among those acts presumed to constitute tampering are the acts listed below:
1 Removal or puncturing of the main silencer, baffles, header pipes or any other components which conduct exhaust gases. 2 Removal or puncturing of parts of the intake system. 3 Lack of proper maintenance. 4 Replacing moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufac-
turer.

2.5 Safe operation

Danger
Danger of accidents Danger arising from the rider's judgement being impaired.
– Do not operate the vehicle while under the influence of alcohol, drugs and certain medications or physically or mentally
impaired.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed
space without an effective exhaust extraction system.
Page 8
2 SAFETY ADVICE 6
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
– Do not touch hot components such as exhaust system, radiator, engine, shock absorber, and the brake system. Allow these
components to cool down before starting work on them.
Only operate the vehicle when it is in perfect technical condition, in accordance with its intended use, and in a safe and environmentally compatible manner. The vehicle should only be used by trained persons. Have malfunctions that impair safety promptly eliminated by an authorized Husqvarna workshop. Adhere to the information and warning labels on the vehicle.

2.6 Protective clothing

Warning
Risk of injury Missing or poor protective clothing presents an increased safety risk.
– Wear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the vehicle. Always
wear protective clothing that is in good condition and meets the legal requirements.
In the interest of your own safety, Husqvarna recommends that you only operate the vehicle while wearing protective clothing.

2.7 Work rules

Special tools are necessary for certain tasks. The tools are not contained in the vehicle but can be ordered under the number in paren­theses. E.g.: bearing puller (15112017000) During assembly, non-reusable parts (e.g. self-locking screws and nuts, seals and seal rings, O-rings, pins, lock washers) must be replaced by new parts. In some instances, a thread locker (e.g. Loctite®) is required. The manufacturer instructions for use must be followed. After disassembly, clean the parts that are to be reused and check them for damage and wear. Change damaged or worn parts. After you complete the repair or service work, check the operating safety of the vehicle.

2.8 Environment

If you use your motorcycle responsibly, you can ensure that problems and conflicts do not occur. To protect the future of the motorcycle sport, make sure that you use your motorcycle legally, display environmental consciousness, and respect the rights of others. When disposing of used oil, other operating and auxiliary fluids, and used components, comply with the laws and regulations of the respective country. Because motorcycles are not subject to the EU regulations governing the disposal of used vehicles, there are no legal regulations that pertain to the disposal of an end-of-life motorcycle. Your authorized Husqvarna dealer will be glad to advise you.

2.9 Owner's Manual

It is important that you read this Owner's Manual carefully and completely before making your first trip. The Owner's Manual contains useful information and many tips on how to operate, handle, and maintain your motorcycle. Only then will you find out how to customize the vehicle ideally for your own use and how you can protect yourself from injury. Keep the Owner's Manual in an accessible place to enable you to refer to it as needed. If you would like to know more about the vehicle or have questions on the material you read, please contact an authorized Husqvarna dealer. The Owner's Manual is an important component of the vehicle and should be handed over to the new owner if the vehicle is sold.
Page 9

3 IMPORTANT INFORMATION 7

3.1 Manufacturer and implied warranty

The work prescribed in the service schedule must be carried out by an authorized Husqvarna workshop only and confirmed in the cus­tomer's service & warranty booklet and in the Husqvarna dealer.net; otherwise, all warranty claims will be void. No warranty claims can be considered for damage resulting from manipulations and/or alterations to the vehicle. Additional information on the manufacturer or implied warranty and the procedures involved can be found in the service & warranty booklet.

3.2 Operating and auxiliary substances

Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
Use operating and auxiliary substances (such as fuel and lubricants) as specified in the Owner's Manual.

3.3 Spare parts, accessories

For your own safety, only use spare parts and accessory products that are approved and/or recommended by Husqvarna and have them installed by an authorized Husqvarna workshop. Husqvarna accepts no liability for other products and any resulting damage or loss. Certain spare parts and accessory products are specified in parentheses in the descriptions. Your authorized Husqvarna dealer will be glad to advise you.
The current Husky Power parts for your vehicle can be found on the Husqvarna website. International Husqvarna website: www.husqvarna-motorcycles.com

3.4 Service

A prerequisite for perfect operation and prevention of premature wear is that the service, care, and tuning work on the engine and chas­sis is properly carried out as described in the Owner's Manual. Incorrect adjustment and tuning of the engine and chassis can lead to damage and breakage of components. Use of the vehicle under difficult conditions, such as on sand or on wet and muddy surfaces, can lead to considerably more rapid wear of components such as the drive train, brake system, or suspension components. For this reason, it may be necessary to inspect or replace parts before the next scheduled service. It is imperative that you adhere to the stipulated run-in times and service intervals. If you observe these exactly, you will ensure a much longer service life for your motorcycle.

3.5 Figures

The figures contained in the manual may depict special equipment. In the interest of clarity, some components may be shown disassembled or may not be shown at all. It is not always necessary to disas­semble the component to perform the activity in question. Please follow the instructions in the text.

3.6 Customer service

Your authorized Husqvarna dealer will be happy to answer any questions you may have on your vehicle and Husqvarna.
A list of authorized Husqvarna dealers can be found on the Husqvarna website. International Husqvarna website: www.husqvarna-motorcycles.com
Page 10

4 VIEW OF VEHICLE 8

4.1 View of vehicle, front left (example)

1 Hand brake lever ( p. 11) 2 Clutch lever ( p. 11) 3 Filler cap 4 Fork rebound adjustment 5 Cold start button ( p. 13) 6 Shift lever ( p. 14) 7 Air filter box lid 8 Plug-in stand ( p. 15)
B01920-10
Page 11
4 VIEW OF VEHICLE 9

4.2 View of vehicle, rear right (example)

1 Kill switch ( p. 11) 2 Electric starter button ( p. 11) 3 Throttle grip ( p. 11) 4 Fork compression adjustment 5 Shock absorber rebound adjustment 6 Level viewer for brake fluid, rear 7 Shock absorber compression adjustment 8 Level viewer, engine oil 9 Foot brake lever ( p. 14)
B01921-10
Page 12

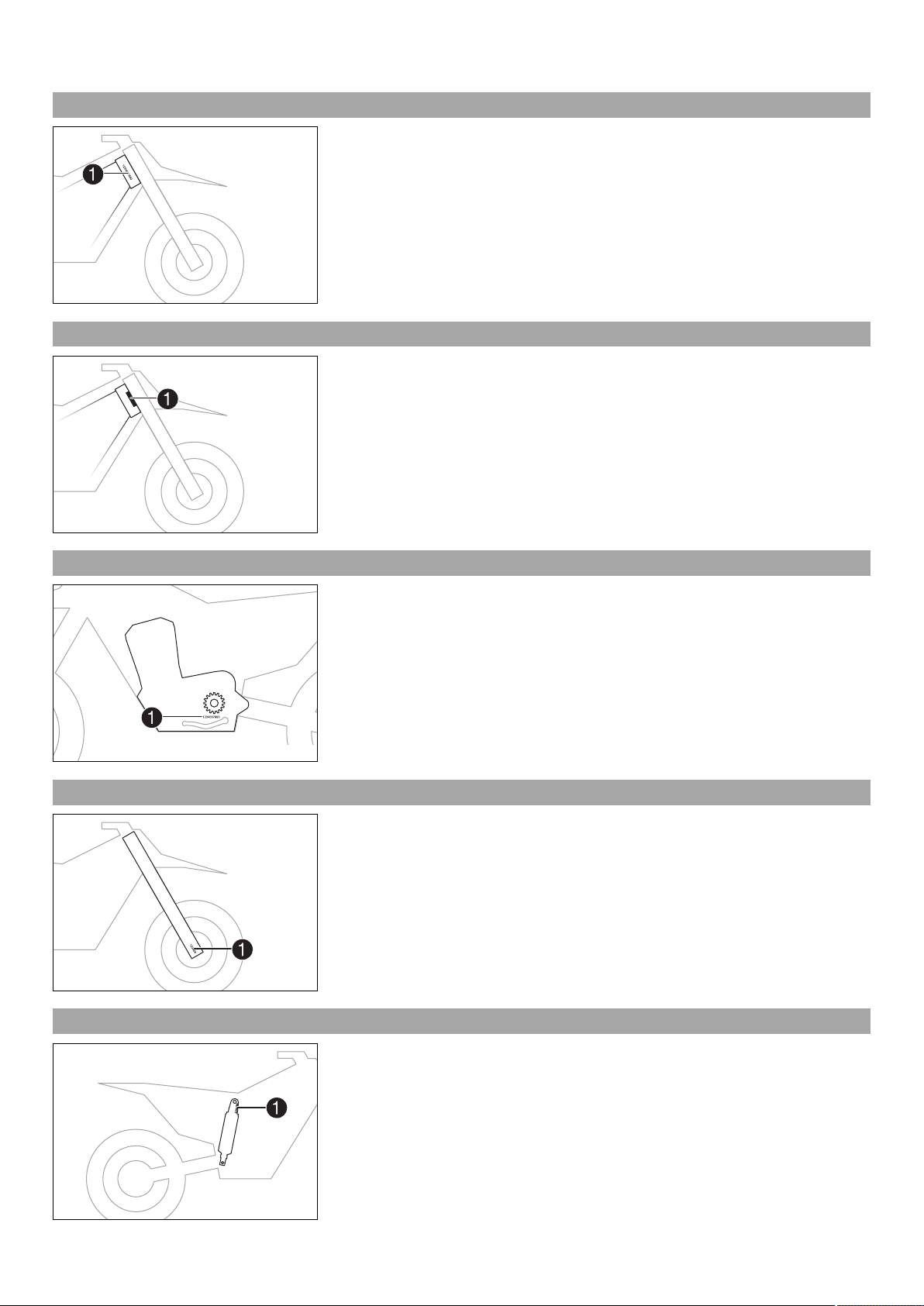

5 SERIAL NUMBERS 10

0011

5.1 Chassis number

The chassis number1is stamped on the right side of the steering head.
401945-10

5.2 Type label

The type label1is fixed to the front of the steering head.

5.3 Engine number

5.4 Fork part number

401946-10
The engine number1is stamped on the left side of the engine under the engine sprocket.
401949-10
The fork part number1is stamped on the inner side of the axle clamp.
401947-10

5.5 Shock absorber part number

The shock absorber part number1is stamped on the top of the shock absorber above the adjusting ring on the engine side.
401948-10
Page 13

6 CONTROLS 11

6.1 Clutch lever

The clutch lever1is fitted on the left side of the handlebar. The clutch is hydraulically operated and self-adjusting.
B01826-10

6.2 Hand brake lever

Hand brake lever1is located on the right side of the handlebar. The hand brake lever is used to activate the front brake.

6.3 Throttle grip

6.4 Kill switch

B01829-10
The throttle grip1is fitted on the right side of the handlebar.
B01830-10
Kill switch1is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine will not start.
B01827-10

6.5 Electric starter button

B01828-10
Electric starter button1is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
Page 14
6 CONTROLS 12

6.6 Map‑Select switch for the basic setting

The Map‑Select switch for the basic setting1is fitted under the seat.
Possible states
1 SOFT – The mapping with reduced peak performance for better rideabil-
ity is activated.
2 ADVANCED – The mapping for performance with a very direct response
is activated.
3 - 9, 0 STANDARD – The mapping for performance with a balanced response is
activated.
B01918-10

6.7 Map‑Select switch for vehicle operation

The Map‑Select switch for the basic setting is used to make a preselection of the engine characteristics.
The Map‑Select switch for vehicle operation1is fitted on the right side of the handle­bar.
Possible states
STANDARD – STANDARD mapping is always activated in this setting.
SOFT or ADVANCED – The mapping that is set on the Map‑Select switch for the basic setting is activated in this setting.
B01919-10
The Map‑Select switch for vehicle operation is used to change the engine character­istics on the handlebar. This change is activated when the engine is idling or after the motorcycle is restarted.

6.8 Overview of indicator lamps

Possible states
FI warning lamp (MIL) lights up/flashes orange – The OBD (on-board
diagnosis) has detected an emission- or safety-critical error.
B01831-10

6.9 Opening the filler cap

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
Page 15
6 CONTROLS 13
–
Turn filler cap1counterclockwise and lift it off.
B01832-10

6.10 Closing the filler cap

–
Mount filler cap1and turn it clockwise until the fuel tank is tightly closed.
Info
Run the fuel tank breather hose2without kinks.
B01833-10

6.11 Cold start button

The cold start button1is fitted on the left on the throttle valve body. When the engine is cold and outside temperatures are low, the injection system extends the injection time. To combust the increased amount of fuel, the engine is supplied with additional oxygen by pulling the cold start button.
Possible states
• The cold start button is activated – The cold start button is pulled out all the way.
• The cold start button is deactivated – The cold start button is pushed in all the way.
B01922-10
Page 16
6 CONTROLS 14

6.12 Idle speed adjusting screw

The idle setting of the throttle valve body has a big influence on the vehicle's starting behavior, on stable idling, and on vehicle response when the throttle is opened. This means that an engine with a correctly set idle speed is easier to start than if the idle is set wrongly.
The idle speed is adjusted with idle speed adjusting screw1. Increase the idle speed by turning the idle speed adjusting screw clockwise. Decrease the idle speed by turning the idle speed adjusting screw counterclockwise.
B01923-10

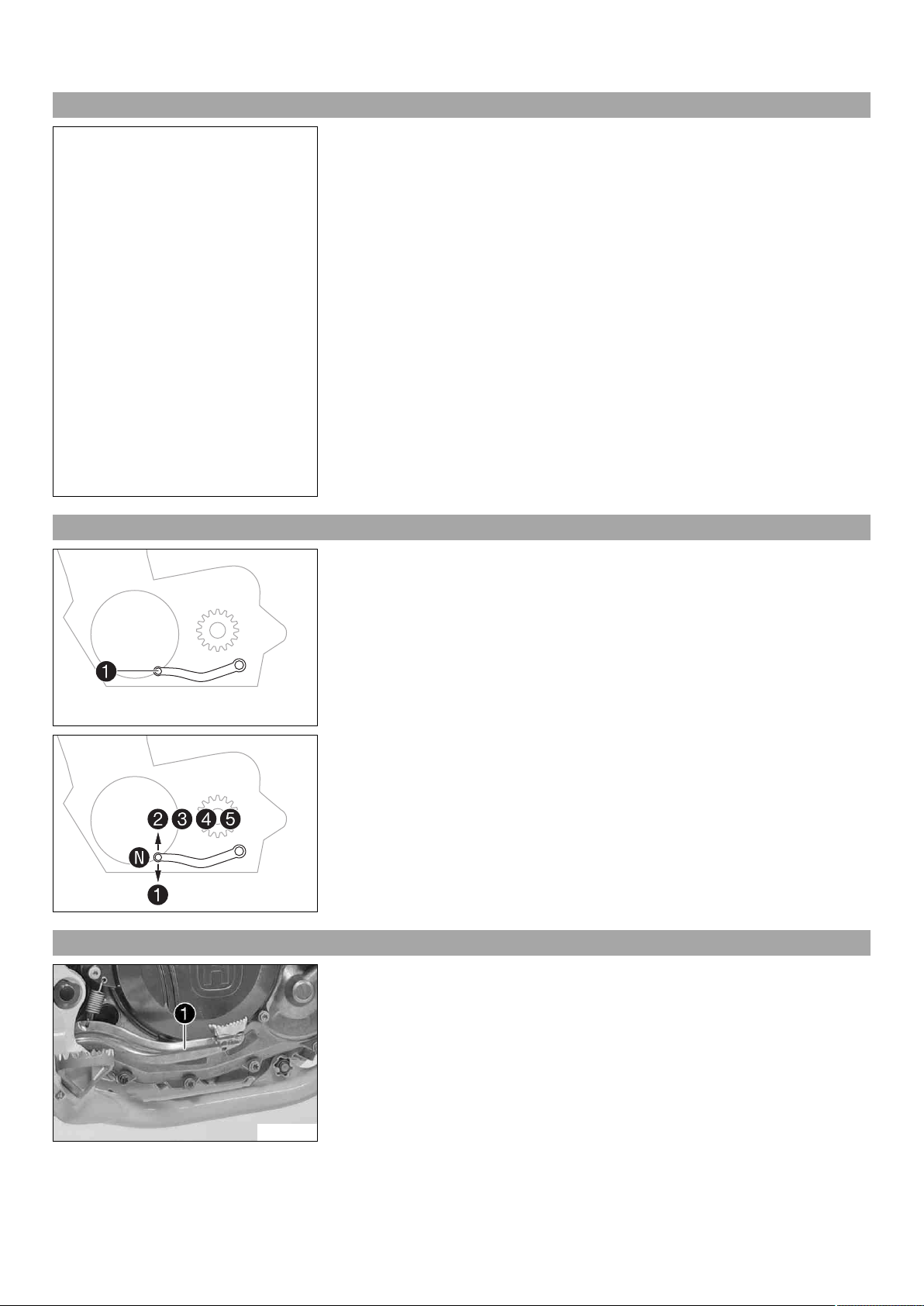

6.13 Shift lever

6.14 Foot brake lever

Shift lever1is mounted on the left side of the engine.
401950-10
The gear positions can be seen in the photograph. The neutral or idle position is between the first and second gears.
401950-13
Foot brake lever1is located in front of the right footrest. The foot brake lever is used to activate the rear brake.
B01939-10
Page 17
6 CONTROLS 15
0011

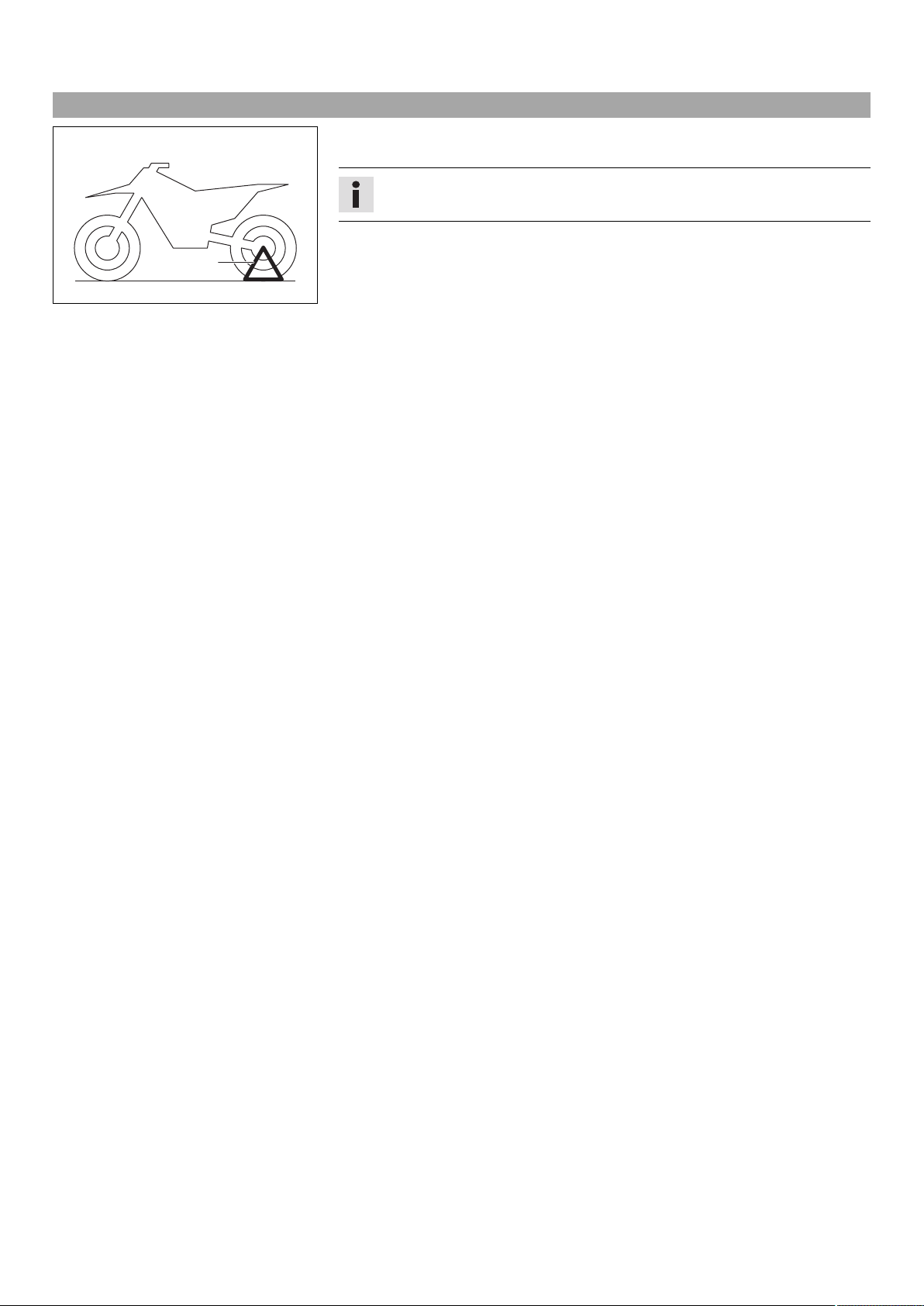

6.15 Plug-in stand

The holder for the plug-in stand1is the left side of the wheel spindle. The plug-in stand is used to park the motorcycle.
Info
Remove the plug-in stand before starting on a trip.
402001-10
Page 18

7 PREPARING FOR USE 16

7.1 Advice on first use

Danger
Danger of accidents Danger arising from the rider's judgement being impaired.
– Do not operate the vehicle while under the influence of alcohol, drugs and certain medications or physically or mentally
impaired.
Warning
Risk of injury Missing or poor protective clothing presents an increased safety risk.
– Wear protective clothing (helmet, boots, gloves, pants and jacket with protectors) every time you ride the vehicle. Always
wear protective clothing that is in good condition and meets the legal requirements.
Warning
Danger of crashing Poor vehicle handling due to different tire tread patterns on front and rear wheels.
– The front and rear wheels must be fitted with tires with similar tread patterns to prevent loss of control over the vehicle.
Warning
Danger of accidents Critical riding behavior due to inappropriate riding.
– Adapt your riding speed to the road conditions and your riding ability.
Warning
Danger of accidents Accident risk caused by presence of a passenger.
– Your vehicle is not designed to carry passengers. Do not ride with a passenger.
Warning
Danger of accidents Failure of brake system.
– If the foot brake lever is not released, the brake linings drag continuously. The rear brake may fail due to overheating. Take
your foot off the foot brake lever when you are not braking.
Warning
Danger of accidents Unstable riding behavior.
– Do not exceed the maximum permissible weight and axle loads.
Warning
Risk of misappropriation Usage by unauthorized persons.
– Never leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons.
Info
When using your motorcycle, remember that others may feel disturbed by excessive noise.
– Make sure that the pre-delivery inspection work has been carried out by an authorized Husqvarna workshop.
You receive a delivery certificate and the service record at vehicle handover.
– Before your first trip, read the entire operating instructions carefully. – Get to know the controls. – Adjust the basic position of the clutch lever. ( p. 53) – Adjust the basic position of the hand brake lever. ( p. 55)
– Adjust the basic position of the foot brake lever. x ( p. 59) – Adjust the basic position of the shift lever. x ( p. 75)

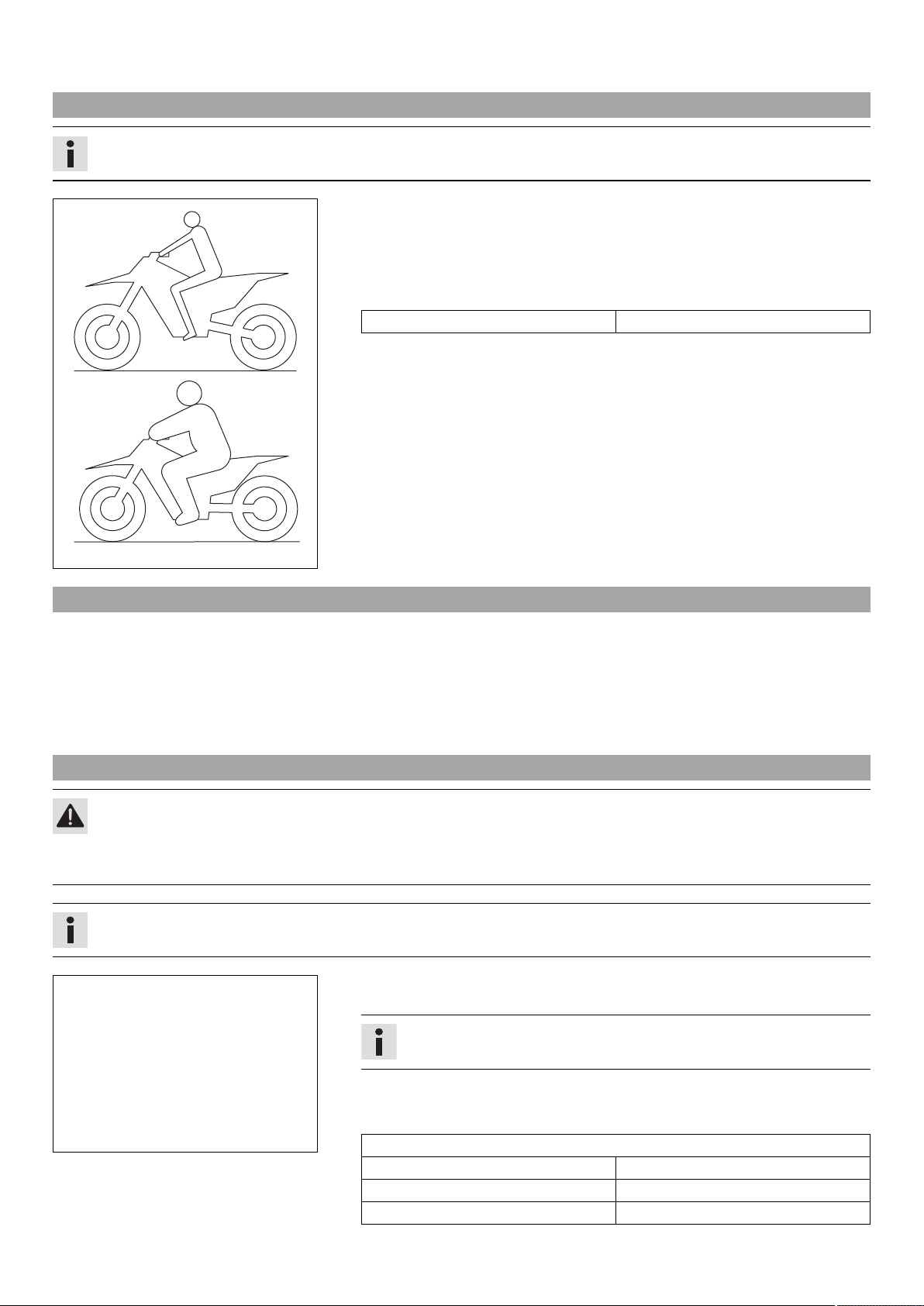

– Get used to handling the motorcycle on a suitable piece of land before making a longer trip.
Info
Your motorcycle is not authorized for riding on public roads. Offroad, you should be accompanied by another person on another machine so that you can help each other.
– Try also to ride as slowly as possible and in a standing position to get a better feeling for the vehicle. – Do not make any offroad trips that over-stress your ability and experience. – Hold the handlebar firmly with both hands and keep your feet on the footrests when riding. – Do not take luggage along.
Page 19

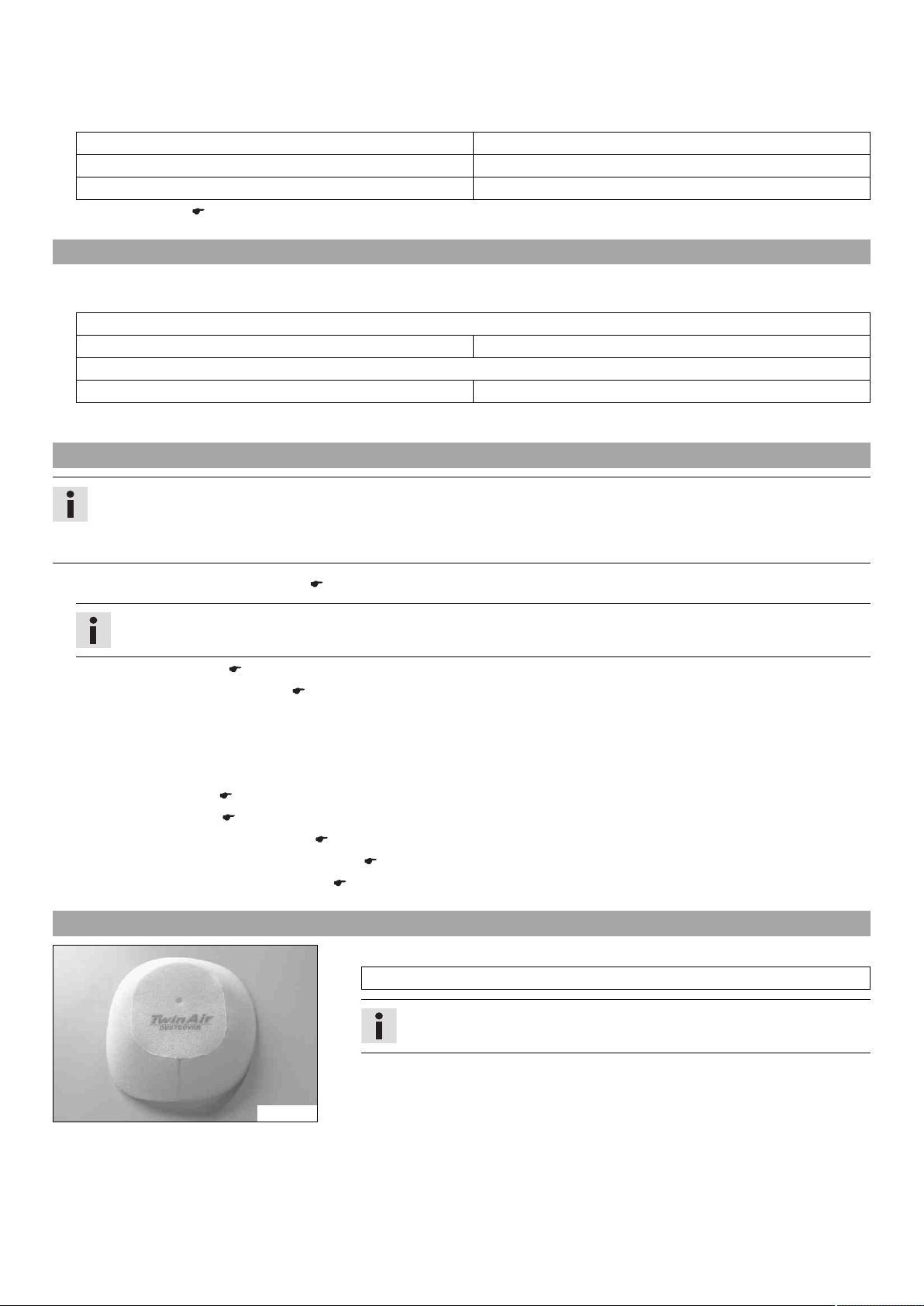

7 PREPARING FOR USE 17
– Do not exceed the overall maximum permitted weight and the axle loads.
Guideline
Maximum permissible overall weight 335 kg (739 lb.) Maximum permissible front axle load 145 kg (320 lb.) Maximum permissible rear axle load 190 kg (419 lb.)
– Run in the engine. ( p. 17)

7.2 Running in the engine

– During the running-in phase, do not exceed the specified engine speed and engine performance.
Guideline
Maximum engine speed
During the first operating hour 7,000 rpm
Maximum engine performance
During the first 3 operating hours ≤ 75 %
– Avoid fully opening the throttle!

7.3 Preparing the vehicle for difficult riding conditions

Info
Use of the vehicle under difficult conditions, such as on sand or on wet and muddy surfaces, can lead to considerably more rapid wear of components such as the drive train, brake system, or suspension components. For this reason, it may be necessary to inspect or replace parts before the next scheduled service.
– Clean the air filter and air filter box. x ( p. 43)
Info
Check the air filter approx. every 30 minutes.
– Seal the air filter box. x ( p. 44)
– Additionally secure the rubber grip. ( p. 53) – Check the electrical connector for humidity and corrosion and to ensure it is firmly seated.
» If humidity, corrosion or damage is found:
– Clean and dry the connector, or change it if necessary.
Difficult riding conditions are:
–
Rides on dry sand. ( p. 17)
– Rides on wet sand. ( p. 18) – Rides on wet and muddy surfaces. ( p. 18) – Rides at high temperature and slow speed. ( p. 19) – Rides at low temperatures or in snow. ( p. 19)

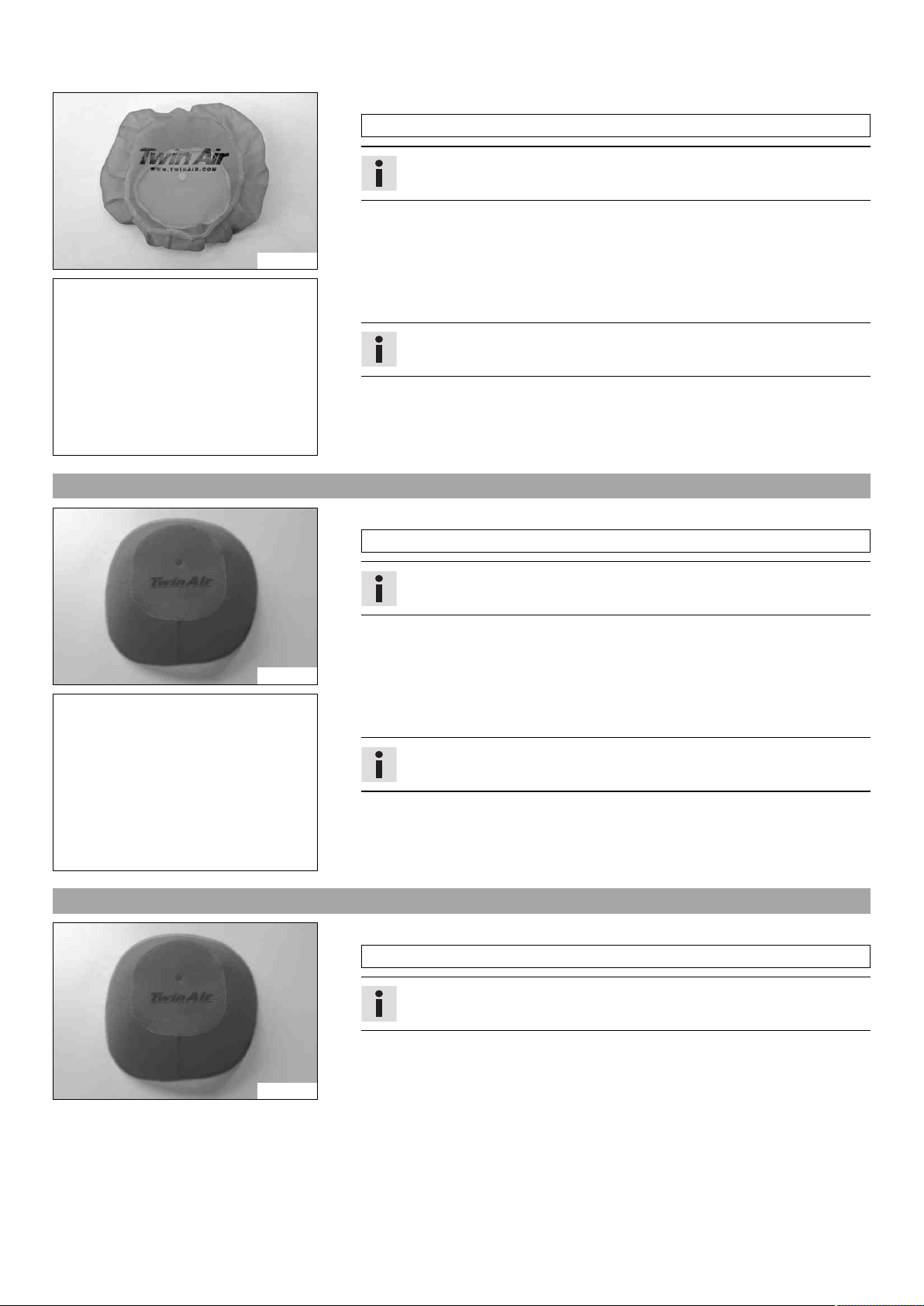

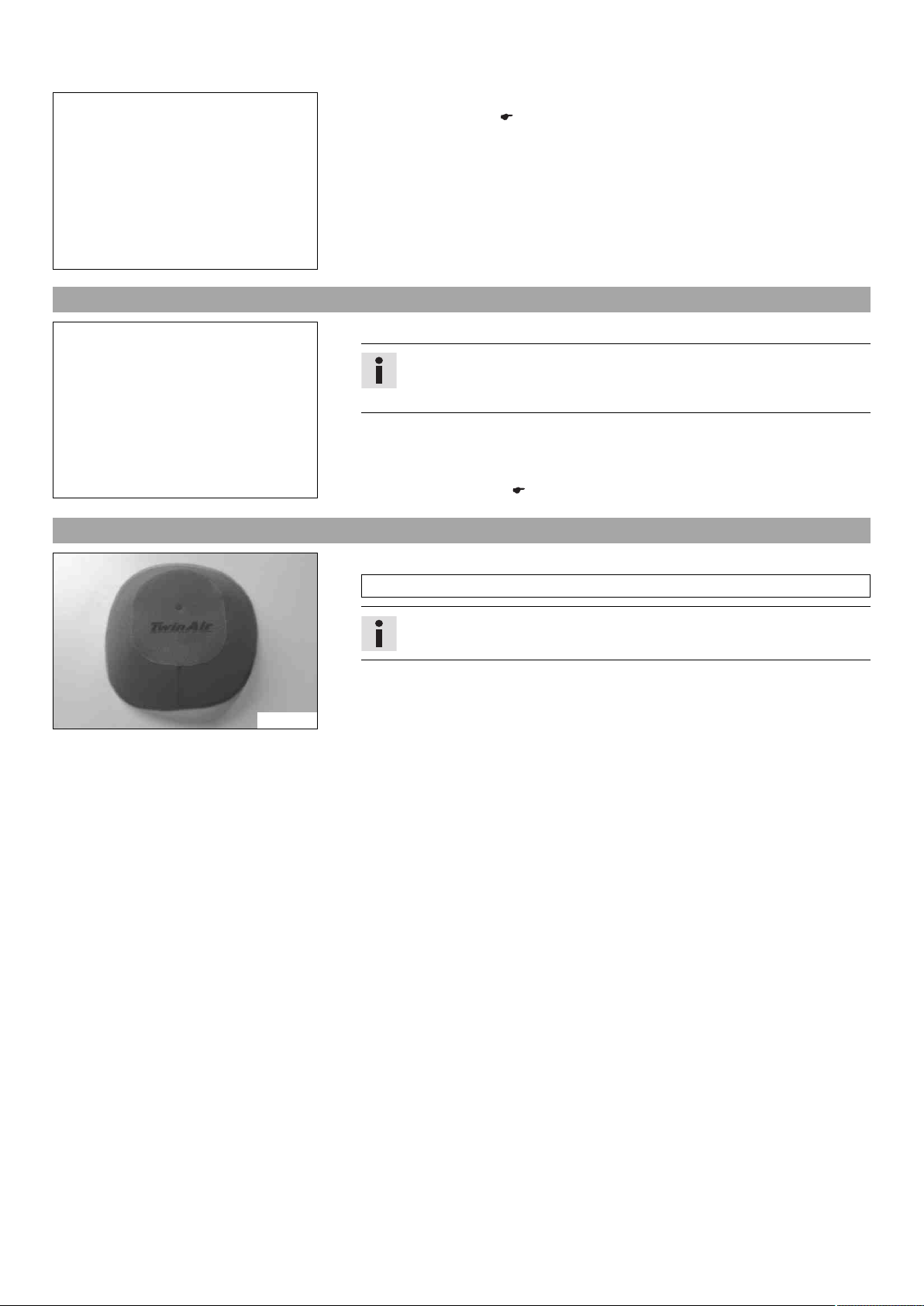

7.4 Preparing for rides on dry sand

– Fit a dust cover on the air filter.
Dust protection device for air filter (77206920100)
Info
Observe the Husky Power fitting instructions.
B00435-01
Page 20
7 PREPARING FOR USE 18
– Fit a sand cover on the air filter.
Sand protection device for air filter (59006922000)
Info
Observe the Husky Power fitting instructions.
B00436-01
– Clean the chain. – Fit the steel sprocket.
Tip
Do not grease the chain.
– Clean the radiator fins. – Straighten bent radiator fins carefully.
600868-01

7.5 Preparing for rides on wet sand

– Fit a rain cover on the air filter.
Waterproofing device for air filter (77206921100)
Info
Observe the Husky Power fitting instructions.
B00437-01
– Clean the chain. – Fit the steel sprocket.
Tip
Do not grease the chain.
– Clean the radiator fins. – Straighten bent radiator fins carefully.
600868-01

7.6 Preparing for rides on wet and muddy surfaces

– Fit a waterproofing device on the air filter.
Waterproofing device for air filter (77206921100)
B00437-01
Info
Observe the Husky Power fitting instructions.
Page 21
7 PREPARING FOR USE 19
– Fit the steel sprocket. – Clean the motorcycle. ( p. 80) – Straighten bent radiator fins carefully.
600868-01

7.7 Preparing for rides at high temperature and slow speed

– Adjust the secondary drive to the road conditions.
Info
The engine oil quickly gets hot if the clutch has to be operated very often due to an excessively high secondary drive.
– Clean the chain. – Clean radiator fins. – Straighten bent radiator fins carefully.
600868-01
– Check the coolant level. ( p. 72)

7.8 Preparing for rides at low temperatures or in snow

– Fit a waterproofing device on the air filter.
Waterproofing device for air filter (77206921100)
Info
Observe the Husky Power fitting instructions.
B00437-01
Page 22

8 RIDING INSTRUCTIONS 20

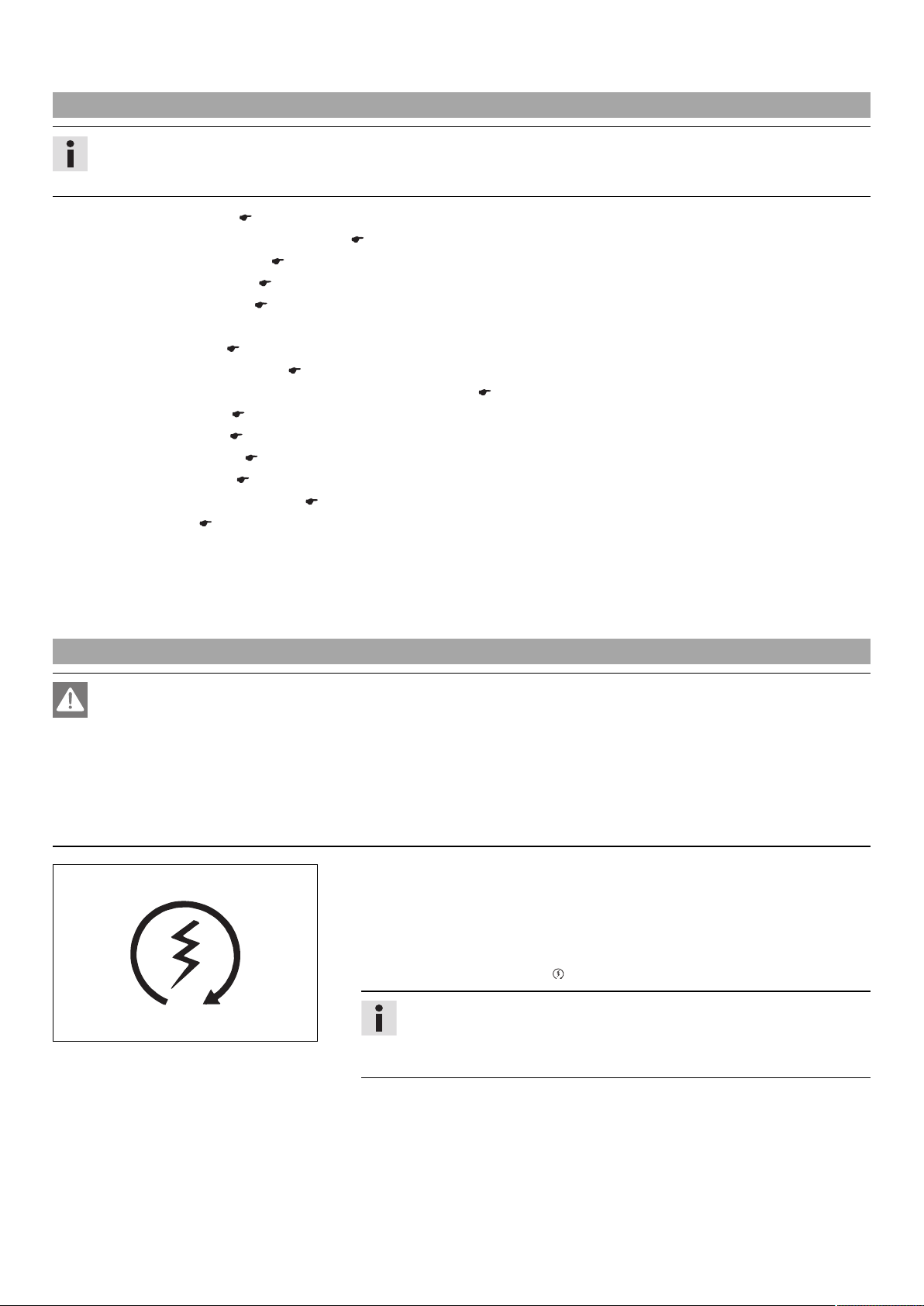

8.1 Checks and maintenance work when preparing for use

Info
Before riding the vehicle, always check its condition and operating safety. The vehicle must be in perfect technical condition when used.
– Check the engine oil level. ( p. 76) – Check the brake fluid level of the front brake. ( p. 56) – Check the rear brake fluid level. ( p. 60) – Check the front brake linings. ( p. 57) – Check the rear brake linings. ( p. 61) – Check that the brake system is functioning properly. – Check the coolant level. ( p. 72) – Check for chain dirt accumulation. ( p. 48) – Check the chain, rear sprocket, engine sprocket, and chain guide. ( p. 50) – Check the chain tension. ( p. 49) – Check the tire condition. ( p. 66) – Check the tire air pressure. ( p. 67) – Check the spoke tension. ( p. 67) – Clean the dust boots of the fork legs. ( p. 33) – Bleed the fork legs. ( p. 32) – Check the air filter. – Check the settings of all controls and ensure that they can be operated smoothly. – Check all screws, nuts and hose clamps regularly for tightness. – Check the fuel supply.

8.2 Starting

Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation, and do not start or run the engine in an enclosed
space without an effective exhaust extraction system.
Note
Engine failure High engine speeds in cold engines have a negative effect on the service life of the engine.
– Always warm up the engine at low engine speeds.
– Remove the plug-in stand. – Shift gear to neutral.
Condition
Ambient temperature: < 20 °C (< 68 °F)
– Pull the cold start button out all the way.
– Press the electric starter button .
Info
400733-01
Press the electric starter button for at most 5 seconds. Wait for a least 5 sec­onds before trying again.
FI warning lamp lights up briefly as a functional control when starting.
Page 23
8 RIDING INSTRUCTIONS 21

8.3 Starting off

– Pull the clutch lever, engage 1st gear, release the clutch lever slowly and simultaneously open the throttle carefully.

8.4 Shifting, riding

Warning
Danger of accidents If you change down at high engine speed, the rear wheel can lock up.
– Do not change into a low gear at high engine speed. The engine races and the rear wheel can lock up.
Info
If you hear unusual noises while riding, stop immediately, switch off the engine, and contact an authorized Husqvarna workshop. First gear is used for starting off or for steep inclines.
– When conditions allow (incline, road situation, etc.), you can shift into a higher gear. To do so, release the throttle while simultane-
ously pulling the clutch lever, shift into the next gear, release the clutch and open the throttle.
– If, when starting, you have increased the idle speed, press the cold start button in all the way after the engine has heated up. – When you reach maximum speed after fully opening the throttle, turn back the throttle to about ¾ of its range. This barely reduces
vehicle speed but lowers fuel consumption considerably.
– Always open the throttle only as much as the engine can handle – abrupt throttle opening increases fuel consumption. – To shift down, brake and close the throttle at the same time. – Pull the clutch lever and shift into a lower gear, release the clutch lever slowly and open the throttle or shift again. – Switch off the engine if you expect to be standing for a long time.
Guideline
≥ 1 min
– Avoid frequent and longer slipping of the clutch. This heats the engine oil, the engine and the cooling system. – Ride with a lower engine speed instead of with a high engine speed and a slipping clutch.

8.5 Applying the brakes

Warning
Danger of accidents If you brake too hard, the wheels can lock.
– Adapt your braking to the traffic situation and the road conditions.
Warning
Danger of accidents Reduced braking efficiency caused by spongy pressure point of front or rear brake.
– Check the brake system and do not continue riding. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to a wet or dirty brake system.
– Clean or dry a dirty or wet brake system by riding and braking gently.
– On sandy, wet or slippery surfaces, use the rear brake. – Braking should always be completed before you go into a bend. Change down to a lower gear appropriate to your road speed. – On long downhill stretches, use the braking effect of the engine. Change down one or two gears, but do not overstress the engine. In
this way, you have to apply the brakes far less frequently and the brake system does not overheat.

8.6 Stopping, parking

Warning
Risk of misappropriation Usage by unauthorized persons.
– Never leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons.
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
– Do not touch hot components such as exhaust system, radiator, engine, shock absorber, and the brake system. Allow these
components to cool down before starting work on them.
Page 24
8 RIDING INSTRUCTIONS 22
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Note
Fire hazard Some vehicle components become very hot when the vehicle is operated.
– Do not park the vehicle near flammable or explosive substances. Do not place objects on the vehicle while it is still warm from being
run. Always let the vehicle cool first.
– Brake the motorcycle. – Shift gear to neutral. – Press and hold the kill switch while the engine is idling until the engine stops. – Park the motorcycle on firm ground.

8.7 Transport

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
Note
Fire hazard Some vehicle components become very hot when the vehicle is operated.
– Do not park the vehicle near flammable or explosive substances. Do not place objects on the vehicle while it is still warm from being
run. Always let the vehicle cool first.
– Switch off the engine. – Use tension belts or other suitable devices to secure the motorcycle against acci-
dents or falling over.
401475-01

8.8 Refueling

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Note
Material damage Premature clogging of the fuel filter.
– In some countries and regions, the available fuel quality and cleanliness may not be sufficient. This will result in problems with the fuel
system. (Your authorized Husqvarna workshop will be glad to help.)
– Only refuel with clean fuel that meets the specified standards.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
Page 25
8 RIDING INSTRUCTIONS 23
AA
– Switch off the engine. – Open the filler cap. ( p. 12)
–

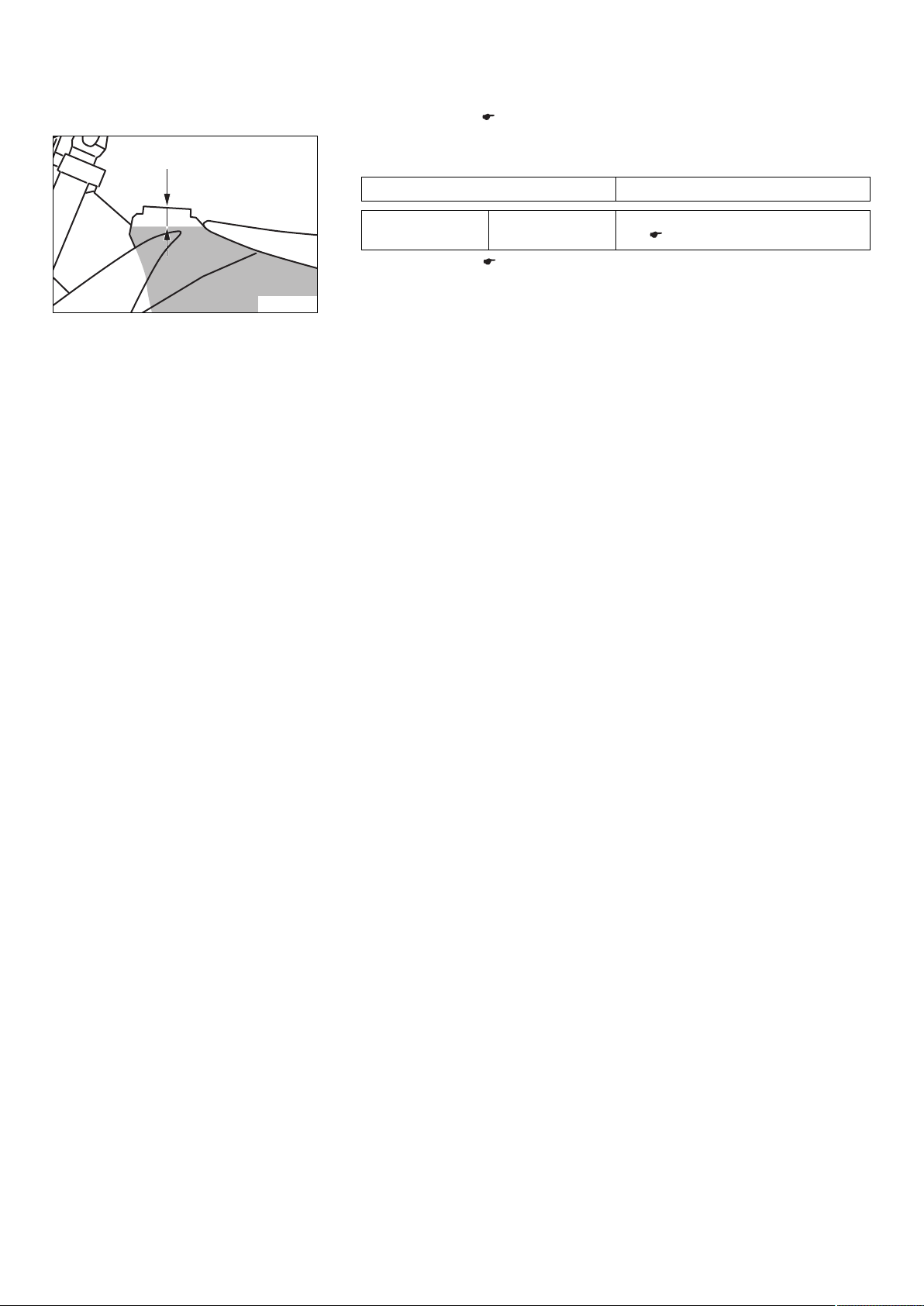

Fill the fuel tank with fuel up to measurementA. Guideline
Measurement of
A
35 mm (1.38 in)
401522-10
Total fuel tank capacity, approx.
– Close the filler cap. ( p. 13)
7.5 l (1.98 US gal) Super unleaded (ROZ 95/RON 95/PON
91) ( p. 91)
Page 26

9 SERVICE SCHEDULE 24

9.1 Service schedule

Every 30 operating hours - corresponds to about 210 liters of fuel (55.5 US gal)
Every 20 operating hours - corresponds to about 140 liters of fuel (37 US gal)
Every 10 operating hours - corresponds to about 70 liters of fuel (18.5 US gal) / after every race
Once after 1 operating hour - corresponds to about 7 liters of fuel (1.8 US gal)
Read out the fault memory using the Husqvarna diagnostics tool. x ○ ● ● ● Check and charge the battery. x ● ● ●
Check the front brake linings. ( p. 57) ● ● ● Check the rear brake linings. ( p. 61) ● ● ● Check the brake discs. ( p. 55) ● ● ● Check the brake lines for damage and leakage. ● ● ● Check the rear brake fluid level. ( p. 60) ● ● ● Check the free travel of the foot brake lever. ( p. 59) ● ● ●
Check the frame and swingarm. x ● ● ● Check the swingarm bearing. x ● Check the shock absorber linkage. x ● ● ● Conduct a minor fork service. x ● ● ● Conduct a major fork service. x ●
Check the tire condition. ( p. 66) ○ ● ● ● Check the tire air pressure. ( p. 67) ○ ● ● ●
Check the wheel bearing for play. x ● ● ● Check the wheel hubs. x ● ● ● Check the rim run-out. x ○ ● ● ●
Check the spoke tension. ( p. 67) ○ ● ● ● Check the chain, rear sprocket, engine sprocket, and chain guide. ( p. 50) ● ● ● Check the chain tension. ( p. 49) ○ ● ● ●
Grease all moving parts (e.g., hand lever, chain, ...) and check for smooth operation. x ● ● ●
Check/correct the fluid level of the hydraulic clutch. ( p. 53) ● ● ● Check the brake fluid level of the front brake. ( p. 56) ● ● ● Check the free travel of the hand brake lever. ( p. 55) ● ● ● Check the steering head bearing play. ( p. 37) ○ ● ● ●
Check the valve clearance. x ○ ● Check the clutch. x ● Change the engine oil and oil filter and clean the oil screens. x ( p. 77) ○ ● ● ● Check all hoses (e. g. fuel, cooling, bleeding, drainage) and sleeves for tearing, leaks and incorrect routing. x ○ ● ● ●
Check the antifreeze and coolant level. ( p. 71) ○ ● ● ●
Check the cables for damage and routing without sharp bends. x ● ● ●
Check that the cables are undamaged, routed without sharp bends and set correctly. ○ ● ● ●
Clean the air filter and air filter box. x ( p. 43) ● ● ● Change the glass fiber yarn filling of the main silencer. x ( p. 45) ● Check the screws and nuts for tightness. x ○ ● ● ● Change the fuel screen. x ( p. 76) ○ ● ● ● Check the fuel pressure. x ● ● ●
Check idle. ○ ● ● ● Final check: Check the vehicle for safe operation and take a test ride. ○ ● ● ●
Read out the fault memory after the test ride using the Husqvarna diagnostics tool. x ○ ● ● ● Make the service entry in Husqvarna Dealer.net and in the service booklet. x ○ ● ● ●
○ One-time interval
● Periodic interval
Page 27
9 SERVICE SCHEDULE 25

9.2 Service work (as additional order)

Annually
Every 100 operating hours - corresponds to about 700 liters of fuel (185 US gal)
Every 50 operating hours - corresponds to about 350 liters of fuel (92.5 US gal)
Every 40 operating hours - corresponds to about 280 liters of fuel (74 US gal)
Once after 20 operating hours
Change the front brake fluid. x ● Change the rear brake fluid. x ● Change the hydraulic clutch fluid. x ( p. 53) ● Grease the steering head bearing. x ( p. 38) ● Service the shock absorber. x ○ ● Change the spark plug and spark plug connector. x ● Change the piston. x ● ● Check/measure the cylinder. x ● ● Check the cylinder head. x ● ● Change the valves, valve springs and valve spring seats. x ● Check the camshaft and rocker arm. x ● ● Change the connecting rod, conrod bearing, and crank pin. x ● Change the shaft seal rings of the water pump. x ● ● Check the transmission and shift mechanism. x ● Check the oil pressure regulator valve. x ● Change the suction pump. x ● Check the pressure pump and lubrication system. x ● Replace the timing chain. x ● Check the timing assembly. x ● ● Change all engine bearings. x ●
○ One-time interval
● Periodic interval
Page 28

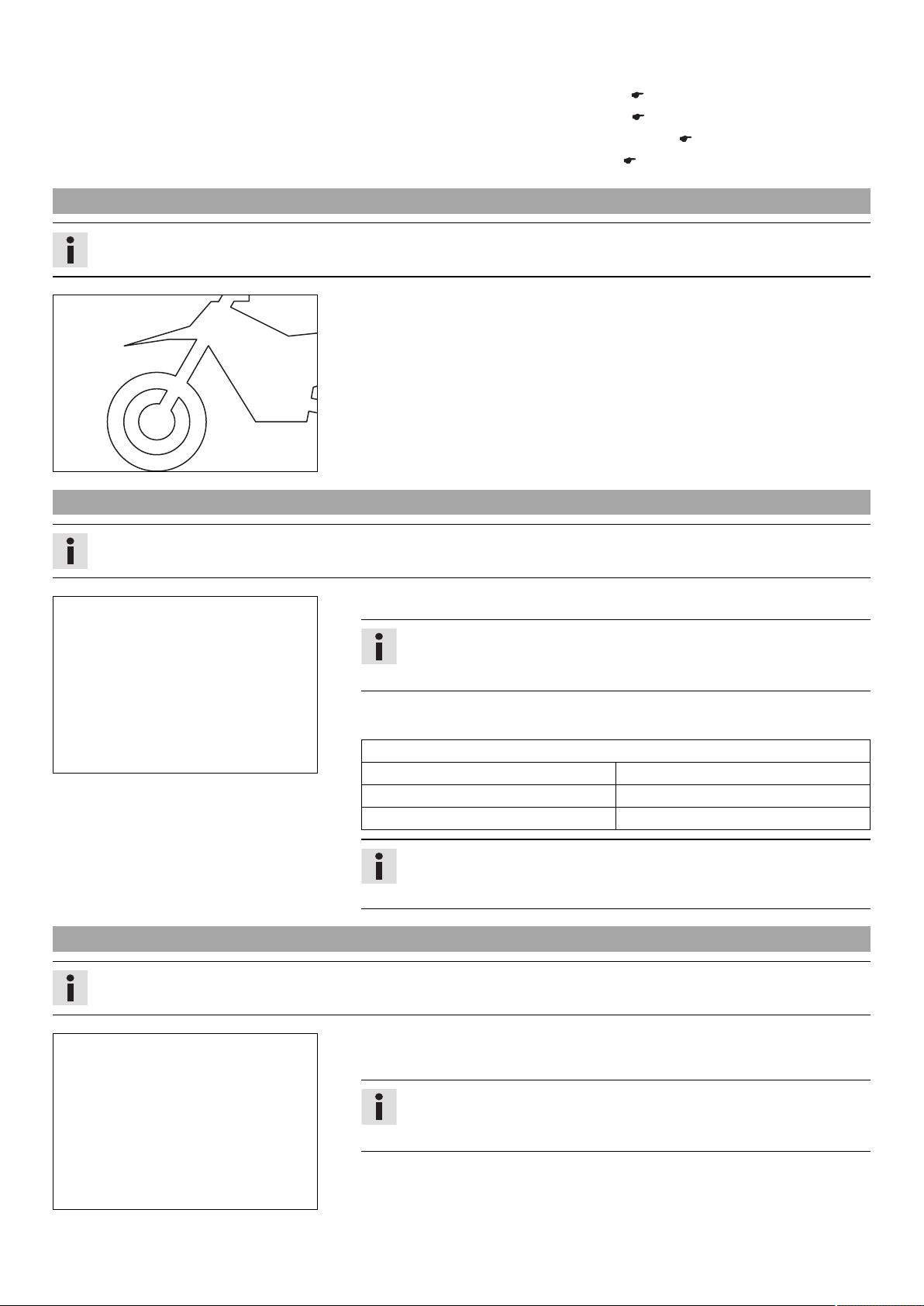

10 TUNING THE CHASSIS 26

10.1 Checking the basic chassis setting with the rider's weight

Info
When adjusting the basic chassis setting, first adjust the shock absorber and then the fork.
– For optimal motorcycle riding characteristics and to avoid damage to forks, shock
absorbers, swingarm and frame, the basic settings of the suspension components must match the rider's weight.
– As delivered, Husqvarna motorcycles are adjusted for an average rider's weight (with
full protective clothing). Guideline
Standard rider weight 75… 85 kg (165… 187 lb.)
– If the rider's weight is above or below this range, the basic setting of the suspension
components must be adjusted accordingly.
– Small weight differences can be compensated by adjusting the spring preload, but in
the case of large weight differences, the springs must be replaced.
401030-01

10.2 Compression damping of the shock absorber

The compression damping of the shock absorber is divided into two ranges: high-speed and low-speed. High-speed and low-speed refer to the compression speed of the rear wheel suspension and not to the vehicle speed. The high-speed setting, for example, has an effect on the landing after a jump: the rear wheel suspension compresses more quickly. The low-speed setting, for example, has an effect when riding over long ground swells: the rear wheel suspension compresses more slowly. These two ranges can be adjusted separately, although the transition between high-speed and low-speed is gradual. Thus, changes in the high-speed range affect the compression damping in the low-speed range and vice versa.

10.3 Adjusting the low-speed compression damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
The low-speed setting can be seen during the slow to normal compression of the shock absorber.
–
Turn adjusting screw1clockwise with a screwdriver up to the last perceptible click.
B01839-10
Info
Do not loosen fitting2.
– Turn counterclockwise by the number of clicks corresponding to the shock absorber
type. Guideline
Compression damping, low-speed
Comfort 17 clicks Standard 15 clicks Sport 13 clicks
Page 29
10 TUNING THE CHASSIS 27
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

10.4 Adjusting the high-speed compression damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
The high-speed setting can be seen during the fast compression of the shock absorber.
–
Turn adjusting screw1all the way clockwise with a socket wrench.
Info
Do not loosen fitting2.
– Turn counterclockwise by the number of turns corresponding to the shock absorber
type. Guideline
B01844-10
Compression damping, high-speed
Comfort 2.5 turns Standard 2 turns Sport 1.5 turns
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

10.5 Adjusting the rebound damping of the shock absorber

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
–
Turn adjusting screw1clockwise up to the last perceptible click.
– Turn counterclockwise by the number of clicks corresponding to the shock absorber
type. Guideline
Rebound damping
Comfort 17 clicks Standard 15 clicks
B01845-00
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.
Page 30
10 TUNING THE CHASSIS 28

10.6 Measuring rear wheel sag unloaded

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Measure the vertical distance between the rear axle and a fixed point such as a
marking on the side cover.
–
Note down the value as dimensionA.
400988-10
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

10.7 Checking the static sag of the shock absorber

–
Measure distanceAof rear wheel unloaded. ( p. 28)
– Hold the motorcycle upright with the aid of an assistant. – Measure the distance between the rear axle and the fixed point again.
–
Note down the value as dimensionB.
Info
The static sag is the difference between measurementsAandB.
– Check the static sag.
Static sag 30 mm (1.18 in)
» If the static sag is less or more than the specified value:
– Adjust the spring preload of the shock absorber. x ( p. 29)
400989-10

10.8 Checking the riding sag of the shock absorber

–
Measure distanceAof rear wheel unloaded. ( p. 28)
– With another person holding the motorcycle, the rider, wearing full protective cloth-
ing, sits on the seat in a normal sitting position (feet on footrests) and bounces up and down a few times.
The rear wheel suspension levels out.
– Another person now measures the distance between the rear axle and a fixed point.
–
Note down the value as dimensionC.
400990-10
Info
The riding sag is the difference between measurementsAandC.
– Check the riding sag.
Riding sag 100 mm (3.94 in)
» If the riding sag differs from the specified measurement:
– Adjust the riding sag. x ( p. 29)
Page 31
10 TUNING THE CHASSIS 29

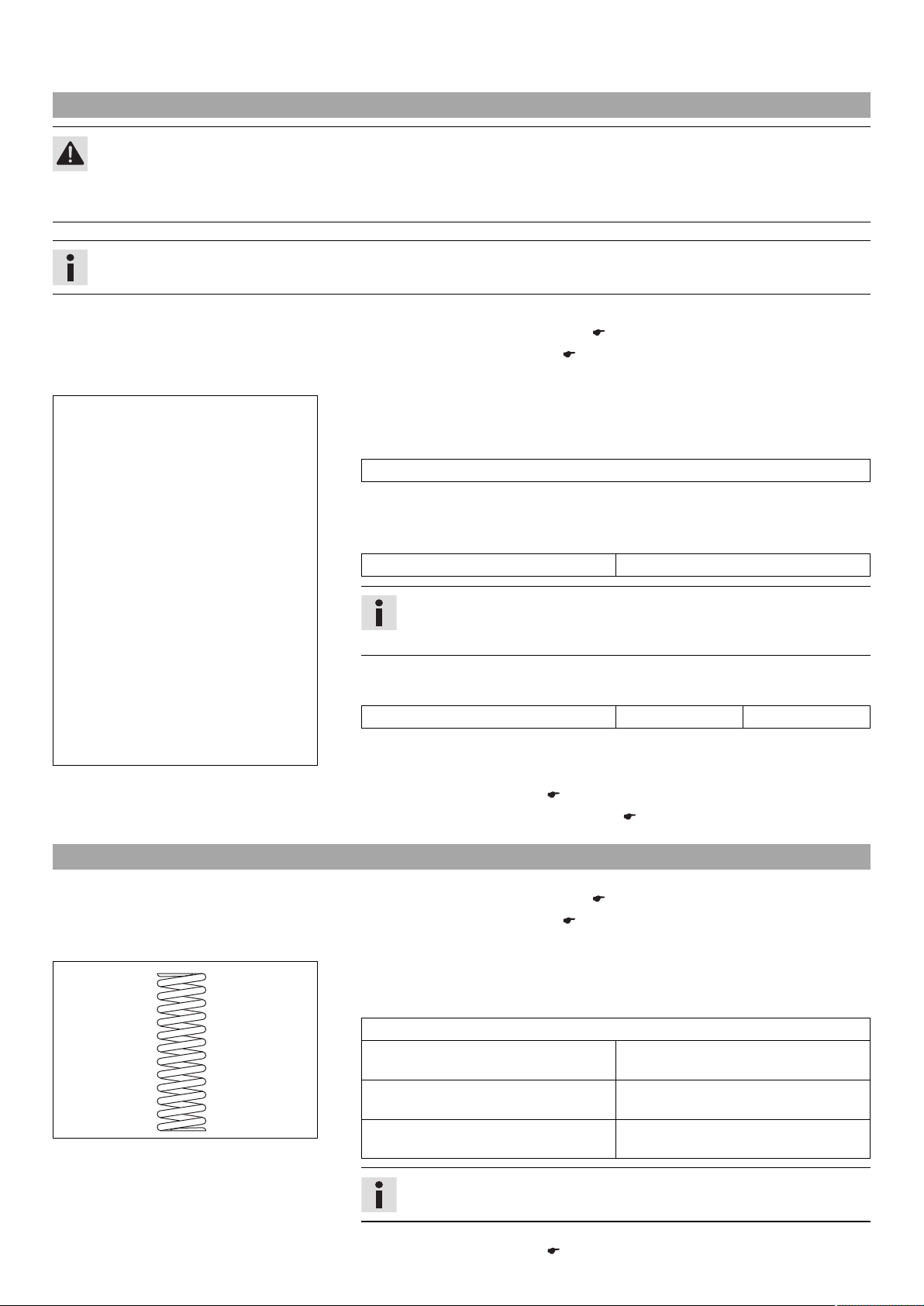

10.9 Adjusting the spring preload of the shock absorber x

Caution
Danger of accidents Disassembly of pressurized parts can lead to injury.
– The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized Husqvarna work-
shop will be glad to help.)
Info
Before changing the spring preload, make a note of the present setting, e.g., by measuring the length of the spring.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
– Remove the shock absorber. x ( p. 40)
– After removing the shock absorber, clean it thoroughly.
Main work
–

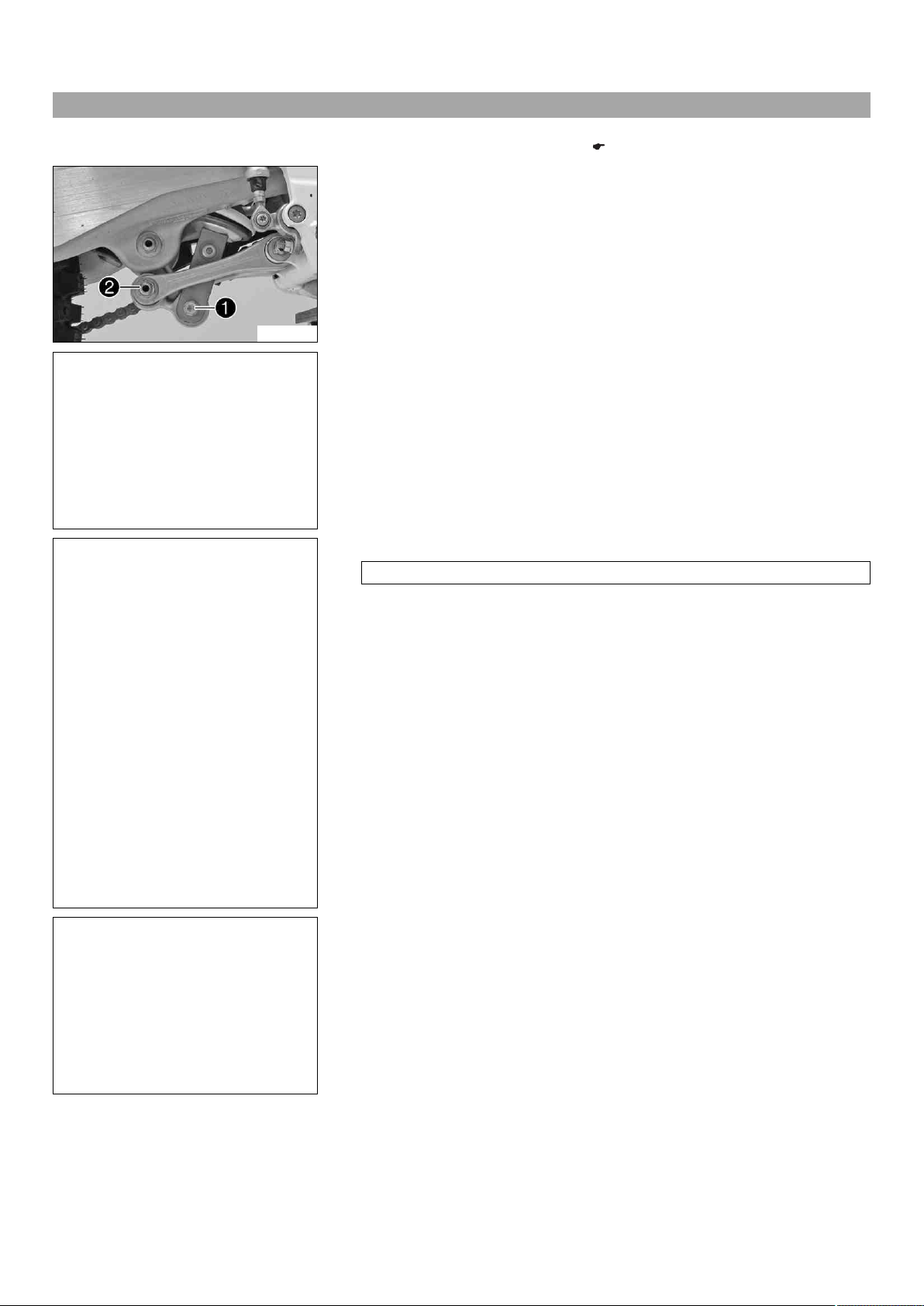

Loosen screw1.
–
Turn adjusting ring2until the spring is no longer under tension.
Hook wrench (T106S)
– Measure the overall spring length while the spring is not under tension.
–
Tighten the spring by turning adjusting ring2to measurementA. Guideline
Spring preload 12 mm (0.47 in)
401025-10

10.10 Adjusting the riding sag x

B00292-10
Info
Depending on the static sag and/or the riding sag, it may be necessary to increase or decrease the spring preload.
–
Tighten screw1. Guideline
Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft)
Finishing work
– Install the shock absorber. x ( p. 41)
– Remove the motorcycle from the lift stand. ( p. 32)
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
– Remove the shock absorber. x ( p. 40)
– After removing the shock absorber, clean it thoroughly.
Main work
– Choose and mount a suitable spring.
Guideline
Spring rate
Weight of rider: 65… 75 kg (143… 165 lb.)
Weight of rider: 75… 85 kg (165… 187 lb.)
Weight of rider: 85… 95 kg (187… 209 lb.)
54 N/mm (308 lb/in)
57 N/mm (325 lb/in)
60 N/mm (343 lb/in)
Info
The spring rate is shown on the outside of the spring.
Finishing work
– Install the shock absorber. x ( p. 41)
Page 32
10 TUNING THE CHASSIS 30
– Check the static sag of the shock absorber. ( p. 28) – Check the riding sag of the shock absorber. ( p. 28) – Adjust the rebound damping of the shock absorber. ( p. 27) – Remove the motorcycle from the lift stand. ( p. 32)

10.11 Checking the basic setting of the fork

Info
For various reasons, no exact riding sag can be determined for the forks.
– As with the shock absorber, smaller differences in the rider's weight can be compen-
sated by the spring preload.
– However, if the fork is often overloaded (hard end stop on compression), harder
springs must be fit to avoid damage to the fork and frame.
401000-01

10.12 Adjusting the compression damping of the fork

Info
The hydraulic compression damping determines the fork suspension behavior.
–
Turn adjusting screws1clockwise all the way.
Info
Adjusting screws1are located at the top end of the fork legs. Make the same adjustment on both fork legs.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
B01846-10
Compression damping
Comfort 14 clicks Standard 12 clicks Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.

10.13 Adjusting the rebound damping of the fork

Info
The hydraulic rebound damping determines the fork suspension behavior.
–
Remove protection caps1.
–
Turn adjusting screws2clockwise all the way.
Info
Adjusting screws2are located at the bottom end of the fork legs. Make the same adjustment on both fork legs.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
B00295-10
Page 33
10 TUNING THE CHASSIS 31
Guideline
Rebound damping
Comfort 14 clicks Standard 12 clicks Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp­ing.
–
Mount protection caps1.

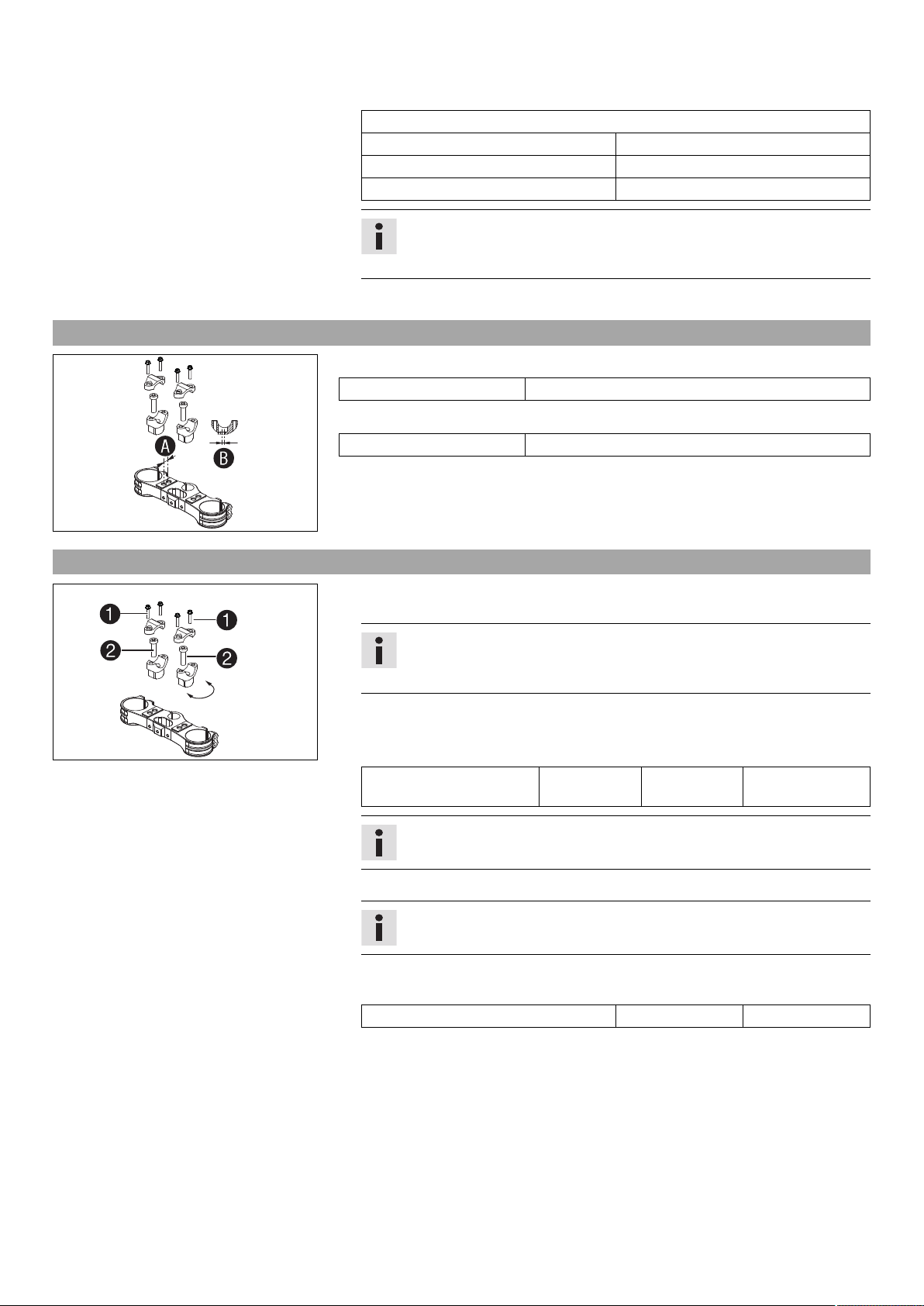

10.14 Handlebar position

On the upper triple clamp, there are two holes at a distance ofAto each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance ofBfrom the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. In this way, the handlebar can be mounted in the position that is most comfortable for the rider.
800116-10

10.15 Adjusting the handlebar position x

–
Remove screws1. Take off the handlebar clamps. Take off the handlebar and lay it to one side.
–
Remove screws2. Remove the handlebar supports.
–
Place the handlebar supports in the required position. Mount and tighten screws2.
B00375-10
Guideline
Screw, handlebar support M10 40 Nm
– Position the handlebar.
–
Position the handlebar clamps. Mount and tighten screws1evenly. Guideline
Screw, handlebar clamp M8 20 Nm (14.8 lbf ft)
Info
Protect the components against damage by covering them. Do not bend the cables and lines.
Loctite®243™
(29.5 lbf ft)
Info
Position the left and right handlebar supports evenly.
Info
Make sure the cables and wiring are positioned correctly.
Page 34

11 SERVICE WORK ON THE CHASSIS 32

0011

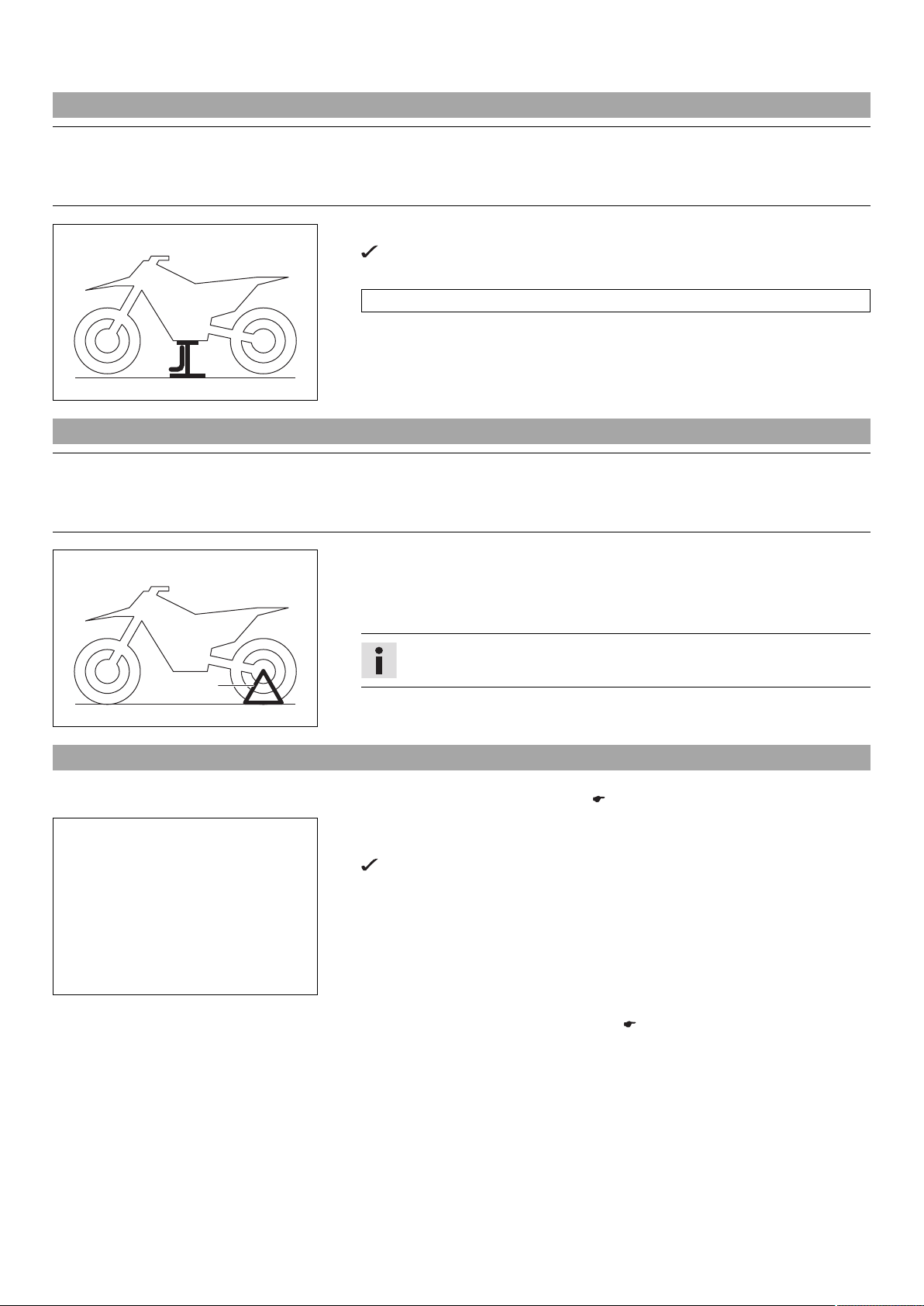

11.1 Raising the motorcycle with a lift stand

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
– Raise the motorcycle at the frame below the engine.
The wheels should no longer touch the ground.
– Secure the motorcycle against falling over.
Lift stand (81329955000)
401942-01

11.2 Removing the motorcycle from the lift stand

Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
402001-10

11.3 Bleeding the fork legs

B01848-10
– Remove the motorcycle from the lift stand. – Remove the lift stand.
–

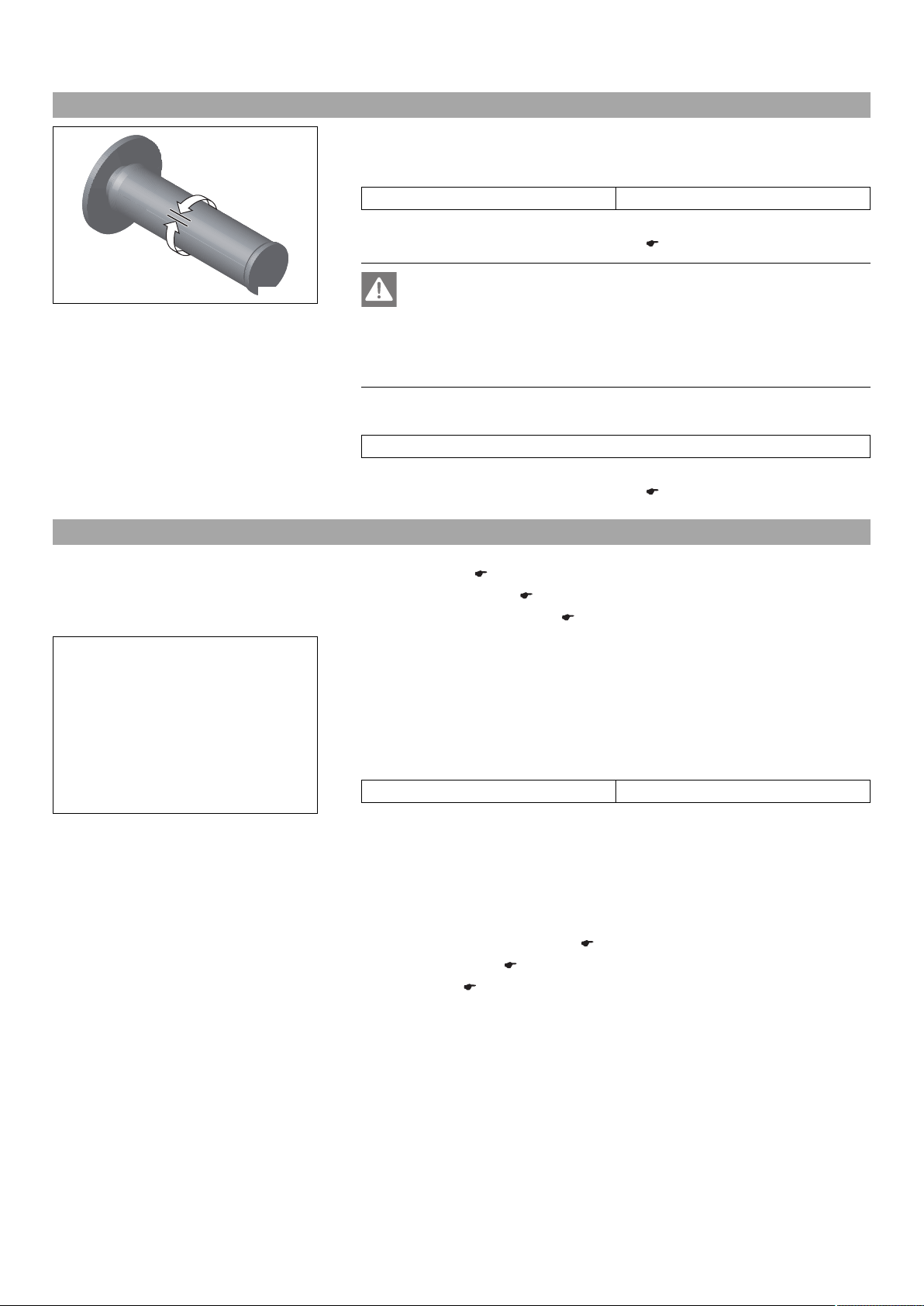

To park the motorcycle, insert plug-in stand1into the left side of the wheel spin­dle.
Info
Remove the plug-in stand before riding.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
–
Release bleeder screws1.
Any excess pressure escapes from the interior of the fork.
– Tighten the bleeder screws.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)
Page 35
11 SERVICE WORK ON THE CHASSIS 33

11.4 Cleaning the dust boots of the fork legs

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32) – Loosen the fork protection. ( p. 33)
Main work
–
Push dust boot1downward of both fork legs.
Info
The dust boots remove dust and coarse dirt particles from the inside fork tubes. Over time, dirt can penetrate behind the dust boots. If this dirt is not removed, the oil seals behind can start to leak.
B00297-10
– Clean and oil the dust boots and inside fork tube of both fork legs. – Press the dust boots back into their normal position. – Remove excess oil.
Finishing work
– Position the fork protection. ( p. 33) – Remove the motorcycle from the lift stand. ( p. 32)

11.5 Loosening the fork protection

–
– – Remove the screws on the right fork leg. Push the fork protection downwards.
B01849-10
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on
the brake discs. – Always keep the brake discs free of oil and grease, and clean them with
brake cleaner when necessary.
Remove screws1and take off the clamp. Remove screws2on the left fork leg. Push the fork protection downwards.

11.6 Positioning the fork protection

–
– – Position the fork protection on the right fork leg. Mount and tighten the screws.
B01849-11

11.7 Removing the fork legs x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
– Remove the front wheel. x ( p. 64)
Position the fork protection on the left fork leg. Mount and tighten screws1. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Position the brake line and clamp. Mount and tighten screws2.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Page 36
11 SERVICE WORK ON THE CHASSIS 34
Main work
–
Remove screws1and take off the clamp.
–
Remove screws2and take off the brake caliper.
– Allow the brake caliper and brake line to hang tension-free to the side.
Info
Do not pull the hand brake lever if the front wheel has been removed.
B00300-10
–
Loosen screws3. Take out the left fork leg.
–
Unscrew screws4. Take out the right fork leg.
B01850-10

11.8 Installing the fork legs x

Main work
– Position the fork legs.
Bleeder screws1face forward.
B01848-10
B01850-11
Info
Grooves are milled into the side of the upper end of the fork legs. The sec­ond milled groove (from the top) must be flush with the top edge of the upper triple clamp.
–
Tighten screws2. Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
–
Tighten screws3. Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
–
Position the brake caliper. Mount and tighten screws5. Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screws4.
Loctite®243™
B00300-11
Finishing work
– Install the front wheel. x ( p. 64)
Page 37
11 SERVICE WORK ON THE CHASSIS 35

11.9 Removing the fork protector x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
– Remove the front wheel. x ( p. 64) – Remove the fork legs. x ( p. 33)
Main work
–
Remove screws1on the left fork leg. Lift off the fork protector.
– Remove the screws on the right fork leg. Lift off the fork protector.
B00306-10

11.10 Installing the fork protector x

Main work
–
Position the fork protector on the left fork leg. Mount and tighten screws1. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the fork protector on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B00306-10
Finishing work
– Install the fork legs. x ( p. 34) – Install the front wheel. x ( p. 64)

11.11 Removing the lower triple clamp x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
– Remove the front wheel. x ( p. 64) – Remove the fork legs. x ( p. 33)
– Remove the start number plate. ( p. 38) – Remove the front fender. ( p. 39)
Main work
–
Take off cable holder1in front of the left radiator.
–
Remove screw2.
–
Remove screw3.
– Take off the top triple clamp with the handlebar and set it aside.
B01864-10
Info
Protect the components against damage by covering them. Do not bend the cables and lines.
B01865-10
–
Remove O-ring4. Remove protective ring5.
– Take out the lower triple clamp with the steering stem. – Take out the upper steering head bearing.
Page 38
11 SERVICE WORK ON THE CHASSIS 36
0011
0
0
22
0
0
33

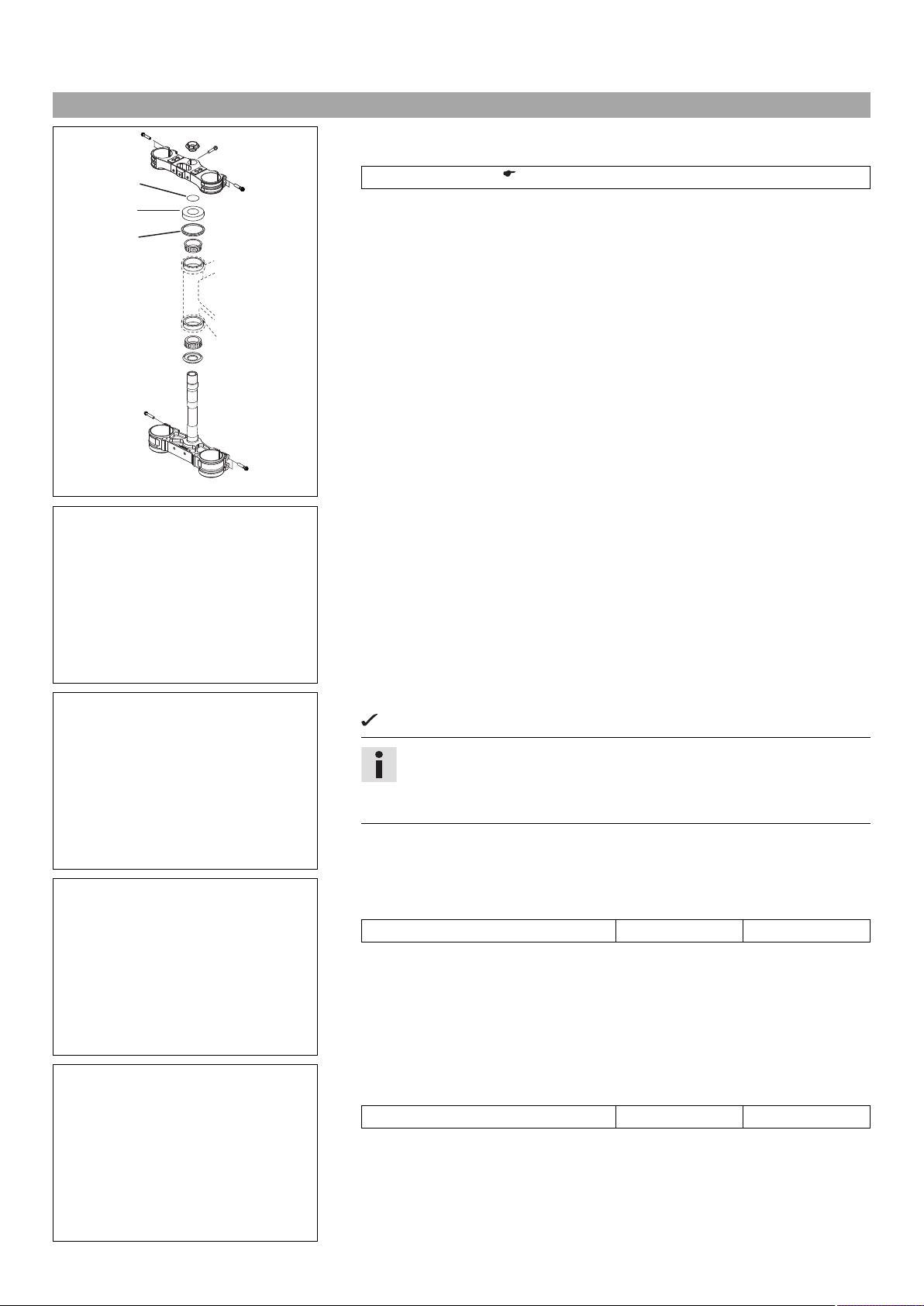

11.12 Installing the lower triple clamp x

Main work
– Clean the bearing and sealing elements, check for damage, and grease.
High viscosity grease ( p. 92)
– Insert the lower triple clamp with the steering stem. Mount the upper steering head
bearing.
–
Check whether the upper steering head seal1is correctly positioned.
–
Slide on protective ring2and O-ring3.
800221-10
– Position the upper triple clamp with the handlebar.
–
Mount screw4but do not tighten yet.
B01867-10
B01868-10
B01869-10
– Position the fork legs.
Bleeder screws5face forward.
Info
Grooves are milled into the side of the upper end of the fork legs. The sec­ond milled groove (from the top) must be flush with the top edge of the upper triple clamp.
–
Fully tighten screws6. Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
–
Tighten screw4. Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
B01870-10
Page 39

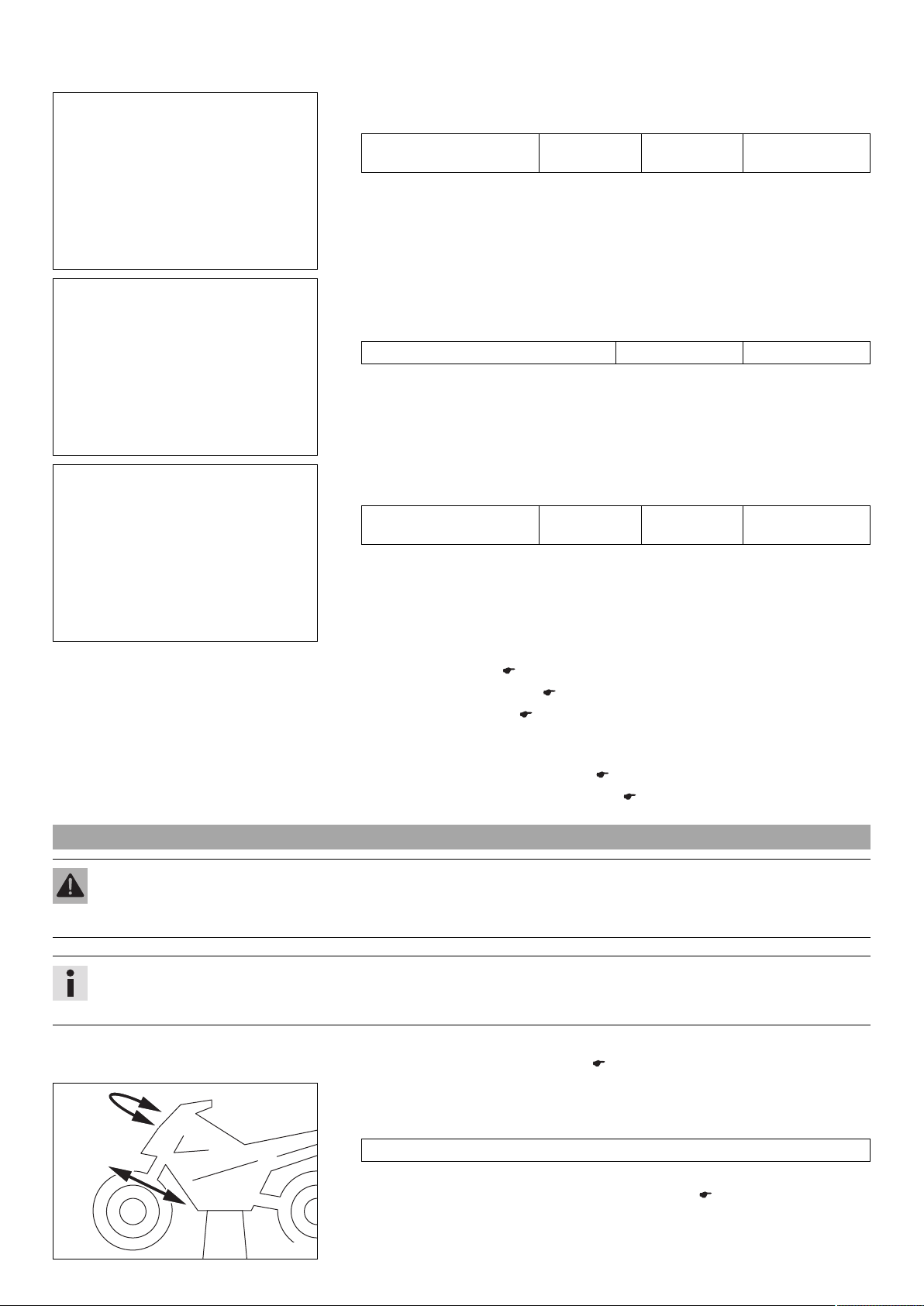

11 SERVICE WORK ON THE CHASSIS 37
–
Mount and tighten screw7. Guideline
B01871-10
B01869-11
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
–
Tighten screws8. Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
–
Secure the wiring harness with cable holder9.
–
Position the brake caliper. Mount and tighten screwsbk. Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite®243™
Loctite®243™
–
Position the brake line and clamp. Mount and tighten screwsbl.
B01872-10
Finishing work
– Install the front fender. ( p. 39) – Install the start number plate. ( p. 39)
– Install the front wheel. x ( p. 64)
– Check that the wiring harness, throttle cables, and brake and clutch lines can move
freely and are routed correctly.
– Check the steering head bearing play. ( p. 37) – Remove the motorcycle from the lift stand. ( p. 32)

11.13 Checking the steering head bearing play

Warning
Danger of accidents Unstable vehicle handling from incorrect steering head bearing play.
– Adjust the steering head bearing play without delay. (Your authorized Husqvarna workshop will be glad to help.)
Info
If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become damaged over time.
400738-11
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Move the handlebar to the straight-ahead position. Move the fork legs to and fro in
the direction of travel.
No play should be noticeable in the steering head bearing.
» If there is noticeable play present:
– Adjust the play of the steering head bearing. x ( p. 38)
Page 40
11 SERVICE WORK ON THE CHASSIS 38
– Move the handlebar to and fro over the entire steering range.
The handlebar must be able to move easily over the entire steering range. No rest­ing locations should be noticeable.
» If click positions are noticeable:
– Adjust the play of the steering head bearing. x ( p. 38)
– Check the steering head bearing and change if necessary.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

11.14 Adjusting the play of the steering head bearing x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32) – Remove the handlebar cushion.
Main work
–
Loosen screw1. Remove screw2.
–
Loosen and retighten screw3. Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
–
Fully tighten screws1.
B01873-10
Guideline
Screw, top triple clamp M8 17 Nm (12.5 lbf ft)
–
Mount and tighten screw2. Guideline
Screw, top steering stem M8 17 Nm
– Check the steering head bearing play. ( p. 37)
Finishing work
– Mount the handlebar cushion. – Remove the motorcycle from the lift stand. ( p. 32)

11.15 Greasing the steering head bearing x

– Remove the lower triple clamp. x ( p. 35) – Install the lower triple clamp. x ( p. 36)
800010-10

11.16 Removing the start number plate

–
Take brake line1out of the brake line guide.
–
Remove screw2. Take off the start number plate.
Loctite®243™
(12.5 lbf ft)
B01874-10
Page 41
11 SERVICE WORK ON THE CHASSIS 39

11.17 Installing the start number plate

–
Position the start number plate. Mount and tighten screw1. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
The holding lugs engage.
–
Position brake line2in the brake line guide.
B01875-10

11.18 Removing the front fender

Preparatory work
– Remove the start number plate. ( p. 38)
Main work
–
Remove screws1and2. Remove the front fender.
B01876-10

11.19 Installing the front fender

B01876-10
Main work
–
Position the front fender. Mount and tighten screws1and2. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 39)
Page 42
11 SERVICE WORK ON THE CHASSIS 40

11.20 Removing the shock absorber x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
–
Remove screw1.
–
Remove fitting2.
B01877-10
–
Press angle lever3toward the rear.
–
Press linkage lever4downward.
B01878-10
B01879-10
–
Detach springs5.
Spring hooks (50305017000)
–
Remove screw6and take off the manifold.
– Raise the swingarm.
B01880-10
Page 43
11 SERVICE WORK ON THE CHASSIS 41
–
Remove screw7.
– Lift off the shock absorber.
B01881-10

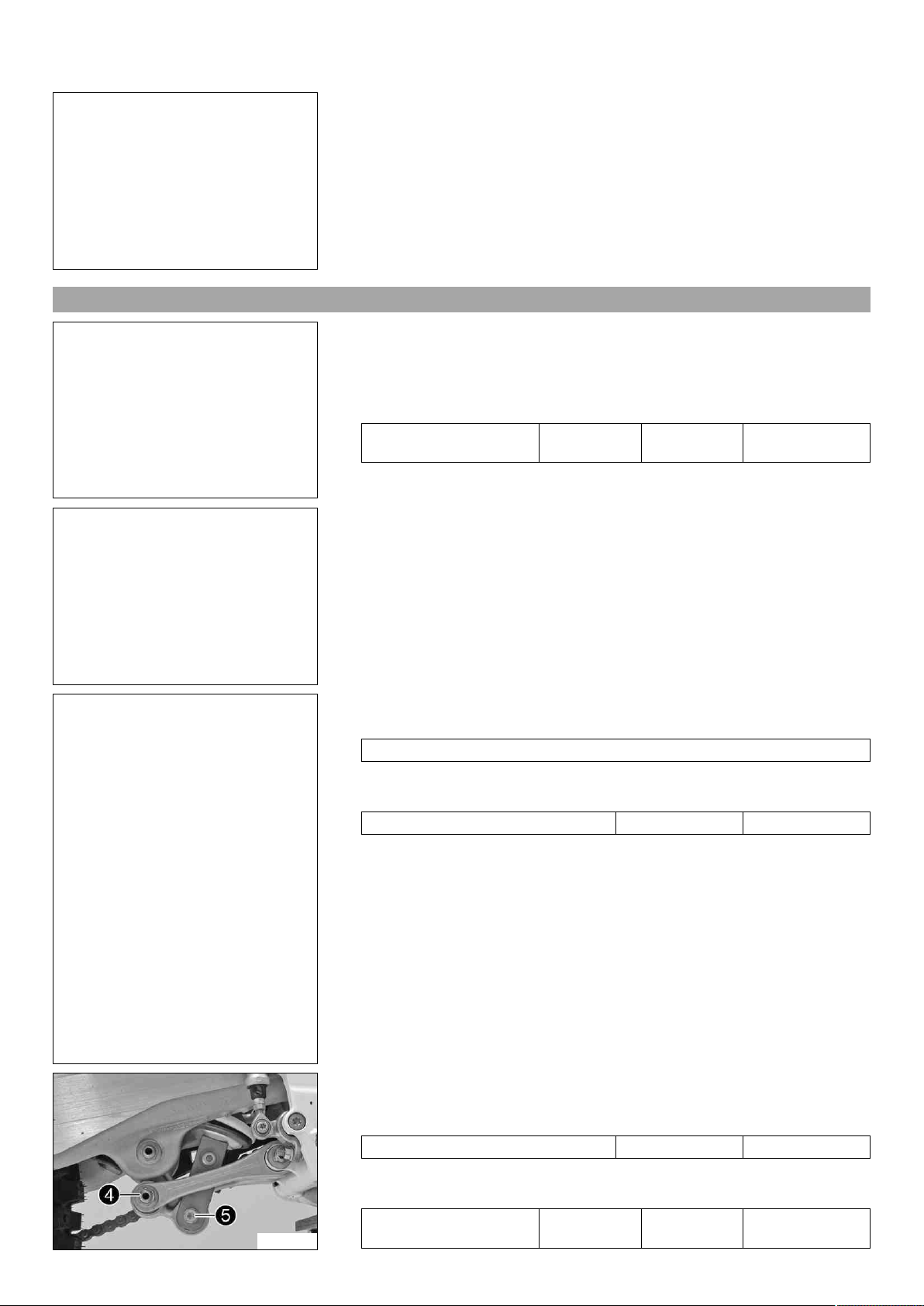

11.21 Installing the shock absorber x

Main work
– Slip in the shock absorber from the top. – Position the shock absorber.
–
Mount and tighten screw1. Guideline
Screw, top shock absorber M10 60 Nm
(44.3 lbf ft)
B01882-10
– Lower the swingarm.
Loctite®2701™
B01883-10
B01924-11
– Position the manifold.
–
Attach springs2.
Spring hooks (50305017000)
–
Mount and tighten screw3. Guideline
Screw, manifold holder M8 15 Nm (11.1 lbf ft)
– Position the angle lever and linkage lever.
–
Mount and tighten fitting4. Guideline
Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft)
B01877-11
–
Mount and tighten screw5. Guideline
Screw, bottom shock absorber
M10 60 Nm
(44.3 lbf ft)
Loctite®2701™
Page 44
11 SERVICE WORK ON THE CHASSIS 42
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

11.22 Removing the seat

–
Remove screw1.
– Lift up the seat at the rear, pull it back and then remove it from above.
B01925-10

11.23 Mounting the seat

– Hook in the front of the seat at the collar bushing of the fuel tank, lower it at the rear
and simultaneously it push forward.
– Make sure that the seat is correctly locked in. – Mount and tighten the screw of the seat fixing.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01884-01

11.24 Removing the air filter box lid

–
B01938-10

11.25 Installing the air filter box lid

–
–
Release catch1, pull off the air filter box lid sideways in areasAandB, and remove toward the rear.
Position the air filter box lid and tab1. Engage the air filter box lid in areas andB.
Engage tab1.
A
B01938-11
Page 45
11 SERVICE WORK ON THE CHASSIS 43

11.26 Removing the air filter x

Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 42)
Main work
–
Push air filter holder1toward the air filter at positionAand detach it at endB. Swing the air filter holder to one side and remove the air filter with the air filter sup­port.
– Remove the air filter from the air filter support.
B01885-11

11.27 Installing the air filter x

101351-10
B01885-10
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in areaA.
–
Insert both parts together, position them, and fasten them using air filter holder1in areaB.
The arrow of marking UP faces upward.
Info
If the air filter is not correctly mounted, dust and dirt can enter the engine and cause damage.
Finishing work
– Install the air filter box lid. ( p. 42)

11.28 Cleaning the air filter and air filter box x

Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box lid. ( p. 42)
– Remove the air filter. x ( p. 43)
Page 46
11 SERVICE WORK ON THE CHASSIS 44
Main work
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Info
Only press the air filter to dry it, never wring it out.
– Oil the dry air filter with a high quality filter oil. – Clean the air filter box. – Check the intake flange for damage and looseness.
L00189-10
Finishing work
– Install the air filter. x ( p. 43)
– Install the air filter box lid. ( p. 42)

11.29 Sealing the air filter box x

–
Seal the air filter box in marked areaA.
401559-01

11.30 Removing the main silencer

Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Preparatory work
– Remove the right side cover. ( p. 45)
Main work
–
Disconnect spring1.
–
Remove screws2and take off the main silencer.
B01886-10

11.31 Installing the main silencer

Main work
–
Mount the main silencer. Mount screws1but do not tighten yet.
–
Reconnect spring2.
–
Tighten screws1. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01886-11
Finishing work
– Install the right side cover. ( p. 46)
Page 47
11 SERVICE WORK ON THE CHASSIS 45

11.32 Changing the glass fiber yarn filling of the main silencer x

Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down. Do not touch hot components.
Info
Over time, the fibers of the glass fiber yarn escape and the damper "burns" out. Not only is the noise level higher, the performance characteristic changes.
Preparatory work
– Remove the right side cover. ( p. 45) – Remove the main silencer. ( p. 44)
Main work
– Remove all screws from the main silencer.
–
Remove silencer cap1and O-ring2.
–
Remove outer tube3and O-ring4.
–
Pull the glass fiber yarn filling5from the inner tube6.
– Clean the parts that are to be reinstalled.
–
Mount the new glass fiber yarn filling5on inner tube6.
–
Slide O-ring4and outer tube3over the glass fiber yarn filling5.
–
Insert O-ring2and silencer cap1into outer tube3.
– Mount and tighten all screws.
C00494-10
Finishing work
– Install the main silencer. ( p. 44) – Install the right side cover. ( p. 46)

11.33 Removing the right side cover

–
–
B01887-10
Remove screw1. Pull off the side cover in areaAsideways and remove it toward the rear.
Page 48
11 SERVICE WORK ON THE CHASSIS 46

11.34 Installing the right side cover

–
Position the side cover and engage in areaA.
–
Mount and tighten screw1. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01887-10

11.35 Removing the fuel tank x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
B01926-10
B01927-10
Preparatory work
– Remove the seat. ( p. 42)
Main work
–
Unplug connector1of the fuel pump.
– Remove the tube from the fuel tank breather.
–
Thoroughly clean plug-in connection2of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel line clogs the injection valve.
– Disconnect the plug-in connection of the fuel line.
–
Mount wash cap setA.
Wash cap set (81212016100)
–
Remove screws3with the collar bushing.
B01890-10
Page 49
11 SERVICE WORK ON THE CHASSIS 47
–

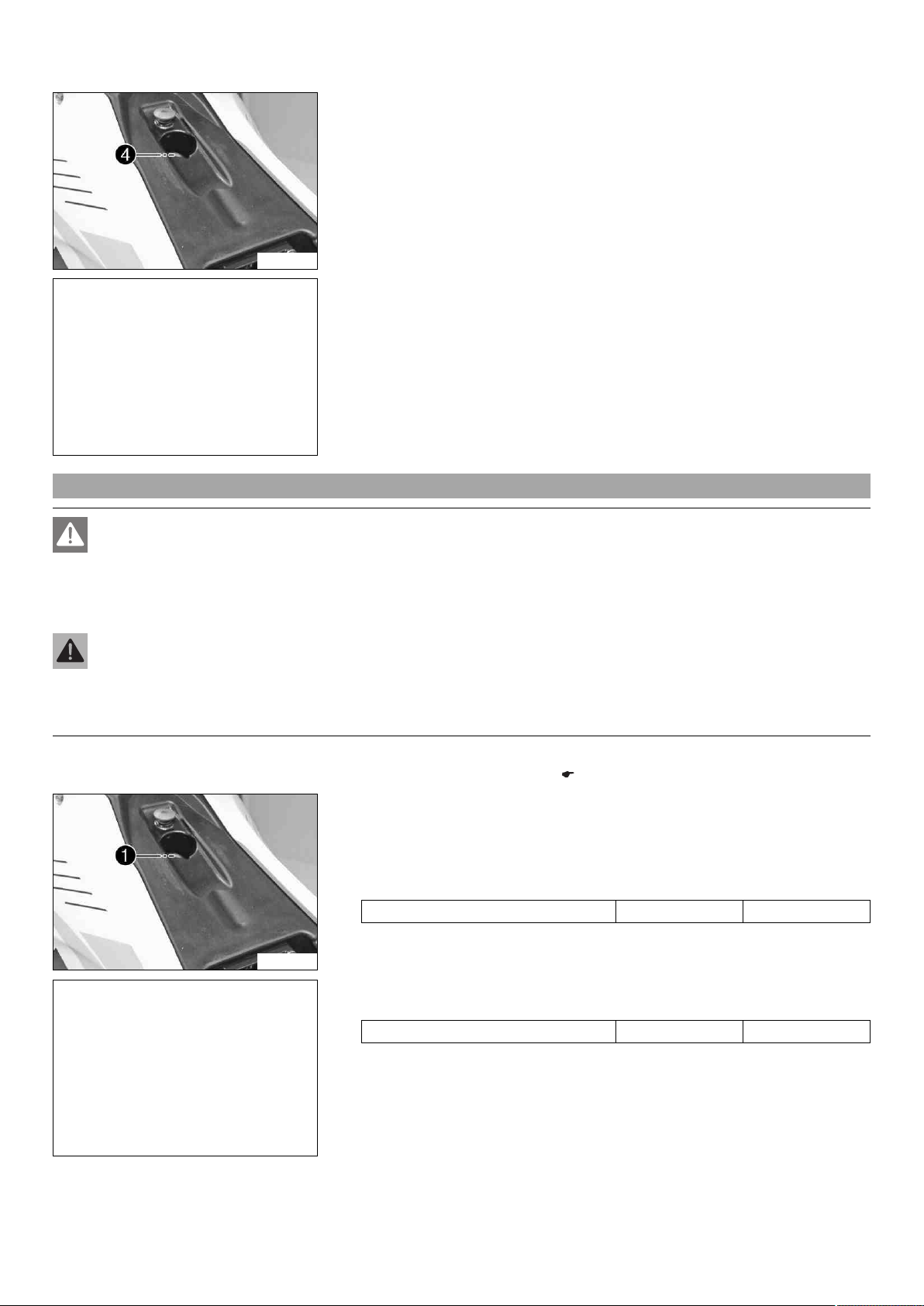

Remove screw4with the rubber bushing.
B01891-10
– Pull both spoilers off of the sides of the radiator bracket and lift off the fuel tank.
B01892-10

11.36 Installing the fuel tank x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Main work
– Check the throttle cable routing. ( p. 52) – Position the fuel tank and fit the two spoilers to the sides of the radiator bracket. – Make sure that no cables are trapped or damaged. – Mount the fuel tank breather.
–
Mount and tighten screw1with the rubber bushing. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01891-11
–
Mount and tighten screws2with the collar bushing. Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
B01890-11
Page 50
11 SERVICE WORK ON THE CHASSIS 48
–
Attach connector3of the fuel pump.
– Remove the wash cap set and thoroughly clean the plug-in connection of the fuel line
using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel line clogs the injection valve.
–
Lubricate the O-ring and connect plug-in connection4of the fuel line.
B01926-11
Finishing work
– Mount the seat. ( p. 42)

11.37 Checking for chain dirt accumulation

– Check the chain for coarse dirt accumulation.
Info
Route the cable and fuel line at a safe distance from the exhaust system.
» If the chain is very dirty:
– Clean the chain. ( p. 48)
400678-01

11.38 Cleaning the chain

Warning
Danger of accidents Oil or grease on the tires reduces their grip.
– Remove oil and grease with a suitable cleaning material.
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
The service life of the chain depends largely on its maintenance.
– Clean the chain regularly and then treat with chain spray.
400725-01
Page 51
11 SERVICE WORK ON THE CHASSIS 49

11.39 Checking the chain tension

Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings
in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it if necessary.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Push the chain at the end of the chain sliding component upwards to measure the
chain tensionA.
Info
The lower chain section1must be taut. Chain wear is not always even, so you should repeat this measurement at different chain positions.
B01806-10
Chain tension 55… 58 mm (2.17… 2.28 in)
» If the chain tension does not meet specifications:
– Adjust the chain tension. ( p. 49)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

11.40 Adjusting the chain tension

Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings
in the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it if necessary.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32) – Check the chain tension. ( p. 49)
Main work
–
Loosen nut1.
–
Loosen nuts2.
–
Adjust the chain tension by turning adjusting screws3left and right. Guideline
Chain tension 55… 58 mm (2.17… 2.28 in) Turn adjusting screws3on the left and right so that the markings on the left and
right chain adjusters are in the same position relative to the reference marksA. The rear wheel is then correctly aligned.
B01805-10
–
Tighten nuts2.
–
Make sure that chain adjusters4are fitted correctly on adjusting screws3.
–
Tighten nut1. Guideline
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft)
Page 52
11 SERVICE WORK ON THE CHASSIS 50
Info
The wide adjustment range of the chain adjusters (32 mm (1.18 in)) enables different secondary ratios with the same chain length.
Chain adjusters4can be turned by 180°.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

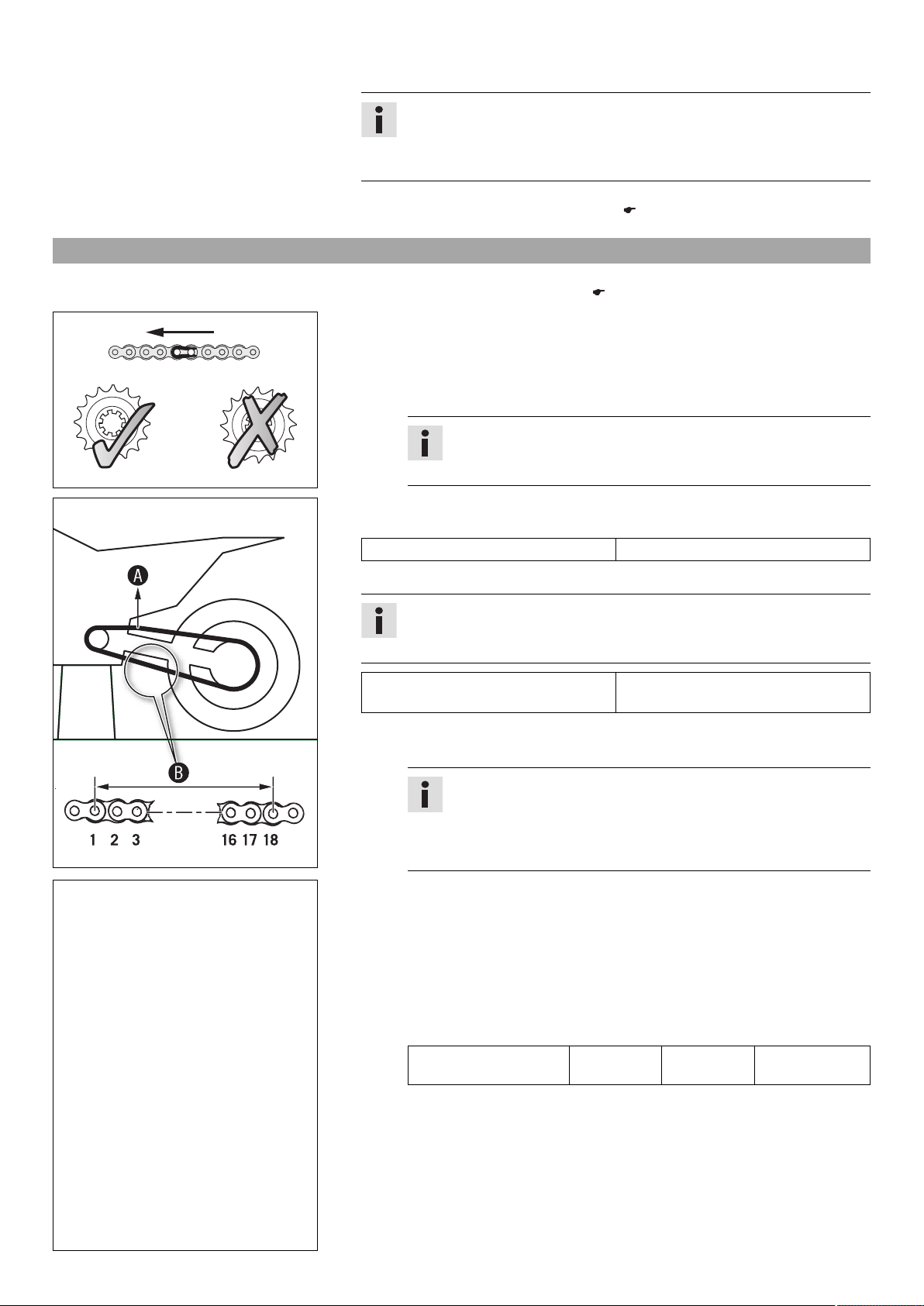

11.41 Checking the chain, rear sprocket, engine sprocket, and chain guide

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Shift gear to neutral. – Check the rear sprocket and engine sprocket for wear.
» If the rear sprocket or engine sprocket are worn:
– Change the power set. x
Info
The engine sprocket, rear sprocket, and chain should only be
400227-01
–
Pull at the top part of the chain with the specified weightA. Guideline
Weight, chain wear measurement 10… 15 kg (22… 33 lb.)
replaced together.
400987-10
–
Measure distanceBof 18 chain rollers on the lower chain section.
Info
Chains do not always wear evenly, which is why the measurement should be repeated at several locations on the chain.
Maximum distanceBon the longest part of the chain
»
If the distanceBis larger than the specified length:
– Change the power set. x
272 mm (10.71 in)
Info
When a new chain is mounted, the rear sprocket and engine sprocket should be changed as well. New chains wear more rapidly on old, worn rear sprockets and engine sprockets.
– Check the chain sliding guard for wear.
» If the lower edge of the chain pin is at the level of or below the chain sliding
guard:
– Change the chain sliding guard. x
– Check that the chain sliding guard is firmly seated.
» If the chain sliding guard is loose:
– Tighten the chain sliding guard.
Guideline
Screw, chain sliding guard
M6 6 Nm
(4.4 lbf ft)
Loctite®243™
B01894-10
Page 53
11 SERVICE WORK ON THE CHASSIS 51
– Check the chain sliding piece for wear.
» If the lower edge of the chain pin is at the level of or below the chain sliding
piece:
– Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
B01893-10
– Check the chain guide for wear.
401760-01
B01928-01

11.42 Checking the frame x

Info
The wear can be found on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide. x
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a mechanical impact:
– Change the frame. x
402015-01
Info
A frame that has been damaged due to a mechanical impact must always be changed. Repair of the frame is not authorized by Husq­varna.
Page 54
11 SERVICE WORK ON THE CHASSIS 52

11.43 Checking the swingarm x

– Check the swingarm for damage, cracking, and deformation.
» If the swingarm shows signs of damage, cracking, or deformation:
– Change the swingarm. x
Info
A damaged swingarm must always be changed. Repair of the swingarm is not authorized by Husqvarna.
401520-01

11.44 Checking the throttle cable routing

Preparatory work
– Remove the seat. ( p. 42)
– Remove the fuel tank. x ( p. 46)
Main work
– Check the throttle cable routing.
Both throttle cables must be routed to the throttle valve body side by side behind the handlebars and above the fuel tank bracket.
B01929-10

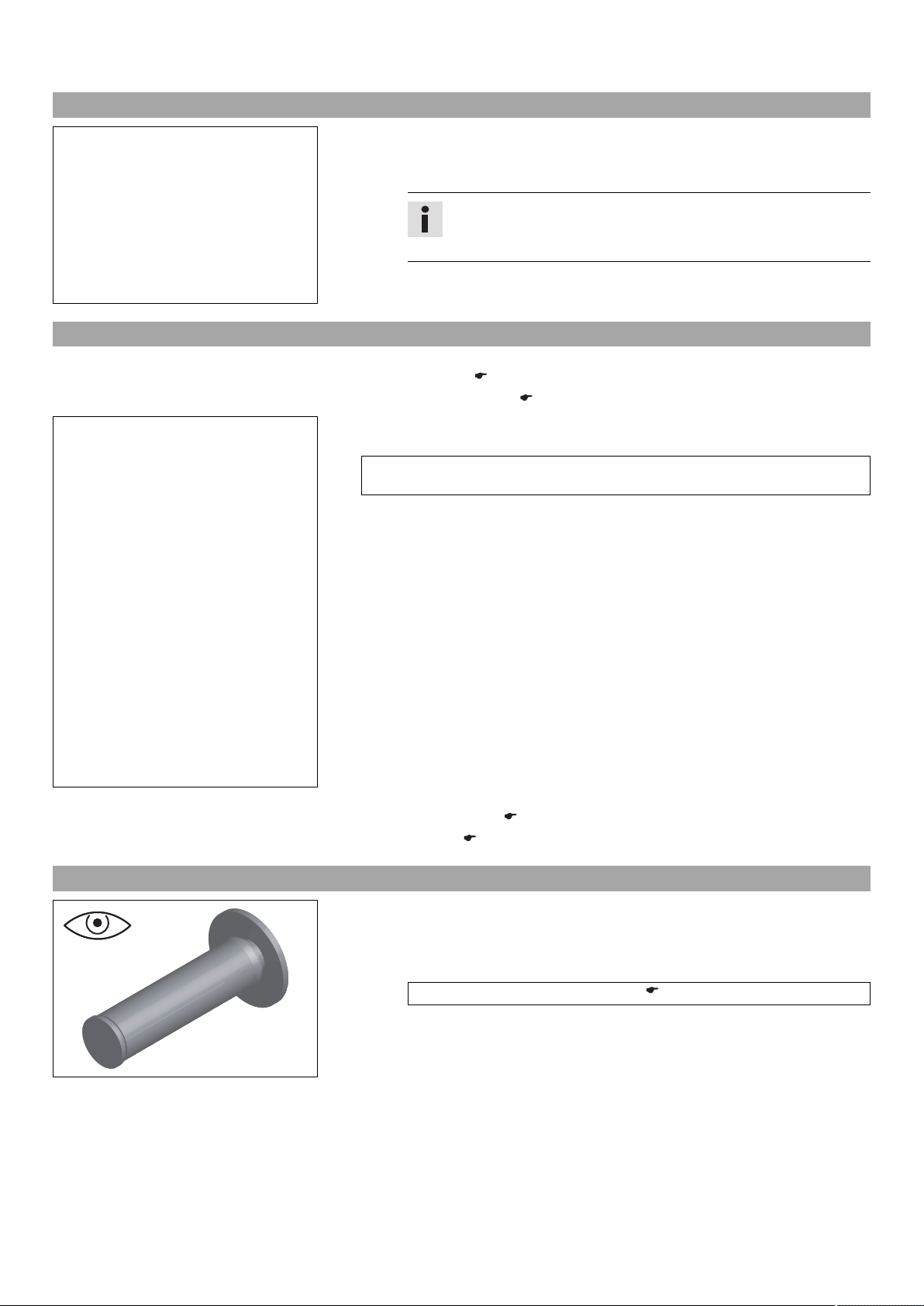

11.45 Checking the rubber grip

» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. x ( p. 47)
– Mount the seat. ( p. 42)
– Check the rubber grips on the handlebar for damage and wear and to ensure they
are firmly seated. » If a rubber grip is damaged, worn or loose:
– Change and secure the rubber grip.
401197-01
Rubber grip adhesive (00062030051) ( p. 92)
Page 55
11 SERVICE WORK ON THE CHASSIS 53

11.46 Additionally securing the rubber grip

Preparatory work
– Check the rubber grip. ( p. 52)
Main work
– Secure the rubber grip at two points using the securing wire.
Securing wire (54812016000) Wire twister forceps (U6907854)
The twisted wire ends face away from the hands and are bent toward the rubber grip.
401198-01

11.47 Adjusting the basic position of the clutch lever

– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw1.
Info
Turn the adjusting screw counterclockwise to decrease the distance between the clutch lever and the handlebar. Turn the adjusting screw clockwise to increase the distance between the clutch lever and the handlebar. The range of adjustment is limited.
B01898-10
Turn the adjusting screw by hand only, and do not apply any force. Do not make any adjustments while riding!

11.48 Checking/correcting the fluid level of the hydraulic clutch

Info
The fluid level rises with increased wear of the clutch lining discs.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws1.
–
Remove cover2with membrane3.
– Check the fluid level.
Fluid level below container rim 4 mm (0.16 in)
» If the fluid level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
C00444-10
– Position the cover with the membrane. Mount and tighten the screws.
Brake fluid DOT 4 / DOT 5.1 ( p. 91)

11.49 Changing the hydraulic clutch fluid x

Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
C00444-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws1.
–
Remove cover2with membrane3.
Page 56
11 SERVICE WORK ON THE CHASSIS 54
–
Fill bleeding syringe4with the appropriate hydraulic fluid.
Bleed syringe (50329050000) Brake fluid DOT 4 / DOT 5.1 ( p. 91)
–
Mount bleeding syringe4on bleeder screw5using a fitting hose piece.
–
Only loosen bleeder screw5on the clutch slave cylinder to the point where filling is possible.
B01930-10
C00445-10
Info
Clean up overflowed or spilt brake fluid immediately with water. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container!
–
Inject the liquid into the system until it escapes from openings6of the master cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir. – Tighten the bleeder screw and remove the bleeding syringe with the hose. – Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container rim 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
Page 57

12 BRAKE SYSTEM 55

12.1 Checking the free travel of the hand brake lever

Warning
Danger of accidents Brake system failure.
– If there is no free travel on the hand brake lever, pressure builds up on the front brake circuit. The front brake can fail due to
overheating. Adjust the free travel on hand brake lever according to specifications.
–
Push the hand brake lever forward and check free travelA.
Free travel of hand brake lever ≥ 3 mm (≥ 0.12 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the hand brake lever. ( p. 55)
B01637-10

12.2 Adjusting the basic position of the hand brake lever

Preparatory work
– Check the free travel of the hand brake lever. ( p. 55)
Main work
– Adjust the basic setting of the hand brake lever to your hand size by turning adjusting
screw1.
Info
Turn the adjusting screw clockwise to increase the distance between the hand brake lever and the handlebar. Turn the adjusting screw counterclockwise to decrease the distance between the hand brake lever and the handlebar.
B01638-10
The range of adjustment is limited. Turn the adjusting screw by hand only, and do not apply any force. Do not make any adjustments while riding!

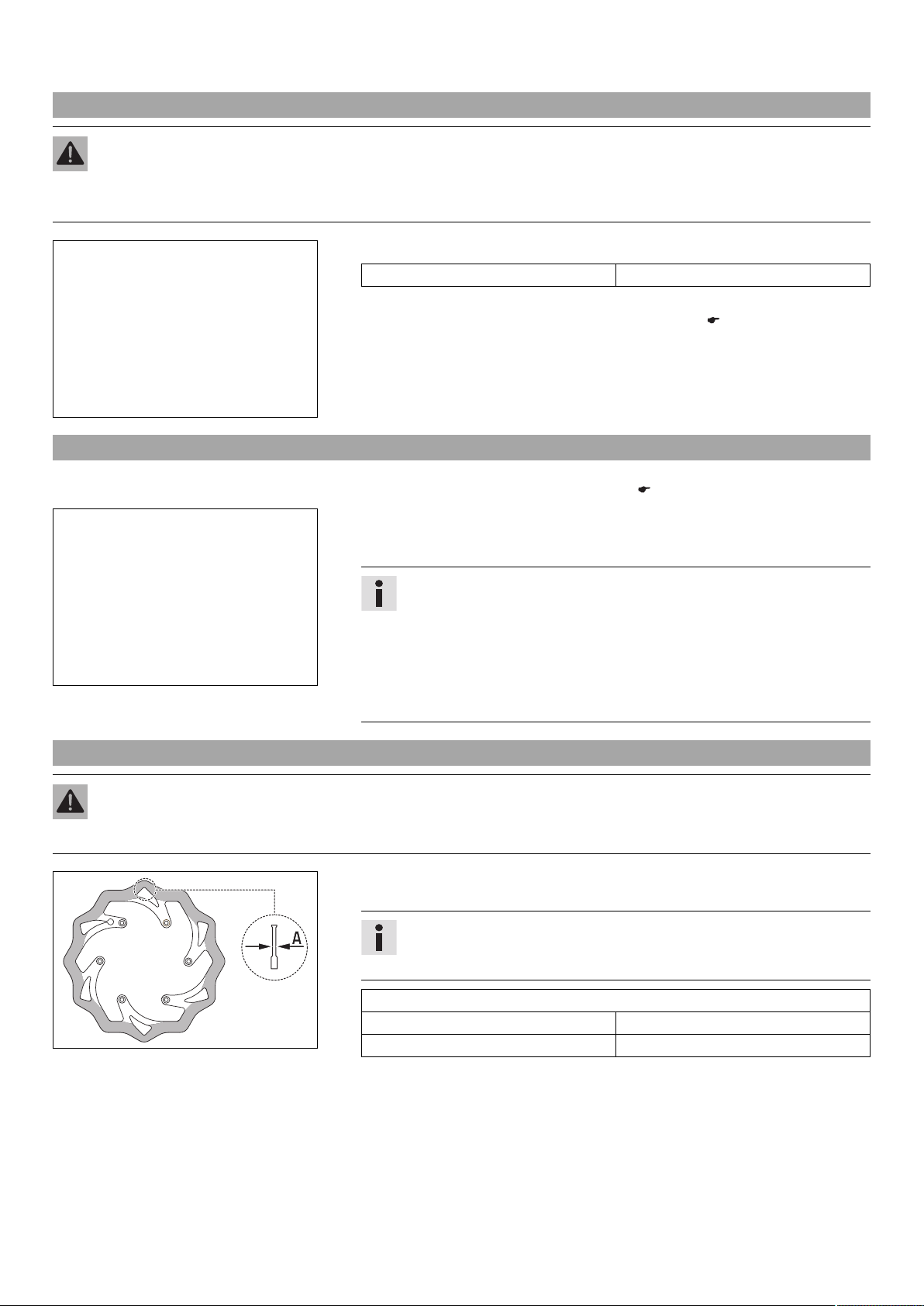

12.3 Checking the brake discs

Warning
Danger of accidents Reduced braking efficiency due to worn brake disc(s).
– Change the worn brake disc(s) without delay. (Your authorized Husqvarna workshop will be glad to help.)
– Check the thickness of the front and rear brake discs at several places on the disk to
see if it conforms to measurementA.
Info
Wear reduces the thickness of the brake disc around the area used by the brake linings.
Brake discs - wear limit
Front 2.5 mm (0.098 in)
400257-10
Rear 3.5 mm (0.138 in)
» If the brake disc thickness is less than the specified value:
– Change the brake disc.
– Check the front and rear brake discs for damage, cracking and deformation.
» If the brake disc shows signs of damage, cracking or deformation:
– Change the brake disc.
Page 58
12 BRAKE SYSTEM 56

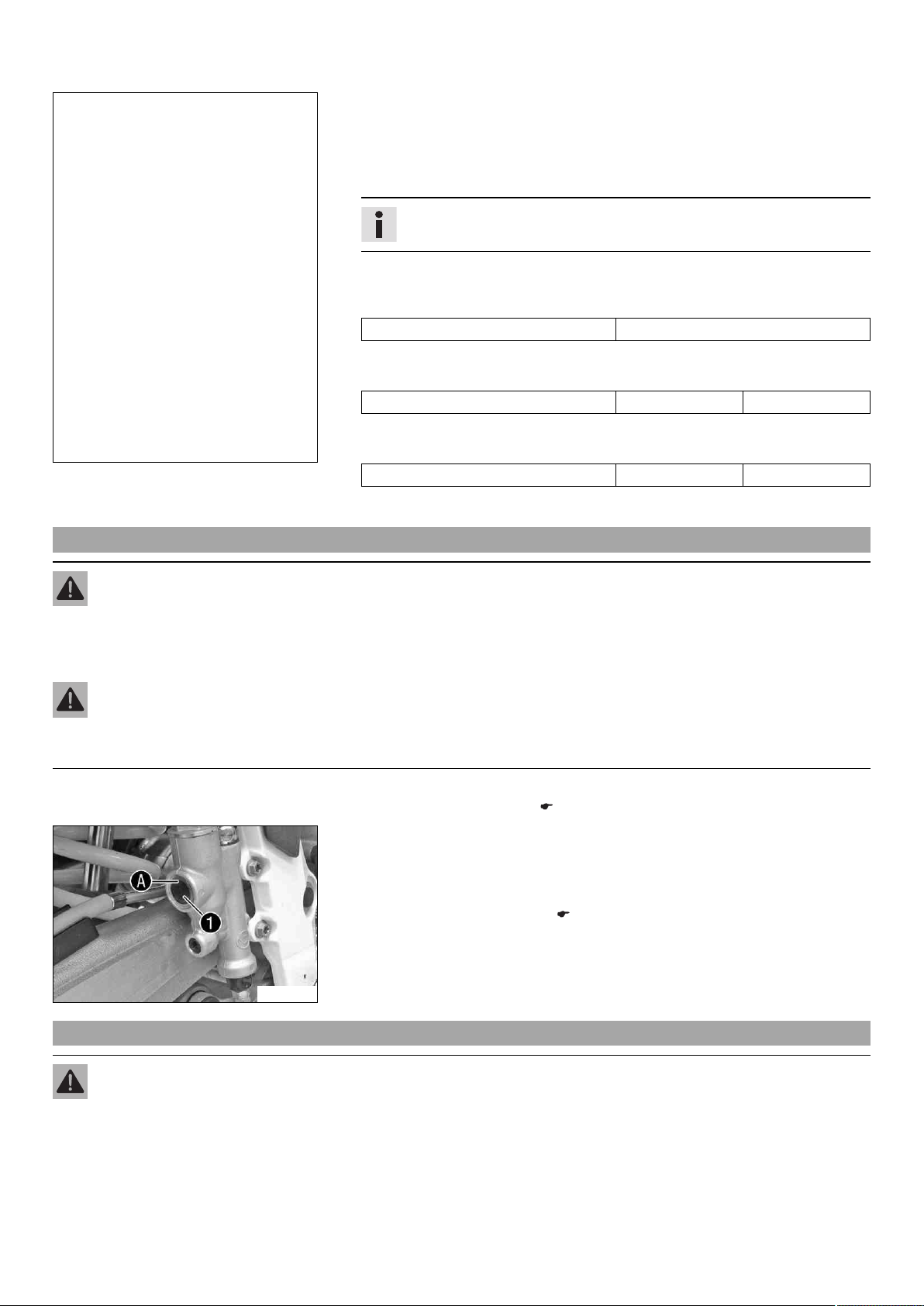

12.4 Checking the brake fluid level of the front brake

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Preparatory work
– Check the front brake linings. ( p. 57)
Main work
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Check the brake fluid level in level viewer1. »
If the brake fluid level has dropped below markingA:
– Add front brake fluid. x ( p. 56)
B01437-10

12.5 Adding front brake fluid x

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
Preparatory work
– Check the front brake linings. ( p. 57)
Page 59
12 BRAKE SYSTEM 57
Main work
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws1.
–
Remove cover2with membrane3.
–
Add brake fluid to levelA. Guideline
LevelA(brake fluid level below con­tainer rim)
Brake fluid DOT 4 / DOT 5.1 ( p. 91)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with water.
B01900-10

12.6 Checking the front brake linings

5 mm (0.2 in)
Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized Husqvarna workshop will be glad to help.)
–
Check the brake linings for minimum thicknessA.
≥ 1 mm (≥ 0.04 in)
B01842-10
Minimum thickness
» If the minimum thickness is less than specified:
– Change the front brake linings. x ( p. 57)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the front brake linings. x ( p. 57)
A

12.7 Changing the front brake linings x

Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Page 60
12 BRAKE SYSTEM 58
Info
Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws1.
–
Remove cover2with membrane3.
B01438-10
– Manually press the brake caliper to the brake disc to push back the brake pistons.
Ensure that brake fluid does not flow out of the brake fluid reservoir, extracting it by suction if it does.
Info
Make sure when pushing back the brake pistons that you do not press the brake caliper against the spokes.
B01901-10
B00352-10
B01901-11
–
Remove cotter pins4, pull out pin5, and remove the brake linings.
– Clean the brake caliper and brake caliper support.
–
Check that leaf spring6in the brake caliper and sliding plate7in the brake caliper support are seated correctly.
–
Insert the new brake linings, insert pin5, and mount cotter pins4.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
Page 61
12 BRAKE SYSTEM 59
–
Add brake fluid to levelA. Guideline
DimensionA(brake fluid level below top edge of container)
Brake fluid DOT 4 / DOT 5.1 ( p. 91)
–
Position cover2with membrane3.
–
Mount and tighten screws1.
Info
Clean up overflowed or spilt brake fluid immediately with water.
B01900-10

12.8 Checking the free travel of foot brake lever

5 mm (0.2 in)
Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
–
Disconnect spring1.
– Move the foot brake lever back and forth between the end stop and the contact to
the foot brake cylinder piston and check free travelA. Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever. x ( p. 59)
–
B01796-10
Reconnect spring1.

12.9 Adjusting the basic position of the foot brake lever x

Warning
Danger of accidents Brake system failure.
– If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to
overheating. Adjust the free travel on foot brake lever according to specifications.
Page 62
12 BRAKE SYSTEM 60
–
Disconnect spring1.
–
Loosen nut4and, with push rod5, turn it back until you have maximum free travel.
–
To adjust the basic position of the foot brake lever individually, loosen nut2and turn screw3accordingly.
Info
The range of adjustment is limited.
–
Turn push rod5accordingly until you have free travelA. If necessary, adjust the basic position of the foot brake lever.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
–
Hold screw3and tighten nut2. Guideline
Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft)
–
Hold push rod5and tighten nut4.
B01797-10
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
–
Reconnect spring1.

12.10 Checking the rear brake fluid level

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Preparatory work
– Check the rear brake linings. ( p. 61)
Main work
– Stand the vehicle upright.
–
Check the brake fluid level in the viewer1. »
If the brake fluid level drops below markingA:
– Add rear brake fluid. x ( p. 60)
B01902-10

12.11 Adding rear brake fluid x

Warning
Danger of accidents Brake system failure.
– If the brake fluid level drops below the specified marking or the specified value, this is an indication that the brake system is
leaking or that the brake linings are completely worn down. Check the brake system and do not continue riding. (Your autho­rized Husqvarna workshop will be glad to help.)
Page 63
12 BRAKE SYSTEM 61
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
Preparatory work
– Check the rear brake linings. ( p. 61)
Main work
– Stand the vehicle upright.
–
Remove screw cap1with membrane2and the O-ring.
–
Add brake fluid to levelA.
Brake fluid DOT 4 / DOT 5.1 ( p. 91)
– Mount and tighten the screw cap with the membrane and O-ring.
B01903-10
Info
Clean up overflowed or spilt brake fluid immediately with water.

12.12 Checking the rear brake linings

Warning
Danger of accidents Reduced braking efficiency caused by worn brake linings.
– Change worn brake linings immediately. (Your authorized Husqvarna workshop will be glad to help.)
–
Check the brake linings for minimum thicknessA.
Minimum thickness
» If the minimum thickness is less than specified:
– Change the rear brake linings. x ( p. 62)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. x ( p. 62)
B01843-10
A
≥ 1 mm (≥ 0.04 in)
Page 64
12 BRAKE SYSTEM 62

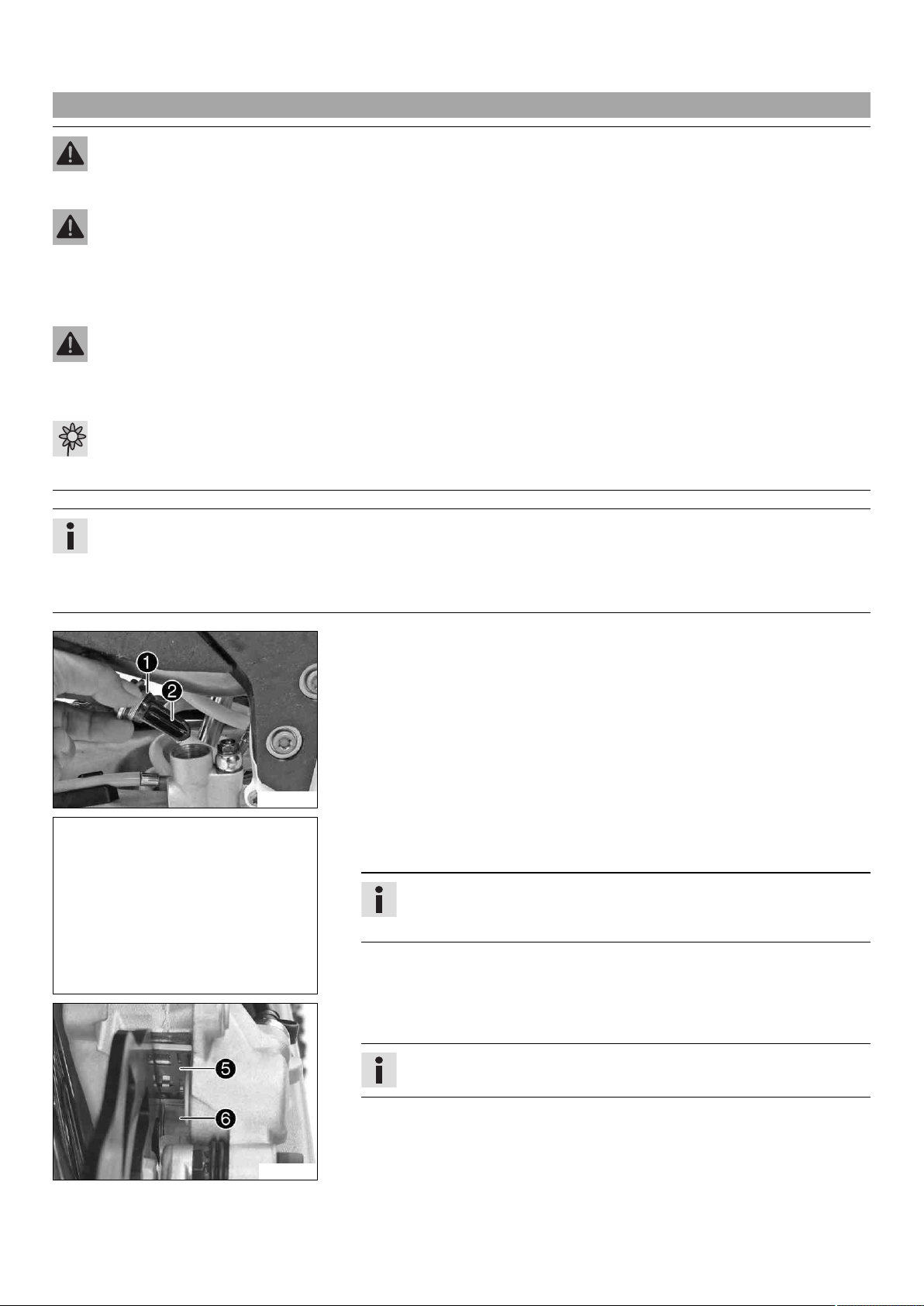

12.13 Changing the rear brake linings x

Warning
Danger of accident Brake system failure.
– Maintenance work and repairs must be carried out professionally. (Your authorized Husqvarna workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children. – Wear suitable protective clothing and goggles. – If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized Husqvarna workshop
will be glad to help.)
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5 brake fluid. Avoid contact between brake fluid and painted parts. Brake fluid attacks paint! Use only clean brake fluid from a sealed container.
– Stand the vehicle upright.
–
Remove screw cap1with membrane2and the O-ring.
B01904-10
– Press the brake caliper onto the brake disc by hand in order to push back the brake
piston and ensure that brake fluid does not flow out of the brake fluid reservoir, extracting it by suction if it does.
Info
Make sure when pushing back the brake piston that you do not press the brake caliper against the spokes.
–
Remove cotter pins3, pull out pin4, and remove the brake linings.
B01906-10
– Clean the brake caliper and brake caliper support.
–
Check that leaf spring5in the brake caliper and sliding plate6in the brake caliper support are seated correctly.
L00194-10
Info
The arrow on the leaf spring points in the rotation direction of the brake disc.
Page 65
12 BRAKE SYSTEM 63
–
Insert the new brake linings, insert pin4, and mount cotter pins3.
Info
Always change the brake linings in pairs.
Info
Make sure that the decoupling plate7is mounted on the piston side of the brake lining.
B01905-10
B01903-10
– Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
–
Add brake fluid to levelA.
Brake fluid DOT 4 / DOT 5.1 ( p. 91)
–
Mount and tighten screw cap1with membrane2and the O-ring.
Info
Clean up overflowed or spilt brake fluid immediately with water.
Page 66

13 WHEELS, TIRES 64

13.1 Removing the front wheel x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Press the brake caliper onto the brake disc by hand in order to push back the brake
pistons.
Info
Make sure when pushing back the brake pistons that you do not press the brake caliper against the spokes.
L00215-10
–
Loosen screw1by several turns.
–
Loosen screws2.
–
Press on screw1to push the wheel spindle out of the axle clamp.
–
Remove screw1.
L00212-10
B00303-10
L00214-10

13.2 Installing the front wheel x

– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of the
fork.
Info
Do not pull the hand brake lever when the front wheel is removed. Always lay the wheel down in such a way that the brake disc is not damaged.
–
Remove spacers3.
Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the wheel bearing. x
–
Clean and grease the shaft seal rings1and contact surfaceAof the spacers.
– Insert the spacers. – Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
L00214-11
Page 67
13 WHEELS, TIRES 65
–
Mount and tighten screw2. Guideline
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft)
– Activate the hand brake lever multiple times until the brake linings are in contact with
the brake disc.
– Remove the motorcycle from the lift stand. ( p. 32) – Pull the front brake and compress the fork powerfully a few times.
L00212-11
–

13.3 Removing the rear wheel x

Preparatory work
– Raise the motorcycle with a lift stand. ( p. 32)
Main work
– Press the brake caliper onto the brake disc by hand in order to push back the brake
The fork legs straighten. Tighten screws3. Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
piston.
Info
Make sure when pushing back the brake piston that you do not press the brake caliper against the spokes.
B01790-10
101848-10
–
Remove nut1.
–
Remove chain adjuster2. Withdraw wheel spindle3only enough to allow the rear wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Remove the chain from the rear
sprocket.
Info
Protect the components against damage by covering them.
– Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swing arm.
Info
Do not operate the foot brake when the rear wheel is removed. Always lay the wheel down in such a way that the brake disc is not damaged.
–
Remove spacers4.

13.4 Installing the rear wheel x

Warning
Danger of accidents Reduced braking efficiency due to oil or grease on the brake discs.
– Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Page 68
13 WHEELS, TIRES 66
Main work
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the wheel bearing. x
–
Clean and grease the shaft seal rings1and contact surfaceAof the spacers.
– Insert the spacers.
101848-11
–

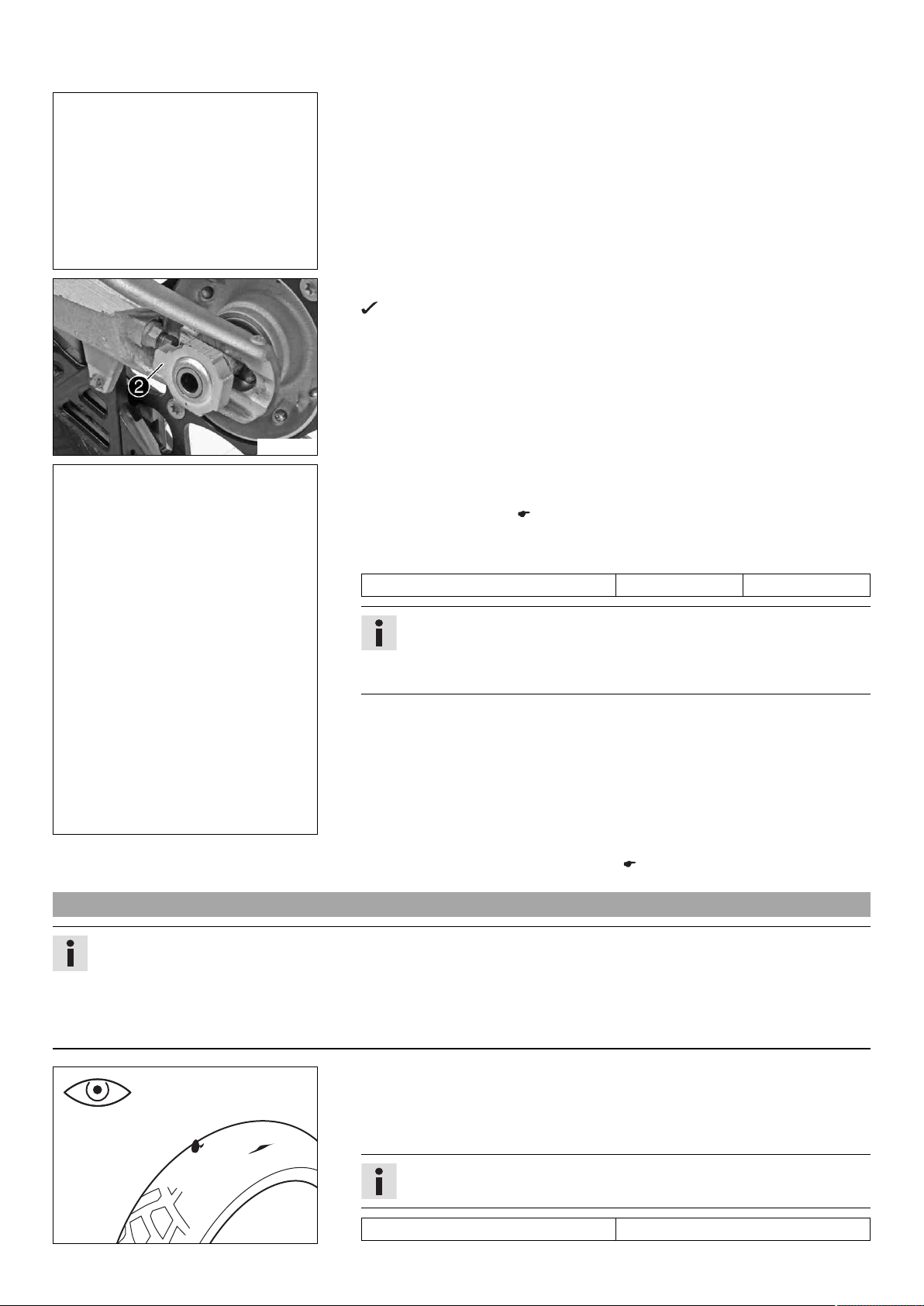

Position the rear wheel and insert wheel spindle2.
The brake linings are correctly positioned.
– Put the chain on.
B01791-10
–
Position chain adjuster3. Mount nut4, but do not tighten it yet.
–
Make sure that chain adjusters3are fitted correctly on adjusting screws5.
– Check the chain tension. ( p. 49)
–
Tighten nut4. Guideline
Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft)
Info
The wide adjustment range of the chain adjusters (32 mm (1.18 in)) enables different secondary ratios with the same chain length.
Chain adjusters3can be turned by 180°.
– Operate the foot brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
B01792-10
Finishing work
– Remove the motorcycle from the lift stand. ( p. 32)

13.5 Checking the tire condition

Info
Only mount tires approved and/or recommended by Husqvarna. Other tires could have a negative effect on handling characteristics. The type, condition and air pressure of the tires all have an important impact on the handling characteristics of the motorcycle. The front and rear wheels must be mounted with tires with similar profiles. Worn tires have a negative effect on handling characteristics, especially on wet surfaces.
400602-10
– Check the front and rear tires for cuts, run-in objects and other damage.
» If the tire exhibits cuts, run-in objects or other damage:
– Change the tire.
– Check the depth of the tread.
Info
Note local national regulations concerning the minimum tread depth.
Minimum tread depth ≥ 2 mm (≥ 0.08 in)
Page 69
13 WHEELS, TIRES 67
» If the tread depth is less than the minimum permissible depth:
– Change the tire.
– Check the tire age.
Info
The tire's date of manufacture is usually part of the tire markings and is indi­cated by the last four digits of the DOT marking. The first two digits indicate the week of manufacture and the last two digits the year of manufacture. Husqvarna recommends that the tires be changed after 5 years at the latest, regardless of the actual state of wear.
» If the tire is older than five years:
– Change the tire.

13.6 Checking the tire air pressure

Info
Low tire air pressure leads to abnormal wear and overheating of the tire. Correct tire air pressure ensures optimal riding comfort and maximum tire service life.
– Remove the protection cap. – Check the tire air pressure when the tires are cold.
Tire air pressure off road
Front 1.0 bar (15 psi) Rear 1.0 bar (15 psi)
» If the tire pressure does not meet specifications:
– Correct the tire pressure.
400695-01
– Mount the protection cap.

13.7 Checking the spoke tension

Warning
Danger of accidents Instable handling due to incorrect spoke tension.
– Ensure that the spoke tension is correct. (Your authorized Husqvarna workshop will be glad to help.)
Info
A loose spoke causes wheel imbalance and rapidly leads to more loose spokes. If the spokes are too tight, they can break due to local overload. Check the spoke tension regularly, especially on a new motorcycle.
– Briefly strike each spoke with the tip of a screwdriver.
Info
The tone frequency depends on the length of the spoke and the spoke diam­eter. If you hear different tone frequencies from different spokes of equal length and diameter, this is an indication of different spoke tensions.
400694-01
You should hear a high note.
» If the spoke tension varies:
– Correct the spoke tension. x
– Check the spoke torque.
Guideline
Spoke nipple, front wheel M4.5 5… 6 Nm (3.7…
4.4 lbf ft)
Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7…
4.4 lbf ft)
Torque wrench with various accessories in set (58429094000)
Page 70

14 ELECTRICAL SYSTEM 68

14.1 Removing the battery x

Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. – Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms. – In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 42)
Main work
–
Pull back the negative terminal cover1and disconnect the negative cable from the battery.
–
Pull back the positive terminal cover2and disconnect the positive cable from the battery.
–
Detach rubber band3at the bottom.
– Lift the battery up and out.
B01788-10

14.2 Installing the battery x

B01789-10
Main work
– Insert the battery into the battery compartment with the terminals facing to the front.
Battery (YTX5L-BS) ( p. 87)
–
Reconnect rubber band1.
Info
Contact diskAmust be mounted between screw4and cable lug with the claws facing down.
– Position the positive cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
–
Slide positive terminal cover2over the positive terminal.
– Position the negative cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
–
Slide negative terminal cover3over the negative terminal.
Finishing work
– Mount the seat. ( p. 42)
5
Page 71
14 ELECTRICAL SYSTEM 69

14.3 Charging the battery x

Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. – Avoid contact with battery acid and battery gases. – Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms. – In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Warning
Environmental hazard Battery components and acid are harmful to the environment.
– Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner.
Give it to your Husqvarna dealer or to a disposal center for used batteries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it still loses power steadily. The charging level and the method of charging are very important for the service life of the battery. Rapid recharging with a high charging current shortens the battery's service life. If the charging current, charging voltage and charging time are exceeded, electrolyte escapes through the safety valves. This reduces the battery capacity. If the battery is depleted from starting the vehicle repeatedly, the battery must be charged immediately. If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfate, destroying the bat­tery. The battery is maintenance-free, which means that the acid level does not need to be checked.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 42) – Disconnect the negative cable of the battery to avoid damage to the onboard elec-
tronics.
Main work
– Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (81229074000)
You can also use the battery charger to test the open-circuit voltage and starting voltage of the battery, and to test the alternator. With this device, you cannot over­charge the battery.
Info
400240-10
Never remove lid1. Charge the battery with a maximum of 10% of the capacity specified on the battery housing2.
– Switch off the battery charger after charging. Disconnect the battery.
Guideline
The charge current, charge voltage and charge time must not be exceeded. Charge the battery regularly when the
motorcycle is not in use
Finishing work
– Mount the seat. ( p. 42)
3 months
Page 72
14 ELECTRICAL SYSTEM 70

14.4 Changing the main fuse

Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under the air filter box lid.
Preparatory work
– Switch off all power consumers and switch off the engine. – Remove the air filter box lid. ( p. 42)
Main work
–
Take off protection caps1.
–
Remove the faulty main fuse2.
Info
A defective fuse can be identified by the burned-out fuse wireA. A spare fuse3is located in the starter relay.
L01651-10
– Install a new main fuse.
Fuse (58011109110) ( p. 87)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps. – Mount the starter relay onto the holder and lay the cable.
Finishing work
– Install the air filter box lid. ( p. 42)
Page 73

15 COOLING SYSTEM 71

15.1 Cooling system

Water pump1in the engine circulates the coolant. The pressure resulting from the warming of the cooling system is regulated by a valve in radiator cap2. This ensures that operating the vehicle at the specified coolant temper­ature will not result in a risk of malfunctions.
120 °C (248 °F)
Cooling is effected by the air stream. The lower the speed, the less the cooling effect. Dirty cooling fins also reduce the cooling effect.
B01931-10

15.2 Checking the antifreeze and coolant level

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Condition
The engine is cold.
– Stand the motorcycle upright on a horizontal surface. – Remove the radiator cap. – Check antifreeze of coolant.
−25… −45 °C (−13… −49 °F)
» If the antifreeze of the coolant does not meet specifications:
– Correct the antifreeze of the coolant.
– Check the coolant level in the radiator.
400243-10
Coolant levelAabove radiator fins.
10 mm (0.39 in)
» If the coolant level does not meet specifications:
– Correct the coolant level.
Alternative 1
Coolant ( p. 91)
Alternative 2
Coolant (mixed ready to use) ( p. 91)
– Mount the radiator cap.
Page 74
15 COOLING SYSTEM 72

15.3 Checking the coolant level

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
Condition
The engine is cold.
– Stand the motorcycle upright on a horizontal surface. – Remove the radiator cap. – Check the coolant level in the radiator.
10 mm (0.39 in)
400243-10
Coolant levelAabove radiator fins.
» If the coolant level does not meet specifications:
– Correct the coolant level.
Alternative 1
Coolant ( p. 91)
Alternative 2
Coolant (mixed ready to use) ( p. 91)
– Mount the radiator cap.

15.4 Draining the coolant x

Warning
Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure.
– Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine
and cooling system to cool down. In case of scalding, rinse immediately with lukewarm water.
Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.

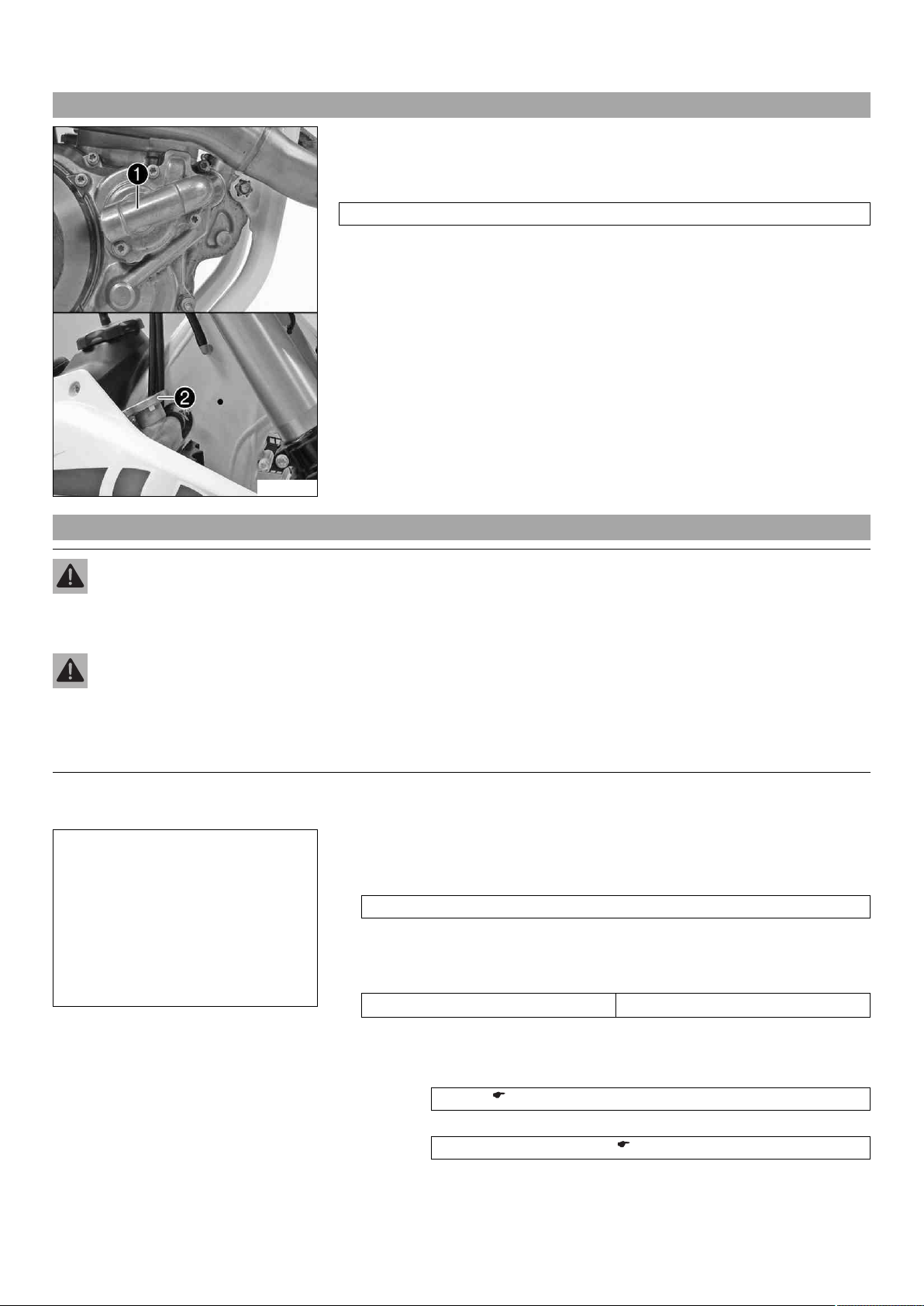

B01932-10
Condition
The engine is cold.
– Position the motorcycle upright. – Place a suitable container under the water pump cover.
–
Remove screw1. Take off radiator cap2.
– Completely drain the coolant.
–
Mount and tighten screw1with a new seal ring. Guideline
Screw, water pump cover M6 10 Nm (7.4 lbf ft)
Page 75
15 COOLING SYSTEM 73

15.5 Refilling coolant x

Warning
Danger of poisoning Coolant is poisonous and a health hazard.
– Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme-
diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If coolant is swal­lowed, contact a physician immediately. Change clothing that is contaminated with coolant. Keep coolant out of reach of chil­dren.
–
Make sure that screw1is tightened.
– Position the motorcycle upright.
–
Pour coolant in up to measurementAabove the radiator fins. Guideline
10 mm (0.39 in)
Coolant (mixed ready to use) ( p. 91)
B01933-10
DimensionAover the radiator fins
Coolant 1.20 l (1.27 qt.) Coolant ( p. 91)
– Mount the radiator cap. – Take a short test ride. – Check the coolant level. ( p. 72)
Page 76

16 TUNING THE ENGINE 74

16.1 Checking the play in the throttle cable

– Check the throttle grip for smooth operation. – Move the handlebar to the straight-ahead position. Move the throttle grip backwards
and forwards to ascertain the play in the throttle cable.
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
» If the throttle cable play does not meet specifications:
– Adjust the play in the throttle cable. x ( p. 74)
400192-10
– Start the engine and let it run idle. Move the handlebar to and fro over the entire
Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
steering range.
The idle speed must not change.
» If the idle speed changes:
– Adjust the play in the throttle cable. x ( p. 74)

16.2 Adjusting the play in the throttle cable x

Preparatory work
– Remove the seat. ( p. 42)
– Remove the fuel tank. x ( p. 46)
– Check the throttle cable routing. ( p. 52)
Main work
– Move the handlebar to the straight-ahead position.
–
Push back sleeves1.
–
Loosen nut2. Turn adjusting screw3in as far as possible.
–
Loosen nut4. Turn adjusting screw5so that there is play in the throttle cable at the throttle grip.
Guideline
Danger
B01934-10
Play in throttle cable 3… 5 mm (0.12… 0.2 in)
–
Tighten nut4.
–
Press and hold the throttle grip in the closed setting. Turn adjusting screw3out until there is no play in the throttle cable6.
–
Tighten nut2.
–
Push sleeves1on. Check the throttle grip for smooth operation.
Finishing work
– Check the play in the throttle cable. ( p. 74)
– Install the fuel tank. x ( p. 47)
– Mount the seat. ( p. 42)
Page 77
16 TUNING THE ENGINE 75

16.3 Adjusting the idle speed x

– Run the engine until warm.
–
Set the desired idle speed by turning the idle speed adjusting screw1. Guideline
Idle speed 2,250… 2,350 rpm
Tachometer (45129075000)
Info
Turn counterclockwise to decrease the idle speed. Turn clockwise to increase the idle speed.
B01923-10

16.4 Checking the basic position of the shift lever

–
Sit on the vehicle in the riding position and determine the distanceAbetween the upper edge of your boot and the shift lever.
Distance between shift lever and upper edge of boot
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever. x ( p. 75)
400692-10

16.5 Adjusting the basic position of the shift lever x

–
Remove screw1and take off shift lever2.
401950-12
–
Clean gear teethAof the shift lever and shift shaft.
– Mount the shift lever on the shift shaft in the required position and engage the gear-
ing.
10… 20 mm (0.39… 0.79 in)
401951-10
Info
The range of adjustment is limited. The shift lever must not come into contact with any other vehicle components during the shift procedure.
– Mount and tighten the screw.
Guideline
Screw, shift lever M6 14 Nm
Loctite®243™
(10.3 lbf ft)
Page 78

17 SERVICE WORK ON THE ENGINE 76

17.1 Changing the fuel screen x

Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel
is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
–
Thoroughly clean plug-in connection1of the fuel line using compressed air.
Info
Under no circumstances should dirt enter into the fuel line. Dirt in the fuel line clogs the injection valve.
– Disconnect the plug-in connection of the fuel line.
– – Push the new fuel screen all the way into the connecting piece. – Lubricate the O-ring and connect plug-in connection of the fuel line.
– Start the engine and check the response.
B01935-10

17.2 Checking the engine oil level

Condition
The engine is at operating temperature.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
Main work
– Check the engine oil level.
Pull fuel screen2out of the connecting piece.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
Info
After switching off the engine, wait one minute before checking the level.
B01936-10
The engine oil level is betweenAandB.
»
If the engine oil level is below markingA: – Add engine oil. ( p. 79)
»
If the engine oil level is at markingBor above: – Correct the engine oil level.
Page 79
17 SERVICE WORK ON THE ENGINE 77

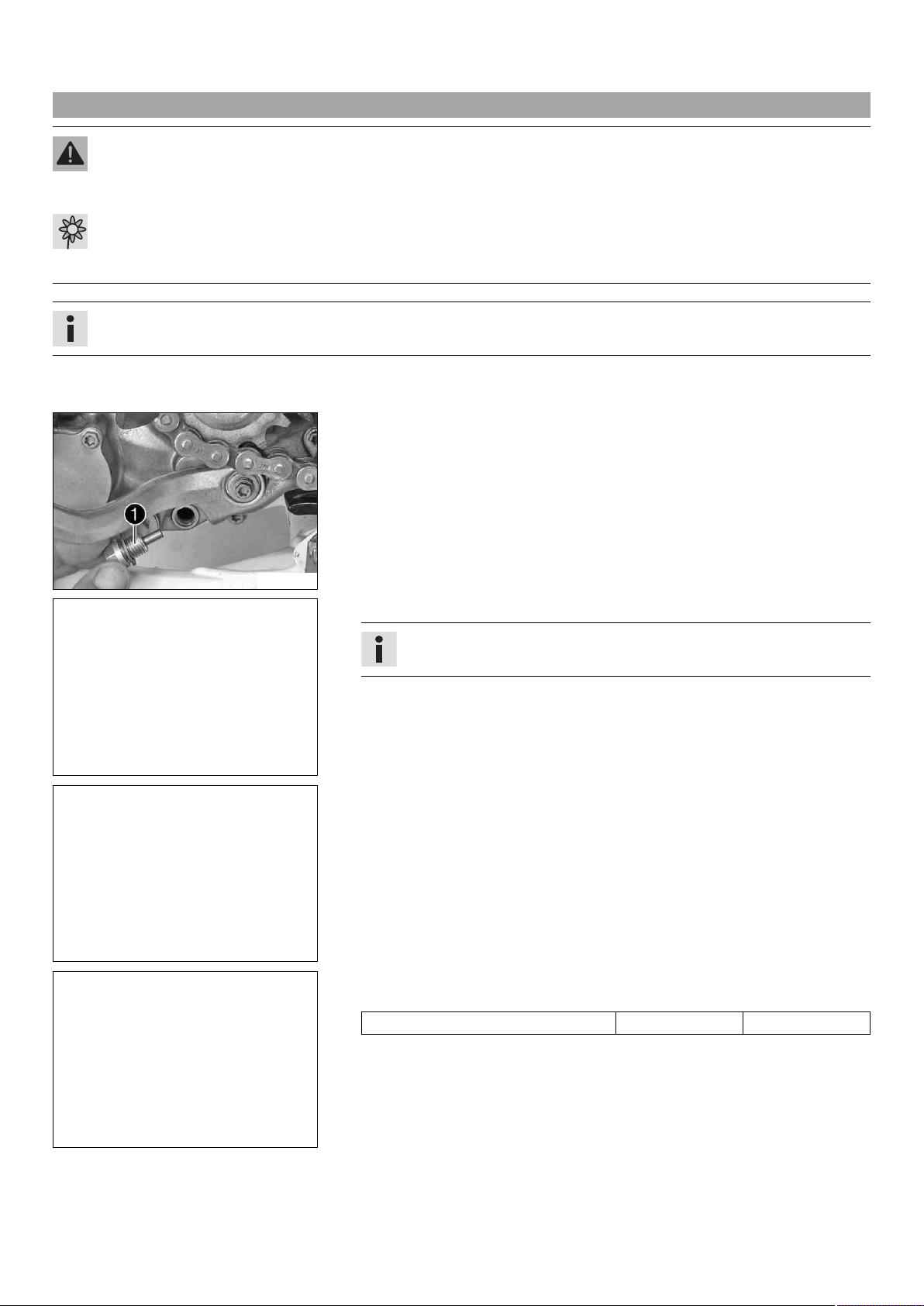

17.3 Changing the engine oil and oil filter, cleaning the oil screens x

Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the engine oil only when the engine is warm.
Preparatory work
– Park the motorcycle on a level surface.
Main work
– Place a suitable container under the engine.
–
Remove oil drain plug1with the magnet and seal ring.
B01758-10
B01759-10
B01760-10
–
Remove screw plug2with the short oil screen and the O-rings.
Info
Do not remove screwA.
–
Remove screw plug3with the long oil screen4and the O-rings.
– Completely drain the engine oil. – Thoroughly clean the parts and sealing surfaces.
–
Mount and tighten screw plug2with the short oil screen and the O-rings. Guideline
Screw plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
B01759-11
Page 80
17 SERVICE WORK ON THE ENGINE 78
–
Place the long oil screen4with the O-rings onto a pin wrench.
– Insert the pin wrench through the drill hole of the screw plug and into the engine
case on the opposite side.
– Push the oil screen all the way into the engine case.
B01761-10
–
Mount and tighten screw plug3with the O-ring. Guideline
Screw plug, oil screen M20x1.5 15 Nm (11.1 lbf ft)
–
Mount and tighten the oil drain plug1with the magnet and a new seal ring. Guideline
Oil drain plug with magnet M12x1.5 20 Nm (14.8 lbf ft)
B01762-10
–
Remove screws5. Remove the oil filter cover with the O-ring.
B01763-10
B01764-10
B01763-11
–

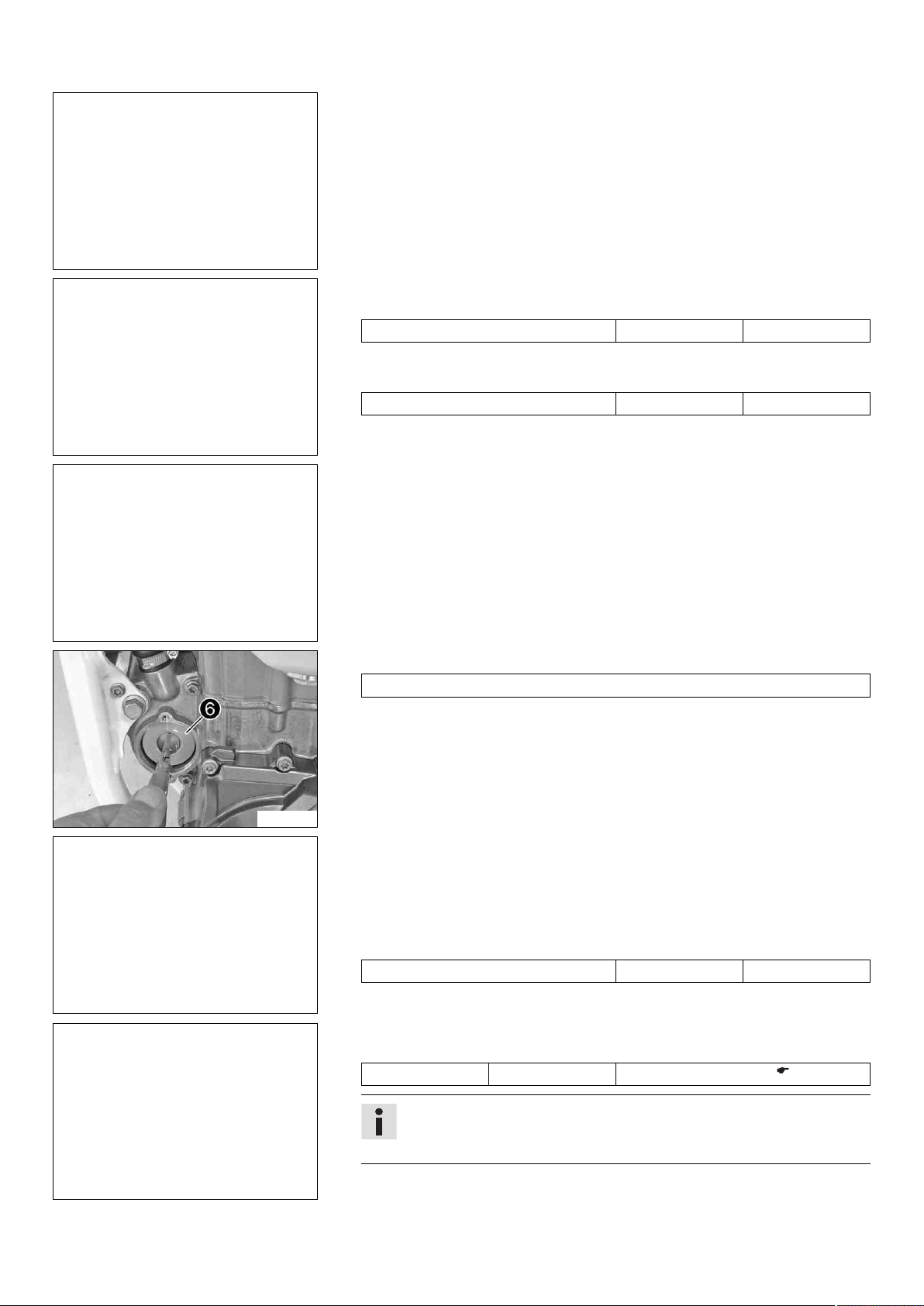

Pull oil filter6out of the oil filter housing.
Circlip pliers reverse (51012011000)
– Completely drain the engine oil. – Thoroughly clean the parts and sealing surface.
– Lay the motorcycle on its side and fill the oil filter housing to about ⅓ full with engine
oil.
– Insert the oil filter into the oil filter housing.
–
Lubricate the O-ring of the oil filter cover and mount it with the oil filter cover7.
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
– Stand the motorcycle upright.
–
Remove the oil filler plug8with the O-ring from the clutch cover and fill up with engine oil.
Engine oil 1.50 l (1.59 qt.) Engine oil (SAE 10W/50) ( p. 91)
B01937-11
Info
Too little engine oil or poor-quality engine oil results in premature wear to the engine.
– Install and tighten the oil filler plug with O-ring.
Page 81
17 SERVICE WORK ON THE ENGINE 79
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
– Start the engine and check that it is oil-tight.
Finishing work
– Check the engine oil level. ( p. 76)

17.4 Adding engine oil

Info
Too little engine oil or poor-quality engine oil results in premature wear to the engine.
–
Remove the oil filler plug1with the O-ring from the clutch cover.
– Add the same engine oil that was used when the motor was changed.
Engine oil (SAE 10W/50) ( p. 91)
Info
For optimal performance of the engine oil, do not mix different types of engine oil. If appropriate, change the engine oil.
B01937-10
– Install and tighten the oil filler plug with O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhaling them may
result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventilation,
and do not start or run the engine in an enclosed space without an effec­tive exhaust extraction system.
– Start the engine and check that it is oil-tight.
Page 82

18 CLEANING, CARE 80

18.1 Cleaning the motorcycle

Note
Material damage Damage and destruction of components by high-pressure cleaning equipment.
– When cleaning the vehicle with a pressure cleaner, do not point the water jet directly onto electrical components, connectors, cables,
bearings, etc. Maintain a minimum distance of 60 cm between the nozzle of the pressure cleaner and the component. Excessive pressure can cause malfunctions or destroy these parts.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
If you clean the motorcycle regularly, its value and appearance will be maintained over a long period. Avoid direct sunshine on the motorcycle during cleaning.
– Close off the exhaust system to prevent water from entering. – First remove coarse dirt particles with a gentle spray of water. – Spray very dirty areas with a normal motorcycle cleaner and then clean with a paint-
brush.
401061-01
Info
Use warm water containing normal motorcycle cleaner and a soft sponge. Never apply motorcycle cleaner to the dry vehicle; always rinse with water first.
– After rinsing the motorcycle with a gentle spray of water, allow it to dry thoroughly. – Remove the plug from the exhaust system.
Warning
Danger of accidents Reduced braking efficiency due to a wet or dirty
brake system.
– Clean or dry a dirty or wet brake system by riding and braking gently.
– After cleaning, ride a short distance until the engine reaches operating temperature.
Info
The heat produced causes water at inaccessible locations in the engine and the brake system to evaporate.
– After the motorcycle has cooled off, lubricate all moving parts and bearings. – Clean the chain. ( p. 48) – Treat bare metal parts (except for brake discs and the exhaust system) with a corro-
sion inhibitor.
– Treat all plastic parts and powder-coated parts with a mild cleaning and care agent.
Page 83

19 STORAGE 81

19.1 Storage

Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the
eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel. Store fuel prop­erly in a suitable canister and keep away from children.
Info
If you want to garage the motorcycle for a longer period, take the following steps. Before storing the motorcycle, check all parts for function and wear. If service, repairs or replacements are necessary, you should do this during the storage period (less workshop overload). In this way, you can avoid long workshop waiting times at the start of the new season.
– When refueling for the last time before taking the motorcycle out of service, add fuel
additive.
– Refuel. ( p. 22) – Clean the motorcycle. ( p. 80)
– Change the engine oil and oil filter and clean the oil screens. x ( p. 77)
– Check the antifreeze and coolant level. ( p. 71) – Check the tire air pressure. ( p. 67)
401058-01
– Remove the battery. x ( p. 68) – Charge the battery. x ( p. 69)
Guideline
Storage temperature of battery without direct sunlight
0… 35 °C (32… 95 °F)
– Store the vehicle in a dry location that is not subject to large fluctuations in tempera-
– Raise the motorcycle with a lift stand. ( p. 32) – Cover the vehicle with a tarp or a cover that is permeable to air.

19.2 Preparing for use after storage

– Install the battery. x ( p. 68)
– Remove the motorcycle from the lift stand. ( p. 32) – Perform checks and maintenance work when preparing the vehicle for use. ( p. 20) – Make a test ride.
ture.
Info
Husqvarna recommends raising the motorcycle.
Info
Do not use non-porous materials since they prevent humidity from escaping, thus causing corrosion. Avoid running the engine for a short time only. Since the engine cannot warm up properly, the water vapor produced during combustion condenses and causes valves and exhaust system to rust.
401059-01
Page 84

20 TROUBLESHOOTING 82

Faults Possible cause Action
The engine does not turn when the starter button is pressed
Engine turns but does not start Coupling of fuel hose connection not
Engine does not speed up Defect in fuel injection system – Read out the fault memory using the Husqvarna
Engine has too little power Air filter is very dirty – Clean the air filter and air filter box. x ( p. 43)
Engine dies during the trip Lack of fuel – Refuel. ( p. 22) Engine overheats Too little coolant in cooling system – Check the cooling system for leakage.
FI warning lamp (MIL) lights up/flashes
High oil consumption Engine vent hose bent – Route the vent hose without bends or change it
Battery is discharged Battery is not charging – Check the charging voltage. x
Operating error – Carry out the start procedure. ( p. 20)
Battery is discharged – Charge the battery. x ( p. 69)
– Check the charging voltage. x – Check the quiescent current. x – Check the stator winding of the alternator. x
Main fuse blown – Change the main fuse. ( p. 70)
Starter relay defective – Check the starter relay. x Starter motor defective – Check the starter motor. x
– Join the fuel hose connection.
joined together
Idle speed is not set correctly – Adjust the idle speed. x ( p. 75)
Spark plug oily or wet – Clean and dry the spark plug, or change it if
necessary.
Electrode distance (plug gap) of spark plug too wide
Short circuit cable in wiring harness frayed, kill switch defective
Defect in fuel injection system – Read out the fault memory using the Husqvarna
Fuel filter is very dirty – Change the fuel filter. x
Defect in fuel injection system – Read out the fault memory using the Husqvarna
Exhaust system leaky, deformed or too little glass fiber yarn filling in main silencer
Valve clearance too little – Adjust the valve clearance. x
Too little air stream – Switch off the engine when standing. Radiator fins very dirty – Clean radiator fins.
Foam formation in cooling system – Drain the coolant. x ( p. 72)
Bent radiator hose – Change the radiator hose. x
Defect in fuel injection system – Stop the motorcycle and identify the faulty part
Engine oil level too high – Check the engine oil level. ( p. 76) Engine oil too thin (low viscosity) – Change the engine oil and oil filter and clean the
Piston and cylinder worn – Piston/cylinder - determine the mounting clear-
– Adjust the plug gap.
Guideline Spark plug electrode gap
0.9 mm (0.035 in)
– Check the wiring harness. (visual check) – Check the electrical system.
diagnostics tool. x diagnostics tool. x
diagnostics tool. x
– Check exhaust system for damage. – Change the glass fiber yarn filling of the main
silencer. x ( p. 45)
– Check the coolant level. ( p. 72)
– Refill the coolant. x ( p. 73)
using the blink code.
– Check the cabling for damage and the electrical
connectors for corrosion and damage.
– Read out the fault memory using the Husqvarna
diagnostics tool. x
if necessary.
oil screens. x ( p. 77)
ance.
– Check the stator winding of the alternator. x
Page 85
20 TROUBLESHOOTING 83
Faults Possible cause Action
Battery is discharged Unwanted power consumer – Check the quiescent current. x
Page 86

21 BLINK CODE 84

Blink code FI warning lamp (MIL)
02 FI warning lamp (MIL) flashes 2x short
Error level condition Crankshaft position sensor - circuit fault
Blink code FI warning lamp (MIL)
06 FI warning lamp (MIL) flashes 6x short
Error level condition Throttle position sensor circuit A - input signal too low
Throttle position sensor circuit A - input signal too high
Blink code FI warning lamp (MIL)
09 FI warning lamp (MIL) flashes 9x short
Error level condition Manifold absolute pressure sensor cylinder 1 - input signal too low
Manifold absolute pressure sensor cylinder 1 - input signal too high
Blink code FI warning lamp (MIL)
12 FI warning lamp (MIL) flashes 1x long, 2x short
Error level condition Engine coolant temperature sensor - input signal too low
Engine coolant temperature sensor - input signal too high
Blink code FI warning lamp (MIL)
13 FI warning lamp (MIL) flashes 1x long, 3x short
Error level condition Intake air temperature sensor - input signal to low
Intake air temperature sensor - input signal too high
Blink code FI warning lamp (MIL)
15 FI warning lamp (MIL) flashes 1x long, 5x short
Error level condition Rollover sensor (A/D type) - input signal too low
Rollover sensor (A/D type) - input signal too high
Blink code FI warning lamp (MIL)
33 FI warning lamp (MIL) flashes 3x long, 3x short
Error level condition Injector cylinder 1 - circuit fault
Blink code FI warning lamp (MIL)
37 FI warning lamp (MIL) flashes 3x long, 7x short
Error level condition Ignition coil 1, cylinder 1 - circuit fault
Blink code FI warning lamp (MIL)
41 FI warning lamp (MIL) flashes 4x long, 1x short
Error level condition Fuel pump control - short circuit to ground or open circuit
Fuel pump control - input signal too low
Page 87

22 TECHNICAL DATA 85

22.1 Engine

Design 1-cylinder 4-stroke engine, water-cooled Displacement 449.3 cm³ (27.418 cu in) Stroke 63.4 mm (2.496 in) Bore 95 mm (3.74 in) Compression ratio 12.6:1 Idle speed 2,250… 2,350 rpm Control OHC, 4 valves controlled via rocker arm Valve diameter, intake 40 mm (1.57 in) Valve diameter, exhaust 33 mm (1.3 in) Valve clearance
Intake at: 20 °C (68 °F) 0.10… 0.15 mm (0.0039… 0.0059 in)
Exhaust at: 20 °C (68 °F) 0.12… 0.17 mm (0.0047… 0.0067 in) Crankshaft bearing 2 grooved ball bearings Conrod bearing Slide bearing Piston pin bearing Not a bearing bush - DLC-plated piston pins Pistons Forged light alloy Piston rings 1 compression ring, 1 oil scraper ring Engine lubrication Pressure circulation lubrication with two Eaton pumps Primary transmission 32:76 Clutch Multidisc clutch in oil bath/hydraulically activated Gearbox 5-gear, claw shifted Transmission ratio
1st gear 16:32
2nd gear 18:30
3rd gear 20:28
4th gear 22:26
5th gear 24:24 Alternator 12 V, 75 W Ignition Contactless controlled fully electronic ignition with digital ignition
adjustment Spark plug NGK LKAR8AI-9 Spark plug electrode gap 0.9 mm (0.035 in) Cooling Water cooling, permanent circulation of coolant by water pump Starting aid Electric starter

22.2 Engine tightening torques

Screw, cable holder in alternator cover M4 4 Nm (3 lbf ft) Loctite®243™ Screw, oil jet for piston cooling M4 2 Nm (1.5 lbf ft) Loctite®243™ Screw, stator M4 4 Nm (3 lbf ft) Loctite®648™ Oil nozzle, piston cooling M5 2 Nm (1.5 lbf ft) Loctite®243™ Oil nozzle, rocker arm lubrication M5 2 Nm (1.5 lbf ft) Loctite®243™ Screw, bearing retainer M5 6 Nm (4.4 lbf ft) Loctite®2701™ Screw, clutch spring retainer M5 6 Nm (4.4 lbf ft) – Screw, crankshaft position sensor M5 6 Nm (4.4 lbf ft) Loctite®243™ Screw, locking lever M5 6 Nm (4.4 lbf ft) Loctite®243™ Screw, oil filter cover M5 6 Nm (4.4 lbf ft) – Screw, suction pump cover M5 6 Nm (4.4 lbf ft) Loctite®243™ Nut, water-pump wheel M6 8 Nm (5.9 lbf ft) Loctite®243™ Plug, vacuum connection M6 2.5 Nm (1.84 lbf ft) Loctite®243™ Screw plug EVAP M6 5 Nm (3.7 lbf ft) Loctite®243™
Page 88
22 TECHNICAL DATA 86
Screw, alternator cover M6 10 Nm (7.4 lbf ft) – Screw, bearing bolt for starter idler gear M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, bearing bolt, torque limiter M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, camshaft support plate M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, clutch cover M6 10 Nm (7.4 lbf ft) – Screw, cylinder head M6 10 Nm (7.4 lbf ft) – Screw, engine case M6 10 Nm (7.4 lbf ft) – Screw, exhaust flange M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, pressure pump cover M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, shift drum locating M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, shift lever M6 14 Nm (10.3 lbf ft) Loctite®243™ Screw, starter motor M6 10 Nm (7.4 lbf ft) – Screw, timing chain guide rail M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, timing chain securing guide M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, timing chain tensioner M6 10 Nm (7.4 lbf ft) – Screw, timing chain tensioning rail M6 10 Nm (7.4 lbf ft) Loctite®243™ Screw, valve cover M6 10 Nm (7.4 lbf ft) – Screw, water pump cover M6 10 Nm (7.4 lbf ft) – Oil nozzle for conrod bearing lubrication M6x0.75 4 Nm (3 lbf ft) – Plug, oil channel M7 9 Nm (6.6 lbf ft) Loctite®243™ Screw, rocker arm bearing M7 15 Nm (11.1 lbf ft) – Plug, timing chain tensioner M8 8 Nm (5.9 lbf ft) – Screw plug, crankshaft location M8 10 Nm (7.4 lbf ft) – Plug, oil channel M10 15 Nm (11.1 lbf ft) Loctite®243™ Screw, engine sprocket M10 60 Nm (44.3 lbf ft) Loctite®2701™ Screw, cylinder head M10x1.25 Step 1
10 Nm (7.4 lbf ft) Step 2 30 Nm (22.1 lbf ft) Step 3 50 Nm (36.9 lbf ft)
Nut, rotor M12x1 60 Nm (44.3 lbf ft) Thread, oiled with engine
Spark plug M12x1.25 15… 20 Nm (11.1…
14.8 lbf ft) Engine coolant temperature sensor M12x1.5 12 Nm (8.9 lbf ft) – Oil drain plug with magnet M12x1.5 20 Nm (14.8 lbf ft) – Plug, oil pressure regulator valve M12x1.5 20 Nm (14.8 lbf ft) – Plug, SLS M12x1.5 20 Nm (14.8 lbf ft) – Nut, inner clutch hub M18x1.5 80 Nm (59 lbf ft) – Screw plug, rocker arm M18x1.5 30 Nm (22.1 lbf ft) – Nut, primary gear M20LHx1.5 100 Nm (73.8 lbf ft) Loctite®648™ Screw plug, oil screen M20x1.5 15 Nm (11.1 lbf ft) –
Lubricated with engine oil
oil/cone degreased
–

22.3 Capacities

22.3.1 Engine oil

Engine oil 1.50 l (1.59 qt.) Engine oil (SAE 10W/50) ( p. 91)

22.3.2 Coolant

Coolant 1.20 l (1.27 qt.) Coolant ( p. 91)
Coolant (mixed ready to use) ( p. 91)
Page 89
22 TECHNICAL DATA 87

22.3.3 Fuel

Total fuel tank capacity, approx.
7.5 l (1.98 US gal) Super unleaded (ROZ 95/RON 95/PON 91) ( p. 91)

22.4 Chassis

Frame Central tube frame made of chrome molybdenum steel tubing Fork WP Suspension Up Side Down 4860 MXMA CC Suspension travel
Front 300 mm (11.81 in)
Suspension travel
Rear 317 mm (12.48 in) Fork offset 22 mm (0.87 in) Shock absorber WP Suspension 5018 BAVP DCC Brake system Disc brakes, brake calipers on floating bearings Brake discs - diameter
Front 260 mm (10.24 in)
Rear 220 mm (8.66 in) Brake discs - wear limit
Front 2.5 mm (0.098 in)
Rear 3.5 mm (0.138 in) Tire air pressure off road
Front 1.0 bar (15 psi)
Rear 1.0 bar (15 psi) Secondary ratio 14:50 Chain 5/8 x 1/4" Rear sprockets available 48, 50, 52 Steering head angle 63.5° Wheelbase 1,495±10 mm (58.86±0.39 in) Ground clearance, unloaded 374 mm (14.72 in) Seat height, unloaded 992 mm (39.06 in) Weight without fuel, approx. 107.6 kg (237.2 lb.) Maximum permissible front axle load 145 kg (320 lb.) Maximum permissible rear axle load 190 kg (419 lb.) Maximum permissible overall weight 335 kg (739 lb.)

22.5 Electrical system

Battery YTX5L-BS Battery voltage: 12 V
Nominal capacity: 4 Ah Maintenance-free
Fuse 58011109110 10 A
FI warning lamp LED
Page 90
22 TECHNICAL DATA 88

22.6 Tires

Front tires Rear tires
80/100 - 21 M/C 51M TT
Dunlop GEOMAX MX 51 FA Additional information is available in the Service section under:
www.husqvarna-motorcycles.com

22.7 Fork

Fork part number 14.18.7N.59 Fork WP Suspension Up Side Down 4860 MXMA CC Compression damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks Rebound damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks Spring length with preload spacer(s) 490 mm (19.29 in) Spring rate
Weight of rider: 65… 75 kg (143… 165 lb.) 4.8 N/mm (27.4 lb/in)
Weight of rider: 75… 85 kg (165… 187 lb.) 5.0 N/mm (28.6 lb/in)
Weight of rider: 85… 95 kg (187… 209 lb.) 5.2 N/mm (29.7 lb/in) Gas pressure 1.2 bar (17 psi) Fork length 940 mm (37.01 in)
110/90 - 19 62M TT
Dunlop GEOMAX MX 51
Oil capacity per cartridge 195 ml (6.59 fl. oz.) Fork oil (SAE 4) (48601166S1) ( p. 91) Oil capacity fork leg without
cartridge
390 ml (13.19 fl. oz.) Fork oil (SAE 4) (48601166S1) ( p. 91)

22.8 Shock absorber

Shock absorber part number 18.15.7N.57 Shock absorber WP Suspension 5018 BAVP DCC Compression damping, low-speed
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks Compression damping, high-speed
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns Rebound damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks Spring preload 12 mm (0.47 in) Spring rate
Weight of rider: 65… 75 kg (143… 165 lb.) 54 N/mm (308 lb/in)
Weight of rider: 75… 85 kg (165… 187 lb.) 57 N/mm (325 lb/in)
Weight of rider: 85… 95 kg (187… 209 lb.) 60 N/mm (343 lb/in) Spring length 260 mm (10.24 in) Gas pressure 10 bar (145 psi)
Page 91
22 TECHNICAL DATA 89
Static sag 30 mm (1.18 in) Riding sag 100 mm (3.94 in) Fitted length 486 mm (19.13 in)
Shock absorber oil Shock absorber oil (SAE 2.5) (50180342S1) ( p. 91)

22.9 Chassis tightening torques

Screw, pressure regulator EJOT PT Spoke nipple, front wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) – Spoke nipple, rear wheel M4.5 5… 6 Nm (3.7… 4.4 lbf ft) – Screw, battery terminal M5 2.5 Nm (1.84 lbf ft) – Screw, intake air temperature sensor M5 2 Nm (1.5 lbf ft) – Screw, shock absorber adjusting ring M5 5 Nm (3.7 lbf ft) – Remaining nuts, chassis M6 10 Nm (7.4 lbf ft) – Remaining screws, chassis M6 10 Nm (7.4 lbf ft) – Screw, ball joint of push rod on foot
brake cylinder Screw, chain sliding guard M6 6 Nm (4.4 lbf ft) Loctite®243™ Screw, electric starter cable connection M6 4 Nm (3 lbf ft) – Screw, front brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™ Screw, rear brake disc M6 14 Nm (10.3 lbf ft) Loctite®243™ Screw, throttle grip M6 5 Nm (3.7 lbf ft) – Fuel connection on fuel tank M8 10 Nm (7.4 lbf ft) – Nut, foot brake lever stop M8 20 Nm (14.8 lbf ft) – Nut, rear sprocket screw M8 35 Nm (25.8 lbf ft) Loctite®2701™ Nut, rim lock M8 12 Nm (8.9 lbf ft) – Remaining nuts, chassis M8 25 Nm (18.4 lbf ft) – Remaining screws, chassis M8 25 Nm (18.4 lbf ft) – Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft) – Screw, chain sliding piece M8 15 Nm (11.1 lbf ft) – Screw, engine brace M8 33 Nm (24.3 lbf ft) – Screw, fork stub M8 15 Nm (11.1 lbf ft) – Screw, front brake caliper M8 25 Nm (18.4 lbf ft) Loctite®243™ Screw, handlebar clamp M8 20 Nm (14.8 lbf ft) – Screw, manifold M8 15 Nm (11.1 lbf ft) – Screw, subframe M8 30 Nm (22.1 lbf ft) Loctite®2701™ Screw, top steering stem M8 17 Nm (12.5 lbf ft) Loctite®243™ Screw, top triple clamp M8 17 Nm (12.5 lbf ft) – Engine carrying screw M10 60 Nm (44.3 lbf ft) – Remaining nuts, chassis M10 45 Nm (33.2 lbf ft) – Remaining screws, chassis M10 45 Nm (33.2 lbf ft) – Screw, bottom shock absorber M10 60 Nm (44.3 lbf ft) Loctite®2701™ Screw, handlebar support M10 40 Nm (29.5 lbf ft) Loctite®243™ Screw, top shock absorber M10 60 Nm (44.3 lbf ft) Loctite®2701™ Nut, fuel pump M12 15 Nm (11.1 lbf ft) – Nut, frame to linkage lever M14x1.5 80 Nm (59 lbf ft) – Nut, linkage lever on swingarm M14x1.5 80 Nm (59 lbf ft) – Nut, linkage lever to angle lever M14x1.5 80 Nm (59 lbf ft) – Nut, swingarm pivot M16x1.5 100 Nm (73.8 lbf ft) – Nut, rear wheel spindle M20x1.5 80 Nm (59 lbf ft) – Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft) – Screw-in nozzles, cooling system M20x1.5 12 Nm (8.9 lbf ft) Loctite®243™
M6 10 Nm (7.4 lbf ft) Loctite®243™
®
2.3 Nm (1.7 lbf ft) –
Page 92
22 TECHNICAL DATA 90
Screw, front wheel spindle M24x1.5 45 Nm (33.2 lbf ft) –
Page 93

23 SUBSTANCES 91

Brake fluid DOT 4 / DOT 5.1
Standard/classification
– DOT
Guideline
– Use only brake fluid that complies with the specified standard (see specifications on the container) and that possesses the corre-
sponding properties.
Coolant
Guideline
– Use only suitable coolant (even in countries with high temperatures). Using inferior antifreeze can result in corrosion and foaming. – Use only coolant based on ethylene glycol.
Mixture ratio
Antifreeze protection: −25… −45 °C (−13…
−49 °F)
Coolant (mixed ready to use)
Guideline
– Use only coolant based on ethylene glycol.
Antifreeze protection −40 °C (−40 °F)
50 % corrosion inhibitor/antifreeze 50 % distilled water
Engine oil (SAE 10W/50)
Standard/classification
– JASO T903 MA ( p. 93) – SAE ( p. 93) (SAE 10W/50)
Guideline
– Use only engine oils that comply with the specified standards (see specifications on the container) and that possess the correspond-
ing properties.
Synthetic engine oil
Fork oil (SAE 4) (48601166S1)
Standard/classification
– SAE ( p. 93) (SAE 4)
Guideline
– Use only oils that comply with the specified standards (see specifications on the container) and that possess the corresponding
properties.
Shock absorber oil (SAE 2.5) (50180342S1)
Standard/classification
– SAE ( p. 93) (SAE 2.5)
Guideline
– Use only oils that comply with the specified standards (see specifications on the container) and that possess the corresponding
properties.
Super unleaded (ROZ 95/RON 95/PON 91)
Standard/classification
– DIN EN 228 (ROZ 95/RON 95/PON 91)
Guideline
– Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use.
Info
Do not use fuel containing methanol (e. g. M15, M85, M100) or more than 10 % ethanol (e. g. E15, E25, E85, E100).
Page 94

24 AUXILIARY SUBSTANCES 92

High viscosity grease
Recommended supplier
®
SKF – LGHB 2
Rubber grip adhesive (00062030051)
Recommended supplier
KTM-Sportmotorcycle AG
– GRIP GLUE
Page 95

25 STANDARDS 93

JASO T903 MA
Different technical development directions required a new specification for 4-stroke motorcycles – the JASO T903 MA Standard. Earlier, engine oils from the automobile industry were used for 4-stroke motorcycles because there was no separate motorcycle specification. Whereas long service intervals are demanded for automobile engines, high performance at high engine speeds are in the foreground for motorcycle engines. In most motorcycles, the gearbox and the clutch are lubricated with the same oil as the engine. The JASO MA Stan­dard meets these special requirements.
SAE
The SAE viscosity classes were defined by the Society of Automotive Engineers and are used for classifying oils according to their vis­cosity. The viscosity describes only one property of oil and says nothing about quality.
Page 96
INDEX 94

INDEX

A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Air filter
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Air filter box
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
sealing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Air filter box lid
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Antifreeze
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Auxiliary substances . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
B
Basic chassis setting
checking with rider's weight . . . . . . . . . . . . . . . . . . . . 26
Battery
charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Blink code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Brake discs
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Brake fluid
front brake, adding . . . . . . . . . . . . . . . . . . . . . . . . . . 56
rear brake, adding . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Brake fluid level
front brake, checking . . . . . . . . . . . . . . . . . . . . . . . . . 56
rear brake, checking . . . . . . . . . . . . . . . . . . . . . . . . . 60
Brake linings
front brake, changing . . . . . . . . . . . . . . . . . . . . . . . . 57
front brake, checking . . . . . . . . . . . . . . . . . . . . . . . . . 57
rear brake, changing . . . . . . . . . . . . . . . . . . . . . . . . . 62
rear brake, checking . . . . . . . . . . . . . . . . . . . . . . . . . 61
C
Capacity
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73, 86
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78, 86
fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 87
Chain
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Chain guide
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Chain tension
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Clutch
checking/correcting the fluid level . . . . . . . . . . . . . . . . 53
fluid, changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Clutch lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
basic position, adjusting . . . . . . . . . . . . . . . . . . . . . . . 53
Cold start button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Compression damping
fork, adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Compression damping, high-speed
shock absorber, adjusting . . . . . . . . . . . . . . . . . . . . . 27
Compression damping, low-speed
shock absorber, adjusting . . . . . . . . . . . . . . . . . . . . . 26
Coolant
draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Coolant level
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71-72
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
D
Difficult riding conditions . . . . . . . . . . . . . . . . . . . . . . . 17
dry sand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
high temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
low temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
muddy surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
slow speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
snow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
wet sand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
wet surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
E
Electric starter button . . . . . . . . . . . . . . . . . . . . . . . . . 11
Engine
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Engine oil
adding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Engine oil level
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine sprocket
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
F
Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Filler cap
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Foot brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
basic position, adjusting . . . . . . . . . . . . . . . . . . . . . . . 59
free travel, checking . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fork legs
basic setting, checking . . . . . . . . . . . . . . . . . . . . . . . 30
bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
compression damping, adjusting . . . . . . . . . . . . . . . . . 30
dust boots, cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 33
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
rebound damping, adjusting . . . . . . . . . . . . . . . . . . . . 30
Page 97
INDEX 95
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fork protector
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Frame
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Front fender
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Front wheel
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel screen
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Fuel tank
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Fuse
main fuse, changing . . . . . . . . . . . . . . . . . . . . . . . . . 70
H
Hand brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
basic position, adjusting . . . . . . . . . . . . . . . . . . . . . . . 55
free travel, checking . . . . . . . . . . . . . . . . . . . . . . . . . 55
Handlebar position . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
I
Idle speed
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Idle speed adjusting screw . . . . . . . . . . . . . . . . . . . . . 14
Implied warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
K
Kill switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
L
Lower triple clamp
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
M
Main fuse
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Main silencer
glass fiber yarn filling, changing . . . . . . . . . . . . . . . . . . 45
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Map‑Select switch
for the basic setting . . . . . . . . . . . . . . . . . . . . . . . . . . 12
for vehicle operation . . . . . . . . . . . . . . . . . . . . . . . . . 12
Motorcycle
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
raising with lift stand . . . . . . . . . . . . . . . . . . . . . . . . . 32
removing from lift stand . . . . . . . . . . . . . . . . . . . . . . . 32
O
Oil filter
changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Oil screens
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Operating substances . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Overview of indicator lamps . . . . . . . . . . . . . . . . . . . . 12
Owner's Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
P
Play in throttle cable
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Plug-in-stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Preparing for use
advice on first use . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
after storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
checks and maintenance work when preparing for use . . 20
Protective clothing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
R
Rear sprocket
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Rear wheel
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Rebound damping
fork, adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
shock absorber, adjusting . . . . . . . . . . . . . . . . . . . . . 27
Refueling
fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Riding sag
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Right side cover
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Rubber grip
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
S
Safe operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Seat
mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
basic position, adjusting . . . . . . . . . . . . . . . . . . . . . . . 75
basic position, checking . . . . . . . . . . . . . . . . . . . . . . . 75
Shock absorber
compression damping, general . . . . . . . . . . . . . . . . . . 26
high speed compression damping, setting . . . . . . . . . . 27
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
low speed compression damping, setting . . . . . . . . . . . 26
rebound damping, adjusting . . . . . . . . . . . . . . . . . . . . 27
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Page 98
INDEX 96
riding sag, checking . . . . . . . . . . . . . . . . . . . . . . . . . 28
spring preload, adjusting . . . . . . . . . . . . . . . . . . . . . . 29
static sag, checking . . . . . . . . . . . . . . . . . . . . . . . . . 28
Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Spoke tension
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Start number plate
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Steering head bearing
greasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Steering head bearing play
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Swingarm
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
T
Technical data
capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
chassis tightening torques . . . . . . . . . . . . . . . . . . . . . 89
electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
engine tightening torques . . . . . . . . . . . . . . . . . . . . . . 85
fork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
shock absorber . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Throttle cable play
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Throttle cable routing
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Throttle grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tire air pressure
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Tire condition
checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 82-83
Type label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
U
Use definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
V
View of vehicle
front left side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
rear right . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
W
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Work rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Page 99
*3402004en*
3402004en
11/2013
Husqvarna Motorcycles GmbH Stallhofnerstraße 3 Austria
5230 Mattighofen
|
Photo: Mitterbauer/Husqvarna
Motorcycles GmbH
