Page 1

Operator´s manual

BZ 27 BZ 34

Please read these instructions carefully and make sure

you understand them before using the machine.

English

Page 2

Page 3

OPERATOR’S MANUAL

RIDER

BZ SERIES

Contents

Contents...................................................................1

Introduction .............................................................3

Congratulations....................................................3

General ................................................................3

Driving and Transport on Public Roads ...............3

Towing .................................................................3

Operating .............................................................3

Good Service .......................................................4

Manufacturing Number ........................................4

Symbols and Decals ...............................................5

Safety Instructions..................................................7

General Use.........................................................7

Personal Safety Equipment .................................9

Driving on Slopes...............................................10

Children..............................................................11

Maintenance ......................................................12

Transport............................................................15

Customer responsibilities...................................16

Controls .................................................................17

Control Locations ...............................................17

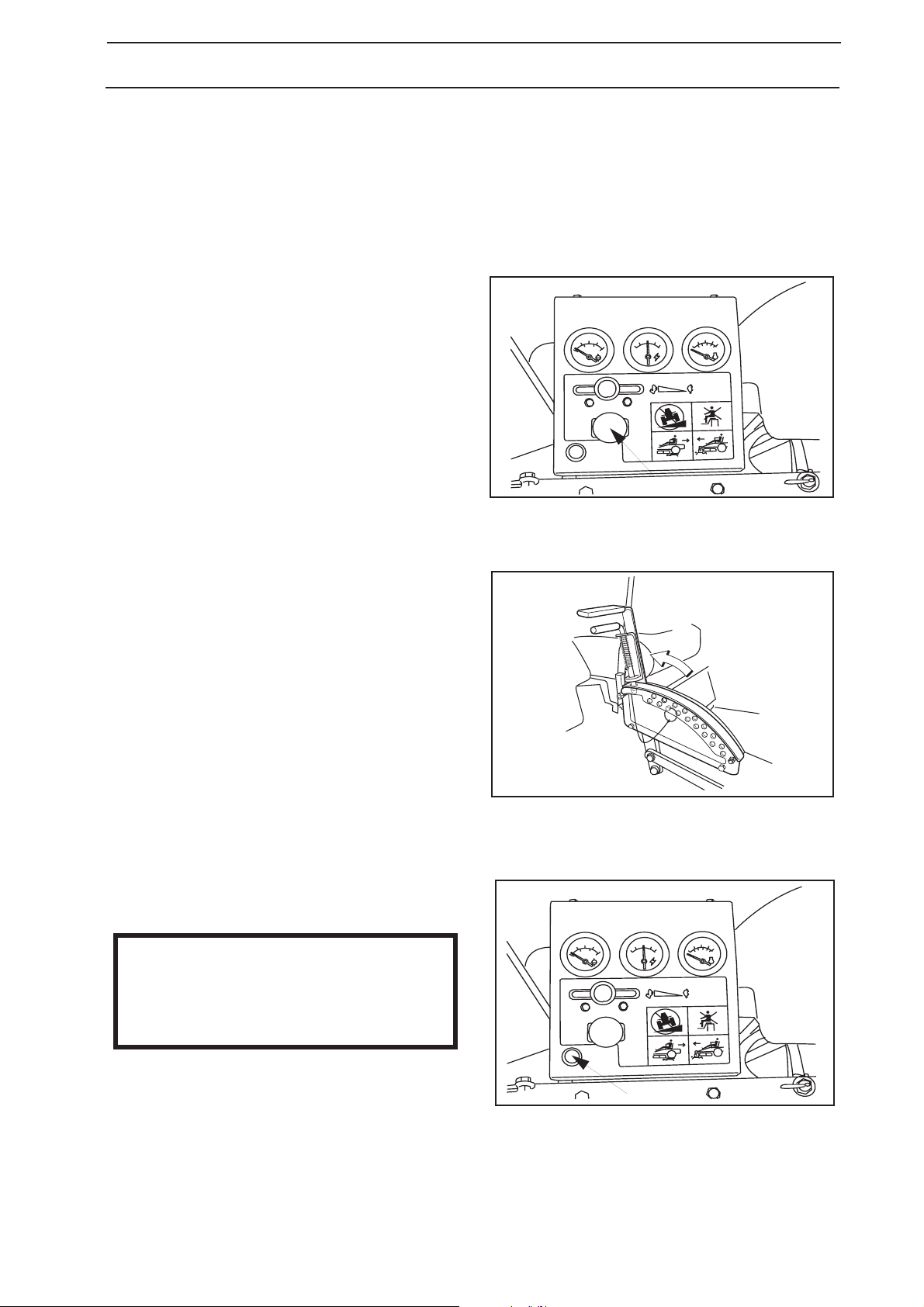

Gauges ..............................................................18

Throttle Control ..................................................18

Ignition ...............................................................18

Hour Meter .........................................................18

Engaging the Mower Deck.................................19

Parking Brake ....................................................19

Seat Adjustment.................................................19

Motion Control Levers........................................20

Hydraulic Lift Switch...........................................21

Refueling............................................................22

Fuel Shut-Off......................................................22

Fuses .................................................................22

Hydraulic Lift for Mower Deck ............................23

Lifting Lever for the Mower Deck (Manual) ........23

Relays ................................................................24

Tracking .............................................................24

Accessories........................................................24

Operation ...............................................................25

Before Starting ...................................................26

Starting the Engine ............................................26

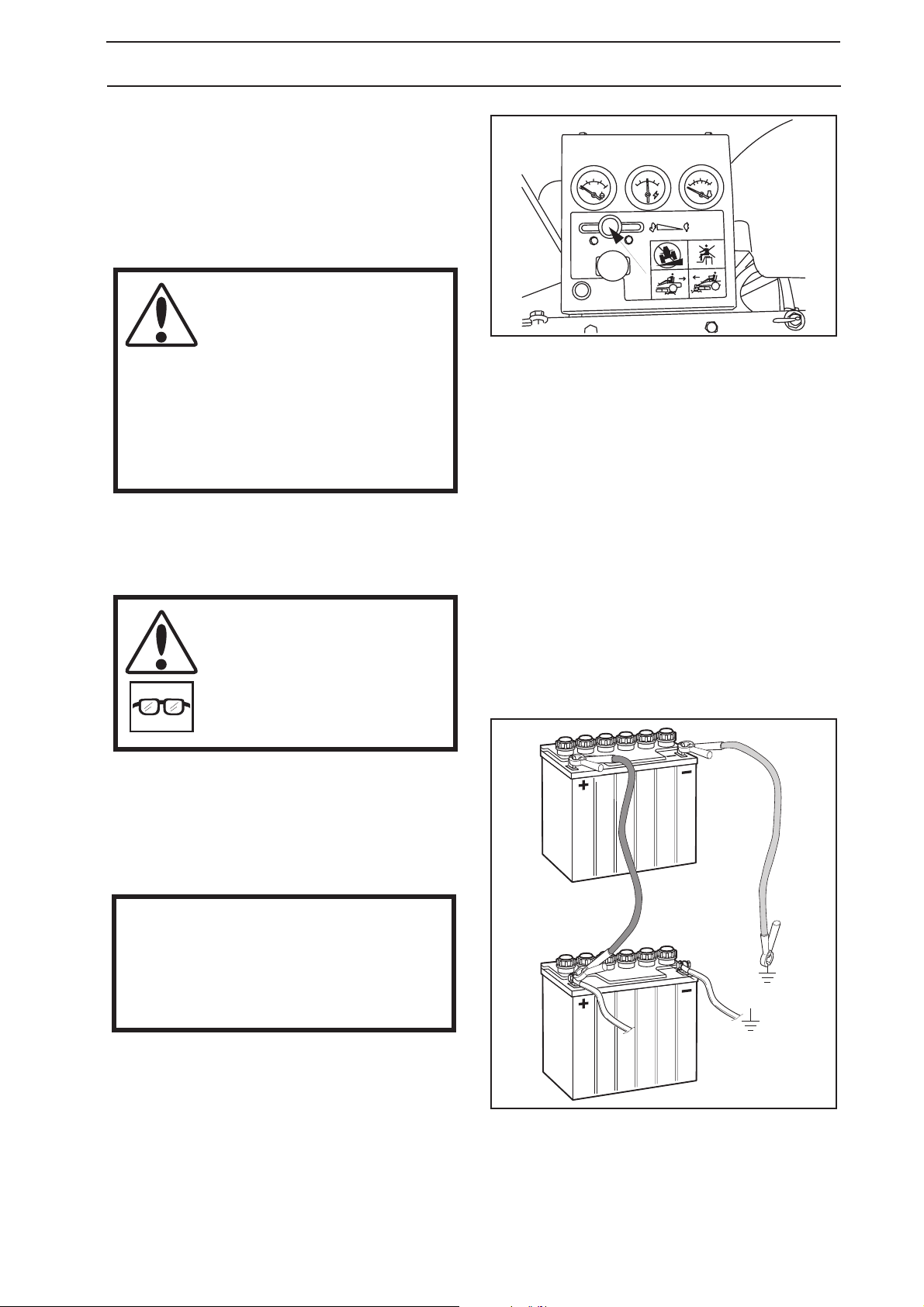

To start an engine with a weak battery ..............29

Running..............................................................30

Operating on hills ...............................................32

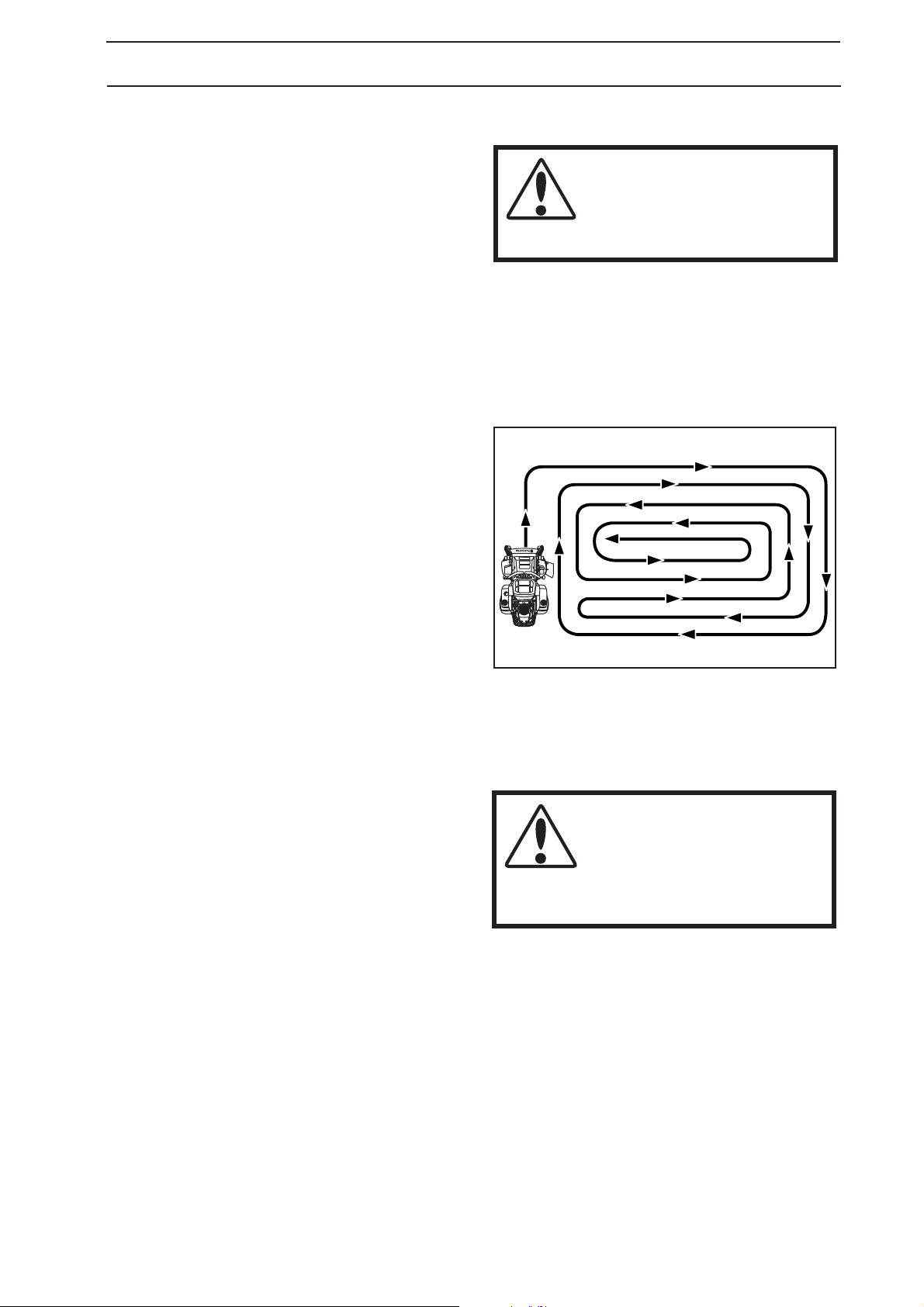

Mowing Tips.......................................................33

Stopping the Engine...........................................34

Moving by Hand .................................................35

Maintenance ......................................................... 36

Maintenance Schedule...................................... 36

Battery............................................................... 38

Checking the Safety System ............................. 39

Checking the Engine's Cooling Air Intake ......... 40

Clutch Service ................................................... 40

Checking and Adjusting the Throttle Cable....... 40

Air filter maintenance ........................................ 41

Replacing the Fuel Filter ................................. 43

Checking Tire Pressures................................... 43

Checking and Filling Coolant ............................ 43

Checking the Parking Brake.............................. 45

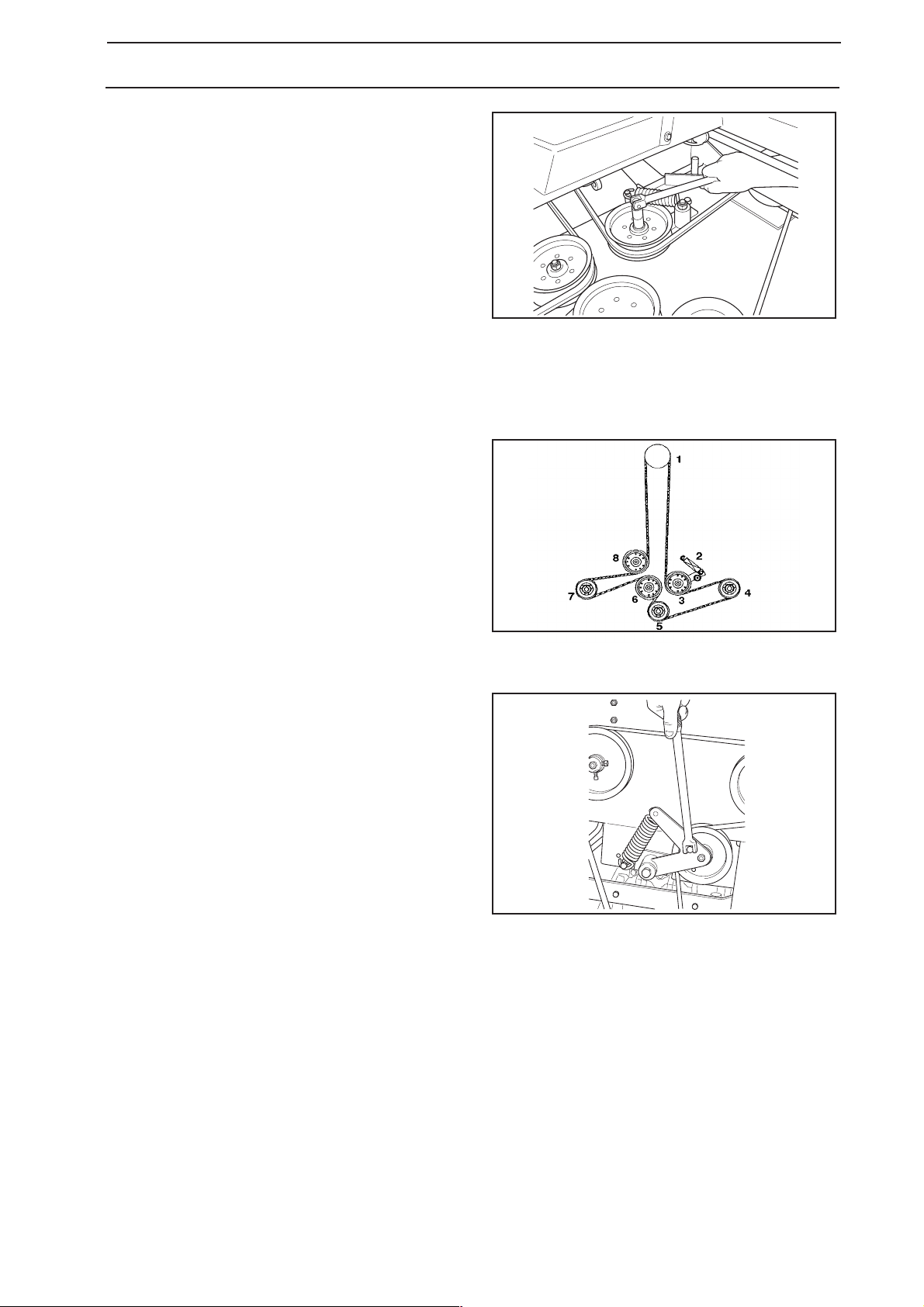

Checking the V-belts ......................................... 46

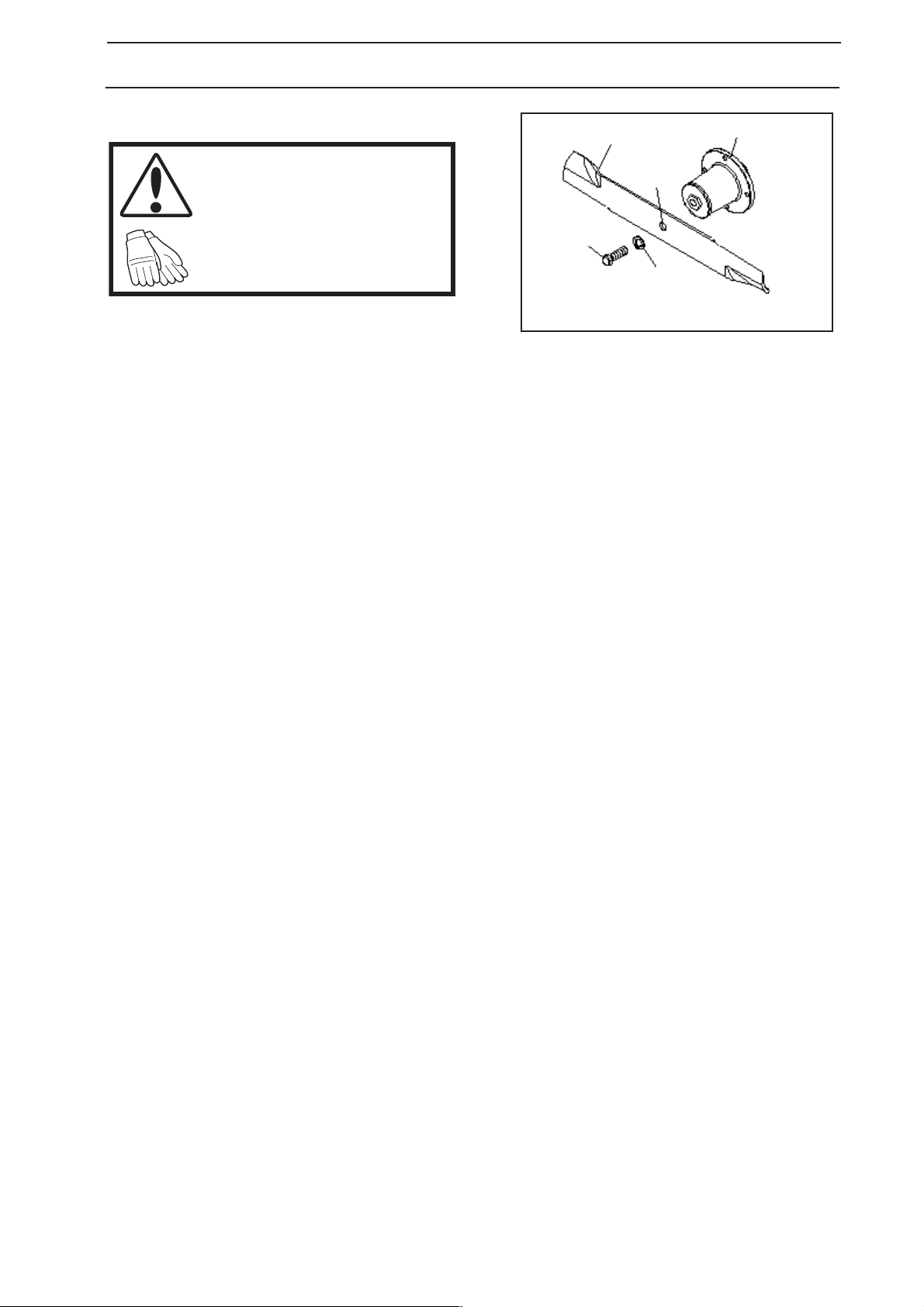

Checking the Blades ......................................... 47

Adjusting the Mower Deck ................................ 49

Checking Hydraulic System .............................. 51

Motion Control Linkage Adjustment .................. 52

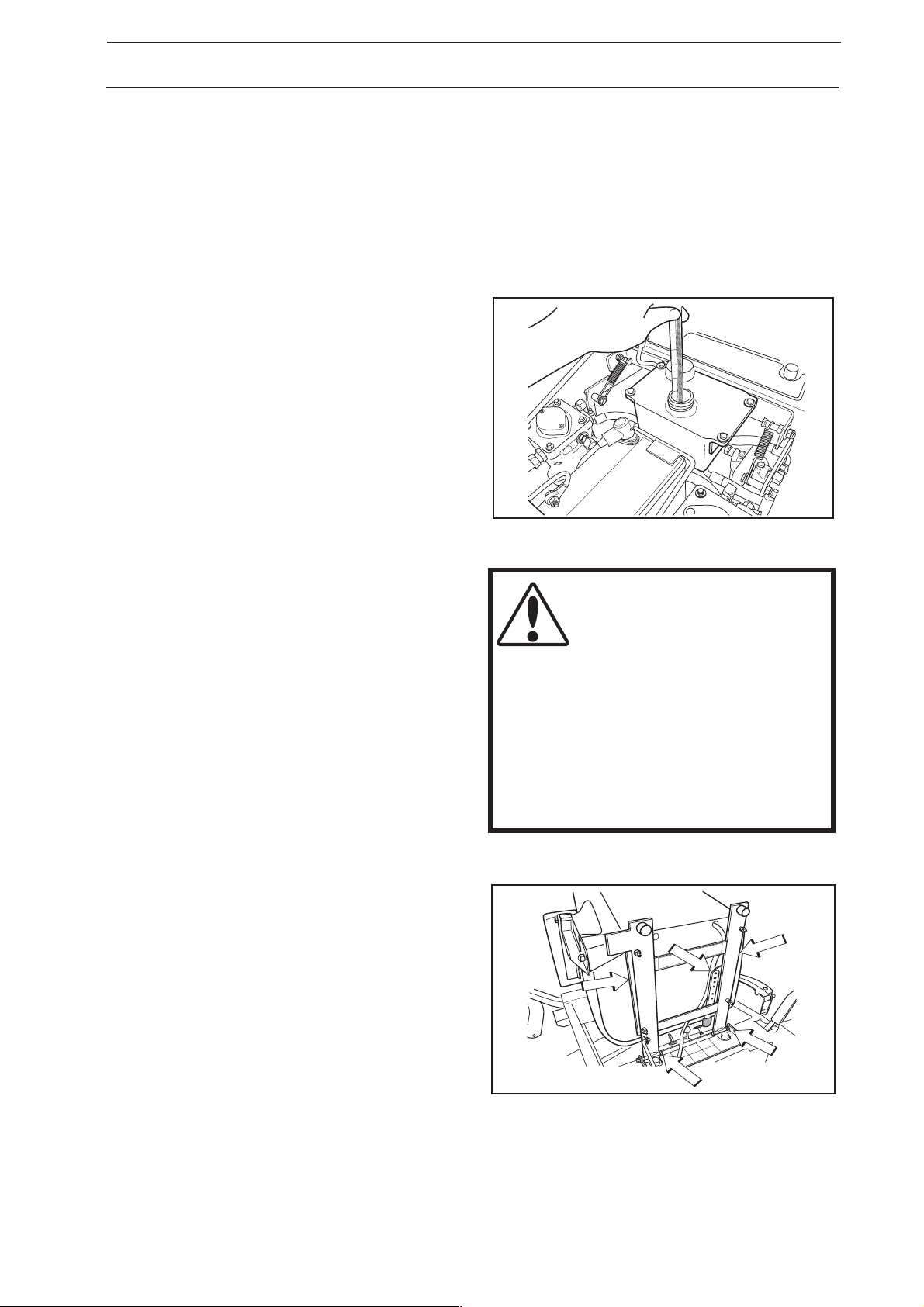

Deck Lift Power Unit.......................................... 53

Mule Drive System ............................................ 53

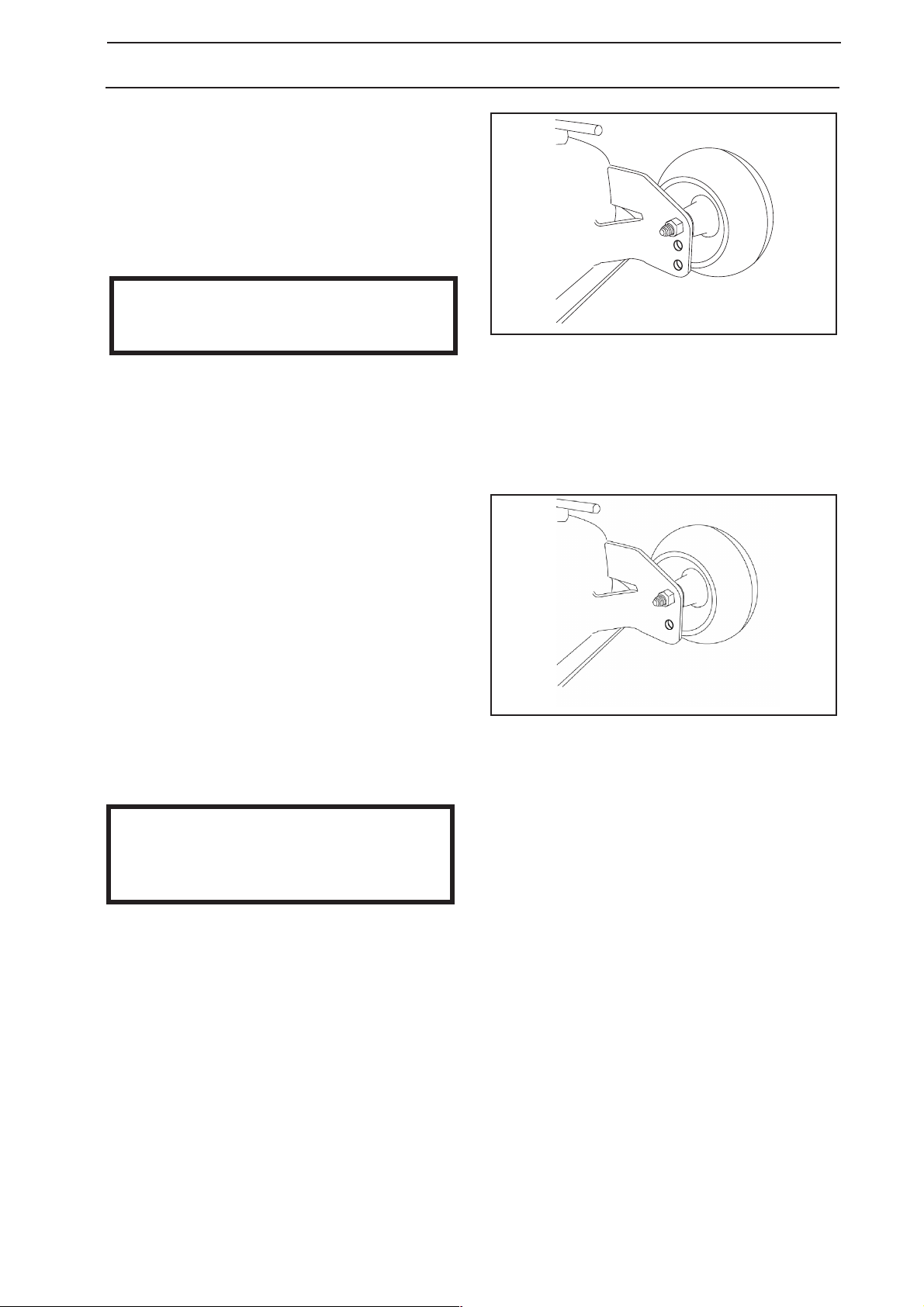

Caster Wheels................................................... 53

Cleaning and Washing ...................................... 54

Hardware........................................................... 54

Lubrication............................................................ 55

Lubrication Schedule......................................... 55

General ............................................................. 55

Lubricating the Cables ...................................... 56

Shaft Bushings and Linkage ............................. 56

Lubricating in Accordance with the Lubrication

Schedule ........................................................... 56

Trouble Shooting Guide ...................................... 62

Storage.................................................................. 65

Winter Storage .................................................. 65

Service .............................................................. 65

Wiring diagram ..................................................... 66

Technical Data ..................................................... 67

Accessories .......................................................... 69

Torque Specifications........................................ 69

Conformity Certificates ....................................... 70

EU declaration of conformity ............................. 70

Service Journal .................................................... 71

Delivery Service ................................................ 71

25-Hour Service ................................................ 73

50-Hour Service ................................................ 74

100-Hour Service .............................................. 75

300-Hour Service .............................................. 76

At Least Once Each Year.................................. 77

English-

Page 4

WARNING!

Failure to follow cautious operating practices can result in serious injury to the operator or other persons. The owner must understand these instructions, and must allow only trained persons who understand these instructions to operate the mower. Each person operating the mower must be of sound mind and body and must not be under the inﬂuence of any mind altering substance.

English-

Page 5

INTRODUCTION

Introduction

Congratulations

Thank you for purchasing a Husqvarna ride-on mower. This machine is built for the greatest efﬁciency and rapid mowing primarily of large areas. Controls in one place and a hydrostatic transmission regulated by steering controls also contribute to the machine’s performance.

This manual is a valuable document. Following the instructions (use, service, maintenance, etc.) by all who operate this machine can considerably increase the lifespan of your machine and even increase its resale value. It is also very important to follow the instructions for the safety of you and others.

If you sell your machine, be sure to give the operator’s manual to the new owner.

The ﬁnal chapter of this operator’s manual comprises a Service Journal. Ensure that service and repair work is documented. A well kept service journal reduces service costs for the season-based maintenance and affects the machine’s resale value. Take the operator’s manual along when the machine is left at the workshop for service.

General

In this operator’s manual, left and right, backward and forward are used in relation to the machine’s normal driving direction.

Continuous dedication to improve our products require that speciﬁcations and design are subject to change without notice.

Driving and Transport on Public Roads

Check applicable road trafﬁc regulations before transporting on public roads. If the machine is transported, you must always use approved fastening equipment and ensure that the machine is well anchored. DO NOT operate this machine on public roadways.

Towing

Do not tow this machine, it may cause damage to the drive system.

Do not tow any trailers, etc with this mower. They may jackknife or overturn causing damage to the mower and possibly serious injury to the operator.

Operating

This machine is constructed only for mowing grass on lawns and other free and even ground without obstacles such as stones, tree stubs, etc. The machine can also be used for other tasks when equipped with special accessories provided by the manufacturer, for which the operating instructions are provided in conjunction with delivery. All other types of use are incorrect. The manufacturer’s directions concerning operation, maintenance, and repairs must be carefully followed.

Lawnmowers and all power equipment, can be potentially dangerous if used improperly. Safety requires good judgement, careful use in accordance with these instructions and common sense.

The machine must only be operated, maintained, and repaired by persons that are familiar with the machine’s special characteristics and who are well versed in the safety instructions. Use only approved repair parts to maintain this machine.

Accident prevention regulations, other general safety regulations, occupational safety rules, and trafﬁc regulations must be followed without fail.

Unauthorized modiﬁcations to the design of the machine may absolve the manufacturer from liability for any resulting personal injury or property damage.

English-

Page 6

This Operator’s Manual belongs to the machine with manufacturing number:

Engine Transmission

INTRODUCTION

Good Service

Husqvarna’s products are sold all over the world and only in specialized retail stores with complete service. This ensures that you as a customer receive only the best support and service. Before the product is delivered, the machine has, for example, been inspected and adjusted by your retailer, see the certiﬁcate in the Service Journal in this operator’s manual.

When you need spare parts or support in service questions, warranty issues, etc., please consult the following professional:

Manufacturing Number

The machine’s manufacturing number can be found on the printed plate afﬁxed to the left in the engine compartment. Stated on the plate, from the top are:

• The machine’s type designation (I.D.).

• The manufacturer's type number (Model).

• The machine’s serial number (Serial no.)

Please state the type designation and serial number when ordering spare parts.

The engine’s manufacturing number is stated on a barcode decal. This is placed on the left side of the crankcase, in front of the starter. The plate states:

• The engine’s serial number (E/NO).

• The engine’s type designation (Code).

Please state these when ordering spare parts.

The hydraulic pump’s manufacturing number is stated on a barcode decal afﬁxed to the left side of the pump housing. The plate states:

• The pump’s type designation.

• The pump’s serial number.

The hydraulic motor’s manufacturing number is stated on a round metal plate. This is placed on the gable inside the motor. The plate states:

• The hydraulic motor’s type designation and design version.

• The hydraulic motor’s serial number.

English-

Page 7

SYMBOLS AND DECALS

Symbols and Decals

These symbols are found on the machine and in the operator’s manual. Study them carefully so that you know what they mean.

WARNING! Xxxxxxx xxxx xxxxxxxx xxx x

Xxxxx xxxxxx xx.

xx xxxxxxxx xxxxx xxx xx.

Used in this publication to notify the reader of a risk of personal injury or death , particularly if the reader should neglect to follow instructions given in the manual.

IMPORTANT INFORMATION Xxxxxxx xxxx xxxxxxxx xxx xxx

xxxx xxxxxx xx.

Used in this publication to notify the reader of a risk of material damage , particularly if the reader should neglect to follow instructions given in the manual. Used also when there is a potential for misuse or misassembly.

FuelChokeSlowFastNeutralReverse

Warning!

and flammable.

Parking brake

CE conformity marking. Only for European market.

Warning! Rotating blades, keep away from the discharge deck.

Do not stand hereBattery acid is corrosive, explosive,

Noise emissions to the surroundings in accordance with the European Union’s directive. The machine’s emission is stated in the chapter

TECHNICAL DATA and on the decals.

Only machines for European market.

Do not touch rotating parts.

Use protective glasses.

Use protective gloves.

English-

Page 8

SYMBOLS AND DECALS

Read Operator´s Manual.

Whole body exposure to thrown objects.

Shut off engine and remove key before performing any maintenance or repair work.

Severing of fingers and toes.

Keep a safe distance from the machine.

Do not open or remove safety shields while engine is running.

Use on slopes no greater than 10˚.

Careful backing up, watch for other people.

No passengers.

Careful going forward, watch for other people.

English-

Page 9

SAFETY INSTRUCTIONS

Safety Instructions

These instructions are for your safety. Read them carefully.

WARNING!

This symbol means that important safety instructions need to be emphasized. It concerns your safety.

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND

THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

General Operation

• Read, understand, and follow all instructions on the machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.

• Only allow responsible adults, who are familiar with the instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers. The machine is only intended for use by one person.

Read the operator’s manual before starting the machine

8011-512

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

• Do not operate machine without the entire grass catcher, discharge guard, or other safety devices in place and working

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, set parking brake, stop engine, and remove keys before dismounting.

Clear the area of objects before mowing

Never take passengers

8011-513

8011-520

English-

Page 10

SAFETY INSTRUCTIONS

• Disengage blades when not mowing. Shut off engine, wait for all parts to come to a complete stop, and remove ignition key before cleaning the machine, removing the grass catcher, or unclogging the discharge guard.

• Operate machine only in daylight or good artiﬁcial light.

• Do not operate the machine while under the inﬂuence of alcohol or drugs.

• Watch for trafﬁc when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into a trailer or truck.

• Always wear eye protection when operating machine.

• Data indicates that operators, age 60 years and above, are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

• Follow the manufacturer’s recommendation for wheel weights or counterweights.

• Anyone who operates this machine must ﬁrst read and understand this Operation Manual. Local laws may regulate the age of the user.

• Keep machine free of grass, leaves or other debris build-up which can touch hot exhaust / engine part and burn. Do not allow the mower deck to plow leaves or other debris which can cause build-up to occur. Clean any oil or fuel spillage before operating or storing the machine. Allow machine to cool before storage.

• After striking object or if abnormal machine vibration is present, disengage drive to attachments, stop engine, remove ignition key, and check immediately. Inspect the machine for damage and make repairs before restarting and operating equipment.

WARNING!

Engine exhaust and certain vehicle components contain or emit chemicals considered to cause cancer, birth defects, or other reproductive system damage. The engine exhaust contains carbon monoxide, which is a odorless, colorless, poisonous gas. Do not use the machine in enclosed spaces.

• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

English-

Page 11

SAFETY INSTRUCTIONS

• All drivers should seek and obtain professional and practical instruction. Such instructions should emphasize:

1. the need for care and concentration when working with ride-on machine;

2. control of a ride-on machine sliding on a slope will not be regained by the aplication of the brake. The main reasons for loss of control are:

a. insufﬁcient wheel grip;

b. being driven too fast;

c. inadequate braking;

d. the type of machine is unsuitable for its

task;

e. lack of awareness of the effect of ground

conditions, especially slopes;

f. incorrect hitching and load distribution.

• Watch out for trafﬁc when crossing or near roadways.

• Stop the blades rotating before crossing surfaces other than grass.

Personal Safety Equipment

WARNING!

When using the machine, approved personal protective equipment (shown in illustrations) shall be used. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your retailer for help in choosing the right equipment.

• Make sure that you have ﬁrst aid equipment close at hand when using the machine.

• Never use the machine when barefoot. Always wear protective shoes or boots, preferably with steel toecaps.

• Always wear approved protective glasses or a full visor when assembling or driving.

• Always wear gloves when handling the blades.

• Never wear loose clothing that can get caught in moving parts.

• Use ear protectors to avoid damage to hearing.

• While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

8011-670

Personal protective equipment

English-

Page 12

SAFETY INSTRUCTIONS

Slope Operation

Slopes are a major factor related to loss of control and tip-over accidents, which can result in severe injury or death. Operation on all slopes requires extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes (10 degrees maxium), not across.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the machine. Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have to stop while on the slope.

• Do not mow on wet grass. Tires may lose traction.

• Avoid starting, stopping, or turning on a slope. If the tires lose traction, disengage the blades and proceed slowly straight down the slope.

• Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the machine to roll over.

• Use extra care while operating machine with grass catchers or other attachments; they can affect the stability of the machine. Do not use on steep slopes.

• Do not try to stabilize the machine by putting your foot on the ground.

• Do not mow near drop-offs, ditches, or embankments. The machine could suddenly roll over if a wheel is over the edge or if the edge caves in.

Be extra cautious when driving on slopes

WARNING!

Do not drive up or down hills with slopes greater than 10 degrees. And do not drive across any slopes.

Mow up and down, not side-to-side

8011-519

6003-004

English-

Page 13

SAFETY INSTRUCTIONS

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the area.

• Before and while backing, look behind and down for small children.

• Never carry children, even with the blades shut off. They may fall off and be seriously injured or interfere with safe machine operation. Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

8011-517

Never allow children to operate the machine

Keep children away from the work area

8011-518

English-

Page 14

SAFETY INSTRUCTIONS

Maintenance

WARNING!

The engine must not be started when the driver’s ﬂoor plate or any protective plate for the mower deck’s drive belt is removed.

Safe Handling of Gasoline

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely ﬂammable and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine running. Allow engine to cool at least two (2) minutes before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there is an open ﬂame, spark, or pilot light such as on a water heater or other appliances.

• Before you begin refueling, minimize the risk of static electricity by touching a metal surface.

• Never ﬁll containers inside a vehicle or on a truck or trailer bed with plastic liner. Always place containers on the ground away from your vehicle when ﬁlling.

• Remove gas-powered equipment from the truck or tailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immediately.

• Never overﬁll fuel tank. Replace gas cap and tighten securely.

• Do not start the engine near spilled fuel.

• Never use gasoline as a cleaning agent.

• If leaks arise in the fuel system, the engine must not be started until the problem has been resolved.

Never ﬁll the fuel tank indoors

WARNING!

The engine and the exhaust system, become very hot during

operation. Risk for burns if touched.

Allow engine and exhaust system to cool at least two (2) minutes before refueling

8011-516

English-

Page 15

SAFETY INSTRUCTIONS

• Check the fuel level before each use and leave space for the fuel to expand, because the heat from the engine and the sun may otherwise cause the fuel to expand and overﬂow.

General Maintenance

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the equipment is in safe working condition.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep machine free of grass, leaves, or other debris build-up. Clean oil or fuel spillage and remove any fuel-soaked debris. Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine running. Remove ignition key while making adjustments or repairs.

• Check grass catcher components and the discharge guard frequently and replace with manufacturer’s recommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service as required.

• Maintain or replace safety and instruction labels, as necessary.

• Do not modify safety equipment. Check regularly to be sure it works properly. The machine must not be driven with defective or unmounted protective plates, protective cowlings, safety switches, or other protective devices.

• Do not change the settings of governors and avoid running the engine with overly high engine speeds. If you run the engine too fast, you risk damaging the machine components.

• Be very careful when handling battery acid. Acid on skin can cause serious corrosive burns. If you spill battery acid on your skin, rinse immediately with water.

Never drive the machine in an enclosed space

Always use protective glasses when handling the battery.

WARNING!

The battery contains lead and lead compounds, chemicals that are considered to cause cancer, birth defects, and other reproductive system damage. Wash your hands after handling the battery.

8011-515

English-

Page 16

SAFETY INSTRUCTIONS

• Acid in the eyes can cause blindness, contact a doctor immediately.

• Be careful when servicing the battery. Explosive gases form in the battery. Never perform maintenance on the battery when smoking or near open ﬂames or sparks. The battery can explode and cause serious injury/damage.

• Ensure that nuts and bolts, especially the fastening bolts for the blade attachments, are properly tightened, torqued and that the equipment is in good condition.

• Do not change the settings of governors and avoid running the engine with overly high engine speeds. If you run the engine too fast, you risk damaging the machine components.

• Sparking can occur when working with the battery and the heavy cables of the starter circuit. This can cause battery explosion, ﬁre or eye injury. Sparking in this circuit can not occur after the chassis cable (normally negative, black) is removed from the battery.

WARNING!

Avoid electrical sparking and its consequences by the following routines:

6003-009

Do not smoke when performing maintenance on the battery. The battery can explode and cause serious injury/damage

Risk of sparking

8009-728

• Use protective goggles.

• Ensure that the fuel ﬁller cap is mounted tightly and no ﬂammable substances is stored in an open vessel.

• Never work with the starter circuit if there is spilled fuel.

• Disconnect the chassis cable from the battery ﬁrst and reconnect it last.

• Do not make a bridge short circuit across the starter relay to run the starter.

• Never use the machine indoors or in spaces lacking proper ventilation. The exhaust fumes contain carbon monoxide, an odorless, poisonous, and lethal gas.

English-

Page 17

SAFETY INSTRUCTIONS

• Stop and inspect the equipment if you run over or into anything. If necessary, make repairs before starting.

• Never make adjustments with the engine running.

• The machine is tested and approved only with the equipment originally provided or recommended by the manufacturer. Only use approved repair parts for the machine.

• The blades are sharp and can cause cuts and gashes. Wrap the blades or use protective gloves when handling them.

• Check the parking brake’s functionality regularly. Adjust and service as necessary.

• The mulch blades should only be used in familiar areas when higher quality mowing is desired.

• Reduce the risk of ﬁre by removing grass, leaves, and other debris that may have accumulated on the machine. Allow the machine to cool before putting it in storage.

• Regularly clean deck and underside of deck, avoid spraying engine and electrical components with water.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

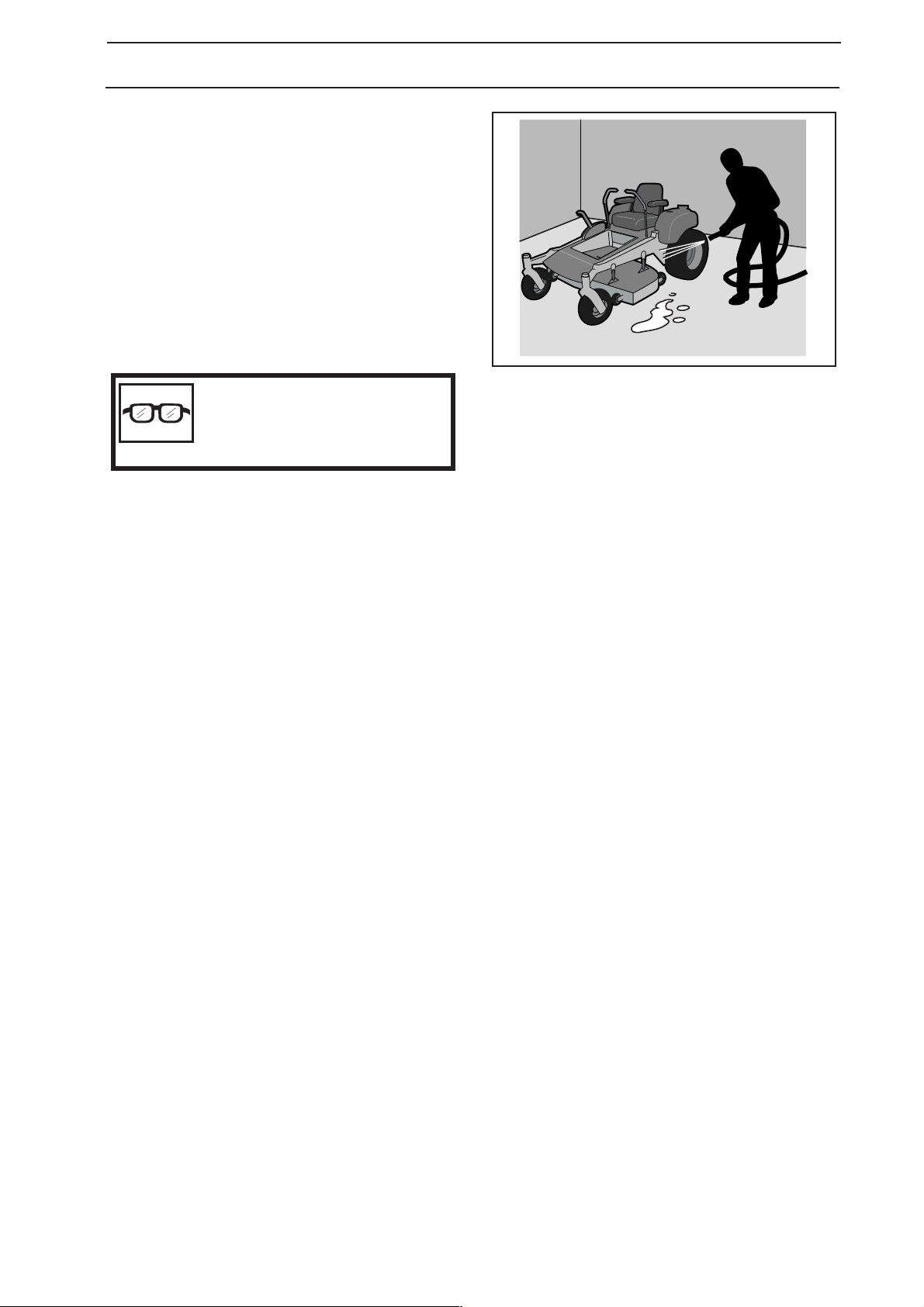

Clean the machine regularly

8011-644

Transport

• The machine is heavy and can cause serious crushing injuries. Be extra cautious when it is loaded on or unloaded from a vehicle or trailer.

• Use an approved trailer to transport the machine. Activate the parking brake, turn off the fuel supply, and fasten the machine with approved fastening devices, such as bands, chains, or straps, when transporting.

• Do not operate this machine on public roadways.

• Check and abide by local trafﬁc regulations before transporting the machine on any road.

• Do not tow this machine, it may cause damage to the drive system.

IMPORTANT INFORMATION

The parking brake is not sufﬁcient to lock the machine in place during transport. Ensure that the machine is well fastened to the transport vehicle. Always reverse the machine onto the transport vehicle to avoid tipping it over.

English-

Page 18

SAFETY INSTRUCTIONS

• Do not tow any trailers, etc. with this mower. They may jackknife or overturn causing damage to the mower and possibly serious injury to the operator.

• When machine is to be parked, stored or left unattended, lower the cutting means unless a positive mechanical lock is used.

Customer responsibilities

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your mower.

• Follow the instructions under "Maintenance” and "Storage” sections of this owner’s manual.

• This machine has no brain. Use yours!

WARNING!

This mower is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, bush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

A spark arrester for the mufﬂer is available through your authorized Husqvarna dealer.

English-

Page 19

CONTROLS

Controls

This operator’s manual describes the Husqvarna Zero Turn Rider. The mower is ﬁtted with a liquid cooled, 3 cylinder Daihatsu diesel engine (27 HP) or Daihatsu Turbo diesel engine (34 HP)

Transmission from the engine is made via two belt-driven hydrostat transaxles, which in turn drive a hydraulic motor for each drive wheel. Using the left and right steering controls, the ﬂow is regulated and thereby the direction and speed.

Zero Turn Rider

BAM-1

Locations of the controls

Control Locations

15 16

Page Page

1. Motion control, levers 20 10. Seat adjustment lever 19

2. Hour meter 18 11. 12V DC adapter

3. Parking brake 19 12. Throttle 18

4. Control for mower deck 19 13. Cutting height adjuster 25

5. Ignition 18 14. Manual deck lift 23

6. Relays 24 15. Water temperature gauge 18

7. Glow plug lamp 26 16. Ammeter gauge 18

8. Fuel tank caps 22 17. Oil pressure gauge 18

9. Fuel shut-off 22 18. Hydraulic deck lift switch 21

English-

Page 20

CONTROLS

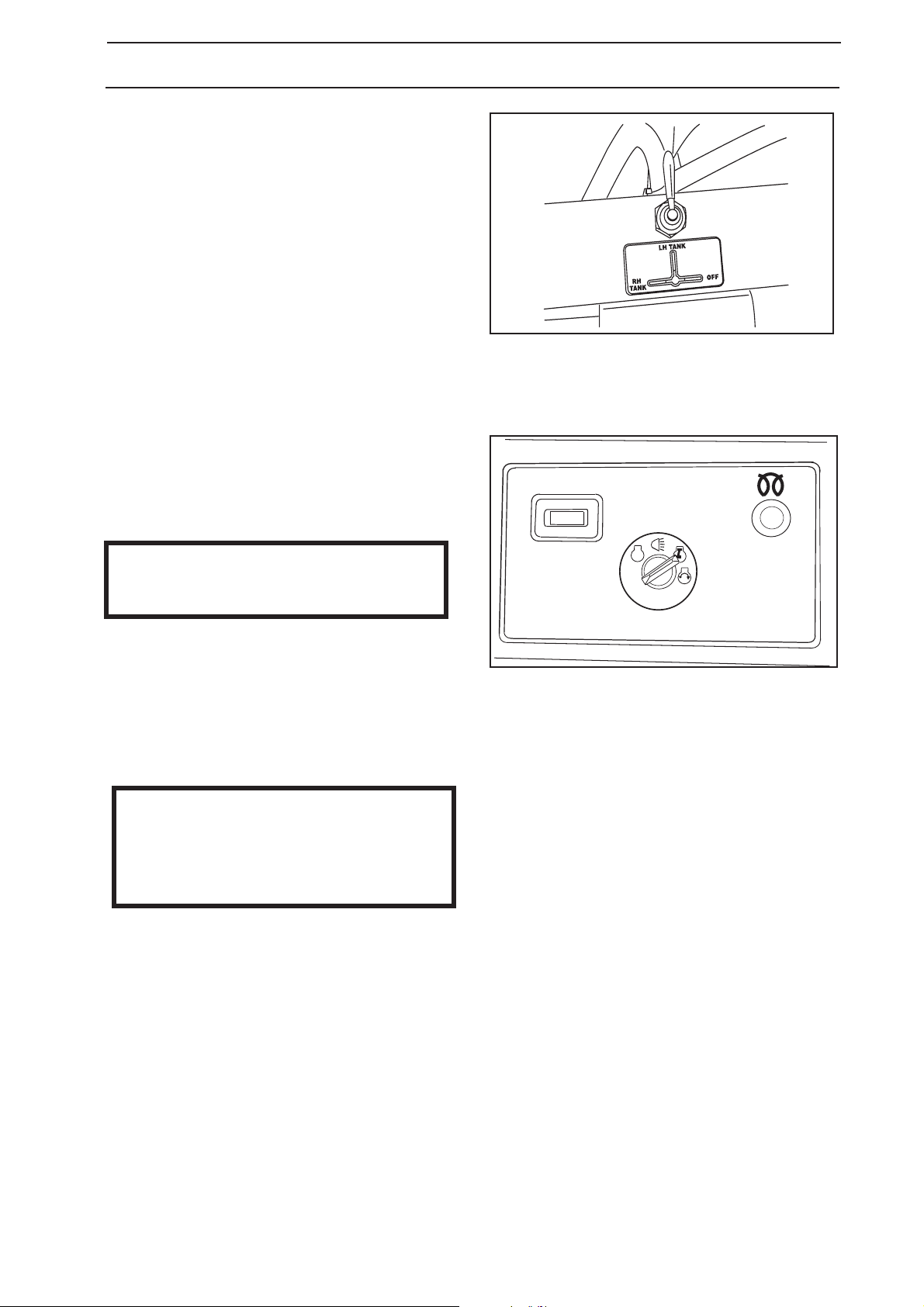

Throttle control

BAM-2

1. Throttle control

Gauges

Water temperature gauge- indicates coolant temperature and warns of overheat situation.

Ammeter - indicates amount of electrical ﬂow at the battery. Under normal operating conditions the needle will be slightly on the plus (+) side of the gauge, showing that current is being supplied to the battery. At idle speed, the indicator may be at zero or on the negative (-) side. A continuous negative reading at normal operating speed indicates a malfunction in the charging system that should be checked immediately.

Oil pressure meter - tells what the pressure is in the oil system and warns if pressure is too low for operation.

Gauges

1. Water temperature

2. Ammeter

3. Oil pressure

BAM-2

Throttle Control

The throttle control regulates the engine speed.

In order to increase or decrease the engine speed, the control is moved forward or backward respectively.

Avoid idling the engine for long periods.

Use full throttle when mowing.

Ignition

The ignition key is placed in the front console and is used to start the machine.

IMPORTANT INFORMATION

Wait till the glow plug light goes out before turning the engine over. To prolong starter life use short starting cycles, DO NOT exceed 30 s/min.

Hour Meter

The hour meter displays the totoal operating time and reminds of service intervals.

It will flash CHG OIL (Change Oil) at 50 hour intervals. The flash duration is one hour before and one hour after the interval. The CHG OIL icon will come on and shut off automatically. The hour meter can not be manually reset.

English-

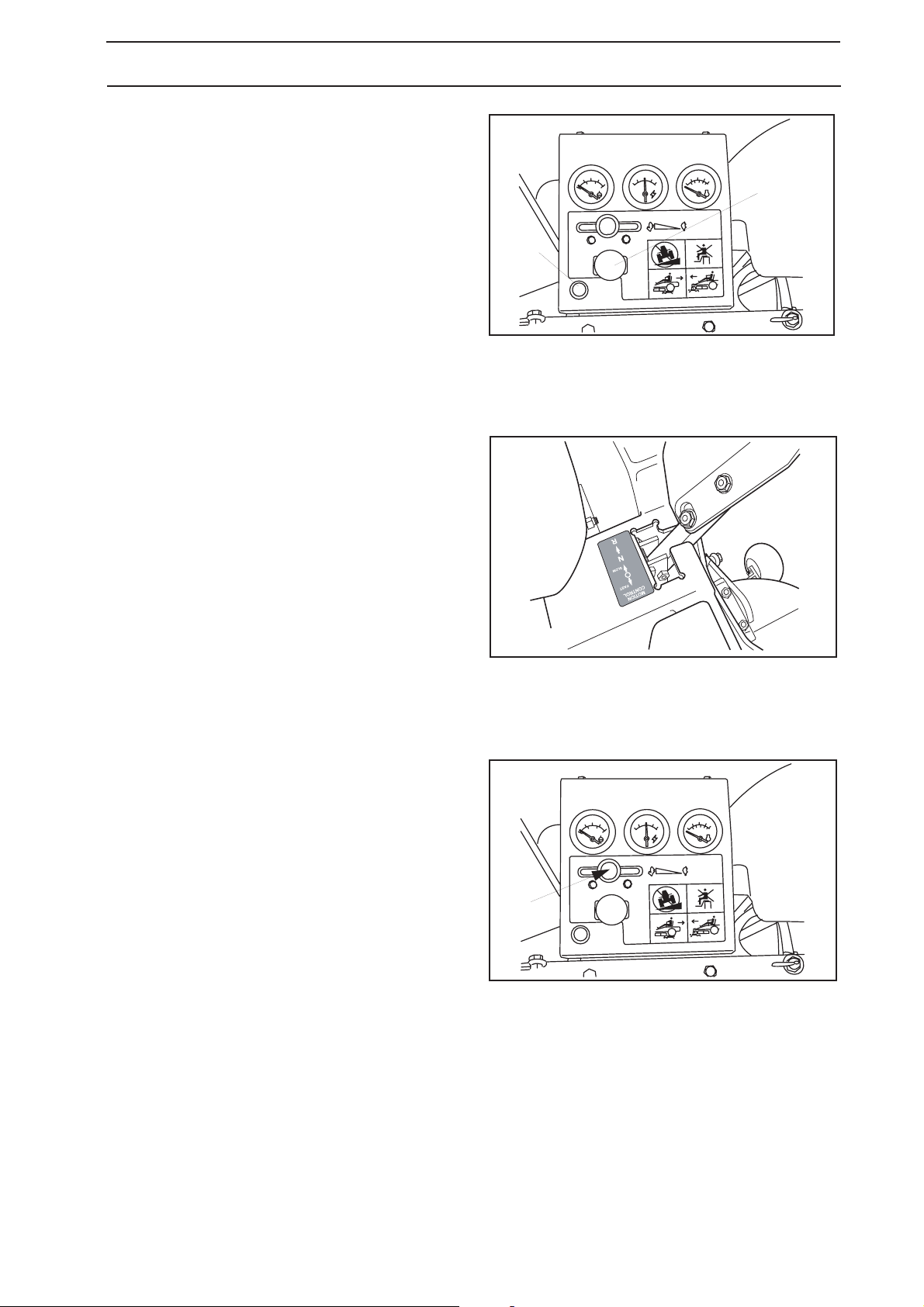

Console

1. Hour meter

2. Glow plug light

3. Ignition

BAM-3

Page 21

CONTROLS

Engaging the Mower Deck

In order to engage the mower deck, pull the knob out; the mower deck is disengaged when the knob is depressed.

Deck should be engaged at mid throttle and disengaged at idle speed to prolong clutch life.

Parking Brake

The parking brake is found on the left of the machine. Pull the lever back to activate the brake and push forward to release it.

Seat Adjustment

Located on the left side of the seat is the seat adjustment lever. Pull outward to slide the seat either forward or backward.

Engaging the mower deck

Parking brake not activated

BAM-2

BAM-4

Suspension resistence (weight) can be adjusted at the front of the seat.

Backrest tilt and lumbar support can also be adjusted using dials on the sides of the seat.

Seat Adjustment Lever and suspension adjustment

English-

BAM-5

Page 22

CONTROLS

Motion Control Levers

The machine’s speed and direction are continuously variable using the two motion control levers. The motion control levers can be moved forward or backward from a neutral position. Furthermore, there is a neutral position, which is locked if the motion control levers are moved outward into the neutral slots.

When both controls are in the neutral position (N), the machine stands still.

The motion control levers on each side of the mower control the direction of movement. The left lever controls the ﬂow of oil from the left hydro pump to the left wheel motor. The right lever controls the ﬂow of oil from the right hydro pump to the right wheel motor.

NOTE: To begin motion, the operator must be in the seat and the parking brake disengaged before the motion control levers can be moved from the neutral slots or the engine will shut down.

By moving the levers an equal amount forward or back the machine will move in a straight line in that direction.

Movement of either lever forward will cause the right or left wheel to rotate in a forward direction. To stop movement pull both levers into the neutral position.

To turn right while moving in a forward direction pull the right lever back toward the neutral position, this will slow the rotation of the right wheel and cause the machine to turn in that direction.

To turn left while moving in a forward direction pull the left lever back towards the neutral position, this will slow the rotation of the left wheel and cause the machine to turn in that direction.

Motion Control Levers

1 Forward 2 Neutral 3 Neutral slot, Neutral lock 4 Reverse

Motion control lever pattern (right side)

BAM-6

8011-791

To zero turn pull one lever back beyond neutral while holding the other slightly ahead of neutral.

NOTE: The direction of the zero turn will be determined by which lever is pulled back beyond neutral. Thus left lever back, left zero turn and opposite for right zero turn. Use

extra care when using this maneuver the machine can spin very rapidly if one lever is positioned too far ahead of the other.

English-20

WARNING!

The machine can turn very rapidly if one steering control is moved much further forward than the other.

Page 23

CONTROLS

If the steering controls are in uneven positions when standing still, they can be adjusted using the adjustment screws, not the link system, for the controls

Hydraulic Lift Switch

Used to raise and lower the mower deck hydraulically. Only used on units with power deck lifts. Push switch forward to lower the deck and pull backward to raise the deck.

Adjusting screws

Hydraulic lift switch

BAM-7

BAM-2

English-21

Page 24

CONTROLS

Refueling

The machine has two fuel tanks, one on each side just behind the seat. The tanks hold 11.4 gallons, 5.7 gallons each.

The engine is run on clean, fresh, diesel fuel with a minumum of 40 cetane.

WARNING!

Diesel fuel is highly ﬂammable. Observe caution and ﬁll the tank outdoors (see the safety rules).

Fuel Shut-Off

Fuel Tanks

BAM-8

The fuel shut-off is placed to the right side of the seat. The shut-off has three positions; right tank, left tank and off position.

Fuses

The fuses are located in a fuse block to the right of the battery. They are ﬂat pin fuses of the same type used in automobiles.

There are ﬁve fuses.

Fuse ratings and functions moving from the top:

• 20A - accesory jack

• 7.5A - sub system

• 10A - PTO/clutch

• 30A - hydrualic deck lift

• 50A - main system fuse (in line)

Fuel Shut-Off

20A

7.5A

30A

Fuses

BAM-9

50A

10A

BAM-10

English-22

Page 25

CONTROLS

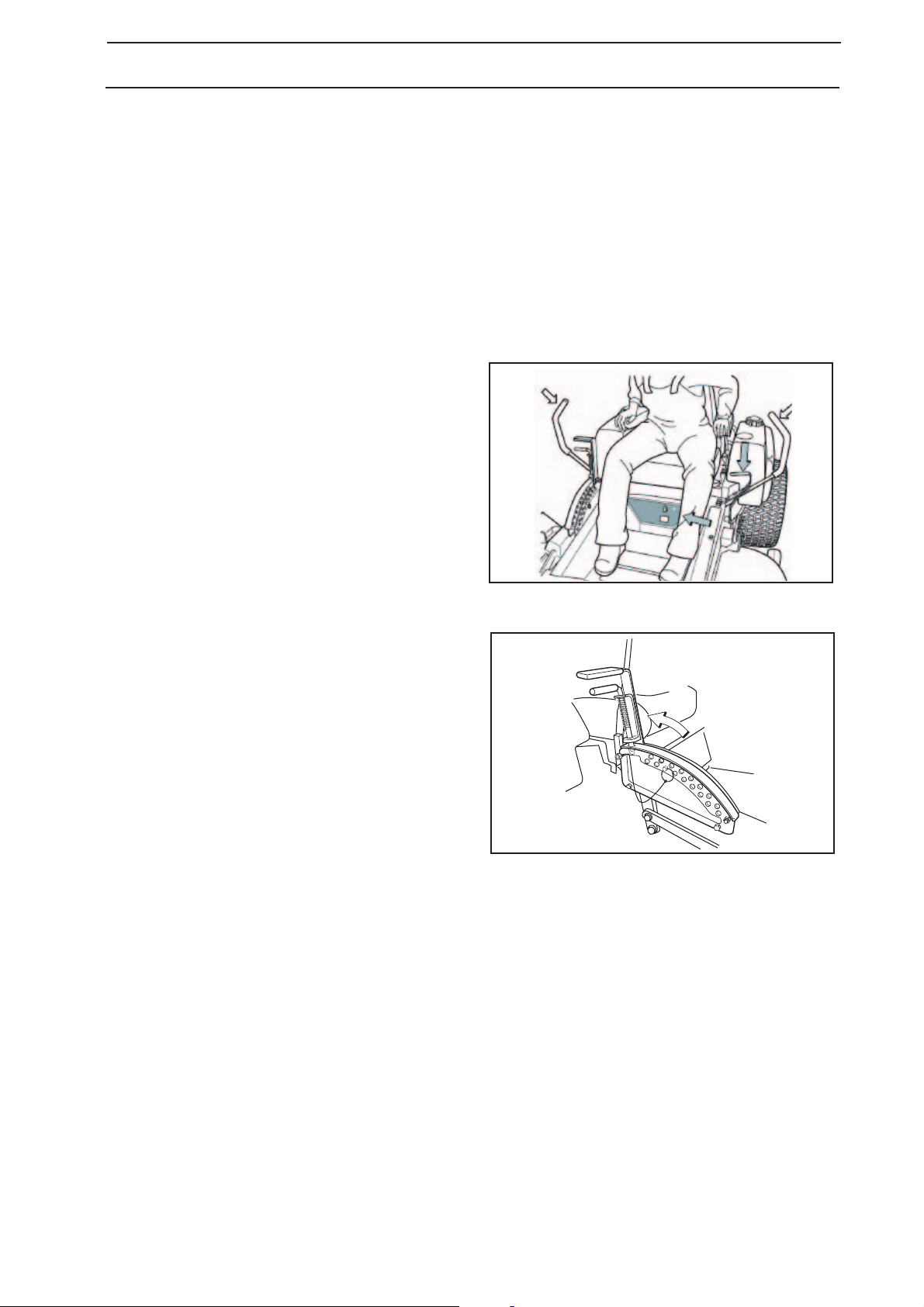

Manual Lifting Lever with Foot Assist for the Mower Deck

The lifting lever is used to place the mower deck in the transport position or one of the 17 different cutting height positions.

The cutting height is set by placing a pin in the hole for the desired cutting height and the pin is then locked on the inside (hidden in the illustration) with the supplied cotter pin.

1. Pull the lever backward while pushing on the foot pedal, lifting the deck to the locked position. The deck is then raised.

2. Depress the lock handle, counter hold, and move the lifting lever forward toward the pin to engage the set cutting height. The deck is then lowered.

3. The lifting lever can also be used to temporarily adjust the cutting height, such as when passing a minor bump in the lawn.

BAM-11

The mower deck’s lifting lever and foot pedal

IMPORTANT INFORMATION

In order to obtain an even cutting height it is important that the air pressure in all four tires is the same (15 psi, 103.4 kPa).

Hydraulic Lift for the Mower Deck

1. Place pin in the appropriate hole for desired cutting height, secure with cotter pin.

2. Push switch forward on the console to lower deck to the set cutting height.

3. Pull backwards on the switch on the console to raise the deck for transport.

IMPORTANT INFORMATION

Pin must be locked into a hole for transport or mowing.

Hydraulic switch

BAM-2

English-23

Page 26

CONTROLS

Relays

The relays and glow plug timer are located in a holder to the right side of the seat.

RUN

RELAY

START RELAY

Tracking

The tracking knob is located in front of the left control lever. Rotating this knob allows ﬁne tuning adjustments so that the machine tracks straight with the drive levers in the full forward position. Rotate the knob colockwise (as viewed from the operating position) to increase the speed or counterclockwise to devrease the speed on the left control lever. Example: If control levers are full forward and the unit turns to the right, turn the tracking knob counterclockwise to decrease the speed on the left control lever.

Accessories

For mulching, there is a Mulch Kit attachment available. This is mounted underneath the mower deck and comprised of bafﬂes and mulch blades.

Relays

BAM-12A

1. Glow plug timer

2. Glow plug relay

3. Run relay

4. Start relay

5. Seat relay

8011-442

Tracking knob

ROPS (Roll Over Protection System) is also available for the unit.

A bafﬂe kit is available for the TRD61B - 61" and TRD72B - 72" cutting decks.

English-24

8011-566

Mulch kit attachment

Page 27

OPERATION

Operation

Read "Safety Instructions" section and following pages, if you are unfamiliar with the machine.

Training

Zero turn mowers are far more manueverable than typical riding mowers due to their unique steering capabilities.

We recommend that this section be reviewed in its entirety prior to attempting to move the mower under its own power. Additionally, we suggest when ﬁrst operating mower, use a reduced throttle speed and reduced ground speed by NOT moving control levers to the furthest forward or reverse positions during initial operation, or until operator becomes comfortable with controls. We also suggest ﬁrst time users, or new users to ZeroTurn mowers to become familiar with the mowers movement on a hard surface, such as concrete or blacktop PRIOR to attempting to operate on turf. Until operator becomes comfortable with mower controls and zero turning capability, they may damage turf due to over aggressive maneuvers.

To move forward and backward

The direction and speed of the mowers movements is effected by the movement of the control lever(s) on each side of mower. The left control lever controls the left wheel motor. The right control lever controls the right wheel motor.

IMPORTANT INFORMATION

When control levers are in the reverse position they return to neutral when released. This may cause the mower to suddenly stop.

First time users should push mower (see "Moving by Hand" in the "Operation" section) to an open, ﬂat area, without other people or vehicles/obstacles near by. In order to move unit under its own power, the operator must be in the seat, start engine (see "Before Starting in the "Operation" section), adjust engine speed to idle, disengage park brake, do not engage blades at this time, rotate control levers inward. As long as the control levers have not been moved forward or backwards, mower will not move. Slowly move both control levers forward slightly, this will allow mower to start moving forward in a straight line. Pull back on control levers to the neutral position and mower should stop moving. Pull back slightly on control levers, this will allow mower to start moving backwards. Push forward on control levers to the neutral position and mower should stop moving.

To turn to the right

While moving in a forward direction, pull the right lever back towards the neutral position while maintaining the position of the left lever, this will slow the rotation of the right wheel and cause the machine to turn in that direction.

To turn to the left

While moving in a forward direction pull the left lever back towards the neutral position while maintaining the position of the right lever, this will slow the rotation of the left wheel and cause the machine to turn in that direction.

To zero turn

While moving in a forward direction, ﬁrst pull both control levers back until the mower stops or slows dramatically. Then by alternating one lever slightly to the forward position and the other in the reverse position.

English-25

Page 28

OPERATION

Before Starting

• Read the sections Safety Instructions and Controls before starting the machine.

• Perform the daily maintenance before starting (see Maintenance Schedule in the Maintenance section).

• Check that there is sufﬁcient fuel in the fuel tanks.

• Adjust the seat to the desired position.

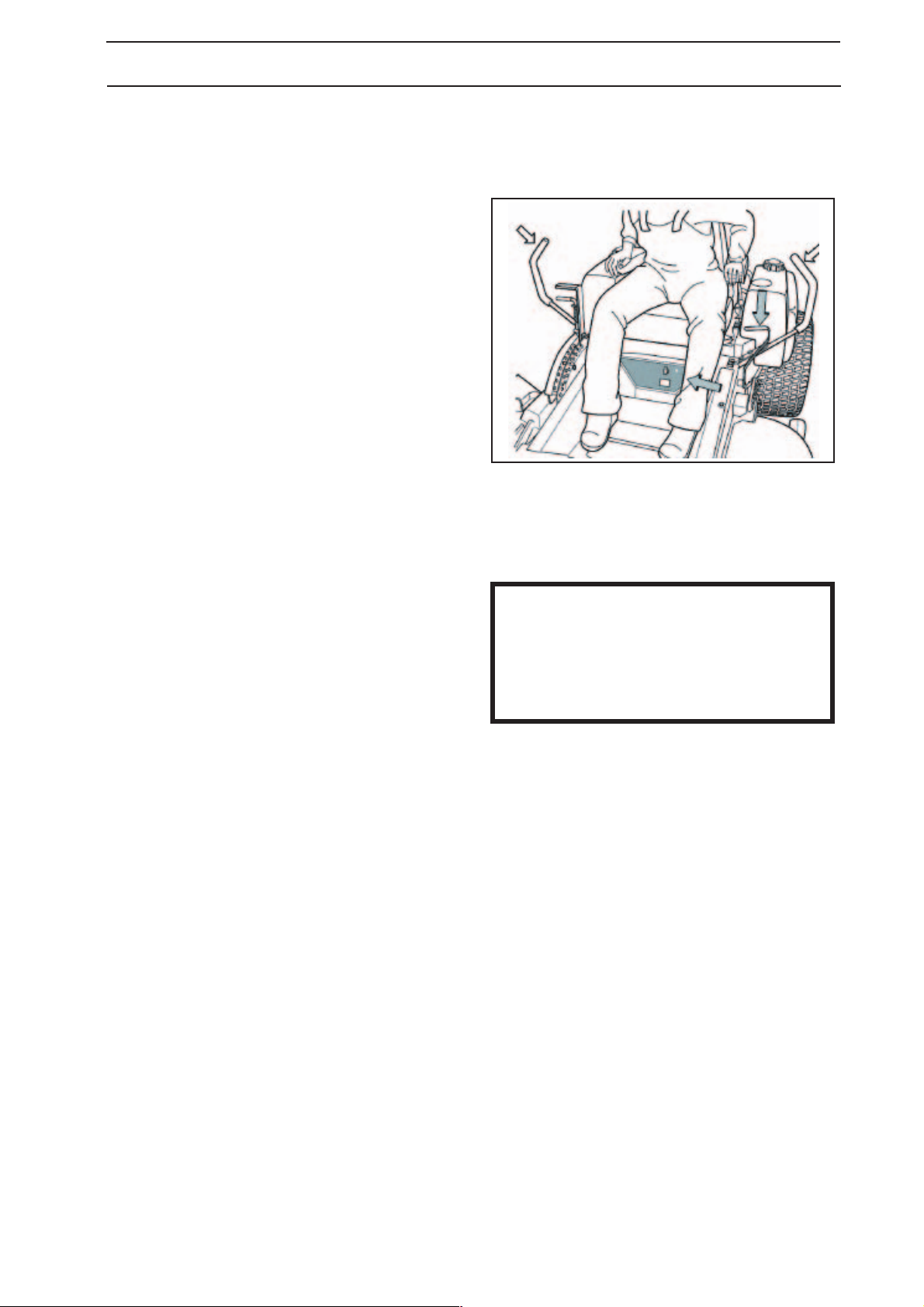

The following conditions must be fulﬁlled before the engine can be started:

• the driver must be seated on the seat,

• the blade switch for engaging the mower blades must be depressed,

• the parking brake must be on,

• both steering controls must be in the locked (outer) neutral position.

Starting the Engine

1. Sit on the seat.

2. Raise the mower deck by pulling the lifting lever backward to the locked position (transport position).

3. Activate the parking brake.

BAM-10

Start conditions

8011-552

Raise the mower deck

English-26

Page 29

4. Disengage the mower blades by depressing the blade switch.

OPERATION

5. Move the steering controls outward to the locked (outer) neutral position.

6. Move the throttle to the middle position.

1. Deck lift switch

2. Mower deck knob

Steering controls in the outward, locked neutral position

BAM-2

8011-526

Set the throttle

BAM-2

English-27

Page 30

OPERATION

7. Open the fuel valve for the selected fuel tank.

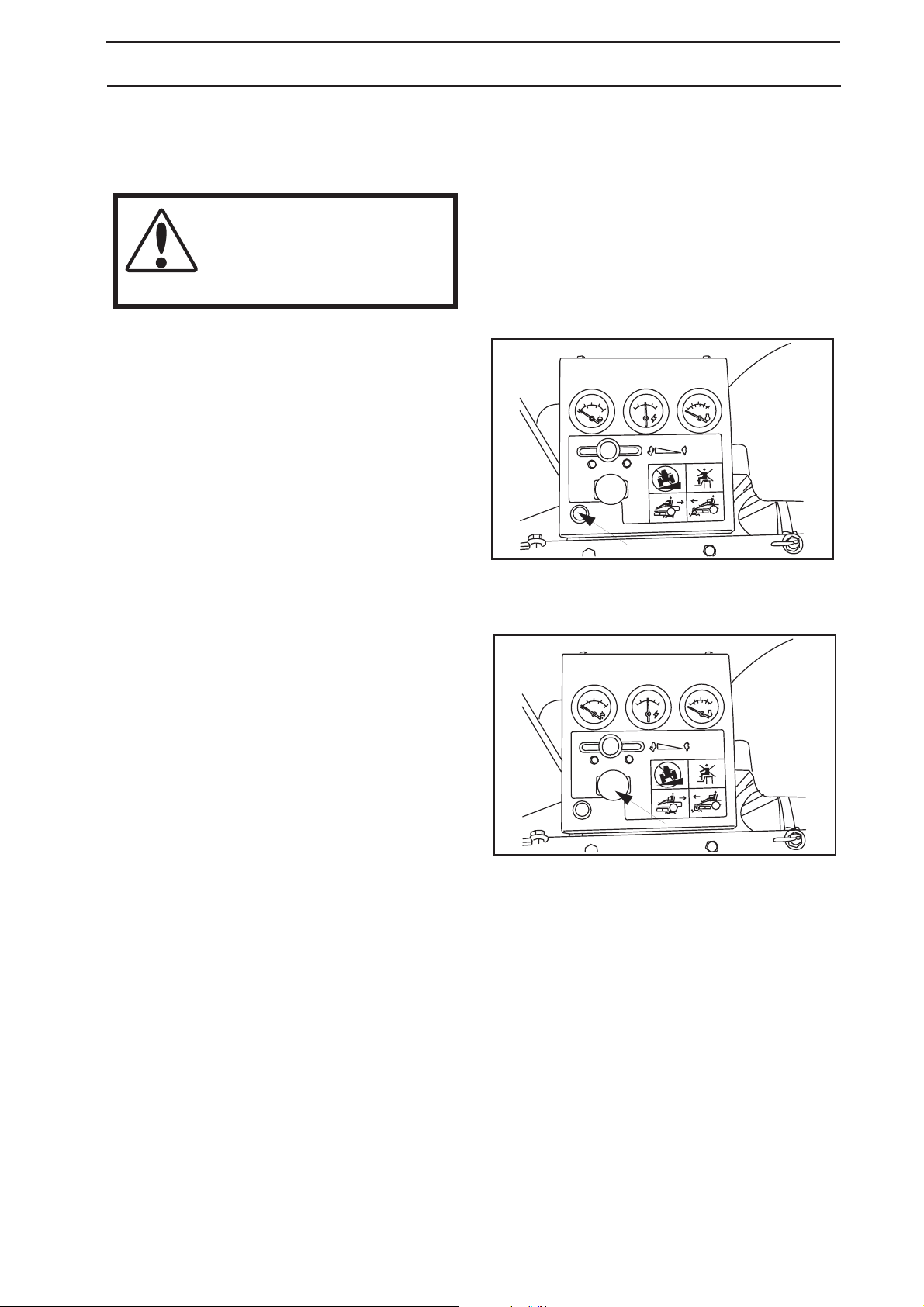

8. Press in and turn the ignition key to the start position.

BAM-9

Open the fuel valve

IMPORTANT INFORMATION

Wait till the glow plug light goes out or damage could result to the engine

9. When the engine starts, immediately release the ignition key back to the run position.

IMPORTANT INFORMATION

To prolong starter life, use short starting cycles, not to exceed 30 secs./min. Extended cranking can damage starter motor.

Start position

GLOW PLUG

STOP

INDICATOR

CONSOLE2

English-28

Page 31

OPERATION

10. Set the desired engine speed with the throttle. Allow the engine to run at a moderate speed, ”half throttle”, for 3-5 minutes before loading it too heavily.

USE FULL THROTTLE WHEN MOWING.

WARNING!

BAM-2

Set the engine speed

To start an engine with a weak battery

WARNING!

Lead-acid batteries generate explosive gases. Keep sparks, ﬂame and smoking materials away from batteries. Always wear eye protection when around batteries.

If your battery is too weak to start the engine, it should be recharged. (See "Battery" in the "Maintenance" section).

If “jumper cables” are used for emergency starting, follow this procedure:

IMPORTANT INFORMATION

Your mower is equipped with a 12-volt negative grounded system. The other vehicle must also be a 12-volt negative grounded system. Do not use your mower battery to start other vehicles.

Jumper cables connection

8011-642

English-29

Page 32

OPERATION

To attach jumper cables

• Connect each end of the RED cable to the POSITIVE (+) terminal on each battery, taking care not to short against chassis.

• Connect one end of the BLACK cable to the NEGATIVE (-) terminal of the fully charged battery.

• Connect the other end of the BLACK cable to a good CHASSIS GROUND on the mower with the discharged battery, away from the fuel tank and battery.

To remove cables, reverse order

• Remove BLACK cable ﬁrst from chassis and then from the fully charged battery.

• Remove RED cable last from both batteries.

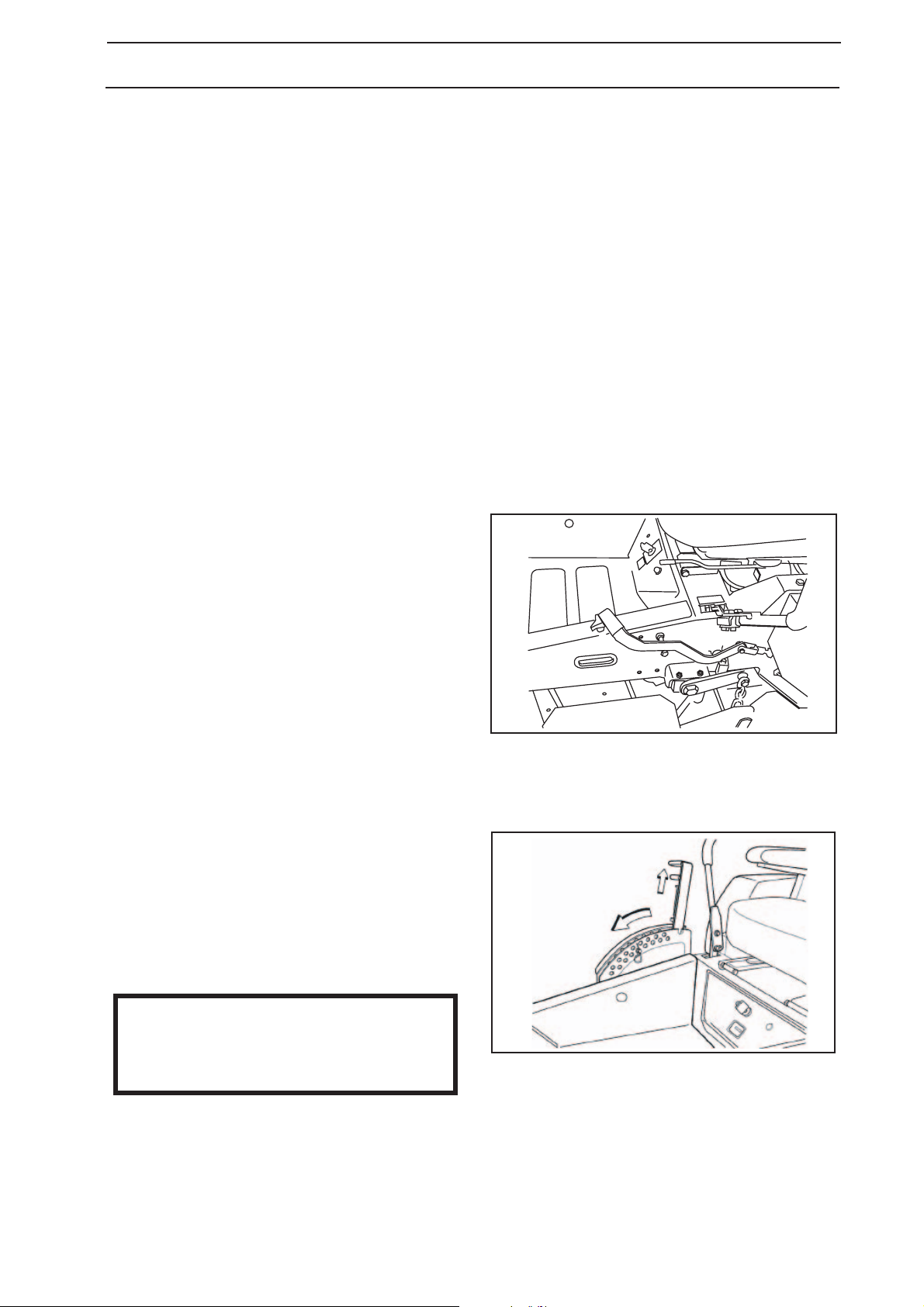

Running

1. Release the parking brake by moving the lever forward.

Your mower is equipped with an operator presence system. When the engine is running, any attempt by the operator to leave the seat without ﬁrst setting the park brake will shut off the engine.

2. Move the steering controls to the neutral position (N).

3. Select the cutting height by placing the peg in one of the holes. Lock the peg on the inside with the pin.

4. Press in the stop handle, counter hold, and carefully move the lifting lever forward from the transport position toward the peg.

BAM-4

Released parking brake

IMPORTANT INFORMATION

The mower deck’s anti-scalp rollers should be evenly adjusted. See Maintenance section.

English-30

CUTTING HEIGHT

Cutting height selection

Page 33

OPERATION

5. On power units push the hydraulic lift switch froward to lower the deck to the selected pin position.

WARNING!

Make sure that no one is near the machine when engaging the blade switch.

6. Engage the mower deck by pulling out the blade switch.

7. Move the throttle control to full throttle.

8. The machine’s speed and direction are continuously variable using the two steering controls. When both controls are in the neutral position, the machine stands still.

By moving both controls an equal amount forward or backward, the machine moves in a straight line forward or backward respectively.

In order, for example, to turn right while moving forward, move the right control towards the neutral position. The rotation of the right wheel is reduced and the machine turns to the right.

Turning on the spot can be achieved by moving one control backward (behind the neutral position) and carefully moving the other steering control forward from its neutral position.

NOTE: The direction of the zero turn will be determinded by which lever is pulled back beyond neutral. Thus left lever back, left zero turn and opposite for right zero turn. Use

extra care when using this maneuver the machine can spin very rapidly if one lever is positioned too far ahead of the other.

BAM-2

Hydraulic switch

BAM-2

Engaging the mower deck

NOTE: To begin motion, the operator must be in the seat and the parking brake disengaged before the motion control levers can be moved from the neutral slots or the engine will kill.

English-31

Page 34

OPERATION

Operating on hills

Read the Safety Instructions "Driving on Slopes" in the "Safety Instructions" section.

WARNING!

Do not drive up or down hills with slopes greater than 10 degrees. And do not drive across any slopes.

• The slowest speed possible should be used before starting up or down hills.

• Avoid stopping or changing speed on hills.

• If stopping is absolutely necessary, pull drive levers into the neutral position and push to the outside of the unit and engage the park brake.

IMPORTANT INFORMATION

Control levers return to neutral when released. This may cause the mower to suddenly stop.

• To restart movement, release the park brake.

• Pull the control levers back to the center of the mower and press forward to regain forward motion.

• Make all turns slowly.

BAM-10

Stopping conditions

BAM-4

Released parking brake

English-32

Page 35

Mowing Tips

OPERATION

• Observe and ﬂag rocks and other ﬁxed objects to avoid collisions.

• Begin with a high cutting height and reduce it until the desired mowing result is attained.

The average lawn should be cut to 2 1/2" (64 mm) during the cool season and over 3" (76 mm) during the hot months. For healthier and better looking lawns, mow often after moderate growth.

For best cutting performance, grass over 6" (15 cm) in height should be mowed twice. Make the ﬁrst cut relatively high; the second to the desired height.

• The mowing result will be best with a high engine speed (the blades rotate rapidly) and low speed (the rider moves slowly). If the grass is not too long and dense, the driving speed can be increased without negatively affecting the mowing result.

• The ﬁnest lawns are obtained by mowing often. The lawn becomes more even and the grass clippings more evenly distributed over the mown area. The total time taken is not increased as a higher operating speed can be used without poor mowing results.

• Avoid mowing wet lawns. The mowing result is poorer because the wheels sink into the soft lawn, clumps build, and the grass clippings fasten under the cowling.

WARNING!

Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown by the blades.

8011-603

Mowing patterns

• Hose the mower deck underside with water after each use. When cleaning, the mower deck shall be raised into the transport position. Make sure the mower is cooled and the engine is off.

• Use compressed air to clean top surface of the deck. Avoid ﬂooding water on top surface.

• When the mulching kit is used, it is important that the mowing interval is frequent.

WARNING!

Never drive the rider on terrain that slopes more than 10°. Mow slopes up and down, never side-to-side. Avoid sudden directional changes.

English-33

Page 36

OPERATION

Stopping the Engine

Allow the engine to idle a minute in order to attain normal operating temperature before stopping it, if it has been worked hard. Avoid idling the engine for longer periods, as there is a risk of the spark plugs fouling.

1. Disengage the mower deck by depressing the blade switch.

BAM-2

Disengage the mower deck

2. On manual decks raise the mower deck by pulling the lifting lever backward to the transport position.

3. On power decks raise the deck by pulling back the hydraulic switch on the console.

4. When the machine is standing still, activate the parking brake by pulling the lever backward.

5. Move the throttle to the minimum position (tortoise symbol). Turn the ignition key to the stop position. Never use choke to stop engine.

6. Move the steering controls outward.

7. Remove key. Always remove key when leaving the mower to prevent unauthorized use.

IMPORTANT INFORMATION

Leaving the ignition switch in any other position than "OFF" will cause the battery to be discharged and the hour meter to accumulate hours.

8011-552

Raise the mower deck with the lifting lever

English-34

Hydraulic switch

BAM-2

Page 37

OPERATION

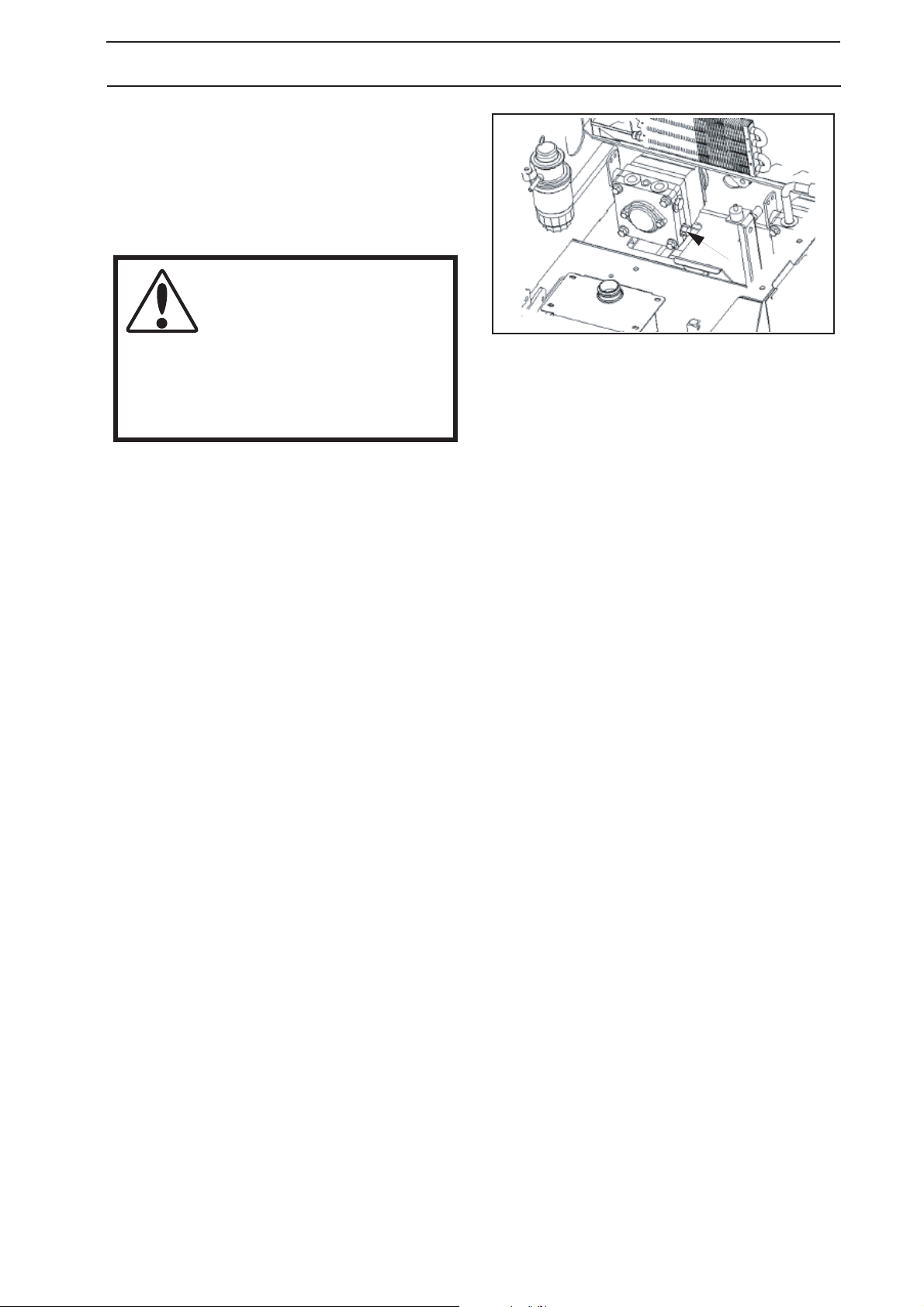

Moving by Hand

In order for the machine to be moved with the engine turned off, the vent screws on both hydraulic pumps must be opened 1/4-1/2 turn.

WARNING!

No adjustments or maintenance to be carried out unless:

- the engine stopped,

- the ignition key has been removed,

- the parking brake is on.

BAM-11

Vent screw on the hydraulic pump

English-35

Page 38

MAINTENANCE

Maintenance

Maintenance Schedule

The following is a list of maintenance procedures that must be performed on the machine. For those points not described in this manual, visit an authorized service workshop. An annual service carried out by an authorized service workshop is recommended to maintain your machine in the best possible condition and to ensure safe operation.

Read “Maintenance” in the “Safety Instructions” section.

● = Described in this manual

❍ = Not described in this manual

Daily

mainte-

nance

Maintenance Page Before After 25 50 100 300

Check the parking brake 45

Check the engine’s oil level (every refueling) 53

Check the hydraulic system’s oil level 52

Check the safety system 39

Check for fuel and oil leakages -

Check rubber valve for sand trap 41

Check/clean the engine’s cooling air intake 40

Check the mower deck 47

Check hardware (screws, nuts, etc.) 54

Clean under the mower deck 54

Start the engine and blades, listen for unusual sounds

Check for damage -

Thoroughly clean around the engine -

Thoroughly clean around the hydraulic system -

Clean around belts, belt pulleys, etc. -

Check the tire pressures 43

Check battery 38

Sharpen/Replace mower blades 47

Check the fuel pump’s air ﬁlter

Clean the engine’s cooling air intake Clean cyclon air ﬁlter dust cap 42

Check/adjust the parking brake -

Inspect mufﬂer/Spark arrester -

●

❍

●

❍

Weekly

mainte-

nance

least once each

Maintenance interval

in hours

year

●

●●

❍❍

English-36

Page 39

MAINTENANCE

Daily

mainte-

nance

Maintenance Page Before After 25 50 100 300

Weekly

mainte-

nance

least once each

Check/adjust throttle 40

Check the condition of belts, belt pulleys, etc. 46

Change the engine oil 1)

Replace the engine oil ﬁlter (every 200 hours) 58

Clean/replace the spark plugs 38

Replace the fuel ﬁlter 43

Replace the air ﬁlter (main cartridge)

Maintenance interval

in hours

year

●

●●

(every 200 hours) Check the caster wheels (every 200 hours) 53

Clean the cooling ﬁns

Clean ﬁns of oil cooler (Kohler)

Check/adjust the mower deck 49

Change the hydraulic oil (every 300 hours) -

Replace the hydraulic oil ﬁlter (every 300 hours) -

Dismantle and inspect starter 4) (every 500 h)

Check the engine valve clearance

Perform the 300-hour service 4)

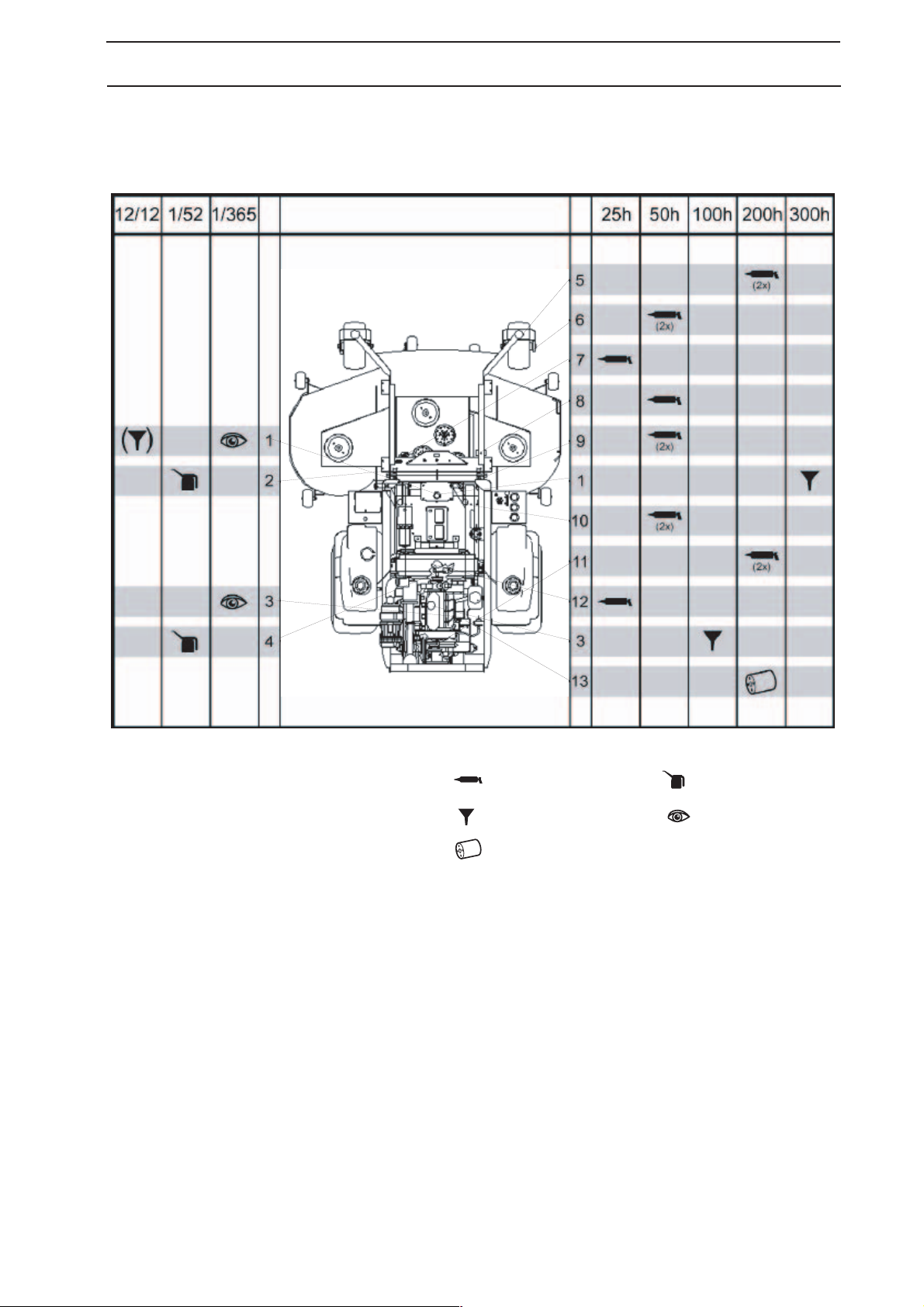

Lubricate according to Lubrication Schedule 51

❍❍

●●

❍❍

● ● ● ●●●●

●

❍

First change after 8 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours.

and replacement are required more often.

For daily use, the machine should be lubricated twice weekly.

Performed by authorized service workshop.

● = Described in this manual

❍ = Not described in this manual

WARNING!

No adjustments or maintenance to be carried out unless:

• The engine is stopped.

• The ignition key has been removed.

• The parking brake is on.

In dusty conditions, cleaning

English-37

Page 40

MAINTENANCE

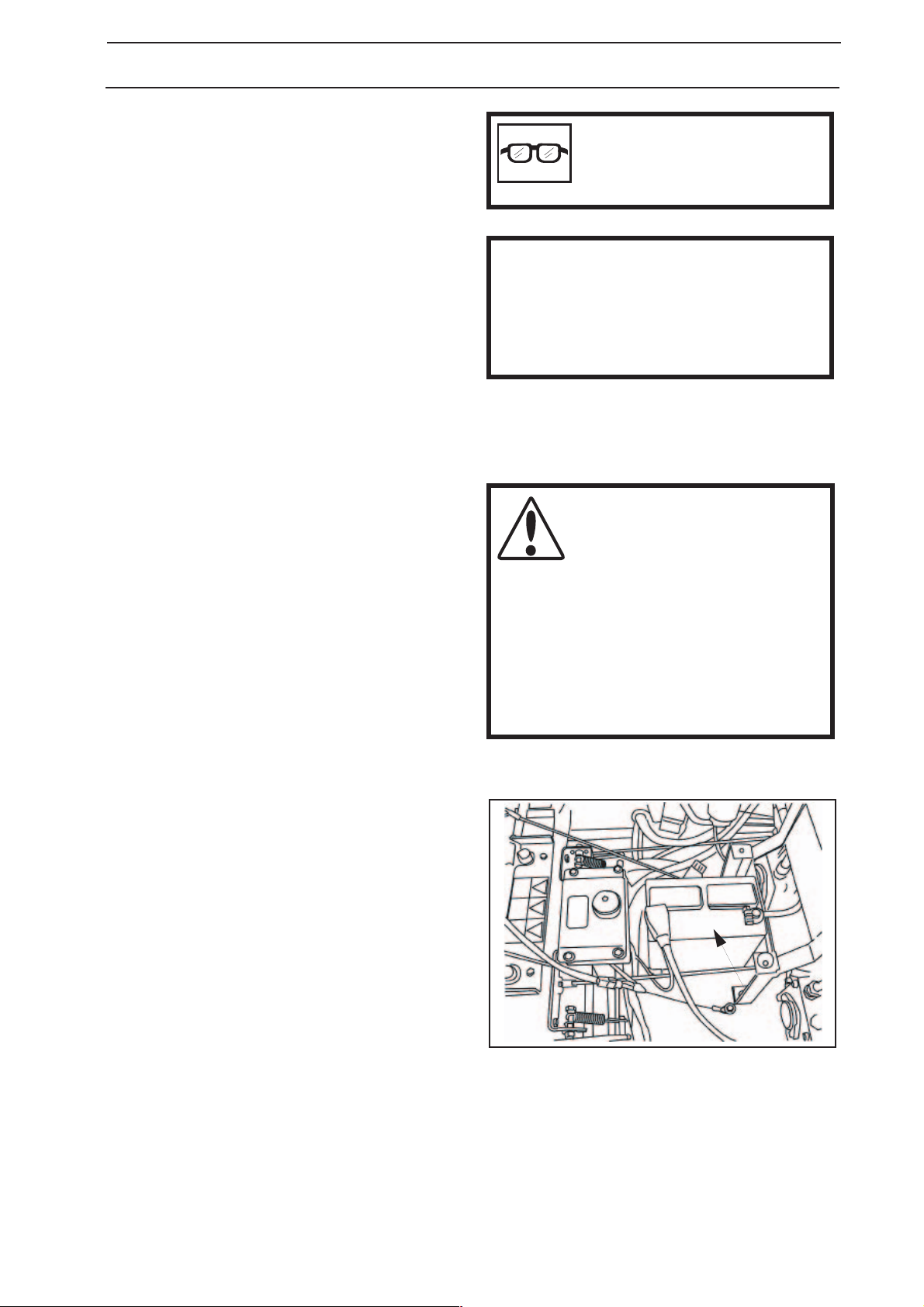

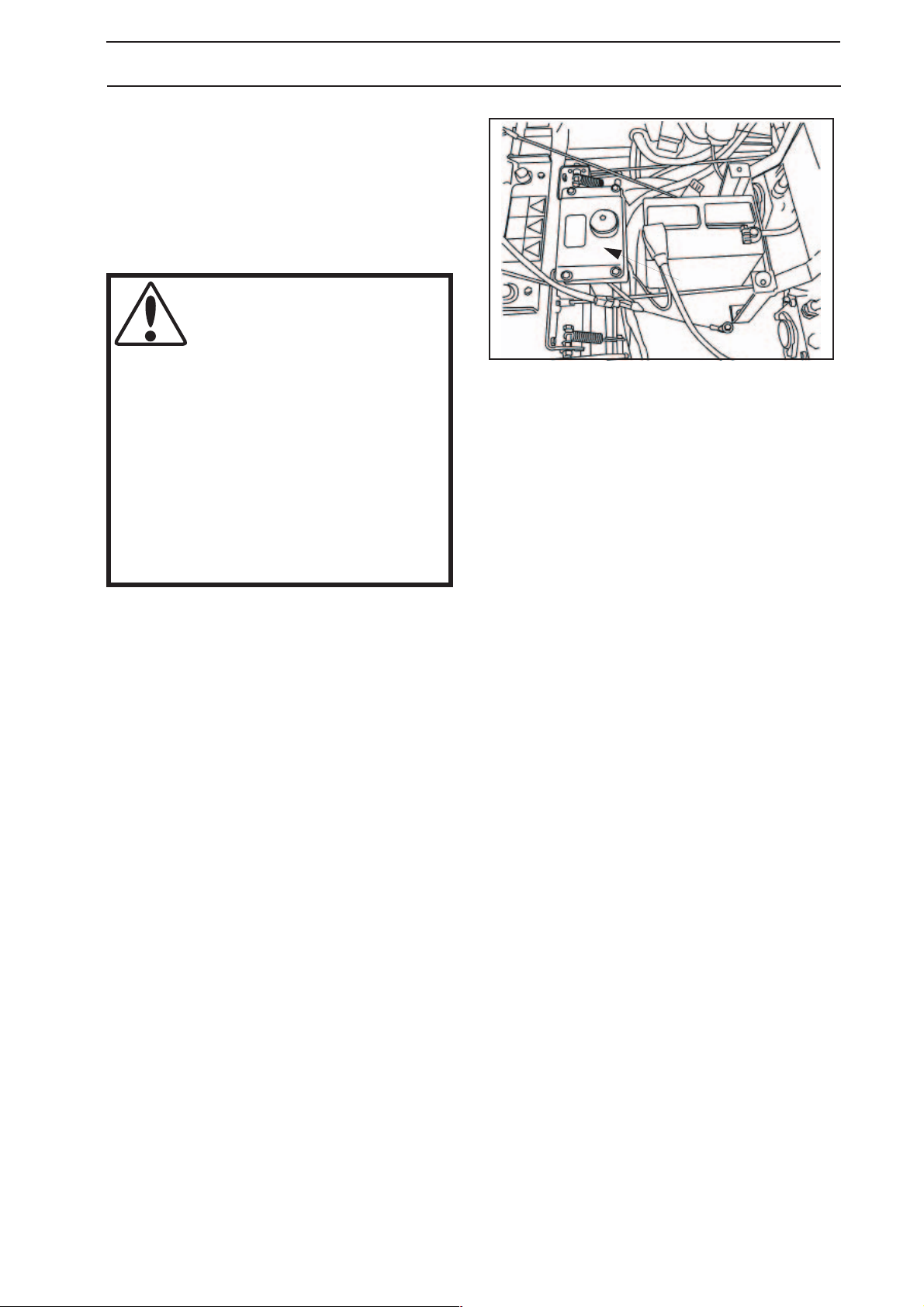

Battery

Your mower is equipped with a maintenance free battery and does not need servicing. However, periodic charging of the battery with an automotive type battery charger will extend its life.

Always use protective glasses when handling the battery.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Recharge at 6-10 amperes for 1 hour.

To clean battery and terminals

Corrosion and dirt on the battery and terminals can cause the battery to “leak” power.

1. Lift seat and rotate forward.

2. Remove the red terminal guard.

3. Disconnect BLACK battery cable ﬁrst, then the RED battery cable and remove the battery from the machine.

4. Rinse the battery with plain water and dry.

5. Clean terminals and battery cable ends with wire brush until shiny.

6. Coat terminals with grease or petroleum jelly

7. Reinstall battery.

IMPORTANT INFORMATION

Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

Always use two wrenches for the terminal screws.

WARNING!

Do not short battery terminals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, remove metal bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected ﬁrst to prevent sparks from accidental grounding.

Replacing battery

1. Lift seat and rotate forward.

2. Remove the red terminal guard.

3. Using two 1/2" wrenches disconnect BLACK battery cable then RED battery cable.

4. Remove the knobs and remove battery hold downs.

5. Carefully remove the battery from the mower.

6. Install new battery with terminals in the same position as the old battery.

7. Reinstall battery hold downs.

8. First connect RED battery cable to positive (+) battery terminal with hex bolt and hex nut.

Battery installation

BAM-21

English-38

Page 41

MAINTENANCE

9. Connect BLACK grounding cable to negative (-) battery terminal with remaining hex bolt and hex nut.

10. Fit the terminal guard.

11. Lower seat.

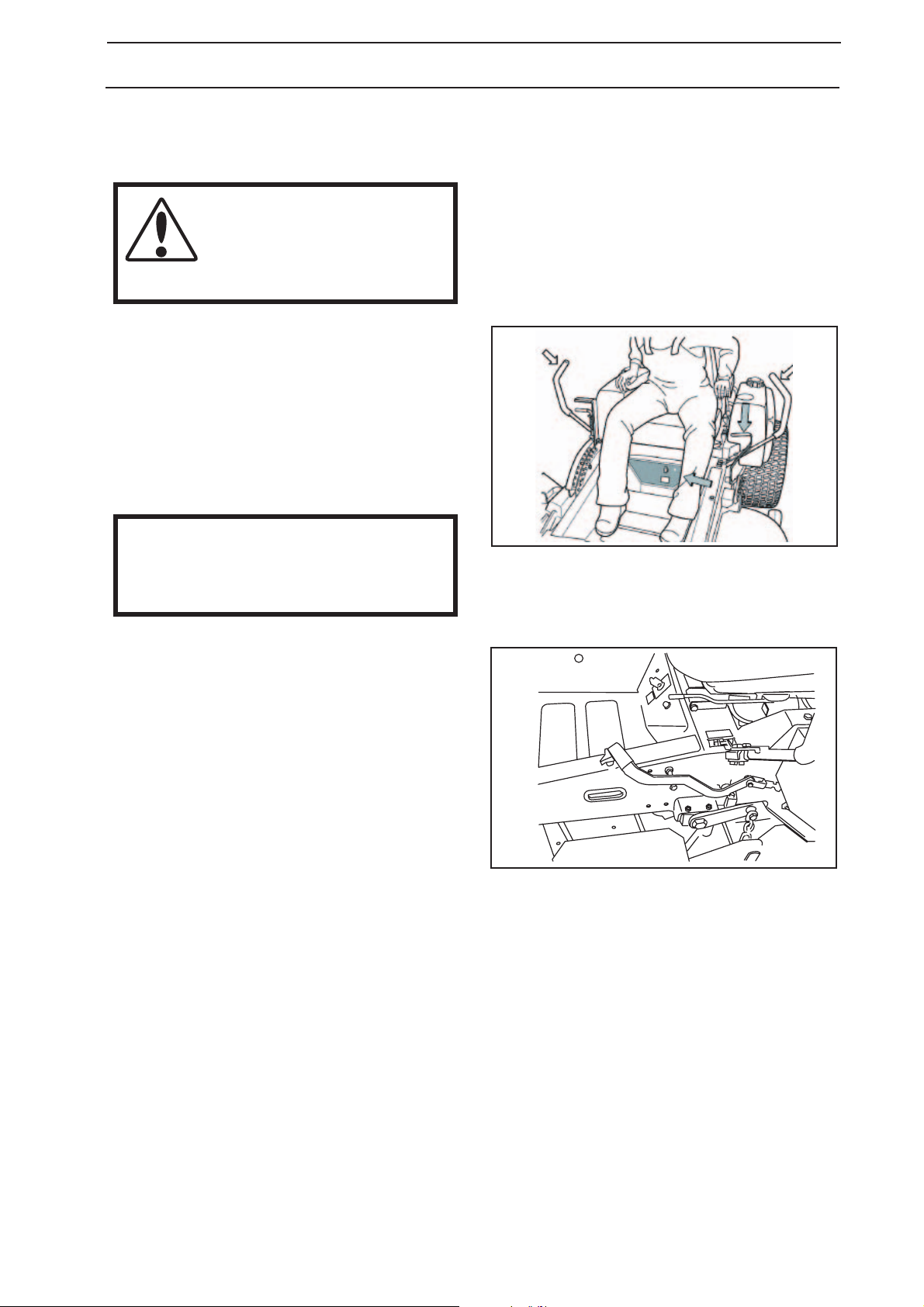

Checking the Safety System

The machine is equipped with a safety system that prevents starting or driving under the following conditions.

The engine can only be started when:

1. The mower deck is disengaged.

2. The steering controls are in the outer, locked neutral position.

3. The driver is sitting in the driver’s seat.

4. The parking brake is on.

Make daily inspections to ensure that the safety system works by attempting to start the engine when one of the conditions is not met. Change the conditions and try again. If the machine starts when one of these conditions is not met, turn the machine off and repair the safety system before using the machine again.

Make sure the engine stops when the park brake is not engaged and the operator leaves the seated position.

Check that the engine stops if the mower blades are engaged and the driver temporarily stands up.

BAM-10

Conditions for starting

IMPORTANT INFORMATION

In order to be able to drive, the driver must sit in the seat and release the parking brake before the steering controls can be moved into the neutral position, otherwise the engine will stop.

English-39

Page 42

MAINTENANCE

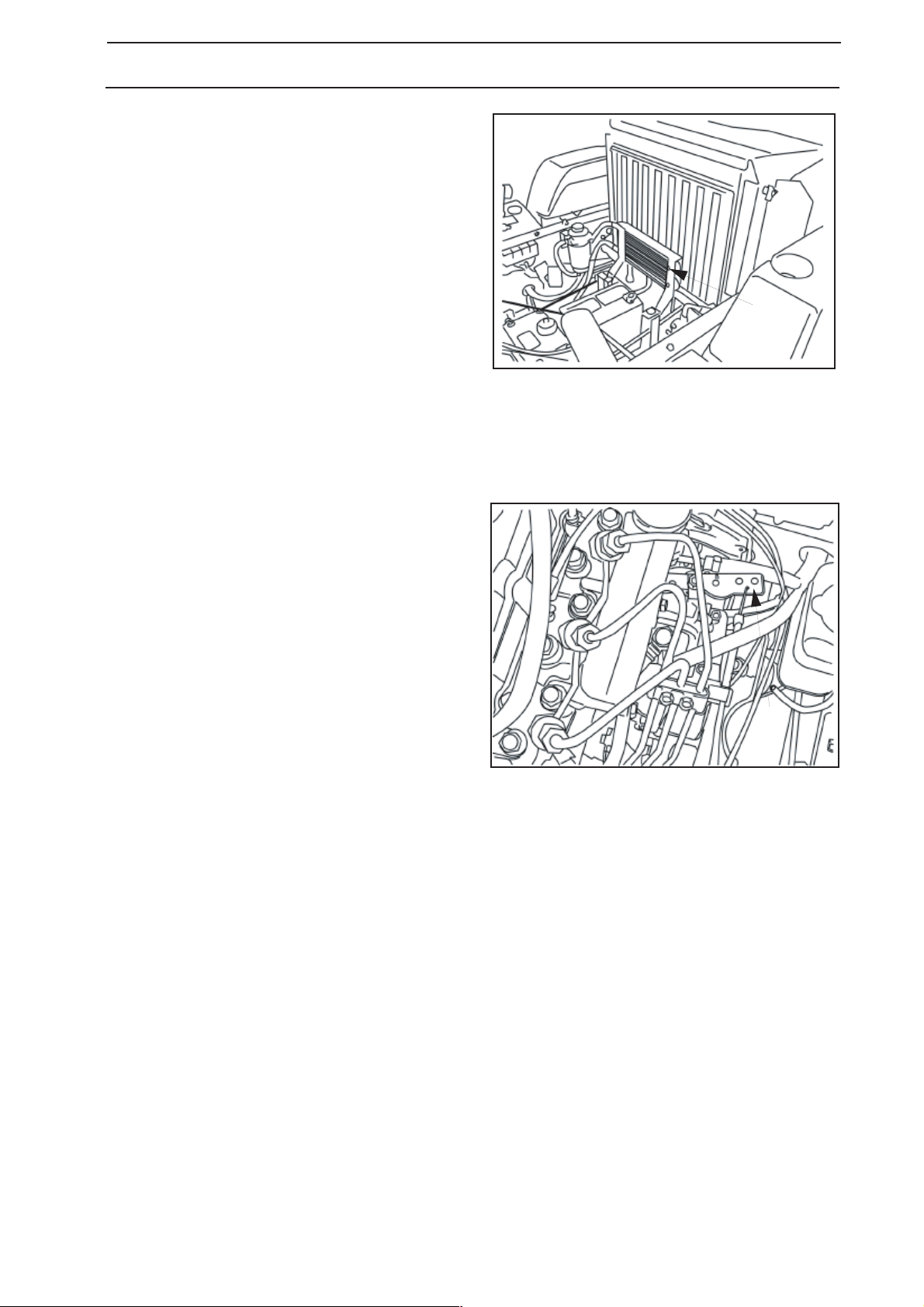

Checking the Engine's Cooling Air Intake

Check that the engine’s cooling air intake is free from leaves, grass, and dirt. If the cooling air intake is clogged, engine cooling deteriorates, which can lead to engine damage.

Checking and Adjusting the Throttle Cable

Check that the engine responds to throttle increases and that a good engine speed is attained at full throttle. If doubts arise, contact the service workshop. If adjustments are necessary, they can be made as follows for the lower cable:

BAM-13

Check and clean the cooling air intake

1. Loosen the clamping screw for the cable’s outer casing and move the throttle to the full throttle position.

2. Check that the throttle cable is mounted in the correct hole in the lower lever, see illustration.

3. Push the throttle cable’s outer casing as far to the left as possible and tighten the clamping screw.

Clutch Service and Maintenance

The clutch has an adjustable air gap that should not require adjustment for the life of the machine. Refer to the manufacture’s speciﬁcations sheet included with the mower.

BAM-14

Adjusting the throttle cable

English-40

Page 43

MAINTENANCE

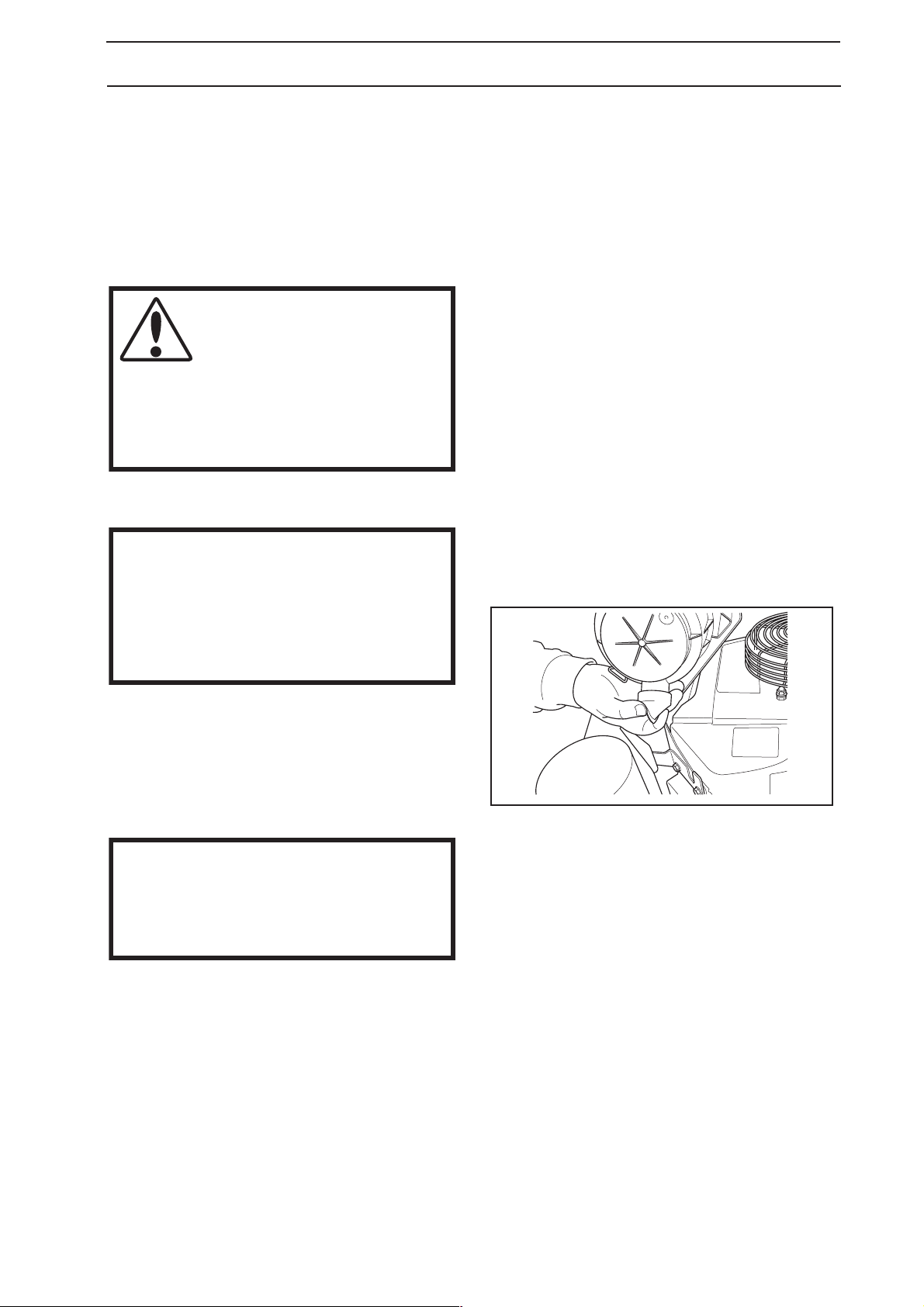

Replacing the Air Filter

If the engine seems weak or runs unevenly and the dust load indicator has turned red the air ﬁlter may be clogged. If run with a clogged air ﬁlter, disruption of operation can occur. For this reason, it is important to replace the air ﬁlter regularly (see the heading Maintenance Schedule for the proper service interval).

WARNING!

The engine and the exhaust system, become very hot during operation.

Risk for burns if touched.

Allow engine and exhaust system to cool at least two (2) minutes.

Cleaning/replacing the air ﬁlter is carried out as follows:

IMPORTANT INFORMATION

Do not used compressed air to clean the air ﬁlter. Do not wash the paper ﬁlter. Do not oil the paper ﬁlter. Do not tap ﬁlter to clean this could cause damage to the sealing.

Dust cap

Check the dust cap every day by pressing the rubber valve with two ﬁngers to let out the dirt.

IMPORTANT INFORMATION

The end cover must be installed with the rubber valve pointing downwards, otherwise the rubber valve will not function.

Clean the dust cap by removing the end cover of the the air cleaner and clean inside.

8011-447

Pressing the rubber valve

English-41

Page 44

MAINTENANCE

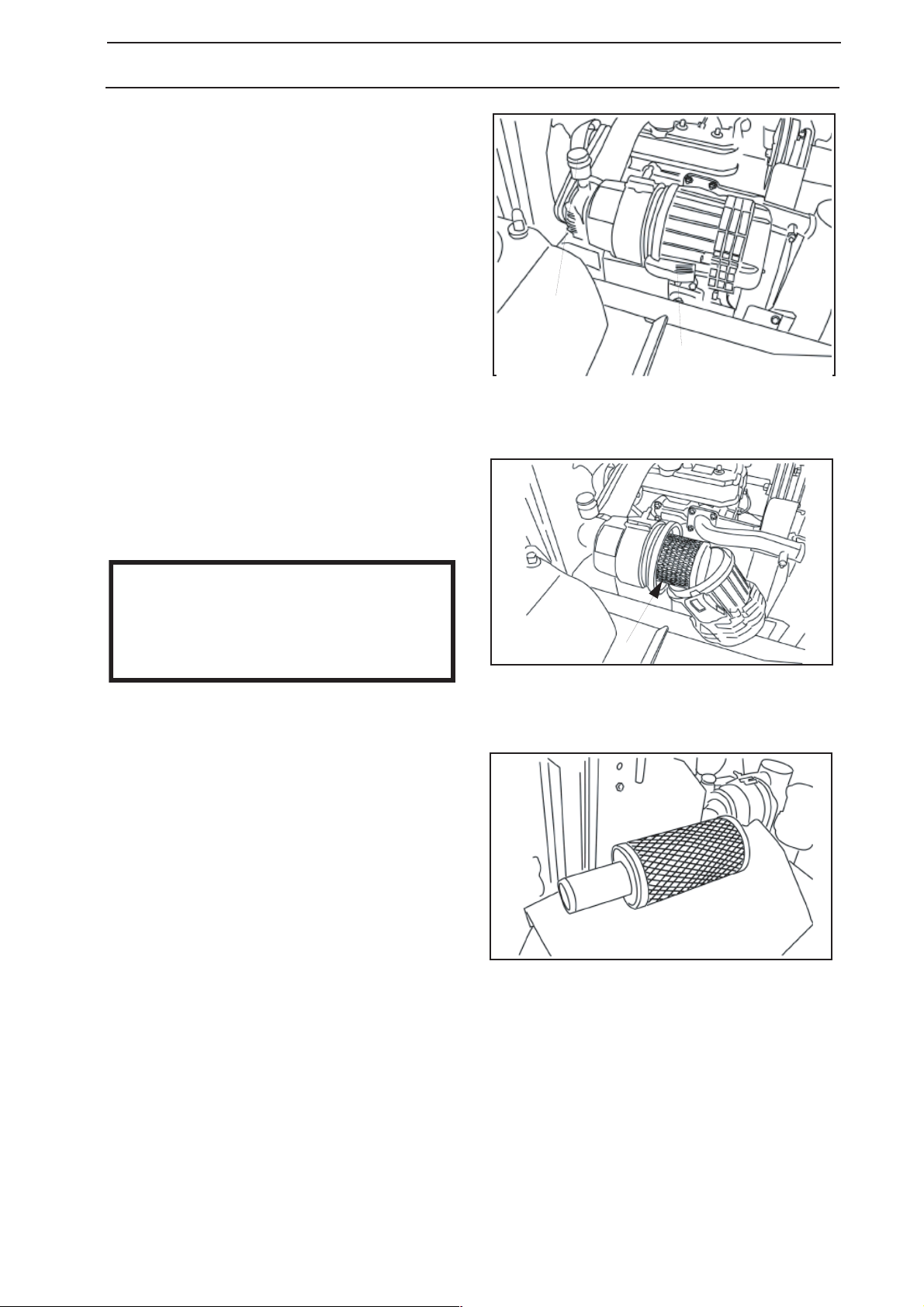

Filter replacement

1. Unfasten the two plastic clamps on the sides of the air ﬁlter cover. Remove the air ﬁlter cover.

2. Remove the main ﬁlter (outer ﬁlter) by pulling it out by hand. Lightly brush or use mild air pressure to clean.

3. Only remove and replace safety element after the paper ﬁlter has been replaced 3 or 4 times.

4. Clean inside of the ﬁlter housing. Wipe dry only.

5. Install the inner ﬁlter with the open end ﬁrst. Ensure that it enters its recess at the end of the housing and push it in to the end.

6. Install the main ﬁlter with the open end ﬁrst. Ensure that it enters its recess at the end of the housing and push it in to the end.

1. Dust Load Indicator

2. Clamp

Removing the air filter cover

BAM-15

IMPORTANT INFORMATION

The end cover must be installed with the rubber valve pointing downwards, otherwise the rubber valve will not function.

7. Replace the cover over the air ﬁlter housing. Fasten the two plastic clamps making sure the cover is snapped into position.

8. Turn the end cover with the rubber valve pointing downwards and install it.

9. Push top of dust load indicator to reset it.

Paper ﬁlter

Safety element

BAM-16

BAM-17

English-42

Page 45

MAINTENANCE

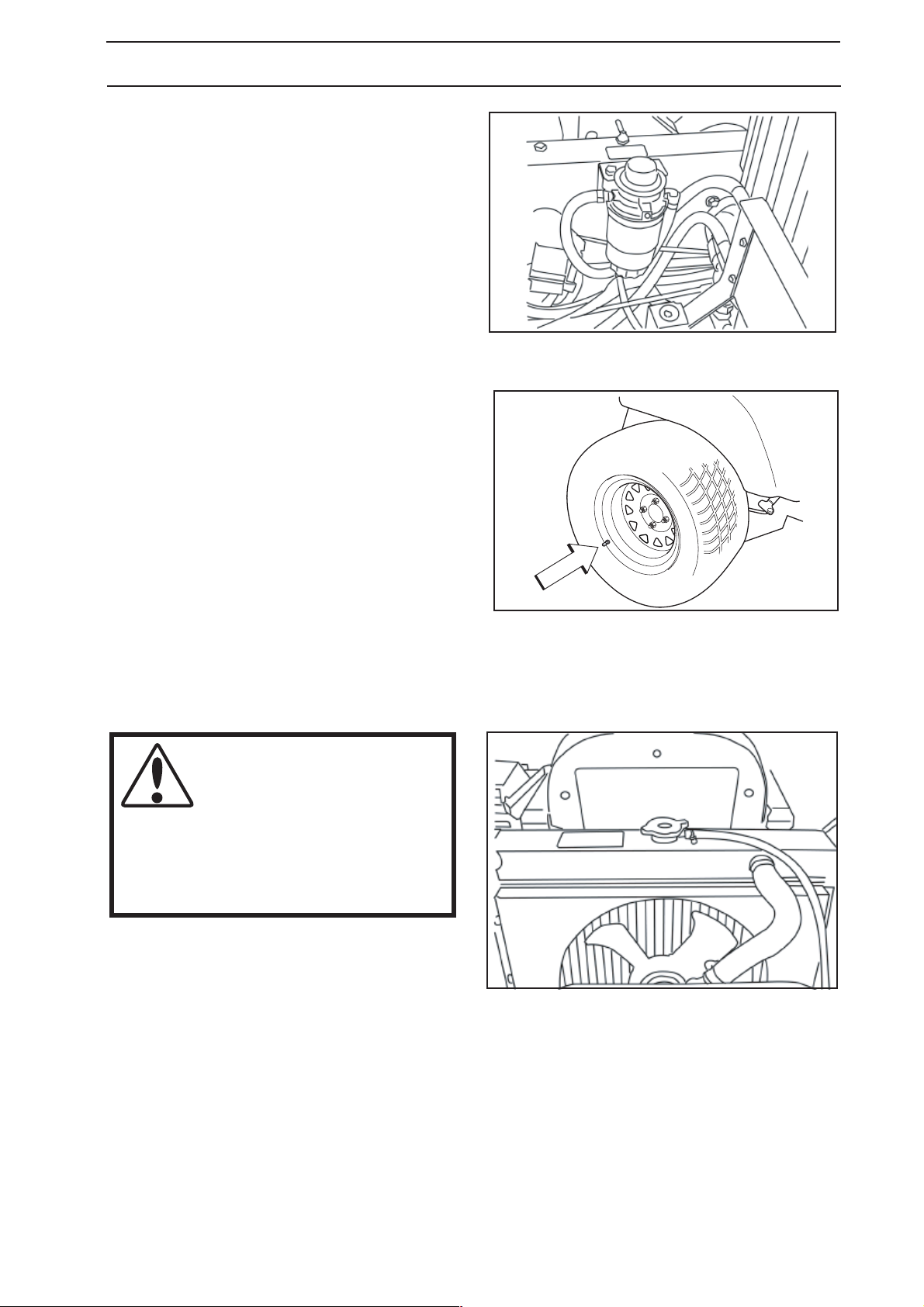

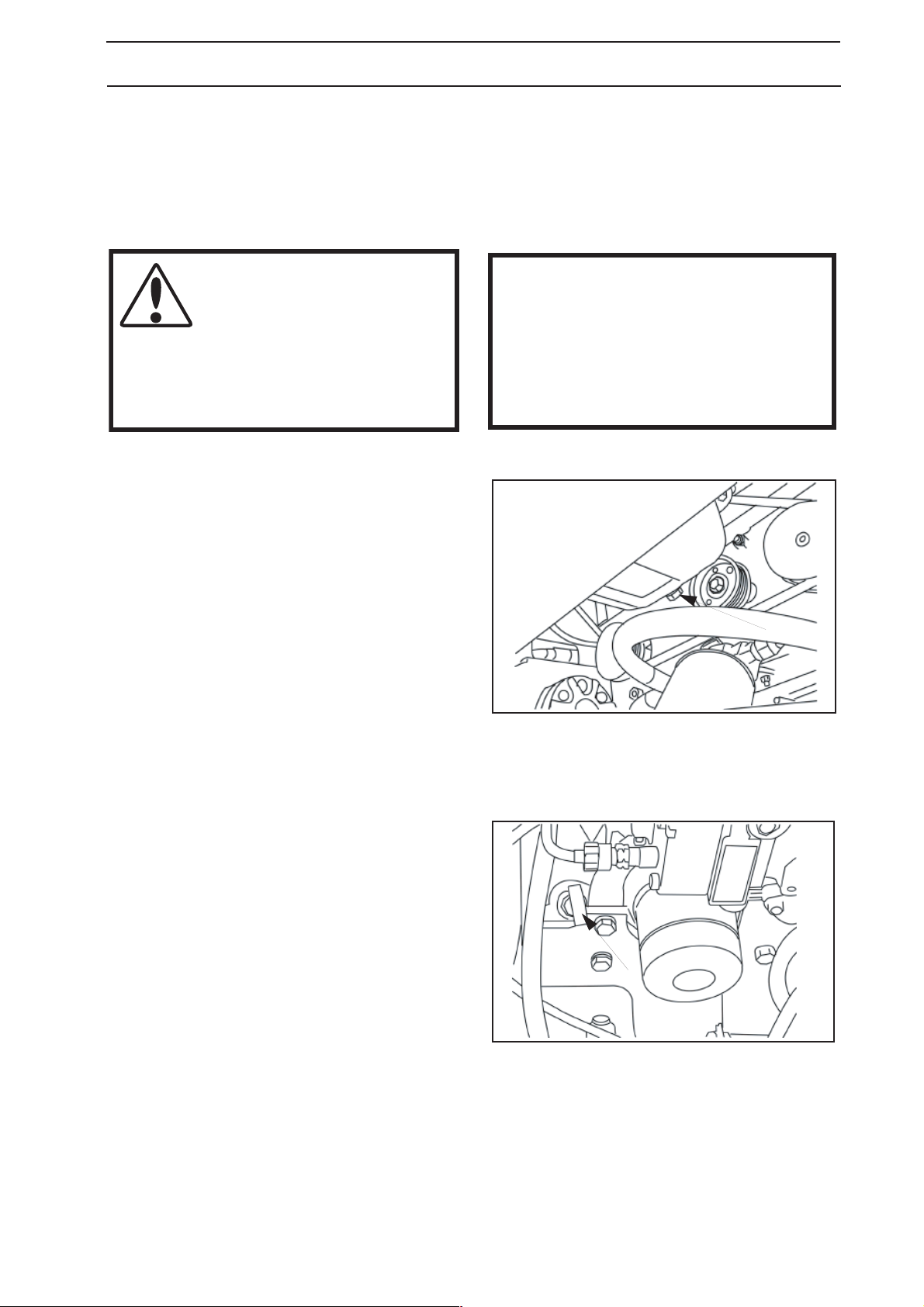

Replacing the Fuel Filter

The fuel ﬁlter is located with the priming pump.

Replace the fuel ﬁlter every 800 hours (once per season) or more regularly if it becomes clogged.

Replace the ﬁlter as follow:

Unscrew fuel ﬁlter from pump and replace.

Every 50 hours check for water in the fuel ﬁlter. Empty if necessary. Refer to the engine manual.

Checking Tire Pressures

All four tires should have a pressure of 15 psi / 103 kPa / 1 bar.

BAM-18

Fuel ﬁlter and fuel pump

Check and Filling Coolant System

WARNING!

ALWAYS make sure the engine

is stopped and cool before

removing radiator pressure cap. To prevent scalding by hot ﬂuid, NEVER remove the radiator cap while engine is hot.

NOTE: Failure to follow the recommended

procedure for ﬁlling the cooling system will cause engine overheating and possible engine failure.

ALWAYS check coolant level at the overﬂow reservoir. The correct level of coolant in the over ﬂow tank does NOT assure the radiator is full.

8011-564

Tire pressures

BAM-19

Radiator

English-43

Page 46

MAINTENANCE

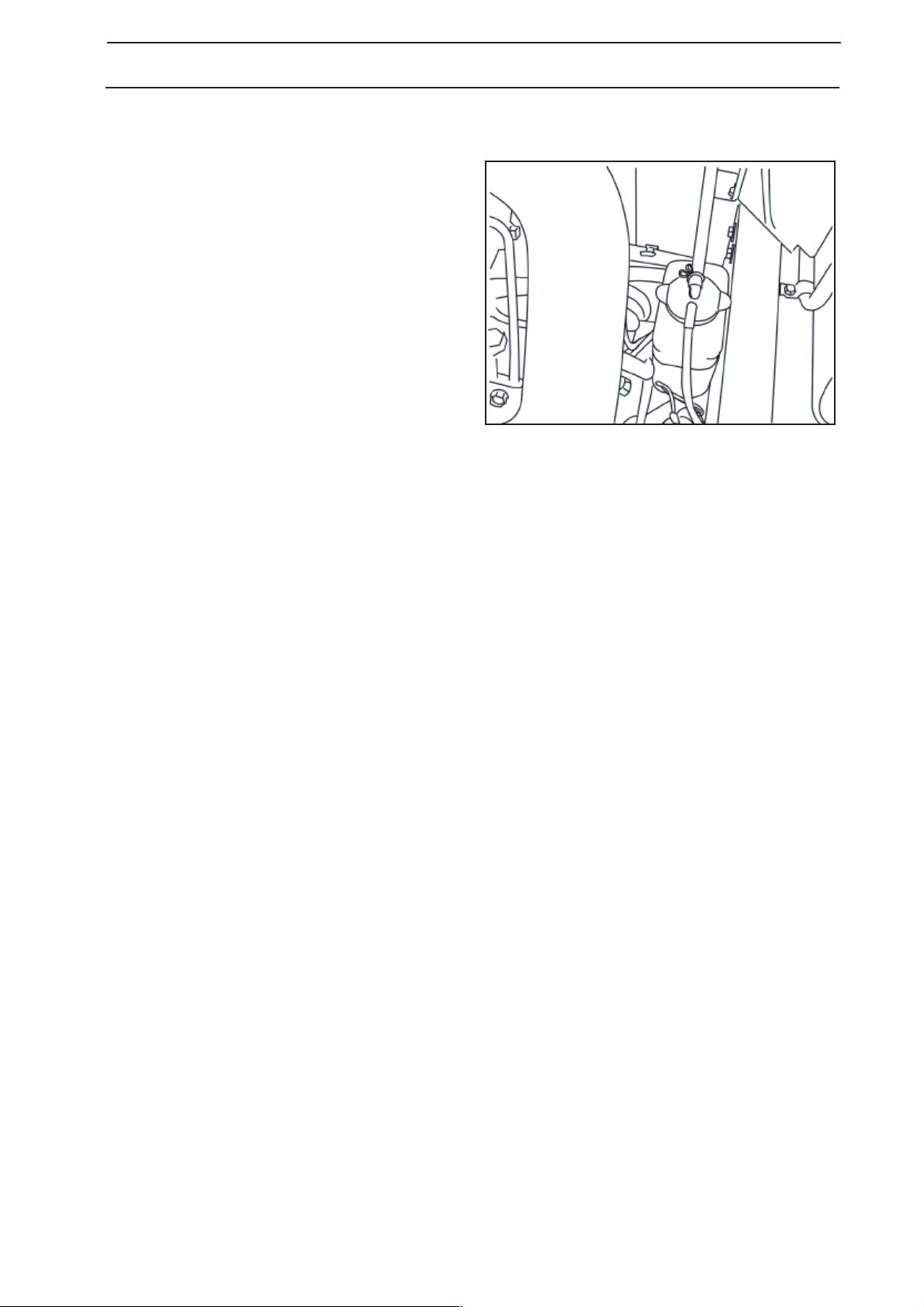

It is extremely important that when antifreeze is used, that it be mixed with water in a separate container before adding. NEVER add straight antifreeze to the radiator. Recommended mix is 50/50 lowtox (propylene glycol) phosphate-free antifreeze with tap water. DO NOT mix in ethylene glycol. Refer to engine operatorís manual.

The radiator for this cooling system is provided with two drain valves; one at each end of the lower tank. When draining the system, it is necessary to open both these valves to drain the radiator completely.

Add coolant to the bottom of the ﬁll cap again. Install radiator pressure cap. Add coolant to the proper line on the over ﬂow tank between FULL and LOW.

When reﬁlling the system, it is important that all trapped air be purged. The following procedure will help to insure this:

BAM-20

Overﬂow bottle

1. Make sure the engine is level. Fill the overﬂow reservoir up to the MAX mark with coolant mixture.

2. Slowly ﬁll the radiator to the bottom of the ﬁller neck with coolant mixture.

3. With radiator cap off, start the engine and let it warm up (no-load). Then, if necessary, add more coolant mixture to bring the level back up to the bottom of the ﬁller neck.

4. Reinstall the radiator cap and run the engine a short time with the system sealed while watching the temperature gauge. If the temperature gauge goes past 230 degrees and does not drop back to approximately 190 degrees, indicating the thermostat has opened, allow the engine to cool down, check for leaks and repeat the procedure.

This is a sealed system. If it becomes necessary to add coolant mixture at a later date, check for leaks and if the overﬂow reservoir has not been drained completely, add coolant mixture to the reservoir only. This will help prevent air pockets in the radiator top tank and lessen the chance of introducing contaminates to the system.

English-44

Page 47

MAINTENANCE

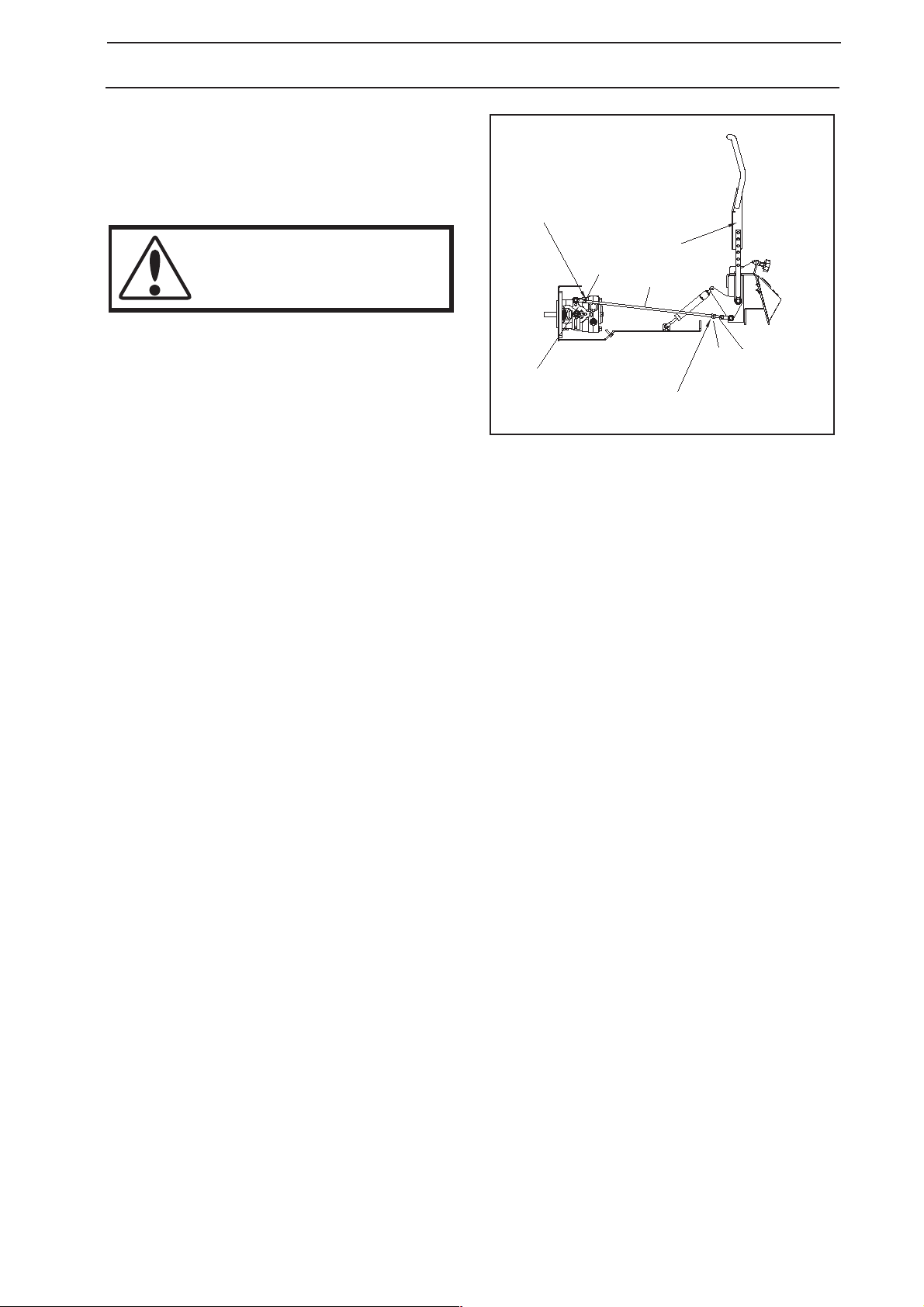

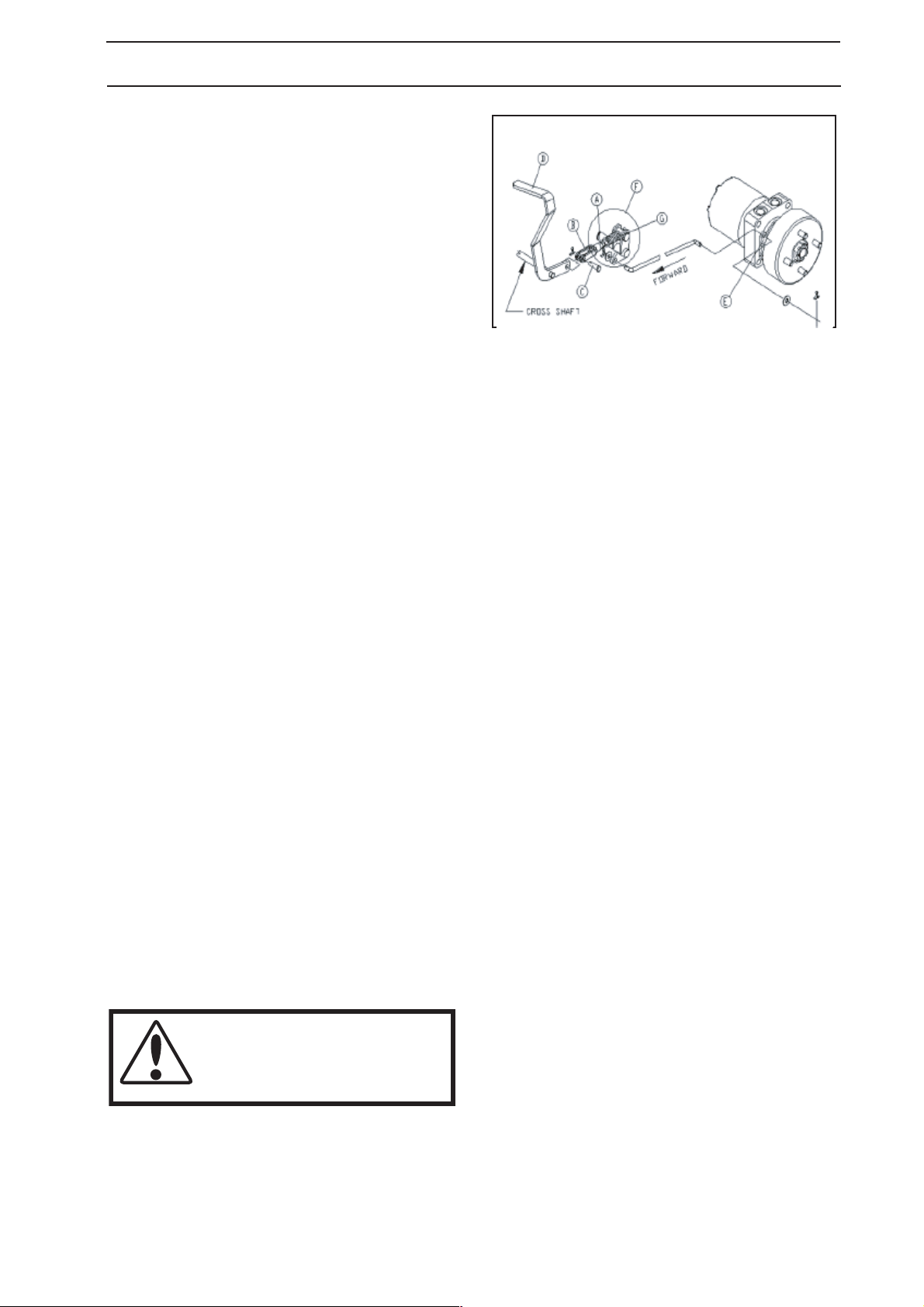

Checking the Parking Brake

Visually check that no damage is found on the lever, links, or switch belonging to the parking brake. Perform a test drive and check that there is sufﬁcent braking action.

To adjust the parking brake:

1. Set brake lever (D) fully forward against stop.

NOTE: Brake cross shaft MUST be properly lubricated and both cross shaft and overcenter assemblies (F) MUST rotate freely.

2. Loosen jam nut (A) at rear of clevis (B) and remove clevis pin (C) both sides of mower.

3. Rotate over-center assembly (F) in correct direction (clockwise on left counter-clockwise on right) to pull brake actuating arm (E) forward until ﬁrm contact between brake shoes and drum can be felt. Hold in this position.

4. Rotate clevis until clevis pin can just be inserted thru clevis and brake lever with pin resting against rear of the hole in brake lever.

5. Remove clevis pin and rotate clevis two (2) full turns toward rear to allow correct clearance between brake shoes and drum.

6. Temporarily reinstall clevis pin (do not install cotter pin) to keep clevis from turning and tighten jam nut.

7. Remove pin and repeat above procedure on opposite side.

8. Reinstall clevis pins and secure with new cotter pins.

9. Set brake lever rearward to fully engaged position.

10. Adjust spring (G) to correct tension by turning rear jam nut until spring measures 1 1/8".

Park brake linage

Parking brake linkage

WARNING!

Faulty adjustment can cause an accident.

English-45

Page 48

MAINTENANCE

Checking the V-belts

Deck belt

Check every 100 hours of operation. Check for severe cracking and large nicks.

NOTE: The belt will show some small cracks in normal operation.

To replace belt lower the deck to its lowest position. Remove the foot plate and belt shields.

Use a ratchet with a 9/16” socket on the spring idler bolt to relieve the tension on the belt. Slide the belt off of pulley and remove the belt.

Reverse the proceedure for installation. See the decal on the top of deck for belt routing information.

After installation is complete check the belt for twists.

8011-622

Slackening the belt tensioner

Pump belt

Check belt every 100 hours for excessive wear.

To replace belt. Relieve tension on the deck belt and remove deck belt from clutch. See “Deck belt” on page 46. Loosen bolt on the clutch tie down and rotate out of the way.

Using a 1/2” drive ratchet inserted into the square hole in the pump idler arm relieve the tension on the pump belt and remove belt.

8011-580

Belt routing, deck belt

8011-623

Slackening the belt tension

English-46

Page 49

MAINTENANCE

To reinstall belt: Swing pump idler pulley toward engine to route belt around it. Then route belt around the pulley for left pump ﬁrst.

Reinstall idler spring and use the ratchet to rotate idler so the belt may be installed all the way around the last pulley.

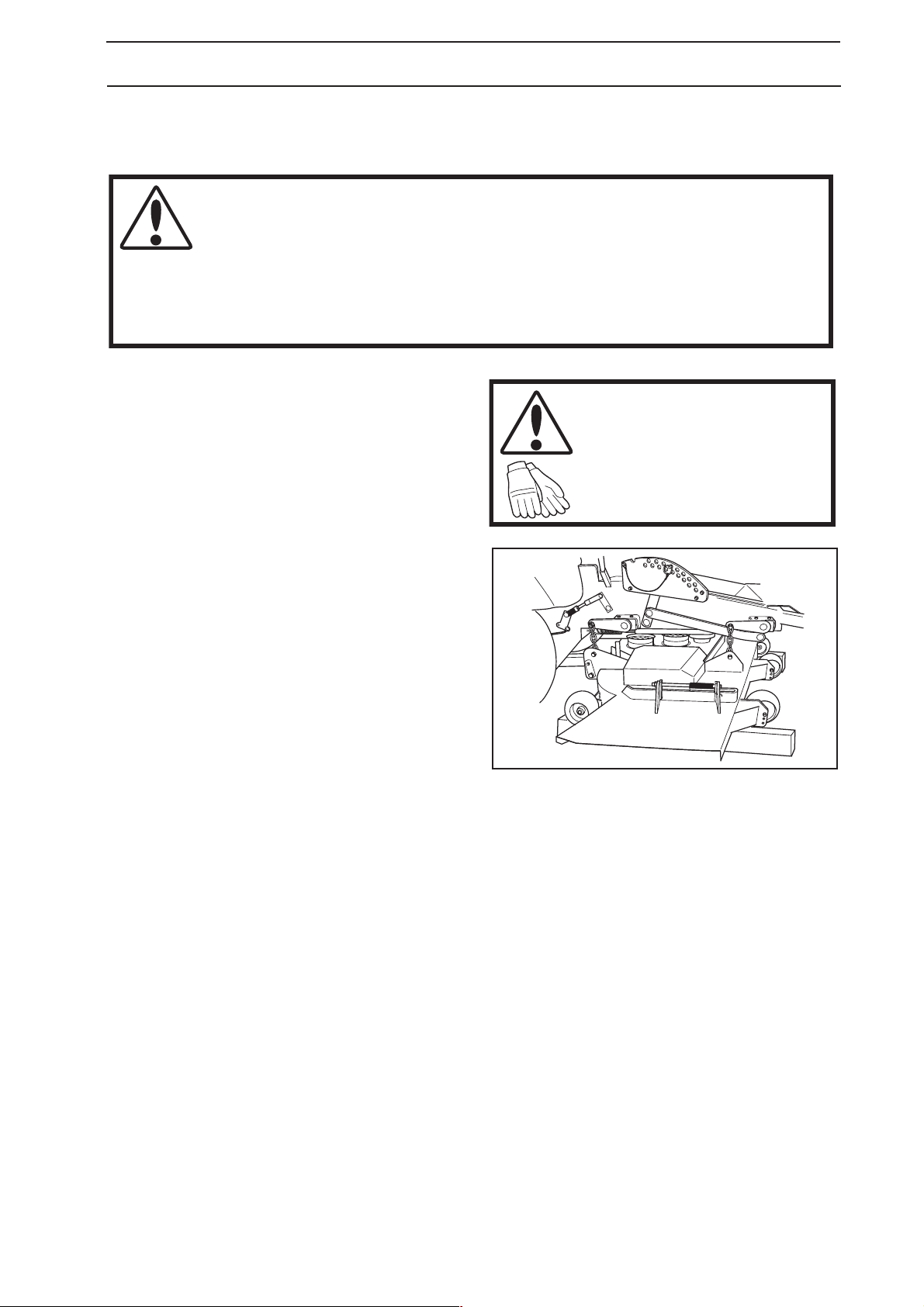

Checking the Blades

In order to attain the best mowing performance, it is important that the blades are well sharpened and not damaged.

WARNING!

Blades are sharp. Protect your hands with gloves and/or wrap blades with a heavy cloth when handling.

Bent or cracked blades or blades with large nicks should be replaced.

Check the blade mounts.

IMPORTANT INFORMATION

The sharpening of blades should be carried out by an authorized service workshop.

Damaged blades should be replaced when hitting obstacles that result in a breakdown. Let the service workshop decide whether the blade can be repaired/ground or must be discarded.

8011-604

Check the blades

English-47

Page 50

MAINTENANCE

Blade replacement:

WARNING!

Blades are sharp. Protect your hands with gloves and/or wrap blades with a heavy cloth when handling.

• Remove blade bolt by turning counterclockwise.

• Tunnel deck blades are sharpened on both sides and can be installed either way. Combi deck blades are not sharpened on both sides.

• Install and tighten blade bolt securely.

Tunnel Ram Deck - Torque blade bolt to 90 ft/lbs (122 Nm).

Combi Deck - Torque blade bolt to 57-61 ft/lbs (77-82 Nm).

1. Blade

2. Center hole

3. Cutter housing

4. Blade bolt (special)

5. Lockwasher

Blade attachment, principal

8011-671

English-48

Page 51

Adjusting the Mower Deck

WARNING!

Before performing any service or adjustment checklist:

1. Engage the parking brake.

2. Place the blade-switch in the disengaged position.

3. Turn ignition switch to “OFF” position and remove the key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect the spark plug wire from all spark plugs and place the wire where it cannot come in contact with the plug.

MAINTENANCE

Leveling

1. Position the mower on a level, preferably concrete, surface.

2. Check the pressure in all four tires. See “Technical Data” section.

3. Raise the mower on lengths of 2" x 4" placed edgewise under the cutting deck from front to rear (see diagram).

4. Lower the deck onto the 2” x 4”´s. The rear of the deck is approxemately 1/4” deeper than the front. This gives the deck a proper pitch front to back when lowered onto the 2” x 4” guides.

5. Set the cutting height to 4”.

6. Adjust the four lower chain bolts so that they are centered in the oblong slots.

7. Move the lifting lever and check that all the chains are equally tensioned. If they are not, adjust the appropriate lower chain bolt in its slot.

Adjusting Cutting Height

1. Raise and secure the deck height lever to the transport position (Tunnel Ram Deck - 6"(150mm), Combi Deck - 5 3/ 4”(146mm).

2. Position blade tip so it is straight forward.

3. Measure from the cutting edge of the blades to a ﬂat level surface. The distance should be (Tunnel Deck - 6" (150 mm), Combi Deck - 5 3/4”(146mm).

WARNING!

Blades are sharp. Protect your hands with gloves and/or wrap blades with a heavy cloth when handling.

8011-601

Leveling the mower deck, hang chain version

4. Drop and secure the lever at (for example) the 2" cutting height. Measure as above. The distance should be 2" (50 mm).

English-49

Page 52

MAINTENANCE

To adjust anti-scalp rollers

Anti-scalp rollers are properly adjusted when they are just slightly off of the ground when the deck is at the desired cutting height in the operating position. Anti-scalp rollers then keep the deck in the proper position to help prevent scalping in most terrain conditions.

IMPORTANT INFORMATION

Adjust Anti-scalp rollers with the mower on a ﬂat level surface.

Tunnel Ram Deck -

The anti-scalp rollers can be set in three positions:

• Upper position 1.5” to 3”/38 to 76 mm grass.

• Middle position 3” to 4.5”/76 to 114 mm grass.

• Lower position 4.5” to 6”/114 to 152 mm grass.

Combi Deck -

CZ-9

Anti-scalp roller

• Upper position 1.5” to 3.0” (38 to 76mm) grass.

• Lower position 3.0” to 4.5” (76 to 114mm) grass.

The rollers should be approximately 1/4”/6.5 mm from ground. Do not adjust the rollers to support the deck.

IMPORTANT INFORMATION

The anti-scalp rollers must not be used for gauge wheels or the roller and deck may be damaged.

CZ-9

Anti-scalp roller - Combi Decks

English-50

Page 53

MAINTENANCE

Checking the Hydraulic System

Total System Capacity..................1.125 gal.

To check the hydraulic ﬂuid level, locate the hydraulic reservoir under the seat. Remove cap and check level. Fill to 1/4" from top of tank

WARNING!

If a leak is suspected, use a piece of cardboard or wood, NOT your hands. to check for leaks.

Escaping hydraulic oil under pressure can have sufﬁcient force to penetrate the skin, causing serious injury.

If injured by escaping ﬂuid, see a doctor at once. Serious infection or reaction can develop if proper medical treatment is not administered immediately.

BAM-21

Hydraulic reservoir

English-51

Page 54

MAINTENANCE

Motion Control Linkage Adjustment

This adjustment must be made with the rear wheels rotating. Raise the rear of the machine and block it up so the wheels are free to rotate

WARNING!

Keep hands, feet and clothing away from rotating tires.

Place a 2 x 4 board between the foot plate and the center of the seat to engage the seat safety switch.

Loosen the nuts (A and B) directly behind each ball joint on linkages (C). See illustration.

Start the engine. The park brake must be engaged and the motion control levers in the neutral slots to start the engine. Run the engine approximately half throttle. Release park brake to allow the wheels to rotate.

Begin with either side and put the motion control lever into the neutral position. Adjust the motion control linkage by rotating the double nuts (D) in the proper direction until the wheel stops rotating. See illustration. Move the motion control lever forward then into the neutral position and place it into the neutral slot. The wheel must be stopped completely at this point. Now do the same in reverse and release the lever. The lever should return to neutral on its own.

1. Left hand threads

2. Pump arm

3. Motion control lever

4. Turn here to adjust

Motion control linkage adjustment

motioncontroladj

Run engine full throttle to make sure wheels do not rotate. Readjust if any rotation occurs.

Repeat the whole process for the opposite side and tighten the nuts against the ball joints.

Turn machine off.

Cutter Housings

Grease housings once weekly or every 40 to 50 hours of use. Use a good synthetic grease. Pump grease in until a small amount purges from the popet on the underside of the deck. Check the torque of the pulley bolt 45 ft/ lbs should be maintained.

English-52

Page 55

MAINTENANCE

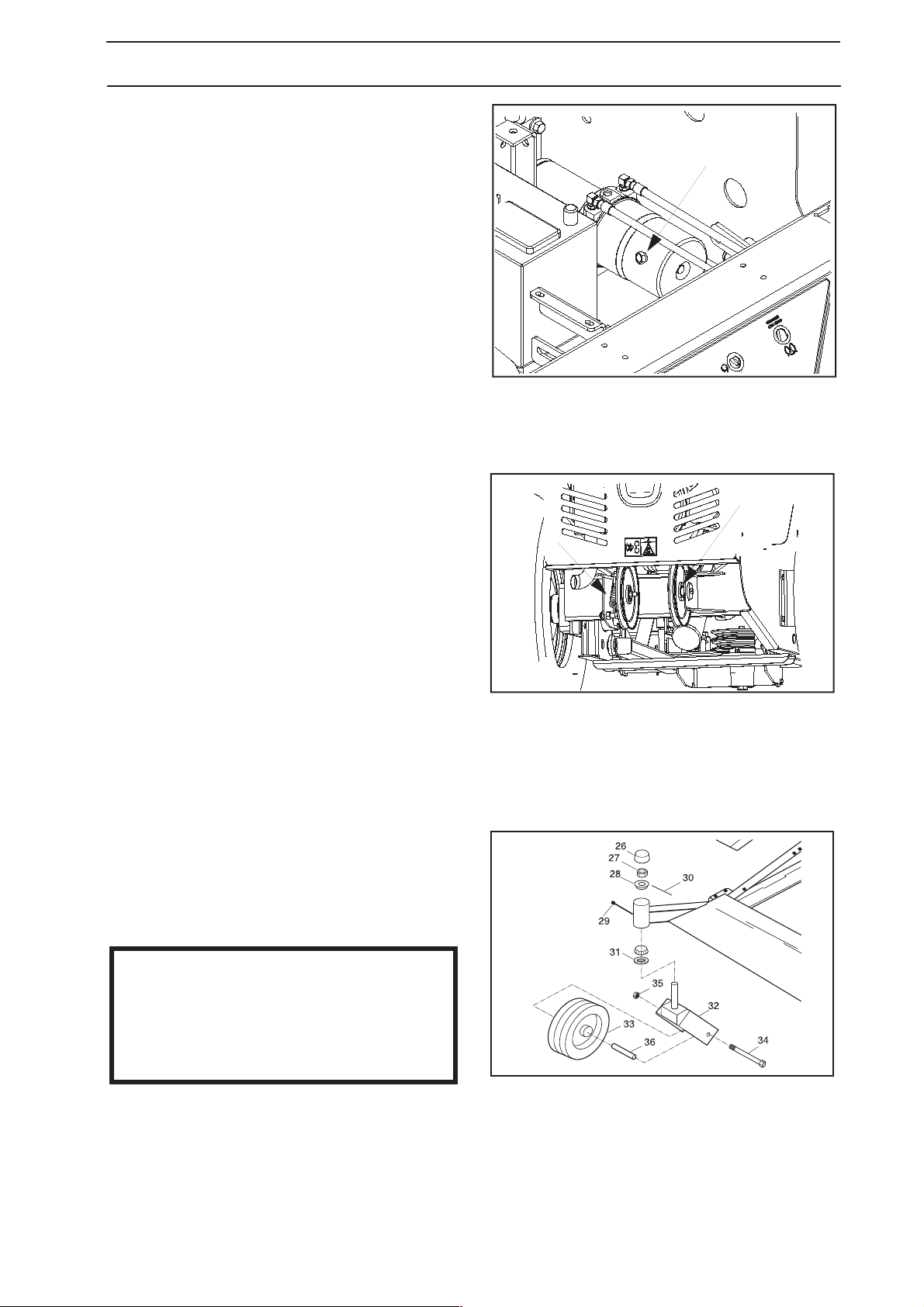

Deck Lift Power Unit

The system is pre-ﬁlled and factory sealed. In the event it becomes necessary to replace oil in the reservoir, the cylinder or cylinders must be in the retracted position. Carefully remove all dirt and debris from around the ﬁll plug and remove the plug. Fill to the lower edge of the hole with 15W-50 synthetic oil and replace the plug ﬁrmly to reseal the system.

Mule Drive System Adjustment

Only for the 72” deck.

As the mule drive belt wears and elongates, some spring tension must be maintained on the left (self-adjusting) mule drive idler.

For best performance, occasionally adjust the right (ﬁxed) mule drive idler position in the slot so central axis of idler pulleys align.

Caster Wheels

Check every 200 hours. Lift front of unit off of ground so caster wheels can rotate freely. Tighten caster bolt (34) then back off 1/2 turn. Check that wheel rotates freely. If wheel does not rotate freely back the caster bolt off in 1/4 turn increments until wheel rotates freely.

Deck Lift Power Unit Vent Plug

deckventplug

mule drive

1. Self-adjusting

2. Fixed

Mule Drive Adjustment

IMPORTANT INFORMATION

DO NOT add any type of tire liner or foam ﬁll material to the tires. Excessive loads created by foam ﬁlled tires will cause premature failures.

Only use O.E.M. speciﬁed tires.

Foam ﬁlled tires or solid tires will void the warranty.

8011-619

Caster wheels

English-53

Page 56

MAINTENANCE

Cleaning and Washing

Regular cleaning and washing, especially under the mower deck, will increase the machine’s lifespan. Make it a habit to clean the machine directly after use (after it is cooled), before the dirt sticks.

Do not spray water on the top of the mower deck. Use compressed air to clean the top side of mower deck. Regulary clean deck and underside of deck, avoid spraying engine and electrical components with water.

Use protective glasses when cleaning and washing.

Hardware

8011-644

Cleaning

Check daily. Inspect the entire machine for loose or missing hardware.

English-54

Page 57

Lubrication

Lubrication Schedule

LUBRICATION

lubechart

Lubrication schedule

12/12 Every year

1/52 Every week

1/365 Every day

Lubricate with grease gun

Oil change

Filter change

Lubricate with oil can

Level check

General

Remove the ignition key to prevent unintentional movements during lubrication.

When lubricating with an oil can, it must be ﬁlled with engine oil.

When lubricating with grease, unless otherwise stated, use a high grade molybdenum disulﬁde grease.

For daily use, the machine should be lubricated twice weekly.

Wipe away excess grease after lubrication.

It is important to avoid getting lubricant on the belts or the drive surfaces on the belt pulleys. Should this happen, attempt to clean them with spirits. If the belt continues to slip after cleaning, it must be replaced. Gasoline or other petroleum products must not be used to clean belts.

English-55

Page 58

LUBRICATION

Lubricating the Cables

If possible, grease both ends of the cables and move the controls to end stop positions when lubricating. Reﬁt the rubber covers on the cables after lubrication. Cables with sheaths will bind if they are not lubricated regularly. If a cable binds, it can disrupt operation.

If a cable binds, remove the cable and hang it vertically. Lubricate it with light engine oil until the oil begins to escape from the bottom.

Tip: Fill a small plastic bag with oil and tape it so that it seals against the sheath and allow the cable to hang vertically from the bag overnight. If you do not succeed in lubricating the cable, it must be replaced.

Shaft Bushings and Linkage

Lubricate the bearing of the shafts and linkage for brake system and steering with oil spray or oil can.

Lubricating in Accordance with the Lubrication Schedule

1. Hydraulic System, Oil Level

The hydraulic oil and ﬁlter must be replaced every 300 hours, and at least once a year. Contact an authorized service workshop.

Check the oil level in the hydraulic tank daily. The level shall be about 3/4"-1" (19 - 25 mm) below the top of the tank.

Check connections, hoses, and tubes for damage or leaks. Replace or repair if doubtful.

Changing Oil and Filters

Oil and ﬁlter changes should be carried out by an authorized service workshop due to the risk of impurities enter the system.

Checking the hydraulic oil

WARNING!

If a leak is suspected, use a piece of cardboard or wood, NOT your hands, to check for leaks. Escaping hydraulic oil under pressure can have sufﬁcient force to penetrate the skin, causing serious injury. If injured by escaping ﬂuid, see a doctor at once. Serious infection or reaction can develop if proper meical treatment is not administered immediately.

8011-565

2. Driver’s Seat

Tip the seat.

Lubricate the front hinges using an oil can.

Lubricate the lengthways adjustment mechanism with the oil can.

Lubricate the lengthways adjustment runners with the oil can.

English-56

8011-571

Lubricating the lengthways adjuster under the seat

Page 59

LUBRICATION

3. Engine Oil

Changing the Engine Oil

The engine oil shall be changed for the ﬁrst time after 50 hours of operation. Thereafter, it should be changed every 150 hours.

WARNING!

The engine and the exhaust system, become very hot during operation.

Risk for burns if touched.

Allow engine and exhaust sytem to cool at least two (2) minutes.

1. Place the machine on a ﬂat surface.

2. Place a container under the engine drain plug.

3. Remove the dipstick and open the drain plug.

4. Allow the oil to run out into the container.

5. Install and tighten the oil drain plug.

6. Replace the oil ﬁlter if necessary.

7. Fill with new engine oil in accordance with Checking the Oil Level.

8. Start the engine. Run it for a few seconds. Stop and re-check the oil level.

IMPORTANT INFORMATION

Used engine oil is a health hazard and must not be disposed of on the ground or in nature; it should always be disposed of at a workshop or appropriate disposal location.

Avoid skin contact; wash with soap and water in case of spills.

BAM-22

Oil drain plug

Checking the Oil Level

Check the oil level in the engine when the machine is standing level and the engine is stopped.

Remove the dipstick, wipe it clean, and then replace it.

Take the dipstick out again and read the oil level.

BAM-23

Remove the dipstick

English-57

Page 60

LUBRICATION

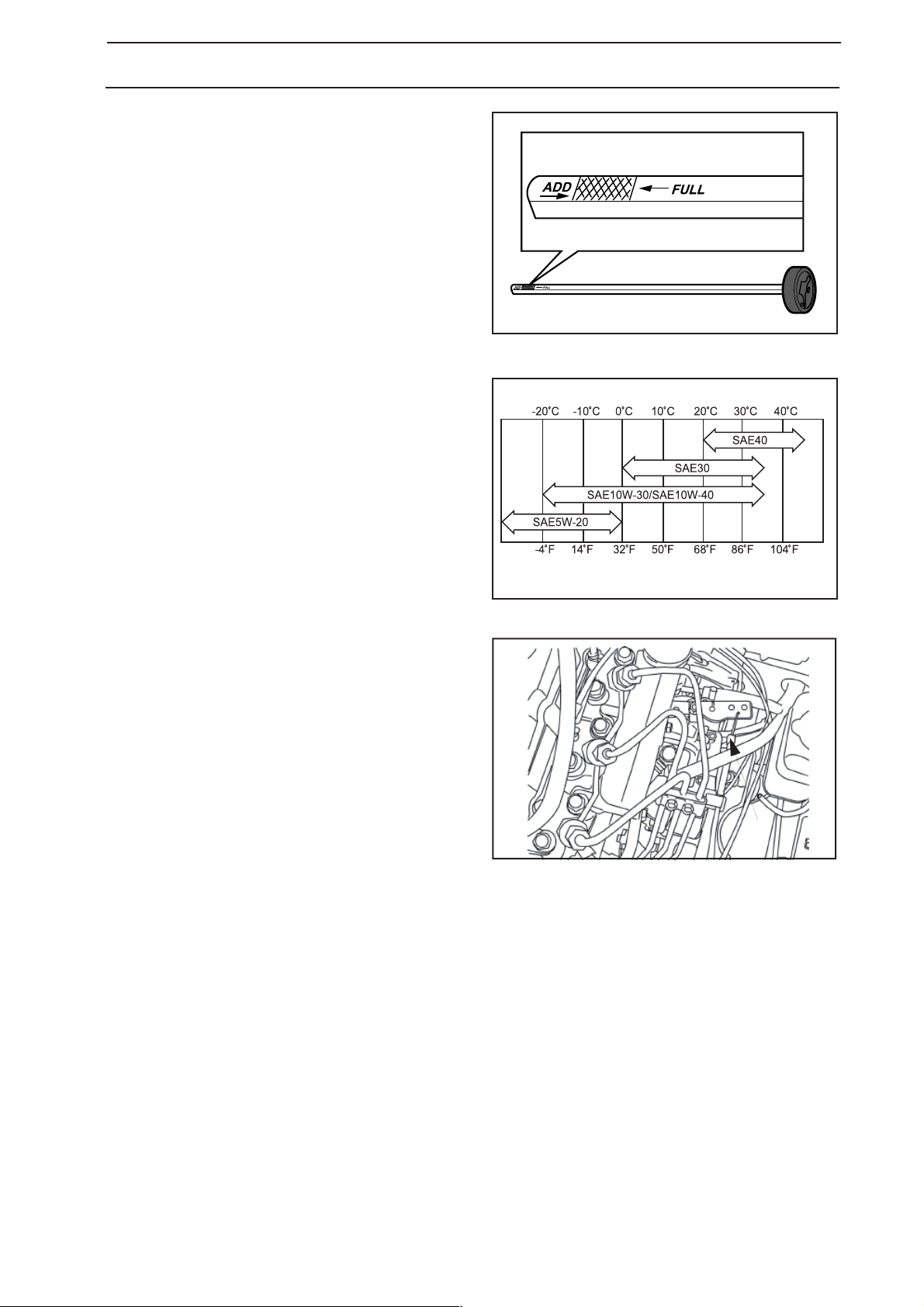

The oil level shall lie between the markings on the dipstick. If the level is approaching the ”ADD” mark, top up the oil to the ”FULL” mark on the dipstick.

Never ﬁll above the ”FULL” mark.

The oil is ﬁlled through the hole for the dipstick.

Use engine oil SAE 30 or SAE 10W-30 or, alternately, 10W/40, class CF–4, CI-4 (over +32 °F/0 °C).

Over +68 °F /+20 °C SAE 40 can be used.

Use engine oil SAE 5W-20, class CF–4, CI-4 (under +32 °F/0 °C).

8009-159

The dipstick markings

The engine holds 3.5qt/3.3 liters of oil including the ﬁlter.

4. Throttle Cable, Lever Bearings

Lubricate the cable ends by the lever with an oil can. Move the controls to the end points and lubricate again.

The throttle cable is also lubricated by the control when the control console is removed.

5. Front Wheel Mount

Lubricate with a grease gun, one zerk for each wheel mount, use 10 pumps of the grease gun at the recommended service intervals. Use only good quality lithium based grease.

8009-140

Engine oils

8011-605

Throttle and choke cables by the carburetor

Use only good quality molybdenum disulphide grease.

English-58

Page 61

LUBRICATION

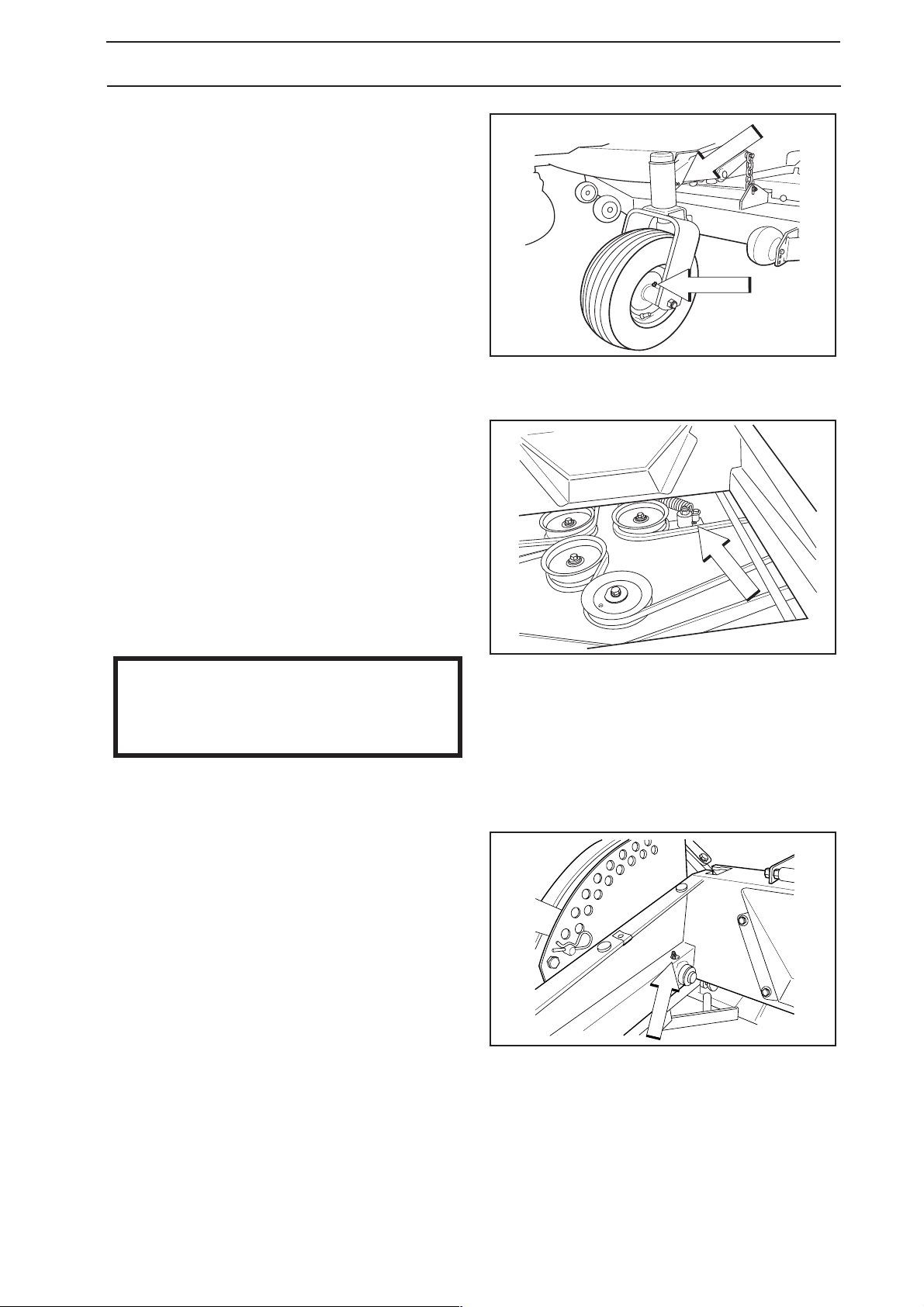

6. Front Wheel Bearings

Lubricate with a grease gun, one zerk for each set of wheel bearings, until the grease is forced out.

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

7. Belt Adjuster, Mower Deck

Remove the foot plate (two screws) and lubricate with a grease gun, one zerk, until grease is forced out.

8011-573

Lubricating the front wheels

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

IMPORTANT INFORMATION

Be careful and remove excess lubricant so that it does not come into contact with belts or belt pulley drive surfaces.

8. Mower Deck Height Adjuster

Lubricate using a grease gun, one zerk, until the grease squeezes out.

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

8011-461

Deck belt pulley

Lubricating the cutting height adjuster

8011-574

English-59

Page 62

LUBRICATION

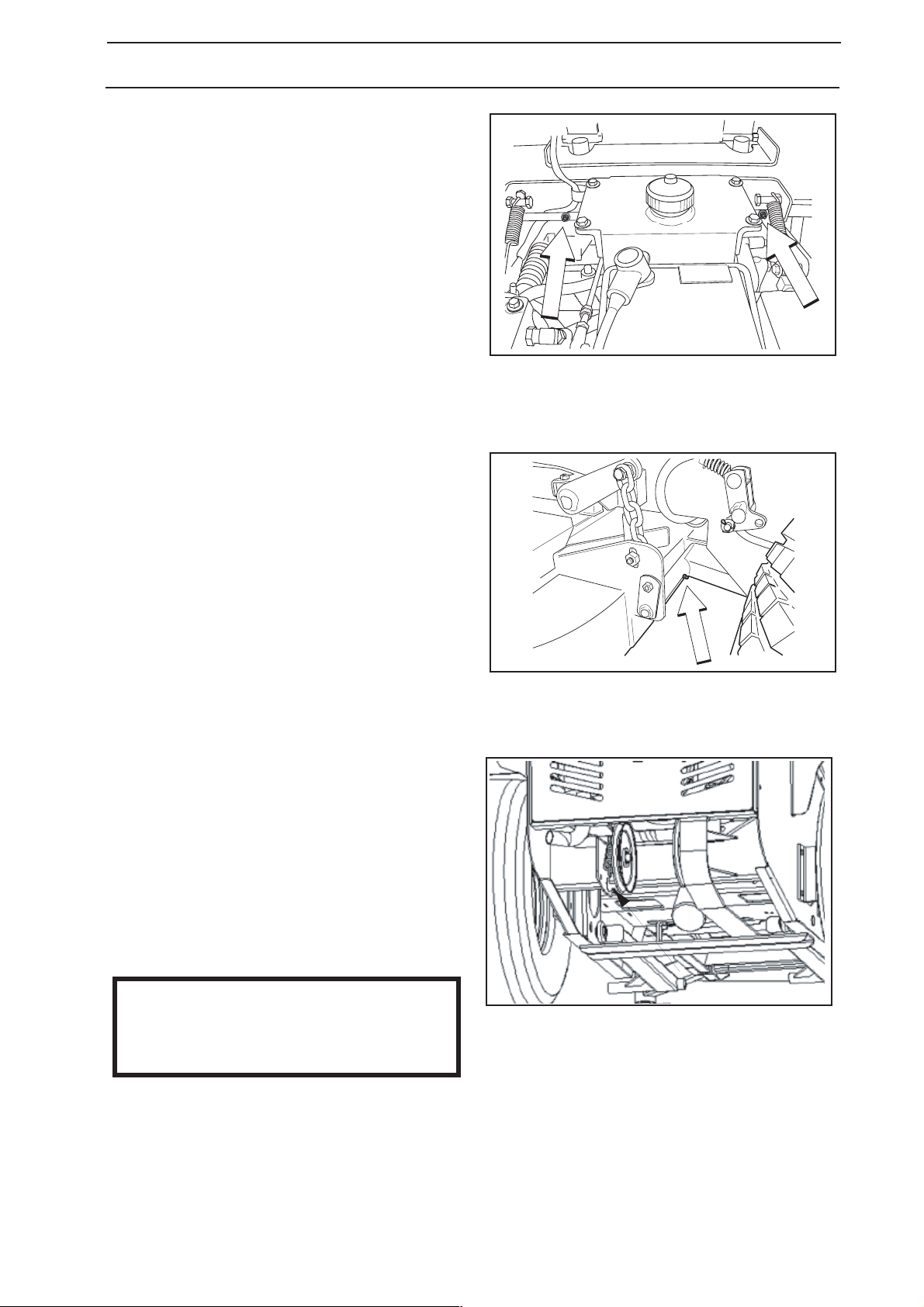

9. Steering Control Shafts

Tip the driver’s seat.

Lubricate with a grease gun, one zerk for each steering control shaft, until the grease is forced out.

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

10. Mower Deck Struts

Lubricate with a grease gun, one zerk for each strut, until the grease is forced out.

8011-578

Lubricating the steering control shafts

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

11. Belt Adjuster- Mule Drive Idler Arm

Lubricate with a grease gun, one zerk, until the grease is forced out.

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality

8011-577

Lubricating struts

IMPORTANT INFORMATION

Be careful and remove excess lubricant so that it does not come into contact with belts or belt pulley drive surfaces.

English-60

Lubricating mule dirve idler arm

BAM-25

Page 63

LUBRICATION

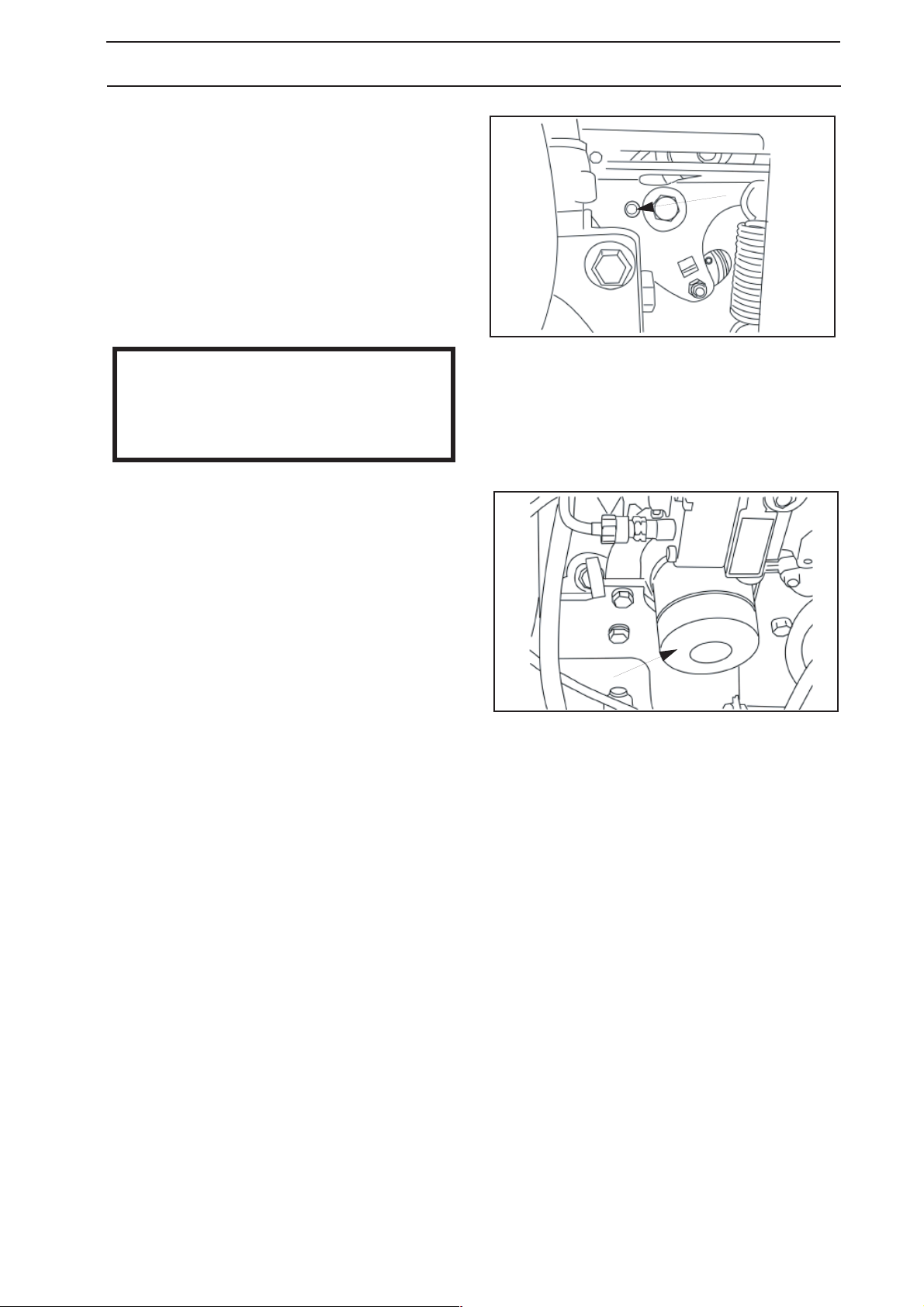

12. Belt Adjuster, Hydraulic Pumps

Lubricate using a grease gun, one zerk, until the grease squeezes out.

Use only good quality molybdenum disulphide grease.

Grease from well-known brand names (petrochemical companies, etc.) usually maintains a good quality.

IMPORTANT INFORMATION

Use minimal lubrication and remove excess lubricant so that is does not come into contact with belts or belt pulley drive surfaces.

13. Changing the Oil Filter

1. Drain the engine oil in following the procedure in the section, Engine Oil/ Change Engine Oil.

2. Disassemble the oil ﬁlter. If necessary, use a ﬁlter remover.

3. Partially ﬁll the new ﬁlter with oil.

4. Wipe new, clean engine oil onto the seal for the new ﬁlter.

5. Mount the ﬁlter by hand with + 3/4 turn.

6. Run the engine warm, then check that there are no leaks around the oil ﬁlter seal.

7. Check the oil level in the engine, top off if necessary.

BAM-24

Lubricating the belt adjuster

BAM-23

Changing the oil ﬁlter

English-61

Page 64

TROUBLE SHOOTING GUIDE

Trouble Shooting Guide

Problem Cause

The engine will not start. • The blade switch is engaged.

• The steering controls are not locked in the neutral position.

• The driver is not sitting in the driver’s seat.

• The parking brake is not activated.

• The battery is dead.

• Contamination in the carburetor or fuel line.

• The fuel supply is closed or the tap for the fuel tanks is in the wrong position.

• Clogged fuel filter or fuel line.

The starter does not turn the engine over. • Dead battery.

• Poor contacts on the battery terminal cable connections.

• Fuse blown.

• Ignition system faulty.

• Fault in the starter safety circuit. See Checking the Safety System in the

Maintenance section.

The engine runs rough. • Defective valves.

• Defective piston, cylinder, piston ring, or cylinder head seal.

• The cylinder head bolts are loose.

• Clogged fuel filter or jet.

• Clogged ventilation valve on the fuel cap.

• Fuel tank nearly empty.

• Defective ignition cable.

• Rich fuel mixture or fuel-air mixture.

• Wrong fuel type.

• Water in the fuel.

• Clogged air filter.

The engine seems weak. • Clogged air filter.

English-62

Page 65

TROUBLE SHOOTING GUIDE

The engine overheats. • Clogged air intake or cooling fins.

• Engine overloaded.

• Poor ventilation around engine.

• Defective engine speed regulator.

• Soot in the combustion chamber.

• Too little or no oil in the engine.

• Pre-ignition incorrect.

• Water pump not working.

• Coolant system clogged.

• Coolant level low.

Battery not charging. • Poor contact with battery terminal

cable connectors.

The machine moves slowly, unevenly, • Parking brake on.

or not at all. • Bypass valve on pump open.

• Drive belt for the pump slack or has come off.

• Defective hydraulic system.

• Air in the hydraulic system.

Mower deck not engaging. • Drive belt for the mower deck has come loose.

• Contact for the electromagnetic coupling has loosened.

• The blade switch is faulty or has come loose from the cable contact.

• The fuse has blown.

English-63

Page 66

TROUBLE SHOOTING GUIDE

Uneven mowing results. • Different air pressure in the tires on the left and

right sides.

• Bent blades.

• The chains for suspending the mower deck are uneven.

• The chain fixture has come loose.

• The blades are blunt.

• Driving speed too high.

• The grass is too long.

• Grass collected under the mower deck.

The machine vibrates. • The blades are loose.

• The blades are incorrectly balanced.

• The engine is loose.

• Wheel is loose.

English-64

Page 67

STORAGE

Storage

Winter Storage

At the end of the mowing season, the machine should be readied for storage (or if it will not be in use for longer than 30 days). Fuel allowed to stand for long periods of time (30 days or more) can leave sticky residues that can plug the carburetor and disrupt engine function.

Fuel stabilizers are an acceptable option as regards sticky residues during storage.

Add stabilizer to the fuel in the tank or in the storage container. Always use the mixing ratios speciﬁed by the manufacturer of the stabilizer. Run the engine for at least 10 minutes after adding the stabilizer so that it reaches the carburetor. Do not empty the fuel tank and the carburetor if you have added stabilizer.

WARNING!

Never store an engine with fuel in the tank indoors or in poorly ventilated spaces where fuel vapor can come in contact with open ﬂames, sparks, or a pilot light such as in a boiler, hot water tank, clothes drier, etc. Handle the fuel with care. It is very ﬂammable and careless use can cause serious personal injury and property damage. Drain the fuel into an approved container outdoors and far away from open ﬂame. Never use gasoline for cleaning. Use a degreaser and warm water instead.

To ready the machine for storage, follow these steps:

1. Thoroughly clean the machine, especially under the mower deck. Touch up damage to the paint and spray a thin layer of oil on the underside of the mower deck to avoid corrosion.

2. Inspect the machine for worn or damaged parts and tighten any nuts or screws that may have become loose.

3. Change the engine oil; dispose of properly.

4. Empty the fuel tanks or add a fuel stabilizer. Start the engine and allow it to run until the carburetor is drained of fuel or the stabilizer has reached the carburetor.

5. Remove the glow plugs and pour about a tablespoon of engine oil into each cylinder. Turn over the engine so that the oil is evenly distributed and then reﬁt the glow plugs.

6. Lubricate all grease nipples, joints, and axles.

7. Remove the battery. Clean, charge, and store the battery in a cool place, but protect it from direct cold.

8. Store the machine in a clean, dry place and cover it for extra protection.

Service

When ordering spare parts, please specify the purchase year, model, type, and serial number.

Always use genuine Husqvarna spare parts.

An annual check-up at an authorized service workshop is a good way to ensure that your machine performs its best the following season.

English-65

Page 68

WIRING DIAGRAMS

Wiring diagram

6. Seat unoccupied 8. Blade switch in OFF position

11. Brake switch OFF pos. 14-15. Motion control levers OUT

1. Battery

2. Accessory outlet

3. Key switch

4. To engine pigtail

5. Hour meter

6. Seat switch

7. Run relay

8. Blade switch

9. Brake relay

10. Electric clutch

11. Brake switch

12. Start relay

13. Starter solenoid

14. Left motion control lever

15. Right motion control lever

BLK = Black

BLU = Blue

BRN = Brown

GRN = Green

GRY = Grey

LT.BLU = Light Blue

ORG = Orange

PUR = Purple

RED = Red

WHT = White

YEL = Yellow

NO = Normally Open

NC = Normally Closed

COM = Common

English-66

8011-650

Page 69

TECHNICAL DATA

Technical Data

BZ27 BZ34

Engine

Manufacturer Diahatsu Diahatsu

Type DM 950D DM 954TD

Power 27 HP 34 HP

Lubrication Pressure with oil ﬁlter Pressure with oil ﬁlter

Oil capacity excl ﬁlter

Oil capacity incl ﬁlter 3.5 qt 3.5 qt

Engine oil (See viscocity digram)

Fuel Diesel with a minimum of 40

Fuel tank capacity 11.4 gallons / 43 liters. 11.4 gallons / 43 liters

Cooling Liquid-cooled Liquid-cooled

Air ﬁlter Heavy duty canister Heavy duty canister

Alternator 12 V 15 A 12 V 15 A

Starter Electric Electric

Transmission

Transmission Hydro gear Ross / Dual

Speed and direction controls Dual levers, foam gripped Dual levers, foam gripped

Speed forward 0-11.5 mph 0-11.5 mph

Speed reverse 0-5 mph 0-5 mph

Brakes Hydrostatic/brake linings Hydrostatic/brake linings

SAE 10W30, SAE 30, 10W40 class SC-SH,

octane

pumps, Wheel drive motor

SAE 10W30, SAE 30, 10W40 class SC-SH,

Diesel with a minimum of 40 octane

Hydro gear Ross / Dual pumps, Wheel drive motors

Front caster tires, Smooth tread 13x6.50-6 Tubeless 13x6.50-6 Tubeless

Rear tires, Turf pneumatic 26x12.00-12 Tubeless 26x12.00-12 Tubeless

Tire pressure, front and rear 15 PSI / 103 kPa / 1 bar 15 PSI / 103 kPa / 1 bar

Hydraulic reservoir + system 1 1/8 gallon 1 1/8 gallon

Hydraulic oil Full synthetic 15W-50 Full synthetic 15W-50

English-67

Page 70

TECHNICAL DATA

BZ27 BZ34

Equipment

Cutting width 61 in 61 in and 72 in.

Cutting height (Tunnel Ram Deck) 1.5”- 6” / 3.8 - 15.5 cm 1.5”- 6” / 3.8 - 15.5 cm

Cutting height (Combi Deck) 1.25”- 5.75” / 3.2 - 14.6 cm

Uncut circle 0 0

Number of blades 3 3

Blade length (Tunnel Ram Deck) 21”/533 mm - 61” 25”/635mm - 72”

Blade length (Combi Deck) 22.17”/536 mm - 61”

Blade tip speed N/A N/A

Anti-scalp rollers-Tunnel Ram Deck 6-adjustable 8, 6-adjustable

Anti-scalp rollers-Combi Deck 4-adjustable

Frame construction Steel uni-frame Steel uni-frame

Ball beared wheels Yes Yes

Sprung standard seat Standard High-Back

Hinged armrests Yes

Hour meter Digital with service intervals

Blade engagement 300 ft/lb Warner Mag-stop Electromagnetic clutch

Deck construction-Tunnel Ram Deck 7 Gauge tunnel and sides, 10 Gauge top and spindle rein-

forcement

Deck construction-Combi Deck 4.5 mm Stamped Shell

Productivity

Productivity N/A

Overall dimensions

Weight 1540 lbs. 1620 lbs.

Base maschine lenght 95” 95”

Base machine width

Base machine height 46.5” 46.5”

Overall width, Chute up Tunnel Ram Deck

Overall width, Chute up Combi Deck

62” 73”

63” 74”

Overall width, Chute downTunnel Ram Deck

Overall width, Chute downCombi Deck

English-68

74” 85”

N/A N/A

Page 71

TECHNICAL DATA

Accessories

Front bafﬂe kit

Mulch kits

ROPS Roll Over Protection System

Torque Speciﬁcations

·Engine crankshaft bolt 50 ft/lb (67 Nm)

·Deck pulley bolts-Tunnel Ram Deck 45 ft/lb (61 Nm)

·Deck pulley bolts-Combi Deck 57-61 ft/lb (77-82 Nm)

·Hydraulic tube nuts 30 ft/lb (41 Nm)

·Wheel motor hub nut 90 ft/lb (122 Nm)

·Lug nuts 75 ft/lb (100 Nm)

·Blade bolt -Tunnel Ram Deck 90 ft/lb (122 Nm)

·Blade bolt -Combi Deck 57-61 ft/lb (77-82 Nm)

·Standard 1/4” fasteners 9 ft/lb (12 Nm)

·Standard 5/16” fasteners 18 ft/lb (25 Nm)

·Standard 3/8” fasteners 33 ft/lb (44 Nm)

·Standard 7/16” fasteners 52 ft/lb (70 Nm)

·Standard ∫” fasteners 80 ft/lb (110 Nm)

When this product is worn out and no longer used, it shall be returned to the reseller or other party for recycling.

In order to implement improvements, speciﬁcations and designs can be altered without prior notiﬁcation.

Note that no legal demands can be placed based on the information contained in these instructions.

Use only original parts for repairs. The use of other parts voids the warranty.

Do not modify or install non-standard equipment to the unit without consent from the manufacturer. Modiﬁcations to the unit may cause unsafe operation or damage the unit.

English-69

Page 72

CONFORMITY CERTIFICATES

Conformity Certiﬁcates For Models Listed Below:

Model 968999315/BZ27 (Serial Numbers: 054600001 – 065299999)

Model 968999316/BZ34 (Serial Numbers: 054600001 – 065299999)

With Deck Model 968999345 TRD61B

Deck Model 968999346 TRD72B

Deck Model 968999350 CD61B

EU declaration of conformity

Only applicable to European versions

Husqvarna AB, Beatrice NE USA declares under sole responsibility that the machine types stated on page 1 of this manual, from 2005's serial numbers and onwards (the year is clearly stated in plain text on the rating plate with subsequent serial number), complies with the requirements of the COUNCIL'S DIRECTIVES:

- of June 22, 1998 "relating to machinery" 98/37/EC, annex IIA.

- of May 3, 1989 "relating to electromagnetic compatibility" 89/336/EEC, and applicable supplements.

- of May 8, 2000 "relating to the emission of noise to surroundings" 2000/14/EC. Conformity assessment

according to Annex V.

The following harmonised standards have been applied: EN292-2, EN836.

Noise emissions and cutting width:

Measured noise level:

Bio 90: 99 dB(A)

Combi 103: 99 dB(A)

Combi 103:100 dB(A)

Guaranteed noise level:

100 dB(A)

Cutting width:

900 - 1120 mm/35.5-44”

Beatrice January 3, 2005

Husqvarna 401 North Commerce Street, Beatrice, NE 68310 USA

Richard Bednar, Design Manager

English-70

Page 73

Service Journal

SERVICE JOURNAL

Action

Delivery Service

1. Charge the battery.

2. Mount the rear wheels.

3. Adjust the tire pressure of all wheels to 15 PSI (1 bar).

4. Mount the steering controls in the normal position.

5. Connect the seat fold-up stop.

6. Connect the cable to the safety switch under the seat.

7. Mount the arm rests on the seat’s back support.

8. Check that the right amount of oil is in the engine.

9. Check that the right amount of oil is in the hydraulic tank.

10. Adjust the position of the steering controls.

11. Fill with fuel and open the fuel valve.

12. Check that the machine has no transport damage.

13. Start the engine.

14. Check that there is drive to both wheels.

Date, mtr reading, stamp, sign

15. Vent the hydraulic system if necessary.

16. Check the mower deck adjustment.

17. Check:

The safety switch for the parking brake.

The safety switch for the mower deck.

The safety switch in the seat.

The safety switch in the steering controls.

Parking brake functionality.

Driving forward.

Driving backward.

Engaging the blades.

18. Check the idle speed.

19. Check the engine high idle speed.

English-71

Page 74

SERVICE JOURNAL

Action

20. Inform the customer about:

The need and advantages of following the service schedule.

The need and advantages of leaving the machine for service every 300 hours.

The effects of service and maintaining a service journal on the machine’s resale value.

Application areas for BioClip.

21. Fill in the sales papers, etc.

After the First 50 Hours

1. Change engine oil and ﬁlter.

Date, mtr reading, stamp, sign

Delivery service has been carried out.

No remaining notes.

Certiﬁed:

English-72

Page 75

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

25-Hour Service

1. Check the hydraulic system’s oil level.

2. Check the tire pressures.

3. Lubricate the belt adjuster, mower deck.

4. Lubricate the belt adjuster, hydraulic pumps.

5. Check/clean the engine’s cooling air intake.

6. Clean cyclon air ﬁlter dust cap.

7. Lubricate the belt adjuster, mule drive - 72” only.

English-73

Page 76

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

50-Hour Service

1. Perform the 25-hour service.

2. Lubricate the front wheel bearings.

3. Lubricate the steering control shafts.

4. Lubricate the mower deck struts.

5. Lubricate the cutting height adjuster.

6. Change oil and oil ﬁlter for the ﬁrst time. See engine manual.

7. Check dust load indicator on air ﬁlter. Change ﬁlter only if indicator is red. See engine manual.

8. Check/adjust the parking brake.

English-74

Page 77

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

100-Hour Service

1. Perform the 25-hour service.

2. Perform the 50-hour service.

3. Change engine oil at 150 hours. See engine manual.

4. Check fuel pump ﬁlter. See engine manual.

5. Check fam belt clearance. See engine manual.

6. Clean the cooling ﬁns on the engine and transmission.

English-75

Page 78

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

300-Hour Service

1. Inspect the machine. Come to agreement with the customer as to which additional work is to be carried out.

2. Perform the 25-hour service.

3. Perform the 50-hour service.

4. Perform the 100-hour service.

5. Change the oil and ﬁlter in the hydraulic system.

6. Clean the combustion chamber and grind the valve seats.

7. Check the engine valve clearance.

8. Dismantle, clean and inspect starter (500 hours).

9. Check/replace the air cleaner’s safety element.

English-76

Page 79

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

At Least Once Each Year

1. Clean the engine’s cooling air intake (25 hours).

2. Replace the air cleaner’s paper cartridge.

3. Replace the air ﬁlter’s main cartridge (200 hours).

4. Change the engine oil (150 hours).

5. Replace the engine oil ﬁlter (300 hours).

6. Change the oil and ﬁlter in the hydraulic system (300 hours).

7. Check/adjust the cutting height.

8. Check/adjust the parking brake (50 hours).

9.. Change the fuel ﬁlter (100 hours).

10. Clean the cooling ﬁns (100 hours).

11. Check the play in the engine valves (300 hours).

12. Perform the 300-hour service at an authorized service workshop.

English-77

Page 80

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

English-78

Page 81

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

English-79

Page 82

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

English-80

´®z+R8@¶6Y¨ ´®z+R8@¶6Y¨

Page 83

SERVICE JOURNAL

Action Date, mtr reading, stamp, sign

English-81

Page 84

115 02 43-26

´®z+R8@¶6Y¨ ´®z+R8@¶6Y¨

2006W18
