Hunter FTPH36-E User Manual

Oscillating Tower FanOscillating Tower Fan

with Remote Control

Owner’s Guide

English

61805-01
20190228

Model

FTPH36-E

CONTENTS

........................................................................ 3

............................................................................... 3

Safety Precautions ........................................................................ 4

Fused Plug ...................................................................................

Fan Assembly 6

Operating Instructions .................................................................. 6

Care and Maintenance ................................................................. 8

Technical Support ......................................................................... 9

FCC Warning ................................................................................ 9

Warranty ....................................................................................10

Products .....................................................................................11

..............................................................................

5

61805-01 20190228

2

PARTS IDENTIFICATION

INPUT VOLTAGE

61805-01 20190228

SPECIFICATIONS

3

120V / 60Hz

W53GNITAR REWOP

.ni 63EZIS NAF

SAFETY PRECAUTIONS

READ AND SAVE THESE INSTRUCTIONS! Read this entire manual

before operating this product. When using electrical appliances, basic safety

and personal injury, including the following:

1. Use this fan only as described in this manual. Improper usage may

2. To protect against electric shock, do not place fan on windowsills, immerse unit,
plug or cord in water. Do not spray with liquid or use near water sources.

3. This product is intended for residential use ONLY. DO NOT use outdoors.

4. This appliance has a polarized plug (one blade is wider than the other).

DO NOT

attempt to bypass this safety feature.

5. WARNING:
with any solid-state speed control device.

6. This product employs overload protection (fuse). A blown fuse indicates an
overload or short-circuit situation. If the fuse blows, unplug the product from the
outlet. Replace the fuse as per the user servicing instructions (follow product
marking for proper fuse rating) and check the product. If the replacement fuse
blows, a short-circuit may be present and the product should be discarded or
returned to an authorized service facility for examination and/or repair.

7. Close supervision is necessary when any appliance is used by or near children.

8. Turn the fan OFF and unplug from the outlet when not in use, before moving
and before cleaning.

Never pull or tug by the cord to remove from the outlet.

10. DO NOT operate any fan with a damaged cord or plug. Discard fan or
return to an authorized service facility for examination and/or repair.

11. DO NOT run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Do not route cord under furniture or appliances.

12. DO NOT operate the fan if fan housing is damaged.

13. Always use the fan on a dry leveled surface.

14. DO NOT

15. DO NOT

16. The use of unauthorized attachments is not recommended. This may cause

61805-01 20190228

4

17. This unit is designed for use on a 120V/60Hz outlet only.

18. DO NOT
contact with moving parts.

19. A

20. If the supply cord is damaged, it must be replaced by the manufacturer, its

21. The plastic feet on this product may interact with wood and cause damage to
furniture. DO NOT

WARNING:

1. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the
appliance.

FUSED PLUG

User Servicing Instructions:

This plug is a safety feature. It contains a safety
device (fuse) that should not be removed. Discard
the product if the attachment plug is damaged. To

injury, DO NOT remove, replace, repair or tamper
with the originally supplied plug. If the fan does
not function properly, it may be due to the safety
device incorporated in this plug.

If the fuse fails, it is generally due to a short circuit
or circuit overload. Replace the fuse as per the
instructions below. If the replacement fuse fails,
immediately unplug the unit and contact our
technical support department for assistance.

Fuse Replacement:

1. Grasp plug and remove from the receptacle or
other outlet device. Do not unplug by pulling on

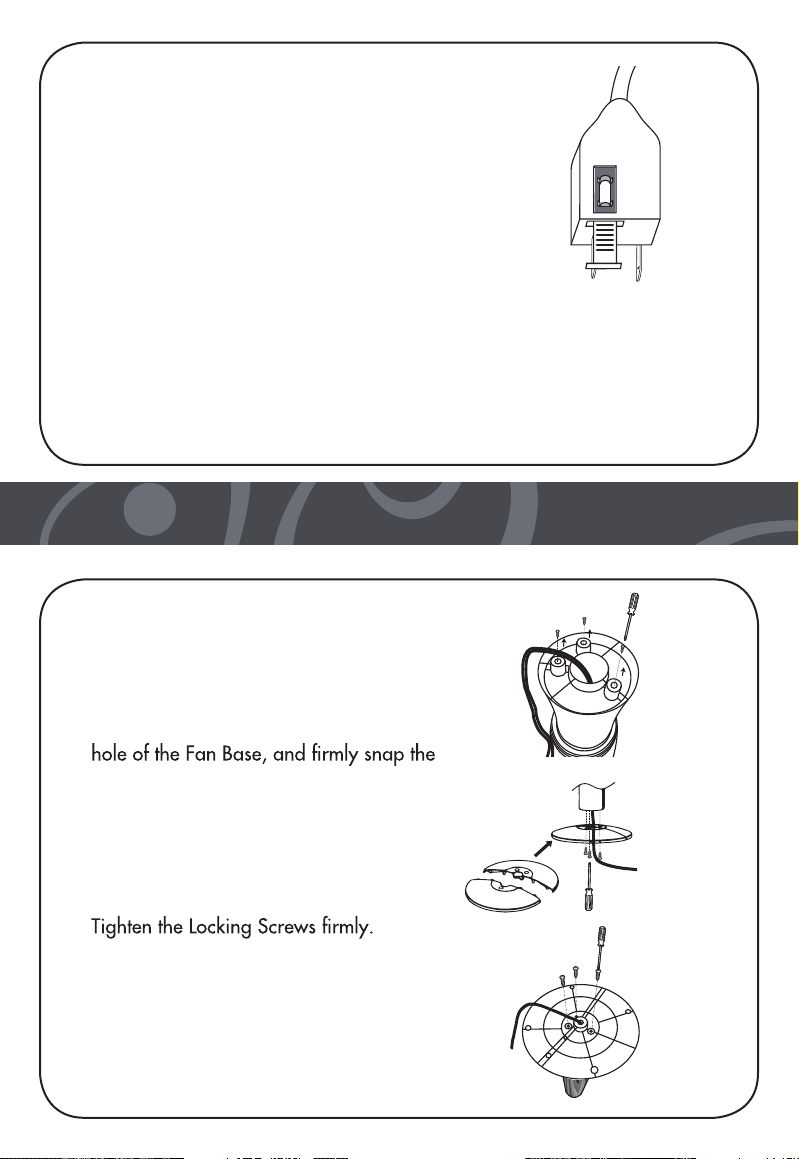

cord. Locate the door on top of the plug. Figure 1

2. Open fuse cover. Slide open fuse access cover on
top of attachment plug towards blades. Figure 2.

61805-01 20190228

5

Figure 1.

Figure 2.

3. Turn fuse holder over to remove fuse. Remove
fuse carefully. Figure 3.

Warning! Electrical Hazard! Risk of re.
Replace fuse only with 2.5 Amp, 125 Volt fuse.
If the product fails a second time, immediately
unplug it and contact our technical support at
1-888-880-3267.

4. Gently push the fuse back into the pins that will
hold it in place.

Note: If the fuse is not seated properly, the unit
will not function.

5. Close fuse cover. Slide closed the fuse access cover on top of attachment plug.

6. Plug the fan back in and resume use. Risk of re. Do not replace attachment
plug. Contains a safety device (fuse) that should not be removed. Discard
product if the attachment plug is damaged.

Figure 3.

FAN ASSEMBLY

1. Unscrew three (3) Locking Screws from
the bottom of the Fan Body. Figure 4.

2. Pass the Power Cord through the center

two halves of the Fan Base together.
Figure 5.

3. Secure the Fan Base to the Fan Body
with the Locking Screws from Step 1.

Figure 6.

4. Place the Power Cord through the cut
out on the bottom of the Fan Base.

61805-01 20190228

Figure 4.

Figure 5.

Figure 6.

6

OPERATING INSTRUCTIONS

Fan Operation

Plug cord into any standard 120 volt

AC outlet.

The fan can be controlled by using the
remote control or the buttons on the
control panel on the fan body.

Functions of the Keys and Symbols

Power Button:

Press the button once, the fan will start at Low speed. The LED will
light up. Press again to switch the fan off.

Speed Button:

Select the desired speed by pressing the Speed button which will adjust
the fan speed to Speed Low, Med, High and back to Low as a
sequence. The display will show the speed selected.

Timer Button:

This fan is equipped with an automatic shut off feature. To select
desired length of operation, press the Timer button a number of
times until the LED indicates the desired operation time: 1-hour,
2-hour or 4-hour.

Control Panel

Figure 7.

Left/Right OSC Button:

To activate the Left/Right Oscillation feature, press the button once.
Press again to cancel.

Mode Button:

Press "Mode" button to choose the wind type, meanwhile the
corresponding light will be lit.

"Normal":

Wind blow based on Low/Medium/High speed.

"Natural":

61805-01 20190228

7

Remote Control (Figure 8)

Your remote control unit uses one (1) "CR2032" button
cell (included) for operation. To install or replace the
button cell, simply press the holder at the bottom of the
handheld remote control unit with your thumb to pull
out the battery cover. Insert the new button cell, and
then replace the cover. (Figure 9)
Battery Disposal - Please dispose of the used battery
per municipal or provincial law.

Figure 8.

WARNING

Battery

1) Keep batteries out of reach of children.
Should a child swallow a battery, consult a
doctor immediately.

Holder

CR2032

3) Keep in a dry and cool place.

4) Insert battery in right direction.

CARE AND MAINTENANCE

onto the motor housing.

rfaces of the fan.

wand, vacuum cleaner or compressed air to gently remove dust.

Figure 9.

fan assembled. Cover to protect from dust. Store in a cool, dry place.

61805-01 20190228

8

TECHNICAL SUPPORT

If you have any additional questions or problems with your Hunter Portable Fan,
please call:

USA: 1-888-880-3267

We open 24 hours a day, 7 days a week. You may also reach us online at
www.HunterHomeComfort.com.
An electronic copy of this user manual can also be obtained online at
www.HunterHomeComfort.com.

FCC WARNING

FCC WARNING:

responsible for compliance could void the user’s authority to operate the
equipment.

NOTE :

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

61805-01 20190228

9

WARRANTY

Hunter Home Comfort makes the following limited warranty to the user or
consumer purchaser of this Hunter Portable fan:

If your Hunter Portable Fan motor fails at any time within one year after the date
of sale to you due to a defect in material or workmanship, labor to repair the
defect will be provided free of charge at our nearest service center or our Service
Department in Marietta, Georgia. You will be responsible for labor costs after
this one-year period. The foregoing limited warranty applies only to the motor
itself, and does not apply to electronic controls such as remote controls, remote
control receivers or transmitters used in conjunction with the motor. These
electronic control items are included in the one year limited warranty below.

If any part of your Hunter Portable Fan other than the motor fails at any time
within one year after the date of sale to you due to a defect in material or
workmanship, we will repair or, at our option, replace the defective part free
of charge for parts and labor performed at our nearest service center or at our
Service Department in Marietta, Georgia.

IF THE USER OR CONSUMER PURCHASER CEASES TO OWN THE FAN,
THIS WARRANTY AND ANY IMPLIED WARRANTY WHICH THEN REMAINS
IN EFFECT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED.
NO WARRANTY, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE IN
RESPECT TO THE GLASS GLOBES OR LIGHT BULBS OR THE FINISH ON ANY
METAL PORTION OF THE FAN. THIS WARRANTY IS IN LIEU OF ALL OTHER
EXPRESS WARRANTIES. THE DURATION OF ANY IMPLIED WARRANTY,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IN RESPECT
TO ANY HUNTER FAN MOTOR OR OTHER FAN PART, IS EXPRESSLY LIMITED
TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR SUCH
MOTORS AND OTHER PARTS.

This warranty is voided if your Hunter Fan is not purchased and used in the USA.

This warranty excludes and does not cover defects, malfunctions or failures of
any Hunter Portable fan which were caused by repairs by persons not authorized
by us, use of parts or accessories not authorized by us, mishandling, improper

possession, or unreasonable use, including failure to provide reasonable and
necessary maintenance.

To obtain servicing, contact the nearest Hunter authorized service center or the
Hunter Home Comfort Service Department, 1831-A West Oak Parkway,

61805-01 20190228

10

Marietta, GA 30062. Please contact us before shipping your fan to us. If we
authorize you to ship it to us, you will be responsible for all insurance and freight
or other transportation charges to our factory service center. We will return your
Hunter Fan freight prepaid. Your portable fan should be properly packed to avoid
damage in transit since we will not be responsible for any such damage. Proof of
purchase is required when requesting warranty service. The purchaser must present
sales receipt or other document that establishes proof of purchase.

IN NO EVENT SHALL HUNTER HOME COMFORT BE LIABLE FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

PRODUCTS

To learn more about Hunter Home Comfort products, please see our Web page at:

www.HunterHomeComfort.com

1831-A West Oak Parkway, Marietta, GA 30062

Hunter is a trademark of the Hunter Fan Company and

is used under license to Hunter Home Comfort.

Printed in China

61805-01 20190228

11
