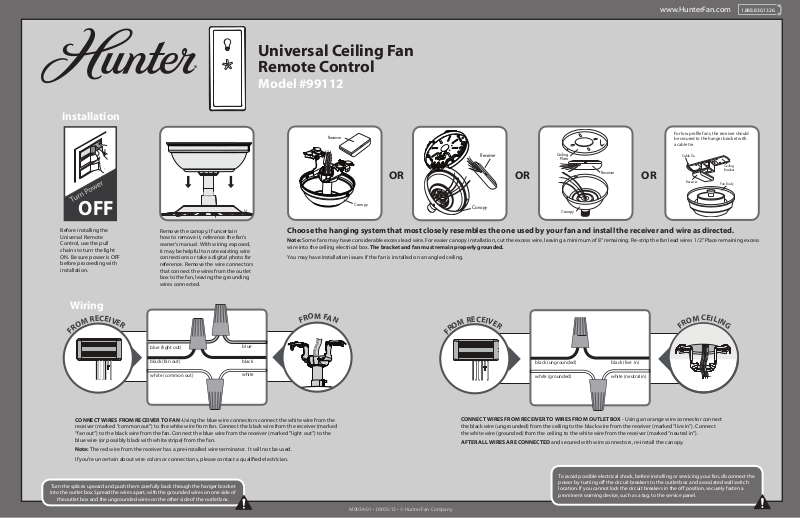

Hunter 99112 User Manual

Installation

Ceiling

Plate

Receive

Canopy

Receiver

Canopy

Ceiling Bracket

Receiver

Fan Body

Cable Tie

For low prole fans, the receiver should be secured to the hanger bracket with a cable tie.

Receiver

Canopy

Universal Ceiling Fan Remote Control

Model #99112

OR OR OR

www.HunterFan.com

1.888.830.1326

OFF

Before installing the Universal Remote Control, use the pull chains to turn the light ON. Be sure power is OFF before proceeding with installation.

Wiring

Remove the canopy. If uncertain how to remove it, reference the fan’s owner’s manual. With wiring exposed, it may be helpful to note existing wire connections or take a digital photo for reference. Remove the wire connectors that connect the wires from the outlet box to the fan, leaving the grounding wires connected.

blue (light out)

black (fan out)

white (common out)

blue

black

white

Choose the hanging system that most closely resembles the one used by your fan and install the receiver and wire as directed.

Note: Some fans may have considerable excess lead wire. For easier canopy installation, cut the excess wire, leaving a minimum of 8” remaining. Re-strip the fan lead wires 1/2”. Place remaining excess

wire into the ceiling electrical box. The bracket and fan must remain properly grounded.

You may have installation issues if the fan is installed on an angled ceiling.

black (ungrounded)

white (grounded) white (neutral in)

black (live in)

CONNECT WIRES FROM RECEIVER TO FAN -Using the blue wire connectors connect the white wire from the

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

receiver (marked “common out”) to the white wire from fan. Connect the black wire from the receiver (marked “fan out”) to the black wire from the fan. Connect the blue wire from the receiver (marked ”light out”) to the blue wire (or possibly black with white stripe) from the fan.

Note: The red wire from the receiver has a pre-installed wire terminator. It will not be used.

If you’re uncertain about wire colors or connections, please contact a qualied electrician.

the outlet box and the ungrounded wires on the other side of the outlet box.

CONNECT WIRES FROM RECEIVER TO WIRES FROM OUTLET BOX - Using an orange wire connector connect the black wire (ungrounded) from the ceiling to the black wire from the receiver (marked “live in”). Connect the white wire (grounded) from the ceiling to the white wire from the receiver (marked “neutral in”).

AFTER ALL WIRES ARE CONNECTED and secured with wire connectors, re-install the canopy.

To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

M0034-01 • 09/05/12 • © Hunter Fan Company

www.HunterFan.com

1.888.830.1326

Phillips Head Screw

Battery Door

Installing or changing the battery To access the battery compartment remove the small Phillips head screw that secures the battery door to the transmitter assembly. Replace with a CR2032 battery when necessary. The battery should be installed with the positive (+) side up.

Pairing

Light

Fan

Note: The remote must be paired

before the fan will operate. Within 3 minutes of restoring power to

the fan, press both the Fan button and the Light button for at least 4 seconds.

Operations Maintenance

Light

Fan

The Light button turns the lights on and off. The Fan button turns the fan on and off.

The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off to exit the room before the

lights go out. To use Safe-Exit:

• Press the fan power button for

at least three seconds to initiate the Safe-Exit Mode.

• The lights will ash for visual conrmation.

• The lights will stay on 50% brightness for 15 seconds and

then begin to dim. After a total of 30 seconds, the lights will be completely off.

Note: For CFL lighting, the lights

will stay on 100% brightness

for 30 seconds. After a total of 30 seconds, the lights will be completely off.

TroubleshootingSafe-Exit

Fan will not start

• Make sure the power is on at the circuit breaker and the wall switch.

• Make sure the battery is working.

• Make sure that the transmitter

and receiver are paired.

• Check wire connections inside of

the canopy.

Remote control of fan is erratic

• Make sure battery is installed correctly.

• Install a fresh battery.

Transmitter only works when held at close range

• Change battery.

Lights do not dim

• Check to see if a CFL bulb is

installed. The control has a feature that automatically detects CFL bulbs and turns off dimming if a CFL bulb is installed.
