Hunter 59514 52 User Manual

Download

Page 1

30 inches

7 feet

Ladder

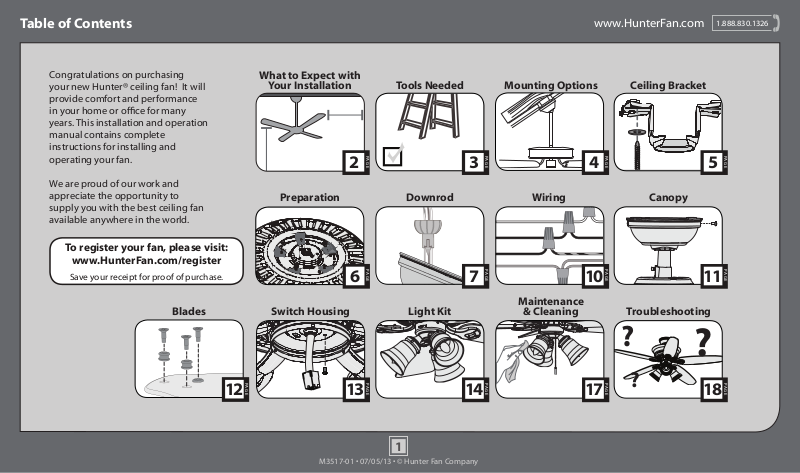

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

Blades Troubleshooting

What to Expect with

Your Installation

Tools Needed

PAG E

Preparation

PAG E

Downrod

Switch Housing Light Kit

Mounting Options

PAG E

Wiring Canopy

PAG E

Maintenance

& Cleaning

Ceiling Bracket

PAG E

M3517-01 • 07/05/13 • © Hunter Fan Company

Page 2

What to Expect with Your Installation

www.HunterFan.com

1.888.830.1326

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

If you are unfamiliar with wiring, use a

qualied electrician.

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

from bottom

edge of blade

Assess location

Standard Downrod

for ceilings 8-10 feet high

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

7 feet

to the oor

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

M3517-01 • 07/05/13 • © Hunter Fan Company

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M3517-01 • 07/05/13 • © Hunter Fan Company

Screwdrivers

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M3517-01 • 07/05/13 • © Hunter Fan Company

Use Standard Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

www.HunterFan.com

For angled ceilings, point

opening toward peak.

1.888.830.1326

Make sure all four (4) bumpers

are still attached.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Use wood screws (included) when securing to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

M3517-01 • 07/05/13 • © Hunter Fan Company

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Refer to warning w.1 on pg. 2

Page 6

Ceiling Bracket (continued)

Preparation

Time Saver Tip: Get a helper

to insert grommets, found in

the hardware bag, into the

blades while you’re doing the

next couple of steps.

www.HunterFan.com

Remove the shipping blocks from the motor. Save the screws. They will be

needed for blade iron installation.

Note: Some fans will have a shipping

ring instead of shipping blocks. Please

remove the ring and save the screws.

1.888.830.1326

M3517-01 • 07/05/13 • © Hunter Fan Company

Note: Fan style may vary.

Page 7

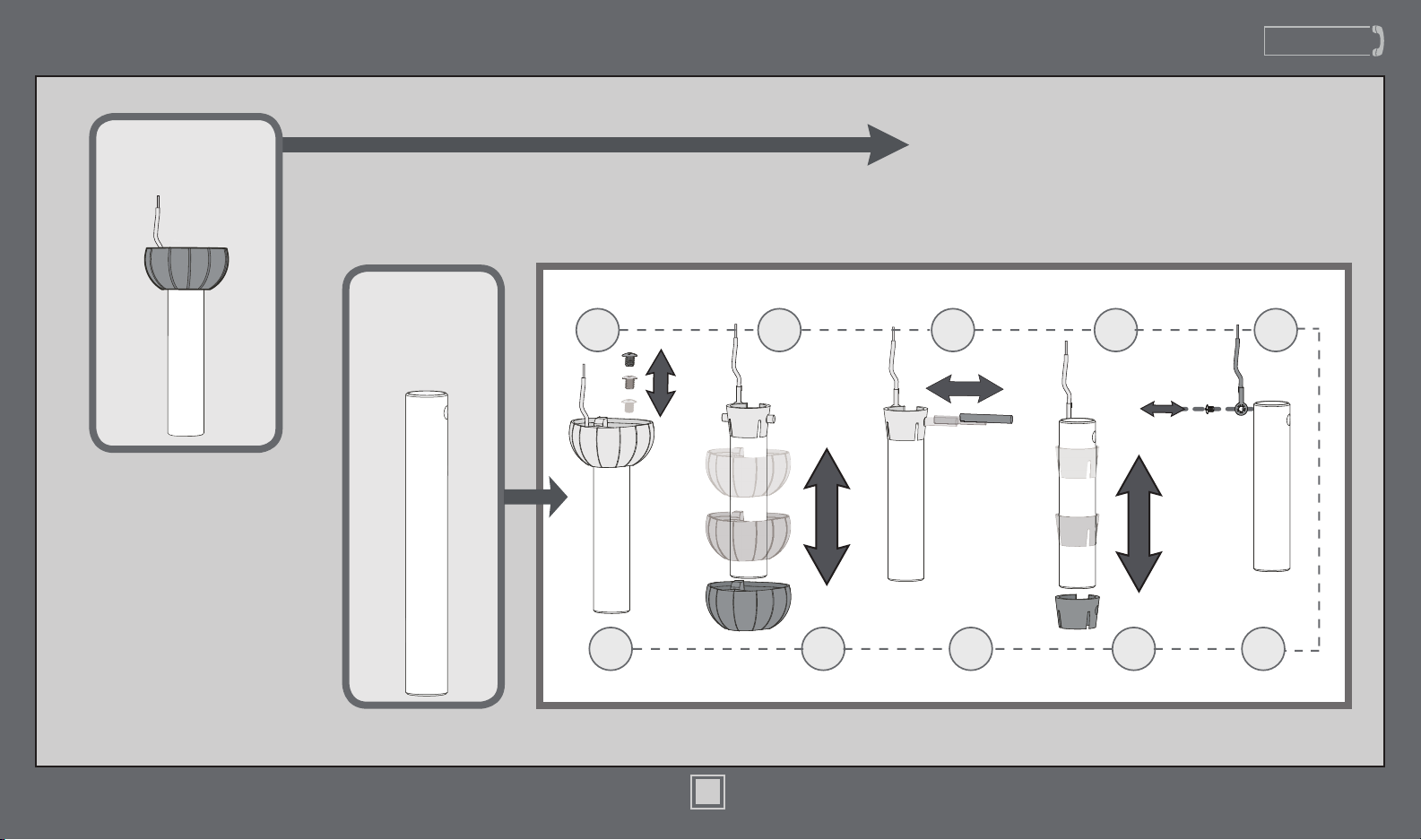

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 2

ceilings 10’ or higher

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Sold Separately

Steps 6-10 to reassemble with new pipe

M3517-01 • 07/05/13 • © Hunter Fan Company

Page 8

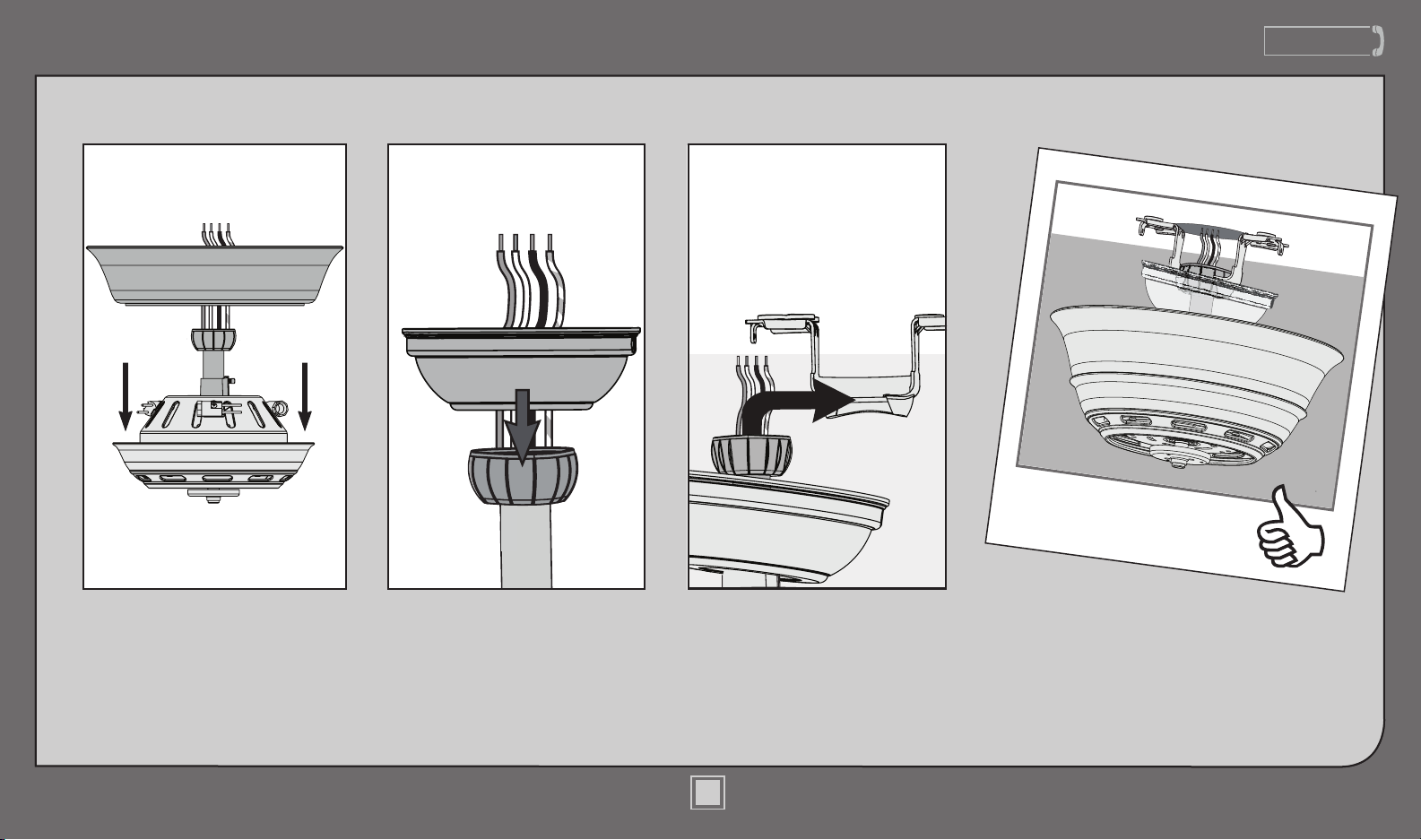

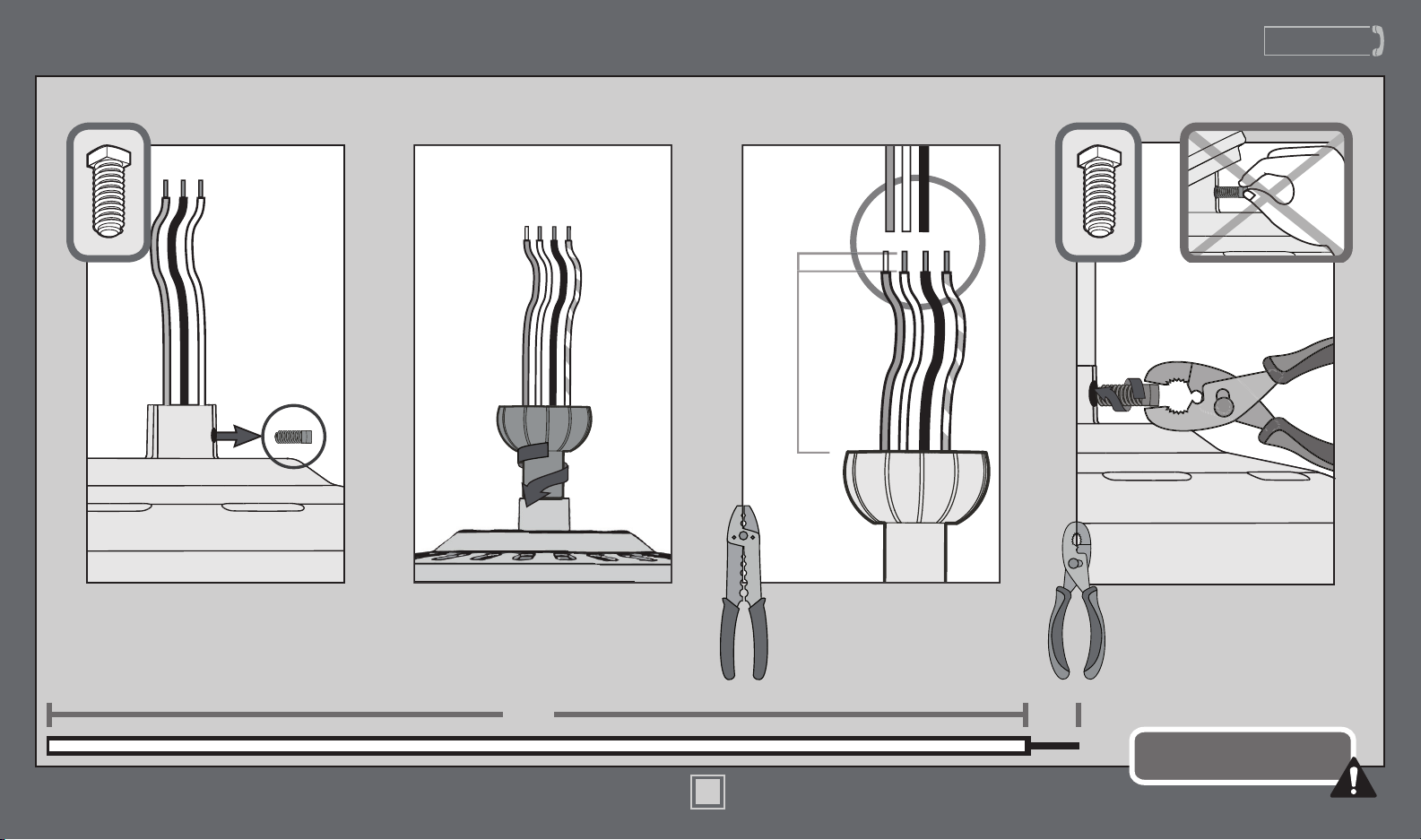

Downrod (continued)

www.HunterFan.com

1.888.830.1326

KEEP!

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

8”

M3517-01 • 07/05/13 • © Hunter Fan Company

3/8”

8”

(not to scale)

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 9

Downrod (continued)

www.HunterFan.com

1.888.830.1326

Put the wires and downrod through

the upper glass. Set the upper glass

in place on top of the fan.

Then put the wires and downrod

through the canopy. Let the

canopy sit loosely on top of the fan.

M3517-01 • 07/05/13 • © Hunter Fan Company

DO NOT PICK THE FAN UP BY

THE CANOPY OR WIRES. Place

the downrod ball into the slot

in the ceiling bracket.

Page 10

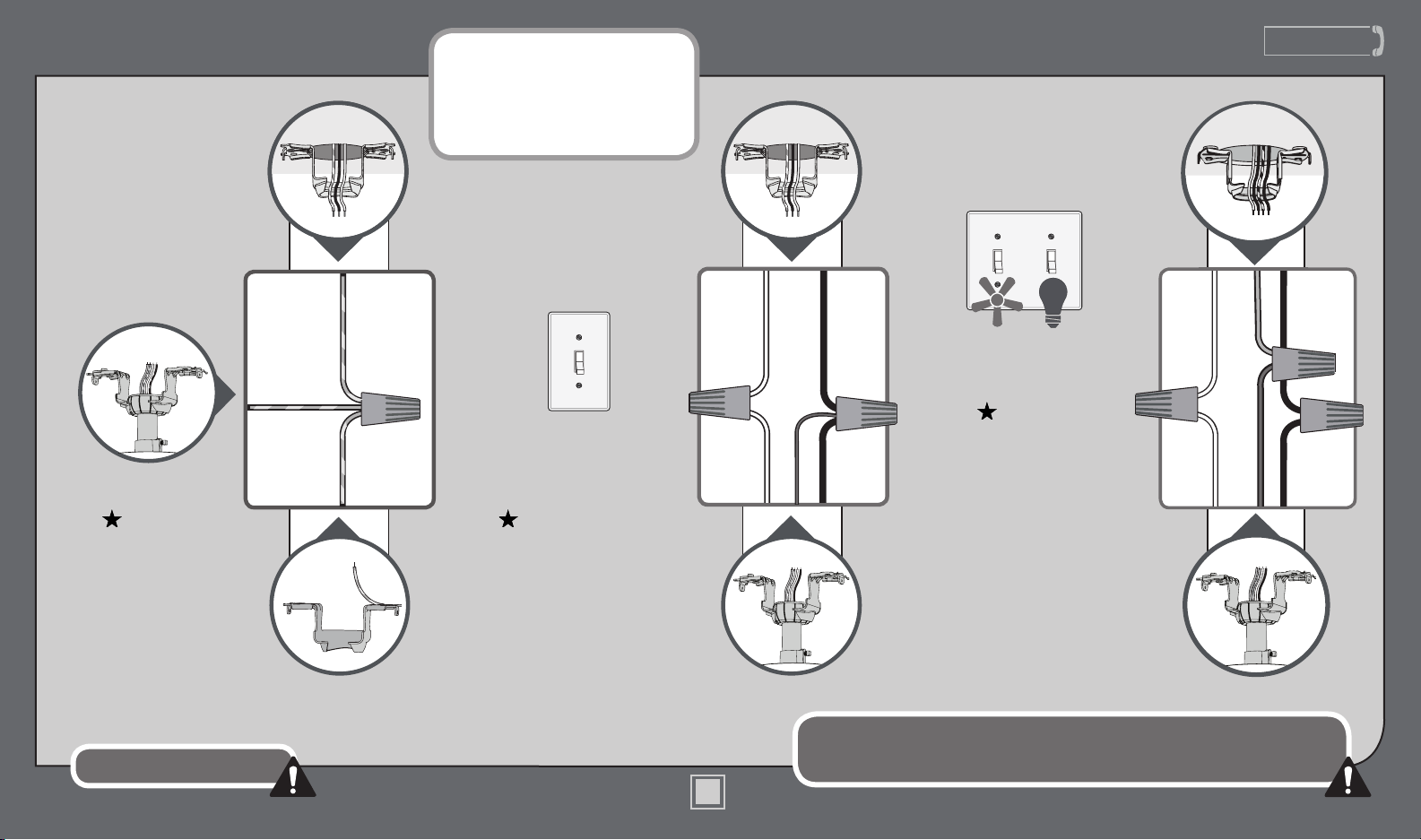

Wiring

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Using an orange wire

connector from

the hardware bag,

connect the 3 grounding

wires (green, green/

yellow stripe, or bare

copper) coming from the

ceiling, downrod, and

hanging bracket.

Green/Yellow Stripe

Stripe

(Grounding)

Green/Yellow

Note: To connect the wires,

www.HunterFan.com

1.888.830.1326

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

(Grounded)

(Ungrounded)

For Dual Switches

Using orange wire

connectors from

the hardware bag,

For a Single Switch

Using the orange wire

White

Blue

Black

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

and the blue wires from the fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

connect the white wire

(grounded) from the

ceiling to the white wire

from the fan. Connect the black wire (ungrounded) from the

ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M3517-01 • 07/05/13 • © Hunter Fan Company

Page 11

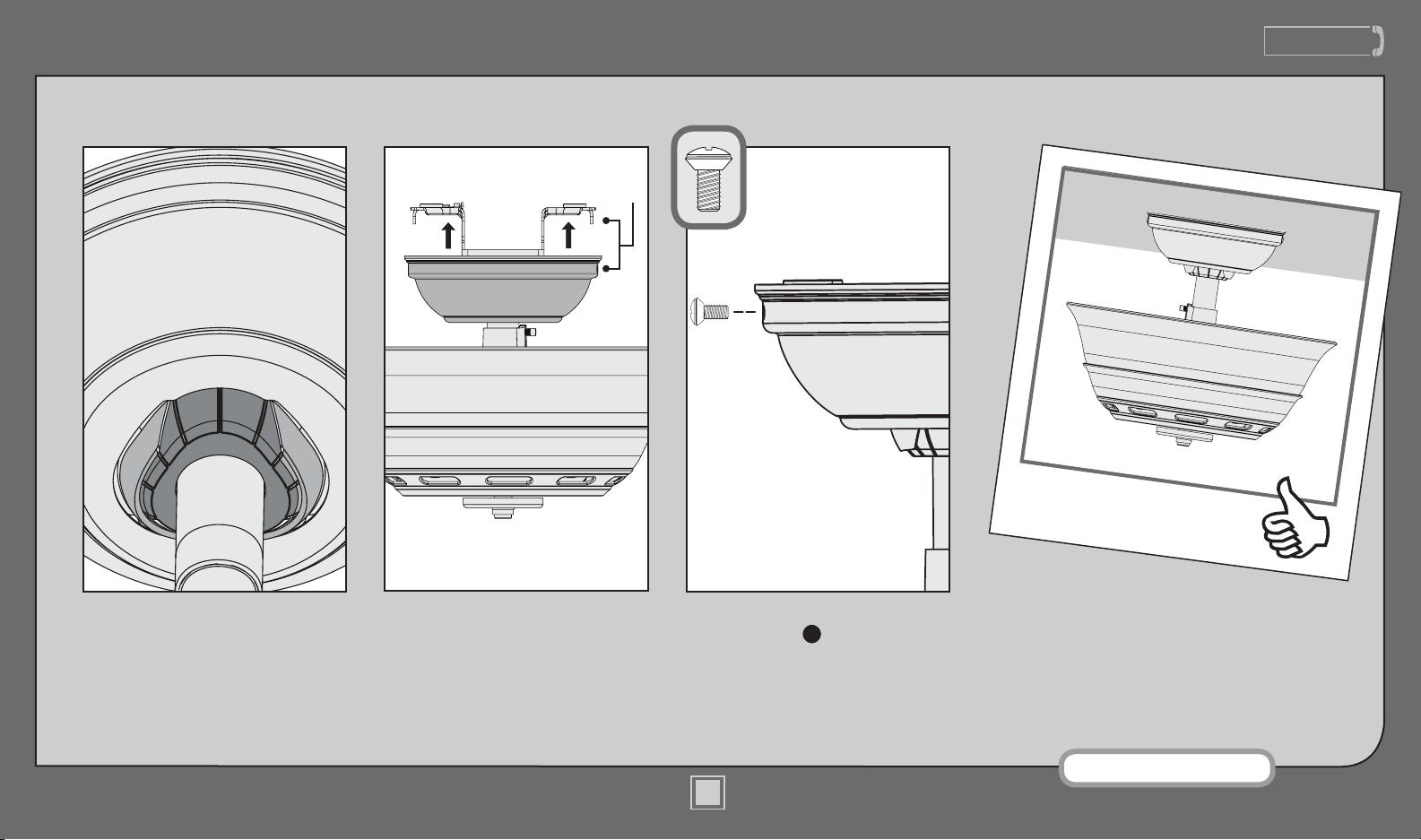

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

M3517-01 • 07/05/13 • © Hunter Fan Company

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 12

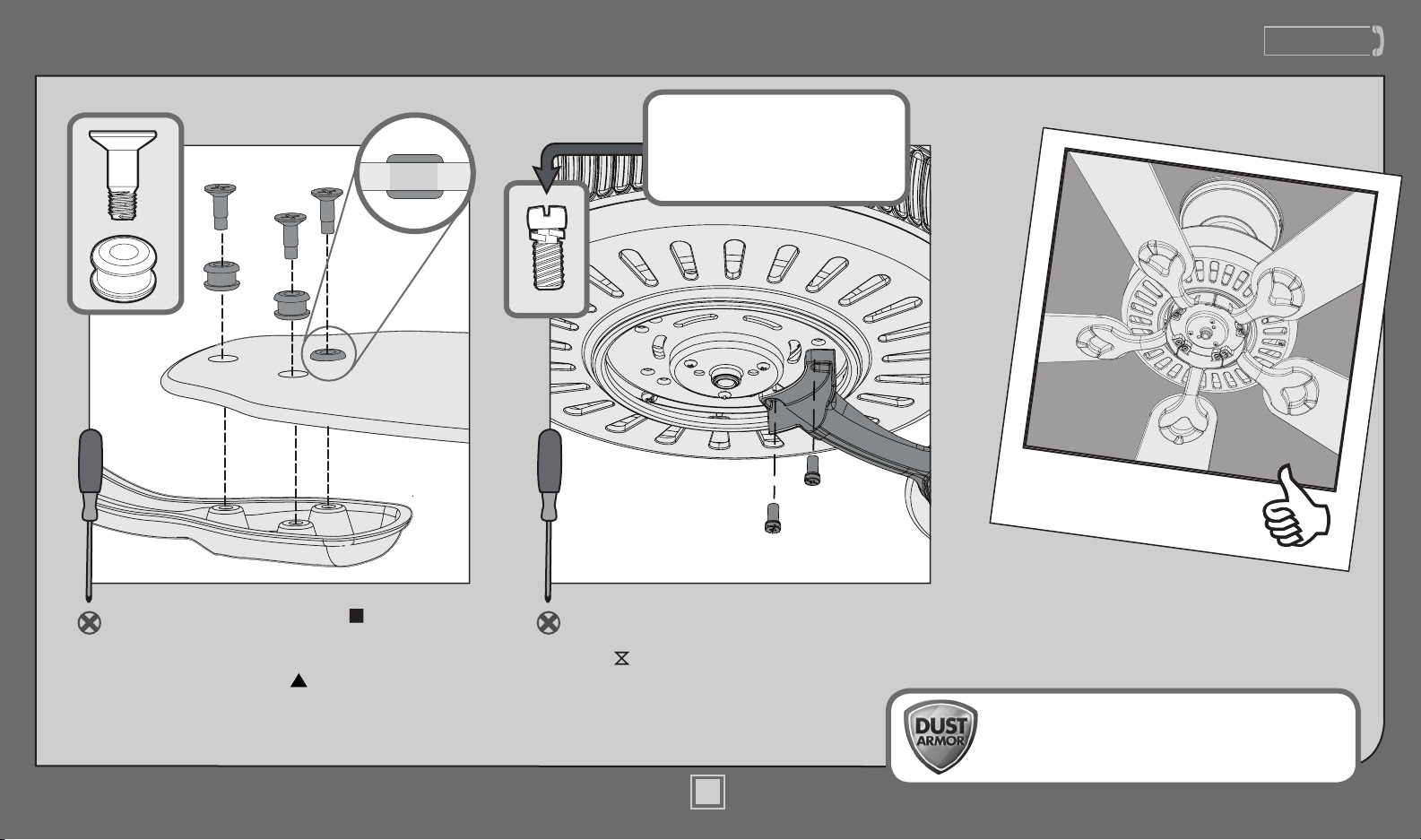

Blades

Insert grommets found in the hardware

Lightly attach the blade irons to the

Remember the screws that

you kept after removing the

shipping blocks (page 6)? You

need them plus ve more from

the hardware bag for this step.

www.HunterFan.com

1.888.830.1326

bag into the holes in the blades, then secure each blade to a blade iron with screws found in the hardware bag.

motor with screws found in

the hardware bag, then securely

tighten after both screws are attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

Page 13

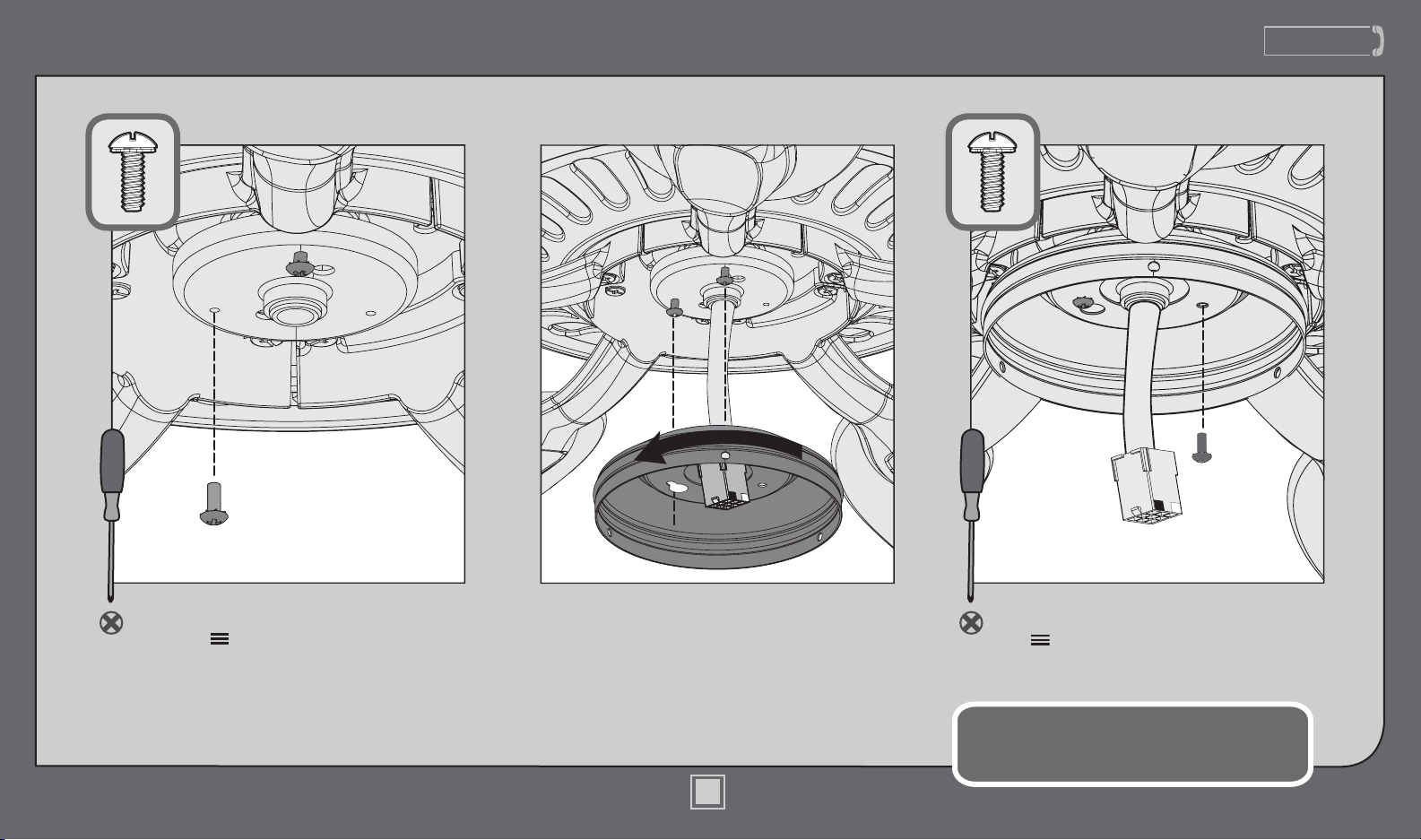

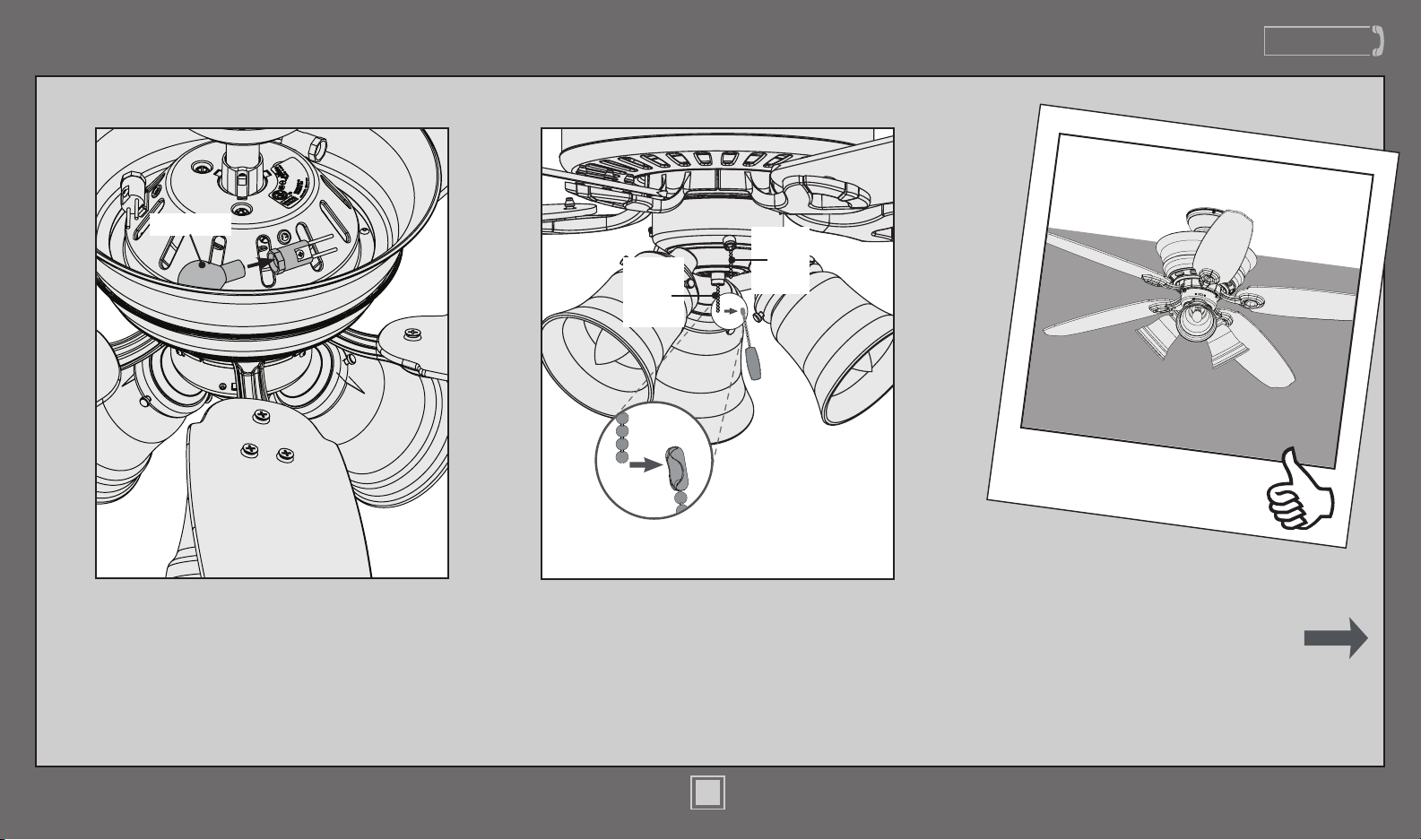

Switch Housing

www.HunterFan.com

1.888.830.1326

Screw two (2) housing assembly screws

from the hardware bag halfway into

the motor housing. It does not matter

which two screw holes you choose.

Feed the wire plug through the center

hole of the upper switch housing, then

wrap keyhole slots around the screws and

twist counterclockwise.

Insert the third screw, found in

the hardware bag, into place and then

tighten all three (3) screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Page 14

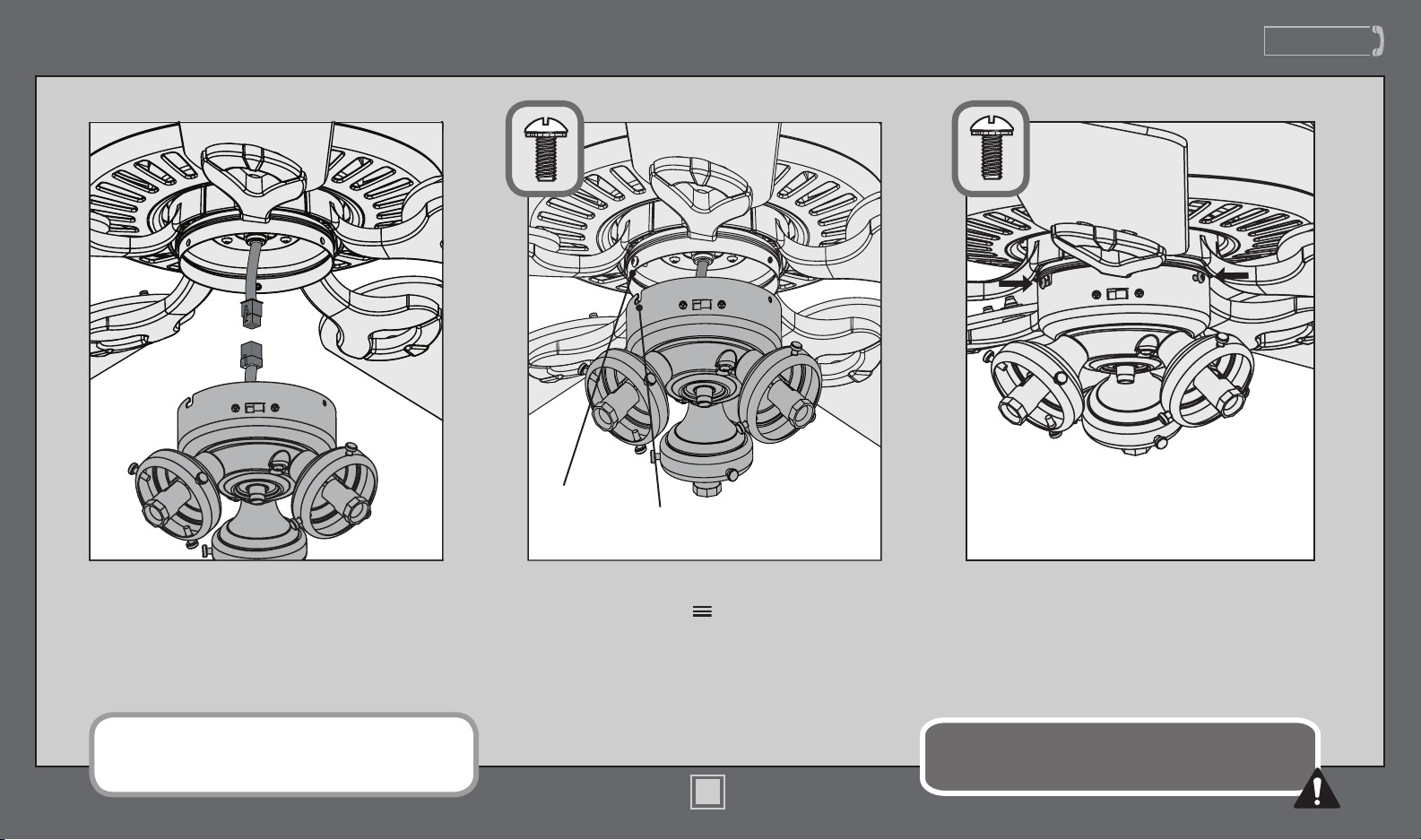

Light Kit

Switch Housing Screw

Notch

www.HunterFan.com

1.888.830.1326

Connect the plugs from the upper and

lower switch housings. Make sure to line

up the colored markings on

the connectors.

Want to install your fan without a light kit?

Go to www.HunterFan.com/FAQs and click

“How do I install my fan without the light kit?”

Partially install two of the switch housing

screws found in the hardware bag. Align

the notches in the sides of the lower switch

housing with the screws on the upper switch

housing. Twist the lower switch housing

clockwise to lock into place.

Install the third switch housing screw.

Tighten all three screws securely.

Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Page 15

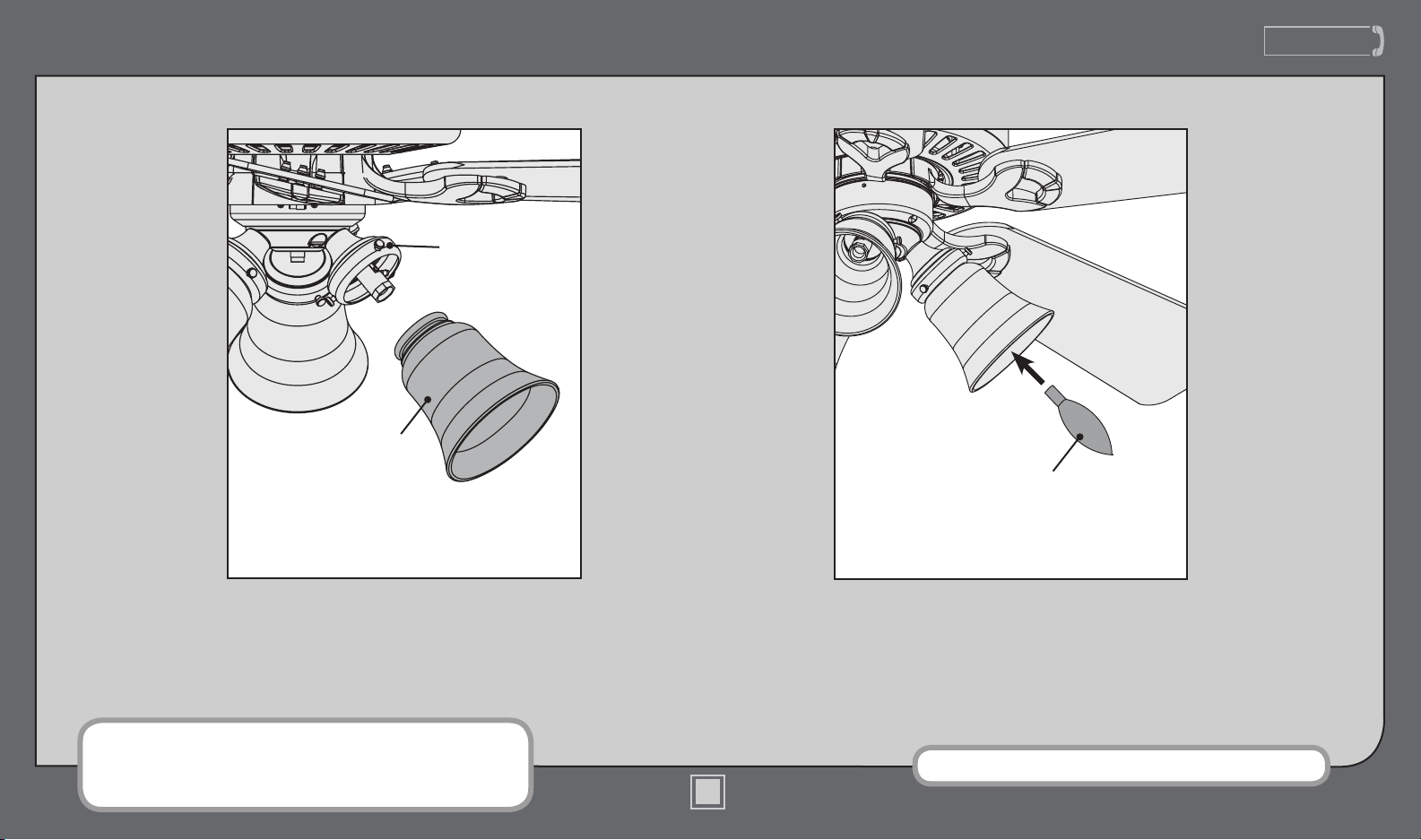

Light Kit (continued)

Shade

Thumbscrew

Candelabra bulb

www.HunterFan.com

1.888.830.1326

To install each shade, rst loosen the thumb

screws. Raise the shade to the light xture.

Tighten all thumbscrews securely.

Note: In compliance with US federal energy regulations, this ceiling fan

contains a device that restricts its light output. Exceeding the wattage

limit marked on the MAX wattage sticker afxed to the light socket(s)

may result in re hazard or improper operation.

Install a candelabra bulb in each socket.

Note: Do not use CFL bulbs to replace your light

bulbs. Your lights may icker or fail to work.

Note: Glass shade style and number of lights may vary.

Page 16

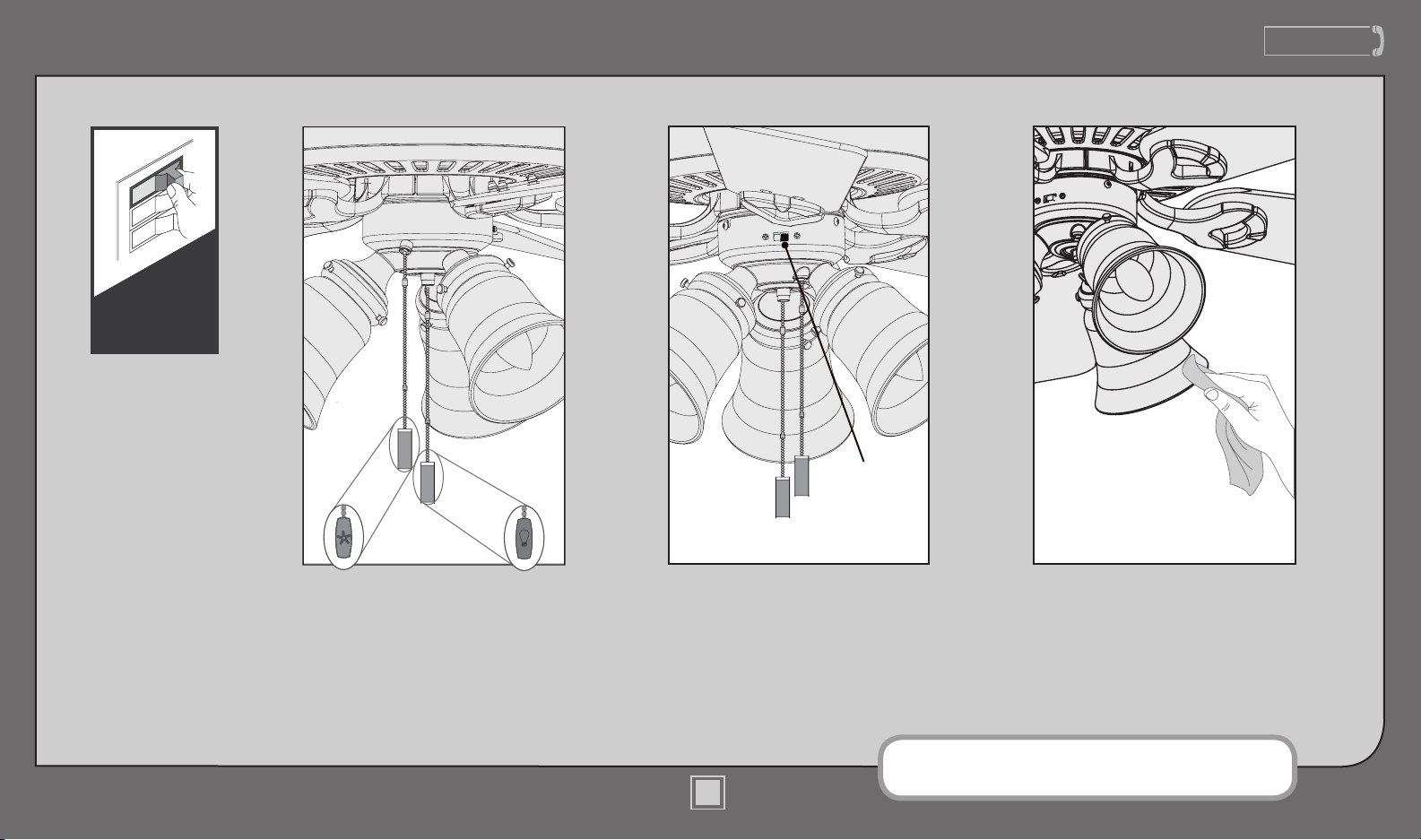

Light Kit (continued)

www.HunterFan.com

1.888.830.1326

S11 Bulb

Install a S11 bulb in each upper socket.

Note: Do not use CFL bulbs to replace

your light bulbs. Your lights may icker

or fail to work.

Fan

Light Pull Chain

Connect the appropriate pull chain

pendant to each of the short chains

coming from the switch housing.

Pull

Chain

CONGRATULATIONS!

YOU’RE DONE!

See next page for fan operation instructions.

Page 17

Maintenance & Cleaning

Turn Power

Reverse

Switch

www.HunterFan.com

1.888.830.1326

The fan pull chain controls the speed:

from high to off.

The light pull chain controls the light xtures.

The chain has four settings in sequence:

down light ON, up and down light ON,

up light ON, and OFF.

To switch the direction of air

ow, move the reverse switch to

the opposite position.

For questions regarding removing a light kit, call

For cleaning the fan, use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

customer service 1-888-830-1326.

Page 18

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure

it is on.

• Push the motor reversing switch rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.
