Hunter 59148 52 User Manual

Download

Page 1

30 inches

7 feet

Ladder

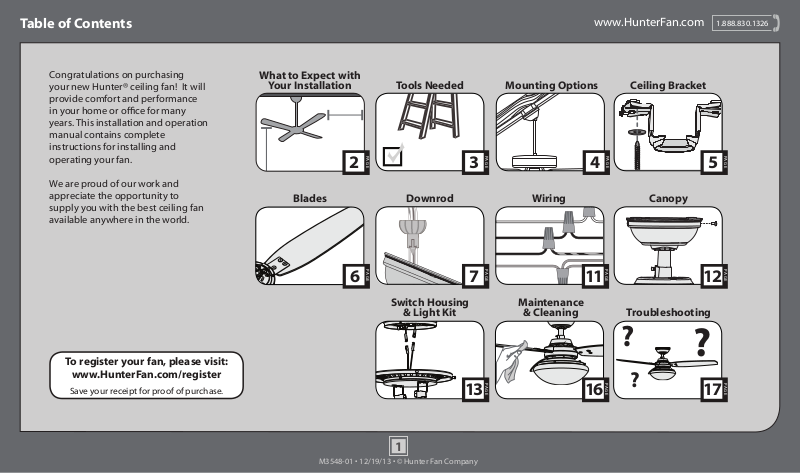

Table of Contents

www.HunterFan.com

1.888.830.1326

Congratulations on purchasing your new Hunter® ceiling fan! It will provide comfort and performance

in your home or ofce for many

years. This installation and operation manual contains complete instructions for installing and operating your fan.

We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

What to Expect with

Your Installation

Blades

Tools Needed

PAG E

Downrod

PAG E

Switch Housing

& Light Kit

Mounting Options

PAG E

Wiring Canopy

PAG E

Maintenance

& Cleaning

PAG E

Ceiling Bracket

PAG E

Troubleshooting

PAG E

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 2

What to Expect with Your Installation

www.HunterFan.com

1.888.830.1326

1.888.830.13261.888.830.1326

Must be able to secure the fan to building structure or fan-rated outlet box

You may need a friend to help you.

Check box to see fan weight

If you are unfamiliar with wiring, use a

qualied electrician.

Know your wiring

Ceiling angles greater than 34° will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

30 inches

from blade tip to nearest wall or obstruction

Assess location

Standard Downrod

for ceilings 8-10 feet high

Shorter Downrod

for fans installed close to ceiling

Longer Downrod

for ceilings 10 feet or higher

Select a downrod length

7 feet

from bottom

edge of blade

to the oor

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

CAUTIONS

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 3

Tools Needed

www.HunterFan.com

1.888.830.1326

Ladder

Allen Wrench

(included)

Pliers Wire Strippers

Power Drill

(optional)

If mounting to a support structure, you will also need these tools.

9/64” Drill Bit

(optional)

M3548-01 • 12/19/13 • © Hunter Fan Company

Screwdrivers

If you are installing multiple remote-controlled

fans on the same circuit breaker,

you may need to perform a few extra steps to

prevent interference or faulty operation of your

remote controls.

Go to www.HunterFan.com/FAQs and click “How do I properly install multiple remote-

controlled fans?” for more information.

Page 4

CEILING

Mounting Options

www.HunterFan.com

1.888.830.1326

1.866.268.1936

OPTION

If you have a at ceiling:

WALL

Hang your fan by a standard downrod (included).

Standard Mounting

Support Structure

OPTION

If you have an angled ceiling:

1. You will need a longer downrod (sold separately).

2. If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

Use the three steps below to determine if your ceiling angle is greater than 34°

Angled Mounting

Standard Mounting Style

Ceiling

Outlet Box

(required)

Angled Mounting Style

Ceiling

Outlet Box

(required)

FOLD

on dotted line

34°

Guide Touches

BOTH Ceiling & Wall

You need ONLY

a Longer

Downrod

*most common

2 3

PLACE

against wall

Guide Touches

but NOT Ceiling

You need BOTH

a Longer

Downrod &

an Angled

Mounting Kit

SLIDE

toward ceiling

Wall

M3548-01 • 12/19/13 • © Hunter Fan Company

Use Standard Mounting

or Low-Prole Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

Page 5

Ceiling Bracket

Turn Power

OFF

For angled ceilings, point

opening toward peak.

www.HunterFan.com

1.888.830.1326

Make sure all four bumpers are

still attached.

Refer to warning w.1 on pg. 2

If you are unable to do this,

call Technical Support at

1-888-830-1326.

M3548-01 • 12/19/13 • © Hunter Fan Company

Use wood screws (included) when securing to support structure with approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet

box associated with the wall switch location.

Page 6

Blades

Using the included Allen wrench, secure

bag, and the blade assembly screws, found

www.HunterFan.com

1.888.830.1326

each blade to a blade iron as shown using

the blade nuts, found in the hardware

in the hardware bag.

Lightly attach the blade irons to the motor with the blade iron armature

screws, found in the hardware bag,

then securely tighten after all screws are

attached.

Your blades are shielded with Dust Armor® which

is a nanotechnology coating that repels dust. For

cleaning the fan, use soft brushes or cloths to prevent

scratching. Cleaning agents may damage the nishes.

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 7

Downrod

www.HunterFan.com

1.888.830.1326

Standard Downrod

for ceilings 8-10’ high

Option 1Option 2

Shorter Downrod

for fans installed close to ceiling

Included

(pre-assembled)

Longer Downrod

for angled ceilings or

Option 3

ceilings 10’ or higher

skip to next page

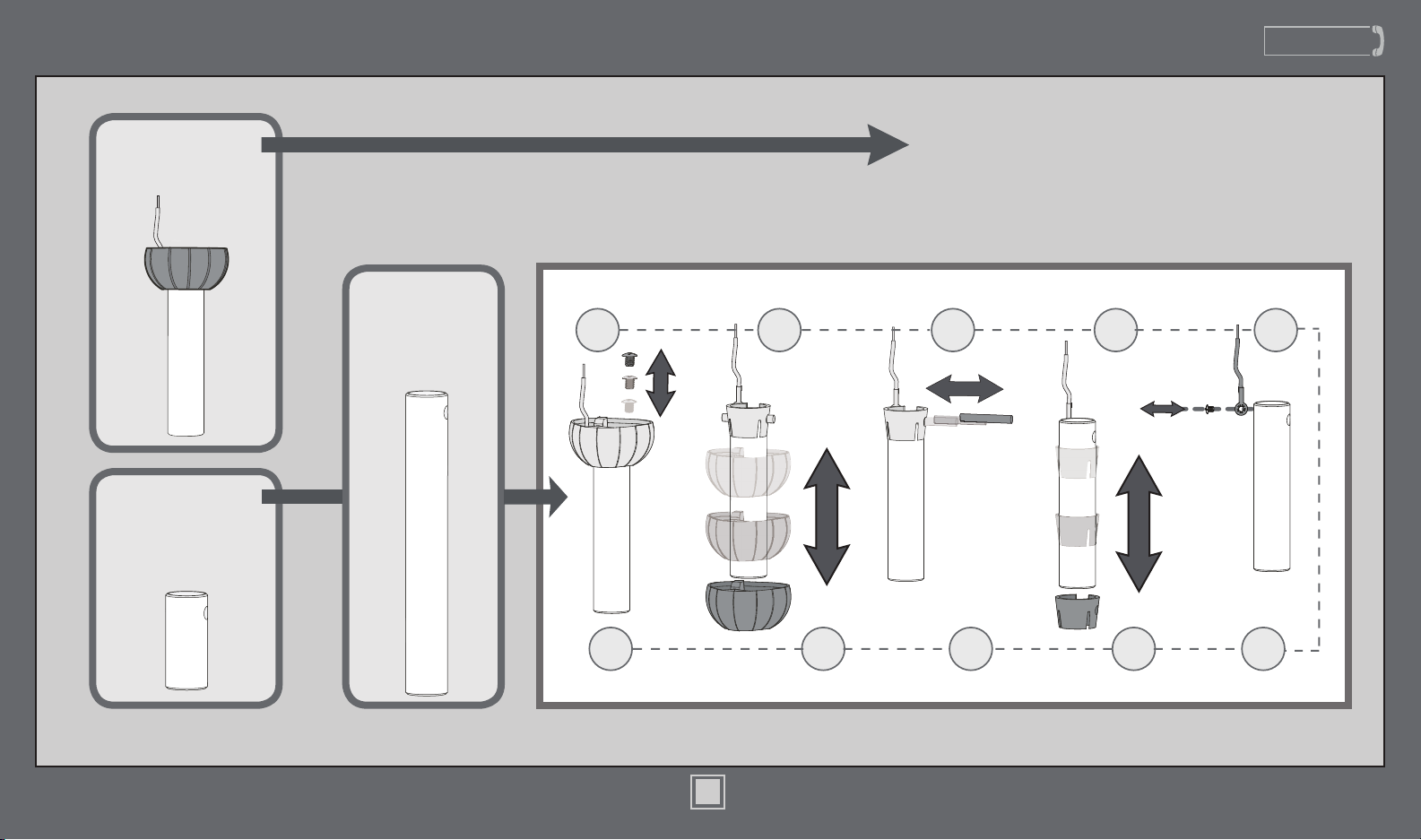

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

1 2 3 4 5

Slide

678910

Included

Sold Separately

Steps 6-10 to reassemble with new pipe

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 8

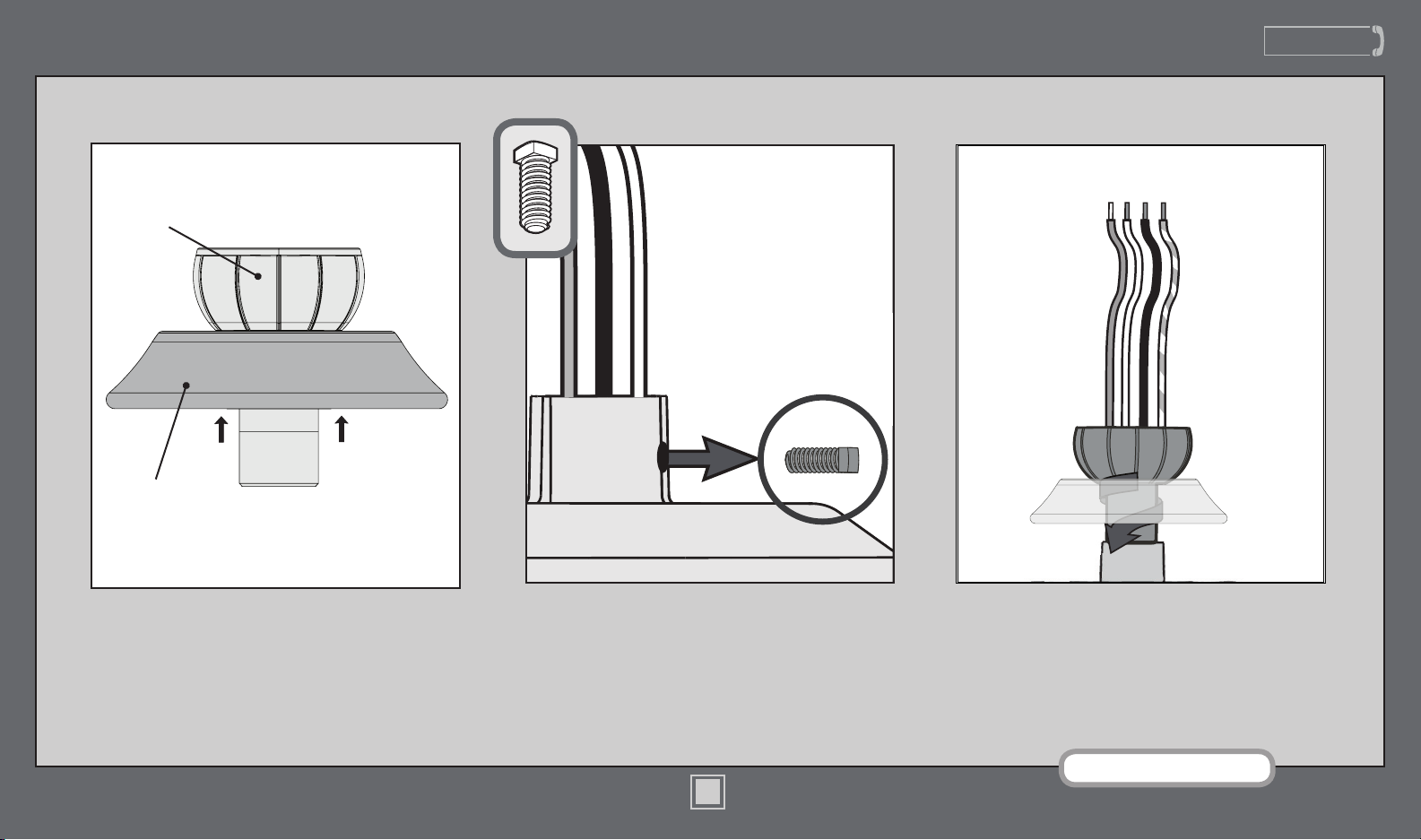

Downrod (continued)

Hanger

Ball

Adapter Cover

KEEP!

www.HunterFan.com

1.888.830.1326

Slide the adapter cover onto the downrod

until it rests against the hanger ball.

Remove the pre-installed setscrew so that

the downrod can be inserted.

M3548-01 • 12/19/13 • © Hunter Fan Company

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

Note: Fan style may vary.

Page 9

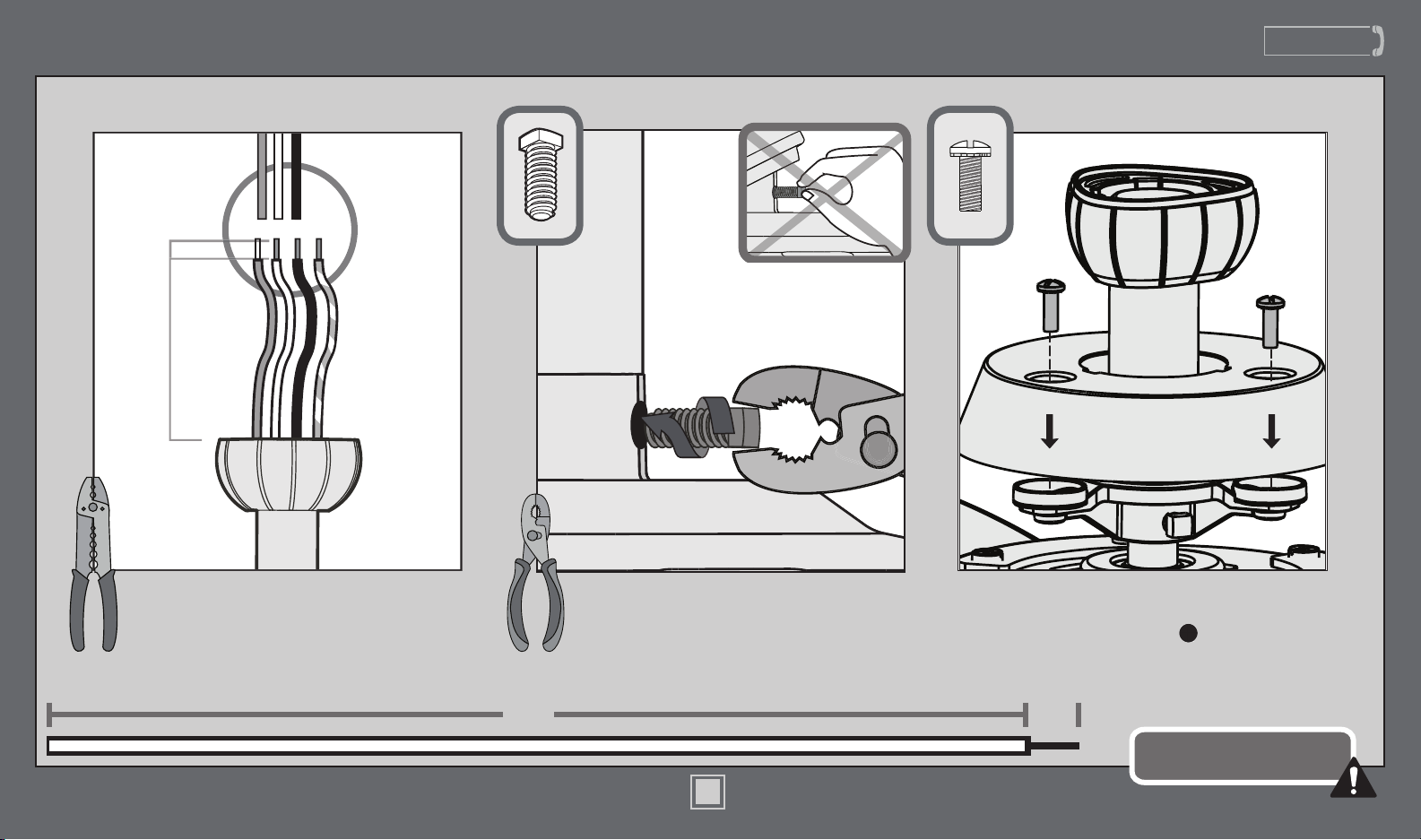

Downrod (continued)

www.HunterFan.com

1.888.830.1326

3/8”

8”

(not to scale)

The wires can be cut, but leave at least 8”

extending from the top of the downrod.

Tighten the setscrew with pliers.

DO NOT HAND TIGHTEN.

8”

M3548-01 • 12/19/13 • © Hunter Fan Company

Lower the adapter cover until it rests ush

against the motor housing. Install the adapter

cover screws, found in the hardware bag,

and tighten them securely.

3/8”

If the setscrew is not tightened securely, the fan may fall.

Page 10

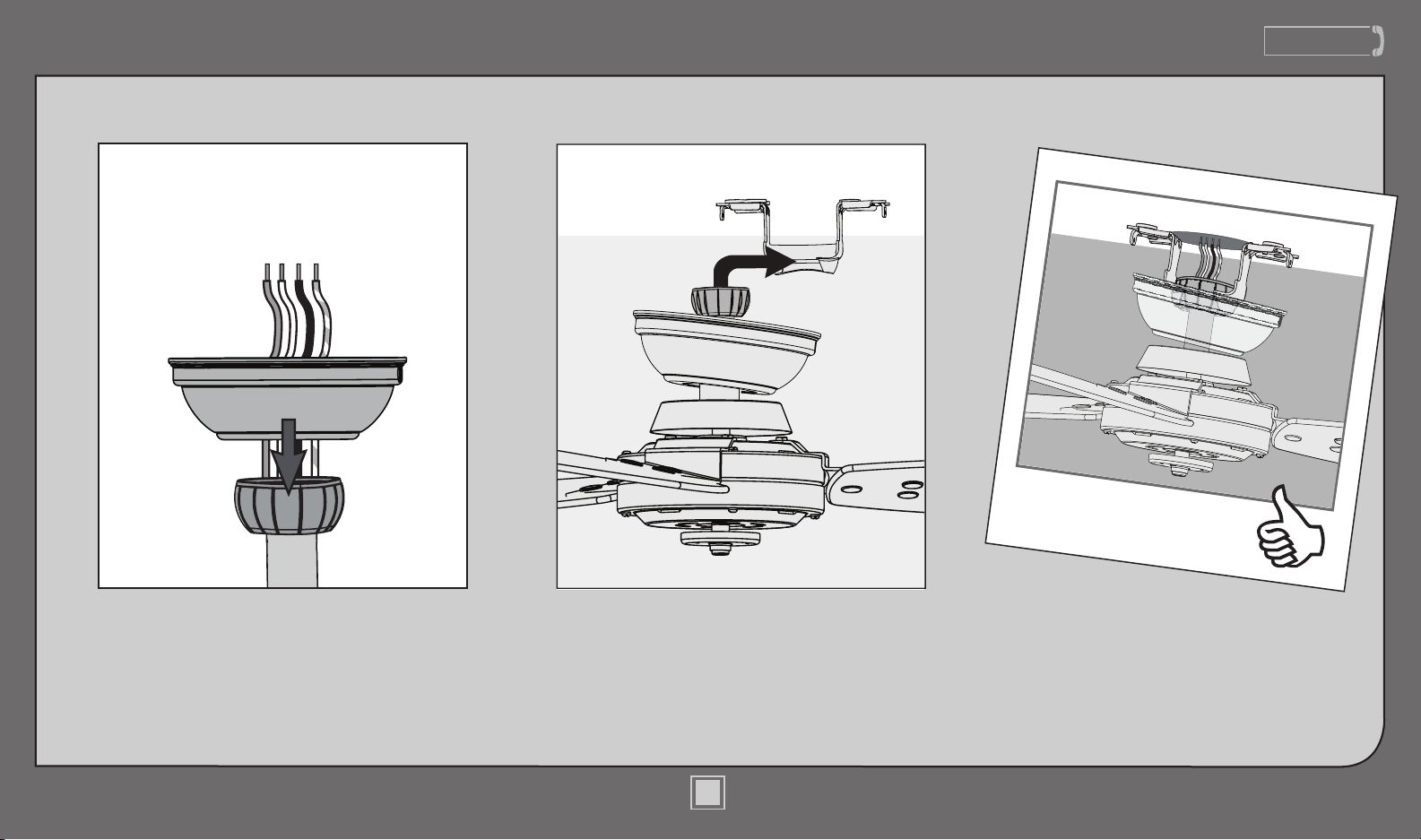

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

www.HunterFan.com

1.888.830.1326

of the fan.

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 11

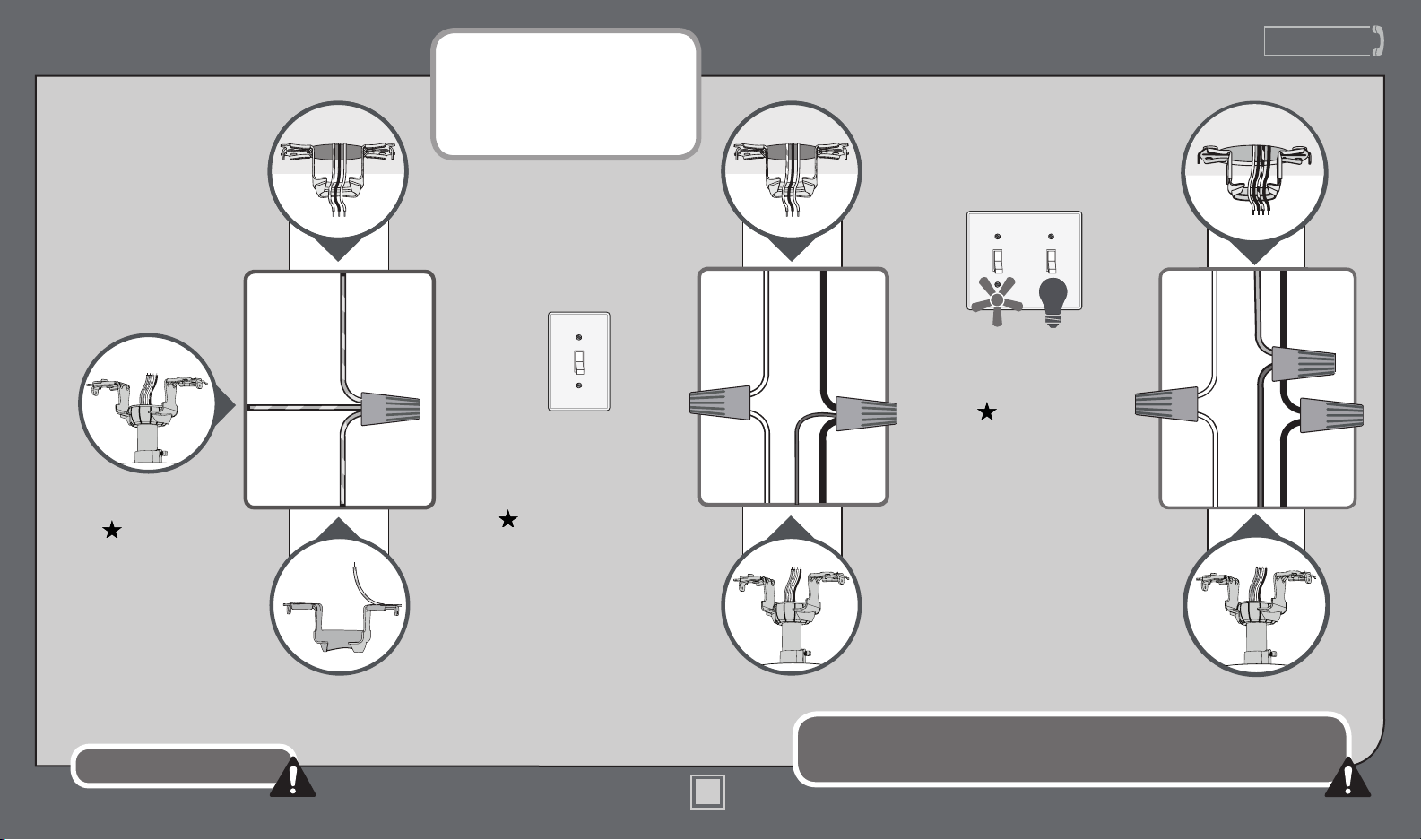

Wiring

White

(Ungrounded)

Black

Blue

(Grounded)

(Ungrounded)

Using an orange wire

connector from

the hardware bag,

connect the 3 grounding

wires (green, green/

yellow stripe, or bare

copper) coming from the

ceiling, downrod, and

hanging bracket.

Green/Yellow Stripe

(Grounding)

Green/Yellow

Stripe

Note: To connect the wires,

www.HunterFan.com

1.888.830.1326

hold the bare metal leads

together and place a wire

connector over them, then twist

clockwise until tight.

(Grounded)

(Ungrounded)

For Dual Switches

Using the orange wire

connectors from

the hardware bag,

For a Single Switch

Using the orange wire

White

Blue

Black

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

and the blue wires from the fan. Connect the white wire

(grounded) from the ceiling to

the white wire from the fan.

connect the white wire

(grounded) from the

ceiling to the white wire

from the fan. Connect the black wire (ungrounded) from the

ceiling to the black wire

from the fan. Connect the

second (ungrounded) wire

from the ceiling to the blue

wire from the fan.

Refer to CAUTION c.1 on pg. 2

Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

M3548-01 • 12/19/13 • © Hunter Fan Company

Page 12

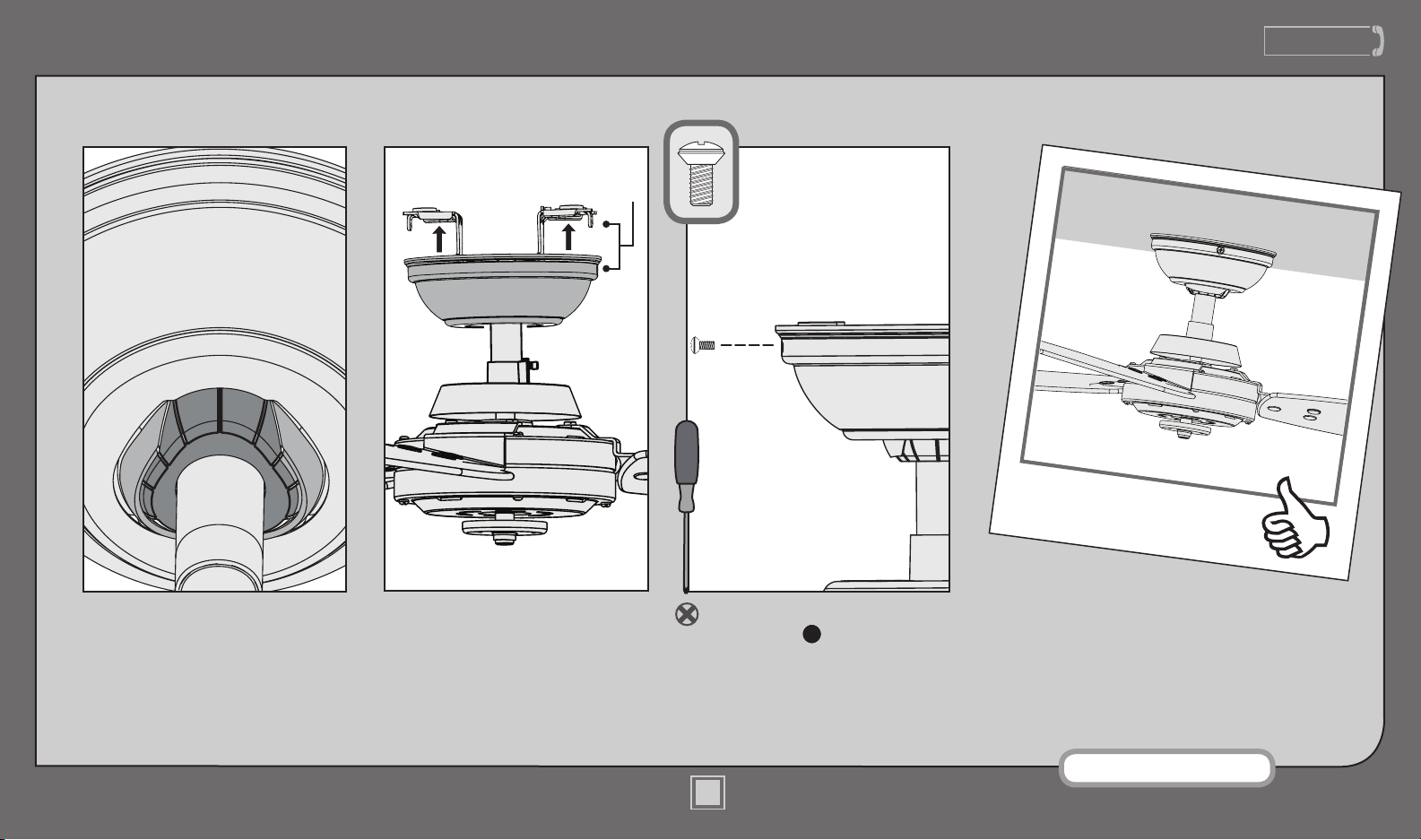

Canopy

Screw

Holes

www.HunterFan.com

1.888.830.1326

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Lift the canopy into place so that

the screw holes are aligned.

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.

Page 13

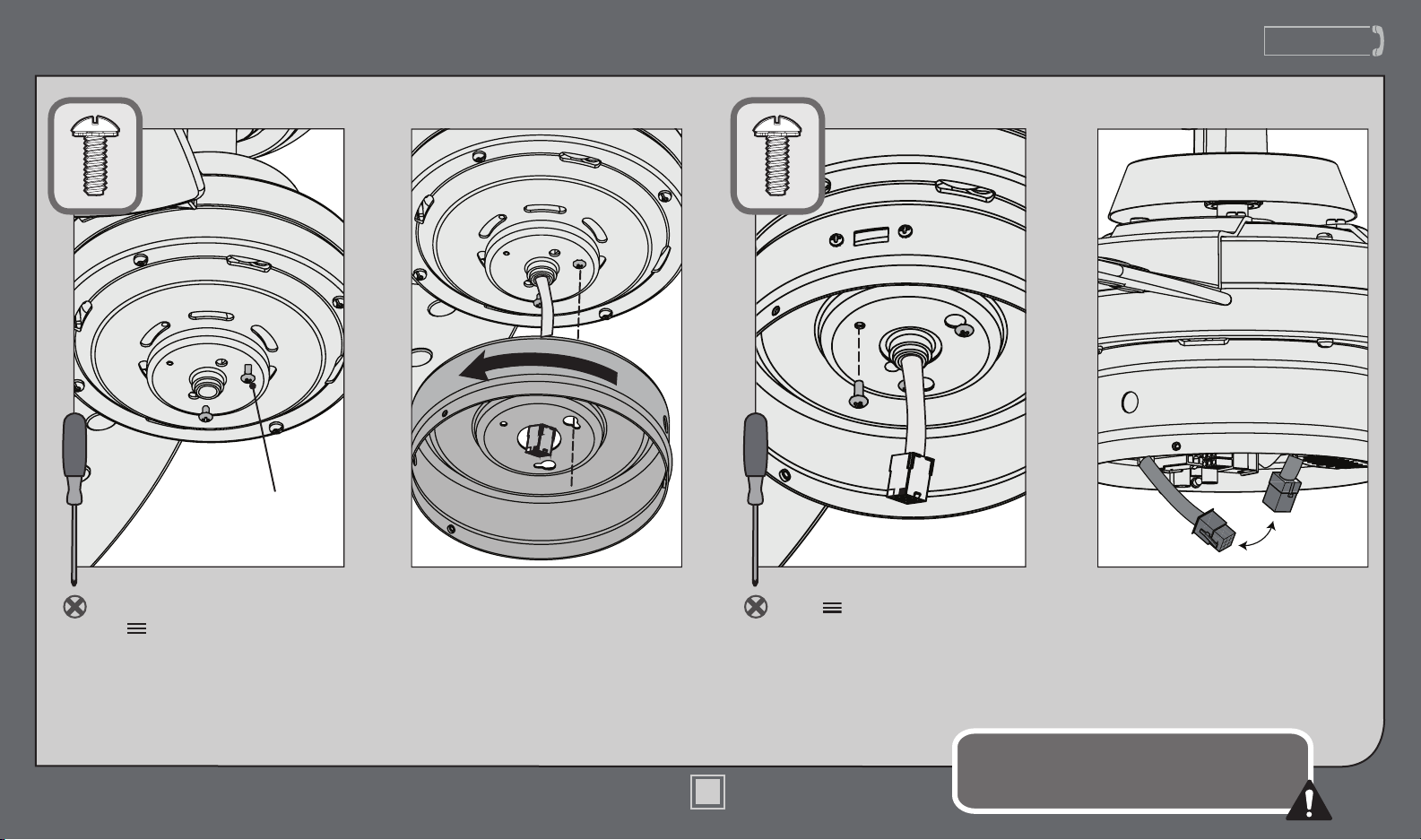

Switch Housing & Light Kit

Switch

Housing

Screw

www.HunterFan.com

1.888.830.1326

Screw two switch housing

assembly screws from

the hardware bag halfway

into the motor housing. It does

not matter which two screw

holes you choose.

Feed the wire plug through the center hole of the upper switch

housing, then wrap keyhole slots

around the screws and twist

counterclockwise.

Insert the third screw, found in

the hardware bag, into

place and then tighten all three

screws.

Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch

housing xture falling.

Connect the 9-pin connector

plugs from the motor housing and

switch housing. Make sure to line

up the colored markings on the

connectors.

Page 14

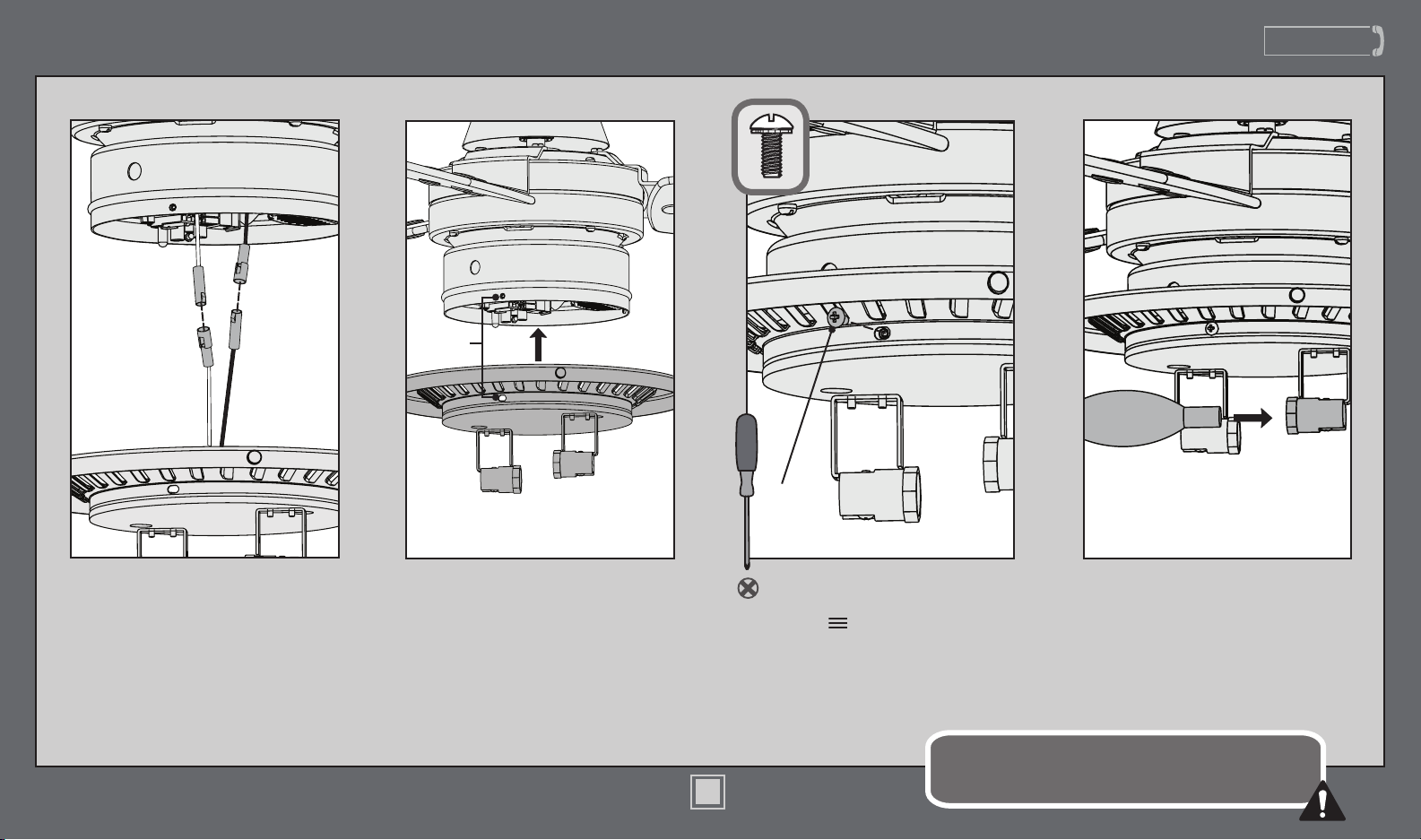

Switch Housing & Light Kit (continued)

Screw Holes

Switch Housing Screw

www.HunterFan.com

1.888.830.1326

To make the connection between

the light kit and the switch housing,

connect the white wire from the

switch housing to the white wire from the light kit, then connect the black wire from the switch housing

to the black wire from the light kit.

Lift the light kit assembly and align

the screw holes on the sides of

the switch housing with the screw

holes in the light kit assembly.

Note: The screw holes will only

line up one way. Ensure that all

three screw holes are aligned

before installing the screws.

Install three switch

housing screws, found in

the hardware bag.

Make sure the light kit assembly is securely attached to the upper switch housing. Failure to properly secure all three

assembly screws could result in the light xture falling.

Install a bulb into each of

the sockets. When necessary,

replace with bulbs of the same

type and wattage.

Page 15

Switch Housing & Light Kit (continued)

Globe

Assembly

Thumbscrew

www.HunterFan.com

CONGRATULATIONS!

YOU’RE DONE!

1.888.830.1326

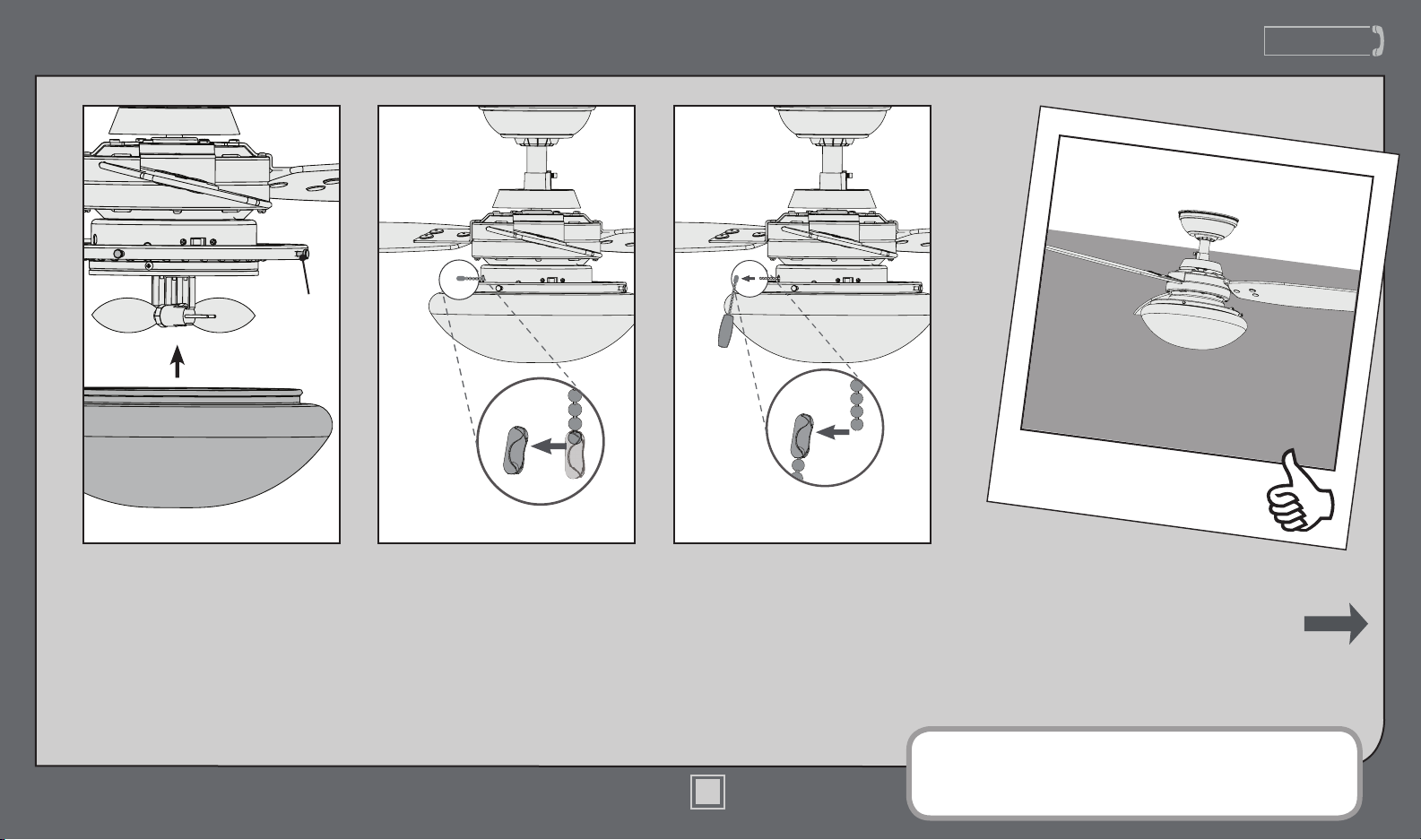

Loosen the pre-installed globe

assembly thumbscrews. Lift

the globe into the light xture

and retighten the thumbscrews

securely. Do not overtighten.

Remove the pull chain

connectors from the pull chains

coming from the fan.

Connect the appropriate pull

chain pendant to each of the

short chains coming from the

switch housing. The fan pull chain

controls the speed: from high to

off. The light pull chain controls

the light xture: on and off.

See next page for fan operation instructions.

Note: In compliance with US federal energy regulations, this ceiling fan

contains a device that restricts its light output. Exceeding the wattage

limit marked on the MAX wattage sticker afxed to the light socket(s)

may result in re hazard or improper operation.

Page 16

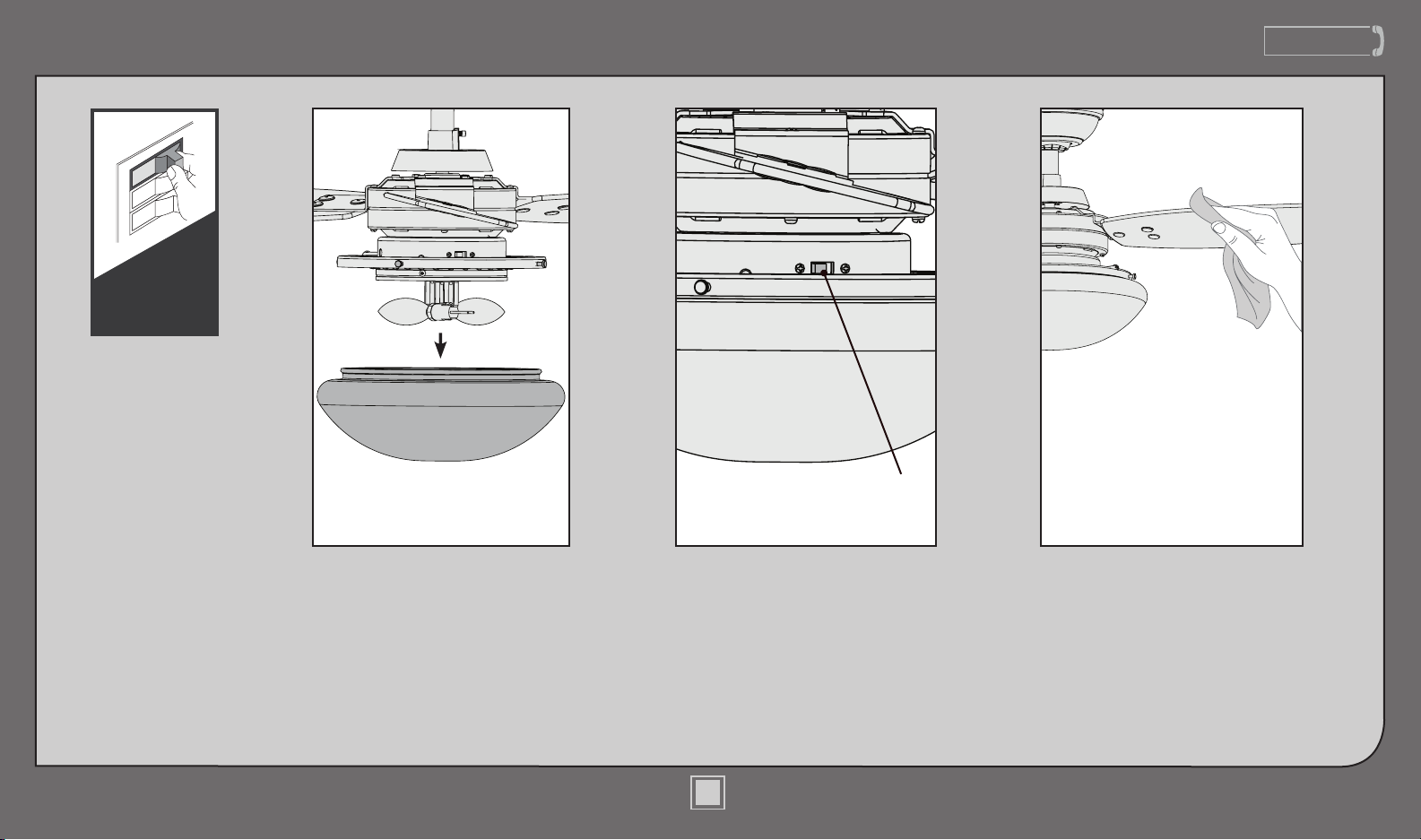

Maintenance & Cleaning

Turn Power

Reverse

Switch

www.HunterFan.com

1.888.830.1326

Changing the bulb - unscrew the

thumbscrews while supporting the globe with your other hand.

Carefully remove the globe.

Unscrew the bulb and replace with

a bulb of same type and wattage.

Reinstall the globe assembly.

Changing the direction of air

ow - move the reverse switch

to the opposite position.

Cleaning the fan - use soft

brushes or cloths to prevent

scratching. Cleaning products

may damage the nishes.

Page 17

Troubleshooting

www.HunterFan.com

1.888.830.1326

Fan doesn’t work

• Make sure power switch is on.

• Pull the pull chain to make sure

it is on.

• Push the motor reversing switch rmly left or right to ensure that

it is engaged.

• Check the circuit breaker to ensure the power is turned on.

• Make sure the blades spin freely.

• Turn off power from the circuit

breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 11.

• Check the plug connection in the switch housing.

Excessive wobbling

• Tighten all of the blade and blade iron screws until they are snug.

• Turn the power off, support the fan carefully, and check that the hanger ball is properly seated.

• Use the provided balancing kit and instructions to balance the fan.

Noisy Operation

• Tighten the blade and blade iron screws until they are snug.

• Check to see if any of the blades are cracked. If so, replace all of the blades.

Lights dim when turned on or do not turn on at all.

• Make sure the wattage of the light bulbs installed matches

the specications on the light

sockets.

Hunter 59148 52 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
