Humax CX PVR-9200C User Manual

Notice

Thank you for purchasing a HUMAX product. Please read this user’s manual carefully to be able to safely install, use and maintain the product at maximum performance. Keep this user’s manual next to your product for future reference. The information in this user’s manual is subject to change without notice.

Not to be copied, used or translated in part or whole without HUMAX's prior consent in writing except approval of ownership of copyright and copyright law.

Warranty

The warranty does not cover parts which may become defective due to misuse of the information contained in this manual.

Trademarks

Viaccess is a trademark of France Telecom.

CryptoWorks is a trademark of Philips Electronics N.V.

Irdeto is a trademark of Mindport BV.

Nagravision is a registered trademark of KUDELSKI S.A.

Conax is a trademark of Telenor Conax AS.

Manufactured under license from Dolby Laboratories.

'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.

GB 1

Notice

Warnings, Cautions and Notes

Throughout the whole manual, pay special attention to the following marks that indicate hazardous situations.

• Warning

Indicates a hazardous situation which could result in serious injury.

• Caution

Indicates a situation which could damage the equipment or other apparatus.

• Note

Indicates additional information to make the user aware of possible problems and information of any importance to help understand, use and maintain the installation.

Meaning of Symbols

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates dangerous voltage inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Instruction about the ‘WEEE’ Symbol

This product should not be disposed with other household wastes at the end of its working life. Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. This will prevent possible harm to the environment or human health from uncontrolled waste disposal. Domestic users: Please contact either the retailer where you purchased this product or their local government office for details of where and how they can take this item for environmentally safe recycling. Business users: Contact your supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

GB 2

Safety Warning

This product has been manufactured to comply with international safety standards. Please read the following safety precautions carefully.

Safety Instructions and Precautions

1. MAINS SUPPLY

90-250V a.c., 50/60Hz

• Operate this product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your local power company.

• Disconnect the product from the mains before you start any maintenance or installation procedures.

2. OVERLOADING

• Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock.

3. LIQUID

• The product should not be exposed to liquid of any kind. In addition, no objects filled with liquid should be placed on the apparatus.

4. CLEANING

• Disconnect the product from the wall outlet before cleaning.

• Use a light damp cloth (no solvents) to dust the product.

5. VENTILATION

• The slots on top of the product must be left uncovered to allow proper airflow into the unit.

• Do not stand the product on soft furnishings or carpets.

• Do not stack electronic equipments on top of the product.

6. ATTACHMENTS

• Do not use any unsupported attachments as these may be hazardous or cause damage to the product.

7. CONNECTION TO THE CABLE TV SIGNAL

• Connect all components before plugging any power cords into the wall outlet. Always turn off the product, TV and other components before you connect or disconnect any cables.

8. CONNECTION TO THE TV

• Disconnect the product from the mains before connecting or disconnecting the cable from the TV. Failure to do so can damage the TV.

9. LOCATION

• Place the product indoors to avoid exposing it to lightning, rain or sun.

• Do not place it near a radiator or heat register.

• Make sure it has more than 10 cm clearance from any appliances susceptible to electromagnetic influences, such as a TV or a VCR.

• Do not block the openings with any object, and do not place the product on a bed, sofa, rug, or other similar surface.

• If you place the product on a rack or a bookcase, ensure that there is adequate ventilation and that you have followed the manufacturer’s instructions for mounting.

• Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling product can cause serious injury to a child or adult, and serious damage to the appliance.

GB 3

Safety Warning

10.LIGHTNING, STORM or NOT IN USE

• Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-surges.

11.EXTRANEOUS OBJECTS

• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts.

12.REPLACEMENT of PARTS

• When replacement of parts is required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitution may result in additional damage to the unit.

Warning

1. To avoid damage of the power cord or plug;

• Do not modify or process the power cord or plug arbitrarily.

• Do not bend or twist the power cord.

• Make sure to disconnect the power cord holding the plug.

• Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from melting.

• The mains plug, as a disconnection device, shall remain readily accessible by the user.

2. To avoid electrical shock;

• Do not open the main body.

• Do not insert metal or inflammable objects inside the product.

• Do not touch the power plug with wet hands.

• Disconnect the power cord in case of lightning.

3. To avoid damage of product;

• Do not use the product when it is out of order. If you continue to use the product when defective, serious damage can be caused to it. Make sure to contact your local product distributor if the product is out of order.

• Do not insert metal or alien substance into the slots for the modules or Smartcards. It may cause damage to the product and reduce its life span.

4. Hard Disk Drive

• Do not move the product or turn the power off suddenly while the hard disk drive is running. The company shall not be liable for any corruption of data on the hard disk drive caused by the carelessness or misuse of users.

GB 4

Contents

1. Before Using the Product ............................................................... 7

1.1 Package Contents ............................................................... 7

1.2 Front Panel ..................................................................... 8

1.3 Conditional Access ............................................................... 9

1.4 Rear Panel ...................................................................... 10

1.5 Remote Control .................................................................. 11

2. Setup.................................................................................. 14

2.1 Connecting the Cable............................................................. 14

2.2 Connecting the TV ............................................................... 15

2.3 Connecting the TV and VCR....................................................... 17

2.4 Connecting the Audio System ..................................................... 18

2.5 Powering On .................................................................... 19

3. Installation Wizard...................................................................... 20

3.1 Language ....................................................................... 20

3.2 Country ......................................................................... 20

3.3 Channel Search ................................................................. 21

3.4 Time Setting..................................................................... 21

3.5 Result .......................................................................... 22

4. Basic Operation ........................................................................ 23

4.1 Switching Channel ............................................................... 23

4.2 Volume Control .................................................................. 23

4.3 Teletext......................................................................... 23

4.4 Programme Information (i-plate) ................................................... 24

4.5 Option List ...................................................................... 25

5. PIP and Time Shifted Recording ......................................................... 29

5.1 Picture-in-Picture (PIP) Screen .................................................... 29

5.2 Time Shifted Recording (TSR) ..................................................... 31

6. Recording and Playback ................................................................ 35

6.1 Instant Recording ................................................................ 35

6.2 Recording Schedule .............................................................. 36

6.3 Programme Playback in the Play List ............................................... 38

6.4 Chase Play...................................................................... 39

6.5 Editing Recorded Programmes .................................................... 39

6.6MP3............................................................................ 42

6.7 Digital Album .................................................................... 43

6.8 HDD Control .................................................................... 44

6.9 Recording’s Start/End Time ....................................................... 45

6.10 Re-recording ................................................................... 45

6.11 File Download from PC .......................................................... 46

7. Channel List ........................................................................... 47

7.1 Displaying and Switching Channel List .............................................. 47

7.2 Changing Channel List Group ..................................................... 48

7.3 Edit Channel Lists ................................................................ 48

7.4 Edit Favourite Channels .......................................................... 51

GB 5

Contents

8. Programme Guide ...................................................................... 55

8.1 Viewing Programme Guide Information ............................................. 55

8.2 Finding a Programme............................................................. 57

8.3 Viewing Reserved Programme ..................................................... 58

9. Preferences ............................................................................ 59

9.1 Parental Control ................................................................. 59

9.2 Language Setting ................................................................ 60

9.3 Time Setting..................................................................... 62

9.4 A/V Control...................................................................... 64

9.5 Miscellaneous Settings ........................................................... 65

10. Installation............................................................................ 67

10.1 Automatic Search ............................................................... 67

10.2 Linear Search .................................................................. 67

10.3 Manual Search ................................................................. 69

10.4 Search ........................................................................ 71

10.5 Default Setting.................................................................. 72

11. Software Update ...................................................................... 73

11.1 OTA (Over the Air) .............................................................. 73

11.2 Updating Software from Menu .................................................... 74

11.3 Software Update from PC ........................................................ 77

12. System ............................................................................... 78

12.1 Status ......................................................................... 78

12.2 Signal Detection ................................................................ 78

12.3 Conditional Access .............................................................. 79

13. Games ............................................................................... 80

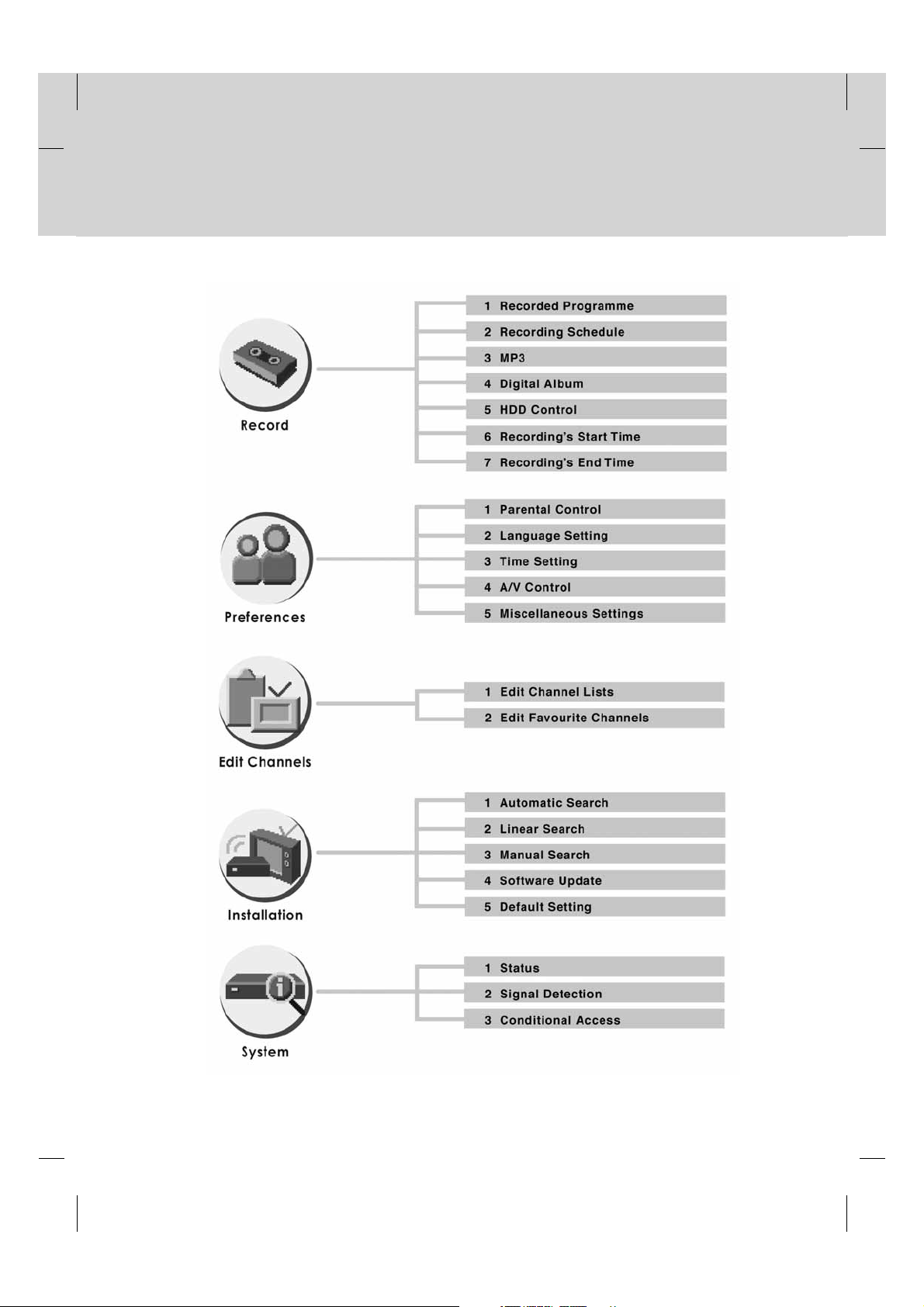

14. Menu Map ............................................................................ 81

15. Trouble Shooting...................................................................... 82

15.1 Trouble Shooting ............................................................... 82

15.2 Error Message.................................................................. 84

16. Specification.......................................................................... 85

17. Glossary.............................................................................. 86

18. Service and Support................................................................... 87

GB 6

1. Before Using the Product

1.BeforeUsing theProduct

This chapter describes detail instructions on the product and its accessories.

1.1 Package Contents

Please check all package contents before using the product.

Remote Control SCART Cable Batteries

User's Manual Quick Guide CD-ROM

Note:

• Faults may occur if the remote control is left without a battery for a long time. Always keep the battery inserted in the remote control.

• Package contents may vary according to area.

• CD-ROM contains USB driver and application.

Warning:

• The company shall not be liable for problems caused by changing hard disk drive by user.

• This product provides best performance with Seagate ST3160022ACE(160G) hard disk drive.

• The company shall not be liable for problems caused by the installation of hard disks bigger than 160GB.

GB 7

1. Before Using the Product

1.2 Front Panel

1. STANDBY BUTTON

Switches between operation and standby modes.

2. RECORD BUTTON

Records programme.

3. STOP BUTTON

Stops recording.

4. PLAY BUTTON

Plays programme.

5. PAUSE BUTTON

Pauses programme.

6. SOURCE BUTTON

Selects the input source between TV and the product.

7. CH-/CH+ BUTTON

Moves the TV/radio channel up/down.

8. USB DEVICE

Connect to the PC port. (For moving the information of digital album or MP3 to the PC.)

9. SMARTCARD SLOT

A slot for a Smartcard

Note: The front of the product is subject to change without notice.

GB 8

1.3 Conditional Access

Although some TV and radio channels are free to air, most TV and radio/music channels are available on a subscription basis and can only be enjoyed via a Conditional Access component. The Conditional Access component is a removable Smartcard.

1. Inserting the Smartcard

The Smartcard looks similar to a credit card and is inserted into the slot behind the right-hand front flap of the product. A valid Smartcard entitles you to view and listen to all the channels you choose to subscribe to. The Smartcard slot on the product can be used for Conax Smartcard only.

1. Open the right-hand flap on the front panel of the produc to expose the card slot.

2. Hold the Smartcard horizontally with the electronic chip (small square-shaped, gold in colour) facing upwards.

3. Insert the Smartcard into the slot.

GB 9

1. Before Using the Product

1.4 Rear Panel

1. CABLE IN

Connects a network cable.

2. CABLE OUT

Connects to the RF IN of the TV or VCR using a RF cable.

3. TV SCART

Connects to the TV using a TV SCART cable.

4. VCR SCART

Connects to the VCR or DVD using a VCR SCART cable.

5. AUDIO L/R

Connects to the TV or VCR using a RCA cable.

6. VIDEO

Connects to the TV or VCR using a RCA cable.

7. RS-232C

Connects a PC for software update.

8. S/PDIF

Connects to the audio system using an S/PDIF cable. (digital audio)

9. ON/OFF

Power on/off.

Note: The rear of the product is subject to change without notice.

GB 10

1.5 Remote Control

Note: The remote control of the product is subject to change without notice.

GB 11

1. Before Using the Product

1. STANDBY

Switches between operation and standby modes.

2. NUMERIC(0-9) BUTTONS

Enters a TV/radio channel number or menu option number.

3. LIST

Displays the channel list.

4. PLAYBACK CONTROL BUTTONS

a. FAST REWIND

Rewinds at high speed. Each time you press this button the rewind speed is increased.

b. PLAY

Plays at normal speed or resumes.

c. FAST FORWARD

Fasts forward at high speed. Each time you press this button the fast forward speed is increased.

d. RECORD

Records programme.

e. PAUSE

Pauses the live programme or recording.

f. STOP

Stops a recording or goes to the live programme.

5. MENU

Displays the main menu.

6. ARROW BUTTONS

Changes the channel or moves the cursor up, down, left or right.

7. EXIT

Exits all On-Screen Display (OSD) screens.

8. VOL+/VOL-

Adjusts the audio volume.

9. i (INFORMATION)

Displays the channel and programme information.

10.Group 10

g. SOURCE

Selects the input source between TV and the product.

h. TV/RADIO

Switches between TV and radio modes.

i. WIDE

Sets the display format.

j. SUBTITLE

Displays the subtitle language list.

k. SOUNDTRACK

Displays the soundtrack list.

l. A-B

Plays back a specified block repeatedly.

m. TEXT

Switches between the teletext and TV modes.

n. BOOKMARK LIST

Displays the list of saved viewing positions.

o. SLOW MOTION

Plays the programme in slow motion. Each time you press this button, speed is slowed progressively more.

p. G (Game)

Displays the games.

11.PLAY LIST

Displays the recorded programme list.

GB 12

12.Group 12

q. OPT+ (RED)

Displays the channel attributes while watching a programme.

r. INSTANT REPLAY (GREEN)

Jumps back and plays from that location.

s. COMMERCIAL SKIP (YELLOW)

Jumps ahead in a recording.

t. ADD BOOKMARK (BLUE)

Saves the current viewing position as a bookmark.

13.GUIDE

Displays the programme guide.

14.OK

Selects a menu or confirms the selected operation. Also, displays the channel list while watching a programme.

15.BACK

Closes and returns to the previous menu and screen.

16.CH+/CH- or PAGE+/PAGE-

Changes the channel or page.

17.MUTE

Mutes or unmutes the audio temporarily.

18.PIP BUTTONS

u. PIP

Displays the PIP (Picture in Picture) screen.

v. PIP CH LIST

Displays the PIP channel list while displaying the PIP (picture in picture) screen.

w. PIP CH+/CH-

Changes the PIP channel.

x. MOVE PIP

Changes the position of the PIP screen.

y. SWAP PIP

Swaps the focus between the main and the PIP screen.

GB 13

2. Setup

2.Setup

This chapter describes how to connect the product to the TV with the particular equipments for gaining optimum signal quality. The product provides various interfaces to connect to the TV, VCR or other devices. Select the most appropriate procedure depending on the equipment you have.

Note: If you encounter any problems setting up your product, please contact your local product distributor.

2.1 Connecting the Cable

Connect your CATV line to the CABLE IN.

Note: Connect the product and the TV using a RF cable to watch analogue channels.

GB 14

2.2 Connecting the TV

1. Using SCART Cable

Connect the product and the TV using a SCART cable.

GB 15

2. Setup

2. Using RCA Cable

Connect the product and the TV using a RCA cable.

GB 16

2.3 Connecting the TV and VCR

1. Using SCART Cable

Connect the product and the TV/VCR using a SCART cable.

GB 17

2. Setup

2.4 Connecting the Audio System

Select the most appropriate procedure for your convenience.

• Connect the product and the audio system using a RCA cable.

• Connect the product and the Dolby Digital decoder for higher quality sound using an S/PDIF cable.

GB 18

2.5 Powering On

1. Connect the power cord of the product to a wall outlet.

2. Turn on the power switch located at the back left of the product.

3. Power on by pressing the STANDBY button of the remote control or the STANDBY

button at the front of the product.

GB 19

3. Installation Wizard

3.InstallationWizard

When powering on the product for the first time after purchasing, the installation wizard will operate automatically.

You can easily set-up using simple organisation and options and watch the broadcasting after completing the set-up procedure. You can select items using the NUMERIC(0-9) buttons.

Note:

• If you press the BACK wizard, you can return to the previous screen.

• The options given of the installation wizard may vary according to area.

• The default password is 0000. If you have forgotten your password, please contact your local product distributor.

3.1 Language

Select the appropriate language from the list using the button and press the OK language for menu, subtitle and audio.

or button to save the selected language as a default

button or select Back and press the OK button while running the installation

3.2 Country

You can select country.

Select the appropriate country from the list using the button and press the OK

GB 20

or button.

3.3 Channel Search

Please wait until the channel search is complete.

1. During the channel search, the cursor is located at Stop. Therefore, if you press the OK button during the search, the

search will stop and the channels found until then will be displayed.

2. If the search does not find any channels, then press the OK or button to access the installation menu to search for the channels again. Please make sure that you have connected your

aerial correctly.

3. You can delete unwanted channels from the found channels. Select the channels to delete and press the OK

Then select Delete and press the OK channels, select Select All to select all channels, select Delete

and press the OK

4. After completing the channel search and deleting unwanted channels, select Save and press the OK

changes.

button.

button. To delete all

button to save the

button.

3.4 Time Setting

You can set the GMT offset for the current time.

1. Select GMT Offset using the button and press the OK or button.

2. Select your GMT offset using the

button. GMT is changed by from 30 minutes to 1 hour.

3. Then select Next using the button.

Note: The current time is set automatically whenever GMT offset

changes.

button and press the OK

GB 21

3. Installation Wizard

3.5 Result

Select Finish in the result screen and press the OK button to finish the installation wizard.

Warning: If you exit the install wizard without fully completing the

channel searching procedure, you may not have all of the channels available. In this case, you can use the installation menu to search for the channels.

GB 22

4. Basic Operation

4.BasicOperation

This chapter describes functions such as switching channel, volume control and basic features for watching programmes.

4.1 Switching Channel

You can switch the current channel using one of the following methods.

1. Press the CH+/CH-

2. Enter the channel number using the NUMERIC(0-9) buttons to go to the channel directly.

3. Press the TV/RADIO

Note: You can switch channel using the channel list or programme guide. Please refer to Chapter 7. Channel

List and 8. Programme Guide for more information.

4.2 Volume Control

1. Press the VOL+/VOL- or button to adjust the audio volume.

2. Press the MUTE

Note: The mute function remains set while you switch channels.

4.3 Teletext

or button .

button to switch between TV channel and radio channel.

button to stop the audio temporarily.

When the channel supports teletext, the teletext icon is displayed on the i-plate.

1. Press the TEXT button.

2. To display teletext menu, press the MENU mode.

3. Select the teletext function you want using the press the OK

4. To view the teletext page, use the button.

Teletext Functions

Index Returns to index page. If there is no index page, jumps to page 100. Sub-page Searches the sub-page using the sub-code written by users. Mix Adjusts transparency of teletext screen. Cancel Hides the teletext except page number. Reveal Displays the concealed information. Double Size Displays the text size as double size. Page Hold Holds the current page not updating it.

button.

button in teletext

button and

or CH+/CH-

GB 23

4. Basic Operation

4.4 Programme Information (i-plate)

Programme information is always displayed for a certain period of time whenever you switch channels. You can view the programme information by pressing the i button while watching a programme. Press the EXIT button to

hide the i-plate.

1. General Information

The general information is displayed as follows on the screen.

1. Channel number and name

2. Programme name

3. Detailed programme information: Displayed if detailed programme information is provided.

4. Current channel list and programme genre

5. Current time

6. Icons

Displayed only if the programme is recording.

Displayed only if the programme is reserved.

Represents parental control level. Indicates age classification level-if supplied by the broadcaster

Displayed only when the channel is a locked channel.

Displayed only when the channel is a scrambled channel.

Displayed when subtitle information is available.

Displayed only when there is any teletext information.

Displayed only when the programme is broadcast in Dolby Digital.

Displayed when the programme is replaced with another programme.

7. Next programme Information: Displayed if next programme information is provided. Press the button to display the next programme information.

8. Programme broadcasting time and progress bar: Displays programme playing time and progress bar.

Note: The programme information will only be displayed when supplied by the broadcaster.

GB 24

2. Detailed Programme Information

You can see detailed information about the current programme. Press the i button when the i-plate is displayed to view detailed

information.

Note:

• Press the i

• If the detail information is more than one page, use the button to move to the previous/next page.

button again to hide the information box.

4.5 Option List

You can view and confirm detailed information about the current channel and change the information if necessary.

1. Adding a Channel to Favourite Group

You can add the current channel to favourite group immediately. Also, you can add channels to favourite groups.

1. Press the OPT+ button.

2. Select Favourite using the or button.

3. Select favourite group using the

button to register for favourite group.

4. Press the OK to release the registered channel.

5. Move to the parent menu using the automatically.

button again on the selected favourite group

button and press the OK

button to save the changes

Note: For detailed information about how to change favourite group name and how to register favourite channels from

the complete channel list, please refer to Chapter 7. Channel List.

GB 25

4. Basic Operation

2. Subtitle

If the current programme provides subtitle information, you can select the language for the subtitle.

1. Press the OPT+ button.

2. Select Subtitle using the button.

3. Select the subtitle language using the button and press the

button. The subtitles will be displayed at the bottom of

the screen.

4. Select Off from the subtitle menu to switch the subtitles off.

button and press the OK or

Note:

• You also can change the subtitle by pressing the SUBTITLE

• You can select a default subtitle language in MENU–Preferences–Language Setting–Subtitle Language.

• You can use the hard of hearing subtitle if supplied by the broadcaster.

button on the remote control.

GB 26

+ 63 hidden pages
