Humax 5301 User Manual

Download

HD Digital Recorder

User’s Manual

HDR-FOX T2

The default password is 0000.

Notice

English

Thank you for purchasing a Humax HDR-FOX T2 Freeview+ HD product.

Freeview+ HD explained:

• Accurate recording

The start and end times of scheduled recordings will track the signal meaning the recording will start and stop at

the times sent by the broadcasters. If a programme starts early or runs late the record time will automatically be adjusted to record the whole programme.

• Series Recording

If a programme you wish to record is in a series, you can now record the whole series. If the programme changes to

a diﬀerent day or time the product will track these changes and still record the programme.

• Alternate Instances

If a scheduled recording(s) overlap with other programmes set to record you will be given the option to record one

of the programmes later that day or week, on the same channel or a diﬀerent channel.

• Split Recordings

If a programme has two parts split by another entry in the Guide (e.g. a ﬁlm divided in to two parts by a News

programme) you will be given the option to set both parts to record.

Note: The above Freeview+ HD features are available on channels where the correct and accurate data is being

broadcast. Some channels may not support all of the Freeview+ HD services.

For more information on Freeview+ HD please visit http://www.freeview.co.uk/HD.

Notice

Thank you for purchasing a HUMAX product. Please read this user’s manual carefully to be able to safely install, use and maintain the product at maximum performance. Keep this user’s manual next to your product for future reference. The information in this user’s manual is subject to change without notice.

Not to be copied, used or translated in part or whole without HUMAX’s prior consent in writing except approval of ownership of copyright and copyright law.

Warranty

The warranty does not cover parts which may become defective due to misuse of the information contained in this manual.

Meaning of Symbols

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualiﬁed service personnel.

This symbol indicates dangerous voltage inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

Warnings, Cautions and Notes

Throughout the whole manual, pay special attention to the following marks that indicate hazardous situations.

Warning

Indicates a hazardous situation which could result in serious injury.

Caution

Indicates a situation which could damage the equipment or other apparatus.

Note

Indicates additional information to make the user aware of possible problems and information of any importance to help understand, use and maintain the installation.

Notice

English

‘WEEE’ Instructions

This product should not be disposed with other household wastes at the end of its working life. Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. This will prevent possible harm to the environment or human health from uncontrolled waste disposal.

Domestic users: Please contact either the retailer where you purchased this product or their local government oﬃce for details of where and how they can take this item for environmentally safe recycling.

Business users:

Contact your supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Trademarks

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

• HDMI, the HDMI Logo, and High-Deﬁnition Multimedia Interface are trademarks of registered trademarks of HDMI Licensing LLC.

Contents

Notice 1

Thank you for purchasing a Humax HDR-FOX T2 Freeview+ HD product. 1

Quick Start Guide 5

1. Checking Accessories 5

2. Product Overview 5

3. Connections 9

4. Powering On 11

5. Installation Wizard 12

6. Menu Overview 14

Basic Operation 15

Changing Channels 15 Volume / Mute / Audio 15 Display Format / Resolution 16 Programme Information (i-plate) 17 Sleep Timer 18 Subtitle 18 Option 18 Text and Interactive Services 19

Channel List 20

Changing Channels 20 Editing Channels in Channel List 21

Managing Channels 22

Editing Channels 22 Editing Favourite Channels 24

TV Guide 26

Watching Programmes 26 Setting Reminders 27 Finding Programmes 28 Scheduling Reminders and Recordings 29

HUMAX TV Portal 46

Preferences 47

Parental Control 47 Language Setting 48 Setting Power On/Oﬀ Timer 48 Video Setting 49 Audio Setting 50 Screen Display 51

Installation 52

Automatic Search 52 Manual Search 53 Software Update (OTA) 53 Antenna Power 55 Factory Default 55

System 56

System Information 56 Signal Detection 56 Power Management 57 Common Interface 57 Data Storage 58 Internet Setting 58

Appendix 59

Speciﬁcation 59 Service and Support 60 Safety Warning 61 Trouble Shooting 63 Error Message 65 Glossary 66 Remote Control Code List 68

Recording and Playback 30

Recording 30 Playback 34 Playback Controls 35 Pausing and Rewinding Live TV (TSR) 36

Media List 37

Using Video List 39 Using Music List 42 Using Photo List 44

Quick Start Guide

1. Checking Accessories

User’s Manual

English

Quick Start Guide

Remote Control

& Batteries

HDMI Cable

Note: The accessories may vary according to area.

2. Product Overview

Front Panel

STANDBY

Switches between operation

Status Display

and standby modes.

Manual &

Quick Start Guide

SCART Cable

VOL-/VOL+

P-/P+

Note: The image shown may diﬀer from the actual product.

USB port

Connect a USB storage device.

Quick Start Guide

Rear Panel

Common Interface

Insert a CI-module.

ANTENNA IN

Connect your main aerial.

ANTENNA OUT

Connect to the TV or VCR using an RF cable.

SPDIF

Connect to the audio system using an S/PDIF cable. (digital audio).

ETHERNET

Connect a LAN cable.

USB Port

Connect a USB storage device.

HDMI

Connect to the TV using an HDMI cable.

TV SCART

Connect to the TV using a TV SCART cable.

Note: The image shown may diﬀer from the actual product.

ON/OFF

Powers on/oﬀ.

VIDEO

Connect to the TV or VCR using an RCA cable.

AUDIO

Connect to the TV or VCR using an RCA cable.

Conditional Access

Although most TV and radio services are free to air, others are available on a subscription basis and can only be enjoyed via a Conditional Access Module (CAM) and smartcard.

Insert the CAM into the Common Interface slot.

Note: The CAM and smartcard are not provided with the product

and are available from the Pay TV provider.

CAM

Quick Start Guide

English

Remote Control

To control the product please make sure that the PVR mode is selected on the remote control.

MUTE Mutes audio

STANDBY Switches between operation and standby modes.

MODE Changes the mode of remote.

NUMERIC (0-9)

TV Portal Access to Humax TV Portal.

MENU Displays the main menu.

Playback Control

Buttons

COLOUR

Buttons

MEDIA Displays the media list.

GUIDE Displays the programme guide.

ARROW Buttons

OK Selects a menu or conﬁrms.

EXIT Exits all On-Screen Display (OSD) screens.

BACK Returns to the previous screen.

X Play, II Pause,  Stop, z Record XX

Fast Forward,

Next, Instant Replay, Skip

Colour keys for interactive applications.

Moves the cursor up, down, left or right.

Previous,

Rewind,

Note:

• The image shown may diﬀer from the actual product.

• Some playback control buttons may not function depending on the content/media ﬁles you are viewing.

Quick Start Guide

VOLUME Adjusts the audio volume.

S/PT Changes the channel or page.

LIST Displays the channel list.

i (Information) Displays the channel and programme information.

OPT+ Displays the channels attributes.

AUDIO Displays the audio list.

SUB Displays the subtitle language list.

TV/RADIO Switches between TV and radio modes.

TEXT Enters the digital text service.

SOURCE Controls the output of TV SCART.

SLEEP Sets the sleep timer.

V-FORMAT Sets the resolution of video.

WIDE Sets the display format.

Add Bookmark/Show Bookmark List.

Slow Play

Inserting Batteries

1. Press the hook upward and lift the battery cover oﬀ.

2. Insert the batteries (supplied) matching the plus(+) and minus(-) at each end.

3. Close the cover.

4. Press the PVR button at the top of the remote control.

i

Quick Start Guide

English

3. Connections

This section describes how to connect your product to match your particular devices setup and to gain optimum signal quality. The product provides various interfaces to connect to the TV, VCR or other devices. Select the most appropriate procedure depending on the device you have.

Note: If you encounter any problems setting up your product, please contact your local retailer or Humax

Customer Helpline.

DVI Connecter

HDMI Cable

HDMI

HDMI Cable

RCA Cable

TV SCART

SCART Cable

S/PDIF Cable

Ethernet Cable

LAN

Router

Quick Start Guide

Connecting the Antenna

Connect the aerial to the ANTENNA IN.

Connecting the TV

You can select one of the following connections depending on the device you have.

ݎTV with the HDMI connector;

For the best picture quality, connect the product and TV using a HDMI cable. When using a HDMI cable it is not necessary to also use a scart cable.

ݏTV with the DVI connector;

For very good picture quality, connect the product and TV using a HDMI cable and a HDMI-to-DVI converter for video. You will also require a RCA cable(Audio L/R) connected to the necessary connection(s) on your TV/Display for Audio. Please refer to your TV/Display user manual for further information on the connections required for Audio.

ݐTV with the SCART connector;

For good picture quality, connect the product and TV using a SCART cable.

For additional audio connections you can either

1. Connect the product and TV using an RCA cable (Audio L/R).

2. When using the digital audio system, connect the product and the digital audio system using a S/PDIF cable.

Connecting the Network

ݑConnecting to the LAN;

Connect one end of the Ethernet cable to the receiver and the other end to the LAN router.

Quick Start Guide

English

4. Powering On

1. Connect the power cord of the product to a wall outlet.

2. Ensure the power switch at the rear of the product is switched to ON.

3. Power on by pressing the STANDBY button on the remote control or touching the STANDBY button

at the front of the product.

Note: To control the product please make sure that the PVR mode is selected on the remote

control.

Quick Start Guide

5. Installation Wizard

When powering on your product for the ﬁrst time after purchase or performing the factory default in menu, the Installation Wizard will appear on your TV screen.

If you do not see the Installation Wizard please check:

1. Your TV is switched on.

2. The cables between the product and your TV are connected correctly.

3. Your TV is on the correct input (AV channel) for the connection you are using. (Please refer to your TV/Display user manual for further information to select the correct Input/channel.)

Note: If you exit the installation wizard without fully completing the channel searching procedure, you

may not have all of the channels available. In this case, you can use the Settings > Installation menu to search for more channels.

1. Preferred Language

Select a language for audio and subtitles and

press the OK button.

2. Display

Set the video output settings you require. To continue to the next step select Next and

press the OK button.

Screen Ratio:

16:9 - Widescreen TV 4:3: Traditional TV

Display Format:

Select your Required Display Format, the

image at the bottom of the screen will indicate how the picture will appear on your TV.

Resolution:

Select your Required Video Resolution (576i, 576p, 720p, 1080i, 1080p)

Note: Some TVs/Displays may not support all Video Resolutions, to change this in the future please use

the V-FORMAT button on your remote contol.

Quick Start Guide

3. Automatic Search

Channel search will begin automatically. When the search has completed press the OK

button to save the channels found during the search.

4. Result

The results of the Installation Wizard are

displayed on screen.

Select Finish and press the OK button to

complete the Installation Wizard.

English

Quick Start Guide

6. Menu Overview

Channel List

TV Guide

Video

Music


HUMAX TV Portal

Settings

Preferences

• Parental Control

• Language

• Time

• Video

• Audio

• Recording

• Screen Display

Edit Channels

• Edit Favourite List

• Edit Channel List

Installation

• Automatic Search

• Manual Search

• Software Update

• Antenna Power

• Factory Default

System

• System Information

• Signal Detection

• Power Management

• Common Interface

• Data Storage

• Internet Setting

How to Navigate

Displays the Menu OSD Moves among menus or options

Selects (Enters) a menu or conﬁrms a selection Changes or adjusts the option

Goes back to the previous screen Enters the number (0~9)

Exit all On-Screen

Basic Operation

Changing Channels

You can change the channels in several ways.

 Press the PS/PT button.  Enter the channel number directly. (0-9)  Go to the channel list or TV guide and select a channel.

English

Note: P

ress the TV/RADIO button to switch between TV and radio channels.

Volume / Mute / Audio

 To adjust the audio volume, press the \+/\- button.  To mute the audio temporarily, press the MUTE button.

Setting Audio Options

Audio options are available only when the programme supports multiple audio languages.

1. Press the AUDIO button. Each time you press this button, the audio

language changes or the Audio Description soundtrack will be selected.

2. Select the audio direction (if available) using

the

W/X arrows.

Note:

• The mute function remains set while you

change channels.

• You cannot set the audio direction when the

programme is broadcast in Dolby Digital.

Display Select Conﬁrm

Basic Operation

Display Format / Resolution

Setting Display Format

Press the WIDE button to set the display format according to the screen ratio. Each time you press this button, the value changes.

h Screen ratio 4:3: Auto - Letterbox 16:9 -

Letterbox 14:9 - Centre

h Screen ratio 16:9: Auto – Pillar Box – Zoom

Note: Refer to Display Format for details.

Display

Setting Resolution

Press the V-FORMAT button to set the resolution of the screen. Each time you press this button, the value changes.

h 576i - 576p - 720p - 1080i - 1080p

Note: When connected with an HDMI cable

you may only be able to change to the resolutions that the TV supports.

Display

Basic Operation

English

Programme Information (i-plate)

The i-plate is an information banner that is displayed for a certain period of time whenever you change channels. Press the i button while watching a progamme to display the i-plate. Press the EXIT button to hide.

Playing time

Programme name Channel number and name

h Viewing detailed programme information

Press the i button again while the i-plate is displayed.

h Viewing previous/next programme information

Press the

programmes.

h Viewing programme information of other channels

Press the S/T button while the i-plate is displayed. Press the OK button to change to the selected channel.

W/X button while the i-plate is displayed. Press the OK button to set reminders for future

Icons

Current time and date

Display Navigation mode

Signal strength and quality

Group name

Icons

The icons represent the information and services provided.

Locked programme Series Programme

Pay TV / encrypted programmes (CAS icons) Resolution

Parental guidance programme HD programme

Scheduled programme (Red: Record, Blue: Reminder)

Subtitle

Multiaudio

Dolby Digital audio Dolby Digital Plus audio

Audio Description

Note: Programme information is not displayed when there is no programme information.

Basic Operation

Sleep Timer

Press the SLEEP button to set the automatic turn oﬀ time. Each time you press this button, the value changes.

h Sleep Oﬀ - 10 - 20 - 30 - 60 - 90 - 120 minutes

Subtitle

You can select the subtitle language when subtitle information is provided. Press the SUB button. Each time you press this button, the subtitle language changes.

Display

Note:

• You can choose to always display the subtitle when available.

• The icon appears when the DVB subtitle is supported.

Option

You can set the options for the watching channel.

1. Press the OPT+ button.

2. Select an option.

h Favourite : Select the favourite group to add the

channel

h Lock : Select On or Oﬀ. h Delete: Press the OK button.

2. Select OK to save and exit.

Display

Basic Operation

English

Text and Interactive Services

If your chosen channel has digital text features, you can access them. Digital text services often load automatically shortly after the digital text window is displayed. In which case, simply follow the on screen instructions. (Press colour buttons)

1. Press the TEXT button to access digital text.

2. Press the TEXT button again to return to normal viewing.

3. Press the P

S/PT button to exit this service.

Channel List

The channel list will help you ﬁnd the channel you want to watch quickly and easily.

You can access the channel list in several ways.

 Press the LIST button.  Press the MENU button and select Channel List.

Changing Channels

Select the channel you want to watch and press the OK button. The displayed channel will change.

Note:

• : Locked channel, : Pay TV / encrypted programmes (CAS icons)

• Press the i button to view the detailed programme information.

• Press the LIST or EXIT button to exit.

Advanced Options

Changing Group

You can display the list of the selected channel group.

h TV, HDTV, Radio, Favourite 1~5, Recent

1. Press the X arrow.

2. Select a channel group.

3. Press the OK button.

Note: Press the TV/RADIO button to switch

between TV and Radio groups.

Sorting Channels

Press the RED button to sort the list in numerical or alphabetical order.

Display/Change

Select Conﬁrm

Channel List

English

Editing Channels in Channel List

You can lock or delete each channel in the channel list, as well as in menu. To edit the multiple channels, go to MENU >Settings > Edit Channels.

Locking / Deleting Channels

1. Select a channel you want to edit and press

the GREEN button.

2. Select an option.

h Lock: Select On or Oﬀ. h Delete: Press the OK button.

3. Select OK to save and exit.

Note: The default password is 0000. If you have

forgotten your password, please contact Humax Customer Support.

GREEN

Setting Favourite Channels

Display

Select Conﬁrm

You can select your favourite channels and include them in the ﬁve favourite groups.

1. Select a channel and press the GREEN button.

2. Select Favourite.

3. Select a favourite group you want to include the channel in and press the OK button. To remove a channel from a favourite group, select the group and press the OK button again.

4. Select OK to save and exit.

Managing Channels

Editing Channels

The Edit Channel List menu will help you delete or lock multiple channels.

MENU J Settings J Edit Channels J Edit Channel List

Group name

Marked / Total channels

Function buttons

: Coloured button

Select

Note:

• : Locked channel, : Pay TV / encrypted programmes (CAS icons)

• Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.

Mark/Conﬁrm Page up/down

Deleting Channels

1. Select the channels using the S/T and OK button.

2. Press the RED button.

Locking / Unlocking Channels

1. Select the channels using the S/T and OK button.

2. Press the BLUE button.

3. Select Lock. To unlock, select Unlock.

Managing Channels

Advanced Options

Changing Group

To list the channels of other groups, press the GREEN button and select a group you want.

Note: Press the TV/RADIO button to switch between TV and Radio groups.

Changing Background

You can change the channel displayed in the background while editing.

1. Select the channel you want to watch.

2. Press the YELLOW button. The displayed channel will change.

Selecting / Releasing All Channels

1. Press the BLUE button.

2. Select Select All.

3. To release all, select Release All.

English

Managing Channels

Editing Favourite Channels

The Edit Favourite List menu will help you add or remove channels from the favourite groups.

MENU J Settings J Edit Channels J Edit Favourite List

Group name Marked / Total channels

Favourite group name

Function buttons

: Coloured or OPT+ button

Select

Note: Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.

Mark/Conﬁrm Page up/down

Adding / Removing Favourite Channels

1. Press the YELLOW button and select the favourite group you want to edit.

2. To add channels to the favourite list, select the channels you want to add using the button in the left column and then press the RED button. The added channels will appear in the right column.

3. To remove channels from the favourite list, select the channels you want to remove in the right column and then press the RED button.

S/T and OK

Moving Channels

1. Select the channels using the S/T and OK button.

2. Press the RED button.

3. Move the selected channels to the location you want using the

Note: You can move the channels in the right column only.

S/T and OK button.

Renaming Favourite Groups

1. Press the YELLOW button and select the favourite group you want to edit.

2. Press the OPT+ button

3. Select Rename.

4. Enter the name in the keyboard.

Managing Channels

English

Advanced Options

Changing Group

To list the channels of other groups in the left column, press the GREEN button and select a group you want.

Note: Press the TV/RADIO button to switch between TV and Radio groups.

Changing Background

To list the channels of other groups in the left column, press the BLUE button and select a group you want.

Selecting / Releasing All Channels

1. Press the OPT+ button.

2. Select Select All.

3. To release all, select Release All.

TV Guide

The TV guide is an on-screen guide of grid type which displays the programme information of channels in time and date order.

You can access the TV guide in several ways.

 Press the GUIDE button.  Press the MENU button and select TV Guide.

Note: Press the GUIDE or EXIT button to exit. Press the BACK button to return to the previous screen.

Preview

Current time and date

Information of the selected programme: channel number & name,

programme name, simple information, favourite group, and icons

Time bar

Function buttons

: Coloured button

Select

Tune/Reserve Page up/down

Note:

• Press the i button to view the detailed programme information.

• : Scheduled programme (Red: Record, Blue: Reminder), : Recording programme,

: Present time

Watching Programmes

1. Select a programme and press the OK button. The programme will be displayed in the preview.

2. Press the OK button again to exit the TV guide and watch the programme.

TV Guide

Setting Reminders

1. Select a future programme and press the OK button.

2. Select Reminder and press the OK button. Press the OK button again to cancel the reservation. The reserved programmes will be added automatically in Schedule.

Note:

• If the programme is overlapped with another programme, adjust the reservation appropriately.

• If the channel is locked, you will be prompted to enter your password before watching.

The default password is 0000. If you have forgotten your password, please contact Humax Customer Support.

• In standby mode the product will switch on to the channel when the programme starts.

• You can reschedule reminders or recordings. (Refer to Scheduling Reminders and Recordings.)

Advanced Options

Quick Navigation

English

Press the Press the Press the

Changing Group

To list the channels of other groups, press the BLUE button and select a group you want.

Note:

• Press the TV/RADIO button to switch between TV and Radio groups.

• To search speciﬁc programmes, go to Find by pressing the GREEN button. (Refer to Finding

W/X button to move to the previous/next programme.

WW/XX

button to jump back/ahead two hours.

WW/XX

button to move to the previous/next day.

Programmes.)

TV Guide

Finding Programmes

Find will help you ﬁnd the programmes more speciﬁcally using the keyword or genre.

By Keyword

1. Press the GREEN button.

2. Select Keyword and press the

3. Select a keyword and press the OK button.

4. Press the YELLOW button to conﬁrm.

Note: To enter a new keyword, select New

Keyword.

By Genre

1. Press the GREEN button.

2. Select Genre and press the

3. Select a genre and press the OK button.

4. Select the speciﬁc genre and press the OK button. (if provided)

X button.

GREEN

Display Conﬁrm Select

Page up/down

Note:

• Press the i button to view the detailed programme information.

• Press the OK button to watch a found programme. (Refer to Changing Channels.)

• You can set reminders or recordings for future programmes. (Refer to Setting Reminders or Recordings.)

TV Guide

Scheduling Reminders and Recordings

Schedule lists reminders and will help you manage them in more detail.

1. Press the YELLOW button.

2. You can add, edit or delete your reminders.

h To add, select New Reminder and press the OK

button.

h To edit, select a reminder and press the OK

button.

h To delete, select a reminder and press the BLUE

button.

3. Reservation will pop up. You can change

the options you want using the NUMERIC(0~9) and OK buttons.

4. Select OK to save and exit.

Note:

• Press the i button to view the detailed

programme information.

• You can easily set reminders or recordings in

TV Guide, Find or i-plate navigation mode.

S/T/W/X,

YELLOW

Display Conﬁrm Select

Page up/down

English

Recording and Playback

You can record programmes in the built-in hard disk drive and playback the recorded programmes whenever you want.

Recording

You can watch another channel while recording a channel or record programmes from two diﬀerent channels at the same time.

Instant Recording

You can record the currently watching programme instantly and change the recording duration.

To instantly record the current programme you are watching, press the RECORD button. The recording will start from the current broadcast point and the record banner will be displayed for a few seconds.

Press the STOP button to stop recording the programme.

The recording will continue till the end of the current programme. However, if the programme ends in less than ten minutes, it will continue till the end of the next programme. When no programme information is provided, the recording will continue for two hours.

Note: You can also press the Record button while in the Guide to start recording a current programme on

a diﬀerent channel.

Delayed Recording

You can record the scenes of a live broadcast you have been watching until now by rewinding with the time shifted recording function.

Find the starting point you want to record by using the REWIND, button.

The recording will start from the point you select.

Changing Recording Duration

1. Press the RECORD button on the currently recording channel.

2. Set the duration manually or select till the end of the current prorgramme or the next programme.

W or X buttons, then press the RECORD

Record Select Conﬁrm Enter 0~9

Recording and Playback

English

Scheduled Recording

You can easily set the recording reservations in TV Guide, Schedule or i-plate navigation mode.

 While in the TV Guide highlight a future

programme and press the OK button.

 Select from:

Record Whole Series Record the Whole Programme

 Press the OK button on a future programme

in i-plate and select either Record Series or Record the Whole Programme.

(Refer to Programme Information.)

The recording will start at the scheduled time and the record banner will be displayed for a few seconds.

Press the STOP button to stop recording the programme.

Note:

• Press the GUIDE button to go to TV Guide.

• Press the GUIDE button and press YELLOW button to go to Schedule.

• Press the i button while watching a progamme to display the i-plate.

Editing Recording Schedule

You can edit or delete your reservations in Schedule.

h To edit, select a reservation and press the OK

button. You can change the options such as channel, date, time, repeat mode, etc.

h To delete, select a reservation and press the

OPT+ button.

Record Select Conﬁrm Enter 0~9

Recording and Playback

Recording Conﬂict

You can watch another channel while recording a channel or record programmes from two diﬀerent channels at the same time.

Recording Duration Conﬂict

When an instant recording conﬂicts with one of the scheduled recordings (or reminders), you can either;

h Record for the automatically modiﬁed duration. h Cancel either of the scheduled recordings (or

reminders).

h Cancel the previous recording.

Watching Conﬂict

When a scheduled recording starts on a diﬀerent channel while you are watching a channel and recording another channel, a record notice will pop-up 30 seconds before the scheduled recording starts.

h OK: The channel will change at the start time and

the scheduled recording will start automatically.

h Cancel: The scheduled recording will be

canceled.

Scheduling Conﬂict

When a new scheduled recording conﬂicts with one of the previously set recordings (or reminders), you will be prompted to select up to two programmes you want to keep. Select the programme using the

S/T and OK

button.

Record Select Conﬁrm Enter 0~9

Recording and Playback

Setting Padding / Jump Time

MENU J Settings J Preferences J Recording

Setting Padding Time

You can set the recording padding time in case the recording starts earlier or ends later than scheduled.

h Start Padding Time : Additional recording time

before the recording starts.

h End Padding Time : Additional recording time

after the recording ends.

Setting Jump Time

You can set the jump time to replay or skip scenes during playback or time shifted recording.

h Instant Replay Time : 7 sec, 15 sec, 30 sec h Skip Forward Time : 30 sec, 60 sec, 120 sec, 240 sec

English

Note:

• You can record radio programmes also.

• The record banner will be displayed with the i-plate whenever pressing the i button.

• You can change the recording duration by using the RECORD button for instant recording or by going

to MENU > TV Guide > Schedule for scheduled recording.

• When a new scheduled recording starts while a recording is already in progress, the record banner

will be displayed for a few seconds to inform you that the recording has been started. If you are not watching the channel being recorded, a record notice will pop-up 30 seconds before the scheduled recording starts, and the channel will switch to the scheduled programme automatically at the start time.

• Pressing the STANDBY button while recording will not stop the recording. New recordings will start

even in standby mode.

• While watching a recording programme, you can trick-play using the playback control buttons such as

pause, fast rewind, instant replay, slow, etc.

• You can record the digital TV or radio programmes only. The external AV inputs cannot be recorded.

• Make sure that there is enough free space before recording. If the free space on the hard disk drive is

insuﬃcient, recording will stop. Recording HD programme requires more space than SD programme. Recording one hour of HD and SD programmes may require 8 GB and 2~3 GB of hard disk space, respectively. The space for recording one hour programme may diﬀer depending on the programme.

• To view the recorded programme list, press the MEDIA or MENU button and select Video. (Refer to

Using Video List.)

Record Select Conﬁrm Enter 0~9

Recording and Playback

Playback

You can playback the recorded programmes that are stored in the built-in hard disk drive.

Playing Recordings (Video)

You can access the recorded ﬁle list easily and play the recorded programmes.

 Press the MEDIA button.  Press the MENU button and select Video.

Select a ﬁle and press the OK button. Playback will start. You can perform fast rewind, fast forward, slow motion and pause while playing back a recorded ﬁle. The green playbar is displayed when pressing the PLAY, FAST FORWARD, REWIND, SLOW or PAUSE button while playing.

Play status

Start time

Present time

Play pointer

Total time

Record Select Conﬁrm Enter 0~9

Recording and Playback

Playback Controls

Play

Pause the scene. Press the PAUSE button again to go back to play mode.

Stop the playback of the current ﬁle and go to live TV.

Fast Rewind

Fast Forward

Move to the previous chapter and replay the scenes.

Move to the next chapter and skip scenes.

W/X

Jump to the previous or next scene.

Add or delete a bookmark in your desired scene. The bookmarked scene is shown as a yellow pointer.

Jump to bookmarked scenes directly. The play pointer will ﬁrst move to the nearest bookmark.

Watch the recording in slow video.

English

Note:

• When you press the BACK button during playback, the playback stops.

• Chapters are made by dividing the recorded programme into eight portions.

• Bookmarks are available only when playing back the recorded programmes.

• Up to four bookmarks can be used, and the bookmarks will remain even if you stop playback.

• Refer to Media List > Using Video List for more details about the recorded ﬁles.

Record Select Conﬁrm Enter 0~9

Recording and Playback

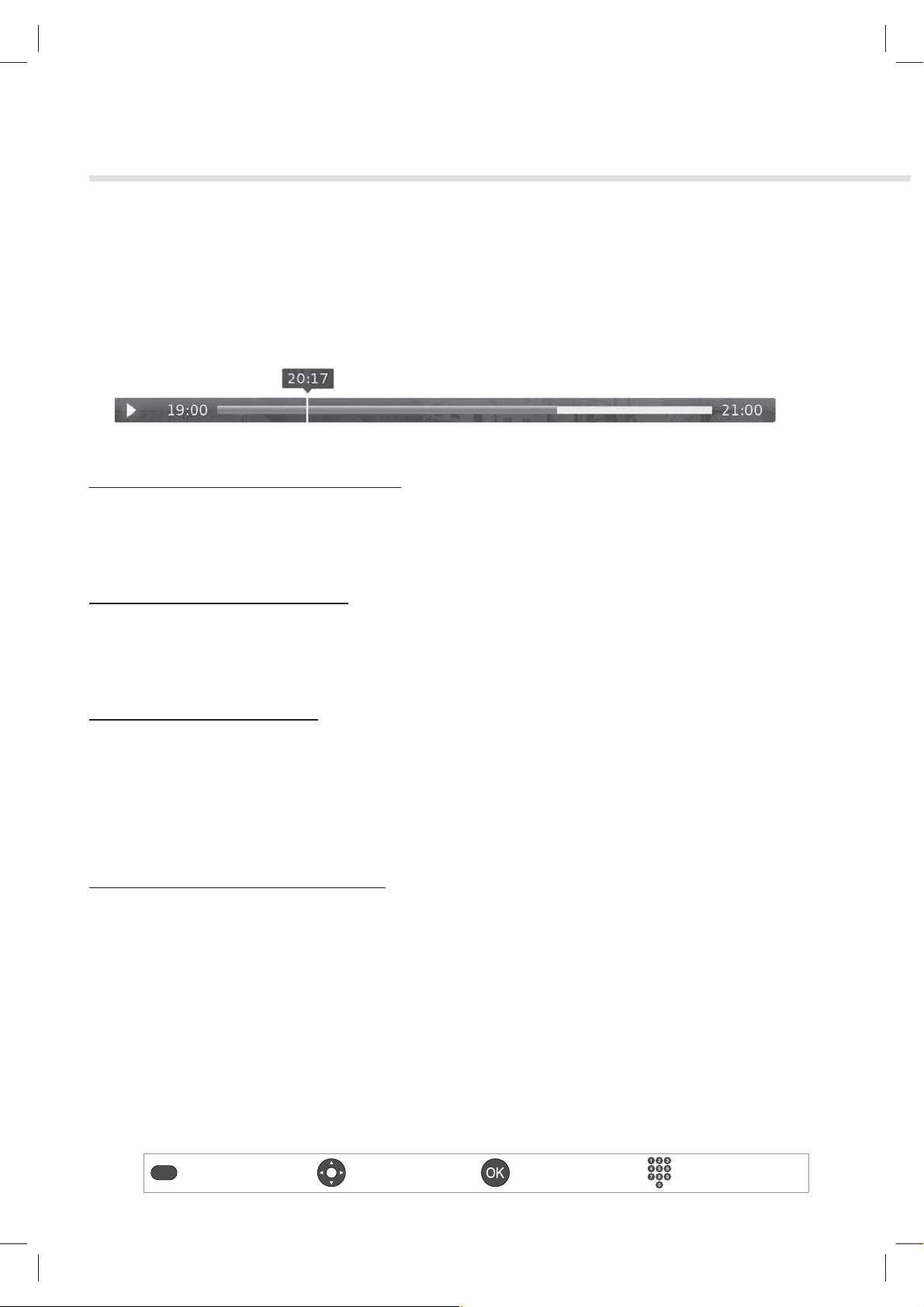

Pausing and Rewinding Live TV (TSR)

Time Shifted Recording (TSR) allows you to pause a live broadcast and return to it later and continue where you left oﬀ. The TSR function automatically saves the programmes you watch to the built-in hard disk drive temporarily. TSR lasts for 120 minutes.

To pause the programme you are watching,

Press the PAUSE button. Press the PLAY button to return. Pause makes a time gap between the live broadcasting point and watching point. The time gap is equivalent to the period the programme has been paused. Press the STOP button to close the time gap and go to live programme.

To rewind and watch missed scenes,

Press the REWIND button. Press the PLAY button at the point where you want to start watching. You can pause, rewind or fast forward within the programme. You can fast rewind to the start point. If you reach the start point while rewinding, the programme is automatically played at the normal speed.

To fast forward and skip scenes,

Press the FAST FORWARD button. You can fast forward only when there is a time gap between the current watching point and the live broadcasting point caused by pause, slow motion or fast rewind. You can fast forward up to the current broadcasting point. If you reach the live broadcasting point while fast forwarding, the programme is automatically played at normal speed.

Note: Press the PREVIOUS/NEXT button to instantly replay or skip scenes at regular intervals you set in

the menu. (Refer to Setting Jump Time.)

To record the Time Shift Recording buﬀer

Rewind to the point you wish to record and press the Record button on the remote control.

Note: The recording will not appear immediately in the Media list as time is required to transfer the buﬀer

into a recording.

Record Select Conﬁrm Enter 0~9

Media List

English

You can retrieve video, music or photo ﬁles from the built-in hard disk drive, the USB storage devices, or the DLNA compliant devices.

You can access Media List in several ways.

 Press the MEDIA button.  Press the MENU button and select Video, Music or Photo.  Connect a USB storage device for media and select your desired media type.

Video Lists TV/Radio recordings or XviD ﬁles.

Music Lists MP3 ﬁles.

Photo Lists JPEG ﬁles.

Note:

• Press the MEDIA or EXIT button to exit. Press the BACK button to return to the previous screen.

• When you connect a USB storage device, the media type menu is displayed automatically.

• Select Copy to copy the media ﬁles to the diﬀerent devices. (Refer to Using the Video List > Editing

Files.)

Switching Storage

1. Press the BLUE button to switch the storage.

2. Select the storage and press the OK button.

hHDD: Displays the internal HDD. hUSB: Displays each partition of the connected

USB storage devices. Select a USB.

hNetwork: Displays the connected DLNA

compliant devices. Select the server.

Switching Media

1. Press the YELLOW button to switch the media

type.

2. Select the media type and press the OK

button.

hVideo, Music, Photo

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Note:

• Please use only the USB storage device which was formatted with ext3, FAT or NTFS ﬁle system.

• Compatible USB devices include portable ﬂash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT12/16/32. It is not possible to connect this unit to a personal computer for USB playback.

• You can play back XviD/MP3/JPEG ﬁles (except ﬁles with copy-protection or restricted playback).

• Supported features according to USB ﬁle system

hext3: Read, Copy (Digital TV/Radio, MP3, JPEG, XviD) hFAT : Read, Copy (Digital TV/Radio, MP3, JPEG, XviD) hNTFS: Read (MP3, JPEG, XviD)

• USB ports on your product supply 800mA in total. This 800mA is shared among all devices connected to product.

• Please connect power to a USB storage device which requires an external power supply. If not, the device may not be recognized.

• Please connect a USB storage device with the cable oﬀered by the device maker. If you use a cable which is not oﬀered by the device maker or an excessively long cable (max 5m), the device may not be recognized.

• If the USB storage device is connected in standby mode, it will automatically be recognized when the product is turned on.

• A USB storage device using an automatic recognition programme may not be recognized.

• A USB storage device which uses its own driver may not be recognized.

• The recognition speed of a USB storage device may depend on each device.

• Please do not disconnect or turn oﬀ the USB storage device while playing back. When the USB storage device is suddenly separated or unplugged, the stored ﬁles or the USB storage device may be damaged.

• Be sure to back up important ﬁles since data stored in a USB storage device may be damaged. We will not be responsible for any data loss.

• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to 4 partitions or USB memory devices.

• If the USB memory stick does not work properly, disconnect and reconnect it.

• Some USB storage devices may not be supported or operated smoothly.

• How fast a USB storage device is detected diﬀers from device to device.

• USB storage devices below USB 2.0 are supported as well. But they may not work properly.

• The system may require a longer time to read large amounts of data stored in a USB device.

• Only one USB icon will appear even when there are more than one USB.

• The network icon is displayed only when the network has been connected.

• HUMAX cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

English

Using Video List

You can play TV/Radio recordings or XviD ﬁles from the built-in hard disk drive, the USB storage devices, or the DLNA compliant devices.

MENU J Video

Note:

• Press the YELLOW button to switch the media type.

• Press the BLUE button to switch the storage.

• Press the i button to view the detailed programme information.

Path

Storage

New recorded ﬁle

Recording ﬁle

Playing ﬁle XviD ﬁle

Function buttons : Coloured or OPT+ button

Note:

• : Recording icon, : Playing icon , : HD icon, : CAS icon, : Lock icon

• When you record the whole series of the programme, the programmes will be recorded in the same

series folder.

Playing Files

Select a ﬁle and press the PLAY button. Playback will start from the recently viewed point. To play multiple ﬁles successively, select the ﬁles using the RED button and press the PLAY button.

Using Play Options

1. Select a ﬁle and press the OK button.

2. Select a play option.

hResume Play: Plays from the recently viewed point. hPlay from the Start: Plays from the start. hDelete: Deletes the selected ﬁles. hRename: Renames the selected ﬁle. hLock/Unlock: Locks or unlocks the selected ﬁles.

3. Press the OK button.

You can perform fast rewind, fast forward, slow motion and pause while playing back a recorded ﬁle. Refer to Recording and Playback > Playback for details on playback control and playbar.

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Note:

• To play multiple ﬁles successively, select the ﬁles using the RED button and press the OK button.

When multiple ﬁles are selected, Resume Play and Rename are not available in Play Options.

• You will be prompted to enter the password when playing the locked ﬁles or the ﬁles with guidance policy.

• Some playback control buttons may not function depending on the contents.

Editing Files

Sorting Files

1. Press the OPT+ button.

2. Select Sort and press the OK button. The ﬁles will be sorted in alphabetical order.

3. To sort the ﬁles in time order, repeat the above procedure.

Note: Sorting ﬁles is available for video ﬁles only.

Deleting Files

1. Select the ﬁle(s) you want to delete and press the OPT+ button.

2. Select Delete and press the OK button.

3. Select Ye s and press the OK button.

Locking Files

1. Select the ﬁle(s) you want to lock and press the OPT+ button.

2. Select Lock and press the OK button.

3. To unlock, press the OPT+ button again and select Unlock.

4. Enter the password.

Moving / Copying Files

1. Select the ﬁle(s) you want to move and press the OPT+ button.

2. Select Move and press the OK button.

3. Select the folder or storage you want to move the ﬁle(s) to and press the OK button.

hMoving the ﬁle(s) within the same storage:

Select the folder you want to move the ﬁle(s) to and press the OK button.

hCopying the ﬁle(s) to another storage: Select

the storage and then select the folder to copy the ﬁle(s) to. Press the OPT+ button to create the folder.

Note:

• When moving a locked ﬁle, you will be prompted to enter the password.

• When a ﬁle is moved to a diﬀerent storage, it will be copied. However, video recordings cannot be copied to other storages.

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Renaming Files

1. Select the ﬁle you want to rename and press the OPT+ button.

2. Select Rename and press the OK button.

3. Enter the name of the ﬁle in the keyboard and press the YELLOW button.

Creating Folder

1. Press the OPT+ button.

2. Select New Folder and press the OK button.

3. Enter the name of the folder in the keyboard and press the YELLOW button.

English

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Using Music List

You can play MP3 audio ﬁles from the built-in hard disk drive, the USB storage devices, or the DLNA compliant devices.

MENU J Music

Note:

• Press the YELLOW button to switch the media type.

• Press the BLUE button to switch the storage.

Path

Storage

Title, Artist, Album

Function buttons : Coloured or OPT+ button

Playing Files

Select a ﬁle and press the OK or PLAY button. All ﬁles in the folder will be played successively. To play the selected ﬁles only, select the ﬁles using the RED button and press the OK or PLAY button.

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Music Player

The music player is displayed while playing the music ﬁle(s).

Plays or pauses Plays

Plays the previous ﬁle Pauses

Plays the next ﬁle

Plays the ﬁrst ﬁle Stops the music player and displays the list

RED

Changes the play mode (once, repeat, repeat all, shuﬄe)

English

Plays the last ﬁle Exits the music player and goes to live TV

Editing Files

Deleting, moving, renaming the music ﬁles or creating new folders are the same as in the video list. Refer to Using Video List > Editing Files.

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

Using Photo List

You can play JPEG photo ﬁles from the built-in hard disk drive, the USB storage devices, or the DLNA compliant devices.

MENU J Photo

Note:

• Press the YELLOW button to switch the media type.

• Press the BLUE button to switch the storage.

Path

Storage

Thumbnail

Photo Slideshow

Select a ﬁle and press the OK or PLAY button. All ﬁles in the folder will be shown successively. To slideshow the selected ﬁles only, select the ﬁles using the RED button and press the OK or PLAY button.

The info banner is displayed while slideshow is paused.

Pauses or plays Plays

Shows the previous photo Pauses

Shows the next photo Stops slideshow and displays photo list

Shows the ﬁrst photo Exits slideshow and goes to live TV

Function buttons : Coloured or OPT+ button

Shows the last photo

Media On/Oﬀ Select Conﬁrm Enter 0~9

Media List

English

Editing Files

Deleting, moving, renaming the photo ﬁles or creating new folders are the same as in the video list. Refer to Using Video List > Editing Files.

Slide Mode

You can play music ﬁles during slideshow.

1. Press the OPT+ button.

2. Select Slide Mode and press the OK button.

hDisplay Time: The duration a photo is displayed hMusic Play: Select On to play music ﬁles during

slideshow.

hFolder: Select the folder the music ﬁles in located

in using the RED button.

3. Select OK to save and exit.

Media On/Oﬀ Select Conﬁrm Enter 0~9

HUMAX TV Portal

HUMAX TV Portal provides Catch-up TV services and various web applications.

You can access HUMAX TV Portal in several ways.

hPress the TV Portal button.

hPress the MENU button and select HUMAX TV

Portal.

Note:

• Press the TV Portal button to return to TV Portal home while using the portal service.

• Press the EXIT button to exit. Press the BACK button to return to the previous screen.

• Press the RED button to enter the simple mode.

• Press the BLUE button to display the HUMAX Privacy Policy.

• HUMAX TV Portal is powered by independent service providers and the services are subject to change without notice.

Sky Player

You can watch live TV programmes and TV on demand with a monthly subscription. For more information please visit http://www.humaxdigital.co.uk/skyplayer

BBC iPlayer

You can watch live TV or radio programmes and watch them again for seven days after they are broadcast.

ﬂickr / WIKI@TV

You can access Flickr to view photos on your TV. You can also browse Wikipedia on the TV screen.

Internet Radio

You can browse your favourite music and listen to them from the internet radio stations around the world with streaming audio technology.

Disclaimer: You agree that your use of the HUMAX TV Portal Service (“Service”) is at your sole risk and

acknowledge that the Service and anything contained therein, including, but not limited to, content, services, goods or advertisements (the “Items”) are provided “AS IS” and that HUMAX makes no warranty of any kind, express or implied, as to the Items, including, but not limited to, merchantability, no infringement, title or ﬁtness for a particular purpose or use. HUMAX is not responsible for the quality of the broadband, and any disruptions or discontinuation of the Services as a result of broadband provided by your Internet Service Provider (“ISP”). HUMAX does not warrant that the Service is compatible with your equipment or that the Service is free of errors or viruses and is not liable for any damage you may suﬀer as a result of such destructive features. You agree that HUMAX, its Suppliers and its third-party agents shall have no responsibility or liability for any injury or damages, whether caused by the negligence of HUMAX, its employees, subcontractors, agents, Suppliers or otherwise arising in connection with the Service and shall not be liable for any lost proﬁts, losses, punitive, incidental or consequential damages or any claim against HUMAX by any other party or any fault, inaccuracy, omission, delay or any other failure in the Service caused by your equipment or arising from your use of the Service on such equipment. For any issues or questions about the compatibility with your broadband, please contact your ISP.

TV Portal On Select Conﬁrm Exit

Preferences

English

In this chapter you can set options for parental control, language, time, video, audio and screen display.

Note: Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.

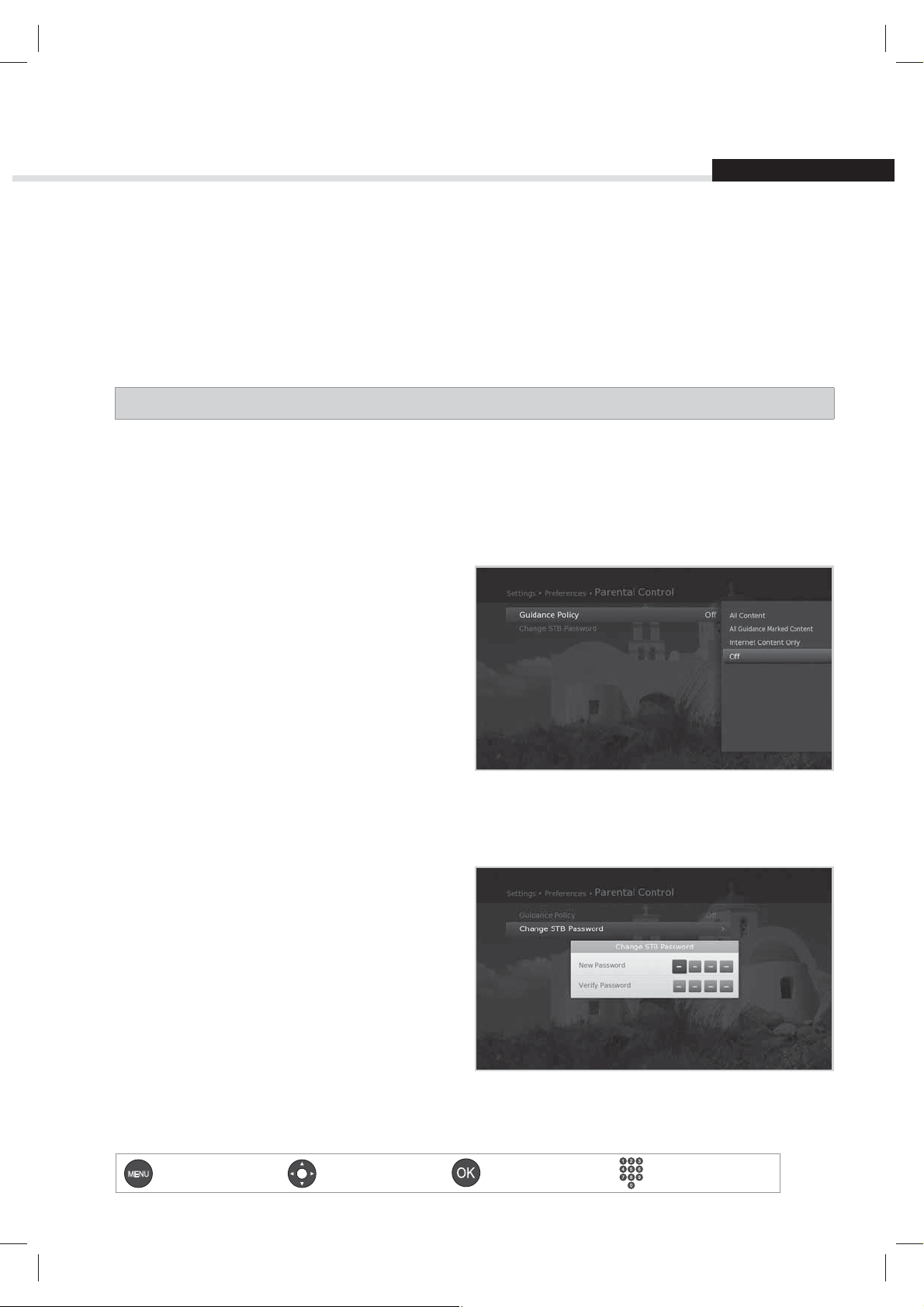

Parental Control

MENU J Settings J Preferences J Parental Control

You will be prompted to enter the password to access this menu.

Note: The default password is 0000. If you have forgotten your password, please contact Humax

Customer Support.

Guidance Policy

You can set the guidance on the recordings or internet contents during the watershed which is the time period (21:00 to 05:30) for adult contents.

1. Select Guidance Policy.

2. Select an option.

hAll Content hAll Guidance Marked Content hInternet Content Only hOﬀ

3. Press the OK button.

Note: The password is required to view the

blocked programmes.

Changing Password

You can change the current password. This password is prompted every time a password blocked menu is accessed.

1. Select Change STB Password.

2. Enter the new password.

3. Enter the new password for veriﬁcation.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Preferences

Language Setting

MENU J Settings J Preferences J Language

You can set the preferred language for audio and subtitle.

1. Select Preferred Language.

2. Select the language.

Note:

• You can change the audio or subtitle language by pressing the AUDIO or SUB button while watching a programme.

• The Preferred Language will be the priority when you change channels or restart the product.

Setting Power On/Oﬀ Timer

MENU J Settings J Preferences J Time

1. To turn on the product automatically, select Power On Timer and select Set Timer.

2. Enter the time.

3. Set the options for the power on timer.

hChannel: Select the channel to be displayed

when powering on.

hVolume: Adjust the volume of the audio when

powering on.

hRepeat: Select the repeat mode of the power on

timer.

4. To turn oﬀ the product automatically, select Power Oﬀ Timer and select Set Timer.

5. Enter the time.

Note: The power on time and power oﬀ time should be set diﬀerent from each other.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Preferences

Video Setting

MENU J Settings J Preferences J Video

Setting TV Screen Ratio

You can select the screen ratio of your TV.

1. Select Screen Ratio.

2. Select an option.

h16:9 - 4:3

Setting Display Format

You can select the display format according to the screen ratio of your TV.

1. Select Display Format.

2. Select an option.

hScreen ratio 4:3: Auto - Letterbox 16:9 -

Letterbox 14:9 - Centre

hScreen ratio 16:9: Auto - Pillarbox - Zoom

English

Note: You can set the display format by pressing the WIDE button while watching a programme. Refer to

Display Format / Resolution.

Screen ratio Display Format

4:3

Auto Letterbox16:9 Letterbox14:9 Centre

16:9

Auto Pillarbox Zoom

Setting TV SCART

You can select the video signal output option for the TV SCART.

1. Select TV SCART.

2. Select an option.

hCVBS – RGB

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Preferences

Audio Setting

MENU J Settings J Preferences J Audio

Setting Audio Description

You can set to narrate the on-screen visuals which is used for visually impaired viewers.

1. Select Audio Description.

2. Select an option.

hOn - Oﬀ

Note: Not all channels/programmes will provide

Audio Description; for further information please contact the Broadcaster.

Setting Digital Audio Output

You can select the digital audio signal output of your product.

1. Select Digital Audio Output.

2. Select an option.

hMulti - channel - Stereo

Item Audio Digital Audio Output

MPEG PCM

Multi-

channel

Stereo

Setting Lip-Sync

You can adjust the sound diﬀerence of audio and video.

1. Select Lip-Sync.

2. Adjust the lip-sync using the pressing the left button decreases it.

DD DD

DD+ DD

MPEG PCM

DD PCM

DD+ PCM

W/X button. Pressing the right button increases the audio speed and

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Preferences

Screen Display

MENU J Settings J Preferences J Screen Display

Setting Info Display Time

You can set the duration the information box is displayed every time the channel is switched.

1. Select Info Display Time.

2. Select an option.

hOﬀ - 1~20 sec

Setting Transparency

You can set the transparency of the On-Screen Display.

1. Select Transparency.

2. Select an option.

hOﬀ - 25% - 50% - 75%

Setting Subtitle Display

English

You can set to display the subtitle automatically or not.

1. Select Subtitle Display.

2. Select an option.

hOn - Oﬀ

Setting Subtitle Font

You can adjust the subtitle font.

1. Select Subtitle Font.

2. Select an option.

hVariable - Fixed

Menu On/Oﬀ Select Conﬁrm Enter 0~9

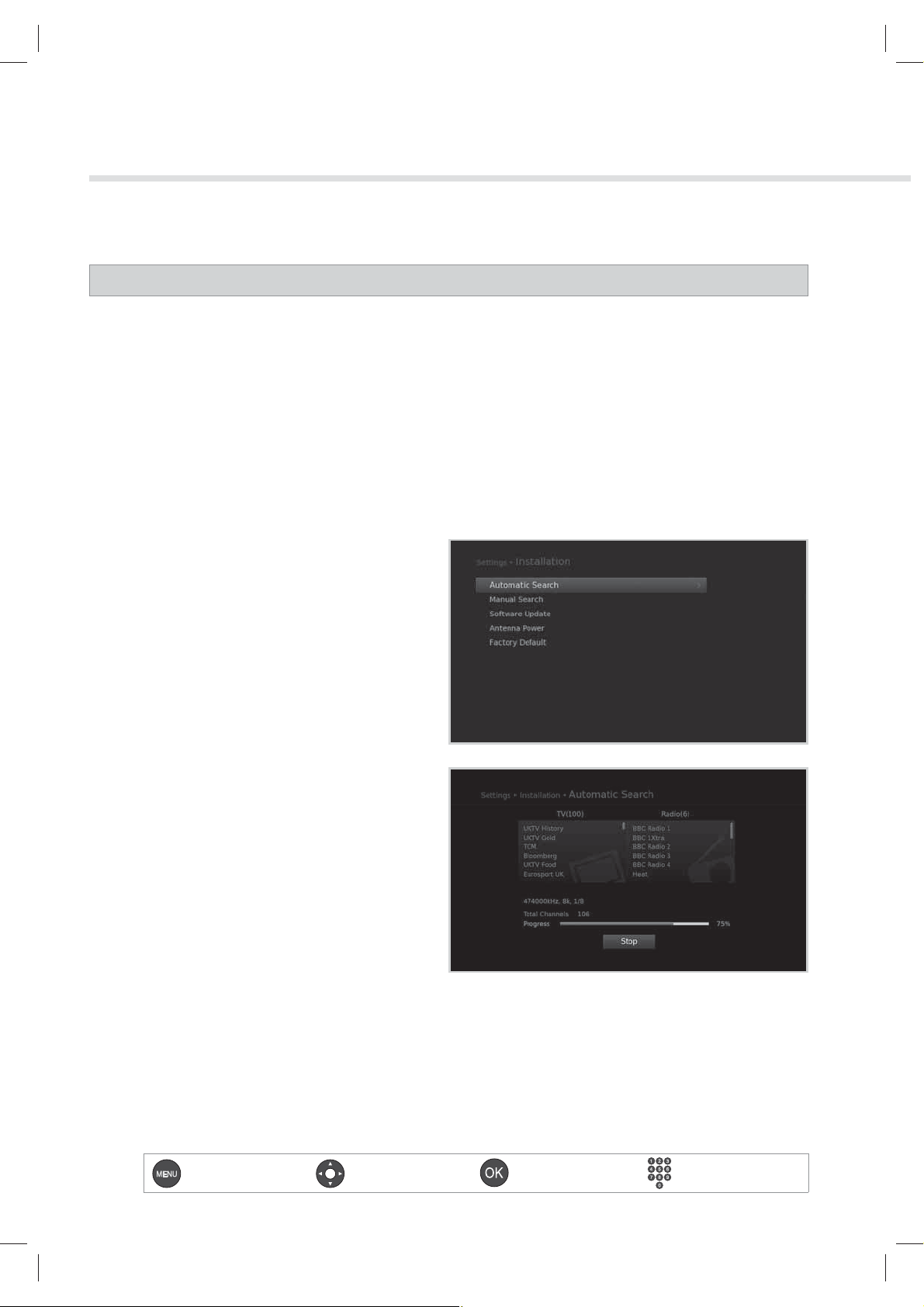

Installation

Installation menu allows you to search the available TV and radio channels. Software update, antenna power and factory default setting are also available in this section.

MENU J Settings J Installation

Note:

• You will be prompted to enter the password to access this menu. The default password is 0000. If you have forgotten your password, please contact Humax Customer Support.

• Press the BACK button to save the changes and return to the previous screen. Press the MENU or EXIT button to exit.

Automatic Search

You can search channels automatically without entering any other information.

1. Select Automatic Search. Channel search starts.

2. Select Save and press the OK button to save the results.

Note: Select Stop and press the OK button to

stop the channel search.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Installation

English

Manual Search

You can search channels manually by searching parameters.

1. Select Manual Search.

2. Conﬁgure the search options.

h Channel: Select the channel. h Frequency: Enter the frequency. h Transmission: Select DVB-T or DVB-T2. h Bandwidth: Select the bandwidth. h Network Search: Select On or Oﬀ.

3. Select Search and press the OK button.

4. Select Save and press the OK button to save

the results.

Note:

• Select Stop and press the OK button to stop the channel search.

• For information on the correct channel numbers to use in your area please visit http://www.digitaluk.

co.uk. Please select the “I am in the aerial installation trade” option when searching your postcode.

Software Update (OTA)

In order to maintain proper performance of the product, it is essential to have the most up-to-date software. Visit the HUMAX website to check the latest news and newly released software versions. (http:// www.humaxdigital.com) It is recommended that you periodically check for the availability of software update. OTA, an abbreviation of Over–the-Air, means that the software can be downloaded through your aerial. The manufacturer reserves the right to decide when and where to release software by this process. You can also search and download new software manually.

MENU J Settings J Installation J Software Update

Automatic Update

1. Select Automatic Update and press the OK

button to search for new software

2. When new software is detected, select Ye s to

start the update process now.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Installation

Manual Update

1. Select Manual Update and press the OK button.

2. Enter the options manually

h Channel: Select the channel. h Frequency : Enter the frequency. The

corresponding frequency value will be automatically displayed.

h Transmission: Select DVB-T or DVB-T2.

3. Select Search and press the OK button to search for new software.

4. When new software is detected, select Ye s to start the update process now.

Please wait until the update is complete. When

completing the software update, the product is automatically powered oﬀ and on again.

Note:

• It may take 5~10 minutes to update software.

• Other functions such as scheduling programmes will not activate while software update takes place.

• The software updates will only be downloaded over air if you are receiving the HD channels available. If you do not receive the HD channels at the current time please visit http://www.humaxdigital.co.uk/ update to upgrade via USB.

• Be sure to update software when the signal strength and quality is high. If the weather is not favorable and the signal strength and quality are not recommendable, perform the software update later.

• The product will search new software automatically during standby. If new software is detected, you can choose either to download immediately or later when you switch into operation mode. If you select Later, the message will be displayed again when you power on.

Caution:

• Please be careful to keep the power on and the power cord plugged in during software update. If the power is oﬀ during software update, fatal damage may be caused to the product.

• Please be careful not to pull out the signal line (RF cable) during software update. Update may be interrupted and the product may not operate.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Installation

English

Antenna Power

MENU J Settings J Installation J Antenna Power

Active antenna is a portable or indoor antenna which needs power supply from the product because it does not have power cord for itself. Connect an active antenna to the ANTENNA IN on the rear of the product.

1. Select 5V Antenna Power.

2. Select an option.

h On: 5V power is supplied from the active antenna

cable.

h Oﬀ: No power supplied

Note: Most domestic aerial installation will not

require the Antenna Power option to be switched on. Please check with your aerial installer if this is required for your aerial.

Factory Default

MENU J Settings J Installation J Factory Default

1. Select Factory Default.

2. A popup will appear. Select Ye s .

3. You will be prompted to enter the password.

Enter the password.

Note:

• The default password is 0000. If you have

forgotten your password, please contact Humax Customer Support.

• To format the HDD, mark Format HDD.

Warning:

• Please note that once you perform Factory

Default, all user conﬁguration/settings will be reset to the Factory settings. After completing the factory default, the installation wizard will appear automatically in a few seconds.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

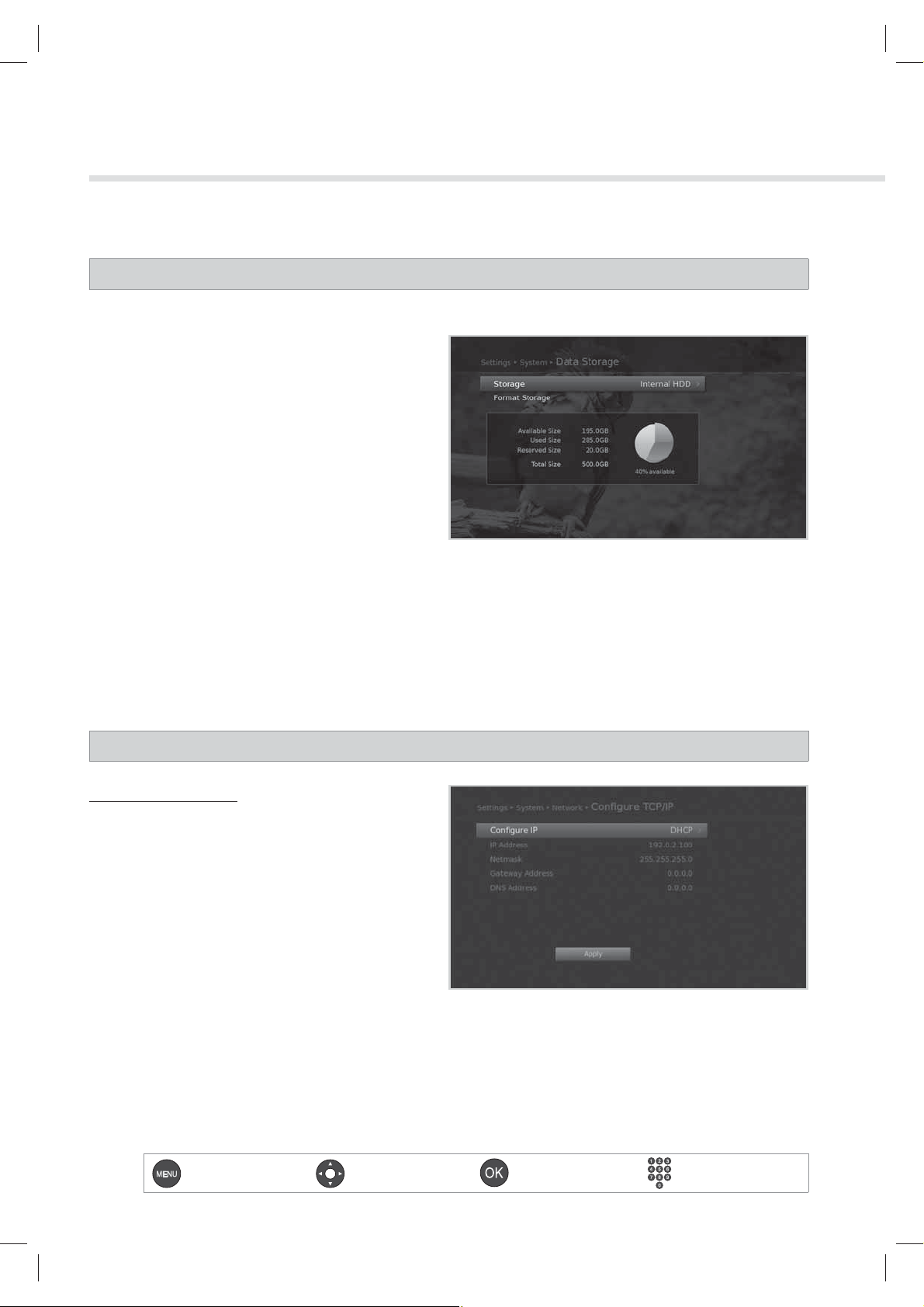

System

In System, system information, signal detection, power management , common interface, data storage and internet setting are available.

Note: Press the MENU or EXIT button to exit. Press the BACK button to return to the previous screen.

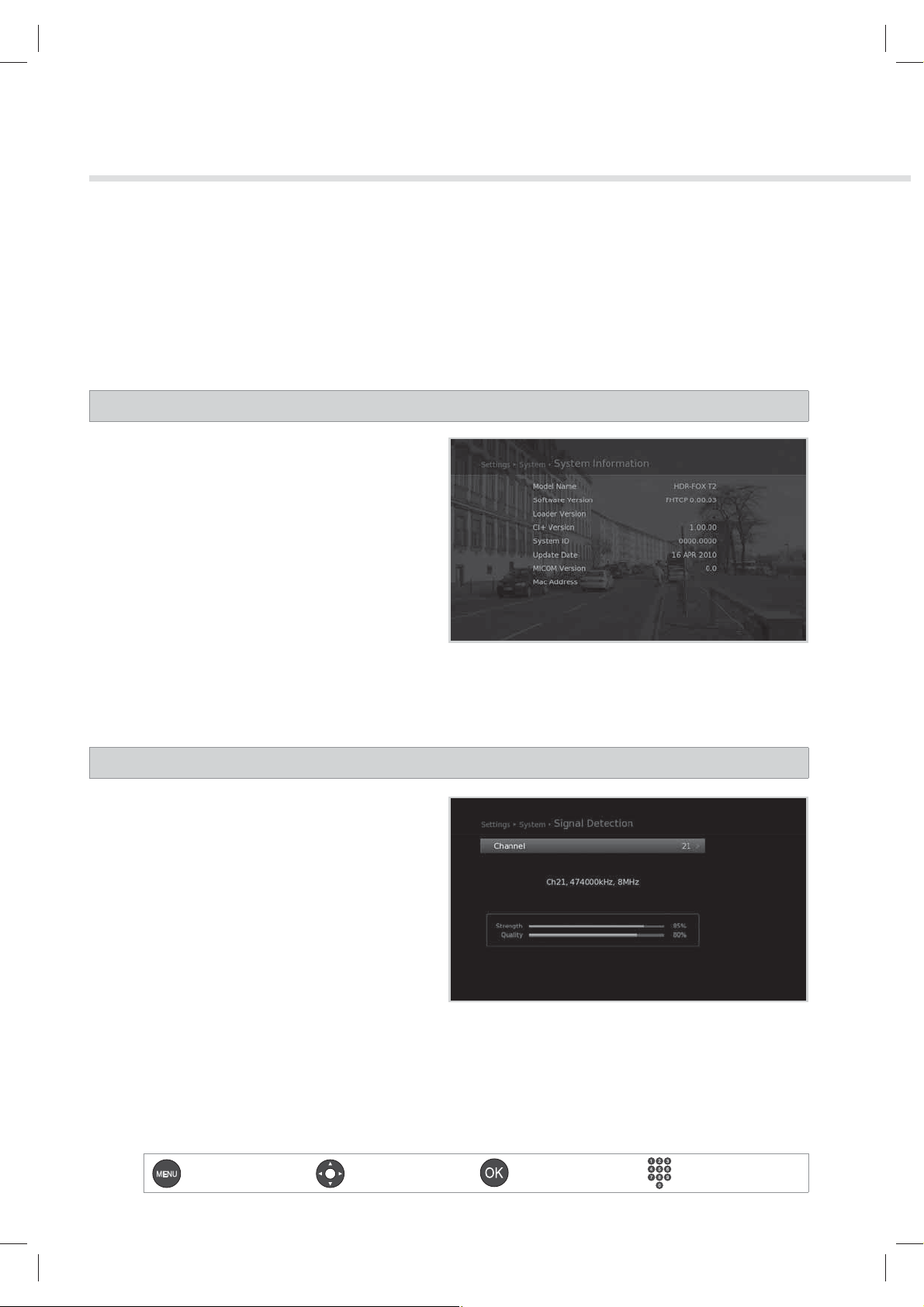

System Information

MENU J Settings J System J System Information

The system information is displayed.

Signal Detection

MENU J Settings J System J Signal Detection

You can check the signal strength and quality of the searched channels.

Note: We recommend that the Signal Strength

is above 30% and the Signal Quality is above 70% in order to receive the channels without picture/sound breakup.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

System

English

Power Management

MENU J Settings J System J Power Management

Setting Power Saving in Standby

You can minimise the standby power consumption to below 1W.

1. Select Power Saving in Standby.

2. Select On to deactivate the certain features

and minimise the power consumption.

Note: When Power Saving in Standby is

switched On the Time on the front display will not appear when in standby, nor will the Antenna Out loop-through the signal to a connected device.

Setting Automatic Power Down

The receiver automatically enters standby mode for power saving if no user interaction occurs for 3 hours.

1. Select Automatic Power Down.

2. Select On to enter standby mode automatically if no user interaction occurs for 3 hours.

Note: The message will be displayed before entering standby mode. If no selection is made for 30

seconds, the receiver enters standby mode automatically.

Common Interface

MENU J Settings J System J Common Interface

The common interface information is displayed.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

System

Data Storage

MENU J Settings J System J Data Storage

You can check the size of the internal HDD or external USB storage device.

1. Select storage to display the details for the storage.

2. To format the selected storage, select Format Storage. If you select Ye s , you will be prompted to enter the password.

Note:

• The default password is 0000. If you have forgotten your password, please contact Humax Customer Support.

• Supported Features according to USB ﬁle system.

hExt3: Read, Copy (Digital TV/Radio, MP3, JPEG, XviD) hFAT : Read, Copy (Digital TV/Radio, MP3, JPEG, XviD) hNTFS: Read (MP3, JPEG, XviD)

Internet Setting

MENU J Settings J System J Internet Setting

Conﬁguring IP (LAN)

1. You can conﬁgure the Ethernet setting options.

hDHCP: Apply the options according to the DHCP. hManual: Enter the options manually,

2. Select Apply and press the OK button.

Note: When entering the IP address manually,

enter 3 digits in a row.

Menu On/Oﬀ Select Conﬁrm Enter 0~9

Appendix

Speciﬁcation

Tuner & Channel

English

Input Connector

Frequency Range

Signal Level

Demodulation

Mode

FEC Mode

Guard Intervals

Audio/Video Decoding

Audio Decoding

Audio Mode

Video Decoding

Video Format

Video Resolution

Memory

IEC 169-2 Female

470 MHz to 862 MHz

-70 to -10 dBmV

OFDM

DVB-T : 2K, 8K DVB-T2 : 1K, 2K, 4K, 8K, 16K, 32K

DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

DVB-T : 1/4, 1/8, 1/16, 1/32 DVB-T2 : 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256

Dolby Digital Plus

Single channel/Dual channel/Joint stereo/Stereo

HD MPEG2 /SD MPEG2 / MPEG4(H.264/AVC)

4:3, 16:9, Letter Box

1080p, 1080i, 720p, 576p, 576i

Flash Memory

RAM

EEPROM

Audio/Video In/Out

Video

Audio

Data In/Out

USB

RJ-45

Hard Disk

HDD

32 MB MB

320 MB

8 KB

TV-SCART, RCA, HDMI/HDCP

TV-SCART, Audio L/R, S/PDIF (Digital Audio Output)

USB 2.0 Host (5 V 500mA Max.)

Ethernet 10/100 Mbps

500 GB / 1 TB (Optional)

Appendix

Power Supply

Input Voltage

Type

Power Consumption

Protection

Physical Speciﬁcation

Size (w/h/d)

Weight

Operating Temperature

Note: The speciﬁcations are subject to change without notice.

90-250 V a.c., 50/60 Hz

SMPS

Max. 28 W (Standby: Under 1 W)

Separate internal fuse. The input should be protected against lightning.

380 mm x 55 mm x 252 mm

2.8 Kg

0 °C to +45 °C

Service and Support

Information concerning troubleshooting, software upgrade and product support is provided in the following websites and call centers. Should your product require warranty service, please contact HUMAX to obtain the appropriate authorization.

HUMAX Call Center

Tel: Opening Hours:

E-mail: Website: Language:

0844 669 8800 Mon - Fri 09:00 – 17:30 (excluding Bank Holidays) uksupport@humax-digital.co.uk www.humax-digital.co.uk English

Appendix

Safety Warning

This product has been manufactured to comply with international safety standards. Please read the following safety precautions carefully.

Safety Instructions and Precautions

1. MAINS SUPPLY

• Operate this product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your local power company.

• Disconnect the product from the mains before you start any maintenance or installation procedures.

2. OVERLOADING

• Do not overload a wall outlet, extension cord or adapter as this may result in electric ﬁre or shock.

3. LIQUID

• The product should not be exposed to liquid of any kind. In addition, no objects ﬁlled with liquid should be placed on the apparatus.

4. CLEANING

• Disconnect the product from the wall outlet before cleaning.

• Use a light damp cloth (no solvents) to dust the product.

5. VENTILATION

• The slots on top of the product must be left uncovered to allow proper airﬂow into the unit.

• Do not stand the product on soft furnishings or carpets.

• Do not stack electronic equipments on top of the product.

6. ATTACHMENTS

• Do not use any unsupported attachments as these may be hazardous or cause damage to the product.

7. LIGHTNING, STORM OR NOT IN USE

• Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-surges.

8. EXTRANEOUS OBJECTS

• Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts.

9. REPLACEMENT OF PARTS

• When replacement of parts is required, be sure the service technician uses replacement parts speciﬁed by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitution may result in additional damage to the unit.

10. CONNECTION

 [Satellite] CONNECTION TO THE SATELLITE DISH LNB

• Disconnect the product from the mains before connecting or disconnecting the cable from the satellite dish. Failure to do so can damage the LNB.

[Cable] CONNECTION TO THE CABLE TV SIGNAL

• Connect all components before plugging any power cords into the wall outlet. Always turn oﬀ the product, TV and other components before you connect or disconnect any cables.

[Terrestrial] CONNECTION TO THE AERIAL

• Disconnect the product from the mains before connecting or disconnecting the cable from the aerial. Failure to do so can damage the aerial.

English

Appendix

11. CONNECTION TO THE TV

• Disconnect the product from the mains before connecting or disconnecting the cable from the TV. Failure to do so can damage the TV.

12. LOCATION

• Place the product indoors to avoid exposing it to lightning, rain or sun. Do not place it near a radiator or heat register.

• We recommend that the product has 10 cm clearance from any other appliances susceptible to electromagnetic inﬂuences, such as a TV or a VCR.

• Do not block the openings with any object, and do not place the product on a bed, sofa, rug, or other similar surface.

• If you place the product on a rack or a bookcase, ensure that there is adequate ventilation and that you have followed the manufacturer’s instructions for mounting.

• Do not place the product on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling product can cause serious injury to a child or adult, and serious damage to the appliance.

Warning

1. To avoid damage of the power cord or plug;

• Do not modify or process the power cord or plug arbitrarily.

• Do not bend or twist the power cord.

• Make sure to disconnect the power cord holding the plug.

• Keep heating appliances as far as possible from the power cord in order to prevent the cover vinyl from melting.

• The mains plug, as a disconnection device, shall remain readily accessible by the user.

2. To avoid electrical shock;

• Do not open the main body.

• Do not insert metal or inﬂammable objects inside the product.

• Do not touch the power plug with wet hands.

• Disconnect the power cord in case of lightning.

3. To avoid damage of product;

• Do not use the product when it is out of order. If you continue to use the product when defective, serious damage can be caused. Make sure to contact your local product distributor if the product is out of order.

• Do not insert metal or alien substance into the slots for the modules or Smartcards. (where applicable) It may cause damage to the product and reduce its life span.

4. To avoid damage of the hard disk drive (PVR only)

• Do not move the product or turn the power oﬀ suddenly while the hard disk drive is running.

• The company shall not be liable for any corruption of data on the hard disk drive caused by carelessness or misuse.

Appendix

English

Trouble Shooting

Before contacting your local service centre, please read the tips below carefully. If the problem persists after completing the following procedure, please contact your local product distributor or service centre for further instructions.

1. No message displayed on the front display. (The product will not switch on.)

• Check the main power cable and make sure it is plugged into a suitable power outlet.

• Check that the mains supply is switched on.

• Connect the power cable to a diﬀerent power outlet.

• Check that the power switch is on at the rear of the product. (where applicable)

2. No picture

• Make sure that the product is powered on and in operation mode. (Press the STANDBY button)

• Make sure that the AV cable is ﬁrmly connected to the TV.

• Make sure that the antenna cable is properly connected to the product.

• Make sure that you have selected the correct AV Channel / Input on your TV set (refer to your TV user manual for more information)

• Be sure to activate channel search.

• Check the brightness level of the TV.

• Check if the channel is currently on air. Contact the broadcaster to ensure that the channel is running.

• Press the SOURCE button if the product is in external input mode. (where applicable)

• Satellite: Make sure that the antenna setting in the menu is correct.

3. Poor picture/sound quality

• Install the antenna in an obstacle-free place.

• Make sure there is no mobile phone or microwave oven near the product.

• Keep the power and the antenna cables apart from each other.

• Check the signal levels and adjust your antenna if the level is too low. The signal level may be aﬀected by weather conditions.

Note: If the antenna is covered with snow or the RF is weakened by heavy rain, the condition of the sound

and picture may temporarily be poor. However, the poor sound and picture quality due to weather conditions cannot be accepted as a malfunction of product.

• [Satellite] Check that your dish alignment is correct.

• [Satellite] Change the satellite dish for a larger one as this will increase the signal levels received.

• [Satellite] Replace the LNB with a lower noise factor in cases where the noise factor is too high.

• [Satellite] Replace the LNB with a new one in case it is damaged or out of order.

• [Terrestrial] Adjust the antenna direction to get a better picture.

• [Terrestrial] Set the antenna power in menu to On, if you use the active antenna to improve the reception. (where applicable)

4. No or poor sound

• Check that your AV cable is connected correctly.

• Check the volume levels of your TV set and the product.

• Check if the product or TV is on mute.

• Check audio type or soundtrack option in the AV menu. (where applicable)

5. Remote control does not operate.

• To control the product, the top end of the remote control should point directly towards the receiving part of the product.

• Remove and reinsert the batteries in the remote control.

• Replace the batteries in the remote control for a new set.

• Set the remote control to STB or PVR mode, if you are using the universal remote control. (where applicable)

Appendix

6. Cannot make reservations.

• Check that no previous reservations are conﬂicting with the new reservation.

7. No password information is given.

• The default password is always 0000.

8. Channel search does not work.

• Satellite: Make sure that the antenna setting in the menu is correct.

• Terrestrial: Make sure that the antenna is connected correctly.

• Terrestrial: Use the appropriate antenna capable of receiving VHF or UHF channels for your area.

9. Cannot update new software.

• You can get an update. If the product does not show a message requesting update, this means no software is available.

10. The product makes a humming noise. (PVR only)

• The noise is from the fan; the hard disk is operating normally. This kind of noise is inevitable but seldom noticeable.

11. Cannot record progammes. (PVR only)

• The hard disk is full. Delete unnecessary programmes and make space for new recording.

• Check if recording is overlapped with another channel. Stop the current recording or wait until the recording is ﬁnished.

• Check that the product is switched on when recording starts.

12. Cannot operate TSR (Time Shifted Recording). (PVR only)

• TSR may not be available during recording. Wait until recording is ﬁnished.

• Delete unnecessary programmes and make space for new recording.

13. Cannot playback. (PVR only)

• To playback the recorded ﬁle of a scrambled channel, use the Smartcard. In case it has been a long time since you last recorded, this may not work. Contact the product distributor.

• The signal during recording may be weak or the hard disk too full.

14. Cannot change channels while recording. (PVR only)

• Certain channels may not be changed due to restriction of the tuner or connection type.

Appendix

Error Message

Error message Possible causes What to do

English

No or bad signal [Satellite]

No or bad signal [Cable]

No or bad signal [Terrestrial]

The channel is scrambled or not available.

The satellite dish is not pointing at the satellite.

Signal is too weak.

Satellite dish is too small. Change to a larger dish.

Problem with LNB. Change the LNB.

Wrong antenna setting. Set the antenna correctly.

The cable is not connected.

The cable may be damaged or defective.

The channel is not broadcasting. Exchange the cable.

The aerial is not pointing properly.

The channel has a signal, but no audio or video.

The channel has been deleted by the broadcasting company.

The channel is for data broadcasting.

Adjust dish alignment.

Increase the LNB voltage or connect a signal ampliﬁer.

Make sure the cable is connected correctly.

Exchange the cable.

Adjust aerial. Check the cable from the aerial. If you cannot resolve the problem, you may need to have your aerial and installation tested by a professional.

Conﬁrm if the channel is currently on air.

Check if the channel is currently on air

Remove the channel from the channel list and check for new transponder details.

The audio is not available.

No access

The channel has a video signal, but no audio.

No access

No authorization.

Press the audio button to conﬁrm that the channel has audio options.

Make sure you are subscribed to the channel.

If the product has been turned oﬀ for a long time (standby or power oﬀ), please wait for authorization. It may take up to 60 minutes.

Appendix

Glossary

CVBS (Composite Video Baseband Signal)

A technology for transmitting video signals via a cable. Mixes luminance (brightness) and the chrominance (colour) signals together.

DiSEqC (Digital Satellite Equipment Control)

A DiSEqC compatible receiver relies on a switching box which detects the 22kHz tone pulsing rapidly on and oﬀ. In this way, a specially designed receiver can control numerous LNBs through a DiSEqC switching box.

Dolby Digital

An encoding system that digitally compresses up to 5.1 discrete channels of audio (left front, centre, right front, left surround, right surround) into a single Bitstream. A low frequency eﬀect (LFE) channel is included providing the sound needed for special eﬀects.

DVB (Digital Video Broadcasting)

Set of standards that deﬁne digital broadcasts using satellite, cable or terrestrial systems.

EPG (Electronic Programme Guide)

An electronic equivalent to a printed television listings magazine; it is an application used with digital set-top boxes and digital television sets to list current and scheduled programs that are or will be available on each channel, including a short summary or commentary for each program. The information supplied in the EPG is sent and updated by the channel broadcaster.

FEC (Forward Error Correction)

A technique for error control of data transmission. Frequency The property of a signal measured in cycles per second (=Hz).

FTA (Free- To-Air)

An unscrambled broadcaster allowing customers to view channels or services without paying any subscription.

HDD (Hard Disk Drive)

The primary computer storage medium, which is made of one or more aluminum or glass platters, coated with a ferromagnetic material.

HDMI (High-Deﬁnition Multimedia Interface)

An all-digital audio/video interface that supports standard, enhanced, or high-deﬁnition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio.

Hi-Fi (High Fidelity)

The characteristics of audio devices that can play back all the audio frequencies a person can detect, which is the range of 16Hz-20KHz. Sometimes it is used to indicate good quality of audio devices such as stereo tape recorders.

LNB (Low Noise Block)

A device that is mounted on an arm facing your satellite dish, focusing on satellite signals. A LNB converts signals received from satellite to a lower frequency and sends them to a satellite receiver via coaxial cable.

NVOD (Near Video On Demand)

A technology that allows customers to view the start of popular programmes or ﬁlms within a short period from the time they make their selection. This is possible as the broadcaster sends multiple copies with staggered start times.

OSD (On Screen Display)

OSD displays the basic information necessary for the users to conﬁgure monitor or TV settings. OSD information may include brightness, contrast, tuning, RGB adjustment, and screen size and position.

OTA (Over the Air) A standard for the transmission of software for equipment, through a broadcast system. Manufacturers reserve the right for deciding the release of the software for their products.

PID (Packet Identiﬁer)

A set of numbers identifying stream packets contained within a single data stream.

Appendix

English

Polarisation

The direction of the electrical and magnetic ﬁelds of a signal. Satellites use both vertical and horizontal polarisation. Means that a frequency can be used twice.

PVR (Personal Video Recorder)

Video recorder that can record and playback programmes directly using the embedded hard disk drive(s).

QPSK (Quaternary Phase Shift Keying)

Digital modulation technique in which the carrier phase can have one of four possible values.

RF (Radio Frequency)

Television signals are modulated onto RF signals and are then demodulated by your television’s or STB’s tuner.

RF Modulator

Enables you to output the receiver’s digital signals to a TVs RF (Aerial) input, allowing you to connect the receiver to a TV set without a SCART connection.

RGB (Red – Green – Blue)

A technology for transmitting video signals via a cable. RGB is a system to represent red, green, and blue colours on a TV or monitor display. Red, green, and blue can be combined in various proportions to obtain any colour.

RS-232C

A connection to allow you to connect to a PC to update receiver’s software.

SCART

A 21-pin connector standard to connect two pieces of Audio-Visual equipment such as a TV and a VCR. Each device will have a 21-pin female connection; a cable with male connection at both ends is used for connecting the devices.

Smartcard

A credit card sized card that contains updateable chip memory. It is used for accessing Pay TV (encrypted) channel or services when inserted into an appropriate receiver.

S/PDIF (Sony/Philips Digital Interface format)

A standard format for the transfer of digital audio signals. It allows the transfer of digital audio between two devices without any conversion to and from analogue, which could degrade the signal quality.

S-Video (Super-Video)

Sometimes referred to as Y/C video; a technology for transmitting video signals via a cable. It is a video signal transmission in which the luminance (brightness) and the chrominance (colour) signals are transmitted separately to achieve superior picture clarity.

Transponder

A satellite is divided up in parts called transponders. A transponder is one distribution section of the satellite. Each transponder can be used for distribution of several channels or services.

Trick-Play

Pause, Fast Forward/Fast Rewind, Slow Motion, Instant Replay, Commercial Skip, Repeat A-B.

TSR (Time Shifted Recording)

A function that records the present programme temporarily to support trick-play.

Appendix

Remote Control Code List

1. Using the Universal Remote Control

1. Select the mode(PVR, TV, DVD, AUDIO) you want to set by pressing the corresponding button on the remote control. The button will blink once.

2. Keep pressing the button for 3 seconds until the button lights on.

3. Enter the 3-digit code. Every time a number is entered, the button will blink. When the third digit is entered, the button will blink twice.

4. If a valid 3-digit code is entered, the product will power oﬀ.

5. Press the OK button and the mode button will blink three times. The setup is complete.

6. If the product does not power oﬀ, repeat the instruction from 3 to 5.

Note:

• When no code is entered for one minute the universal setting mode will switch to normal mode.

• Try several setting codes and select the code that has the most functions.

Remote Control Function List

The keys on the remote control function as in the list below.

Note: Some keys may not function depending on the product.

Button TV DVD AUDIO

STANDBY POWER POWER POWER

MUTE MUTE MUTE

PVR

DVD

AUDIO

1 DIGIT 1 1 INPUT 1

2 DIGIT 2 2 INPUT 2

3 DIGIT 3 3 INPUT 3

4 DIGIT 4 4 INPUT 4

5 DIGIT 5 5 INPUT 5

6 DIGIT 6 6 INPUT 6

7 DIGIT 7 7 INPUT 7

8 DIGIT 8 8 INPUT 8

9 DIGIT 9 9 INPUT 9

0 DIGIT 0, 11 0 INPUT 0

TV Portal

MENU MENU MENU MENU/MODE

II TEXT HOLD PAUSE PAUSE



TEXT EXPAND PLAY PLAY

PIP INPUT STOP STOP

RED RED RED RED

GREEN GREEN GREEN GREEN

YELLOW YELLOW YELLOW YELLOW

BLUE BLUE PROGRAMME BLUE

MEDIA

GUIDE GUIDE GUIDE DSP MODE

OK OK OK OK

UP UP UP UP

LEFT LEFT LEFT LEFT

RIGHT RIGHT RIGHT RIGHT

DOWN DOWN DOWN DOWN

PIP MOVE

PIP OFF

PIP

TEXT MIX

TEXT OFF, TV

RECORD, OPEN

REWIND, SEARCH

REVERSE; SCAN

FAST FORWARD,

FORWARD;

SCAN

SKIP -, TRACK -,

CHAPTER -

SKIP, TRACK +,

CHAPTER +

RECORD

DVD SEARCH

REW, CD

SEARCH REW,

REW

FAST FORWARD,

DVD SEARCH

REW, CD

SEARCH REW,

REW

DVD SKIP -, CD

SKIP -, SKIP -

DVD SKIP+, CD

SKIP +,

SKIP +

Appendix

English

EXIT EXIT EXIT, RETURN EXIT

BACK

VOL+ VOL+ VOL+ VOL+

VOL- VOL- VOL- VOL-

LIST LIST

P+ P+ P+ P+

P- P- P- P-

TEXT TEXT PVR MENU

SUB

LAST, RECALL;

PP; LAST

CHANNEL

INFO, OSD;

DISPLAY

SUBTITLE,

LANGUAGE; CC

CLEAR REPEAT

INFO, OSD;

DISPLAY

AUDIO,

LANGUAGE

SUBTITLE

SURROUND

INFO

2. TV Code List

Brand Code

Acer 261, 278, 305

Acoustic Solutions 210, 312, 324, 370, 386, 428, 477

Akai 102, 006, 098, 144, 145, 111, 061, 043, 074,

Alba 006, 144, 134, 204, 087, 064, 036, 005, 108,

Bang & Olufsen 014

Beko 006, 144, 086, 145, 111, 064, 072, 172, 361,

BenQ 223, 328, 329

Black Diamond 444, 204, 211

Brionvega 006, 014, 062

Bush 102, 006, 144, 134, 204, 138, 087, 061, 043,

cello 397, 410, 418, 419, 420

Crown 006, 144, 134, 204, 086, 145, 087, 111, 143,

Daewoo 102, 006, 124, 444, 036, 441, 406, 341, 338,

148, 232, 280, 128, 122, 461, 109, 462, 489, 094, 084, 083, 065, 035, 034, 033, 028, 023, 011, 004, 002, 154, 321

473, 455, 447, 388, 099, 084, 077, 072, 065, 059, 034, 023, 002

405

036, 005, 108, 376, 373, 370, 361, 355, 352, 327, 388, 430, 431, 432, 440, 448, 451, 473, 476, 477, 478, 002, 033, 035, 044, 045, 056, 059, 065, 066, 095, 133, 164, 210, 213, 229, 232, 250

064, 361, 135, 072, 071, 053, 033, 002

271, 249, 195, 192, 190, 164, 133, 119, 091, 079, 066, 035, 034, 002

TV/DTV

TV/RADIO

OPT+ RANDOM

SOURCE

SLEEP SLEEP SLEEP SLEEP

V-FORMAT

WIDE

Dell 235, 278

DMTech 260, 438, 449, 454, 456

Ferguson 006, 120, 098, 103, 030, 204, 012, 020, 029,

Finlux 102, 006, 144, 145, 333, 327, 172, 122, 118,

Fujitsu 002, 011, 032, 035, 042, 137, 173, 187

Fujitsu General 002, 032, 035, 137

Fujitsu Siemens 172, 211, 230, 246, 268, 369

Funai 144, 134, 043, 275, 336, 369, 407

GoldStar 006, 144, 145, 111, 061, 001, 007, 020, 023,

Gooding 087

Goodmans 102, 006, 120, 144, 103, 134, 124, 444, 204,

Graetz 144, 087, 061, 023, 053, 065, 211

Grundig 102, 006, 030, 087, 142, 005, 108, 498, 476,

Grunkel 211

Hannspree 262, 263, 264, 342, 401, 402, 463

Hantarex 006, 002, 094, 190, 260, 289

ATV/DTV; D/A;

DTV/TV; DTV;

DIGITIAL

TEXT SUBPAGE

TEXT TIME

TEXT INDEX TITLE

TEXT POSITION

TEXT CANCEL;

TEXT UPDATE

SOURCE, AV,

55INPUT; TV/AV

TEXT SIZE; TEXT

EXPAND; FTB

WIDE, FORMAT,

16:9, ASPECT;

ZOOM

HDD, DVD/HDD BAND

RANDOM

SLOW;

STEP

SOURCE, TV/

DVD, TV/DISK

ZOOM

046, 052, 054, 077, 292, 447, 476

094, 089, 084, 083, 070, 055, 035, 023, 018, 017, 014, 011, 010

027, 034, 035, 047, 067

087, 043, 036, 005, 478, 211, 232, 477, 250, 476, 271, 445, 355, 370, 373, 440, 376, 382, 383, 386, 002, 004, 011, 035, 047, 052, 054, 065, 066, 084, 091, 094, 119, 121, 133, 172, 195, 210

448, 447, 445, 430, 405, 370, 271, 267, 250, 225, 135, 121, 010, 101, 096, 028, 077

SOURCE,

FUNCTION

Appendix

Hinari 006, 043, 036, 005, 002, 033, 059, 077, 443

Hisense 102, 092, 165, 254, 265, 366, 491

Hitachi 006, 098, 124, 204, 208, 005, 019, 037, 146,

152, 153, 163, 169, 193, 197, 007, 206, 210, 217, 227, 295, 296, 330, 377, 399, 424, 483, 020, 021, 023, 027, 035, 054, 056, 060, 076, 081, 083, 084, 085, 089, 091, 094, 018, 106, 107, 011

Humax 505, 299, 506, 507, 245, 319, 322, 411, 433,

479

Hyundai 164, 190, 192, 241, 244, 271, 291, 317, 338,

340, 341, 439

Inno Hit 036, 002, 011, 035, 045, 047, 094, 211

Irradio 006, 036, 002, 047, 065, 147

JVC 111, 036, 005, 129, 130, 015, 029

065, 072, 137, 149, 207, 264, 362 408, 496

Keymat 258, 300, 398, 436, 437

Lenoir 002, 214

LG 102, 006, 144, 145, 138, 061, 064, 248, 281,

354, 367, 368, 384, 396, 416, 417, 425, 426, 215, 209, 067, 047, 035, 034, 027, 023, 002, 001, 236, 257

Loewe 006, 064, 014, 048, 093, 094, 123

131, 167, 414, 434

Logik 204, 001, 003, 029, 162, 195, 224, 292, 376,

464, 465, 466

Logix 134, 095

Luxor 098, 204, 061, 023, 033, 035, 047, 055, 056,

060, 083, 084, 122, 211

Manhattan 006, 134, 204, 164, 192, 237, 293

Marantz 102, 006, 071, 140, 277, 317

Marks and Spencer 420

Matsui 102, 006, 144, 030, 204, 087, 005, 080, 074,

153, 195, 097, 094, 369, 445, 077, 447, 065, 059, 056, 052, 044, 035, 033, 028, 011, 008, 004, 003, 002

Mitsubishi 102, 006, 204, 005, 019, 014, 015, 027, 093,

096, 191, 311

Mivar 034, 035, 047, 048, 094, 112

NEC 005, 002, 003, 025, 035, 040, 049, 066, 140,

239, 379

Nokia 098, 113, 111, 061, 023, 033, 049, 053, 055,

056, 066, 083, 084, 089, 122

Nordmende 006, 144, 103, 030, 020, 046, 054, 242, 280,

499

Onida 207, 226

Orion 102, 006, 144, 204, 467, 458, 457, 456, 448,

445, 443, 385, 218, 195, 131, 097, 094, 077, 071, 059, 050, 049, 003

Orline 006, 036

Ormond 134, 204

Orsowe 094

Paciﬁc 102, 144, 204, 208, 077, 256

Packard Bell 254, 293

Panasonic 006, 098, 061, 129, 038, 023, 063, 094, 187,

251, 294, 353, 359, 279, 306

Panavision 006, 070

Philco 006, 064, 014, 021, 072

Philips 102, 006, 061, 459, 435, 429, 395, 310, 302,

297, 247, 125, 110, 101, 073, 066, 054, 029, 014, 002

Phonola 102, 006, 014, 029, 034

Pioneer 006, 086, 061, 064, 020, 023, 024, 046, 073,

093, 136, 159, 233, 277, 286, 381

Pionier 086, 064, 327

Radiomarelli 006, 014, 094

Relisys 190, 192, 193, 194, 220, 221, 271, 310, 333,

338, 341, 355, 390

Saba 120, 098, 144, 103, 061, 014, 020, 023, 046,

052, 054, 090, 094, 335

Sagem 113, 080, 182, 253, 337

Samsung 102, 006, 043, 064, 108, 115, 231, 252, 276,

287, 332, 345, 350, 351, 372, 442, 474, 488, 490, 492, 228, 176, 175, 127, 095,047, 035, 034, 033, 027, 023, 011, 009, 002

Sanyo 204, 064, 005, 019, 442, 370, 363, 358, 357,

356, 222, 200, 150, 140, 097, 053, 048, 035, 034, 033, 025, 023, 017, 011, 008, 003, 002, 240

Schaub Lorenz 098, 144, 086, 111, 061, 056, 066, 215, 256,

267

Schneider 102, 006, 144, 134, 204, 061, 208, 036, 451,

450, 293, 128, 097, 095, 065, 056, 054, 042, 035, 023, 010

SEG 006, 134, 204, 087, 043, 036, 005, 285, 211,

210, 119, 062, 056, 035, 034, 002

Sei-Sinudyne 006, 014, 032, 094, 097

Seleco 023, 032, 042, 055, 062, 065, 070, 075, 099

Sharp 005, 130, 216, 015, 029, 088, 094, 177, 274,

334, 365, 409, 166, 288

Siemens 006, 030, 028, 096, 101

SKY 006, 195, 271, 300, 307, 308, 340, 341, 342,

343, 344, 391, 400, 421

Sonoko 006, 043, 002, 035, 045

Sony 006, 301, 005, 446, 412, 393, 375, 360, 325,

255, 203, 185, 174, 058, 003

Strong 210, 211

Appendix

English

Technika 422, 428, 465, 468, 480, 493

TechniSat 102, 131, 237

Technisson 144, 242, 361

Technosonic 102, 120, 091, 195, 256, 258, 436, 437, 451,

468

Telefunken 006, 120, 144, 103, 086, 320, 202, 105, 090,

082, 055, 054, 052, 046, 020, 016, 012, 348

Tevion 102, 006, 144, 134, 204, 208, 468, 405, 403,

376, 355, 327, 298, 246, 242, 232, 230, 172, 128

Thomson 006, 120, 103, 020, 046, 052, 054, 056, 082,

335

Toshiba 030, 204, 005, 115, 129, 092, 447, 364, 313,

304, 242, 212, 211, 183, 100, 039, 022, 020, 010, 009, 004, 236, 257

Tosumi 451

Vestel 006, 134, 204, 035, 211, 333, 370

Videocon 092

Viewsonic 307, 308, 323, 335, 349, 391, 394, 259, 331

Wharfedale 102, 006, 095, 189, 256, 327, 370, 452, 453,

477, 502

Yamaha 169, 314, 330, 184

Zanussi 032, 035

TV/VCR Combo

Aiwa 445

Amstrad 026

Beko 086

Daewoo 444, 119

GoldStar 006

Grundig 102, 006, 030, 101, 445

Irradio 147

LG 027

Philips 102, 006

Saba 120

Samsung 442

Sanyo 442

Sharp 015

Thomson 120

United 445

TV/VCR/DVD Combo

Grundig 448

Orion 448

If the code for your equipment is not listed, visit the following website and see MDB1.3 for a complete list of supported codes.

(http://www.humaxdigital.com/global/support/rcucodelist.asp)

Appendix

OPEN SOURCE SOFTWARE NOTICE

HUMAX products use certain open source operating system software distributed pursuant to GNU GENERAL PUBLIC LICENSE Version 2 and GNU LESSER GENERAL LICENSE Version 2.1 each as deﬁned and published by the Free Software Foundation, Inc.

The following GPL and LGPL software source codes used in this product can be provided and this oﬀer is valid for up to three years from the date of original download of the software or purchase of product containing such software. Please contact us at gnu@humaxdigital.com.

GPL Software

linux busybox ntpclient tinyftp rt3070 e2fsprogs

This package, the ext2 ﬁlesystem utilities, are made available under the GNU Public License version 2, with the exception of the lib/ext2fs and lib/e2p libraries, which are made available under the GNU Library General Public License Version 2, the lib/uuid library which is made available under a BSD-style license and the lib/et and lib/ss libraries which are made available under an MIT-style license.

LGPL Software

uClibc libexif id3lib

FreeType License (FTL) Software

freetype

OpenSSL License Software OpenSSL

This product includes cryptographic software written by Eric Young. (eay@cryptsoft.com) This product includes software written by Tim Hudson. (tjh@cryptsoft.com) This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. ( http://www.openssl.org)

Appendix

English

The GNU General Public License (GPL) Version 2, June 1991

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) oﬀer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modiﬁed by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reﬂect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in eﬀect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modiﬁcation follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be

distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modiﬁcations and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modiﬁcation”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modiﬁcation are not covered by this License; they are outside its scope. The act of

running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you

conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option oﬀer warranty protection in exchange

for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and

distribute such modiﬁcations or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modiﬁed ﬁles to carry prominent notices stating that you changed the ﬁles and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be

licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modiﬁed program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the

most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modiﬁed work as a whole. If identiﬁable sections of that work are not derived from the Program,

and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other

Appendix

licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to

exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program)

on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2

above on a medium customarily used for software interchange; or,

b) Accompany it with a written oﬀer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing

source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the oﬀer to distribute corresponding source code. (This alternative is allowed only for

noncommercial distribution and only if you received the program in object code or executable form with such an oﬀer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modiﬁcations to it. For an executable work, complete

source code means all the source code for all modules it contains, plus any associated interface deﬁnition ﬁles, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by oﬀering access to copy from a designated place, then oﬀering equivalent

access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is

intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may diﬀer in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program speciﬁes a version number of this License which applies to

it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are diﬀerent, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

Appendix

English

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED

BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER

PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source ﬁle to most eﬀectively convey the exclusion of warranty; and each ﬁle should have at least the “copyright” line and a pointer to where the full notice is found.

One line to give the program’s name and a brief idea of what it does. Copyright (C) yyyy name of author This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as

published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of

MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA. Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type

`show w’. This is free software, and you are welcome to redistribute it under certain conditions; type `show c’ for details. The hypothetical commands `show w’ and `show c’ should show the appropriate parts of the General Public License. Of course, the

commands you use may be called something other than `show w’ and `show c’; they could even be mouse-clicks or menu items-

whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the

program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision’ (which makes passes at compilers) written by

James Hacker. signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Library General Public License instead of this License.

GNU Lesser General Public License (LGPL)

Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the ﬁrst released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you ﬁrst think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

Appendix

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object ﬁles to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we oﬀer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modiﬁed by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be aﬀected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot eﬀectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use speciﬁed in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite diﬀerent from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination ﬁts its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the “Lesser” General Public License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modiﬁed version of the Library.

The precise terms and conditions for copying, distribution and modiﬁcation follow. Pay close attention to the diﬀerence between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”.

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs

(which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based

on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modiﬁcations and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modiﬁcation”.)

“Source code” for a work means the preferred form of the work for making modiﬁcations to it. For a library, complete source code

means all the source code for all modules it contains, plus any associated interface deﬁnition ﬁles, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modiﬁcation are not covered by this License; they are outside its scope. The act of

running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

Appendix

English

You may charge a fee for the physical act of transferring a copy, and you may at your option oﬀer warranty protection in exchange

for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and

distribute such modiﬁcations or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modiﬁed work must itself be a software library. b) You must cause the ﬁles modiﬁed to carry prominent notices stating that you changed the ﬁles and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modiﬁed Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as

an argument passed when the facility is invoked, then you must make a good faith eﬀort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-deﬁned independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modiﬁed work as a whole. If identiﬁable sections of that work are not derived from the Library,

and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to

exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a

volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To

do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all

subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form

under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by oﬀering access to copy from a designated place, then oﬀering equivalent access to copy

the source code from the same place satisﬁes the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or

linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because

it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header ﬁle that is part of the Library, the object code for the work may be

a derivative work of the Library even though the source code is not. Whether this is true is especially signiﬁcant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely deﬁned by law.

If such an object ﬁle uses only numerical parameters, data structure layouts and accessors, and small macros and small inline

functions (ten lines or less in length), then the use of the object ﬁle is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6.

Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce

a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modiﬁcation of the work for the customer’s own use and reverse engineering for debugging such modiﬁcations.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered

by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in

the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modiﬁed executable containing the modiﬁed Library. (It is understood that the user who changes the contents of deﬁnitions ﬁles in the Library will not necessarily be able to recompile the application to use the modiﬁed deﬁnitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already

present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modiﬁed version of the library, if the user installs one, as long as the modiﬁed version is interface-compatible with the version that the work was made with.

Appendix

c) Accompany the work with a written oﬀer, valid for at least three years, to give the same user the materials speciﬁed in Subsection 6a, above, for a

charge no more than the cost of performing this distribution.

d) If distribution of the work is made by oﬀering access to copy from a designated place, oﬀer equivalent access to copy the above speciﬁed materials

from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for

reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally

accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be

distributed under the terms of the Sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to ﬁnd the

accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is

intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of

any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may diﬀer in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library speciﬁes a version number of this License which applies to

it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND

Appendix

English

PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY

OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source ﬁle to most eﬀectively convey the exclusion of warranty; and each ﬁle should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the library’s name and an idea of what it does.> Copyright (C) year name of author

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as

published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of

MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob’ (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice

MANUAL/HDRFOXT2/300GB

'( #%'

20000-00368

Humax 5301 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
