Pool System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
REQUIRED TOOLS AND MATERIALS:
• Two People
• Garden Hose or Sand (360 lb.) (163 kg)
• Wrenches: (Two) 1/2” (One) 9/16” or
Two Small Adjustable Wrenches
• 9/16” Deep Socket w/Ext.
Recommended
Read and understand
operator's manual before
using this unit.
Failure to follow operating
instructions could result
in injury or damage to
property.
2
P/N 211988B 03/03
13
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check
entire box and inside all packing material for parts and/or additional instruction material. Before beginning
assembly, read the instructions and identify parts using the hardware identifier and parts list in this
document. Proper and complete assembly, use and supervision are essential for proper operation and to
reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed,
maintained, and operated properly.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• DO NOT position system near trampolines, diving boards, slides, or any play area.
• If using a ladder during assembly, use extreme caution.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• DO NOT position system near trampolines, diving boards, slides, or any play area equipment. System misuse
could cause serious bodily injury.
• Two pole assembly is for in-ground pool side use only.
• Read and understand the warning label affixed to pole.
• The life of your basketball pole depends on many conditions. The climate, placement of the pole, the location of
the pole, exposure to corrosives such as chlorine, pesticides, herbicides or salts are all important factors.
• During assembly, if using a ladder use extreme caution. Two people are
recommended for this operation.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to seperate during
play and/or during transport of the system.
• Climate, corrosion and excessive use or misuse could result in system failure.
• Check tank regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• If technical assistance is required, contact Huffy Customer Service Center.
• Adult supervision is recommended when adjusting system.
MOVING SYSTEM
1. While holding pole, rotate
basketball system forward
until wheels engage with
ground.
2. Move basketball system to
1
2
3
desired location.
3. Carefully rotate basketball
system upright.
4. Reattach ground restraint and
check system for stability.
201261 3/99
03/03 P/N 211988B
3
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections,
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to instructions. Failure to follow instructions could
result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
WARRANTY CARD:
Please remember to complete your product
registration form either on-line at:
www.huffysports.com/warrantycard or
mail-in the enclosed postcard.
For more information on assembly, placement, proper
use and maintenance, visit The American Basketball
Council website at http://www.smarthoops.com.
4
P/N 211988B 03/03
Get to know the basic parts of your basketball system.....
FRONT
STRUTS
BASE
WHEEL
CARRIAGE
ASSEMBLY
EXTENSION ARM
POLE
03/03 P/N 211988B
5
WARNING
FAILURE TO FOLLOW THESE
WARNINGS MAY RESULT IN
SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
Owner must ensure that all players know and
follow these rules for safe operation of the system.
In the U.S.: 1-800-558-5234 and Canada Only: 1-800-284-8339
211239 1/98
See instruction manual for proper installation and
maintenance.
DO NOT position system near trampolines, diving boards,
slides or any play area equipment. System misuse could
result in serious bodily injury.
DO NOT perform dunk type activities on this system.
DO NOT hang from any part of system, including backboard,
support braces, rim or net.
DO NOT jump, slide, climb, shake or play on tank and/or pole.
Surface beneath the tank must be smooth and free of gravel
or other sharp objects. Punctures cause leakage and could
cause system to tip over.
After assembly is complete, fill tank completely with water
or sand and stake to ground and/or permanent solid object.
Never leave system in an upright position without filling tank
with weight, as system may tip over causing injury.
DO NOT allow water in tank to freeze. During sub-freezing
weather fill with non-toxic antifreeze, sand or empty tank
completely and store. (Do Not Use Salt.)
Keep pole top covered with cap at all times.
Keep organic material away from pole tank. Grass, litter, etc.
could cause corrosion and/or deterioration.
Check pole system for signs of corrosion (rust, pitting,
chipping) and repaint with exterior enamel paint. If rust has
penetrated through steel anywhere, replace pole immediately.
Check system before each use for loose hardware, excessive
wear and signs of corrosion and repair before using.
Check system before each use for stability.
DO NOT use system during windy and/or severe weather
conditions, system may tip over. Place system in the storage
position and/or in an area protected from the wind and free
from personal property and/or overhead power lines.
During play, use extreme caution to keep player's face away
from the backboard, rim or net. Serious injury could occur if
teeth/face come in contact with backboard, rim or net.
When adjusting height or moving unit, keep hands and fingers
away from moving parts. Do not allow children to adjust
system.
During play, do not wear jewelry (rings, watches, necklaces,
etc.) Objects may entangle in net.
6
P/N 211988B 03/03
HARDWARE IDENTIFIER (BOLTS & NUTS)
HARDWARE IDENTIFIER (OTHER)
Item Qty. Part No. Description
1 1 206740 Tank (White)
2 1 200628 Wheel Axle
3 2 226401 Wheel
4 1 986102 Bottom Pole Section
5 1 202820 Rod, 3/8 O.D. x 4-3/4 Long
6 1 202822 Eye Bolt, 3/8-16 x 3-3/4 Long
7 1 200627 Wheel Bracket
8 5 203063 Lock Nut, Nylon Insert, 3/8-16
9 1 201625 Bolt, Hex Head, Yellow Dichromate,
5/16-18 x 3.60" Long
10 10 203218 Washer, 5/16 Flat
11 2 986206 Tank Strut
12 1 203220 Lock Nut, 5/16-18
13 1 201261 Label, Moving System
14 2 203156 Bolt, Hex Head, 5/16-18 x 1 Long
15 6 203100 Nut, Hex Flange 5/16-18
16 1 Rim
17 12* 201219 Clip, Net Holder
Item Qty. Part No. Description
18 1 902006 Extension Arm, White
19 8 203309 Washer, 1 O.D.
20 4 203104 Bolt, Hex Flange, 5/16-18 x 2 Long
21 2 200837 Spacer, Plastic
22 2 201562 U-bolt, Round, 3/8-16 x 2-3/4 Long
23 1 Net
24 1 201190 Cap
25 1 203124 Tie Down Stake
26 2 201651 Spacer, Wheel Axle
27 1 201568 T-Strap
28 1 201189 Tank Cap
29 4 200516 Bolt Covers, Black Vinyl
* You may have extra parts with this model.
* Units with 42” steel frame acrylic backboard do not require
the use of included board struts (.75”x22”)
PARTS LIST (See Hardware Identifier)
Item #12 (1)
Item #10 (10)
Item #8 (5)
Item #17 (12)*
Item #14 (2)
Item #15 (6)
Item #19 (8)
Item #26 (2)
Item #6 (1)
Item #9 (1)
Item #5 (1)
Item #29 (4)*
Item #20 (4)
03/03 P/N 211988B
7
TOOLS REQUIRED FOR THIS SECTION
HARDWARE USED IN THIS SECTION
(not actual size)
SECTION A: ASSEMBLE THE BASE
9/16” and 1/2”
9/16” and 1/2”
AND/OR
This is what your system will look like
when you’ve finished this section:
Item #12 (1)
Item #10 (10)
Item #8 (5)
Item #14 (2)
Item #15 (6)
Item #19 (8)
Item #26 (2)
Item #6 (1)
Item #9 (1)
Item #5 (1)
8
P/N 211988B 03/03
1.
1
6
5
Remove contents from tank
2.

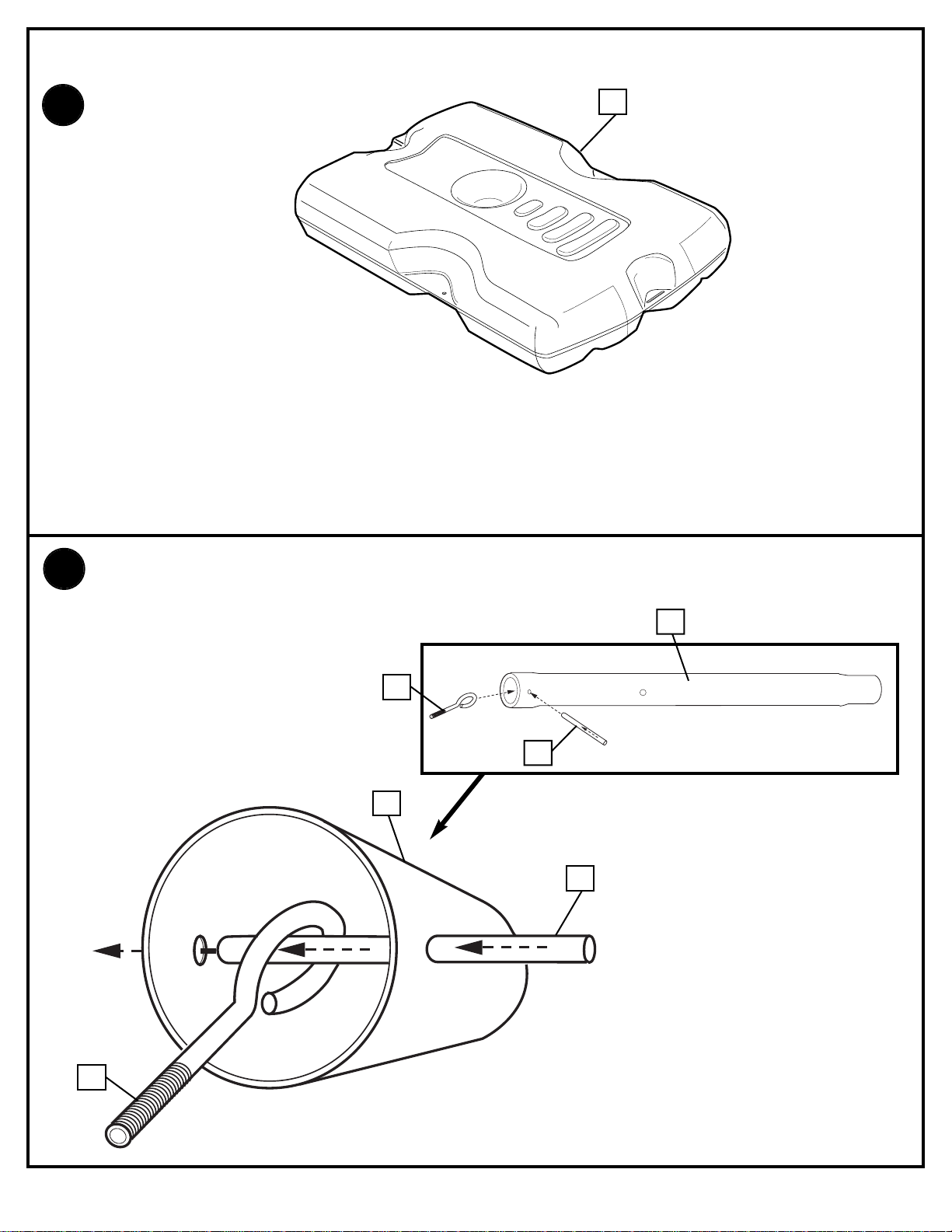

Install rod (5) through holes in bottom pole section (4) and eyebolt (6).
4
5
4
6
03/03 P/N 211988B
9
8
4
5
6
3.
9
11
1
12
11
10
10
4.
2
26
26
3
3
7

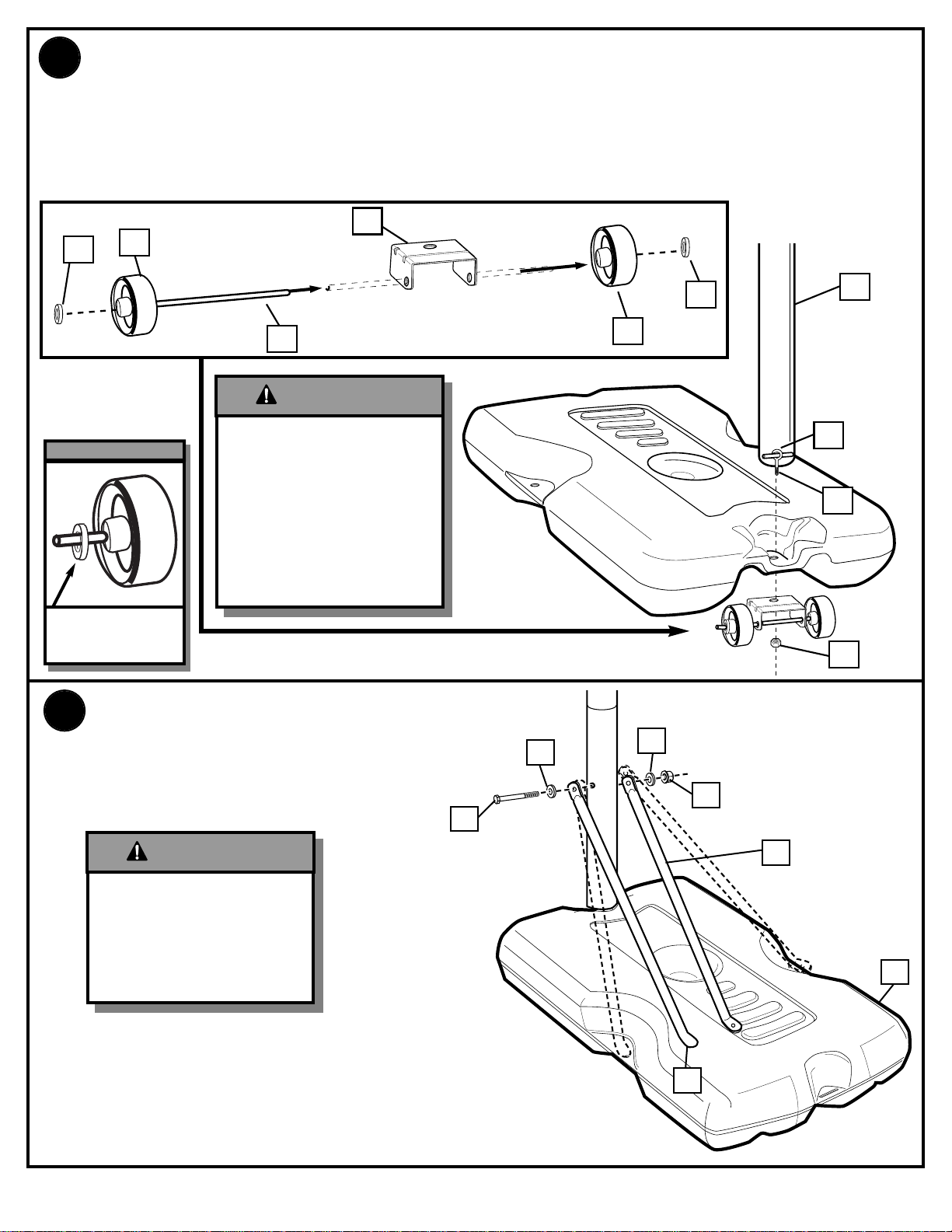

Install wheel axle (2) through wheel carriage (7) and install wheels (3) onto
wheel axle (2) with spacers (26) as shown. Insert pole assembly into tank
assembly as shown. Secure bottom pole (4) to tank and wheel bracket as
shown, a deep socket is recommended. IMPORTANT! DO NOT OVER
TIGHTEN.
Secure tank struts (11) to pole.
Rotate non-secured ends of tank
struts (11) outward to mounting
holes in tank as shown.
TWO PEOPLE
REQUIRED FOR THIS
PROCEDURE. FAILURE
TO FOLLOW THIS
WARNING COULD
RESULT IN SERIOUS
INJURY AND/OR
PROPERTY
DAMAGE.
WARNING!
TIGHTEN BOLT (9) IN
LOCK NUT (12) UNTIL
FLUSH (EVEN) WITH
LOCK NUT’S OUTER
EDGE.
WARNING!
THE SPACER (26) WILL
FIT LOOSELY UNTIL
SECURED INTO THE
CAVITY OF THE BASE.
IMPORTANT!:
10
P/N 211988B 03/03
5.
11
11
1
11
15
10
10
14
18
24
22
8
19
6.
Secure non-secured ends of tank struts (11) to
tank as shown. Repeat for opposite side.
Attach extension arm (18) to pole using
U-bolt (22), washers (19), nuts (8), as shown. Install pole cap (24) as shown.
DO NOT LEAVE
ASSEMBLY
UNATTENDED WHEN
EMPTY; IT MAY TIP
OVER.
WARNING!
03/03 P/N 211988B
11
TOOLS REQUIRED FOR THIS SECTION
HARDWARE USED IN THIS SECTION
SECTION B: ASSEMBLE THE BACKBOARD
1/2”
1/2”
OR
This is what your system will look like
when you’ve finished this section:
Item #15 (6)
Item #19 (8)
Item #17 (12)*
Item #29 (4)*
Item #20 (4)
12
P/N 211988B 03/03
Do not use
washers here on
spring return
style rims.
20
19
16
21
15
18
10
Peel protective film from
surface of acrylic
backboard prior to use.
NOTE:
29
7.

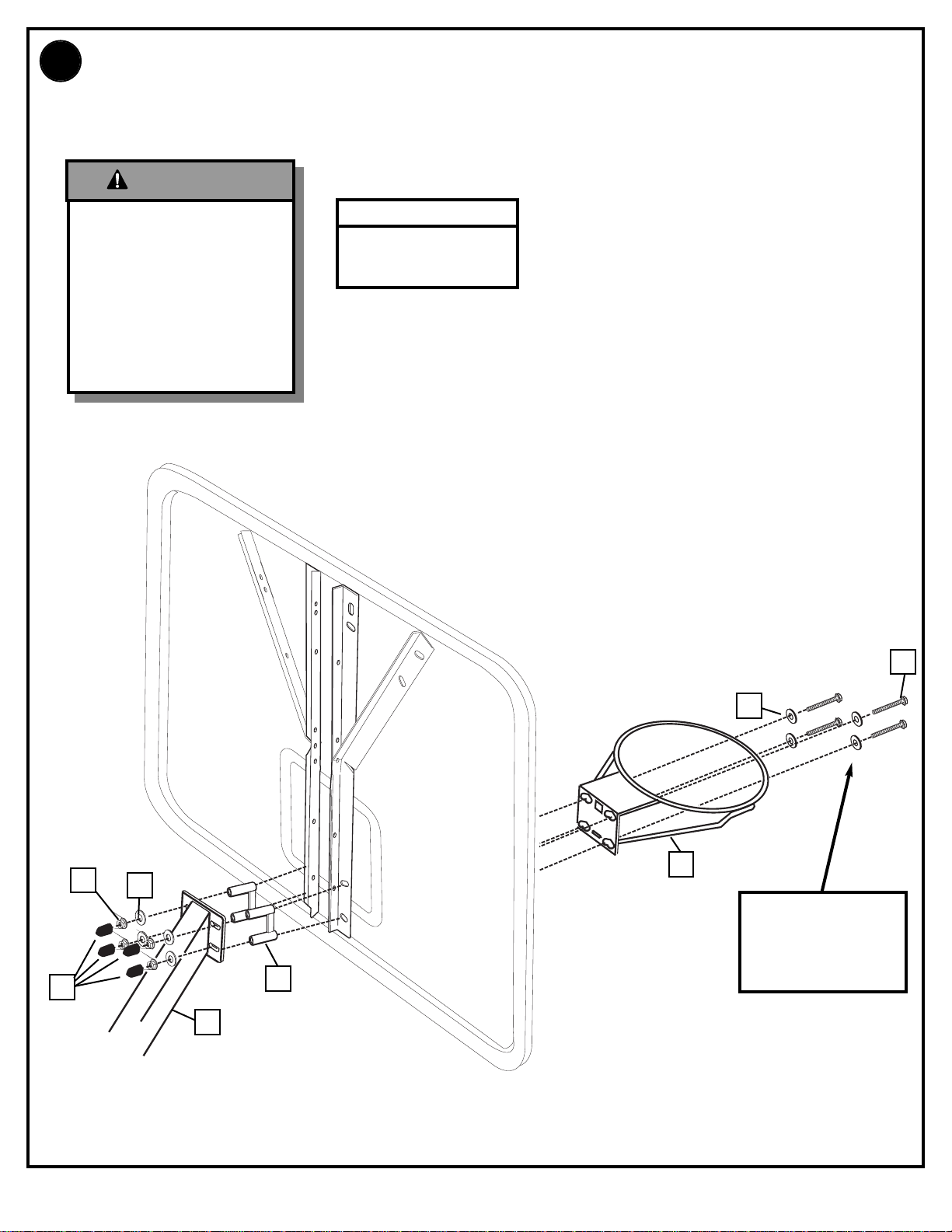

Install backboard assembly to the pole assembly as shown. Attach backboard and
rim (16) to the extension arm (18) using bolts (20), spacers (21), washers (10, 19) and
nuts (15) as shown. Tighten completely. Attach bolt covers (29).
TWO PEOPLE
REQUIRED FOR THIS
PROCEDURE. FAILURE
TO FOLLOW THIS
WARNING COULD
RESULT IN SERIOUS
INJURY AND/OR
PROPERTY
DAMAGE.
WARNING!
03/03 P/N 211988B
13
8.
WARNING: Use of this product without proper installation of net
clips, or when all net clips are not present could result in bodily harm. Be sure
to follow directions carefully.
Install net clips.
CLIP “ARM”
CLIP “BODY”
Insert one “arm” of clip into ram as shown. Twist “body” of clip slightly so that
second “arm” slides over the top of the first “arm” as shown.
Push in the direction indicated by arrow.
Push second “arm” back and into ram as shown.
Twist “body” of clip slightly again to spread “arms” of clip.
Clip “arms” must be flat and touching edge to edge as shown, not overlapping.
AA
BB
CC
16
17
USE OF THIS PRODUCT
WITHOUT PROPER
INSTALLATION OF
SMART CLIPS, OR WHEN
ALL SMART CLIPS ARE
NOT PRESENT COULD
RESULT IN BODILY
HARM. BE SURE TO
FOLLOW DIRECTIONS
CAREFULLY.
WARNING!
14
P/N 211988B 03/03
Insert net into bottom of clip as shown.
SIDE VIEW
Twist net until it snaps into position.
Net must be centered through clip.
NET
NETCLIP
SIDE VIEW
NET
NETCLIP
NET INSTALLATION
9.
16
17
23
03/03 P/N 211988B
15
1.
28
27
25
27
Place assembled unit to desired location. Fill tank with water (30 gallons/114
liters) or sand (360 lb./163 kg) and snap tank cap (23) in place.
Insert T-strap (27) through slot on back of base as shown. Secure unit to
ground by twisting tie down stake (25) into ground and hooking T-strap (27)
onto tie down stake (25).
SECTION B: SECURING THE SYSTEM
27
ADD TWO GALLONS (7.6 LITERS)
OF NON-TOXIC ANTIFREEZE IN
SUB-FREEZING CLIMATES.
CAUTION!
TWO PEOPLE
REQUIRED FOR THIS
PROCEDURE. FAILURE
TO FOLLOW THIS
WARNING COULD
RESULT IN SERIOUS
INJURY AND/OR
PROPERTY
DAMAGE.
WARNING!
16
P/N 211988B 03/03
1.
SECTION C: APPLY HEIGHT AND MOVING LABEL
201261 3/99
1
3
2
MOVING SYSTEM
1. While holding pole, rotate
basketball system forward
until wheels engage with
ground.
2. Move basketball system to
desired location.
3. Carefully rotate basketball
system upright.
4. Reattach ground restraint and
check system for stability.
Apply Height and Moving label on pole as shown.
13
13
DO NOT LEAVE
ASSEMBLY
UNATTENDED WHEN
EMPTY; IT MAY TIP
OVER.
WARNING!
Loading...
