Huffy Pro Image Rim User Manual

11/03 P/N 211644

Toll-Free Customer Service Number for U.S: 1-888-713-5488,

For Canada: 1-800-284-8339,

For Europe: 00 800 555 85234 (Sweden: 009 555 85234),

For Australia: 1-800-333 061

Internet Address: http://www.huffysports.com

PPrroo IImmaaggee RRiimm

OOwwnneerrss MMaannuuaall

Customer Service Center

• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

TOOLS AND MATERIALS

REQUIRED

FOR ASSEMBLY:

• Two People

• Step Ladder, 8 ft. (2.4 m)

• Wrenches (One) 3/4", (Two) 9/16” and (Two) 1/2” or (Two) Adjustable Wrenches

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.

FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.

WARNING!

P/N 211644 11/03

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR

PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without following the instructions carefully. Check entire box and inside all packing material for parts and/or additional instruction material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and parts list in this document. Proper and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this system.

• If using a ladder during assembly, use extreme caution.

• Two (2) capable adults are recommended for this operation.

• Climate, corrosion, or misuse could result in system failure.

• Minimum operational height is 7'6" (2.3 m) to the bottom of backboard.

• This equipment is intended for home recreational use only and NOT excessive competitive play.

• Read and understand the warning label enclosed with hardware. It is the responsibility of the customer to mount this label. It should be affixed to the pole, wall, or door near playing area, at a height between 4-6 feet (1.22-1.83M) above ground level and in a location visible to all players

• The life of your basketball pole depends on many conditions. The climate, placement of the pole, the location of the pole, exposure to corrosives such as pesticides, herbicides or salts are all important factors.

• If technical assistance is required contact Huffy Sports.

• Serious injury could occur if teeth/face come in contact with backboard, net or rim.

• Adult supervision is recommended when adjusting height.

WARNING

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT

IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and

follow these rules for safe operation of the unit.

See instruction manual for proper installation and maintenance.

Use caution when performing dunk type activities on this unit.

Do not hang from any part of unit, including backboard, support braces, rim or net.

Check unit before each use for loose hardware, excessive wear and signs of corrosion and repair before using.

During play, use extreme caution to keep player's face away from the backboard, rim or net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.

During play, do not wear jewelry (rings, watches, necklaces, etc.) Objects may entangle in net.

SURE SHOT

In the U.S.: 1-888-713-5488

211401 9/97

11/03 P/N 211644

For more information on assembly, placement, proper use, and maintenance, visit The American Basketball Council website at http://www.smarthoops.com.

IMPORTANT!

Remove all contents from boxes.

Be sure to check inside pole sections;

hardware and additional parts are packed inside.

NOTICE TO ASSEMBLERS

ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled

and ballasted with sand or water according to the instructions. Failure to follow instructions

could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.

WARRANTY CARD:

Please remember to complete your product registration form either on-line at: www.huffysports.com or mail-in the enclosed postcard.

P/N 211644 11/03

Item Qty

. Part No. Description

11 Rim 2 2 202604 Bolt, Carriage 3/8 x 4.75” Long 3 2 203474 Washer, Flat, 1”O.D. 4 2 203017 Hex Nut, 3/8” 5 2 203063 Nylon Lock-Nut, 3/8” 6 8 203232 Washer, 3/4” O.D. 7 2 200484 Spring, Zinc 8 2 202601 Washer, Flat

9 2 202602 Lock Washer 10 2 202523 Spacer 11 2 203439 Bolt, Hex, 3/8 x 6” Long 12 2 220140 Screw, Self-Tapping 13 1 908087 Back Bracket - Red 14 1 108085 Inner Bracket - Zinc 15 1 918086 Cover Plate - Red 16 4 201611 Bolt, Hex, 5/16-18 x 3" Long 17 4 203100 Whiz Nut, 5/16” 18 1 204290 Net 19 1 202655 Label, Logo 20 2 202636 Special Nut, Locking 21 2 203795 Special Nut 22 2 202603 Nylon Washer 23 1 202531 Tension and Leveling Label

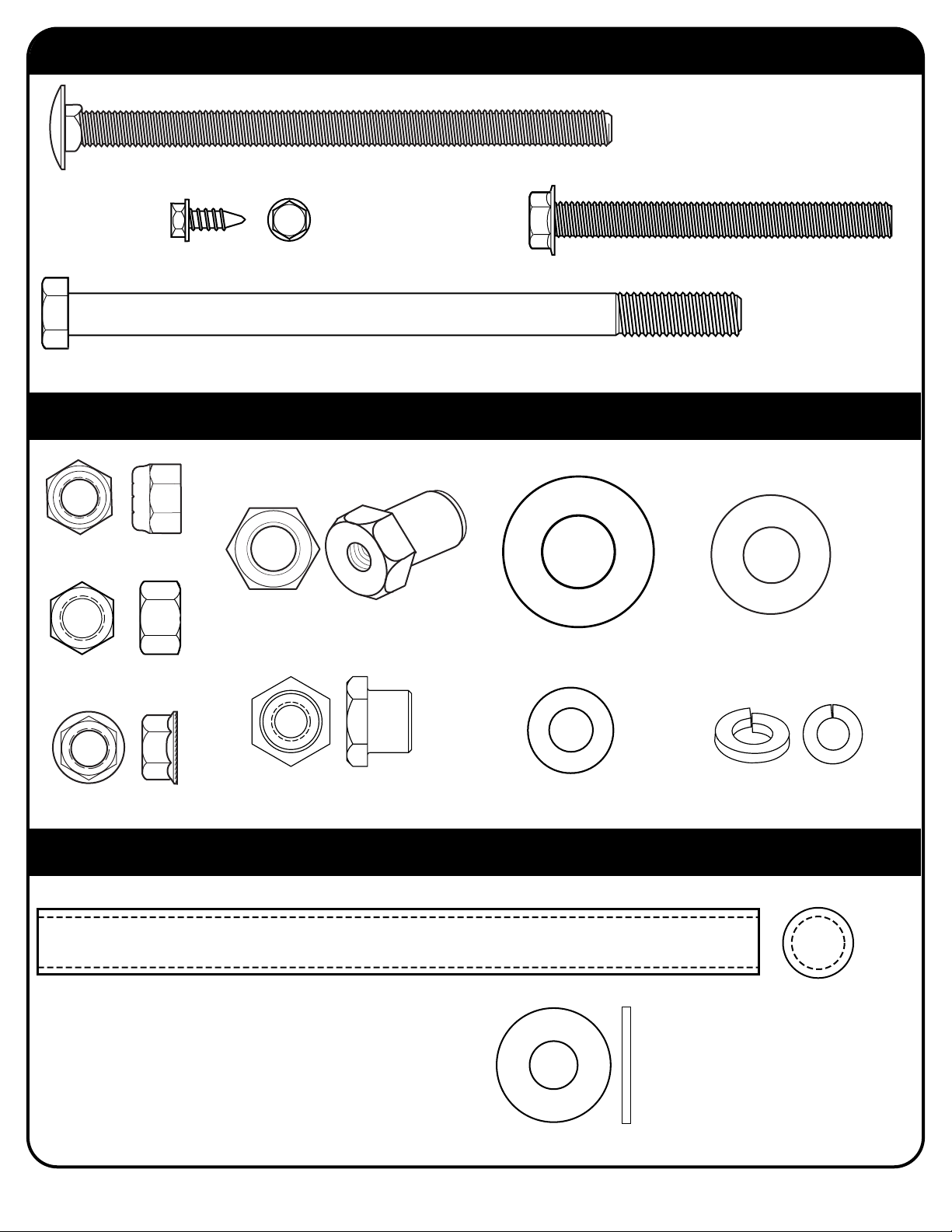

PARTS LIST - See Hardware Identifier

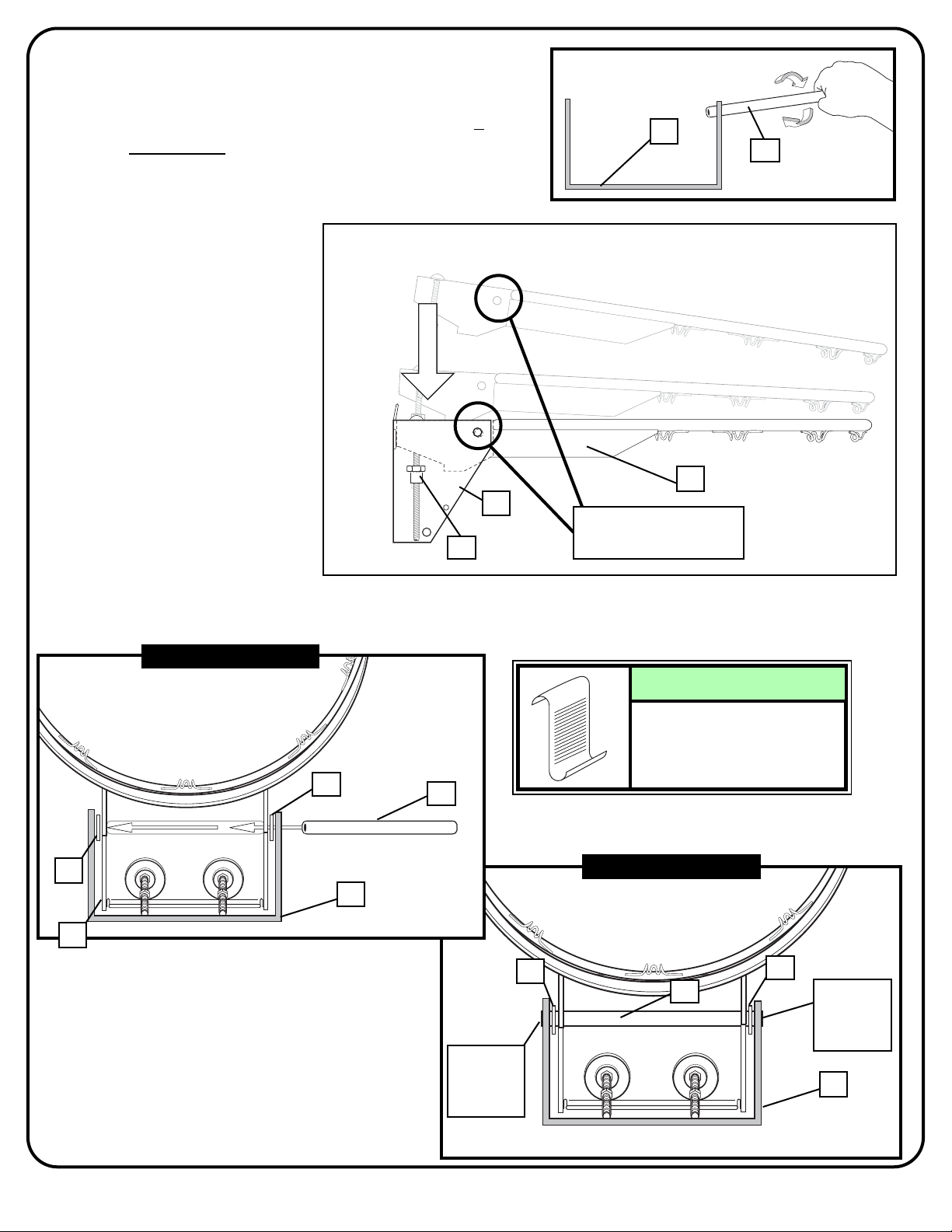

BACK

BRACKET

SPRINGS

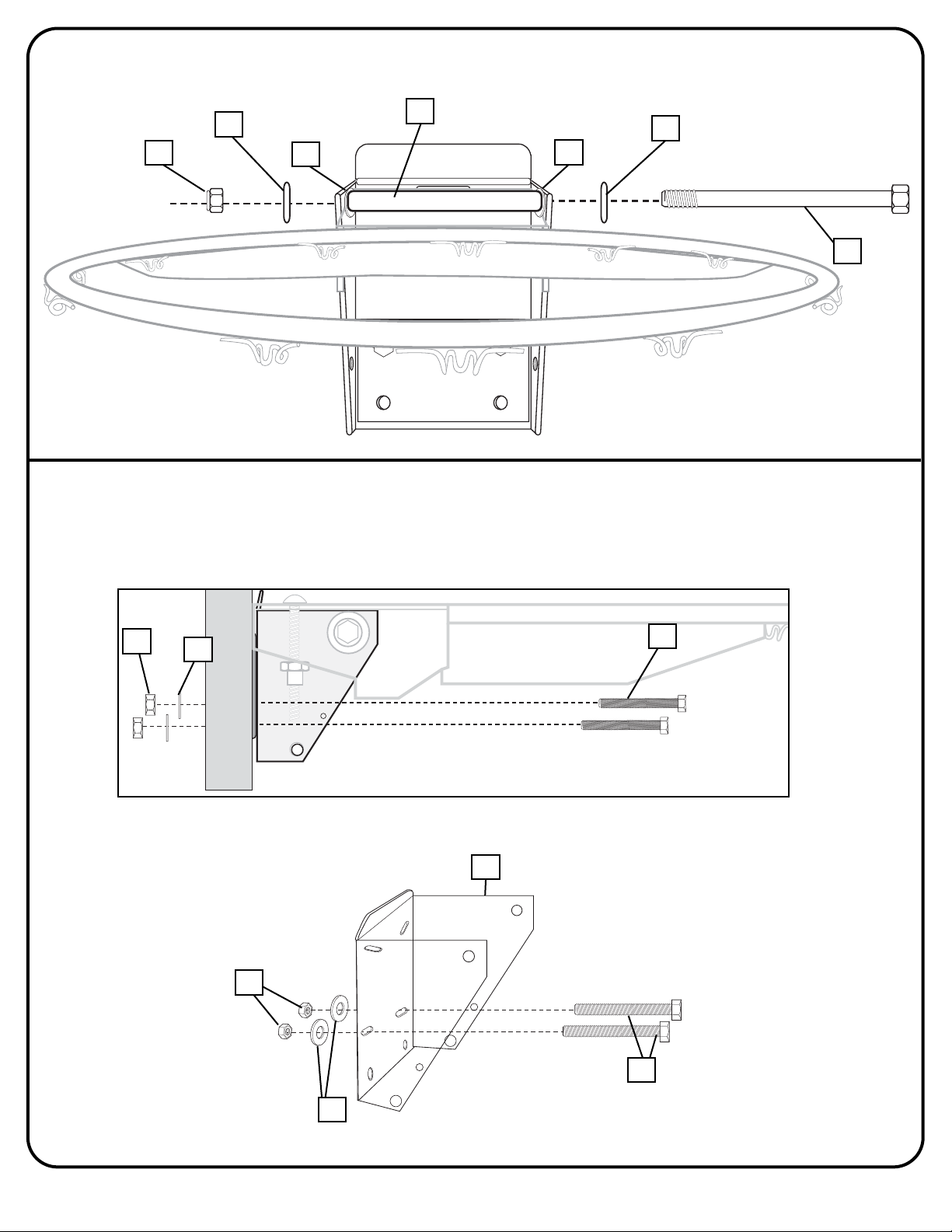

Get to know the basic parts of your basketball system.....

BACK

BRACKET

RIM
