Huffy NCS102 User Manual

1
03/04 P/N 21447702
© COPYRIGHT 2000 by HUFFY SPORTS
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-333 061
Internet Address: http://www.huffysports.com
HUFFY
REQUIRED TOOLS AND MATERIALS:
• Two People
• Wood Board (Scrap)
• Tape Measure
• Step Ladder 8 ft. (2.4 m)
• Tape
• Garden Hose or Sand 360 lb. (163 kg)
• Hammer
• Wrenches: (Two) 3/4”, (One) 1/2” (Two) 9/16”or equivalent sockets, (One) 1/2” Deep well socket with extension and socket wrench, 3/8 socket
• Support Table
• Phillips Head Screwdriver
Portable Basketball System
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.
FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.
WARNING!
FFY
S
P
O
R
T
S
2
P/N 21447702 03/04
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT
IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow
these rules for safe operation of the system.
• DO NOT HANG on the rim or any part of the system including backboard, suppor t braces or net.
• During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with water or sand and stake to the ground. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.
• When adjusting height or moving system, keep hands and fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.
• Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.
• Check system before each use for proper ballast, loose hardware, excessive wear and signs corrosion and repair before use.
Check system before each use for instability.
• Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.
• Never play on damaged equipment.
• See instruction manual for proper installation and maintenance.
• When moving system, use caution to keep mechanism from shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing weather add non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)
• Use extreme caution if placing system on sloped surface. System may tip over more easily.
201241 2/99
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339
03/04 P/N 21447702
3
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to instructions. Failure to follow instructions could
result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY,
PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly.
• If using a ladder during assembly, use extreme caution.
• Check base regularly for leakage. Slow leaks could cause the system to tip over unexpectedly
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to seperate during play and/or during transport of the system.
• Climate, corrosion or misuse could result in system failure.
• If technical assistance is required, contact Huffy Sports.
• Minimum operational height is 6’6” (1.98m) to the bottom of backboard.
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this unit.
4
P/N 21447702 03/04
Get to know the basic parts of your basketball system.....
FRONT
TOP POLE
BACK
MIDDLE POLE
FRONT COVER
RIM
BOTTOM
POLE
STRUTS
ELEVATOR
ASSEMBLY
BACKBOARD
BASE
WHEEL
CARRIAGE
ASSEMBLY
03/04 P/N 21447702
5
Item Qty Part No. Description
1 1 900149 Top Pole Section 2 1 904811 Middle Pole Section (with Label) 3 1 903407 Bottom Pole Section 4 1 900223 Wheel Bracket 5 1 206940 Axle 6 2 226403 Wheel 7 2 206938 Pushnut 8 1 206660 Base 9 6 203156 Hex Bolt, 5/16-18 x 1 10 18 203218 Flat Washer, 5/16 11 21* 203100 Hex-Flange Nut, 5/16-18 12 1 201581 Pole Bracket 13 2 202662 Hex Bolt, 5/16-18 x 4.5 14 2 203099 Locknut, 5/16-18 15 4 203223 Carriage Bolt, 5/16-18 x 1 16 2 906410 Tank Strut 17 1 200516 Bolt Cover 18 1 206990 Reinforcement Bracket 19 1 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long 20 8 202862 Spacer, Plastic, 1.19" Long 21 7* 206340 Locknut, 1/2-13 22 2 203053 Carriage Bolt, 5/16-18 x 4 Long 23 1 204872 Label, Height Indicator 24 2 204858 Spacer, Plastic, Biscuit 25 1 207103 Pole Cap 26 1 204853 Lanyard, Black Coil 27 1 204850 Pin, Locking 28 1 204832 Bracket, Pole Mount 29 4 206360 Hex Bolt, 3/8-16 x 2.625 30 2 200874 Spacer, Metal 31 4 201124 Locknut, 3/8-16 32 2 900867 Plate, Triangle 33 2 904807 Elevator Tube, Upper - Short 34 2 904821 Elevator Tube, Lower - Long 35 2 204859 Cover, Pin Slide 36 1 203124 Tie Down Stake 37 2 203617 Base Plug 38 1 201965 Front Cover 39 6* 203257 Tie Straps 40 1 Rim 41 4 203309 Washer, Flat 42 1 201252 Label, Height Adj and Moving 43 2 204857 Spacer, Metal 1/2” O.D. x 1.44 Long 44 4 203232 Flat Washer, 3/8 45 2 900964 Bracket, Backboard Support 46 4 201681 Spacer, Plastic, .530 I.D. x .88 Long 47 1 202856 Bolt, Hex, 1/2-13 x 4" Long 48 2 204838 Spring, Counter Balance 49 4 201682 Spacer, .530 I.D. x 1.875 50 6 204847 Bolt, Hex, 1/2-13 x 9.5" 51 1 904866 Height Adjustment Rod 52 1 204855 Handle, Left 53 1 204856 Handle, Right 54 2 203103 Carriage Bolt, 5/16-18 x 2 Long 55 1 204803 Screw, Phillips Head 56 1 204444 Rope 57 12 201219 Smart Clips, Net Holder 58 1 Net 59 4 205528 Bolt, Hex Flange, 5/16-18 x 1" Long
* You may have extra parts with this model.
WARRANTY CARD:
Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard.
6
P/N 21447702 03/04
HARDWARE IDENTIFIER (BOLTS & SCREWS)
Item #14 (2)
Item #31 (4)
Item #55 (1)
Item #44 (4)
Item #11 (15)
Item #9 (6)
Item #50 (6)
Item #19 (1)
Item #29 (4)
Item #10 (18)
Item #43 (2)
Item #21 (7)
Item #22 (2)
Item #47 (1)
Item #13 (2)
HARDWARE IDENTIFIER (NUTS, WASHERS & METAL SPACERS)
Item #54 (2)
Item #15 (4)
Item #30 (2)
Item #41 (4)
Item #59 (4)
03/04 P/N 21447702
7
Item #20 (8)
Item #42 (1)

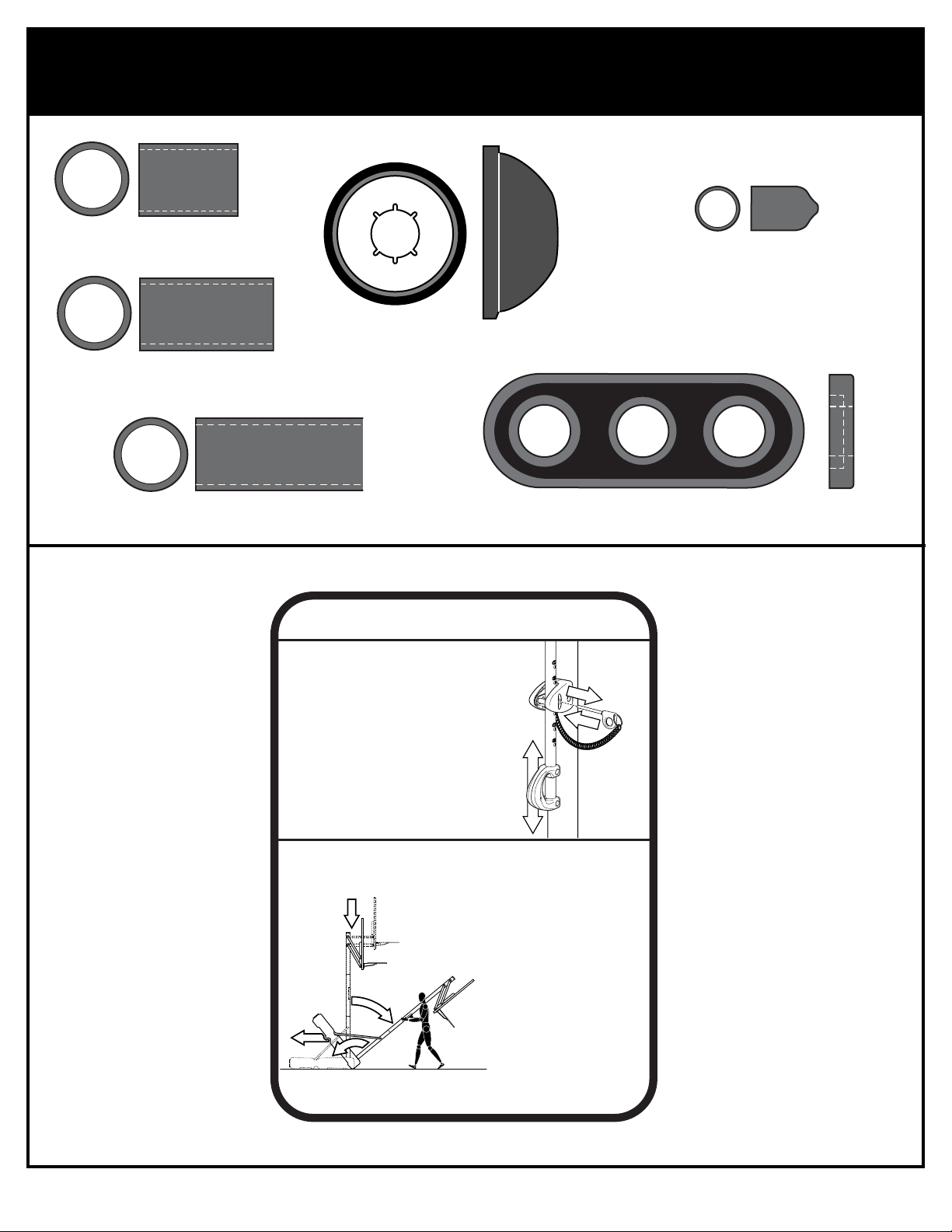

HARDWARE IDENTIFIER (PLASTIC SPACERS & CAPS)
Item #17 (1)
Item #46 (4)
Item #49 (4)
Item #24 (2)
Item #7 (2)
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to desired height.
3. Replace pin full length to lock system at desired height.
2
1
3
2
MOVING SYSTEM
1. Adjust basketball backboard
1
2
3
4
height to lowest position.
2. While holding pole, rotate basketball system forward until wheels engage with ground.
3. Move basketball system to desired location.
4. Carefully rotate basketball system upright.
5. Reattach ground restraint and check system for stability.
201252 2/99
8
P/N 21447702 03/04

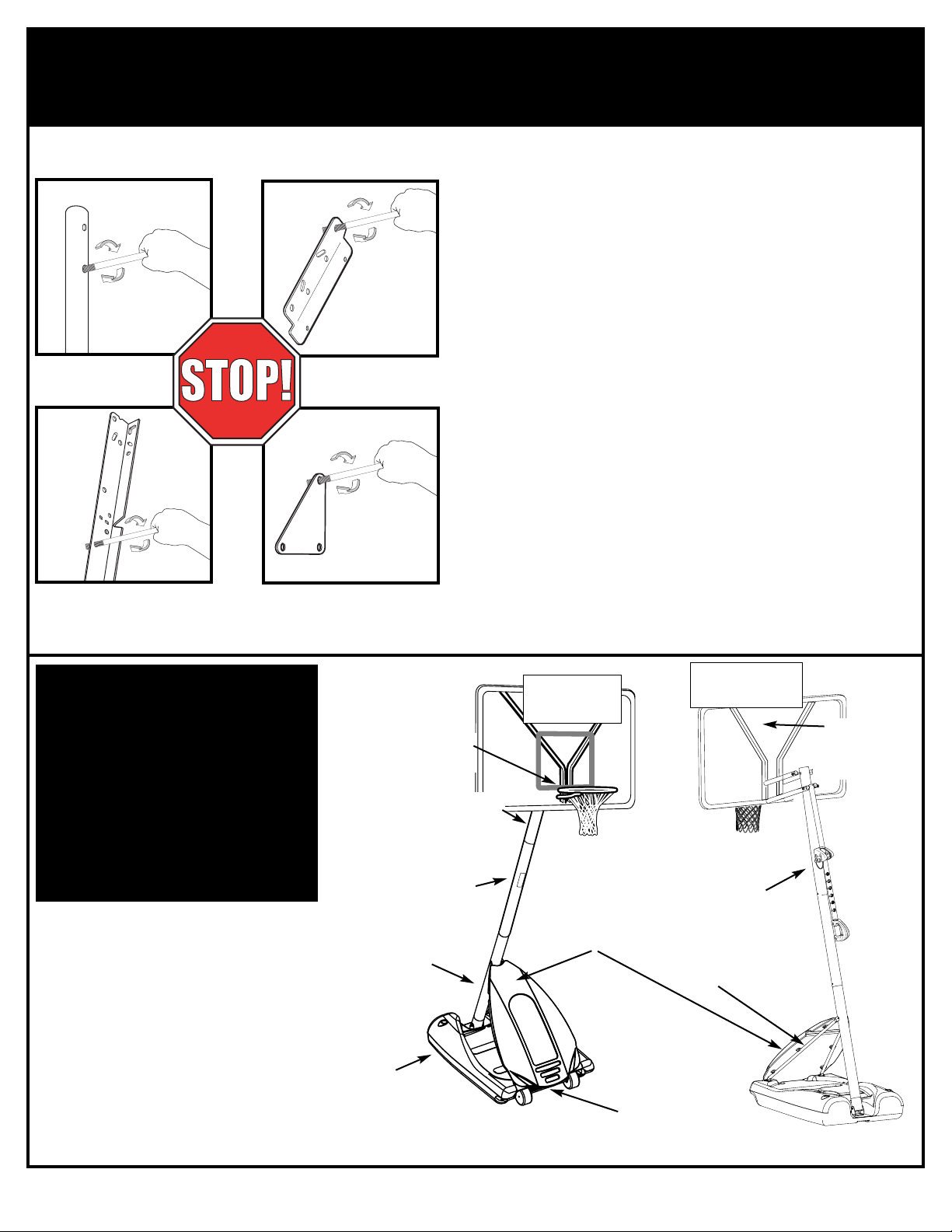

BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator
components and hardware is required. Test fit large bolts into large holes of elevator tubes,
backboard brackets and triangle plates. Carefully rock them in a circular motion to ream out
any excess paint from holes if necessary.
AVANT DE COMMENCER !
Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien
ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports
du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour
éliminer l'excédent de peinture, si nécessaire.
¡ANTES DE COMENZAR!
Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha
entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los
tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar
cualquier exceso de pintura, si es necesario.
VORBEREITENDE MASSNAHMEN
Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der
Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben
zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese
vorsichtig in einer Kreisbewegung hin- und herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen.
03/04 P/N 21447702
9
SECTION A: ASSEMBLE THE POLES
2.
WARNING
LABEL
2
1
3
Taped Reference Mark
Taped Reference Mark
1.
Mark pole sections with tape (not supplied) as shown.
Bounce middle pole (2) into top pole section (1) using a wood scrap as shown until top pole no longer moves toward pole taped reference mark on middle pole.
NOTE: Pole sections should have a 3-1/2" (9 cm) minimum overlap.
WOOD SCRAP
(NOT SUPPLIED)
2
1
Taped Reference
Mark
10
P/N 21447702 03/04
3.
Align top holes of top pole to bottom holes of bottom pole. While maintaining alignment, bounce top and middle pole assembly (1 & 2) onto lower section (3) using a wood scrap as shown until they no longer move toward pole identification mark on bottom pole (3).
1
2
3
WOOD SCRAP
(NOT SUPPLIED)
Taped Reference
Mark
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE
IMPORTANT!:
Holes in top (1) and bottom pole (3) sections MUST align to correctly position elevator system toward playing surface.
POLE SECTIONS
SHOULD HAVE A
3-1/2" (9 CM) MINIMUM
OVERLAP.
NOTE:
03/04 P/N 21447702
11

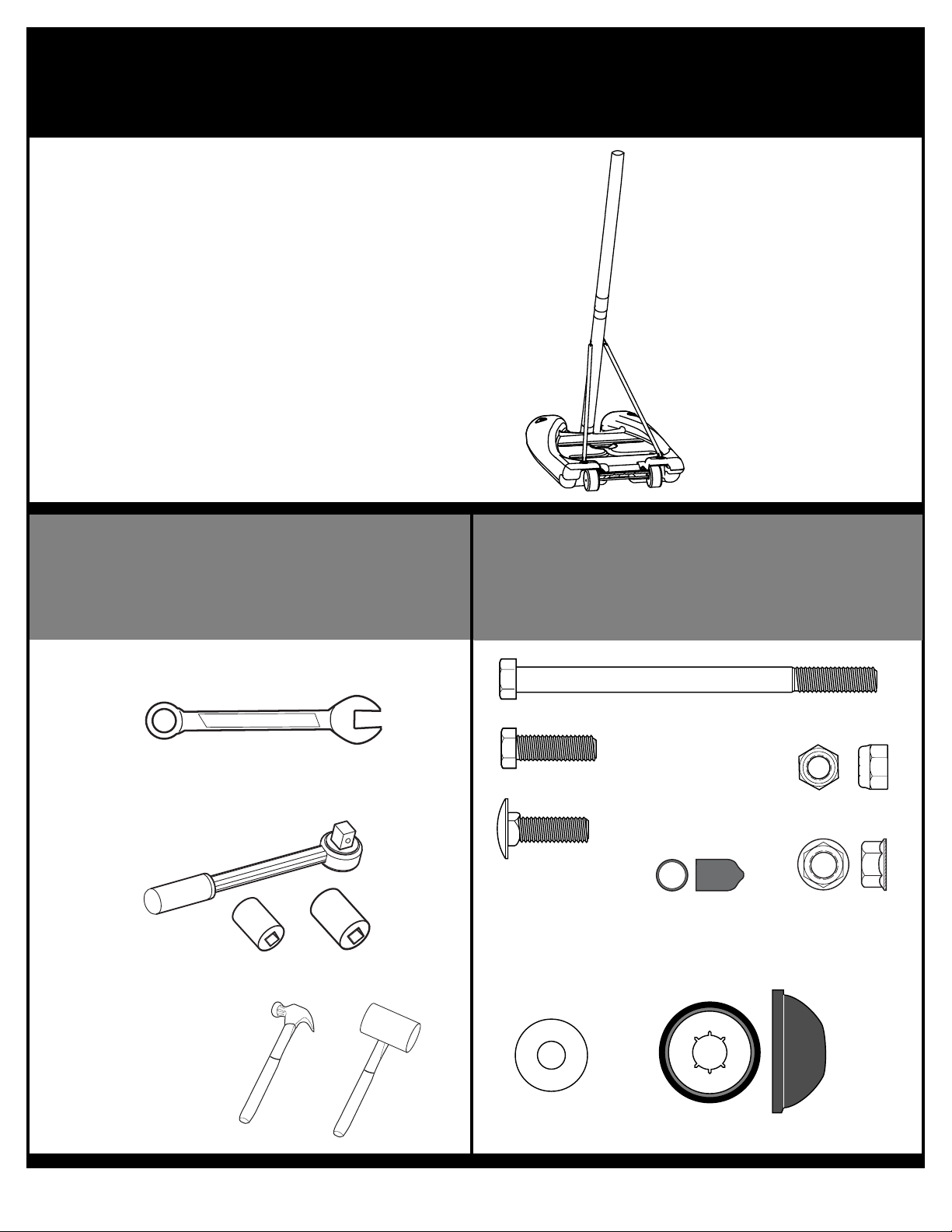

TOOLS REQUIRED FOR THIS SECTION
HARDWARE USED IN THIS SECTION
(not actual size)
SECTION B: ASSEMBLE THE BASE
This is what your system will look like when you’ve finished this section:
a Hammer or
Mallet
(2) 1/2” AND (2) 9/16" Wrenches
9/16”
1/2”
AND/OR
(2) Socket Wrenches and Sockets
AND
Item #14
Item #11
Item #9
Item #10
Item #17
Item #13
Item #15
Item #7
12
P/N 21447702 03/04
11
15
10
2.
Attach pole assembly to base using carriage bolts (15) washers(10) and nuts (11) as shown. Two people are required for this step.
1.
Assemble pole bracket (12) using bolt (13) and locknut (14) as shown.
13
12
14
IMPORTANT!:
DO NOT OVER
TIGHTEN
THE CUT CORNERS OF THE POLE BRACKET NEED TO FACE TOWARD THE BACK OF THE BASE AS SHOWN.
IMPORTANT!:
TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
WARNING!
03/04 P/N 21447702
13
3.
Rotate non-secured ends of tank struts (16) outward to mounting holes in tank as shown.Secure ends of tank struts (16) to tank as shown. Repeat for opposite side.
9
10
11
10
16
16
4.
10
10
14
17
13
16
TWO PEOPLE REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
WARNING!
IMPORTANT!:
Secure tank struts (16) to pole as shown. Nut should be tightened until flush (even) with locknuts outer edge. Place cap (17) over exposed end of bolt as shown.
14
P/N 21447702 03/04

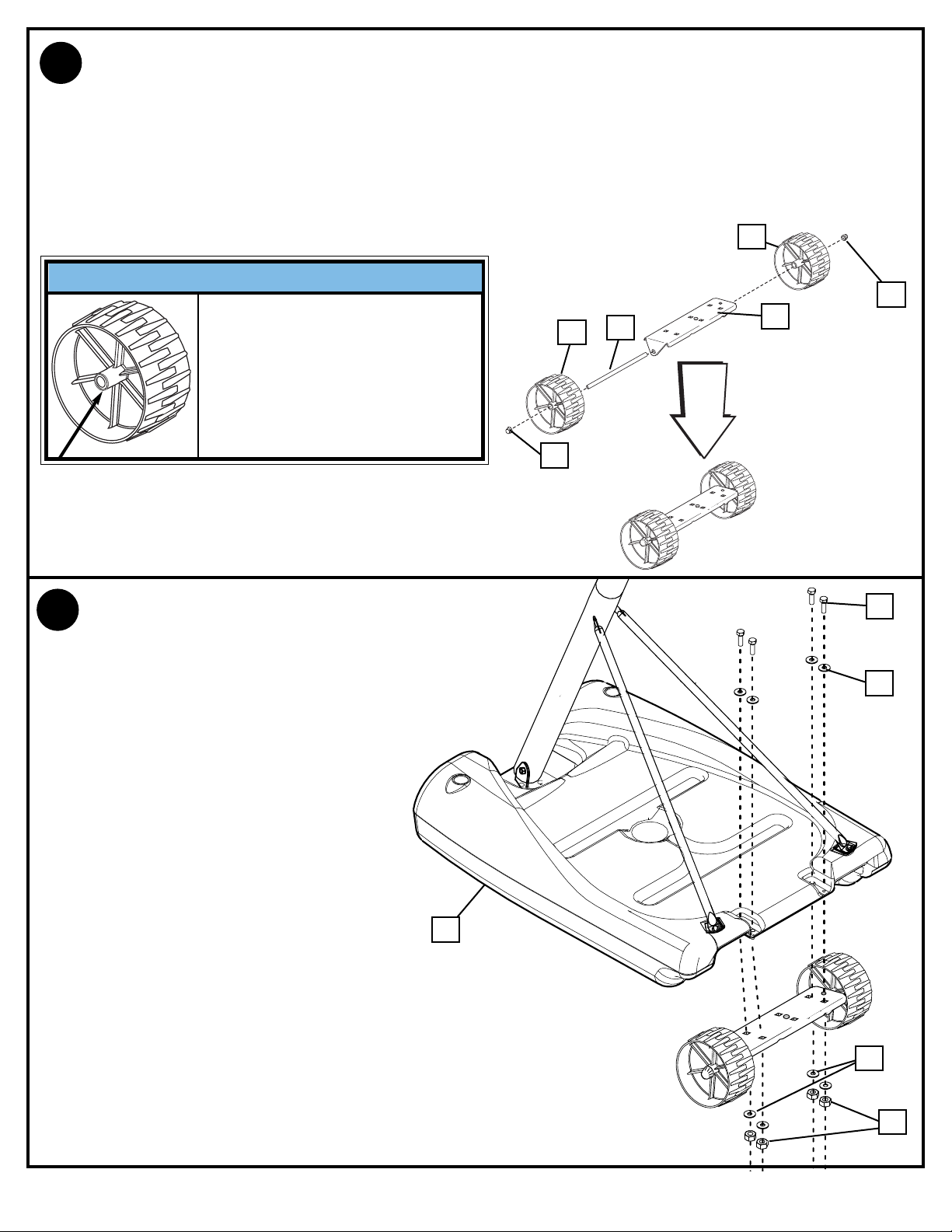

5.
6.
Insert axle (5) through wheel bracket (4). Secure wheels (6) to axle using pushnuts (7). Carefully tap pushnuts onto axle with hammer or mallet
4
6
6
7
7
5
Install wheel assembly to base (8) using bolts(9), washers(10) and nuts (11) as shown.
10
9
11
10
8
SIDE OF WHEEL WITH LONGER PLASTIC AXLE NEEDS TO FACE THE WHEEL BRACKET.
IMPORTANT!:
03/04 P/N 21447702
15
TOOLS REQUIRED FOR THIS SECTION
HARDWARE USED IN THIS SECTION
(not actual size)
SECTION C: ASSEMBLE THE ELEVATOR & BACKBOARD
This is what your system will look like when you’ve finished this section:
9/16”
1/2”
3/4”
(2) 1/2”, (2) 9/16"” AND (2) 3/4”
Wrenches
AND/OR
(2) Socket Wrenches and Sockets
Item #31
Item #55
Item #44
Item #11
Item #50
Item #19
Item #29
Item #43
Item #21
Item #22
Item #54
Item #30
Item #24
Item #59
16
P/N 21447702 03/04
1.
Install pole mount bracket (28) and reinforcement bracket (18) with carriage bolts (22) as shown. Tighten flange nuts (11) completely.
1
28
11
11
18
22
22
2.
Attach spacers (24, 43) to pole mount bracket (28) with bolts (29), washers (44), and lock nuts (31) as shown. IMPORTANT! Tighten just until washers (44) stop
moving.
28
44
44
31
29
44
44
43
24
24
43
03/04 P/N 21447702
17
3
.
28
11
27
35
35
26
19
Apply logo and height indicator labels (23) to adjustment rod (51) as shown. Attach handle parts (52, 53) to adjustment rod with screw (55), carriage bolts (54), and flange nuts (11) as shown.
4.
54
11
11
53
52
55
54
51
23
23
Assemble lanyard (26) to locking pin (27) as shown (FIG A). Attach covers (35) onto pole mount bracket (28) with carriage bolt (19) and nut (11) as shown.
19
FIG. A
26
27
Loop end of pin lanyard (26) over carriage bolt (19) as it passes through the pole mount bracket (28) during this assembly.
IMPORTANT!:
Indicator labels should be applied as close to holes as possible to prevent labels from being damaged during height adjustment.
IMPORTANT!:
