Huffy MCM108DB User Manual

12/01 P/N 211488E

WARNING

Toll-Free Customer Service Number for U.S: 1-800-558-5234, For Canada: 1-800-284-8339, For Europe: 00 800 555 85234 (Sweden: 009 555 85234),

For Australia: 1-800-333 061 - Internet Address: http://www.huffysports.com

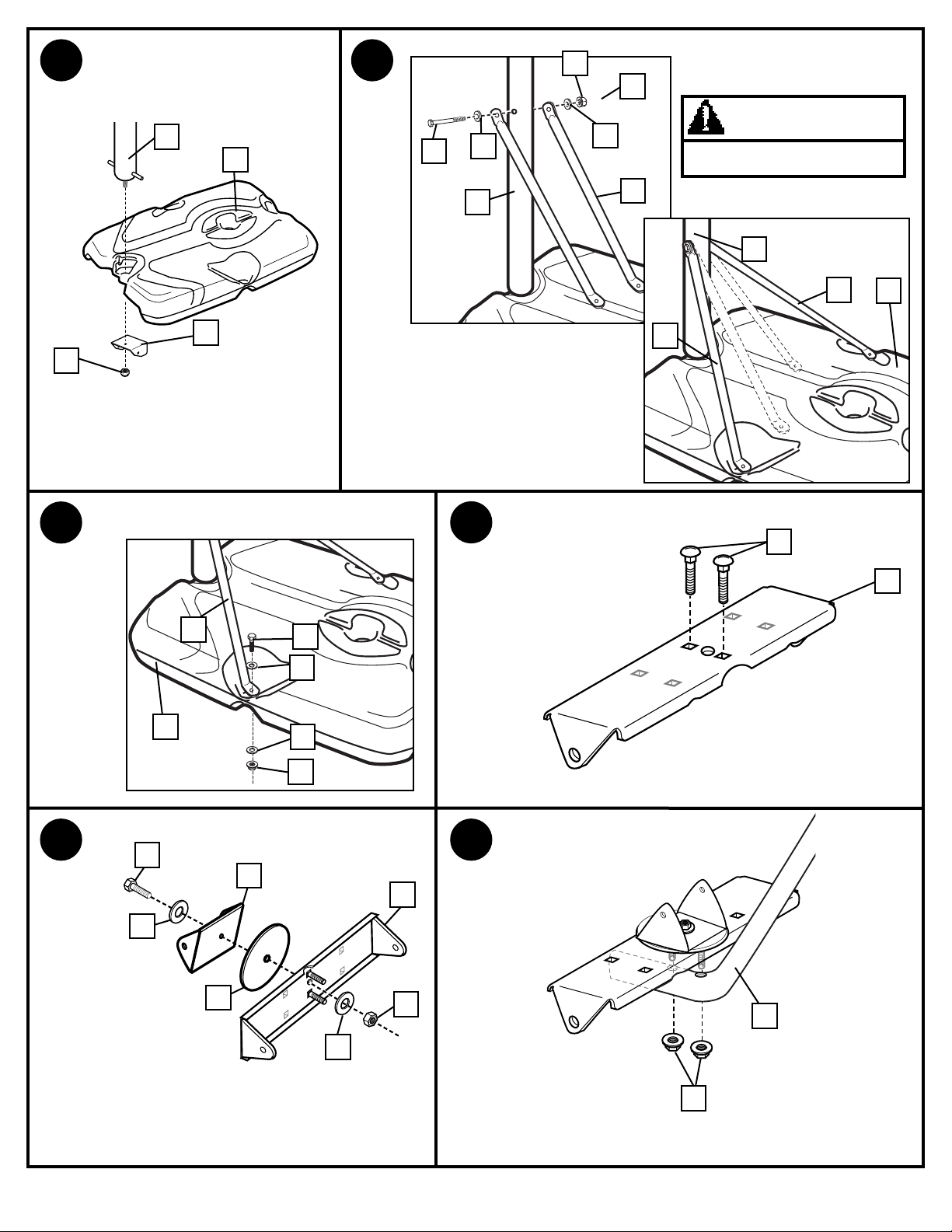

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this system.

• If using a ladder during assembly, use extreme caution.

• Two (2) people are recommended for this operation.

• Check base regularly for leakage. Slow leaks could cause system to

tip over unexpectedly.

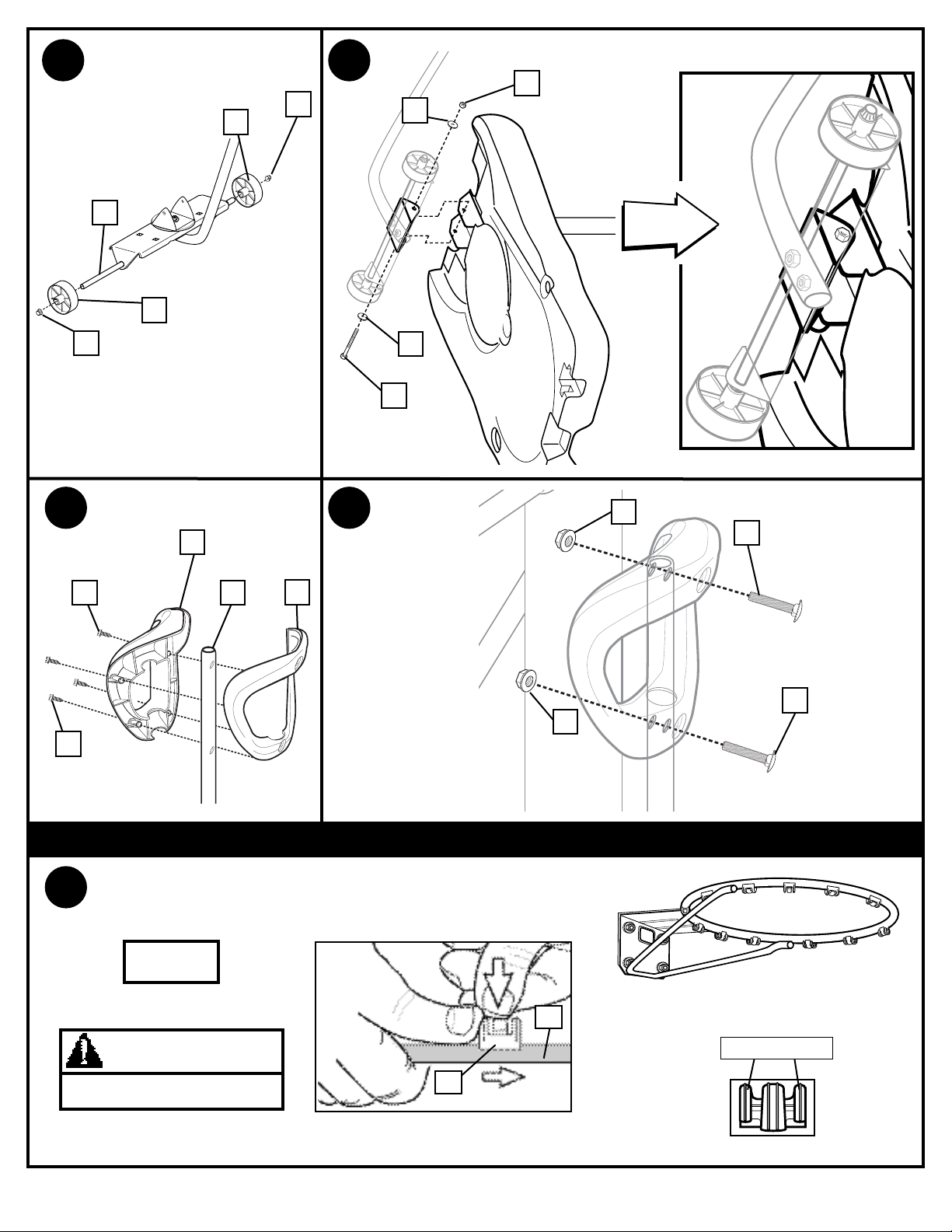

• Seat the pole sections properly (if applicable). Failure to do so could

allow the pole sections to separate during play and/or transport of the

system.

• Climate, corrosion or misuse could result in system failure.

• Minimum operational height is 6' 6" (1.98 m) to the bottom of

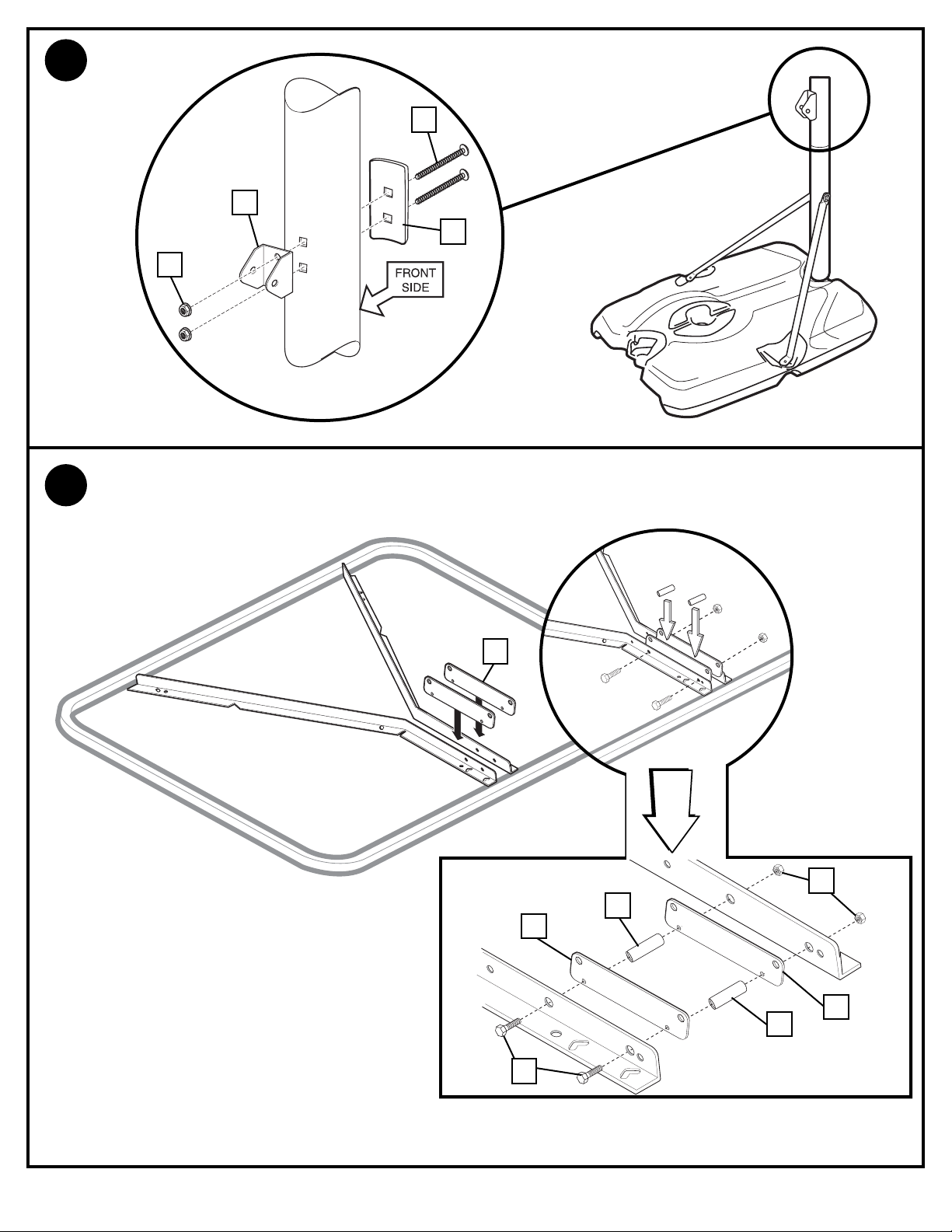

backboard.

• This equipment is intended for home recreational use only and NOT

excessive competitive play.

• Read and understand the warning label affixed to pole. Label is

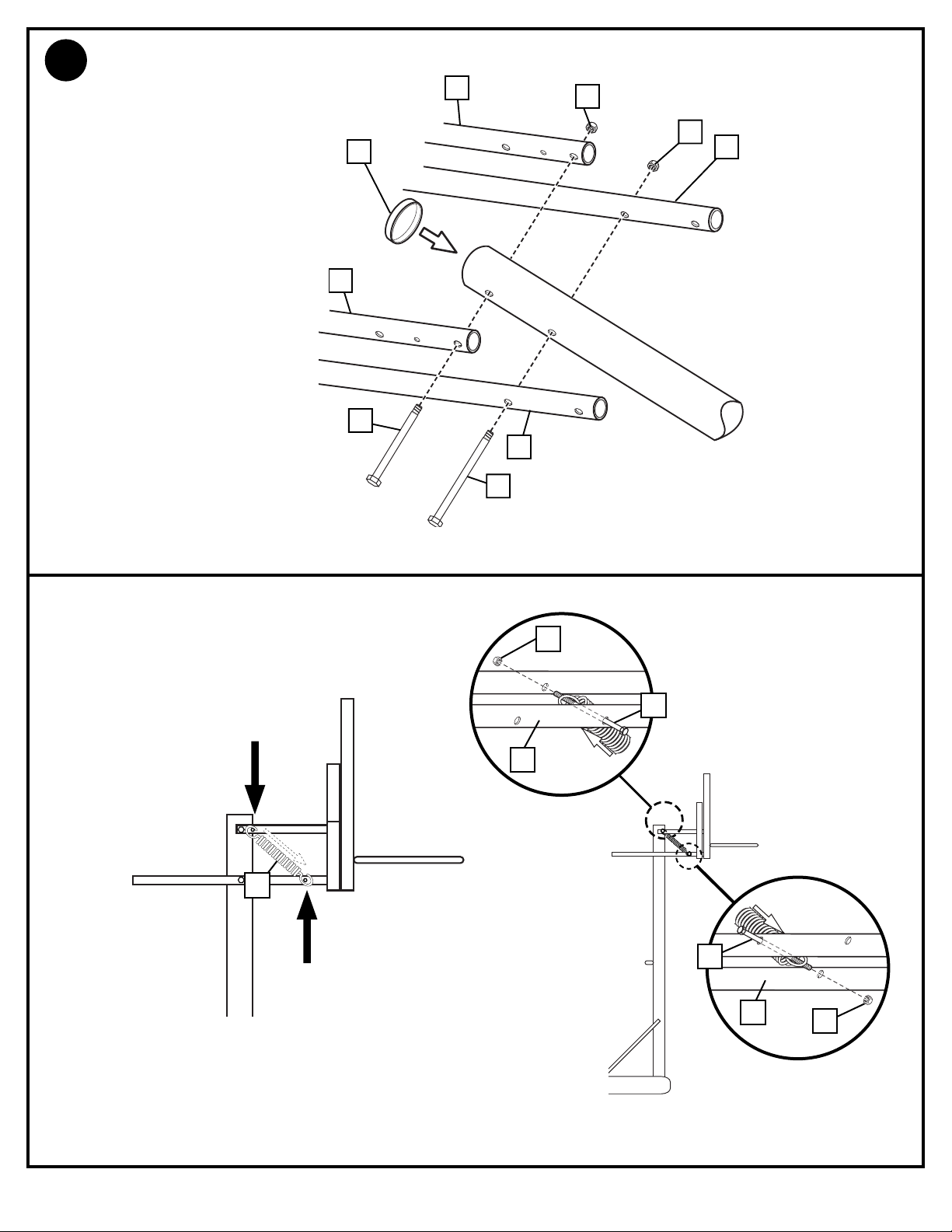

shown on page 1.

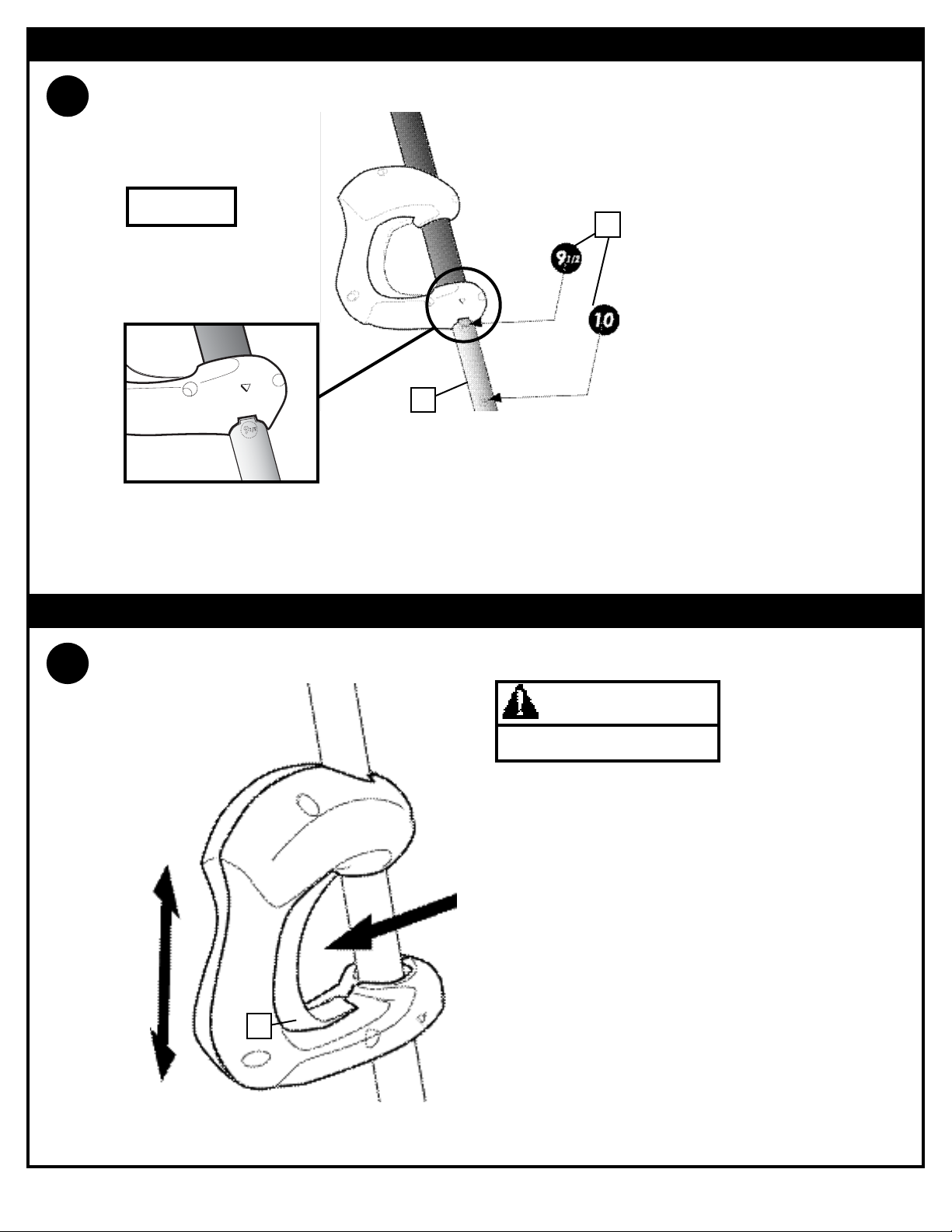

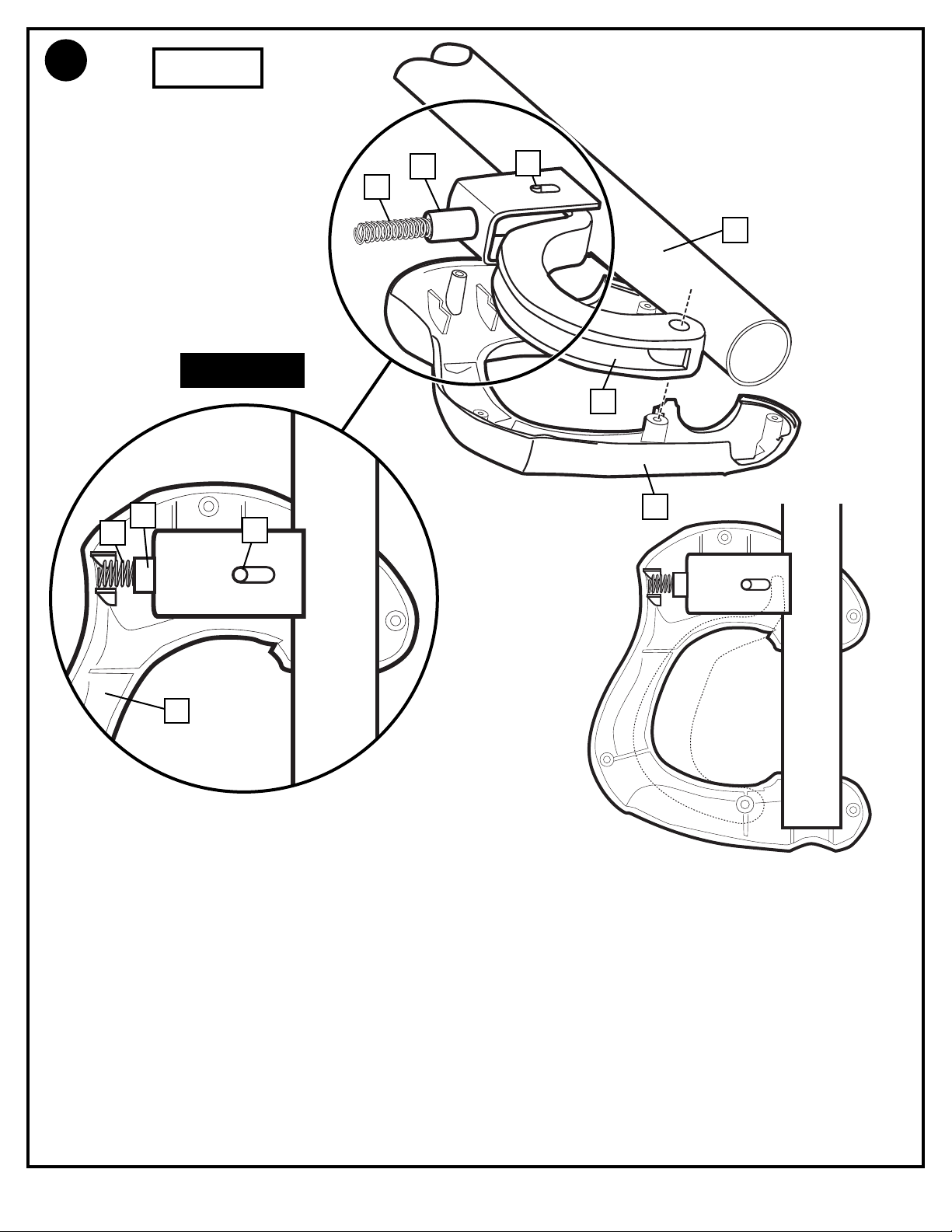

• The life of your basketball pole depends on many conditions. The

climate, placement of the pole, the location of the pole, exposure to

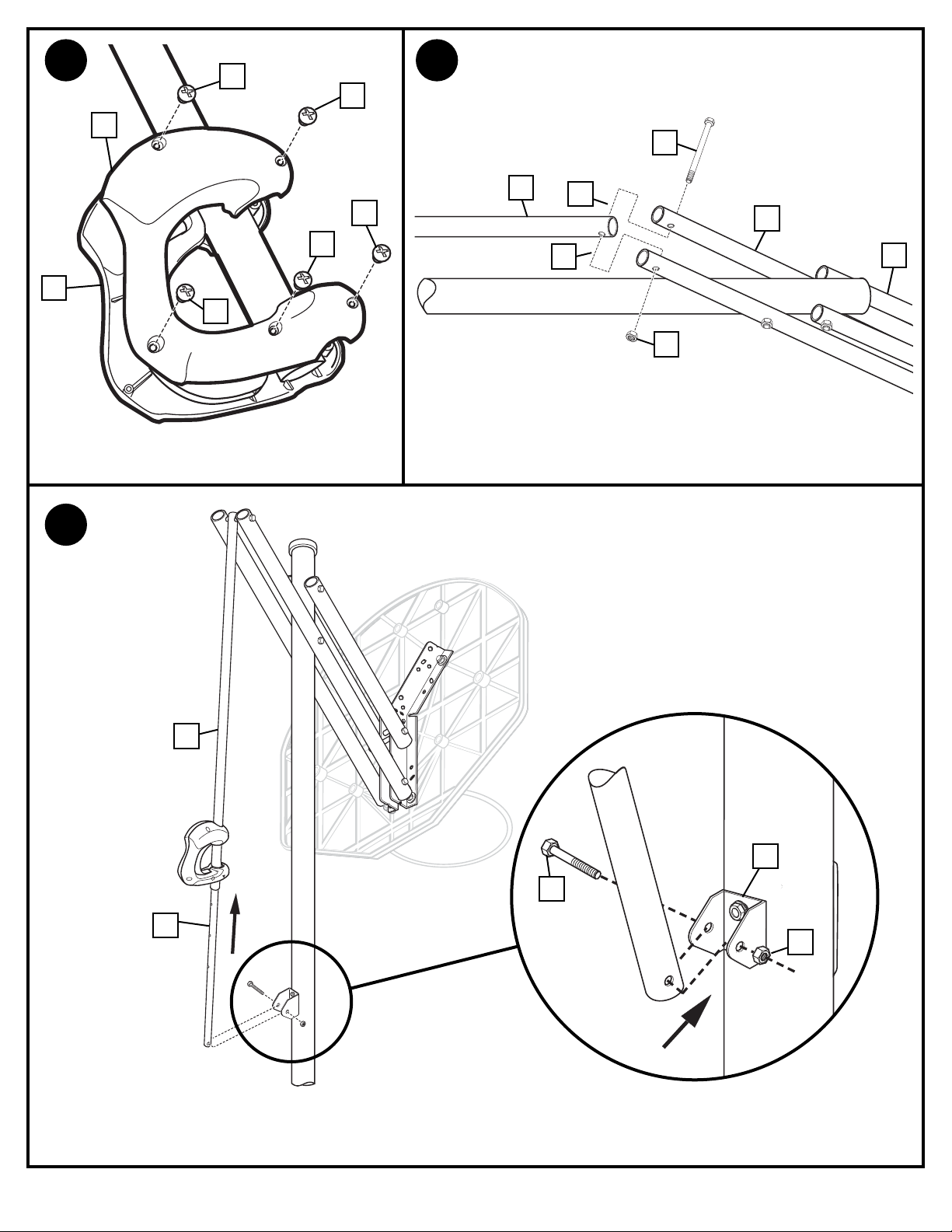

corrosives such as pesticides, herbicides or salts are all important.

• If technical assistance is required, contact Huffy Sports.

• Adult supervision is recommended when adjusting height.

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY

RESULT IN SERIOUS INJURY, PROPERTY DAMAGE AND WILL

VOID WARRANTY.

Owner must ensure that all players know and

follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without

following the instructions carefully. Proper and complete assembly,

use and supervision is essential for proper operation and to reduce

the risk of accident or injury. A high probability of serious injury

exists if this system is not installed, maintained, and operated

properly. Check entire box and inside all packing material for parts

and/or additional instructional material. Before beginning

assembly, read the instructions and identify parts using the

hardware identifier and parts list in this document.

For more information on assembly, placement, proper use and

maintenance, visit The American Basketball Council website at

http://www.smarthoops.com.

SAFETY INSTRUCTIONS

REQUIRED TOOLS AND

MATERIALS:

• Two People

• Tape Measure

• Wood Board (Scrap)

• Wrenches: (Two of Each) 7/16”,

1/2”, 9/16”, 3/4” or Large and

Small Adjustable Wrenches

• Sawhorse or Support Table

• Garden Hose or Sand (300 lb.)

(136 kg)

• Hammer

• Tape

• Phillips Screwdriver

• 1/2” & 9/16” Extended Deep

Socket w/ Extension

Recommended

WRITE IN YOUR MODEL NUMBER:_________________

Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

A Huffy Company

Portable Basketball System with Elevator-Owners Manual

IMPORTANT!

In U.S. and Canada only:

Have questions?...don’t go back to the store!

We appreciate your purchasing one of our many fine products. We are sure that you will be very satisfied with your selection. Although great care and effort have been taken, occasionally problems may occur. To

ensure prompt and correct handling of any problems, or to answer any questions, please contact our Toll-Free Customer Service Number listed below. Service will be quicker if you have your Model Number

(found on carton) and assembly instructions ready when calling. PLEASE WRITE YOUR MODEL NUMBER IN THE SPACE PROVIDED ABOVE.

NOTICE TO ASSEMBLERS

ALL Huffy Sports basketball Systems,

including those used for DISPLAYS,

MUST be assembled and ballasted with

sand or water according to instructions.

Failure to follow instructions could result

in SERIOUS INJURY. It is NOT

acceptable to devise a makeshift weight

system.

The NBA and individual NBA member team identifications reproduced on this product are

trademarks and copyrighted designs, and/or other forms of intellectual property, that are the

exclusive property of NBA Properties, Inc. and the respective NBA member teams and may not

be used, in whole or in part, without the written consent of NBA Properties, Inc.

these rules for safe operation of the system.

IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and follow

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT

including backboard, support braces or net.

activities, keep player's face away from the backboard, rim

and net. Serious injury could occur if teeth/face come in

contact with backboard, rim or net.

• DO NOT HANG on the rim or any part of the system

• During play, especially when performing dunk type

water or sand and stake to the ground. Never leave system

• Do not slide, climb, shake or play on base and/or pole.

• After assembly is complete, fill system completely with

in an upright position without filling base with weight, as

system may tip over causing injuries.

fingers away from moving parts.

• When adjusting height or moving system, keep hands and

• Do not allow children to move or adjust system.

etc.). Objects may entangle in net.

gravel or other sharp objects. Punctures cause leakage and

could cause system to tip over.

• During play, do not wear jewelry (rings, watches, necklaces,

• Surface beneath the base must be smooth and free of

• Keep organic material away from pole base. Grass, litter,

etc. could cause corrosion and/or deterioration.

chipping) and repaint with exterior enamel paint. If rust has

penetrated through the steel anywhere, replace pole

immediately.

• Check pole system for signs of corrosion (rust, pitting,

hardware, excessive wear and signs corrosion and repair

• Check system before each use for proper ballast, loose

before use.•Check system before each use for instability.

conditions; system may tip over. Place system in the

• Do not use system during windy and/or severe weather

storage position and/or in an area protected from the wind

and free from personal property and/or overhead wires.

• Never play on damaged equipment.

• See instruction manual for proper installation and

maintenance.

shifting.

• When moving system, use caution to keep mechanism from

• Keep pole top covered with cap at all times.

weather add non-toxic antifreeze, sand or empty tank

completely and store. (Do not use salt.)

System may tip over more easily.

• Do not allow water in tank to freeze. During sub-freezing

• Use extreme caution if placing system on sloped surface.

201241 2/99

In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

P/N 211488E 12/01

* You may have extra parts with this model.

HARDWARE IDENTIFIER

Item #7 (1)

Item #8 (1)

Item #12 (1)

Item #13 (12)*

Item #17 (14)

Item #14 (2)

Item #16 (2)

Item #10 (3)*

Item #21 (2)

Item #30 (2)

Item #34 (2)

Item #31 (12)*

Item #18 (2)

Item #26 (1)

Item #36 (2)

Item #38 (3)

Item #37 (2)

12/01 P/N 211488E

HARDWARE IDENTIFIER (continued)

Item #40 (5)

Item #39 (2)

Item #41 (3)

Item #49 (1)

Item #43 (2)

Item #44 (2)

Item #50 (1)

Item #58 (9)

Item #59 (2)

Item #46 (1)

Item #52 (1)

Item #61 (1)

Item #68 (4)*

Item #69 (2)

Item #53 (1)

P/N 211488E 12/01

Item

Qty. Part No. Description

1 1 206615 Tank, (Black) 2 1 200628 Wheel Axle, 11-3/4 Long 3 4 226401 Wheel, 4 “ (Black) 4 1 900107 Top Pole Section 5 1 900106 Middle Pole Section 6 1 900105 Bottom Pole Section 7 1 202820 Rod, 3/8 O.D. x 4-3/4 Long 8 1 206934 Eyebolt, 3/8-16 x 2 1/2 Long

9 1 206949 Pivot Bracket, Upper 10 3* 203063 Nylon Insert Lock Nut, 3/8-16 11 2 906206 Strut, 1” O.D. x 43 Long 12 1 202662 Bolt, Hex Head, 5/16-18 x 4-1/2 Long 13 12* 203218 Washer, Flat, 3/8 I.D. 14 2 203220 Nylon Insert Lock Nut, 5/16-18 15 1 200629 Anchor, T-Strap 16 2 203798 Bolt, Hex Flange, 5/16-18 x 1-1/2 Long 17 14 203100 Nut, Hex Flange, 5/16-18 18 2 203103 Carriage Bolt, 5/16-18 x 2 Long 19 1 900223 Wheel Bracket 20 1 206948 Pivot Bracket, Lower 21 2 206252 Bolt, Hex Head, 3/8-16 x 1 Long 22 1 206956 Disc, 5" O.D. x 13/32 I.D., Plastic 23 1 906606 Handle Bar 24 1 206940 Axle 25 2 206938 Push Cap 26 1 203330 Bolt, Hex Head, 3/8-16 x 4-1/2 Long 27 1 204849 Handle, Front, Plastic 28 1 204849 Handle, Back, Plastic 29 1 206990 Reinforcement Bracket 30 2 203217 Carriage Bolt, 5/16-18 x 1-1/2 Long 31 12* 200120 Clip, Net Holder, (Red)

200121 Clip, Net Holder, (Black) 32 1 Rim 33 1 200209 Bracket, Pole Mount 34 2 203053 Bolt, Carriage, 5/16-18 x4 Long

Item

Qty. Part No. Description

35 2 900103 Bracket, Backboard Support 36 2 206360 Bolt, Hex Head, 3/8-16 x 2.625 Long 37 2 200874 Spacer, Steel .402 I.D. x .50 O.D. x 1.5 Long 38 3 201124 Nut, 3/8-16 39 2 201642 Spacer .530 I.D. x .625 Long 40 5 206340 Nut 1/2-13 41 3 201640 Bolt 1/2-13 x 7-1/4 Long 42 2 900183 Lower Elevator Tubes - Long 43 2 201681 Spacer .530 I.D. x.63 O.D. x .875 Long 44 2 206304 Bolt 1/2-13 x 6-5/16 Long 45 2 900184 Upper Elevator Tubes - Short 46 1 200516 Vinyl Bolt Cover, 5/16 47 1 207103 Cap, Pole Top 48 1 204838 Spring, Silver 49 1 203112 Bolt, 5/16-18 x 6-1/2 Long 50 1 200830 Bolt, 3/8-16 x 7-1/2 Long 51 1 900006 Adjustment Tube 52 1 200214 Locking Pin 53 1 200215 Cross Pin 54 1 200211 Left Handle 55 1 200210 Right Handle 56 1 200257 Spring 57 1 200212 Trigger 58 9 204804 Screw, Phillips Head, 3/4 Long 59 2 202862 Spacer .563 I.D. x 1.19 Long 60 1 908008 Adjustment Rod 61 1 202739 Bolt 5/16-18 x 1-3/4 Long 62 1 203124 Stake, Tie Down 63 2 203617 Plug Cap 64 1 211261 Label, Height Adjustment and Moving 65 1 204281 Net 66 1 204872 Label, Height Indicator 67 1 200627 Wheel Carriage 68 4* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long 69 2 201651 Spacer, Wheel Axle

WARRANTY CARD:

Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard.

WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE NUMBER FOR FREE REPLACEMENT: U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com

PARTS LIST - See Hardware Identifier

12/01 P/N 211488E

INSTRUCTIONS

IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF

THIS OWNERS MANUAL

1. Remove all contents from underside of tank. Keep tank (1) bottom side

up. Install wheel axle (2) through wheel carriage (67) and install wheels (3) onto wheel axle (2) with spacers (69) as shown. Secure wheel bracket as shown, a deep socket is recommended.

IMPORTANT! DO NOT OVER TIGHTEN.

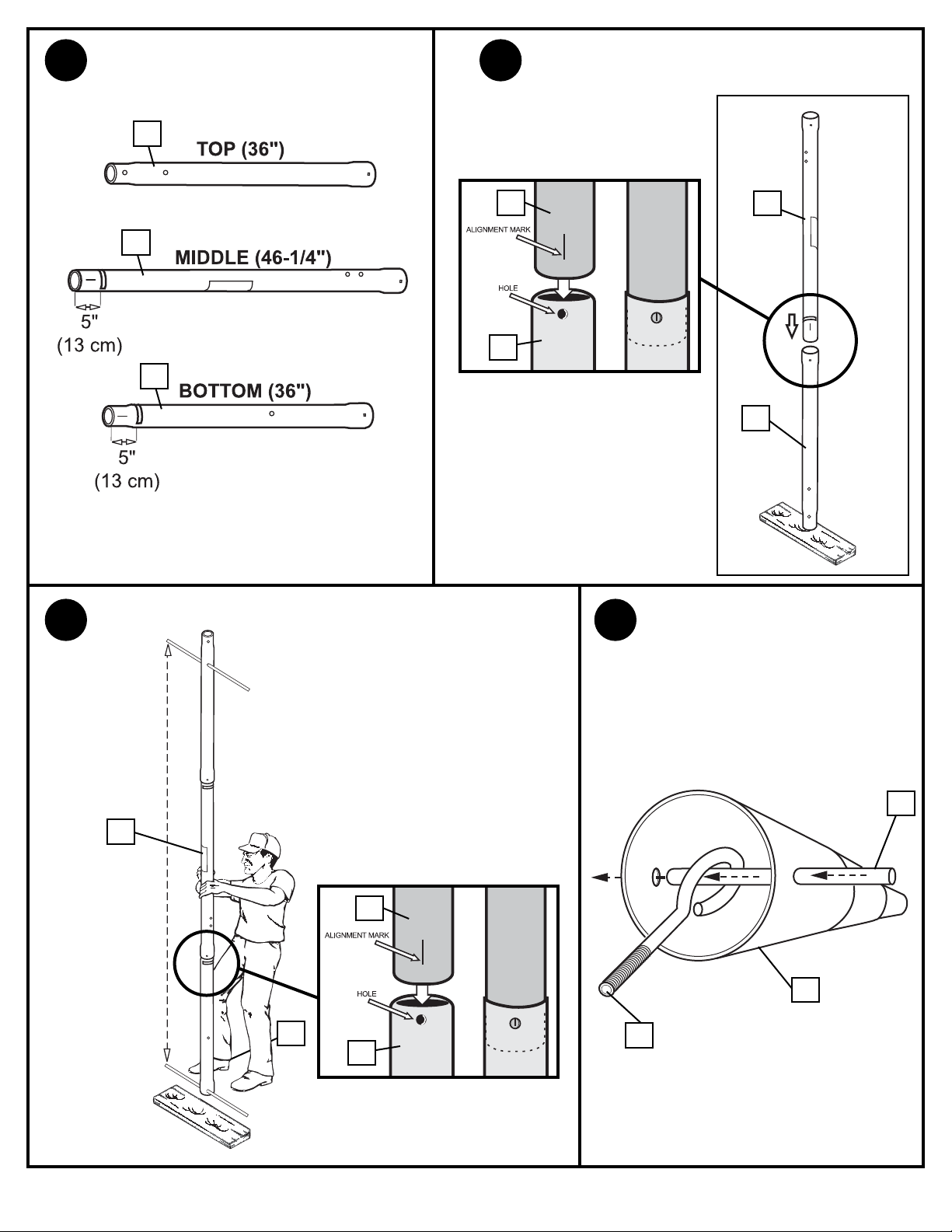

2. Correctly identify each pole section and mark indicated distance from ends

with tape as shown.

3. Align pole top and middle pole sections as shown using alignment mark and hole.

IMPORTANT! Holes in top (4) and middle pole (5) sections MUST align to correctly position elevator system toward playing surface.

Bounce pole top (4) and middle section (5) together as shown until they no longer move toward taped reference mark. NOTE: Pole sections should have a 3-1/2" (9 cm) minimum overlap.

4. IMPORTANT! Holes in top (4) and bottom pole (6) sections MUST align to correctly position elevator system toward playing surface.

Add bottom pole section (6) to assembly as shown using alignment mark and hole, and bounce until completely tight. Once assembled, pole sections CAN NOT be separated! NOTE: Pole sections should have a 3-1/2" (9 cm) minimum overlap.

5. Install rod (7) through holes in bottom pole section (6) and eyebolt (8).

6. Insert pole assembly into tank assembly as shown. Secure pole assembly

with upper pivot bracket (9) and lock nut (10).

7. Secure base struts (11) to pole using bolt (12), washers (13), and nut (14), as shown. Place vinyl bolt cover (46) over exposed bolt threads. Rotate the non-secured ends of base struts (11) as shown.

8. Secure base struts (11) to base using bolt (16), washers (13), and nut (17).

9. Insert carriage bolts (18) into middle set of holes on wheel bracket (19) as shown.

10. Attach lower pivot bracket (20) to wheel bracket (19) using bolt (21), washers (13), disc (22), and nut (10) as shown.

11. Attach handle bar (23) to wheel bracket assembly using nuts (17) as shown.

12. Install wheels (3) onto axle (24) and wheel bracket assembly with push caps (25) as shown.

13. Attach wheel bracket assembly to base assembly using bolt (26), washers (13), and nut (10) as shown.

14. NOTE: Two people recommended for this step. Carefully reposition entire assembly to upright position. Attach front of plastic handle (27) to back of plastic handle (28) around handle bar (23) using self-tapping screws (58) as shown.

IMPORTANT! Front of plastic handle (27) should face outward, away from pole assembly.

15. Insert bolts (30) through plastic handle assembly, handle bar (23) and

attach nuts (17) as shown. Tighten completely.

16. Install net clips (21).

The Quick Clip™ rapid release net system lets the net pull away from the rim. This reduces the risk of player injury or property damage. However, improper installation or a ball making contact at an odd angle may disengage the net clip from the goal rim. Usually, the clip is reinstalled with little or no problem. We hope that you agree this inconvenience is minor when compared to the safety of the players. Quick Clip: US Patent No. 5,792,010/5,795,253

The two outer hooks on net clip must face towards inside of goal rim. Insert larger hole in net clip onto rim stud, push down on net clip, then slide net clip right, locking or snapping securely into position (clips must "snap" into place to insure a secure fit). NOTE: Net clips should not slide with ease. It is very important that the net clips are in the locked position before going on to next step.

WARNING: USE OF THIS PRODUCT WITHOUT PROPER INSTALLATION OF NET CLIPS, OR WHEN ALL NET CLIPS ARE NOT PRESENT COULD RESULT IN BODILY HARM. BE SURE TO FOLLOW DIRECTIONS CAREFULLY.

17. Attach elevator bracket (33) to middle pole section (5) using bolts (34),

reinforcement bracket (29), and nuts (17) as shown.

18. Attach backboard support brackets (35) to the backboard frame using bolts (36), spacers (37), and nuts (38) as shown.

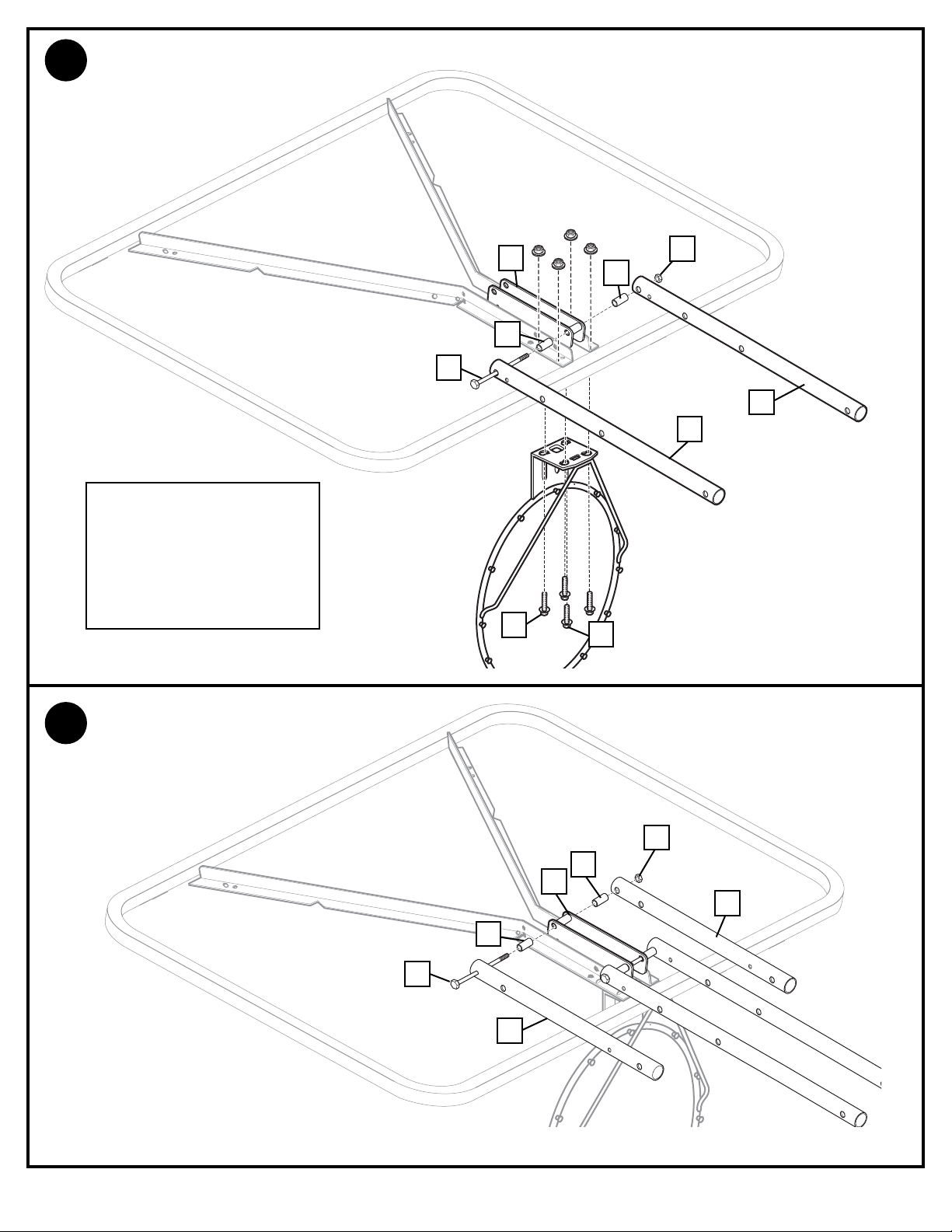

19. Attach lower elevator tubes (42) to backboard support brackets (35) using spacers (39), bolt (41), and nut (40) as shown. NOTE: Rim mounting nuts and bolts supplied with rim hardware. NOTE: DO NOT use washers here on spring return style rims.

20. Attach upper elevator tubes (45) to backboard support brackets (35) using spacers (43), bolt (44), and nut (40) as shown.

21. A.Attach upper and lower elevator tubes (45, 42) to upper pole

section (4) using bolts (44, 41) and nuts (40) as shown. Attach pole cap (48) as shown.

B.Attach counterbalance spring (48) to upper elevator tubes (45) with bolt

(49) and nut (14) in location shown. Stretch spring to lower elevator tubes (42) and attach with hardware (50, 10) as shown.

NOTE: Slide counterbalance spring against elevator tubes.

22. Insert locking pin (52) into bracket on adjustment tube (51). Insert cross

pin (53) through hole in bracket and locking pin (52) as shown in figure A. Fit left handle (54) onto adjustment tube (51) so the bottom of adjustment tube (51) sits on the two small ribs of the handle as shown in figure B.

23. Insert spring (56) into back of locking pin (52) as shown. Spring (56) should rest between two small ribs at the back of the plastic handle as shown in Figure C. Insert top of trigger (57) into bracket on the adjustment tube (51) as shown. The plastic post of the handle pieces should go through the hole in bottom of trigger (57) and hold it into place as shown.

24. Finish handle assembly by attaching right handle (55) using screws (58) as shown.

25. Attach adjustment tube (51) to lower elevator tubes (42) using bolt (41), spacers (59), and nut (40) as shown.

26. Insert lower adjustment rod (60) into bottom of adjustment tube (51), pull trigger to allow lower adjustment rod (60) to move about mid-way into adjustment tube (51), release trigger so the lower adjustment rod (60) locks into position midway inside adjustment tube (51). Attach lower adjustment rod (60) to elevator bracket (33) using bolt (61) and nut (14) as shown.

WARNING: TWO PERSON MINIMUM REQUIRED FOR THIS PROCEDURE. NOT FOLLOWING RECOMMENDATION MAY RESULT IN BODILY INJURY.

WARNING: DO NOT LEAVE ASSEMBLED UNIT UNATTENDED WHEN

EMPTY, MAY TIP OVER.

27. Roll the completed assembly to the desired playing area. Insert the

T-strap (15) through the slot on the back of the base as shown. Secure the unit to ground by twisting the tie down stake (62) into the ground and hooking the T-strap (15) onto the tie down stake (62). Fill tank with 33 gallons of water.

IMPORTANT! Add two gallons (7.6 Liters) of non-toxic antifreeze in sub-freezing climates.

WARNING: DO NOT LEAVE ASSEMBLY UNATTENDED WHEN EMPTY, MAY TIP OVER.

28. Apply the height adjustment and moving label (64) to the front of the pole

as shown.

29. Install net (65). IMPORTANT! Make sure net is held by all three hooks on the net clip.

A.Slide net into outer hook as shown. B.Slide net into second outer hook creating a loop as shown. Push loop

to back of clip.

C.Pull loop up and through back of clip, snapping over the middle hook. D.Pull net down to make sure it is held securely by all three hooks.

NOTE: If net releases during normal play, net was improperly installed.

Please review instructions to install net properly.

30. Lock elevator system into highest position (so the backboard is as high as it will go). Apply 10 ft. height indication sticker (66) to adjustment tube (51) directly below arrow on handle as shown. Move elevator system to the next position and apply the 91/2 ft. sticker. Repeat until all height settings have been labeled. (8-10ft.)

31. Pull trigger (57). Move elevator system up or down to desired height, release trigger (57) to lock system into one of the five height settings.

WARNING: DO NOT ALLOW CHILDREN TO ADJUST HEIGHT.

P/N 211488E 12/01

IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF THIS OWNERS MANUAL

+ 11 hidden pages
