Huffy AR325W User Manual

1
01/04 P/N 214955E
© COPYRIGHT 2000 by HUFFY SPORTS
Toll-Free Customer Service Number for U.S: 1-800-558-5234,
For Canada: 1-800-284-8339,
For Europe: 00 800 555 85234 (Sweden: 009 555 85234),
For Australia: 1-800-333 061
Internet Address: http://www.huffysports.com
Owners Manual
Customer Service Center
• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.
REQUIRED TOOLS AND
MATERIALS:
• Two People
• Tape Measure
• Wood Board (Scrap)
• Wrenches: (Two) 7/16”, 1/2”, 9/16”, 3/4” or Large and Small Adjustable Wrenches
• Safety Goggles
• Sawhorse or Support Table
• Step Ladder 8 ft. (2.4 m)
• Garden Hose or Sand (225 lb.) (102 kg)
• Hammer
• Tape
• Phillips Head Screw Driver
• Scissors
READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.
FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.
WARNING!
2
P/N 214955E 01/04
BEFORE YOU START!
To ensure optimal playability of backboard system, a close tolerance fit between the elevator
components and hardware is required. Test-fit large bolts into large holes of elevator tubes,
backboard brackets, and triangle plates. Carefully rock them in a circular motion to ream out
any excess paint from holes if necessary.
AVANT DE COMMENCER !
Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien
ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports
du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour
éliminer l'excédent de peinture, si nécessaire.
¡ANTES DE COMENZAR!
Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los
tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar
cualquier exceso de pintura, si es necesario.
VORBEREITENDE MASSNAHMEN
Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der
Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben
zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese
vorsichtig in einer Kreisbewegung hin- und herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen.
01/04 P/N 214955E
3
WARNING
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT
IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.
Owner must ensure that all players know and follow
these rules for safe operation of the system.
• DO NOT HANG on the rim or any part of the system including backboard, support braces or net.
• During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.
• Do not slide, climb, shake or play on base and/or pole.
• After assembly is complete, fill system completely with water or sand and stake to the ground. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.
• When adjusting height or moving system, keep hands and fingers away from moving parts.
• Do not allow children to move or adjust system.
• During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.
• Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.
• Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.
• Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.
• Check system before each use for proper ballast, loose hardware, excessive wear and signs corrosion and repair before use.
Check system before each use for instability.
• Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.
• Never play on damaged equipment.
• See instruction manual for proper installation and maintenance.
• When moving system, use caution to keep mechanism from shifting.
• Keep pole top covered with cap at all times.
• Do not allow water in tank to freeze. During sub-freezing weather add non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)
• Use extreme caution if placing system on sloped surface. System may tip over more easily.
201241 2/99
In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339
4
P/N 214955E 01/04
For more information on assembly, placement, proper use, and maintenance, visit The American Basketball Council website at http://www.smarthoops.com.
IMPORTANT!
Remove all contents from boxes.
Be sure to check inside pole sections;
hardware and additional parts are packed inside.
NOTICE TO ASSEMBLERS
ALL Huffy Sports Basketball Systems, including those used for DISPLAYS, MUST be assembled
and ballasted with sand or water according to the instructions. Failure to follow instructions
could result in SERIOUS INJURY. It is NOT acceptable to devise a makeshift weight system.
WARRANTY CARD:
Please remember to complete your product registration form either on-line at: www.huffysports.com or mail-in the enclosed postcard.
WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC BACKBOARD, EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE NUMBER FOR FREE REPLACEMENT: U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com
01/04 P/N 214955E
5
54
SAFETY INSTRUCTIONS
Most injuries are caused by misuse and/or not following instructions.
Use caution when using this system.
• If using a ladder during assembly, use extreme caution.
• Two (2) people are recommended for this operation.
• Check base regularly for leakage. Slow leaks could cause system to tip over unexpectedly.
• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or transport of the system.
• Climate, corrosion or misuse could result in system failure.
• Minimum operational height is 6'6" (1.98 m) to the bottom of backboard.
• This equipment is intended for home recreational use only and NOT excessive competitive play.
• Read and understand the warning label affixed to pole. Label is shown to the right.
• The life of your basketball pole depends on many conditions: climate, placement of pole, the location of pole, exposure to corrosives such as pesticides, herbicides or salts. These are all important factors.
• If technical assistance is required, contact Huffy Sports.
• Adult supervision is recommended when adjusting height.
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN
SERIOUS INJURY, PROPERTY DAMAGE AND WILL VOID WARRANTY.
Owner must ensure that all players know and follow these rules for safe
operation of the system.
To ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper and complete assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, and operated properly. Check entire box and inside all packing material for parts and/or additional instructional material. Before beginning assembly, read the instructions and identify parts using the hardware identifier and parts list in this document.
For more information on assembly, placement, proper use and maintenance, visit The American Basketball Council website at http://www.smarthoops.com.
HEIGHT ADJUSTMENT
TO ADJUST BACKBOARD:
1. While holding handle, remove pin.
2. Move elevator up or down to desired height.
3. Replace pin full length to lock system at desired height.
MOVING SYSTEM
1
2
3
4
1
3
2
2
1. Adjust basketball backboard height to lowest position.
2. While holding pole, rotate basketball system forward until wheels engage with ground.
3. Move basketball system to desired location.
4. Carefully rotate basketball system upright.
5. Reattach ground restraint and check system for stability.
201252 2/99
6
P/N 214955E 01/04
Get to know the basic parts of your basketball system.....
SUPPORT
STRUT
BACKBOARD
FRONT
RIM
BASE
POLE
FRONT PANEL
WHEELS
01/04 P/N 214955E
7
PARTS LIST - See Hardware Identifier
Item Qty. Part No. Description
1 1 206336 Tank 2 2 206330 Wheel Axle, 4-1/4 Long 3 2 226401 Wheel, 4“ (Black) 4 1 904847 Top Pole Section 5 1 908024 Middle Pole Section 6 1 908487 Bottom Pole Section 7 1 202820 Rod, 3/8 O.D. x 4-3/4 Long 8 1 202822 Eyebolt, 3/8-16 x 3-3/4 Long
9 1 202821 Disk, 2-3/4 Diameter 10 1 203063 Nylon Insert Lock Nut, 3/8-16 11 2 906410 Strut, 43” Long, With Flat Ends 12 1 203220 Nut, Ny-lock, 5/16-18 13 7 203218 Washer, 5/16 Flat 14 1 201625 Bolt,Yellow Dichromate,5/16-18 X 3.60
Long 15 2 203798 Bolt, Hex Flange, 5/16-18 x 1-1/2 Long 16 9* 203100 Hex Flange Nut 5/16-18 17 1 204832 Bracket, Pole Mount 18 2 203231 Carriage Bolt, 5/16-18 x 3-1/2 Long 19 4 203232 Washer, Metal, 3/4” O.D. 20 4* 201124 Lock Nut, Hex Head, 3/8-16 21 4 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long 22 2 204858 Spacer, Biscuit, Plastic 23 2 204857 Spacer, Metal 1/2” O.D.x1.44 Long 24 2 204859 Cover, Spring 25 1 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long 26 1 204850 Pin, Locking 27 1 204853 Lanyard, Black Coil 28 1 904833 Height Adjustment Rod 29 1 204872 Label, Height Indicator 30 2 203103 Carriage Bolt, 5/16-18 x 2 Long
Item Qty. Part No. Description
31 1 204803 Screw, Phillips Head 32 1 204855 Handle, Left 33 1 204856 Handle, Right 34 2 900964 Board Bracket 35 1 203255 Front Cover 36 2 200874 Spacer, Steel .402 I.D. x .50 O.D. x 1.5
Long 37 1 206990 Reinforcement Bracket 38 4 201681 Spacer, Plastic, .530 I.D. x .875 Long 39 7 206340 Lock Nut, Hex Head, 1/2-13 40 2 904808 Elevator Tube, Lower - Long 41 1 204837 Spring 42 1 Rim 43 2 904820 Elevator Tube, Upper - Short 44 2 201682 Spacer, .530 I.D. x 1.875 Long 45 2 900867 Plate, Triangle, (Black) 46 1 202814 Cap, Pole Top 47 6 206244 Bolt, Hex, 1/2-13 x 8 Long 48 1 204870 Bolt, Hex, 1/2-13 x 3-1/2 Long 49 2 203617 Plug Cap 50 12 201219 Smart Clip, Net Holder 51 1 Net 52 1 201568 Anchor, T-Strap 53 1 203124 Stake, Tie Down 54 1 201252 Label, Height Adjustment and Moving 55 4* 205528 Bolt, Hex Flange, 5/16-18 x 1 Long 56 4* 203257 Zip Tie 57 4 201683 Spacer, 530 I.D. x1.5 Long
* YOU MAY HAVE EXTRA PARTS WITH THIS MODEL.
* You may have extra parts with this model.
HARDWARE IDENTIFIER (CONTINUED)
HARDWARE IDENTIFIER (BOLTS & WASHERS)
Item #10 (1)
Item #12 (1)
Item #13 (7)
Item #16 (9)*
Item #39 (7)
Item #9 (1)
Item #20 (4)*
Item #19 (4)
8
P/N 214955E 01/04
* You may have extra parts with this model.
Item #8 (1)
Item #15 (2)
Item #18 (2)
Item #25 (1)
Item #30 (2)
Item #31 (1)
HARDWARE IDENTIFIER (BOLTS & SCREWS)
Item #47 (6)
Item #55 (4)*
Item #21 (4)
Item #14 (1)
Item #48 (1)
01/04 P/N 214955E
9
Item #23 (2)
Item #22 (2)
Item #36 (2)
Item #44 (2)
Item #57 (4)
Item #38 (4)
Item #50 (12)
Item #2 (2)
Item #7 (1)
HARDWARE IDENTIFIER (STEEL SPACERS & RODS)
HARDWARE IDENTIFIER (PLASTIC SPACERS & CLIPS)
10
P/N 214955E 01/04
Insert axle rod (2) through wheel (3), as shown. Secure wheel assembly to tank (1) by tapping wheel downward with hammer, snapping it into position. Repeat for opposite side, then carefully, turn tank (1) over.
Remove all contents from underside of tank. Keep tank (1) bottom side up
1
3
2
1
4
5
6
Mark pole sections with tape as shown.
TAPE (not included)

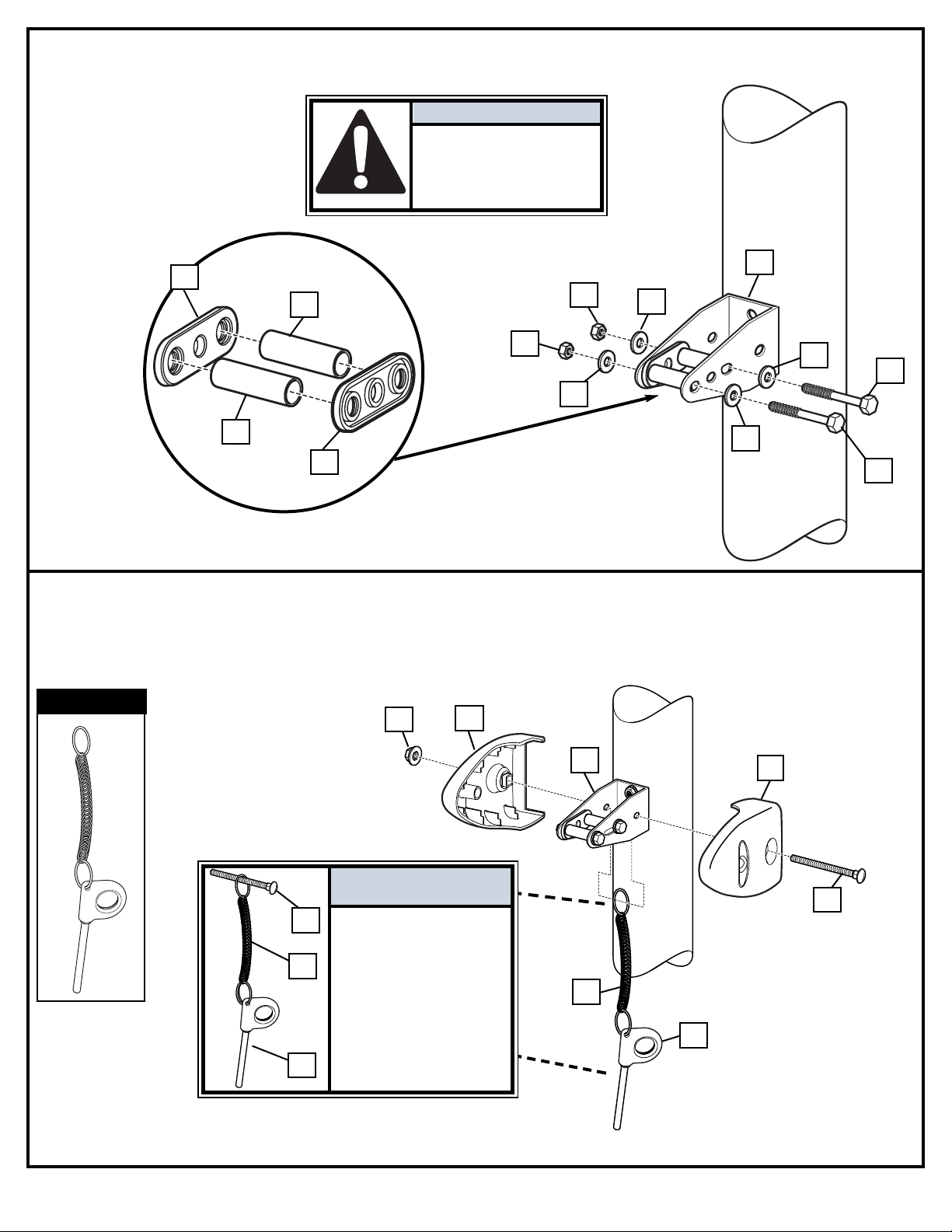

1.
2.
3.
