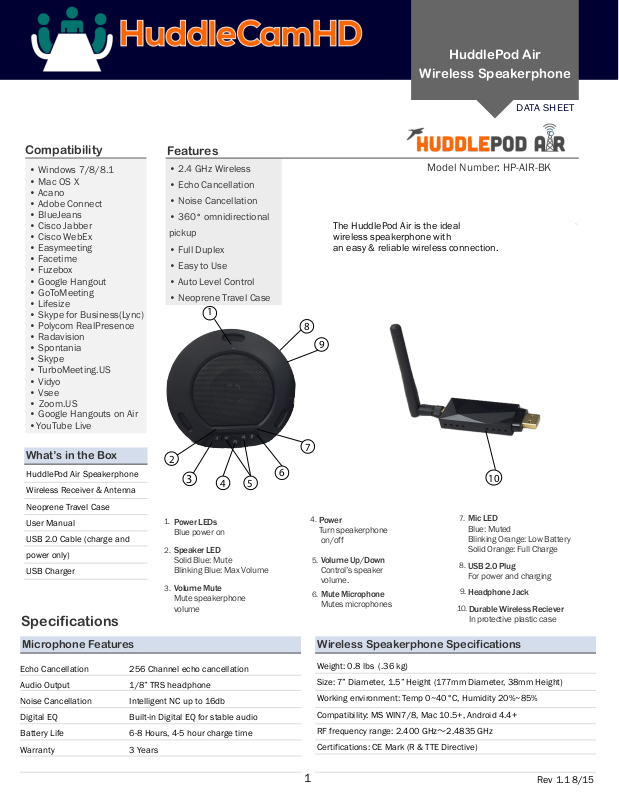

HuddlePod Air
Wireless Speakerphone
DATA SHEET
Compatibility
• Windows 7/8/8.1
• Mac OS X
• Acano
• Adobe Connect
• BlueJeans
• Cisco Jabber
• Cisco WebEx
• Easymeeting
• Facetime
• Fuzebox
• Google Hangout
• GoToMeeting
• Lifesize
• Skype for Business(Lync)
• Polycom RealPresence
• Radavision
• Spontania
• Skype
• TurboMeeting.US
• Vidyo
• Vsee
•
Zoom.US
• Google Hangouts on Air
YouTube Live
•
Features
• 2.4 GHz Wireless
• Echo Cancellation
• Noise Cancellation
• 360° omnidirectional
pickup
• Full Duplex
• Easy to Use
• Auto Level Control
• Neoprene Travel Case
1
HP-AIR-BA-BK
Model Number: HP-AIR-BK
The HuddlePod Air is the ideal
wireless speakerphone with
an easy & reliable wireless connection.
8
9
What’s in the Box
HuddlePod Air Speakerphone
Wireless Receiver & Antenna
Neoprene Travel Case
User Manual
USB 2.0 Cable (charge and
power only)
USB Charger
2
3
1.
Power LEDs
Blue power on
2.
Speaker LED
Solid Blue: Mute
Blinking Blue: Max Volume
3.
Volume Mute
Mute speakerphone
volume
4
6
5
Specifications
Microphone Features
Echo Cancellation 256 Channel echo cancellation
Audio Output 1/8” TRS headphone
Noise Cancellation Intelligent NC up to 16db
Digital EQ Built-in Digital EQ for stable audio
Battery Life 6-8 Hours, 4-5 hour charge time
Warranty 3 Years
7
10
Mic LED
4.
Power
Turn speakerphone
on/off
Volume Up/Down
5.
Control’s speaker
volume.
6.
Mute Microphone
Mutes microphones
7.
Blue: Muted
Blinking Orange: Low Battery
Solid Orange: Full Charge
8.
USB 2.0 Plug
For power and charging
9.
Headphone Jack
10.
Durable Wireless Reciever
In protective plastic case
Wireless Speakerphone Specifications
Weight: 0.8 lbs (.36 kg)
Size: 7” Diameter, 1.5” Height (177mm Diameter, 38mm Height)
Working environment: Temp 0~40°C, Humidity 20%~85%
Compatibility: MS WIN7/8, Mac 10.5+, Android 4.4+
RF frequency range: 2.400 GHz〜2.4835 GHz
Certifications: CE Mark (R & TTE Directive)
1
Rev 1.1 8/15
Reliable USB Conference Cameras
From 3X - 30X, We’ve got you covered
Product Line
HC3X-BK-G2
HC10X-720-BK
HC3XW-GY-G2
HC10X-GY-G3
HC20X-GY-G2
HC30X-GY-G2
Control Accessories
HC-JOY RS232, RS485, RS422, 3D Joystick and Keyboard, VISCA, Pelco-P, Pelco-D
DB9M-F-xx
VISCA-xx
HC3X-WH-G2
HC10X-720-WH
HC3XW-WH-G2
HC10X-WH-G3
HC20X-WH-G2
HC30X-WH-G2
3X optical zoom, 36-81° HFOV, USB 2.0 video up to 1080P-30
10X optical zoom, 7-57° HFOV, USB 2.0 video up to 720P-30
3X optical zoom, 33-92° HFOV, USB 3.0 video up to 1080P-30
10X optical zoom, 8-61° HFOV, USB 3.0 video up to 1080P-30
20X optical zoom, 5-58° HFOV, USB 3.0 video up to 1080P-30
30X optical zoom, 4-63° HFOV, USB 3.0 video up to 1080P-30
Extension Cable, DB9M-F, Plenum, 4 lengths shown in ft. (xx=25, 50, 75, 100)
Daisy Chain Cable, miniDIN8-MM, Plenum, 4 lgs in ft. (xx=25, 50, 75, 100)
Mounting Accessories
HCM-1-BK
HCM-2-BK HCM-2-WH
HCM-2C-WH
PT-CM-1-BK
Conference Audio
HP-AIR-BK
HP-AIR-BA-BK
HCM-1-WH
HP-AIR-WH
Small Wall Mount, mounts directly to wall or box with supplied hardware
Large Wall Mount, mounts directly to wall or box with supplied hardware
Small Open Ceiling Mount, mounts to 1”NPT pipeHCM-1C-WH
Large Open Base Ceiling Mount, mounts to 1”NPT pipe
Surface Ceiling Mount, mounts directly to ceil or box w/ supplied hardware
Wireless Speakerphone with USB receiver
Wireless Speakerphone with USB receiver and external amplier feed
152 Robbins Road Downingtown, PA 19335 HuddleCamHD.com 800-486-5276
