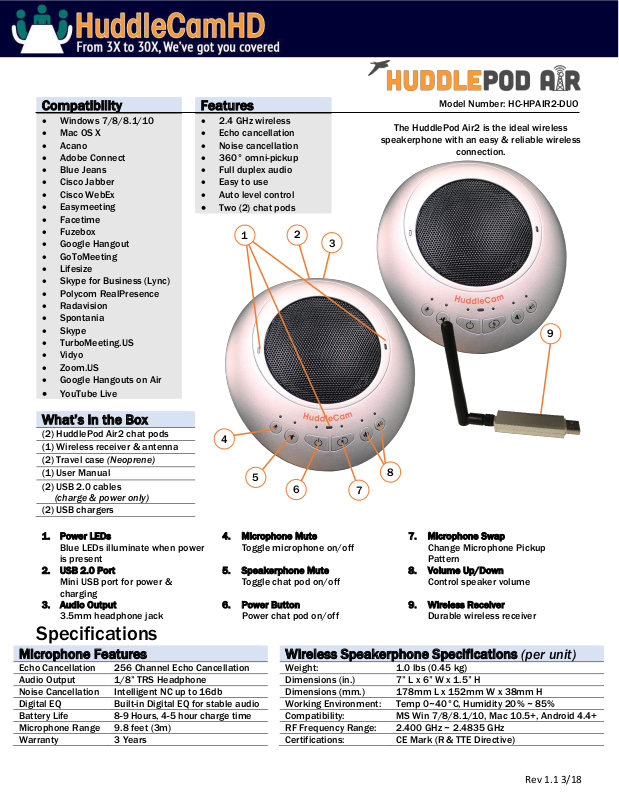

Page 1
Rev 1.1 3/18
Specifications
Compatibility
Features
• Windows 7/8/8.1/10
• Mac OS X
• Acano
• Adobe Connect
• Blue Jeans
• Cisco Jabber
• Cisco WebEx
• Easymeeting
• Facetime
• Fuzebox
• Google Hangout
• GoToMeeting
• Lifesize
• Skype for Business (Lync)
• Polycom RealPresence
• Radavision
• Spontania
• Skype
• TurboMeeting.US
• Vidyo
• Zoom.US
• Google Hangouts on Air
• YouTube Live
• 2.4 GHz wireless
• Echo cancellation
• Noise cancellation
• 360° omni-pickup
• Full duplex audio
• Easy to use
• Auto level control
• Two (2) chat pods
What’s in the Box
(2) HuddlePod Air2 chat pods
(1) Wireless receiver & antenna
(2) Travel case (Neoprene)
(1) User Manual
(2) USB 2.0 cables
(charge & power only)
(2) USB chargers
1.
Power LEDs
4.
Microphone Mute
7.
Microphone Swap
Blue LEDs illuminate when power
is present
Toggle microphone on/off
Change Microphone Pickup
Pattern
2.
USB 2.0 Port
5.
Speakerphone Mute
8.
Volume Up/Down
Mini USB port for power &
charging
Toggle chat pod on/off
Control speaker volume
3.
Audio Output
6.
Power Button
9.
Wireless Receiver
3.5mm headphone jack
Power chat pod on/off
Durable wireless receiver
Microphone Features
Wireless Speakerphone Specifications (per unit)
Echo Cancellation
256 Channel Echo Cancellation
Weight:
1.0 lbs (0.45 kg)
Audio Output
1/8” TRS Headphone
Dimensions (in.)
7” L x 6” W x 1.5” H
Noise Cancellation
Intelligent NC up to 16db
Dimensions (mm.)
178mm L x 152mm W x 38mm H
Digital EQ
Built-in Digital EQ for stable audio
Working Environment:
Temp 0~40°C, Humidity 20% ~ 85%
Battery Life
8-9 Hours, 4-5 hour charge time
Compatibility:
MS Win 7/8/8.1/10, Mac 10.5+, Android 4.4+
Microphone Range
9.8 feet (3m)
RF Frequency Range:
2.400 GHz ~ 2.4835 GHz
Warranty
3 Years
Certifications:
CE Mark (R & TTE Directive)
The HuddlePod Air2 is the ideal wireless
speakerphone with an easy & reliable wireless
connection.
1 7 5 8 9 2 4
2
3
6
Model Number: HC-HPAIR2-DUO
Page 2
152 Robbins Road Downingtown, PA 19335 HuddleCamHD.com 800-486-5276
Camera Line
HC-GO-BK
HC-GO-WH
USB-powered, 110° HFOV, all-in-one Camera, Mic, & Speakerphone
HC3X-BK-G2
HC3X-WH-G2
3X optical zoom, 74° HFOV, USB 2.0 video up to 1080p-30
HC3XA-BK
HC3XA-WH
3X opt zoom w/ built in mic array, 74° HFOV USB 2.0 video up to 1080p-30
HC3XW-GY-G2
HC3XW-WH-G2
3X Wide optical zoom, 90° HFOV, USB 3.0 video up to 1080p-30
HC10X-720-BK
HC10X-720-WH
10X optical zoom, 57° HFOV, USB 2.0 video up to 1080p-30
HC10XA-BK
HC10XA-WH
10X opt zoom w/ built in mic array, 57° HFOV USB 2.0 video up to 1080p-30
HC10X-GY-G3
HC10X-WH-G3
10X optical zoom, 61° HFOV, USB 3.0 video up to 1080p-30
HC20X-GY-G2
HC20X-WH-G2
20X optical zoom, 58° HFOV, USB 3.0 video up to 1080p-30
HC30X-GY-G2
HC30X-WH-G2
30X optical zoom, 63° HFOV, USB 3.0 video up to 1080p-30
HC-SIMPLTRACK-TP
HC-SIMPLTRACK-CM
20X optical zoom, 59° HFOV, Auto tracking camera w/ video up to 1080p-60
Control Accessories
HC-JOY-G2
RS232, RS485, & RS422 3D joystick, VISCA, Pelco-P, Pelco-D
DB9M-F-xx
VISCA-xx
VISCA RS232 Plenum cable, 4 lengths shown in ft. (xx=25, 50, 75, 100)
Mounting Accessories
HCM-1-BK
HCM-1-WH
Small Wall Mount, mounts directly to wall or box with supplied hardware
HCM-2-BK
HCM-2-WH
Large Wall Mount, mounts directly to wall or box with supplied hardware
HCM-1C-WH
HCM-2C-WH
Small/Large open ceiling mount, mounts to 1” NPT pipe
PT-CM-1-BK
PT-CM-1-WH
Surface Ceiling Mount, mounts directly to ceiling or box w/ supplied hardware
Conference Audio
HP-AIR-BK
HP-AIR-WH
Wireless Speakerphone with USB receiver
HP-AIR-BA-BK
Wireless Speakerphone with USB receiver and external amplifier feed
HP-AIR2-DUO
Dual Wireless Speakerphones with USB receiver
