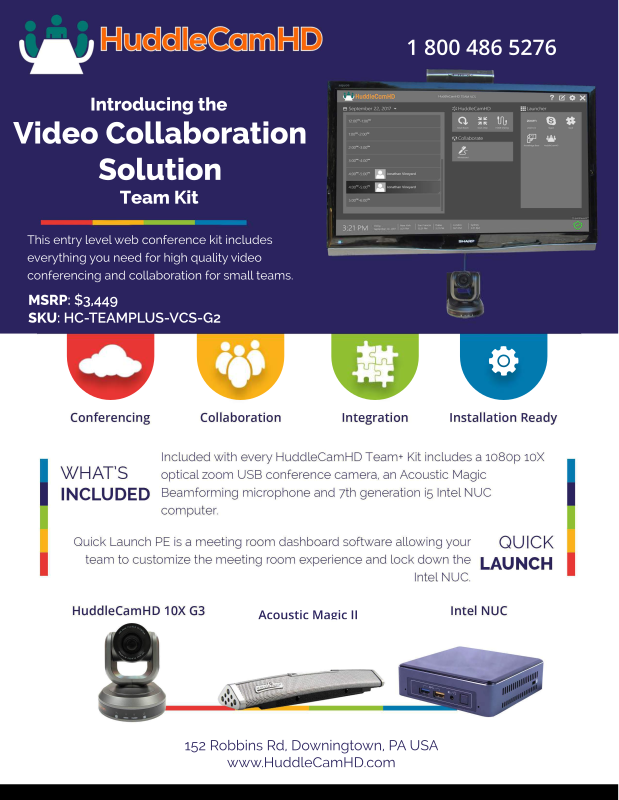

Introducing the
Video Collaboration
Solution
Team Kit
This entry level web conference kit includes
everything you need for high quality video
conferencing and collaboration for small teams.
MSRP: $3,449
SKU: HC-TEAMPLUS-VCS-G2
1 800 486 5276
Acoustic Magic II
152 Robbins Rd, Downingtown, PA USA
www.HuddleCamHD.com
152 Robbins Rd Downingtown, PA 19335, USA
Phone: 800 - 486 5276 Fax: (610) 518 2200 eMail: sales@HuddleCamHD.com
PRODUCT DATA SHEET
* LCD & LCD mount not included with system.
ONE SYSTEM FOR ANY SOFTWARE
Quicklaunch is an easy-to-use multi-platform, one-click/one-touch application to join
meetings, start applications, access data, play media, showcase your organization’s content
and business intelligence assets. It’s included in both of our VCS kits for a easy to manage
conference space.
QUICKLAUNCH BENEFITS
Enhance Productivity
Simplify the complicated collabora-
tion experience with easy to use
“one click” application launching.
Customize your meeting workspace
Consistant and easy user experience
Use in open or locked down modes.
Open Platform
Easy integration with the leading video
conferencing software including: Blue-
jeans, Vidyo, Skype and GoToMeeting.
Easily switch between the persistent
toolbar and desktop view with custom-
ized and tiered buttons
Always in the state you expect with your
organization’s look and feel.
Safe, Secure & Manageable
For IT departments, it reduces training
and support cost by providing a secure
and manageable interface.
Keep your confidential data secure with
the ‘Room Reset’ feature
Optional ‘lock-down’ mode to restrict
Optional ‘lock-down’ mode to restrict
usage of your Quicklaunch device and
protect it against unwanted changes.
Please check HUDDLECAMHD.com for
the most up to date version of this document 1 Rev 1.5 9/17
From 3X - 30X, We’ve got you covered
Model Number:
HC10X-GY-G3 (Black)
HC10X-WH-G3(White)
https://huddlecamhd.com
/10x-g3/
Conferencing Camera
The HuddleCamHD 10X is ideal for small to medium sized meeting rooms.
Comes standard with a certified SONY lens.
• 10X Optical Zoom
• USB 3.0 (requires
quad-core processor)
• USB 2.0 (Reduced FPS)
• RS-232
• 1920 x 1080
• 61° Field of View
• Up to 30 fps
• 64 Presets
• IR Remote
1. Lens
4. Standby LED
7. VISCA IN Port
10x Optical Zoom
Orange LED blinks
for Stand-By status
Used for connecting hard-wired
joystick for camera control
2. IR Receiver
5. USB 3.0 Interface
8. VISCA OUT Port/RS-485
To receive IR remote
controller signal
For connection to PC USB
3.0 port (also compatible
w/ USB 2.0 port & driver)
Used for daisy chaining multiple
units in a succession with a hard
wired joystick for camera control
3. Power LED
6. IR Select Switch
9. DC In 12V Socket
Blue LED lights when
unit is powered and is
dark in standby mode.
Control up to 3 cameras
through a single IR remote
Only use the power adapter
supplied with this camera
Image Sensor & Lens
Physical
Video CMOS Sensor 1/2.8” CMOS, 2.1 Mega Pixel
Material Aluminum, Plastic
Resolution 1080p-30/25, 720p-30/25
Dimensions (in.) 5.7W x 6.3H x 6.0D (7.4H max w/ tilt)
Frame Rate up to 30fps (MJPEG)
Dimensions (mm) 145 x 160 x 151 (188H max w/ tilt)
Lens Zoom 10X Optical Zoom f=4.7-47mm
Weight 2.4 lbs (1.1 kg)
Field of View 8° (tele) to 61° (wide)
Box Dimensions 12.1”W x 9.5”H x 9.6”D (307mm x 241mm x 244mm)
Pan/Tilt Movement
Boxed Weight 5.6 lbs (2.54 kg)
Pan Movement ±340°
Operating Temperature 32°F to 113°F (0°C to 45°C)
Tilt Rotation Up: 90°, Down: 30°
Colors Gray, White
Presets 64 Presets
Rear Board Connectors
Electrical Index
Video Interface USB 3.0
Power Supply Adapter 12V DC 2A
Controller Signal Interface Mini DIN-8 (VISCA IN/OUT, PELCO-D IN/OUT)
Input Voltage 12V DC (10.5-14V DC)
Controller Signal Config. Dip-Switch Pin 7/TTL Signal
Input Power 24W (Max)
Baud Rate 9600 bps
Working Environment Indoor
Power Supply Interface DC 12V 2A
Other
Quality Management System
Mfg. Warranty 2 Years Parts & Labor
QMS Certified ISO9001: 2008
• 10X Zoom USB 3.0 Camera
• 12V/2.0A DC Power Adapter
• Installation Bracket & Screw
• USB 3.0 Data Cable (3m)
• Serial Control Cable
• RS-232C to RS-485 Adaptor
• IR Remote Control
• User Manual
(also available online)
1 2 3 4 2 5 6 7 8
9
DATA SHEET HuddleCamHD Camera Specifications
152 Robbins Road Downingtown, PA 19335 HuddleCamHD.com 800-486-5276
Compatibility
• Windows 7/8/8.1/10
• Mac OSX
• Acano
• Adobe Connect
• Blue Jeans
• Cisco Jabber
• Cisco Webex*
• Easy Meeting
• Facetime
• Fuzebox
• Google Hangouts
• GoToMeeting
• Lifesize
• Skype for Business (Lync)
• Polycom Real Presence
• Radavision
• Spontania
• Skype
• TurboMeeting US
• Vidyo
• Zoom.US
• Google Hangouts on Air
• YouTube Live
• Any app that supports the
UVC camera interface
*These apps do not support
Image Flip
IR Remote Control Functionality
1. Reset
Restarts the camera and restores
it to Factory Default settings.
(Note: Will delete all saved
settings and presets.)
2. Camera Selection
Select which Camera to control via
IR: 1, 2 or 3
3. Preset Positions
1-9: Preset Positions
Set: Set a Preset Position
Clear: Clear a Preset Position
Call: Call a Preset Position
Note: If you want to set (or call)
the first preset position to 1, you
simply press number key “1”, then
press ”Set” or “Call” to set (call)
the position.
4. Fast Zoom In/Out Control Zone
+: Zoom In quickly
-: Zoom Out quickly
5. Pan/Tilt Controller
Tilt Up
Tilt Down
Pan Left
Pan Right
Auto Pan (through Full pan
range)
6. Additional Function Zone
Model Dependent Functions
Not applicable to this model
7. Power Supply Switch
Switch for turning camera on/off
(i.e. Working mode vs. Stand-By
mode)
8. OSD Menu Zone
Model Dependent Functions
Not applicable to this model
9. Slow Zoom In/Out Control Zone
+: Zoom In slowly
-: Zoom Out slowly
10. Focus Control Zone
Auto: Turn on Auto Focus
Manual: Turn on Manual Focus
Far: Set focus at a farther distance
(requires Manual Focus)
Near: Set focus at a nearer
distance (requires Manual Focus)
11. Pan/Tilt Function Zone
Home: Go to camera’s Home
position
Rev: Enable image flip for ceiling
mounting
L-Limit: Sets left limit for Scan
feature
R-Limit: Sets right limit for Scan
feature
Scan: Auto pan to L&R limits
Tour: Auto tour of all saved
presets
Model Number:
NUC-I5-G3
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• • • • • • • • • • • • • • •
•
•
•
•
• • • • • • •
•
•
•
Model Number:
VOICETRACKER201
•
•
•
•
•
•
•
•
•
•
•
• • • • • • •
•
•
• • • • • • •
•
•
•
•
•
•
Model Number:
N9Z-00001
1
2 3 4
5
HuddleCamHD
Small Universal
Wall Mount
DATA SHEET
Small Universal Wall Mount
Features
• Mounts directly to wall with supplied hardware
• Black powder coat finish provides long lasting durability
• Universally compatible with all center mount cameras
• Mounting hardware included
• 3 Year Warranty
Compatibility
• All small base HuddleCamHD Cameras
• All PTZOptics Cameras
• Most small based SONY,
Panasonic, Cisco, Polycom
and Vaddio cameras with
a 1/4-20 mounting hole.
1
HuddleCamHD
Model Number: HCM-1
Cable Access
4.8” univeral metal
camera tray.
4
This Universal Thin Profile Wall Mount was
designed specifically for an ideal way to
wall mount a camera above or below a plasma
or LCD monitor. Constructed from heavy
gauge steel, this mount comes with a 3
year manufacture warranty.
2
Slot for 1/4-20 machine screw
1.
Secures camera to mount.
2.
Mount Base
5 11/16” wide univeral metal
camera tray.
3. Cable Access
Convenient cable access
under mount or through
wall.
Specifications
Size & Weight
Dimensions (in.): 5-11/16W x 8-5/16D x 5-1/16H
Dimensions (mm.) 145W x 212D x 129H
Weight (lbs.) 1.9
Weight (kg.) 0.84
3
4.
Wall Mounting Holes
Precut 4 post pattern
fits U.S. doublegang box.
What’s in the Box
Camera Mount
Mounting Hardware: (4) Mounting Screws & Washers
(4) Drywall/Masonary Anchors
(1) Quarter Twenty bolt
(4) Device mounting screws for 2-Gang Box
1
Rev. 1.0 9/15
Reliable USB Conference Cameras
From 3X - 30X, We’ve got you covered
Product Line
HC3X-BK-G2
HC10X-720-BK
HC3XW-GY-G2
HC10X-GY-G3
HC20X-GY-G2
HC30X-GY-G2
Control Accessories
HC-JOY RS232, RS485, RS422, 3D Joystick and Keyboard, VISCA, Pelco-P, Pelco-D
DB9M-F-xx
VISCA-xx
HC3X-WH-G2
HC10X-720-WH
HC3XW-WH-G2
HC10X-WH-G3
HC20X-WH-G2
HC30X-WH-G2
3X optical zoom, 36-81° HFOV, USB 2.0 video up to 1080P-30
10X optical zoom, 7-57° HFOV, USB 2.0 video up to 720P-30
3X optical zoom, 33-92° HFOV, USB 3.0 video up to 1080P-30
10X optical zoom, 8-61° HFOV, USB 3.0 video up to 1080P-30
20X optical zoom, 5-58° HFOV, USB 3.0 video up to 1080P-30
30X optical zoom, 4-63° HFOV, USB 3.0 video up to 1080P-30
Extension Cable, DB9M-F, Plenum, 4 lengths shown in ft. (xx=25, 50, 75, 100)
Daisy Chain Cable, miniDIN8-MM, Plenum, 4 lgs in ft. (xx=25, 50, 75, 100)
Mounting Accessories
HCM-1-BK
HCM-2-BK HCM-2-WH
HCM-2C-WH
PT-CM-1-BK
Conference Audio
HP-AIR-BK
HP-AIR-BA-BK
HCM-1-WH
HP-AIR-WH
Small Wall Mount, mounts directly to wall or box with supplied hardware
Large Wall Mount, mounts directly to wall or box with supplied hardware
Small Open Ceiling Mount, mounts to 1”NPT pipeHCM-1C-WH
Large Open Base Ceiling Mount, mounts to 1”NPT pipe
Surface Ceiling Mount, mounts directly to ceil or box w/ supplied hardware
Wireless Speakerphone with USB receiver
Wireless Speakerphone with USB receiver and external amplier feed
152 Robbins Road Downingtown, PA 19335 HuddleCamHD.com 800-486-5276
