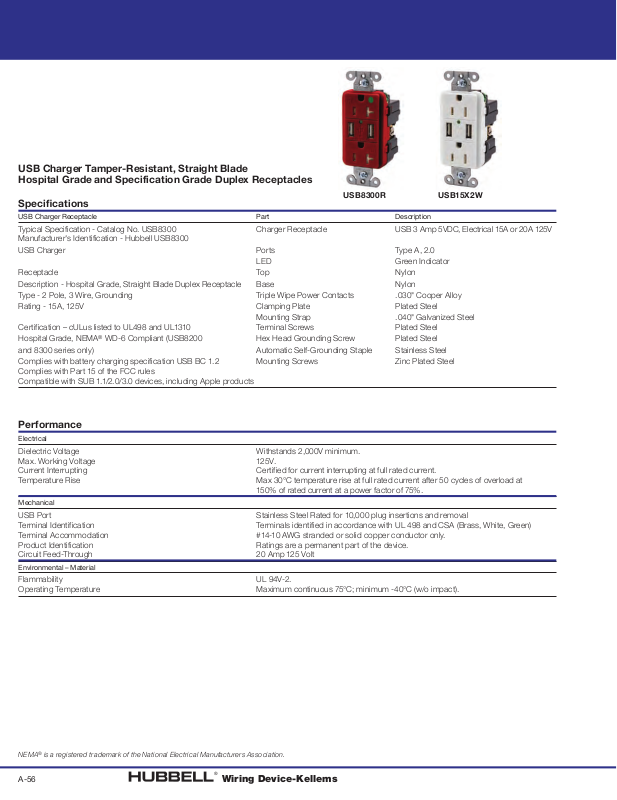

Hubbell USB8300R, USB15X2W Technical Data
USB Charger Tamper-Resistant, Straight Blade
Hospital Grade and Specification Grade Duplex Receptacles
Specications
USB8300R USB15X2W
USB Charger Receptacle Part Description
Typical Specification - Catalog No. USB8300 Charger Receptacle USB 3 Amp 5VDC, Electrical 15A or 20A 125V
Manufacturer's Identification - Hubbell USB8300
USB Charger Ports Type A, 2.0
LED Green Indicator
Receptacle Top Nylon
Description - Hospital Grade, Straight Blade Duplex Receptacle Base Nylon
Type - 2 Pole, 3 Wire, Grounding Triple Wipe Power Contacts .030" Cooper Alloy
Rating - 15A, 125V Clamping Plate Plated Steel
Mounting Strap .040" Galvanized Steel
Certification – cULus listed to UL498 and UL1310 Terminal Screws Plated Steel
®
Hospital Grade, NEMA
WD-6 Compliant (USB8200 Hex Head Grounding Screw Plated Steel
and 8300 series only) Automatic Self-Grounding Staple Stainless Steel
Complies with battery charging specification USB BC 1.2 Mounting Screws Zinc Plated Steel
Complies with Part 15 of the FCC rules
Compatible with SUB 1.1/2.0/3.0 devices, including Apple products
Performance
Electrical
Dielectric Voltage Withstands 2,000V minimum.
Max. Working Voltage 125 V.
Current Interrupting Certified for current interrupting at full rated current.
Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at
Mechanical
USB Port Stainless Steel Rated for 10,000 plug insertions and removal
Terminal Identification Terminals identified in accordance with UL 498 and CSA (Brass, White, Green)
Terminal Accommodation #14-10 AWG stranded or solid copper conductor only.
Product Identification Ratings are a permanent part of the device.
Circuit Feed-Through 20 Amp 125 Volt
Environmental – Material
Flammability UL 94V-2.
Operating Temperature Maximum continuous 75°C; minimum -40°C (w/o impact).
150% of rated current at a power factor of 75%.
NEMA® is a registere d trademark of the National Electrical Manufacturers Association.
A-56
®
Wiring Device-Kellems
