Hubbell UE24 User Manual

INSTALLATION and MAINTENANCE INSTRUCTIONS

UE24 UNIVERSAL CABLE REEL-DIRECT DRIVE

All units are provided with right hand rotation unless otherwise specified. This means that cable is pulled off spool top left or bottom right (spool rotates clockwise to wind cable) when viewing spring end of reel. See diagram on parts page.

Clock-type springs provide power for automatic cable take-up. Spring must be pretensioned at time of installation to insure that tension is applied to cable at all times. Atension adjustment spanner wrench is provided with each reel.

WARNING

Some reels with large or multiple springs are equipped with

a ratcheted adjustment wrench. Follow separate instruc-

tions for its use. Failure to use ratcheted wrench, on reels

so equipped, could result in serious personal injury.

WARNING

Do not attempt to relieve spring tension using span-

ner wrench. Doing so may result in personal injury.

INSTALLATION

1. Insure that machinery to be serviced by reel is at position

closest to reel.

2. Securely mount reel in desired position using 1/2"(M12)

bolts. Be sure spool is aligned with cable run.

3. Position optional cable guide, if reel is so equipped.

See COMPONENT REFERENCE DRAWING.

4. Connect free end of cable to junction box on machine or

adjust cable stop so that desired length of cable extends from reel.

5. Remove cover plate on spring housing to expose

shaft and spring hub. (See Figure 1).

6. Insert spanner wrench into holes in spring hub (Fig 2).

Rotate wrench counterclockwise (for standard rotation). Number of 360 number on serial plate.

turns should match last digit in model

If model number includes an “R”, reel is reverse rotation and wrench must be rotated clockwise.

(See “TO DETERMINE ROTATION OF REEL”

on parts drawing page.)

COUNTER-

CLOCKWISE

FOR STANDARD

ROTATION

SPANNER

WRENCH

Figure 1

SPRING

HOUSING

SPRING

HUB

COVER

PLATE

Figure 2

CAUTION

Do not exceed number of turns indicated on

serial plate. Over-tensioning can cause a

broken spring, sheared shaft or other damage.

NOTE: If reel is equipped with ratcheted adjustment

wrench, follow instructions on separate sheet.

NOTE: On reels containing more than one spring, the hubs

are connected at the factory. Therefore, by tightening the

outer spring, the inside spring(s) will be tightened.

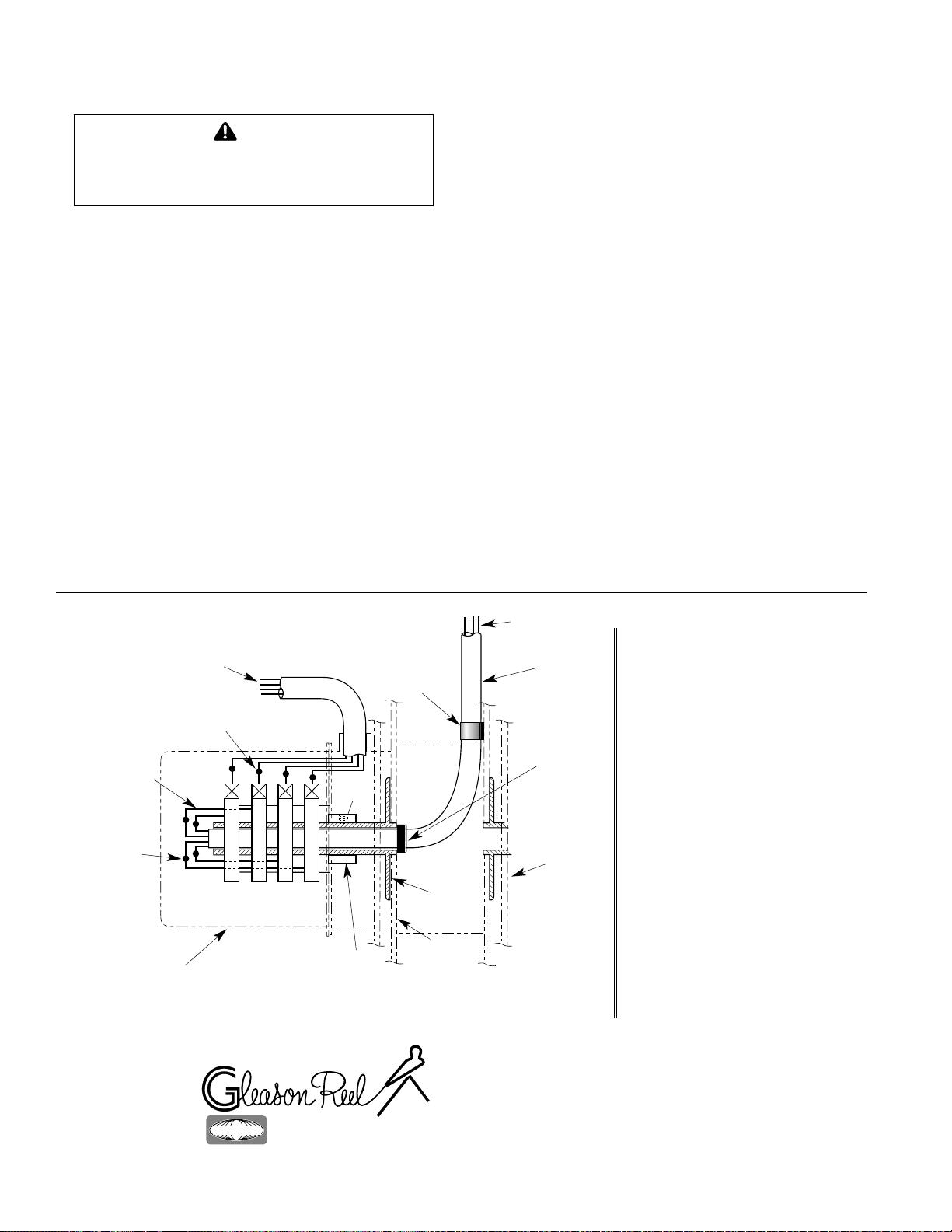

7. Remove collector cover and connect individual supply conductors to collector terminals. See ELECTRICAL CONNECTIONS diagram, on back page.

MAINTENANCE

Periodically: A. Use compressed air to clean collector

assembly and inside of collector housing. Inspect collector assembly for brush wear and pitted slip rings.

B. Inspect cable for wear and check mounting bolts and

other hardware for tightness.

“IN” with 2/3

cable off reel–

SPRING OK

BROKEN SPRING

INDICATORS

C. Check for broken springs by pulling about 2/3 cable off reel and observing “Broken Spring Indicators” on

“OUT” with 2/3

cable off reel–

SPRING

BROKEN

Figure 3

sides of spring canisters. See Fig. 3. NOTE: Bearings and springs are prelubricated and require no periodic maintenance.

SPRING REPLACEMENT

WARNING

Do not attempt to remove spring from its housing. Clock-

type springs can be dangerous to handle. Removal of

spring from housing could result in personal injury.

The unique SAFETYCHANGE® spring motor consists of a spring and hub sealed within a housing. Areplacement spring is supplied sealed in its housing and the old unit should be discarded completely.

1. Turn off all electric power.

2. Disconnect cable from machine junction box.

3. Wind all cable onto reel to relieve all spring tension.

4. Remove inspection cover from face of spring housing.

5. Rotate spool clockwise and observe inner shaft. Shaft should rotate clockwise and hub (with spring attached) should remain stationary.

NOTE: Do not attempt to remove spring if resistance

is met or hub tends to rotate with shaft.

Continue to rotate spool and strike end of shaft

several sharp blows with a lead hammer or rubber mallet

until shaft rotates freely and hub remains stationary.

6. Remove (4) nuts which secure spring motor(s) to frame.

7. Slide spring motor(s) off shaft and discard.

NOTE: On multi-spring reels, be sure to remove and save

dowel pins which connect one spring hub with another. Also

remove snap rings on shaft between reel housings.

8. Install replacement spring motor(s), pawls and pawl springs.

NOTE: Pawl springs must be located between the pawls and the deepest section of the shaft grooves. Make sure

that pawls and pawl springs are inserted flush with ends of

shaft and hub or they may rub against inspection cover.

SPOOL SHAFT

SIDE VIEW

PAWL

SPRING

Install

against flat

END VIEW

9. Tighten nuts (and extension bolts) securing spring

housing(s) to reel frame.

10. Connect free end of cable to junction box on machine or

adjust cord stop so that desired length of cord extends from reel.

11. Tension spring with spanner wrench. Refer to

INSTALLATION section.

12. Replace inspection cover.

CONTINUED ON BACK PAGE

SPRING

HUB

(Spring not

shown)

SHAFT

GROOVE

DIRECT DRIVE UE-24 UNIVERSAL CABLE REEL

REPLACEMENT PARTS LIST

ITEM PART NO. DESCRIPTION QTY.

1 042017 Vertical Frame Assy., Swivel Side 1 2 012140 Housing, 2" Bore Bearing 2 3 103837 Ball Bearing, 2" Bore 1 4 038424 Flat Washer, M8 9 5 028268 ESNA Lock Nut, M8–1.25 8 6 042007 Vertical Frame Assy., Drive Side 1 7 119114 Housing, 1.75" Bore Bearing 2 8 103823 Ball Bearing, 1.75" Bore 1

9 042030 Spool Support Hub, Drive Side 1 10 012137 Stub Shaft Drive Pin 1 11 118322 Retaining Ring 1 12 042027 Spool Disk, U24 2 13 04271001 Wrapper Assy. Kit, 6"w, 10"–12"dia. core 1

13 04271002 Wrapper Assy. Kit, 8"w, 10"–12"dia. core 1 13 04271003 Wrapper Assy. Kit, 10"w, 10"–12"dia. core 1 13 04271004 Wrapper Assy. Kit, 12"w, 10"–12"dia. core 1 13 04271005 Wrapper Assy. Kit, 14"w, 10"–12"dia. core 1 13 04271006 Wrapper Assy. Kit, 6"w, 14"–18"dia. core 1 13 04271007 Wrapper Assy. Kit, 8"w, 14"–18"dia. core 1 13 04271008 Wrapper Assy. Kit, 10"w, 14"–18"dia. core 1 13 04271009 Wrapper Assy. Kit, 12"w, 14"–18"dia. core 1 13 04271010 Wrapper Assy. Kit, 14"w, 14"–18"dia. core 1 13 04271011 Wrapper Assy. Kit, 6"w, 20"–26"dia. core 1 13 04271012 Wrapper Assy. Kit, 8"w, 20"–26"dia. core 1 13 04271013 Wrapper Assy. Kit, 10"w, 20"–26"dia. core 1 13 04271014 Wrapper Assy. Kit, 12"w, 20"–26"dia. core 1 13 04271015 Wrapper Assy. Kit, 14"w, 20"–26"dia. core 1

14 042068 Spool Hub, Collector Side 1 15

16 040784 Collector Entrance 1 17 101652 Pipe Plug 1 18 118220 Gasket, Collector Entrance 1 19 012409 Collector Cover Kit (8" long) 1

19 012410 Collector Cover Kit (10.5" long) 1 19 012411 Collector Cover Kit (13" long) 1 19 012412 Collector Cover Kit (15.5" long) 1 19 012413 Collector Cover Kit (20.5" long) 1 19 012414 Collector Cover Kit (28.5" long) 1

20 012458 Seal Ring Only 1 21 042067 Collector Drive Stop 1 22 028138 Lockwasher, M10 4 23 028131 Hex Hd. Cap Screw, M10–1.5 x 20L 4 24 04272201 Bottom Base Kit, 6" wide Wrapper 1

24 04272202 Bottom Base Kit, 8" wide Wrapper 1 24 04272203 Bottom Base Kit, 10" wide Wrapper 1 24 04272204 Bottom Base Kit, 12" wide Wrapper 1 24 04272205 Bottom Base Kit, 14" wide Wrapper 1

25 042152 Stub Shaft, 1002, Direct, Standard Rotation 1 25 042153 Stub Shaft, 1001, Direct, Standard Rotation 1 25 042156 Stub Shaft, 802/622/752, Direct, Std. Rot. 1 25 042157 Stub Shaft, 801/621/751, Direct, Std. Rot. 1 25 042554 Stub Shaft, 351, Direct, Standard Rotation 1

25 042160 Stub Shaft, 1002, Direct, Reverse Rotation 1 25 042161 Stub Shaft, 1001, Direct, Reverse Rotation 1 25 042164 Stub Shaft, 802/622/752, Direct, Rev. Rot. 1 25 042165 Stub Shaft, 801/621/751, Direct, Rev. Rot. 1 25 042566 Stub Shaft, 351, Direct, Reverse Rotation 1

REEL TYPE

SPOOL DIAMETER

(Includes segments & hardware)

Consult

Cable Clamp/Connector Kit 1

Factory (Includes Cable Clamp, Cable Connector

& Reducer, if required, sized for cable diameter)

(Includes seal ring)

MODEL NUMBER STRUCTURE

UE 24 80 1 - 8 3 - 10 06 - 1 - HSD

SPRING MODEL

QUANTITY SPRINGS

(Includes mounting hardware)

AMP

CODE

NUMBER POLES

CORE DIAMETER

ACCESSORIES

PRETENSION TURNS

SPOOL WIDTH

ITEM PART NO. DESCRIPTION QTY.

26 012425 Pawl Kit (35 Spring) AR 26 012426 Pawl Kit (62, 75 & 80 Springs) AR

26 012427 Pawl Kit (100 Spring) AR 27 031484 Hex Hd. Cap Screw, M12–1.75 x 35L 4 28 025942 Lockwasher, M12 4 29 025941 Hex Nut, M12–1.75 4 30 042555 Stand–off, 35 Springs AR

30 042183 Stand–off, 62, 75 & 80 Springs AR 30 042182 \Stand–off, 100 Spring\ \AR

31 029159 \Flat Washer, M12 4 32 028502 ESNA Nut, M12–1.75 4 33 042727 Spring Motor Kit, 35, Standard Rotation AR

33 042725 Spring Motor Kit, 62, Standard Rotation AR 33 042726 Spring Motor Kit, 75, Standard Rotation AR 33 042724 Spring Motor Kit, 80, Standard Rotation AR 33 042723 Spring Motor Kit, 100, Standard Rotation AR 33 042732 Spring Motor Kit, 35, Reverse Rotation AR 33 042730 Spring Motor Kit, 62, Reverse Rotation AR 33 042731 Spring Motor Kit, 75, Reverse Rotation AR 33 042729 Spring Motor Kit, 80, Reverse Rotation AR 33 042728 Spring Motor Kit, 100, Reverse Rotation AR

34 G51–23 Gasket, Hub Cover 1 35 G27–42 Hub Cover, Springs 1 36 101220 Screw, #8–32 x 0.25" Lg 3 37 021762 Hub Lock Pin Kit (100 Springs) 1

37 021761 Hub Lock Pin Kit (All Other Springs) 1 38 012285 Collector Assembly, 2 Pole, 35 Amp 1

38 012286 Collector Assembly, 3 Pole, 35 Amp 1 38 012287 Collector Assembly, 4 Pole, 35 Amp 1 38 012288 Collector Assembly, 6 Pole, 35 Amp 1 38 012289 Collector Assembly, 8 Pole, 35 Amp 1 38 012290 Collector Assembly, 10 Pole, 35 Amp 1 38 012291 Collector Assembly, 12 Pole, 35 Amp 1 38 012292 Collector Assembly, 14 Pole, 35 Amp 1 38 012293 Collector Assembly, 16 Pole, 35 Amp 1 38 012294 Collector Assembly, 20 Pole, 35 Amp 1 38 012295 Collector Assembly, 24 Pole, 35 Amp 1 38 012296 Collector Assembly, 30 Pole, 35 Amp 1 38 012297 Collector Assembly, 36 Pole, 35 Amp 1 38 012298 Collector Assembly, 2 Pole, 75 Amp 1 38 012299 Collector Assembly, 3 Pole, 75 Amp 1 38 012300 Collector Assembly, 4 Pole, 75 Amp 1 38 012376 Collector Assembly, 6 Pole, 75 Amp 1 38 037194 Collector Assembly, 2 Pole, 125 Amp 1 38 012377 Collector Assembly, 8 Pole, 75 Amp 1 38 037294 Collector Assembly, 3 Pole, 125 Amp 1 38 037295 Collector Assembly, 4 Pole, 125 Amp 1 38 012304 Collector Assembly, 2 Pole, 200 Amp 1 38 012381 Collector Assembly, 3 Pole, 200 Amp 1 38 012382 Collector Assembly, 4 Pole, 200 Amp 1 38 012383 Collector Assembly, 6 Pole, 200 Amp 1 38 012384 Collector Assembly, 8 Pole, 200 Amp 1

39 012440 Brush Kit (35 Amp) ar 39 012441 Brush Kit (75 Amp) ar

39 012443 Brush Kit (125 Amp/200 Amp) ar 40 042733 Spanner Wrench (35–80 Springs) 1

40 042734 Spanner Wrench (100 Springs) 1 41 042735 Ratchet Wrench Kit (35–80 Springs) 1

41 042736 Ratchet Wrench Kit (100 Springs) 1

(Includes 2 pawls & springs)

(Includes items 20, 27, 28, 29, & 30)

(Includes two pins)

(Each kit includes 4 brushes and 4 fingers)

(Includes mounting hardware)

AMPACITY

CODE

7 12 20

AMPS

75 125 200

ACCESSORY CODE

(See sext page for accessories)

340OPivot Base = P Dog & Ratchet (ratchet lock) = D Limit Switch = L Horizontal Roller Guide = H Vertical Roller Guide = V Spool Lock = S
