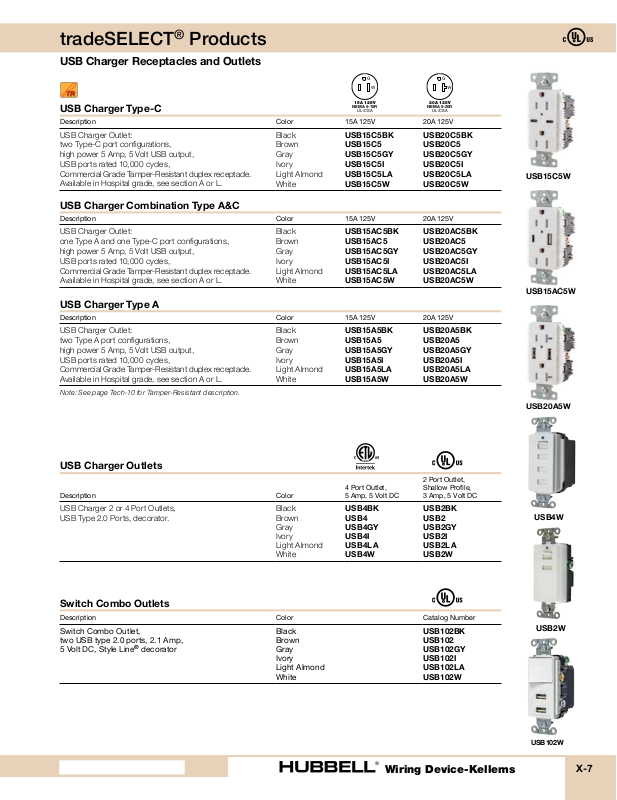

Hubbell tradeSELECT Catalog Page

tradeSELECT® Products

UL/CSA

NEMA 5-15R

UL/CSA

USB Charger Receptacles and Outlets

USB Charger Type-C

Description Color 15A 125V 20A 125V

USB Charger Outlet: two Type-C port congurations, high power 5 Amp, 5 Volt USB output, USB ports rated 10,000 cycles, Commercial Grade Tamper-Resistant duplex receptacle. Available in Hospital grade, see section A or L.

Black Brown Gray Ivory Light Almond White

15A 125V

USB15C5BK USB15C5 USB15C5GY USB15C5I USB15C5LA USB15C5W

20A 125V

NEMA 5-20R

USB20C5BK USB20C5 USB20C5GY USB20C5I USB20C5LA USB20C5W

USB Charger Combination Type A&C

Description Color 15A 125V 20A 125V

USB Charger Outlet: one Type A and one Type-C port congurations, high power 5 Amp, 5 Volt USB output, USB ports rated 10,000 cycles, Commercial Grade Tamper-Resistant duplex receptacle. Available in Hospital grade, see section A or L.

Black Brown Gray Ivory Light Almond White

USB15AC5BK USB15AC5 USB15AC5GY USB15AC5 I USB15AC5 LA USB15AC5W

USB20AC5BK USB20AC5 USB20AC5GY USB20AC5I USB20AC5LA USB20AC5W

USB Charger Type A

Description Color 15A 125V 20A 125V

USB Charger Outlet: two Type A port congurations, high power 5 Amp, 5 Volt USB output, USB ports rated 10,000 cycles, Commercial Grade Tamper-Resistant duplex receptacle. Available in Hospital grade, see section A or L.

Note: See page Tech-10 for Tamper-Resistant description.

Black Brown Gray Ivory Light Almond White

USB15A5BK USB15A5 USB15A5GY USB15A5I USB15A5LA USB15A5W

USB20A5BK USB20A5 USB20A5GY USB20A5I USB20A5LA USB20A5W

USB15C5W

USB15AC5W

USB20A5W

USB Charger Outlets

2 Port Outlet, Shallow Prole, 3 Amp, 5 Volt DC

USB2BK USB2 USB2GY USB2I USB2LA USB2W

Description Color

USB Charger 2 or 4 Port Outlets, USB Type 2.0 Ports, decorator.

Black Brown Gray Ivory Light Almond White

4 Port Outlet, 5 Amp, 5 Volt DC

USB4BK USB4 USB4GY USB4I USB4LA USB4W

Switch Combo Outlets

Description Color Catalog Number

Switch Combo Outlet, two USB type 2.0 ports, 2.1 Amp, 5 Volt DC, Style Line® decorator

Black Brown Gray Ivory Light Almond White

USB102BK USB102 USB102GY USB102I USB102LA USB102W

Wiring Device-Kellems

USB4W

USB2W

USB102W

X-7
