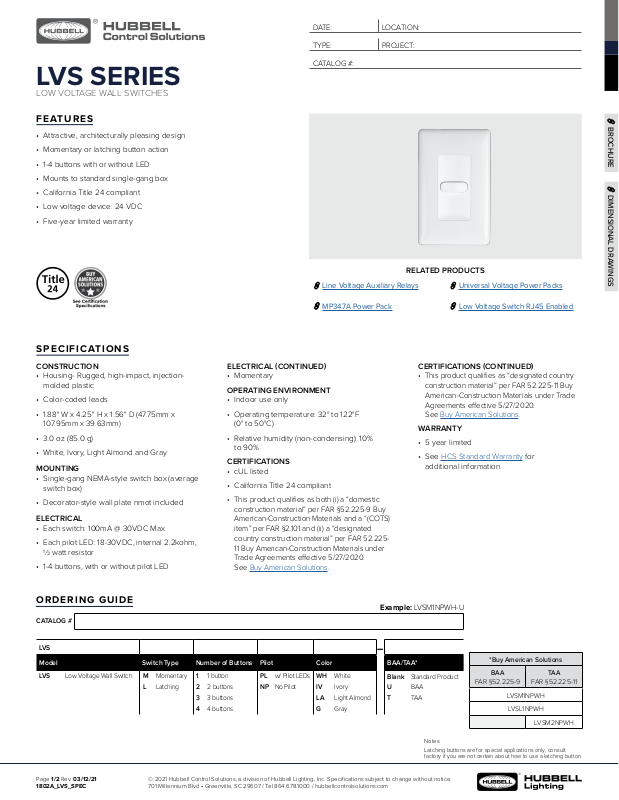

Hubbell LVS Specifications

LVS SERIES

LOW VOLTAGE WALL SWITCHES

DATE: LOCATION:

TYPE: PROJECT:

CATALOG #:

FEATURES

• Attractive, architecturally pleasing design

• Momentary or latching button action

• 1-4 buttons with or without LED

• Mounts to standard single-gang box

• California Title 24 compliant

• Low voltage device: 24 VDC

• Five-year limited warranty

SPECIFICATIONS

CONSTRUCTION

• Housing- Rugged, high-impact, injectionmolded plastic

• Color-coded leads

• 1.88" W x 4.25" H x 1.56" D (47.75mm x

107.95mm x 39.63mm)

• 3.0 oz (85.0 g)

• White, Ivory, Light Almond and Gray

MOUNTING

• Single-gang NEMA-style switch box (average switch box)

• Decorator-style wall plate nmot included

ELECTRICAL

• Each switch: 100mA @ 30VDC Max

• Each pilot LED: 18-30VDC, internal 2.2kohm, ⁄ watt resistor

• 1-4 buttons, with or without pilot LED

 Line Voltage Auxiliary Relays  Universal Voltage Power Packs

 MP347A Power Pack  Low Voltage Switch RJ45 Enabled

ELECTRICAL (CONTINUED)

• Momentary

OPERATING ENVIRONMENT

• Indoor use only

• Operating temperature: 32° to 122°F (0° to 50°C)

• Relative humidity (non-condensing): 10% to 90%

CERTIFICATIONS

• cUL listed

• California Title 24 compliant

• This product qualiﬁes as both (i) a “domestic construction material” per FAR §52.225-9 Buy American-Construction Materials and a “(COTS) item” per FAR §2.101 and (ii) a “designated country construction material” per FAR 52.22511 Buy American-Construction Materials under Trade Agreements eective 5/27/2020. See Buy American Solutions.

 BROCHURE  DIMENSIONAL DRAWINGS

RELATED PRODUCTS

CERTIFICATIONS (CONTINUED)

• This product qualiﬁes as “designated country construction material” per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements eective 5/27/2020. See Buy American Solutions.

WARRANTY

• 5 year limited

• See HCS Standard Warranty for additional information

ORDERING GUIDE

CATALOG #

LVS

Model Switch Type Number of Buttons Pilot Color BAA/TAA*

LVS Low Voltage Wall Switch M Momentary

L Latching

Page 1/2 Rev. 03/12/21 1802A_LVS_SPEC

© 2021 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / hubbellcontrolsolutions.com

1 1 button 2 2 buttons 3 3 buttons 4 4 buttons

PL w/ Pilot LEDs NP No Pilot

WH White IV Ivory LA Light Almond G Gray

Example: LVSM1NPWH-U

–

Blank Standard Product U BAA T TAA

*Buy American Solutions

BAA

FAR §52.225-9

LVSM1NPWH

LVSL1NPWH

Notes: Latching buttons are for special applications only, consult

factory if you are not certain about how to use a latching button

TAA

FAR §52.225-11

LVSM2NPWH

LVS SERIES

LOW VOLTAGE WALL SWITCHES

DIMENSIONS

DATE: LOCATION:

TYPE: PROJECT:

CATALOG #:

.189"

(4.8mm)

ADDITIONAL INFORMATION

Wiring Diagram

4.16"

(105.7mm)

2.72"

(69.1mm)

1.72"

(43.7mm)

3.28"

(83.3mm)

3.81"

(96.8mm)

1.23"

(31.2mm)

1.53"

(38.9mm)

Hubbell Control Solutions Low Voltage Sensors (devices) Requires 33mA each

Notes:

1. DO NOT attempt to power more than 4 devices, be it sensors or secondary packs, from a single power pack.

2. The occupancy sensor and low voltage switch station must both agree for the lighting load to turn on. The lighting load will turn o if either the switch station is pressed o or if occupancy is lost.

3. Low Voltage wire to be 18AWG.
