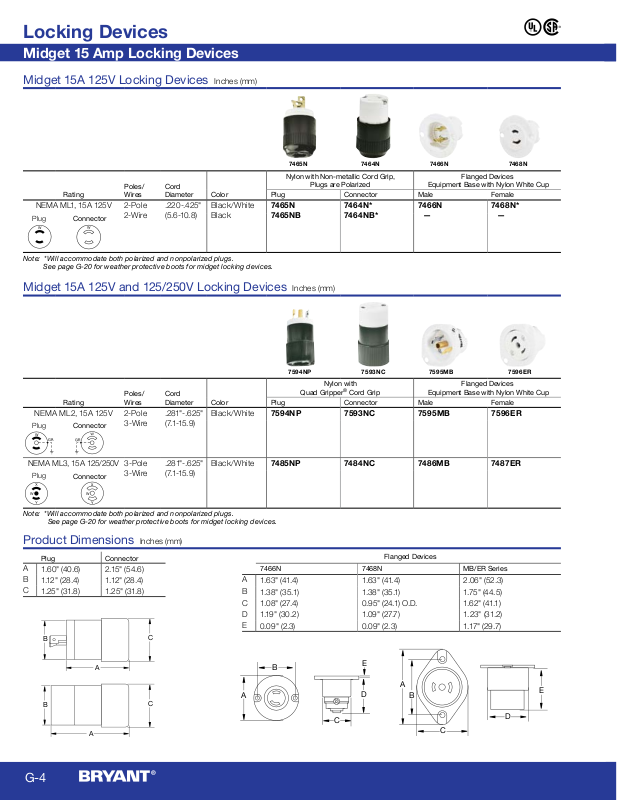

Locking Devices
Midget 15 Amp Locking Devices
Midget 15A 125V Locking Devices Inches (mm)
746 5N 7464N
Nylon with Non-metallic Cord Grip,
Rating
Poles/
Wires
NEMA ML1, 15A 125V 2-Pole
Plug
W
Note: *Will accommodate both polarized and nonpolarized plugs.
Connector
See page G-20 for weather pr otective boots for midget locking devices .
2-Wire
Cord
Diameter Color
.220-.425"
(5.6-10.8)
Black/White
Black
Plug Connector Male Female
7465N
7465NB
Plugs are Polarized
Midget 15A 125V and 125/250V Locking Devices Inches (mm)
7594NP 7593NC
Nylon with
Rating
Poles/
Wires
NEMA ML2, 15A 125V 2-Pole
Plug
W
Connector
GR
3-Wire
Cord
Diameter Color
.281"-.625"
Black/White 7594NP 7593NC 7595MB 7596ER
(7.1-15.9)
Quad Gripper
Plug Connector Male Female
7464N*
7464NB*
®
Cord Grip
746 6N 746 8N
Equipment Base with Nylon White Cup
746 6 N
—
7595MB 7596ER
Equipment Base with Nylon White Cup
Flanged Devices
746 8 N*
—
Flanged Devices
NEMA ML3, 15A 125/250V 3-Pole
Plug
Note: *Will accommodate both polarized and nonpolarized plugs.
Connector
X
W
Y
See page G-20 for weather pr otective boots for midget locking devices .
3-Wire
.281"-.625"
(7.1-15.9)
Black/White 7485 NP 7484N C 7486 MB 7487ER
Product Dimensions Inches (mm)
Plug Connector
A
1.60" (40.6) 2.15" (54.6)
B
1.12" ( 28 .4) 1.12" ( 28 .4)
C
1.25" (31.8) 1.25" (31.8)
B
A
B
A
C
C
Flanged Devices
7466N 7468N MB/ER Series
A
1.6 3" (41.4) 1.6 3" (41.4) 2.06" (52.3)
B
1.38" (35.1) 1.38" (35.1) 1.75" (44.5)
C
1.08" (27.4) 0.95" (24.1) O.D. 1.62" (41.1)
D
1.19" (30.2) 1.09" (27.7) 1.23" (31.2)
E
0.09" (2.3) 0.09" (2.3) 1.17" (29.7)
B
E
A
A
D
B
C
C
E
D
G-4
