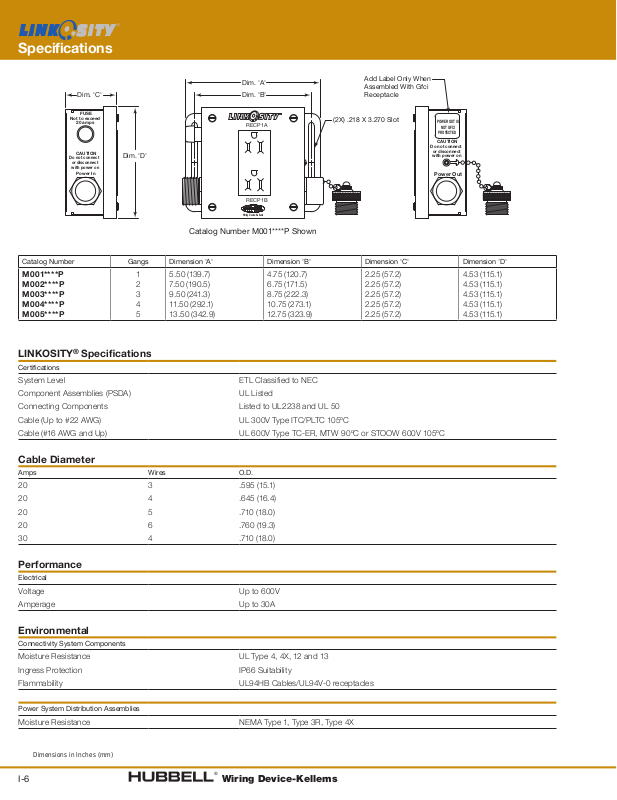

Hubbell LINKOSITY Specifications

Specifications

Add Label Only When

Catalog Number M001****P Shown

Dim. 'A'

Dim. 'C'

FUSE

Not to exceed

20 amps

CAUTION

Do not connect

or disconnect with power on

Power In

Catalog Number Gangs Dimension 'A' Dimension 'B' Dimension 'C' Dimension 'D'

M001****P M002****P M003****P M004****P M005****P

Dim. 'D'

1 2 3 4 5

5.50 (139.7 )

7.50 (190.5)

9.50 (241.3)

11.5 0 ( 2 9 2.1)

13.50 (3 42.9 )

Dim. 'B'

RECP1A

RECP1B

Wiring Device-Kellems

4.75 (120.7)

6.75 (171.5)

8.75 (222.3) 10 .75 (27 3 .1)

12.75 (323.9)

(2X) .218 X 3.270 Slot

Assembled With Gfci Receptacle

2.25 (57.2)

POWER OUT IS

NOT GFCI

PROTECTED

CAUTION

Do not connect

or disconnect with power on

Power Out

4. 53 (115 .1)

LINKOSITY® Specications

Certifications

System Level ETL Classified to NEC

Component Assemblies (PSDA) UL Listed

Connecting Components Listed to UL2238 and UL 50

Cable (Up to #22 AWG) UL 300V Type ITC/PLTC 105ºC

Cable (#16 AWG and Up) UL 600V Type TC-ER, MT W 90ºC or STOOW 600V 105ºC

Cable Diameter

Amps Wires O.D.

20 3 .595 (15 .1)

20 4 .645 (16.4)

20 5 .710 (18.0)

20 6 .760 (19.3)

30 4 .710 (18.0)

Performance

Electrical

Voltage Up to 600V

Amperage Up to 30A

Environmental

Connectivity System Components

Moisture Resistance UL Type 4, 4X, 12 and 13

Ingress Protection IP66 Suitability

Flammability UL94HB Cables/UL94V-0 receptacles

Power System Distribution Assemblies

Moisture Resistance NEMA Type 1, Type 3R, Type 4X

Dimensions in Inches (mm)
