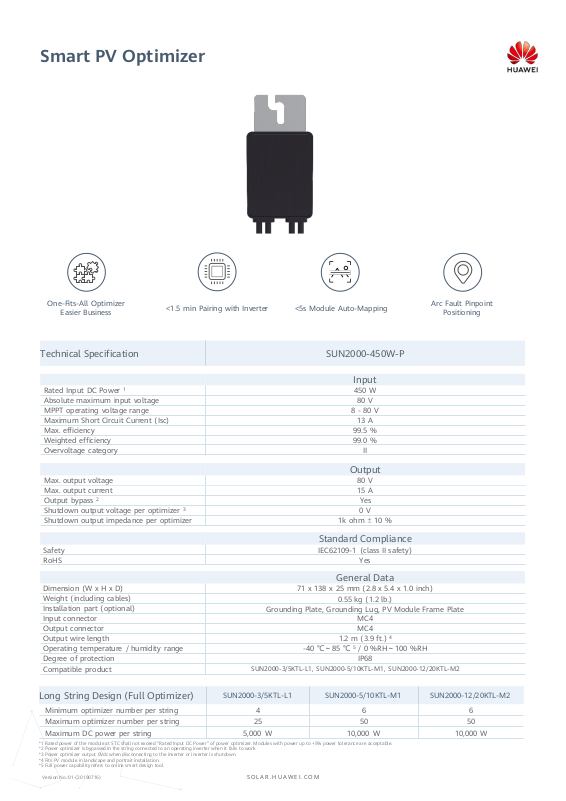

HUAWEI SUN2000-450W-P Technical Specification
Smart PV Optimizer
One-Fits-All Optimizer |
<1.5 min Pairing with Inverter |
<5s Module Auto-Mapping |
Arc Fault Pinpoint |
|
Easier Business |
Positioning |
|||
|
|
|
Technical Specification |
|
|
SUN2000-450W-P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input |
|
|
|
|
Rated Input DC Power 1 |
|
|
450 W |
|
|
|
|
Absolute maximum input voltage |
|
|
80 V |
|
|
|
|
MPPT operating voltage range |
|
|
8 - 80 V |
|
|
|
|
Maximum Short Circuit Current (Isc) |
|
|
13 A |
|
|
|
|
Max. efficiency |
|
99.5 % |
|
|
|
|
|
Weighted efficiency |
|
99.0 % |
|
|
|
|
|
Overvoltage category |
|
|
II |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output |
|
|
|
|
Max. output voltage |
|
|
80 V |
|
|
|
|
Max. output current |
|
|
15 A |
|
|
|
|
Output bypass 2 |
|
|
Yes |
|
|
|
|
Shutdown output voltage per optimizer 3 |
|
|
0 V |
|
|
|
|
Shutdown output impedance per optimizer |
|
|
1k ohm ± 10 % |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Standard Compliance |
|
|
|
|
Safety |
|
|
IEC62109-1 (class II safety) |
|
|
|
|
RoHS |
|
|
Yes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General Data |
|
|
|
|
Dimension (W x H x D) |
|
71 x 138 x 25 mm (2.8 x 5.4 x 1.0 inch) |
||||
|
Weight (including cables) |
|
|
0.55 kg (1.2 lb.) |
|
|
|
|
Installation part (optional) |
Grounding Plate, Grounding Lug, PV Module Frame Plate |
|
||||
|
Input connector |
|
|
MC4 |
|
|
|
|
Output connector |
|
|
MC4 |
|
|
|
|
Output wire length |
|
|
1.2 m (3.9 ft.) 4 |
|
|
|
|
Operating temperature / humidity range |
|
-40 85 5 / 0 %RH 100 %RH |
|
|
||
|
Degree of protection |
|
|
IP68 |
|
|
|
|
Compatible product |
SUN2000-3/5KTL-L1, SUN2000-5/10KTL-M1, SUN2000-12/20KTL-M2 |
|
||||
|
|
|
|
|
|
|
|
Long String Design (Full Optimizer) |
SUN2000-3/5KTL-L1 |
|
SUN2000-5/10KTL-M1 |
|
SUN2000-12/20KTL-M2 |
|
|
|
|
|
|
|
|
|
|
|
Minimum optimizer number per string |
4 |
|
6 |
|
6 |
|
|
Maximum optimizer number per string |
25 |
|
50 |
|
50 |
|
|
Maximum DC power per string |
5,000 W |
|
10,000 W |
|
10,000 W |
|
*1 Rated power of the module at STC shall not exceed “Rated Input DC Power” of power optimizer. Modules with power up to +5% power tolerance are acceptable. |
|
|
|||||
*2 Power optimizer is bypassed in the string connected to an operating inverter when it fails to work |
|
|
|
|
|
||
*3 Power optimizer output 0Vdc when disconnecting to the inverter or inverter is shutdown. |
|
|
|
|
|
||
*4 Fits PV module in landscape and portrait installation. |
|
|
|
|
|
|
|
*5 Full power capability refers to online smart design tool. |
|
|
|
|
|
|
|
|
Version No.:01-(20190716) |
