Page 1

SUN2000-(8KTL-20KTL)-M2

User Manual

Issue 06

Date 2022-03-10

HUAWEI TECHNOLOGIES CO., LTD.

Page 2

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specied in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every eort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang Shenzhen 518129 People's Republic of China

Website: https://e.huawei.com

Page 3

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual About This Document

About This Document

Purpose

This document describes the SUN2000-8KTL-M2, SUN2000-10KTL-M2, SUN2000-12KTL-M2, SUN2000-15KTL-M2, SUN2000-17KTL-M2, and SUN2000-20KTL-M2 (SUN2000 for short) in terms of installation, electrical connections, commissioning, maintenance, and troubleshooting. Read this document through, understand the safety information, and get familiar with the functions and features of the SUN2000 before installing and operating it.

The SUN2000-8KTL-M2 and SUN2000-10KTL-M2 inverters are applicable only to Australia.

Intended Audience

This document is intended for:

● Installers

● Users

Symbol Conventions

The symbols that may be found in this document are

Symbol

dened as follows.

Description

Indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury.

Indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

Indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

Page 4

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual About This Document

Symbol Description

Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results.

NOTICE is used to address practices not related to personal injury.

Supplements the important information in the main text.

NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration.

Change History

Changes between document issues are cumulative. The latest document issue contains all updates made in previous issues.

Issue 06 (2022-03-10)

● Updated A Grid Codes.

● Updated C Setting Power Adjustment Parameters.

Issue 05 (2021-08-10)

● Updated 5.4 Connecting the DC input power cable.

● Updated 5.5 (Optional) Installing the Smart Dongle.

● Updated 7 Man-Machine Interaction.

● Updated B Device Commissioning.

Issue 04 (2021-01-21)

● Updated 10.1 SUN2000 Technical

● Updated 4.3.2 Space Requirements.

● Updated 5.6.2 Connecting the RS485 Communications Cable (Smart Power

Sensor).

Issue 03 (2020-12-10)

Specications.

● Updated 7.1.1 Downloading the FusionSolar App.

● Updated 7.1.3 Creating a PV Plant and a User.

● Updated 7.1.4 (Optional) Setting the Physical Layout of the Smart PV

Optimizers.

● Updated E Rapid Shutdown.

Page 5

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual About This Document

Issue 02 (2020-09-15)

● Updated 5.2 Connecting the PE cable.

● Updated 7.1.4 (Optional) Setting the Physical Layout of the Smart PV

Optimizers.

Issue 01 (2020-07-02)

This issue is used for

rst oce application (FOA).

Page 6

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual Contents

About This Document................................................................................................................ ii

1 Safety Information.................................................................................................................. 1

1.1 General Safety.......................................................................................................................................................................... 1

1.2 Personnel Requirements....................................................................................................................................................... 2

1.3 Electrical Safety........................................................................................................................................................................3

1.4 Installation Environment Requirements.......................................................................................................................... 4

1.5 Mechanical Safety................................................................................................................................................................... 4

1.6 Commissioning......................................................................................................................................................................... 6

1.7 Maintenance and Replacement..........................................................................................................................................6

2 Overview....................................................................................................................................7

2.1 Product Introduction.............................................................................................................................................................. 7

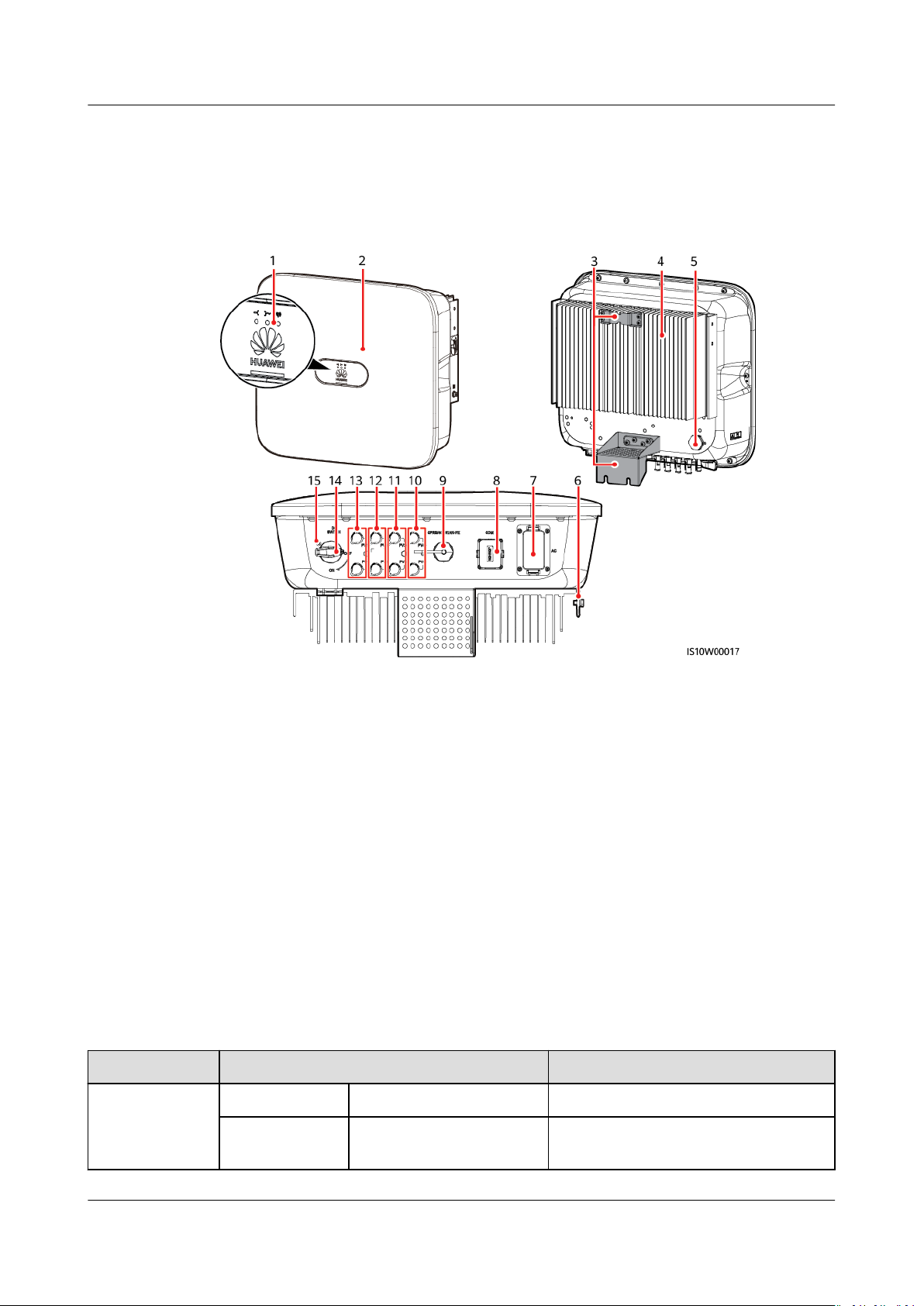

2.2 Appearance............................................................................................................................................................................. 11

2.3 Label Description.................................................................................................................................................................. 13

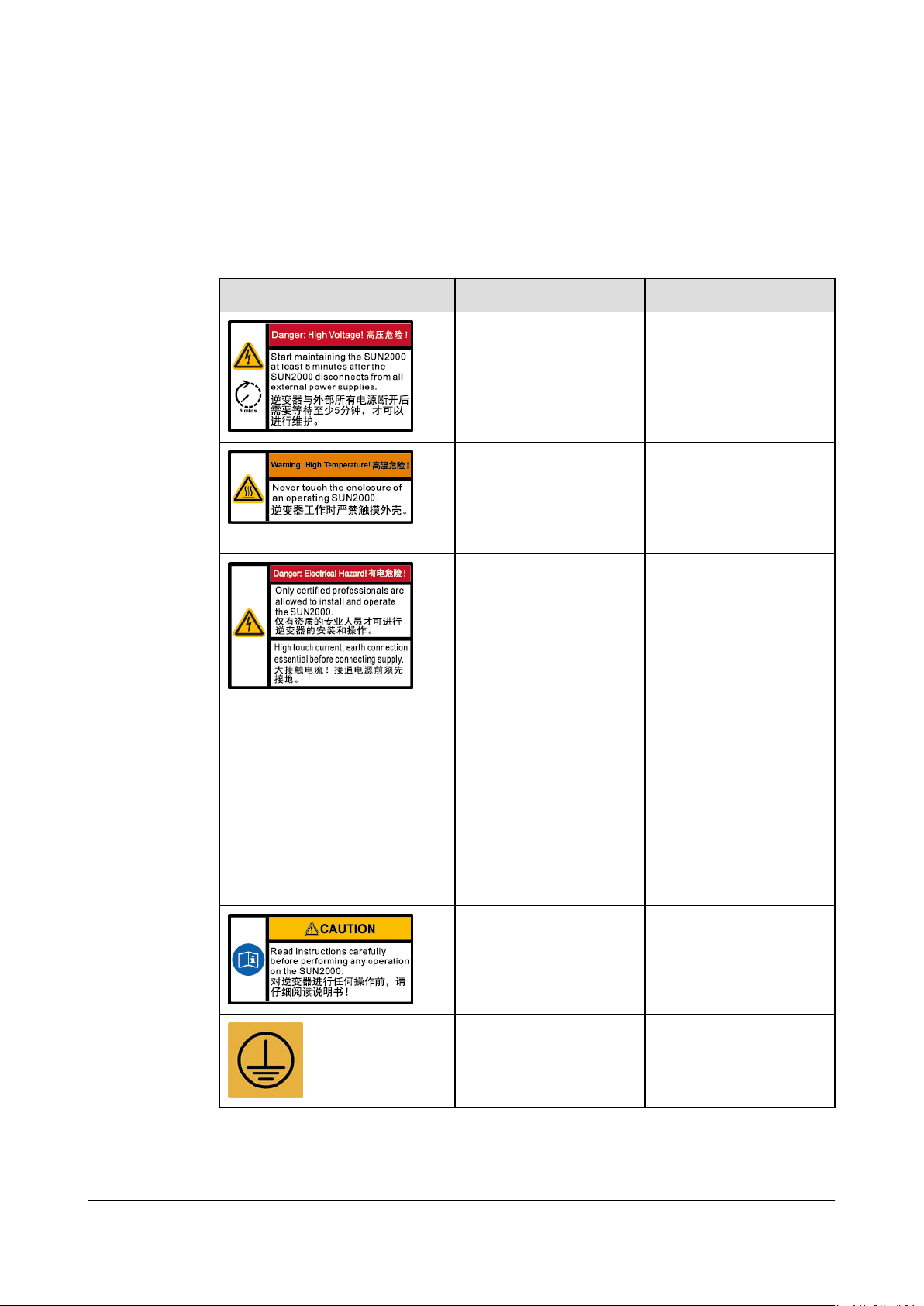

2.3.1 Enclosure Labels.................................................................................................................................................................13

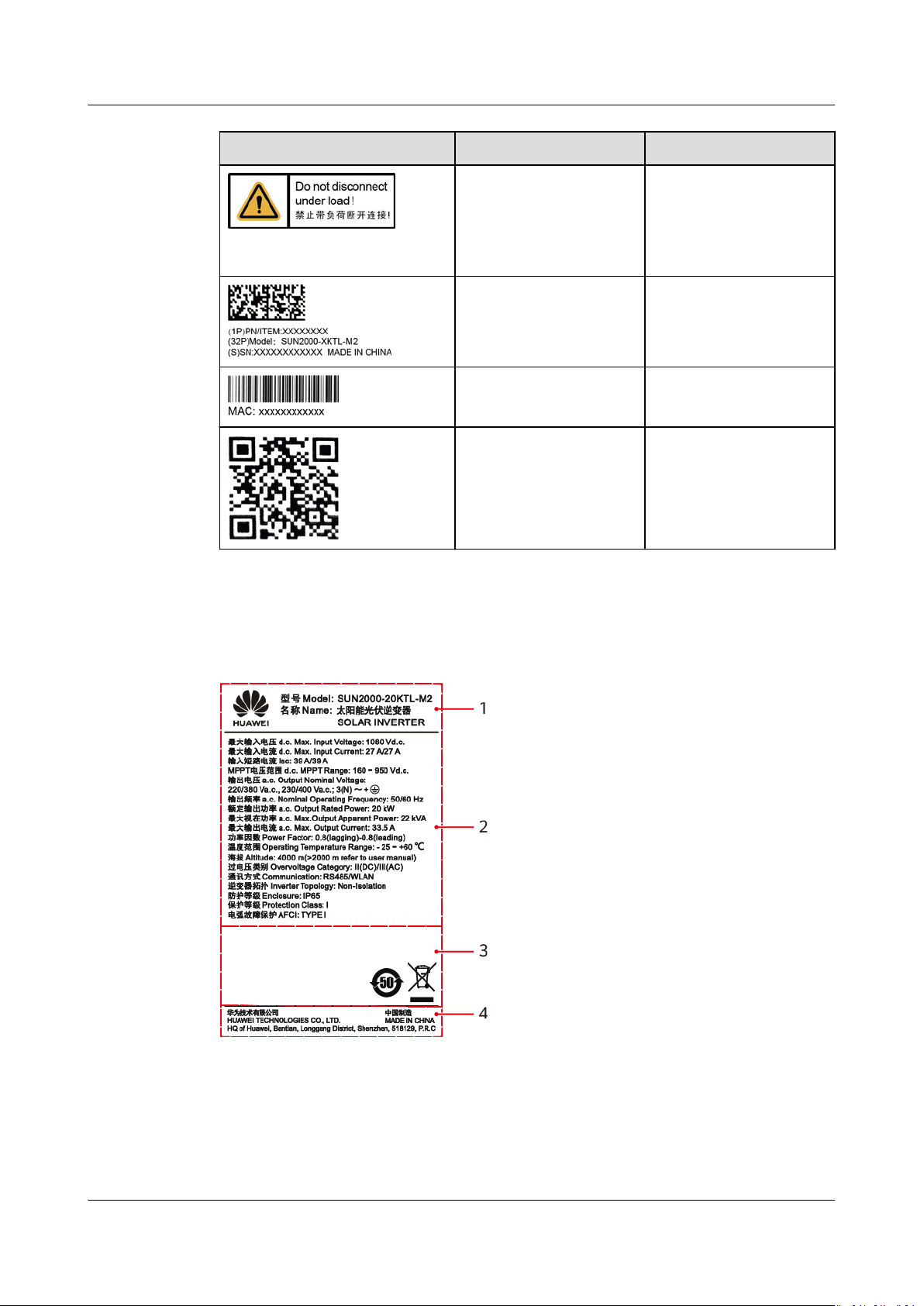

2.3.2 Product Nameplate...........................................................................................................................................................14

2.4 Working Principles................................................................................................................................................................ 15

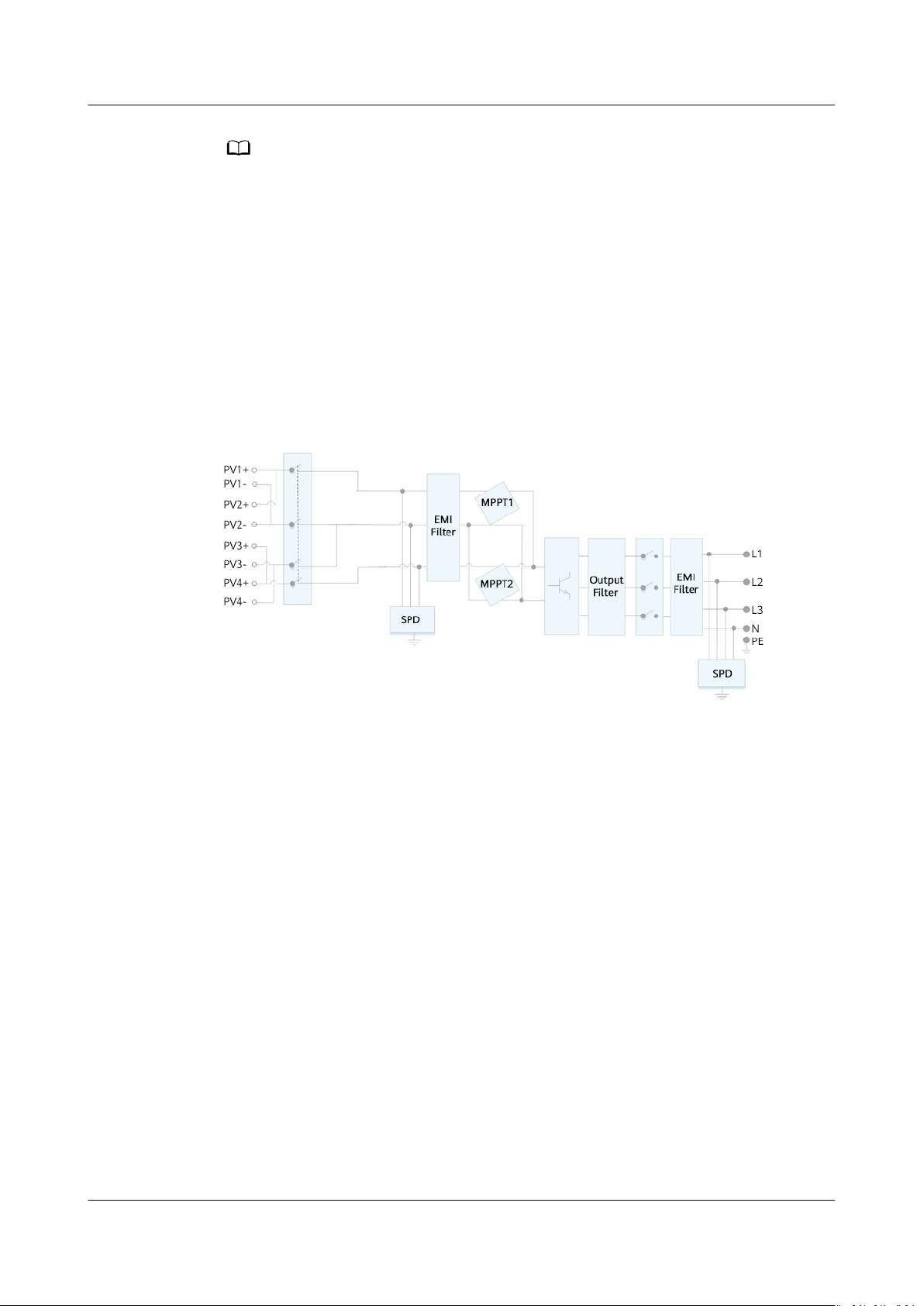

2.4.1 Circuit Diagram.................................................................................................................................................................. 15

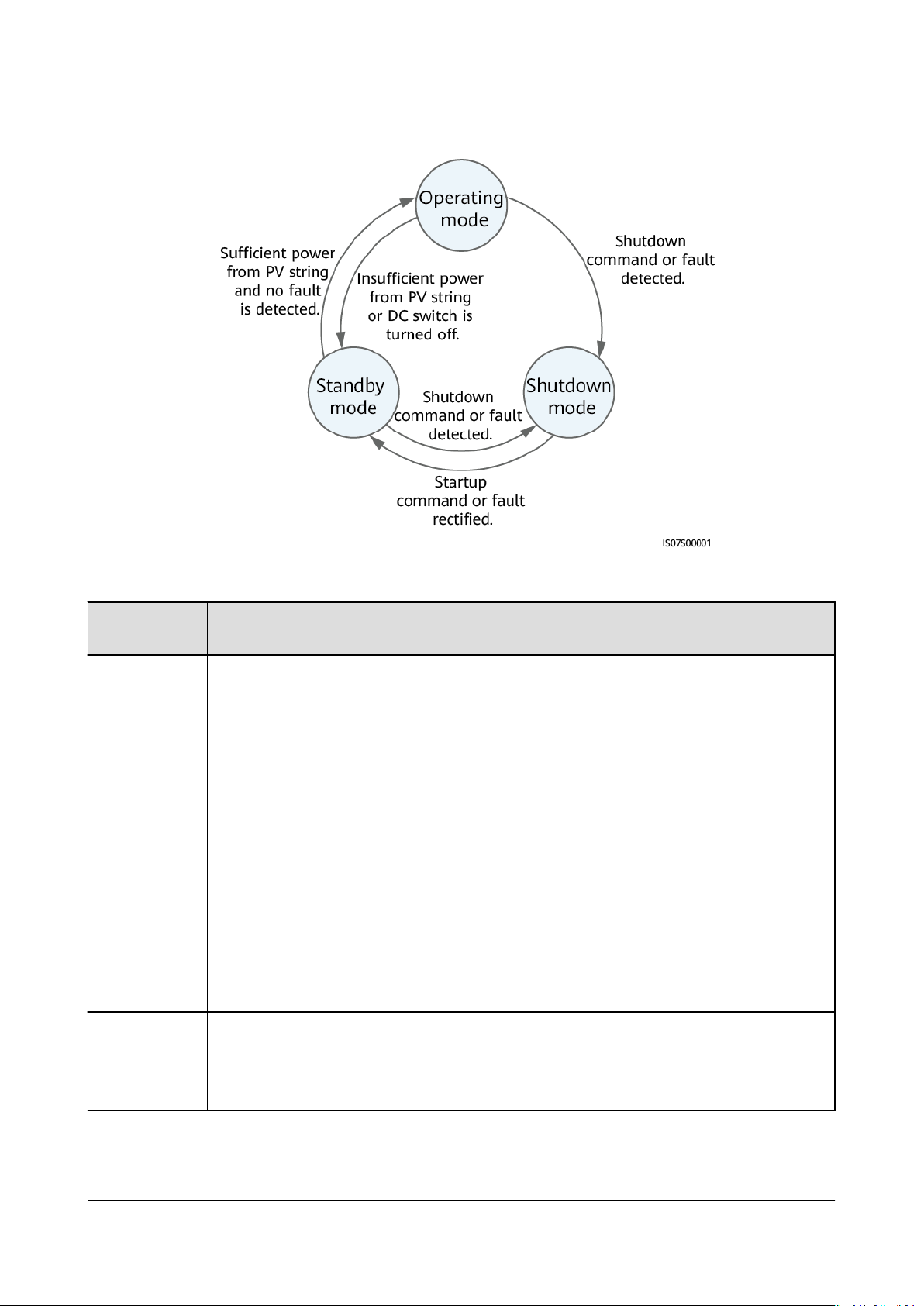

2.4.2 Working Modes.................................................................................................................................................................. 15

3 Storage.....................................................................................................................................17

4 Installation..............................................................................................................................18

4.1 Checking Before Installation............................................................................................................................................. 18

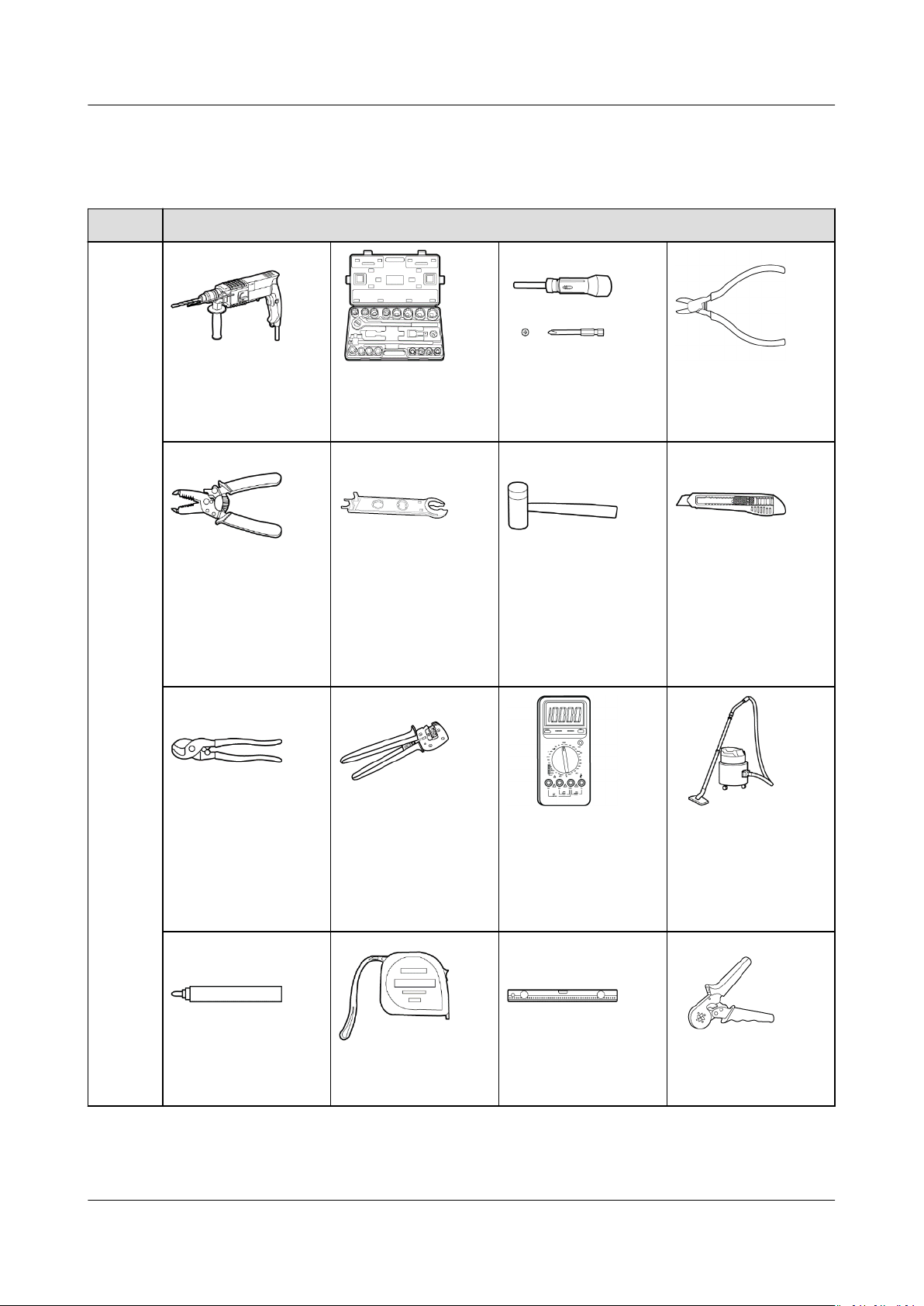

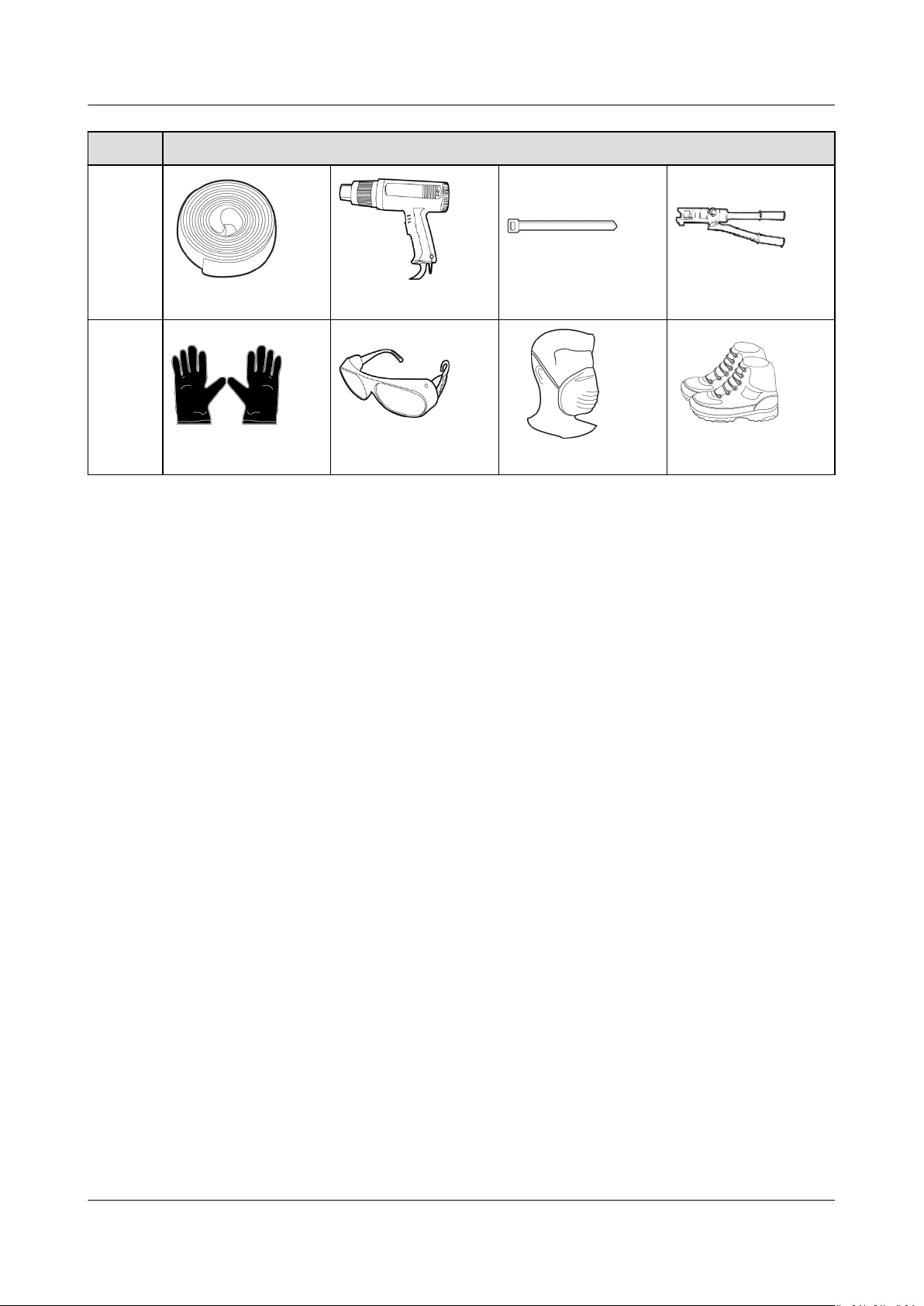

4.2 Tools.......................................................................................................................................................................................... 19

4.3 Determining the Installation Position............................................................................................................................20

4.3.1 Environment Requirements............................................................................................................................................20

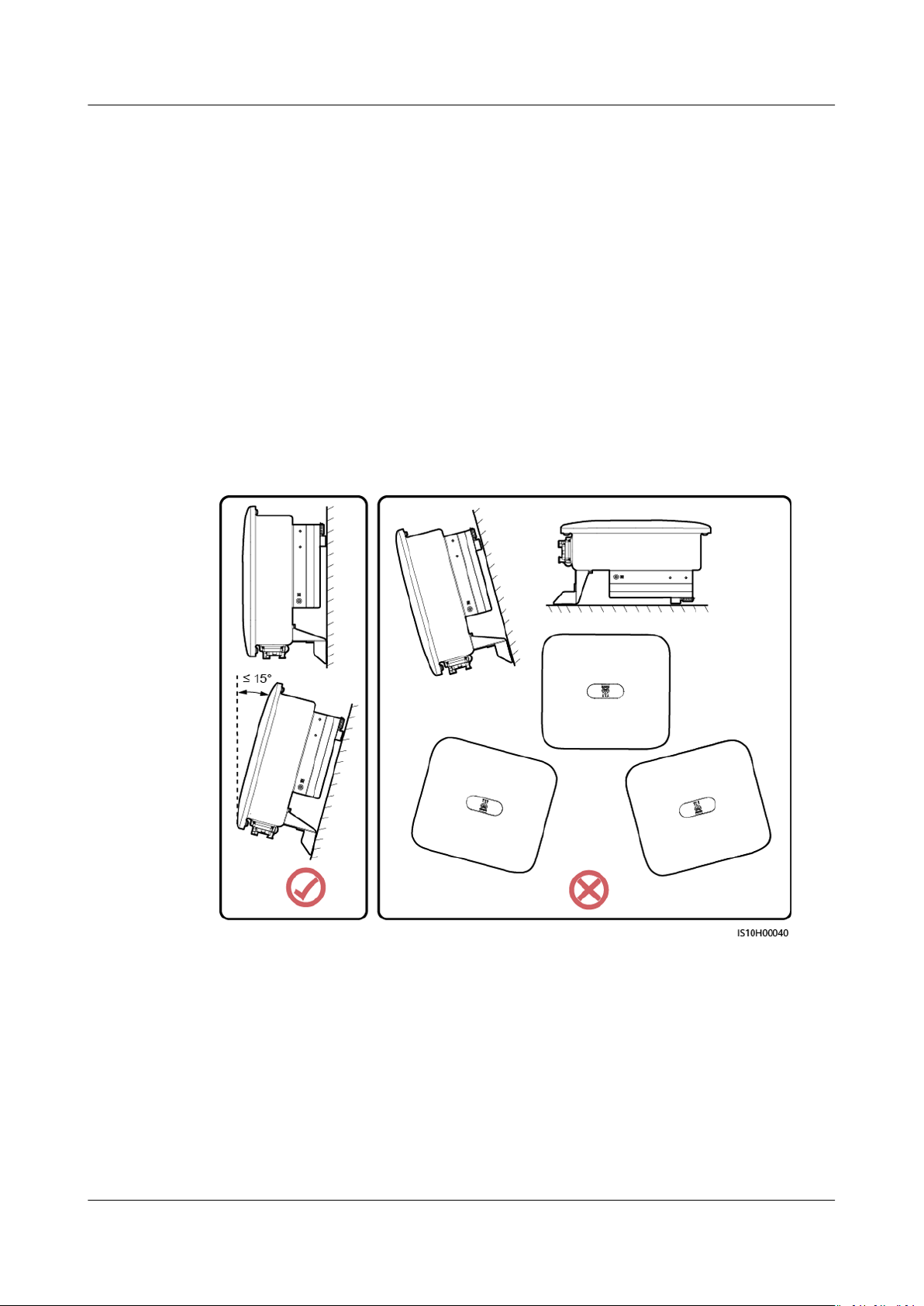

4.3.2 Space Requirements......................................................................................................................................................... 21

4.4 Moving an Inverter............................................................................................................................................................... 24

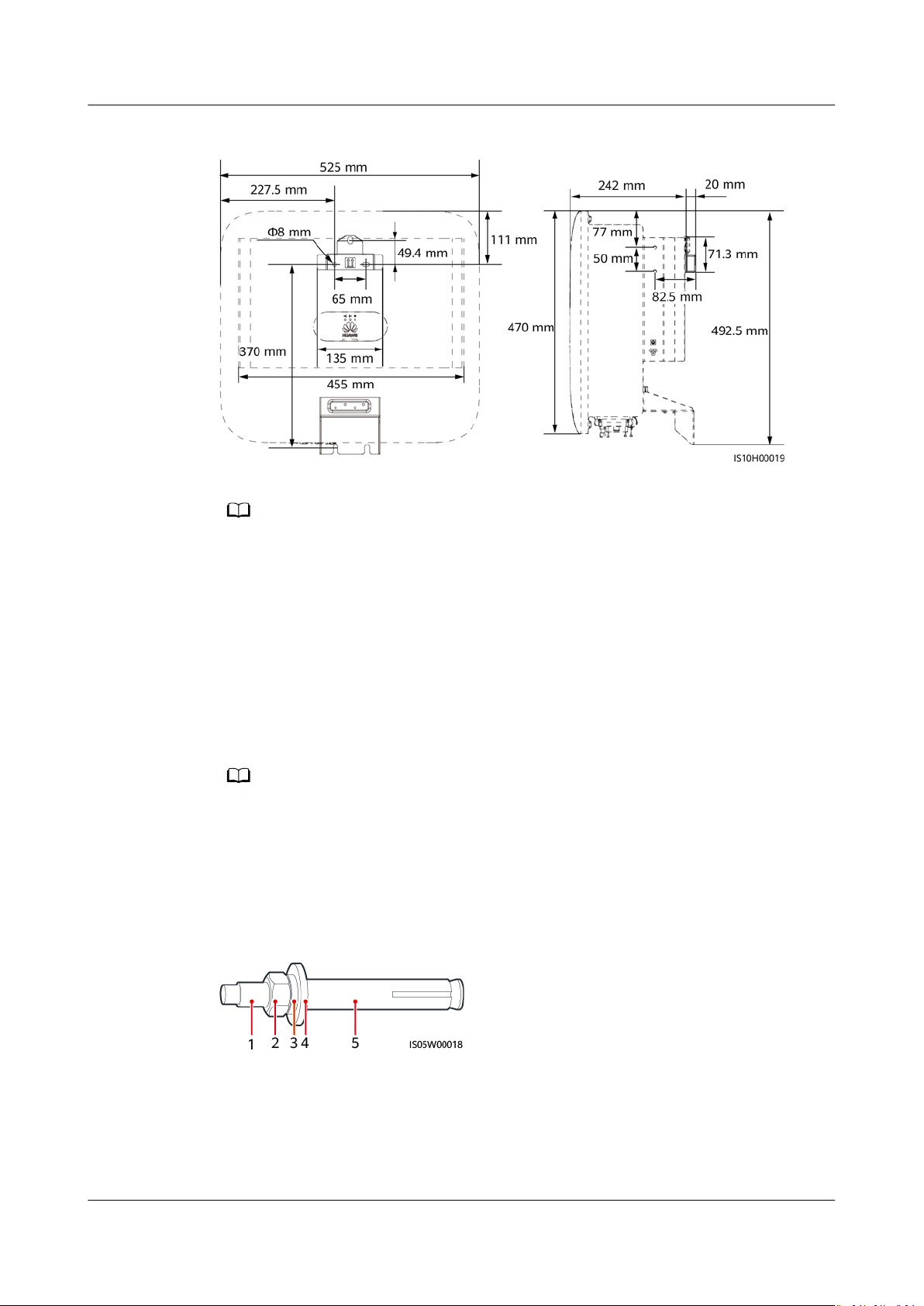

4.5 Installing the Mounting Bracket...................................................................................................................................... 24

4.5.1 Wall-mounted Installation............................................................................................................................................. 25

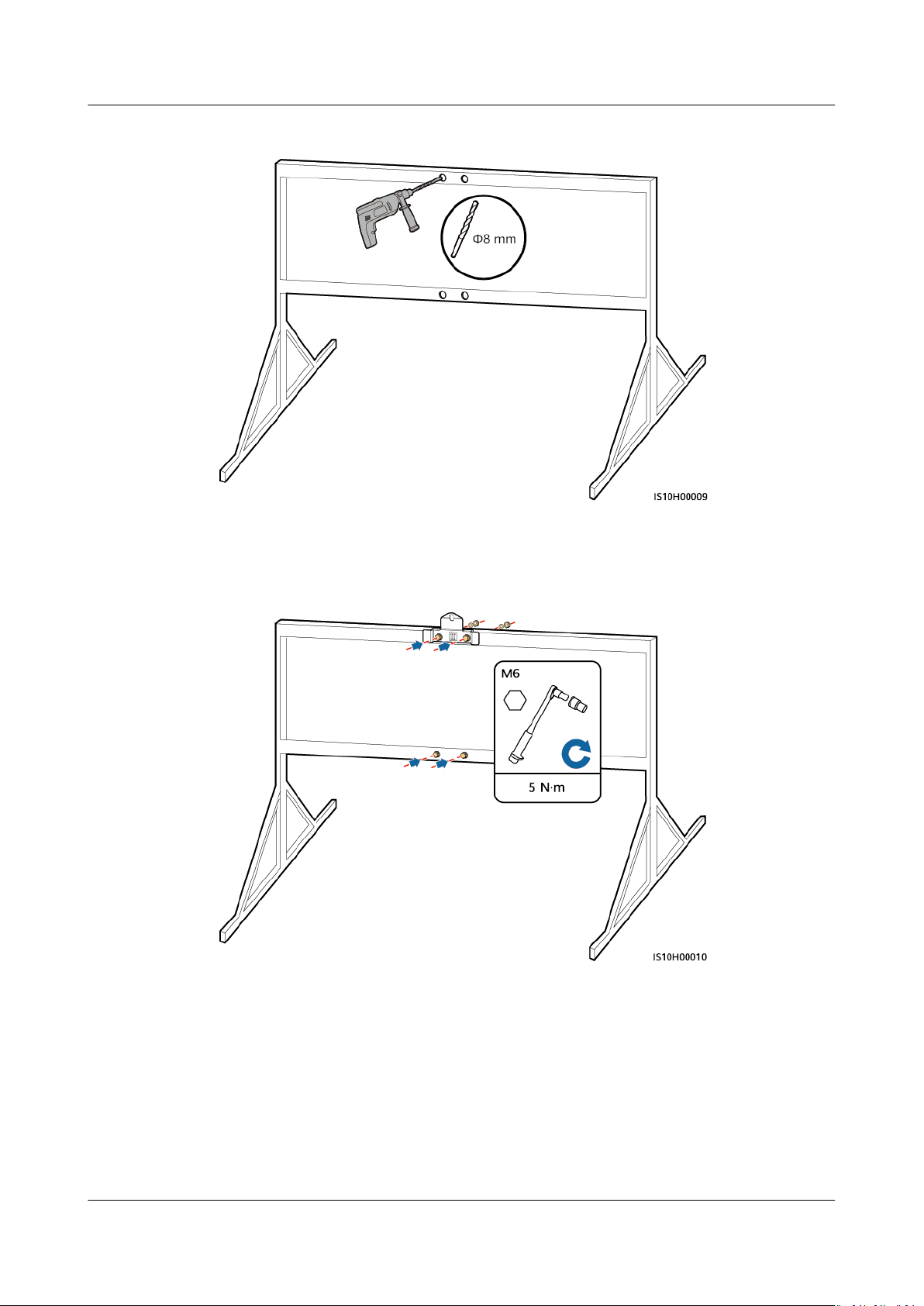

4.5.2 Support-mounted Installation.......................................................................................................................................28

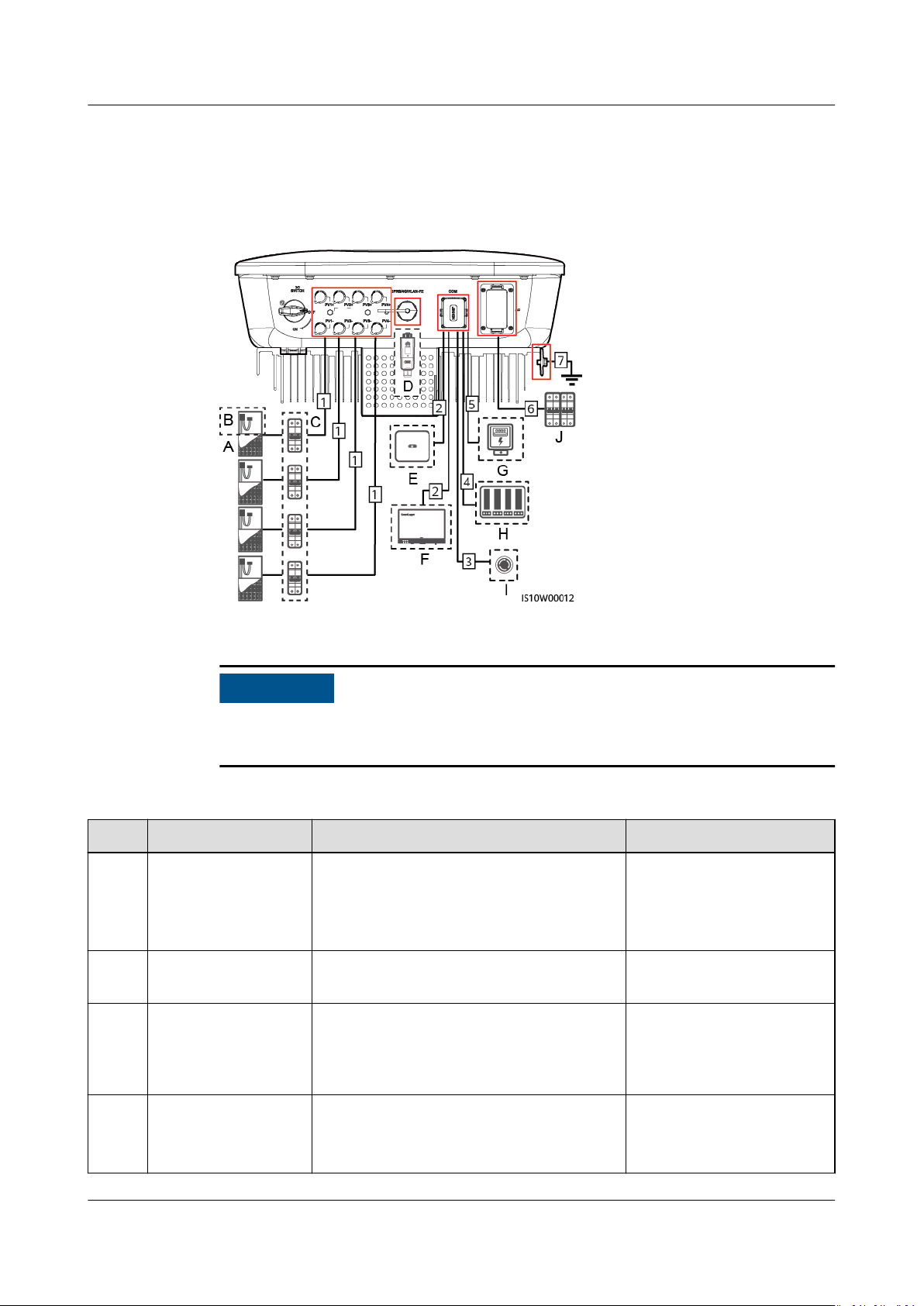

5 Electrical Connections.......................................................................................................... 31

5.1 Preparing for Installation................................................................................................................................................... 32

Page 7

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual Contents

5.2 Connecting the PE cable.....................................................................................................................................................35

5.3 Connecting the AC Output Power Cable...................................................................................................................... 37

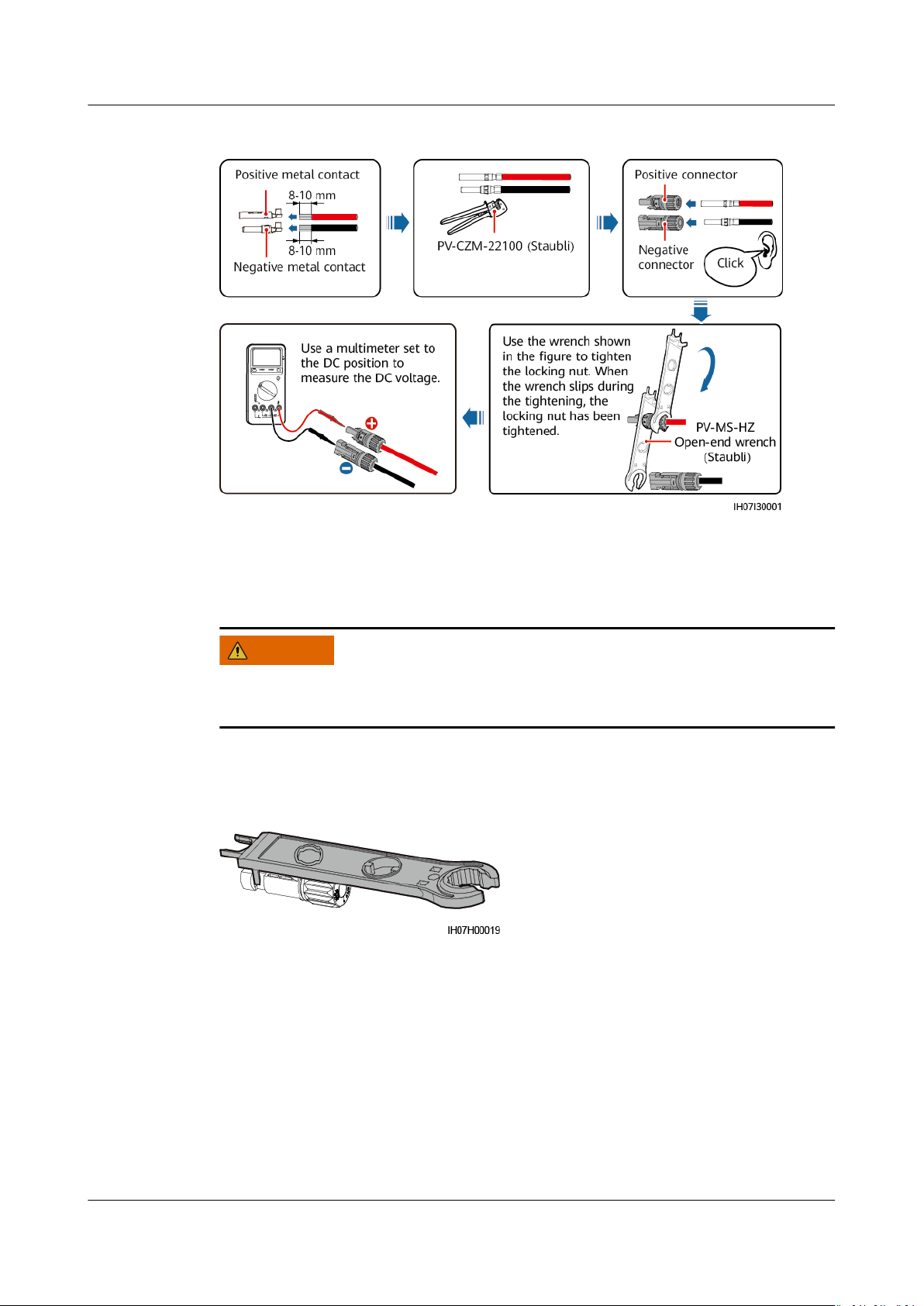

5.4 Connecting the DC input power cable.......................................................................................................................... 40

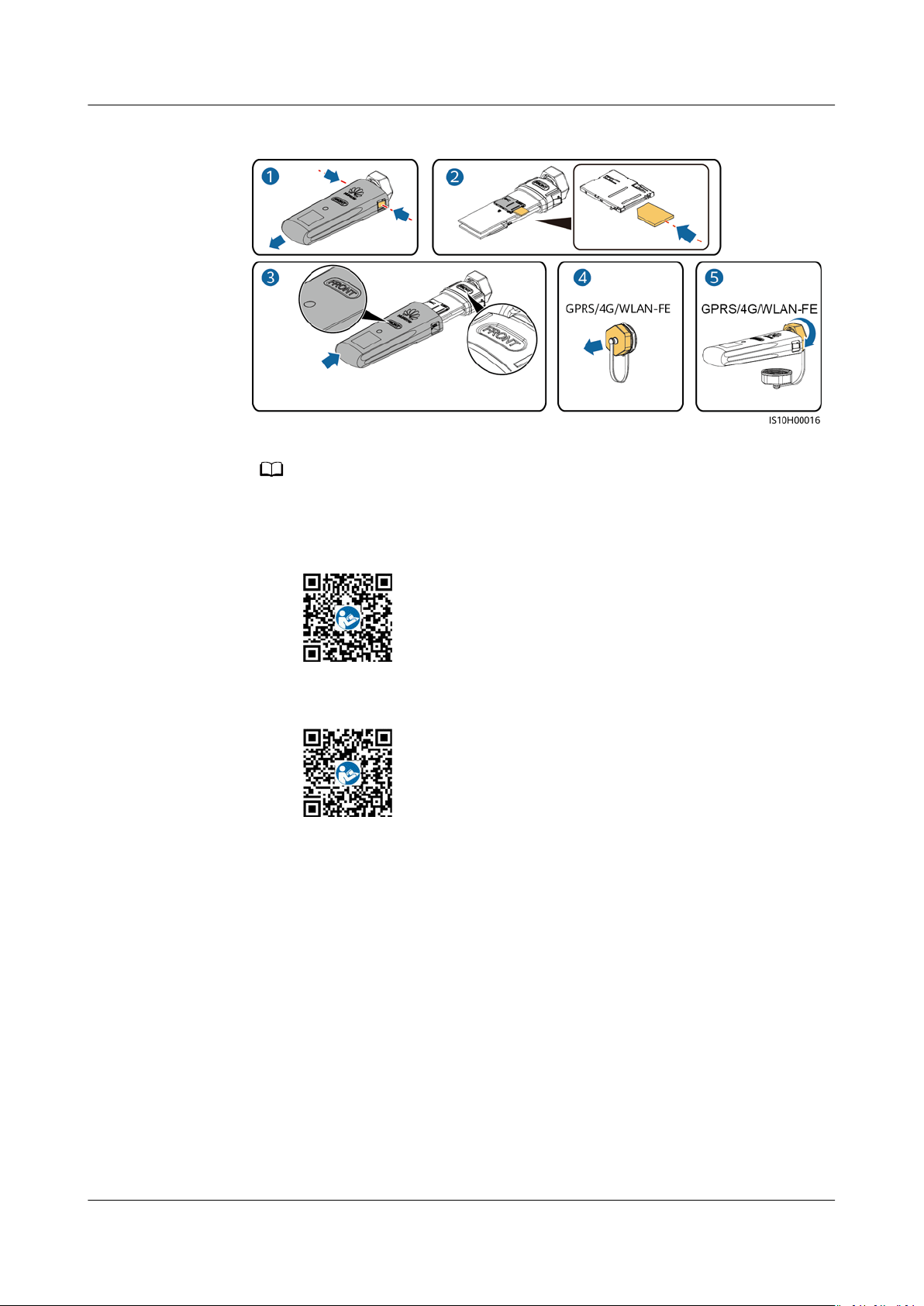

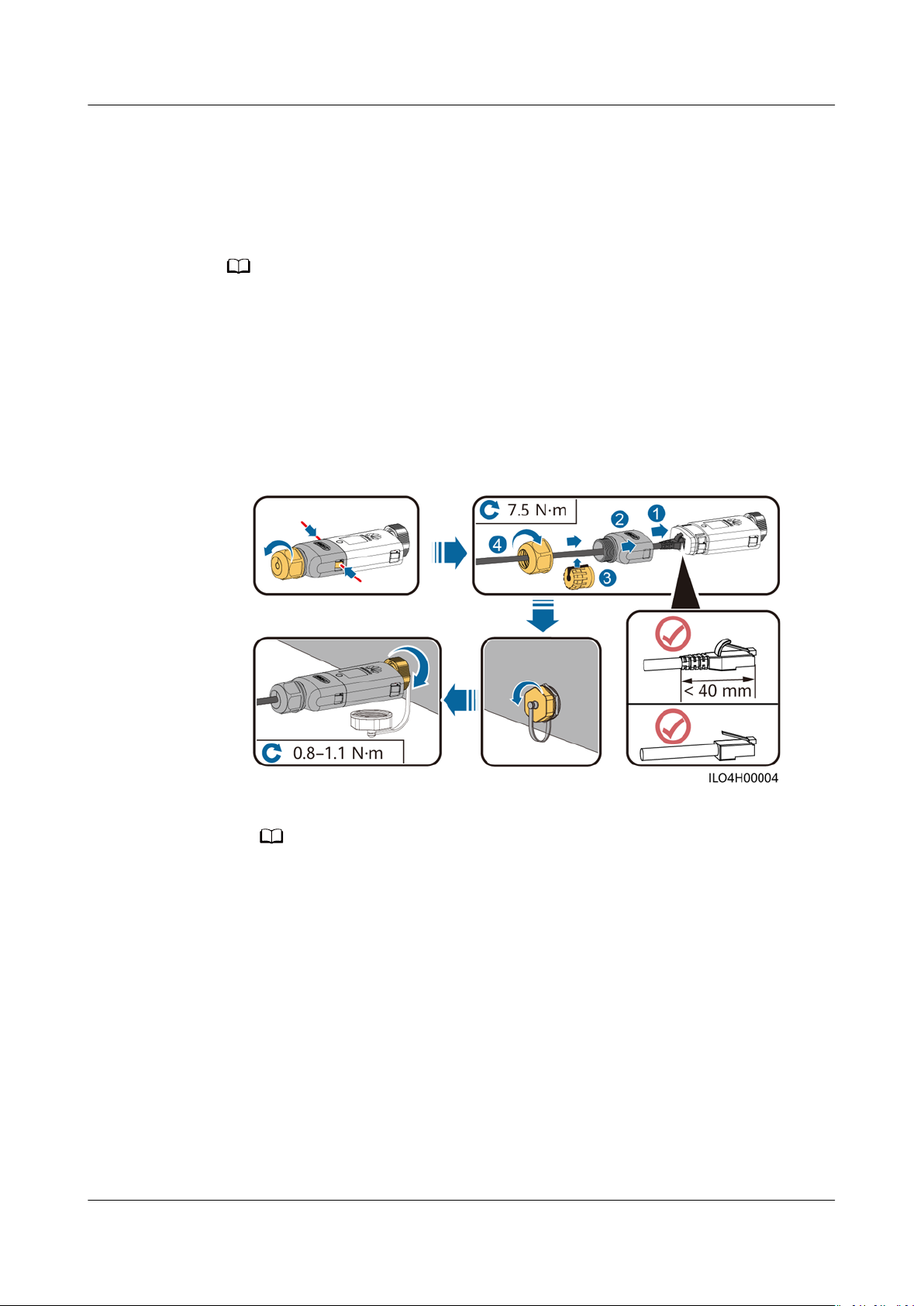

5.5 (Optional) Installing the Smart Dongle........................................................................................................................ 44

5.6 (Optional) Installing the Signal Cable........................................................................................................................... 45

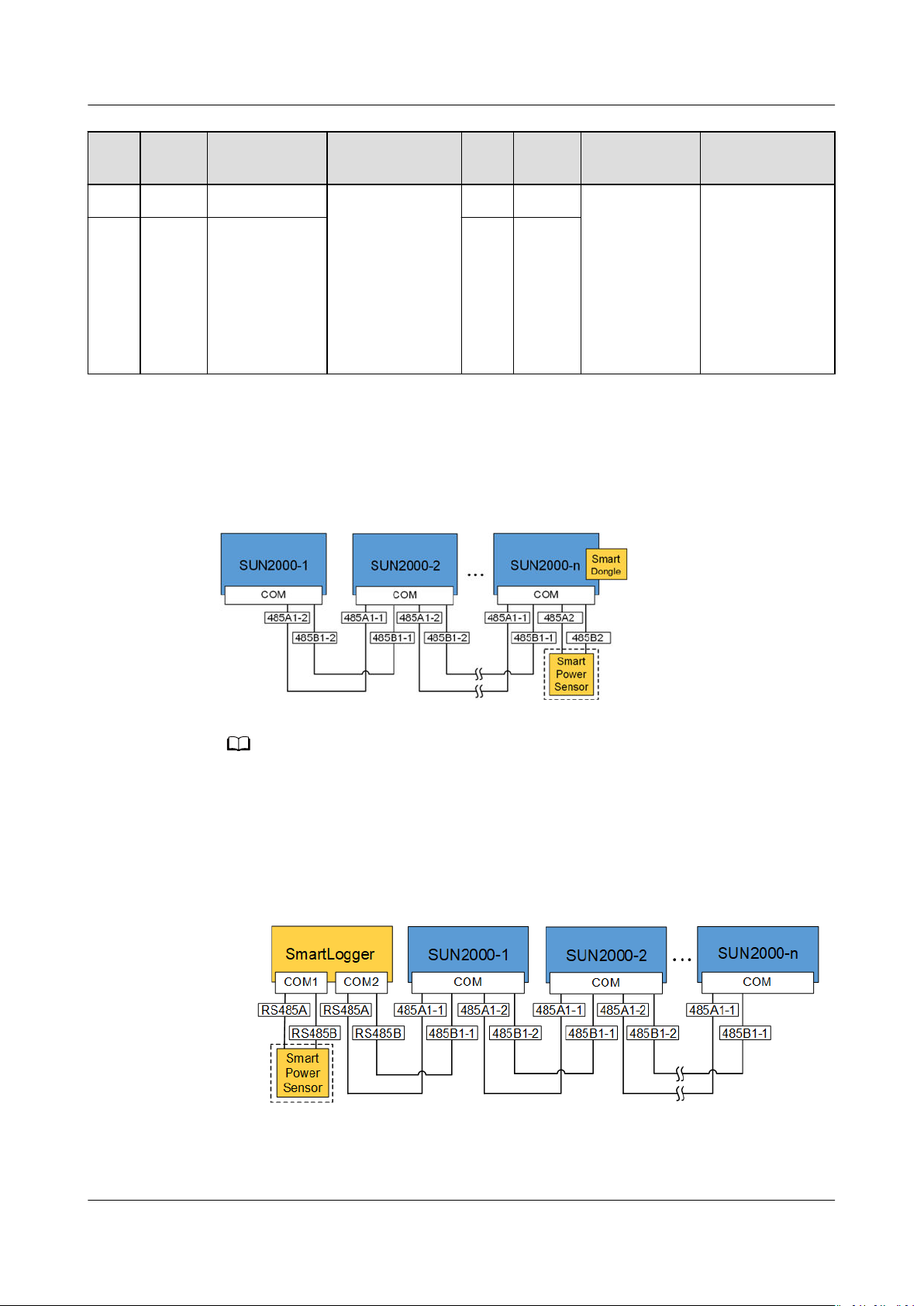

5.6.1 Connecting the RS485 Communications Cable (Inverter Cascading)............................................................. 48

5.6.2 Connecting the RS485 Communications Cable (Smart Power Sensor)..........................................................49

5.6.3 Connecting the Rapid shutdown signal cable......................................................................................................... 53

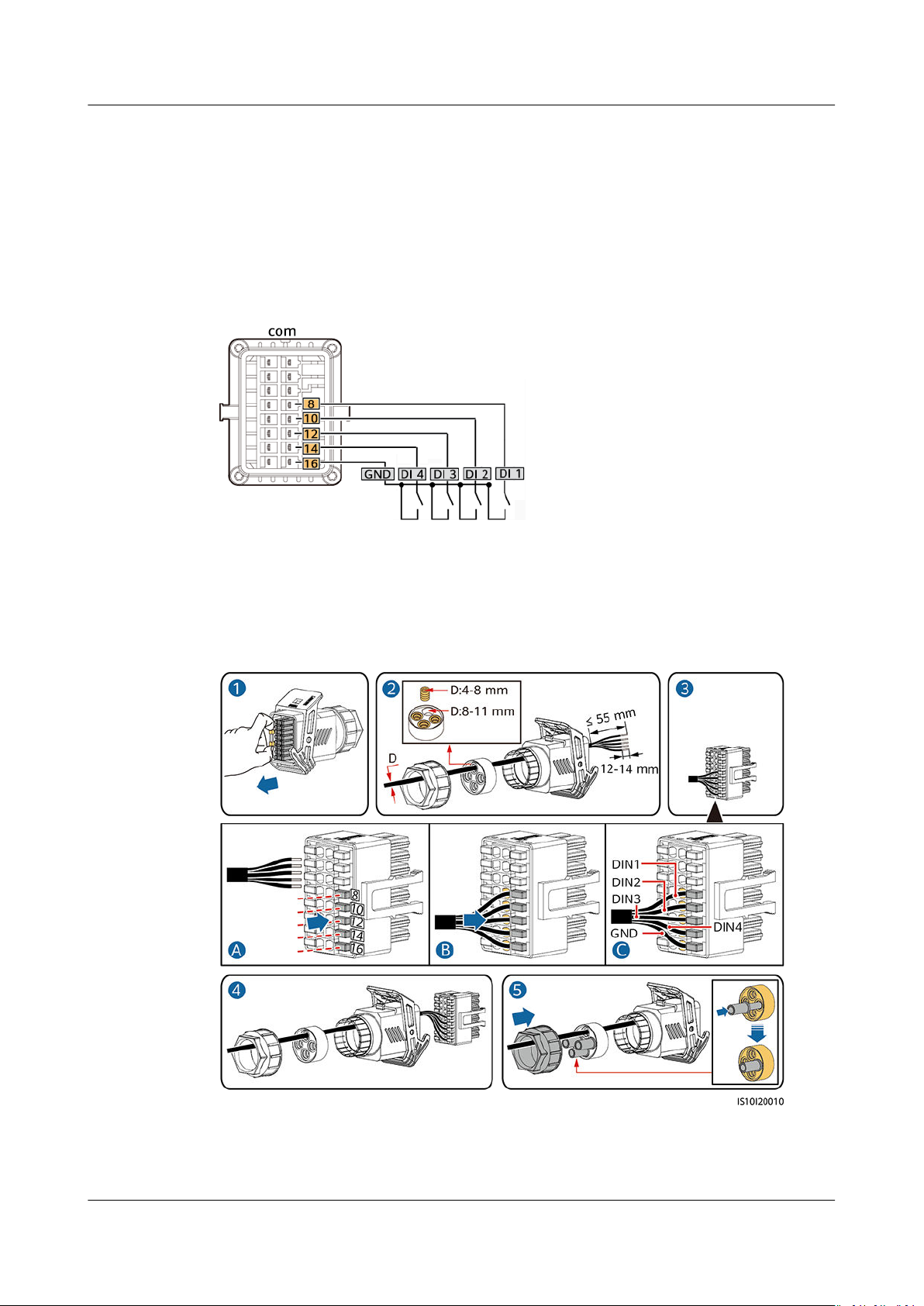

5.6.4 Connecting the Power Grid Scheduling Signal Cable........................................................................................... 54

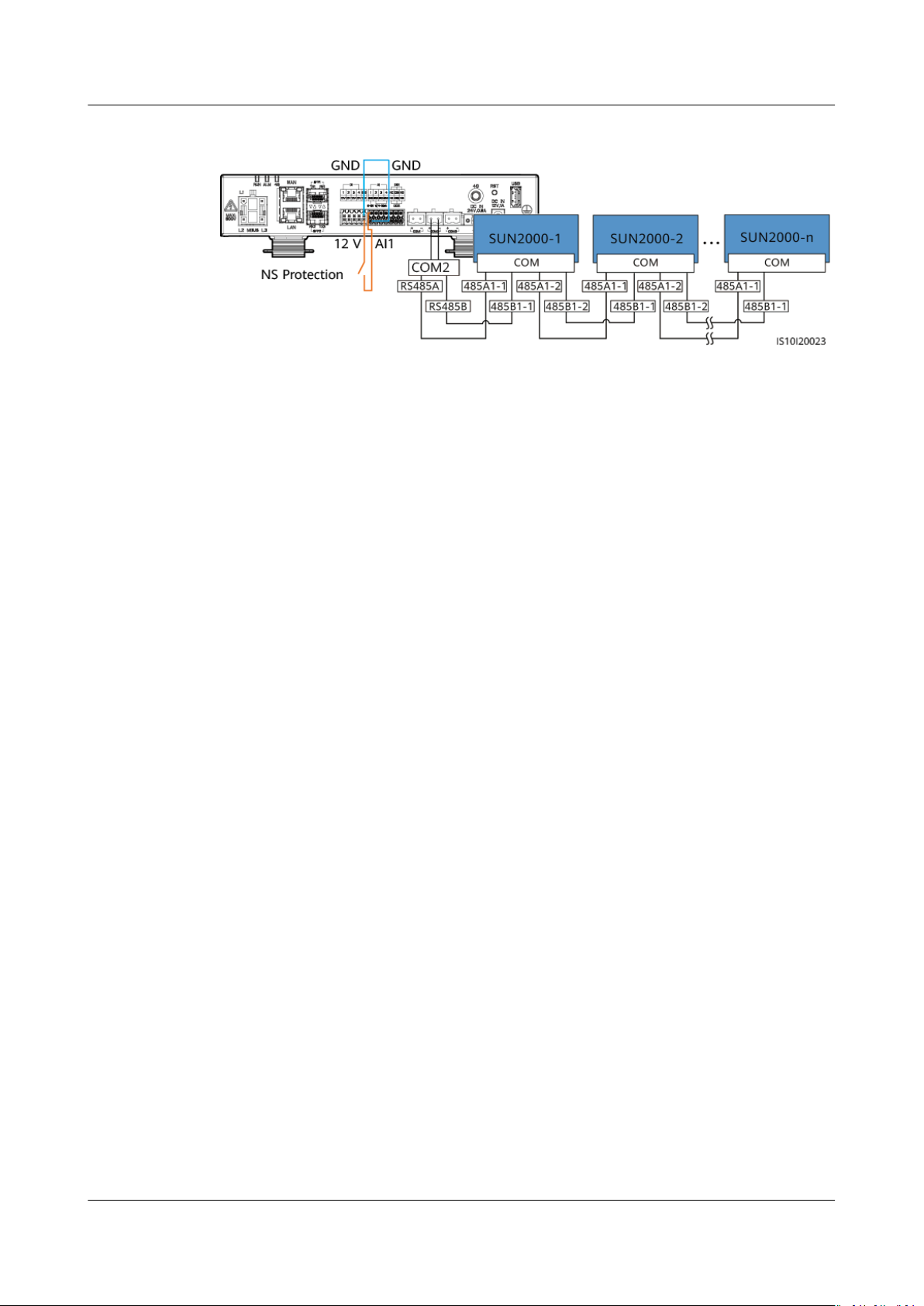

5.6.5 Connecting the NS Protection Signal Cable............................................................................................................. 55

6 Commissioning.......................................................................................................................58

6.1 Check Before Power-On......................................................................................................................................................58

6.2 Powering On the System....................................................................................................................................................59

7 Man-Machine Interaction....................................................................................................64

7.1 App Commissioning............................................................................................................................................................. 64

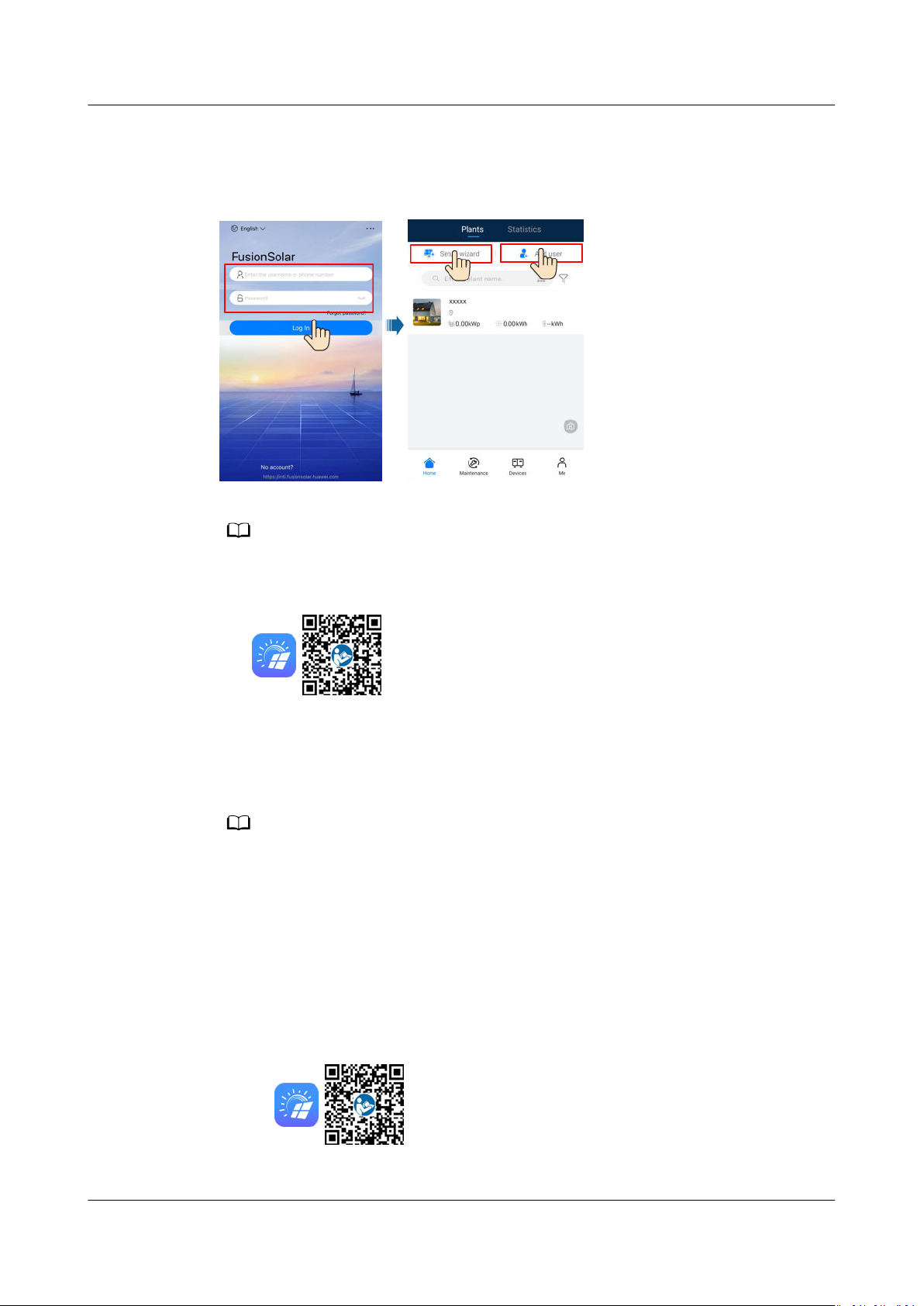

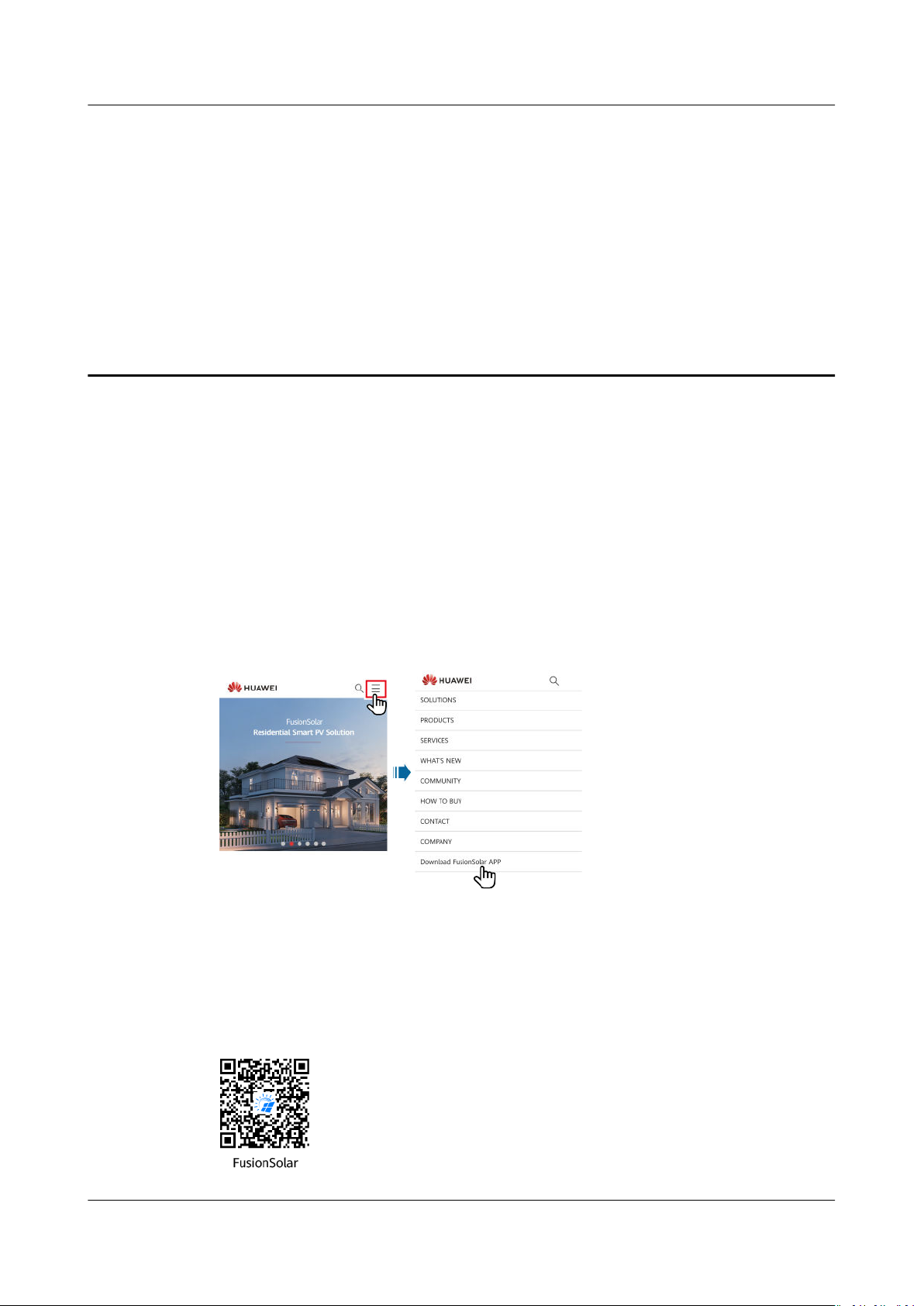

7.1.1 Downloading the FusionSolar App..............................................................................................................................64

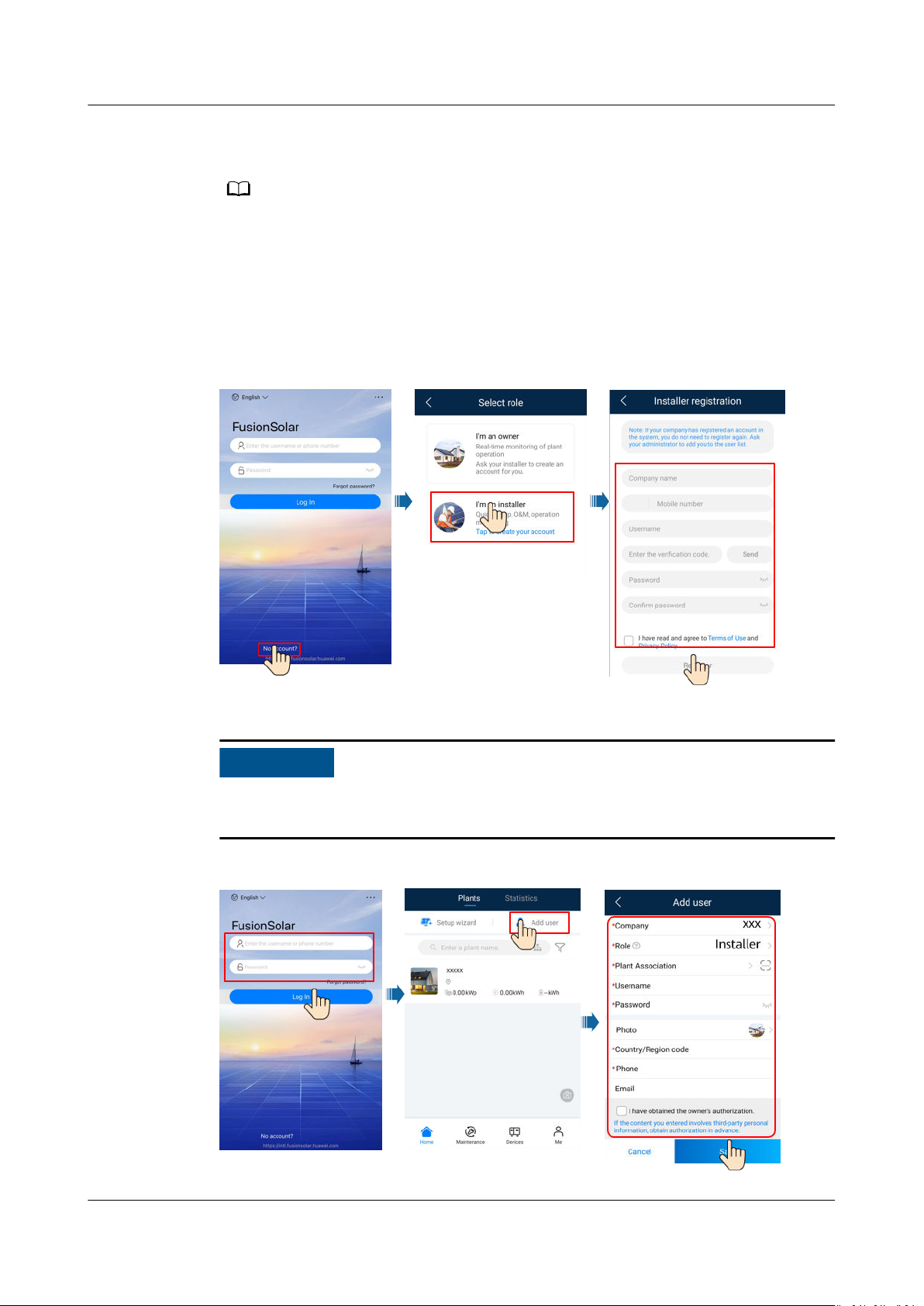

7.1.2 (Optional) Registering an Installer Account............................................................................................................ 65

7.1.3 Creating a PV Plant and a User.................................................................................................................................... 66

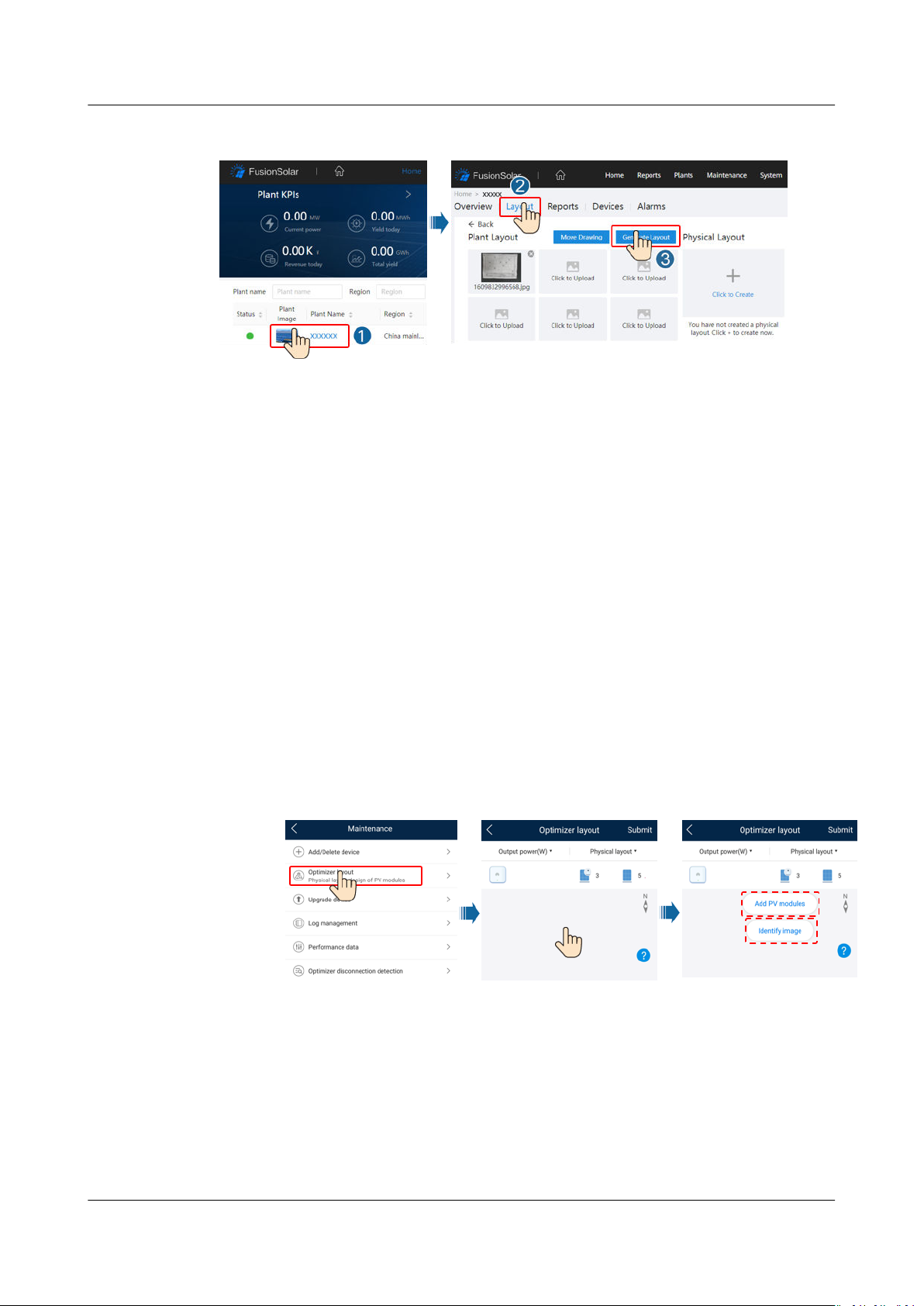

7.1.4 (Optional) Setting the Physical Layout of the Smart PV Optimizers.............................................................. 66

7.1.5 Detect optimizer disconnection.................................................................................................................................... 68

7.2 Parameters Settings............................................................................................................................................................. 69

7.2.1 Energy Control.................................................................................................................................................................... 69

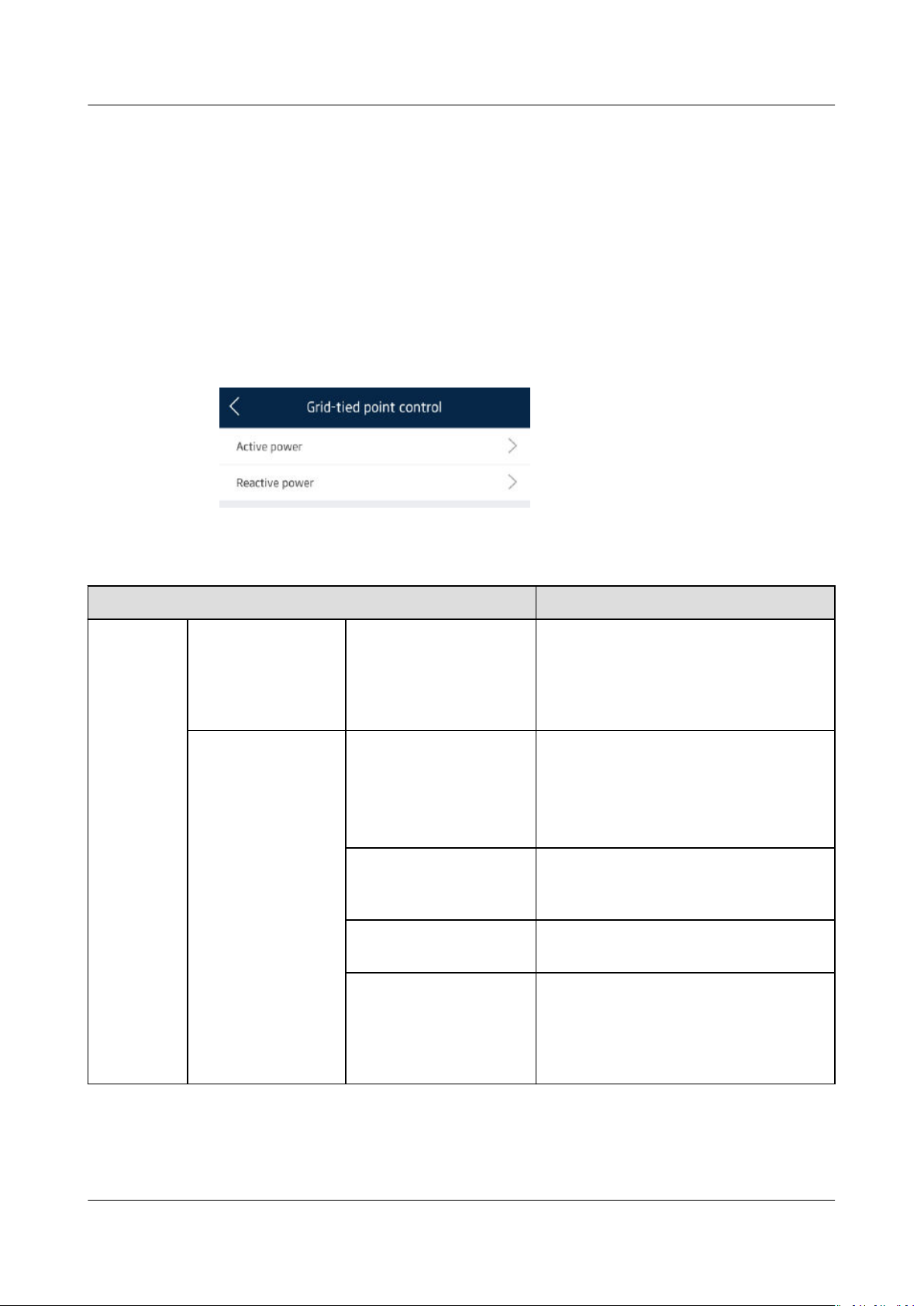

7.2.1.1 Grid-tied Point Control................................................................................................................................................. 70

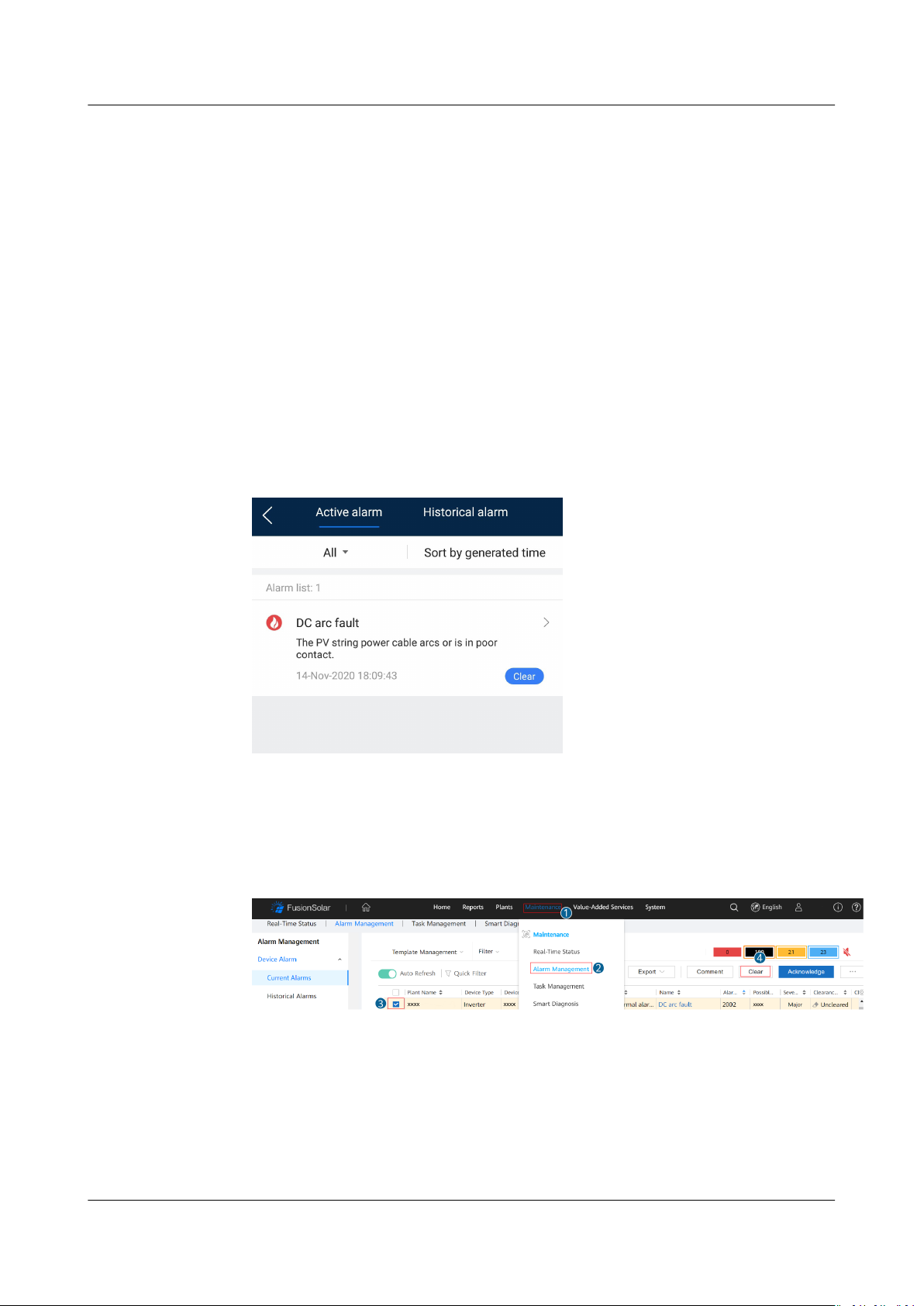

7.2.2 AFCI........................................................................................................................................................................................ 73

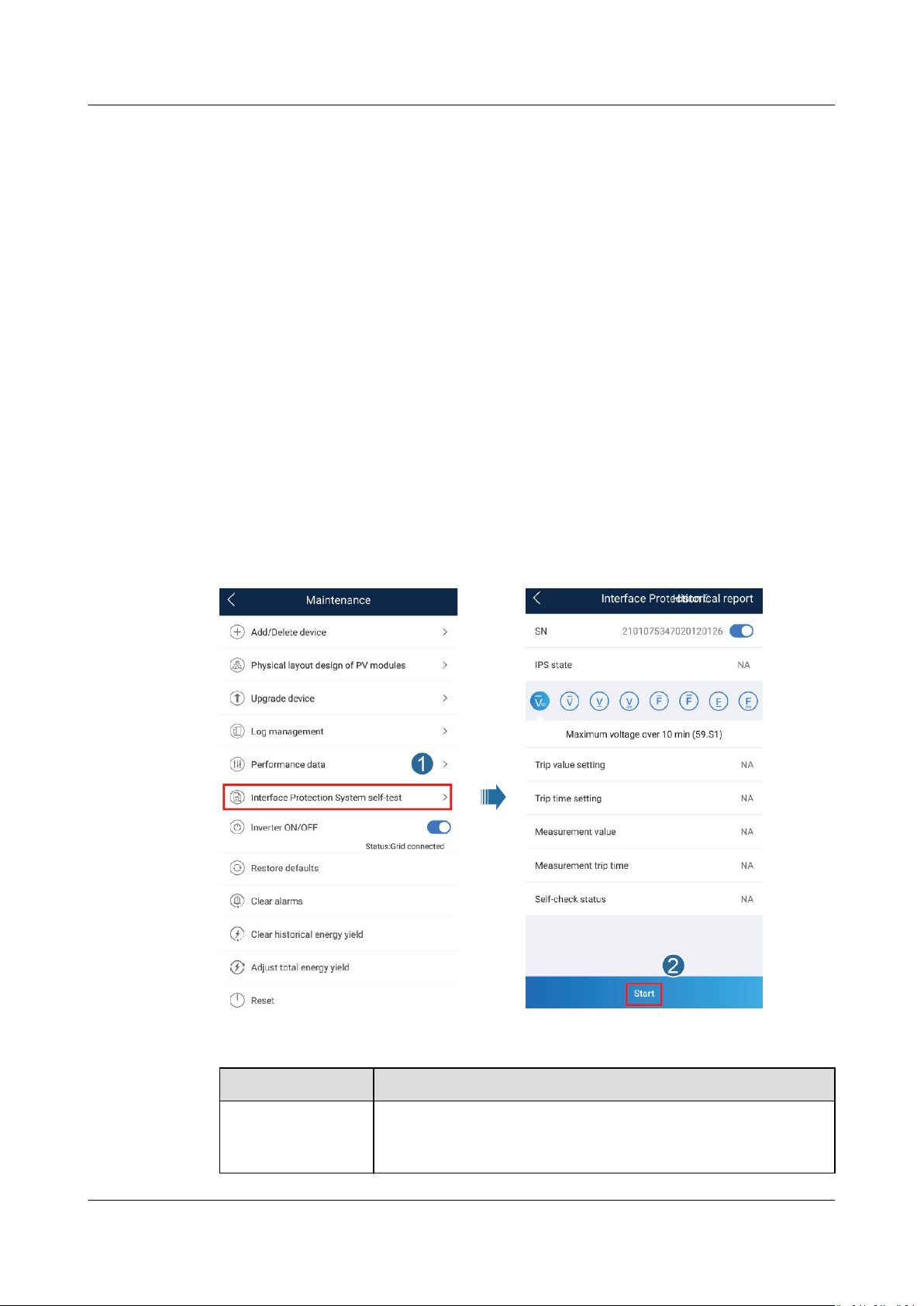

7.2.3 IPS Check (for Italy CEI0-21 Grid Code Only)......................................................................................................... 75

7.3 SmartLogger Networking Scenario................................................................................................................................ 76

8 Maintenance...........................................................................................................................78

8.1 System Power-O.................................................................................................................................................................78

8.2 Routine Maintenance.......................................................................................................................................................... 79

8.3 Troubleshooting.....................................................................................................................................................................79

9 Handling the Inverter...........................................................................................................91

9.1 Removing a SUN2000......................................................................................................................................................... 91

9.2 Packing the SUN2000..........................................................................................................................................................91

9.3 Disposing of the SUN2000................................................................................................................................................ 91

10 Technical Data..................................................................................................................... 92

10.1 SUN2000 Technical

10.2 Optimizer Technical Specications............................................................................................................................... 96

Specications................................................................................................................................ 92

A Grid Codes...............................................................................................................................99

B Device Commissioning....................................................................................................... 104

Page 8

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual Contents

C Setting Power Adjustment Parameters......................................................................... 107

D Resetting Password............................................................................................................109

E Rapid Shutdown.................................................................................................................. 112

F Locating Insulation Resistance Faults............................................................................ 113

G DRM

Conguration Guide for Standard As NZS4777.2............................................. 116

H Acronyms and Abbreviations...........................................................................................117

Page 9

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

1 Safety Information

1.1 General Safety

Statement

Before installing, operating, and maintaining the equipment, read this document and observe all the safety instructions on the equipment and in this document.

The "NOTICE", "CAUTION", "WARNING", and "DANGER" statements in this document do not cover all the safety instructions. They are only supplements to the safety instructions. Huawei will not be liable for any consequence caused by the violation of general safety requirements or design, production, and usage safety standards.

Ensure that the equipment is used in environments that meet its design specications. Otherwise, the equipment may become faulty, and the resulting equipment malfunction, component damage, personal injuries, or property damage are not covered under the warranty.

Follow local laws and regulations when installing, operating, or maintaining the equipment. The safety instructions in this document are only supplements to local laws and regulations.

Huawei will not be liable for any consequences of the following circumstances:

● Operation beyond the conditions

● Installation or use in environments which are not international or national standards

● Unauthorized modications to the product or software code or removal of the product

● Failure to follow the operation instructions and safety precautions on the product and in this document

● Equipment damage due to force majeure, such as earthquakes, re, and storms

● Damage caused during transportation by the customer

● Storage conditions that do not meet the requirements specied in this document

specied in this document

specied in relevant

Page 10

D ANGER

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

General Requirements

Do not work with power on during installation.

● Do not install, use, or operate outdoor equipment and cables (including but not limited to moving equipment, operating equipment and cables, inserting connectors to or removing connectors from signal ports connected to outdoor facilities, working at heights, and performing outdoor installation) in harsh weather conditions such as lightning, rain, snow, and level 6 or stronger wind.

● After installing the equipment, remove idle packing materials such as cartons, foam, plastics, and cable ties from the equipment area.

● In the case of a and turn on the re alarm bell or make an emergency call. Do not enter the building on re in any case.

● Do not scrawl, damage, or block any warning label on the equipment.

● Tighten the screws to the specied torque using tools when installing the equipment.

● Understand the components and functioning of a grid-tied PV power system and relevant local standards.

● Repaint any paint scratches caused during equipment transportation or installation in a timely manner. Equipment with scratches cannot be exposed to an outdoor environment for a long period of time.

● Do not open the host panel of the equipment.

● You shall not reverse engineer, decompile, disassemble, adapt, add code to the device software or alter the device software in any other way, research the internal implementation of the device, obtain the device software source code, infringe on Huawei's intellectual property, or disclose any device software performance test results.

re, immediately leave the building or the equipment area,

Personal Safety

● If there is a probability of personal injury or equipment damage during operations on the equipment, immediately stop the operations, report the case to the supervisor, and take feasible protective measures.

● Use tools correctly to avoid hurting people or damaging the equipment.

● Do not touch the energized equipment, as the enclosure is hot.

1.2 Personnel Requirements

● Personnel who plan to install or maintain Huawei equipment must receive thorough training, understand all necessary safety precautions, and be able to correctly perform all operations.

● Only

● Only qualied professionals are allowed to remove safety facilities and inspect

qualied professionals or trained personnel are allowed to install,

operate, and maintain the equipment.

the equipment.

Page 11

NO TE

D ANGER

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

● Personnel who will operate the equipment, including operators, trained personnel, and professionals, should possess the local national required qualications in special operations such as high-voltage operations, working at heights, and operations of special equipment.

● Only professionals or authorized personnel are allowed to replace the equipment or components (including software).

● Professionals: personnel who are trained or experienced in equipment operations and are clear of the sources and degree of various potential hazards in equipment installation, operation, and maintenance

● Trained personnel: personnel who are technically trained, have required experience, are aware of possible hazards on themselves in certain operations, and are able to take protective measures to minimize the hazards on themselves and other people

● Operators: operation personnel who may come in contact with the equipment, except trained personnel and professionals

1.3 Electrical Safety

Grounding

● For the equipment that needs to be grounded, install the ground cable when installing the equipment and remove the ground cable last when removing the equipment.

● Do not damage the ground conductor.

● Do not operate the equipment in the absence of a properly installed ground conductor.

● Ensure that the equipment is connected permanently to the protective ground. Before operating the equipment, check its electrical connection to ensure that it is securely grounded.

General Requirements

Before connecting cables, ensure that the equipment is intact. Otherwise, electric shocks or

● Ensure that all electrical connections comply with local electrical standards.

● Obtain approval from the local electric utility company before using the equipment in grid-tied mode.

● Ensure that the cables you prepared meet local regulations.

● Use dedicated insulated tools when performing high-voltage operations.

rst

re may occur.

Page 12

D ANGER

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

AC and DC Power

Do not connect or disconnect power cables with power on. Transient contact between the core of the power cable and the conductor will generate electric arcs or sparks, which may cause

● Before making electrical connections, switch o the disconnector on the upstream device to cut o the power supply if people may contact energized components.

● Before connecting a power cable, check that the label on the power cable is correct.

● If the equipment has multiple inputs, disconnect all the inputs before operating the equipment.

re or personal injury.

Cabling

● When routing cables, ensure that a distance of at least 30 mm exists between the cables and heat-generating components or areas. This prevents damage to the insulation layer of the cables.

● Bind cables of the same type together. When routing cables of ensure that they are at least 30 mm away from each other.

● Ensure that the cables used in a grid-tied PV power system are properly connected and insulated and meet

specications.

1.4 Installation Environment Requirements

● Ensure that the equipment is installed in a well ventilated environment.

● To prevent re due to high temperature, ensure that the ventilation vents or heat dissipation system are not blocked when the equipment is running.

● Do not expose the equipment to not perform any operation on the equipment in such environments.

ammable or explosive gas or smoke. Do

1.5 Mechanical Safety

Using Ladders

dierent types,

● Use wooden or berglass ladders when you need to perform live working at heights.

● When a step ladder is used, ensure that the pull ropes are secured and the ladder is held rm.

● Before using a ladder, check that it is intact and conrm its load bearing capacity. Do not overload it.

● Ensure that the wider end of the ladder is at the bottom, or protective measures have been taken at the bottom to prevent the ladder from sliding.

Page 13

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

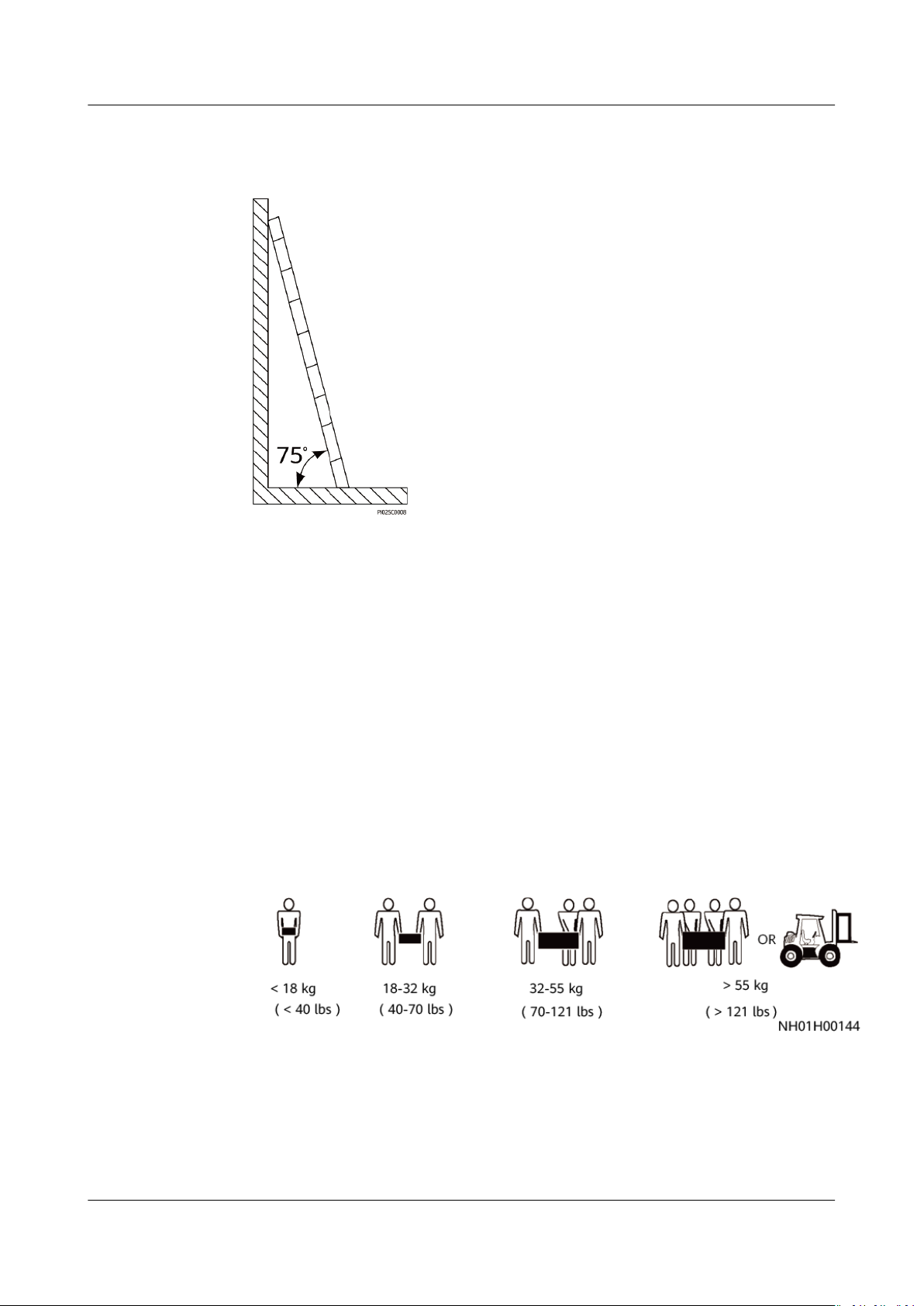

● Ensure that the ladder is securely positioned. The recommended angle for a ladder against the oor is 75 degrees, as shown in the following gure. An angle rule can be used to measure the angle.

● When climbing a ladder, take the following precautions to reduce risks and ensure safety:

– Keep your body steady.

– Do not climb higher than the fourth rung of the ladder from the top.

– Ensure that your body's center of gravity does not shift outside the legs

of the ladder.

Drilling Holes

When drilling holes into a wall or

● Wear goggles and protective gloves when drilling holes.

● When drilling holes, protect the equipment from shavings. After drilling, clean up any shavings that have accumulated inside or outside the equipment.

Moving Heavy Objects

● Be cautious to avoid injury when moving heavy objects.

oor, observe the following safety precautions:

● When moving the equipment by hand, wear protective gloves to prevent injuries.

Page 14

D ANGER

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 1 Safety Information

1.6 Commissioning

When the equipment is powered on for the rst time, ensure that professional personnel set parameters correctly. Incorrect settings may result in inconsistency with local certication and aect the normal operation of the equipment.

1.7 Maintenance and Replacement

High voltage generated by the equipment during operation may cause an electric shock, which could result in death, serious injury, or serious property damage. Prior to maintenance, power o the equipment and strictly comply with the safety precautions in this document and relevant documents.

● Maintain the equipment with sucient knowledge of this document and using proper tools and testing equipment.

● Before maintaining the equipment, power it the delayed discharge label to ensure that the equipment is powered o.

● Turn o the AC and DC switches of the SUN2000 when maintaining the electric equipment or power distribution equipment connected the SUN2000.

● Place temporary warning signs or erect fences to prevent unauthorized access to the maintenance site.

● If the equipment is faulty, contact your dealer.

● The equipment can be powered on only after all faults are do so may escalate faults or damage the equipment.

o and follow the instructions on

rectied. Failing to

Page 15

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

2 Overview

2.1 Product Introduction

Function

Models

The SUN2000 is a three-phase grid-tied PV string inverter that converts the DC power generated by PV strings into AC power and feeds the power into the power grid.

This document involves the following product models:

● SUN2000-8KTL-M2

● SUN2000-10KTL-M2

● SUN2000-12KTL-M2

● SUN2000-15KTL-M2

● SUN2000-17KTL-M2

● SUN2000-20KTL-M2

The SUN2000-8KTL-M2 and SUN2000-10KTL-M2 inverters are applicable only to Australia.

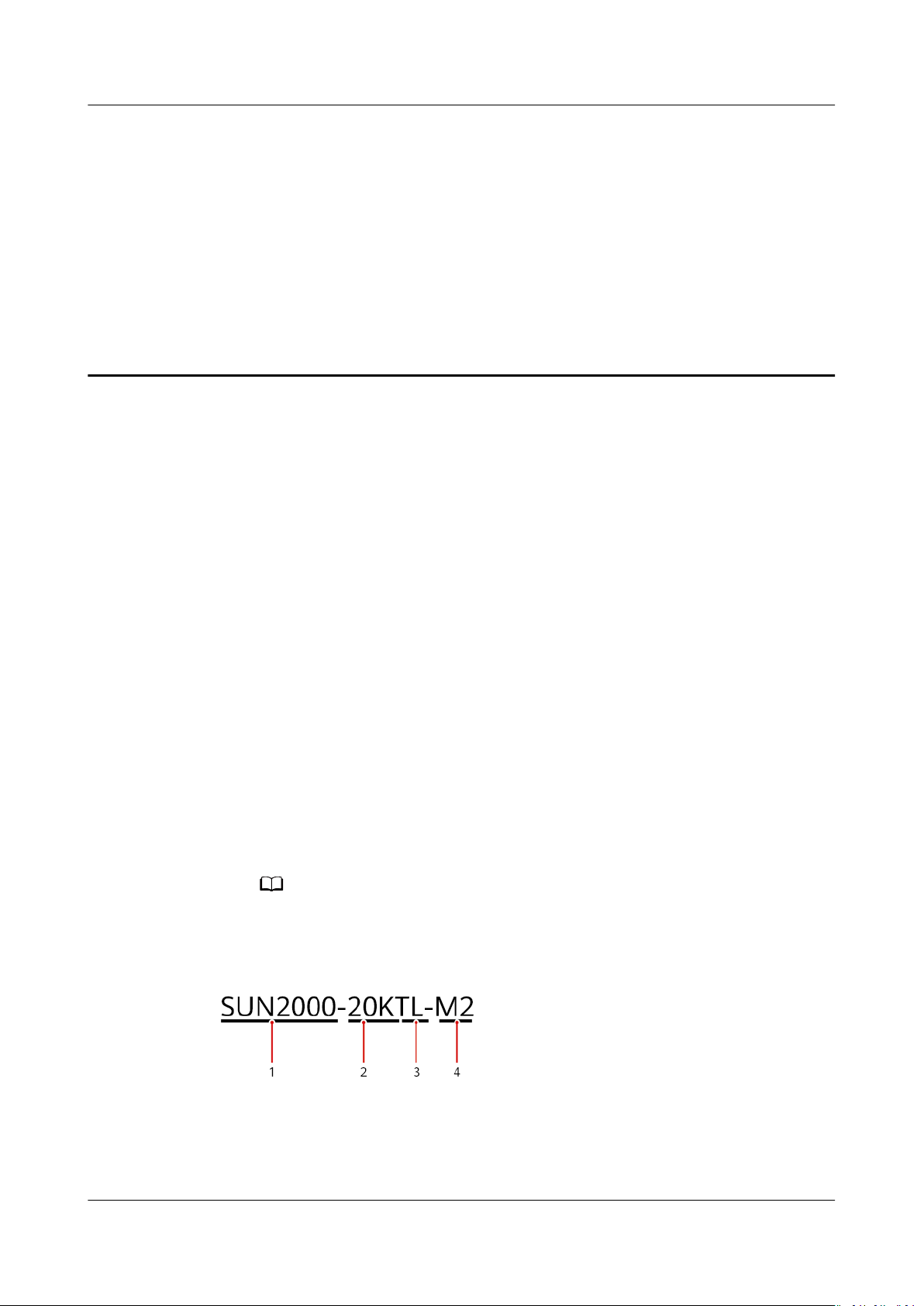

Figure 2-1 Model description (SUN2000-20KTL-M2 is used as an example)

Page 16

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

Table 2-1 Model description

Icon Meaning Description

1 Product SUN2000: three-phase grid-tied PV string inverter

2 Power level ● 8K: The rated power is 8 kW.

● 10K: The rated power is 10 kW.

● 12K: The rated power is 12 kW.

● 15K: The rated power is 15 kW.

● 17K: The rated power is 17 kW.

● 20K: The rated power is 20 kW.

3 Topology TL: transformerless

4 Product code M2: the product series with the 1080 V DC input voltage

Network Application

The SUN2000 applies to grid-tied PV systems for residential rooftops and small ground plants. Typically, a grid-tied system consists of the PV string, SUN2000, AC switch, and alternating current distribution unit (ACDU).

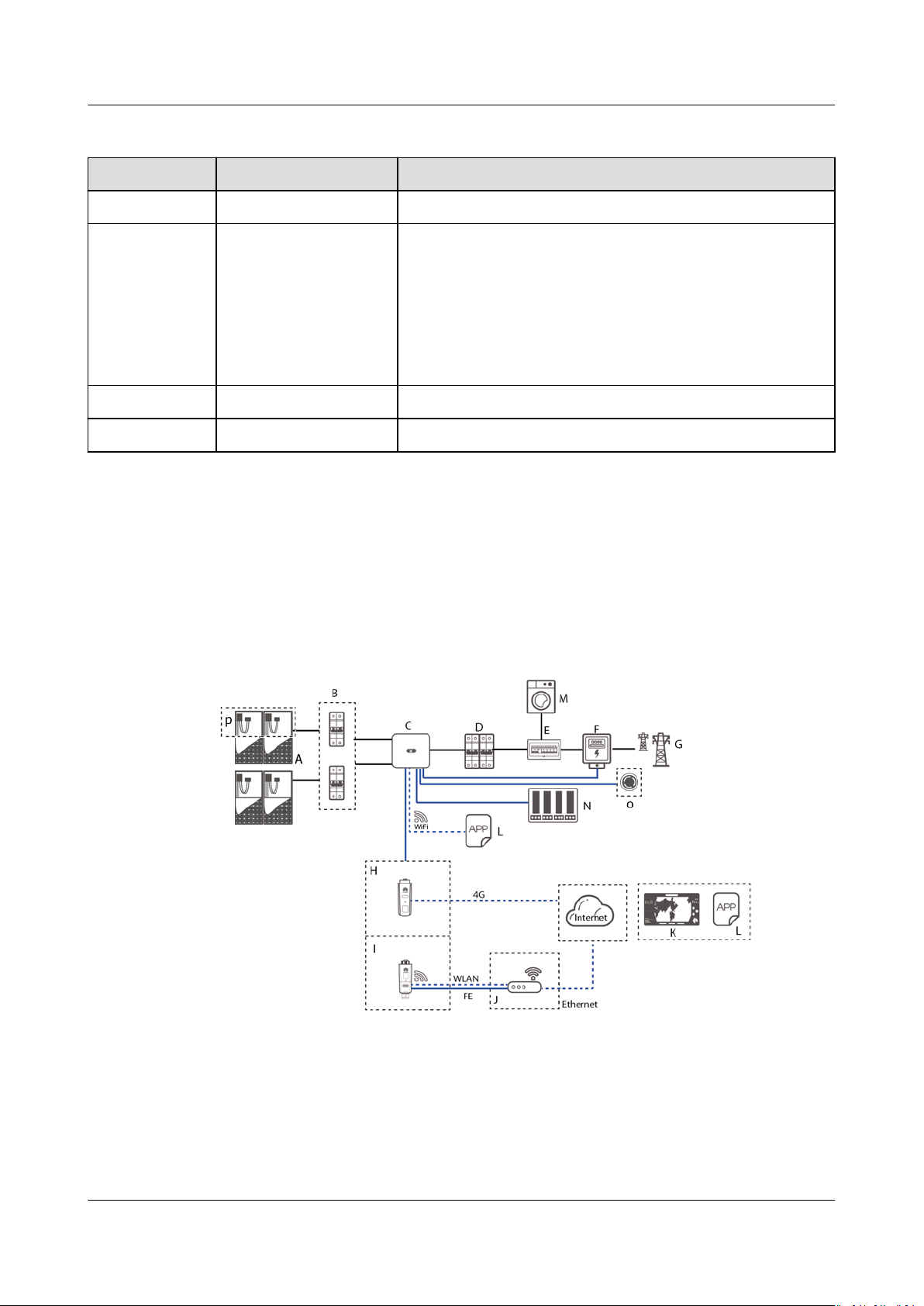

Figure 2-2 Networking application - Single inverter scenario (optional in dashed boxes)

Page 17

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

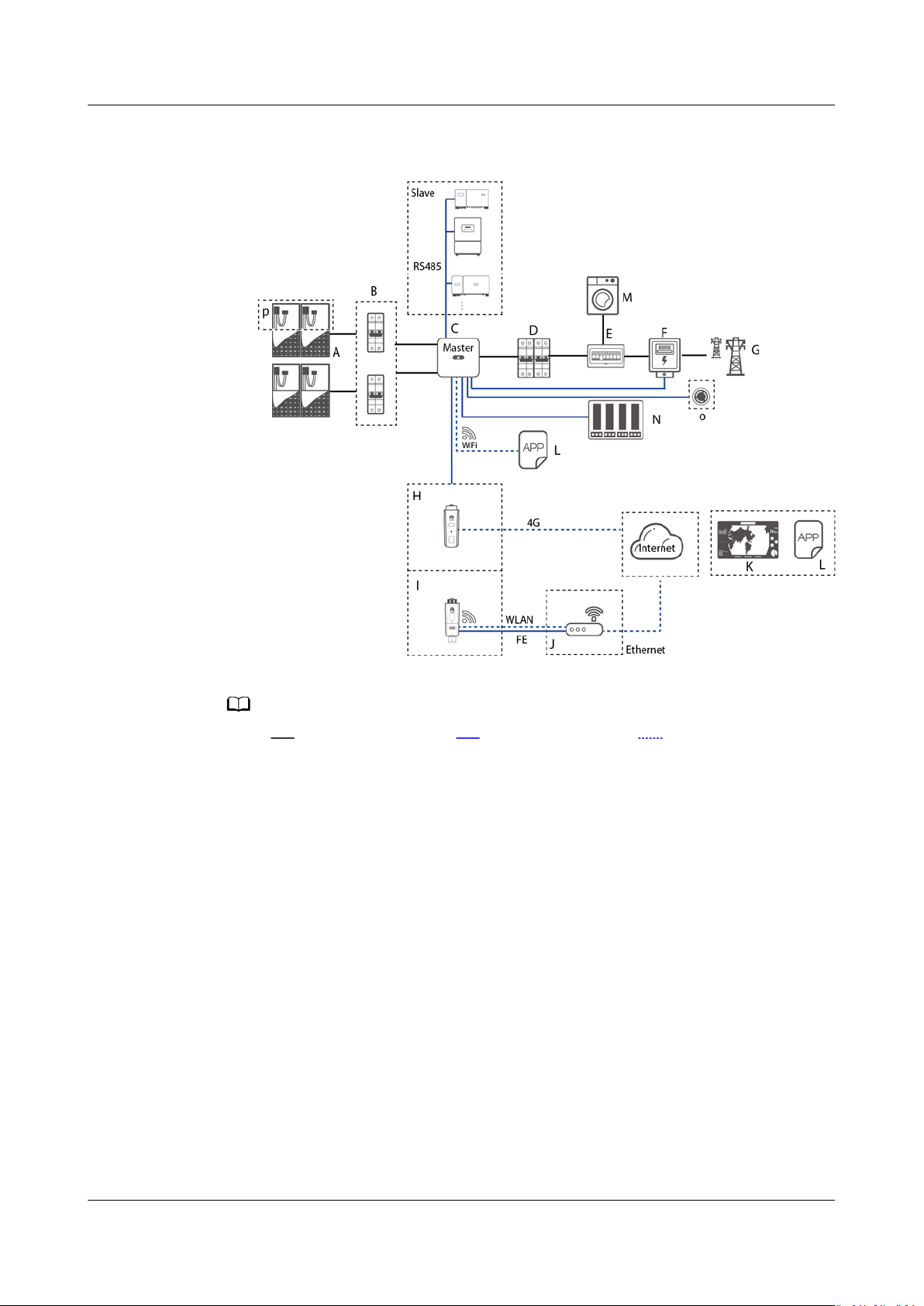

Figure 2-3 Networking application - Inverter cascading scenario (optional in dashed boxes)

● indicates a power cable, indicates a signal cable, indicates wireless communication.

● If the inverter is connected to the FusionSolar app over its built-in WiFi network, only local commissioning can be performed.

● In the RS485 cascading communication networking, the master inverter model is SUN2000-(3KTL-20KTL)-M2 and SUN2000-(3KTL-20KTL)-M0, and the slave inverter model can be SUN2000-(3KTL-20KTL)-M2, SUN2000-(3KTL-20KTL)-M0, SUN2000-50KTL/60KTL/65KTL-M0, SUN2000-29.9KTL/36KTL, or SUN2000-33KTL-A.

(A) PV string

(B) DC switch (C) SUN2000

(D) AC switch (E) ACDU (F) Smart Power Sensor

(G) Power grid (H) 4G Smart Dongle (I) WLAN-FE Smart

Dongle

(J) Router (K) FusionSolar

(L) FusionSolar APP

management system

(M) Load (N) Ripple Control

Device

(O) Rapid shutdown switch

(P) Smart PV optimizer

Page 18

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

For detailed operations on devices in the network, see the following guides:

SUN2000-450W-P Smart PV Optimizer Quick Guide

Supported Power Grids

Power grid types supported by the SUN2000 include TN-S, TN-C, TN-C-S, TT, and IT.

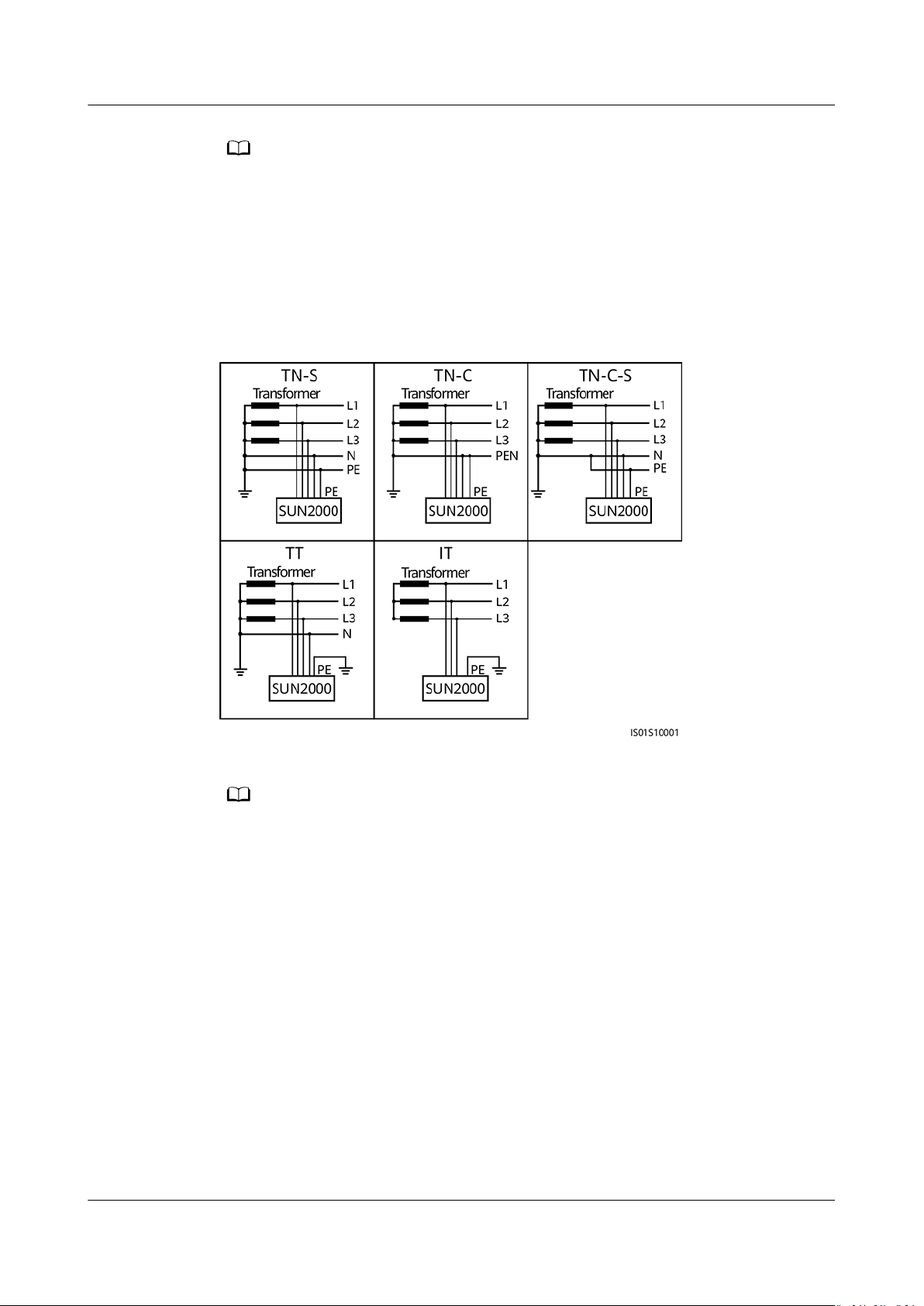

Figure 2-4 Supported power grids

● In a TT power grid, the N-PE voltage should be lower than 30 V.

● In an IT power grid, you need to set isolation settings to input not grounded, with a

transformer.

Page 19

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

2.2 Appearance

Figure 2-5 Appearance

(1) LED indicator (2) Front panel

(3) Mounting plate (4) Heat sink

(5) Ventilation valve (6) Ground screw

(7) AC output port (AC) (8) Communication port (COM)

(9) Smart Dongle port (GPRS/4G/ WLAN-FE)

(11) DC input terminals (PV3+/PV3–) (12) DC input terminals (PV2+/PV2–)

(13) DC input terminals (PV1+/PV1–) (14) DC switch (DC SWITCH)

(15) Screw hole for the DC switch (for Australia only)

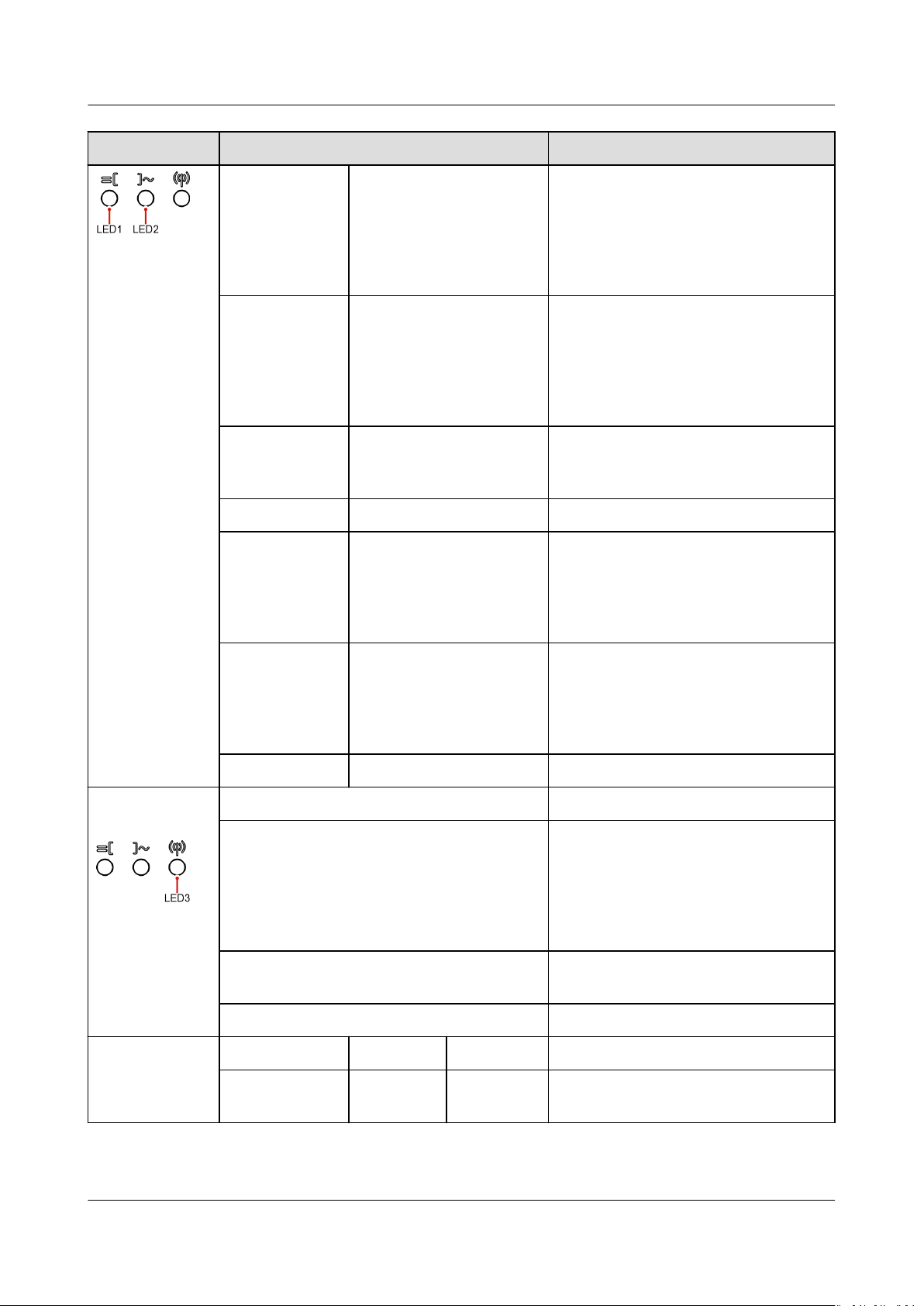

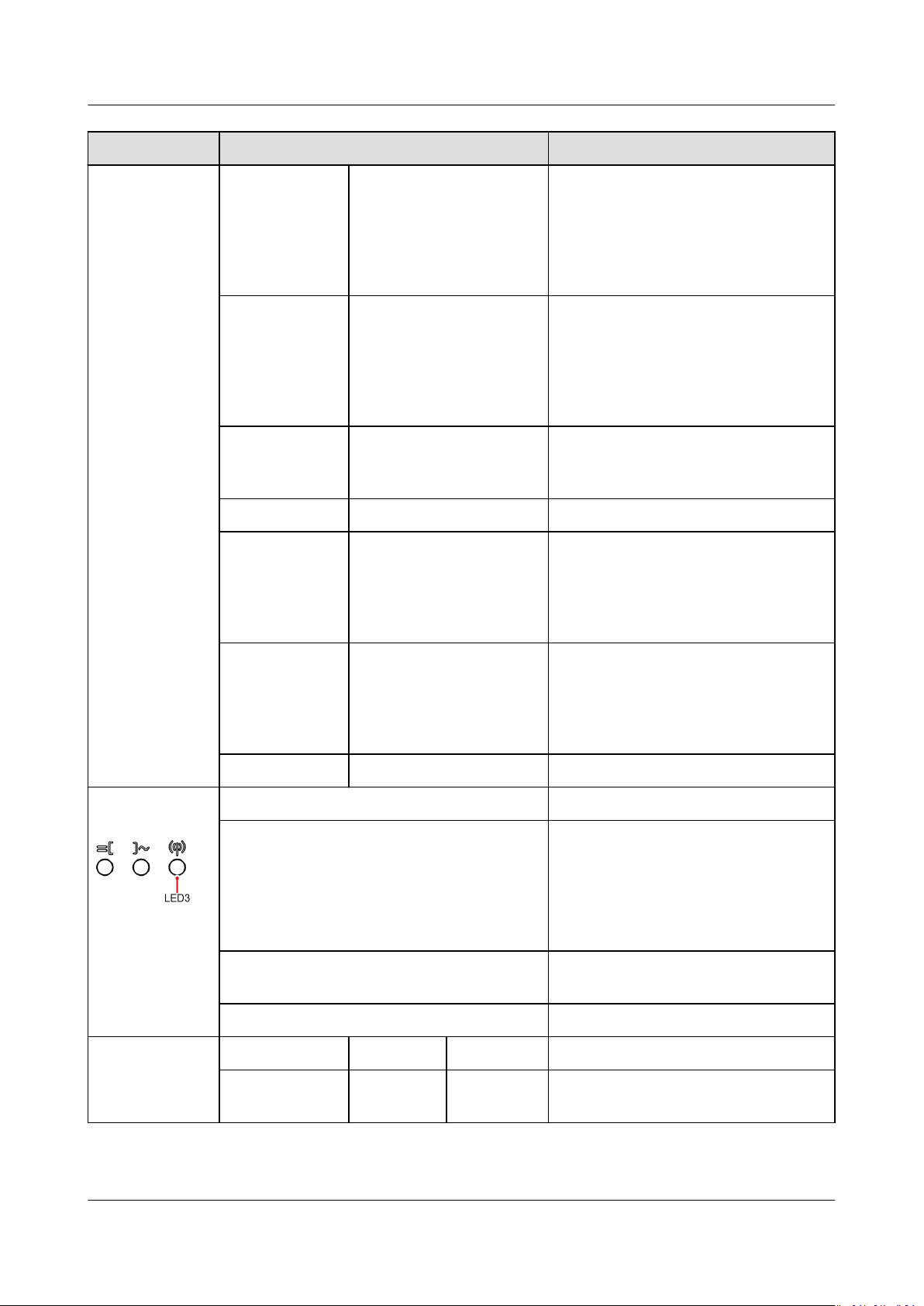

Table 2-2 LED indicator description

2.3 Label Description

2.3.1 Enclosure Labels

Symbol Name Meaning

Delayed discharge Residual voltage exists

after the SUN2000 is powered o. It takes 5 minutes for the SUN2000 to discharge to the safe voltage.

Burn warning Do not touch an

operating SUN2000 because it generates high temperatures on the shell.

Electric shock warning label

Refer to documentation

● High voltage exists after the SUN2000 is powered on. Only qualied and trained electrical technicians are allowed to perform operations on the SUN2000.

● High touch current exists after the SUN2000 is powered on. Ensure that the SUN2000 has been grounded before powering on it.

Reminds operators to refer to the documents shipped with the SUN2000.

Grounding Indicates the position

for connecting the protective earthing (PE) cable.

Page 22

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

Symbol Name Meaning

Operation warning Do not remove the DC

input connector or the AC output connector when the SUN2000 is running.

2.3.2 Product Nameplate

Figure 2-6 Nameplate (SUN2000-20KTL-M2 as an example)

SUN2000 serial number (SN) label

SUN2000 MAC address label

QR code label for SUN2000 Wi-Fi connection

Indicates the SUN2000 SN.

Indicates the MAC address.

Scan the QR code to connect to Huawei SUN2000 Wi-Fi network.

(1) Trademark and product model

(3) Compliance symbols (4) Company name and country of

(2) Important technical specications

manufacture

Page 23

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

The nameplate gure is for reference only.

2.4 Working Principles

2.4.1 Circuit Diagram

Four PV strings connect to the SUN2000, and their maximum power points are tracked by two maximum power point tracking (MPPT) circuits. The SUN2000 converts DC power into three-phase AC power through an inverter circuit. Surge protection is supported on both the DC and AC sides.

Figure 2-7 SUN2000 conceptual diagram

2.4.2 Working Modes

The SUN2000 can work in Standby, Operating, or Shutdown mode.

Page 24

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 2 Overview

Figure 2-8 Working modes

Table 2-3 Working mode description

Working

Description

Mode

Standby The SUN2000 enters Standby mode when the external environment does not

meet the operating requirements. In Standby mode:

● The SUN2000 continuously performs status check and enters the Operating mode once the operating requirements are met.

● The SUN2000 enters Shutdown mode after detecting a shutdown command or a fault after startup.

Operating In Operating mode:

● The SUN2000 converts DC power from PV strings into AC power and feeds the power to the power grid.

● The SUN2000 tracks the maximum power point to maximize the PV string output.

● If the SUN2000 detects a fault or a shutdown command, it enters the Shutdown mode.

● The SUN2000 enters Standby mode after detecting that the PV string output power is not suitable for connecting to the power grid for generating power.

Shutdown ● In Standby or Operating mode, the SUN2000 enters Shutdown mode after

detecting a fault or shutdown command.

● In Shutdown mode, the SUN2000 enters Standby mode after detecting a startup command or that the fault is rectied.

Page 25

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 3 Storage

3 Storage

The following requirements should be met if the SUN2000 is not put into use directly:

● Do not unpack the SUN2000.

● Keep the storage temperature at –40°C to +70°C and the humidity at 5%– 95% RH (non-condensing).

● The SUN2000 should be stored in a clean and dry place and be protected from dust and water vapor corrosion.

● A maximum of six SUN2000s can be stacked. To avoid personal injury or device damage, stack SUN2000s with caution to prevent them from falling over.

● Periodic inspections are required during the storage. Replace the packing materials if necessary.

● If the SUN2000 has been long-term stored, inspections and tests should be conducted by

qualied personnel before it is put into use.

Page 26

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

4 Installation

4.1 Checking Before Installation

Outer Packing Materials

Before unpacking the inverter, check the outer packing materials for damage, such as holes and cracks, and check the inverter model. If any damage is found or the inverter model is not what you requested, do not unpack the package and contact your supplier as soon as possible.

You are advised to remove the packing materials within 24 hours before installing the inverter.

Package Contents

After unpacking the inverter, check that the contents are intact and complete. If any damage is found or any component is missing, contact your supplier.

For details about the number of contents, see the

Packing List

in the packing case.

Page 27

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

4.2 Tools

Type Tool

Installa tion Tools

Hammer drill

Drill bit: Φ8 mm and Φ6 mm

Wire stripper

Cable cutter

Socket wrench set Torque screwdriver

Phillips head: M3

Removal wrench

Model: PV-MS-HZ Open-end Wrench;

manufacturer: Staubli

Crimping tool

Model: PVCZM-22100/19100;

manufacturer: Staubli

Rubber mallet Utility knife

Multimeter

DC voltage measurement range ≥ 1100 V DC

Diagonal pliers

Vacuum cleaner

Marker Measuring tape Bubble or digital

level

Cord end terminal crimper

Page 28

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

Type Tool

Heat shrink tubing Heat gun Cable tie Hydraulic pliers

PPE

Safety gloves Safety goggles Anti-dust respirator

4.3 Determining the Installation Position

4.3.1 Environment Requirements

Basic Requirements

● The SUN2000 is protected to IP65 and can be installed indoors or outdoors.

● Do not install the SUN2000 in a place where personnel are easy to come into contact with its enclosure and heat sinks, because these parts are extremely hot during operation.

● Do not install the SUN2000 in areas with

● Do not install the SUN2000 at a place within children's reach.

● Do not install the SUN2000 outdoors in salt areas because it will be corroded there and may cause from the coast or prone to sea breeze. The regions prone to sea breeze vary depending on weather conditions (such as typhoons and monsoons) or terrains (such as dams and hills).

● The SUN2000 must be installed in a well-ventilated environment to ensure good heat dissipation.

● Recommended: Install the SUN2000 in a sheltered place or a place with an awning.

re. A salt area refers to the region within 500 meters

ammable or explosive materials.

Safety shoes

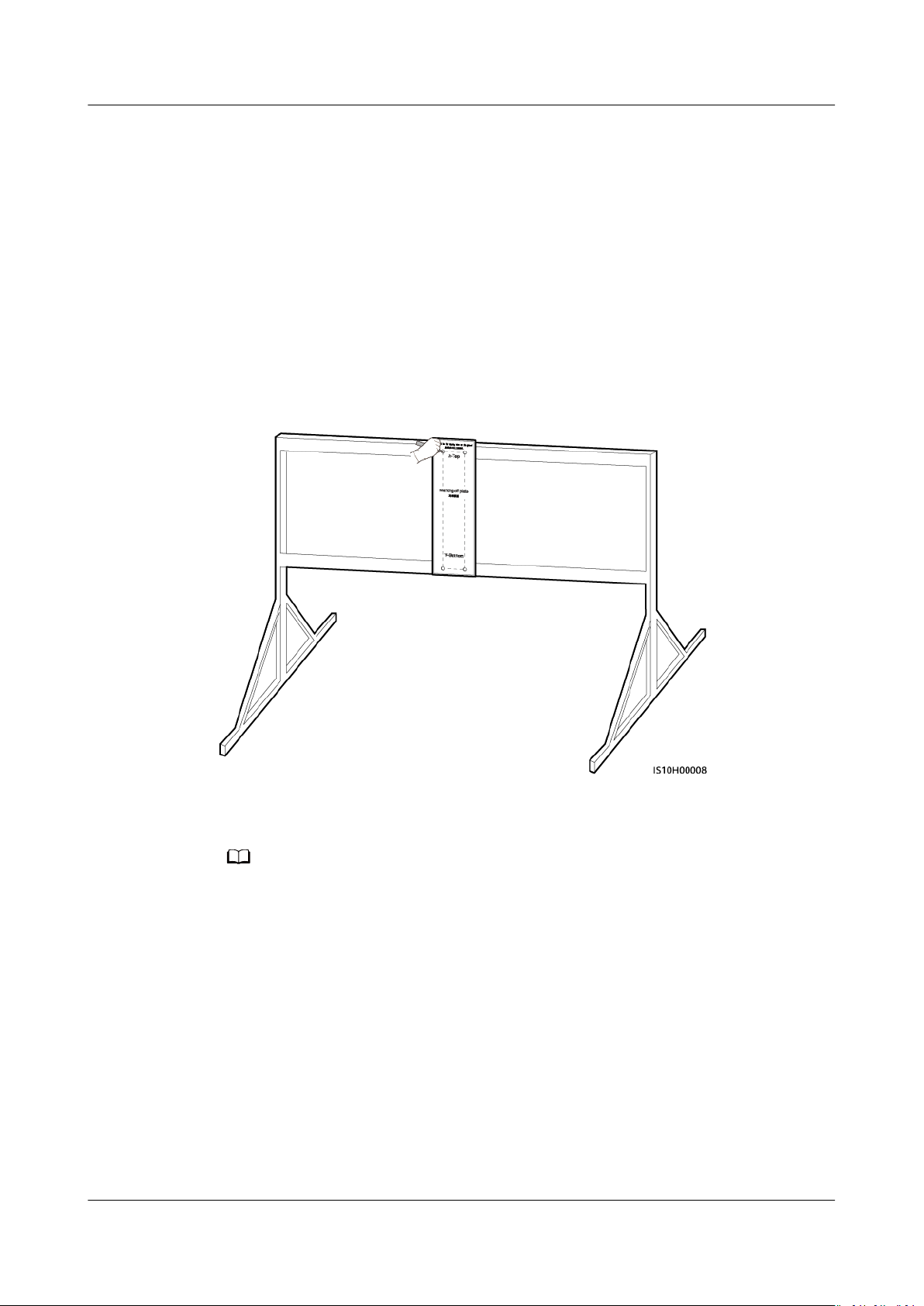

Mounting Structure Requirements

● The mounting structure where the SUN2000 is installed must be

● Do not install the SUN2000 on ammable building materials.

● The SUN2000 is heavy. Ensure that the installation surface is solid enough to bear the weight load.

reproof.

Page 29

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

● In residential areas, do not install the SUN2000 on drywalls or walls made of similar materials which have a weak sound insulation performance because the noise generated by the SUN2000 is noticeable.

4.3.2 Space Requirements

Installation Angle Requirements

The SUN2000 can be wall-mounted or pole-mounted. The installation angle requirements are as follows:

● Install the SUN2000 vertically or at a maximum back tilt of 15 degrees to facilitate heat dissipation.

● Do not install the SUN2000 at forward tilted, excessive back tilted, side tilted, horizontal, or upside down positions.

Figure 4-1 Installation tilts

Installation Space Requirements

● Reserve enough space around the SUN2000 to ensure sucient space for installation and heat dissipation.

Page 30

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

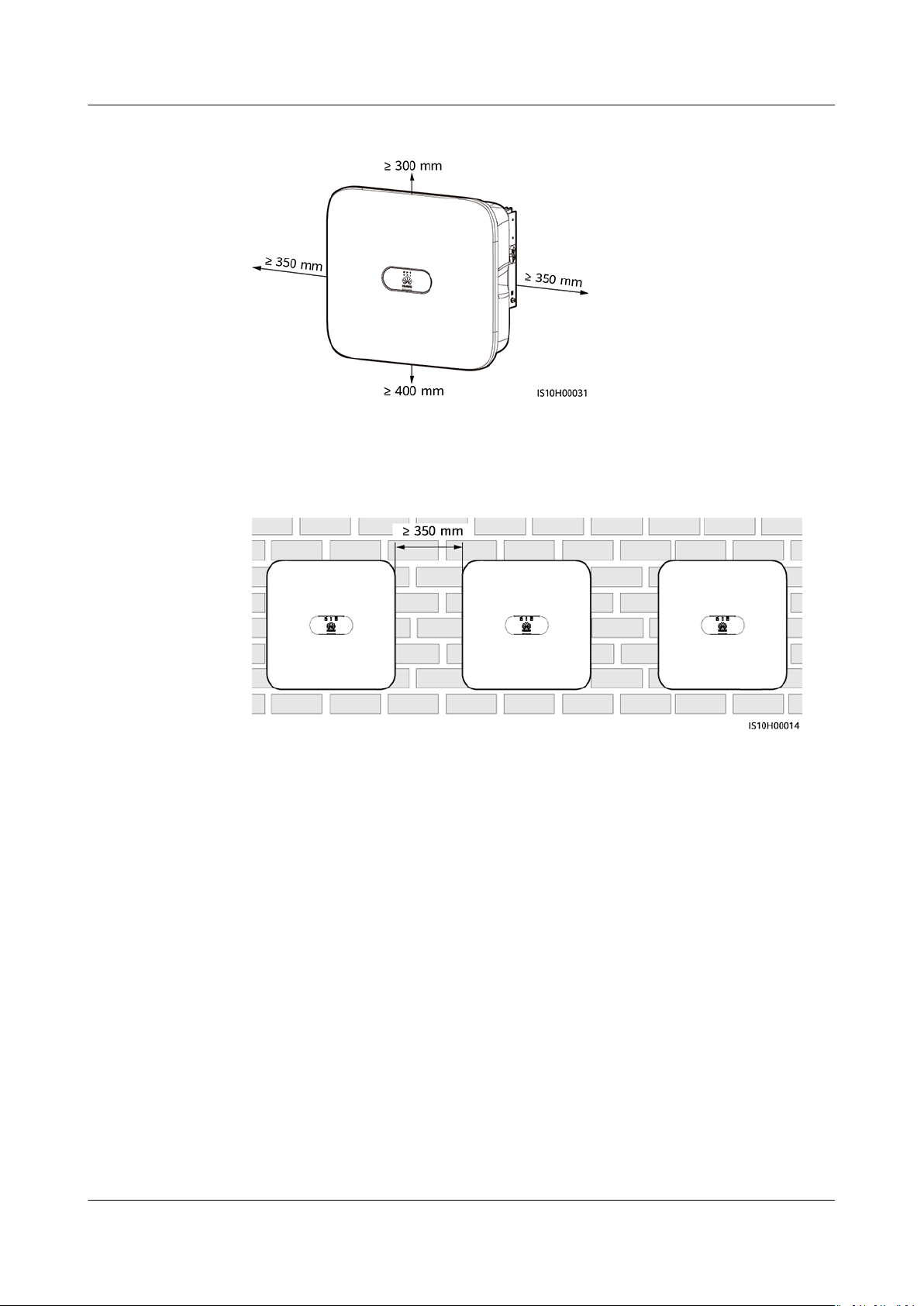

Figure 4-2 Installation space

● When installing multiple SUN2000s, install them in horizontal mode if sucient space is available and install them in triangle mode if no sucient space is available. Stacked installation is not recommended.

Figure 4-3 Horizontal installation (recommended)

Page 31

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

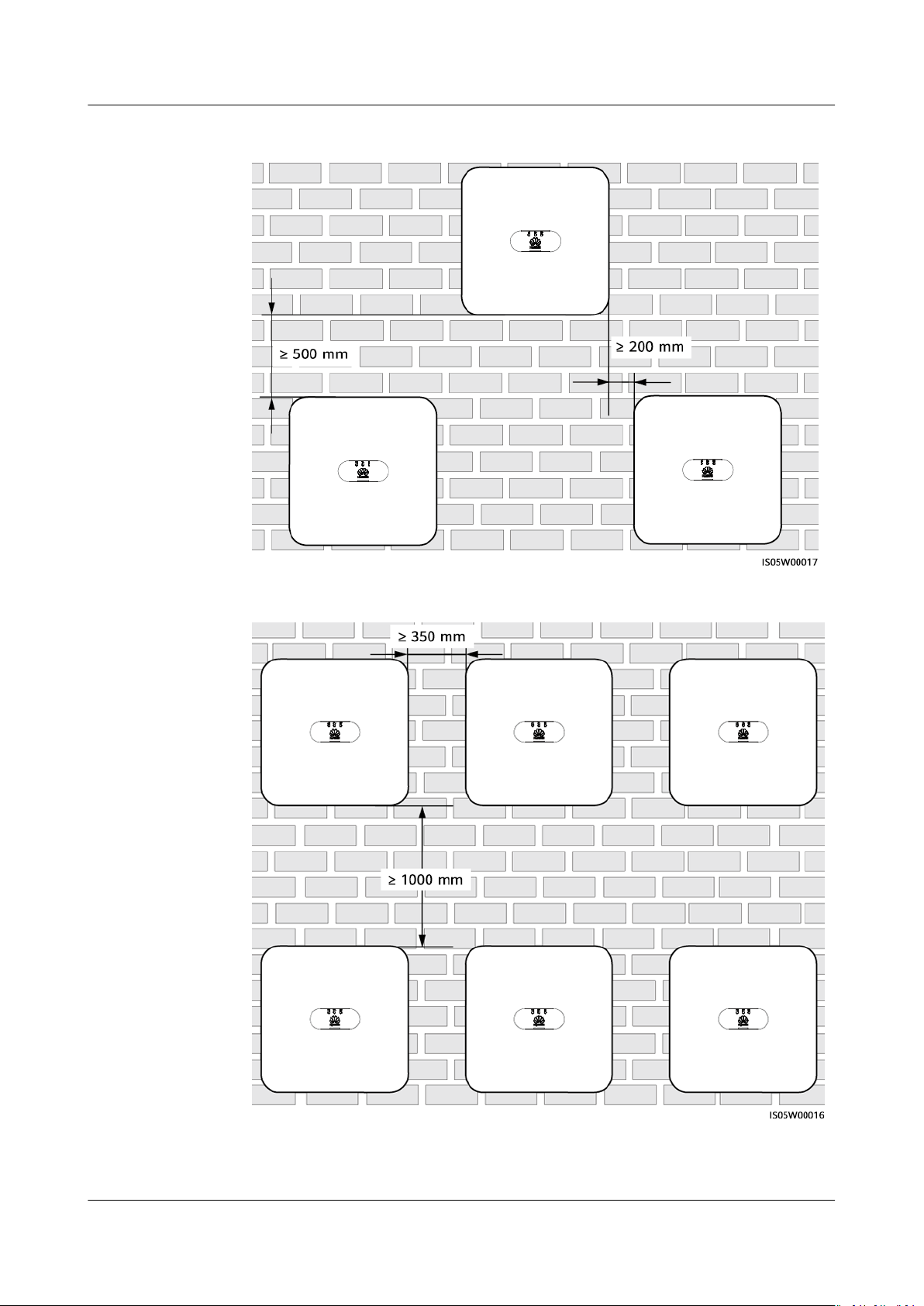

Figure 4-4 Staggered installation (recommended)

Figure 4-5 Stacked installation (not recommended)

Page 32

CA UTION

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

4.4 Moving an Inverter

Procedure

Step 1 Two persons are required to move the inverter and one person on both sides. Lift

the inverter from the packing case and move it to the position.

● To prevent personal injury and damage to the device, take care to keep your

balance when moving the SUN2000.

● Do not use the wiring terminals and ports at the bottom to support any weight

of the SUN2000.

● When you need to temporally place the SUN2000 on the ground, use foam,

paper or other protective materials to prevent damage to its enclosure.

specied installation

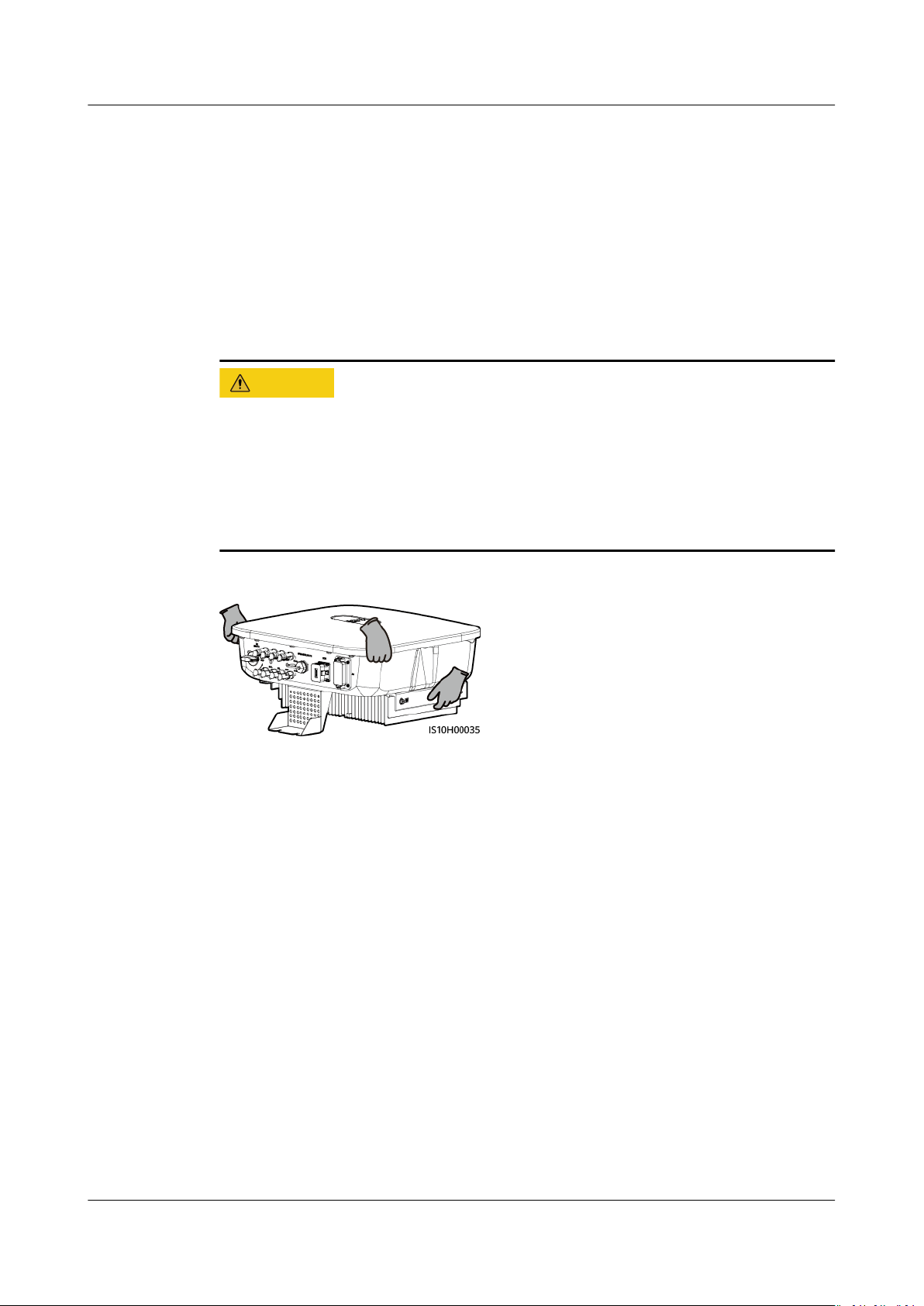

Figure 4-6 Moving an inverter

----End

4.5 Installing the Mounting Bracket

Installation Precautions

Figure 4-7 shows the dimensions of installation holes on the SUN2000.

Page 33

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

Figure 4-7 Mounting bracket dimensions

Two M6 screw holes are reserved on both left and right sides of the enclosure for installing an awning.

4.5.1 Wall-mounted Installation

Procedure

Step 1 Determine the installation positions for drilling holes, and mark the positions

using a marker.

Step 2 Secure the mounting brackets.

● M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts by yourself.

● The expansion bolts delivered with the inverter are used for solid concrete walls. For other types of walls, prepare bolts by yourself and ensure that the wall meets the load bearing requirements of the inverter.

Figure 4-8 Expansion bolt composition

(1) Bolt

(2) Nut (3) Spring washer

(4) Flat washer (5) Expansion tube

Page 34

D ANGER

NO TICE

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

Avoid drilling holes in the utility pipes or cables attached to the back of the wall.

● To prevent dust inhalation or contact with eyes, wear safety goggles and an anti-dust respirator when drilling holes.

● Clean up any dust in and around the holes using a vacuum cleaner and measure the distance between holes. If large hole tolerance exists, position and drill holes again.

● After removing the bolt, spring washer, and at washer, level the front of the expansion tube with the concrete wall. Otherwise, the mounting brackets will not stay steady on the concrete wall.

● Partially loosen the nut,

at washer and spring washer of the two expansion

bolts below.

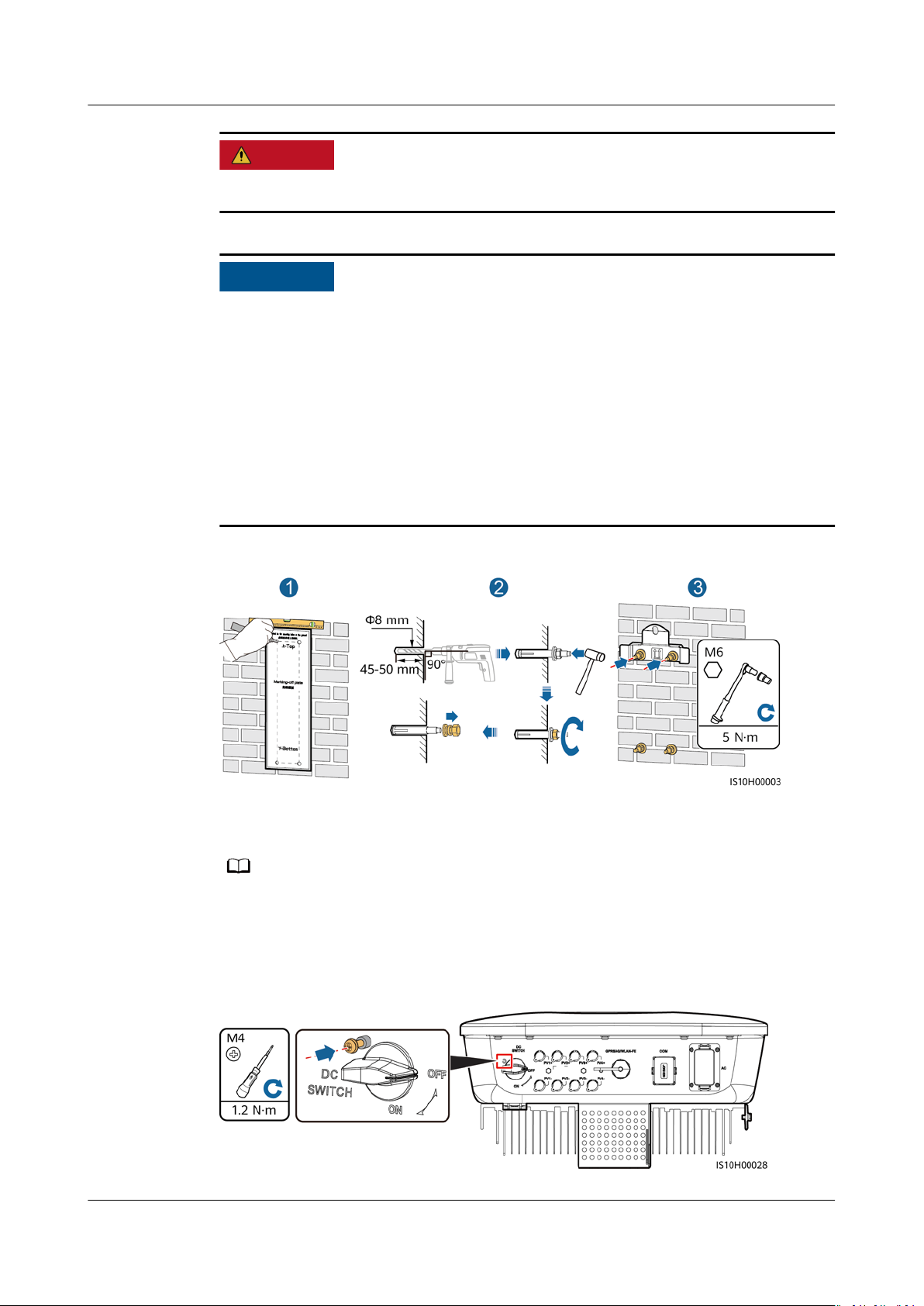

Figure 4-9 Installing the Mounting Bracket

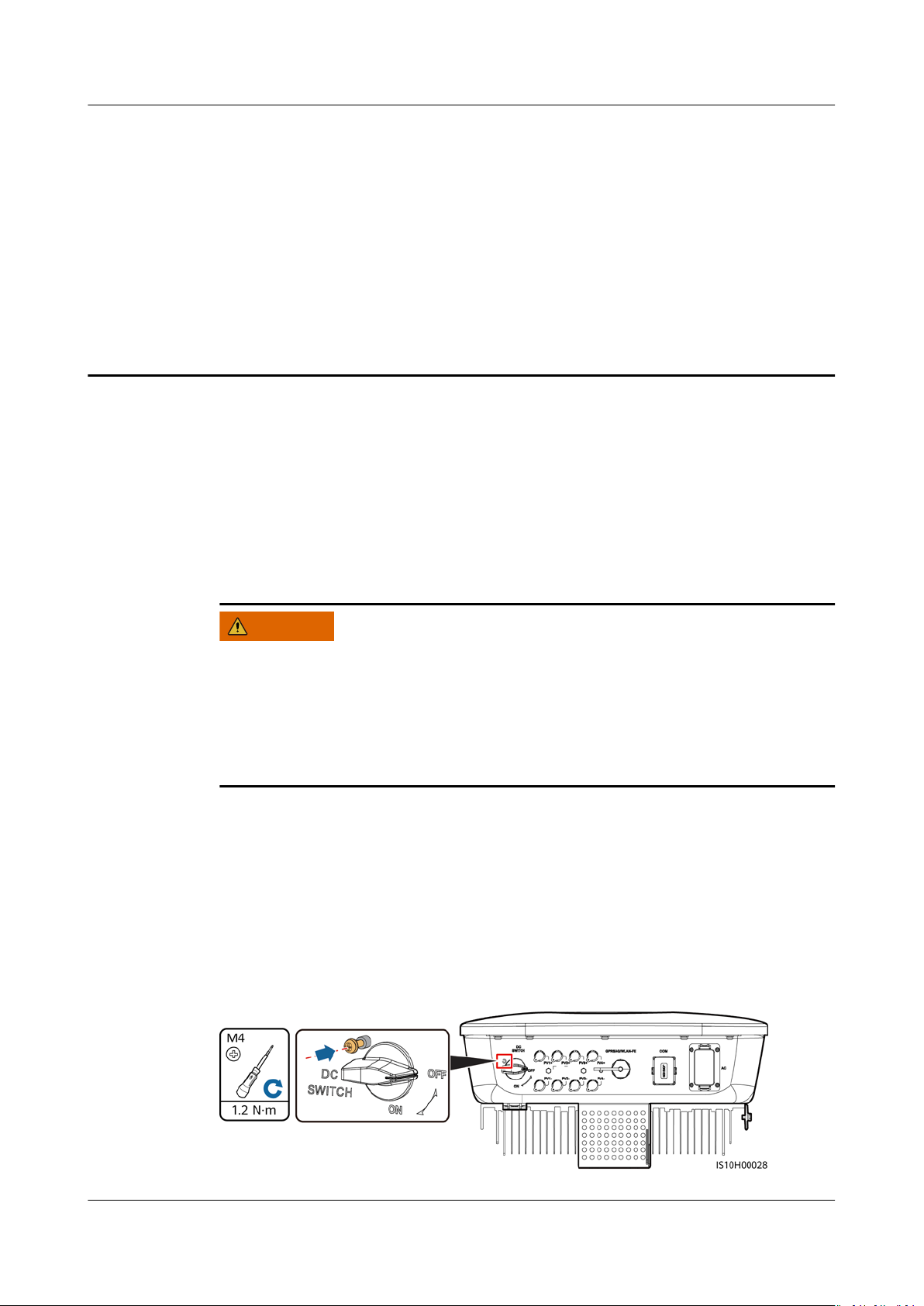

Step 3 (Optional) Install the locking screw for the DC switch.

● The screws for DC switches are delivered with solar inverters. According to Australian standards, the screws are used to secure DC switches (DC SWITCH) to prevent them from being turned on by mistake.

● For the model used in Australia, perform this step to meet the local standards.

Figure 4-10 Installing a locking screw for the DC switch

Page 35

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

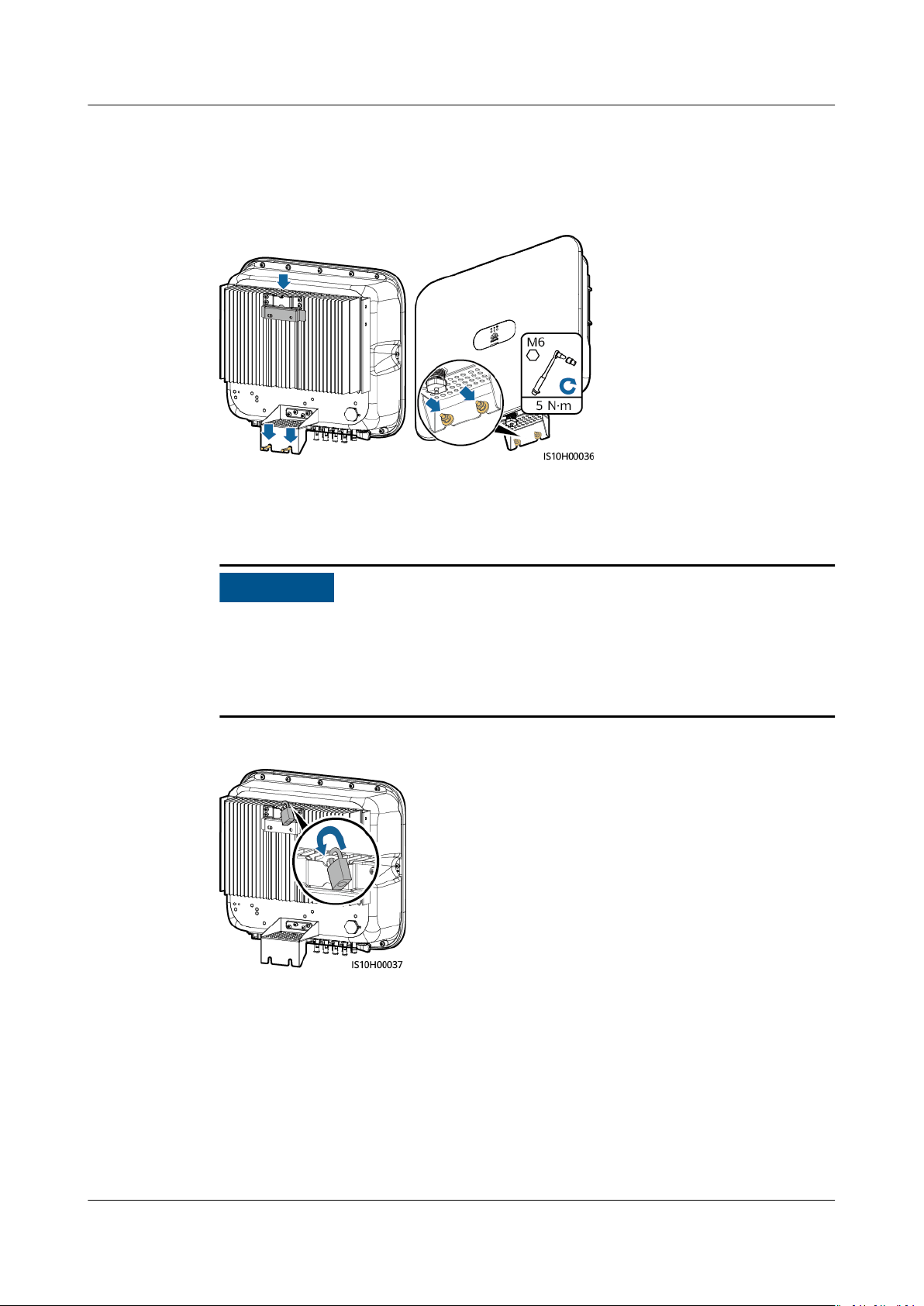

Step 4 Install the SUN2000 onto the mounting bracket.

Step 5 Tighten nuts.

Figure 4-11 Installing the SUN2000

Step 6 (Optional) Install the anti-theft lock.

● Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) by yourself.

● An outdoor waterproof lock is recommended.

● Keep the key to the anti-theft lock safe.

Figure 4-12 Installing the anti-theft lock

----End

Page 36

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

4.5.2 Support-mounted Installation

Prerequisites

Prepare M6 stainless bolt assemblies (including at washers, spring washers, and M6 bolts) with appropriate lengths as well as matched at washers and nuts based on the support

Procedure

Step 1 Determine the hole positions based on the marking-o template, and then mark

the hole positions using a marker.

Figure 4-13 Determining hole positions

specications.

Step 2 Drill holes using a hammer drill.

You are advised to apply anti-rust paint on the hole positions for protection.

Page 37

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

Figure 4-14 Drilling holes

Step 3 Secure the mounting bracket.

Figure 4-15 Securing the mounting bracket

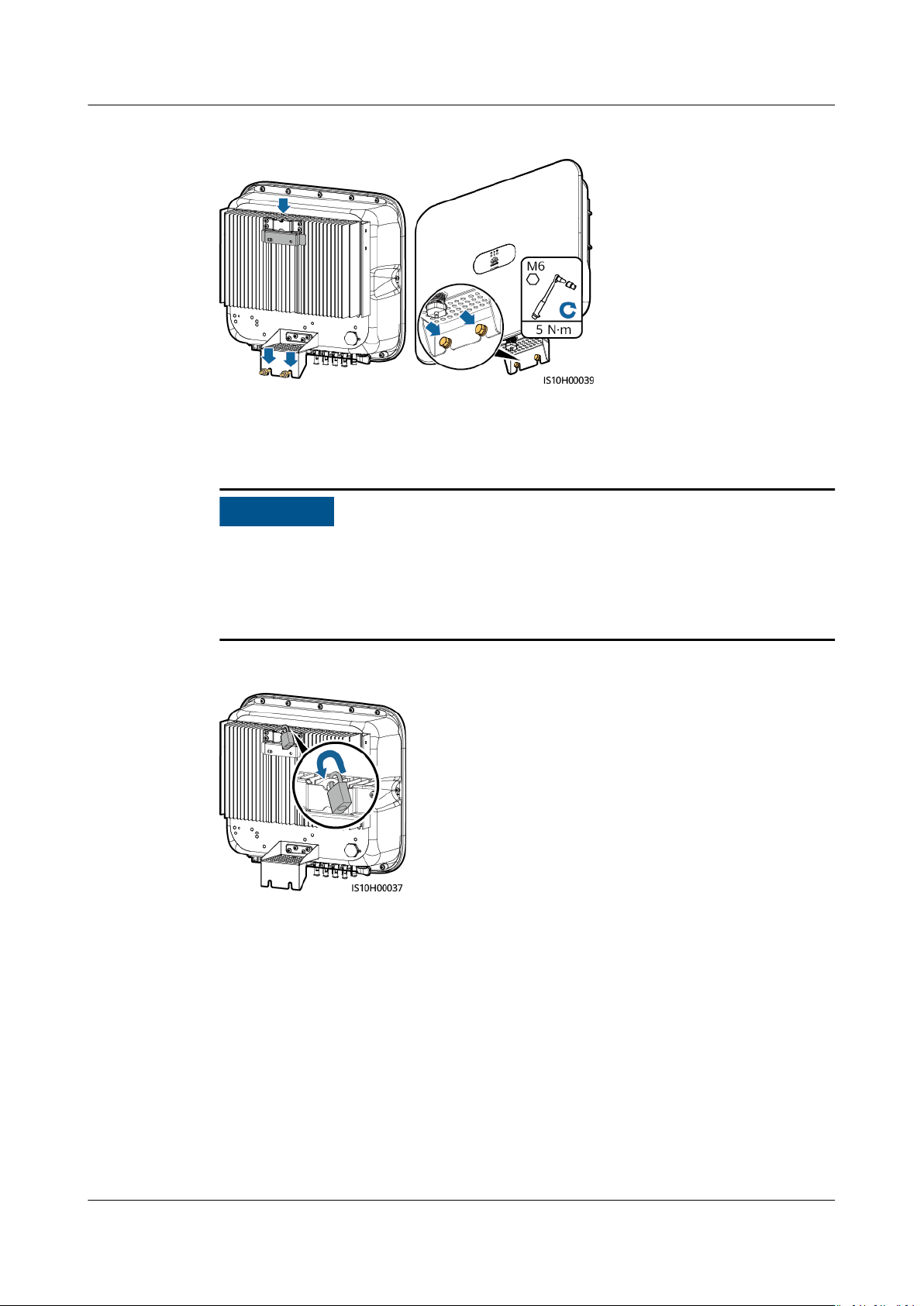

Step 4 Install the SUN2000 onto the mounting bracket.

Step 5 Tighten the bolt assembly.

Page 38

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 4 Installation

Figure 4-16 Installing the SUN2000

Step 6 (Optional) Install the anti-theft lock.

● Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) by yourself.

● An outdoor waterproof lock is recommended.

● Keep the key to the anti-theft lock safe.

Figure 4-17 Installing the anti-theft lock

----End

Page 39

D ANGER

WARNING

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

5 Electrical Connections

Precautions

Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches connecting to the SUN2000 are OFF. Otherwise, the high voltage of the SUN2000 may result in electric shocks.

● The equipment damage caused by incorrect cable connections is beyond the warranty scope.

● Only certied electricians are allowed to connect cables.

● Operation personnel must wear proper PPE when connecting cables.

The cable colors shown in the electrical connection diagrams provided in this chapter are for reference only. Select cables in accordance with local cable specications (green-andyellow cables are only used for PE).

Page 40

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

5.1 Preparing for Installation

Figure 5-1 SUN2000 cable connections (optional in dashed boxes)

If the Smart Dongle is congured, you are advised to install the Smart Dongle before connecting the signal cable.

Table 5-1 Component description

No.

A PV module ● A PV string is composed of the PV

B Smart PV optimizer The SUN2000-450W-P smart PV

C DC switch Recommended: a PV circuit breaker

Component Description Source

modules connected in series.

● The SUN2000 supports the input from four PV strings.

optimizer is supported.

with a rated voltage greater than or equal to 1100 V DC and a rated current of 15 A.

Smart Dongle

● WLAN-FE Smart Dongle: SDongleA-05.

● 4G Smart Dongle: SDongleA-03.

Prepared by the customer

Purchased from Huawei

Prepared by the customer

Purchased from Huawei

Page 41

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

No. Component Description Source

E SUN2000 Select a proper model based on

requirements.

F SmartLogger Select a proper model based on

requirements.

G Smart Power

Sensor

Ripple Control Device

I Rapid shutdown

switch

AC switch

The recommended electricity meter model is DTSU666-H.

Select the devices that meet the power grid scheduling requirements.

Select a proper model based on requirements.

Recommended: a three-phase AC circuit breaker with a rated voltage greater than or equal to 415 V AC and a rated current of:

● 25 A (SUN2000-8KTL-M2, SUN2000-10KTL-M2, SUN2000-12KTL-M2)

● 40 A (SUN2000-15KTL-M2, SUN2000-17KTL-M2, SUN2000-20KTL-M2)

Purchased from Huawei

Provided by local power grid companies

Prepared by the customer

● Note a: WLAN-FE Smart Dongle: For details about the SDongleA-05 operation, see

SDongleA-05 Quick Guide (WLAN-FE)

operation, see

SDongleA-03 Quick Guide (4G)

; 4G Smart Dongle: For details about the SDongleA-03

. You can obtain the quick guide at https://

support.huawei.com/enterprise by searching for the Smart Dongle model.

● Note b: SUN2000-8KTL-M2 and SUN2000-10KTL-M2 inverters are applicable only to Australia.

Table 5-2 Cable description

No.

1 DC input power cable Standard PV cable in

Name Type Recommended Specications

● Conductor cross-sectional area: 4–6

the industry

● Cable outer diameter: 5.5–9 mm

2 (Optional) RS485

communications cable (used to cascade inverters or connect to

Two-core outdoor shielded twisted pair cable

● Conductor cross-sectional area: 0.2–1

● Cable outer diameter: 4–11 mm

the RS485 signal port on the SmartLogger)

Page 42

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

No. Name Type Recommended Specications

3 (Optional) RS485

communications cable (used to connect to the RS485 signal port on a Smart Power Sensor for export limitation)

4 (Optional) Rapid

shutdown switch signal cable

5 (Optional) Grid

scheduling signal cable

AC output power cable

Two-core outdoor shielded twisted pair cable

Five-core outdoor cable

Outdoor copper

cable

● Conductor cross-sectional area: 0.2–1

● Cable outer diameter: 4–11 mm

● Conductor cross-sectional area: 0.2–1

● Cable outer diameter: 4–11 mm

● Conductor cross-sectional area: 0.2–1

● Cable outer diameter: 4–11 mm

SUN2000-8KTL-M2, SUN2000-10KTL-M2, SUN2000-12KTL-M2:

● Conductor cross-sectional area: 6–16

● Cable outer diameter: 11–26 mm

SUN2000-15KTL-M2, SUN2000-17KTLM2, SUN2000-20KTL-M2:

● Conductor cross-sectional area: 10–16

● Cable outer diameter: 11–26 mm

7 PE cable Single-core outdoor

copper cable

SUN2000-8KTL-M2, SUN2000-10KTL-M2, SUN2000-12KTL-M2: Conductor cross-

sectional area ≥ 6 mm

SUN2000-15KTL-M2, SUN2000-17KTLM2, SUN2000-20KTL-M2: Conductor

cross-sectional area ≥ 10 mm

● Note a: The minimum cable diameter depends on the fuse rating on the AC side.

● Note b: The SUN2000-8KTL-M2 and SUN2000-10KTL-M2 inverters are applicable only to Australia.

● Note c: The SUN2000-8KTL-M2 and SUN2000-10KTL-M2 inverters are applicable only to Australia.

● The minimum cable diameter should comply with the local cable standard.

● Factors inuencing cable selection are as follows: nominal AC current, type of cable, routing method, ambient temperature, and maximum desired line losses.

Page 43

D ANGER

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

5.2 Connecting the PE cable

Precautions

● Ensure that the PE cable is properly connected. If it is disconnected or loose, electric shocks may occur.

● Do not connect the neutral wire to the enclosure as a PE cable. Otherwise, electric shocks may occur.

● The PE point at the AC output port is used only as a PE equipotential point, and cannot substitute for the PE point on the enclosure.

● After the ground cable is installed, it is recommended that the silica gel or paint be applied to the ground terminal for protection.

Additional Information

The SUN2000 has the grounding detection function. This function detects whether the SUN2000 is grounded properly before its startup, or whether the ground cable is disconnected when the SUN2000 is running. This function works under limited conditions. To ensure the safe operation of the SUN2000, ground the SUN2000 properly according to the connection requirements of the PGND cable. For some power grid types, if the output side of the inverter is connected to an isolation transformer, ensure that the inverter is properly grounded and set isolation settings to Input not grounded, with a transformer to enable the inverter to run properly.

● According to IEC62109, to ensure safe application in case of the ground cable is damaged or disconnected, connect the PE cable properly before the grounding detection function is disabled. Ensure that the PE cable meets at least one of the following requirements.

– If the PE terminal is not connected to the AC connector, use a single-core

outdoor copper cable with a conductor cross-sectional area of at least 10 mm2 as the PE cable on the chassis.

– Use cables that have the same diameter as the AC output cable, and

ground the PE terminal on the AC connector and the ground screw on the enclosure respectively.

● In some countries and regions, additional ground cables are required for the SUN2000. In this case, use cables that have the same diameter as the AC output cable, and ground the PE terminal on the AC connector and the ground screw on the enclosure respectively.

Page 44

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Procedure

Step 1 Crimp the OT terminal.

● Pay attention not to damage the core wire when stripping a cable.

● The cavity formed after crimping the conductor strip of the OT terminal needs

to wrap the core wire completely. The core wire needs to contact the OT terminal closely.

● Wrap the wire crimping area with the heat shrink tubing or the PVC insulation

tape. The following

● When using the heat gun, protect devices from being scorched.

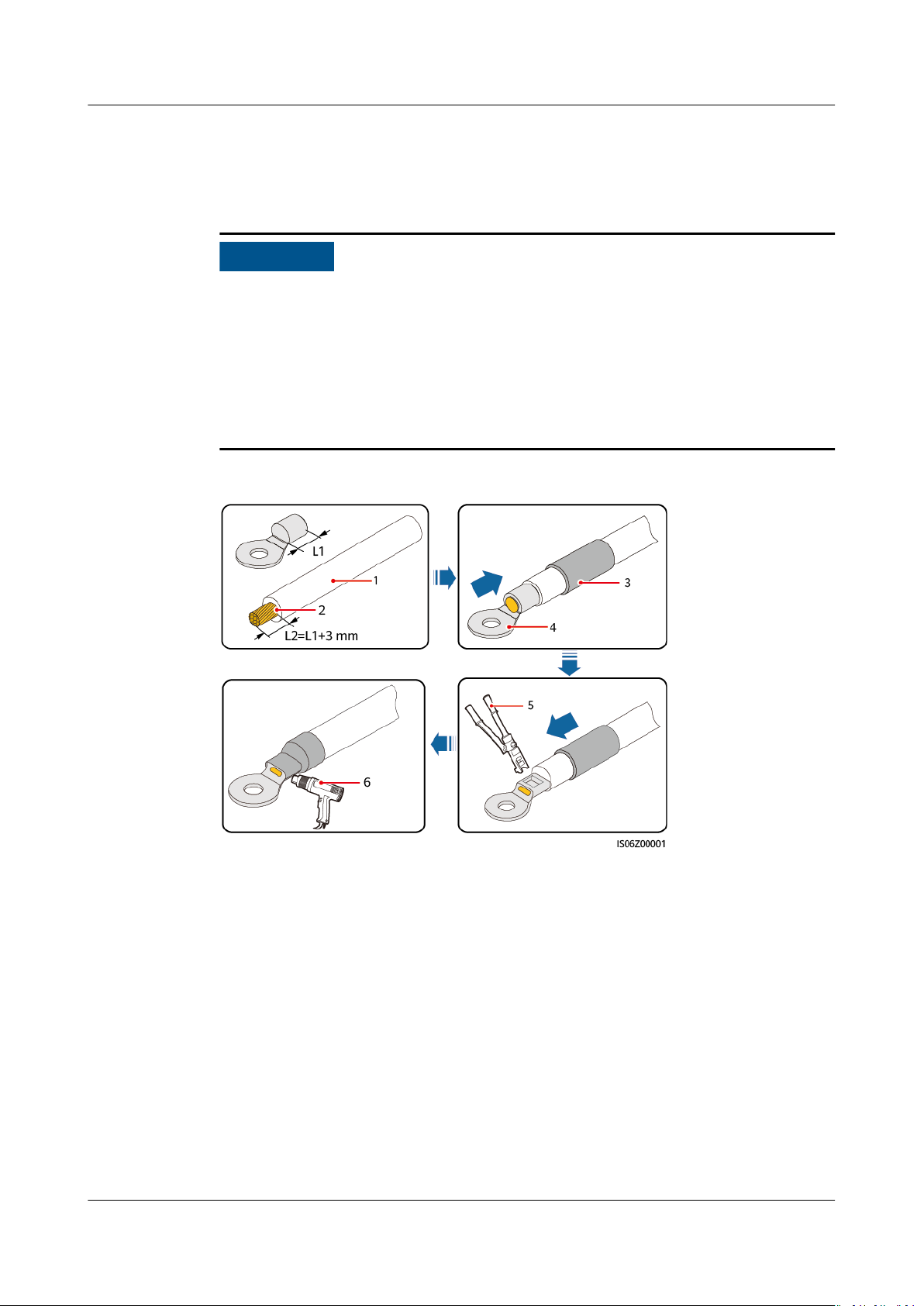

Figure 5-2 Crimping an OT terminal

gure uses the heat shrink tubing as an example.

(1) Cable (2) Core wire (3) Heat shrink tubing

(4) OT terminal (5) Crimping tool (6) Heat gun

Step 2 Connect the PE cable.

Page 45

WARNING

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

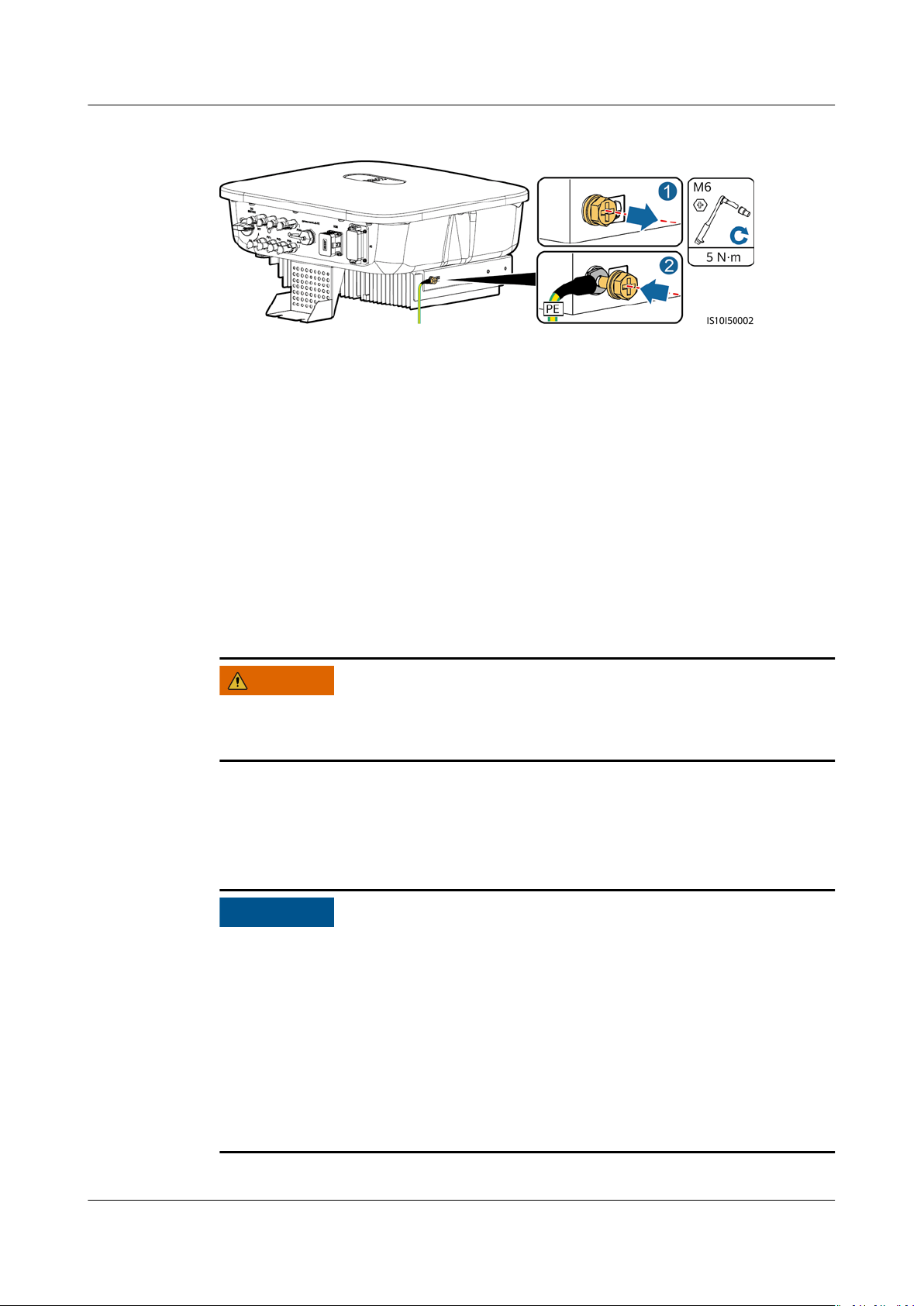

Figure 5-3 Connecting the PE cable

----End

5.3 Connecting the AC Output Power Cable

Precautions

A three-phase AC switch needs to be installed on the AC side of the SUN2000. To ensure that the SUN2000 can safely disconnect itself from the power grid when an exception occurs, select a proper overcurrent protection device in compliance with local power distribution regulations.

Do not connect loads between the SUN2000 and the AC switch directly connected to it.

The SUN2000 is integrated with a comprehensive residual current monitoring unit. Once detecting that the residual current exceeds the threshold, the SUN2000 immediately disconnects itself from the power grid.

● If the external AC switch can perform earth leakage protection, the rated

leakage action current should be greater than or equal to 300 mA.

● If multiple SUN2000s connect to the general residual current device (RCD)

through their respective external AC switches, the rated leakage action current of the general RCD should be greater than or equal to the number of SUN2000s multiplied by 300 mA.

● A knife switch cannot be used as an AC switch.

● The hex key is delivered with the inverter and bound to the hanging kit at the

bottom of the inverter.

Page 46

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

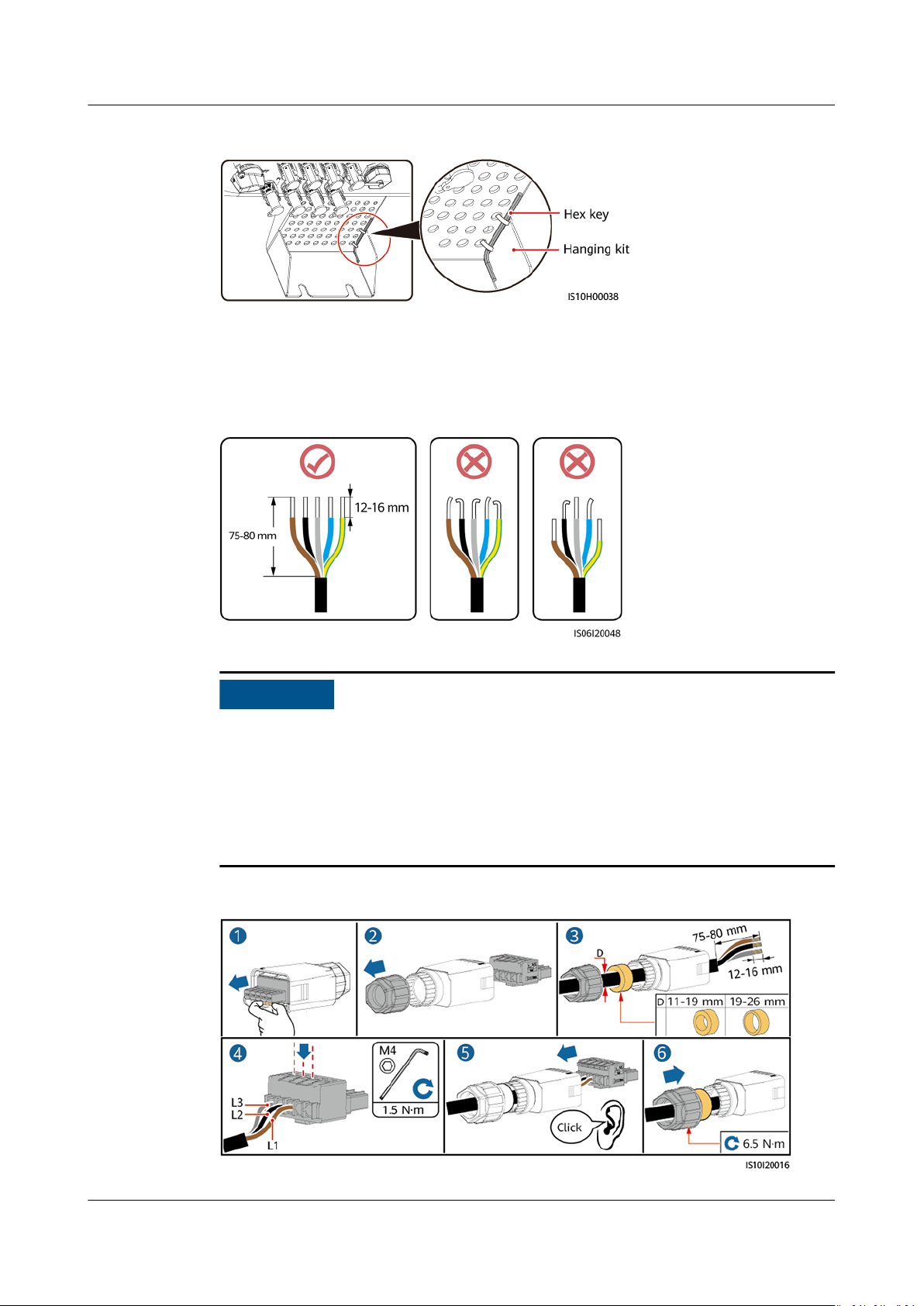

Figure 5-4 Hex key

Procedure

Step 1 Connect the AC output power cable to the AC connector.

Figure 5-5 Stripping requirements

● Ensure that the cable jacket is inside the connector.

● Ensure that the exposed core wire is totally inserted into the cable hole.

● Ensure that AC terminations provide rm and solid electrical connections.

Failing to do so may cause SUN2000 malfunction and damage to its AC connectors.

● Ensure that the cable is not twisted.

Figure 5-6 Three-core cable (L1, L2, and L3)

Page 47

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

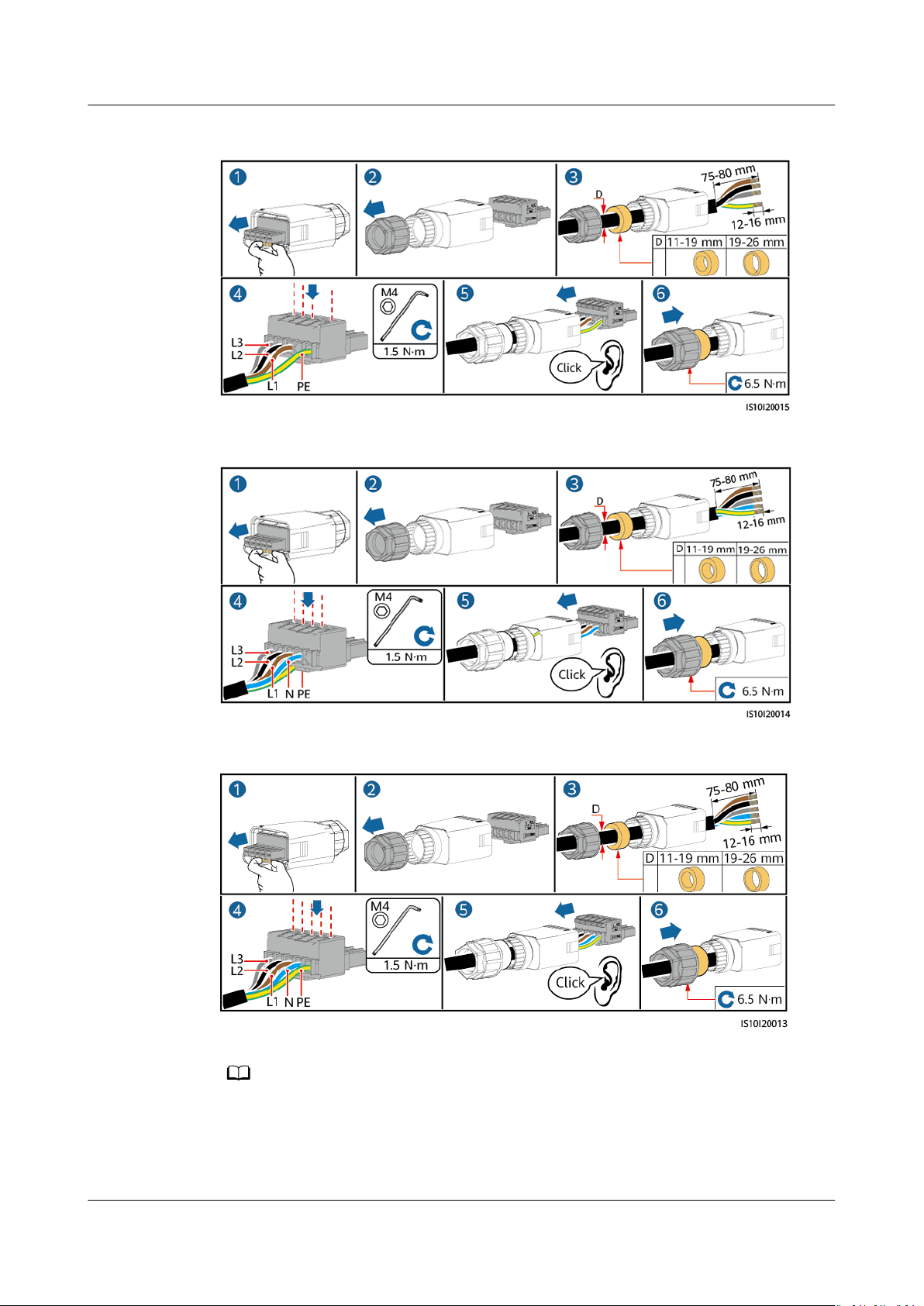

Figure 5-7 Four-core cable (L1, L2, L3, and PE)

Figure 5-8 Four-core cable (L1, L2, L3, and N)

Figure 5-9 Five-core cable (L1, L2, L3, N, and PE)

The cable colors shown in the gures are for reference only. Select an appropriate cable according to local standards.

Step 2 Connect the AC connector to the AC output port.

Page 48

NO TICE

D ANGER

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Ensure that the AC connector is connected securely.

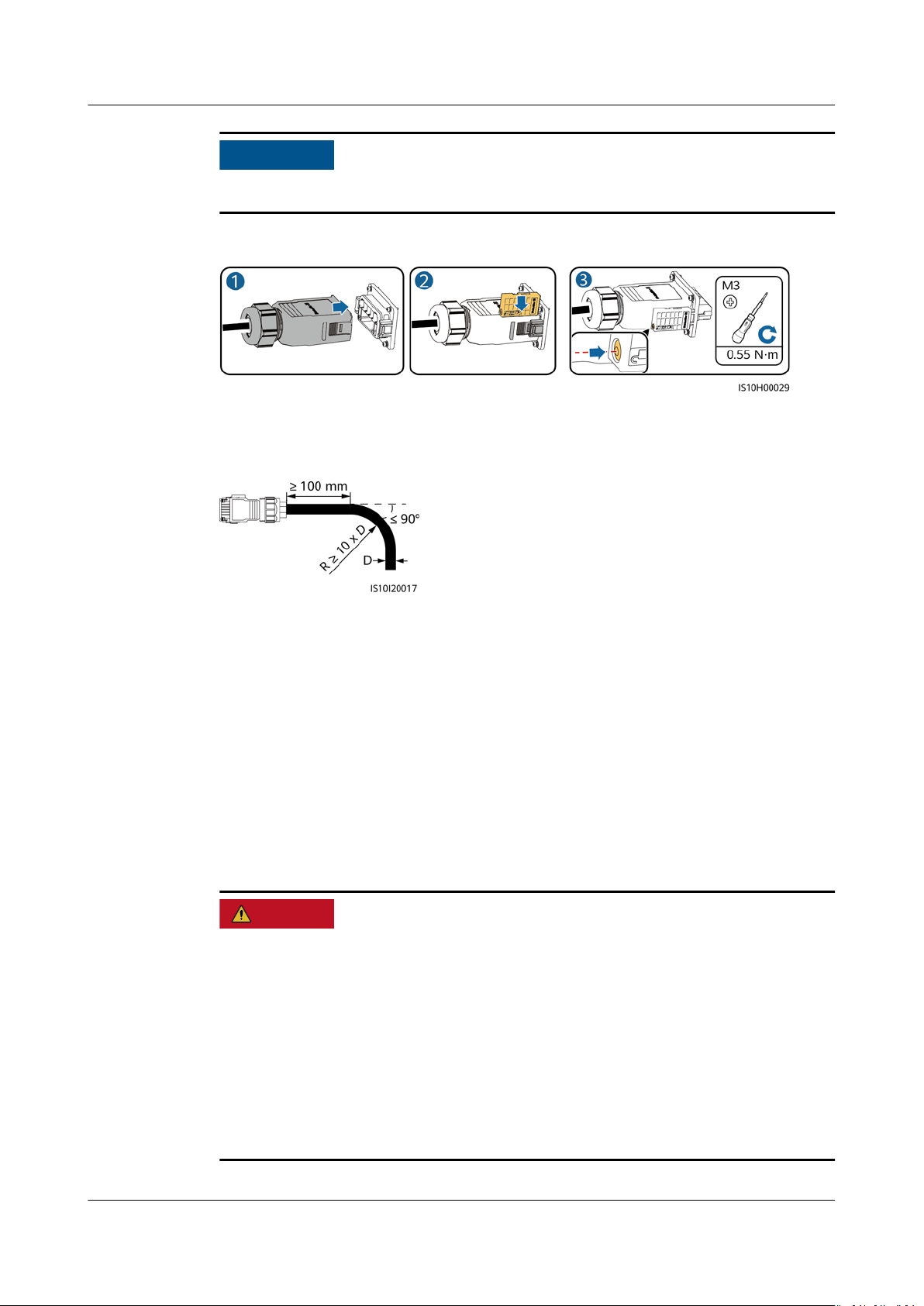

Figure 5-10 Securing the AC connector

Step 3 Check the route of the AC output power cable.

Figure 5-11 Cable route

----End

Disconnection

Disconnection can be performed in reverse order.

5.4 Connecting the DC input power cable

Precautions

● Before connecting the DC input power cable, ensure that the DC voltage is

within the safe range (lower than 60 V DC), and that the DC SWITCH is set to the OFF position. Failure to do so could generate high voltage, which may cause electric shocks.

● When the SUN2000 is operating, it is not allowed to operate the DC input

power cable, such as connecting or disconnecting a PV string or a PV module in a PV string. Failing to do so may cause electric shocks.

● If no PV string is connected to a DC input terminal of the SUN2000, do not

remove the watertight cap from the terminal. Otherwise, the IP rating of the SUN2000 will be

aected.

Page 49

WARNING

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Ensure that the following conditions are met. Otherwise, the SUN2000 may be damaged, or even a

re could happen.

● PV modules connected in series in each PV string are of the same specications.

● The open-circuit voltage of each PV string is always lower than or equal to

1080 V DC.

● The maximum short-circuit current of each PV string must be lower than or

equal to 15 A.

● The DC input power cable is correctly connected. The positive and negative

terminals of a PV module are connected to corresponding positive and negative DC input terminals of the SUN2000.

● If the DC input power cable is reversely connected, do not operate the DC

switch and positive and negative connectors. Wait until the solar irradiance declines at night and the PV string current reduces to below 0.5 A, and then

o the DC switch. Remove the positive and negative connectors to correct

turn the polarity.

● Because the output of the PV string connected to the SUN2000 cannot be

grounded, ensure that the PV module output is insulated to ground.

● The PV strings connecting to the same MPPT route should contain the same

number and model of PV modules or Smart PV optimizers.

● During the installation of PV strings and the SUN2000, the positive or negative

terminals of PV strings may be short-circuited to ground if power cables are not properly installed or routed. An AC or DC short circuit may occur and damage the device when the SUN2000 is operating. The caused device damage is not covered under any warranty.

Terminal Description

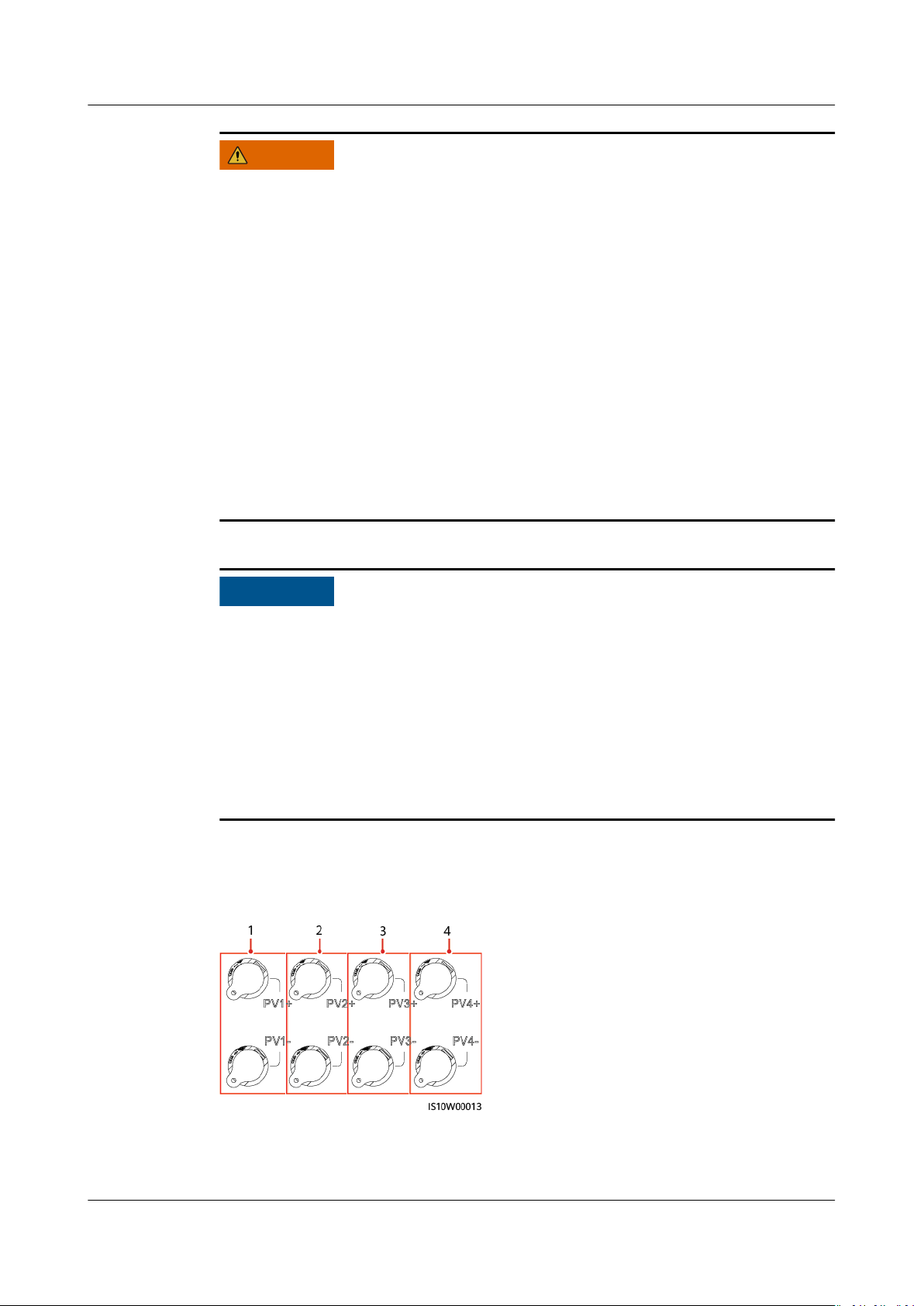

Figure 5-12 Terminals

(1) Terminals of DC input 1

(2) Terminals of DC input 2

Page 50

WARNING

NO TICE

NO TE

CA UTION

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

(3) Terminals of DC input 3 (4) Terminals of DC input 4

Procedure

Before inserting the positive and negative connectors into the positive and negative DC input terminals of the SUN2000, check that the DC SWITCH is OFF.

● Cables with high rigidity, such as armored cables, are not recommended as DC

input power cables, because poor contact may be caused by the bending of the cables.

● Before assembling DC connectors, label the cable polarities correctly to ensure

correct cable connections.

● After crimping the positive and negative metal contacts, pull the DC input

power cables back to ensure that they are connected securely.

● Insert the crimped metal contacts of the positive and negative power cables

into the appropriate positive and negative connectors. Then pull back the DC input power cables to ensure that they are connected securely.

● If the DC input power cable is reversely connected and the DC SWITCH is set to

the ON position, do not operate the DC SWITCH and positive and negative connectors. Otherwise, the device may be damaged. The caused device damage is not covered under any warranty. Wait until the solar irradiance declines and the PV string current drops to below 0.5 A. Then set the two DC SWITCH to the OFF position, remove the positive and negative connectors, and rectify the connection of the DC input power cable.

● The DC voltage measurement range of the multimeter must be at least 1080 V. If the voltage is a negative value, the DC input polarity is incorrect and needs correction. If the voltage is greater than 1080 V, too many PV modules Remove some PV modules.

● If the PV string is congured with an optimizer, check the cable polarity by referring to the Smart PV optimizer quick guide.

congured in the same string.

Step 1 Connect the DC input power cable.

Use the Staubli MC4 positive and negative metal terminals and DC connectors delivered with the SUN2000. Using incompatible positive and negative metal terminals and DC connectors may result in serious consequences. The caused device damage is not covered under any warranty or service agreement.

Page 51

WARNING

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-13 Assembling a DC connector

----End

Removing a DC connector

Before removing the positive and negative connectors, ensure that the DC SWITCH is OFF.

To remove the positive and negative connectors from the SUN2000, insert an open-end wrench into the notch and press hard to remove the DC connector.

Figure 5-14 Removing a DC connector

Page 52

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

5.5 (Optional) Installing the Smart Dongle

Procedure

● If WLAN-FE communication is used, install a WLAN-FE Smart Dongle (SDongleA-05).

● If 4G communication is used, install a 4G Smart Dongle (SDongleA-03).

● You need to purchase the Smart Dongle by yourself.

● WLAN-FE Smart DongleDongle (FE Communication)

You are advised to use a CAT 5E outdoor shielded network cable (outer diameter < 9 mm; internal resistance ≤ 1.5 ohms/10 m) and shielded RJ45 connectors.

Figure 5-15 Installing a WLAN-FE Smart Dongle (FE communication)

● 4G Smart Dongle (4G Communication)

● If you prepared a Smart Dongle without a SIM card, you need to prepare a standard SIM card (size: 25 mm x 15 mm) with the capacity greater than or equal to 64 KB.

● When installing the SIM card, determine its installation direction based on the silk screen and arrow on the card slot.

● When being pressed into place, the SIM card will be locked, which means that the card is installed correctly.

● To remove the SIM card, push it inwards. Then the SIM card springs out automatically.

● When reinstalling the WLAN-FE Smart Dongle or 4G Smart Dongle, ensure that the buckle springs back in place.

Page 53

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-16 Installing the 4G Smart Dongle

There are two types of Smart Dongle:

● For details about how to use the WLAN-FE Smart Dongle SDongleA-05, see the

SDongleA-05 Quick Guide (WLAN-FE)

the document.

. You can also scan the QR code to obtain

● For details about how to use the 4G Smart Dongle SDongleA-03, see the

SDongleA-03 Quick Guide (4G)

document.

The quick guide is delivered with the Smart Dongle.

. You can also scan the QR code to obtain the

5.6 (Optional) Installing the Signal Cable

Communication port signal denitions

Page 54

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

● Not all inverter models are delivered with the signal cable connector.

● When routing the signal cable, ensure that it is separate from the power cable and away from interfering sources to prevent communication from being

aected.

● The protection layer of the cable is in the connector. Cut o surplus core wires from the protection layer. Ensure that the core wires are completely inserted into the cable holes, and that the cable is securely connected.

● If the Smart Dongle is before connecting the signal cable.

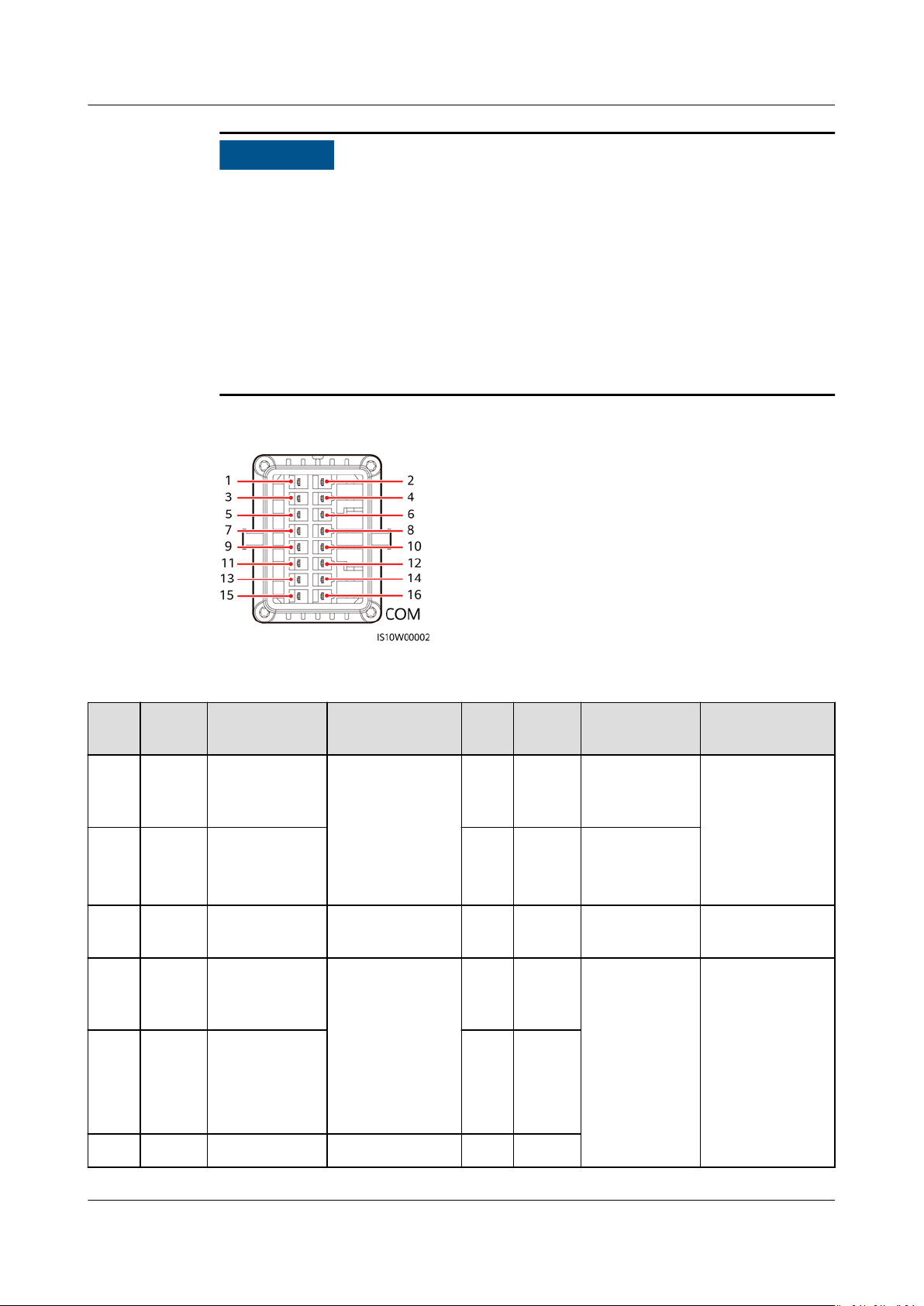

Figure 5-17 Signal denitions

Table 5-3 Signal denitions

Deni

Function Description Pin Deni

tion

1 485A1-1RS485

dierential

signal+

3 485B1-1RS485

dierential

signal–

congured, you are advised to install the Smart Dongle

Used to connect to the RS485 signal port on the SUN2000 or SmartLogger10 00

Function Description

tion

2 485A1-2RS485

dierential

signal+

4 485B1-2RS485

dierential

signal–

Used to connect to the RS485 signal port on the SUN2000 or SmartLogger10 00A

5 PE Shielding

ground

7 485A2 RS485

dierential

signal+

9 485B2 RS485

dierential

signal–

N/A 6 PE Shielding

ground

Used to connect to an RS485 signal port on a Smart Power

8 DIN1 Dry contact

interface for grid scheduling

10 DIN2

Sensor for export

N/A

limitation

11 N/A N/A N/A 12 DIN3

Page 55

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Pin Deni

Function Description Pin Deni

tion

13 GND GND Used to

connect to the

15 DIN5 Rapid

shutdown signal+

rapid shutdown DI signal port or serve as a port for the signal cable of the NS protection.

Communication Networking

● Smart Dongle Networking Scenario

Figure 5-18 Smart Dongle networking

Function Description

tion

14 DIN4

16 GND

● In the Smart Dongle networking scenario, the SmartLogger cannot be connected.

● The Smart Power Sensor is necessary for export limitation. Only the DTSU666-H Smart Power Sensor (provided by Huawei) can be used.

● The Smart Power Sensor and Smart Dongle need to be connected to the same inverter.

● SmartLogger Networking Scenario

Figure 5-19 SmartLogger networking

Page 56

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

● In the SmartLogger networking scenario, the Smart Dongle cannot be connected.

● A maximum of 80 devices can connect to a single SmartLogger, such as inverters, Smart Power sensor, and EMI. You are advised to connect fewer than 30 devices to each RS485 route.

● The Smart Power Sensor is necessary for export limitation. Select the Smart Power Sensor according to the actual project.

● To ensure the system response speed, the Smart Power Sensor is recommended to be connected to a COM port separately from inverter COM port.

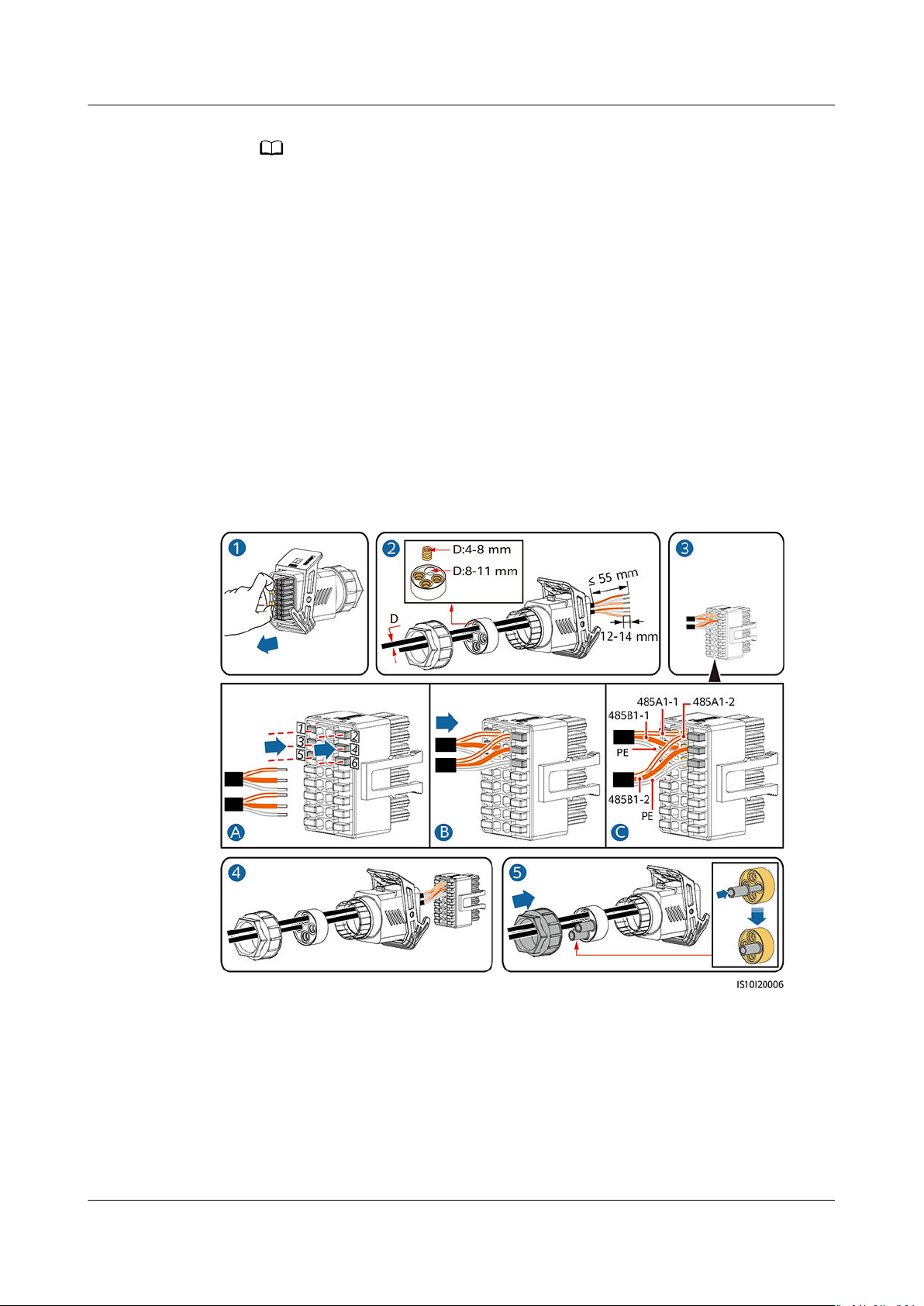

5.6.1 Connecting the RS485 Communications Cable (Inverter Cascading)

Procedure

Step 1 Connect the signal cable to the signal cable connector.

Figure 5-20 Installing the cable

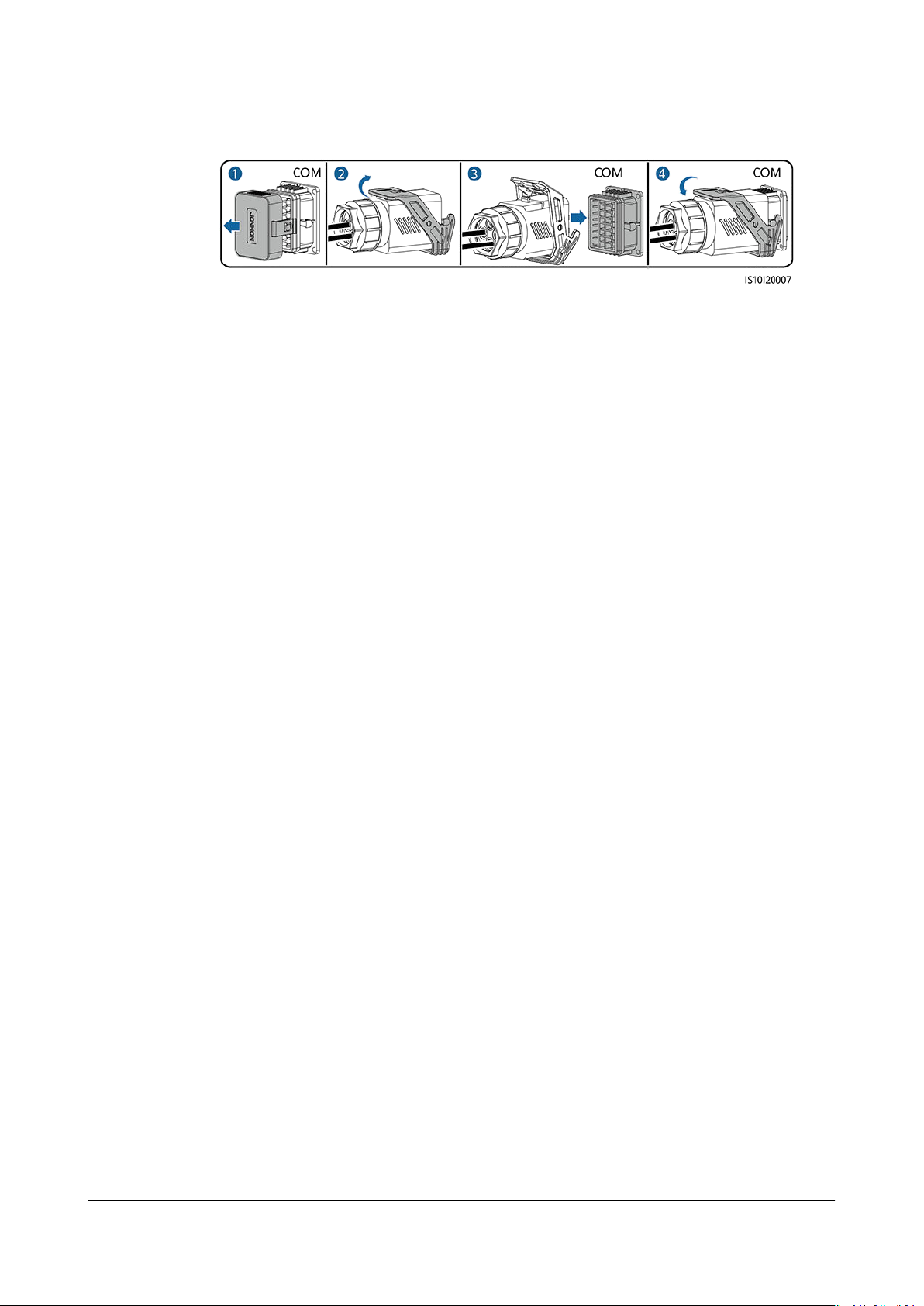

Step 2 Connect the signal cable connector to the COM port.

Page 57

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-21 Securing the signal cable connector

----End

5.6.2 Connecting the RS485 Communications Cable (Smart Power Sensor)

Cable Connection

The following gure shows the cable connections between the inverter and the Smart Power Sensor.

Page 58

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

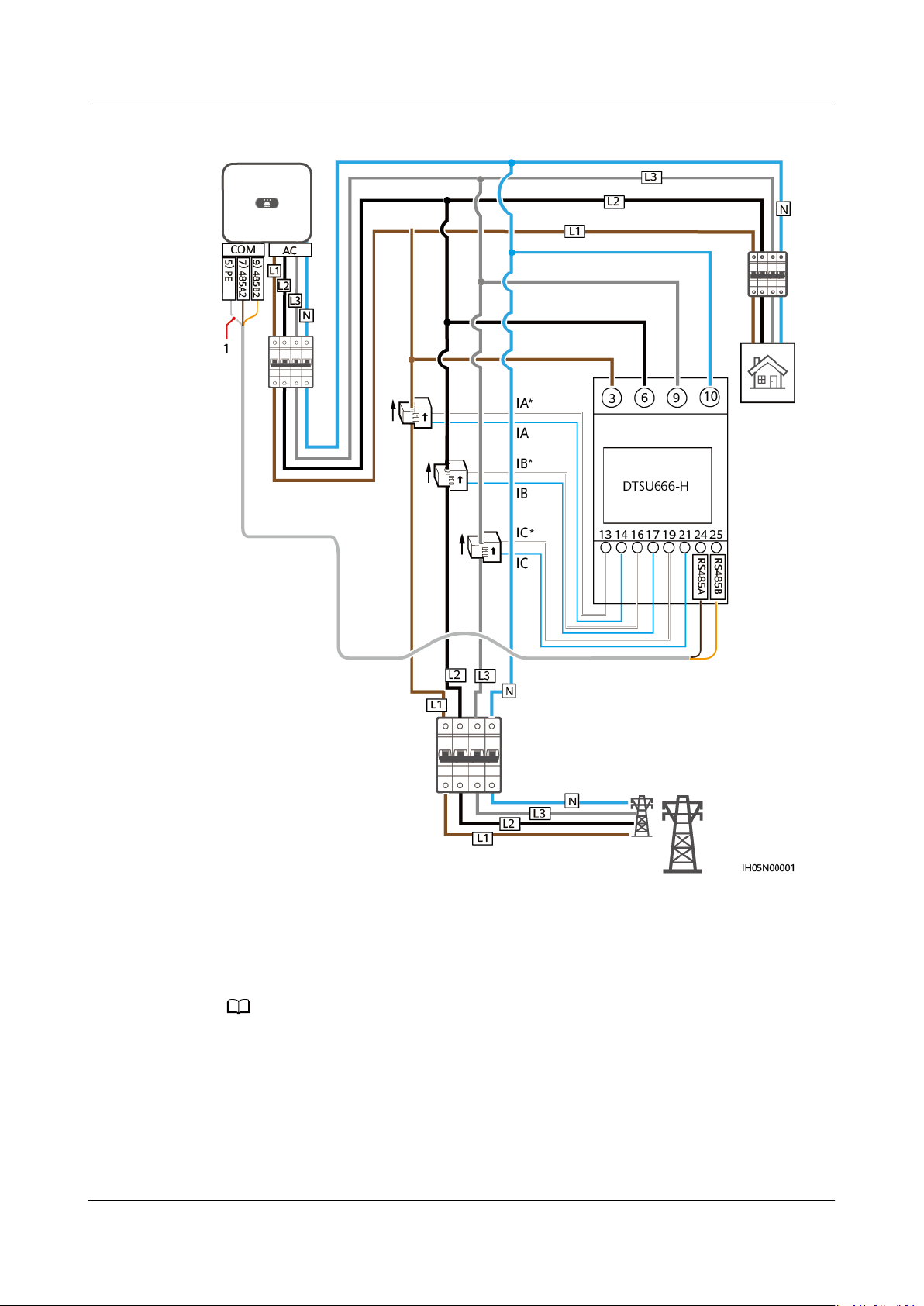

Figure 5-22 Cable connection (Three Phase Three Wire)

Page 59

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-23 Cable connection (Three Phase Four Wire)

(1) Shielding layer of the signal cable

For a three-phase three-wire system, you need to set the cable connection mode. Otherwise, the displayed voltage is incorrect.

Page 60

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Table 5-4

ParameterNote

Select the cable connection mode:

0: n.34 indicates three-phase four-wire. 1: n.33 indicates three-phase three-wire.

Procedure

Step 1 Connect the signal cable to the signal cable connector.

Figure 5-24 Installing the cable

Step 2 Connect the signal cable to the COM port.

Figure 5-25 Securing the signal cable connector

----End

Page 61

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

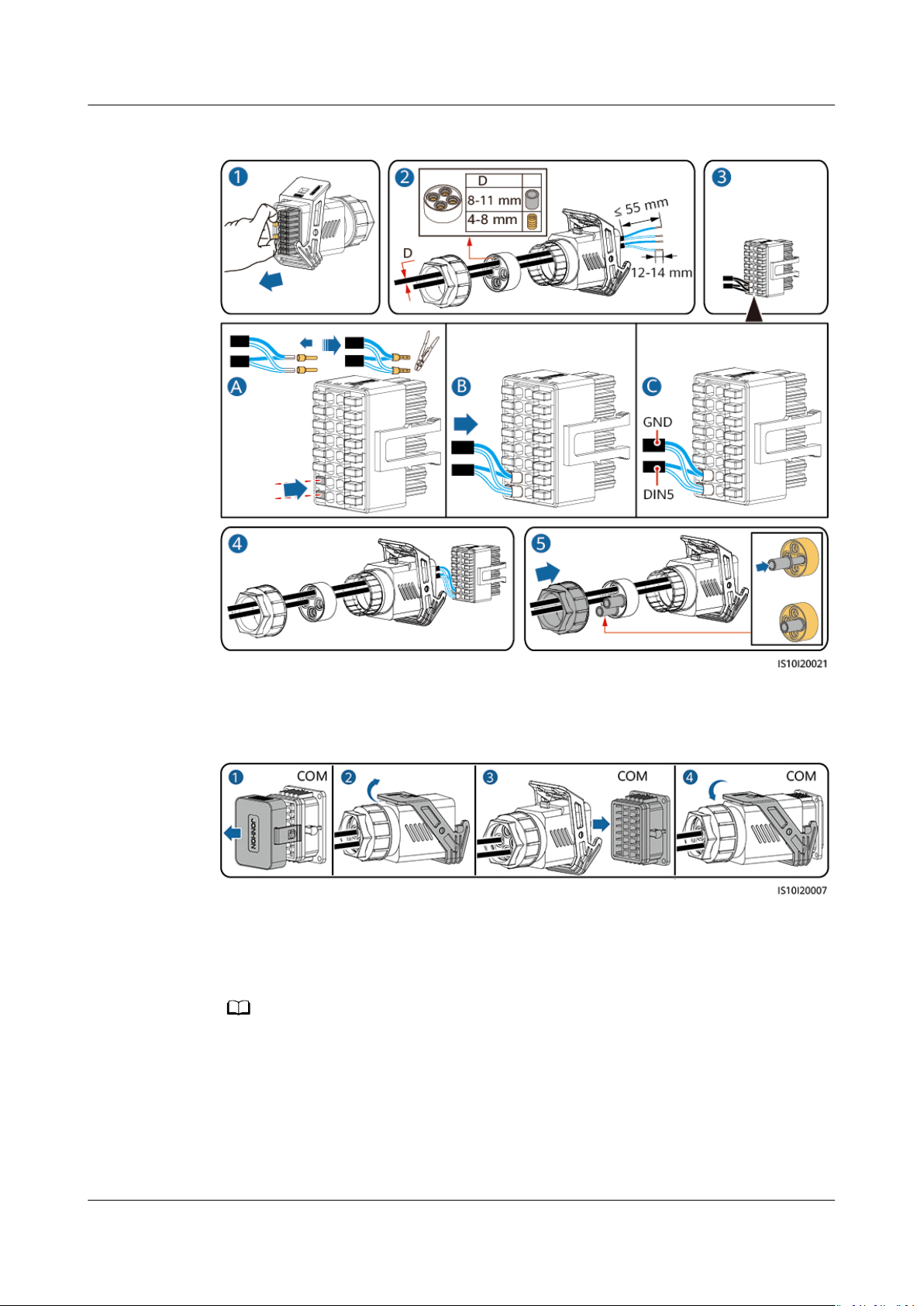

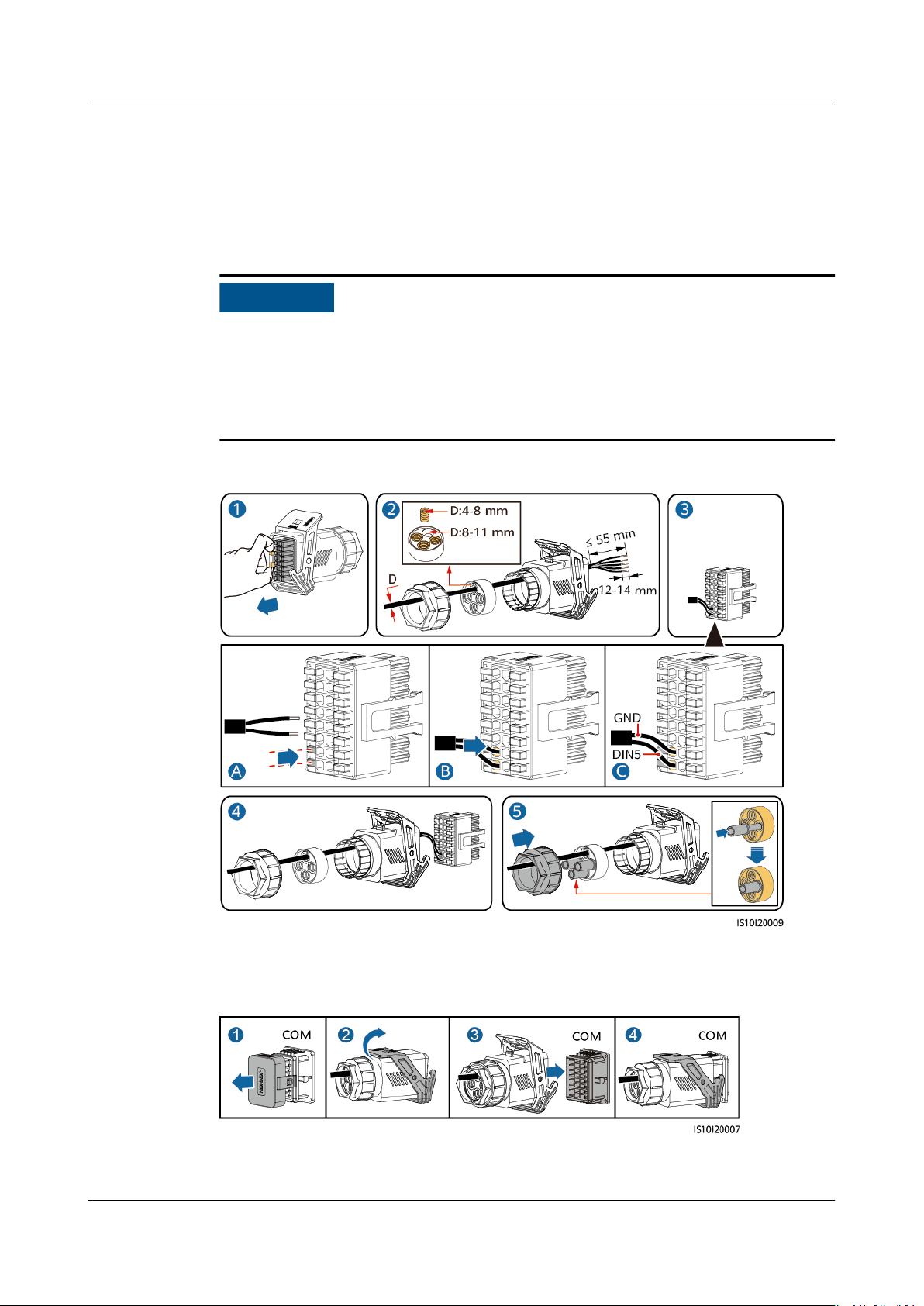

5.6.3 Connecting the Rapid shutdown signal cable

Procedure

Step 1 Connect the signal cable to the signal cable connector.

● If optimizers are congured for some PV modules, the rapid shutdown function is not supported.

● To enable the rapid shutdown function, you need to connect the access switch to pins 13 and 15. The switch is closed by default. The rapid shutdown is triggered when the switch changes from closed to open.

Figure 5-26 Installing the cable

Step 2 Connect the signal cable connector to the COM port.

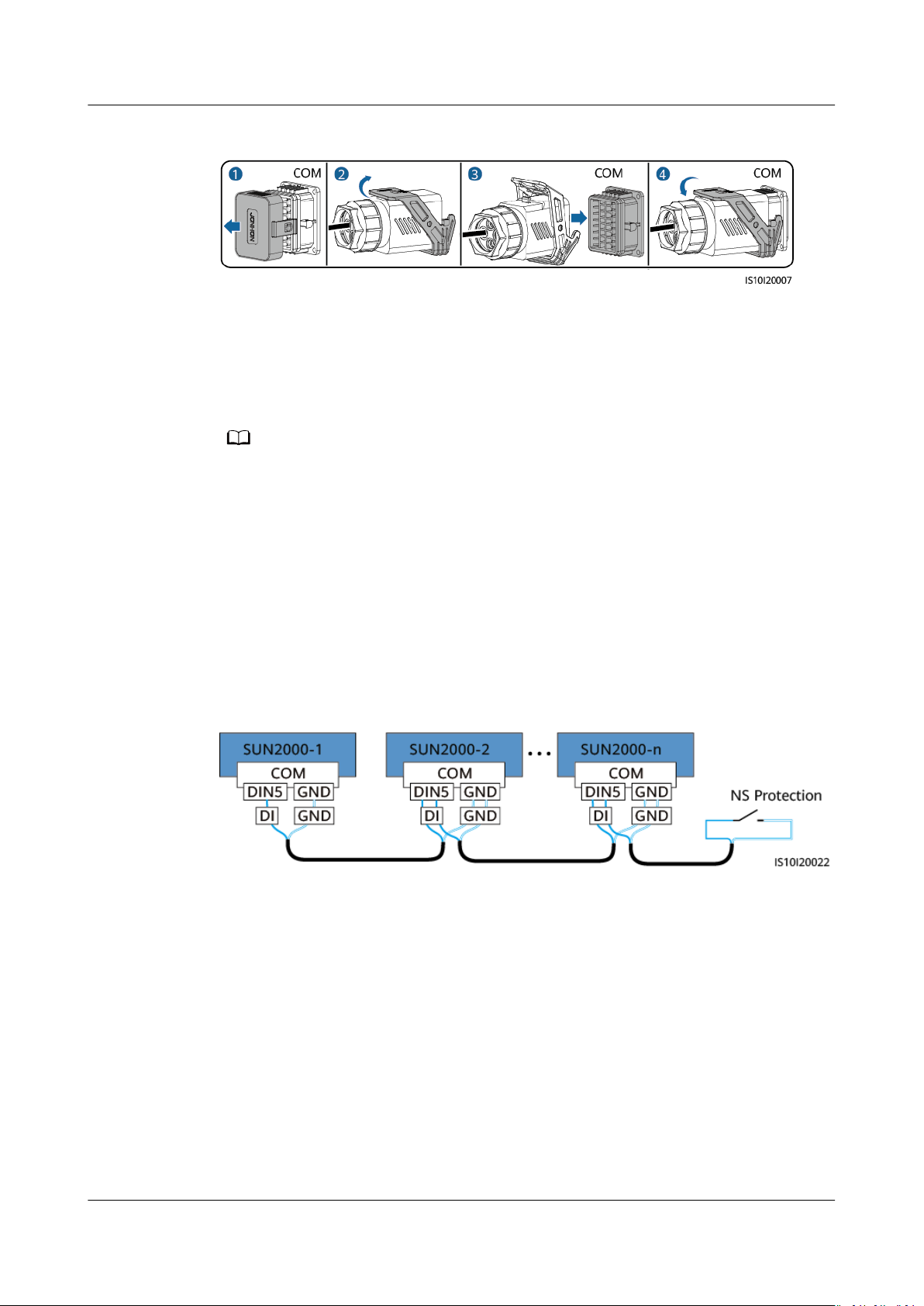

Figure 5-27 Securing the signal cable connector

----End

Page 62

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

5.6.4 Connecting the Power Grid Scheduling Signal Cable

Cable Connection

The following gure shows the cable connections between the inverter and the Ripple Control Device.

Figure 5-28 Cable connection

Procedure

Step 1 Connect the signal cable to the signal cable connector.

Figure 5-29 Installing the cable

Step 2 Connect the signal cable to the COM port.

Page 63

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-30 Securing the signal cable connector

----End

5.6.5 Connecting the NS Protection Signal Cable

Connecting the Inverter to the NS Protection Signal Cable

● The NS protection function applies to areas in compliance with with the VDE4105 standard, and the grid code needs to be set to VDE-AR-N-4105.

● The NS protection switch is connected to GND (pin 13) at one end and to DIN5 (pin 15) at the other end. The switch is turned o by default. When the switch is turned on, NS protection is triggered. Rapid shutdown and NS protection use the same pins, which are GND (pin 13) and DIN5 (pin 15). Therefore, you can use only one of the functions.

● The NS protection switch connection is the same for a single inverter and for cascaded inverters.

● Log in to the FusionSolar app as an installer, choose My > Device Commissioning, and connect to the WLAN hotspot of the SUN2000. Log in to the local commissioning system as an installer user, choose Settings > Feature parameters > Dry contact

function, and set Dry contact function to NS protection.

Figure 5-31 Connecting cascaded inverters to the NS protection switch

Step 1 Connect the signal cables of the cascaded inverters to the signal cable connectors.

Page 64

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-32 Installing cables

Step 2 Connect the signal cable connectors to the COM ports.

Figure 5-33 Securing the signal cable connector

----End

Setting NS Protection Remote Shutdown

● The NS protection function is applicable to areas in compliance with the VDE4105 standard. To Parameters and set Grid code to VDE-AR-N-4105.

● The NS protection device is connected to the AI1 port and 12V power output port. The SmartLogger shuts down the inverter over the voltage change detected at the AI1 port. When the NS protection device is disconnected, the AI1 port voltage is 0 V, and the inverter shuts down. When the NS protection device is connected again, the AI1 port voltage is 12 V, and you need to start the inverter manually.

congure this function, choose Monitoring > Running Param. > Grid

Page 65

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 5 Electrical Connections

Figure 5-34 Connecting the SmartLogger to the NS protection switch

Page 66

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 6 Commissioning

6 Commissioning

6.1 Check Before Power-On

Table 6-1 Installation checklist

No.

1 SUN2000 installation The SUN2000 is installed correctly, securely, and

2 Smart Dongle The Smart Dongle is installed correctly and

3 Cable layout Cables are routed properly as required by the

4 Cable tie Cable ties are secured evenly and no burr exists.

5 Grounding The ground cable is connected correctly,

6 Turn o the switches The DC SWITCH and all the switches connected

7 Cable connections The AC output power cable, DC input power

8 Unused terminals and ports Unused terminals and ports are locked by

Check Item Acceptance Criteria

reliably.

securely.

customer.

securely, and reliably.

to the SUN2000 are set to OFF.

cable, and signal cable are connected correctly, securely, and reliably.

watertight caps.

9 Installation environment The installation space is proper, and the

installation environment is clean and tidy, without foreign matter.

Page 67

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 6 Commissioning

6.2 Powering On the System

Precautions

● Before turning on the AC switch between the SUN2000 and the power grid, use a multimeter set to the AC position to check that the AC voltage is within the specied range.

Procedure

Step 1 Turn on the AC switch between the SUN2000 and the power grid.

Step 2 (Optional) Remove the locking screw from the DC switch.

Step 3 If there is a DC switch between the PV string and the inverter, turn on the DC

● If the DC is on and the AC is The SUN2000 starts normally only after the fault is automatically rectied.

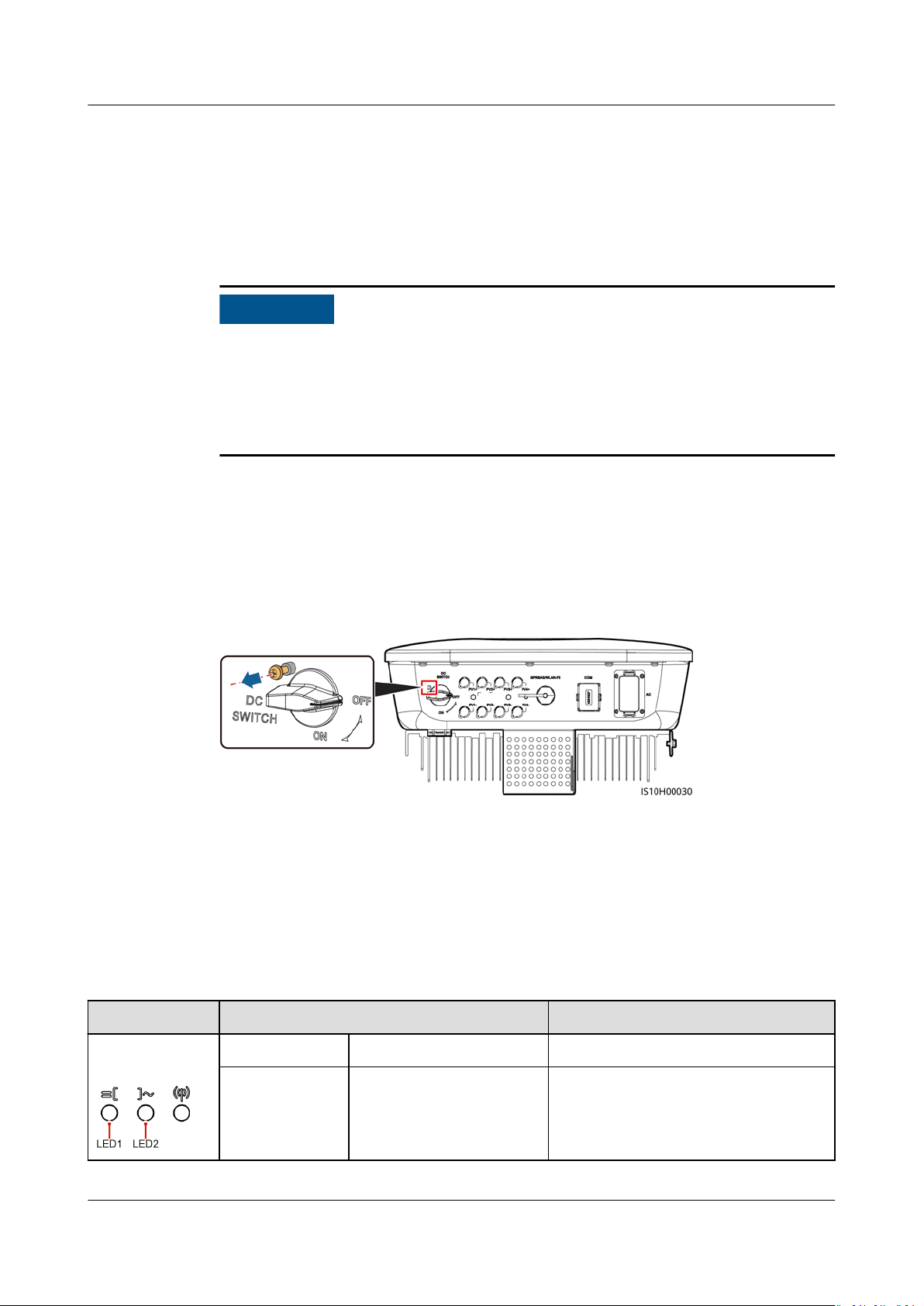

Figure 6-1 Removing the locking screw from a DC switch

switch.

o, the SUN2000 reports a Grid Failure alarm.

Step 4 Set the DC SWITCH at the bottom of the SUN2000 to the ON position.

Step 5 Wait for about 1 minute, and then observe the LED indicators of the inverter to

check the running status.

Table 6-2 LED indicator description

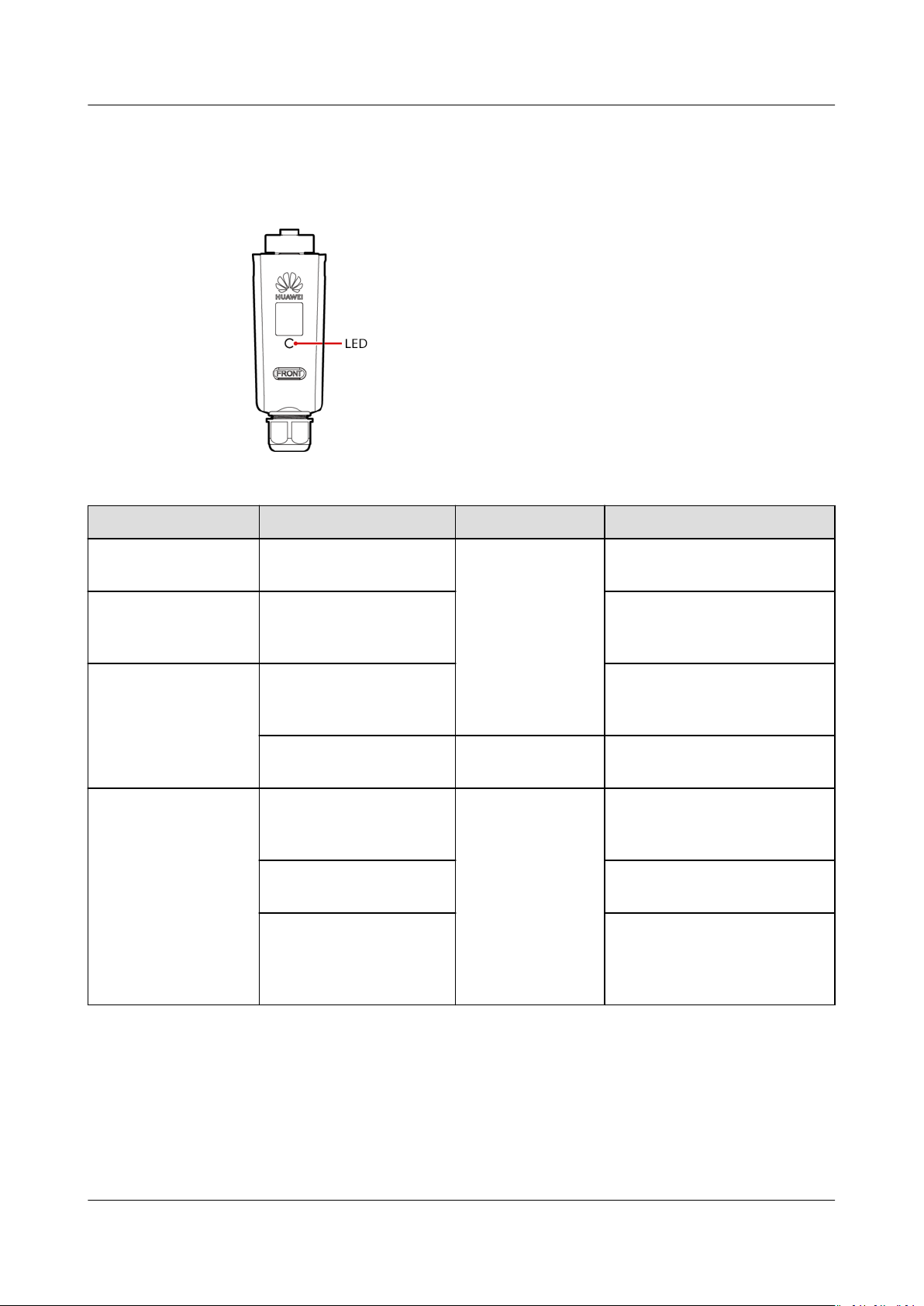

7 Man-Machine Interaction

7.1 App Commissioning

7.1.1 Downloading the FusionSolar App

● Method 1: Access https://solar.huawei.com using the mobile phone browser and download the latest installation package.

Figure 7-1 Download Mode

● Method 2: Search for FusionSolar on Huawei AppGallery and download the latest installation package.

● Method 3: Scan the following QR code and download the latest installation package.

Figure 7-2 QR code

Page 73

NO TE

NO TICE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

7.1.2 (Optional) Registering an Installer Account

● If you have an installer account, skip this step.

● You can register an account only using a mobile phone only in China.

● The mobile number or email address used for registration is the user name for logging in to the FusionSolar app.

Create the

rst installer account and create a domain named after the company

name.

Figure 7-3 Creating the rst installer account

To create multiple installer accounts for a company, log in to the FusionSolar app and tap Add User to create an installer account.

Figure 7-4 Creating multiple installer accounts for the same company

Page 74

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

7.1.3 Creating a PV Plant and a User

Figure 7-5 Creating a PV plant and a user

For details about how to use the site deployment wizard, see

Guide

. During the FusionSolar app upgrade, scan the QR code to download the

corresponding quick guide according to the downloaded app version.

FusionSolar App Quick

7.1.4 (Optional) Setting the Physical Layout of the Smart PV Optimizers

● If smart PV optimizers are congured for PV strings, ensure that the smart PV optimizers have been successfully connected to the SUN2000 before performing the operations in this section.

● Check that the SN labels of smart PV optimizers are correctly attached to the physical layout template.

● Take and save a photo of the physical layout template. Keep your phone parallel to the template and take a photo in landscape mode. Ensure that the four positioning points in the corners are in the frame. Ensure that each QR code is attached within the frame.

● For details about the physical layout of smart PV optimizers, see

Quick Guide

corresponding quick guide according to the downloaded app version.

. During the FusionSolar app upgrade, scan the QR code to download the

FusionSolar App

Page 75

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Scenario 1: Setting on the FusionSolar Server Side (Solar Inverter Connected to the Management System)

Step 1 Log in to the FusionSolar app and tap the plant name on the Home screen to

access the plant screen. Select Layout, tap , and upload the physical layout template photo as prompted.

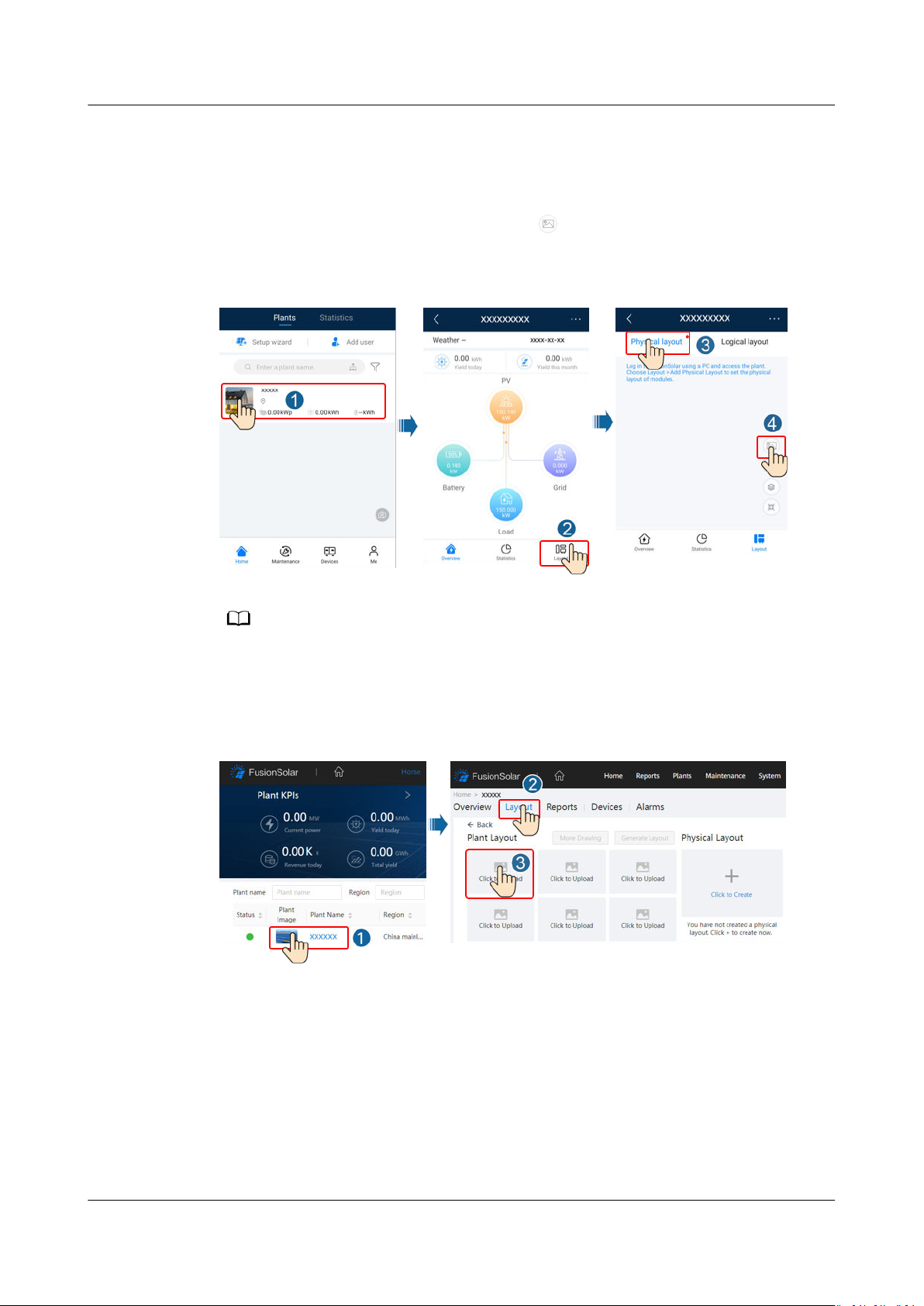

Figure 7-6 Uploading the physical layout template photo (App)

You can also upload the physical layout template photo on the WebUI as follows: Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV Management System. On the Home page, click the plant name to go to the plant page. Choose Layout, click Click to Uploag, and upload the physical layout template photo.

Figure 7-7 Uploading the physical layout template photo (WebUI)

Step 2 Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the

FusionSolar Smart PV Management System. On the Home page, click the plant name to go to the plant page. Select Layout. Choose Generate layout, and create a physical layout as prompted. You can also manually create a physical location layout.

Page 76

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Figure 7-8 Physical layout design of PV modules

----End

Scenario 2: Setting on the Solar Inverter Side (Solar Inverter Not Connected to the Management System)

Step 1 Access the Device Commissioning screen on the FusionSolar app to set the

physical layout of Smart PV Optimizers.

1. Log in to the FusionSolar app. On the Device Commissioning screen, choose Maintenance > Optimizer layout. The Optimizer layout screen is displayed.

2. Tap the blank area. The Identify image and Add PV modules buttons are displayed. You can use either of the following methods to perform operations as prompted:

– Method 1: Tap Identify image and upload the physical layout template

photo to complete the optimizer layout. (The optimizers that fail to be identied need to be manually bound.)

– Method 2: Tap Add PV modules to manually add PV modules and bind

the optimizers to the PV modules.

Figure 7-9 Physical layout design of PV modules

----End

7.1.5 Detect optimizer disconnection

Log in to the FusionSolar app, choose Device Commissioning > Maintenance > Optimizer disconnection detection, tap the detection button to detect the

optimizer disconnection, and rectify the fault based on the detection result.

Page 77

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

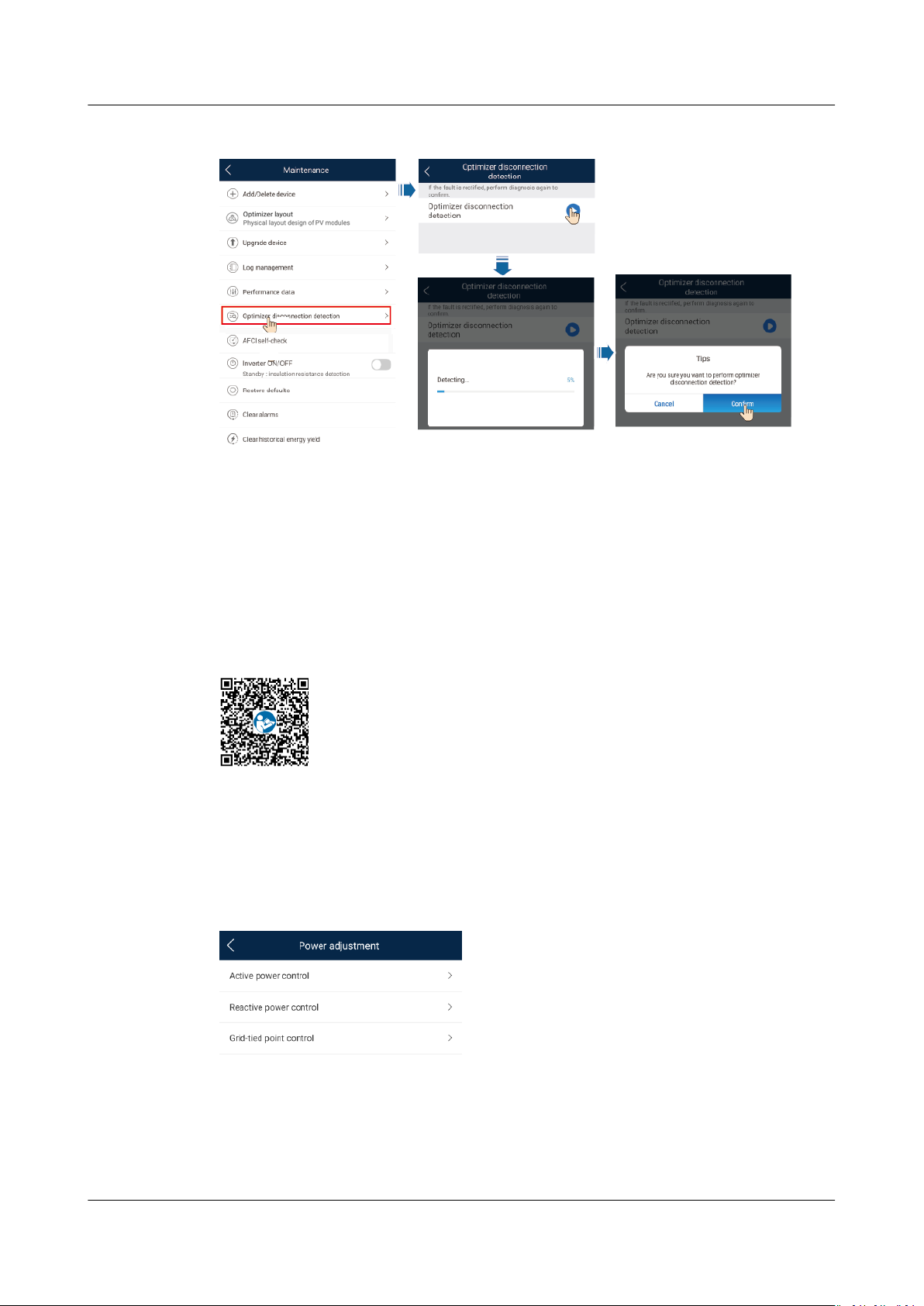

Figure 7-10 Detect optimizer disconnection

7.2 Parameters Settings

Go to the Device Commissioning screen and set SUN2000 parameters. For details about entering the Device Commissioning screen, see B Device Commissioning.

To set more parameters, tap Settings. For details about the parameters, see the

FusionSolar APP and SUN2000 App User Manual

to obtain the document.

7.2.1 Energy Control

On the home screen, tap Power adjustment to perform the corresponding operation.

Figure 7-11 Energy control

. You can also scan the QR code

Page 78

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

7.2.1.1 Grid-tied Point Control

Function

Limits or reduces the output power of the PV power system to ensure that the output power is within the power deviation limit.

Procedure

Step 1 On the home screen, choose Power adjustment > Grid-tied point control.

Figure 7-12 Grid-tied point control

Table 7-1 Grid-tied point control

Parameter Name

Active power

Unlimited - If this parameter is set to Unlimited,

Grid connection with zero power

Description

the output power of the SUN2000 is not limited and the SUN2000 can connect to the power grid at the rated power.

Closed-loop controller ● If multiple SUN2000s are

cascaded, set this parameter to SDongle/SmartLogger.

● If there is only one SUN2000, set this parameter to Inverter.

Limitation mode Total power indicates export

limitation of the total power at the grid-tied point.

Power adjustment period

Power control hysteresis

Species the shortest interval for a single anti-backfeeding adjustment.

Species the dead zone for adjusting the SUN2000 output power. If the power uctuation is within the power control hysteresis, the power is not adjusted.

Page 79

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Parameter Name Description

Active power output limit for fail-safe

Communication disconnection fail-safe

Communication disconnection detection time

Species the derating value of the SUN2000 active power by percentage. If the Smart Dongle does not detect any meter data or the communication between the Smart Dongle and the SUN2000 is disconnected, the Smart Dongle delivers the derating value of the SUN2000 active power by percentage.

In the SUN2000 anti-backfeeding scenario, if this parameter is set to Enable, the SUN2000 will derate according to the active power derating percentage when the communication between the SUN2000 and the Smart Dongle is disconnected for a period longer than

Communication disconnection detection time.

Species the time for determining the communication disconnection between the SUN2000 and the Dongle.

This parameter is displayed when

Communication disconnection failsafe is set to Enable.

Grid connection with limited power (kW)

Closed-loop controller ● If multiple SUN2000s are

cascaded, set this parameter to SDongle/SmartLogger.

● If there is only one SUN2000, set this parameter to Inverter.

Limitation mode Total power indicates export

limitation of the total power at the grid-tied point.

Maximum grid feed-in power

Species the maximum active power transmitted from the grid-tied point to the power grid.

Power adjustment period

Power control hysteresis

Species the shortest interval for a single anti-backfeeding adjustment.

Species the dead zone for adjusting the SUN2000 output power. If the power uctuation is within the power control hysteresis, the power is not adjusted.

Page 80

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Parameter Name Description

Active power output limit for fail-safe

Communication disconnection fail-safe

Communication disconnection detection time

Communication disconnection detection time.

Species the time for determining the communication disconnection between the SUN2000 and the Dongle.

This parameter is displayed when

Communication disconnection failsafe is set to Enable.

Grid connection with limited power (%)

Closed-loop controller ● If multiple SUN2000s are

cascaded, set this parameter to SDongle/SmartLogger.

● If there is only one SUN2000, set this parameter to Inverter.

Limitation mode Total power indicates export

limitation of the total power at the grid-tied point.

PV plant capacity Species the total maximum active

power in the SUN2000 cascading scenario.

Maximum grid feed-in power

Species the percentage of the maximum active power of the gridtied point to the PV plant capacity.

Power adjustment period

Species the shortest interval for a single anti-backfeeding adjustment.

Page 81

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Parameter Name Description

Power control hysteresis

Active power output limit for fail-safe

Communication disconnection fail-safe

Species the dead zone for adjusting the SUN2000 output power. If the power uctuation is within the power control hysteresis, the power is not adjusted.

Communication disconnection detection time.

7.2.2 AFCI

Function

Communication disconnection detection time

----End

If PV modules or cables are not properly connected or damaged, electric arcs may occur, which may cause compliance with UL 1699B-2018 to ensure the safety of users' lives and property.

This function is enabled by default. The SUN2000 automatically detects arc faults. To disable this function, log in to the FusionSolar app, enter the Device Commissioning screen, choose Settings > Feature parameters, and disable AFCI.

re. Huawei SUN2000s provide unique arc detection in

Species the time for determining the

communication disconnection between the SUN2000 and the Dongle.

This parameter is displayed when

Communication disconnection failsafe is set to Enable.

Page 82

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Clearing Alarms

The AFCI function involves the DC arc fault alarm.

The SUN2000 has the AFCI alarm automatic clearance mechanism. If an alarm is triggered for less than ve times within 24 hours, the SUN2000 automatically clears the alarm. If the alarm is triggered for ve times or more within 24 hours, the SUN2000 locks for protection. You need to manually clear the alarm on the SUN2000 so that it can work properly.

You can manually clear the alarm as follows:

● Method 1: FusionSolar App

Log in to the FusionSolar app and choose My > Device Commissioning. On the Device Commissioning screen, connect and log in to the SUN2000 that generates the AFCI alarm, tap Alarm management, and tap Clear on the right of the DC arc fault alarm to clear the alarm.

Figure 7-13 Alarm management

● Method 2: FusionSolar Smart PV Management System

Log in to the FusionSolar Smart PV Management System using a non-owner account, choose Maintenance > Alarm Management, select the DC arc fault alarm, and click Clear to clear the alarm.

Figure 7-14 Clearing alarms

Switch to the owner account with PV plant management rights. On the home page, click the PV plant name to go to the PV plant page, and click OK as prompted to clear the alarm.

Page 83

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

7.2.3 IPS Check (for Italy CEI0-21 Grid Code Only)

Function

The Italy CEI0-21 grid code requires an IPS check for the SUN2000. During the self-check, the SUN2000 checks the protection threshold and protection time of the maximum voltage over 10 min (59.S1), maximum overvoltage (59.S2), minimum undervoltage (27.S1), minimum undervoltage (27.S2), maximum overfrequency (81.S1), maximum overfrequency (81.S2), minimum underfrequency (81.S), and minimum underfrequency (81.S2).

Procedure

Step 1 On the home screen, choose Maintenance > IPS test to access the IPS test screen.

Step 2 Tap Start to start an IPS test. The SUN2000 detects maximum voltage over 10 min

(59.S1), maximum overvoltage (59.S2), minimum undervoltage (27.S1), minimum undervoltage (27.S2), maximum overfrequency (81.S1), maximum overfrequency (81.S2), and minimum underfrequency (81.S1), and minimum underfrequency (81.S2).

Figure 7-15 IPS test

Table 7-2 IPS test type

IPS Test Type

Maximum voltage over 10 min (59.S1)

Description

The default maximum voltage over 10 min protection threshold is 253 V (1.10 Vn), and the default protection time threshold is 3s.

Page 84

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

IPS Test Type Description

Maximum overvoltage (59.S2)

Minimum undervoltage (27.S1)

Minimum undervoltage (27.S2)

Maximum overfrequency (81.S1)

Maximum overfrequency (81.S2)

Minimum underfrequency (81.S1)

Minimum underfrequency (81.S2)

The default overvoltage protection threshold is 264.5 V (1.15 Vn), and the default protection time threshold is 0.2s.

The default undervoltage protection threshold is 195.5 V (0.85 Vn), and the default protection time threshold is 1.5s.

The default undervoltage protection threshold is 34.5 V (0.15 Vn), and the default protection time threshold is 0.2s.

The default overfrequency protection threshold is 50.2 Hz, and the default protection time threshold is 0.1s.

The default overfrequency protection threshold is 51.5 Hz, and the default protection time threshold is 0.1s.

The default underfrequency protection threshold is 49.8 Hz, and the default protection time threshold is 0.1s.

The default underfrequency protection threshold is 47.5 Hz, and the default protection time threshold is 0.1s.

Step 3 After the IPS test is complete, IPS State is displayed as IPS state success. Tap

Historical report in the upper right corner of the screen to view the IPS check

report.

----End

7.3 SmartLogger Networking Scenario

See the

Guide (Distributed Inverters + SmartLogger1000A + RS485 Networking) PV Plants Connecting to Huawei Hosting Cloud Quick Guide (Inverters + SmartLogger3000 + RS485 Networking)

Figure 7-16 SmartLogger1000A

Distributed PV Plants Connecting to Huawei Hosting Cloud Quick

. You can scan the QR code to obtain it.

and

Page 85

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 7 Man-Machine Interaction

Figure 7-17 SmartLogger3000

Page 86

WARNING

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

8 Maintenance

8.1 System Power-O

Precautions

Procedure

Step 1 Send a shutdown command on the app.

Step 2 Turn o the AC switch between the SUN2000 and the power grid.

Step 3 Turn o the DC switch at the bottom of the SUN2000.

Step 4 (Optional) Install the locking screw for the DC switch.

● After the SUN2000 powers o, the remaining electricity and heat may still cause electric shocks and body burns. Therefore, put on protective gloves and begin operating the SUN2000

● Before maintaining the optimizers and PV strings, power o the system by performing the following steps. Otherwise, the PV strings may be energized, resulting in electric shocks.

Figure 8-1 Installing a locking screw for the DC switch

ve minutes after the power-o.

Page 87

CA UTION

NO TE

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

Step 5 Turn o the DC switch between the SUN2000 and PV strings.

----End

8.2 Routine Maintenance

To ensure that the SUN2000 can operate properly for a long term, you are advised to perform routine maintenance on it as described in this chapter.

Before cleaning the system, connecting cables, and maintaining the grounding reliability, power o the system.

Table 8-1 Maintenance list

Check Detail Check Method Maintenance Interval

System cleanliness Check the heat sink for foreign matter or the

overall health of the SUN2000.

System running status

Electrical connections

Grounding reliability

Sealing Check whether all terminals and ports are

Check the SUN2000 for damage or deformation.

● Cables are securely connected.

● Cables are intact, in particular, the parts touching the metallic surface are not scratched.

Check whether the ground terminal and ground cable are securely connected.

properly sealed.

Annual or every time an abnormality is detected

Annual

The rst inspection is 6 months after the initial commissioning. From then on, the interval can be 6 to 12 months.

Annual

8.3 Troubleshooting

Contact your dealer or Huawei technical support if the measures listed in the Troubleshooting Suggestion column have been taken but the fault persists.

Alarm severities are

● Major: The inverter is faulty. As a result, the output power decreases or the grid-tied power generation is stopped.

● Minor: Some components are faulty without aecting the grid-tied power generation.

dened as follows:

Page 88

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

● Warning: The inverter works properly. The output power decreases or some authorization functions fail due to external factors.

Table 8-2 Common alarms and troubleshooting measures

AlarmIDAlarm Name Alarm

Possible Cause Troubleshooting Suggestion

Severity

2001 High String

Input Voltage

Major The PV array is not

properly

congured.

Excessive PV modules are connected in series to the PV string, and therefore the open-circuit voltage exceeds the maximum inverter operating voltage.

Cause ID 1 = PV1 and PV2

Cause ID 2 = PV3 and PV4

2002 DC Arc Fault Major The PV string

power cable arcs or is in poor contact.

Cause ID 1 = PV1 and PV2

Cause ID 2 = PV3 and PV4

Reduce the number of PV modules connected in series to the PV string until the PV string open-circuit voltage is less than or equal to the maximum inverter operating voltage. After the PV array is correctly

congured, the inverter

alarm disappears.

Check that the PV string power cable does not arc and is in good contact.

2011 String Reverse

Connection

Major The PV string

polarity is reversed.

Cause ID 1 = PV1

Check whether the PV string is reversely connected to the SUN2000. If yes, wait until the PV string current decreases below 0.5

Cause ID 2 = PV2

Cause ID 3 = PV3

A, set DC SWITCH to OFF, and adjust the PV string polarity.

Cause ID 4 = PV4

Page 89

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2012 String Current

Warning The number of PV

Backfeed

2021 AFCI Self-Check

Major Cause ID = 1, 2

Failure

Possible Cause Troubleshooting Suggestion

1. Check whether the number of modules connected in series to this PV string is insucient. As a result, the end voltage is lower than that of other strings.

Cause ID 1 = PV1

PV modules connected in series to this PV string is less than the number of PV modules connected in series to the other PV strings connected in parallel with this PV string. If yes, wait until the PV string current decreases below 0.5 A, set DC SWITCH to OFF, and adjust the number of PV modules in the PV

Cause ID 2 = PV2

Cause ID 3 = PV3

Cause ID 4 = PV4

string.

2. Check whether the PV string is

shaded.

3. Check whether the open-circuit

voltage of the PV string is normal.

Turn o the AC output switch and

AFCI check fails.

DC input switch, and then turn them on after 5 minutes. If the fault persists, contact your dealer or Huawei technical support.

2031 Phase Wire

Short-Circuited to PE

Major Cause ID = 1

The impedance of the output phase wire to PE is low or the output phase wire is shortcircuited to PE.

2032 Grid Loss Major Cause ID = 1

● The power grid

experiences an outage.

● The AC power

cable is disconnected or the AC circuit breaker is OFF.

Check the impedance of the output phase wire to PE, locate the position with lower impedance, and rectify the fault.

1. Check that the AC voltage is

normal.

2. Check that the AC power cable

is connected and that the AC switch is ON.

Page 90

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2033 Grid

Major Cause ID = 1

Undervoltage

Possible Cause Troubleshooting Suggestion

1. If the alarm occurs accidentally,

The grid voltage is below the lower threshold or the low voltage duration has lasted for more than the

specied by

value LVRT.

the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

2. If the alarm occurs frequently,

check whether the grid voltage is within the acceptable range. If no, contact the local power operator. If yes, login to the mobile phone app, SmartLogger, or NMS to modify the grid undervoltage protection threshold with the consent of the local power operator.

3. If the fault persists, check the

connection between the AC switch and the output power cable.

2034 Grid

Overvoltage

Major Cause ID = 1

The grid voltage exceeds the higher threshold or the high voltage duration has lasted for more than the

specied by

value HVRT.

1. If the alarm occurs accidentally,

the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

2. If the alarm occurs frequently,

check whether the power grid voltage is within the acceptable range. If no, contact the local power operator. If yes, log in to the mobile app, SmartLogger, or network management system (NMS) to modify the grid overvoltage protection threshold with the consent of the local power operator.

3. Check whether the peak voltage

of the power grid is too high. If the fault persists and cannot be rectied for a long time, contact the power grid operator.

Page 91

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2035 Grid Voltage

Major Cause ID = 1

Imbalance

Possible Cause Troubleshooting Suggestion

1. If the alarm occurs accidentally,

The dierence between grid phase voltages exceeds the upper threshold.

the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

2. If the alarm occurs frequently,

check whether the power grid voltage is within the acceptable range. If no, contact the local power operator.

3. If the fault persists for a long

time, check the connection of the AC output power cables.

4. If the AC output power cables

are correctly connected, but the alarm persists and

aects the energy yield of the PV plant, contact the local power operator.

2036 Grid

Overfrequency

Major Cause ID = 1

Power grid exception: The actual grid frequency is higher than the requirement of the local power grid standard.

1. If the alarm occurs accidentally, the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

2. If the alarm occurs frequently, check whether the grid frequency is within the acceptable range. If no, contact the local power operator. If yes, log in to the mobile phone app, SmartLogger, or NMS to modify the grid underfrequency protection threshold with the consent of the local power operator.

Page 92

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2037 Grid

Major Cause ID = 1

Underfrequency

2038 Unstable Grid

Major Cause ID = 1

Frequency

Possible Cause Troubleshooting Suggestion

1. If the alarm occurs accidentally,

Power grid exception: The actual grid frequency is lower than the requirement of the local power grid standard.

the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

1. If the alarm occurs accidentally,

Power grid exception: The actual grid frequency change rate does not comply with the local power grid standard.

the power grid may be abnormal temporarily. The inverter automatically recovers after detecting that the power grid becomes normal.

2. If the alarm occurs frequently, check whether the grid frequency is within the acceptable range. If no, contact the local power operator.

2039 Output

Overcurrent

Major Cause ID = 1

The grid voltage drops dramatically or the power grid is short-circuited. As a result, the inverter transient output current exceeds the upper threshold, and inverter protection is triggered.

1. The inverter monitors its external working conditions in real time. The inverter automatically recovers after the fault is rectied.

2. If the alarm occurs frequently and aects the power production of the PV plant, check whether the output is short-circuited. If the fault persists, contact your dealer or Huawei technical support.

Page 93

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2040 Output DC

Major Cause ID = 1 Component Overhigh

2051 Abnormal

Major Cause ID = 1 Residual Current

2061 Abnormal

Major Cause ID = 1 Grounding

Possible Cause Troubleshooting Suggestion

1. The inverter monitors its

The DC component in the grid current exceeds the upper threshold.

external working conditions in real time. The inverter automatically recovers after the fault is rectied.

2. If the alarm occurs frequently, contact your dealer or Huawei technical support.

1. If the alarm occurs accidentally,

The input-toground insulation impedance has decreased during the inverter operation.

the external power cable may be abnormal temporarily. The inverter automatically recovers after the fault is rectied.

2. If the alarm occurs frequently or persists, check that the impedance between the PV string and ground is not below the lower threshold.

Power o the inverter (turn o the

● The neutral wire or ground cable is not connected.

AC output switch and DC input switch, and wait for 5 minutes), and then perform the following operations:

● The PV array is grounded, but the inverter output does not connect to an isolation transformer.

1. Check that the PE cable for the inverter is connected properly.

2. If the inverter is connected to the TN power grid, check whether the N cable is properly connected and whether the voltage to ground is normal.

3. Check whether the AC output connects to an isolation transformer. If yes, after powering on the inverter, log in to the mobile phone app, SmartLogger, or NMS and disable Grounding inspection.

Page 94

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2062 Low Insulation

Major Cause ID = 1

Resistance

Possible Cause Troubleshooting Suggestion

1. Check the impedance between

● The PV array is short-circuited to ground.

● The PV array is in a moist environment and the power cable is not well insulated to ground.

the PV array output and PE, and eliminate short circuits and poor insulation points.

2. Check that the PE cable for the inverter is connected correctly.

3. If you are sure that the impedance is less than the preset protection threshold in a cloudy or rainy environment, log in to the mobile phone app, SmartLogger, or NMS and reset the insulation impedance protection threshold. For details about how to query the low insulation resistance alarm, see HUAWEI

SUN2000-8-20KTL-M2 Inverter Low Insulation Resistance Fault Indication Guide.

2063 Cabinet

Overtemperatur e

Minor Cause ID = 1

● The inverter is installed in a place with poor ventilation.

● The ambient temperature exceeds the upper threshold.

● The inverter is not working properly.

2064 Device Fault Major Cause ID = 1–12

An unrecoverable fault has occurred on a circuit inside the inverter.

● Check the ventilation and ambient temperature at the inverter installation position.

● If the ventilation is poor or the ambient temperature exceeds the upper threshold, improve the ventilation and heat dissipation.

● If the ventilation and ambient temperature both meet requirements, contact your dealer or Huawei technical support.

Turn o the AC output switch and DC input switch, and then turn them on after 5 minutes. If the fault persists, contact your dealer or Huawei technical support.

Note: If the cause ID is ID 1, perform the preceding operation when the PV string current is less than 1 A.

Page 95

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Possible Cause Troubleshooting Suggestion

Severity

2065 Upgrade Failed

or Version Mismatch

Minor Cause ID = 1, 2 and

The upgrade ends abnormally.

NOTE

Upgrade the inverter again if it is stuck in initialization state without generating any alarms and cannot be restored to the normal state during the upgrade when the PV inputs are disconnected and reconnected next time.

2066 License Expired Warning Cause ID = 1

● The privilege certicate has entered the grace period.

● The privilege feature will be invalid soon.

1. Upgrade again.

2. If the upgrade fails several times, contact your dealer or Huawei technical support.

1. Apply for a new certicate.

2. Load the new certicate.

61440 Faulty

Monitoring Unit

2067 Faulty Power

Collector

Minor Cause ID = 1

● The ash memory is

insucient.

● The ash memory has bad sectors.

Major Cause ID = 1

Power meter disconnection.

Turn o the AC output switch and DC input switch, and then turn them on after 5 minutes. If the fault persists, replace the monitoring board or contact your dealer Huawei technical support.

1. Check that the preset power meter model is the same as the actual model.

2. Check that the preset communications parameters for the power meter are the same as the actual

congurations.

3. Check that the power meter is powered on and the RS485 communications cable is connected.

Page 96

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2072 Transient AC

Major Cause ID = 1

Overvoltage

Possible Cause Troubleshooting Suggestion

1. Check whether the grid

The inverter detects that the phase voltage exceeds the transient AC overvoltage protection threshold.

connection voltage exceeds the upper threshold. If yes, contact the local power operator.

2. If you have conrmed that the grid connection voltage exceeds the upper threshold and obtained the consent of the local power operator, modify the overvoltage protection threshold.

3. Check that the peak grid voltage does not exceed the upper threshold.

Page 97

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Severity

2080 Abnormal PV

Major PV module

Module

Conguration

Possible Cause Troubleshooting Suggestion

Check whether the total number of conguration does not meet requirements, or the PV module output is reversely connected or shortcircuited.

Cause ID = 2, 3, 6, 7, 8, 9

● 2: The PV string

power or the number of PV modules connected in series exceeds the upper threshold.

● 3: The PV string

voltage is low or

PV modules, number of PV modules

in a string, and number of PV

strings meet requirements and

whether the PV module output is

reversely connected.

● ID2: Check whether the PV string power or the number of PV modules connected in series in the PV string exceeds the upper threshold.

● ID3:

1. Check whether the number of optimizers connected in series in the PV string is below the lower threshold.

2. Check whether the PV string output is reversely connected.

3. Check whether the PV string output is disconnected.

the number of PV modules connected in series is less than the lower threshold.

● 6: The PV string or parallel connection is abnormal.

4. Check whether the optimizer output extension cable is correct (positive connector at one end and negative connector at the other).

● ID6:

1. Check whether the number of optimizers connected in series in the PV strings connected in parallel under the same MPPT is

● 7: The string

the same.

conguration is changed.

2. Check whether the optimizer output extension cable is correct

● 8: The sunlight is abnormal.

● 9: The PV string voltage exceeds the upper threshold.

(positive connector at one end and negative connector at the other).

● ID7: When the sunlight is normal, perform the optimizer search function again.

● ID8: When the sunlight is normal, perform the optimizer search function again.

● ID9: Calculate the PV string voltage based on the number of PV modules in the PV string and check whether the PV string

Page 98

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 8 Maintenance

AlarmIDAlarm Name Alarm

Possible Cause Troubleshooting Suggestion

Severity

2081 Optimizer Fault Warning Cause ID = 1

An optimizer is faulty.

voltage exceeds the upper threshold of the inverter input voltage.

Go to the optimizer information page to view the fault information.

Page 99

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 9 Handling the Inverter

9 Handling the Inverter

9.1 Removing a SUN2000

Procedure

Step 1 Power

Step 2 Disconnect all cables from the SUN2000, including signal cables, DC input power

cables, AC output power cables, and PE cables.

Step 3 (Optional) Remove the Smart Dongle from the SUN2000.

Step 4 Remove the SUN2000 from the mounting bracket.

Step 5 Remove the mounting bracket.

----End

o the SUN2000. For details, see 8.1 System Power-O.

9.2 Packing the SUN2000

● If the original packing materials are available, put the SUN2000 inside them and then seal them by using adhesive tape.

● If the original packing materials are not available, put the SUN2000 inside a suitable cardboard box and seal it properly.

9.3 Disposing of the SUN2000

If the SUN2000 service life expires, dispose of it according to the local disposal rules for electrical equipment waste.

Page 100

Copy-SUN2000-(8KTL-20KTL)-M2 User Manual 10 Technical Data

10 Technical Data

10.1 SUN2000 Technical Specications

Eciency

Technical

Specications

Maximum

eciency

European

eciency

Input

Technical

Specications

Maximum input voltage

Maximum input current (per MPPT)

SUN20008KTL-M2

98.5% 98.5% 98.5% 98.65% 98.65% 98.65%

98.0% 98.0% 98.0% 98.3% 98.3% 98.3%

SUN20008KTL-M2

1080 V

27 A

SUN200010KTL-M2

SUN200012KTL-M2

SUN200015KTL-M2

SUN200017KTL-M2

SUN200020KTL-M2

Maximum short-circuit current (per MPPT)

39 A
