Huawei RH2285, RH2485, RH2488, RH5885, RH2288 Operation Manual
HUAWEI TECHNOLOGIES CO., LTD.
www.huawei.com
Huawei Enterprise A Better Way

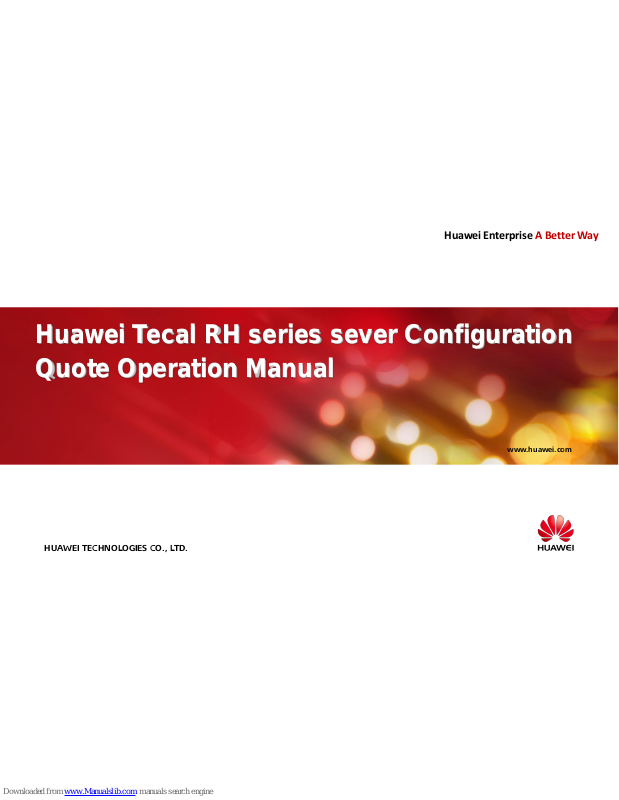

Huawei Tecal RH series sever Configuration
Quote Operation Manual
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential
Page 2
Huawei Enterprise A Better Way
Portfolio of RH server
Configuration Principle
1
RH server Configuration Guide
Content
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential
Page 3
Huawei Enterprise A Better Way
2-socket
server
4-socket
server
Multi-socket
server
RH2488 V2
RH5885 V2
(4U 4-socket)
RH Server series
RH2285 V2
(8 HDDS)
RH2285 V2
(12 HDDS)
RH2288 V2
(8 HDDS)
RH2288 V2
(12 HDDS)
RH2485 V2
RH5885 V2
(8U 8-socket)
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential
Page 4
Huawei Enterprise A Better Way
Content
Configuration Principle
Portfolio of RH server
2
RH server Configuration Guide
HUAWEI TECHNOLOGIES CO., LTD. Huawei Confidential
Page 5
Huawei Enterprise A Better Way
Product
RH2285V2
RH2288V2
RH2485V2
RH2488V2
CPU
1 / 2 CPU Intel Xeon E5-2400
series 4/6/8-core
1 / 2 CPU Intel Xeon E5-2600
series 4/6/8-core
2 /4 CPU Intel Xeon E5-2600 series
4/6/8-core
1/2 /4 CPU Intel Xeon E7-4800
series 6/8/10-core
DIMM Slots
Dual-CPU:12 DDR3 RDIMM slots Dual-CPU:24 DDR3 RDIMM slots
Dual-CPU:24 DDR3 RDIMM slots
Four CPU:48 DDR3 RDIMM slots
Single -CPU:8 DDR3 RDIMM slots
Four CPU: 32 DDR3 RDIMM slots
Hard Disks
12*3.5+2*2.5 inch /8*2.5 inch
SAS/SATA disks
8*2.5 inch SAS/SATA disks 8*2.5 inch SAS/SATA disks 6*2.5 inch SAS/SATA disks
Expansion
1*PCIe x16 card(FHFL) ,
1*PCIex8 card(FH3/4L) ,
2*PCIe x8 card(LP)
1*PCIe 3.0 x16 card
1*PCIe 3.0 x8 card
3*PCIe 3.0 x8 card(FH3/4)
1*PCIe 3.0 x16 card (FHFL)
1*PCIe 3.0 x8 card(FH3/4L)
5*PCIe 3.0 x8 card(LP)
① 2*PCIe 2.0 x16 card(LP)
② 2*PCIe 2.0 x4 card(LP) , 1*PCIe
2.0 x8 card(LP), 1*PCIe 2.0 x16
card(LP)
③ 3*PCIe 2.0 x8 card(LP) ,
2*PCIe x4 card(LP)
Network
2*GE 4*GE 4*GE ,2*10GE
2*GE
RAID0/1/10/5,512MB,BBU
Power
Supply
AC:1+1 redundancy ;
460 W/800W PSUs;
750 W golden PSUs
DC:1+1 redundancy;
–48V/–60V input
800 W PSUs
AC:1+1 redundancy ;
460 W/800W PSUs;
DC:1+1 redundancy;
–48V,800W PSUs
AC:1+1 redundancy ;
800W/1200W PSUs;
AC:1+1 redundancy ;
800W/1200W PSUs;
RH 2/4-Socket Server Specifications
