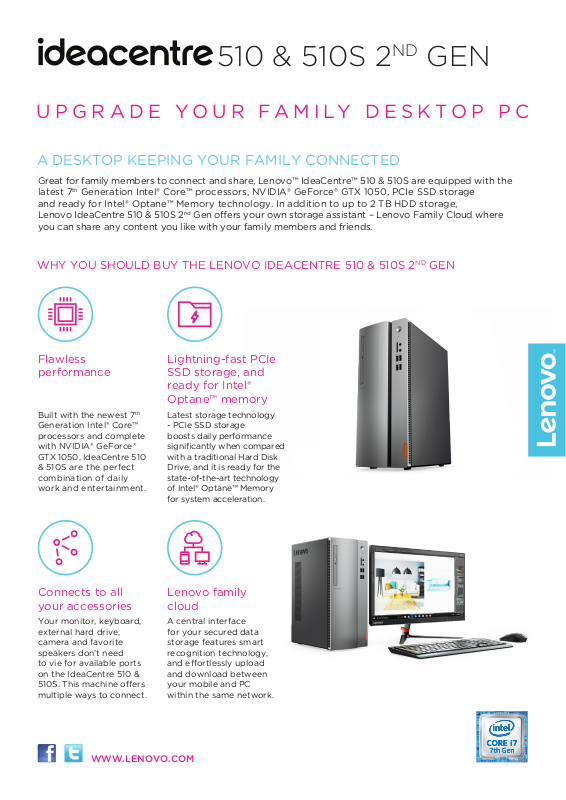

510 & 510S 2
GEN
UPGRADE YOUR FAMILY DESKTOP PC
A DESKTOP KEEPING YOUR FAMILY CONNECTED
Great for family members to connect and share, Lenovo™ IdeaCentre™ 510 & 510S are equipped with the
latest 7th Generation Intel® Core™ processors, NVIDIA® GeForce® GTX 1050, PCIe SSD storage
and ready for Intel® Optane™ Memory technology. In addition to up to 2 TB HDD storage,
Lenovo IdeaCentre 510 & 510S 2nd Gen oers your own storage assistant – Lenovo Family Cloud where
you can share any content you like with your family members and friends.
WHY YOU SHOULD BUY THE LENOVO IDEACENTRE 510 & 510S 2ND GEN
ND
Flawless
performance
Built with the newest 7th
Generation Intel® Core™
processors and complete
with NVIDIA® GeForce®
GTX 1050, IdeaCentre 510
& 510S are the perfect
combination of daily
work and entertainment.
Connects to all
your accessories
Your monitor, keyboard,
external hard drive,
camera and favorite
speakers don’t need
to vie for available ports
on the IdeaCentre 510 &
510S. This machine oers
multiple ways to connect.
Lightning-fast PCIe
SSD storage, and
ready for Intel®
Optane™ memory
Latest storage technology
- PCIe SSD storage
boosts daily performance
significantly when compared
with a traditional Hard Disk
Drive, and it is ready for the
state-of-the-art technology
of Intel® Optane™ Memory
for system acceleration.
Lenovo family
cloud
A central interface
for your secured data
storage features smart
recognition technology,
and eortlessly upload
and download between
your mobile and PC
within the same network.
WWW.LENOVO.COM
510 & 510S 2
SPECIFICATIONS
Lenovo IdeaCentre 510-15IKL*, Lenovo IdeaCentre 510S-08IKL*
ND
GEN
PERFORMANCE
Processor
Up to 7th Generation Intel® Core™ i7 Kabylake
Processor
Operating System
Windows 10 Home
Graphics
Up to NVIDIA® GeForce® GT 730 Graphics
(08IKL)
Up to NVIDIA GeForce GTX1050 Graphics
(15IKL)
Memory
510-15IKL
Up to 8 GB DDR4 with Intel® Optane™
Memory Ready
510S 2nd Gen-08IKL
Up to 16 GB DDR4 with Intel® Optane™
Memory Ready
Storage
Up to 256 GB SSD
Up to 2 TB HDD
CONNECTIVITY
WLAN
M.2x2 (1 x WiFi; 1 x M.2 SSD)
LAN
1 x LAN 1000M
Bluetooth®
Bluetooth® 4.0
I/O (Input/Output) Ports
6 x USB 3.0
2 x USB 2.0
1 x VGA
1 x HDMI
1 x 7in1 Card Reader Optional
DESIGN
Volume
510-15IKL
15 Liter
510S-08IKL
8.4 Liter
Dimensions (W x D x H)
510-15IKL
(mm) : 145 x 285.2 x 366.03
(inches) : 5.71" x 11.23" x 14.41"
510S-08IKL
(mm) : 90 x 297 x 344
(inches) : 3.54" x 11.69" x 13.54"
Weight
510-15IKL
Starting at 12.8 lbs (5.8 kg)
510S-08IKL
Starting at 11.5 lbs (5.2 kg)
Color
Silver
DVD/CD Burner
Yes
Built-in Cloud Support
Yes
PRELOADED SOFTWARE
Lenovo Application
• Lenovo Rescue System
• Lenovo DAI (Driver and Application Install)
• Lenovo Companion
• Lenovo Family Cloud
• Lenovo ID
• Lenovo Application Explorer (LAE)
• Lenovo Audit Data (LAD)
• CCSDK
OEM Application
• McAfee™ AntiVirus
• Microsoft Oce 2016
• Power2Go/Blu-ray Disc™ 6.0
• PowerDVD/Blu-ray Disc™ 12.0
• Adobe® Reader® 10 /
Microsoft Silverlight 4.0*
• E&M Monetization Software (LAD,
IE Bookmark, DAD, Dropbox JP . . .)
* For Canada/USA.
LENOVO SERVICES
Warranty Upgrade to Onsite Service
Repair
Maximizes PC uptime and productivity by
providing convenient, fast repair services
in your own home.
Accidental Damage Protection
Avoid the hassles of unexpected repair
costs. Provides coverage for nonwarranted damage incurred under normal
operating conditions, such as minor spills,
drops or damage to the integrated screen.
1 May not be available in all countries
2 Available in Austria, Germany, Ireland, Switzerland and UK
* Example of
Lenovo IdeaCentre
catalogue naming
convention
1
5 I11 K50 L
Spare
Positioning
Generation
Warranty Extensions
(Up to 3 Years Total Duration)
This fixed-term, fixed-cost service helps
accurately budget for PC expenses,
protect your valuable investment and
potentially lower the cost of ownership
over time.
Lenovo Services Premium Support
One-stop solution for non-warranty
challenges with network, security and
1
software setup, performance tune-up and
more.
Screen size
or volume (litre)
2
Platform
(e.g. ACL = Carrizo-L)
Intel® platform
codes
Haswell H81: IHH, BroadWell U: IBU, SkyLake Z170: ISZ, SkyLake B150: ISB,
Kabylake: IKL, SkyLake H110/H170: ISH, SkyLake U: ISU, Apollo Lake: IAP
OPTIONS & ACCESSORIES
Lenovo 500
Wireless Combo
Keyboard and Mouse
WWW.LENOVO.COM
Lenovo reserves the right to alter product oerings and specifications at any time, without notice. Lenovo makes every eort to ensure accuracy of all information but is not liable or responsible for any editorial,
photographic or typographic errors. All images are for illustration purposes only. For full Lenovo product, service and warranty specifications visit www.lenovo.com. Lenovo makes no representations or warranties
regarding third party products or services. Trademarks: The following are trademarks or registered trademarks of Lenovo: Lenovo, the Lenovo logo, ideapad, IdeaCentre, yoga and yoga home. Microsoft, Windows and
Vista are registered trademarks of Microsoft Corporation. Ultrabook, Celeron, Celeron Inside, Core Inside, Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside, Intel Inside Logo, Intel vPro, Itanium, Itanium
Inside, Pentium, Pentium Inside, vPro Inside, Xeon, Xeon Phi, and Xeon Inside are trademarks of Intel Corporation in the U.S. and/or other countries. Other company, product and service names may be trademarks or service
marks of others. Visit www.lenovo.com/lenovo/us/en/safecomp/ periodically for the latest information on safe and eective computing. ©2017 Lenovo. All rights reserved.
