Huawei G7220 User Manual

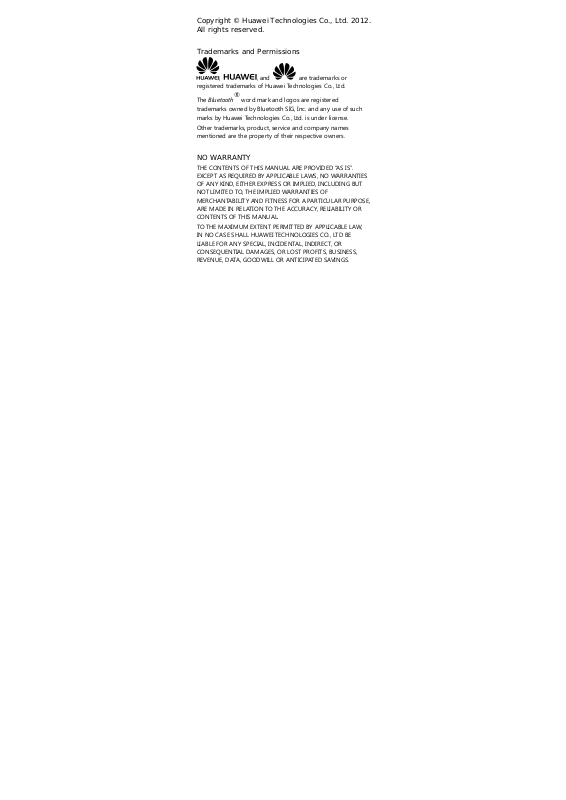

Copyright © Huawei Technologies Co., Ltd. 2012 .
All rights reserved.
Trademarks and Permissions
, , and are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
The Bluetooth
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Huawei Technologies Co., Ltd. is under license.
Other trademarks, product, service and company names
mentioned are the property of their respective owners.
®
word mark and logos are registered
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”.
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,
REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Contents
1 Getting to Know Your Phone ................................................1
Your Phone........................................................................................... 1
Keys and Functions ........................................................................... 2
Main Screen Icons .............................................................................2
2 Getting Started .......................................................................4
Installing the SIM Card and Battery........................................... 4
Removing the Battery and the SIM Card................................. 4
Installing and Removing a microSD Card................................ 5
Charging the Battery ........................................................................ 5
Calibrating the Screen .....................................................................6
Accessing Applications.................................................................... 6
Navigating with the Main Menu .................................................7
Phone Lock........................................................................................... 8
Mass Storage....................................................................................... 8
PIN and PUK ........................................................................................ 9
Locking the Screen.......................................................................... 10
3 Voice Services ...................................................................... 11
Making a Call..................................................................................... 11
Answering a call ...............................................................................11
3 Text Input ............................................................................. 13
Changing the Text Input Mode..................................................13
Entering a Word ............................................................................... 14
Entering Numbers ...........................................................................14
Entering Symbols.............................................................................15
4 Messaging ............................................................................ 15
Writing and Sending a Text Message .....................................15
Writing and Sending a Multimedia Message ......................16
5 Voice Mail............................................................................. 18
6 Phonebook ........................................................................... 18
Creating a Contact ..........................................................................18
Searching for a Contact ................................................................19
Setting the Preferred Storage..................................................... 19
Copying Contacts ............................................................................19
Contact Group...................................................................................20
7 Multimedia ........................................................................... 22
Camera.................................................................................................22
Video Recorder.................................................................................22
Media Player ......................................................................................23
Image Viewer ....................................................................................25
FM Radio .............................................................................................25
Sound Recorder................................................................................ 26
Mobile TV............................................................................................ 27
8 WAP Browser ....................................................................... 28
Editing a Data Account .................................................................28
Connecting to a WLAN .................................................................29
Configuring WAP Settings ...........................................................29
Accessing a Website....................................................................... 30
ii
9 Bluetooth.............................................................................. 30
Connecting a Bluetooth Headset to Your Phone............... 30
Transferring Data .............................................................................31
10 File Manager ...................................................................... 32
11 Tools.................................................................................... 32
Alarms...................................................................................................32
Calendar...............................................................................................32
Tasks...................................................................................................... 33
Calculator ............................................................................................33
12 Java ..................................................................................... 33
Installing a Java Application........................................................ 34
Running a Java Application .........................................................34
Removing a Java Application......................................................34
13 Chat Functions ................................................................... 35
14 Warnings and Precautions ............................................... 36
iii
1 Getting to Know Your Phone
Your Phone
1 Earpiece 8 Power key
2 Indicator light 9
3 Screen 10 Headset jack
4 Back key 11 Telescopic antenna
5 Home key 12 Camera
6 Call/Answer key 13 Volume keys
7 Microphone 14 Speaker
Charger jack/micro
Universal serial bus (USB)
port
1
Keys and Functions
Press… To…
z
Make a call.
z
Answer a call.
z
End or reject a call.
z
Return to standby mode.
Access the main menu in standby mode.
z
Power the phone on or off (press and hold this
key for about 3 seconds).
z
End or reject a call.
z
Return to standby mode.
z
Lock the screen in standby mode. And when the
screen is locked, press the key to access the
unlock interface.
Increase the volume (press
volume (press
).
Main Screen Icons
Icon Indicates…
Signal strength.
2
) or decrease the
Icon Indicates…
Media player enabled.
Wireless local area network (WLAN)
connected.
New text messages.
New multimedia messages.
Call forwarding enabled.
Missed calls.
Alarms enabled.
Battery level.
General or My style profile activated.
Meeting profile activated.
Outdoor profile activated.
Silent profile activated.
Headset connected.
Bluetooth turned on.
microSD card installed.
3
2 Getting Started
Installing the SIM Card and Battery
When installing the SIM card, ensure that the chip of SIM
1 faces down and the chip of SIM 2 faces up.
Before installing the subscriber identity module (SIM) card,
ensure that the battery is removed.
Removing the Battery and the SIM Card
Before removing the battery and the SIM card, ensure that your
phone is powered off. And before removing the SIM card,
ensure that the battery is removed.
4
Installing and Removing a microSD Card
Before installing or removing a microSD card, power the
phone off. When the phone is powered back on, it
indicates whether the microSD card has been installed
correctly.
You can expand your phone's memory capacity by installing a
microSD card. When installing a microSD card, ensure that the
gold contact area faces down.
Charging the Battery
1. Connect the small end of the USB cable to the phone’s
charger jack and the larger end to the charger.
2. Connect the charger to a power socket.
5
3. Wait until the battery is fully charged.
While the battery is charging, the charging icon blinks. When
the charging icon is stops blinking, the battery is fully
charged.
4. Unplug the charger from the power socket and the USB
cable from the phone.
Calibrating the Screen
Press and hold when power on the phone, forced calibration
will be started. Once calibrated, the phone responds more
accurately to your touch on the screen.
1. In standby mode, tap and select > Phone
settings > Pen calibration. During the calibration, a series
of icons are displayed on the screen.
2. During the calibration, a sequence of are displayed on
the screen. Tap the center of each
screen to complete the calibration.
During the calibration, tap each
ensure that the phone will respond accurately to your
touch.
that appears on the
in a normal way to
Accessing Applications
In standby mode, flick your finger left or right to access the
following applications.
6
z
Dialer
Make a call, send a message, add a contact, or replace an
existing contact from a call record.
z
Messaging
Write a text message or a multimedia message. Read the
current messages. Tap the relevant icon below the current
message to write, reply to, or delete a message.
z
Phonebook
Add a new contact or a new group. Edit a contact or a group.
You can also make a call or send a message to a contact.
z
Media player
Access the media player. You can tap
relevant settings, and tap
z
Widgets
to play audio clips.
to configure the
Tap Widgets to access the widget tab.
Navigating with the Main Menu
To navigate with the main menu:
1. In standby mode, tap .
2. Flick your finger left or right, and tap the desired application.
3. Flick your finger up or down, and tap the desired option.
4. Tap Back to return to the previous screen, press to
return to the main menu in an application screen or press
to return to standby mode in the main menu.
7
Phone Lock
The phone lock protects your phone from unauthorized use.
The preset phone unlock code is 1234. By default, the phone
lock is disabled. Once the phone lock is enabled, you must
enter the phone unlock code each time you powered on the
phone.
To enable the phone lock:
1. Tap and select > Security settings > Phone
security > Phone lock.
2. Tap the text box to access the on-screen keypad.
3. Enter the phone code, and tap OK.
To change the present phone unlock code:
1. Tap and select > Security settings > Phone
security > Change password.
4. Tap the text box to access the on-screen keypad.
5. Enter the present phone unlock code, tap OK.
6. Enter a new phone unlock code, and tap OK.
7. Enter the new phone unlock code again to confirm it.
Mass Storage
When the phone is connected to a personal computer (PC)
using a USB cable, Mass storage is displayed on the phone
screen.
In Mass storage mode, you can manage the files stored on the
phone and its microSD card from PC’s file manager utility.
8
The phone and its microSD card are displayed as removable
disks on the PC. You can perform the following operations:
z
Double-click a disk to open it.
z
Copy, paste, or delete files.
z
Disconnect the phone from the PC.
z Ensure that you connect and disconnect the USB cable
properly.
z Do not run the formatting command on the PC to
format the phone memory; doing so may permanently
damage the phone memory.
z You can transfer data and charge the battery by
connecting the phone to the PC with the USB cable.
PIN and PUK
The personal identification number (PIN) protects your SIM
card from unauthorized use. The PIN unblocking key (PUK)
unlocks a blocked PIN. Both the PIN and the PUK are provided
with the SIM card. For details, contact your service provider.
To enable the PIN lock:
1. Tap and select > Security settings > SIM 1
security or SIM 2 security > PIN lock.
2. Tap the text box to access the on-screen keypad.
3. Enter the PIN, and tap OK.
If you enter the incorrect PIN a specified number of times the
phone prompts you to enter the PUK. If you enter the incorrect
PUK a specified number of times, the SIM card will become
9
permanently invalid. If this occurs, contact your service provider
for a new SIM card.
Locking the Screen
To lock the screen, press in standby mode.
To unlock the keypad, slide
to the up/ left/ right side to access the relevant
application.
If the Screen auto lock function is enabled and the phone is in
standby mode for a preset period, the phone automatically
locks the keypad.
To enable the Screen auto lock function, tap
> Phone settings > Display > Screen auto lock, and
select the desired duration.
When the screen is locked, you can press
answer a call.
to . You can also slide
and select
to
10
3 Voice Services
Making a Call
1. Tap and select to access the onscreen keypad.
2. Enter a phone number.
z
To make an international call, tap key twice to enter the
plus sign (+). Then enter the country or region code, area
code, and phone number.
z
To call an extension number, enter the phone number, tap
three times to enter P, or four times to enter W, and
enter the extension number.
3. Press to dial the number.
4. Press to end the call.
z You can also make a call from Call logs, Phonebook,
or Messaging screen.
z During a call, you can press to adjust the in-call
volume.
Answering a call
When there is an incoming call, do the following:
z
Press or tap Answer to answer the call.
11
Loading...
