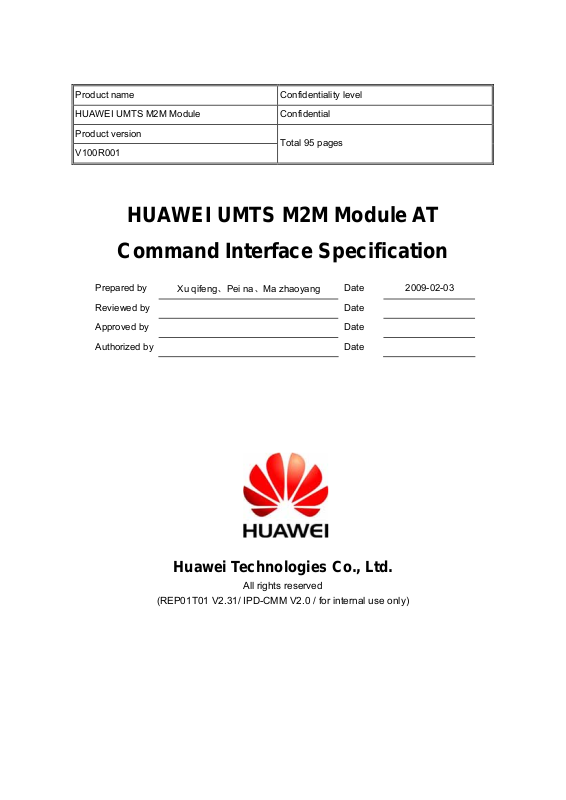

HUAWEI UMTS M2M Module AT
Command Interface Specification
Prepared by
Xu qifeng
、
Pei na
、
Ma zhaoyang
Date 2009-02-03
Reviewed by Date
Approved by Date
Authorized by Date
Huawei Technologies Co., Ltd.
All rights reserved
(REP01T01 V2.31/ IPD-CMM V2.0 / for internal use only)
Product name Confidentiality level
HUAWEI UMTS M2M Module Confidential
Product version
V100R001
Total 95 pages
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg2.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 2, Total 96
Revision Record
Date
Revisio
n
version
CR ID /
defect ID
Section
numbe
r
Change description Author
2008-10-22 0.10
AT command interface draft
completed initially
Yuan kangqiang
2009-02-03 0.20
Modify according to EM700
specification
Xu qifeng
、
Pei
na
、
Ma
zhaoyang
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg3.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 3, Total 96
Table of Contents
HUAWEI UMTS M2M Module AT Command Interface Specification........................................... 1
Table of Contents............................................................................................................................. 3
Table List......................................................................................................................................... 10
Figure List....................................................................................................................................... 11
HUAWEI UMTS M2M Module AT Command Interface Specification...................................... 12
1 Scope............................................................................................................................................ 14
1.1 Interface Overview.............................................................................................................. 14
1.2 Interface Design Principles .................................................................................................14
1.3 Interface Change Principles................................................................................................ 15
2 Interface Introduction ................................................................................................................. 15
3 Query of Basic Information and Description of Set Interface................................................. 16
3.1 Terminal error report command +CMEE ............................................................................ 16
3.1.1 Command Syntax..................................................................................................... 16
3.1.2 Description ...............................................................................................................16
3.1.3 Defined Values......................................................................................................... 16
3.2 Echo command E................................................................................................................ 16
3.2.1 Command Syntax..................................................................................................... 16
3.2.2 Description ...............................................................................................................17
3.2.3 Defined Values......................................................................................................... 17
3.3 Command line carriage return character S3....................................................................... 17
3.3.1 Command Syntax..................................................................................................... 17
3.3.2 Description ...............................................................................................................17
3.3.3 Defined Values......................................................................................................... 17
3.4 Response format character S4 ........................................................................................... 17
3.4.1 Command Syntax..................................................................................................... 17
3.4.2 Description ...............................................................................................................18
3.4.3 Defined Values......................................................................................................... 18
3.5 ME response format command V ....................................................................................... 18
3.5.1 Command Syntax..................................................................................................... 18
3.5.2 Description ...............................................................................................................18
3.5.3 Defined Values......................................................................................................... 18
3.6 Backspace character S5..................................................................................................... 19
3.6.1 Command Syntax..................................................................................................... 19
3.6.2 Description ...............................................................................................................19
3.6.3 Defined Values......................................................................................................... 19
3.7 RSSI query function command +CSQ ................................................................................ 19
3.7.1 Command Syntax..................................................................................................... 19
3.7.2 Description ...............................................................................................................19
3.7.3 Defined Values......................................................................................................... 19
3.8 RSSI level query function command + CSQLVL ................................................................ 19
3.8.1 Command Syntax..................................................................................................... 20
3.8.2 Interface Description ................................................................................................ 20
3.8.3 Defined Values......................................................................................................... 20
3.9 Operation mode setting command +CFUN ........................................................................ 20
3.9.1 Command Syntax..................................................................................................... 20
3.9.2 Description ...............................................................................................................20
3.9.3 Defined Values......................................................................................................... 21
3.10 Manufacturer information query command +CGMI .......................................................... 21
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg4.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 4, Total 96
3.10.1 Command Syntax................................................................................................... 21
3.10.2 Description ............................................................................................................. 21
3.10.3 Defined Value......................................................................................................... 21
3.10.4 Informative Examples............................................................................................. 21
3.11 Software version number query command +CGMR......................................................... 21
3.11.1 Command Syntax................................................................................................... 21
3.11.2 Description ............................................................................................................. 21
3.11.3 Defined Value......................................................................................................... 22
3.12 IMSI query command +CIMI............................................................................................. 22
3.12.1 Command Syntax................................................................................................... 22
3.12.2 Interface Description .............................................................................................. 22
3.12.3 Defined Value......................................................................................................... 22
3.12.4 Informative Examples............................................................................................. 22
3.13 IMEI query command +CGSN .......................................................................................... 22
3.13.1 Command Syntax................................................................................................... 22
3.13.2 Interface Description .............................................................................................. 22
3.13.3 Defined Value......................................................................................................... 23
3.13.4 Informative Examples............................................................................................. 23
3.14 SPN read function command %SPN ................................................................................ 23
3.14.1 Command Syntax................................................................................................... 23
3.14.2 Description ............................................................................................................. 23
3.14.3 Defined Values....................................................................................................... 23
3.14.4 Informative Examples............................................................................................. 24
3.15 Hardware version number query function %HWVER....................................................... 24
3.15.1 Command Syntax................................................................................................... 24
3.15.2 Description ............................................................................................................. 24
3.15.3 Defined Value......................................................................................................... 24
3.16 Unsolicited report control command %CURC .................................................................. 24
3.16.1 Command Syntax................................................................................................... 24
3.16.2 Interface Description .............................................................................................. 25
3.16.3 Defined Values....................................................................................................... 25
3.17 Product model ID command +CGMM/+GMM................................................................... 25
3.17.1 Command Syntax................................................................................................... 25
3.17.2 Interface Description .............................................................................................. 25
3.17.3 Defined Value......................................................................................................... 25
3.18 Network information query %NWINFO............................................................................. 26
3.18.1 Command Syntax................................................................................................... 26
3.18.2 Interface Description .............................................................................................. 26
3.18.3 Defined Values....................................................................................................... 26
3.19 Temperature of PA and source voltage query %CONINFO............................................. 27
3.19.1 Command Syntax................................................................................................... 27
3.19.2 Interface Description .............................................................................................. 27
3.19.3 Defined Values....................................................................................................... 27
3.20 Voltage warning %WARNVOLT ....................................................................................... 27
3.20.1 Command Syntax................................................................................................... 27
3.20.2 Interface Description .............................................................................................. 27
3.20.3 Defined Values....................................................................................................... 27
3.21 Module delay resetting %RESET ..................................................................................... 28
3.21.1 Command Syntax................................................................................................... 28
3.21.2 Interface Description .............................................................................................. 28
3.21.3 Defined Values....................................................................................................... 28
3.22 Clock +CCLK .................................................................................................................... 28
3.22.1 Command Syntax................................................................................................... 28
3.22.2 Interface Description .............................................................................................. 28
3.22.3 Defined Values....................................................................................................... 28
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg5.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 5, Total 96
4 SMS Interface Description.......................................................................................................... 29
4.1 Select the SMS type +CSMS.............................................................................................. 29
4.1.1 Command Syntax..................................................................................................... 29
4.1.2 Description ...............................................................................................................29
4.1.3 Defined Values......................................................................................................... 29
4.2 Set message format +CMGF.............................................................................................. 29
4.2.1 Command Syntax..................................................................................................... 29
4.2.2 Description ...............................................................................................................30
4.2.3 Defined Values......................................................................................................... 30
4.3 Message arrival indication +CMTI ...................................................................................... 30
4.3.1 Command Syntax..................................................................................................... 30
4.3.2 Description ...............................................................................................................30
4.3.3 Defined Values......................................................................................................... 30
4.4 Indication of new message reported directly +CMT ........................................................... 31
4.4.1 Command Syntax..................................................................................................... 31
4.4.2 Description ...............................................................................................................31
4.4.3 Defined Values......................................................................................................... 31
4.5 Newly received message state report +CDSI..................................................................... 31
4.5.1 Command Syntax..................................................................................................... 31
4.5.2 Description ...............................................................................................................31
4.5.3 Defined Values......................................................................................................... 31
4.6 Indication of new message state report reported directly +CDS ........................................ 31
4.6.1 Command Syntax..................................................................................................... 31
4.6.2 Description ...............................................................................................................32
4.6.3 Defined Values......................................................................................................... 32
4.7 New message notification setting +CNMI........................................................................... 32
4.7.1 Command Syntax..................................................................................................... 32
4.7.2 Description ...............................................................................................................33
4.7.3 Defined Values......................................................................................................... 33
4.7.4 Informative Examples............................................................................................... 35
4.8 Delete Message +CMGD.................................................................................................... 35
4.8.1 Command Syntax..................................................................................................... 35
4.8.2 Description ...............................................................................................................35
4.8.3 Defined Values......................................................................................................... 36
4.9 New Message Acknowledgement to +CNMA..................................................................... 36
4.9.1 Command Syntax..................................................................................................... 36
4.9.2 Description ...............................................................................................................36
4.9.3 Defined Values......................................................................................................... 37
4.10 Message storage selection +CPMS ................................................................................. 40
4.10.1 Command Syntax................................................................................................... 40
4.10.2 Description ............................................................................................................. 41
4.10.3 Defined Values....................................................................................................... 41
4.11 Reporting message storage media being full %SMMEMFULL ........................................ 42
4.11.1 Command Syntax................................................................................................... 42
4.11.2 Description ............................................................................................................. 42
4.11.3 Defined Values....................................................................................................... 42
4.12 SMSC number command +CSCA .................................................................................... 42
4.12.1 Command Syntax................................................................................................... 42
4.12.2 Description ............................................................................................................. 42
4.12.3 Defined Values....................................................................................................... 43
4.13 Message sending +CMGS................................................................................................ 43
4.13.1 Command Syntax................................................................................................... 43
4.13.2 Interface Description .............................................................................................. 43
4.13.3 Defined Values....................................................................................................... 43
4.13.4 Examples................................................................................................................ 48
4.14 Message storage command +CMGW .............................................................................. 49
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg6.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 6, Total 96
4.14.1 Command Syntax................................................................................................... 49
4.14.2 Interface Description .............................................................................................. 49
4.14.3 Defined Values....................................................................................................... 49
4.15 Message list command +CMGL ....................................................................................... 50
4.15.1 Command Syntax................................................................................................... 50
4.15.2 Description ............................................................................................................. 50
4.15.3 Defined Values....................................................................................................... 50
4.16 Read a message +CMGR................................................................................................. 52
4.16.1 Command Syntax................................................................................................... 52
4.16.2 Description ............................................................................................................. 52
4.16.3 Defined Values....................................................................................................... 52
4.17 Message bearer domain command +CGSMS.................................................................. 52
4.17.1 Command Syntax................................................................................................... 52
4.17.2 Description ............................................................................................................. 53
4.17.3 Defined Values....................................................................................................... 53
4.18 More Messages to Send +CMMS..................................................................................... 53
4.18.1 Command Syntax................................................................................................... 53
4.18.2 Description ............................................................................................................. 53
4.18.3 Defined Values....................................................................................................... 53
5 Description of Security Setting Interface.................................................................................. 54
5.1 PIN password modifying +CPWD....................................................................................... 54
5.1.1 Command Syntax..................................................................................................... 54
5.1.2 Description ...............................................................................................................54
5.1.3 Defined Values......................................................................................................... 54
5.2 PIN enabling and query function +CLCK............................................................................ 54
5.2.1 Command Syntax..................................................................................................... 55
5.2.2 Description ...............................................................................................................55
5.2.3 Defined Values......................................................................................................... 55
5.3 PIN management command +CPIN ................................................................................... 55
5.3.1 Command Syntax..................................................................................................... 55
5.3.2 Description ...............................................................................................................56
5.3.3 Defined Values......................................................................................................... 56
5.4 SIMLOCK unlocking and query command %SIMLOCK .................................................. 56
5.4.1 Command Syntax..................................................................................................... 56
5.4.2 Interface Description ................................................................................................ 57
5.4.3 Defined Values......................................................................................................... 57
6 System Setting Interface Description........................................................................................ 57
6.1 System information query %SYSINFO............................................................................... 57
6.1.1 Command Syntax..................................................................................................... 57
6.1.2 Interface Description ................................................................................................ 57
6.1.3 Defined Values......................................................................................................... 57
6.2 Service state change indication %SRVST.......................................................................... 58
6.2.1 Command Syntax..................................................................................................... 58
6.2.2 Description ...............................................................................................................59
6.2.3 Defined Values......................................................................................................... 59
6.3 SIM state change indication %SIMST ................................................................................ 59
6.3.1 Command Syntax..................................................................................................... 59
6.3.2 Interface Description ................................................................................................ 59
6.3.3 Defined Values......................................................................................................... 59
6.4 System mode change event indication %MODE................................................................ 59
6.4.1 Command Syntax..................................................................................................... 59
6.4.2 Interface Description ................................................................................................ 60
6.4.3 Defined Values......................................................................................................... 60
6.5 RSSI change indication %RSSI.......................................................................................... 60
6.5.1 Command Syntax..................................................................................................... 60
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg7.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 7, Total 96
6.5.2 Description ...............................................................................................................60
6.5.3 Defined Values......................................................................................................... 60
6.6 System configuration reference setting %SYSCFG ........................................................... 61
6.6.1 Command Syntax..................................................................................................... 61
6.6.2 Description ...............................................................................................................61
6.6.3 Defined Values......................................................................................................... 61
7 Phonebook Service Interface Description................................................................................ 62
7.1 Phonebook memory selection +CPBS ............................................................................... 62
7.1.1 Command Syntax..................................................................................................... 62
7.1.2 Description ...............................................................................................................62
7.1.3 Defined Values......................................................................................................... 63
7.2 8.13 Find phonebook entries +CPBF......................................................................... 63
7.2.1 command syntax ...................................................................................................... 63
7.2.2 Description ...............................................................................................................63
7.2.3 Defined values.......................................................................................................... 64
7.3 Read phonebook entries +CPBR ....................................................................................... 64
7.3.1 Command syntax ..................................................................................................... 64
7.3.2 Description ...............................................................................................................64
7.3.3 Defined values.......................................................................................................... 65
7.4 Write phonebook entry +CPBW.......................................................................................... 65
7.4.1 command syntax ...................................................................................................... 65
7.4.2 Description ...............................................................................................................65
7.4.3 Defined values.......................................................................................................... 65
7.5 Phonebook reading %CPBR .............................................................................................. 66
7.5.1 Command Syntax..................................................................................................... 66
7.5.2 Description ...............................................................................................................66
7.5.3 Defined Values......................................................................................................... 66
7.6 Phonebook writing %CPBW ............................................................................................... 67
7.6.1 Command Syntax..................................................................................................... 67
7.6.2 Description ...............................................................................................................67
7.6.3 Defined Values......................................................................................................... 68
7.6.4 Informative Examples............................................................................................... 68
8 Network Service Interface Description ..................................................................................... 68
8.1 Operator selection +COPS ................................................................................................. 68
8.1.1 Command Syntax..................................................................................................... 68
8.1.2 Interface Description ................................................................................................ 69
8.1.3 Defined Values......................................................................................................... 69
8.1.4 Examples of searching network ............................................................................... 70
8.2 Network registration +CREG .............................................................................................. 70
8.2.1 Command Syntax..................................................................................................... 70
8.2.2 Interface Description ................................................................................................ 71
8.2.3 Defined Values......................................................................................................... 71
8.3 Network registration +CGREG ........................................................................................... 71
8.3.1 Command Syntax..................................................................................................... 71
8.3.2 Interface Description ................................................................................................ 72
8.3.3 Defined Values......................................................................................................... 72
9 Data Service Interface Description............................................................................................72
9.1 3G Quality of Service Profile (Negotiated) +CGEQNEG.................................................... 72
9.1.1 Command Syntax..................................................................................................... 72
9.1.2 Description ...............................................................................................................73
9.1.3 Defined values.......................................................................................................... 73
9.2 Enter data state +CGDATA ................................................................................................ 74
9.2.1 Command Syntax..................................................................................................... 74
9.2.2 Description ...............................................................................................................74
9.2.3 Defined Values......................................................................................................... 75
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg8.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 8, Total 96
9.3 Show PDP address +CGPADDR ....................................................................................... 76
9.3.1 Command Syntax..................................................................................................... 76
9.3.2 Description ...............................................................................................................76
9.3.3 Defined values.......................................................................................................... 76
9.4 PDP environment setting command +CGDCONT.............................................................. 76
9.4.1 Command Syntax..................................................................................................... 76
9.4.2 Description ...............................................................................................................77
9.4.3 Defined Values......................................................................................................... 77
9.4.4 Informative Examples............................................................................................... 78
9.5 DS traffic reset %DSFLOWCLR ......................................................................................... 79
9.5.1 Command Syntax..................................................................................................... 79
9.5.2 Description ...............................................................................................................79
9.6 DS traffic query %DSFLOWQRY........................................................................................ 79
9.6.1 Command Syntax..................................................................................................... 79
9.6.2 Description ...............................................................................................................79
9.6.3 Defined Values......................................................................................................... 79
9.7 DS traffic reporting %DSFLOWRPT................................................................................... 80
9.7.1 Command Syntax..................................................................................................... 80
9.7.2 Description ...............................................................................................................80
9.7.3 Defined Values......................................................................................................... 80
10 TCP/UDP Service Interface Description.................................................................................. 81
10.1 Initialize IP service %IPINIT..............................................................................................81
10.1.1 Command Syntax................................................................................................... 81
10.1.2 Description ............................................................................................................. 81
10.1.3 Defined Values....................................................................................................... 81
10.2 Open TCP/UDP link %IPOPEN ........................................................................................ 82
10.2.1 Command Syntax................................................................................................... 82
10.2.2 Description ............................................................................................................. 82
10.2.3 Defined Values....................................................................................................... 82
10.3 Configure TCP/UDP as a server %IPLISTEN .................................................................. 82
10.3.1 Command Syntax................................................................................................... 82
10.3.2 Description ............................................................................................................. 83
10.3.3 Defined Values....................................................................................................... 83
10.4 Send TCP/UDP data %IPSEND....................................................................................... 83
10.4.1 Command Syntax................................................................................................... 83
10.4.2 Description ............................................................................................................. 83
10.4.3 Defined Values....................................................................................................... 83
10.5 Data buffer query command %IPGETDATA .................................................................... 83
10.5.1 Command Syntax................................................................................................... 84
10.5.2 Description ............................................................................................................. 84
10.5.3 Defined Values....................................................................................................... 84
10.6 Arrival data notification %IPDATA .................................................................................... 84
10.6.1 Command Syntax................................................................................................... 84
10.6.2 Description ............................................................................................................. 84
10.6.3 Defined Values....................................................................................................... 84
10.7 Close TCP/UDP link %IPCLOSE...................................................................................... 85
10.7.1 Command Syntax................................................................................................... 85
10.7.2 Description ............................................................................................................. 85
10.7.3 Defined Values....................................................................................................... 85
10.8 Transparent mode %IPENTRANS................................................................................. 85
10.8.1 Command Syntax................................................................................................... 85
10.8.2 Description ............................................................................................................. 85
11 Overall Design Constraints...................................................................................................... 86
11.1 Standards Compliance ..................................................................................................... 86
11.2 Hardware Limitations ........................................................................................................ 86
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg9.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 9, Total 96
11.3 Technology Limitations .....................................................................................................86
12 Software Quality Attributes...................................................................................................... 86
13 Dependencies............................................................................................................................86
14 Feasibility Analysis...................................................................................................................86
15 Issues To Be Determined ......................................................................................................... 86
16 Appendixes................................................................................................................................ 87
16.1 Appendix 1 AT Command Description ............................................................................. 87
16.1.1 Basic Commands ................................................................................................... 87
16.1.2 S Register Command............................................................................................. 87
16.1.3 Extended Commands and Manufacturer Defined Commands .............................. 87
16.1.4 Abort Attribute: ....................................................................................................... 88
16.2 Appendix 2 CME Error List ............................................................................................... 89
16.3 Appendix 3 CMS Error List ............................................................................................... 92
16.4 Appendix 4 Summary of Final Result Codes.................................................................... 93
16.5 Appendix 6 List of Initial Values of Command Parameter After MS Restart .................... 94
16.6 Appendix 7 Examples of Show Mode............................................................................... 95
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bga.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 10, Total 96
Table List
Table 1 Influence of V parameter on the response format ...................................................... 18
Table 2 Bit number .................................................................................................................. 37
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bgb.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 11, Total 96
Figure List
Figure 1 Block diagram of interaction between TE and MS.................................................... 14
Figure 2 Half byte coding with a total of 5 digits ..................................................................... 45
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bgc.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 12, Total 96
HUAWEI UMTS M2M Module AT Command
Interface Specification
Keywords: UMTS, Module, WCDMA, GPRS, GSM
Abstract: This Document describes the AT command-based communication interface between TE
and MS of Huawei UMTS Module. The interface can implement the functions such as
voice call, SMS, telephone service, supplementary service, TCP, UDP and network
setting.
List of abbreviations:
Abbreviations Full spelling
TE Terminal Equipment
MS Mobile Station
SM Short message
RSSI Receive signal strength indicator
BER Bit error rate
PLMN Public land mobile network
RPLMN Registered PLMN
URC Unsolicited result code
DCS Data coding scheme
DCE Data Circuit Equipment
DTE Data Terminal Equipment
CLIP Call Line Identifier presentation
PDP Packet Data Protocol
SCA Service Center Address
This device complies with Part 15 of the FCC Rules [and with RSS-210 of Industry Canada].
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications made to this equipment not expressly approved by HUAWEI TECHNOLOGIES
CO., LTD. may void the FCC authorization to operate this equipment.
Notes:
The max antenna gain is 2.15dBi.
The antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 20cm from all persons.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bgd.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 13, Total 96
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bge.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 14, Total 96
1 Scope
This document describes the AT interface of Huawei UMTS Module. The description
on the AT interface is only limited to the interface packet itself, the usage and use
procedure of TE and MS, and does not cover the contents which are not directly
related to the interface.
Note: Reinforced insulation or double insulation must be provided to isolate DC source
from AC mains supply.
1.1 Interface Overview
HUAWEI UMTS Module is a wireless terminal of UART or USB interface. It is used to
provide data service, voice and SMS functions.
This document describes the AT interface. Therewith no description or definition
explain for the document interface, and no temporary support to all kinds of parameter
values, so no suggestion of usage.
In the subsequent AT command parameters, two formats are involved: <>, and [], as
described below:
<...> Parameters enclosed in angle brackets must be completed. Brackets
themselves do not appear in the command line.
[...] Optional subparameter of a command is enclosed in square brackets.
Brackets themselves do not appear in the command line or response.
<CR> Carriage return character, which value is specified with command S3.
<LF> Linefeed character, which value is specified with command S4.
Figure 1 Block diagram of interaction between TE and MS
1.2 Interface Design Principles
1) Each interface should be functionally convergent.
2) Since the AT command is a packet transmitted via communication port, the packet
size is limited. For the transmission of AT command, in addition to the two characters
“AT”, a maximum of 1600 characters can be received (including the
empty characters
TE
MS
USER & APPLICATIONS NETWORK
AT CMDs
Information text
Result codes
Network messages
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bgf.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 15, Total 96
at the end). For the “response” message or URC reported by the board, the maximum
length is limited to 1600 characters.
3) Each command line can include only one AT command. For the URC instruction or
response reported from MS to TE, only one AT command is allowed in a command
line.
4) In order to make the commands and response formats more readable and
standard, except the original interfaces of Qualcomm, in all newly added interfaces,
e.g. no space can be contained in the commands such as AT%XXX: <arg0>, <arg1>,
or behind %, colon or comma. No redundant space is allowed at the head or end.
5) After delivering each AT command, the TE cannot deliver the second AT
command until the MS has made response to this AT command. Otherwise, the
second AT command will not be executed.
6) For the AT command to which the response is given only after a long time, in order
to prevent interference on other events, it is recommended to report the final execution
result asynchronously. If the MS responds to the TE only after a long time of waiting,
e.g. the “AT+CCFC=?” command receives a response only after a long time after the
command is delivered, the MS may have received the reported instruction of RING on
this occasion. Namely, the reporting of RING may interrupt other responses, and other
URCs will not interrupt the response of command, and the interrupted part of the
response will continue being reported.
7) Unless otherwise specified, all default codes between TE and MS take on this
format: GSM 7 bit Default Alphabet. See also Section 6 in protocol 23.038. The
character @ is transmitted on the interface still according to 0x00 of 7bit coding. The
board software and API should be able to process this character. The board uploads
the carriage return character (<CR>) and linefeed character (<LF>) in the string in the
form of space.
8) a sort of compounding between quotation and comma can not exist in the string in
this current version. For the data format of UCS2 code, the code value should be
reported in the string format (if the code value is 0x553a, 553a should be reported).
9) The “Possible response” sent from MS to TE is composed of “Information text”
and “Result code”, where “Information text” is optional, and “Result code” is mandatory.
The format of “Possible response” is controlled by the ATV command, as detailed in
the ATV command description. All “Possible responses” listed in the tables in this
documents are in the ATV1 format.
1.3 Interface Change Principles
For the extended interface, parameters can be added behind the AT command. If the
interface fails to meet the new requirements as detected in the later stage of product
development, new parameters can be added on the basis of the original interface. In
addition, for all the currently available interfaces, if the command received by MS is not
identifiable, the “result code” of COMMAND NOT SUPPORT will be reported; if there
is one surplus command parameter, the MS will report the “result code” of the
corresponding TOO MANY PARAMETERS. No equal mark itself is deemed a surplus
command parameter.
All newly added AT command interfaces of the E630 project team begin with “%”. This
project team specifies that: In the AT command name such as “AT%XXX”, the number
of X cannot be more than 9 currently.
2 Interface Introduction
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg10.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 16, Total 96
All interfaces herein refer to the interfaces between TE and MS, and are used for
guiding the implementation of the function requirements. The interface covers voice
call, short message receiving and sending, data traffic flow, phone book statistics,
supplementary service, and MS network system information setting.
For the commands sent from TE to MS, see also the detailed description in Appendix
16.1. Note that in the returned results of the TEST command, “,” and “-” are different.
For example, the returned result of “+CMGD=?” is: +CMGD: (1,5),(0-4), which means
that the first parameter value may be 1 or 5, and the second parameter value may
range from 0 to 4.
3 Query of Basic Information and Description of
Set Interface
3.1 Terminal error report command +CMEE
3.1.1 Command Syntax
Command Possible response(s)
+CMEE=<n> <CR><LF>OK<CR><LF>
+CMEE? <CR><LF>+CMEE: <n><CR><LF><CR><LF>OK<CR><LF>
+CMEE=?
<CR><LF>+CMEE: (list of supported <n>s)
<CR><LF><CR><LF>OK<CR><LF>
3.1.2 Description
This command is used to set whether to use result code: +CME ERROR:<err>
indicates the error related to MS. When you set to use result code, the MS-related
error will generate a result code: +CME ERROR: <err>, which will replace the ordinary
ERROR result code. If the error reasons are not related to MS, the ordinary ERROR
will still be returned.
3.1.3 Defined Values
<n>:
0 Do not use +CME ERROR :<err>result code, only ERROR is returned in case of
error occurrence.
1 Use +CME ERROR :<err>result code, <err> adopts the error code value.
2 Use +CME ERROR :<err>result code, <err> adopts the detailed string value of
the error.
<err>:
The value is given in the CME ERROR list in the Appendix.
3.2 Echo command E
3.2.1 Command Syntax
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg11.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 17, Total 96
Command Possible response(s)
E[<value>] <CR><LF>OK<CR><LF>
3.2.2 Description
This command is used to set whether MS will echo the characters received from TE.
3.2.3 Defined Values
<value>:
0 MS does not echo the characters received from TE.
1 MS echoes the characters received from TE.
If no <value> is included, it is equivalent to the effect that the <value> is 0.
Note: Software may set ATE0 automatically.
3.3 Command line carriage return character S3
3.3.1 Command Syntax
Command Possible response(s)
S3=<value> <CR><LF>OK<CR><LF>
S3? <CR><LF><value><CR><LF><CR><LF>OK<CR><LF>
3.3.2 Description
This command is used to set the command line carriage return character S3. S3 saves
the command line carriage return character in the form of ASCII code value. This
character is sent by TE. It means the end of a command line, and is identified by the
MS. This character is also sent by MS, and serves as a part of the header, tail and end
mark of the “result code” and “information response”.
When using the “S3=<value>” command to set S3, the current S3 character can serve
as carriage return character of this command line, and the “result code” of this
command line will use the newly set S3 character immediately, rather than waiting until
the next command line.
3.3.3 Defined Values
<value>:
0-127 The S3 character is set in the form of ASCII code value.
3.4 Response format character S4
3.4.1 Command Syntax
Command Possible response(s)
S4=<value> <CR><LF>OK<CR><LF>
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg12.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 18, Total 96
S4? <CR><LF><value><CR><LF><CR><LF>OK<CR><LF>
3.4.2 Description
This command is used to set the response format character S4. S4 saves the
response format character in the form of ASCII code value. This character is sent by
MS, and serves as a part of the header, tail and end mark of the “result code” and
“information response”.
If the S4 character is changed in a command line, the “result code” of this command
line will use the new S4 character immediately, rather than waiting until the next
command line.
3.4.3 Defined Values
<value>:
0-127 The S4 character is set in the form of ASCII code value.
3.5 ME response format command V
3.5.1 Command Syntax
Command Possible response(s)
V[<value>] <CR><LF>OK<CR><LF>
3.5.2 Description
This command is used to set the format of “result code” and “information response” of
the AT command, including the composition of the header and tail, and the form of the
result code contents. The result code contents may be in the form of numerals or
detailed strings. The following table describes the influence of format setting on the
format of “result code” and “information response”. <cr> means S3 character, and <lf>
means S4 character.
Table 1 Influence of V parameter on the response format
V0 V1
Information
responses
<text><cr><lf>
<cr><lf>
<text><cr><lf>
Result
codes
<numeric code><cr>
<cr><lf>
<verbose code><cr><lf>
3.5.3 Defined Values
<value>:
0 MS sends the abbreviated header and tail, and uses the result code in the
numeral form.
1 MS sends the complete header and tail, and uses the result code in the form of
detailed strings.
If no <value> is included, it is equivalent to the effect that the <value> is 0.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg13.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 19, Total 96
3.6 Backspace character S5
3.6.1 Command Syntax
Command Possible response(s)
S5=<value> <CR><LF>OK<CR><LF>
S5? <CR><LF><value><CR><LF><CR><LF>OK<CR><LF>
3.6.2 Description
This command is used to set the backspace character S5. S5 saves the backspace
character in the form of ASCII code value. This character is sent by TE, and means to
delete the previous character. It is identified by MS.
3.6.3 Defined Values
<value>:
0-127 The S5 character is set in the form of ASCII code value.
3.7 RSSI query function command +CSQ
3.7.1 Command Syntax
Command Possible response(s)
+CSQ
<CR><LF>+CSQ:
<rssi>,<ber><CR><LF><CR><LF>OK<CR><LF>
+CSQ=?
<CR><LF>+CSQ: (list of supported <rssi>s),(list of
supported <ber>s) <CR><LF><CR><LF>OK<CR><LF>
3.7.2 Description
The EXECUTION command returns the RSSI and BER of ME.
The TEST command returns the supported RSSI and BER values.
3.7.3 Defined Values
<rssi>: Indication of the receiving signal strength
0 Equal to or less than -113 dBm
1 -111 dBm
2...30 -109... -53 dBm
31 Equal to or higher than -51 dBm
99 Unknown or unmeasurable.
<ber>(bit error rate): Currently, the BER query is not supported, and 99 will be
returned after issuing the EXECUTION or TEST command.
3.8 RSSI level query function command + CSQLVL
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg14.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 20, Total 96
3.8.1 Command Syntax
Command Possible response(s)
+CSQLVL <CR><LF><uiPercent>,<rssi><CR><LF>
+CSQLVL=?
<CR><LF> +CSQLVL:
<uiPercent>,<rssi><CR><LF><CR><LF>OK<CR><L
F>
3.8.2 Interface Description
This command is used to periodically reset the module automatically.
3.8.3 Defined Values
< uiPercent >: The grid of the signal.
0~5: Indicate the signal intensity.
<rssi>: Indication of the receiving signal strength
0 Equal to or less than -113 dBm
1 -111 dBm
2...30 -109... -53 dBm
31 Equal to or higher than -51 dBm
99 Unknown or unmeasurable.
3.9 Operation mode setting command +CFUN
3.9.1 Command Syntax
Command Possible response(s)
+CFUN=[<fun>[,<rst>]]
<CR><LF>OK<CR><LF>
In case of MS-related error:
<CR><LF>+CME ERROR: <err><CR><LF>
+CFUN?
<CR><LF>+CFUN:
<fun><CR><LF><CR><LF>OK<CR><LF>
In case of MS-related error:
<CR><LF>+CME ERROR: <err><CR><LF>
+CFUN=?
<CR><LF>+CFUN: (list of supported <fun>s), (list of
supported <rst>s)<CR><LF><CR><LF>OK<CR><LF>
3.9.2 Description
The “EXECUTION” command is used to set the MS mode or restart the MS.
The READ command is used to return the current mode.
The TEST command is used to return the supported parameter values.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg15.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 21, Total 96
3.9.3 Defined Values
<fun>:
0 Set as LPM (low power consumption) mode (previous mode must not be offline)
1 Set as online mode (default value) (previous mode must not be offline)
4 Set as offline mode (previous mode must not be FTM)
5 Set as offline FTM (previous mode must be online)
6 Reset MS (previous mode must be offline)
7 Set as RFoff mode (about radio frequency)
<rst>: Whether to restart MS before setting (currently not supported)
3.10 Manufacturer information query command
+CGMI
3.10.1 Command Syntax
Command Possible response(s)
+CGMI
<CR><LF><manufacturer><CR><LF><CR><LF>OK<CR
><LF>
+CGMI=? <CR><LF>OK<CR><LF>
3.10.2 Description
This command is used to query the manufacturer information.
3.10.3 Defined Value
<manufacturer>: Manufacturer information. Its value is a string.
3.10.4 Informative Examples
AT+C GMI
huawei
3.11 Software version number query command
+CGMR
3.11.1 Command Syntax
Command Possible response(s)
+CGMR
<CR><LF><softversion><CR><LF><CR><LF>OK<CR><
LF>
+CGMR=? <CR><LF>OK<CR><LF>
3.11.2 Description
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg16.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 22, Total 96
The EXECUTION command returns the software version number of ME.
3.11.3 Defined Value
<softversion>: Software version number. It is a string composed of 31 characters at
most.
3.12 IMSI query command +CIMI
3.12.1 Command Syntax
Command Possible response(s)
+CIMI <CR><LF><IMSI><CR><LF><CR><LF>OK<CR><LF>
+CIMI=? <CR><LF>OK<CR><LF>
3.12.2 Interface Description
This command queries the IMSI value of the USIM card or SIM card.
3.12.3 Defined Value
<IMSI>: The IMSI value stored in the card is returned directly. The returned value is a
string composed of decimal digits that range from 0 to 9. Its composition is as follows:
A total of 15 characters or less
3 char 2 or 3 char
MCC MNC MSIN
MCC Country code
MNC Network code, GSM application
MSIN Identifies the identity of the mobile subscriber
3.12.4 Informative Examples
If MCC is “123”, MNC is “45”, and MSIN is “12345678”, then
AT+CIMI
1234512345678
3.13 IMEI query command +CGSN
3.13.1 Command Syntax
Command Possible response(s)
+CGSN <CR><LF><IMEI><CR><LF><CR><LF>OK<CR><LF>
+CGSN =? <CR><LF>OK<CR><LF>
3.13.2 Interface Description
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg17.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 23, Total 96
This command is used to query the IMEI of board.
3.13.3 Defined Value
<IMEI>: The IMEI value of the board is returned directly. The returned value is a string
composed of:
8 char 6 char 1 char
TAC SNR Spare
TAC Type code allocated for device
SNR Sequence number of the device
Spare For standby purpose
3.13.4 Informative Examples
If TAC is “35154800”, SNR is “022544”, and Spare is “4”, then
AT+CGSN
351548000225444
3.14 SPN read function command %SPN
3.14.1 Command Syntax
Command Possible response(s)
%SPN=<spn_type>
<CR><LF>%SPN:<disp_rplmn>,<coding>,<spn_name><
CR><LF><CR><LF>OK<CR><LF>
In case of MS-related error:
<CR><LF>+CME ERROR: <err><CR><LF>
%SPN=?
<CR><LF>%SPN: (list of supported < spn_type
>)<CR><LF><CR><LF>OK<CR><LF>
3.14.2 Description
This command is used for TE to query the SPN file of 2G/3G currently stored on the
SIM/USIM card through the ME.
3.14.3 Defined Values
<spn_type>:
0 GSM_SPN
1 USIM_SPN
<disp_rplmn>:
0 Do not display RPLMN
1 Display RPLMN
99 This field is invalid, and it is not necessary to read the spn_name field any
longer.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg18.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 24, Total 96
<coding>: Coding scheme. It means the character code of the spn_name field, and
specifies the language.
0 GSM 7 bit Default Alphabet
1 RAW mode (namely, upload the spn_name in the format of original data).
<spn_name>: A string. In case of GSM7bit code, the string is composed of 16
characters at most. When the coding scheme is 1, and the contents of the string are
data described by “hexadecimal text value”, the string will not be greater than 32.
When the coding mode reported on the board is “RAW mode”, this parameter should
be completed as a hexadecimal numeral with 0x removed.
3.14.4 Informative Examples
For example: When the 7bit coding format of SPN is read as “Vodafone”, the following
will be fed back after the read result is reported: %SPN:1,0,”vodafone”; if it is “China
Mobile” in the USC2 coding format, the following will be fed back:
%SPN:1,1,”804E2D56FD79FB52A8”.
3.15 Hardware version number query function
%HWVER
3.15.1 Command Syntax
Command Possible response(s)
%HWVER
<CR><LF>%HWVER:<hardversion><CR><LF><CR><L
F>OK<CR><LF>
3.15.2 Description
The EXECUTION command returns the hardware version number of ME.
3.15.3 Defined Value
<hardversion>: Hardware version number. It is a string composed of 31 characters
at most.
3.16 Unsolicited report control command %CURC
3.16.1 Command Syntax
Command Possible response(s)
%CURC=<mode> <CR><LF>OK<CR><LF>
%CURC?
<CR><LF>%CURC:<mode><CR><LF><CR><LF>OK<CR
><LF>
%CURC=?
<CR><LF>%CURC: (list of supported
<mode>s)<CR><LF>
<CR><LF>OK<CR><LF>
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg19.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 25, Total 96
3.16.2 Interface Description
The SET command is used to set mode value to open or close unsolicited reports. The
unsolicited reports it can control are listed below: %DSFLOWRPT, %RSSI, %MODE,
%SIMST, %SRVST, %MODE, %EARST, %SMMEMFULL. The unsolicited reports are
closed if the mode value is set to 0 and the unsolicited reports are open if the mode
value is set to 1. The default value of mode is set to 0. So, “%CURC=1” should be
executed if all the unsolicited reports need to be open.
The READ command returns the current mode value.
The TEST command returns the value range it supports.
Unsolicited report is disabled after reset.
3.16.3 Defined Values
<mode>:
0 the unsolicited reports closed (default value)
1 the unsolicited reports open
3.17 Product model ID command +CGMM/+GMM
3.17.1 Command Syntax
Command
Possible
response(s)
+CGMM <model>
+GMM <model>
3.17.2 Interface Description
This command is used to get product model ID, the function of +CGMM and +GMM
are identical. But the command +CGMM can be used when module have not
SIM/USIM card . Product mode ID is composed of character string, the max length can
not beyond 2048 byte , including the end character ‘\0’ .
3.17.3 Defined Value
At present , the value of model id including :
EM700, EM770W.
EM700 HUAWEI 3G M2M MODULE-WCDMA/EDGE/GPRS/GSM
EM770W HUAWEI 3G M2M MODULE-HSPA/WCDMA/EDGE/GPRS/GSM
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg1a.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 26, Total 96
3.18 Network information query %NWINFO
3.18.1 Command Syntax
Command Possible response(s)
%NWINFO
<CR><LF>%NWINFO: <srv_band>,<
srv_nodeB_PLMN >, < srv_nodeB_BS
>,<srv_cell_stat
>,<srv_psc>,<neighbor_cell_num>,<neig_psc1>,<ne
ig_psc2>,<neig_psc3>,<neig_psc4>,<neig_psc5>,<n
eig_psc6> <CR><LF><CR><LF>OK<CR><LF>
3.18.2 Interface Description
This command is used to query the registered network information of the wireless
module in the normal state, includes serving cell information, neighbour cells
information of the active set, base station ID, frequency and so on.
3.18.3 Defined Values
< srv_band >: Information of frequency the wireless module registered.
43(SYS_BAND_GSM_850) GSM 850
44(SYS_BAND_GSM_EGSM_900) Extended GSM 900
45(SYS_BAND_GSM_PGSM_900) Primary GSM 900
47 (SYS_BAND_GSM_DCS_1800) GSM DCS systems
48(SYS_BAND_GSM_PCS_1900) GSM PCS
80(SYS_BAND_WCDMA_I_IMT_2000) WCDMA IMT 2000
87 (SYS_BAND_WCDMA_VIII_900) WCDMA PCS 900
< srv_nodeB_PLMN > and < srv_nodeB_BS >: Information of base station the
wireless module maintained.
0~255: Base station ID.
Note: It only supports to query base station information at GSM mode now, and returns
0,0 at WCDMA mode.
<srv_cell_stat >: Serving cell state.
0: Indicates not register on serving cell currently.
1: Indicates register on serving cell currently.
<srv_psc>: Serving cell primary scrambling code.
0~65535: Serving cell primary scrambling code.
Note: It returns primary scrambling code at WCDMA mode but cell id at GSM mode.
<neighbor_cell_num>: Number of neighbour cells.
0~6: It supports to maintain six neighbour cells at most.
<neig_psc1>...<neig_psc6>: Primary scrambling code of neighbour cells.
0~65535: Primary scrambling code of neighbour cells.
Note: It returns primary scrambling code at WCDMA mode but cell id at GSM mode.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg1b.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 27, Total 96
3.19 Temperature of PA and source voltage query
%CONINFO
3.19.1 Command Syntax
Command Possible response(s)
%CONINFO
<CR><LF>%CONINFO:<PA_temp>,<source_voltag
e><CR><LF><CR><LF>OK<CR><LF>
3.19.2 Interface Description
This command is used to query PA temperature of the module high frequency and
external source voltage. To acquire module state by user for convenience, and help to
consider if it has to be protected for safety.
3.19.3 Defined Values
<PA_temp>: PA temperature of high frequency.
-30~75: Range of PA temperature.
<source_voltage>: Source voltage.
3200~4300: Range of effective source voltage supported by module, indicates in mV.
3.20 Voltage warning %WARNVOLT
3.20.1 Command Syntax
Command Possible response(s)
<CR><LF>%WARNVOLT:<source_voltage>
<CR><LF>
3.20.2 Interface Description
This command is used to report current source voltage value to user automatically
when external source input is out of range 3.6V to 4.2V. To acquire module state by
user for convenience, and help to consider if it has to be protected for safety. If the
voltage is lower than 3.3V or higher than 4.5V, module will be shut down.
3.20.3 Defined Values
<source_voltage>: Source voltage.
3200~4300: Voltage warning value, indicates in mV.
Note: The %CURC command has no bearing upon automatic report of the voltage
warning.
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg1c.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 28, Total 96
3.21 Module delay resetting %RESET
3.21.1 Command Syntax
Command Possible response(s)
%RESET=<delay_time> <CR><LF>OK<CR><LF>
%RESET?
<CR><LF>%RESET:<delay_time><CR><LF><CR>
<LF>OK<CR><LF>
%RESET=?
<CR><LF>%RESET:(range of supported
<delay_time>)<CR><LF><CR><LF>OK<CR><LF>
3.21.2 Interface Description
This command is used to delay to reset module by user.
3.21.3 Defined Values
<delay_time>: Delay time.
0: Disable the function of this command.
1~65535: Delay time, indicates in second.
Note: We can’t use this command to reset module at FTM mode, it’s need to switch
module to ONLINE mode to use the command again.
3.22 Clock +CCLK
3.22.1 Command Syntax
Command Possible response(s)
+CCLK=<time> <CR><LF>OK<CR><LF>
In case of MS-related error:
<CR><LF>+CME ERROR: <err><CR><LF>
+CCLK? +CCLK: <time>
+CCLK=? <CR><LF>OK<CR><LF>
3.22.2 Interface Description
Set command sets the real-time clock of the MT. If setting fails in an MT error, +CME
ERROR: <err> is returned.
Read command returns the current setting of the clock.
3.22.3 Defined Values
<time>: string type value; format is "yy/MM/dd,hh:mm:ss±zz", where characters
indicate year (two last digits), month, day, hour, minutes, seconds and time zone
(indicates the difference, expressed in quarters of an hour, between the local time and
GMT; range -47...+48). E.g. 6th of May 1994, 22:10:00 GMT+2 hours equals to
"94/05/06,22:10:00+08"
![](/html/3e/3e14/3e1481c3721e2732b96eeb3c8fd4b1e71e822ef54150958c4239d964239a2246/bg1d.png)
HUAWEI UMTS M2M Module AT Command Interface Specification Confidential
All rights reserved Page 29, Total 96
NOTE: If MT does not support time zone information then the three last characters
of <time> are not returned by +CCLK?.
4 SMS Interface Description
4.1 Select the SMS type +CSMS
4.1.1 Command Syntax
Command Possible response(s)
+CSMS=<service>
<CR><LF>+CSMS:
<mt>,<mo>,<bm><CR><LF><CR><LF>OK<CR><LF
>
+CSMS?
<CR><LF>+CSMS:
<service>,<mt>,<mo>,<bm><CR><LF><CR><LF>O
K<CR><LF>
+CSMS=?
<CR><LF>+CSMS: (list of supported
<service>s)<CR><LF><CR><LF>OK<CR><LF>
4.1.2 Description
The SET command is used to set the message service type. The returned <mt>, <mo>
and <bm> mean whether this service type is supported for the messages received by
the terminal, messages sent by the terminal, and the broadcast messages.
4.1.3 Defined Values
<service>: Message service type.
0 3G TS 23.040, 3G TS 23.041 (the syntax of SMS AT commands is
compatible with GSM 07.05 Phase 2 version 4.7.0)
1 3G TS 23.040, 3G TS 23.041 (the syntax of SMS AT commands is
compatible with GSM 07.05 Phase 2+ version; note: command AT+CNMA requires
<service> setting 1.)
<mt>, <mo>, <bm>:
0 Not supported.
1 Supported.
4.2 Set message format +CMGF
4.2.1 Command Syntax
Command Possible response(s)
