Huawei EchoLife HG520 User Manual
EchoLife HG520 Home Gateway
User Manual
HUAWEI
EchoLife HG520 Home Gateway
User Manual
V100R001
Huawei Technologies Proprietary
EchoLife HG520 Home Gateway
User Manual
Manual Version
Product Version
T2-20050627-V1.10
V100R001
Huawei Technologies Co., Ltd. provides customers with
comprehensive technical support and service. Please feel free to
contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Addres s : Administration Building, Huawei Technologies Co., Ltd.,
Bantian, Longgang District, Shenzhen, P. R. China
Postal Code: 518129
Website:
Email: support@huawei.com
http://www.huawei.com
Huawei Technologies Proprietary
Copyright © 2005 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
Trademarks
, HUAWEI are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this manual are
the property of their respective holders.
Notice
The information in this manual is subject to change without notice.
Every effort has been made in the preparation of this manual to ensure
accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute the warranty of any
kind, express or implied.
Huawei Technologies Proprietary
About This Manual
Release Notes
This manual applies to HG520 V100R001.
Related Manuals
The related manuals are listed in the following table.
Manual Content
EchoLife HG520 Home
Gateway User Manual
EchoLife HG520 Home
Gateway Quick Quide
It is used for assisting you in data
configurations and typical applications.
It will guide you to install HG520
quickly.
Organization
The manual introduces the system structure, hardware description,
configuration guide of the HG510.
There are four chapters in the manual.
Chapter 1 System Overview profiles the system characteristics,
main functions, system structure, external interfaces and networking
applications of the HG520.
Huawei Technologies Proprietary
Chapter 2 Hardware Description focuses on the hardware modules
of the HG520. It discusses in detail the structure and configuration of
the hardware system of the equipment. This chapter covers the front
panel, real panel and the HG520 connection.
Chapter 3 Preparing Configuration
Chapter 4 Quick Setup presents the quick setup configuration of the
HG520 step by step.
Chapter 5 Advanced Setup presents the advanced setup
configuration of the HG520 step by step.
Chapter 6 Wireless Setup presents the wireless setup configuration
of the HG520 step by step.
Chapter 7 Diagnostics presents the diagnostics service of the
HG520 .
Chapter 8 Management presents the management service of the
HG520 .
Chapter 9 Device Info presents the device info of the HG520 .
Chapter 10 Technical Specifications presents the technical
specification of the HG520.
Chapter 11 Appendix includes the abbreviations and acronyms
used in this manual.
Intended Audience
The manual is intended for the following readers:
Huawei Technologies Proprietary
z Technical marketing specialists
Installation engineers and technicians
z
Operation and maintenance personnel
z
Conventions
The manual uses the following conventions:
I. General conventions
Convention Description
Arial Normal paragraphs are in Arial.
Boldface
Headings are in Boldface.
II. GUI conventions
Convention Description
< >
Button names are inside angle brackets. For
example, click the <OK> button.
Window names, menu items, data table and
[ ]
field names are inside square brackets. For
example, pop up the [New User] window.
/
Multi-level menus are separated by forward
slashes. For example, [File/Create/Folder].
Huawei Technologies Proprietary
III. Symbols
Eye-catching symbols are also used in this manual to highlight the
points worthy of special attention during the operation. They are
defined as follows:
Caution, Warning, Danger: Means reader be extremely careful
during the operation.
Note, Comment, Tip, Knowhow, Thought: Means a
complementary description.
IV. Environmental Protection
This product has been designed to comply with the requirements on
environmental protection. For the proper storage, use and disposal of
this product, national laws and regulations must be observed.
Huawei Technologies Proprietary
User Manual
EchoLife HG520 Home Gateway
Table of Contents
Table of Contents
Chapter 1 System Overview ............................................................ 1
1.1 System Features................................................................... 1
1.2 System Requirements........................................................... 2
Chapter 2 Hardware Description..................................................... 3
2.1 Front Panel............................................................................ 3
2.2 Rear Panel ............................................................................ 4
2.3 Connecting the Hardware ..................................................... 5
Chapter 3 Preparing Configuration................................................. 8
3.1 Setup..................................................................................... 8
3.2 Establishing the Connection .................................................8
Chapter 4 Quick Setup ................................................................... 11
4.1 Configuring PPPoE ............................................................ 11
4.2 Configuring IPoA................................................................. 19
4.3 Configuring Bridge ..............................................................25
4.4 Configuring MER................................................................. 32
4.5 Configuring PPPoA ............................................................. 32
Chapter 5 Advanced Setup............................................................ 34
5.1 Configuring WAN ................................................................35
5.2 Configuring LAN.................................................................. 35
5.3 Configuring NAT.................................................................. 36
5.3.1 Virtual Servers Configuration ...................................36
5.3.2 Port Triggering Configuration ................................... 38
Huawei Technologies Proprietary
i
User Manual
EchoLife HG520 Home Gateway
5.3.3 DMZ Host Configuration........................................... 39
5.4 Configuring Security............................................................ 40
5.4.1 Outgoing IP Filtering Configuration .......................... 40
5.4.2 Incoming IP Filtering Configuration .......................... 42
5.4.3 Parental Control Configuration ................................. 44
5.5 Configuring Quality of Service ............................................46
5.6 Configuring Routing ............................................................48
5.6.1 Default Gateway Configuration ................................49
5.6.2 Static Route Configuration .......................................50
5.6.3 RIP Configuration ..................................................... 51
5.7 Configuring DNS ................................................................. 53
5.7.1 DNS Server Configuration........................................ 53
5.7.2 Dynamic DNS Configuration ....................................54
5.8 Configuring DSL.................................................................. 56
5.9 Configuring Port Mapping ................................................... 57
Table of Contents
Chapter 6 Wireless Setup .............................................................. 60
6.1 Configuring Basic Features................................................. 60
6.2 Configuring Security............................................................ 61

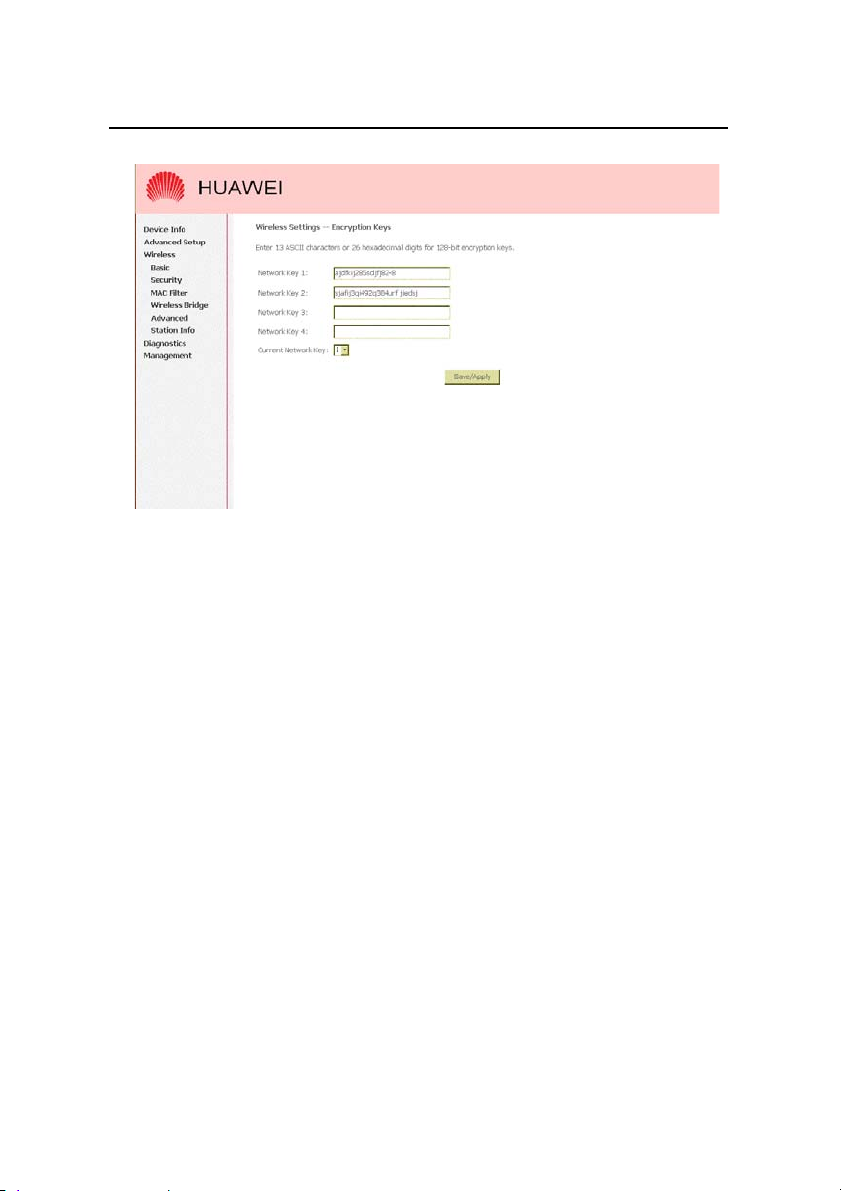

6.2.1 WEP Configuration................................................... 61
6.2.2 802.1X Configuration................................................ 63
6.2.3 WPA/WPA2 Configuration........................................ 64
6.2.4 WPA/WPA2-PSK Configuration ............................... 65
6.3 Configuring MAC Filter........................................................ 66
6.4 Configuring Wireless Bridge ...............................................68

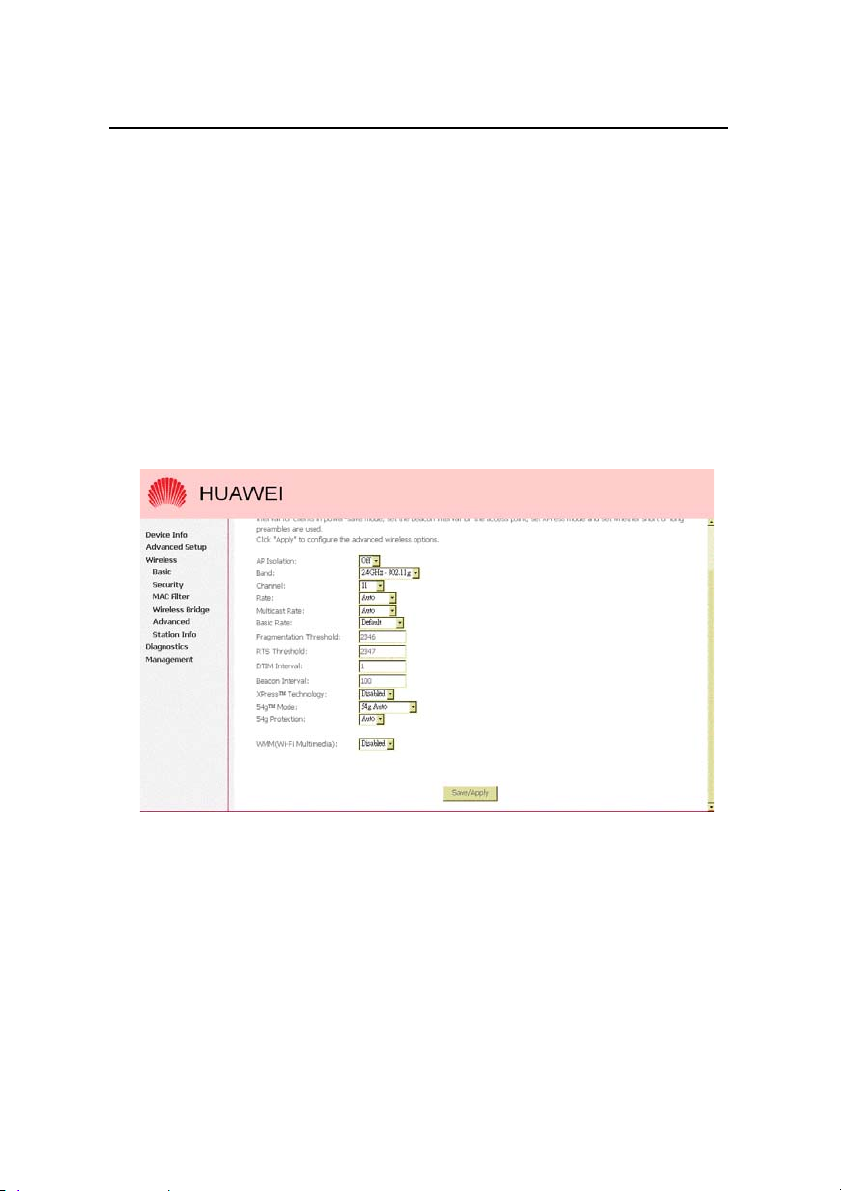

6.5 Configuring Advanced Setting ............................................69
6.6 Viewing Station Info ............................................................71
Huawei Technologies Proprietary
ii
User Manual
EchoLife HG520 Home Gateway
Chapter 7 Diagnostics.................................................................... 73
Table of Contents
Chapter 8 Management .................................................................. 74
8.1 Settings ............................................................................... 74
8.2 Viewing System Log ...........................................................78
8.3 Configuring SNMP Agent.................................................... 81
8.4 Configuring Internet Time ...................................................81
8.5 Configuring Access Control ...............................................82
8.6 Updating Software...............................................................85
8.7 Auto Update ........................................................................ 86
8.8 Save/Reboot .......................................................................88
Chapter 9 Device Info..................................................................... 89
9.1 Summary............................................................................. 89
9.2 WAN.................................................................................... 89
9.3 Statistics.............................................................................. 90
9.3.1 LAN/WAN ................................................................. 90
9.3.2 ATM .......................................................................... 91
9.3.3 ADSL ........................................................................ 92
9.4 Route................................................................................... 94
9.5 ARP..................................................................................... 94
Chapter 10 Technical Specifications ............................................ 96
Chapter 11 Abbreviations .............................................................. 99
Huawei Technologies Proprietary
iii
User Manual
EchoLife HG520 Home Gateway
Chapter 1 System Overview
Chapter 1 System Overview
Welcome to purchase the EchoLife HG520 ADSL AP router. With
the HG520, you can access the Internet.
This User Manual will show you how to install and set up the
HG520.
1.1 System Features
Built-in ADSL modem for high speed Internet access
z
Network Address Translation (NAT) and IP filtering functions
z
to provide network sharing and firewall protection for your
computers
4-port switch to build your own local network
z
Easy configuration through a web browser
z
IEEE 802.11g 54Mbit/s Access Point
z
Huawei Technologies Proprietary
1
User Manual
EchoLife HG520 Home Gateway
Chapter 1 System Overview
1.2 System Requirements
In order to use the HG520 ADSL AP router, you need to have the
following:
ADSL service up and running on your telephone line, with at
z
least one public Internet address for your LAN.
One or more computers each containing an Ethernet
z
10Base-T/100Base-T network interface card (NIC) or
wireless network adapter.
For system configuration, use the supplied web-based
z
program: a web browser such as Internet Explorer V5.0 or
later, or Netscape V4.7 or later .
Huawei Technologies Proprietary
2
User Manual
EchoLife HG520 Home Gateway
Chapter 2 Hardware Description
Chapter 2 Hardware Description
In addition to this manual, the HG510 shall arrive with the
following:
Item Quantity
HG520 ADSL AP router 1
Power adapter 1
Ethernet cable 1
Phone cable 1
Splitter 1
Product certificate, Qualitication Card 1
HUAWEI EchoLife HG520 Quick Start
CD 1
1
2.1 Front Panel
The front panel provides LEDs that indicate the status of the
HG520.
Huawei Technologies Proprietary
3
User Manual
EchoLife HG520 Home Gateway
Chapter 2 Hardware Description
Table 2-1 lists the LED indicators
Label Color Function
PWR Green
On: The device is powered on
Off: The device is powered off
On: The LAN link established and active
LAN1-4 Green
Off: No LAN link
Flashes during data transfer
Flashes during the ADSL training mode
DSL Green
On: ADSL link established and active
On: The device is active
Tx/Rx Green
Flashes during data transfer through ADSL
line
On: The WLAN enabled
WLAN Green
Off: The WLAN disabled
Flashes during data transfer
2.2 Rear Panel
The rear panel provides ports for the HG520 to receive/send data
and get power supply.
Figure 2-1 Rear Panel of HG520
Huawei Technologies Proprietary
4
User Manual
EchoLife HG520 Home Gateway
Chapter 2 Hardware Description
Table 2-2 lists ports function
Interface Function
Power Button Switches the device on and off
Power Jack Connects to the power adapter cable
Press the reset button for 2 seconds and the
HG520 will be restarted (rebooted).
Reset
To reset to default settings, turn off the
device first. Hold the Reset button and then
turn on the device; wait for 5-8 seconds and
then release the button. Reset device’s
configuration to factory default.
RJ-45 connector: connects the device to
LAN1-4
your computer's Ethernet port, or to the
uplink port on your LAN's hub, using the
cable provided.
ADSL
RJ-11 connector: connects the device to a
telephone jack using the supplied cable
2.3 Connecting the Hardware
You need to connect the HG520 to the phone jack, the power
outlet, and your computer or network devices.
Huawei Technologies Proprietary
5
User Manual
EchoLife HG520 Home Gateway
Chapter 2 Hardware Description
Caution:
Before cable connection, turn off your computer(s), LAN hub/switch (if
applicable), and the HG520.
Connect the ADSL cable
I.
Connect one end of the phone cable to the RJ-11 connector on
the rear panel of HG520. Connect the other end to the ADSL outlet
provided by your service provider (normally MODEM port of the
attached splitter).
Connect the Ethernet cable
II.
Connect one end of the Ethernet cable to the one of the four
RJ-45 connectors on the rear panel of HG520 , connect the other end
to your computer’s network adaptor (NIC). If you are connecting a
LAN to HG520, attach one end of the Ethernet cable to a regular hub
port and the other end to the LAN port on HG520.
Attach the power connector
III.
Connect the AC power adapter to the power connector on HG520
and plug in the adapter to a wall outlet or power extension.
Huawei Technologies Proprietary
6
User Manual
EchoLife HG520 Home Gateway
Turn on the HG520 and power up computers and LAN
IV.
Chapter 2 Hardware Description
devices
Press the Power switch on the rear panel of the device .
Turn on and boot your computer(s) and any LAN devices such as
hubs or switches.
Configure HG520 through the WEB interface
V.
The detailed steps are described in Chapter 4 Quick Setup. It will
help you configure the HG520 .Quick Setup
Save the configurations and Reboot
VI.
To make the settings you made on the HG520 take effect, save
the configurations and reboot.
Huawei Technologies Proprietary
7
User Manual
EchoLife HG520 Home Gateway
Chapter 3 Preparing Configuration
Chapter 3 Preparing Configuration
3.1 Setup
Connect HG520 and computer with cross-over/
z
straight-through Ethernet cable.
Power on HG520.
z
The default IP address of HG520 is 192.168.1.1.
z
3.2 Establishing the Connection
Enter the IP address (default: 192.168.1.1) of HG520 in the
address line of Web Browser
1) The dialog box displayed, as shown in “Figure 3-1”.
Huawei Technologies Proprietary
8
User Manual
EchoLife HG520 Home Gateway
Chapter 3 Preparing Configuration
Figure 3-1 Authentication
1) Please enter the management username/password into the
fields (the default username/password is admin/admin).
2) Click on the <OK> button.
3) If the authentication is valid, the home page “Device Info -
Summary” will be displayed on the screen. Refer to
“Figure 3-2”.
Huawei Technologies Proprietary
9
User Manual
EchoLife HG520 Home Gateway
Figure 3-2 HG520 Home Page
Chapter 3 Preparing Configuration
Huawei Technologies Proprietary
10
User Manual
EchoLife HG520 Home Gateway
Chapter 4 Quick Setup
Chapter 4 Quick Setup
The system administrator can configure HG520 remotely or
locally through a Web Browser. Network configuration needs to be
planned and decided before the configuration procedure is started.
Quick Setup allows system administrator to select the
appropriate operation mode and configure the corresponding settings
step by step to create a connection. The following five operation
modes are supported:
PPP over Ethernet (PPPoE)
z
IP over ATM (IPoA)
z
Bridging
z
MAC Encapsulation Routing (MER)
z
PPP over ATM (PPPoA)
z
4.1 Configuring PPPoE
Click on <Quick Setup> in the left frame, and follow the steps
below to create a PPPoE connection.
Huawei Technologies Proprietary
11
User Manual
EchoLife HG520 Home Gateway
ATM PVC Configuration
I.
Chapter 4 Quick Setup
Figure 4-1 Quick Setup – ATM PVC Configuration
1) Enter the VPI/VCI values. The actual parameter is provided
by your ISPs, and you can contact them to get the detailed
information.
2) Disable “DSL Auto-connect” .
3) Check to enable QoS.
4) Click on <Next> to go to next step.
Huawei Technologies Proprietary
12
User Manual
EchoLife HG520 Home Gateway
Connection Type and Encapsulation Mode Configuration
II.
Chapter 4 Quick Setup
Figure 4-2 Quick Setup – Connection Type and Encapsulation
Mode
1) Select “PPP over Ethernet (PPPoE)”, and the
“Encapsulation Mode”. The actual parameter is provided by
your ISPs, and you can contact them to get the detailed
information.
2) Click on <Next> to go to next step.
Huawei Technologies Proprietary
13
User Manual
EchoLife HG520 Home Gateway
PPP Username and Password Configuration
III.
Chapter 4 Quick Setup
Figure 4-3 Quick Setup – PPP Username and Password
1) Enter “PPP Username”, “PPP Password”, and select
“Authentication Method” (AUTO/PAP/CHAP). The actual
parameter is provided by your ISPs, and you can contact
them to get the detailed information.
2) The “Dial on demand” function, if checked, will tear down the
PPP link automatically when there is no outgoing packet for
the programmed period of time that is set below.
3) The “PPP IP extension” is a special feature provided by
some ISPs. Unless your service provider specifically
requires this setup, do not select it.
4) Click on <Next> to go to next step.
Huawei Technologies Proprietary
14
User Manual
EchoLife HG520 Home Gateway
Chapter 4 Quick Setup
Note:
HG520 activates PPPoE connection automatically when user
z
wants to access Internet and there is no active PPPoE connection.
The users are able to assign some specific ATM PVC(s) to run
z
PPPoE, if HG520 has multiple ATM PVC connections.
IGMP Multicast, WAN service configuration
IV.
Figure 4-4 Quick Setup – IGMP Multicast, WAN service
1) Check to Disable/Enable IGMP Multicast, and WAN Service.
2) Click on <Next> to go to next step.
Huawei Technologies Proprietary
15
User Manual
EchoLife HG520 Home Gateway
Device Setup Configuration
V.
Chapter 4 Quick Setup
Figure 4-5 Quick Setup – Device Setup
1) Enter IP (LAN IP) and Subnet Mask.
2) Select to Disable/Enable DHCP Server, use DHCP Server
Relay, and configure related settings for that mode.
3) HG520 will assign IP address, subnet mask, Default
gateway IP address and DNS server IP address to host
computers which connect to its LAN.
4) Select “Configure the second IP Address and Subnet Mask
for LAN interface” and configure if the second IP Address is
used.
Huawei Technologies Proprietary
16
User Manual
EchoLife HG520 Home Gateway
Chapter 4 Quick Setup
Note:
Network Address Translation (NAT) function is default enabled and is
not showing on the page to prevent it from being disabled.
5) Click on <Next> to go to next step.
Wireless Configuration
VI.
Figure 4-6 Quick Setup - Wireless Setup
1) Check “Enable Wireless” to enable wireless radio or
uncheck to disable.
Huawei Technologies Proprietary
17
User Manual
EchoLife HG520 Home Gateway
Chapter 4 Quick Setup
2) Configure SSID,“SSID” is the network name shared among
all devices in a wireless network. It is case-sensitive and
must not exceed 32 alphanumeric characters.
3) Click on <Next> to go to next step.
WAN Setup – Summary
VII.
Figure 4-7 Quick Setup – WAN Setup – Summary
The last page displays a summary of previous settings. Make
sure that the configurations match the settings provided by ISP, and
then click on <Save/Reboot> button to complete the configuration
procedure.
Huawei Technologies Proprietary
18
User Manual
EchoLife HG520 Home Gateway
Chapter 4 Quick Setup
4.2 Configuring IPoA
Click on <Quick Setup> in the left frame, and follow the steps
below to create an IPoA (Routed) connection.
ATM PVC Configuration
I.
Figure 4-8 Quick Setup – ATM PVC Configuration
1) Enter the VPI/VCI values. The actual parameter is provided
by your ISPs, and you can contact them to get the detailed
information.
2) Click on <Next> to go to next step.
Huawei Technologies Proprietary
19
Loading...
