Huawei eA660 Product Description

eWBB2.1 CPE eA660 Series

Product Description

Issue

01

Date

2012-9-30

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 2 of 19

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 3 of 19

Contents

About This Document ..................................................................................................................... 4

1 Product Overview ......................................................................................................................... 5

2 Application Scenarios .................................................................................................................. 7

3 Technical Specifications ............................................................................................................ 10

3.1 Hardware ........................................................................................................................................................ 10

3.2 Antenna .......................................................................................................................................................... 11

3.3 Software ......................................................................................................................................................... 11

3.4 User Interfaces ............................................................................................................................................... 13

4 Services and Applications ......................................................................................................... 15

5 Adopted Standards ..................................................................................................................... 16

6 Packing List .................................................................................................................................. 17

7 Acronyms and Abbreviations ................................................................................................... 18

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 4 of 19

About This Document

Overview

This document describes the network position, product architecture and characteristics, and related technical specifications of the eA660.

Intended Audience

This document is intended for:



Huawei technical support



System engineers



Network planning engineers

Change History

Updates between document issues are cumulative. Therefore, the latest document issue contains all updates made in previous issues.

Issue 01 (2012-09-30)

This is the first commercial release.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 5 of 19

1 Product Overview

Introduction

The Huawei eA660 is a Long Term Evolution (LTE) customer premises equipment (CPE). As a wireless gateway, the eA660 can be deployed outdoors to provide services such as data collection and video surveillance.

The eA660 Series CPE (eA660 for short) supports LTE Release 8. The eA660 provides the following functions:



Data services



Security services



Local maintenance and management



Data routing

Product Features

The eA660 is developed based on the Software Development Platform (SDP). It supports LTE and quick customization. The eA660's main features are as follows:



Compatible with 1.8 GHz, 2.3 GHz and 5.8 GHz LTE Time-Division Duplex (TDD) networks; supports customization of different frequency bands



High-speed data services



Dynamic Host Configuration Protocol (DHCP) and Network Address Translation (NAT) that provide high-speed routing service



Firewall functions



Web-based configuration utility that has an intuitive user interface



Device management that supports TR-069



Intuitive LED indicators, for easy identification of the device status



Built-in high-gain antennas that improve product performance and make the device easy to carry; also compatible with external antennas



Surge protection in outdoor environments



Anti-shock capabilities that meet the IEC61373 (railway) and MIL-STD-810F (USA military) standards



Shell protection that meets the IP67 standard

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 6 of 19

Appearance

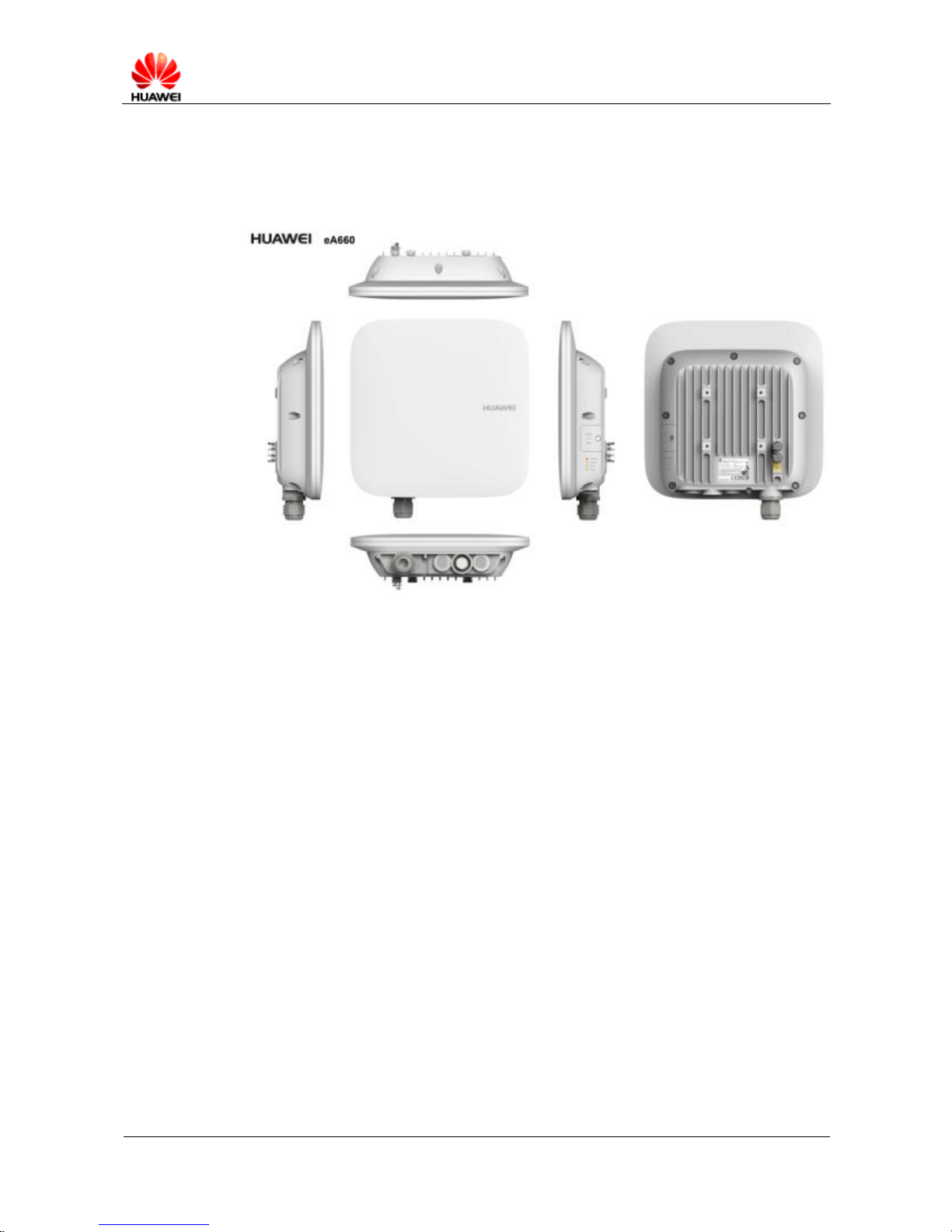

Figure 1-1 illustrates the eA660's appearance.

Figure 1-1 Appearance of eA660

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 7 of 19

2 Application Scenarios

The eA660 provides wireless broadband and wired Ethernet data services. The eA660 is deployed outdoors and provides wireless gateway services. The eA660 can be

deployed independently or used in conjunction with the eA100, which is deployed indoors and connected to eA660 using a network cable, providing Wi-Fi and other Internet services.

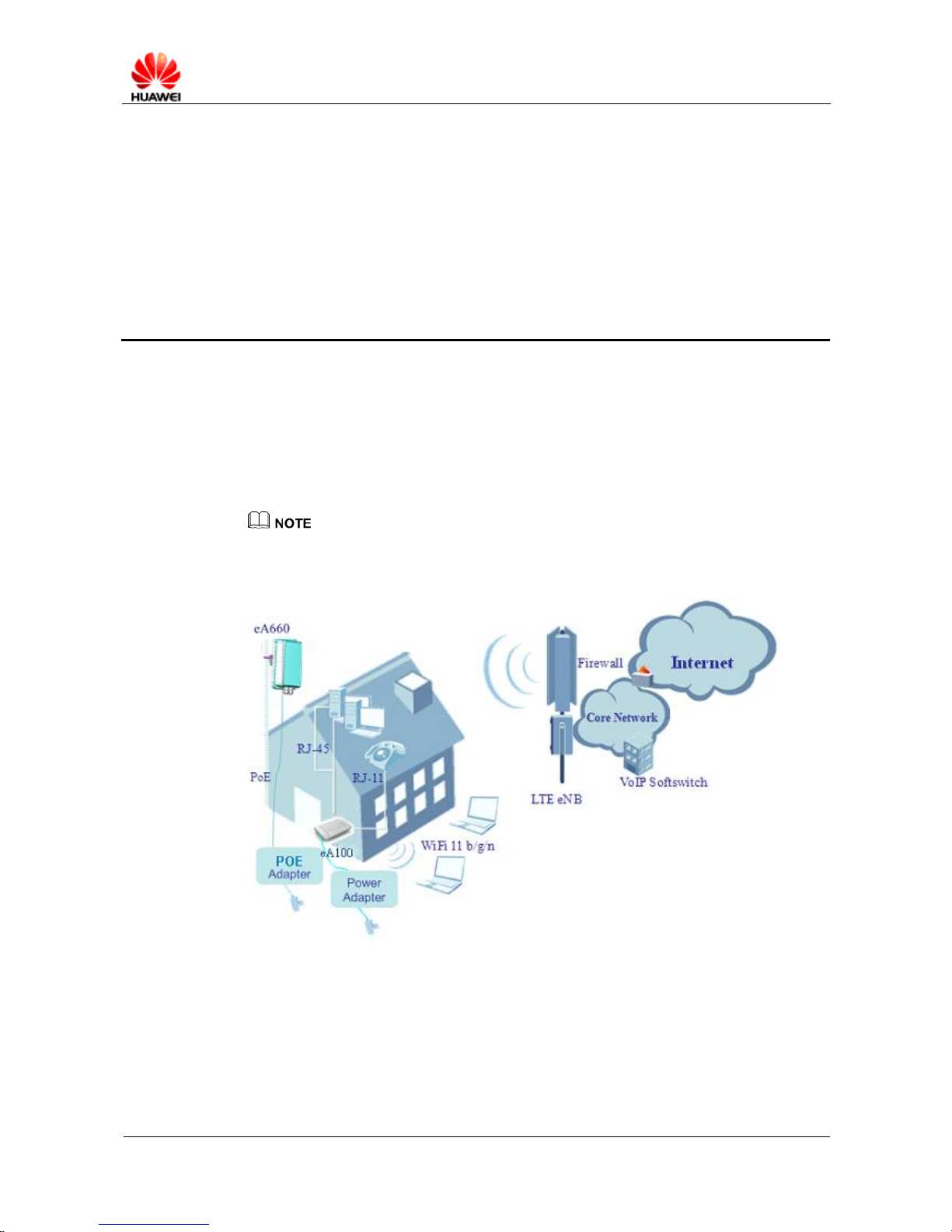

Figure 2-1 shows an application scenario where eA660 is used with the eA100.

For details about the eA100, see eWBB2.1 CPE eA100 Series Product Description.

Figure 2-1 The eA660 deployed with the eA100

Figure 2-2 shows an application scenario where eA660 is used in industrial private networks.

The eA660 provides a variety of data services, such as LTE-TDD wireless routing and converting LTE wireless data into wired Ethernet data, and vice versa.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 8 of 19

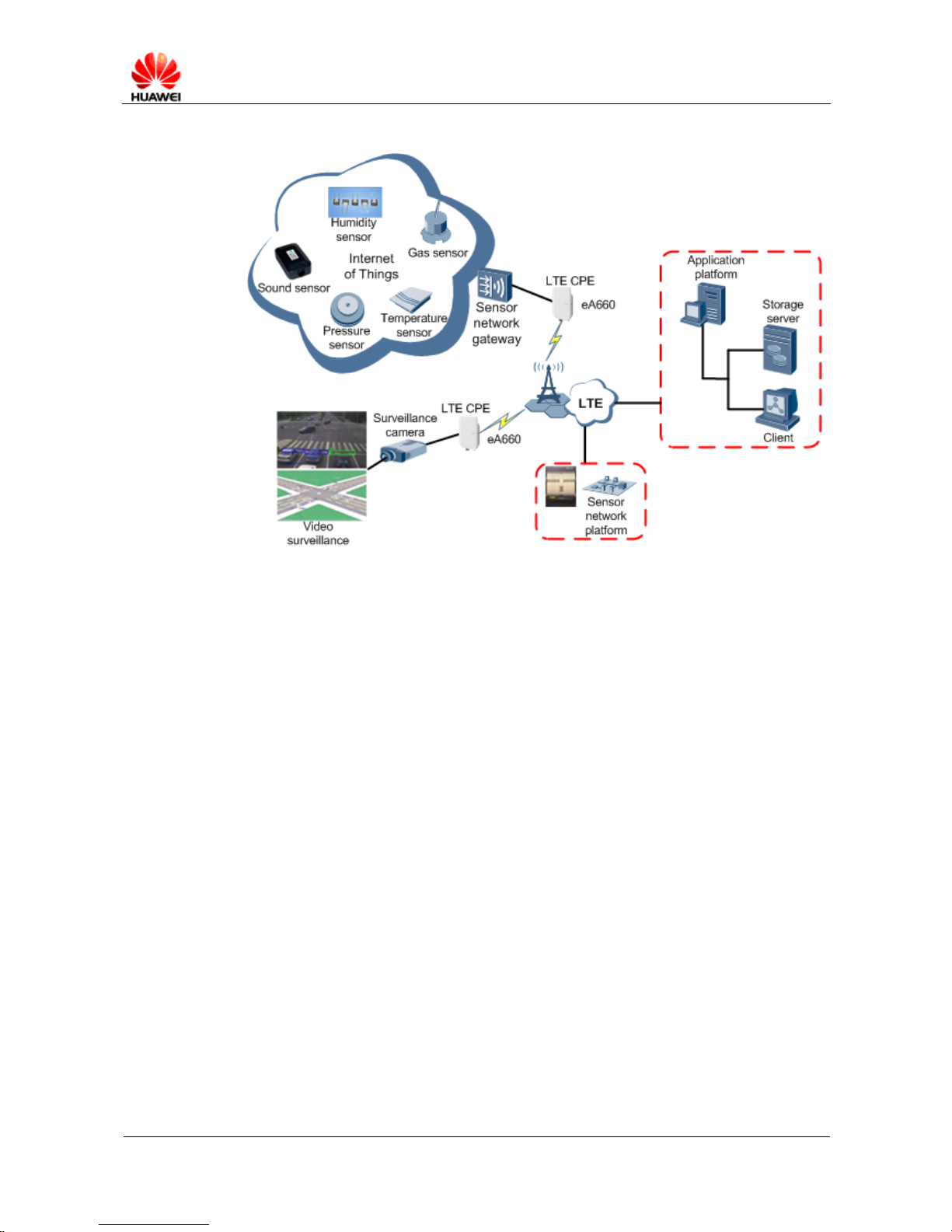

Figure 2-2 The eA660 deployed in industrial private networks

1. The power adapter is provided to supply power to the eA660 or devices such as a video

camera.

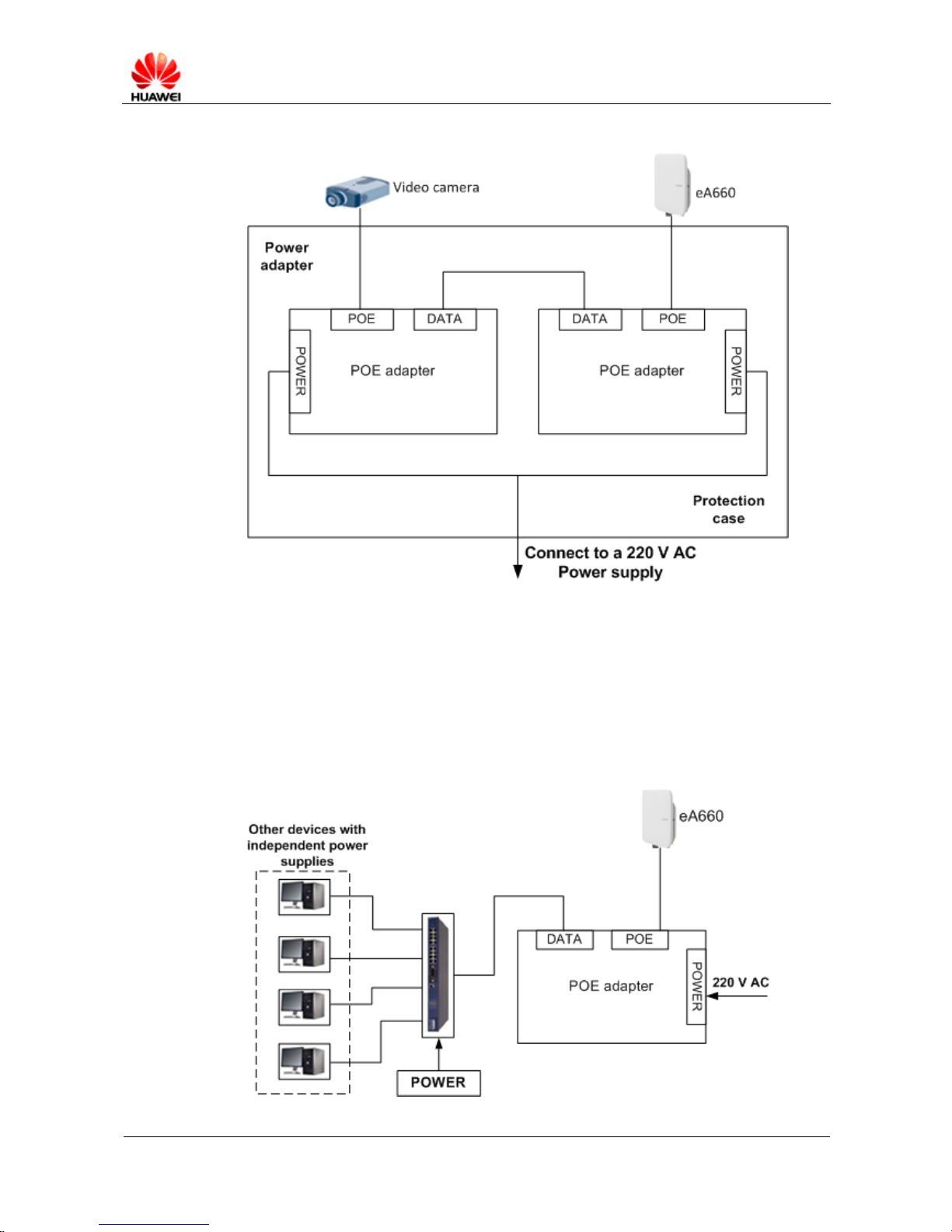

Figure 2-3 shows an application scenario where eA660 being connected to a video

camera.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 9 of 19

Figure 2-3 The eA660 connected to a video camera.

2. The eA660 is connected to other devices using the network cable. A single device, such

as a camera or a Remote Terminal Unit (RTU), can connect to the eA660 using the power adapter. Multiple devices can connect to the eA660 simultaneously using a hub or switch.

Figure 2-4 shows an application scenario where eA660 being connected to multiple

devices.

Figure 2-4 The eA660 connected to multiple devices

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 10 of 19

3 Technical Specifications

3.1 Hardware

Table 3-1 describes the technical specifications of eA660.

Table 3-1 Technical specifications of eA660

Category

Description

grade

Weight

≤ 2000 g (without power adapter)

Working temperature

-40°C to 65°C

Storage temperature

-40°C to 70°C

Relative humidity

5% RH to 95% RH

Installation method

Mounted on utility poles or walls

3.2 Antenna

The eA660 incorporates built-in antennas.

Table 3-2 lists the eA660 LTE antenna's specifications.

Table 3-2 eA660 LTE antenna specifications

Item

eA660-118

eA660-123

eA660–137

eA660–150

Band

1785 MHz to 1805 MHz

2300 MHz to 2400 MHz

LTE Band 40

3600 MHz to 3800 MHz

LTE Band 43

4900 MHz to 5900 MHz

Input impedan ce

50 ohm

SWR

< 2

Gain

11 dBi

13 dBi

16 dBi

17 (±1) dBi

Polarizat ion

Dual polarization

Radiatio n pattern

Directional antenna

3.3 Software

Table 3-3 Software specifications

Item

Description

Gateway

Router: The default routing address is 0.0.0.0. The default routing table items can be generated

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 12 of 19

Item

Description

accordingly.

Supports Address Resolution Protocol (ARP)

Supports domain name service (DNS)

Supports Internet Control Message Protocol (ICMP)

NAT



Supports Network Address Translation (NAT) and Network Address Port Translation (NAPT). (Compatible with RFC2663/RFC3022/RFC3027)



Supports fragment message identification for normal NAT



Supports NAT traverse of File Transfer Protocol (FTP), Windows Messenger (MSN), and NetMeeting

DHCP server



The default DHCP server address ranges from

192.168.1.2 to 192.168.1.254. The default gateway address is 192.168.1.1.



The default DHCP lease is 24 hours.



The DHCP server can be enabled or disabled.



The DHCP server's address pool can be configured.



The DHCP lease can be configured.



IP address status such as the hostname, Media Access Control (MAC) address, IP address, and remaining DHCP lease can be displayed.



Supports static IP address reservation

Firewall



Firewall switch



LAN MAC address filtering



IP address filtering



URL filtering



Security Parameter Index (SPI) filtering



Demilitarized Zone (DMZ)



Port forwarding



Service access control

LAN



Auto-negotiation between 10 Mbit/s and 100 Mbit/s



MDI/MDIX auto-sensing



Compatible with IEEE 802.3/802.3u

Upgrade

Supports HTTP automatic upgrade, TR-069 upgrade, and local upgrade.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 13 of 19

Item

Description

SIM

Supports PIN management and SIM card authentication

Dial-up connection

Supports automatic and manual connection

Importing and exporting configuration

Encrypt and back up the current configuration, and then restore from a backup configuration

3.4 User Interfaces

Table 3-4 User interfaces (gateway)

Item

Description

Configuration

LAN:



DHCP



IP address

WAN:



WAN connection configuration, such as the user name, password, and APN



Network search mode



Band type



Dial-up connection type

Firewall:



Firewall switch



LAN MAC address filtering



IP address filtering



Security Parameter Index (SPI) filtering



URL filtering



DMZ



Port forwarding



Service access control

Status  Signal strength



Network type



Network connection status



SIM card state



Operator name and system mode

Others

Network connection settings:



Automatic network registration

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 14 of 19

Item

Description



Manual network registration

Select network connection type: LTE

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 15 of 19

4 Services and Applications

Data Services

The eA660 provides access to LTE wireless broadband networks with high-speed data services, data backhaul, and video surveillance.

Small-Scale LAN

Devices can connect to the eA660 by wired connection to use data services. A LAN consisting of multiple computers can be built using external hubs, Ethernet switches, or routers.

Security Services

The eA660 has firewall functions which enable users to protect their computers when accessing the Internet.

Firewall

The following firewall functions are provided:



Firewall switch: Enable or disable the network connection's firewall.



LAN MAC address filtering: Prevent devices with specified MAC addresses from accessing the network.



LAN IP filtering: Prevent devices with specified IP addresses from accessing computers on the LAN.



URL filtering: Prevent computers on the LAN from visiting specified URLs.

Local Management and Maintenance

The eA660 supports local configuration to manage devices, configure network parameters, and help ensure that the device functions properly and stably.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 16 of 19

5 Adopted Standards

Communication Protocols

Table 5-1 lists the standards and communication protocols supported by the eA660.

Table 5-1 eA660 standards and communication protocols

Item

Description

Physical layer

RFC894

ARP

RFC826

IP

RFC791, RFC1122, RFC1071, RFC1141, RFC1624, RFC792, RFC950, RFC1256

ICMP

RFC792, RFC950, RFC1256

TCP

RFC793

UDP

RFC768

DHCP

RFC1531, RFC1533

NAT

RFC1631

Wireless Port

The eA660's wireless Uu port complies with LTE R8.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 17 of 19

6 Packing List

Table 6-1 describes the eA660's packing list.

Table 6-1 eA660's packing list

Item

Quantity

Description

eA660

1

Standard

Power adapter

1

Optional

User guide

1

Standard

Ground cable

1

Optional

Ethernet cable

2

Optional

Installation accessory package

1

Optional

The Ethernet cable and ground specifications may vary depending on the country and region. Components in the installation accessory package are fixed.

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 18 of 19

7 Acronyms and Abbreviations

This section lists the acronyms and abbreviations related to the eA660.

Table 7-1 List of acronyms and abbreviations

Acronym/Abbreviation

Full Name

ARP

Address Resolution Protocol

CPE

Customer Premises Equipment

DHCP

Dynamic Host Configuration Protocol

DMZ

Demilitarized Zone

DNS

Domain Name Service

FTP

File Transfer Protocol

ICS

Implementation Conformance Statement

ICMP

Internet Control Message Protocol

LTE

Long Term Evolution

MAC

Media Access Control

MSN

Windows Messenger

NAPT

Network Address Port Translation

NAS

Non-Access-Stratum

NAT

Network Address Translation

PDCP

Packet Data Convergence Protocol

RLC

Radio Link Control

RRC

Radio Resource Control

RTU

Remote Terminal Unit

SPI

Security Parameter Index

SSID

Service Set Identifier

eWBB2.1 CPE eA660 Series

Product Description

Issue 01 (2012-9-30)

Huawei Proprietary and Confidential

Page 19 of 19

Acronym/Abbreviation

Full Name

UE

User Equipment

USIM

Universal Subscriber Identity Module
