Huawei EA300 8A Users Manual

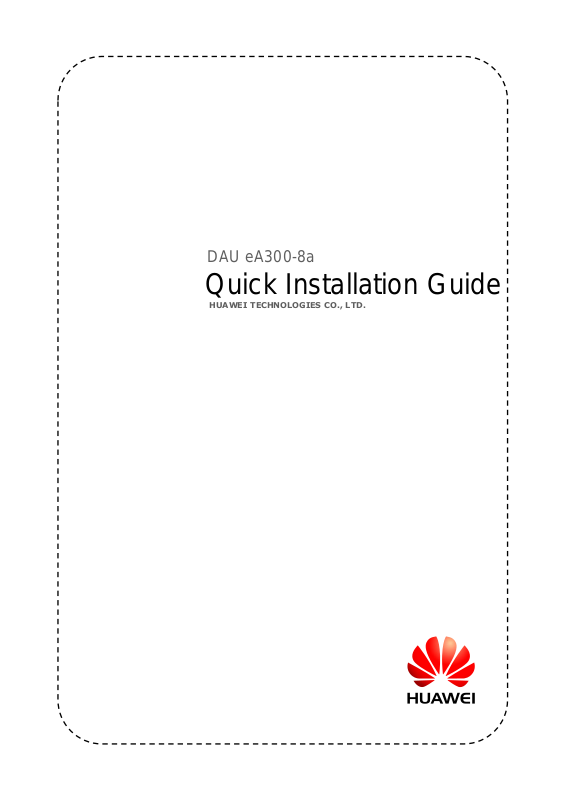

DAU eA300-8a
Quick Installation Guide
HUAWEI TECHNOLOGIES CO., LTD.
Install the DAU eA300-8a Mounting on a Utility Pole
Insert the two hose clamps into the sheet-metal mounting bracket.
Install the hose clamps on the utility pole and adjust the length of the hose and fix it.
2-a Loosen the bolt of hose clamps.
2-b Adjust the length of the hose clamps. 2-c Fasten the bolt of hose clamps to fix the length of the hose clamp.
The installation is complete. |
2-d Use the M6 hex key to tighten the bolt |
|
|
|
and fix the hose clamps completely. |
1
Install the DAU eA300-8a Mounting on the Wall
Remove the sheet-metal mounting |
Mark the fixing points. |
||
Bracket and install the wall mounting |
|||
|
|||
frame. |
|
||
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Install the expansion bolt.
Fix the eA300-8a on the |
|
|
wall-mounting frame. |
Fix the wall-mounting |
|
|
|
frame to the wall. |
|
|
|
|
|
|
|
|
|
2
