Page 1
Product Description
HUAWEI E367 HSPA+ USB Rotator
V100R001
Issue
01
Date
2010-06-10
HUAWEI TECHNOLOGIES CO., LTD.
Page 2
Issue 01 (2010-06-12) Commercial in Confidence Page 2 of 19
Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.
Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [email protected]
Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademar ks and Permission s
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Page 3
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 3 of 19
About This Document
Summary
This document provides information about the major functions, supported services,
system architecture, and technical references of HUAEI E367 HSPA+ USB Rotator
(hereinafter referred to as the E367).
The following table lists the contents of this document.
Chapter Describes
1 Overview The supported network modes, basic services and functions,
and the appearance of the E367.
2 Features The supported features and technical specifications of the
E367.
3 Services and Applications The services and applications of the E367.
4 System Architecture The architecture of the E367.
5 Technical Reference The technical references of the E367.
6 Packing List The items contained in the package of the E367.
A Acronyms and Abbreviations The acronyms and abbreviations mentioned in this document.
Page 4
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 4 of 19
History
Issue Details Date Author Approved by
01 Initial draft completed. 2010-06-10
Page 5
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 5 of 19
Contents
1 Overview..........................................................................................................................6
2 Features...........................................................................................................................7
2.1 Main Features .................................................................................................................................. 7
2.2 Technical Specifications ................................................................................................................... 8
2.2.1 Hardware................................................................................................................................. 8
2.2.2 Dashboard............................................................................................................................... 9
3 Services and Applications...........................................................................................11
3.1 Packet Data Service........................................................................................................................11
3.2 SMS.................................................................................................................................................11
4 System Architecture.....................................................................................................12
4.1 System Architecture.......................................................................................................................12
4.2 Functional Modules........................................................................................................................ 13
5 Technical Reference .....................................................................................................14
5.1 Layer 1 Specifications (Physical)................................................................................................... 14
5.2 Layer 2 Specifications (MAC/RLC).................................................................................................14
5.3 Layer 3 Specifications (RRC)......................................................................................................... 14
5.4 Layer 3 NAS/Core Network (MM/CM)............................................................................................14
5.5 GSM Protocol Specifications.......................................................................................................... 15
5.6 GPRS Protocol Specifications........................................................................................................ 15
5.7 General Specifications ................................................................................................................... 15
5.8 Performance/Test Specifications.................................................................................................... 16
5.9 SIM Specifications.......................................................................................................................... 16
6 Packing List...................................................................................................................17
Page 6
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 6 of 19
1 Overview
The E367 supports the following standards:
z
High-speed packet access plus (HSPA+)
z
Universal Mobile Telecommunications System (UMTS)
z
Enhanced data rates for global evolution (EDGE)
z
General packet radio service (GPRS)
z
Global system for mobile communications (GSM)
The E367 provides the following services:
z
HSPA+ packet data service
z
HSUPA packet data service
z
HSDPA/UMTS packet data service
z
EDGE/GPRS packet data service
z
WCDMA/GSM Short Message Service (SMS)
You can connect the E367 with the USB interface of a computer. In the service area of
the HSPA+/UMTS/EDGE/GPRS /GSM network, you can surf the Internet and
send/receive messages/emails cordlessly. The E367 is fast, reliable, and easy to
operate. Thus, mobile users can experience many new features and services with the
E367. These features and services will enable a large number of users to use the
E367 and the average revenue per user (ARPU) of operators will increase
substantially.
Figure 1-1 shows the profile of the E367.
Figure 1-1 E367 profile
Page 7
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 7 of 19
2 Features
2.1 Main Features
The E367 mainly supports the following features:
z
HSPA+/UMTS 2100/1900/900/850MHz, GSM/GPRS/EDGE 850/900/1800/1900
MHz
z
Equalizer and receive diversity（TYPE 3）
z
28.8Mbit/s MIMO ready；
z
HSDPA data service of up to 21.6 Mbps
z
HSUPA data service of up to 5.76
z
UMTS PS domain data service of up to 384 kbps
z
EDGE packet data service of up to 236.8 kbps
z
GPRS packet data service of up to 85.6 kbps
z
SMS based on PS domain of GSM and WCDMA
z
Automatic installation
z
Personal computer/Smart card (PC/SC) Driver
z
NDIS Driver
z
USB Rotator，easy to connect
z
Dual internal antenna
z
Standard USB interface（T ype A）
z
External antenna interface
z
Micro Secure Digital Memory (Micro SD) Card
z
Windows 2000/ Windows XP/ Windows Vista/ MAC Linux operating system (OS)
Page 8
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 8 of 19
2.2 Technical Specifications
2.2.1 Hardware
Table 2-1 lists the hardware specifications.
Table 2-1 Hardware specifications
Item Specifications
Technical
standard
GSM/GPRS/EGPRS R99
WCDMA/HSDPA R5, HSUPA R6, HSPA+ R7
Operating
frequency
WCDMA/HSPA+ 2100MHz:
1920MHz~1980 MHz(Uplink)/2110MHz~2170 MHz(Downlink)
WCDMA/HSPA+ 1900MHz:
1850MHz~1910MHz(Uplink)/1930MHz~1990MHz(Downlink)
WCDMA/HSPA+ 900MHz:
880MHz~915MHz(Uplink)/925MHz~960 MHz(Downlink)
WCDMA/HSPA+ 850MHz:
824MHz~849MHz(Uplink)/869MHz~894MHz(Downlink)
GSM/GPRS/EDGE 900MHz:
880MHz~915MHz(Uplink)/925MHz~960 MHz(Downlink)
GSM/GPRS/EDGE 1800MHz:
1710MHz~1785MHz(Uplink)/1805MHz~ 1880MHz (Downlink)
GSM/GPRS/EDGE 1900MHz:
1850MHz~1910MHz(Uplink)/1930MHz~ 1990MHz(Downlink)
USB 2.0 High Speed
SIM/USIM card: standard 6-pin SIM card interface
External antenna interface
External
interfaces
Micro SD Card Slot
WCDMA/HSPA+ 2100/1900/900/850MHz: 24dBm +1/-3 (Power
Class 3)
GSM/GPRS 850MHz/900MHz: +33dBm (Power Class 4)
GSM/GPRS 1800MHz/1900MHz: +30dBm (Power Class 1)
EDGE 850MHz/900MHz+27dBm (Power Class E2)
Maximum
transmitter
power
EDGE 1800MHz/1900MHz: +26dBm (Power Class E2)
Static receiver
sensitivity
WCDMA/HSPA+ 2100/1900/900/850MHz: Compliant with
3GPP TS 25.101(R7)
Page 9
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 9 of 19
Item Specifications
GSM/GPRS/EDGE 850 MHz/900 MHz/1800 MHz/1900 MHz:
Compliant with 3GPP TS 05.05 (R99)
Maximum power
consumption
<3.0W
Power supply 4.75V-5.25V / 500mA
LED indicating the status of the E367
Dimensions
(D × W × H)
84mm x 27mm x 12 mm
Weight <30g
Temperature
z
Operating: –10 to +℃ 45℃
z
Storage: –20 to +70℃℃
Humidity 5% to 95%
Notes:
3GPP = The 3rd Generation Partnership Project
EGPRS = enhanced GPRS
LED = light-emitting diode
MSC = mobile switching center
SIM = subscriber identity module
TS = technical specification
USIM = UMTS subscriber identity module
2.2.2 Dashboard
Two types of dashboards are available, the Windows dashboard Mac dashboard and
Linux dashboard. The following table takes Windows dashboard as an example.
Table 2-2 lists the dashboard specifications.
Table 2-2 Dashboard specifications
Item Description
Writing/Sending/Receiving
Sending/Receiving extra-long messages
Group sending
Storage: The messages are saved in the hard disk of the
PC.
Sorting
SMS
New message prompt (visual prompt/audio prompt)
Page 10
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 10 of 19
Item Description
Current connection:
z
Duration
z
Send/Receive flow
z
Send/Receive rate
Flow display and
statistics (data
services)
Traffic statistics
Capacity: It depends on the SIM/USIM card capacity or
the hard disk space.
Messages can be sent from the phonebook.
Phonebook
Importing/Exporting: Import/Export contacts between the
SIM/USIM card and a laptop or a file of supported
formats.
Network connection
setup
z
APN management
z
Set up network connection
Software installation Automatic installation
Network connection settings:
z
Automatic network selection and registration
z
Manual network selection and registration
Network status display: signal, operator name, system
mode, and so on.
Selection of network connection types.
Other
PIN management: activate/deactivate PIN, PIN lock,
changing PIN, unblocking by using the PUK.
System requirement
z
Windows 2000 SP4, Windows XP SP2, Windows Vista
z
Mac OS X 10.4 and 10.5 with latest upgrades
z
Your computer’s hardware system should meet or
exceed the recommended system requirements for the
installed version of OS
z
Display resolution: 800 × 600 or above
Notes:
PIN = personal identification number
PUK = PIN unblocking key
Page 11
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 1 1 of 19
3 Services and Applications
3.1 Packet Data Service
The E367 supports the PS domain data service based on HSPA+/UMTS
/EDGE/GPRS
After you connect the E367 to a PC with the USB interface, the E367 driver and the
client software are installed on the PC automatically. You can configure APN through
the E367 application (or directly use the default settings) and set up a network
connection. Then you can send or receive E-mail, access the network through
wireless connection, and download files through wireless data channels.
To use the data service, perform the following steps:
1. Enter *99# or *98# to launch the packet data service.
2. In the Choose Connection Type dropdown box, choose a network type.
3.2 SMS
The E367 supports message writing/sending/receiving and group sending. You can
manage messages through the dashboard, such as sorting the messages by
telephone number or time.
Page 12
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 12 of 19
4 System Architecture
4.1 System Architecture

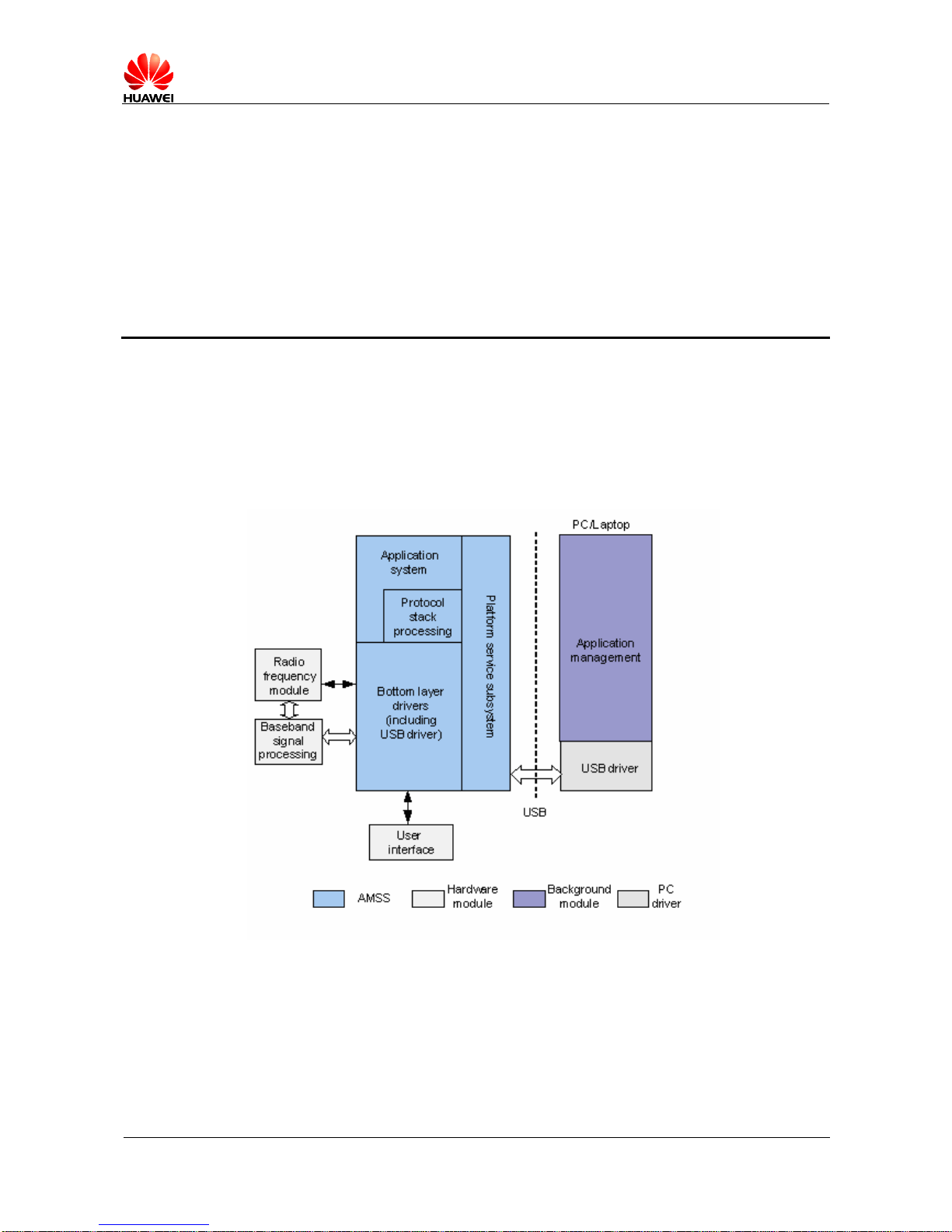

Figure 4-1 shows the system architecture.
Figure 4-1 System architecture
Page 13
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 13 of 19
4.2 Functional Modules
Radio Frequency Module
It sends/receives radio signals and modulates/demodulates the radio frequency (RF)
signals and baseband signals.
Baseband Signal Processing
It processes HSPA+/UMTS/EDGE/GPRS/GSM baseband digital signals, including:
z
Modulating/Demodulating HSPA+/UMTS baseband signals
z
Modulating/Demodulating EDGE/GPRS/GSM baseband signals
z
Encoding/Decoding HSPA+/UMTS channel
z
Encoding/Decoding EDGE/GPRS/GSM channel
Bottom Layer Driver
It drives peripherals, including USB, LED, Micro-SD and SIM/USIM.
Platform Service Subsystem
It initializes programs, diagnoses the running of the system, downloads data and
serves as a watchdog.
Protocol Stack Sy stem
It processes protocols of HSPA+/UMTS/EDGE/GPRS/GSM.
Application System
It sends laptop commands to the bottom layer protocol for processing and returns the
value to the laptop.
Existing applications include the following:
z
Call management
z
Message management
z
CS/PS domain service management
User Interface
It provides interfaces to connect peripherals. Interfaces are for LED Micro-SD and
SIM/USIM.
Application Management
Through the application window, you can set the parameters of the E367 and operate
the E367.
Page 14
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 14 of 19
5 Technical Reference
5.1 Layer 1 Specifications (Physical)
z
Examples of Channel Coding and Multiplexing TR 25.944
z
Physical Layer–General Description TS 25.201
z
Physical Channels and Mapping of Transport Channels onto Physical Channels
(FDD) TS 25.211
z
Multiplexing and Channel Coding (FDD) TS 25.212
z
Spreading and Modulation (FDD) TS 25.213
z
Physical Layer–Procedures (FDD) TS 25.214
z
Physical Layer–Measurements (FDD) TS 25.215
z
3GPP HSDPA overall description 25.308
z
3GPP UE radio access capabilities 25.306
5.2 Layer 2 Specifications (MAC/RLC)
z
MAC Protocol Specification TS 25.321
z
RLC Protocol Specification TS 25.322
5.3 Layer 3 Specifications (RRC)
z
UE Interlayer Procedures in Connected Mode TS 25.303
z
UE Procedures in Idle Mode TS 25.304
z
RRC Protocol Specification TS 25.331
5.4 Layer 3 NAS/Core Network (MM/CM)
z
Architectural Requirements for Release 1999 TS 23.121
z
NAS Functions Related to Mobile Station (MS) in Idle Mode TS 23.122
z
Mobile Radio Interface Signaling Layer 3–General Aspects TS 24.007
Page 15
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 15 of 19
z
Mobile Radio Interface Layer 3 Specification–Core Network TS 24.008
z
PP SMS Support on Mobile Radio Interface TS24.011
5.5 GSM Protocol Specifications
z
Mobile Radio Interface Layer 3 Specification, Radio Resource Control Protocol
TS 04.18
z
Mobile Station–Base Station System (MS–BSS) interface; Data Link (DL) Layer
Specification TS 04.06
z
Digital Cellular Telecommunications System (Phase 2+); Multiplexing and
Multiple Access on the Radio Path TS 05.02
z
Technical Specification Group GERAN; Channel coding TS 05.03
z
Digital Cellular Telecommunications System (Phase 2+); Radio Subsystem Link
Control TS 05.08
z
Digital Cellular Telecommunications System (Phase 2+); Radio Subsystem
Synchronization TS 05.10
5.6 GPRS Protocol Specifications
z
Overall Description of the GPRS Radio Interface; stage 2 TS 3.64
z
Mobile Radio Interface Layer 3 Specification TS 04.08
z
Mobile Radio Interface Layer 3 Specification: Radio Resource Control Protocol
TS 04.18
z
General Packet Radio Service (GPRS): Mobile Station (MS)–Base Station
System (BSS) interface; Radio Link Control/Medium Access Control (RLC/MAC)
protocol TS 04.60
z
Mobile Station–Serving GPRS Support Node (MS–SGSN) Logical Link Control
(LLC) Layer Specification TS 04.64
z
Mobile Station–Serving GPRS Support Node (MS–SGSN); Subnetwork
Dependent Convergence Protocol (SNDCP) TS 04.65
z
Multiplexing and Multiple Access on the Radio Path TS 05.02
z
Channel Coding TS 05.03
z
Modulation TS 05.04
z
Radio Transmission and Reception TS 05.05
z
General Packet Radio Service (GPRS); Stage 1 TS 22.060
z
Mobile Execution Environment (MexE) TS 23.057
z
General Packet Radio Service (GPRS) Service description; stage 2 TS 23.060
5.7 General Specifications
z
UE Capability Requirements TR 21.904
z
UE Radio Access Capabilities TR 25.926
z
Vocabulary TR 25.990
Page 16
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 16 of 19
z
Radio Interface Protocol Architecture TS 25.301
z
Services Provided by the Physical Layer TS 25.302
z
Synchronization in UTRAN Stage 2 TS 25.402
5.8 Performance/Test Specifications
z
UE Radio Transmission and Reception (FDD) TS 25.101
z
Common Test Environments for User Equipment (UE) TS 34.108
z
Special Conformance Testing Functions TS 34.109
z
Terminal Conformance Specification TS 34.121
z
User Equipment (UE) Conformance Specification; Part 1: Protocol Conformance
TS 34.123-1
z
User Equipment (UE) Conformance Specification; Part 2: Protocol Conformance
TS 34.123-2
5.9 SIM Specifications
z
SIM and IC Card Requirements TS 21.111
z
3rd Gen. Partnership Proj Tech. Spec. Group Terminals; SIM App. Toolkit (USAT)
TS 31.111
Page 17
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 17 of 19
6 Packing List
This chapter describes the items contained in the package of the E367.
Table 6-1 lists the items contained in the package of the E367.
Table 6-1 Packing list of the E367
Item Quantity Remarks
HUAWEI E367 HSPA+ USB Rotator 1 Standard
HUAWEI E367 HSPA+ USB Rotator Quick Start 1 Standard
USB external cable 1 Optional
Micro SD Card 1 Optional
Page 18
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 18 of 19
A Acronyms and Abbreviations
3GPP 3rd Generation Partnership Project
APN Access Point Name
ARPU Average Revenue Per User
BSS Base Station Subsystem
CM Connection Management
CS domain Circuit Switched domain
EDGE Enhanced Data Rates for GSM Evolution
EGPRS Enhanced GPRS
FDD Frequency Division Duplex
GERAN GSM/EDGE Radio Access Network
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
HSPA+ High-Speed Packet Access Plus
HSUPA High-Speed Uplink Packet Access
HSDPA High-Speed Downlink Packet Access
LED Light Emitting Diode
MAC Medium Access Control
MexE Mobile Execution Environment
MM Mobility Management
Modem Modulator Demodulator
MS Mobile Station
MSC Mobile Switching Center
NAS Non-Access Stratum
Page 19
HUAWEI E367 HSPA+ USB Rotator V100R001
Product Description
Issue 01 (2010-06-12) Commercial in Confidence Page 19 of 19
OS Operating System
PC/SC Personal Computer/Smart Card
PIN Personal Identification Number
PnP Plug and Play
PP Point-to-Point
PS domain Packet Switched domain
PUK PIN Unblocking Key
RF Radio Frequency
RLC Radio Link Control
RRC Radio Resource Control
SGSN Serving GPRS Support Node
SIM Subscriber Identity Module
SMS Short Messaging Service
SNDCP Subnetwork Depende nt Convergence Protocol
TR Technical Report
TS Technical Specification
UE User Equipment
UMTS Universal Mobile Telecommunications System
USAT USIM Application Toolkit
USB Universal Serial Bus
USIM UMTS Subscriber Identity Module
UTRAN UMTS Terrestrial Radio Access Network
WCDMA Wideband Code Division Multiple Access
Loading...
