Huawei E1762 User Manual

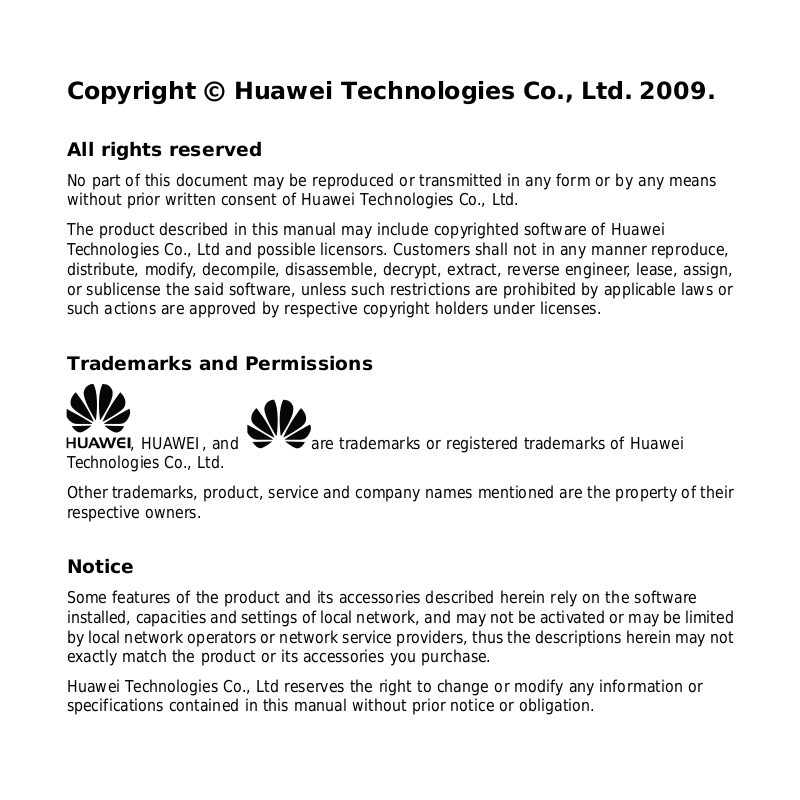

Copyright © Huawei Technologies Co., Ltd. 2009.
All rights reserved
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd. Other trademarks, product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and may not be activated or may be limited by local network operators or network service providers, thus the descriptions herein may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED AS IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein.
Table of Contents
Getting to Know the E1762..........................................................................................1
Requirements for the PC..............................................................................................3

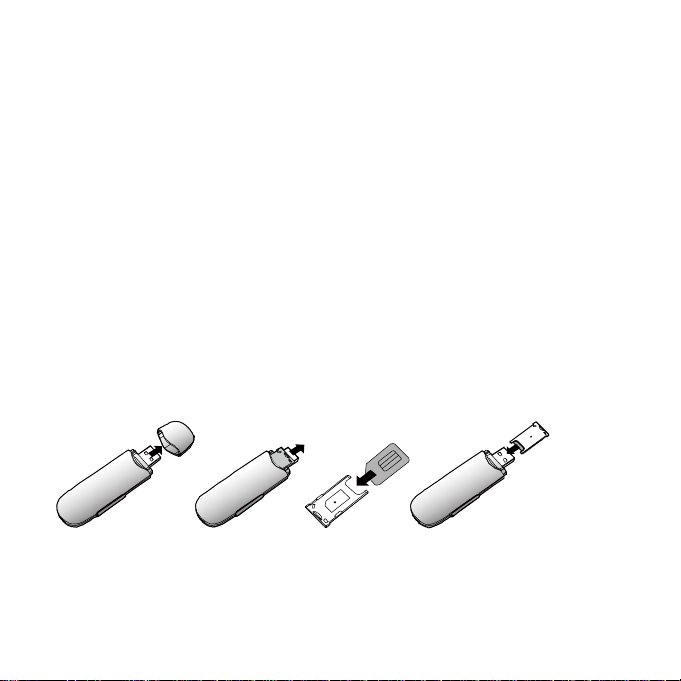

Preparing the E1762....................................................................................................3

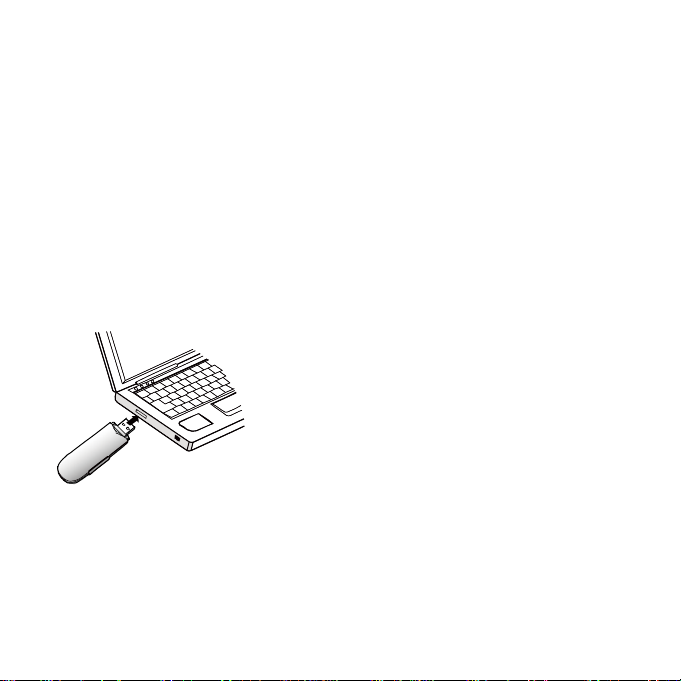

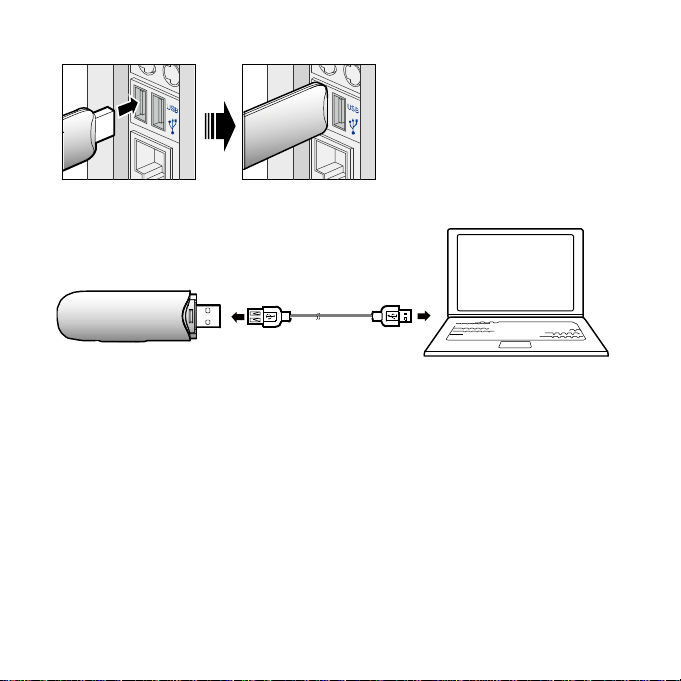

Installation Guide........................................................................................................5
Safety Information......................................................................................................8
i
Thank you for purchasing Huawei E1762 HSPA USB Stick.
Note:
n This manual briefly describes the preparation, the process for installing/uninstalling, and
safety precautions for using Huawei E1762 HSPA USB Stick (hereinafter referred to as the E1762).
n You are recommended to read the manual before using the E1762.
Getting to Know the E1762
The following figures show the appearance of the E1762. The actual product may differ.
1 2
3 4
5
1
Œ USB Interface
Connects to the USB interface of the PC.
USIM/SIM card slot
Holds the USIM/SIM card.

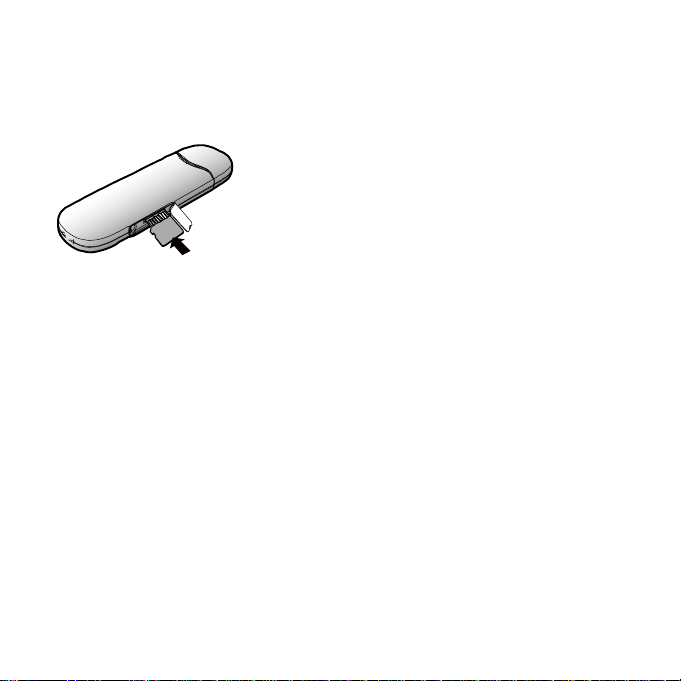

Ž Micro SD card slot
Holds the Micro SD card.
External Antenna Jack
Connects to an external antenna.
Indicator
Indicates the status of the E1762.
n Green, blinking twice every 3s: The E1762 is powered on. n Green, blinking once every 3s: The E1762 is registered to the GSM/GPRS/EDGE network. n Blue, blinking once every 3s: The E1762 is registered to the WCDMA/HSDPA/HSUPA
network.
n Green, always on: The GPRS/EDGE connection is set up. n Blue, always on: The WCDMA connection is set up. n Cyan, always on: The HSDPA/HSUPA connection is set up. n Off: The E1762 is removed from the PC.
2
