Huawei E160G User Manual

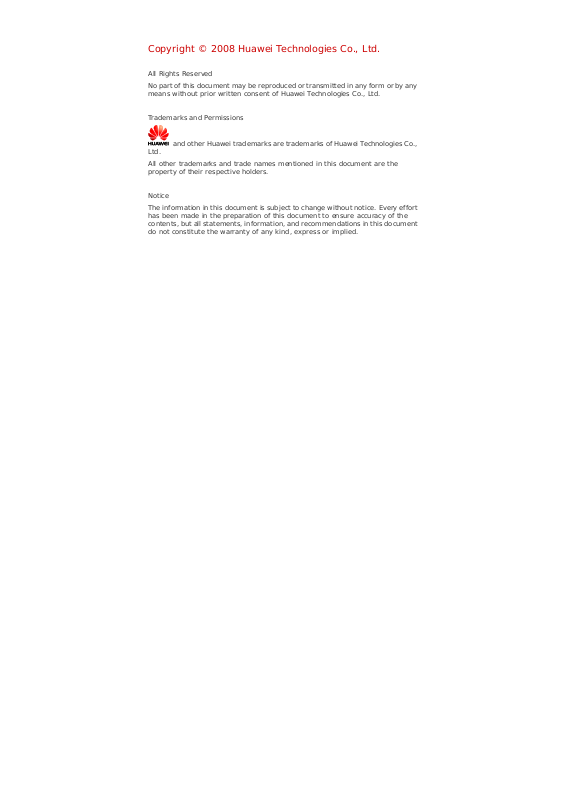

Copyright © 2008 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trad emarks of Huawei T echnolo gies Co. ,
Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice. Every effort
has been made in the preparation of this document to ensure accuracy of the
contents, but all statements, information, and recommendations in this document
do not constitute the warranty of any kind, express or implied.
Table of Contents
What Is in Your Package ............................................. 1
Getting to Know Your E160G....................................... 3
Preparation .............................................................. 6
Installation/Removal Guide ......................................... 8
Safety Information ...................................................11
i
Acronyms and Abbreviations ......................................17
Thank you for choosing Huawei E160G HSDPA USB Stick
(hereinafter referred to as the E160G). With the E160G,
you can access the Internet through wireless network at
a high speed.
Note: This manual describes the appearance, installation and removal of
the E160G. For the operation of the management program, refer to the
User Manual.
What Is in Your Package
The package of your E160G contains the following items:
One E160G
1
One Quick Start
One USB cable
2
Getting to Know Your E160G
The following figure shows the appearance of the E160G. It is only for your
reference. The actual product may differ.
1
2
3
6
4
5
n USB Interface
It connects the E160G to a computer.
3
o SIM/USIM Card Slot
T
It is where you insert the subscriber identity module/UMTS subscriber identity
module (SIM/USIM) card.
p Micro SD Card Slot
It is where you insert the Micro Secure Digital Memory (SD) card
q External Antenna Jack
It connects the E160G to an external antenna.
r Strap Hole
s Indicator
It indicates the status of the E160G.
Colour Status Meaning
Green Blinking (on for 100ms and
off for 100ms; then on for
100ms and off for
2700ms)
Green Blinking (on for 100ms and
off for 2900ms)
Blue Blinking (on for 100ms and
off for 2900ms)
Green On The E160G is connected to a GPRS/EDGE
Blue On The E160G is connected to a WCDMA
Cyan On
The E160G is powered on.
The E160G is registered to a
GSM/GPRS/EDGE network.
The E160G is registered to a UMTS
network.
network.
network.
he E160G is connected to a HSDPA
4
