Huawei DRH3926A User Manual

Issue Draft A
Date 2013-08-10
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
i
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China
Website:
http://www.huawei.com
Email:
support@huawei.com
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

About This Document

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
ii

Purpose

Product Name
Product Version
DBS3900 IBS
V100R001C02
DRH Name
DRH Version
DRH3980A
V100R001C02
DRH3909A
V100R001C02
DRH3918A
V100R001C02
DRH3918B
V100R001C02
DRH3921A
V100R001C02
DRH3921B
V100R001C02
DRH3926A
V100R001C02
This document provides reference for planning and deploying a DC DRH. It presents the exterior and describes the ports, functions, cable types, connector specifications, and cable connections of the DRH.

Product Versions

The following table lists the product versions related to this document.
About This Document

Scope of application

The following table lists the DRH related to this document.

Intended Audience

This document is intended for:
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
About This Document
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
iii
  

Organization

1 Changes in the DRH3908A&3909A&3918A&3918B&3921A&3921B&3926A Hardware Description
This chapter describes the changes in the
DRH3980A&3909A&3918A&3918B&3921A&3921B&3926A Hardware Description.
2 DRH Introduction
This chapter describes the function and exterior of the DRH as well as the ports and indicators on the DRH.
3 DRH Cables
This chapter describes DRH cables.
4 DRH Auxiliary Devices
Site installation engineers System engineers Site maintenance engineers
This chapter describes DRH auxiliary devices.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

Contents

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
iv
Contents
About This Document .................................................................................................................... ii
Purpose ................................................................................................................................................................... ii
Product Versions ..................................................................................................................................................... ii
Scope of application ............................................................................................................................................... ii
Intended Audience .................................................................................................................................................. ii
Organization .......................................................................................................................................................... iii
Contents ........................................................................................................................................... iv
1 Changes in the DRH3980A&3909A&3918A&3918B&3921A&3921B&3926A Hardware
Description ........................................................................................................................................ 1
2 DRH Introduction ......................................................................................................................... 2
2.1 DRH Exterior ................................................................................................................................................... 2
2.2 DRH Functions................................................................................................................................................. 3
2.3 DRH Technical Specifications ......................................................................................................................... 4
2.4 DRH Ports ........................................................................................................................................................ 4
2.5 DRH Indicators ................................................................................................................................................ 6
3 DRH Cables .................................................................................................................................... 9
3.1 DRH Cable List ................................................................................................................................................ 9
3.2 DRH PGND Cable ......................................................................................................................................... 10
3.3 DRH Power Cable .......................................................................................................................................... 10
3.4 DRH Alarm Cable .......................................................................................................................................... 12
3.5 CPRI Fiber Optic Cable ................................................................................................................................. 13

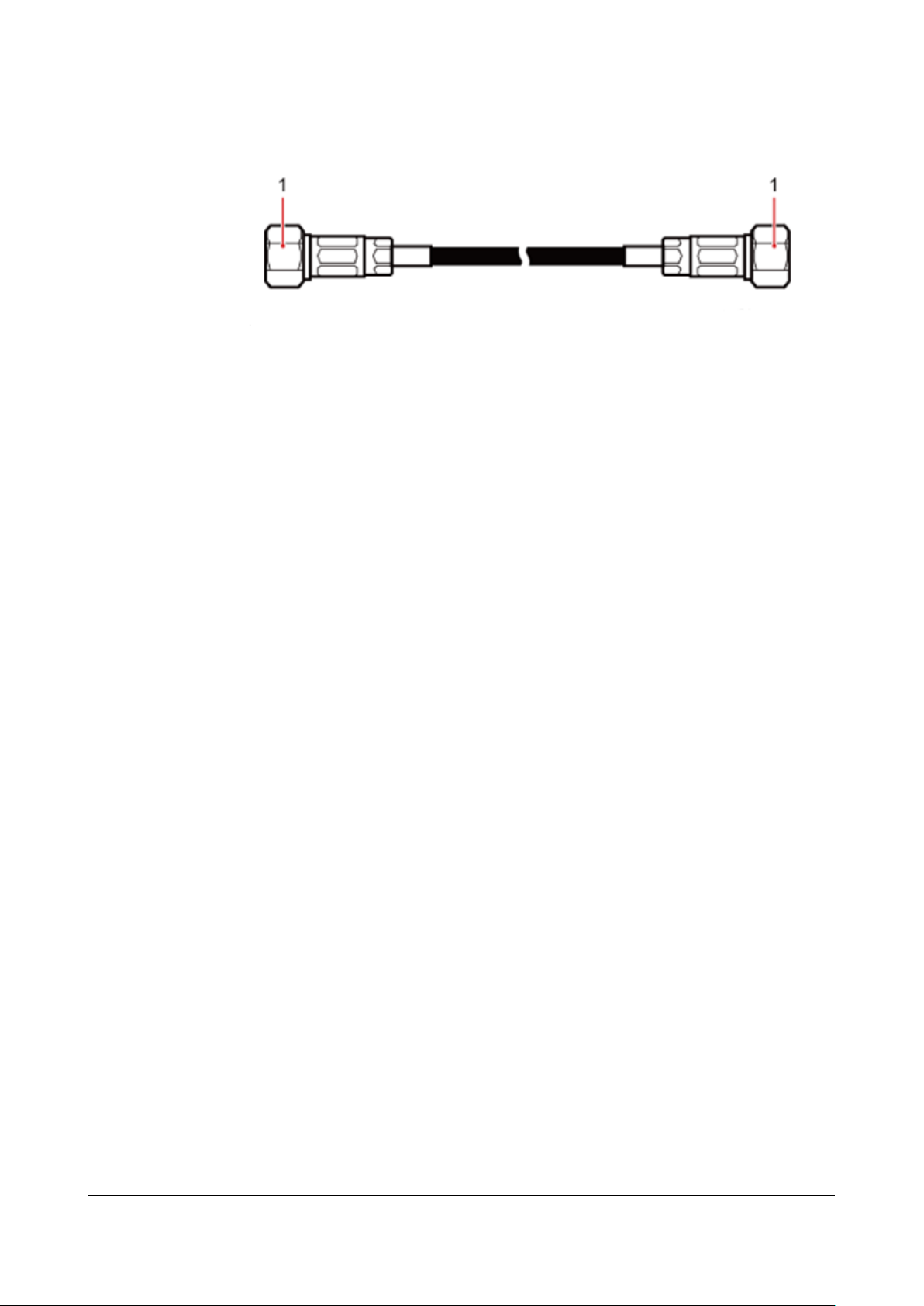

3.6 DRH RF Jumper ............................................................................................................................................. 16
4 DRH Auxiliary Devices ............................................................................................................. 18
4.1 IFS06 .............................................................................................................................................................. 18
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
Contents
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
v
5 Appendix ...................................................................................................................................... 20
5.1 U.S.A Regulatory Compliance ....................................................................................................................... 20
5.2 Canada Regulatory Compliance ..................................................................................................................... 21
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

1 Changes in the
DRH3980A&3909A&3918A&3918B&3921A&3921B&
3926A Hardware Description

Issue DraftA (2013-08-10)

Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
1
1 Changes in the
DRH3980A&3909A&3918A&3918B&3921A&392
1B&3926A Hardware Description
This chapter describes the changes in the
DRH3980A&3909A&3918A&3918B&3921A&3921B&3926A Hardware Description.
Issue Draft A (2013-08-10)
This is the Draft A version.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

2 DRH Introduction

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
2
This chapter describes the function and exterior of the DRH as well as the ports and indicators on the DRH.

2.1 DRH Exterior

This section describes the exterior and dimensions of an DRH.
Figure 2-1 shows an DRH.
2 DRH Introduction

Figure 2-1 DRH exterior

Figure 2-2 shows DRH dimensions.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
3
Figure 2-2 DRH dimensions

2.2 DRH Functions

This section describes the main functions of the DRH. The Distributed Remote Head (DRH) performs the following functions:
Receives downlink baseband data from the DCU and sends uplink baseband data to the DCU.
Receives RF signals from the antenna system, down-converts the signals to intermediate frequency (IF) signals, amplifies the IF signals, and performs analog-to-digital conversion. The transmit (TX) channel filters downlink signals, performs digital-to-analog conversion, and up-converts RF signals to the TX band.
Multiplexes receive (RX) and TX signals on the RF channel, which enables these signals to share the same antenna path. It also filters the RX and TX signals.
The DRH can be powered by the AC/DC power module. In this case, this DRH is called AC DRH.
An DRH consists of a high-speed interface unit, signal processing unit, power amplifier, and dual-duplexer. Figure 2-3 shows the logical structure of the DRH.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
4

Figure 2-3 Logical structure of the DRH

DRH Name
Product Version
DRH3980A
V100R001C02
DRH3918B
V100R001C02

2.3 DRH Technical Specifications

This section describes technical specifications of an DRH, including supported modes, frequency bands, RF specifications, engineering specifications, and antenna capabilities.
For details about technical specifications of an DRH, see section "Technical Specifications " in the DBS3900 IBS V100R001C02 Product Description.

2.4 DRH Ports

This section describes ports on the DRH panels. An DRH has a bottom panel, cabling cavity panel, and indicator panel.

2.4.1 2T2R DRH Ports

Table 2-1 DRH types with 2T2R
Figure 2-4 shows the ports on the 2T2R DRH panels.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
5

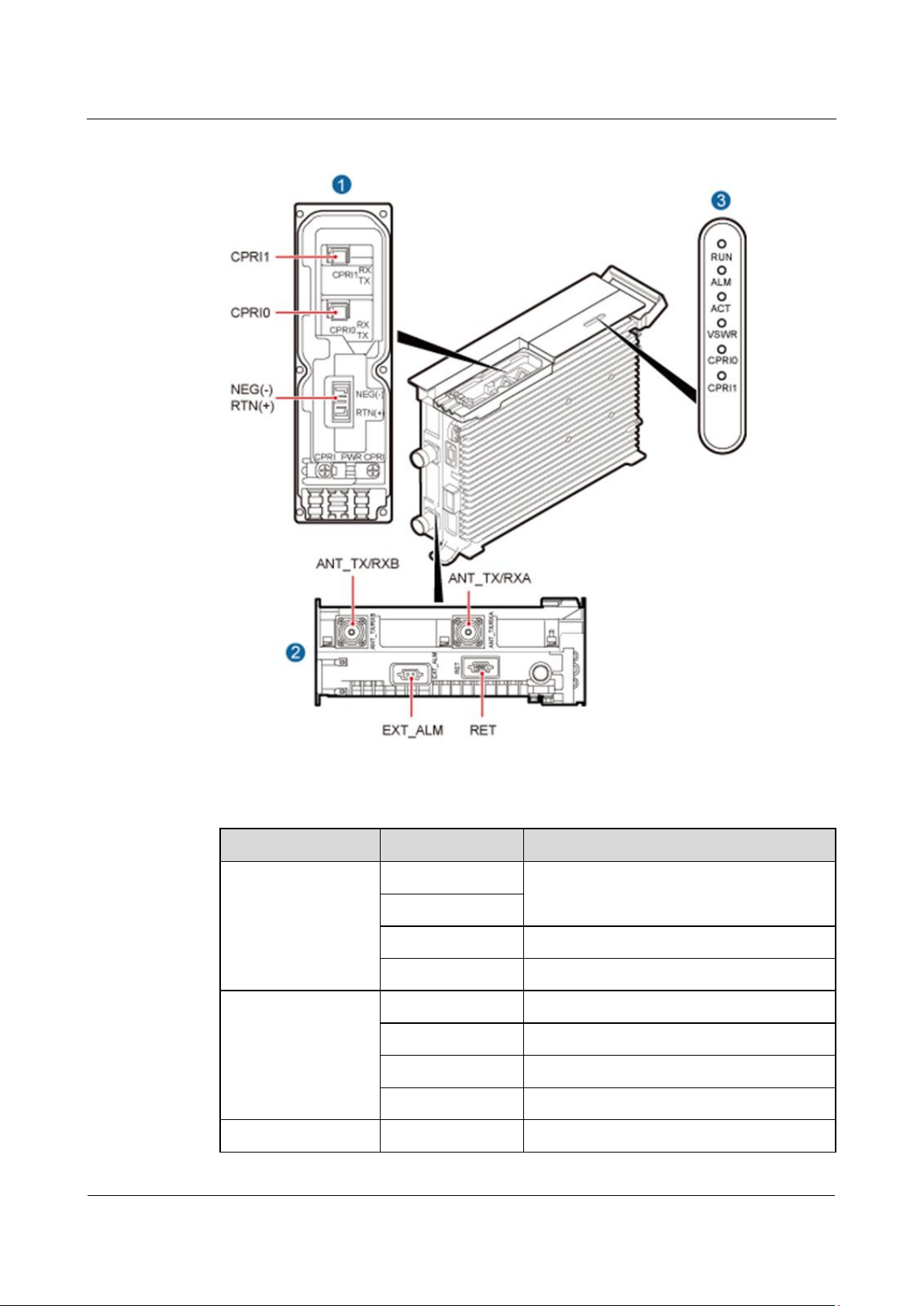

Figure 2-4 Ports on the 2T2R DRH panels
Item
Silkscreen
Description
(1) Ports in the cabling cavity
RTN(+)
Power supply socket NEG(-)
CPRI0
Optical/electrical port 0
CPRI1
Optical/electrical port 1
(2) Ports at the bottom
ANT_TX/RXA
TX/RX port A
ANT_TX/RXB
TX/RX port B
EXT_ALM
Port for alarm reporting
RET
Not use in C02 version
(3) Indicators
RUN
For details, see 2.5 DRH Indicators.
Table 2-2 describes ports and indicators on the 2T2R DRH panels.
Table 2-2 Ports and indicators on 2T2R DRH panels
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
6
Item
Silkscreen
Description
ALM
ACT
VSWR
CPRI0
CPRI1
Indicator s
Color
Status
Description
RUN
Green
Steady on
There is power supply, but the module is faulty.
Steady off
There is no power supply, or the module is faulty.
Blinking (on for 1s and off for 1s)
The module is running properly.
Blinking (on for
0.125s and off for
0.125s)
Software is being loaded to the module, or the module is not started.
ALM
Red
Steady on
Alarms are generated, and the module must be replaced.
Blinking (on for 1s and off for 1s)
Alarms are generated. The alarms may be caused by the faults on the related boards or ports. Therefore, you need to locate the fault before deciding whether to replace the module.
Steady off
No alarm is generated.
ACT
Green Steady on
The module is running properly with TX channels enabled or the software is being loaded without DRH running.
Blinking (on for
The module is running properly with TX

2.5 DRH Indicators

This section describes six indicators on a DRH. They indicate the running status. For detailed positions of DRH indicators, see 2.4 DRH Ports.
Table 2-3 describes DRH indicators.

Table 2-3 DRH indicators

DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
7
Indicator s
Color
Status
Description
1s and off for 1s)
channels disabled.
VSWR
Red Steady off
No Voltage Standing Wave Ratio (VSWR) alarm is generated.
Steady on
VSWR alarms are generated.
CPRI0
Red or green
Steady green
The CPRI link is functioning properly.
Steady red
An optical module fails to transmit or receive signals because the optical module is faulty or the fiber optic cable is broken.
Blinking red (on for 1s and off for 1s)
The CPRI link is out of lock because of failure in clock lock between two modes or mismatched data rates over CPRI ports.
Steady off
The optical module cannot be detected, or the CPRI cable is not connected properly.
CPRI1
Red or green
Steady green
The CPRI link is functioning properly.
Steady red
An optical module fails to transmit or receive signals because the optical module is faulty or the fiber optic cable is broken.
Blinking red (on for 1s and off for 1s)
The CPRI link is out of lock because of failure in clock lock between two modes or mismatched data rates over CPRI ports.
Steady off
The optical module cannot be detected, or the CPRI cable is not connected properly.
Type
Description
Omnidirectional Ceiling Antenna
Frequency698MHz to 2700MHz;Maximum gain: 5dBi
Directional Ceiling Antenna
Frequency698MHz to 2700MHz;Maximum gain: 6dBi
Wall Mount Antenna
Frequency698MHz to 2700MHz;Maximum gain: 8dBi
Yagi Directional antenna
Frequency698MHz to 2700MHz;Maximum gain: 11dBi

2.6 DRH Antennas(Only for U.S.A and Canada)

DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
2 DRH Introduction
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
8
Directional Outdoor Antenna
Frequency698MHz to 2700MHz;Maximum gain:
11.4dBi
Dual-polarized Omnidirectional Ceiling Antenna
Frequency698MHz to 2700MHz;Maximum gain: 5dBi
Dual-polarized Wall Mount Antenna
Frequency698MHz to 2700MHz;Maximum gain: 9dBi
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

3 DRH Cables

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
9
This chapter describes DRH cables.
Cable
One End
The Other End
Connector
Installation Position
Connector
Installation Position
3.2 DRH PGND Cable
OT terminal (M6, 16 mm2 or
0.025 in.2)
Ground terminal on the DRH
OT terminal (M8, 16 mm2 or 0.025 in.2)
Ground terminal on the ground bar
3.3 DRH Power Cable
Tool-less female connector (press fit type)
NEG(-) and RTN(+) ports on the DRH
Tool-less female connector (pressfit type)
One of DRH0 to DRH5 ports on the EPU
One of LOAD0 to LOAD5 ports on the DCDU-11B
3.4 DRH Alarm Cable
Waterproofed DB15 male connector
EXT_ALM port on the DRH
Cord end terminal
External alarm device
3.5 CPRI Fiber Optic Cable
DLC connector
CPRI0 port on the DRH
DLC connector
CPRI port on the WBBP in the DPC
CPRI1 port on the DRH
CPRI0 port on the DRH
3.6 DRH RF Jumper
DIN male connector
ANT_TX/RX A or ANT_TX/RX B port on the DRH
Depend on Antenna connector
Antenna system

3.1 DRH Cable List

This section describes DRH cable connections.
Table 3-1 lists DRH cables.

Table 3-1 DRH cables

3 DRH Cables
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
10

3.2 DRH PGND Cable

(1) OT terminal (M6, 16 mm2 or 0.025 in.2)
(2) OT terminal (M8, 16 mm2 or 0.025 in.2)
An DRH PGND cable connects an DRH and a ground bar, ensuring the proper grounding of the DRH. The maximum length of the DRH PGND cable is 8 m (26.25 ft).

Exterior

An DRH PGND cable is green or green and yellow with a cross-sectional area of 16 mm2 (0.025 in.2). This cable has an OT terminal at each end. Figure 3-1 shows an DRH PGND cable.
Figure 3-1 PGND cable
If the customer prepares the PGND cable, a copper-core cable with a cross-sectional area of 16 mm2 (0.025 in.2) or larger is recommended.
One OT terminal must be added to each end of the PGND cable onsite.
You can determine the color of the cable and whether to use corresponding two-hole OT terminals based on local regulations.
Figure 3-2 shows a two-hole OT terminal.
Figure 3-2 Two-hole OT terminal

3.3 DRH Power Cable

The DRH power cable is a -48 V DC shielded cable. It feeds -48 V DC power to an DRH. The default length of an DRH power cable is 50 m (164.04 ft).
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
11

Exterior

Cable
Wire
Wire Color in Most Regions
Wire Color in Other Regions
North American Standard
Europea n Standar d
UK
DRH power cable
RTN(+)
Black
Brown
Blue
NEG(-)
Blue
Blue
Gray
Quote the corresponding extension package if you want to purchase DRH power cables of the following lengths:
Longer than 50 m (164.04 ft) and shorter than or equal to 100 m (328.08 ft)
Longer than 100 m (328.08 ft) and shorter than or equal to 150 m (492.12 ft)
There are two types of DRH power cables in terms of cross-sectional areas: 3.3 mm2 (0.005 in.2) (12 AWG) complying with North American standards and 4 mm2 (0.006 in.2) complying with European standards. An DRH power cable has a tool-less female connector (pressfit type) at one end and a bare wire at the other end. A corresponding terminal is added to the bare wire based on the requirements of the connector on the external power device, as shown in Figure
3-3.
Figure 3-3 DRH power cable

Pin Assignment

Table 3-2 lists the specifications of a DRH power cable.
Table 3-2 Specifications of a DRH power cable
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
12

3.4 DRH Alarm Cable

(1) Waterproofed DB15 male connector
(2) Cord end terminal
DRH Alarm Port
Pin of the Waterpro ofed DB15 Male Connecto r
Color
Type
Cord End Terminal
Description
Dry contact
X1.2
White and blue
Twisted pair
X2
SWITCH_INPUT0+
X1.3
Blue
X3
SWITCH_INPUT0­(GND)
X1.6
White and orange
Twisted pair
X4
SWITCH_INPUT1+
X1.7
Orange
X5
SWITCH_INPUT1­(GND)
The DRH alarm cable, a shielded straight-through cable, transmits alarm signals from an external device to an DRH so that the base station monitors the operating status of external devices. The length of the DRH alarm cable is 5 m (16.40 ft).

Exterior

An alarm cable has a waterproofed DB15 male connector at one end and eight cord end terminals at the other end, as shown in Figure 3-4.
Figure 3-4 Alarm cable

Pin Assignment

Table 3-3 describes the pin assignment for the wires of an DRH alarm cable.
Table 3-3 Pin assignment for the wires of an DRH alarm cable
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
13
DRH Alarm Port
Pin of the Waterpro ofed DB15 Male Connecto r
Color
Type
Cord End Terminal
Description
RS485
X1.10
White and green
Twisted pair
X6
APM RX­X1.11
Green
X7
APM RX+
X1.13
White and brown
Twisted pair
X8
APM TX­X1.14
Brown
X9
APM TX+

3.5 CPRI Fiber Optic Cable

(1) DLC connector
(2) Branch optical fiber
(3) Label on the branch optical fiber
CPRI fiber optic cables are classified into multi-mode fiber optic cables and single-mode fiber optic cables. They transmit CPRI signals.

Exterior

An ODF can be used when the distance between a DPC and an DRH or the distance between interconnected DRHs is longer than 100 m (328.08 ft).
A single-mode fiber optic cable connects a DPC to an ODF or connects an ODF to an DRH.
Figure 3-5 shows a fiber optic cable between a DPC and an DRH or between DRHs, with a
DLC connector at each end.
Figure 3-5 Fiber optical cable between a DPC and an DRH or between DRHs
When a fiber optical cable connects a DPC and an DRH, the optical fibers on the DPC side and DRH side are 0.34 m (0.013 in.) and 0.03 m (0.0012 in.) long, respectively. When a fiber optical cable connects two DRHs, the optical fibers on both DRH sides are 0.03 m (0.0012 in.) long.
Figure 3-6 shows the connections for a CPRI fiber optic cable between a DPC and an DRH.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
14
Figure 3-6 Connections for a CPRI fiber optic cable between a DPC and an DRH
(1) CPRI fiber optic cable between a DPC and an DRH
(1) DLC connector
(2) Branch optical fiber
(3) Label on the branch optical fiber
(4) FC connector
Figure 3-7 shows a single-mode fiber optic cable between a DPC and an ODF or between an
ODF and an DRH, with a DLC connector at one end and an FC connector at the other end.
Figure 3-7 Single-mode fiber optic cable between a DPC and an ODF or between an ODF and an DRH
When a single-mode fiber optic cable connects a DPC and an ODF, the optical fibers on the DPC side and ODF side are 0.34 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.
When a single-mode fiber optic cable connects an ODF and an DRH, the optical fibers on the DRH side and ODF side are 0.03 m (0.013 in.) and 0.8 m (0.031 in.) long, respectively.
Figure 3-8 shows the connections for a single-mode CPRI fiber optic cable between a DPC
and an ODF or between an ODF and an DRH.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
15
Figure 3-8 Connections for a single-mode fiber optic cable between a DPC and an ODF or
(1) Single-mode CPRI fiber optic cable between a DPC and an ODF
(2) Single-mode CPRI fiber optic cable between an ODF and an DRH
Label
Connected To
1A
CPRI RX port on the DRH
1B
CPRI TX port on the DRH
2A
TX port on the DPC
2B
RX port on the DPC
between an ODF and an DRH

Pin Assignment

Table 3-4, Table 3-5, and Table 3-6 describe the labels on and recommended connections for
fiber optic cables of an optical assembly.
Table 3-4 Labels on and recommended connections for optical fibers of an optical assembly between a DPC and an DRH
A CPRI fiber optic cable must be connected to optical modules in the CPRI ports. A multi-mode fiber optic cable and single-mode fiber optic cable are connected to multi-mode optical modules and single-mode optical modules, respectively.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
16
Table 3-5 Labels on and recommended connections for optical fibers of a fiber optic cable
Label
Connected To
1A
CPRI RX port on DRH 1
1B
CPRI TX port on DRH 1
2A
CPRI TX port on DRH 0
2B
CPRI RX port on DRH 0
Label
Connected To
1A
RX port on the DPC or CPRI RX port on the DRH
1B
TX port on the DPC or CPRI TX port on the DRH
2A
ODF
2B
ODF
between DRHs
Table 3-6 Labels on and recommended connections for optical fibers of a single-mode optical assembly between a DPC and an ODF or between an ODF and an DRH

3.6 DRH RF Jumper

The 1/2" DRH RF jumper transmits and receives RF signals between an DRH and an antenna. A fixed-length RF jumper used by an DRH is 2 m (6.56 ft), 3 m (9.84 ft), 4 m (13.12 ft), 6 m (19.68 ft), or 10 m (32.81 ft) long. A variable-length RF jumper used by an DRH has a maximum length of 10 m (32.81 ft).
If the customer prepares the RF jumper, the length of the RF jumper should be as short as possible and not exceed 2 m (6.56 ft).

Exterior

An RF jumper has a DIN male connector at one end and a customized connector at the other end.
Figure 3-9 shows an RF jumper with a DIN male connector at each end.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
3 DRH Cables
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
17
Figure 3-9 RF jumper
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

4 DRH Auxiliary Devices

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
18

4.1 IFS06

(1) Cable tray
(2) Ground bar 2
(3) Rear foot
(4) Front foot
(5) Adjustable beam
(6) Ground bar 1
(7) Main frame
-

Exterior

4 DRH Auxiliary Devices
This chapter describes DRH auxiliary devices.
An Indoor Floor installation Support (IFS06) is used for installing indoor DRHs.
Figure 4-1 shows an IFS06.
Figure 4-1 IFS06
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
4 DRH Auxiliary Devices
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
19

Function

Item
Specification
Dimensions (H x W x D)
1730 mm (79 in.) x 600 mm (23.62 in.) x 600 mm (23.62 in.)
Weight
45 kg (99.23 lb)

Specifications

It can be installed on the ground.
It supports the installation of six DRHs.
The upper and lower adjustable beams on an IFS06 can be moved up and down to fit for heights of DRHs.
Table 4-1 describes IFS06 specifications.
Table 4-1 IFS06 specifications
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description

5 Appendix

Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
20

5.1 U.S.A Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device does not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
If this device is modified without authorization from Huawei, the device may no longer comply with FCC requirements for Class B digital devices. In that a case, your right to use the device may be limited by FCC regulations. Moreover, you may be required to correct any interference to radio or television communications at your own expense.
5 Appendix
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This device generates, uses and radiates radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user may take one or more of the following measures:
Reorient or relocate the receiving antenna.
Reinforce the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio or TV technician for assistance.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The minimum installed and operated distance between the radiator and your body of each model as below.
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
5 Appendix
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
21
For DRH3926A, please keep 2.01m or more. WARNING: This is NOT a CONSUMER device. It is designed for installation by FCC
LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. .

5.2 Canada Regulatory Compliance

5.2.1 RSS-Gen statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

5.2.2 RSS-102 statement:

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The minimum installed and operated distance between the radiator and your body of each model as below. For DRH3926A, please keep 2.01m or more. Cet équipement est conforme à l'exposition aux rayonnements IC limites établies pour
unenvironnement non contrôlé. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en
DRH3980A&3909A&3918A& 3918B&3921A&3921B&3926A Hardware Description
5 Appendix
Issue DraftA (2013-08-10)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd..
22
même temps qu'aucune autre antenne ou émetteur.La distance dinstallation et dopération entre le radiateur et votre corps de chaque équipement doit être au minimum :
Pour DRH3926A, 2.01m ou plus.
Some Information
(a) The nominal passband gain is 37dB; (b) The nominal bandwidth of band 2600M (DRH3926A)is 73.07MHz; (c) The rated mean output power is 2*20W; (d) The input and output impedance are 50; (e) The following notice:The Manufacture’s rated output power of this equipment is for
single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
Loading...
