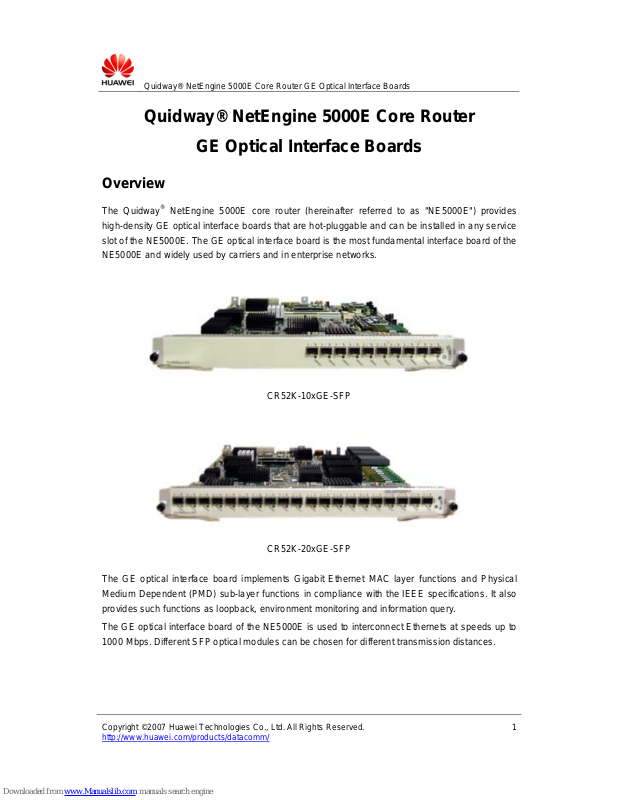

Quidway® NetEngine 5000E Core Router GE Optical Interface Boards
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
1
Quidway® NetEngine 5000E Core Router
GE Optical Interface Boards
Overview
The Quidway® NetEngine 5000E core router (hereinafter referred to as "NE5000E") provides
high-density GE optical interface boards that are hot-pluggable and can be installed in any service
slot of the NE5000E. The GE optical interface board is the most fundamental interface board of the
NE5000E and widely used by carriers and in enterprise networks.
CR52K-10xGE-SFP
CR52K-20xGE-SFP
The GE optical interface board implements Gigabit Ethernet MAC layer functions and Physical
Medium Dependent (PMD) sub-layer functions in compliance with the IEEE specifications. It also
provides such functions as loopback, environment monitoring and information query.
The GE optical interface board of the NE5000E is used to interconnect Ethernets at speeds up to
1000 Mbps. Different SFP optical modules can be chosen for different transmission distances.
Quidway® NetEngine 5000E Core Router GE Optical Interface Boards
Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved.
http://www.huawei.com/products/datacomm/
2
Specifications
Currently, the NE5000E provides two types of GE optical interface boards. The specifications are
listed below:
Module name Interface type Description
CR52K-10xGE-SFP LC
10-port GE optical interface board: Different SFP optical
modules can be chosen for different transmission
distances.
CR52K-20xGE-SFP LC
20-port GE optical interface board: Different SFP optical
modules can be chosen for different transmission
distances.
The NE5000E provides five types of 1000M SFP optical modules, as listed below:
Interface rate 1000 Mbps
Transmission
distance
500 m 10 km 40 km 80 km 100 km
Center wavelength 850 nm 1310 nm 1310 nm 1550 nm 1550 nm
Min. -9.5 dBm -9.5 dBm -4.5 dBm -2.0 dBm 0.0 dBm
Transmitting
optical power
Max. -2.5 dBm -3.0 dBm 3.0 dBm 5.0 dBm 5.0 dBm
Receiving sensibility -17.0 dBm -20.0 dBm -22.5 dBm -23.0 dBm -30.0 dBm
Overload optical
power
0.0 dBm -3.0 dBm -3.0 dBm -3.0 dBm -9.0 dBm
Fiber type Multi-mode Single-mode Single-mode Single-mode Single-mode
