Page 1
Dell EMC Configuration and Deployment Guide
Huawei CloudEngine 6850
Switch Configuration Guide for Dell EMC SC Series SANs
Abstract
This document illustrates how to configure Huawei® CloudEngine 6850
series switches for use with Dell EMC™ SC Series storage using Dell
EMC best practices.
February 2018
Page 2
Revisions
2 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
Revisions
The information in this publication is provided “as is.” Dell Inc. makes no representations or warranties of any kind with respect to the information in this
publication, and specifically disclaims implied warranties of merchantability or fitness for a particular purpose.
Use, copying, and distribution of any software described in this publication requires an applicable software license.
2018 Dell Inc. or its subsidiaries. All Rights Reserved. Dell, EMC, Dell EMC and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other
trademarks may be trademarks of their respective owners.
Dell believes the information in this document is accurate as of its publication date. The information is subject to change without notice.
Date
Description
February 2018
Initial release
Page 3
Table of contents
3 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
Table of contents
Revisions............................................................................................................................................................................. 2
1 Introduction ................................................................................................................................................................... 4
1.1 Document conventions ....................................................................................................................................... 4
1.2 Audience ............................................................................................................................................................. 4
1.3 Switch details ...................................................................................................................................................... 4
1.4 Cabling diagram.................................................................................................................................................. 5
2 Dell recommended switch configuration ...................................................................................................................... 6
2.1 Hardware configuration ...................................................................................................................................... 6
2.2 Startup configuration file ..................................................................................................................................... 6
2.3 Basic system configuration ................................................................................................................................. 6
2.4 Configure management network ........................................................................................................................ 7
2.5 Configure LLDP and spanning tree .................................................................................................................... 7
2.6 Configuring edge-ports ....................................................................................................................................... 7
2.7 Disable link flapping protection ........................................................................................................................... 8
2.8 Save configuration .............................................................................................................................................. 8
2.9 Configure breakout ports .................................................................................................................................... 8
2.10 Configure additional switch ................................................................................................................................. 8
2.11 Calibrate link flapping protection setting (optional) ............................................................................................. 9
A Technical support and resources ............................................................................................................................... 10
Page 4
Introduction
4 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
1 Introduction
This document illustrates how to configure Huawei® CloudEngine 6850 (CE6850) series switches for use with
Dell EMC™ SC Series storage using Dell EMC best practices.
1.1 Document conventions
Table 1 lists the formatting conventions used in this document.
Document conventions
Item
Convention
Example
Code samples
Monospace
System configuration has been modified.
Parameters
Italic
Dell(profile-name)#
Command-line commands
Bold
OS#show version
Command-line user-supplied
variables
Bold, italic, brackets
<vlan-id>
1.2 Audience
This switch configuration guide describes a verified configuration following Dell EMC best practices for an SC
Series iSCSI SAN and is intended for storage or network administrators and deployment personnel.
1.3 Switch details
Table 2 provides an overview of the switch configuration. This switch configuration guide covers setup
instructions for all CE6850 switch models.
Switch specifications
Huawei CloudEngine 6850
Switch vendor
Huawei
Switch model
CloudEngine 6850
Switch firmware
8.100
Note: For proper functionality, the switch must be at the firmware version shown in Table 2 before proceeding
with configuration. Using previous firmware versions may have unpredictable results.
Note: The latest firmware updates and documentation can be found at: www.huawei.com. This site requires a
login.
Page 5
Introduction
5 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464

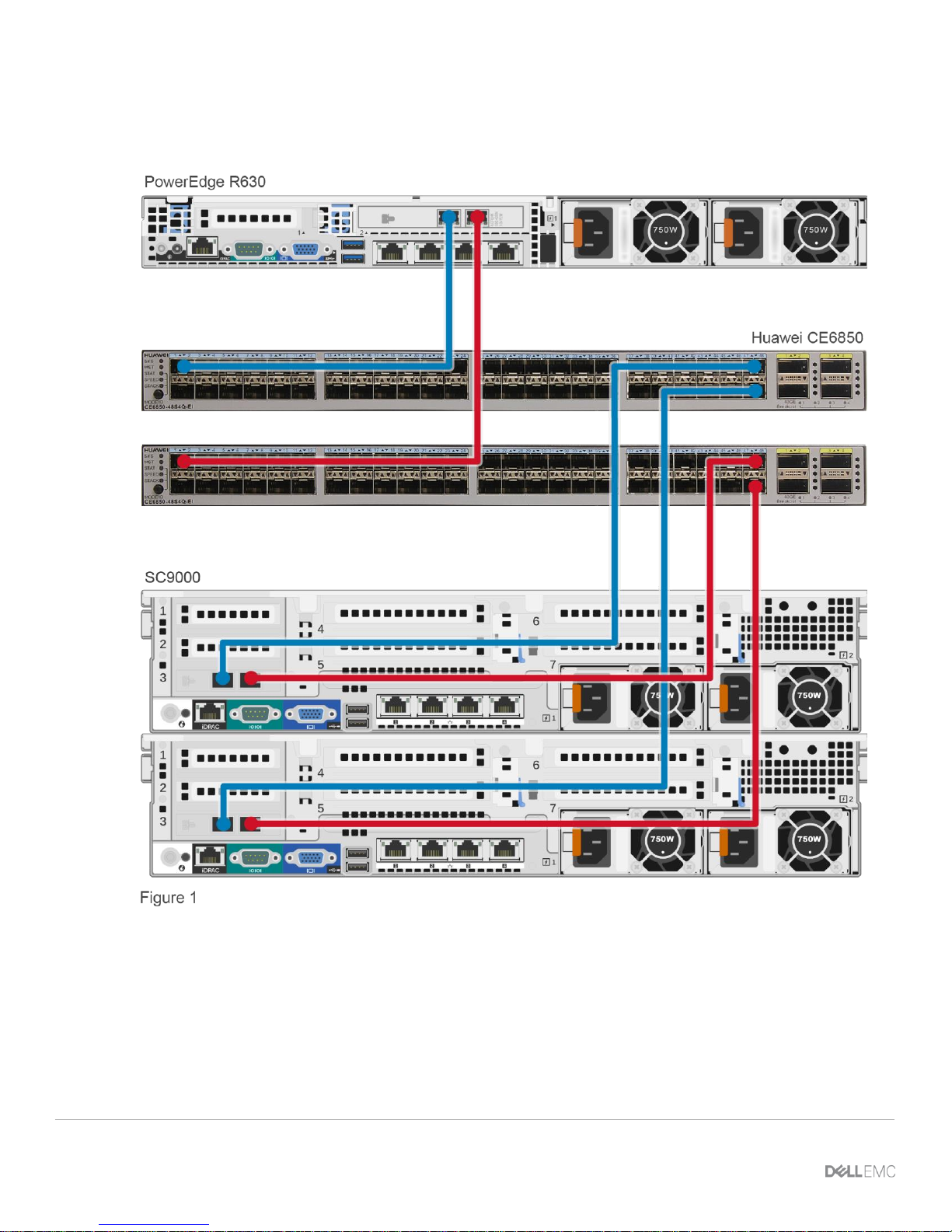

1.4 Cabling diagram
The cabling diagram shown in Figure 1 represents the Dell EMC recommend method for deploying servers
and SC Series storage arrays.
Cabling diagram
Page 6
Dell EMC recommended switch configuration
6 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
2 Dell EMC recommended switch configuration
These steps show how to configure two Huawei CE6850 switches.
Note: The configuration steps in this section are only recommended when the switch is used as a dedicated
SAN for iSCSI traffic.
2.1 Hardware configuration
1. Power on both switches.
2. Connect a serial cable to the management port.
3. Using any terminal utility, open a serial connection session to the switch.
4. Open your terminal emulator and configure it to use the serial port (usually COM1 but this may vary.
depending on your system). Configure serial communications for 9600,N,8,1 and no flow control.
2.2 Startup configuration file
Note: This example assumes a switch at its default configuration settings. Always back up configuration
settings prior to performing any configuration changes.
<HUAWEI>reset saved-configuration
The action will delete the saved configuration on the device.
The configuration will be erased to reconfigure.Continue? [Y/N]: y
Warning: Now the configuration on the device is being deleted.
Info: Succeeded in clearing the configuration in the device.
<HUAWEI>reboot
Warning: The current configuration will be saved to the next startup savedconfiguration file. Continue? [Y/N]: n
Warning: The system will reboot. Continue? [Y/N]: y
2.3 Basic system configuration
The following steps set up the initial configuration for the switch.
Press CTRL+C to abort Zero Touch Provisioning in 10 seconds...
[CTRL+C]
Please Press ENTER.
An initial password is required for the first login via the console.
Continue to set it? [Y/N]: Y
Set a password and keep it safe! Otherwise you will not be able to login via the
console.
Page 7
Dell EMC recommended switch configuration
7 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
2.4 Configure management network
Connect the management port on the switch to an appropriate network and perform the following steps to set
up the management network for the switch.
<HUAWEI> system-view
Enter system view, return user view with return command.
[~HUAWEI] interface MEth 0/0/0
[~HUAWEI-MEth0/0/0] ip address <IP address> <Mask>
[*HUAWEI-MEth0/0/0] undo shutdown
[*HUAWEI-MEth0/0/0] quit
[*HUAWEI] undo telnet server disable
[~HUAWEI] user-interface vty 0 4
[~HUAWEI-ui-vty0-4] user privilege level 15
[*HUAWEI-ui-vty0-4] authentication-mode aaa
Warning: The level of the user-interface(s) will be the default level of AAA
users, please check whether it is correct.
[*HUAWEI-ui-vty0-4] quit
[*HUAWEI] aaa
[*HUAWEI-aaa] local-user <username> password irreversible-cipher <password>
Info: A new user is added.
[*HUAWEI-aaa] local-user <username> level 15
[*HUAWEI-aaa] local-user <username> service-type telnet
Warning: The service type configured contains unsecured protocol(telnet). It is
recommended to configure the secure service type only.
[~HUAWEI-aaa] quit
2.5 Configure LLDP and spanning tree
[*HUAWEI] stp enable
[*HUAWEI] stp mode rstp
[*HUAWEI] lldp enable
2.6 Configuring edge-ports
Perform this step for each individual port that is connected to a storage controller or a host interface port, or
specify a range of ports to configure. This section enables link-level flow control (802.3x), STP edge-ports,
and Jumbo frames.
[*HUAWEI] interface range 10GE 1/0/1 to 10GE 1/0/48
[*HUAWEI-port-group] undo shutdown
[*HUAWEI-port-group] flow-control
Note: The flow-control command enables RX and TX flow control.
[*HUAWEI-port-group] jumboframe enable 9216
[*HUAWEI-port-group] stp edged-port enable
[*HUAWEI-port-group] quit
Page 8
Dell EMC recommended switch configuration
8 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
2.7 Disable link flapping protection
The Huawei CE6850 switch has an inbuilt link flap protection, which by default turns off an interface if five link
flapping events occur within an interval of ten seconds. The default values might cause interfaces on certain
edge-devices to be turned off. To avoid this, change the settings for link flapping protection or disable it
completely. Refer support.huawei.com for further information.
To disable link flapping protection, set the threshold value to 0.
[*HUAWEI] interface range 10GE 1/0/1 to 10GE 1/0/48
[*HUAWEI-port-group] port link-flap threshold 0
[*HUAWEI-port-group] quit
2.8 Save configuration
[*HUAWEI] commit
[~HUAWEI] quit
<HUAWEI> save
Warning: The current configuration will be written to the device. Continue?
[Y/N]: y
Info: Please input the file name(*.cfg, *.zip, *.dat)[vrpcfg.zip]: <ENTER>
Now saving the current configuration to the slot 1 ..
Info: Save the configuration successfully.
<HUAWEI>
2.9 Configure breakout ports
Perform this step if using the QSFP 40GbE ports as 4 x 10GbE breakout ports. The following command splits
the 40GbE port 1/0/3. The same action can be performed for each of the 40GbE QSFP ports on the switch.
<HUAWEI> system-view
Enter system view, return user view with return command.
[~HUAWEI] port split dimension interface 40GE 1/0/3 split-type 4*10GE
Warning: This operation will delete current port(s) and create new port(s). New
port(s) will be offline before the board of slot 1 is reset. Continue? [Y/N]: y
Info: Operating, please wait for a moment...done.
[*HUAWEI] commit
[~HUAWEI] quit
<HUAWEI> reboot
Warning: The current configuration will be saved to the next startup savedconfiguration file. Continue? [Y/N]: Y
Warning: The system will reboot. Continue? [Y/N]: Y
Repeat the steps in section 2.9 to configure the breakout ports as needed. Reboot the switch to bring the
breakout ports into effect. The breakout ports will be listed as 40GE 1/0/3:1 to 40GE 1/0/3:4. To configure
these ports, repeat the steps in sections 2.6 to 2.8.
2.10 Configure additional switch
Repeat the commands from sections 2.1 through 2.9 to configure the second switch.
Page 9
Dell EMC recommended switch configuration
9 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
2.11 Calibrate link flapping protection setting (optional)
Huawei CE 6850 has an inbuilt link flap protection, which by default turns off an interface if five link flapping
events occur within an interval of ten seconds. The default values might cause interfaces on certain edgedevices to be turned off. To avoid this, change the settings for link flapping protection or disable it completely.
Section 2.7 shows the commands to disable link flapping protection, or if choosing to keep the link flapping
protection turned on, use the following steps to calibrate the link flapping protection setting. Refer to
support.huawei.com for further information.
<HUAWEI> system-view
Enter system view, return user view with return command.
[~HUAWEI] interface range 10GE 1/0/1 to 10GE 1/0/48
[~HUAWEI-port-group] port link-flap interval <5 to 60 seconds>
[*HUAWEI-port-group] port link-flap threshold <5 to 10>
[*HUAWEI-port-group] quit
With port link flapping protection enabled, use the following command for auto recovery of an interface which
was brought down due to link flap.
[*HUAWEI] error-down auto-recovery cause link-flap interval <30 to 86400 sec>
[*HUAWEI] commit
[~HUAWEI] quit
<HUAWEI> save
Warning: The current configuration will be written to the device. Continue?
[Y/N]: y
Page 10
Technical support and resources
10 Huawei CloudEngine 6850 Switch Configuration Guide for Dell EMC SC Series SANs | SCG3464
A Technical support and resources
Dell.com/support is focused on meeting your needs with proven services and support.
Huawei.com for support and information regarding Huawei networking products.
Dell TechCenter is an online technical community where IT professionals have access to numerous resources
for Dell EMC software, hardware, and services.
Storage Solutions Technical Documents on Dell TechCenter provide expertise that helps to ensure customer
success on Dell EMC storage platforms.
Additional referenced or recommended Dell publications:
• Dell EMC Storage Compatibility Matrix
• SC Series Technical Documents
