Huawei CE6810-48S4Q-EI, CE6810-48S4Q-LI, CE6810-32T16S4Q-LI, CE6810-48S-LI, CE6810-24S2Q-LI Service Manual

CloudEngine 6810 Series

Data Center Switches

CloudEngine 6810 Series Data Center Switches

Product Overview

Huawei CloudEngine 6810 (CE6810 for short) series switches are next-generation 10G Ethernet switches
designed for data centers and high-end campus networks, providing high-performance, high-density 10GE
ports, and low latency. The CE6810 series uses an advanced hardware architecture with 40GE uplink ports
and the industry's highest density of 10GE access ports.
Using the Huawei VRP8 software platform, CE6810 switches provide extensive data center service features
and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be
changed. CE6810 switches can work with CE12800 switches to build an elastic, virtualized, high-quality
fabric that meets the requirements of cloud-computing data centers.
The CE6810 switches provide high-density 10GE access to help enterprises and carriers build a scalable data
center network platform in the cloud computing era. They can also be used as aggregation or core switches
for enterprise campus networks.

Product Appearance

The CE6810 series comes in ve models.

CE6810-48S4Q-EI

48*10GE SFP+ ports, 4*40GE QSFP+ ports

CE6810-48S4Q-LI

48*10GE SFP+ ports, 4*40GE QSFP+ ports

CE6810-32T16S4Q-LI

32*10GE Base-T ports, 16*10GE SFP+ ports, 4*40GE QSFP+ ports

CE6810-48S-LI

48*10GE SFP+ ports

1

Huawei CloudEngine Series Switches

CE6810-24S2Q-LI

24*10GE SFP+ ports, 2*40GE QSFP+ ports

Product Characteristics

High-Density 10GE Access

• The CE6810 is the industry's highest-performing 1 U ToR switch. It provides forwarding performance of

960 Mpps and supports L2/L3 line-rate forwarding.

• The CE6810 provides 64*10GE ports, allowing for high-density 10G server access.

• The CE6810 has four 40GE QSFP+ ports, each of which can be used as four 10GE SFP+ ports to provide

exibility in network deployment. Using the 40GE uplink ports, the CE6810 switches can connect to

CE12800 switches to build a non-blocking network platform.

Highly Reliable, High-Performance Stacking

• The industry's rst 16-member stack system

»A stack system of 16 member switches has up to 768*10GE access ports that provide high-density

server access in a data center.

»Multiple stacked switches are virtualized into one logical device, making it possible to build a

scalable, easy-to-manage data center network platform.

»A stack system separates the control plane from the data plane. This eliminates the risk of single-

point failures and greatly improves system reliability.

• Long-distance, highly reliable stacking

»The CE6810 can use service ports as stack ports. A stack system can be established with switches in

the same rack or different racks, and even over long distances.

»Service and stack bandwidths can be allocated based on the network's scale so that network

resources can be used more efciently.

Vertical Virtualization Simplies Management

• The CE6810 supports Super Virtual Fabric (SVF), which can virtualize multiple physical switches of the

same or different types into one logical switch to simplify network management and improve reliability.

• SVF enables different types of switches to set up a vertical virtual system. In an SVF system, CE6810

switches can act as leaf nodes and connect to spine switch CE6850 as its remote line cards. This

facilitates cabling and equipment management in equipment rooms.

• Huawei's SVF is the rst in the industry to implement local forwarding on leaf switches. When horizontal

trafc dominates in a data center, SVF improves the forwarding efciency and reduces network delay.

Huawei CloudEngine Series Switches

2

Large-Scale Routing Bridge, On-Demand Scaling

• The CE6810 supports the IETF Transparent Interconnection of Lots of Links (TRILL) protocol and can

connect to 10G and 1G servers simultaneously. CE6810 switches can establish a large Layer 2 TRILL

network with more than 500 nodes, enabling flexible service deployments and large-scale Virtual

Machine (VM) migrations.

• The TRILL protocol uses a routing mechanism similar to IS-IS and sets a limited Time-to-Live (TTL) value

in packets to prevent Layer 2 loops. This signicantly improves network stability and speeds up network

convergence.

• On a TRILL network, all data ows are forwarded quickly using Shortest Path First (SPF) and Equal-cost

Multi-path (ECMP) routing. SPF and ECMP avoid the suboptimal path selection problem in STP and

increase link bandwidth efciency to 100 percent.

• The CE6810 supports TRILL-based Layer 2 equal-cost paths, greatly improving links' load balancing

capabilities. The network has a fat-tree architecture that enhances expansion.

Converged Enhanced Ethernet, Allowing for Data, Storage, and Computing Services on
One Network

• The CE6810 series switches support Fibre Channel over Ethernet (FCoE), which permits storage, data,

and computing services to be transmitted on one network, reducing the costs of network construction

and maintenance.

• The CE6810 series switches support centralized FCoE gateway deployment, which makes network O&M

simpler.

• The CE6810 series switches support multiple data center features: Priority-based Flow Control (PFC),

Enhanced Transmission Selection (ETS) and Data Center Bridging eXchange (DCBX). These features

ensure low latency and zero packet loss for FC storage and high-speed computing services.

Fast VM Migration, Policy Mobility

• The CE6810 works with Huawei's Agile Controller to permit network policies to be dynamically deployed

on the CE6800. Agile Controller also supports online VM migration.

• Agile Controller delivers network policies through high-speed RADIUS interfaces. Its online VM migration

is 10 to 20 times the rate of other industry platforms, enabling large-scale VM migrations.

• Agile Controller is based on open APIs and is compatible with all major virtualization platforms including

VMware.

Programmable Network Device, Flexible Customization

• The CE6810 uses the Open Programmability System (OPS) embedded in the VRP8 software platform to

provide programmability at the control plane.

• The OPS provides open APIs. APIs can be integrated with mainstream cloud platforms (including

commercial and open cloud platforms) and third-party controllers. The OPS enables services to be exibly

customized and provides automatic management.

• Users or third-party developers can use open APIs to develop and deploy specialized network

management policies to implement extension of fast service functions, automatic deployment, and

3

Huawei CloudEngine Series Switches

intelligent management. The OPS also implements automatic operation and maintenance, and reduces

management costs.

• The OPS provides seamless integration of data center service and network in addition to a service-

oriented, Software-Dened Network (SDN).

Zero Touch Provisioning, Automatic O&M

• The CE6810 supports Zero Touch Provisioning (ZTP). ZTP enables the CE6810 to automatically obtain

and load version files from a USB flash drive or file server, freeing network engineers from onsite

conguration or deployment. ZTP reduces labor costs and improves device deployment efciency.

• ZTP provides built-in scripts for users through open APIs. Data center personnel can use the programming

language they are familiar with, such as Python, to provide unied conguration of network devices.

• ZTP decouples configuration time of new devices from device quantity and area distribution, which

improves service provisioning efciency.

Flexible Airow Design, High Energy Efciency

• Flexible front-to-back/back-to-front airow design

»The CE6810 uses a front-to-back/back-to-front airow design that isolates cold air channels from hot

air channels. This design meets heat dissipation requirements in data center equipment rooms.

»Air can ow from front to back, or back to front when different fans and power modules are used.

»Redundant power modules and fans can be congured to ensure uninterrupted service transmission.

• Energy-saving technology

»The CE6810 series switches have energy-saving chips and can measure system power consumption

in real time. Fan speeds can be adjusted dynamically based on system consumption. These energy-

saving technologies reduce O&M costs and contribute to a greener data center.

Clear Indicators, Simple Maintenance

• Clear indicators

»Port indicators clearly show port status and port speeds. The 40GE port indicators can show the state

of all the 10GE ports derived from the 40GE ports.

»State and stack indicators on both the front and rear panels enable operators to maintain the switch

from either side.

»CE6810 series switches support remote positioning. Operators can turn on remote positioning

indicators on the switches they want to maintain, so that they can find switches easily in an

equipment room full of devices.

• Simple maintenance

»The management port, fans, and power modules are on the front panel, which facilitates device

maintenance.

»Data ports are located at the rear, facing servers. This simplies cabling.

Huawei CloudEngine Series Switches

4

Product Specications

CE6810EI CE6810LI

Item

10G Base-T
ports

CE6810-48S4Q-EICE6810-48S4Q-LICE6810-

32T16S4Q-LI

CE6810-48S-LI

0 0 32 0 0

CE6810-24S2Q­LI

SFP+ ports 48 48 16 48 24

QSFP+ ports 4 4 4 0 2

Switching
capacity

1.28 Tbit/s 1.28 Tbit/s 1.28 Tbit/s 960 Gbit/s 640 Gbit/s

Forwarding rate 960 Mpps 960 Mpps 960 Mpps 720Mpps 480Mpps

Airow design Front-to-back or back-to-front

1

iStack

Device
virtualization

Network
virtualization

Super Virtual Fabric (SVF)

M-LAG

TRILL (CE6810EI)

2

VM awareness Agile Controller

Network
convergence

FCoE

DCBX, PFC, ETS

OpenFlow

OPS

Programmability

Puppet and OVSDB plugins released on open source websites (CE6810EI)

Linux container for open source and customization programming

NetStream

Trafc analysis

sFlow

1 For details about the conguration, please see: http://support.huawei.com/onlinetoolsweb/virtual/en/dc/stack_index.html?dcb
2 For details about the conguration, please see: http://support.huawei.com/onlinetoolsweb/virtual/en/dc/svf_index.html?dcb

5

Huawei CloudEngine Series Switches

CE6810EI CE6810LI

Item

VLAN

ACL

MAC address
table

CE6810-48S4Q-EICE6810-48S4Q-LICE6810-

32T16S4Q-LI

Adding access, trunk, and hybrid interfaces to VLANs

Default VLAN

QinQ

MUX VLAN

GVRP

Ingress:2250
Egress:1000

Maximum:
64k

Ingress:1250
Egress:500

Maximum:
128k

Ingress:1250
Egress:500

Maximum:
128k

Dynamic learning and aging of MAC addresses

Static, dynamic, and blackhole MAC address entries

Packet ltering based on source MAC addresses

MAC address limiting based on ports and VLANs

CE6810-48S-LI

Ingress:1250
Egress:500

Maximum:
128k

CE6810-24S2Q­LI

Ingress:1250
Egress:500

Maximum:
128k

ARP
(Maximum)

IPv4 FIB
(Maximum)

IP routing

IPv6 FIB
(Maximum)

Multicast FIB
(Maximum)

Multicast

4k 1.5k 1.5k 1.5k 1.5k

16k 1.5k 1.5k 1.5k 1.5k

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ (CE6810EI)

8k / / / /

2k / / / /

IGMP, PIM-SM, PIM-DM, MSDP, and MBGP (CE6810EI)

IGMP snooping

IGMP proxy (CE6810EI)

Fast leave of multicast member interfaces(CE6810EI)

Multicast trafc suppression(CE6810EI)

Multicast VLAN(CE6810EI)

Huawei CloudEngine Series Switches

6

CE6810EI CE6810LI

Item

Reliability

QoS

CE6810-48S4Q-EICE6810-48S4Q-LICE6810-

32T16S4Q-LI

CE6810-48S-LI

CE6810-24S2Q­LI

LACP

STP, RSTP, VBST, MSTP

BPDU protection, root protection, and loop protection

Smart Link and multi-instance

DLDP

ERPS (G.8032)

VRRP, VRRP load balancing, and BFD for VRRP

BFD for BGP/IS-IS/OSPF/Static route (CE6810EI)

Trafc classication based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and

802.1p priority

Actions of ACL, CAR, re-marking, and scheduling

Queue scheduling algorithms, including PQ, WRR, DRR, PQ+WRR, and PQ+DRR

Congestion avoidance mechanisms, including WRED and tail drop

Conguration

and
maintenance

Security and
management

Trafc shaping

Console, Telnet, and SSH terminals

Network management protocols, such as SNMPv1/v2c/v3

File upload and download through FTP and TFTP

BootROM upgrade and remote upgrade

802.3az Energy Efcient Ethernet (EEE)

Hot patches

User operation logs

ZTP

802.1x authentication

Command line authority control based on user levels, preventing unauthorized users
from using commands

DoS, ARP, and ICMP attack defenses

Port isolation, port security, and sticky MAC

Binding of the IP address, MAC address, interface number, and VLAN ID

Authentication methods, including AAA, RADIUS, and HWTACACS

Remote Network Monitoring (RMON)

7

Huawei CloudEngine Series Switches

CE6810EI CE6810LI

Item

Dimensions (W

x D x H, mm)

Weight (fully

loaded)

Environmental
parameters

Operating
voltage

Max. power
consumption

CE6810-48S4Q-EICE6810-48S4Q-LICE6810-

442 x 600 x

43.6

10.4 kg
(22.9 lb)

Operating temperature: 0°C to 40°C (32°F to 104°F) (0 m to 1,800 m)
Storage temperature: -40°C to +70°C (-40°F to 158°F)
Relative humidity: 5% RH to 95% RH, non-condensing

AC: 90 V to 290 V
DC: -38.4V to -72V

238 W 238 W 288 W 178 W 171 W

Ordering Information

Mainframe

442 x 600 x

43.6

10.4 kg
(22.9 lb)

32T16S4Q-LI

442 x 420 x

43.6

8.5 kg
(18.7 lb)

CE6810-48S-LI

442 x 600 x

43.6

10.2 kg
(22.5 lb)

CE6810-24S2Q­LI

442 x 600 x

43.6

10.1 kg
(22.3 lb)

CE6810-EI-B00 CE6810-48S4Q-EI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)

CE6810-LI-B00 CE6810-48S4Q-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)

CE6810-LI-B01 CE6810-48S-LI Switch (2*600W AC Power Module, 2*FAN Box, Port side exhaust)

CE6810-LI-B10

CE6810-LI-B11

CE6810-48S4Q-EI

CE6810-48S4Q-LI

CE6810-32T16S4Q-LICE6810-32T16S4Q-LI Switch (32-port 10GE RJ45, 16-Port 10GE SFP+, 4-Port 40G

CE6810-48S-LI CE6810-48S-LI Switch (48-Port 10GE SFP+, Without Fan and Power Module)

CE6810-24S2Q-LI

CE6810-LI Bundle 10 (CE6810-48S4Q-LI mainframe, 4*QSFP-40G-iSR4, Without Fan

and Power Module)

CE6810-LI Bundle 11 (CE6810-48S-LI mainframe, 2*QSFP-40G-iSR4, 8*SFP-10G-USR,

Without Fan and Power Module)

CE6810-48S4Q-EI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and

Power Module)

CE6810-48S4Q-LI Switch (48-Port 10GE SFP+, 4-Port 40G QSFP+, Without Fan and

Power Module)

QSFP+, Without Fan and Power Module)

CE6810-24S2Q-LI Switch (24-Port 10GE SFP+, 2-Port 40G QSFP+, Without Fan and

Power Module)

Huawei CloudEngine Series Switches

8

Fan box

Part Number Product Description Support Product

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

FAN-40EA-F

FAN-40EA-B

Fan box (EA, Front to Back, FAN panel
side intake)

Fan box (EA, Back to Front, FAN panel
side exhaust)

Power

Part Number Product Description Support Product

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

CE6810-48S4Q-EI, CE6810-48S4Q-LI,
CE6810-48S-LI, CE6810-32T16S4Q-LI,
CE6810-24S2Q-LI

PAC-600WA-F

PAC-600WA-B

PDC-350WA-F

PDC-350WA-B

600W AC Power Module (Front to Back,

Power panel side intake)

600W AC Power Module (Back to Front,

Power panel side exhaust)

350W DC Power Module (Front to Back,

Power panel side intake)

350W DC Power Module (Back to Front,

Power panel side exhaust)

Software

CE68-LIC-VXLAN CloudEngine 6800 VXLAN Function

CE68-LIC-FCF16 CloudEngine 6800 FCF 16 Ports

CE68-LIC-FCFAL CloudEngine 6800 FCF All Ports

CE6800-LIC-NPV CloudEngine 6800 FCOE NPV Function

9

Huawei CloudEngine Series Switches

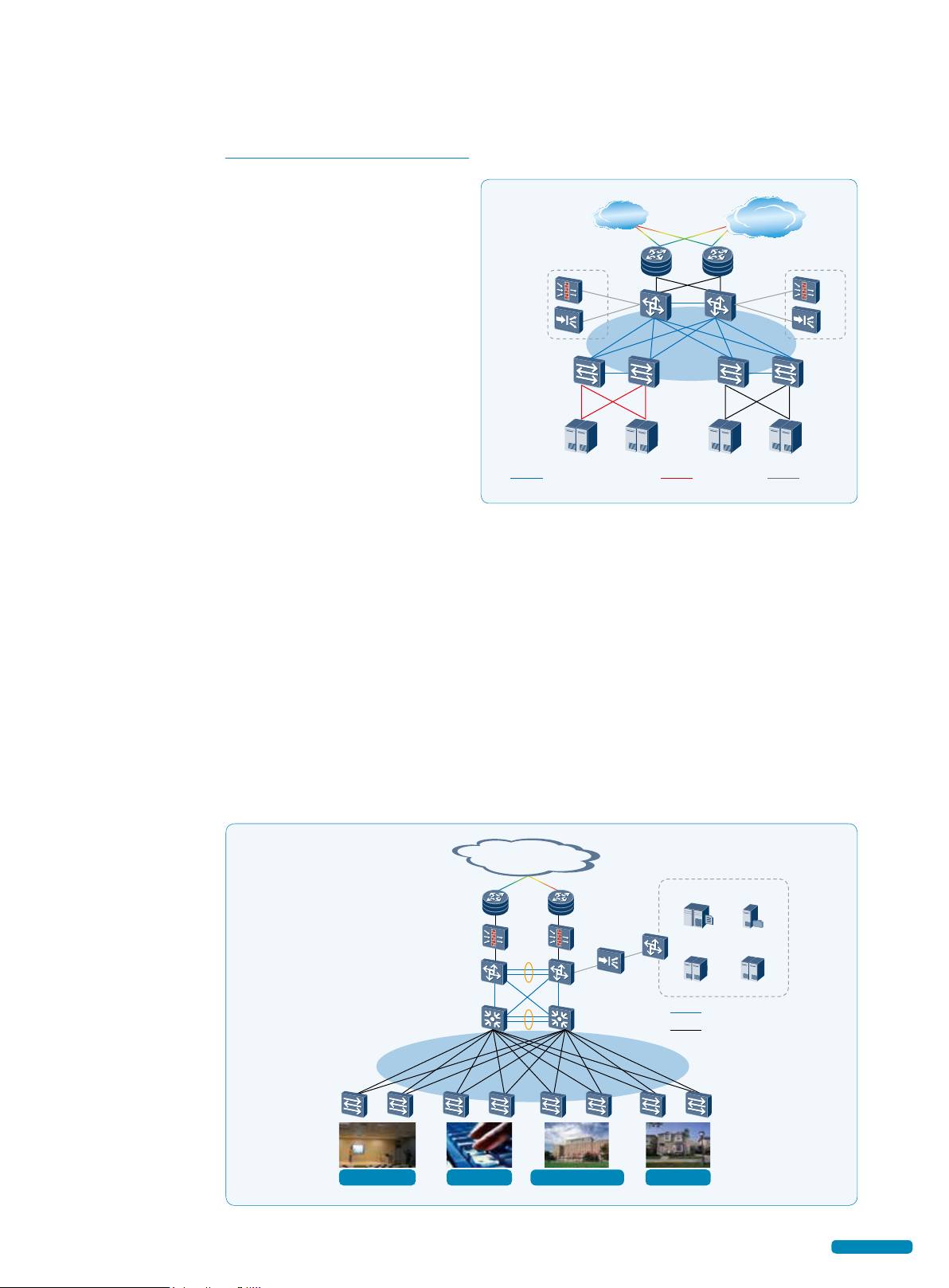

Networking and Applications

Data Center Applications

On a typical data center network,

Internet

CE12800/CE8800/CE7800 switches work
as core switches, whereas CE6810 and
CE5800 switches work as ToR switches
and connect to the core switches using
40GE/10GE ports. These switches a
fabric protocol, such as TRILL or VXLAN,
to establish a non-blocking large Layer
2 network, which allows large-scale

CE12800
CE8800
CE7800

CE8800
CE6800
CE5800

FW

LB

Cloud Fabric

...

VM migrations and flexible service
deployments.

Note: TRILL and VXLAN can be also used

... ...

on campus networks to support exible

100GE/40GE/10GE 10GE/25GE

service deployments in different service
areas.

Campus Network Applications

CE6800 switches can be used as aggregation or core switches on a campus network. Their high-density, line­rate 10GE ports and high stacking capability can meet the ever-increasing demand for network bandwidth.
CE6800 switches are cost-effective campus network switches, thanks to their extensive service features and
innovative energy-saving technologies.

WAN

IP/VPN

FW

LB

GE

On a typical campus network, multiple CE12800/CE8800/CE7800 switches are virtualized into a logical
core switch using CSS or iStack technology. Multiple CE6810 switches at the aggregation layer form a
logical switch using iStack technology. CSS and iStack improve network reliability and simplify network
management. At the access layer, CE5800 switches are virtualized with SVF to provide high-density line-rate
ports.

Note: iStack technology is also widely used in data centers to facilitate network management.

Internet/WAN

Enterprise Data Center

...

CE12800
CE8800
CE7800

CE8800
CE7800
CE6800

Web

Server

Database Database

APP

Server

100GE/40GE
40GE/10GE

Cloud Fabric

CE6800
CE5800

Training Area Official Production Area Dormitory

Huawei CloudEngine Series Switches

10

Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei
Technologies Co., Ltd.

Trademark Notice

, HUAWEI, and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective owners.

General Disclaimer

The information in this document may contain predictive statements including,
without limitation, statements regarding the future financial and operating results,
future product portfolio, new technology, etc. There are a number of factors that
could cause actual results and developments to differ materially from those
expressed or implied in the predictive statements. Therefore, such information is
provided for reference purpose only and constitutes neither an offer nor an
acceptance. Huawei may change the information at any time without notice.
