HUAWEI®

Airbridge cBTS3612-800 12-carrier CDMA Base Station

User Manual

V100R001

Airbridge cBTS3612-800 12-carrier CDMA Base Station User Manual

Manual Version Product Version BOM 31013260

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service. Please feel free to contact our local office, customer care center or company headquarters.

T2-030160-20020720-C-1.20 V100R001

Huawei Technologies Co., Ltd.

Address: Huawei Customer Service Building, Kefa Road, Science-based Industrial Park, Shenzhen, P. R. China Postal Code: 518057 Website: http://www.huawei.com Phone: +86-755-26540036 Fax: +86-755-26540035 Email: support@huawei.com

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks

, HUAWEI®, C&C08, EAST8000, HONET, ViewPoint, INtess, ETS, DMC, SBS,

TELLIN, InfoLink, Netkey, Quidway, SYNLOCK, Radium, , M900/M1800, TELESIGHT, Quidview, NETENGINE, Musa, OptiX, Airbridge, Tellwin, Inmedia,

VRP, DOPRA, iTELLIN, C&C08 iNET, iBill and infox are trademarks of Huawei Technologies Co., Ltd.

Notice

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document don't constitute the warranty of any kind, express or implied.

Feedback Form

Huawei Technologies Co., Ltd. welcomes your feedback on this document. Your comments can be of great value in helping us improve our documentation. Please fax this form to

Information Development Department

Attn:

, or email to press@huawei.com.

Airbridge cBTS3612-800 12-carrier CDMA Base Station User Manual

Version: T2-030160-20020720-C-1.20

1. Please rate the effectiveness of this document by checking the appropriate columns:

Excellent Good Fair Poor

Ease of Use

Clarity

Completeness

Accuracy

+86-755-26540035

Organization

Illustrations

Appearance

Overall Satisfaction

2. Please check the ways you feel we could improve this document:

r Improve the organization r Add more details r Improve the table of contents r Make it more concise/brief r Include more figures r Make it less technical r Add more examples r Improve the index r Add more/better quick reference r Add more step-by-step procedures

Please provide details for the suggested improvement:

3. What did you like most about this document?

4. Feel free to write any comments below or on an attached sheet.

If we may contact you concerning your comments, please complete the following: Name: ________________Title:______________ Phone: _______________ Company: __________________________________ Email: _______________ Address: __________________________________ Date: _______________

About This Manual

Contents

The manual introduces the insulation methods and procedure of cBTS3612-800. It is divided into three modules:

l Module 1: System Description

1. System Overview 2 Hardware Architecture 3 Software Architecture 4 System Function 5 System Configuration Appendix A Technical Indices of Receiver and Transmitter Appendix B EMC Indices Appendix C Environment Indices Appendix D Standard Compliance Appendix E Abbreviation l Module 2: BTS Maintenance Sub Module 1 Routine Maintenance Instructions Sub Module 2 Common Fault Analysis and Locating Sub Module 3 Board and Part Replacement Sub Module 4 Board Indicators and DIP Switches

Target Readers

The manual is intended for the following readers:

l Engineers & technicians l Operation & maintenance personnel

Conventions

This document uses the following conventions:

I. General conventions

Convention Description

Arial Normal paragraphs are in Arial. Arial Narrow Warnings, cautions, notes and tips are in Arial Narrow.

Terminal Display

Terminal Display is in

via the terminal is in boldface.

Courier New

II. Command conventions

Convention Description

boldface font Command keywords (which must be input unchanged) are in boldface.

italic font Command arguments for which you supply values are in italics. [ ] Elements in square brackets [ ] are optional.

{ x | y | ... }

[ x | y | ... ]

{ x | y | ... } *

[ x | y | ... ] *

! A line starting with an exclamation mark is comments.

Alternative keywords are grouped in braces and separated by vertical bars. One is selected.

Optional alternative keywords are grouped in square brackets and separated by vertical bars. One (or none) is selected.

Alternative keywords are grouped in braces and separated by vertical bars. A minimum of one and maximum of all can be selected.

Optional alternative keywords are grouped in square brackets and separated by vertical bars. Many (or none) are selected.

; message input by the user

III. GUI conventions

Convention Description

< > Message entered via the terminal is within angle brackets. [ ] MMIs, menu items, data table and field names are inside square brackets [ ].

Multi-level menus are separated by forward slashes (/). Menu items are in boldface. For example, [File/Create/Folder].

IV. Keyboard operation

Format Description

<Key> Press the key with key name expressed with a pointed bracket, e.g.

<Key1+Key2> Press the keys concurrently; e.g. <Ctrl+Alt+A>means the three keys should

<Key1, Key2> Press the keys in turn, e.g. <Alt, A>means the two keys should be pressed

[Menu Option] The item with a square bracket indicates the menu option, e.g. [System]

[Menu1/Menu2/Menu3] Multi-level menu options, e.g. [System/Option/Color setup] on the main

<Enter>, <Tab>, <Backspace>, or<A>.

be pressed concurrently.

in turn.

option on the main menu. The item with a pointed bracket indicates the functional button option, e.g. <OK> button on some interface.

menu indicates [Color Setup] on the menu option of [Option], which is on the menu option of [System].

V. Mouse operation

Action Description

Click Press the left button or right button quickly (left button by default). Double Click Press the left button twice continuously and quickly. Drag Press and hold the left button and drag it to a certain position.

VI. Symbols

Eye-catching symbols are also used in this document to highlight the points worthy of special attention during the operation. They are defined as follows:

Caution, Warning, Danger: Means reader be extremely careful during the operation.

Note Comment, Tip, Knowhow, Thought

: Means a complementary description.

User Manual

Table of Contents

Airbridge cBTS3612-800 12-carrier CDMA Base Station

Table of Contents

2 Hardware Architecture ...............................................................................................................2-1

2.1 Overview ............................................................................................................................2-1

2.2 Baseband Subsystem........................................................................................................2-4

2.2.1 Overview..................................................................................................................2-4

2.2.2 Control & Clock Module (BCKM).............................................................................2-6

2.2.3 Control Interface Module (BCIM).............................................................................2-8

2.2.4 Channel Processing Module (BCPM) ......................................................................2-9

2.2.5 Resource Distribution Module (BRDM) .................................................................2-11

2.2.6 Baseband Backplane Module (CBKM)..................................................................2-13

2.2.7 E1 Surge Protector (BESP)...................................................................................2-14

2.2.8 Fan Module (BFAN)...............................................................................................2-16

2.3 RF Subsystem..................................................................................................................2-19

2.3.1 Overview................................................................................................................2-19

2.3.2 Transceiver Module (BTRM) .................................................................................2-20

2.3.3 High Power Amplifier Module (BHPA)...................................................................2-24

2.3.4 Transceiver Backplane Module (BTBM)................................................................2-26

2.3.5 Combining Duplexer Unit (CDU) ...........................................................................2-27

2.3.6 Duplexer Filter Unit (DFU).....................................................................................2-28

2.3.7 Receive LNA Distribution Unit (RLDU)..................................................................2-30

2.3.8 RF Fan Module (BRFM) ........................................................................................2-32

2.4 Antenna & Feeder Subsystem.........................................................................................2-35

2.4.1 Overview................................................................................................................2-35

2.4.2 RF Antenna & Feeder............................................................................................2-35

2.4.3 Dual-Satellite Synchronization Antenna & Feeder................................................2-37

2.5 Power Supply Subsystem................................................................................................2-39

2.5.1 Overview................................................................................................................2-39

2.5.2 General Structure ..................................................................................................2-40

2.5.3 Technical Indices...................................................................................................2-40

2.5.4 Power Supply Monitoring.......................................................................................2-43

2.5.5 BTS Direct Current Switchbox (BDCS) .................................................................2-43

2.6 Environment Monitoring ...................................................................................................2-43

2.6.1 Alarm Box Input.....................................................................................................2-44

2.6.2 Alarm Indicator.......................................................................................................2-44

2.6.3 Interface of Executive Mechanism.........................................................................2-45

2.6.4 Communication......................................................................................................2-45

2.7 Lightning Protection System ............................................................................................2-45

03Q-0110-20020720-120 i

User Manual

Table of Contents

Airbridge cBTS3612-800 12-carrier CDMA Base Station

2.7.1 Overview................................................................................................................2-45

2.7.2 Lightning Protection for DC ...................................................................................2-46

2.7.3 Lightning Protection for Trunk Line........................................................................2-47

2.7.4 Lightning Protection for Antenna & Feeder Port....................................................2-50

3 Software Architecture.................................................................................................................3-1

3.1 Overall Architecture............................................................................................................3-1

3.2 Module Description.............................................................................................................3-2

3.2.1 Main Control Software.............................................................................................3-2

3.2.2 O&M Software .........................................................................................................3-4

3.2.3 Clock Software.........................................................................................................3-5

3.2.4 BCIM Software.........................................................................................................3-6

3.2.5 BCPM Software.......................................................................................................3-7

3.2.6 BRDM Software.......................................................................................................3-8

3.2.7 BTRM Software .......................................................................................................3-8

4 System Function.........................................................................................................................4-1

4.1 Transmission Networking...................................................................................................4-1

4.2 Call Procedure....................................................................................................................4-2

4.2.1 Speech Service Call Procedure...............................................................................4-2

4.2.2 Data Service Call Procedure...................................................................................4-5

4.3 Signaling Processing..........................................................................................................4-8

4.4 Baseband Processing........................................................................................................4-9

4.5 RF Functions....................................................................................................................4-10

4.5.1 Power Control........................................................................................................4-10

4.5.2 Handoff ..................................................................................................................4-12

4.5.3 Flexible Configuration............................................................................................4-13

4.5.4 Radio Configuration and Channel Support............................................................4-13

4.5.5 Easy Installation, Operation and Maintenance......................................................4-17

4.5.6 Receive Diversity and Transmit Diversity ..............................................................4-17

4.5.7 Cell Breath.............................................................................................................4-18

4.6 Operation and Maintenance.............................................................................................4-18

4.6.1 Software Downloading...........................................................................................4-18

4.6.2 Interface Management...........................................................................................4-19

4.6.3 Test Management..................................................................................................4-19

4.6.4 Status Management...............................................................................................4-20

4.6.5 Event Reporting and Processing...........................................................................4-21

4.6.6 Equipment Management .......................................................................................4-22

4.6.7 Site Configuration..................................................................................................4-23

4.6.8 Operation Status Tracing.......................................................................................4-24

4.6.9 Other Functions.....................................................................................................4-24

5 System Configuration.................................................................................................................5-1

5.1 Configuration Overview......................................................................................................5-1

03Q-0110-20020720-120 ii

User Manual

Table of Contents

Airbridge cBTS3612-800 12-carrier CDMA Base Station

5.1.1 Basic/Extended Cabinet Configuration....................................................................5-1

5.1.2 Baseband Subrack Configuration............................................................................5-4

5.1.3 Power Supply Subrack Configuration......................................................................5-5

5.1.4 RF Part Configuration..............................................................................................5-6

5.1.5 Configuration of Antenna Parts ...............................................................................5-6

5.2 Typical Configurations........................................................................................................5-6

5.2.1 O(1) Configuration...................................................................................................5-7

5.2.2 S(1/1/1) Configuration..............................................................................................5-9

5.2.3 S(2/2/2) Configuration............................................................................................5-10

5.2.4 S(3/3/3) Configuration............................................................................................5-11

Appendix A Technical Performance of Receiver and Transmitter.......................................... A-1

A.1 Performance of Receiver.................................................................................................. A-1

A.1.1 Frequency Coverage.............................................................................................. A-1

A.1.2 Access Probe Acquisition....................................................................................... A-1

A.1.3 Reverse Traffic Channel (R-TCH) Demodulation Performance............................. A-1

A.1.4 Receiving Performance.......................................................................................... A-7

A.1.5 Limitations on Emissions........................................................................................ A-8

A.1.6 Received Signal Quality Indicator (RSQI) .............................................................. A-8

A.2 Performance of Transmitter.............................................................................................. A-9

A.2.1 Frequency Requirements.......................................................................................A-9

A.2.2 Modulation Requirements...................................................................................... A-9

A.2.3 RF Output Power Requirement............................................................................ A-10

A.2.4 Limitations on Emissions...................................................................................... A-10

Appendix B EMC Performance.................................................................................................... B-1

B.1 EMI Performance.............................................................................................................. B-1

B.2 EMS Performance............................................................................................................. B-1

Appendix C Environment Performance...................................................................................... C-1

C.1 Ambient Temperature and Humidity................................................................................. C-1

C.2 Cleanness ......................................................................................................................... C-1

C.3 Illumination........................................................................................................................C-2

C.4 Atmospheric Condition......................................................................................................C-2

Appendix D Electromagnetic Radiation......................................................................................... D-1

D.1 Introduction....................................................................................................................... D-1

D.2 Maximum Permissible Exposure (MPE)...........................................................................D-1

D.3 Calculation of the Safe Distance ...................................................................................... D-3

D.4 Prediction of the Exposure to Electromagnetic Fields...................................................... D-3

D.5 Calculation of the Safe Distance ...................................................................................... D-3

D.6 Location of Base station antennas ...................................................................................D-4

D.6.1 Exclusions Zones:..................................................................................................D-4

D.6.2 Guidelines on arranging antenna sites:................................................................. D-4

03Q-0110-20020720-120 iii

User Manual

Table of Contents

Airbridge cBTS3612-800 12-carrier CDMA Base Station

Appendix E Standard Compliance.............................................................................................. E-1

E.1 Um Interface ..................................................................................................................... E-1

E.2 Abis Interface.................................................................................................................... E-1

E.3 Lightning Protection.......................................................................................................... E-2

E.4 Safety................................................................................................................................E-2

Appendix F Abbreviation ..............................................................................................................F-1

03Q-0110-20020720-120 iv

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

1 System Overview

This chapter firstly presents an overview to the cBTS3612-800 base station system, then briefs the system features, technical index and external interfaces, followed by and introduction to the system reliability design in aspects of hardware and software. By reading this chapter, users can have a basic understanding of cBTS3612-800.

1.1 System Overview

The cdma2000 1X mobile communication system comprises the Base Station Subsystem (BSS) and the Core Network (CN). The BSS comprises the Base Transceiver Station (BTS), Base Station Controller (BSC) and Packet Control Function (PCF), while the CN comprises the packet domain network and circuit domain network. The equipment of packet domain inter-works with Internet, and that of the circuit field inter-works with the conventional PLMN and PSTN/ISDN. The system's operation and maintenance is implemented via the mobile integrated network management system (iManager M2000).

The position of BTS in CDMA system is as shown in Figure 1-2.

Mobile Network

Management System

SoftSite

MS: Mobile Station BTS: Base Transceiver Station BSC: Base Station Controller ISDN: Integrated Service Data Network PLMN: Public Land Mobile Network PSTN: Public Switched Telephone Network PCF: Packet Control Function Softsite: Soft Site BSS: Base Station Subsystem CN: Core Network Internet: Internet

BTS

SoftSite

BTS

SDH

BTS

Abis

BSC/PCF

A3/A7

BSC/PCF

A10/A11

A1/A2

Packet Domain

Network Equipment

A10/A11

A1/A2

Circuit Domain

Network

Equipment

Internet

PLMN

PSTN/ISDN

Figure 1-1 Network structure of cdma2000 1X mobile communication system

03Q-0110-20020720-120 1-1

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

cBTS3612-800 is located between the Base Station Controller (BSC) and the Mobile Station (MS) in the cdma2000 1X mobile communication system.

Under the control of the BSC, the cBTS3612-800 serves as the wireless transceiving equipment of one cell or multiple logical sectors. By connecting to BSC via the Abis interface, it assists the BSC with the radio resource management, radio parameter management and interface management. It also implements, via the Um interface, the radio transmission between the BTS and the MS as well as related control functions.

cBTS3612-800 cabinet is as shown in Figure 1-2.

Baseband subrack

Fan subrack

Power subrack

RF subrack

CDU/RLDU subrack

RF subrack

Figure 1-2 cBTS3612-800 cabinet

cBTS3612-800 has the following functions:

I. Interface function

Um interface supports cdma2000 1X. Its basic features meet the requirement of cdma2000 Release A. It is fully compatible with IS-95A/B. The physical layer supports a rate as high as 307.2kbit/s. It supports hard handoff, soft handoff and softer handoff. It also supports fast forward power control, slow forward power

03Q-0110-20020720-120 1-2

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

control, fast reverse power control and reverse open-loop power control. It further supports omni-cell, directional 3 sectors and 6 sectors configurations.

Abis interface supports E1/T1 trunk mode and optical fiber transmission mode (optical fiber transmission mode will be available in the coming version). E1/T1 trunk mode supports as many as 16xE1/T1 trunk lines and optical fiber transmission mode will support 2 pairs of STM-1 optical fibers. It also supports chain, star and tree networking modes.

II. Optional function

Support Orthogonal Transmit Diversity (OTD) and Space Time Spreading (STS).

l Support softsite(ODU3601C) extended afar via optical fiber.

III. Basic functions of operation and maintenance

l Software downloading

Abis interface management

l Air interface (Um) management

Test management

l Status management

Event report handling

Equipment management

l Site configuration management

BTS running tracing

l Telnet logon

1.2 System Features

cBTS3612-800 is a BTS of large capacity, high integration and low power consumption. One cabinet can accommodate as many as 12 sector carriers. It caters for the customer's needs in all aspects such as capacity, configuration, installation, power supply, transmission and service. It's a typical "All In One" BTS. Its features are highlighted as follows:

1.2.1 Advanced Technology and Excellent Performance

Advanced architecture, well-developed Huawei ATM platform and cell switching & broadband processing technology, providing standard interface, and open application.

Designed with the resource pool mode, which helps increase the availability of hardware resources and the system's fault-tolerance.

Equipped with the digital intermediate frequency technology to enhance the signal processing capability.

03Q-0110-20020720-120 1-3

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

Designed with the technology of diversity receiving and transmission to improve the radio signal transceiving performance.

Supporting remote installation of the softsite via optical fiber and able to realize flexible networking

Equipped with the blind mate technology on the radio frequency module for convenient maintenance.

Controlled with intelligent fans which prolongs the fan's service life and reduces its noise.

1.2.2 Protecting User Investment

The cBTS3612-800 is compatible with IS-95A/B. It can be added to on the existing IS-95 network, and through channel assignment, can support both IS-95 or cdma2000 1X equipment on the network, so no equipment modification is needed when upgrading the entire network.

The cBTS3612-800 features large-capacity design, modular structure and high integration. A single cabinet can accommodate up to 12 sector carriers. It also supports 36 sector carriers with three fully configured cabinets combined together.

Its baseband processing employs the resources pool design to reduce equipment redundancy and improve reliability.

Its Abis interface supports 16 E1s or 2 STM-1 optical interfaces (in the coming version), oriented to future high-speed data service.

Its excellent inheritance guarantees the original antenna and feeder equipment (including CDU, DFU, RLDU, antenna, feeder and the optional tower-top amplifier) can be fully used in the event of BTS expansion or upgrade.

1.2.3 Convenient Operation and Maintenance

Emergency serial ports are provided for the board and system operation to ensure the alarm information to be reported in the case of communication link fault so as to raise the effective and real-time level of maintenance.

Supporting the real-time status query, online board test and system fault locating as well as system restart.

Provided with a Telnet Server so that the user can log in to the BTS via the local Ethernet interface in the standard Telnet mode to performance O&M.

Supporting the Modem dial-up so that the remote O&M can be performed.

03Q-0110-20020720-120 1-4

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

All boards and modules support hot plug/unplug for the sake of ready maintenance, upgrade and expansion.

Blind mate of the radio frequency module guarantees that all operations can be done at the front side of the equipment. During expansion and configuration, wiring at the back need not be modified.

Its modularized structure reduces the internal connections and improves the reliability of the system, and thus makes the installation and maintenance easier.

In the case of whole BTS interruption due to power supply or transmission causes, the cBTS3612-800 system can restart automatically right after the faults are cleared.

1.2.4 Flexible Networking Mode

I. Suitable for networking of large capacity and broad coverage

A single cabinet supports as many as 12 sector carriers. 3 spliced cabinets provide a maximum capacity of 36 sector carriers.

Large capacity trunk. Abis interface of BTS can support as many as 16xE1 transmission. The coming version will support STM-1 optical transmission in ATM mode at Abis interface and provide two STM-1 ports for Abis interface trunk.

l Support multiple BTS configurations such as omni 4 carriers, 1%3, 2%3, 12%3,

6%6 (carrier%sector).

II. Support multiple BTS networking modes such as chain, star and tree

Refer to "4.1 Transmission Networking" for details.

III. Soft BTS networking (the SoftSite will be available in the coming version)

IV.

In this networking mode, the baseband adopts the centralized processing mode. The baseband signals and maintenance information are transferred through the fiber to the SoftSite (ODU3601C). The SoftSite can be applied indoors, outdoors or underground, and so on.

The SoftSite, small in size, is equipped with built-in power supply, temperature regulator and environment monitoring device. It can be used in severe environments, e.g. outdoors. The feeder loss of the SoftSite is trivial, making large coverage of macro cells possible.

SoftSites in the chain-networking mode are applicable to highways and subways. A maximum of 6 SoftSites can be connected in serial in one optical fiber.

03Q-0110-20020720-120 1-5

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

1.2.5 Advanced and Reliable Power Supply System

DC/DC power supply with -48V DC power input, +27V DC output. The whole power supply system is composed of 5 modules in full configuration, with automatic current equalization function, 4+1 backup, meeting the requirement of 8000W power supply.

Current equalization hot backup, centralized management, and decentralized power supply. It makes the power supply system safer and more reliable. It provides automatic alarming and reverse connection protection through monitoring interface to the power fan, input under-voltage, output over-voltage and overheat. This ensures the safety of the power system. Remote power on/off function provides unattended BTS operation and remote maintenance.

1.3 Technical Index

1.3.1 General index

I. Standard for structure design, physical appearance and dimension

1) Structure design complies with IEC297 standard and IEEE standard

2) Dimension of the cabinet

l Height: 1800mm

Width: 800mm

l Depth: 650mm

3) Package dimension of the cabinet should be not more than

l Height: 1900mm

Width: 900mm

Depth: 750mm

4) Physical appearance of PCB and the dimension for installation

Base band board dimension: 33.35mm (H)%460mm (D), 2.5mm thick

l Base band backplane dimension: 664.00mm (W)%262.00mm (H), 4.8mm thick

II. Input power

-48V DC: -40~-60VDC

III. Power consumption

The maximum power consumption of a single cabinet in full configuration is no more than 7000W.

03Q-0110-20020720-120 1-6

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

IV. Weight

The weight of a single cabinet in full configuration should not exceed 450kg. Weight bearing of the equipment room (battery weight not considered): 6kN/m2 Power consumption of a BTS with typical configuration and the weight of the cabinet:

BTS configuration Power consumption (W) Weight (kg)

S(1/1/1) <2000 351 S(2/2/2) <3500 388 S(4/4/4) <7000 500

V. Working frequency band

BTS working frequency band:

l BTS receiver (RX): 824 ~ 849MHz l BTS transmitter (TX): 869 ~ 894MHz

VI. Clock parameter

Frequency: 10MHz, precision must be within !0.5Hz before delivery. Temperature characteristics: <!0.2%10-7, one-hour test after heating up for 15 minutes Annual aging rate: <!0.5%10-9

VII. Receiver sensitivity

Better than-126dBm (tested according to TAI/EIA-97D)

VIII. Transmit power

The maximum power of each 1.23M carrier measured at the feeder port on the top of the BTS is 20W.

1.3.2 Radio Interface Index

BTS receiver and transmitter work in 824~849MHz band and 869~894MHz band respectively. The performance meets or exceeds the requirement specified in TIA/EIA IS-97-D Recommended Minimum Performance Specification for cdma2000 Spread Spectrum Base Station. Refer to "Appendix A Technical Performance of Receiver and Transmitter " for details.

03Q-0110-20020720-120 1-7

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

1.3.3 Environment Index

In terms of environment adaptability, cBTS3612-800 conforms with the following specifications:

IEC 60721-3 series, IEC 60068-2 and ETS 300 019-2 series. For details, please refer to Appendix C Environment Performance.

1.3.4 EMC Index

EMC specification of cBTS3612-800 conforms with ETSI EN 300 386 Electromagnetic compatibility and Radio spectrum Matters (ERM), Telecommunication network equipment, ElectroMagnetic Compatibility (EMC) requirements, which are world-adopted standards. For details, please refer to Appendix B EMC Performance.

1.3.5 Noise

In compliance with ETS 300 753 Noise Requirement for telecommunication equipment and base station environment, BTS is designed in compliance with the requirement of a dedicated telecommunication equipment room, where noise should be less than 72dB. Actually the equipment noise is less than 70dB.

1.3.6 Environmental Protection

BTS protects environment in stages of designing, manufacturing and running. Following environment friendly principles should be observed:

l Reduce power consumption of products whenever possible. l Compactness of products and energy saving in product transportation.

Recycle proposal attached to the product design.

l Materials used for the equipment do not produce hazardous gas (except CO and

HCl, which are inevitable). Do not use materials that may do harm to the environment (such as BeO, ream, mercury, cadmium and siloxane).

1.4 External Interface

1.4.1 Overview

The external interfaces of cBTS3612-800 are shown in Figure 1-3.

03Q-0110-20020720-120 1-8

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

Satellite

interface

Synchronization

interface

Ethernet interface

Figure 1-3 BTS external interface

l Um interface: interface with MS.

Abis interface: interface with BSC.

l OML interface: interface with the remote OMC. It shares the transmission

resources with Abis interface

LMF interface: interface with BTS local maintenance console.

l System synchronization interface: including GPS/GLONASS antenna interface

and system external synchronization interface. When GPS/GLONASS is not available and there is other clock synchronization equipment, the clock synchronization output of the equipment can be connected with the external synchronization interface of BTS system.

l BTS test interface: provide interface for BTS test, such as 10MHz, 2s signal.

Remote maintenance serial interface: another interface with remote console. This is a standby maintenance interface when the active maintenance link between OMC and BTS is interrupted.

l Environment alarm interface: interface with environment alarm collection box.

Test

equipment

Test

LMF

Environment

alarm box

Environment

alarm interface

BTS

Abis interface

Remote maintenance serial port

MODEM

OML interface

PSTN

BSC

OMC

1.4.2 Um Interface

I. Um interface overview

In Public Land Mobile Network (PLMN), MS is connected with the fixed part of the network through the radio channel, which enables the subscribers to be connected with the network and to attain communication service. To implement interconnection

03Q-0110-20020720-120 1-9

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

between MS and BSS, systematic rules and standards should be established for signal transmission on radio channels. The standard for regulating the radio channel signal transmission is called radio interface, or Um interface.

Um interface is the most important interface among the many interfaces of CDMA system. Firstly, standardized radio interface ensures that MSs of different manufacturers are fully compatible with different networks. This is one of the fundamental conditions for the roaming function of CDMA system. Secondly, radio interface defines the spectrum availability and capacity of CDMA system.

Um interface operates with the following features:

l Channels structure and access capacity.

Communication protocol between MS and BSS.

l Maintenance and operation features.

Performance features.

l Service features.

II. Um interface protocol mode

Um interface protocol stack can be in 3 layers, as shown in Figure 1-4.

Figure 1-4 Um interface layered structure

03Q-0110-20020720-120 1-10

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

l Layer 1 is the physical layer, i.e. the bottom layer. It includes various physical

channels, providing a basic radio channel for the transmission of higher layer information.

Layer 2 is the data link layer, including Medium Access Control (MAC) sublayer and Link Access Control (LAC) sublayer. The cdma2000 MAC sublayer performs the mapping between logic channels and physical channels, and providing RLP function. The cdma2000 LAC sublayer performs such functions as authentication, ARQ, addressing and packet organization.

Layer 3 is the top layer. It performs radio Resource Management (RM), Mobility Management (MM) and Connection Management (CM) through the air interface.

III. Physical layer

1) Working band Cellular band: Reverse (MS? BTS): 824 ~ 849MHz. Forward (BTS? MS): 869 ~ 894MHz. Duplex spacing: 25MHz. Channel bandwidth: 1.23MHz Carrier spacing: 1.25MHz

2) Physical layer function

l Service bearer: the physical channel in the physical layer provides a bearer for

the logic channel of the higher layer.

l Bit error check: the physical layer provides a transmission service with error

protection, including error checking and error correction.

l User identification: the physical layer provides an exclusive ID for every user by

code division.

3) Radio configuration The cdma2000 physical layer supports multiple Radio Configurations (RC). Different

RCs support different traffic channel data rates. For detailed introduction, please refer to Section 4.5.4 Radio Configuration and Channel Support.

IV. Data link layer

Data link layer at Um interface includes two sublayers: MAC and LAC. The purpose of introducing MAC and LAC is to:

l Support higher level services (signaling, voice, packet data and circuit data).

Support data services of multiple rates (from 1.2kbit/s to 2Mbit/s).

l Support packet data service and circuit data service of higher quality (QoS).

03Q-0110-20020720-120 1-11

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

l Support multi-media service, i.e. processing voices, packet data and circuit data

of different QoS levels at the same time.

1) MAC sublayer To support data service and multi-media service, cdma2000 1x provides powerful

MAC layer to ensure the reliability of services. MAC layer provides two important functions:

l Provide radio link protocol (RLP), ensuring reliable transmission on the radio link.

Provide multiplex function and QoS function, with diversified services and higher service quality.

2) LAC sublayer LAC layer performs such functions as ARQ (Automatic Repeat Request),

authentication and addressing.

V. Layer 3

The higher layer signaling performs the functions such as radio resource management, mobility management and call control management of air interface.

1) Radio resource management It is mainly used to create, operate and release radio channels, performing functions

such as soft switching, softer switching and hard switching.

2) Mobility management It is mainly used to support the mobility features of the mobile user, performing such

functions as registration, authentication and TMSI re-distribution.

3) Call control It is mainly used to create, maintain and terminate calls in circuit switching mode.

VI. Power control

Um interface utilizes power control technology to reduce the system interference and improve the system capacity. There are forward power control and reverse power control.

1) Forward power control supports closed-loop power control Forward closed-loop power control means that MS checks the quality of received

frames and received power, makes judgment and sends request to BTS for controlling BTS transmitting power. Then BTS adjusts its transmitting power according to the request. Power control command is sent at a rate of 50bit/s or 800bit/s.

03Q-0110-20020720-120 1-12

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

Forward power control includes power control based on power measurement report, control based on EIB, and quick forward power control.

2) Reverse power control includes open-loop power control and closed-loop power control.

l Reverse open-loop power control means that MS adjusts its transmitting power

as the receiving power changes.

l Reverse closed-loop power control means that BTS compares the received MS

transmitting power with the preset power control threshold and sends power control command based on the comparison. MS changes its transmitting power as required by the received power control command. Power control commands are transmitted on F-TCH at a rate of 800bit/s.

For more information about power control, please refer to Section 4.5.1 Power Control.

VII. Handoff

Um interface can utilize many handoff technologies. It supports three types of handoff in traffic channel communication:

1) Hard handoff: MS interrupts the connection with the old BTS before creating connection with a new BTS.

2) Soft handoff: MS creates connection with a new BTS while maintaining the connection with the existing one.

3) Softer handoff: soft handoff that occurs in different sectors of the same BTS. Soft handoff technology can improve the rate of handoff success, reduce dropouts

and effectively improve the system performance. For more information, please refer to Section 4.5.2 Handoff.

1.4.3 Abis Interface

I. Abis interface overview

Abis interface is defined as the interface between BSC and BTS, the two functional entities in the base station subsystem (BSS). It is the interface for BTS accessing BSC via the terrestrial link.

03Q-0110-20020720-120 1-13

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

1) Composition of Abis interface Abis interface consists of three parts: Abis service, Abis signaling and OML signaling,

as shown in Figure 1-5. Abis service is the interface connecting SDU of BSC and the channel unit of BTS. It is

used to bear user service. Abis signaling is the signaling transmission channel between BSC and BTS. It is used

to control the cell setup, transmission of messages in paging channels and access channels and call setup & release.

OML signaling is used to perform operation and maintenance. It is a customized signaling by equipment manufacturers. In Abis interface, there is a transparent channel, used to transmit customized signaling OML between OMC and OMU on BTS.

SPU

Abis Interface

OML

Abis Traffic

Abis Signaling

CEs BTS

OMU

SPU£ºSignaling Process Unit SDU£ºSelection/Distribution Unit

MC£º Main Control

Figure 1-5 Composition of Abis interface

2) Protocol stack of Abis interface

BSC

SDU

Abis Signaling

Abis Traffic

OML

CEs

OMU

CEs£º Channel Elements OMU£ºOperation & Maintenace Unit

BTS

The protocol stacks used by Abis signaling and the signaling performing operation & maintenance are as follows:

Abis Signaling Application/OAM Application

TCP

AAL5

ATM

03Q-0110-20020720-120 1-14

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

Physical Layer

Protocol stacks used by Abis service are as follows:

Abis Traffic

SSSAR

AAL2

ATM

Physical Layer

II. Physical layer of Abis interface

The physical layer of Abis interface can use E1/T1 interface or STM-1 interface. With E1/T1 interface used, its physical electric parameters comply with CCITT G.703

recommendations. The multiple E1/T1 trunk lines transmit ATM cells by means of inverse multiplexing on ATM (IMA).

III. Data link layer of Abis interface

ATM is used in the data link layer of Abis interface. Signaling matches with AAL5 and is borne in IPOA (IP Over ATM) mode. At Abis

interface, Abis signaling path connects the main control software (MC) and SPU of BSC via PVC to transmit Abis signaling. So it is with the transmission path of signaling that performs operation & maintenance. It also uses PVC to connect OMU of BTS and BSC, which will transmit it to OMC transparently. BSC does not process any signaling that performs operation and maintenance.

Abis service adapts itself through AAL2. At Abis interface, BCPM uses several PVCs to connect the channel unit of BTS and SDU of BSC, for BTS to transmit the uplink data received from the air interface to BSC, and for BSC to transmit the downlink data to be transmitted via the air interface to BTS.

IV. The Layer 3 of Abis interface--service management.

At Abis interface, Abis signaling and Abis service are in the domain of service management. Specifically, Abis service management includes the following functions:

1) BTS logic operation & maintenance function

l Resource status indication: with this function, BTS requests logic configuration

from BSC, reports logic status to BSC and checks logic resource regularly.

Cell configuration function: with this function, BSC configures logic parameters of cells to BTS, specifically including cell pilot channel PN offset, sector gain, public channel number and parameter.

03Q-0110-20020720-120 1-15

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

l General message updating: with this function, BSC configures or update general

message to BTS.

l Cell breath control function.

Cell blocking function.

l Radio measurement report function.

2) Common channel management procedure Paging channel management procedure: it is used to transmit paging channel

messages that BSC send to MSs through Abis interface. Access channel management procedure: it is used to transmit access channel

messages that are received on the access channel of BTS to BSC through Abis interface.

3) Procedure of dedicated channel creation and release It is used to control the setup and release of air dedicated radio channel and Abis

interface terrestrial channel. Abis interface supports the setup and release of various dedicated channels specified

in IS95A/B and cdma2000 1x, specifically including IS95-FCH, IS95-SCCH, IS2000-FCH, IS2000-DCCH and IS2000-SCH.

Each radio channel is allocated with one AAL2 link on Abis interface to bear user service data.

Caution:

Softer handoff is only allocated with one AAL2 link on Abis interface.

4) Service bearing procedure BTS needs to process Abis interface frame protocol, to transmit the data received

from the reverse traffic channel at the air interface to BSC and the data that BSC sends through the forward traffic channel at the air interface.

Traffic channel bearing procedure also performs functions such as AAL2 service matching, time adjustment of service data frame, reverse external loop power control adjustment and forward power control adjustment.

5) Power control Abis interface supports various power controls of CDMA. Power control is performed

through setting parameters. Power control falls into 4 types: forward fast closed-loop

03Q-0110-20020720-120 1-16

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

power control, forward slow closed-loop power control, reverse fast closed-loop power control and reverse open-loop power control.

1.4.4 OML Interface

OML interface is the interface between BTS and remote OMC. It is actually one of Abis interface applications. But in the application layer, OML interface is the interface between BTS and the remote OMC. OML interface shares resources of Abis interface, including physical layer, ATM, AAL5 and TCP/IP. Refer to Abis interface.

OML interface is used for OMC to perform operation and maintenance to BTS. It is a signaling defined by various manufacturers. On Abis interface, it is a transparent path.

1.4.5 LMF Interface

LMF interface is the interface between BTS and local maintenance function (LMF). Its interface protocol stack is shown as below:

LMF Signaling Application (self-defined)

TCP

Data Link Layer

Physical Layer (10/100 Base-T)

1.4.6 System Synchronization Interface

System synchronization interface includes GPS/GLONASS antenna interface and system external synchronization interface.

1) GPS/GLONASS antenna interface: GPS is in compliance with ICD200c: IRN-200C-001-IRN-200C-004: Interface Control Document of GPS. GLONASS is in compliance with GPS/GLONASS Receiver Interface Language (GRIL).

2) System external synchronization interface: the external synchronization interface without GSP/GLONASS is in compliance with the requirement of Technical

Specifications of Interface Between GPS/GLONASS Dual-Mode Receiver and Base Station in CDMA Digital Cellular Mobile Communication Network.

1.4.7 BTS Test Interface

BTS test interface provides 10MHz and 2s signals that may be necessary for testers.

03Q-0110-20020720-120 1-17

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

1.4.8 Remote Maintenance Serial Port

Remote maintenance serial port is an RS-232 serial port, connected with PSTN via an external Modem. It is used for emergence maintenance by dial-up with a modem when OML between OMC and BTS is interrupted.

1.4.9 Environment Alarm Interface

Environment alarm interface is an RS-485 serial port, connected with the external environment alarm collection box, performing a centralized monitoring to the environment. A communication protocol defined by manufacturer is used between BTS and the environment alarm collection box. Therefore, BTS must support an environment alarm collection box of the matched type.

1.5 Reliability Design

Reliability design of a system is shown in the stability and reliability of the product running.

Huawei cBTS3612-800 is designed based on reference to the following standards:

YD/T 1029-1999 800MHz General Technical Specifications of CDMA Digital Cellular Mobile Communication Network Equipment

YD/T 1030-1999 800MHz Technical Requirement for Interface of CDMA Digital Cellular Mobile Communication Network

l TIA/EIA/IS-97D Minimum Performance Standard of CDMA Base Station

Huawei product reliability design index and related technical specifications

The design of all boards is in strict accordance with the requirement of above standards pertaining to reliability design. Many measures have been taken to ensure the reliability of boards. In addition, some key parts of the system are designed with redundancy (such as active/standby mode and resource pool) to improve the reliability of the system.

The reliability model of the system is as shown in Figure 1-6.

03Q-0110-20020720-120 1-18

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

BRDM

CDU

GPWS

BCIM

GPWS

BCIM

BTRM

Standby

BCKM

Active BCKM

BHPA

BCPM

RLDU

BCIM: BTS control interface module BCKM: BTS control & clock module BCPM: BTS channel processing module BRDM: BTS resource distribution module BTRM: BTS transceiver module BHPA: BTS high power amplifier unit RLDU: Receive LNA distribution unit CDU: Combining duplexer unit

Figure 1-6 BTS reliability model

System reliability index:

MTBF: 100000 hours MTTR: 1 hour A : 99.999%

Note:

Reliability refers to the product capability of performing specified functions in the specified conditions and specified time. There are 3 main index to describe the reliablity of a system: MTBF: Mean Time Between Failures, normally applicable to recoverable systems. MTTR: Mean Time To Repair, inlcuding the time of fault checking, isolation, unit replacement and recovery. A: Availability, a comprehensive index to measure the system availability.

1.5.1 Hardware Reliability Design

cBTS3612-800 is designed with substantial hardware reliability, such as board active/standby mode, load sharing and redundancy configuration. In addition, system maintainability is improved with fault checking and isolation technology on the board and system. In respect of hardware reliability, the following considerations have been taken:

03Q-0110-20020720-120 1-19

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

I. De-rating design

To improve system reliability and prolong the service life of components, components are carefully selected and strictly tested, and less stress (electrical stress and temperature stress) is to be borne than its designed rating.

II. Redundancy design

Redundant configuration of key units is applied in the BTS system. The system or equipment will not fail unless the specified sets of units fail. In the BTS system common measures such as active/standby and load-sharing modes are adopted, e.g. for BCIM, BCPM and BCKM.

III. Selection and control of components

The category, specifications and manufacturers of the components are carefully selected and reviewed according to the requirements of the product reliability and maintainability. The replaceability and normalization of components is one of the main factors for the decision, which help to reduce the types of components used and hence improve the availability of the system.

IV. Board level reliability design

Many measures have been taken to improve the board reliability. Moreover, the system reliability is improved through the redundancy design of key parts.

l Key circuits are designed by Huawei, which lays the foundation of high reliability.

The hardware WATCHDOG is equipped for the board, and the board can automatically reset in case of fault.

l The board is provided with the functions of over-current and over-voltage

protection and the function of temperature detection.

l The board also provides emergency serial port, and can keep contact with the

main control board in case of emergency.

l Strict thermal analysis and simulation tests are conducted during the design of

boards for the purpose of ensuring longtime operation.

The board software and important data is stored in the non-volatile memory of the boards, so that the board can be restarted when the software upgrading fails.

V. Overvoltage and overcurrent protection

The BTS system provides various means of over-voltage and over-current protection.

Over-voltage and over-current hardware protection is provided for the DC/DC power supply module.

03Q-0110-20020720-120 1-20

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

l For secondary power supply to boards, slow-start measures is taken to prevent

the great impact on the whole power supply load when the boards are powered on. Fuse is installed for each board against over-current.

For E1 interface circuit, serial-port circuit and network interface circuit, protection measures are taken in accordance with the corresponding design specifications of Huawei.

VI. Power supply reliability

The reliability of power supply is improved by means of over-current and over-voltage protection, internal temperature adjustment, and redundancy backup.

VII. Fault detection, location and removal

The BTS system is equipped with the functions of self-detection and fault diagnosis that can record and output various faults. The common software and hardware faults can be corrected automatically.

The hardware fault detection functions include fault locating, isolating and automatic switchover. The maintenance engineers can identify the faulty boards easily with the help of the maintenance console.

When faults occur to software, certain automatic error-correction function like will be executed, including restarting and reloading.

The BTS system also provides manual and automatic re-initialization of different levels, and supports the reloading of configuration data files and board execution programs.

VIII. Fault tolerance

When faults occur, the line usually will not be blocked, as the BTS system provides the E1 connection in conformity with the IMA protocol, and has certain line backup capabilities.

The boards of important devices in the system have been backed up, ensuring that the BTS system can switch the service from the faulty board to a normal board, or perform reconfiguration of the system.

The system will make a final confirmation on a hardware fault through repeated detection, thus avoiding the system reconfiguration of QoS deterioration due to contingent faults.

IX. Thermal design

The influence of temperature on the BTS system has been considered in the design of the system. Thermal design primarily concerns the selection of components, circuit

03Q-0110-20020720-120 1-21

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

design (including error tolerance, drift design and derating design), structure design and heat dissipation, so that the BTS system can work reliably in a wide range of temperatures.

The first consideration in thermal design is to balance the heat distribution of the system. Corresponding measures are taken in the place where heat is more likely to be accumulated.

X. Maintainability

The purpose of maintainability design is to define the workload and nature of the maintenance, so as to cut the maintenance time. The main approaches adopted include standardization, modularization, error prevention, and testability improvement which can simplify the product maintenance work.

XI. EMC design

The design should ensure that cBTS3612-800 would not degrade to an unacceptable level due to the electromagnetic interference from other equipment in the same electromagnetic environment. At the same time, cBTS3612-800 will not cause other equipment in the same electromagnetic environment to degrade to an unacceptable level due to the EMI from it.

XII. Electromagnetic compatibility

Proper measures are applied to ensure that the BTS system performance will not be degraded due to the electromagnetic interference from other devices in the same electromagnetic environment, nor will other devices or systems in the same environment be degraded by the BTS system.

1.5.2 Software Reliability Measures

Software reliability mainly includes protection performance and fault tolerance capability.

I. Protection performance

The key to improve software reliability is to reduce software defects. BTS ensures the software reliability in the whole process from system requirement analysis, system design to system test.

Starting from the requirement analysis, software development process is going under regulations such as CMM (Capability Mature Mode) and controlling faults in the initial stage.

03Q-0110-20020720-120 1-22

User Manual

System Overview

Airbridge cBTS3612-800 12-carrier CDMA Base Station 1

In software design, much attention is devoted to the designing method and implementation: the software is designed in a modular structure, and in a loose coupling mechanism. When a fault occurs to one module, other modules will not be affected. In addition, measures of precaution such as fault checking, isolating and clearing are also important in improving the system reliability. Other effective methods include code scanning, inspection, and sectional test.

Various software tests are necessary to improve the software reliability. Test staff are engaged in the whole software develop process, from unit test to system test. They make plans strictly compliant with the demand of the upper level flow. plans ensure the improvement of software reliability. Additionally, test plans are improved with the tests and become more and more applicable.

II. Fault tolerance capability

Fault tolerance capability of the software system means that the whole system would not collapse when a minor software fault occurs, i.e. the system has the self-healing capability. The fault tolerance of software is shown in the following aspects:

l All boards work in a real-time operating system of high reliability.

Important data on BCKM are real-time backed up in active/standby mode. Operation is switched to the standby board when a fault occurs.

l When a fault occurs to some transmission links, services borne on them can be

transferred to other links smoothly.

l Each board's software saved on the board has a static backup on BCKM.

If software loading fails, the system can return to the version that was loaded successfully last time.

l Important operations are recorded in log files.

Different authority levels are provided for operations, to prevent users from performing unauthorized operations.

Prompts are given for the operations that will cause system reboot such as reset operation, which requests the operator to confirm it before executing such operation.

03Q-0110-20020720-120 1-23

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2 Hardware Architecture

The beginning of this chapter is a briefing of cBTS3612-800 hardware architecture, followed by the details of four subsystems: baseband, RF, antenna & feeder and power supply system. This chapter also covers BTS environment monitoring and lightning protection systems.

2.1 Overview

In cdma2000 1X mobile communication system, BTS functions as a radio relay. One end is connected with MS through Um interface and the other end connected with BSC through Abis interface.

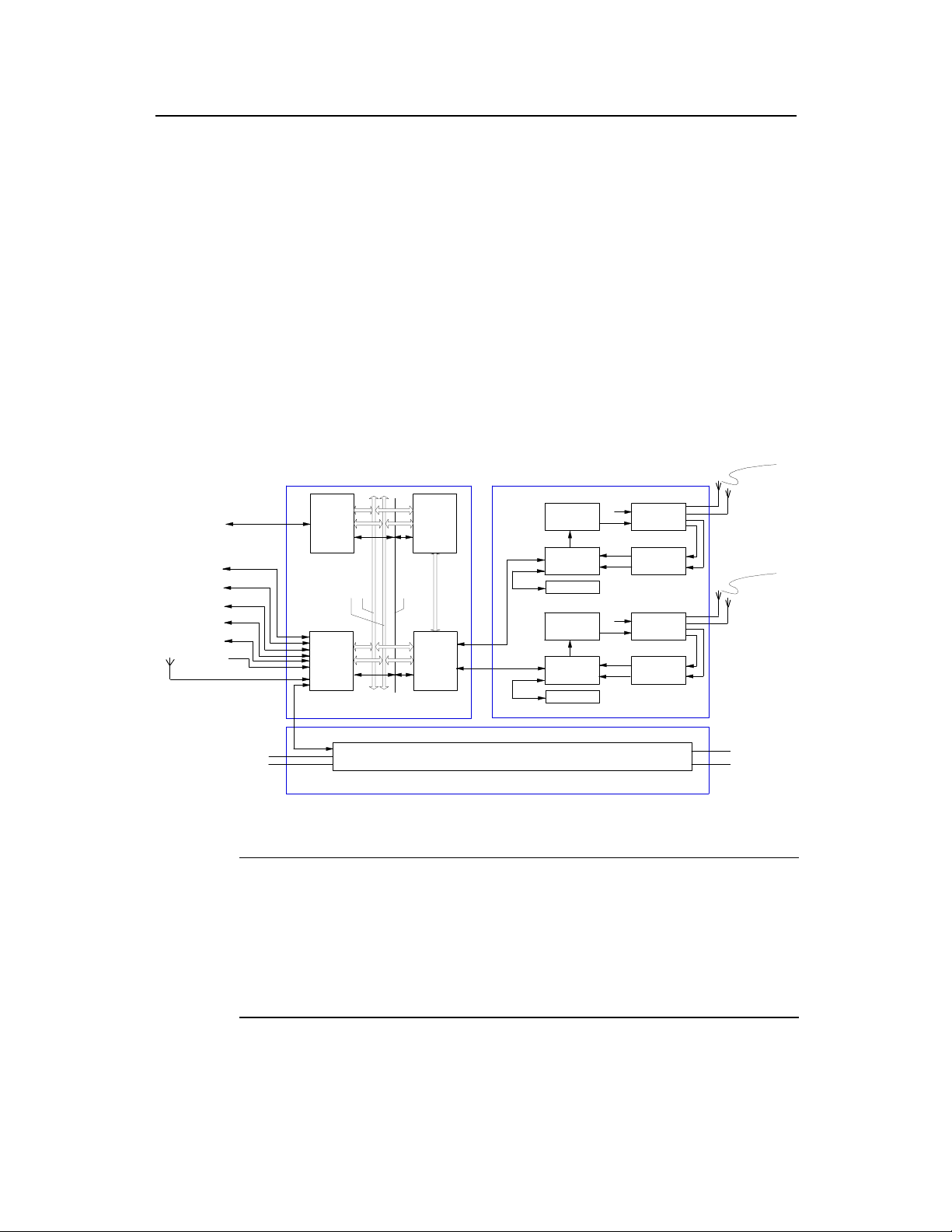

The block diagram of BTS is as shown in Figure 2-1.

2 Hardware

Um interface

Abis interface

BSC

Test interface

Test

equipment

RS232

Modem

Ethernet port

LMF

RS485

BFMM

Environment alarm

GPS/GLONASS receive antenna

collection

External

synchronization

RS485

-48VDC

RS485

GND

Figure 2-1 BTS block diagram

Note:

In Figure 2-1, DFU can be used to replace CDU or used together with CDU. The difference between CDU and DFU is as below: CDU: Combining and filterring of two transmitting carriers, main transmitting and receiving signals duplexing and isolating, and diversity receiving signal filtering. DFU: Transmitting and receiving signal duplexing, isolating and filtering of one channel, diversity receiving signal filtering.

BCIM

BCKM

Backplane

Clock bus

bus

Baseband

subsystem

Emergency

serial port

BCPM

High-speed data bus

BRDM

...

Optical fiber

RS485

Optical fiber

RS485

POWER

Power supply

subsystem

BHPA

BTRM

BBFM

BHPA

BHPA CDU

BTRM

BBFM

RLDU

RF subsystem

CDU

RLDU

RF receive/ transmit antenna

Um interface

RF receive/ transmit antenna

+27VDC

GND

BTS is mainly composed of baseband subsystem, RF subsystem, antenna & feeder subsystem (which comprises RF receive/transmit antenna and GPS/GLONASS receive antenna) and power supply subsystem. Baseband subsystem in physical

03Q-0110-20020720-120 2-1

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

structure also carries a clock synchronization unit, receiving GPS/GLONASS clock and providing system time, synchronous clock and frequency reference.

I. Baseband subsystem

The main functions of baseband subsystem are: processing Abis interface protocol, modulating/demodulating baseband data, channel encoding/decoding, processing protocols of physical layer and MAC layer through air interface, system operation/maintenance and connecting baseband data optical interface of RF module.

Baseband subsystem is located in the BTS baseband subrack. It consists of BTS Control & Clock Module (BCKM), BTS Resource Distribution Module (BRDM), BTS Channel Processing Module (BCPM), BTS Control Interface Module (BCIM) and CDMA Baseband Backplane Module (CBKM). Functions of all boards are highlighted as follows:

1) BCKM At most 2 BCKMs are configured, as hot mutual backup. BCKM receives GPS signals

(or other synchronized satellite signals), generates local clock and provides time signals 16%1.2288MHz, 10MHz, PP2S for the boards in the system. This is mainly the responsibility of the clock module of BCKM. Besides clock signal, BCKM also provides main control function for channel resources. Its MPU module performs a number of operations and functions such as resource management, equipment management, performance monitoring, configuration management, software downloading, MPU active/standby switching over, operation & maintenance (O&M) and environment monitoring interface, as well as board control inside the system.

2 Hardware

2) BRDM BRDM is logically located between BTRM and BCPM. The data sent by BTRM

module are sent to BRDM via the optical fiber. Then BRDM distributes and pastes the data before sending them to BCPMs via the high-speed data bus. BRDM can also build daisy chains for BCPMs. The resource management mode of BRDM daisy chain makes BCPM provide shorter daisy chains (short daisy chain hereinafter). After pasting at BRDM, a standard daisy chain is formed, which helps to improve the utilization ratio of channel resource and facilitates the flexible configuration of channel capacity for each sector carrier. BRDM interacts O&M information with BCKM through the backplane bus. The emergency serial port of BRDM is attached to the UART of the backplane as a standby node.

3) BCPM BCPM processes BTS baseband signals, both for the forward service and reverse

service. For forward service, it performs functions such as encoding (convolutional code, TURBO code), interleave, spectrum spreading, modulation and data multiplexing. For reverse service, it performs functions such as demultiplexing, demodulation, de-interleave and decoding (convolutional code, TURBO code). Regarding the user data flow, BCPM is between BRDM and BCIM.

4) BCIM BCIM performs data transmission between BTS and BSC of the BSS, including

voices, data and O&M commands. With the Inverse Multiplexing on ATM (IMA) technology, BCIM multiplexes the BTS uplink data to IMA group that is composed of multiple E1s, and then transmits it to BSC via coaxial or optical fiber. Inversely, it can also demultiplex the IMA group from BSC into an ATM cell flow and transmit it to BTS boards via the backplane bus.

5) CBKM

03Q-0110-20020720-120 2-2

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

CBKM performs interconnection of high-speed data links between boards in the baseband part and the interconnection of various management and control signals of boards.

II. RF subsystem

BTS RF subsystem is composed of five parts: BTS transceiver module (BTRM), BTS High Power Amplifier Module (BHPA), BTS Transceiver Backplane Module (BTBM), Combining Duplexer Unit (CDU), Duplexer Filter Unit (DFU) and Receive LNA Distribution Unit (RLDU). Functions of all parts are briefed as follows:

1) BTRM BTRM consists of BTS Intermediate Frequency Module (BIFM), BTS Intermediate

Frequency Control Module (BICM) and BTS Radio frequency up/down-conversion Module (BRCM). Its functions are as follows:

BIFM: BIFM performs such functions as A/D conversion in the reverse receiving path and D/A conversion in the forward transmitting path, digital frequency up-down-conversion, received filtering, baseband molded filtering, Digit Automatic Gain Control (DAGC), uplink & downlink RF automatic gain control (AGC), multiplexing/demultiplexing to forward & reverse orthogonal (IQ) signals, clock recovery and RF module operation & maintenance.

BICM is a small plate mounted on the BIFM. It performs the control over BTRM, including power-on initialization, function configuration, alarm collection and reporting, and processing of O&M related messages.

2 Hardware

BRCM: BRCM is composed of 5 logic functional units: main/diversity transmit unit, main/diversity receive unit and frequency source unit.

Main/diversity transmit unit realizes analog up-conversion and spurious suppressed filtering regarding each carrier BTS main/diversity transmitted signal output by BIFM.

Main/diversity receive unit realizes analog frequency down-conversion, channel selective filtering and receive nose coefficient control regarding BTS main/diversity received signals output by RF receive front RLDU.

l Frequency source unit combines the low phase noise, high stability local

oscillation signals that are necessary for the analog frequency conversion in transmit and receive paths.

2) BHPA BHPA performs high power linear amplification to a transmitted carrier signal, checks

its own working status in real time mode and generates alarm. It is composed of main signal power amplification unit and signal checking alarm unit. Signal checking and alarming is to check whether the input is too excited, whether the temperature is too high or whether the gain is lowered strikingly (device failure).

3) BTBM BTBM performs structure support and signal interconnection between BTRM and

BHPA.

4) CDU Combining and filterring of two transmitting carriers, main transmitting and receiving

signals duplexing and isolating, and diversity receiving signal filtering.

5) DFU

03Q-0110-20020720-120 2-3

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Transmitting and receiving signal duplexing, isolating and filtering of one channel, diversity receiving signal filtering.

6) RLDU RLDU performs low noise amplification and division to the receiving signals, providing

standing wave alarm and forward power checking voltage output, checking the physical connection status of the antenna port in real time mode and monitoring whether the output of BRCM, BHPA signals is normal.

III. Antenna & feeder subsystem

BTS antenna & feeder subsystem includes two parts: RF antenna & feeder and dual-satellite synchronization antenna & feeder. The former mainly transmits the modulated RF signals and receives MS information while the latter provides precise synchronization for CDMA system.

IV. Power supply subsystem

Power supply subsystem consists of power input component (EMI filter, lightning arrester of power), high power DC/DC power supply module , power distribution box, medium/low power DC/DC power supply module for boards (or modules).

2 Hardware

In BTS equipment, the power supply subsystem provides all power for the BTS.

2.2 Baseband Subsystem

2.2.1 Overview

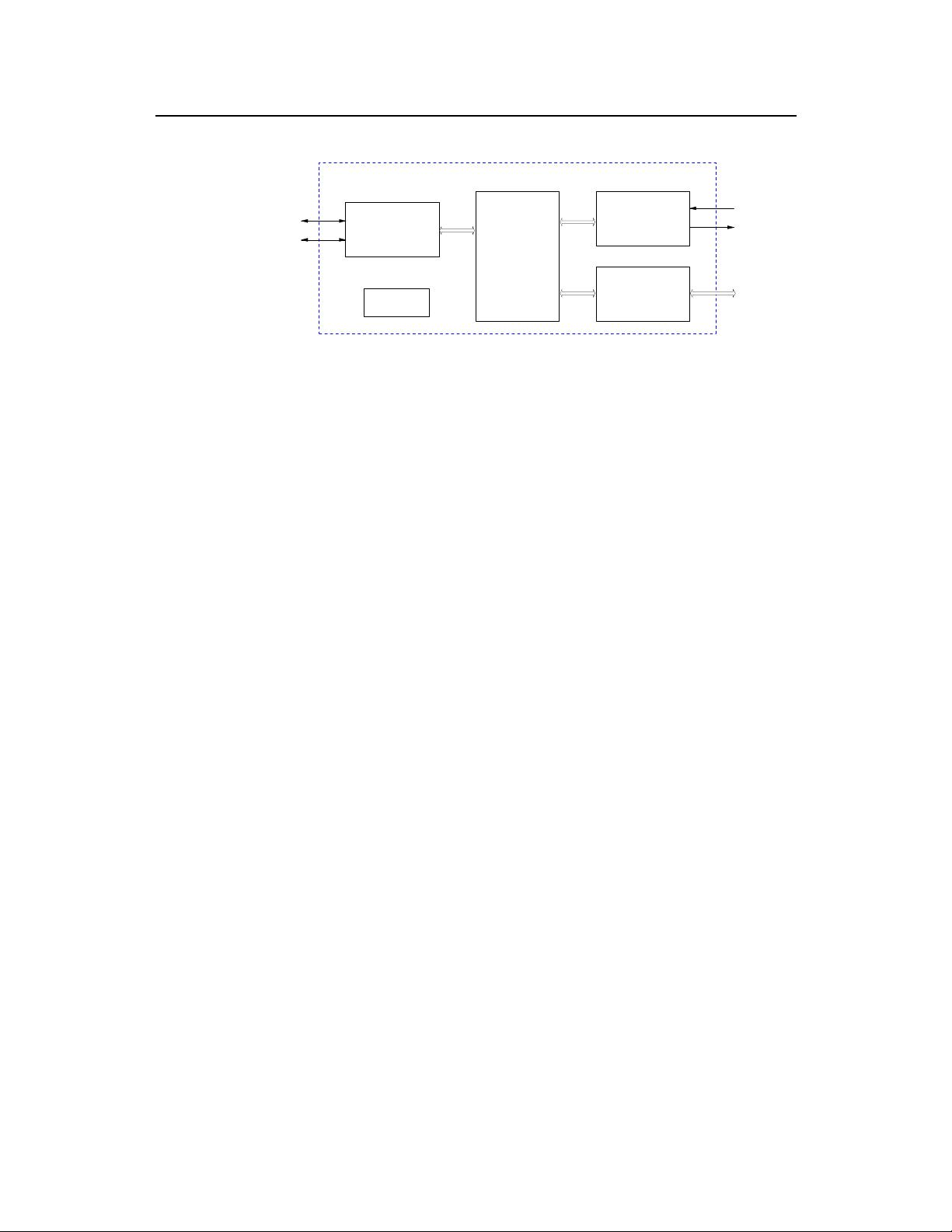

The baseband subsystem is one of the major parts of BTS. Its block diagram is as shown in Figure 2-2.

BSC

BCIM

BCPM

Emergency serial port

Clock bus

Backplane bus

High-speed

data bus

BCKM

BRDM

...

Optical fiber

Other functional

units

BTRM

Figure 2-2 Block diagram of baseband subsystem

03Q-0110-20020720-120 2-4

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Baseband subsystem is connected with BSC through Abis interface provided by BCIM. The transmission in this subsystem is performed through E1 trunk (The coming version will provide STM-1 optical transmission). BRDM and BTRM are connected through an optical fiber to support RF module extended afar mode.

Baseband subsystem also provides some other interfaces through BCKM:

LMF interface: 10/100 Base-T interface, connecting Local Maintenance Function (LMF).

l Remote maintenance serial port: The interface is an RS232 serial port,

connected with PSTN via an external Modem. When OML between OMC and BTS is interrupted, maintenance can be performed through telephone line dial-up connection.

l GPS/GLONASS antenna interface: It is used to receive clock signal from

GPS/GLONASS.

System external synchronization interface: When GPS/GLONASS is not available, it makes the system clock synchronous to an external clock.

Fan module interface: It is connected with fan module through RS485 serial port, monitoring the module.

Environment alarm interface: It is connected with an external environment alarm collection box, providing environment monitoring alarm information of the equipment and monitoring information of the primary power supply.

Power monitoring interface: It is connected with power supply module, reporting various alarm information of the power supply.

Test interface: It provides interface for BTS test, such as 10MHz, 2s signals.

Baseband subsystem is physically located in the baseband subrack, powered by power supply subsystem (power supply subsystem is in the power subrack). Boards generate their own 3.3V, 1.8V power through the distributed power supply module.

2 Hardware

The configuration of baseband subrack (including board position) is as shown in Figure 2-3.

C I

I M

10 11 12 13 14 15 16 17 18 19 20 219

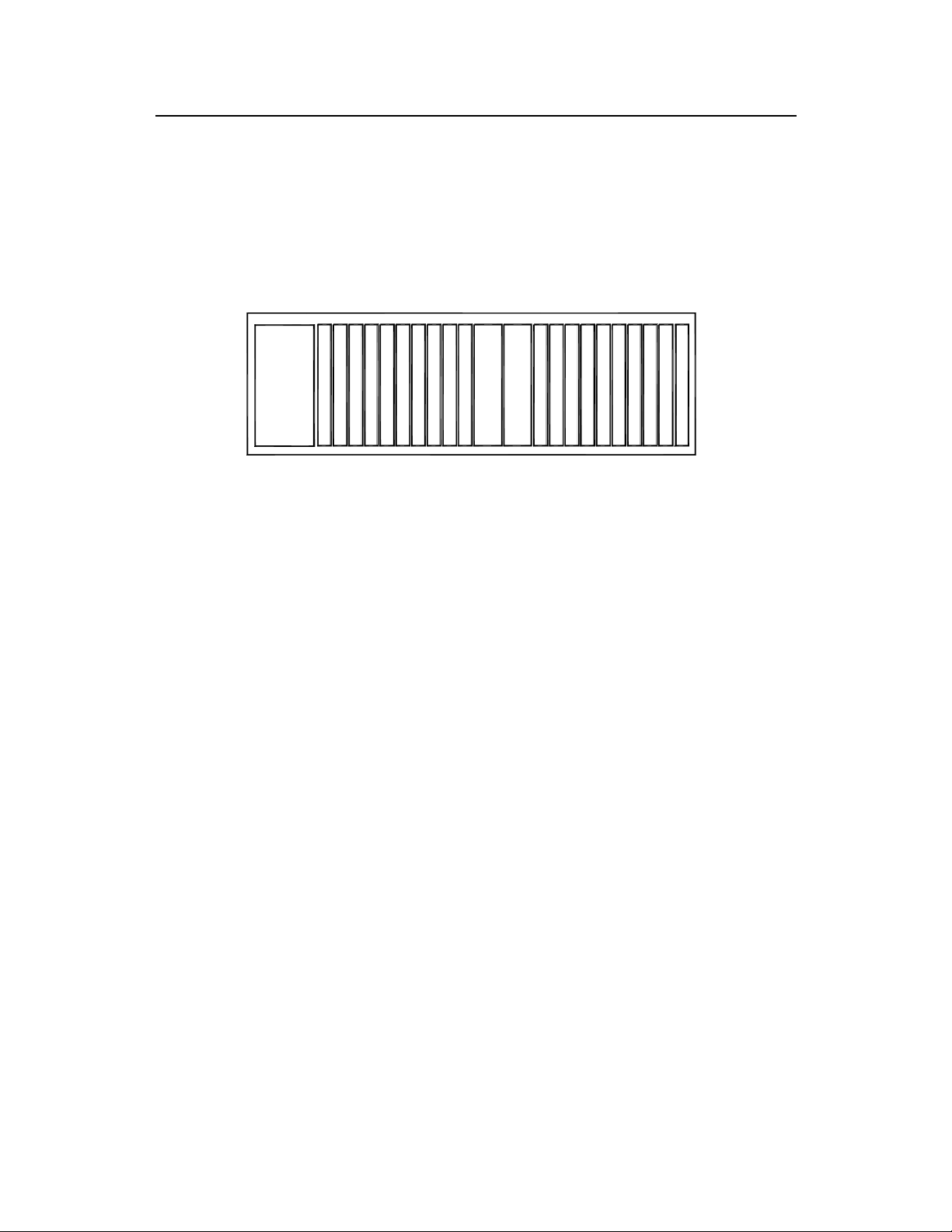

Figure 2-3 Baseband subrack configuration

Baseband subrack supports the following boards:

BCIM: BTS control interface module, to be inserted in E1 interface slot, providing Abis interface for connection with BSC and supporting E1/T1 transmission. In the coming version, BCIM slot can also accommodate BEOM (BTS Electric-Optical Module), to support STM-1 optical transmission.

l BCPM: BTS channel process board, processing the data of CDMA forward

channel and reverse channel.

l BRDM: BTS resource distribution module, connecting BCPM and RF module,

realizing the control of resource pool for BCPM.

l BCKM: BTS control & clock board, providing clock for BTS system and realizing

the control of BTS system resource.

03Q-0110-20020720-120 2-5

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.2.2 Control & Clock Module (BCKM)

I. Overview

BCKM is located in the baseband subrack of BTS. BCKM performs two major functions: main control module (MPU, Main Processing Unit) and clock module (CLK, Clock). Here MPU performs Abis interface signaling processing, O&M management, while CLK provides reference clock signal for the whole BTS system.

Main functions of BCKM:

l MPU module provides BTS system with a hardware control platform , on which

the operating system and system software are running to implement control and management tasks of BTS system.

Perform operation and maintenance via the backplane bus to other boards in the baseband subrack, making in band signaling communication.

Connected with external LAN (Local Area Network) and WAN (Wide Area Network) through the 10/100M compatible Ethernet interface, for the use of local/remote O&M or program debugging. The Ethernet port uses international physical address (MAC, Medium Access Control) and IP(IP, Internet Protocol) address. It can be allocated with external LAN/WAN address.

The active/standby asynchronous serial port serves as a path for out-of-band signaling backup. MPU functions as the main node and other boards functions as the standby nodes. When a fault occurs to the in-band signaling path, signaling communication can be maintained with this standby path.

l Provide an interface connected with Modem in compliance with RS232 serial

communication standard, providing remote maintenance and monitoring in case of OML link failure.

l Connected with an external monitoring module in compliance with RS485

standard, collecting and processing the equipment room environment information (such as fire alarm/water soaking/temperature/humidity).

CLK unit is the clock source of BTS system, providing working clock for all boards. It provides high precision oscillation clock or can be synchronous with an external clock (such as GPS clock).

BCKM has active/standby switching function, working in active/standby mode in the system. When a fault occurs to the active BCKM, the standby BCKM is switched to active status under the control of specific software. A fault occurring to either MPU or CLK module of the BCKM will result in the switching of the whole BCKM.

2 Hardware

II. Structure and principle

The structure of BCKM module is as shown in Figure 2-4.

03Q-0110-20020720-120 2-6

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

BCKM

2 Hardware

Other

functional units

...

External

communication

unit

Power supply

module

MPU module

Clock module

Backplane bus

module

CBKM

Backplane bus

Figure 2-4 Structure of BCKM module

BCKM comprises the following parts:

1) MPU module MPU controls logic circuits to initialize components. It realizes control and

management over BTS system through system software.

2) Clock module Clock module is the clock source of BTS, providing working clock for boards. Clock

module is available in two modes: external synchronization mode (locked mode) and free oscillation mode (holdover mode). The clock module can provide high precision oscillation clock (voltage control constant temperature crystal oscillator) or get synchronized with external clock source (GPS, GLONASS, external synchronization equipment).

3) Backplane bus module The fast communication port of the main control CPU is connected with other boards

of BTS through the backplane bus module, processing or transmitting O&M signaling from other boards of BTS (BRDM, BCPM and BCIM).

4) External communication module External communication module utilizes the multiple communication control ports

provided by the main control CPU, implementing functions such as LMF interface, external monitoring module interface, maintenance terminal interface, debugging interface, test module interface and out-of-band signaling serial port.

5) Power supply module BCKM includes two isolated secondary power supply modules, converting +27V

voltage into +5V, +3.3V and +2.5V to supply power for various modules of local board.

III. Interface

Remote maintenance serial port (RS232)

l 10/100 Base-T LMF interface

GPS/Glonass antenna port

l 2s and 10MHz test port l Inter-board interface

Interfaces with other boards in the baseband subrack.

03Q-0110-20020720-120 2-7

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

IV. Index

The board area is 460mm%233.35mm, powered with +27V, power consumption <20W.

2.2.3 Control Interface Module (BCIM)

I. Overview

BCIM is located in BTS baseband subrack. It is a functional entity for the connection of BTS and BSC. Its major functions are as follows:

l In uplink direction, backplane bus receives O&M command from BCKM and

service data from BCPM, and transmit ATM cells on the multiple E1 links with IMA technology in compliance with G.804 standards to BSC.

l In downlink direction, it receives ATM cells distributed on the multiple E1 links

from BSC, multiplexes them into a single ATM cell flow with IMA technology and finally sends to corresponding processing boards through the backplane bus.

Each BCIM provides 8xE1 links, which can support at most 4xIMA groups. In BTS, there are two BCIM, providing physical interfaces with BSC in load sharing mode. At most 16xE1 links can be provided.

Communicate with BSC through IMA state machine program on the local board, monitoring the working status of E1 link and ensuring the implementation of IMA protocol.

l Transmit O&M command through backplane bus or out-of-band signaling serial

port, report the status information of the local board to BCKM and provide interface for board maintenance and network management.

2 Hardware

II. Structure and principle

The structure of BCIM is as shown in Figure 2-5.

Backplane

bus

Backplane

bus module

Clock module

CPU module

Figure 2-5 Structure of BCIM module

BCIM comprises the following parts:

1) IMA module

Data bus

IMA module

Control bus

Power supply

module

RS232

BCKM

BESP

...

03Q-0110-20020720-120 2-8

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The purpose of IMA is to inversely multiplex an ATM cell flow based on cells onto multiple physical links for transmission. Another purpose is to remotely multiplex the cell flows transmitted on different physical connections into a single ATM cell flow.

In uplink direction, IMA module receives AAL2 service cells from BCPM and AAL5 signaling cells from BCKM through the backplane bus. It splits the ATM cell flow into cells, transmits them on multiple E1 link according to G.804 standard before sending it to BSC.

In downlink direction, it receives ATM cells from BSC that are distributed on multiple E1 trunk lines, inversely multiplexes it into a single ATM cell flow. Then it sends AAL2 service cells to BCPM and AAL5 signaling cells to BCKM through the backplane bus

2) CPU module The main control CPU on BCIM implements such functions as initialization of devices

on BCIM, IMA protocol processing, executing OAM function of IMA as well as E1 trunk line management and communication with BCKM.

3) Backplane bus module BCIM communicates with other boards in the baseband part through the backplane

bus module, including control information communication with BCKM and service data communication with BCPM.

4) Power supply module

2 Hardware

Implement DC-DC power conversion from +27V to 3.3V.

5) Clock module Provide working clock for the local board.

III. Interface

E1 interface

Interface with BSC

Backplane bus interface

Interface with other boards in the baseband part.

RS-232 serial port

Interface with BCKM, as an emergency serial port

IV. Index

The board size is 460mm%233.35mm, powered with +27V, power consumption<10W.

2.2.4 Channel Processing Module (BCPM)

I. Overview

BCPM is logically located between BRDM and E1 interface board on BTS. BCPM is the service processing board of the system with12PCS in full configuration. It is of much importance. Data of various forward channel services and reverse channel services are processed by this board. BCPM also processes digital signals, including encoding/decoding baseband signals and one-time modulation and demodulation of baseband. In addition, it processes high layer control signals. The main functions are as follows:

03Q-0110-20020720-120 2-9

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l In forward direction, after ATM cell data from the network side are processed by

the high performance processor, BCPM performs functions such as encoding (convolutional code, TURBO code), interleave, spread spectrum, modulation and data multiplexing and converts them into high-speed signals. Then the signals are processed by a dedicated processing chip and transmitted through the radio interface side of the channel board.

In reverse direction, data received by BCPM are demultiplexed, demodulated, de-interlaced and decoded (convolutional code, TURBO code). Then under the control of the high performance processor, the data are connected with BSC via E1 interface in the form of ATM cells.

l BCPM supports in-board and inter-board daisy chains, forming a

resource-processing pool.

l High performance processor , two kernels, internal cache, level-2 cache can be

attached externally at the same time. It has powerful processing capacity.

II. Structure and principle

BCPM module comprises the following parts as shown in Figure 2-6:

BCPM

High-speed

BRDM

data bus

Multiplex/demultiplex

module

Data bus

2 Hardware

Baseband

processing module

Control bus

Backplane

bus

Backplane bus

module

Clock module

Data bus

CPU module

Power module

RS232

BCKM

Figure 2-6 Structure of BCPM module

1) Multiplex/demultiplex module In forward direction, baseband data in the channel board should be multiplexed into

high-speed signals and sent to radio side in the form of differential signals. In reverse direction, the high-speed differential signals are demultiplexed and sent to baseband processing chip.

2) Baseband processing module The QUALCOMM new generation processing chip is used to perform forward and

reverse baseband data processing. With the help of in-board and inter-board data daisy chains, channel processing quantity is increased greatly. Supporting 6 sectors, the maximum rate at physical level of each sector carrier reaches 403.2kbit/s and

307.2kbit/s in forward and reverse direction respectively.

3) CPU module The high performance control CPU on BCPM mainly processes the forward & reverse

high-speed service data and control data and reports board status. At the network

03Q-0110-20020720-120 2-10

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

side, the processing module receives control signaling, receives/ transmits ATM cells and communicates with BSC through E1 interface. At the radio side, it controls the baseband dedicated chip processing chip to generate orthogonal (IQ) data. After multiplexing, the data pass BRDM as a high-speed differential signal, to implement data interaction with radio side.

4) Backplane bus module BCPM communicates with other boards in the BTS baseband part through backplane

bus, including control information communication with BCKM and service data communication with E1 interface board.

5) Clock module Perform double-frequency phase-locking to the clock signals from the backplane,

provide clock for boards, and drive and co-phase the clock signals generated on the local board, to get a satisfactory clock signal.

6) Power supply module Perform DC-DC power conversion from +27V to 3.3V.

III. Interface

High-speed data bus interface

Interface with BRDM.

Backplane bus interface

Interface with other boards of baseband part

l RS232 serial port

Interface with BCKM, which is used as emergency serial port.

2 Hardware

IV. Index

The board size is 460mm%233.35mm, powered with +27V, power consumption <30W.

2.2.5 Resource Distribution Module (BRDM)

I. Overview

BRDM is logically located between BTRM and BCPM, providing path for orthogonal data connection (IQ) and switching between the two so as to support the flexible configuration relation between BCPM and BTRM. BRDM also support daisy chain cascading between BCPMs.

Data sent by BTRM are sent to BRDM through optical fiber. BRDM distributes and pastes the data before sending them to BCPMS via the high-speed data bus. BRDM can also build daisy chains for BCPMs. BRDM performs resource management to the daisy chain, making the short daisy chain provided on the channel board (short daisy chain hereinafter) become standard daisy chains after pasting at BRDM. This can help to improve the utilization ratio of channel resource and facilitates the flexible configuration of the channel capacity of each sector carrier.

BRDM has the following functions and features:

Six pairs of fiber-optic interfaces, providing high-speed data path with BTRM.

When it is necessary to extend optical interfaces, insert BRDM board in BCPM slot.

03Q-0110-20020720-120 2-11

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Provide 16 pairs of high-speed data bus interface, connected with 16 slots

through the backplane.

l Provide flexible data distribution and switching between BTRM and BCPM

Provide flexible data switching between BCPMs, for building daisy chains or resource pool, improving the utilization ratio of channel resource and configuring channel capacity of each sector carrier flexibly.

Interact O&M information with BCKM through the backplane bus or emergency serial port.

Forward and receive O&M information of BTRM via optical fiber and provide O&M link between the baseband subrack and BTRM.

II. Structure and principle

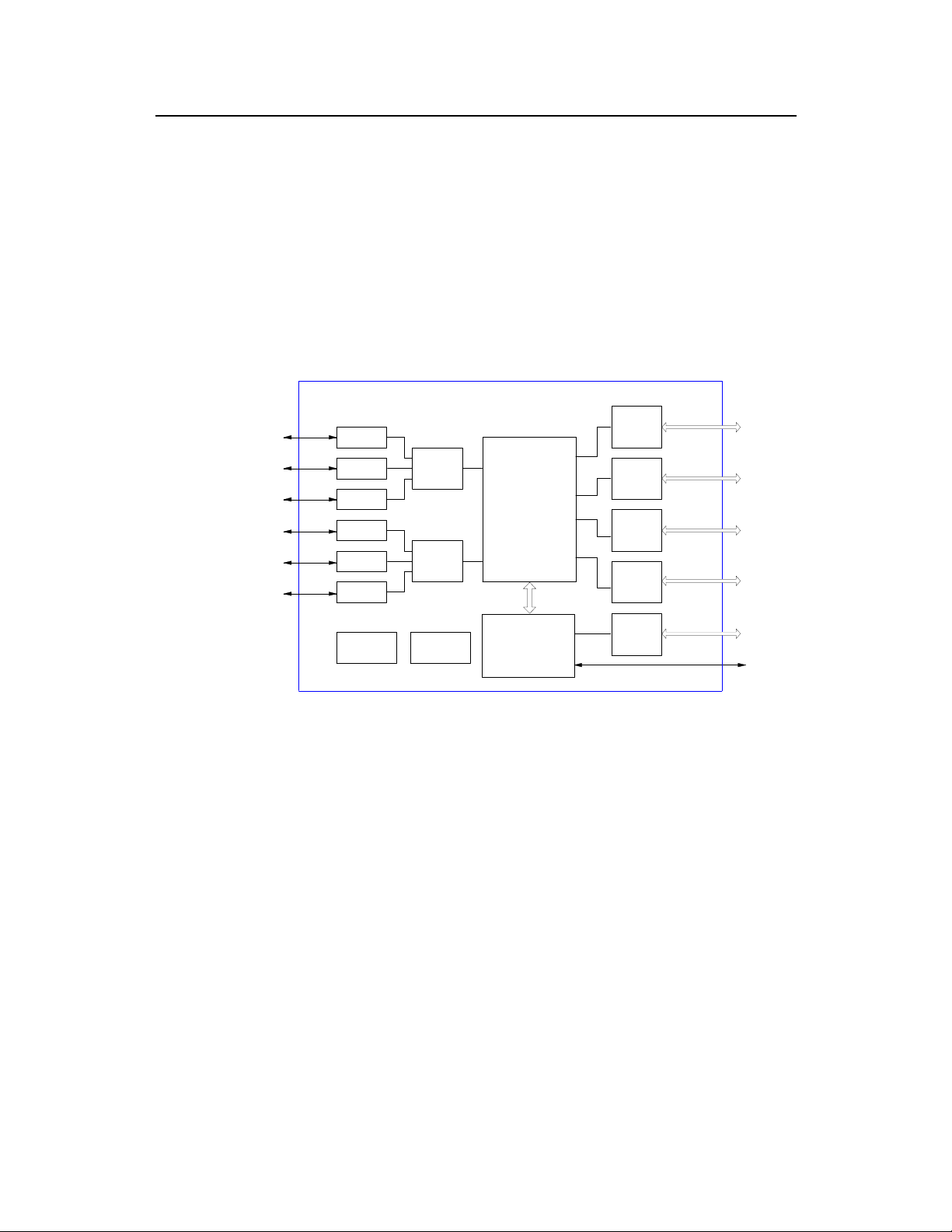

The structure of BRDM module is as shown in Figure 2-7.

2 Hardware

BTRM

Optical

BRDM

Optical module

Power supply

module

High-speed

data

interface

High-speed

data

interface

Clock

module

Switching module

CPU

module

High-speed

interface

High-speed

interface

High-speed

interface

High-speed

interface

module

data

Bus

4 high-speed

data buses

4 high-speed

data buses

4 high-speed

data buses

4 high-speed

data buses

RS232

BCPM

Backplane bus

BCKM

Figure 2-7 Structure of BRDM module

As shown in Figure 2-7, BRDM board is composed of optical module, high-speed data interface module, switching module, CPU module, bus interface module, power supply module and clock module. Different modules perform different functions.

l Optical module

Perform optical/electrical conversion of signals. Each BRDM board has 6 optical modules, providing 6 pairs of optical fiber interfaces externally.

High-speed data interface module

High-speed data interface module mainly performs rate conversion of high-speed signals, for the convenient processing of the switching module.

l Switching module

Switching module slice and paste data as required. It is a core processing module of this board. Data from BTRM are sent to this board, where the switching module will distribute and paste them before sending to BCPM. The switching module can also provide daisy chain cascading for the BCPMs through the distribution and pasting of data.

CPU module

03Q-0110-20020720-120 2-12

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

CPU module processes O&M information and configures switching parameters. The O&M information from BCKM is sent to this board via the bus interface module. Then CPU module processes the information and sends the necessary O&M information to the corresponding BTRMs. The parameters of the switching module should also be configured by CPU module.

Bus interface module

Perform conversion of interface between the board and the backplane and provide a path for the O&M information between this board and the backplane.

Power supply module

Convert the input DC +27V power into digital +3.3V, +1.8V and analog +3.3V powers, supplying power for the modules on the local board.

l Clock module

Provide 2S, 16%1.2288MHz, 100%1.2288MHz clocks for the local board.

III. Interface

l Optical interface

It is on the handle bar, 6 pairs altogether. They are connected with BTRMs, transmitting orthogonal (IQ) data and O&M information.

l High-speed data interface

It is led out from the 2mm connector on the backplane. The interfaces are connected with 16 service slots through the backplane, for transmitting orthogonal (IQ) data.

Backplane bus interface

It is led out from the 2mm connector on the backplane and attached to the backplane bus, used for transmitting O&M information between the BCKMs.

l Clock

Led out from the 2mm connector on the backplane, and connected with BCKM via the backplane. It receives 2S, 16 %1.2288MHz clock signals and clock active/standby selection signal.

l RS232 serial port

As an emergency serial port, it is led out from the 2mm connector on the backplane and connected with UART as a standby node, used for communicating with BCKM when other part of the board is faulty.

l Power interface

Led out from the power connector on the backplane, and connected with +27V power, +27V power ground and PGND.

2 Hardware

IV. Index

The board size is 460mm%233.35mm, powered with +27V, power consumption<45W.

2.2.6 Baseband Backplane Module (CBKM)

I. Overview

CBKM is used to make interconnection of high-speed data links between the boards of baseband part and between various management and control information of boards with high-speed backplane technology.

The backplane has the following features:

03Q-0110-20020720-120 2-13

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Realize interconnection of various signals between boards.

Support hot plug/unplug of all boards.

l Support active/standby switching of BCKM.

Lead in system power, providing distributed power to all boards.

l Lead in the signal monitoring line for fan subrack and power subrack. l Support mistaken plug proof function.

II. Structure

Functional units of all slots in CBKM are as shown in Figure 2-8.

2 Hardware

B C

10 11 12 13 14 15 16 17 18 19 20 219

Figure 2-8 Functional units of all slots in CBKM

A backplane includes the connector and board slot. Connector part includes a slot for test board, input connector of backplane +27V

power/ground, and 3 DB37 D-connectors. Power input connector, D-connector are all select crimped devices.

Slots of BTS are defined as follows:

Slots 0~1 are slots for BCIM.

l Sots 10~11 are slots for BCKM.

Slots 8~9, 12~13, 20~21 are slots for BRDM.

l Slots 2~7, 14~19 are slots for BCPM.

III. Interface

The interfaces between the backplane and outside include:

l System power interface

Remote maintenance serial port

l Environment alarm interface

Fan alarm serial port in baseband subrack

l External 2s signal input interface

16 E1 interfaces

IV. Index

Size of baseband subrack backplane: 664mm%262mm.

2.2.7 E1 Surge Protector (BESP)

I. Overview

BESP is placed on the top of BTS. It is a functional entity for BTS to implement lightning protection with E1 trunk line. Two identical BESPs are installed for each cabinet in consideration of limited space on top of the equipment and the

03Q-0110-20020720-120 2-14

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

convenience of installation and dismounting. The 8 pairs of lightning protection units are used to discharge the transient high voltage on the sheath and core of E1 trunk line to PGND, protecting equipment from lightning attack.

II. Structure and principle

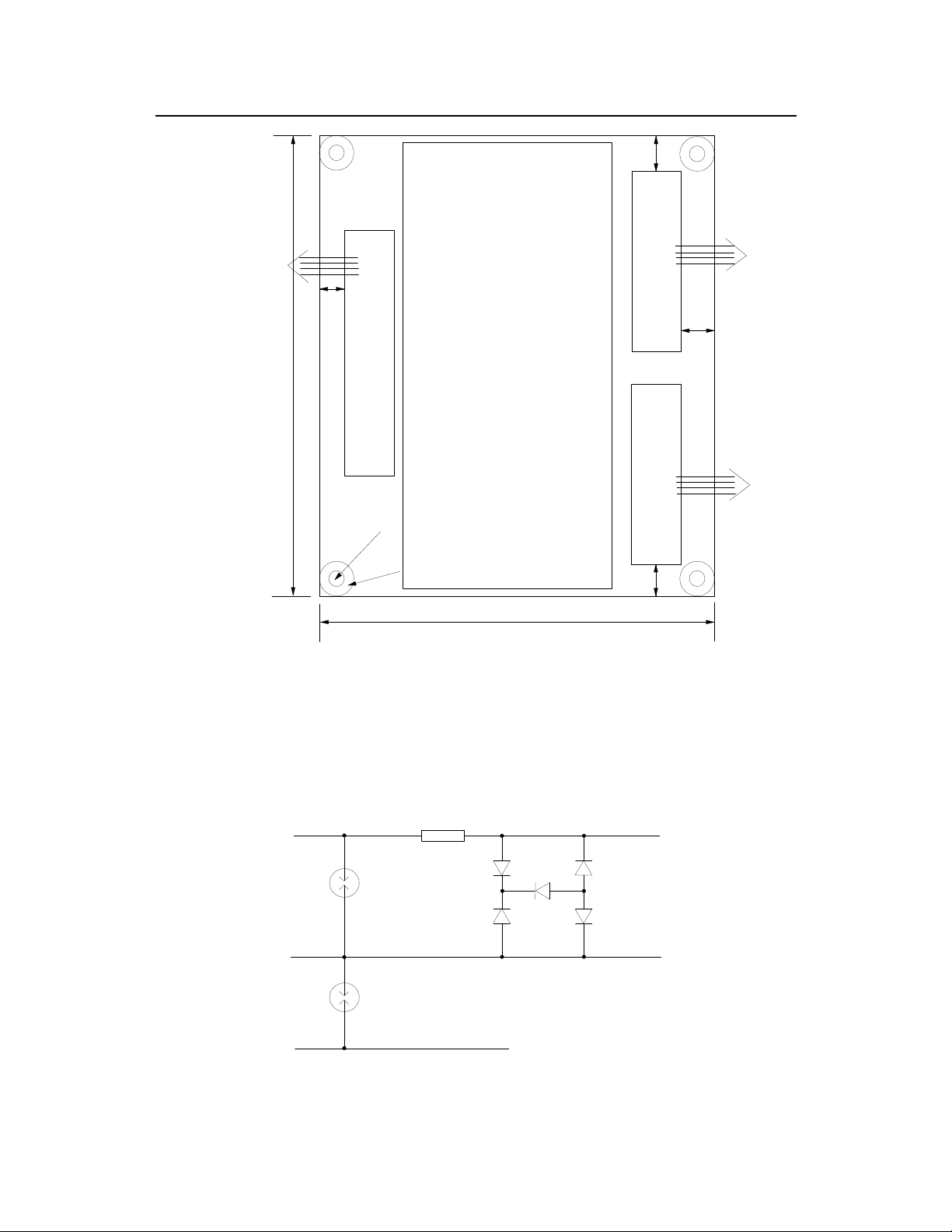

Board structure is as shown in Figure 2-9.

BESP

8 E1s

BCIM

Interface

DB37

...

Level-2

protection

Level-2

protection

PGND

Level-1

protection

Level-1

protection

Interface

DB25

2 Hardware

4 E1s

...

BSC

...

Interface

Level-2

Level-1

protection

PGND

DB25

4 E1s

...

BSC

Figure 2-9 Structure of BESP

The board consists of three parts: DB25 connector, lightning protection unit and DB37 connector.

When the BTS E1 trunk line is struck by the lightning, a high voltage will arise first on DB25. The high voltage will spread to the lightning protection unit. The lightning protection unit has two protection layers: air discharge tube and voltage limit mesh. The air discharge tube discharges the high voltage to the ground and lowers the voltage to a degree less than 600V. Then the voltage limit mesh further lowers the voltage to a degree less than 30V.

III. Interface

l E1interface

Interface with BSC (DB25). Connected with BCIM (DB37)

IV. Index

Board size: 140mm%120mm

03Q-0110-20020720-120 2-15

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Bearable surge current: >10kA (common mode), >5KA (differential mode) Output residual voltage: <30V.

2.2.8 Fan Module (BFAN)

BFAN is installed right under the baseband subrack, serving as a part of the blower type cooling system of the baseband subrack. The fan module consists of two fan boxs, each of which has 4 fan units(24V DC brush free fan) and one BTS Fan Monitor Module (BFMM). Fan enclosure is used for installation of fan boxs. The outside of the fan enclosure is the BTS Fan Block Interface Board (BFNB) that provides a system interface. The structure of BFAN is as shown in Figure 2-10.

2 Hardware

(1) Fan box 2 (2) Fan box 1 (3) LED indicator (4) Fan enclosure (5) BFNB (6) System signal interface (7) Power input interface (8) Blind mate connector (9) BFMM

Figure 2-10 Structure of BFAN

II. BTS Fan Monitor Module (BFMM)

1) Overview BFMM is built in the fan box. It communicates with BCKM and receives instructions

from BCKM. It can perform PWM speed adjustment on the fan unit in the drawer and report board status information to BCKM when it is queried. BFMM can guarantee a safe and properly cooling system and lower system noise. Its main functions are as follows:

Control rotating speed of the fan.

l Check whether fan units are in position and report.

Check fan unit blocking alarm and report.

l Drive fan running status indicator. l Communicate effectively with the Main Control Unit (MCU) of BCKM and report

in-board status information.

03Q-0110-20020720-120 2-16

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Report alarms of switch value type (it is a standby function and not used in

normal conditions).

2) Structure and principle BFMM's structure and position is as shown in Figure 2-10. Its function is as shown in

Figure 2-11.

2 Hardware

Temperature collection module

Communication module

Fan-in-position & fault

detection module

Main control unit

Power supply module

Fan drive module

Switch value alarm module

Indicator drive module

Figure 2-11 Illustration of BFMM

l Power supply module:

System input DC power is +27V, board power consumption is less than 5W.

l Main Control Unit (MCU):

MCU controls the fan and communicates with BCKM. Specifically, it generates control PWM signal according to the instruction sent from BCKM to control the speed of the fan. MCU can also check fan alarm signal and in-board logic alarm signal and report to BCKM. It generates panel indicator signal.

Communication module:

Perform serial communication with BCKM.

l Fan driving module:

PWM control signal generated in MCU provides controlled power input for fans by isolating driving circuits.

Fan in position and fault checking module:

Isolate the fan in position checking signal and fan blocking alarm signal then convert them into logic level for MCU to sample, analyze and control.

l Temperature collection module:

Collect the ambient temperature of BFMM in real time, realized it by MCU in query operation.

l Indicator driving module:

When functional alarm (such as communication interruption in main control mode) occurs to the board or fan blocking alarm occurs to the motor, this module provides LED optical alarm interface inside the fan block, to drive the LED indicator on the fan block front panel.

Switch value alarm output module:

When some systems have no serial port communication, fan fault has to be checked with switch value. In such case, BFMM should provide necessary output interface.

3) Interface

03Q-0110-20020720-120 2-17

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Power interface

It is used to lead in working power for BFMM.

l Communication serial port 0, 1

Serial port communication signals interface 0 and interface 1, providing access condition for system active/standby serial port. When the system has only one serial port, only interface 0 is used.

l LED indicator driving output interface

Driving interface for LED status indicator on the panel of the fan box.

l Fan unit driving interface

Driving interface for as many as 6 fan units. It also serves as the interface to indicate fan in position and fan block alarm checking.

l Switch value alarm interface

Standby switch value alarm form interface, not used in normal condition.

4) Index The size of BFMM: 280mm%35mm. +27V power supply, power consumption <5W.

III. BTS Fan block iNterface Board (BFNB)

2 Hardware

1) Overview BFNB provides electrical connection between the fan box and the system. On one

hand, it provides blind plug/unplug interface for the fan box. On the other hand, it provides the system with power interface and serial communication interface.

2) Structure and principle BFNB structure and position are as shown in Figure 2-10. BFNB implements interface conversion function. Refer to "(3) Interface" for the

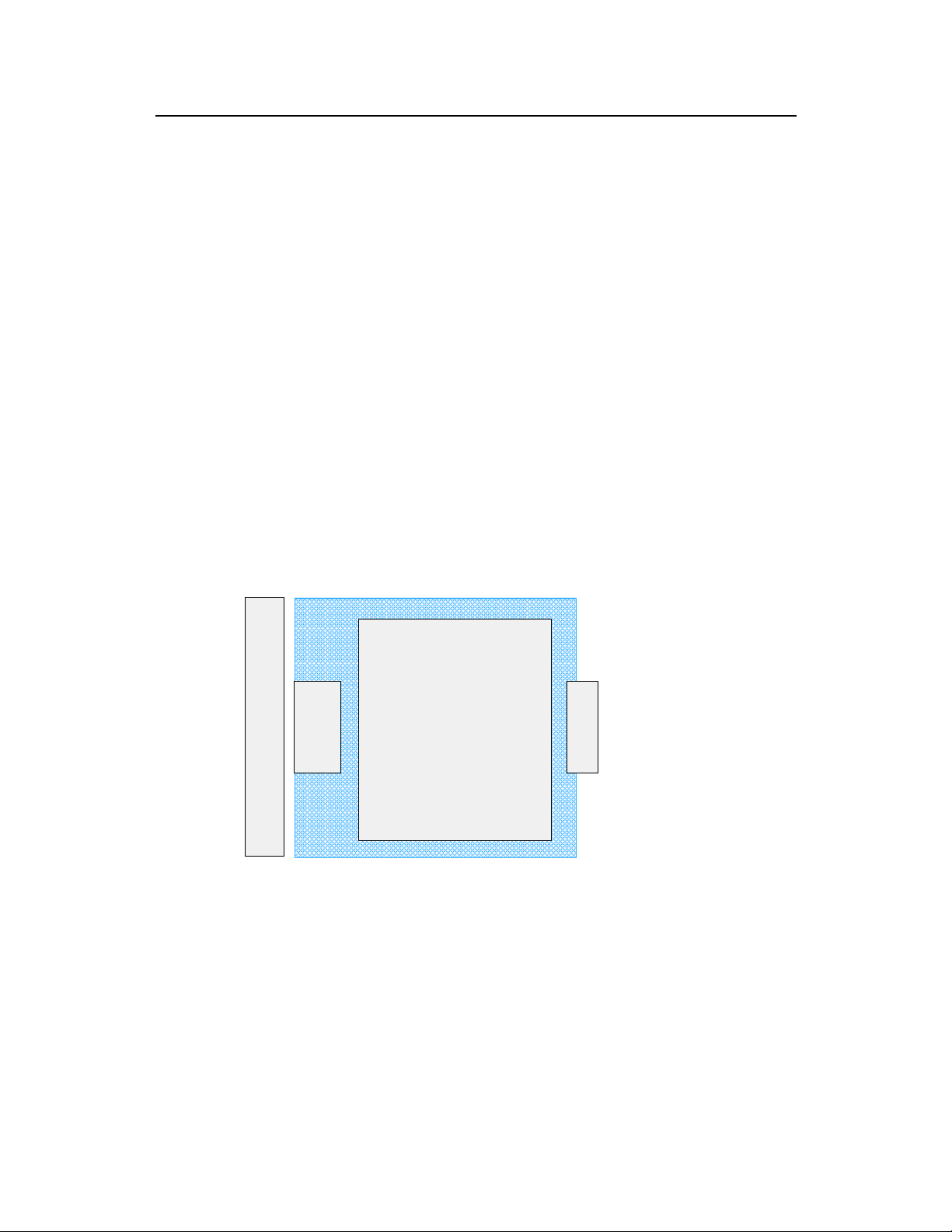

definition of interface. BFNB structure is as shown in Figure 2-12.

(1) MOLEX connector (2) Large 3PIN power socket (3) DB-15 signal socket

Figure 2-12 Illustration of BFNB structure

3) Interface

Fan box electrical interface

Provide power supply ports and serial port communication ports for the two fan boxes through MOLEX connectors.

l System power supply interface

Lead in system power through big 3-pin connector.

03Q-0110-20020720-120 2-18

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l System serial communication interface

Provide external serial communication interface through DB-15.

4) Index The size of BFNB: 380mm%30mm.

2.3 RF Subsystem

2.3.1 Overview

The block diagram of RF subsystem is as shown in Figure 2-13.

BRDM

BTRM

BHPA

2 Hardware

To antenna &

feeder

DFU

To antenna &

feeder

CDU

BRDM

BTRM

BHPA

RLDU

BRDM: Resource Distribution Module BTRM: Transceiver Module BHPA: High Power Amplifier Unit CDU: Combining Duplexer Unit DFU: Duplexer Filter Unit RLDU: Receive LNA Distribution Unit

Figure 2-13 block diagram of RF subsystem

In forward link, it performs power adjustable up-conversion to the modulated transmission signals and linear power amplification, filtering the transmission signals to meet the corresponding air interface standard.

In reverse link, it filters the signals received by the BTS antenna to suppress out-of-band interference and performs low noise amplifying. The noise factor can be adjustable in frequency down-conversion and channel selective filtering units.

RF subsystem is composed of the following function modules:

BTRM performs frequency up/down-conversion of the transmitted and received signals and adjust the transmitted power and received noise factor.

BHPA performs linear power amplification of single carrier-transmitted signal.

l CDU performs multi-carrier combining and filtering for transmitted signals, and

receiving/transmitting signal isolating.

03Q-0110-20020720-120 2-19

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l DFU performs the transmitting signal filtering and receiving/transmitting signal

isolating. There is a diversity filter in it.

l RLDU performs low noise amplifying of each sector received signals and

multi-carrier distributing.

l BTBM performs mechanical support and signal interconnection of BTRM and

BHPA.

2.3.2 Transceiver Module (BTRM)

BTRM is composed of BTS Intermediate Frequency Module (BIFM), BTS Intermediate Frequency Control module (BICM) and BTS Radio frequency up/down Conversion Module (BRCM).

I. BTS Intermediate Frequency Module (BIFM)

1) Overview BIFM and BRDM are both used to provide interface between the channel board and

RF transceiver. Its functions are as follows:

Reverse path signals A/D conversion and digital frequency down-conversion.

l Baseband digital filtering to compensate the analog acoustic surface wave filter

outband rejection.

Transmitting signals data shaping filtering and digital auto-gain controlling.

l Digital frequency up-conversion in the forward path signal and D/A conversion.

Multiplexing/demultiplexing of forward/reverse signals.

l Interfacing with BRDM through its optical fiber port.

Provide RF phase lock loop reference clock and clock of the Ethernet port and various necessary clocks for BIFM itself.

l Provide power supply for BICM and BRCM.

2) Block diagram and principle

2 Hardware

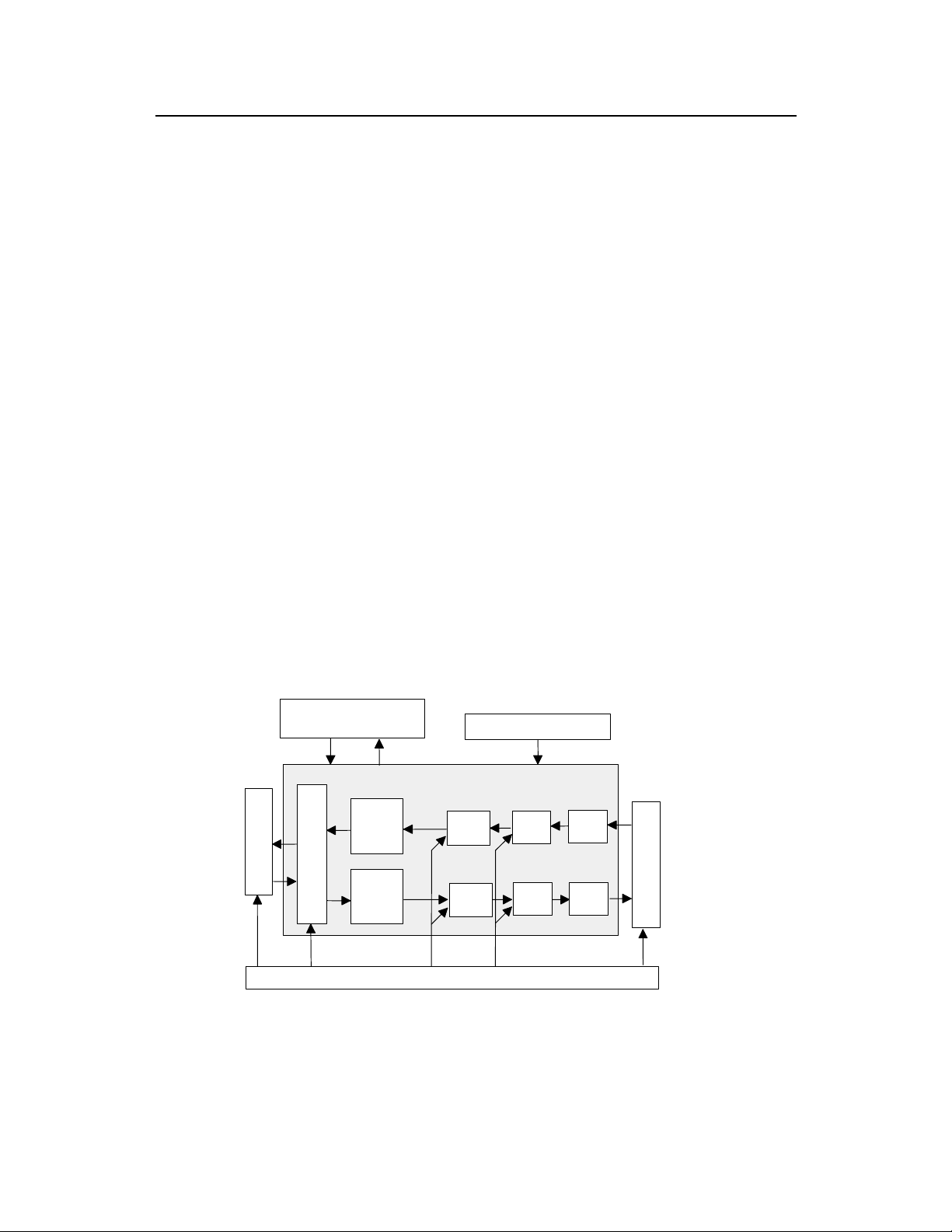

BIFM consists of the following parts. The structure is as shown in Figure 2-14.

Control configuration

BIFM

Optical interface

Multiplex/demultiplex

interface

FIR

DAGC

FIR

Clock module

Power supply module

Down-

conversion

Up-

conversion

ADC

DAC

Filtering

RF interface

Figure 2-14 Block dagram of BIFM module

Up-conversion module

Up-conversion module performs signal filtering and digital frequency up-conversion and D/A conversion in transmit path. In this module, the demultiplexed baseband

03Q-0110-20020720-120 2-20

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

signal is filtered and up-converted digital intermediate frequency signal which will be D/A converted to an analog intermediate frequency signal sent to BRCM after filtering.

l Down-conversion module

Down-conversion module performs signal A/D conversion, digital frequency down-conversion and filtering in the receive path. In this module, the analog intermediate frequency signal from BRCM module is A/D converted to digital intermediate frequency signal which will be down-converted to baseband signal,and then be filtered and sent to the multiplex/demultiplex unit.

Multiplex/demultiplex module

In reverse path, multiplex/demultiplex module multiplexes the O&M signal of BIFM and baseband signals after frequency down conversion to optical fiber interfacing module. In forward path, it demultiplexes the signals from the optical fiber interfacing module into the baseband intermediate frequency signals and O&M signals.

Optical fiber interfacing module

Optical fiber interfacing module performs signals encoding and decoding and optical-electrical or electrical-optical conversion. It is the only interface between BIFM and BRDM.

Clock module

Clock module generates all clocks needed by BIFM, including those for frequency up/down-conversion, A/D conversion, D/A conversion and other clocks. At the same time, it also provides a reference clock for BRCM.

Control & configuration interface module

Control & configuration interface is the interface between BIFM and BICM. BICM performs all control & configuration functions to BIFM through this interface. It also serves as the interface for collecting alarms on BICM and BRCM.

l Power supply module

BIFM requires a power of +27V because it simultaneously provides power for BRCM and BICM. The requirement for power capacity is 100W.

2 Hardware

3) Interfaces

l Optical interfaces

Optical fiber Interfaces with BRDM

l RS485 interfaces

interfaces with BHPA fan monitoring units.

RF interface

Various interfaces with BRCM.

4) Power consumption Its power consumption less than 25W on DC +27V.

II. BTS Intermediate Frequency Control Module (BICM)

1) Overview BICM is a small board mounted on the BIFM. It performs the control of BTRM,

including power-on initialization, function configuration, alarm collection, reporting and message processing related to O&M.

2) Block diagram and principle The block diagram of BICM includes the following parts as shown in Figure 2-15:

03Q-0110-20020720-120 2-21

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Alarm collection

interface

Temperature sensor

interface

RS485 interface

2 Hardware

CPU module

O&M interface

BIFM configuration

interface

BIFM control bus

BICM connector

Figure 2-15 Block diagram of BICM module

l CPU module

CPU module performs control and configuration of BIFM. It also processes and reports O&M message and alarm message of BIFM. CPU module also stores the configured data and programs.

Alarm collection interface module

Alarm collection interface module collects all alarms of BIFM and BRCM to CPU module, which will process and report these alarms.

l Temperature sensing interface function

Temperature information of BIFM is sent to CPU module through the temperature sensor interface.

l RS485 interface module

RS485 interface is the monitoring interface of the fan and HPA. The monitoring information is reported to CPU module via RS485 ,then CPU reports it to BCKM.

O&M interface module

O&M interface receives and transmits O&M message through the multiplex/demultiplex module on BIFM. CPU module will process the messages.

l BIFM configuration interface module

BIFM configuration interface module performs configuration of clock module and frequency up/down conversion module on BIFM, including modification and initialization of configuration data.

BIFM control interface module

BIFM control interface module performs the controls of frequency up/down conversion module and baseband filter.

III. BTS radio frequency up/down conversion module (BRCM)

1) Overview BRCM consists of three functional sub-units: main/diversity transmit unit,

main/diversity receive unit and local oscillator unit. It mainly performs such functions as analog frequency up-conversion of main/diversity transmitted signal from BIFM, signal amplification and spurious suppression filtering. It also performs analog frequency down-conversion of main/diversity received signals at BTS from RLDU, signal amplification, channel selective filtering and receiving noise factor adjustment.

2) Block diagram and principle

03Q-0110-20020720-120 2-22

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The block diagram of BRCM is as shown in Figure 2-16.

Main/diversity transmit unit

TX2_IF_IN

Up-converter

2 Hardware

TX2_RF_OUT

TX1_IF_IN

PLL_Re1~2

PLL_ENABLE1~2 PLL_CLOCK1~2

PLL_DATA1~2

PLL_ALARM1~2

RX1_IF_OUT

RX_NC0~4

RX2_IF_OUT

Up-converter

Local oscillation

frequency source

unit

Down-converter

Main/diversity transmit unit

TX1_RF_OUT

RX1_RF_IN

RX2_RF_IN

Figure 2-16 BRCM operational block diagram

Main/diversity transmit unit

Performs two stage up-conversion of the input modulated analog intermediate frequency signals into a specified RF band and performs signal filtering, amplification, and power adjustment before/after the conversion, ensuring that the output RF signals satisfy the protocol's requirement for power level, ACPR (Adjacent Channel Power Ratio) and spurious suppression.

l Main/diversity receive unit

Performs down-conversion of the input RF signal into the specified intermediate frequency and performs signal filtering, amplification and power level control before/after the conversion, ensuring that the output intermediate signals satisfy the requirements of the protocol for anti-interference, spurious suppression and power level.

Local oscillator unit

It includes an IF local oscillator used by transmit unit and a transmit/receive units sharing RF local oscillator. The IF oscillator generates a frequency fixed IF LO signal for frequency up conversion in the transmit path. The transmit/receive units sharing RF oscillator generates a frequency adjustable LO signal for frequency up-conversion in the main/diversity transmit path and frequency down-conversion in the main/diversity receive path.

3) External interface In the whole BTS system, at IF signal side, BRCM interfaces with BIFM. At RF signal

side, BRCM interfaces with BHPA in forward path and interfaces with RLDU in reverse path.

a) Interface signals between BRCM and BIFM :

l Main/diversity transmit analog intermediate frequency signal, provided by BIFM

for BRCM.

l Main/diversity receive analog intermediate frequency signal, provided by BRCM

for BIFM.

03Q-0110-20020720-120 2-23

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Local oscillator PLL (phase locked loop ) reference clock signal, provided by

BIFM for BRCM.

l Receive noise factor control signals, provided by BIFM for BRCM.

Local oscillator PLL (Phase Locked Loop) data, enable and clock signal, provided by BIFM for BRCM. And out lock alarm signal of two PLLs, provided by BRCM for BIFM.

RLDU, BHPA alarm signal and +27V power supply signal, for BIFM, provided by BRCM for BIFM.

+12V, -12V power supply signal of BRCM, provided by BIFM for BRCM.

b) Interface signals between BRCM and BHPA:

Main/diversity RF transmit signals, from BRCM to BHPA.

l BHPA alarm signals, from BHPA to BRCM.

c) Interface signals between BRCM and RLDU:

main/diversity RF receive signals, from RLDU to BRCM.

l RLDU alarm signals from RLDU to BRCM via BTBM DB15 connectors

(4) Index

l Power consumption: +12VDC, maximum current 3A; -12V, maximum current

20mA

Board size: L%W=225mm%233.35mm

2.3.3 High Power Amplifier Module (BHPA)

2 Hardware

I. Overview

BHPA is located in RF subrack of BTS cabinet, and used for amplifying the RF modulation signals output by BTRM. Its main functions are:

l RF power amplification: perform power amplification for the RF modulation

signals from BTRM.

Over temperature alarm: when the power amplifier base board temperature exceeds a specified threshold, BBFM will process the over temperature alarm signal generated by HPAU and report it to BTRM.

l Input overdrive alarm: when the power level of BHPA input RF signal exceeds a

specified threshold, BBFM will process the input overdrive alarm signal generated by HPAU and report it to BTRM.

l Gain drop alarm: when the gain of the power amplifier drops over 6dB, BBFM

will process the gain drop alarm signal generated by HPAU and report it to BTRM.

Fan monitoring: BBFM installed in BHPA, performs such functions as fan alarm, power amplifier alarm signal processing & reporting, fan speed adjustment.

II. Block diagram and principle

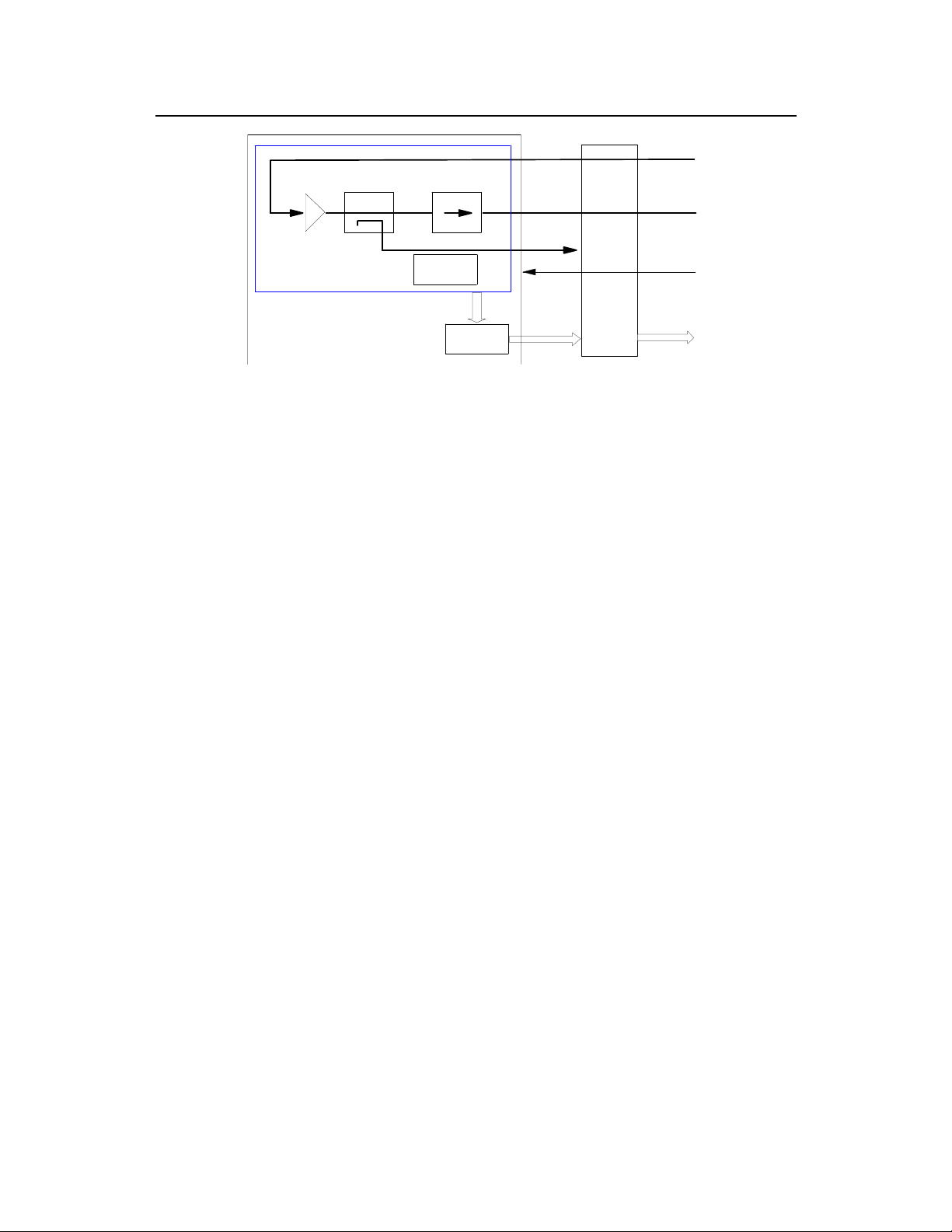

The block diagram of BHPA module includes the following parts, as shown in Figure 2-17:

03Q-0110-20020720-120 2-24

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Power

amplification

HPAUz

BHPA

Coupler

Circulator

Alarm circuit

Alarm signal

BBFM

Figure 2-17 Block diagram of BHPA module

1) High Power Amplifier Unit (HPAU) HPAU mainly consists of two parts: power amplifier and alarm circuit. The power

amplifier amplifies the power of the RF signals from BTRM. The amplified output RF signals are then sent to CDU or DFU via BTBM. Alarm circuit monitors the power amplifier status and generates over temperature alarm, over excitation alarm and gain drop alarm signal when necessary. The alarm signals will be sent to BBFM, from where they will be processed and reported to BTBM. The coupler is used to couple the RF output signal to the sampling port, for test purpose.

RF input

RF output

Sampling

port

+27VDC

Alarm signal

BTBM

2 Hardware

BTRM

CDU

BDCS

BTRM

The output power of HPAU can be adjusted by controlling the RF output signal of BTRM.

2) BTS BTRM Fan Monitor (BBFM) BBFM processes fan alarm signals and power amplifier alarm signals and sends

them to BTRM via BTBM, and then BTRM will report them. BBFM can adjust the fan speed based on the ambient temperature and the actual BHPA output power in order to lower the noise of fan.

III. Interface

External interface of the BHPA module is D-sub combination blind mate connector. It includes the following parts:

RF interface

The RF interface of BHPA has one input port and one output port. They are connected respectively with BTRM RF output port via BTBM and CDU RF input port via coaxial cable.

Power supply interface

Interface with BTS Direct Current Switch box (BDCS).

l Alarm interface

Interface with BTRM. Fan alarm signals and power amplifier alarm signals are sent via BTBM to BTRM which reports them.

IV. Index

l Operation Frequency range: 869~894MHz

Max. Average output power: 40W

Power Supply: +26V~28VDC

03Q-0110-20020720-120 2-25

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Power consumption: <380W l Module size: L%W%T=460mm%233.5mm%64mm

2.3.4 Transceiver Backplane Module (BTBM)

BTBM performs interconnecting and fixing of 6 BTRMs and 6 BHPAs, including 6 sets of 2mm connectors for BTRM plugging, 6 sets of 24W7 combination D-sub blind mate connectors for BHPA, and three DB9 connectors for RLDU alarm collection and 6 sets of temperature sensors.

The above parts form three independent function groups, as shown in Figure 2-18.

BTRM 2mm connector

Each set of 2mm connectors includes one 5%22pin type A connector and three 3-socket, type N connectors. Type A connector transfers RLDU alarm signals imported from DB9 connector and RS485 interface message from BHPA 24W7 combination D-sub connector. Type N connector transfers the main/diversity input/output RF signal of BTRM and +27V DC power signal needed by BTRM.

BHPA 24W7 combination D-sub blind mate connector

Each 24W7 combination D-sub blind mate connector includes 2 coaxial contacts (transferring BHPA input/output RF signals), 2 high-current power contacts (transferring +27V power supply and PGND signals), one set of RS485 signal contacts and a group of temperature sensor connection signals.

l DB9 connector

There are 3 angled DB9 connectors on BTBM for 3 RLDUs alarm signals transferring to BTRM .

l Temperature sensor

There are 6 sets of temperature sensors for the 6 BHPA slots, used for sensing the air temperature of each BHPA air outlet, converting into current and sending to BFMM on BHPA for processing. In this way, fan speed is controlled in real time.

2 Hardware

RS485

2mmA/N connector

24W7DB connector

RS485 RS485

Temperature sensor

DB9 connector

Temperature sensor

RLDU alarm signal

Functional group 1 Functional group 3Functional group 2

Figure 2-18 Operational block diagram of BTBM

Index

Board size: L%W%T= 664mm%262mm%3mm

03Q-0110-20020720-120 2-26

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.3.5 Combining Duplexer Unit (CDU)

I. Overview

CDU mainly has the following functions:

Combine two carriers from the two BHPAs into one signal.

l Receive & transmit signals duplexing.

Transmit signal filtering, to suppress BTS spurious emissions.

Receive signal filtering, to suppress the interference from outside the receive band.

Key internal parts of CDU include isolator, 2 in 1 combiner, duplexer, and directional coupler.

II. Block diagram and principle

CDU block diagram is as shown in Figure 2-19.

Pr-OUT Pf-OUT

2 Hardware

TX1

TX2

RXM-OUT

Isolator

Combiner

Duplexer

Directional

coupler

TX/RXM-ANT

TX-Test

RXM-Test

Figure 2-19 CDU block diagram

Isolator

There are two isolators at each input port of combiner in CDU. They are used to isolate the two carriers from two input ports.

l 2-in-1 combiner

The combiner is a narrow band cavity filtering combiner. In comparison with broadband combiner, the narrow band combiner features has lower insertion loss and effective isolation.

Duplexer

The duplexer is used to isolate transmitted signals and received signals, suppress transmission spurious and reduce antenna quantity.

l Directional coupler

03Q-0110-20020720-120 2-27

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The directional coupler couples forward/reverse power to RLDU, implementing the antenna VSWR monitoring and BTS transmit power detecting.

III. External interface

CDU is a module shared by transmit and receive path of the BTS. It has interfaces with other modules both in the transmitting and receiving paths. Its external interfaces include a set of 8W8 D-sub combination blind mate connectors on the backside and a set of N connectors, SMA connectors on the front side. The interface signals include:

l RF Signals between CDU combiner input ports and BHPA output ports,

transferred through the blind mate connectors on the backside.

l BTS Transmit signals which are transferred to the cabinet-top antenna interface

through the RF cable connected with the N connector at the front side of CDU.

BTS Receive signals which are transferred from the cabinet-top antenna interface through the RF cable connected with the N connector on the front side of CDU.

l BTS receive signals output from the duplexer, sent to RLDU via the blind mate

connector on the backside.

l Forward/reverse coupled RF signals, sent to RLDU via the blind mate connector

on the backside.

Forward/reverse coupled test signals, output through the standard SMA connector on the front side of CDU.

IV. Index

2 Hardware

l Number of combined channels: 2 l Frequency gap of two combined carriers: 2.50MHz

Frequency band of combined signal: Any continuous 3.75MHz within 869~894MHz

Operation frequency band (receive path): Any continuous 3.75MHz within 824~849MHz

l Module size: L%W%H=450mm%100mm%344.8mm

2.3.6 Duplexer Filter Unit (DFU)

I. Overview

DFU mainly has the following functions:

l Performs transmit/receive duplex isolation and filtering for the single carrier

signals from BHPA.

Diversity receive signals filtering in order to suppress outband interference.

Key internal parts of DFU includes low-pass filter, duplexer, diversity receive filter and directional coupler.

II. Block diagram and principle

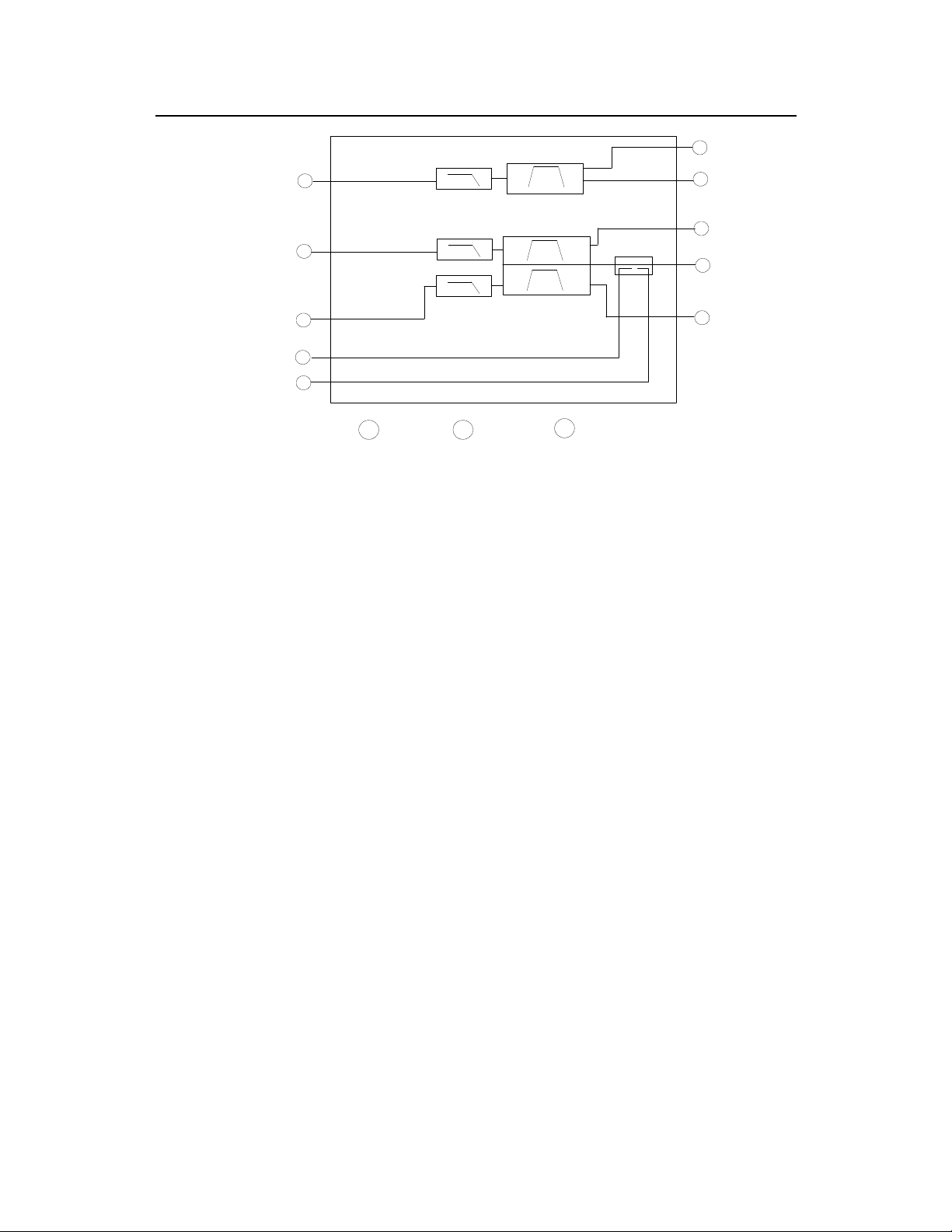

DFU block diagram is as shown in Figure 2-20.

03Q-0110-20020720-120 2-28

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Low-pass filter

RXD-OUT

Diversity receive filter

2 Hardware

RXD-TEST

RXD-ANT

TX-TEST

TX/RXM-ANT

RXM-TEST

RXM-OUT

Pf-OUT Pr-OUT

Low-pass filter

D D

D-SUB

N-Type SMA-Type

Duplexer

Directional coupler

Figure 2-20 DFU block diagram

Low-pass filter

At the transmit signal input port and main/diversity receive signal output port, there are three low-pass filters used for low-pass filtering of transmit and main/diversity receive signals.

Duplexer

The duplexer is used to isolate transmit and receive signals, suppress transmission spurious and reduce antenna quantity.

Diversity Receive filter

The diversity receive filter of DFU is a separate path. Signals received by the diversity antenna must be filtered by the diversity receive filter in DFU before being sent to the low noise amplifier in RLDU for amplification.

Directional coupler

The directional coupler couples forward/reverse signal power for RLDU, implementing the antenna VSWR monitoring and BTS transmit power detecting.

III. External interface

DFU is a module shared by transmit and receive path of the BTS. It has interfaces with other modules in the transmitting and receiving paths. Its external interfaces include a set of 8W8 D-sub combination blind mate connectors on the backside and a set of N connectors, SMA connectors on the front side. The interface signals include:

The signal between DFU and BHPA is transferred through the blind mate connectors on the backside.

l BTS Transmit signal which is transferred to the cabinet-top antenna interface

through the RF cable connected with the N connector at the front side of the module.

BTS receive signal which is transferred from the cabinet-top antenna interface to DFU for filtering through the RF cable connected with the N connector on the front side of the module.

BTS receive Signals output from the duplexer and diversity receive filter, sent to RLDU via the blind mate connector on the backside.

03Q-0110-20020720-120 2-29

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Forward/reverse coupled RF signals, sent to RLDU via the blind mate

connectors on the backside.

l Forward/reverse coupled test signals, output through the standard SMA

connector on the front side .

IV. Index

l Operation frequency band (transmit path): Any continuous 3.75MHz within

869~894MHz.

l Operation frequency band (receive path): Any continuous 3.75MHz within

824~849MHz.

Module size: L%W%H=450mm%100mm%344.8mm

2.3.7 Receive LNA Distribution Unit (RLDU)

I. Overview

RLDU consists of LNA (Low Noise Amplifier), distribution unit, configuration switch and alarm monitoring circuit. Its main functions are:

Performs BTS receive signals low noise amplification and distribution

l Built-in electronic RF switch supports multiple BTS configurations of 3 sectors or

6 sectors.

l Antenna VSWR monitoring and alarming, BTS forward RF power detecting, LNA

runing status monitoring and alarming.

2 Hardware

II. Block diagram and principle

RLDU block diagram is as shown in Figure 2-21.

RXAM-TEST

RXBM-TEST

LNA

Switch distribution

module

DC-IN FUSE PWR S/W

DB15

VSWR check processing

Forward power output

Figure 2-21 RLDU block diagram

VSWR and power

check

module

Power supply

RXBD-IN RXBM-IN RXAD-IN RXAM-IN

APf-IN APr-IN BPf-IN BPr-IN

RXAM1 RXAM2

RXAD1 RXAD2

RXAM3/RXBM1 RXAM4/RXBM2

RXAD3/RXBD1 RXAD4/RXBD2

03Q-0110-20020720-120 2-30

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

1) Receive signal low noise amplification and distribution units There are 4 LNAs and distributors inside RLDU, which can perform BTS receive

signals low noise amplification and distribution into 4 branchs. The 4 LNAs have the same specifications such as gain, noise factor and dynamic. It is ensured that the 4 receive paths are balanced.

2) Configuration switch unit The electronic switches inside RLDU are designed for supporting different BTS

configurations. When the BTS is configured in 3-sector mode, the electronic switches can be set digitally , making sure that RLDU operating in a single sector that has only two receive paths(main and diversity path). Each path provides 1: 4 dividers to support 1~4 carriers configuration for each sector. When the BTS is configured in 6-sector mode, the electronic switches can be set digitally, making sure that RLDU operating in two sectors, each of which has 4 receive paths (two main paths and two diversity paths). Each path provides 1:2dividers, supporting 1~2 carriers configuration for each sector.

3) Antenna VSWR and LNA status monitoring unit The transmitted forward/reverse power coupling signals from CDU or DFU are

processed in the antenna VSWR monitoring circuit inside RLDU. When the transmit antenna VSWR exceeds a specified threshold, alarm signal will occur. At the same time, RLDU also converts transmit coupling power signal into DC level signal through its RF power detecting circuits. Through this DC level signal, any exception of transmit signal power of each antenna can be monitored in real time. LNA status monitoring circuit monitors the working voltage and current of the 4 LNAs inside RLDU. It gives alarm when any faults t is found.

2 Hardware

III. External interface

RLDU is the reverse link function module of the BTS, which has interface with CDU/DFU and BTRM in both input side and output side through the two sets of 8W8 D-sub combination blind mate connectors on the backside of the module.

1) Interface signals between RLDU and CDU/DFU are:

l Main/diversity path receive RF signals output from two CDU/DFU receive filters

which then will be amplified and distributed by RLDU.

CDU/DFU coupling RF signal is mainly used for antenna VSWR monitoring and forward power detecting.

2) Interface signals between RLDU and BTRM are:

l Main/diversity path receive RF signal transmitted to BTRM after being amplified

and distributed.

l Antenna VSWR, LNA status monitoring alarm signal and forward power

detecting DC voltage signal, output to BRCM by RLDU through a DB15 interface on the front side of the module and transferred to BIFM for processing.

3) The +27V DC power is necessary for RLDU, provided directly by the secondary power supply module in the BTS through a MOLEX power connector on the front side of the module.

IV. Index

Operation frequency band: 824~849MHz

l Power Supply: +27VDC

power consumption <50W

Board size: L%W%H= 450mm%180mm%50mm

03Q-0110-20020720-120 2-31

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.3.8 RF Fan Module (BRFM)

BRFM mainly consists of BBFM, BBFL and fan. The following is the introduction to BBFM and BBFL.

I. BTS BTRM FAN Monitor (BBFM)

1) Overview BBFM collects and analyzes the temperature information of BHPA module and adjust

the fan speed in real time to lower the system audio noise, gives the equipment a longer service life and improve the external performance of the overall system on the premise that the system works in a safe thermal status. The Pulse Wide Modulation (PWM) control signal regarding the fan speed can be generated by the MCU of the local board or configured by the speed adjustment control of BTRM module. At the same time, BBFM reports to BCKM the gain drop, over-temperature, input overdrive alarm and fan fault alarm of BHPA, to ensure the safety of BHPA module. Its functions are as follows:

l Control fan speed, monitor and report fan alarm.

Monitor and report BHPA alarm.

l Drive fan monitor lamp module.

Collect temperature information of BHPA module

l Communicate with BTRM module.

2) Block diagram and principle

2 Hardware

The position of BBFM in BHPA module is as shown in Figure 2-22.

BBFM

Fan cover

BHPA

connector

Blind mate

Figure 2-22 Position of BBFM in BHPA module

The block diagram of BBFM is as shown in Figure 2-23.

03Q-0110-20020720-120 2-32

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

BBFM

2 Hardware

Panel indicator

driving alarm

signal isolation

circuit

PWM

Modulation

circuit

Communication

interface

Fan cover

Serial port

BTRM

BHPA

External temperature collection

HPAU

Interface

circuit

Temperature

collection

Watchdog

MCU

Figure 2-23 block diagram of BBFM module

l MCU module

Collect and analyze the temperature information to generate PWM signal for controlling the fan speed. Receive alarm signal generated by BHPA module and fan alarm signal and report to BTRM module. Generate panel indicator signal. Communicate with BTRM module.

BHPA interface module

Complete the isolation and driving of interface between BHPA.

Temperature information collection module

Collect the temperature information of BHPA module in real time to be implemented by MCU in query operation.

Panel indicator drive and alarm signal isolation module

It is used to drive the panel indicator and isolate fan alarm signal.

Communication module

Perform serial communication with BTRM module.

Power supply module

The input power of BFMM is +27V, power consumption 3.5W (including power for the fan).

3) Interface

BHPA interface

Interface with BHPA module, used for BHPA alarm monitoring.

Serial communication interface

Interface used to report the alarm of the fan and BHPA module.

Interface with the fan cover

Including fan alarm signal, user panel indicator, and fan power interface.

4) Index The size of BBFM: 200.0mm%55.0mm.

II. BTS BTRM FAN Lamp Module (BBFL)

1) Overview

03Q-0110-20020720-120 2-33

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

BBFL has three RUN indicators to indicate the running status of BTRM module, fan and BHPA module. The board is connected with BBFM via the fan cover interface. It is an auxiliary board.

2) Block diagram and principle The block diagram of BBFL is as shown in Figure 2-24.

LED1 LED2 LED3

2 Hardware

BTRM indicator

FAN indicator BHPA indicator

Fan 1 interface

Fan cover port (connect to BBFM)

Fan 2 interface

Figure 2-24 Block diagram of BBFL module

BBFL consists of the following parts:

Fan 1 interface module

Connected with Fan 1, power supply input port of Fan 1 and fan alarm output port. It is a 4Pin ordinary socket connector.

l Fan 2 interface module

Connected with Fan 2, power supply input port of Fan 2 and fan alarm output port, It is a 4Pin ordinary socket connector.

Fan cover port interface module

Connected with the fan cover opening of BBFM.

3) Panel indicator LED1: BTRM running signal LED2: Fan running signal LED3: BHPA running signal

4) Index Size of BBFL: 55.0mm×25.0mm.

03Q-0110-20020720-120 2-34

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.4 Antenna & Feeder Subsystem

2.4.1 Overview

BTS antenna & feeder subsystem consists of two parts: RF antenna & feeder and dual-satellite synchronization antenna & feeder. The former transmits the modulated RF signal and receives MS signals, while the latter provides precise synchronization for CDMA system.

2.4.2 RF Antenna & Feeder

RF antenna & feeder of the BTS is composed of outdoor antenna, jumper from antenna to feeder, feeder and the jumper from feeder to cabinet-top, as shown in Figure 2-25.

Antenna

Sector

¦Á

Jumper

2 Hardware

Feeder

Jumper

Sector

¦Â

Sector

¦Ã

BTS cabinet

Figure 2-25 Structure of RF antenna & feeder

II. Antenna

Antenna is the end point of transmitting and start point of receiving. Type, gain, coverage pattern and front-to-rear ratio of the antenna can affect the system performance. The network designer should choose antenna properly based on the user number and coverage.

1) Antenna gain Antenna gain is the capability of the antenna to radiate the input power in specific

directions. Normally, the higher gain, the larger coverage. But there may be blind area in the vicinity.

2) Antenna pattern

03Q-0110-20020720-120 2-35

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Antenna pattern describes the radiation intensities of the antenna in all directions. In the field of communications, it usually means a horizontal pattern. BTS antenna is available in two types: 360 omni-antenna and directional antenna. The directional antenna includes the following types: 120 , 90 , 65 and 33 .

3) Polarization Polarization is used to describe the direction of the electrical field. The mobile

communication system often uses an uni-polar antenna. Bi-polar antennae have been used recently. The two poles are perpendicular to each other, which reduces the quantity of antenna used.

4) Diversity technology Electrical wave propagation in urban area has the following features:

Field intensity value changes slowly with different places and different times. It changes in the rule of logarithmic normal distribution, which is called slow attenuation.

Field intensity transient value attenuates selectively since it is multi-path transmission. The attenuation rules falls in Rayleigh distribution, which is called fast attenuation.

Either fast attenuation or slow attenuation impairs the quality of communication or even interrupts the conversation. Diversity technology is one of the most effective technologies to tackle the attenuation problem. Diversity receiving and combining technology can be used to minimize the attenuation when there is little correlation between the two attenuated signals. There are polarized diversity and space diversity. In the present mobile communication system, horizontal space diversity and polarized diversity are both supported. Theoretical conclusion shows that space diversity is effective when the distance between two antennae is over 10 wavelengths. Polarized diversity facilitates antenna installation and saves space. Therefore it is used more and more extensively.

2 Hardware

5) Antenna isolation The receive/transmit antenna must be installed with sufficient isolation to minimize the

effect on the receiver. The isolation extent is subject to the out-of-band noise of the transmitter and the sensitivity of the receiver.

III. Feeder

Normally, the standard 7/8 inch or 5/4 inch feeder line should be used to connect the outdoor antenna and indoor cabinet. In the site installation, 7/16 DIN connectors should be made on the line that has been laid. The feeder should enter the equipment room from the tower top or building top. Three grounding cable clips for lightning protection should be installed in the intermediate section and the wall hole where feeder enter indoors. If the feeder is excessively long, additional cable clips are needed.

Since 7/8 inch feeder line should not be bent, the tower top or building antenna and the feeder, indoor cabinet and the feeder should be connected via jumpers. The specifications of Huawei standard jumpers are 1/2 inch, 3.5m long, 7/16DIN connector.

03Q-0110-20020720-120 2-36

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.4.3 Dual-Satellite Synchronization Antenna & Feeder

I. Overview of dual-satellite synchronization antenna & feeder

Many important features of CDMA system are closely connected with global satellite navigation system and are much dependent on it. If global satellite navigation system does not work for a long time, the whole network will collapse. In consideration of the system security and reliability, BTS receives the signals of GPS system or of GLONASS system through the dual-satellite synchronization antenna & feeder, to implement radio synchronization. In this way, the whole network can operate normally without any adverse effect when GPS or GLONASS system is not available. The following describes the application of GPS and GLONASS in CDMA system.

1) GPS CDMA network can be synchronized with GPS. GPS is a high precision global

positioning system set up by American Navy Observatory. The full name is Global Timing & Positioning Navigation Star System (NAVSTAR). It is a all-weather satellite navigation system based on high frequency radio. It provides 3D-position information, so users can attain high precision information about position, speed and time. The 3D-position is accurate to less than 10 yard (approx. 9.1m) in space and less than 100ns in time. The received signal is processed and used as the master reference frequency.

2 Hardware

The whole system consists of three parts: space, land control and user. Space part is a group of satellites of 20183 kilometers high orbiting the earth at a

speed of 12 hours/circle. There are 24 satellites together, running on 6 orbits. The plane of each orbit is at a 55°angle with the equator.

The land control consists of a main control center and some widely distributed stations. The land control network tracks the satellites and controls their orbits accurately. It also corrects astronomical data and other system data from time to time and transmits to users through the satellites.

The user part is the GPS receivers and their supporting equipment. The local system is actually a GPS user, utilizing timing function of GPS. GPS satellites are synchronized with a cesium atom clock group on the land. Therefore, GPS timing signal is steady and reliable. The frequency is in a long-term stability of cesium atom clock level. BTS uses a highly stable crystal clock, which is stable on a short-term base. When the crystal clock works with GPS, it makes the clock of CDMA system absolutely stable and reliable.

(2) GLONASS GLONASS is a global satellite navigation system developed by the former Soviet

Union and inherited by Russia. It is of a similar structure to GPS of USA. There are 24 satellites distributed on 3 orbits. The inclination of the orbit is 64.8 at a height of 18840~19940 km. The satellites go around the earth one circle every 11 hours 15 minutes and 44 seconds. Satellites are identified with frequency division multi-address, i.e. different satellites use different frequencies. Since the inclination of the orbits is greater than that of GPS, the visibility at high latitude area (over 50 ) is better than that of GPS. The design service life of the present satellites is 3~4 years. The service life of the new generation GLONASS will be 5 years, with enhanced functions of inter-satellite data communication and autonomous running. At present, only 19 satellites are working in the constellation and some of them are not working well. The coverage is not as large as GPS system.

03Q-0110-20020720-120 2-37

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The user equipment receives C/A code, P code and two carriers signals modulated from the navigation data L1: 1602MHz +? fL1, L2: 1 246 MHz+ ? fL2 (? fL1, ? fL2 are frequency increments of different satellites), to identify the position of the satellite and measure the distance between the user and the satellite. The position of the user can be figured out. The algorithm used is similar to that of GPS.

BTS system uses intelligent software phase-locking, memory technology to minimize the interference such as signal wander and jitter due to ionosphere error and troposphere error of GPS satellites. BTS system can not only provide accurate timing signal, but provide accurate calendar clock (hour, minute, second). BTS supports GPS/GLONASS dual-satellite system synchronization mode, providing two synchronization solutions GPS or GPS/GLONASS as required by the user.

II. Antenna

GPS antenna

The antenna is an active antenna. The L1 band signal sent by GPS satellite is received by GPS antenna. The received L1 GPS signal is filtered by a narrowband filter and amplified by a preamplifier. Then it is sent to a GPS receive card. GPS antenna applies to all kinds of GPS receivers. Feature indices are as follows:

Frequency: 1.575GHz Bandwidth: 20MHz

2 Hardware

Gain: 32~35dB Voltage: +5.0±0.25VDC Current: 35mA Impedance: 50W Polarity: RHCP

GPS/GLONASS dual-satellite receiving antenna

This antenna receive GPS signal of band L1 (1.575GHz) and GLONASS signal (1.611GHz), power with 5~18V, gain is 36dB.

III. Feeder

The feeder is the physically foamed polyethylene insulation RF coaxial cable, impedance 50-ohm, 10-FB. Nominal parameters are:

70dB/km (400MHz) 113dB/km (900MHz) The 100m loss in 1.575GHz frequency is 13.78dB. The coaxial cable is mainly used to transmit the GPS signal received by the GSP

antenna to GPS card. At the same time, the coaxial cable also provides power for the antenna module to make pre-amplification.

The cable is useable when dual-satellite solution is adopted.

IV. Lightning arrester of antenna and feeder

The lightning arrester of antenna and feeder used in BTS, clamp voltage -1~+7VDC, standing wave ratio less than 1.1:1, signal attenuation less than 0.1dB (1.2~2GHz).

03Q-0110-20020720-120 2-38

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

V. Receiver

GPS receiver has 8 parallel paths, capable of tracking 8 satellites concurrently. The receiver receives GPS signal of band L1 (1575.42MHz) and tracks C/A code. The receiver must be powered with 5V DC regulated power supply. Inside the receiver, the RF signal processor makes frequency down-conversion to the GPS signal received by the antenna to get intermediate frequency (IF) signal. The IF signal is converted to digital signal and sent to 8-path code and carrier correlator, where signal detect, code correlation, carrier tracking and filter are performed. The processed signal is synchronized and sent to positioning MPU. This part of circuit controls the working mode and decoding of GPS receiver, processes satellite data, measures pseudo-distance and pseudo-distance increment so as to calculate the position, speed and time. The sensitivity of the receive card is -137dBm.

The dual-satellite receive card has 20 receiving paths. GPS L1 can be upgraded to GPS/GLONASS L1+L2 or with any other options in a password mechanism. The time accuracy can be up to 25ns.

2.5 Power Supply Subsystem

2.5.1 Overview

2 Hardware

BTS built-in power supply module converts -48V DC into +27V, provided for BTS, forming the power supply subsystem together with power distribution, lightning protection and power monitoring.

According to the requirement of BTS overall design, each site can be configured with multiple cabinets as required. Different cabinets are interconnected so that different network configurations can be implemented as necessary with flexibility, convenience and reliability. Therefore the power supply subsystem also needs flexible, convenient and reliable distribution monitoring solution such as centralized lightning protection, distributed DC power: i.e. the power supply subsystem of each cabinet is an integrated system and each power supply module has its own built-in monitoring unit. They are connected on the backplane and report to BTRM through the universal monitor bus, to implement power management and monitoring.

The -48V power input is filtered by EMI filter and connected to the wiring terminal on the top of the equipment, and then connected to the power backplane input junction bar in the secondary power supply subrack. The +27V power is output from the output junction bar of power subrack backplane. Then the +27V power is led out from the busbar, going up along the wiring trough to the distribution copper bar in the DC switchbox on top of the cabinet. The distribution copper bars in the switchbox distribute +27V DC power to different modules. They go along through the copper bar leading wire and the over-current protection devices for individual power consumption units and connected with the outbound terminals at the back of the distribution box. In this way, it is ensured that the line is disconnected when there is over-current to a specific unit and other units will not be affected.

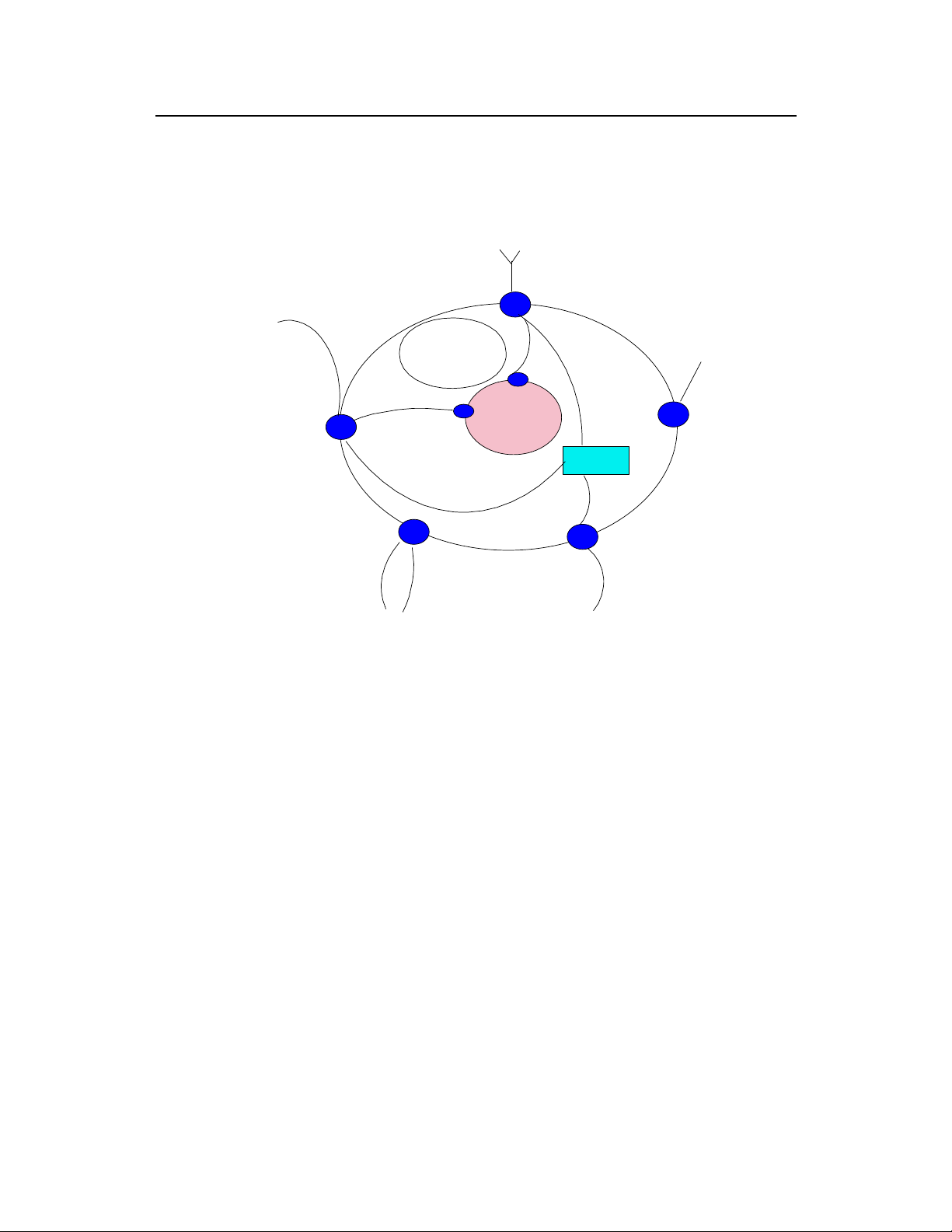

The schematic diagram of the whole power supply subsystem is as shown in Figure 2-26.

03Q-0110-20020720-120 2-39

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2 Hardware

-48V

EMI

filter

Monitoring

serial port

power distribution

Lightning protection

Figure 2-26 BTS power supply subsystem

2.5.2 General Structure

The -48V power is filtered by the EMI filter on top of the cabinet, and then goes down along the cabinet wiring trough, and connected to the input junction bar of the power subrack backplane. The power supply subsystem uses 5xDC/DC power supply units (PSU) in full configuration. The PSU is +27V/65A. 5xPSUs provide 4+1 backup mode, ensuring an output of at least 7200W. The board size: L%W%H=400mm%121.9mm%177.8mm. The operation principle of the power supply subsystem is as shown in Figure 2-27.

DC/DC

module

DC/DC module

Switch box

.....

+27VDC OUT

Load

DC/DC module

-48VIN

GND

Power supply subrack

PGND

Figure 2-27 Operational diagram of the power supply subsystem

2.5.3 Technical Indices

I. DC input lightning protection

DC input lightning protection part is an external cabinet-top lightning arrester. It mainly features the following:

DC/DC

16 service units

...

TRX0

Indicator PCB

...

Wiring terminals

…

-48V power supply indication

From cabinet-top LGND

RLDU1TRX11

RLDU0 RLDU2

03Q-0110-20020720-120 2-40

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Temperature detect fusing technology is used, with built-in over-current

protection circuit, preventing fire.

l Multiple autonomous current equalization technology is used, capable of

withstanding successive lightning attack.

l Common mode, differential mode all protection, low residual pressure. l Dual-color working status indication, with remote alarm trunk node.

Compact, easy installation.

1) Input parameter Input mode: -48VDC Working voltage range: -40VDC~-60VDC Maximum input current: 30kA

2) Wiring mode Connect the positive and negative poles of the power cord with V+, V- of the lightning

arrester. Connect the PE end to the lightning protection and grounding copper bar.

3) Lightning protection index Maximum flow: 30kA, once, 8/20µs impact current wave Rated flow: 5kA, 5 times for positive and negative each, 8/20µs impact current wave

2 Hardware

Residual pressure: 250V

4) Indicator and alarm dry node parameter When the green indicator is on and the red is off, it means the power input is normal,

and the lightning arrester is working normally. If the green indicator is off and the red indicator is on, it means the power input is

abnormal, components in the lightning arrester are damaged, protection effect is deteriorated and the device must be replaced immediately.

Normally-closed contact. The alarm dry node is closed when the lightning arrester is normal and it is open when the device is faulty. Regulated current 1A.

5) Size of the lightning arrester: L×W×H= 41mm×95mm×59mm

II. DC/DC power supply module technical parameters

Power supply module uses well-developed circuits, with perfect protection function. The safety specification is UL, TUV, CCEE proven. EMC is compliant with EN55022 and IEC61000-4 standards.

l Working temperature: -10~45?

Storage temperature: -40~70?

Atmospheric pressure: 70~106kpa

l Relative humidity: 15%~85%

Input voltage: -40~ -60VDC

Input under-voltage current-limiting protection point: -36±1VDC

l Input under-voltage recovery point: -38±1VDC l Output voltage: +27±0.5V l Output voltage range: +25~+29VDC l Output over voltage protection point: +30.5 ±0.5VDC l DC output rated current: 65A

03Q-0110-20020720-120 2-41

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

l Output current-limiting point: 68.5~71.5A l Regulated voltage precision: ±1%

Loaded regulation: ±0.5% Voltage regulation: ±0.2%

l Output noise voltage

Balanced noise of the telephone: 2.0mV (300~3400Hz) Broadband noise voltage: 30mV (3.4k~30MHz) Peak-peak value noise voltage: 100mV (0~20MHz) Discrete noise voltage: 5mV (3.4kHz~150kHz)

2 Hardware



3mV (150kHz~200kHz) 2mV (200kHz~500kHz) 1mV (500kHz~30MHz)

l Power efficiency: ƒ85% (in full load)

Dynamic performance Load effect recovery time: 200µs 25%~50%~25% load variance

50%~75%~50% load variance Output overshoot: 5% output voltage setting value

l Equipment delay: 5s

Safety requirement Insulation resistance of input-case, input-output, output-case: ƒ2MO

Test conditions: ambient temperature: 20±5? Relative humidity: 90% Test voltage: DC 500V

Dielectric strength Input-output: AC 1000V/1min/30mA

Input-ground: AC 500V/1min/30mA Output-ground: AC 500V/1min/30mA

EMI requirement

Conducted interference On 150kHz~30MHz frequency, the conducted interference level in the power cord of

the tested equipment should not exceed class "A" limit in EN55022 Table 1. Radiated interference On 150kHz~1000MHz frequency, the radiated interference level of the power cord of

the tested equipment should not exceed class "A" limit in EN55022 Table 1.

l Reliability

Test the product reliability with MTBF. The MTBF value of the power supply subsystem should not be lower than 15%104h.

l High temperature aging

03Q-0110-20020720-120 2-42

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The power supply subsystem works in full load for 4 hours continuously at an ambient temperature of 55±2? and all its technical index can still meet the requirement of this standard.

2.5.4 Power Supply Monitoring

The monitoring information of the whole power supply subsystem and each power supply module is all provided via the RS485 serial port on the backplane. Monitor items are as follows:

I. What is to be monitored

1) Control value

Power supply module total shutdown control

l Power supply module auto shutdown control

2) Switch signal value

l Fan alarm signal

Overheat alarm signal

Output over-voltage alarm signal

l Input under-voltage alarm signal

3) Current, voltage analog signal

l Output voltage (V)

Output current (A)

4) Interface setup note

2 Hardware

Power supply subsystem provides an RS485 port on the backplane, used to report monitor information to BCKM.

2.5.5 BTS Direct Current Switchbox (BDCS)

BDCS is used to power the system. When +27V is output from the power subrack, it is connected to the distribution copper bar in the switchbox via the bus bar installed on the back pole. The power is distributed on the copper bars, going through the switch and connected with terminal bars. In line distribution, the outbound terminals are connected with the power consume supply units. There are also lightning protection alarm indicators -48V power status indicators in the switchbox.

There is one set of +27 power sockets on the panel of the DC switchbox, used to supply power for RF module maintenance locally or measure voltage.

2.6 Environment Monitoring

BTS equipment rooms are usually unattended and widely distributed. In comparison with switch equipment rooms, BTS equipment rooms have fewer and simpler equipment, and operate in a harsher environment where fire or flooding is likely to happen. To ensure that BTS equipment works normally, intensive environment monitoring system is required to handle any accidents.

The environment monitoring system of the BTS consists of the environment monitoring equipment and BCKM. The environment monitoring equipment collects environment information and reports the information to OMC.

03Q-0110-20020720-120 2-43

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

The environment monitoring equipment consists of environment alarm collection box and the sensor.

The environment alarm collection box collects external environment parameter through the sensors. The parameters are processed in the box. If alarm condition is met, an alarm will be sent to BCKM as a switch value, via the alarm transmission signal line, asynchronous serial port and optical fiber. BCKM collects the alarm signal, makes corresponding processing and reports to OMC.

The alarm box in the system can real-time monitor the temperature, humidity, smoke and illegal invasion alarm in the environment. It can also automatically detect the environment based on the specified value, automatically give alarm and drive related protection apparatus such as fire extinguisher, humidifier, dehumidifier and burglar proof device. The alarm box can also receive instruction from the control center to modify parameters and activate protection apparatus.

The alarm box features the following:

Real-time indication of temperature and humidity

Time indication

l Fire, smoke, humiture, water and three types of burglar alarms

Panel control key pad

l Provide 10x switch value input (optical/electrical isolation)

6x relays (max. 5A/220V) drive external actuator

2x PWM outputs (8bit resolution, basic clock not more than 500kHz)

l 7 independent open-collector gates (absorption current 300mA) driving

Communicate with BCKM of BTS through RS485 interface

2 Hardware

2.6.1 Alarm Box Input

Monitor temperature: frequency type hygrothermograph

l Monitor humidity: frequency type hygrothermograph

Monitor smoke: ionic smoke sensor or optical/electrical smoke sensor

l Monitor naked flame (optional): flame detector or hyper-thermo detector

Burglar proof monitoring: infrared monitor, optical/electrical monitor, door magnetic monitor

l Other sensor input: the input signals of all above sensors can be expanded to 10

switch values except the quantum temperature and humiture signals

2.6.2 Alarm Indicator

The 10 red indicator in the alarm box panel correspond to the following alarm values:

l Fire alarm: alarm activated from over heat or by smoke detector

Smoke alarm: overtime alarm of the smoke sensor

l Temperature upper limit: alarm activated when the ambient temperature exceeds

the upper limit of the temperature range.

Temperature lower limit: alarm activated when the ambient temperature exceeds the lower limit of the temperature range.

Humidity abnormal: alarm activated when the relative humidity is not in the specified range.

Soaking: alarm activated when the soaking detector is triggered.

Air-conditioner status: alarm activated when a fault occurs to the air-conditioner.

l Optical/electrical: for prevention of burglary, alarm activated when the

optical/electrical switch is trigger.

l Infrared: for prevention of burglary, alarm activated when the infrared sensor is

triggered.

Door magnetic: for prevention of burglary, alarm activated when the door magnetic switch is triggered.

03Q-0110-20020720-120 2-44

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

When a sensor has more than one input signals, alarming on any signal will be considered an alarm event. All sensors can be expanded to multi-channel sensors, at most 10 channels except the temperature and humiture sensors.

2.6.3 Interface of Executive Mechanism

The environment monitoring function of BTS also includes the following interfaces of executive mechanism.

1) Six (A~F) normally open/closed optional relay contacts output to control the protection devices. The relay is 1A/220V. Usage can be customized, but the default setting is as follows:

A starts the freezer. The relay is actuated when the temperature exceeds the upper limit of the specified range.

l B starts the heater. The relay is actuated when the temperature exceeds the

lower limit of the specified range.

l C starts the dehumidifier. The relay is actuated when the humidity exceeds the

upper limit of the specified range.

l D starts the humidifier. The relay is actuated when the humidity exceeds the

lower limit of the specified range.

F starts the burglar alarm. The relay is actuated when a burglar alarm occurs.

2) Two PWM outputs, driven by the open-collector gate, drive current 300mA. Period can be customized, 1 second by default, resolution 8 bits (0~255).

2 Hardware

3) Seven open-collector gate outputs, drive current 300mA, controlling the specified actuator.

2.6.4 Communication

There is bi-directional link between the alarm box and BCKM. The alarm box reports BCKM through the link about the alarm status and monitored data. BCKM can send commands to control the alarm box to actuate the protection devices and set alarm parameters.

2.7 Lightning Protection System

2.7.1 Overview

Thunder and lightning is a universal natural phenomenon. It is impossible to prevent it. What can be done is to reduce the accident probability. Lightning attack probability is different in different areas. It is related to the external environment (weather, lightning protection and grounding) where the equipment is located and the protection quality of the equipment.

The lightning protection of communication equipment should be in line with the following principles:

Systematic protection: since information equipment is extensively connected and lightning surge is all pervasive, protection by means of equipment and board only is not enough. A thorough research should be conducted to the systematic environment where the communication station (site) is located.

Probability protection: lightning discharge is random. Statistics can be roughly made to the lightning parameters. Lightning protection equipment cannot prevent the

03Q-0110-20020720-120 2-45

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

lightning and lightning protection devices cannot suppress all over-voltage and over-current. Although there is small probability for destructive lightnings, it costs much to guard against it.

Multi-level protection: IEC 61312 divides the equipment premises area into several lightning protection zones: LPZ0A, LPZ0B, LPZ1 and LPZ2, as shown in Figure 2-27.

Hole (such as window)

Antenna

2 Hardware

is likely to be attacked by

LPZ0A

direct lightning, with no attenuation in the electromagnetic field

Power cable

LPZ0B is not likely to be

attacked by direct lightning,with

no attenuation in the electromagnetic field

LPZ2 EM field further attenuation

LPZ1 is not likely to be attacked by

direct lightning, with no attenuation in

the electromagnetic field.

Metal (pipe)

Equipment

Communication cable

Pole or fence

Figure 2-28 EC 61312 Space division of lightning protection zone

BTS equipment is usually in LPZ1 and communication cables, power lines and antennae are usually in LPZ0A. Different protection measures are taken for different zones. The multi-level protection requires equipotential connection (equipotential connection means the connection with conductors or surge protectors of lightning apparatus with metal structures of the premises, metal devices, foreign conductor, electrical appliances and telecommunication equipment located in the area where lightning protection is necessary), to reduce metal parts in the lightning protection zone and minimize potential difference between the systems.

Generally, to lower the probability of lightning attack to the BTS, much attention should be devoted to three points: protection system where the station (site) is located, BTS internal lightning protection system and their interoperation.

2.7.2 Lightning Protection for DC

I. Multi-level protection of power supply

The BTS power supply subsystem is normally in 5-level protection, as shown in Figure 2-29.

03Q-0110-20020720-120 2-46

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

6kV 4kV 2.5 kV 1.5 kV

Level-1 protection Level-2 protection Level-3 protection Level-4 protection

2 Hardware

3-phase AC

Great power-absorbing

capability, slow

response, at cable inlet

of the room, optional

Considerable

power-absorbing

capability, normal

response, at the AC

distribution point

Normal power-absorbing

capability, quick

response, in front of

rectifier module

. .

AC/DC

Low power-absorbing capability, very quick

response, in rectifier

module

Figure 2-29 Illustration of lightning protection of BTS power

II. Principle of DC lightning arrester

Level-5 protection is a built-in integrated lightning arrester in the cabinet-top box. The operation principle is as shown in Figure 2-30.

-48V

EMI

Lightning arrester

GND

Signal line

PGND

Wiring terminal

Figure 2-30 Illustration of lightning protection of BTS power

2.7.3 Lightning Protection for Trunk Line

I. Overview

Three kinds of trunk line are supported in BTS: 75O coaxial cable (E1), 120O twisted pair (E1) and optical fiber. Lightning protection is out of question if optical fiber is used as the trunk line because the BTS is connected with fiber pigtail. For the two kinds of E1 trunk line, lightning protection is provided by the BTS E1 surge protector (BESP) on top of the equipment.

03Q-0110-20020720-120 2-47

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

II. Connection to BTS via E1 trunk line

As shown in Figure 2-31.

2 Hardware

75/120O

Transmission

equipment

Grounding bar of the room

BTS

BESP

75/120O

BCIM

Figure 2-31 Connection to BTS via trunk lines

III. BESP introduction

E1 interface protection of BTS is implemented through a BESP on top of the equipment. In consideration of the limit cabinet-top space or the convenience of installation or dismounting, two identical BESPs are used, each with 8 pairs (16 PCS) E1 lightning protection units, 1 DB37 connector and 2 DB25 connectors, as shown in Figure 2-32.

03Q-0110-20020720-120 2-48

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

Into the cabinet (8 pairs of E1s)

5mm

DB37

16 E1 lightning protection units

128mm

Fixing hole§¶3.5

PGND§¶10

2 Hardware

6mm

DB25

6mm

10mm

Out from the cabinet

(4 pairs of E1s)

Out from the cabinet

(4 pairs of E1s)

128mm

Figure 2-32 Physical appearance of BESP

E1 lightning protection unit has two inbound lines connected with DB25 and two outbound lines connected with DB37 and one PGND. Here PGNDs of all lightning protection units can be interconnected. DB37 connector is male and DB25 connector is female, with 8 pairs of shielded E1 cables connected. 75O and 120 O impedance match is provided with the cables. The principle of lightning protection units is as shown in Figure 2-33.

Core

Lead in

DB25

Sheath

PGND

Lead out

DB37

Figure 2-33 Principle of E1 lightning protection units

03Q-0110-20020720-120 2-49

User Manual

Architecture

Airbridge ccBTS3612-800 12-carrier CDMA Base Station

2.7.4 Lightning Protection for Antenna & Feeder Port

I. Lightning protection design for RF antenna & feeder port

Antenna & feeder lightning protection is to protect against secondary lightning attack, i.e. inductive lightning. Inductive lightning means that the feeder receives inductive current at the transient moment of lightning attack, which cause damage to the equipment.

Inductive lightning can be prevented effectively in three ways:

l The feeder is grounded at three points.

Antenna DC is grounded. The inductive current on the conductor in the feeder can be discharged through the antenna.

CDU DC is grounded. The inductive current on the conductor in the feeder can be discharged through CDU.

The above three measures can be taken to guard against 8kA lightning current.

II. Lighting protection design for dual-satellite synchronization antenna &

feeder

GPS/GLONASS antenna & feeder is protected with an additional lightning arrester to prevent the damage caused by the lightning current induced on the core of the antenna & feeder.

2 Hardware

Lightning protection can be active and passive:

l Passive lightning protection: the low frequency lightning current is grounded by

microwave principle, to provide protection.

l Active lightning protection: a discharge tube is used as the lightning arrester.

When the voltage at both ends of the discharge tube comes to a specified value, the two ends will be connected, hence the lightning protection.

The dual-satellite synchronization antenna & feeder adopts passive lightning protection. Its equivalent circuit is as shown in Figure 2-34.

1 2

C3 C4 L2

Figure 2-34 Lightning protection for BTS antenna & feeder port

03Q-0110-20020720-120 2-50

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

3 Software Architecture

3.1 Overall Architecture

cBTS3612-800 software consists of application and bottom layer software in terms of layer. And in terms of functional unit, there are main control software, O&M software, clock software, BCIM software, BCPM software, BRDM software and BTRM software.

Main control software, O&M software and clock software are compiled together, running on BCKM. Other software runs on their corresponding boards.

cBTS3612-800 software structure is as shown in Figure 3-1.

cBTS3612-800

software

Main control

software

O&M software

Running on BCKM

Clock

software

Operating system and lower

BCIM

software

layer driver

BCPM

software

BRDM software

Application

Lower layer

software

BTRM software

Figure 3-1 cBTS3612-800 software architecture

I. cBTS3612-800 applications

This part mainly realizes layered protocol of radio links and Abis interface protocol, exercises real-time management over radio resources and transmission equipment as well as performs operation & maintenance to BTS equipment. The function of each software module will be detailed in “3.2 Module Description”.

II. cBTS3612-800 bottom layer software

This part works on a unified software platform. Bottom layer software includes operating system and bottom layer drivers. The operating system is a well-developed imbedded real-time multi-task operating system, which delivers highly effective and reliable operations such as task dispatching, message management, timer management and memory management. The bottom layer drivers provide basic functions for the upper layer to operate the physical devices and for the calling by applications.

03Q-0110-20020720-120 3-1

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

3.2 Module Description

3.2.1 Main Control Software

I. Function of main control software

The main control software is primarily used for the control of service call flow, it communicates with BSC through Abis interface, and also with BCPM, BTRM, OMU (operation & maintenance software) interfaces inside the BTS. BTS is closely connected with BSC through the main control software, jointly performing radio resources management at air interface.

II. Structure of main control software

The structure of the main control software is as shown in Figure 3-2.

Main control software

Resource

management

Cell configuration and

message update

Channel

management

Active/standby

switchover

Operation &

maintenance

Figure 3-2 Structure of main control software

III. Software units

1) Resource management This unit consists of four sub-modules:

l Resource status management: When BTS resource status changes, the main

control software reports to BSC the current resource status of BTS, which will trigger BSC to perform logic configuration operation to BTS. At the same time, BTS regularly reports its resource status to BSC so that the logic resource status of BTS and BSC are consistent. Logic resource includes cell, carrier, forward channel and reverse channel in the channel unit resource pool.

Resource measurement report: Main control software submits the cell public parameter measurement report received from BTRM to BSC. Specific parameters of the public measurement report include RSSI, carrier transmit power, etc.

l Resource blocking function: cells, carriers or channel elements can be blocked or

unblocked.

Resource checking function: Main control software checks the resources of BCPM regularly, such as dedicated channels and common channels, to make sure the resource allocated on both sides are identical.

2) Cell configuration and message update This unit comprises three sub-modules:

l Cell configuration function: BSC makes logic configuration to the cell according to

the availability status of the logic resource reported by BTS. Specifically, carrier attribute configuration of BTRM and cell public channel attribute configuration of BCPM. Carrier attribute configuration attributes are: carrier band, carrier absolute band number and carrier transmit gain. Cell public channel attribute configuration parameters are: BASE_ID, cell ID, pilot PN sequence offset, cell gain, public

03Q-0110-20020720-120 3-2

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

channel number and attribute (including pilot type, pilot gain, SCH gain, QPCH quantity, QPCH gain, QPCH rate, PCH quantity, PCH gain, PCH rate, ACH quantity).

l General message update: after cell configuration, when the cell logic resource

changes, it is necessary to update the general message of the cell. General message includes system parameter message, access parameter messa ge and synchronization channel message.

l Cell breath control: when the user load of adjacent cells is not balanced, BSC

activates the cell breath control. The main control software resets the cell attribute parameters as required by BSC, to perform cell breath function.

3) Channel management This unit comprises 6 sub-modules:

l Paging channel message processing: transmit the paging channel message from

BSC to corresponding BCPM according the parameters such as cell ID, absolute band number and PCN.

l Access channel message processing: Main control software sends the access

channel message received from BCPM access channel to BSC.

Channel allocation and release: when a dedicated channel is to be created, the main control software will first check information such as the carrier absolute band of the private channel, channel type, RC, rate, frame length, whether it is a branch of the existing channel for a softer handoff, and then distribute channel resource in the corresponding channel unit resource pool and send message instruction to BCPM to create the channel. Similarly, when a channel is to be released, the main control software first sends message instruction to BCPM to release the channel, which will be returned to corresponding channel unit resource pool. When a private channel is to be created or released, main control software needs to distribute or release the service link of AAL2 of the corresponding Abis interface.

l Physical channel change function: in the process of communication through a

private channel, BSC can modify some parameters of this channel in the physical layer. The parameters are: long code mask, reverse pilot door control rate, forward power control mode and MS pilot gain. After receiving the message from BSC, the main control software identifies the BCPM number of the private channel, and sends message to the BCPM board, instructing the modification of physical parameters.

Public channel mutual-aid function: when part of channel units in a channel unit resource pool are damaged, which makes part of or all of public channels in this channel unit resource pool unavailable, the main control software will attempt to move the affected public channels onto some available channels. At the same time, BCKM will send message to BCPM, requesting it to re-create these channels.

l Transmission delay report function: when the BTS seizes a reverse private

channel, or the air interface delay from the MS to the BTS changes over 1 code, BCPM will report to main control software about the air interface delay of this private channel. Then main control software forwards the channel delay to BSC.

4) Active/standby switchover To improve the system reliability, Main control software works in active/standby mode.

The active Main control software backups call data to the standby in real time. When the active equipment gets faulty, active/standby switching occurs. Therefore the communication can go on on the created channel without any interruption.

5) Operation & maintenance Include functions such as data configuration, status report, interface tracing, fault alarm,

reboot control, switching control, log sending and process reporting.

03Q-0110-20020720-120 3-3

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

3.2.2 O&M Software

I. Function of O&M software

Operation & maintenance software unit (OMU) is the O&M part of cBTS3612-800. Other software modules on the BTS have their own interfaces.

OMU monitors the BTS operation. It is the intermediate section between the O&M center (OMC) and all equipment of cBTS3612-800. OMU is connected upward with OMC and downward with the function units of BTS. On one hand, OMU receives instructions from OMC, converts them into control unit instructions and sends to the function units. On the other hand, OMU receives status report and alarm report from the function units, make proper processing and report to OMC.

II. Structure of O&M software

The structure of the operation & maintenance software is as shown in Figure 3-3.

O&M software

Software

downing

Fault

management

Status

management

configuration

Log management

Data

Maintenance

console interface

Test

management

Interface tracing

Other functions

Figure 3-3 Structure of O&M software

III. Introduction to software units

1) Software downloading Software of all parts of BTS (including O&M software) can be downloaded remotely.

When the software is to be upgraded, it has not to be done on the site of BTS.

2) Status management Monitor the running status of BTS boards, block/unblock the channels.

3) Data configuration Set up running parameters of BTS boards, including setting BTS attributes, BTRM

attributes, BCPM attributes, and managing Abis interface circuit.

4) Test management Perform test to BTS equipment, including functional test to the boards, to make

pre-warning the fault and locate the fault.

5) Interface tracing Trace the air interface message, or other interface messages inside BTS, to help locate

faults.

6) Fault management

03Q-0110-20020720-120 3-4

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

Monitor BTS internal alarm, such as board alarms or monitor environmental alarm, such as temperature, humidity, fire alarm etc. For serious alarms, the O&M part can take protective measures such as shut down the equipment to avoid further damage.

7) Log management Record equipment operations and abnormal information, to help locate faults.

8) Maintenance console interface With the local MMI, the operator can perform operation & maintenance locally to the

BTS via the Ethernet.

9) Other functions Other functions such as active/standby switching, debugging, etc.

3.2.3 Clock Software

I. Funciton of clock software

The primary function of the clock software is to refer to the standard 1PPS pulse signal output by the reference clock source module and GPS time information output from its serial port, and generate various clock signals synchronous with GPS system utilizing the software phase-locking algorithm.

II. Structure of clock software

Structure of clock software is as shown in Figure 3-4.

Clock software

Service

application

Operation &

maintenance

Figure 3-4 Structure of clock software

III. Introduction to software units

1) Service application This unit consists of three functional sub-modules:

Reference clock source serial port communication processing sub-module: the clock software supports three reference clock sources input: GPS , GLONASS and external input. The sub-module gets GPS time information from the serial port of the clock source (the present system uses GPS clock source), and sends to the system via OMU.

Software phase locked sub-module: Combine hardware counting and software phase locked, providing GPS synchronization clock signal for the system, to ensure that CDMA system is globally synchronous.

Hardware phase locked control sub-module: perform initialization settings of devices about the hardware phase locked loop.

2) Operation & maintenance

03Q-0110-20020720-120 3-5

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

l Public part: process messages related to OMU interface, such as public query,

board self-check and perform corresponding functions.

Private part: Clock module working parameter configuration, status management, alarm collection, alarm processing and reporting.

3.2.4 BCIM Software

I. Function of BCIM software

The primary function of BCIM software is to create ATM transmission link of Abis interface between BTS and BSC, and perform transmission of signaling, service and O&M information between the two through related protocol stack. Specifically:

l Receive OMU configuration command and configure ATM transmission link of

Abis interface.

In a frame of 128 cells, the maximum bandwidth of one ATM transmission link is 8%1904kbit/s.

At most 7 ATM transmission links can be created between BTS and BSC. The bandwidth of each link is 1904kbit/s.

II. Structure of BCIM software

The structure of BCIM software is as shown in Figure 3-5.

BCIM software

IMA processing

Operation &

maintenance

Figure 3-5 Structure of BCIM software

III. Introduction to software units

1) IMA processing IMA (Inverse multiplexing on ATM) processing is to perform the following functions: add

or delete IMA groups and IMA links dynamically. Add or delete UNI link.

2) Operation & maintenance

l Public part: process messages related to OMU interface, such as log

management, board self-check, public query, interface tracing, board software loading and link test, perform respective functions.

Private maintenance: management of E1/SDH interface, IMA state machine and IMA configuration, as well as BCIM board status management, alarm collection, alarm processing and reporting.

03Q-0110-20020720-120 3-6

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

3.2.5 BCPM Software

I. Software function

The primary function of BCPM software is to make operation and control to channel processor. Specifically:

Work with main control software to manage the service layer of BCPM.

l Public channel processing.

Service channel processing.

II. Software structure

The structure of BCPM software is as shown in Figure 3-6.

BCPM software

Service

application

Operation &

maintenance

Figure 3-6 Structure of BCPM software

III. Introduction to software units

1) Service application This unit consists of 3 functional sub-modules:

l Control & management sub-module: the sub-module creates or release specified

channel applications according to the control command sent by main control software. At the same, it exercises management over cell configuration and radio link.

l Public channel sub-module: under the control of the control & management

sub-module, the sub-module is used to setup or release public channel, perform message dispatching for forward public channel and control the corresponding driver to sent message to the air in correct time. It also receives air reverse message for the reverse public channel, and forwards to BSC through the main control software.

Private channel sub-module: under the control of the management sub-module, the sub-module setups or releases traffic channel. For the forward dedicated channel it receives data frame of BSC and sends from the air in correct time according to the power set in BSC. For reverse dedicated channel, it receives reverse air frame, adds some information and sends to BSC.

2) Operation & maintenance

l Public part: process messages related to OMU interface, such as log

management, board self-check, public query, interface tracing, board software loading and link test, and perform respective functions.

l Private part: channel processing parameter configuration, status management,

alarm collection, alarm processing and reporting.

03Q-0110-20020720-120 3-7

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

3.2.6 BRDM Software

I. Function of BRDM software

BRDM software is used to relay BTRM signaling and control base band data. The main functions are:

Provide relay for 36 BTRM signalings (including main control signaling and operation & maintenance signaling).

Receive OMU configuration command, control the relay of forward & reverse base band data.

II. Structure of BRDM software

The structure of BRDM software is as shown in Figure 3-7.

BRDM software

Signaling trunk

Figure 3-7 Structure of BRDM software

III. Introduction to software units

1) Signaling trunk Perform BTRM signaling trunk function, including two parts: BTRM signaling trunk task

and trunk interface matching. The primary task is to adapt signalings from OMU or BCKM according to the format and protocol established with BTRM software and send them to BTRM. Or adapt signalings from BTRM and send to OMU or BCKM.

2) Operation & maintenance

Public part: process messages related to OMU interface, such as log management, board self-checking, public query, interface tracing, board software loading and link test and perform respective functions.

Private part: perform functions such as base band trunk link configuration, BTRM signaling trunk link configuration, link quality monitoring as well as board status management, alarm collection, alarm processing and reporting.

3.2.7 BTRM Software

I. Function of BTRM software

Operation &

maintenance

BTRM software exercises management over BTRM. The main functions are as follows:

Perform cell carrier configuration, carrier parameter measure and transmit gain compensation.

l Perform operation & maintenance to BTRM module.

Ensure the precision of the clock of BTRM module through software phase-locking.

Board device configuration, BFMM & environment monitor box management and fiber-optic link delay measurement.

03Q-0110-20020720-120 3-8

User Manual Airbridge cBTS3612-800 12-carrier CDMA Base Station 3 Software Architecture

II. Structure of BTRM software

The structure of BTRM software is as shown in Figure 3-8.

BTRM software

Others Operation &

Signaling

processing

Software

phase-lock

maintenance

Figure 3-8 Structure of BTRM software

III. Introduction to software units

1) Signaling processing This unit consists of 4 functional sub-modules:

Carrier setting: BTRM software receives carrier configuration command from main control software, configuring the frequency and power level of the sector carrier.

l Public parameter measurement: BTRM makes a regular measurement of the

forward transmit power and RSSI (received signal strength indication), and reports measurement result to BCKM.

l Loopback test : BTRM software receives loopback test command from the main

control software and returns the test data. The function is used for logic link test between BTRM and BCKM.

Transmit path gain compensation: BTRM software modifies the gain of the transmit path according to the change of ambient temperature and the present working frequency, to ensure the stability of transmit power at antenna & feeder port.

2) Software phase-lock BTRM software phase-lock unit controls the constant temperature crystal oscillator with

software phase locked algorithm so that the constant temperature crystal oscillator can provide a clock of satisfactory frequency and precision to the system.

3) Others This unit consists of 2 functional sub-modules:

l Optical fiber delay calculation: when the optical fiber is long enough, the delay of

fiber-optic link becomes significant. BTRM software can calculates the delay of the fiber-optic link and reports the result to OMU so that OMU can make necessary phase compensation.

l BFMM and environment monitor box management: BTRM software exercises

management over the BFMM and environment monitor box, including storing & transmiting alarm information, sending control command and getting real-time status.

4) Operation & maintenance

Public part: process messages related to OMU interface such as log management, board self-check, public query, interface tracing, board software loading and link test, and perform respective functions.

l Dedicated part: control the parameter configuration of RF system, monitor running

status and RF PLL status and perform functions such as alarm collection, alarm processing and reporting.

03Q-0110-20020720-120 3-9

User Manual

onfiguration

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

5 System Configuration

This chapter first introduces cBTS3612-800 system configuration, based on which some typical configuration examples are given. After reading this chapter, you will have a basic understanding of cBTS3612-800 configuration principle.

5.1 Configuration Overview

BTS consists of the following parts in physical structure:

Power distribution box

l Baseband subrack

Fan subrack

Power subrack

l RF subrack

RLDU subrack

l CDU/DFU subrack

BTS is designed to accommodate 36 sector carriers in full configuration, which supports 3 cabinets at most, one basic and two extended. The difference between a basic cabinet and an extended cabinet is that a basic cabinet needs a baseband subrack. The basic cabinet and extended cabinet are connected with optical fiber.

A single cabinet supports as many as 12 sector carriers. Main configuration modes are omni cell, 3 sectors and 6 sectors.

5.1.1 Basic/Extended Cabinet Configuration

Configuration of a basic cabinet is as shown in Figure 5-1.

03Q-0110-20020720-120 5-1

User Manual

onfiguration

Baseband

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

Power distribution box

subrack

B C I M

10 11 12 13 14 15 16 17 18 19 20 219

Fan subrack

Fan box 1

B H P A

RLDU

B H P A

P S U

RLDU

P S U

C D U

Fan box 2

P S U

B H P A

RLDU

B H

H P

P A

Figure 5-1 Configuration of a basic cabinet

PSU subrack

P S U

RF subrack

RLDU subrack

CDU/DFU subrack

C D U

RF subrack

The baseband subrack of extended cabinet don't need configuration. The front view of a basic cabinet is as shown in Figure 5-4.

03Q-0110-20020720-120 5-2

User Manual

onfiguration

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

Figure 5-2 Front view of a basic cabinet

03Q-0110-20020720-120 5-3

User Manual

onfiguration

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

5.1.2 Baseband Subrack Configuration

The baseband subrack in full configuration is as shown in Figure 5-3.

10 11 12 13 14 15 16 17 18 19 20 219

Figure 5-3 The baseband subrack in full configuration

The boards in the baseband subrack include BCIM, BCPM, BRDM, BCKM. The quantity of boards should be configured as follows:

I. BCIM

Provide interface module with BSC. It is according capacity demand and service type. 2 PCS is needed for full configuration. 2 BCIMs configured can be used for load sharing. Each BCIM boards can support 8 E1 links.

II. BCPM

BCPM board is the channel processing board of BTS. At most 12 BCPMs can be configured in the baseband subrack. There are two types of BCPMs. The processing capability of type-A is 64 reverse channels and 128 forward channels, while the capability of type-B is 128 reverse channels and 256 forward channels

B R D M

BCPMs are configured based on the channel processing capability required by the system, with consideration of carrier quantity and board types. Typical configurations are listed in Table 5-1.

Table 5-1 Configuration of BCPMs

BTS configuration Number of type-A BCPMs Number of type-B BCPMs

O1 1 Not recommended O2 2 Not recommended S111 2 1 S222 4 2 S333 6 3 S444 8 4

The above configuration is for CDMA2000 1X, and for 3-sector configuration, type-B BCPMs are recommended. For IS95 configuration, the quantity should be reduced by half.

In normal cases, no redundancy configuration is required. If one board fails, system will automatically screened the faulty board. In this case, the system capacity decreases, but the service is still normal.

03Q-0110-20020720-120 5-4

User Manual

onfiguration

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

III. BRDM configuration

BRDM board is used to connect BTRM module of RF part. BRDM provides 6 optical fiber ports, which can be connected with 6 TRXM modules. 6 BRDMs are needed in full configuration with 36 sector carriers. When there are less than 6 sector carriers, 1 BRDM is enough. When there are 6~12 sector carriers, 2 BRDMs are needed. BRDMs should be first configured in slots 12 and 13.

When there are more than 12 sector carriers, BRDMs are needed in slots 8, 9, 20, 21, as shown in Figure 5-3. The configuration principle: adding 6 sector carriers requires one additional BRDM.

IV. BCKM configuration

BCKM is the control & clock board, 2PCS as active/standby. Normally, one piece is enough and 2 pieces are used for backup purpose. BCKM receives GPS signal from outside and provides 10MHz clock connection tester externally. In addition, it provides interfaces such as Modem, RS485.

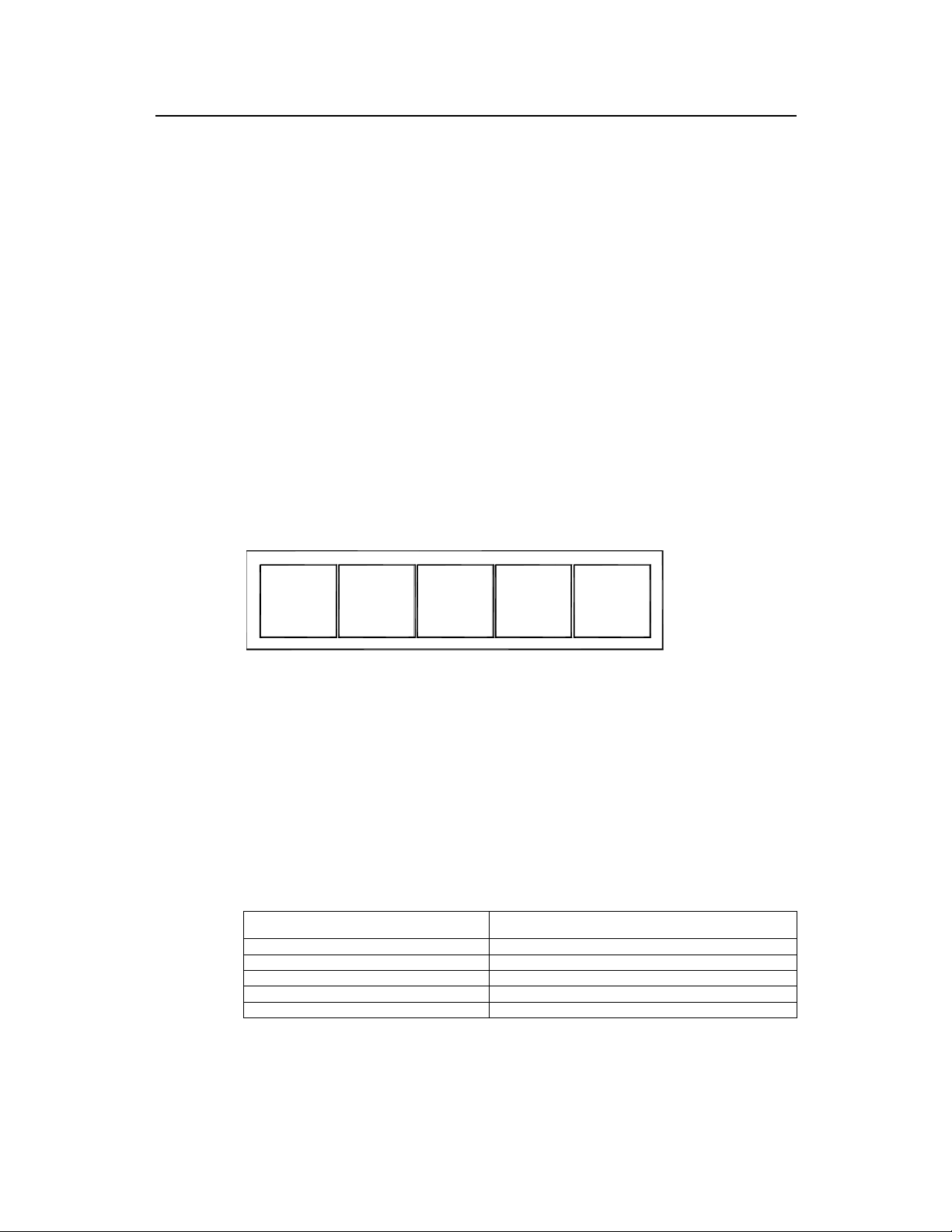

5.1.3 Power Supply Subrack Configuration

Power supply module provides +27V power for the whole system, 5 modules in full configuration, as shown in Figure 5-4.

P S U

Figure 5-4 Power Supply Subrack in full configuration

The power module can ensure at least 7200W output (4+1 backup). The number of modules used depends on the number of carriers.

Two power supply modules (one backup) should be configured when there are no more than 3 sector carriers. One more power supply module is needed when 3 sector carriers are added.

Since current equalization output and centralized powering is used, power supply modules can be inserted into any slots for both the basic cabinet and extended cabinet.

The configuration of power supply module in a cabinet is as follows:

Configuration unit (sector carrier) Power supply module quantity unit (PCS)

Basic configuration 1 1~3 1+1 4~6 2+1 7~9 3+1 10~12 4+1

03Q-0110-20020720-120 5-5

User Manual

onfiguration

Airbridge cBTS3612-800 12-carrier CDMA Base Station 5 System C

5.1.4 RF Part Configuration

RF part in full configuration is shown in Figure 5-5.

RLDU

C D U

B H P A

C D U

RLDU

C D U

B H P A

C D U

B T R M

RLDU

C D U

B H P A

C D U

B T R M

Figure 5-5 RF part in full configuration

There are 2 RF subracks in BTS, each subrack with 6 BTRM slots and 6 BHPA slots. Empty slots are covered with dummy panels.

There is one RLDU subrack, configured with 1~3 RLDUs according to actual implementation.

There is one CDU/DFU subrack, configured with 1~6 CDUs or DFUs according to needs. Each DFU supports 1 sector carrier, Each CDU supports 2 sector carriers, and the carriers supported by each CDU should be larger than or equal to 2 carrier intervals.

The configuration of RF devices varies with the quantity of BTS sector carriers.

5.1.5 Configuration of Antenna Parts

Two omni antennae should be used for omni cell. For 3-sectors and 6-sectors configuration, each sector needs one bi-polarization

antenna or two uni-polarization antennae.

5.2 Typical Configurations

Typical configurations of BTS include:

03Q-0110-20020720-120 5-6

Huawei CBTS3612-800 User Manual
