HTC VOYAGER User Manual

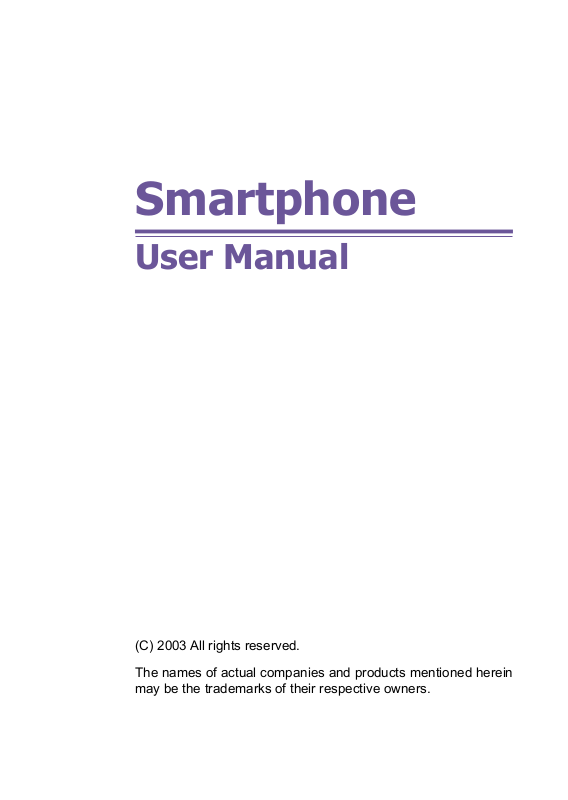

Smartphone

User Manual

The names of actual companies and products mentioned herein may be the trademarks of their respective owners.

Smartphone User Manual

Congratulations on the purchase of your new Windows(R) Powered Smartphone 2003! Please read the following warnings before op er at ing your device.

Safeguard

Warnings! Please Read Before Operating your Device

THE DEVICE IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX. (For information, see Step 2:

Charge the battery in Quick Start Guide)

TO TURN ON YOUR SMARTPHONE PRESS AND HOLD THE POWER BUTTON FOR 3 SECONDS.

DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.

WHEN INSERT YOUR SIM CARD, MAKE SURE THE DEVICE IS POWER-OFF, THEN CLICKS IT INTO PLACE. (For more information, see Step 1:

Insert the SIM card in Quick Start Guide)

YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’s OUTER CASING. (For more information, see the enclosed warranty

card)

Smartphone User Manual

Table of contents to be updated

Contents

Table of contents to be updated

Chapter 1 Getting Started

1.1 Knowing your smartphone 6

1.2 Status indicators 9

1.3 Battery 10

1.4 Accessories 11

1.5 Navigating 13

1.6 Entering text and numbers 17

1.7 Securing your phone 20

Chapter 2 Using your phone

2.1 Making a call 24

2.2 Receiving a call 26

2.3 In-call options 27

2.4 Retrieving a voice mail message 28

2.5 Reviewing your calls 29

2.6 Shortcuts (speed dials) 30

2.7 Advanced dialing options 32

2.8 Switching to your Bluetooth headset 34

Chapter 3 Using your camera

3.1 Camera and Video Recorder 36

3.2 Album 42

Chapter 4 Personalizing your phone

4.1 Changing settings 48

4.2 Bluetooth 56

4.3 Data Connections 60

Contents

Smartphone User Manual

Chapter 5 Messaging features

5.1 Setting up accounts 64

5.2 Sending e-mail, MMS and SMS messages 66

5.3 Receiving e-mail, MMS and SMS messages 78

5.4 Viewing your message folders 83

5.5 Managing your Inbox 86

5.6 Instant messaging 90

Chapter 6 Contacts, Calendar, and Tasks

Contents

6.1 Using Contacts 96

6.2 Using Calendar 101

6.3 Using Tasks 105

6.4 Photo Contacts 109

Chapter 7 Synchronizing information

7.1 Understanding ActiveSync 116

7.2 Synchronizing with a desktop computer 117

7.3 Synchronizing with a server 119

7.4 Other synchronization information 124

Chapter 8 Internet, entertainment and more

8.1 Internet Explorer 128

8.2 Media Player 133

8.3 Calculator 139

8.4 Modem link 139

8.5 Games 141

Chapter 1

Getting Started

1.1 Knowing your smartphone

1.2 Status indicators

1.3 Battery

1.4 Accessories

1.5 Navigating

1.6 Entering text and numbers

1.7 Securing your phone

Smartphone User Manual

1.1 Knowing your smartphone

This chapter will help you set up your Smartphone, charge its batteries, and fa mil iar ize yourself with its various hard ware and software components.

Front, and right side view

Started

1. Getting

abc

o m

jkl

z y

tuv

Nr. Key Function description

1 LED indicator

Solid green: Battery is fully charged. Solid red: Battery is empty. Solid amber: Battery is charging. Flashing green (blinking every second):

Notiﬁ cation

Flashing green (blinking every 3 sec-

onds): Network is attached.

Flashing red: Battery is low. Flashing blue: Bluetooth network is

at tached.

Dim: Network is disconnected.

2 Speaker This outputs voice from calls or sound from

audio me dia.

Smartphone User Manual

and disconnect GPRS.

Nr. Key Function description

3 Navigation stick Use to move left, right, up and down through

4 Right

soft key

5 End / Key lock Press once to end a call. Press and hold

6 Back Press to go back to the pre vi ous screen.

7 Dialing keypad Press to enter numbers and characters.

8 Earphone jack When you want to lis ten to music or talk

9 Pound key Pressing and holding the pound key

10 Asterisk Pressing and hold ing the as ter isk key

11 Home/Bluetooth Press to return to the Home screen.

12 Send/Handsfree Press once to pick up or initiate a

13 Left soft key This button se lects the com mand shown

14 Display The screen on your phone that displays

on-screen in for ma tion; press the center to se lect.

This button selects the com mand shown on the screen immediately above the key. The com mand shown chang es in re sponse to the pro gram you are us ing.

to lock/unlock the key pad.

hands-free, insert the ear phone jack here.

dis plays a list of symbols.

switch es be tween text and nu mer ic in put modes. You may also use this key to change be tween up per case and lowercase in text in put mode.

Press and hold to turn on/off Bluetooth headset

call. Press and hold to turn on/off the speak er phone.

on the screen immediately above the key.

information. The top of the display shows the title bar.

and disconnect GPRS.

Started

1. Getting

Smartphone User Manual

Rear, side and base view

Nr. Key Function description

Started

1 Car antenna

1. Getting

con nec tor

2 Power button When the phone is turned off, press the

3 Camera

button

4 Volume Press to adjust the volume of the earpiece

5 MMC card slot Insert SD or MMC cards here to in crease

6 Universal

connector

If your car supports, you can attach your phone to the antenna and utilize its su pe ri or re cep tion quality

Power button to turn on the phone.

When the phone is on:

Press the power button to ac cess the

Quick List.

Press and hold the power button to turn

off the phone.

Press to launch the camera.

and headset.

the capacity of your device's memory.

Attach the USB/Serial cable here when syncing with your desktop computer or note book.

Smartphone User Manual

1.2 Status indicators

Status indicators are displayed in the title bar at the top of the phone's display. The following table lists common sta tus indicators and their meanings.

Indicator Meaning

New email

New voice mail

New instant message

Voice call active

Data call active

Call forwarding

Call on hold

Missed call

Line 2

Battery level

Low battery

No battery

Signal strength

Radio off

GPRS available

GPRS in use

Ringer off

Multipress text input mode, lowercase

Multipress text input mode, uppercase

Multipress text input mode, caps lock

T9 text input mode, lowercase

T9 text input mode, uppercase

Started

1. Getting

Smartphone User Manual

1.3 Battery

Your Smartphone has a removable, rechargeable Lithium ion battery. With continual use and recharging, the battery will become unusable after a matter of years and should be changed through a service center. While you are using your device, the amount of power consumed depends on wheth er you are talking on the phone or on standby.

Mode Estimated battery life

Talk time 2~3 hours

GPRS 2 hours

Standby 100 hours

The estimates for battery life are based on you only using

Started

1. Getting

this function. As you will be continually in ter chang ing be tween these features and functions the es ti mates will vary.

Your smartphone contains a lithium-ion battery pack. There is a risk of ﬁ re and burns if the battery pack is handled improperly. Do not disassemble, crush, puncture, short external contacts, or dispose of in ﬁ re or water. Do not attempt to open or service the battery pack. Replace only with the battery pack designated for this product. Dispose of batteries properly. Do not dispose with your regular trash.

To recharge the battery

When the low-battery icon appears, save any unsaved data you are working on, perform a synchronization with your PC, then turn off your Smartphone. Do not try to restart your Smartphone until you have connected to external pow er.

You can recharge your smartphone in any one of the fol low ing ways:

1 Place your Smartphone in

the cradle and connect the cradle to an external power source. The first time you use it, charge for three to four hours.

2 You can plug the AC adapter into the optional USB/Serial

cable head and then connect your Smartphone directly to an external power source.

To your Smartphone

3 You can plug the AC

adapter into the optional DC Converter and then connect your Smartphone directly to an external power source.

1.4 Accessories

USB cradle

Your smartphone comes with a USB cradle. This allows you to recharge your smartphone, as well as syn chro nize information between your smartphone and a PC using ActiveSync.

To synchronize, the USB Cradle must be plugged into an available USB port on your PC. GPRS will not work when your device is plugged into the cradle.

Smartphone User Manual

AC Adapter plugs into the back of the cradle

USB synchronization cable, connect to your PC

To your SmartPhone

Plug the AC adapter into a

socket

To AC adapter

1. Getting

Started

Smartphone User Manual

SD and MMC cards

Your device has an expansion slot compatible with a range of SD and MMC Memory cards, which are primarily used to backup ﬁ les or store data.

1 To insert a memory card: Push

the memory card into slot until it clicks into place. The card is secure when it is not protruding from the base.

2 To remove the card: Push it in

and then release, letting the card spring out.

When you receive your device there will be a piece of

Started

1. Getting

plastic in the slot; remove as described in step 2 above.

USB cable

The USB cable allows you to syn chro nize with your desk top without the cradle. The DC converter in the head also allows you, in com bi na tion with an AC adapter, to recharge your device.

DC connector

The DC Connector in combination with the AC adapter al lows you to recharge your device without the cra dle.

Smartphone User Manual

To insert the SIM card

1 Lift up the SIM card case and insert the SIM. Push it

forward and pull back to secure the SIM.

2 Replace the back panel by inserting the top ﬁ rst.

3 Clip it into place it the bottom.

)

1.5 Navigating

Using the navigation stick

You can scroll by pressing the navigation stick to the di rec tion as described in the table below:

Action Navigation

Press up Moves the selection focus upward on

Press down Moves the selection focus down ward on

Press right Moves the selection focus forward on

Press left Moves the selection focus back ward

Press center Conﬁ rms your selection; serves as the

the screen

the screen, or moves the cursor for ward through characters in a text ﬁ eld

on the screen, or moves the cursor back ward through characters in a text ﬁ eld, without de let ing characters

Action button

1. Getting

Started

Smartphone User Manual

Using the Home screen

Pressing the Home key takes you to the Home screen. You can gain access to all of the smartphone features and pro grams from the Home screen.

The top of the Home screen displays icons for the ﬁ ve pro- grams that you have most recently used. The center of the Home screen displays your next appointment, the number of messages in Inbox, and your current proﬁ le. When you scroll to one of these items and press the navigation stick, the as so ci at ed program opens.

On the bottom left side of the Home screen is the Programs menu. Pressing the soft key for this menu takes you to the list of installed programs. You can scroll to a program in the list and press the navigation stick to open it. To the right of

Started

1. Getting

the Pro grams menu is a variable menu. Pressing this soft key opens the associated program.

The Home screen displays automatically when you turn on the Smartphone or leave the Smartphone idle when it is on, but you can go to it at any time by pressing the Home key.

Smartphone User Manual

Using the Back key

Pressing the Back key takes you to the previous screen, in a similar manner to the Back button on a browser. In a text ﬁ eld, pressing the Back key moves the cursor back to de lete one or more characters. This is similar to pressing the BACKSPACE key on a keyboard.

1 To backspace and remove one character: Press the

back key.

2 To remove the card: Push it in and then release, letting

the card spring out.

Using the soft keys

There are two soft keys on your phone, located directly be low the display screen. Each soft key performs the com mand displayed immediately above it on the screen, mak ing it easy to navigate around your phone and to perform common commands.

Using menus

On many screens, the right soft key is labeled Menu. The Menu soft key displays a list of menu options that are rel e vant to the screen you are viewing. Selecting a menu op tion will either perform the command or take you to another part of the user interface where you can perform the com mand.

1. Getting

Started

Smartphone User Manual

Using the Start menu

Your phone comes pre-installed with many programs that you can start using. To install additional programs on your phone, refer to the Smartphone Companion CD that came with your phone. To navigate to a program:

1 On the Home screen, press the Start soft key.

2 Select the program you want, and press the Action

button.

Using numbers

You can also use numbers to quickly navigate to programs and settings on your phone. Just press the number on the keypad that corresponds to the number shown next to the

Started

1. Getting

program or setting you want.

For example, in Start menu, press 3 on the keypad to open Cal en dar.

Using the Quick List

The Quick List displays a list of commands, such as locking your phone, locking the phone's keypad, and turning off the radio, as well as the list of available proﬁ le types. To access the Quick List, press the power button.

Smartphone User Manual

1.6 Entering text and numbers

Your phone supports three input modes for en ter ing text and numbers: Multipress, T9, and Numeric. The Multipress and T9 modes are used for entering text, and the Numeric mode for entering numbers. When you se lect a ﬁ eld that requires text or numeric entry, the phone will au to mat i cal ly select the ap pro pri ate input mode. The status indicator on the title bar shows the input mode you are cur rent ly us ing.

To switch input modes

Press and hold the Asterisk (*) key until the status indicator for the input mode you want is displayed in the title bar.

The following table shows the complete list of input mode status indicators.

Indicator Mode

abc ABC ABC t9 T9 T9 123

Entering text in Multipress mode

When you are in Multipress mode, you can enter a letter by pressing the number key on which the letter appears. To enter the ﬁ rst letter on the number key, press the key once, to enter the second letter, press the key twice, and so on. The letter entered most recently is underlined until you have completed the keypresses for the letter and moved on to the next letter.

For example: To enter the word "hat," press 44, 2, 8.

Multipress text input mode, lowercase Multipress text input mode, uppercase Multipress text input mode, caps lock T9 text input mode, lowercase T9 text input mode, uppercase T9 text input mode, caps lock Numeric input mode

1. Getting

Started

Smartphone User Manual

When you enter letters that are on the same number key, you must pause after entering the ﬁ rst letter and wait until the underline disappears before entering the next letter so your phone can process the ﬁ rst letter. This pause is called the Multipress time out, and you can adjust the length of the pause between keypresses.

For example: To enter the word "cat," press 222, pause, press 2, and then press 8.

To enter punctuation in Multipress mode, press 1 re peat ed ly until you see the punctuation mark that you want.

To change the Multipress time out:

1 On the Home screen, select Start.

Started

1. Getting

2 Select Settings and then Accessibility.

3 In Multipress time out, select the length of the pause

between keypresses.

Entering text in T9 mode

When you are in T9 mode, just press the number keys that contain the letters you want to form a word. T9 will then analyze your keypresses and attempt to complete the word.

For example: To enter the word "shoe," press 7, 4, 6, 3.

1 Enter the numerical sequence that represents the word

Smartphone User Manual

you want to form.

2 Press the # key to accept the word and enter a space after

it, or press 0 to scroll through the available words.

To enter punctuation in T9 mode: Press 1, and then 0 to cycle through common punctuation.

Having trouble entering a word in T9 mode? T9 cannot always ﬁ nd the word you want in the T9 dictionary; in these cases, switch to Multipress mode. After you have entered the word in Multipress mode, the word will be added to the T9 dictionary.

Entering numbers in Numeric mode

When you are in Numeric mode, just press the number(s) you want to enter on the keypad. If a ﬁ eld permits a nu mer i cal entry only, such as the Work phone ﬁ eld in Contacts, the input mode will automatically default to Numeric mode.

Miscellaneous input tasks

1 To enter a space: In Multipress or T9 mode, press the #

key.

2 To start a new line: Press the Action button.

3 To change between uppercase and lowercase in text

mode: Press the * key.

1. Getting

Started

4 To lock caps: Press the * key twice. Press the * key again

to return to lowercase.

5 To enter a symbol: Press and hold the # key, select the

symbol you want, and then press the Done soft key.

6 To enter a number, an asterisk (*), or a pound sign (#):

Switch to Numeric mode, and press the corresponding

Smartphone User Manual

key on the keypad.

7 To delete characters: Press the Back button to backspace

over a single characer. Press and hold the Back button to backspace and delete an entire text ﬁ eld.

8 To enter the plus (+) sign for international calls: Press

and hold 0.

1.7 Securing your phone

You can customize the level of security you want to have on your phone by locking the keypad, the entire phone, or the SIM card.

Locking the keypad

The keypad lock turns off the keypad functionality. This is a

Started

1. Getting

helpful feature if, for example, your phone is turned on and in your pocket, and you want to prevent accidental keypresses from dialing a number etc.

1 To lock your keypad: On the Home screen, press and

hold the End button. The left soft key will display Unlock, indicating that your phone is locked.

2 To unlock your keypad: On the Home screen, press the

Unlock soft key, and press the # key.

Locking your phone

Locking your phone prevents access to personal data. When you enable this feature, your phone will au to mat i cal ly lock after a speciﬁ ed time of inactivity. A screen will be displayed requiring your phone lock password before access is granted.

1 To lock your phone:

Smartphone User Manual

a. Press the Power button to display the Quick List, select

Device lock, and then press the OK soft key.

b. Under Lock phone after, select the amount of time

your phone is inactive before the phone automatically locks.

c. Under Password, enter the password you want to use

to access your phone when it is locked.

d. Under Conﬁ rm password, enter the password again,

and press the Done soft key.

You can still receive calls and make emergency calls when the phone is locked.

2 To unlock your phone: Press the Unlock soft key,

enter your password, and then press the Unlock soft key again.

1. Getting

Started

3 To turn off phone lock: On the Home screen, press

the Start soft key, select Settings, select More, select Security, select Disable Phone Lock, and then press the Done soft key.

Locking the SIM card

Locking your SIM (Subscriber Identity Module) card pre vents you from us ing the phone, but you can still turn it on and

Smartphone User Manual

make emer gen cy calls. When you turn your phone on, you will be prompted for your PIN1 password, which you must enter correctly before you can use your phone.

1 To lock the SIM: On the Home screen, press the Start

soft key, select Settings, select More, select Security, select Enable SIM Lock, and then press the Action key. Enter your PIN1 password, and then press the Done soft key.

2 To unlock the SIM: On the Home screen, press the Start

soft key, select Settings, select More, select Security, select Disable SIM Lock, and then press the Action key. Enter your PIN1 password, and then press the Done soft key.

Started

1. Getting

Chapter 2

Using your phone

2.1 Making a call

2.2 Re ceiv ing a call

2.3 In-call options

2.4 Re triev ing a voice mail message

2.5 Re view ing your calls

2.6 Short cuts (speed dials)

2.7 Ad vanced dialing options

2.8 Switching to your Bluetooth headset

Smartphone User Manual

2.1 Making a call

There are several ways to make a call.

Making a call from the Home screen

On the Home screen, press the numbers on the keypad to enter the phone number, and then press the Talk button to make the call.

As you enter a phone number, your phone searches

Contacts, Call History, and Speed Dial lists, and your SIM card to ﬁ nd a matching number. When you see the

name of the person you want to call listed, select it, and press the Talk button.

2. Using your phone

Making a call from Contacts

1 To make a call by contact name:

Press the Start soft key on the Home screen, select

Contacts, and then press the Action button. Select the contact name to call and press the Talk button.

If you have a long list of contacts and you don't see the contact you want on the screen, you can enter the ﬁ rst few letters of the contact's name, and the phone will search through the entire Contacts list and display the name.

+ 53 hidden pages
