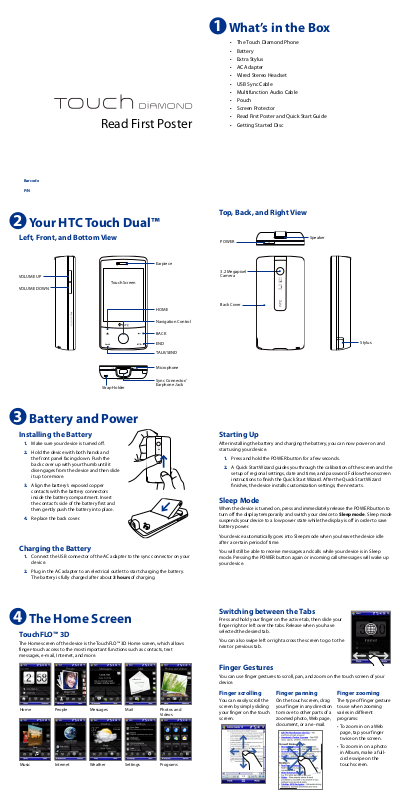

HTC Touch Diamond 080716 User Manual

Barcode

P/N

Read First Poster

What’s in the Box

The Touch Diamond Phone

•

Battery

•

Extra Stylus

•

AC Adapter

•

Wired Stereo Headset

•

USB Sync Cable

•

Multifunction Audio Cable

•

Pouch

•

Screen Protector

•

Read First Poster and Quick Start Guide

•

Getting Started Disc

•

Your HTC Touch Dual™

Left, Front, and Bottom View

VOLUME UP

VOLUME DOWN

Touch Screen

Earpiece

HOME

Navigation Control

BACK

END

TALK/SEND

Microphone

Top, Back, and Right View

Speaker

POWER

3.2 Megapixel Camera

Back Cover

Stylus

Sync Connector/

Strap Holder

Battery and Power

Earphone Jack

Installing the Battery

1. Make sure your device is turned oﬀ.

2. Hold the device with both hands and

the front panel facing down. Push the back cover up with your thumb until it disengages from the device and then slide it up to remove.

3. Align the battery’s exposed copper

contacts with the battery connectors inside the battery compartment. Insert the contact’s side of the battery ﬁrst and then gently push the battery into place.

4. Replace the back cover.

Charging the Battery

1. Connect the USB connector of the AC adapter to the sync connector on your

device.

2. Plug in the AC adapter to an electrical outlet to start charging the battery.

The battery is fully charged after about 3 hours of charging.

Starting Up

After installing the battery and charging the battery, you can now power on and start using your device.

1. Press and hold the POWER button for a few seconds.

2. A Quick Start Wizard guides you through the calibration of the screen and the

setup of regional settings, date and time, and password. Follow the onscreen instructions to ﬁnish the Quick Start Wizard. After the Quick Start Wizard ﬁnishes, the device installs customization settings, then restarts.

Sleep Mode

When the device is turned on, press and immediately release the POWER button to turn off the display temporarily and switch your device to Sleep mode. Sleep mode suspends your device to a low power state while the display is off in order to save battery power.

Your device automatically goes into Sleep mode when you leave the device idle after a certain period of time.

You will still be able to receive messages and calls while your device is in Sleep mode. Pressing the POWER button again or incoming calls/messages will wake up your device.

The Home Screen

TouchFLO™ 3D

The Home screen of the device is the TouchFLO™ 3D Home screen, which allows finger-touch access to the most important functions such as contacts, text messages, e-mail, Internet, and more.

Home People Messages Mail

Music Weather Settings Programs

Internet

Photos and Videos

Switching between the Tabs

Press and hold your finger on the active tab, then slide your finger right or left over the tabs. Release when you have selected the desired tab.

You can also swipe left or right across the screen to go to the next or previous tab.

Finger Gestures

You can use finger gestures to scroll, pan, and zoom on the touch screen of your device.

Finger scrolling

You can easily scroll the screen by simply sliding your finger on the touch screen.

Finger panning

On the touch screen, drag your finger in any direction to move to other parts of a zoomed photo, Web page, document, or an e-mail.

Finger zooming

The type of finger gesture to use when zooming varies in different programs:

To zoom in on a Web

•

page, tap your finger twice on the screen.

To zoom in on a photo

•

in Album, make a fullcircle swipe on the touch screen.

Using the Phone

Making your first call

1. On the Home screen, tap Phone to open the Phone screen.

2. Tap the keys on the keypad to enter the phone number.

3. Press the TALK/SEND button to place the call.

Answering a Call

Tap Answer or press TALK on the device to answer an incoming call.

In-Call Options

End a Call

Tap End Call or press END on the device to hang up.

Tap Phone Dial the phone number Press TALK

Synchronizing Information

Set up ActiveSync® on Windows XP®

The Getting Started Disc that comes with your device contains Microsoft ActiveSync 4.5 or later. Follow the steps below to install and set up ActiveSync on Windows XP or other compatible Windows systems.

Install ActiveSync

1. Insert the Getting Started Disc into the disc drive on your PC.

2. Click Setup and Installation.

3. Follow the step-by-step instructions to complete the installation. After the

software has been completely installed, restart your PC.

4. When your PC boots up, verify that the ActiveSync icon ( ) appears on

your desktop (in the lower right corner).

5. Connect your device to the PC, and ActiveSync will automatically detect

your device and prompt you to set up a partnership. When it is connected successfully, the ActiveSync icon turns GREEN ( ).

Turn on/off the

Mute/unmute the call

Speakerphone

Windows Mobile® Device Center

Microsoft Windows Mobile® Device Center is the replacement for Microsoft®

ActiveSync® on Windows Vista®. When you connect the device to your Windows Vista PC and start Windows Mobile Device Center for the first time, you will be asked to create a Windows Mobile partnership with the device.

1. Connect your device to your PC. The Windows Mobile Device Center will

open.

2. On the license agreement screen, click Accept.

3. On the Windows Mobile Device Center’s Home screen, click Set up your

device.

4. Select the information types that you want to synchronize, and then click

Next.

5. Enter a device name and click Set Up. When you ﬁ nish the setup wizard,

Windows Mobile Device Center synchronizes your device automatically.

6. When you are ﬁ nished, you can use Windows Mobile Device Center to

synchronize information and manage your device.

Personalizing Your Device

To set date and time

1. On the Home screen Home tab, tap the time display to open the Clock &

Alarms Settings screen.

2. On the Time tab, select the correct time zone and change the date or time.

To set an alarm

1. On the Clock & Alarms Settings screen, select the

Alarms tab.

2. Select a check box and tap <Description> to enter a

name for the alarm.

3. Tap the days of the week, and tap the time to open a

clock and set the time for the alarm.

4. Tap the alarm icon ( ) to specify the type of alarm

you want. When done, tap OK.

To change the ringtone

1. On the Home screen, slide to the Settings tab and

then tap Sound.

2. On the Sound screen, scroll down to Ringtone and

tap it.

3. On the Ringtones screen, tap the ringtone you want

to use and tap Done.

To change the Home screen display

1. On the Home screen, slide to the Settings tab and then tap Wallpaper.

2. On the Select a Picture screen, tap the picture that you want to use.

3. Tap OK. The background image of the Home screen will then change to your

own picture.

Using the Comm Manager

Comm Manager is a central location where you can easily turn on and off the

communication features of your device such as the phone, Wi-Fi, data connection, Bluetooth, and more.

Airplane Mode on/off

Phone on/off

Bluetooth on/off

Wi-Fi on/off

DirectPush on/off

Data Connection on/off*

Comm Manager

* Tap to disconnect active data connections. However, you cannot reconnect data

connections in Comm Manager.

For More Information

To learn more about using your device, please refer to the User Manual (the

•

PDF ﬁ le on the provided CD).

For more information about ActiveSync, visit: http://www.microsoft.com/

•

windowsmobile/help/activesync/default.mspx.

For customer support, service rates, and product information, visit:

•

www.bell.ca.
