Getting Connected 101

To beam information from your device to a computer

1. Turn on Bluetooth on your device, and make your

device visible. For information about this, see “To turn Bluetooth on and make your device visible”.

2. You also need to set Bluetooth on your computer to

visible mode. Do one of the following:

• If your computer has Windows XP SP2 and your

computer’s built-in or external Bluetooth adapter is supported by Windows XP SP2, open Bluetooth Devices from the Control Panel. Click the Options tab, then select the Turn discovery on and the

Allow Bluetooth devices to connect to this computer options.

• If the Bluetooth adapter on your computer was

installed using a third-party provided driver, open the Bluetooth software that came with the Bluetooth adapter. This software varies by manufacturer, but in most cases, you will ﬁnd a Bluetooth Conﬁguration utility which you can open from the Control Panel. After Bluetooth Conﬁguration opens, click the

Accessibility tab, then select Let other Bluetooth devices to discover this computer. Refer to the

Bluetooth adapter’s documentation for more information.

3. Create a Bluetooth partnership between the two

devices. For information about creating a partnership, see “Bluetooth partnerships”.

After a partnership has been created successfully, your

computer is ready to receive Bluetooth beams.

4. On your device, tap and hold an item to beam. The

item can be an appointment in your calendar, a task, a contact card, or a ﬁle.

5. To beam a contact, tap Menu > Send Contact > Beam.

To beam other types of information, tap Menu > Beam

[type of item].

102 Getting Connected

6. Tap the device name to which you want to send the

beam.

7. If you beamed an Outlook item and it is not

automatically added to Outlook, select File > Import and Export in Outlook to import it.

To beam information to a Bluetooth-enabled device such as another Pocket PC, follow steps 3 to 6 in the above procedure.

Note If the computer or device you want to beam to does not

appear in your device's Bluetooth list, make sure that its Bluetooth is turned on and set to visible mode.

To receive a Bluetooth beam

Your device will not detect and notify you of incoming Bluetooth beams unless you set it up to do this.

1. Tap Start > Settings > Connections tab > Beam.

2. Select the Receive all incoming beams check box.

3. Make sure your device is turned on, visible, and

within close range of the device that is beaming the information.

4. When prompted to receive an incoming beam, tap Yes

to receive the beamed information.

Tip Selecting the Receive all incoming beams check box also

allows the device to detect and receive infrared beams.

Use the device as a Bluetooth modem

You can connect your device to a notebook or desktop computer through Bluetooth and use the device as a modem for the computer.

Note If your computer does not have built-in Bluetooth capability,

you need to connect and use a Bluetooth adapter or dongle on your computer.

For the computer to use the Internet connection of your device, activate Internet Sharing on your device, then set up a Bluetooth Personal Area Network (PAN) between the computer and your device.

Getting Connected 103

1. On your device, turn on Bluetooth and set it to visible

mode.

2. Initiate a Bluetooth partnership from your device

by following the steps in “To create a Bluetooth partnership.“

Alternatively, you can initiate a Bluetooth partnership

from the computer by following these steps (based on Windows XP SP2):

a. In the Control Panel or System Tray, double-click the

Bluetooth Devices icon.

b. In the Bluetooth Devices window, click Add.

c. The Add Bluetooth Device Wizard opens. Select the

My device is set up and ready to be found

check

box, then click Next.

d. The wizard then detects your device and displays

its name in the dialog box. Select the device name, then click Next.

e. Select Let me choose my own passkey, then enter

a passcode (1 up to 16 digits) that will serve as an identification number for establishing a secure connection between your device and the computer. Click Next.

f. A confirmation message then appears on your

device. Tap Yes to accept the connection, enter the same passcode, then tap Next.

g. On the computer, click Finish to exit the wizard.

h. On your device’s Partnership Settings screen, you

can change the display name for the computer, then tap Finish.

3. Now, open the Internet Sharing program on your

device. Tap Start > Programs > Internet Sharing.

4. Select Bluetooth PAN as the PC Connection.

5. From the Network Connection list, select the name of

the connection that your device uses to connect to the Internet.

104 Getting Connected

6. Tap Connect.

7. On your computer, set up a Bluetooth Personal Area

Network (PAN) with your device:

a. Tap Start > Control Panel > Network Connections.

b. Under Personal Area Network, click the Bluetooth

Network Connection icon.

c. Under Network Tasks, click View Bluetooth

network devices

d. In the Bluetooth Personal Area Network Devices

dialog box, select your device, then click Connect

8. On the Internet Sharing screen on your device, check

if a connected status is displayed, which indicates that your computer has been successfully connected to the Internet using your device as a Bluetooth modem.

Use another Bluetooth phone as a modem

You can use another phone that has Bluetooth as a modem for your device to browse the Internet or to transfer other information.

To do this, create a Bluetooth modem connection on your device and then send information to the phone by using Bluetooth. The phone relays the information over the mobile phone network and then sends back to your device any information that you had requested over the connection.

Once you create a modem connection to the Bluetooth phone, you can reuse it whenever you want to use the phone as a modem. Make sure that Bluetooth is turned on and visible mode is enabled on both your device and the phone, and that the two are within close range.

Note Normally, you will need another phone as a modem only if

your Pocket PC device has no integrated phone capability.

To use a Bluetooth phone as a modem for your device

1. On your device, tap Start > Settings > Connections

tab > Connections.

2. Tap Add a new modem connection.

Getting Connected 105

3. Enter a name for the connection.

4. In the Select a modem list, tap Bluetooth.

5. Tap Next.

6. If the phone appears in the My Connections list, skip

to step 11.

7. If the phone does not appear in the My Connections

list, tap Add new device, and follow the remaining steps.

8. Select the phone from the list and tap Next.

9. Enter a passcode and tap Next.

10. Enter the same passcode on the phone and tap Finish.

11. In the My Connections list on your device, select the

phone and tap Next.

12. Enter the phone number to dial for this connection and

tap Next.

13. Enter the required logon information for this

connection and tap Finish

6.5 Using Wi-Fi

Wi-Fi provides wireless Internet access over distances of up to 100 meters. To use Wi-Fi on your device, you need access to a wireless access point of your service provider. When you are in public places, such as in a coffee shop or restaurant, you will need access to their public wireless access points (also referred to as “hotspots”).

Note The availability and range of your device’s Wi-Fi signal

depends on the number, infrastructure, and other objects through which the signal passes.

To turn Wi-Fi on

At the lower left side of your device, slide the WLAN Switch upward. The icons on the switch represent the following:

: Wi-Fi is turned on.

: Wi-Fi is turned off.

106 Getting Connected

To connect to a wireless network

1. After Wi-Fi has been turned on, your device then

scans for available wireless networks in your area. The network names of the detected wireless networks will be displayed on a pop-up message window. Tap the desired wireless LAN, then tap OK.

2. On the next pop-up message window, tap The Internet

if the wireless LAN connects your device to the Internet. Otherwise, tap Work if the wireless LAN connects your device to a private network.

3. If the wireless LAN is secured by a network key, enter

this key, then tap Connect.

Next time you use your device to detect wireless

networks, you will not see the pop-up message windows again, and you will not be prompted to enter

Getting Connected 107

the network key of the previously accessed wireless network (unless you perform a hard reset which will erase custom settings on your device).

Note Wi-Fi networks are self-discoverable, which means no

additional steps are required for your device to connect to a Wi-Fi network. It may be necessary to provide a username and password for certain closed wireless networks, however.

To save battery power while connected to a wireless network

1. Tap Start > Settings > Connections tab > Wireless

LAN to open the Wireless LAN Settings screen.

2. On the Power Mode tab of

the Wireless LAN Settings screen, move the Power Save Mode slider to a position that optimizes performance with the least power consumption.

For example, move the

slider to the left (Best Performance) to have the optimal WLAN performance; move to the right (Best Battery) to obtain the maximum battery usage.

To check the wireless LAN status

You can check the current wireless connection status from the following three screens of your device:

• Title bar. When you enable Wi-Fi on your device, the

Wi-Fi ON icon (

) will appear on the title bar.

After Wi-Fi is turned on, your device scans for available

wireless networks and the wireless signal icon ( ) appears on the title bar. The arrows in this icon will move back and forth while your device is scanning for a wireless LAN signal. Once your device successfully connects to a wireless LAN, the arrows stop moving.

108 Getting Connected

• Wireless LAN screen - Main tab. Here, it shows the

name of the wireless network that your device is currently connected to. The conﬁguration and signal quality of the wireless network are also shown.

• Configure Wireless Networks screen. Tap Start >

Settings > Connections tab > Wi-Fi > Wireless tab.

This screen displays the wireless networks currently available.

Wi-FI: Wireless tabWireless LAN: Main tab

• To connect to a wireless network in the list, tap and

hold on the desired network, then tap Connect

• Tap a wireless network in the list to view or change

its connection settings.

• You can also add new wireless networks, if available,

by tapping Add New

Getting Connected 109

6.6 Using Internet Sharing

Internet Sharing connects your PC or notebook computer to

the Internet by using your device’s data connection. You can choose to connect via USB or Bluetooth.

Follow the procedure in this section to set up your device as a USB modem. To learn how to set up your device as a Bluetooth modem, see “Use the device as a Bluetooth modem” in this chapter.

Notes •

Make sure you have set up a phone dial-up modem connection on your device. If your device has not been set up with a data connection yet, tap Menu > Connection Settings on the Internet Sharing screen. For more information about setting up a phone dial-up connection, see "To set up a dial-up connection to your ISP".

• If you want to use a USB cable connection, you must first

install Microsoft ActiveSync version 4.2 or later on the

computer.

• Before using Internet Sharing, disable ActiveSync on your

computer.

To set up your device as a USB modem

1. On your device, tap Start

> Programs > Internet Sharing

2. In the PC Connection list,

select

USB.

3. In the Network

Connection list, select the

name of the connection that your device uses to connect to the Internet.

4. Plug in the USB cable between your device and the

computer.

5. Tap Connect.

To end the Internet connection

• On the Internet Sharing screen, tap Disconnect.

110 Getting Connected

6.7 Using Terminal Services Client

The Terminal Services Client allows you to log on to a PC running Terminal Services or Remote Desktop, and use all the resources available on that PC. For example, instead of running Word Mobile on your device, you can run the PC version of Word and access the .doc files available on that PC.

To connect to a Terminal Server

1. On your device, tap Start > Programs > Terminal

Services Client

2. Enter the server name.

3. You can also select a server name in Recent servers if

you have recently connected to a server.

4. Select the Limit size of server desktop to fit on this

screen check box if you want to use programs that have

been speciﬁcally sized for use with your device.

5. Tap Connect.

To navigate within Terminal Services Client

When connected to a remote server, you may notice that the screen is displaying more than one horizontal and vertical scroll bar. Use these scroll bars to either scroll the contents on the PC, or to scroll the PC display through the Terminal Services Client window.

To make sure you are scrolling the PC display through Terminal Services Client, use the five directional buttons at the bottom of the Terminal Services Client window. To better fit information on the screen, select the Limit size of server desktop to fit on this screen check box. For best results, the programs on your desktop PC should be maximized.

To disconnect without ending a session

1. From the Terminal Services Client screen on your device,

tap Start > Shutdown.

2. Tap Disconnect.

Getting Connected 111

Notes •

Do not use the Start menu on your device.

• If a network administrator has configured Terminal

Services Client on your device to reconnect to disconnected sessions, and you previously disconnected from a Terminal Server without ending the session, the Terminal Services Client reconnects to that session.

To disconnect after ending a session

1. From the Terminal Services Client screen on your device,

tap Start > Shutdown.

2. Tap Log Off.

112 Getting Connected

7.1 E-mail and Text Messages

7.2 MMS Messages

7.3 Pocket MSN

7.4 Calendar

7.5 Contacts

7.6 Tasks

7.7 Notes

Chapter 7

Exchanging Messages and

Using Outlook

114 Exchanging Messages and Using Outlook

7.1 E-mail and Text Messages

Messaging is where all of your e-mail accounts and your

text message account are located. You can send and receive Outlook e-mail, Internet e-mail through an Internet service provider (ISP), as well as SMS (Short Messaging Service) text messages using your mobile phone network. You can also access e-mail from work using a VPN connection.

E-mail Setup Wizard

Before you can send and receive e-mails, you need to set up your e-mail account on your device. The E-mail Setup Wizard makes it easy and simple to set up your Outlook e-mail and POP3/IMAP4 accounts on your device.

To set up e-mail accounts using E-mail Setup Wizard

1. Tap Start > Messaging.

2. Tap Menu > Tools > New Account to access the E-mail

Setup Wizard.

3. The E-mail Setup Wizard guides you step-by-step

through the setup process.

For more information on setting up your Outlook e-mail account, see “Set up Outlook e-mail”. For information on POP3 or IMAP4 setup, see “Set up a POP3/IMAP4 e-mail account”.

Set up Outlook e-mail

When starting ActiveSync on your computer for the first time, the Synchronization Setup Wizard prompts you to set up a synchronization relationship. This allows you to synchronize Outlook e-mail and other information between your device and your computer or the Exchange Server. If you have already set up synchronization through the wizard, then your device is ready to send and receive Outlook e-mail. For information about the Synchronization Setup Wizard, see “To install and set up ActiveSync on the computer” in Chapter 4.

If you have not set up a synchronization relationship yet, do the following to set up your device to synchronize Outlook e-mail:

Exchanging Messages and Using Outlook 115

1. To synchronize remotely, you need to set up and

connect to an over-the-air connection. For more details, see the procedures in “Connecting to the Internet” in Chapter 6.

2. Disconnect your device from your computer or LAN. (If

you have an over-the-air connection, there is no need to disconnect).

3. Tap Start > Programs > ActiveSync.

4. If you want to synchronize e-mails directly with the

Exchange Server on a private network such as your corporate network, follow the steps in “Synchronize Outlook information with Exchange Server” in Chapter

5. Choose which information types to synchronize. Make

sure E-mail is selected. For details, follow the steps in “To change which information is synchronized” in Chapter 4.

Everytime you want to manually send or receive Outlook e-mail on your device, just connect your device to your computer, LAN, or over-the-air connection, then tap Sync on the ActiveSync screen or tap Menu > Send/Receive

Outlook on your device.

For details about scheduling automatic synchronization or setting a synchronization time with the Exchange Server, see “Schedule synchronization with Exchange Server” in Chapter

Set up a POP3/IMAP4 e-mail account

Set up a POP3 or IMAP4 e-mail account on your device if you have an e-mail account with an Internet service provider (ISP) or an account that you access using a VPN server connection (typically a work account).

1. Tap Start > Messaging.

2. Tap Menu > Tools > New Account.

3. On the E-mail Setup screen, select Other (POP3/IMAP)

in the Your e-mail provider list, then tap Next.

116 Exchanging Messages and Using Outlook

4. Enter your e-mail address, then tap Next. Auto

configuration attempts to download necessary e-mail

server settings so that you do not need to enter them manually.

5. Once Auto configuration has ﬁnished, tap Next.

6. Enter your name (the name you want displayed when

you send e-mail), user name, and password; tap Next

Select the Save password check box if you want to save your password so that you do not need to enter it again.

If Auto configuration was successful, the Your name

and

User name fields automatically get populated. Tap Next

, then Finish to complete setting up your account, or tap Options under Server information to access additional settings. For example:

• Change the time intervals for downloading new

messages.

• Limit the amount of messages that are downloaded and

authentication method for outgoing mails.

• Download full messages or parts of messages.

If Auto configuration is unsuccessful or you have an account you access using a VPN server connection, contact your ISP or network administrator for the following information and enter it manually:

Setting Description

User name Enter the user name assigned to you by your

ISP or network administrator. This is often the first part of your e-mail address, which appears before the at sign (@).

Password Choose a strong password. You have the

option to save your password so you do not need to enter it each time you connect to your e-mail server.

Account type Select POP3 or IMAP4. Account name Enter a unique name for the account, such as

Work or Home. This name cannot be changed later.

Exchanging Messages and Using Outlook 117

Setting Description

Incoming mail server

Enter the name of your e-mail server (POP3 or IMAP4).

Outgoing mail server

Enter the name of your outgoing e-mail server (SMTP).

Domain Not required for an account with an ISP. May

be required for a work account.

Require SSL connection

Select this to ensure you always receive e-mail for this account using an SSL connection. This enables you to receive personal information more securely. Please note that if you select this and your ISP does not support an SSL connection, you will not be able to connect to receive e-mail.

Outgoing mail requires authentication

Select this if your outgoing e-mail server (SMTP) requires authentication. Your user name and password from above will be used.

Use separate settings

Select this if your outgoing e-mail server requires a different user name and password than the ones you entered before.

Outgoing server settings:

User name Enter your user name for the outgoing e-mail

server.

Password Enter your password for the outgoing e-mail

server.

Domain Enter the domain of the outgoing e-mail

server.

Require SSL for outgoing mail

Select this to ensure you always send e-mail from this account using an SSL connection. This enables you to send personal information more securely. Note that if you select this and your ISP does not support an SSL connection, you will not be able to send e-mail.

Tip You can set up several e-mail accounts in addition to your

Outlook e-mail account.

118 Exchanging Messages and Using Outlook

Send and receive messages

To compose and send a message

1. In the message list, tap Menu > Go To and select an

account.

2. Tap New.

3. Enter the e-mail address or mobile phone number

of one or more recipients, separating them with a semicolon. To access addresses and phone numbers from Contacts, tap To

4. Enter your message. To quickly add common messages,

tap Menu > My Text and tap a desired message.

5. To check the spelling, tap Menu > Spell Check.

6. Tap Send.

Tips • To enter symbols, tap Shift using the on-screen keyboard.

To access more symbols, use the Symbol Pad. See Chapter 2 for details.

• To set the priority, tap Menu > Message Options.

• If you are working offline, e-mail messages are moved

to the Outbox folder and will be sent the next time you connect.

• If you are sending a text message and want to know if it was received, before composing the message, tap

> Tools > Options. Tap Text Messages and select the Request delivery notifications

check box.

To reply to or forward a message

1. Open the message and tap Reply, or Menu > Reply All,

or Menu > Forward.

2. Enter your response. To quickly add common messages,

tap Menu > My Text and tap a desired message.

3. To check the spelling, tap Menu > Spell Check.

4. Tap Send.

Tips • To see more header information, scroll up.

• To always include the original message, from the list view,

tap Menu > Tools > Options > Message tab, and select the When replying to e-mail, include body check box.

Exchanging Messages and Using Outlook 119

• In the Outlook E-mail account, you will send less data if you do not edit the original message. This may reduce data transfer costs based on your rate plan.

Warning! There are two types of storage on the device memory,

the data storage and program storage. When the data storage reaches below 0.5MB, a warning message appears to remind you to remove files and free up some data storage space. Make sure you delete some files or transfer them to a memory card.

If you do not delete files and continue to receive text,

e-mail, and MMS messages, new incoming messages will automatically be saved to the program storage when the data storage is full. Messages that are stored on the program storage will be lost when you power off your device.

To automatically resend SMS text messages that failed delivery

If SMS text messages were not successfully sent due to network problem or loss of signal coverage, they will be queued in the Text Messages Retry program and automatically resent. While text messages remain queued, you can choose to delete some or all of them by following these steps:

1. Tap Start > Programs >

Text Messages Retry

2. Do one of the following:

• To delete a text

message, select the message then tap

Menu > Dismiss

• To delete all queued

text messages, tap Menu > Dismiss All.

120 Exchanging Messages and Using Outlook

To exclude your e-mail address when replying to all

When you reply to all the recipients of an e-mail, your own e-mail address will also be added to the recipient list. You can customize ActiveSync so that your e-mail address will be excluded from the recipient list.

1. In ActiveSync on your device, tap Menu > Options.

2. Select the E-mail information type and tap Settings.

3. Tap Advanced.

4. In the Primary e-mail address text box, enter your e-

mail address.

5. Tap OK.

To add an attachment to an e-mail message

1. In a new message, tap Menu > Insert and tap the item

you want to attach: Picture

, Voice Note, or File.

2. Select the ﬁle you want to attach, or record a voice note.

To receive attachments

An attachment sent with an e-mail message or downloaded from the server appears below the subject of the message. Tapping the attachment opens the attachment if it has been fully downloaded, or marks it for download the next time you send and receive e-mail. You can also download attachments automatically with your messages if you have an Exchange Server mail account.

If you have an Outlook e-mail account, do the following:

1. Tap Start > Programs > ActiveSync.

2. Tap Menu > Options.

3. Tap E-mail > Settings, then select Include file

attachments

If you have an IMAP4 e-mail account with an Internet service provider (ISP) or an account that you access using a VPN server connection (typically a work account), do the following:

1. Tap Start > Messaging.

2. Tap Menu > Tools > Options.

Exchanging Messages and Using Outlook 121

3. Tap the name of the IMAP4 account.

4. Tap Next until you reach Server information, and tap

Options

5. Tap Next twice, and select Get full copy of messages

and When getting full copy, get attachments.

Tip To store attachments on a storage card rather than on the

device, tap

Menu > Tools > Options > Storage tab, and

select the Store attachments on storage card check box.

Download messages

The manner in which you download messages depends on the type of account you have:

• To send and receive e-mail for an Outlook e-mail

account, begin synchronization through ActiveSync. For more information, see “Set up Outlook e-mail” in this chapter.

• To send and receive e-mail messages for an e-mail

account that you have with an ISP or that you access using a VPN server connection (typically a work account), download messages through a remote email server. For more information, see “To download messages from the server” later in this chapter.

• Text messages are automatically received when the

phone is turned on. When the phone is turned oﬀ, messages are held by your service provider until the next time the phone is turned on.

To download messages from the server

To send and receive e-mail messages for an e-mail account that you have with an ISP or that you access using a VPN server connection (typically a work account), you first need to connect to the Internet or your corporate network, depending on the account.

1. Tap Menu > Go To and tap the account you want to use.

2. Tap Menu > Send/Receive. The messages on your

device and e-mail server are synchronized: new messages are downloaded to the device Inbox folder,

122 Exchanging Messages and Using Outlook

messages in the device Outbox folder are sent, and messages that have been deleted from the server are removed from the device Inbox folder.

Tip If you want to read the entire message, tap Menu >

Download Message while in the message window. If you

are in the message list, tap and hold the message, and tap Download Message. The message will download the next time you send and receive e-mail. This will also download message attachments if you selected those options when you set up the e-mail account.

Individually sign and encrypt a message

Encrypting an Outlook e-mail message protects the privacy of the message by converting it from plain, readable text into cipher (scrambled) text. Only the recipient who has the authorization key can decipher the message.

Digitally signing a message applies your certificate with the authorization key to the message. This proves to the recipient that the message is from you and not from an imposter or a hacker, and that the message has not been altered.

To digitally sign and encrypt a new message

1. In the message list, tap Menu > Go To > Outlook E-

mail.

2. Tap New.

3. Tap Menu > Message Options.

4. Select the Encrypt message and Sign message check

boxes, and tap OK.

Verify the digital signature on a signed message you receive

1. Open the Outlook e-mail message that has been

digitally signed.

2. At the top of the message, tap View Signature Status.

3. Tap Menu > Check Certificate.

Exchanging Messages and Using Outlook 123

To view the details of the certificate in the message, tap Menu

> View Certificate

Note There can be several reasons why a digital signature is not

valid. For example, the sender’s certificate may have expired, it may have been revoked by the certificate authority, or the server that verifies the certificate is unavailable. Contact the sender to report the problem.

7.2 MMS Messages

Creating and sharing multimedia messages (MMS) with your friends and family are easy with your device. You can attach pictures or video, and an audio clip in an MMS. You can even use the device camera to capture photos and video clips while composing a new MMS message, and send them along with your message.

To access MMS

1. Tap Start > Messaging.

2. Tap Menu > Go To > MMS.

124 Exchanging Messages and Using Outlook

MMS message folders

Notes • Please note that MMS is a charged service. In order to

use MMS successfully, this has to be provisioned on your mobile account. Please contact the wireless service provider to have this provisioned as part of your calling plan.

• Please ensure the size of the MMS is within the limits of the wireless service provider if sending to another mobile phone user or sending to an e-mail address.

Change MMS settings

When you send an MMS message, an SMS notification message will first be sent to the recipient, while your MMS message will be temporarily stored on an MMS server of your wireless service provider. When others send you an MMS message, similarly, the MMS message will be stored on the MMS server until you retrieve it. Hence, your device must be configured with the location of the MMS server for you to be able to send and receive MMS messages on your device.

When you purchase your device, it is already preset with your wireless service provider’s MMS server settings. If you accidentally lost the preset settings or you changed to another wireless service provider, follow the steps below to configure MMS settings.

Exchanging Messages and Using Outlook 125

To configure MMS settings

1. Tap Start > Messaging.

2. Tap Menu > Tools > MMS Conﬁguration. The MMS

Configuration screen appears.

3. In the Preferences tab, select or clear the provided

check boxes according to your needs. You can choose to retrieve MMS messages immediately, accept or reject messages, request a delivery receipt, specify a resolution for images you send, and more.

4. Tap the Servers tab and check if your device is preset

with MMS server settings.

If there are no preset settings, tap New and enter the

following information, which you can get from your wireless service provider:

• Server name. A descriptive name, such as your

wireless service provider name.

• Gateway. Location of the MMS server, which is

usually in the form of an IP address.

• Port number. HTTP port number used for

connecting to the MMS server and for file transfer.

• Server address. URL address of the MMS server.

• Connect via. Select the connection that your device

uses for MMS.

126 Exchanging Messages and Using Outlook

• Sending size limitation. Select the maximum

MMS message size allowed by your wireless service provider.

• WAP version. Select either WAP 1.2 or WAP 2.0,

depending on which one is being used by your wireless service provider.

5. Tap OK.

The MMS server settings will then be added as an entry

on the MMS Conﬁguration screen.

Note If you add several MMS service providers to the MMS

Configuration screen, you can choose one as your default MMS provider. Select the MMS provider's name in the list then tap Set As Default.

Create and send MMS messages

After configuring the required settings, you can start to compose and send MMS messages.

To compose an MMS message

You can compose MMS messages in a combination of various slides, where each slide can consist of an image or video clip, audio, and/or text.

1. On the MMS screen, do one of the following:

• Tap New > New Flix Message to create an MMS

message containing video and text, then skip to step

• Tap New > New Pix Message to create an MMS

message containing images, audio, and text.

2. When you see the Choose a Media Message screen, tap

a preset template, or tap Custom to open a blank MMS message.

Note If you prefer to always use a blank MMS message,

select the Always choose custom check box.

3. In To, enter the recipient’s phone number or e-mail

address directly, or tap To

, Cc, or Bcc to choose a phone

number or an e-mail address from Contacts.

Exchanging Messages and Using Outlook 127

4. Enter a subject for your message.

5. Tap the Insert icon ( ) to select and insert a photo,

GIF animation, or video clip.

6. By default, My Documents will be displayed. Navigate

folders by tapping the folder thumbnails. To return to an upper level folder, tap the Down arrow (

) and tap the

folder name.

7. When selecting a photo, GIF animation, or video clip,

you can:

• Tap

to view it first, then tap to insert the selected photo or video clip into the MMS message you are composing.

• Tap

to take a photo and insert it into the MMS

message.

• Tap

to record an MMS video clip and insert it

into the MMS message.

• Tap to quit selection and return to the MMS

message.

8. Enter text. See “To add text to an MMS message” for

details.

9. If you’re composing a pix message, you can insert

an audio clip. See “To add an audio clip to an MMS message” for details.

10. Tap Send to send the MMS message.

Notes You can also send an MMS message directly from the Pictures

& Videos or Camera program. Do one of the following:

• In Pictures & Videos, select a picture, GIF animation, or video, and tap Menu > Send. In Select an account, tap

MMS if you're sending video, or tap New Pix Message (MMS) if you're a sending an image or GIF animation.

• Capture a photo or an MMS video clip using the camera, and tap the Send icon. In the Send File dialog box, tap Send via

MMS.

128 Exchanging Messages and Using Outlook

To add text to an MMS message

When entering text into an MMS message, you can do the following:

• Tap inside the text box and enter your own text.

• Choose from common words or phrases. Tap to add

a text string from the Canned Text list.

Tip To edit or delete a phrase on the Canned Text list, tap and

hold a string, then tap Edit or Delete from the shortcut menu. To create and add a new phrase to the list, tap New

To add an audio clip to an MMS message

You can add an audio clip to a pix message.

1. While composing a pix message, tap Tap here to insert

an audio clip.

Open the folder that contains audio ﬁles. When

navigating folders, tap the Down arrow (

) to return to

the upper folder.

2. Select an audio ﬁle. When selected, you can:

• Tap to play the audio clip.

• Tap to pause, or tap to stop playback.

• Tap to insert it into your MMS message, or tap

to quit selection and return to your MMS message.

• To record a new audio clip and add it to your MMS

message, tap

then tap to start recording, and to stop recording. The new audio clip is automatically inserted into your MMS message.

To add slides

If you’re composing a pix message, you can add more slides to your message by tapping Edit

> Insert Slide.

While on a slide, you can:

• Tap to preview the entire MMS message.

• Tap to go to the previous slide.

• Tap to go to the next slide.

Exchanging Messages and Using Outlook 129

To customize the background color, text alignment and other options

While composing your MMS message, you can do the following:

• Tap Options > Background to choose a background

color from the list.

• Tap Options > Text on Top to place text above the

photo, GIF animation, or video.

• Tap Options > Text Below to place the text below the

photo, GIF animation, or video.

• Tap Options > Message Options to specify the sending

time, validity, priority, class, and other settings for a message.

• Tap Edit > Attachments to include a contacts card,

calendar appointment, or any ﬁle as an attachment.

To create an MMS message from a template

• While on an MMS message, tap Edit > New from

Template to compose a message using a predeﬁned

template.

Note To save a message as a template, open the message and tap

Edit

> Save as Template.

View and reply MMS messages

To view an MMS message

• Use the playback controls , , and .

• Tap Menu > Objects to see a list of ﬁles included in the

message. On the Message Objects screen, you can do the following:

• To save a file, select it, and tap Tools > Save.

• To use an audio file as a ring tone, tap Tools > Set as

Ringtone

130 Exchanging Messages and Using Outlook

To reply to an MMS message

• Tap Menu > Reply to reply to the sender of the

message, or tap Menu

> Reply All to reply to all persons

listed in To, Cc, and Bcc of the message.

Warning! There are two types of storage on the device memory,

If you do not delete files and continue to receive text,

7.3 Pocket MSN

Pocket MSN delivers the features of Hotmail and MSN

Messenger to your device. With MSN Messenger, you can do the following:

• Send and receive instant messages.

• See which contacts are online or oﬄine.

• Subscribe to status updates for selected contacts so you

know when they come online.

• Block contacts from seeing your status or sending you

messages.

Before you can use MSN Messenger, your device must be connected to the Internet. For information about setting up an Internet connection, see “Connecting to the Internet” in Chapter 6.

Note You must have either a Microsoft .NET Passport or Hotmail

account to use MSN Messenger. If you have a Hotmail.com or MSN.com e-mail address, you already have a Passport. To get a Passport account, go to http://www.passport.com. To get a Hotmail account, go to http://www.hotmail.com

Exchanging Messages and Using Outlook 131

To start MSN Messenger

1. Tap Start > Programs > Pocket MSN.

2. Tap MSN Messenger.

To sign in or out

• To sign in, tap anywhere on the MSN Messenger screen.

Enter the e-mail address and password for your Passport or Hotmail account, and tap Sign In. Signing in may take several minutes, depending on your connection speed.

• To sign out, tap Menu > Sign Out. Your status changes

to Oﬄine

To add or delete contacts

• To add a contact, tap Menu > Add a Contact, and

follow the instructions on the screen.

• To delete a contact, tap and hold the contact's name,

and tap Delete Contact.

To send an instant message

1. Tap the contact to whom you want to send a message.

2. Enter your message in the text entry area at the bottom

of the screen, and tap Send

Tip To quickly add common phrases, tap Menu > My Text and

select a phrase in the list.

132 Exchanging Messages and Using Outlook

7.4 Calendar

Use Calendar to schedule appointments, including meetings and other events. Your appointments for the day can be displayed on the Today screen. If you use Outlook on your PC, you can synchronize appointments between your device and PC. You can also set Calendar to remind you of appointments with a sound or flashing light, for example.

You can look at your appointments in several different views (Day, Week, Month, Year, and Agenda). To see detailed appointment information in any view, tap the appointment.

To schedule an appointment

1. Tap Start > Calendar.

2. Tap Menu > New Appointment.

3. Enter a name for the appointment, and enter

information such as start and end times.

4. To schedule an all-day event, in the All Day box, tap Yes.

5. When ﬁnished, tap OK to return to the calendar.

Notes • All-day events do not occupy blocks of time in Calendar;

instead, they appear in banners at the top of the calendar.

• To cancel an appointment, tap the appointment and tap

> Delete Appointment.

Tip

To have the time entered automatically in Day view, tap the

time slot for the new appointment, and tap Men

u > New

Appointment

To send a meeting request

Use Calendar to schedule meetings via e-mail with contacts who use Outlook or Outlook Mobile.

1. Tap Start > Calendar.

2. Schedule a new appointment, or open an existing one

and tap Edit.

3. Tap Attendees.

4. Tap the name of the contact you want to invite.

Exchanging Messages and Using Outlook 133

5. To invite each additional attendee, tap Add and tap the

name.

6. Tap OK.

7. The meeting request will be sent to the attendees the

next time you synchronize your device with your PC.

Note When attendees accept your meeting request, the meeting is

automatically added to their schedules. When their response is sent back to you, your calendar is updated as well.

To set a default reminder for all new appointments

You can have a reminder automatically turned on for all new appointments you schedule.

1. Tap Start > Calendar.

2. Tap Menu > Options > Appointments tab.

3. Select the Set reminders for new items check box.

4. Set the time when you want the reminder to alert you.

5. Tap OK to return to the calendar.

7.5 Contacts

Contacts is your address book and information storage for the

people and businesses you communicate with. Store phone numbers, e-mail addresses, home addresses, and any other information that relates to a contact, such as a birthday or an anniversary date. You can also add a picture or assign a ring tone to a contact.

From the contact list, you can quickly communicate with people. Tap a contact in the list for a summary of contact information. From there, you can call or send a message.

If you use Outlook on your PC, you can synchronize contacts between your device and PC.

To create a contact on your device

1. Tap Start > Contacts.

2. Tap New and enter the contact information.

3. When ﬁnished, tap OK.

134 Exchanging Messages and Using Outlook

Tips • If someone who is not in your list of contacts calls you,

you can create a contact from Call History by tapping and holding a phone number and then tapping Save to

Contacts from the shortcut menu.

• To save a phone number that is contained in a message,

tap the phone number, then tap Menu > Save to Contacts.

• In the list of contact information, you’ll see where you can

add a picture or assign a ring tone to a contact.

To change contact information

1. Tap Start > Contacts.

2. Tap the contact.

3. Tap Menu > Edit and enter the changes.

4. When ﬁnished, tap OK.

To work with the contact list

There are several ways to use and customize the contact list. Here are a few tips:

1. Tap Start > Contacts.

2. In the contact list, do any of the following:

• In Name view, you can search for a contact by

entering a name or number, or by using the alphabetical index. To switch to Name view, tap

Menu > View By > Name.

• To see a summary of information about a contact,

tap the contact. From there you can also make a call or send a message.

• To see a list of available actions for a contact, tap and

hold the contact.

• To see a list of contacts employed by a specific

company, tap

Menu > View By > Company, then

tap the company name.

Exchanging Messages and Using Outlook 135

To find a contact on your device

There are several ways to find a contact when your contact list is long.

1. Tap Start > Contacts.

2. If you are not in Name view, tap Menu > View By >

Name.

3. Do one of the following:

• Begin entering a name or phone number in the

provided text box until the contact you want is displayed. To show all contacts again, tap the text box and clear the text, or tap the arrow to the right of the text box.

• Use the alphabetical index displayed at the top of

the contact list.

• Filter the list by categories. In the contact list, tap

> Filter, then tap a category you’ve assigned to a contact. To show all contacts again, select All Contacts.

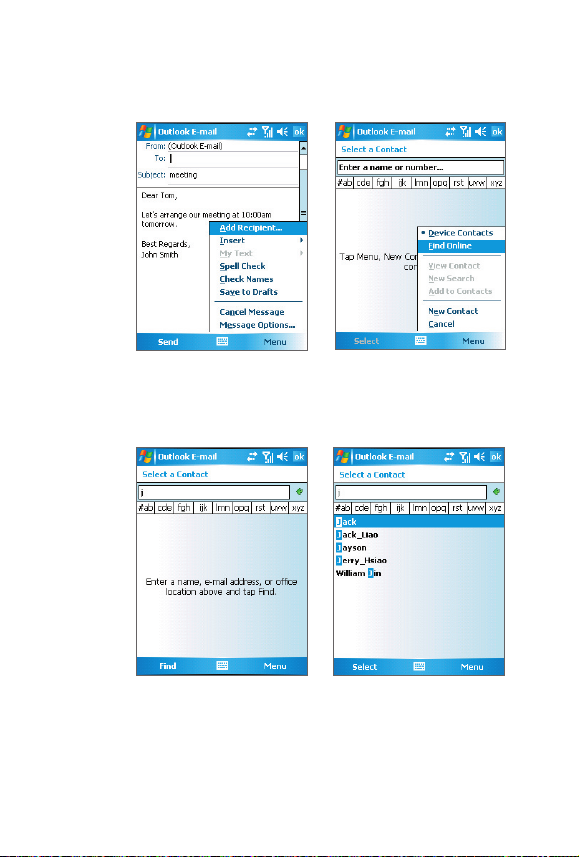

To find a contact online

In addition to having contacts on your device, you can also access contact information from your organization’s Global Address List (GAL). GAL is the address book that contains all user, group, and distribution list e-mail addresses of your organization, and it is stored on the Exchange Server. By having direct online access to it from your device, it is quick and easy for you to plan a meeting and e-mail a meeting request immediately to anyone in your organization.

Access to the GAL is available if your organization is running Microsoft Exchange Server 2003 SP2 and you have completed your first synchronization with the Exchange Server.

1. Synchronize with Exchange Server if you have never

done so.

2. Tap Start > Contacts > Menu > View By > Name.

3. Do any of the following:

136 Exchanging Messages and Using Outlook

• In Contacts, tap Menu > Find Online.

• In a new message, tap the To box. Tap Menu > Add

Recipient > Menu > Find Online

• In a new meeting request using Calendar, tap

Attendees and then tap Menu > Find Online.

4. Enter the part or full contact name and tap Find. Tap

Select to choose the desired contact(s) from the list.

Notes • Your device must be set up with a data connection.

• You can search on the following information as long as

that information is included in your organization’s GAL: First name, Last name, E-mail name, Display name, E-mail address, or Office location.

Exchanging Messages and Using Outlook 137

To send contact information via text messaging

1. Tap Start > Contacts, then select a contact.

2. Tap Menu > Send Contact > Text Message.

3. Select the contact information you want to send, then

tap Done.

4. In the new text message, enter the mobile phone

number of the recipient, then tap Send

7.6 Tasks

Use Tasks to keep track of things you need to do. A task can occur once or repeatedly (recurring). You can set reminders for your tasks and you can organize them using categories.

Your tasks are displayed in a task list. Overdue tasks are displayed in red.

To create and categorize a task

1. Tap Start > Programs > Tasks.

2. Tap Menu > New Task, enter a subject for your task, and

ﬁll in information such as start and due dates, priority, and so on.

3. Specify the type of category for your task, so that it can

be grouped with other related tasks. Tap Categories, then select a preset category (Business, Holiday, Personal, or Seasonal), or tap New to create your own category.

4. When ﬁnished, tap OK.

Tip You can easily create a short, to-do type task. Simply tap the

Tap here to add a new task box, enter a subject, and tap the

Enter button on the on-screen keyboard. If the task entry box is not available, tap Menu

> Options and select the Show

Tasks entry bar check box.

138 Exchanging Messages and Using Outlook

To change the priority of a task

Before you can sort tasks by priority, you need to specify a priority level for each task.

1. Tap Start > Programs > Tasks.

2. Tap the task you want to change the priority for.

3. Tap Edit, and in the Priority box, tap a priority level.

4. Tap OK to return to the task list.

Note All new tasks are assigned a Normal priority by default.

To set a default reminder for all new tasks

You can have a reminder automatically turned on for all new tasks you create.

1. Tap Start > Programs > Tasks.

2. Tap Menu > Options.

3. Select the Set reminders for new items check box.

4. Tap OK to return to the task list.

Note The new tasks must have due dates set in order for the

reminder to take effect.

To show start and due dates in the task list

1. Tap Start > Programs > Tasks.

2. Tap Menu > Options.

3. Select the Show start and due dates check box.

4. Tap OK.

To locate a task

When your list of tasks is long, you can display a subset of the tasks or sort the list to quickly find a specific task.

1. Tap Start > Programs > Tasks.

2. In the task list, do one of the following:

• Sort the list. Tap Menu > Sort By, and tap a sort

option.

• Filter the list by category. Tap Menu > Filter, and tap

the category you want displayed.

Exchanging Messages and Using Outlook 139

Tap one of these categories

Tip To filter your tasks further, tap Menu > Filter > Active Tasks

or Completed Tasks.

7.7 Notes

Notes helps you to quickly capture thoughts, questions,

reminders, to-do lists, and meeting notes. You can create handwritten and typed notes, record voice notes, convert handwritten notes to text for easy readability, and send notes to others.

Enter information in Notes

There are several ways to enter information in a note. You can enter typed text by using the on-screen keyboard or handwriting recognition software. You can use the stylus to write or draw directly on the screen.

To set the default input mode for Notes

If you frequently add drawings to your notes, you may find it helpful to set Writing as the default input mode. If you prefer typed text, select Typing

1. Tap Start > Programs > Notes.

2. In the note list, tap Menu > Options.

3. In the Default mode box, tap one of the following:

140 Exchanging Messages and Using Outlook

• Writing if you want to draw or enter handwritten

text in a note.

• Typing if you want to create a typed note.

4. Tap OK.

To create a note

1. Tap Start > Programs > Notes. In the note list, tap New.

2. Tap the Input Selector arrow next to the Input Method

icon on the menu bar, tap the input method you want, and enter your text.

3. If the Input Selector arrow is not displayed, tap the

Input Method icon.

4. When ﬁnished, tap OK to return to the note list.

Notes • To select handwritten text, tap and hold next to the

writing. As soon as dots appear, and before they form a complete circle, quickly drag across the writing.

• If a letter crosses three ruled lines, it is treated as a drawing rather than text.

To draw in a note

1. Tap Start > Programs > Notes.

2. In the note list, tap New.

3. To draw on the screen, use the stylus like a pen.

Drawing on the screen

Exchanging Messages and Using Outlook 141

4. A selection box appears around your drawing.

5. When ﬁnished, tap OK to return to the note list.

Note To select a drawing (for example, to copy or delete it), tap

and hold the drawing briefly. When you lift the stylus, the drawing is selected.

Record a voice note

You can create a stand-alone recording (voice note) or you can add a recording to a note.

To create a voice note

1. Tap Start > Programs > Notes.

2. Do one of the following:

• To create a stand-alone recording, record from the

note list.

• To add a recording to a note, create or open a note.

3. If you do not see the Recording toolbar, tap Menu >

View Recording Toolbar

4. Tap the Record icon ( ) to begin recording.

5. Hold your device’s microphone near your mouth or

other source of sound.

6. Tap the Stop icon ( ) when ﬁnished recording.

7. If you are adding a recording to a note, tap OK to return

to the note list when ﬁnished.

8. If you are recording in an open note, an icon will appear

in the note.

9. If you are creating a stand-alone recording, the

recording will appear in the note list.

Tip To quickly create a recording, press and hold the VOICE

COMMAND button, then you can begin to record after a beep sound. Release the button when you are finished.

142 Exchanging Messages and Using Outlook

To change recording formats

1. Tap Start > Settings > Personal tab > Input.

2. Tap the Options tab, and select the desired format you

want in the Voice recording format list.

3. Tap OK.

Note

You can also change recording formats from within Notes. In the note list, tap Menu > Options > Global Input Options link (at the bottom of the page), then tap the Options tab.

Chapter 8

Experiencing Multimedia

8.1 Using Camera

8.2 Using Pictures & Videos

8.3 Using Windows Media Player

8.4 Using Streaming Media Player

144 Experiencing Multimedia

8.1 Using Camera

Taking photos and capturing video clips along with audio is easy with the built-in camera on your device.

To open the Camera screen

• Press the CAMERA button on your device; or

CAMERA button

• Tap Start > Programs > Camera; or

• Tap Start > Programs > Pictures & Videos > Camera

icon.

To exit the Camera

• Tap the Exit icon ( ).

Capture modes

The Camera program on your device allows you to capture pictures and video clips by using various built-in modes with flexibility. The Camera is set to the Photo capture mode by default. The upper left corner of the screen displays the active capture mode. To switch to other capture modes, do any of the following

• Tap or on the screen.

• Press NAVIGATION left or right.

Current capture mode

Experiencing Multimedia 145

The available capture modes of the main camera are as follows:

• Photo: Captures standard still images.

• Video: Captures video clips, with or without

accompanying audio.

• MMS Video: Captures video clips suitable for sending

via MMS.

• Contacts Picture: Captures a still image and gives you

the option to immediately assign it as a Photo ID for a contact.

• Picture Theme: Captures still images and places them

within frames.

• Panorama: Captures a sequence of still images

continuously in one direction, and allows stitching of all the images to create a panoramic view of a scenery

• Sports: Captures a sequence of still images (3, 5, 7, or

10) automatically.

• Burst: Captures a sequence of still images (maximum

30) as long as the CAMERA button on the device or the ENTER button on the NAVIGATION is kept pressed.

File formats supported

Using the above capture modes, the camera in your device captures files in the following formats:

Capture type Format

Still image JPEG Video

MPEG-4 (.mp4) H.263 (.3gp) 3GP2 (.3g2)

MMS Video

MPEG-4 (.mp4) H.263 (.3gp) 3GP2 (.3g2)

Panorama / Sports / Burst

JPEG

146 Experiencing Multimedia

Camera controls

Use the following device buttons and on-screen controls to take photos or video clips and to modify settings.

The CAMERA button, ENTER button and Jog Wheel

The CAMERA button, ENTER button, and Jog Wheel can all be used as the shutter release.

• Press to take a photo, or to take shots for a picture

theme or panorama.

• Press to start recording video; press again to stop

recording.

• To take consecutive shots in Sports mode, press shortly,

then move your device to follow the movement of your subject.

• Press and hold when taking consecutive shots in Burst

mode.

The Navigation Control

• Press NAVIGATION up or down to increase or decrease

the zoom level.

• Press NAVIGATION left or right to go to the previous or

next sequential capture mode.

On-screen controls and indicators

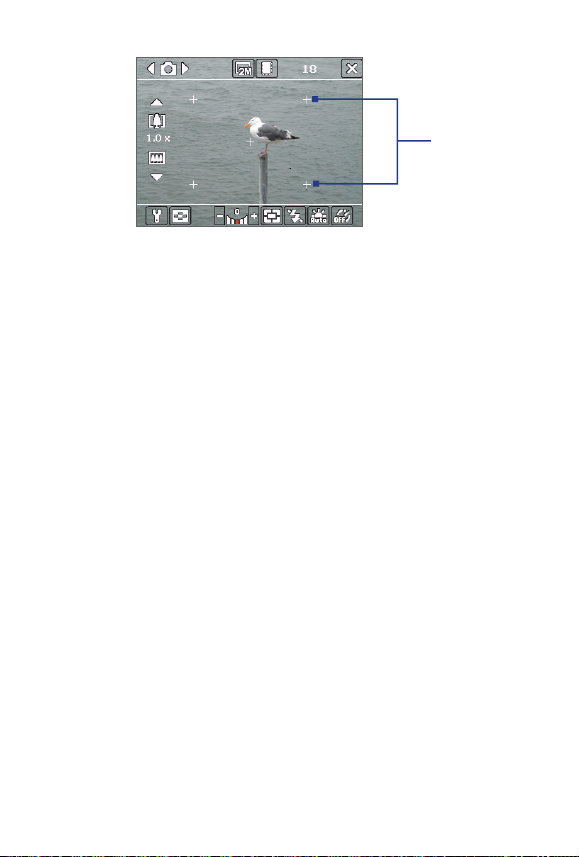

Photo mode

6 7

91011

1 2 3 4

Experiencing Multimedia 147

1 Mode Switching control. Tapping the left/right arrow

( / ) on the screen allows you to switch the capture mode.

2 Resolution. The resolution icon ( / / / /

) indicates the current resolution. Tap to toggle

among the diﬀerent resolutions.

3 Storage. Tap to toggle between saving captured photos

or video clips on the device memory (

) or on the

memory card (

4 Remaining information indicator. In Photo, Contacts

Picture, Picture Theme, Panorama, Sports, and Burst modes, this shows the remaining, available shots of pictures based on current settings. In Video and MMS Video modes, this shows the remaining duration that can be recorded. While recording video, this shows the recorded duration.

5 Zoom control. Tapping the up/down arrow ( / )

or tapping / on the screen allows you to zoom in or zoom out.

6 Camera Settings. Tap the Tool icon ( ) to open the

Camera Settings screen.

Viewer. Tap the Viewer icon ( ) to open the Pictures &

Videos screen

8 Brightness. Tapping the minus/plus icon ( / )

decreases or increases the brightness level.

9 Metering Mode. Tap to toggle the metering mode

between Center Area ( ) and Average ( ).

10 Flash Light. Tap to turn on or oﬀ the ﬂash light that is

located at the back of your device. Turn on the ﬂash light when taking shots in dark-lit environments.

11 White Balance. Tap to toggle among the diﬀerent white

balance settings: Auto (

), Daylight ( ),

Night (

), Incandescent ( ), and Fluorescent ( ).

12 Self-timer. Tap to set the Self-timer to 2 seconds, 10

seconds, or oﬀ when in the Photo or Contacts Picture mode. When you press the ENTER button or the

148 Experiencing Multimedia

CAMERA button to capture a still image, it starts to count down, and then captures a still image after the assigned time (2 seconds or 10 seconds).

Video mode

13 Recording indicator. This shows a red, blinking

indicator while video recording is in progress.

Picture Theme mode

14 Progress indicator. In Picture Theme, Panorama,

Sports, and Burst modes, this shows the total number of consecutive shots.

15 Template Selector icon. In Picture Theme mode, tap

to toggle among the diﬀerent templates.

Experiencing Multimedia 149

Panorama mode

16 Stop. The Stop icon ( ) appears only in Panorama

mode. Tap this icon if you want to stop capturing the remaining shots and start composing the panorama.

17 Exit. Tap the Exit icon ( ) to exit the Camera

program.

Still image capture modes

While using Still Image capture modes, such as Photo, Contacts Picture

, Picture Theme, Panorama, Sports, and Burst, you can capture still image(s) by pressing the CAMERA button or Jog Wheel, or the ENTER button on the NAVIGATION. Still images will be saved in JPEG format.

While capturing an image in the Picture Theme capture mode, you can select a preset template. To view and select from different templates, tap

on the Camera screen. Depending on the chosen template, one or more photos may need to be taken for the template.

Video capture mode

In Video capture mode, press the CAMERA button, Jog Wheel, or the ENTER button to start recording a video clip. To stop recording, press again.

Before you capture a video clip, you can set the file format and specify the desired length of recording in terms of time or file size on the Camera Settings screen. For information

150 Experiencing Multimedia

about the available capture formats for video, see “File formats supported” in this chapter.

MMS Video capture mode

The MMS Video capture mode makes it convenient for you to capture a video file and then send it via MMS. Press the CAMERA button, the ENTER button, or Jog Wheel to start recording a video clip. To stop recording, press again.

The recording length of MMS video is fixed. Recording automatically stops when the preset length is reached. However, you can manually stop recording the video anytime. The time indicator at the upper right side of the Camera screen indicates the time limit.

Before capturing, you can set the capture format on the Camera Settings screen. For information about the available capture formats for MMS video, see “File formats supported” in this chapter.

After you capture the video file, tap

on the Review screen

to send the file through MMS.

The Review screen

After taking a still image or recording a video clip, you can view the image or video clip on the Review screen. In addition, you can tap the icons at the bottom of the Review screen to delete a captured image or video, send it via e-mail or MMS, and more.

Review screen icons

Contacts Picture mode

Photo, Video, MMS Video, Picture Theme, and Panorama modes

1 2 3 4

Experiencing Multimedia 151

Sports and Burst modes

1 Back. Tap to go back to the Camera screen.

2 Delete. Tap to remove the captured image or video.

3 Send. Tap to send via e-mail or MMS.

4 View. Tap to view the image in the Pictures & Videos

program, or play the captured video in Windows Media Player.

5 Assign to Contacts. Tap to associate the photo to a

selected contact.

6 Browse. After you have taken photos in Sports or Burst

mode, the total number of consecutive shots is shown in the lower right corner of the Review screen. Tap the up/down arrow (

) to browse through the sequence

of photos.

To change the display duration of the Review screen

1. Tap to open the Camera Settings screen.

2. On the Camera Settings screen, tap . The Advanced

menu then appears.

3. Tap Review Duration, then tap the desired time length

for displaying captures on the Review screen.

Zooming

While capturing a still image or a video clip by using the camera, you can zoom in to make the object in focus move closer, and you can zoom out to make the object move farther away. In all capture modes, use NAVIGATION on your device, or tap the triangular Up arrow above the Zoom Ratio

152 Experiencing Multimedia

indicator, to zoom in your subject. When the zooming limit is reached, you will hear a beep. To zoom out, press NAVIGATION down, or tap the Down arrow.

Zoom range

The camera zoom range for a picture or a video clip depends on the capture mode and capture size.

The following is a summary for the main camera.

Capture mode

Capture size setting Zoom range

Photo 2M (1600 x 1200) No zooming available

1M (1280 x 960) No zooming available

Large (640 x 480) 1.0x to 4.0x

Medium (320 x 240) 1.0x to 8.0x

Small (160 x 120) 1.0x to 8.0x

Video

CIF (352 x 288) No zooming available

Large (320 x 240) No zooming available

Medium (176 x 144) 1.0x to 2.0x

Small (128 x 96) 1.0x to 2.0x

MMS Video Medium (176 x 144) 1.0x to 2.0x

Small (128 x 96) 1.0x to 2.0x

Contacts Picture

Large (480 x 640) No zooming available

Medium (240 x 320) 1.0x to 2.0x

Small (120 x 160) 1.0x to 4.0x

Picture Theme

Determined by the current template

Depends on the size of the template currently loaded

Panorama Large (640 x 480) 1.0x to 4.0x

Medium (320 x 240) 1.0x to 8.0x

Small (160 x 120) 1.0x to 8.0x

Sports Large (640 x 480) 1.0x to 2.0x

Medium (320 x 240) 1.0x to 8.0x

Experiencing Multimedia 153

Capture mode

Capture size setting Zoom range

Burst 1M (1280 x 960) No zooming available

Large (640 x 480) 1.0x to 2.0x

Medium (320 x 240) 1.0x to 8.0x

The Camera Settings screen

While capturing a still image or video clip using any capture modes, tap the Tool icon ( ) to access the Camera Settings screen. The Camera Settings screen allows you to configure capture settings.

Camera Settings screen in Photo mode

When you tap the icons at the bottom of the Camera Settings screen, different menus will appear. Some menus and options may be available only in certain capture modes.

Tip You can also press the Navigation Control buttons to

navigate menus.

For more information about the different menus and settings, see the succeeding sections.

Self-timer menu

• Self-timer. Select the Self-timer option for capturing

images: Off, 2 seconds, or 10 seconds. Selecting 2 seconds or 10 seconds delays the capturing by the speciﬁed time after you press the CAMERA button, the ENTER button, or Jog Wheel.

154 Experiencing Multimedia

Template menu

• Template. Select a template (in Picture Theme mode

only).

Panorama Settings menu

• Direction. Choose in what direction images will be

stitched in a panorama.

• Stitch Count. Select the desired number of snapshots

to be taken and stitched into a panorama.

• Auto Stitch. When the Auto Stitch is On, the camera

automatically stitches snapshots into one single ﬁle. If Auto Stitch is Oﬀ, the snapshots are saved as separate ﬁles.

Sports Settings menu

• Snapshots. Select the number of consecutive shots to

capture (in Sports mode).

Flash Light menu

• Flash Light. Set this option to On to turn on the ﬂash

light (located at the back of your device) so that you can shoot photos or video clips in a low-light environment. The ﬂash ﬂight is available for use in all capture modes except in Sports and Burst modes.

Ambience menu

• White Balance. Select a white balance setting type

such as Fluorescent, Night, etc. to suit your lighting environment.

• Effect. Choose a special eﬀect such as Grayscale, Sepia,

etc., to apply to your photos or video clips.

Capture Settings menu

• Resolution. Select the desired image or video size.

• Quality.

Select the JPEG image quality level for all

captured still images. You can choose from Basic

Normal

, Fine, and Super Fine

Experiencing Multimedia 155

• Metering Mode. Select a metering mode to allow

the camera to measure the amount of light in the center and around the image and calculate the best-ﬁt exposure value before capturing. Choose either Center Area to measure light using the center area of the image or Average to measure light using the area all around the image.

• Storage. Select where you want to save your ﬁles. You

can either save the ﬁles to the main memory or to a storage card.

Capture Mode menu

• Mode. Switch between diﬀerent capture modes such

as Photo, Video, Contacts Picture, and more. For more information about these modes, see “Capture modes” earlier in this chapter.

Advanced menu

Tap the left/right icon in this bar to switch between the menu pages in the Advanced menu.

• Capture Format. Select the desired ﬁle format.

• Shutter Sound. Choose whether or not you want the

camera to make a shutter sound when you press the CAMERA button, the ENTER button, or Jog Wheel to take photos or record video clips.

• Grid (Photo mode only). Choose whether or not to

show a grid on the Camera screen. Showing a grid helps you frame and center your subject more easily and accurately.

156 Experiencing Multimedia

Grid

• Keep Backlight. Choose whether to turn the backlight

on or oﬀ while using the camera. This overrides your device backlight settings while you are using the camera.

• Review Duration. Set a time length for displaying the

captured image/video on the Review screen before automatically saving it and returning to the live Camera screen. Select No Limit if you do not want to impose a time limit. Select No Review to immediately return to the live Camera screen after capturing.

• Flicker Adjustment. When taking indoor shots, ﬂicker

on the camera screen may be caused by inconsistencies between the vertical scan rate of the camera display and the ﬂicker frequency of ﬂuorescent lighting. To reduce ﬂicker, you can change the ﬂicker adjustment setting to the proper frequency (50Hz or 60Hz) of the country where your device is being used.

• Record with Audio. Select On to record audio with the

captured video clips. This is selected by default. If you select Off and then capture a video clip, it will have no audio.

• Prefix. Specify how to name captured images and video

clips. When

Default is selected, the ﬁle name of each new captured ﬁle is set to “IMAGE” or “VIDEO” followed by a sequential number, for example: IMAGE_001.jpg. You may also choose to name ﬁles using either the current Date

or Date & Time as the preﬁx.

Experiencing Multimedia 157

• Counter. By default, the newly captured image or

video ﬁles are named with a preﬁx and some sequential numbers, such as 001, 002, and so on. To reset the numbering to “001” for your captured ﬁles, tap Reset.

• Recording Limit. Specify the maximum time or ﬁle size

for recording.

• Template Folder (in Picture Theme mode only). By

default, templates are stored in the \My Documents\ Templates folder on the device’s Main Memory. If you transferred some templates to a storage card (via File Explorer), set this option to Main + Card to specify that templates are located in both the main memory and the storage card.

• Adjust. This option allows you to adjust the camera

display properties, such as Contrast, Saturation, Hue, and Sharpness.

3 4

1 In the submenu, tap one of the properties to adjust.

Alternatively, press NAVIGATION up or down to select a property.

2 To increase/decrease the value, tap the plus/minus icon

or press NAVIGATION left or right. The live Camera screen on the background immediately displays the effect of changes.

3 Tap to save the settings and close the submenu.

4 Tap to reset all properties to their default.

5 Tap to close the submenu without applying and saving

the changes.

158 Experiencing Multimedia

8.2 Using Pictures & Videos

The Pictures & Videos program collects, organizes, and sorts images and video clips in the following formats on your device.

File Type File Extensions

Image *.bmp, *.jpg, *.gif GIF animation *.gif Video *.avi, *.wmv, *.mp4, *.3gp, *.3g2

You can view the pictures as a slide show, beam them, send them via e-mail, edit them, or set them as the background on the Today screen.

To copy images, GIF animation files, and video clips to your device

You can copy images, GIF animation files, and video files from your PC and view them on your device.

• Copy the images, GIF animation ﬁles, and video ﬁles

from your PC or a storage card to the My Pictures folder on your device. (You can also copy video ﬁles to the My Videos folder.)

For more information about copying files from your PC to your device, see ActiveSync Help on your PC.

Note You can also copy images, GIF animation files, and video files

from your PC to your device using a memory card. Insert the memory card into the memory card slot on your device, then copy the files from your PC to the folder you created on the memory card.

To view pictures

1. Tap Start > Programs > Pictures & Videos. The images

in the My Pictures folder appear as thumbnails by default.

2. Select an image and tap View.

If you cannot find the desired image in the default My

Pictures folder, go to another folder by tapping the Down arrow ( ).

Experiencing Multimedia 159

To play GIF animation files

1. Tap Start > Programs > Pictures & Videos.

2. Select a GIF animation ﬁle and tap View. The GIF

Animation program then opens and plays the animation.

The down arrow

Tap to view the selected image

To play videos with audio

1. Tap Start > Programs

> Pictures & Videos. By

default, the contents of the My Pictures folder will be shown.

2. To find the video clips

that you captured, tap the down arrow ( ) next to the My Pictures folder and tap My Documents. Next, tap My Videos. Video clips are displayed as thumbnails by default, which appear with a media icon (

3. Tap to select a video and

play it in Windows Media Player Mobile.

The media icon

160 Experiencing Multimedia

To view slide shows

You can view your pictures as a slide show on your device. Pictures are shown in full-screen view with 5-second intervals between slides.

1. Tap Start > Programs > Pictures & Videos.

2. Tap Menu > Play Slide Show.

Note You can specify how pictures are scaled to optimize their

display in a slide show. Tap Menu > Options, then tap Portrait pictures

or Landscape pictures on the Slide Show

tab.

Tap anywhere on the screen to display the Slide Show toolbar, which you can use to stop or pause the slide show, rotate the view, and more.

To sort pictures and video clips

If you store a large number of pictures or video clips on your device, you may find it helpful to sort them to quickly find a specific picture or clip. You can sort by name, date, and size.

1. Tap Start > Programs > Pictures & Videos.

2. Tap the sort list (labeled Date by default), and select the

item you want to sort by (Name, Date, or Size).

To delete a picture or video clip

Do any of the following to remove a picture or a video clip:

• Select a picture or video clip on the Pictures & Videos

screen, and tap Menu

> Delete.

• Tap and hold the thumbnail of the picture you want to

delete, then tap Delete

Tap Yes to confirm the deletion.

To edit a picture

You can rotate, crop, and adjust the brightness and color contrast of your pictures.

1. Tap Start > Programs > Pictures & Videos.

2. Tap the picture you want to edit.

3. Tap Menu > Edit, and do any of the following:

Experiencing Multimedia 161

• To rotate a picture 90 degrees clockwise, tap Rotate.

• To crop a picture, tap Menu > Crop. Next, tap and

drag to select the area to crop. Tap inside the box to crop, or tap outside the box to cancel cropping.

•

To adjust the brightness and contrast levels of a picture, tap Menu

> Auto Correct.

Note To undo an edit, tap Menu > Undo. To cancel all unsaved

edits you made to the picture, tap Revert to Saved.

To set a picture as the Today screen background

You can use a picture as the background on the Today screen.

1. Tap Start > Programs > Pictures & Videos.

2. Select the picture you want to set as the background.

3. Tap Menu > Set as Today Background.

4. In Transparency level, select a higher percentage for

a more transparent picture, or a lower percentage for a more opaque picture.

5. Tap OK.

To send pictures and video clips via e-mail

You can send pictures and video clips to other devices via e-mail.

1. First, set up Messaging to send and receive messages.

2. From the program, select the item you want to send.

3. Tap Menu > Send, and select one account (such as

Outlook E-mail or MMS) to send the attached item.

4. A new message is created with the item attached.

5. Enter the recipient name and subject, and tap Send.

The message will be sent the next time you synchronize your device.

Note Pictures and video clips are saved automatically before they

are sent.

To beam a picture or video clip

You can beam a picture or video file to another mobile device using Infrared.

162 Experiencing Multimedia

1. Tap Start > Programs > Pictures & Videos.

2. Select the picture or video ﬁle you want to beam.

3. Tap Menu > Beam.

4. Select a device to beam the ﬁle to.

5. Tap OK.

To assign pictures to contacts

You can assign a picture to a contact so that you can easily identify the contact at any point of time.

1. Tap Start > Programs > Pictures & Videos.

2. Select the picture you want to assign to a contact.

3. Tap Menu > Save to Contact.

4. Tap the contact, or navigate and tap Select to choose

the contact from your Contacts list.

To customize more image settings

1. Tap Start > Programs > Pictures & Videos.

2. Select the picture for which you want to conﬁgure

further settings.

3. Tap Menu > Options. The Options screen appears,

allowing you to:

• Resize a picture so that it can be sent faster through

e-mail.

• Set the direction of rotation for the Rotate function.

• Configure the view settings during slide shows and

activate screensaver options.

8.3 Using Windows Media Player

You can use Microsoft Windows Media Player 10 Mobile for Pocket PC to play digital audio and video files that are stored on your device or on a network, such as on a Web site.

Using Windows Media Player, you can play both audio and video files. These are the following file formats that are supported by this version of Windows Media Player.

Experiencing Multimedia 163

Video File Formats Supported File Extensions

•

Windows Media Video

•

MPEG4 Simple Profile

•

H.263

•

Motion JPEG

•

3GPP2

.wmv, .asf .mp4 .3gp .avi .3g2

Audio File Formats Supported File Extensions

•

Windows Media Audio

•

MP3

•

MIDI

•

AMR Narrow Band

•

AMR Wide Band

•

AAC

•

3GPP2

.wma .mp3 .mid, .midi, .rmi .amr .awb .m4a .gcp

About the controls

The following are available controls on the Windows Media Player.

164 Experiencing Multimedia

This control Does this

Plays/Pauses a file.

Displays the video in full screen.

Displays a Web site where you can find music and videos to play.

Adjusts the playback progress of a selected file.

Skips to the beginning of the current file or to the previous file.

Skips to the next file.

Decreases the volume level.

Increases the volume level.

Turns the sound on or off.

About the screens and menus

Windows Media Player has three primary screens:

• Playback screen. The default screen that displays the

playback controls (such as Play, Pause, Next, Previous, and Volume) and the video window. You can change the appearance of this screen by choosing a diﬀerent skin.

• Now Playing screen. The screen that displays the Now

Playing playlist. This special playlist indicates the current ﬁle being played and any ﬁles that are “queued up” to play next.

• Library screen. The screen that lets you quickly ﬁnd

your audio ﬁles, video ﬁles, and playlists. It contains categories such as My Music, My Videos, My TV, and My Playlists.

At the bottom of each screen, you can open a Menu. The commands on this menu vary, depending upon which screen you are viewing. For more information about the commands in these menus, see Help on your device.

Experiencing Multimedia 165

About licenses and protected files

Some content (such as digital media files downloaded from the Internet, CD tracks, and videos) have associated licenses that protect them from being unlawfully distributed or shared. Licenses are created and managed by using digital rights management (DRM), which is the technology for securing content and managing its access rights. Some licenses may prevent you from playing files that have been copied to your device. Files that have licenses associated with them are called “protected files.”

If you want to copy a protected file from your PC to your device, use the desktop Player to synchronize the file to your device (instead of dragging the file from a folder on your PC to a folder on your device, for example). This will ensure that the license is copied along with the protected file. For more information about synchronizing files to your device and other mobile devices, see desktop Player Help.

Note You can view the protection status for a file by checking its

file properties (tapping Menu

> Properties).

Copy media files to your device

Use the latest version of the desktop Player (Windows Media Player 10 or later) to synchronize digital media files to your device (instead of dragging a file from a folder on your PC to a folder on your device, for example). Using the desktop Player ensures that licenses are copied with protected files.

Always synchronize the files to a storage card that is inserted into your device. Do not synchronize to a storage card that is inserted into a storage card reader. In addition, do not synchronize to the internal storage location (RAM) in your device.

To synchronize content to your device automatically

1. Power oﬀ your device. Insert a 32-MB or larger storage

card into your device, and turn the power back on.

2. On your PC, start Windows Media Player.

3. Connect your device to your PC.

166 Experiencing Multimedia

4. If you have not set up synchronization between your

device and PC, the Device Setup Wizard opens on your PC.

5. In the wizard, click Automatic, select the Customize

the playlists that will be synchronized check box, and

then select the playlists that you want to synchronize.

6. Click Finish.

7. The ﬁles begin synchronizing to your device. The next

time you connect your device to your PC while the desktop version of Windows Media Player is running, synchronization will start automatically.

To synchronize and copy content manually to your device

1. If you have not set up synchronization between your

device and PC, follow steps 1 to 6 in “ To synchronize content to your device automatically”, except that you should click Manual synchronization.

2. To choose files to synchronize and copy to your device,

do the following:

• Click the Library tab.

• In the rightmost pane, click the drop-down list and

select Sync List

• In the Playlist which is the leftmost pane, select a

desired playlist.

• In the File List which is the middle pane, multi-select

desired files then drag them to the Sync List.

• Click the Start Sync button found at the bottom of

the Sync List.

Experiencing Multimedia 167

Playlist

File List

Sync List

Note Audio files copy faster if the desktop Player is configured to

automatically set the quality level for audio files copied to your device. For more information, see desktop Player Help on the PC.

Play media

To play items on your device

Use the library on Windows Media Player Mobile to find and play songs, videos, and playlists that are stored on your device or removable storage card.

1. If you are not on the Library screen, tap Menu > Library.

2. On the Library screen, tap the Library arrow (near the

top of the screen), then tap the media storage that you want use, for example, Storage Card.

3. In most cases, Windows Media Player Mobile

automatically updates the library. However, you can manually update the library to ensure that it contains new ﬁles that you recently copied to your device or storage card. Tap Menu > Update Library to manually update the library list.

168 Experiencing Multimedia

4. Select a category (for example, My Music or My

Playlists).

5. Tap and hold the item that you want to play (such as a

song, album, or artist name), then tap Play

Note To play a file that is stored on your device but is not in a

library, on the Library screen, tap Menu

> Open File. Tap and hold the item that you want to play (such as a file or a folder), then tap Play.

To play an item on a network

Use the Open URL command to play a song or video that is stored on the Internet or on a network server.

1. If you are not on the Library screen, tap Menu > Library.

2. Tap Menu > Open URL.

3. Do one of the following:

• In the URL box, enter a network address.

• In the History box, tap a URL that you have

previously used.

Note To play an item on a network, you must be connected to

a network. For more information about creating a remote connection between your device and a network, see Connections Help on your device.

Use playlists

A playlist is a list of digital media files that play in a specified order. By using playlists, you can group audio and video files together for convenient playback.

In the desktop Player, you can create a playlist of media files and synchronize the desktop Player with your device. For more information about synchronizing media, see “Copy media files to your device” earlier in this chapter.

In Windows Media Player on your device, your playlists are available in the Library under the My Playlists category. There is also a temporary playlist, called Now Playing, which lists the currently playing file, as well as any files that have been queued up to play next. You can create a new playlist on your

Experiencing Multimedia 169

device by saving the current Now Playing playlist and by giving it a new name.

To save a new playlist

1. If you are not on the Library screen, tap Menu > Library.

2. Tap to select a category (for example, My Music or My

Playlists).

3. Select a media ﬁle that you want, then tap Menu >

Queue Up. This adds the ﬁle to the Now Playing list.

Repeat this step until you have added all desired media

ﬁles to the Now Playing list.

Note You cannot select multiple files simultaneously.

4. After adding the media ﬁles, tap Menu > Now Playing.

5. On the Now Playing screen, tap Menu > Save Playlist.

6. Enter the playlist name then tap Done.

7. To play back the playlist you created, tap My Playlists in

the Library, select your playlist, then tap Play

Troubleshooting

If you encounter a problem while using the Windows Media Player, a number of resources are available to help you troubleshoot the issue.

For more information, see the Troubleshooting Windows Media Player Mobile page at the Microsoft Web site (http:// www.microsoft.com/windows/windowsmedia/player/ windowsmobile/troubleshooting.aspx

8.4 Using Streaming Media Player

The Streaming Media program allows you to stream live broadcasts or on-demand media content from the Web. You do not have to wait until the entire media content is completely downloaded before watching the video or hearing the sound. The media is sent in a continuous stream to your device and is played as it arrives, along with the audio.

170 Experiencing Multimedia

3 4 5 6 7 8

2 9

Button control Function

Play/Pause

Jog Bar (for scrubbing video)

Zoom out

Zoom in

Stop

Mute

Decrease volume

Increase volume

Current volume level

The Streaming Media program allows you to play 3GP and MPEG-4 files. It also supports playback of SDP (Session Description Protocol) files. An SDP file is a text file that contains the format, broadcast times, media content, and other information about a live broadcast, or it may contain a

Experiencing Multimedia 171

playlist and links to prerecorded media files if you are viewing on-demand streaming media.

Tip To always display streaming media in landscape view when

playing in full screen, tap Menu > Options then select the

Use Landscape mode when watching in full screen

check

box.

To access streaming content via Internet Explorer Mobile

In Internet Explorer Mobile, you can open a Web page containing RTSP links to streaming media content then play the content in the Streaming Media program.

1. Tap Start > Internet Explorer Mobile.

2. In the address bar, enter the URL address of the Web

page that contains the RTSP link to the desired *.3gp, *.mp4, or *.sdp ﬁle.

3. On the Web page, tap the RTSP link.

4. Streaming Media then automatically opens and starts

playing the ﬁle. During playback, use the button controls to play/pause, zoom in or out, adjust the sound volume, and more.

To stream media files directly on the Streaming Media program

Streaming Media only supports RTSP links when you stream *.3gp and *.mp4 files directly on the program.

Note Before you launch the Streaming Media program, make sure

that you are connected to the Internet.

1. Tap Start > Programs > Streaming Media.

2. From the program, tap Connect.

3. Enter the URL for the Web site (rtsp://) and the ﬁle name.

Alternatively, if you already accessed RTSP links before,

you can simply tap an RTSP link in the History list to play previously viewed content.

4. Tap Connect.

172 Experiencing Multimedia

5. Streaming Media then starts playing the ﬁle. During

playback, use the button controls to play/pause, zoom in or out, adjust the sound volume, and more.

To view streaming video file information

You can view the properties and general information of a streaming video clip, such as file format, audio codec, dimension, frames, and duration of the video.

• Tap Menu > Properties from the program.

To configure streaming video connection settings

Tap Menu > Options to configure the following settings:

• Connect via. Choose whether you want to connect to

the Internet or corporate network (intranet) to locate a streaming video clip.

• UDP port range. Specify a range of port numbers to

use for streaming.

• Media buffer. Specify the memory space (in terms of

duration) to allot for storing video and audio data while streaming media.

9.1 Word Mobile

9.2 Excel Mobile

9.3 Viewing Slide Shows with

PowerPoint Mobile

9.4 Using Adobe Reader LE

9.5 Using Java

9.6 Using ZIP

9.7 Using Voice Speed Dial

Chapter 9

Using Other Applications

174 Using Other Applications

9.1 Word Mobile

Word Mobile is a streamlined version of Microsoft Word. Word

documents created on your PC can be opened and edited on your device. You can also create and edit documents and templates in Word Mobile and save them as *.doc

, *.rtf, *.txt,

and *.dot files.

You can have only one document open at a time. When you open a second document, the first one is saved and closed automatically.

To create a Word file

1. In Word Mobile, tap New. You will see either a blank

document or template, depending on what you have selected as the default template.

2. Enter text as desired.

3. Tap Menu, then choose whether to set the font,

paragraph alignment and indentation, insert the date, do a spelling check, and more.

4. When ﬁnished, tap OK to save and close the ﬁle.

When you close a newly created document, it is automatically named after the first several words in the document and placed in the Word Mobile document list. You can easily rename the document with a more meaningful name and move it to another folder or a storage card.

Note

Word Mobile does not fully support some features of Microsoft Word such as revision marks and password protection. Some data and formatting may be lost when you save the document on your device. To see a complete list of features that are not supported in Word Mobile, see Help on your device.

Using Other Applications 175

9.2 Excel Mobile

Excel Mobile makes it easy for you to open and edit Excel

workbooks and templates created on your PC. You can also create new workbooks and templates on your device.

To create an Excel file

1. In Excel Mobile, tap New. You’ll see either a blank

worksheet or template, depending on what you’ve selected as the default template.

2. Tap a cell to select it. Using the on-screen keyboard,

enter your data then tap the Enter key.

3. Tap Menu, then choose whether to insert cells, charts,

symbols or functions, format rows and columns, and more.

4. When ﬁnished, tap OK to save and close the ﬁle.

Tips • Work in full-screen mode to see as much of your

workbook as possible.

• Tap View > Zoom and select a percentage so that you can

easily read the worksheet.

Note Excel Mobile does not fully support some features such as

formulas and cell comments. Some data and formatting may be lost when you save the workbook on your device. To see a complete list of features that are not supported in Word Excel, see Help on your device.

9.3 Viewing Slide Shows with PowerPoint Mobile

With PowerPoint Mobile, you can open and view slide show presentations created on your PC. Slide shows in *.ppt and *.pps format created using PowerPoint '97 and later can be viewed in PowerPoint Mobile.

Many presentation elements built into the slide shows such as slide transitions and animations will play back on the device. If the presentation is set up as a timed slide show, one slide

176 Using Other Applications

will advance to the next automatically. Links to URLs are also supported.

Features not supported in PowerPoint Mobile include:

• Notes. Notes written for slides will not be visible.

• Rearranging or editing slides. PowerPoint Mobile is a

viewer only.

• Some file formats. Files created in *.ppt format earlier

than PowerPoint '97 and HTML ﬁles in *.htm

and *.mht

formats are not supported.

To start a slide show presentation

1. Tap Start > Programs > PowerPoint Mobile.

2. In the presentation list, tap the slide show you want to

view.

3. Tap the current slide to advance to the next slide.

4. To navigate between slides, tap > Next or Previous,

or tap Go to Slide and tap the slide you want to view.

If the presentation is set up as a timed slide show, slides will advance automatically.

Notes • If you have zoomed in to see a slide in more detail, you

cannot navigate to another slide until you zoom out.

• Tapping Next or Previous may play an animation on a

slide rather than navigate to another slide.

To stop a slide show

• In a PowerPoint Mobile presentation, tap > End

Show

Using Other Applications 177

9.4 Using Adobe Reader LE

Adobe Reader LE allows you to open and view Portable

Document Format (PDF) files. These files usually have a *.pdf file extension.

To open a PDF file on your device

1. Tap Start > Programs > Adobe Reader LE.

2. Tap Open.

3. Browse to a folder and tap the PDF ﬁle you want to view.

Note

To open another PDF file, tap Menu > Open. Tap Browse

, select the desired file, and tap Open. You can also open a PDF file from File Explorer.

To navigate through a PDF file

You can do any of the following:

• Tap the Up, Down, Right, and Left arrow keys on the

horizontal and vertical scrollbars to move to the desired direction of the page.

• Press NAVIGATION up, down, right, and left to move up

or down a page or scroll through the pages.

• Tap the space between the arrow keys and the scrollbar

with your stylus to move one screen towards the desired position.

• Tap and drag the scrollbar tab to quickly scroll through

pages and jump to a desired page number.

• Tap Tools > Go To and select an option to go to a

speciﬁc page in a multi-page PDF ﬁle.

To enlarge or reduce the display size

1. Open a PDF ﬁle you want to view.

2. Tap Tools > Zoom.

3. Select In or Out to enlarge or reduce the display size.

Otherwise, select Fit Screen

or Fit Width.

4. Select To % to set an arbitrary zoom ratio.

178 Using Other Applications

To customize page view and orientation

1. Open a PDF ﬁle you want to view.

2. Tap Tools > View.

3. Select an option to suit your view.

To find text in a PDF file

1. Open a PDF ﬁle you want to view.

2. Tap Tools > Find > Text.

3. Enter the text to be searched.

4. Choose search parameters, such as Match case, Whole

word, Backwards, and tap Fin

Note

Adobe Reader LE offers you the following advance features.

• It displays a bookmark pane for the PDF files that contain

bookmarks. Tap the bookmarks to go to a specific section/ page within the file.

• It supports password-protected PDF files with up to 128-

bit encryption. When you open a password-protected PDF file, you will be prompted to enter the password before the file can be opened.

To use the toolbar

You can also use the Adobe Reader LE toolbar to access the most commonly used functions. The following table lists the toolbar controls.

This Control Does This

Fits the entire page to the screen

Fits the page width to the screen

Displays the first page

Displays the previous page

Displays the next page

Displays the last page

Using Other Applications 179

This Control Does This

Displays the text search screen

Zooms out

Zooms in

9.5 Using Java

MIDlets are Java applications such as games and tools that can run on mobile devices, while a MIDlet suite is a collection of one or more MIDlets. The Java program lets you download, install and manage MIDlets or MIDlet suites on your device. Your device supports Java 2 Micro Edition, J2ME.

To open the Java program

Tap Start > Programs > Java.

Install and launch MIDlets/MIDlet suites

There are several ways to install a MIDlet/MIDlet suite.

To download and install from a URL address

1. On the Java screen, tap Menu > Install > URL.

2. Tap Menu > Add.

3. Enter a descriptive name for the web page.

4. Enter the URL address from where to download. The

web page must contain links to .jad or .jar ﬁles.

5. Tap OK. The name of the web page you speciﬁed will

then be listed on the screen.

6. Tap the name of the web page, or tap Go.

7. The program will then retrieve the links and display the

ﬁle names of MIDlets/MIDlet suites. Select a ﬁle name then tap Install.

180 Using Other Applications

To download and install via Internet Explorer Mobile

1. On the Java screen, tap Menu > Install > Browser to

open Internet Explorer Mobile.

2. Locate the MIDlet/MIDlet suite while connected to the

Internet.

3. Select the MIDlet/MIDlet suite to download.

4. Information about the MIDlet/MIDlet suite is then

displayed. Tap Continue

5. Conﬁrm to start downloading.

6. Select <root> or a folder where to install the MIDlet

suite to, then tap

OK.

To install from your device

You can copy MIDlets/MIDlet suites from the PC to your device using the USB sync cable, infrared, or Bluetooth connection. Copy them to the root folder or any subfolder on your device.

1. On the Java screen, tap Menu > Install > Local Files.

The program then searches for MIDlets/MIDlet suites on your device and displays them in a list.

2. From the list, tap the MIDlet/MIDlet suite that you want

to install.

3. Conﬁrm to start the installation.

4. Select <root> or a folder where to install the MIDlet

suite to, then tap

OK.

To run a MIDlet/MIDlet suite

Do one of the following:

• After installation of the MIDlet/MIDlet suite is complete,

tap Yes.

• On the Java screen, open the folder that contains the

MIDlet/MIDlet suite. Select the MIDlet/MIDlet suite then tap Launch.

To stop running a MIDlet/MIDlet suite

Tap Exit or Quit if presented on the MIDlet/MIDlet suite’s screen or menu.

Using Other Applications 181

Manage MIDlets/MIDlet suites

You can organize MIDlets/MIDlet suites into folders for easy identification, move them from one folder to another, rename or update them, and more. If the device memory is full, uninstall some MIDlets/MIDlet suites to free up memory space.

To create folders

1. Tap Menu > New Folder.

2. Enter a folder name then tap Create.

To move a MIDlet to another folder

1. Tap and hold a MIDlet/MIDlet suite then tap Move.

Alternatively, you can tap Menu > Actions > Move

2. Tap the destination folder.

To rename a MIDlet or folder

1. Tap and hold a MIDlet/MIDlet suite then tap Rename.

Alternatively, you can tap Menu > Actions > Rename

2. Enter a new name, then tap Save.

To update a MIDlet/MIDlet suite

Tap and hold a MIDlet/MIDlet suite then tap Update. Alternatively, you can tap Menu > Actions > Update

Java will search for updates for the selected MIDlet/MIDlet suite where it was installed from before.

To view information about a MIDlet/MIDlet suite

• Tap Menu > Actions > Info.

• If the MIDlet/MIDlet suite is protected by DRM (Digital

Rights Management), tap Menu > Actions > Protection to view status and usage rights.

To uninstall MIDlets

Before you uninstall a MIDlet, make sure that it is not running.

1. Tap and hold the MIDlet, and tap Uninstall.

2. Tap OK to conﬁrm.

182 Using Other Applications

Note To uninstall all MIDlets and folders from the current folder,

tap Menu > Uninstall All.

To set MIDlet permission settings

For each MIDlet already installed, Java allows you to individually set permission options to perform certain actions. A MIDlet can be enabled to perform these actions:

Action Description

Local connection Enables a MIDlet to access device

connections such as via Bluetooth.

Location information access

Determines whether a MIDlet can access location related information.

Recording Enables a MIDlet to record audio and

images.

Messaging Enables a MIDlet to send and/or receive

SMS/MMS. This uses airtime and may incur costs.

Net access Enables a MIDlet to access the Internet.

This uses airtime and may incur costs.

Auto start Enables a MIDlet to be started

automatically to handle an incoming event. If there is another MIDlet running, it may be interrupted.

Read user data Allows a MIDlet to read data on the device

memory or storage card.

Note Some actions may not be available for certain MIDlets.

You can set permission options for performing each action by following these steps:

1. Tap and hold a MIDlet then tap Security. Alternatively,

you can tap Menu > Actions > Security

2. For each action, choose one of the following permission

options:

• Always. Enables a MIDlet to perform the action.

• Never. Prohibits a MIDlet to perform the action.

Using Other Applications 183

• Prompt. Asks for your confirmation whenever a

MIDlet attempts to perform the action.

3. Tap Save.

Note Changes to permission settings for a MIDlet in a multi-MIDlet

suite will affect the settings for the whole suite.

9.6 Using ZIP

This feature allows you to save memory and increase the storage capacity of your device by compressing files in the conventional ZIP format. You can view and extract archive files received from various sources. You can also create new

*.zip

files on your device.

Start ZIP and Open .zip files

You can use ZIP to either archive files or open an existing archive file on your device. Each time you start ZIP on your device, it searches for files that have the .zip file extension, and displays these files on the Archive List screen.

To start ZIP on your device

• Tap Start > Programs > ZIP.

To open a ZIP file and extract files

1. Open a ﬁle using any of the following:

• Select a file and tap File > Open Archive.

• Tap and hold a file and tap Open Archive.

• Double-tap a file.

Note You cannot select multiple ZIP files.

2. The ﬁles contained in the zip ﬁle are then displayed.

Select ﬁles by doing one of the following:

• Tap to select a file.

• To select several files, tap Menu > Action and make

sure Multi-Select Mode is selected. Select files by tapping each file. (Tap a selected file to deselect it.)

• To select all files, tap Menu > Action > Select All.

184 Using Other Applications

3. Tap Menu > Action > Extract.

4. Choose a folder in which ﬁles will be extracted to, then

tap Extract.

To create a zip archive

1. Tap New or File > New Archive.

2. On the Save As screen, enter a zip ﬁle name and choose

a folder in which to save the zip ﬁle. You can also choose whether the zip ﬁle will be saved on the device’s main memory or a storage card.

3. Tap Save.

4. Tap Menu > Action > Add.

5. Double-tap the folder that contains the ﬁles you want to

archive.

6. Select ﬁles by doing one of the following:

• Tap to select a file.

• To select several files, tap and hold on the screen,

then select Multi-Select Mode. Select files by tapping each file. (Tap a selected file to deselect it.)

• To select all files, tap and hold on the screen, then

tap Select All.

7. Tap Add.

8. Tap Menu > File > Close Archive.

9. After closing the zip ﬁle, you can tap Find or Menu >

File > Find Archive to search for all zip files and display

them on the Archive List screen.

Using Other Applications 185

9.7 Using Voice Speed Dial

You can record voice tags so that you can dial a phone number or launch programs simply by speaking a word.

Create a voice tag for a phone number

1. Tap Start > Contacts to open the Contacts list.

2. Do one of the following:

• Tap and hold the desired contact, then tap Add

Voice Tag

• Select the desired contact, then tap Menu > Add

Voice Tag

• Tap the desired contact to open the contact’s

detailed screen, then tap Menu >

Add Voice Tag.

3. Select the phone number that you want to create a

voice tag, then tap the Record button (

Select the desired phone number.

Tap the

Record button to

start recording.

4. When completed, a Voice Tag icon ( ) will be

displayed on the right of the item.

186 Using Other Applications

5. When you create a voice tag for the item, you can do

one of the following:

• Tap the Record button ( ) to rebuild the voice

tag.

• Tap the Play button ( ) to play the voice tag.

• Tap the Delete button ( ) to delete the voice

tag.

Tip To ensure voice recognition accuracy, please record your

voice in a quiet place.

Create voice tag for a program

1. Tap Start > Settings > Personal tab > Voice Speed

Dial

2. The Application tab displays a list of all installed

programs on your device. The procedure for creating a voice tag for a program is the same as the procedure for creating a voice tag for a phone number.

3. After you have created a voice tag for a program, you

can then launch the program by saying the recorded voice tag after tapping Start > Programs > Voice

Speed Dial

Make a call or launch programs using voice tags

1. Tap Start > Programs > Voice Speed Dial.

2. After a “beep” sound, say the recorded voice tag that

you have assigned to the phone number you want to call or the program you want to launch. The system will repeat the voice tag and then dial out or launch the program automatically.

Note If the system cannot recognize your voice tag, please speak

clearly and reduce the surrounding noise, then try again.

Using Other Applications 187

To view and test the voice tags you have created

1. Tap Start > Settings > Personal tab > Voice Speed

Dial

2. The Voice Tag tab displays a list that contains all the

voice tags you have created. Select an item in the list, and you can do one of the following:

• Tap the Record button ( ) to rebuild the voice

tag.

• Tap the Play button ( ) to play the voice tag.

• Tap the Delete button ( ) to delete the voice

tag.

188 Using Other Applications

Appendix

A.1 Regulatory Notices

A.2 PC Requirement to Run ActiveSync 4.x

A.3 Specifications

190 Appendix

A.1 Regulatory Notices

Regulatory Agency Identifications

For regulatory identification purposes, your product is assigned a model number of TITA100.

FCC ID: NM8TITA100. IC: 4115A-TITA100.

To ensure continued reliable and safe operation of your device, use only the accessories listed below with your TITA100.

The Battery Pack has been assigned a model number of TRIN160.

This product is intended for use with a certified Class 2 Limited Power Source, rated 5 Volts DC, maximum 1 Amp power supply unit.

Federal Communications Commission Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or TV reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:

Appendix 191

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

• Consult the dealer or an experienced radio or television

technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to the device that are not expressly approved by High Tech Computer Corporation may void the user’s authority to operate the equipment.

FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices

On July 10, 2003, the U.S. Federal Communications

Commission (FCC) Report and Order in WT Docket 01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to ensure reasonable access to telecommunications services for persons with hearing disabilities.

While some wireless phones are used near some hearing

devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed a rating

system for wireless phones, to assist hearing device users find phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label located on the box.

192 Appendix

The ratings are not guarantees. Results will vary depending

on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements

and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/ higher of the two ratings. TITA100 is rated M3.

Hearing devices may also be rated. Your hearing device

manufacturer or hearing health professional may help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered acceptable for normal use. A sum of 6 is considered for best use.

In the above example, if a hearing aid meets the M2 level

rating and the wireless phone meets the M3 level rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage” while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that is acceptable for normal operation.

The M mark is intended to be synonymous with the U

mark. The T mark is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section

20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American National Standards Institute (ANSI) C63.19 standard.

Appendix 193

For information about hearing aids and digital wireless phones

FCC Hearing Aid Compatibility and Volume Control:

http://www.fcc.gov/cgb/dro/hearing.html

Gallaudet University, RERC:

http://tap.gallaudet.edu/DigWireless.KS/DigWireless.htm

SAR Information

SAR: 1.130 W/kg @1g (USA)

THIS MODEL DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Use of other accessories may not ensure compliance with the FCC RF exposure guidelines.

Your wireless mobile CDMA phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and international standards bodies:

• American National Standards Institute (ANSI) IEEE.

C95.1-1992.

• National Council on Radiation Protection and

Measurement (NCRP). Report 86. 1986.

• International Commission on Non-Ionizing Radiation

Protection (ICNIRP) 1996.

• Ministry of Health (Canada), Safety Code 6. The

standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

194 Appendix

The exposure standard for wireless mobile CDMA phone employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is

1.6W/kg*.

The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of

https://gullfoss2.fcc.gov/prod/oet/cf/eas/reports/ GenericSearch.cfm after searching on FCC ID: NM8TITA100.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) web-site as

http://www.phonefacts.net.

* In the U.S. and Canada, the SAR limit for mobile CDMA phone

used by the public is 1.6 Watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in usage.

Normal condition only to ensure the radiative performance and safety of the interference. As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the human body be allowed to come too close to the antenna during operation of the equipment.

IC Statement

Operation is subject to the following two conditions:

1. This device may not cause interference; and

2. This device must accept any interference, including

interference that may cause undesired operation of the device.

Important Note

IC Radiation Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow

Appendix 195

the specific operating instructions for satisfying RF exposure compliance.

This Class B digital apparatus complies with Canadian ICES-

003.

Telecommunications & Internet Association (TIA) Safety Information

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum separation of six inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:

• Should ALWAYS keep the phone more than six inches

from their pacemaker when the phone is turned ON.

• Should not carry the phone in a breast pocket.

• Should use the ear opposite the pacemaker to minimize

the potential for interference. If you have any reason to suspect that interference is taking place, turn the phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider, or call the customer service line to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

196 Appendix

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.

The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.

The WEEE logo (shown at the left) on the product or on its box indicates that this product must not be disposed of or dumped with your other household waste. You are liable to dispose of all your electronic or electrical waste equipment by relocating over to the specified collection point for recycling of such hazardous waste. Isolated collection and proper recovery of your electronic and electrical waste equipment at the time of disposal will allow us to help conserving natural resources. Moreover, proper recycling of the electronic and electrical waste equipment will ensure safety of human health and environment. For more information about electronic and electrical waste equipment disposal, recovery, and collection points, please contact your local city center, household waste disposal service, shop from where you purchased the equipment, or manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

Appendix 197

A.2 PC Requirement to Run ActiveSync 4.x

To connect your device to the PC, you must have Microsoft® ActiveSync® program installed on your PC. ActiveSync 4.x is included in the Getting Started Disc, which is compatible with the following operating systems and applications:

• Microsoft® Windows® 2000 Service Pack 4

• Microsoft® Windows Server® 2003 Service Pack 1

• Microsoft® Windows Server® 2003 IA64 Edition Service

Pack 1

• Microsoft® Windows Server® 2003 x64 Edition Service

Pack 1

• Microsoft® Windows® XP Professional Service Packs 1

and 2

• Microsoft® Windows® XP Home Service Packs 1 and 2

• Microsoft® Windows® XP Tablet PC Edition 2005

• Microsoft® Windows® XP Media Center Edition 2005

• Microsoft® Windows® XP Professional x64 Edition

• Microsoft® Outlook® 98, Microsoft® Outlook® 2000 and

Microsoft® Outlook® XP, and Microsoft® Outlook® 2003 messaging and collaboration clients

• Microsoft® Office 97, excluding Outlook

• Microsoft® Office 2000

• Microsoft® Office XP

• Microsoft® Office 2003

• Microsoft® Internet Explorer® 4.01 or later (required)

• Microsoft® Systems Management Server 2.0

198 Appendix

A.3 Specifications

System Information

Processor

QUALCOMM

® MSM7500, 384 MHz

Memory - ROM : 256 MB embedded NAND Flash

- RAM : 64 MB SDRAM

(Figures are the total ROM and RAM memory available for use and storage. Since the memory is shared by the Operating System, applications, and data, the actual available memory is less than what is written).

Operating System

Microsoft

® Windows Mobile® Version 5.0

Pocket PC Phone Edition

Power

Battery Rechargeable Lithium-ion polymer battery,

1500 mAh

Charging Time Up to 4 hours

AC Adapter Voltage range/frequency: 100 - 240V AC,

50/60 Hz DC output: 5V and 1A

Display

LCD Type 2.8” transmissive TFT-LCD with backlight

LEDs, touch-sensitive screen

Resolution 240 x 320 dot pixels with 64K colors

Alignment Portrait and Landscape

Cellular Radio Module

Functionality CDMA2000 1xEVDO/1xRTT and IS-95A/B

voice or data

Mode Dual-band (800 and 1900 MHz)

Internal Antenna Yes

Physical

Dimensions 110 mm (L) x 59 mm (W) x 18.5 mm (T)

Weight 165g (with battery)

Appendix 199

Camera Module

Type 2 Megapixel color CMOS camera with flash

light

Resolution Photo: 1600x1200 (UXGA), 1280x960

(SXGA), 640x480 (VGA), 320x240 (QVGA), 160x120 (QQVGA)

Video: 352x288 (CIF), 320x240 (QVGA),

176x144 (QCIF), 128x96

MMS Video: 176x144 (QCIF), 128x96

Digital Zoom Up to 8x

Connections

Infrared IrDA SIR

I/O Port HTC ExtUSB

: an 11-pin mini-USB and audio jack in one (ExtUSB is a proprietary connection interface that is trademarked by HTC).

Car Antenna Connector

For connecting to an external phone antenna (850MHz and 1900MHz)

Wireless Connections

Bluetooth

®, Wi-Fi®

Controls and Lights

Navigation Buttons • 5-way Navigation Control

• Five program buttons : CAMERA, COMM

MANAGER, MESSAGING, INTERNET EXPLORER MOBILE, VOICE COMMAND

• Two phone functions : TALK and END

• START MENU button

• Two OK buttons

• Two soft keys

• Jog Wheel

• POWER button

• RESET button

• WLAN switch

Hardware Keyboard

QWERTY keyboard with two additional soft keys, and an ambient sensor that detects low light and automatically illuminates the keyboard.

200 Appendix

Controls and Lights

LEDs The left LED shows the following:

• A blinking Blue light for Bluetooth system notification of powered-up and ready to transmit radio frequency signal.

• A blinking Green light for Wi-Fi status.

• When both Bluetooth and Wi-Fi are enabled, their lights blink alternately.

The right LED shows Green and Amber lights for CDMA standby and network status, notification, and battery charging status.

Audio

Audio Controller AGC

Microphone/ Speaker

Built-in/Dual, Hands-free

Headphone MP3/WAV/WMA/AAC/AAC+ codec

Expansion Slots

Memory Card Slot microSDTM

HTC TITA100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
