HTC STAR Users Manual

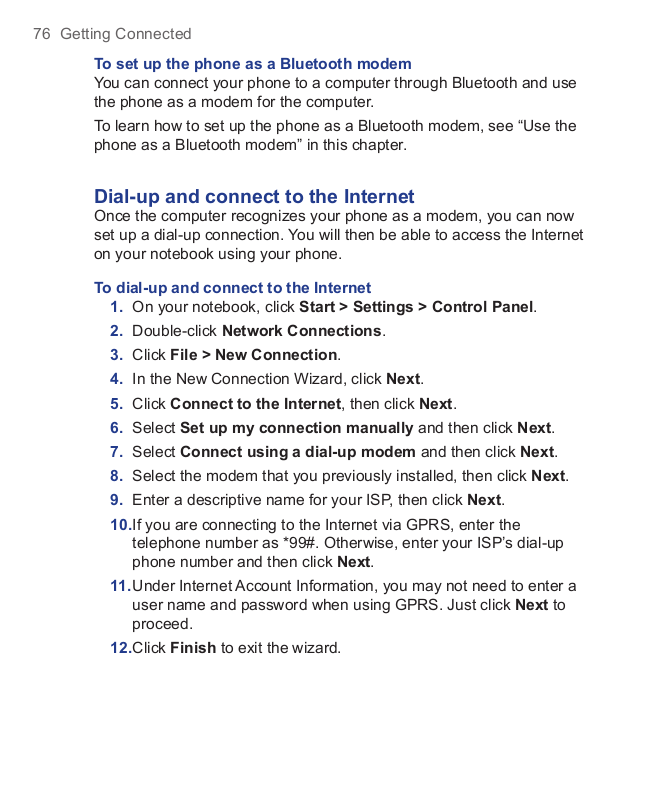

76 Getting Connected

To set up the phone as a Bluetooth modem

You can connect your phone to a computer through Bluetooth and use the phone as a modem for the computer.

To learn how to set up the phone as a Bluetooth modem, see “Use the phone as a Bluetooth modem” in this chapter.

Dial-up and connect to the Internet

Once the computer recognizes your phone as a modem, you can now set up a dial-up connection. You will then be able to access the Internet on your notebook using your phone.

To dial-up and connect to the Internet

1. On your notebook, click Start > Settings > Control Panel.

2. Double-click Network Connections.

3. Click File > New Connection.

4. In the New Connection Wizard, click Next.

5. Click Connect to the Internet, then click Next.

6. Select Set up my connection manually and then click Next.

7. Select Connect using a dial-up modem and then click Next.

8. Select the modem that you previously installed, then click Next.

9. Enter a descriptive name for your ISP, then click Next.

10. If you are connecting to the Internet via GPRS, enter the

telephone number as *99#. Otherwise, enter your ISP’s dial-up phone number and then click Next.

11. Under Internet Account Information, you may not need to enter a

user name and password when using GPRS. Just click Next to proceed.

12. Click Finish to exit the wizard.

Getting Connected 77

13. The Connect dialog box

then opens. Click Dial to dial up and connect to the Internet.

Next time you want to

dial up again from your computer, click Start > Settings > Control Panel, double-click Network Connections, then double-click the modem connection.

Note To dial up to the Internet, you can also use the dialer program,

USBModem_Dialer.exe, which is included in the Getting Started Disc. Follow the path: \OEM\APPS\Drivers\GSM USB Modem to find the file.

To end the modem session

• On the Wireless Modem screen, click Menu > Stop.

78 Getting Connected

5.4 Using Comm Manager

Comm Manager acts like a central switcher that lets you enable or

disable phone features as well as manage your data connections easily.

To open Comm Manager:

• Click Start > Comm Manager.

Comm Manager

Click to toggle between enabling and

disabling the phone.

Click to toggle between turning on

and off Bluetooth. Click > Bluetooth Settings to configure Bluetooth on your phone. See “Using Bluetooth” for details.

Click to toggle between automatically

receiving (as items arrive) and

manually retrieving Outlook e-mails. For more information, see “To receive e-mails and synchronize other information instantly” in Chapter 3.

Click to disconnect active data

services (e.g. GPRS). You cannot reconnect data services in Comm Manager.

Click to toggle between turning on the

phone’s ringer and setting the phone to vibration/mute mode.

Click to open ActiveSync so you can

synchronize the phone and computer. For more information about the configuration settings for ActiveSync, see Chapter 3.

Settings

Simply click the corresponding button to enable or disable a feature. When you enable a feature, its button gets highlighted. The button appears gray when the corresponding feature is disabled.

Getting Connected 79

5.5 Using Bluetooth

Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can exchange information over a distance of about 8 meters without requiring a physical connection. You can even beam information to a device in a different room, as long as it is within the Bluetooth signal coverage range.

Bluetooth can be used in the following ways:

• Beam information, such as ﬁles, appointments, tasks and contact

cards between devices that have Bluetooth capabilities.

• Synchronize information between your phone and computer via

Bluetooth.

• Use a Bluetooth service. Once you connect your phone to

another device or computer using Bluetooth, you can locate and use any of the services available on that device.

• Use your phone as a Bluetooth modem for a computer.

Bluetooth modes

Bluetooth on your phone operates in three different modes:

1. On. Bluetooth is turned on. Your phone can detect other

Bluetooth-enabled devices, but not vice versa.

2. Off. Bluetooth is turned off. In this mode, you can neither send

nor receive information using Bluetooth. You might want to turn off the radio at times to conserve battery power, or in situations where radio use is prohibited, such as onboard an aircraft and in hospitals.

3. Discoverable. Bluetooth is turned on and all other Bluetooth-

enabled devices within a range of 5 meters can detect your phone.

Note By default, Bluetooth is turned off. If you turn it on, and then turn off your

phone, Bluetooth also turns off. When you turn on your phone again, Bluetooth automatically turns on.

80 Getting Connected

To turn Bluetooth on or off on your phone

You can enable Bluetooth by clicking the On/Off switch in Comm Manager. You can also do the following:

1. On the Home screen, click Start > Settings > Connections >

Bluetooth.

2. In Bluetooth, select On.

3. Click Done.

4. To turn off Bluetooth capabilities on your phone, in Bluetooth,

select Off.

To make your phone discoverable

1. On the Home screen, click Start > Settings > Connections >

Bluetooth.

2. In Bluetooth, select Discoverable.

3. Enter a Bluetooth device name for your phone. This will be the

device name that will be shown on another Bluetooth-enabled device when it searches and detects your phone.

4. Click Done.

Note Selecting the Discoverable option on the Bluetooth screen also turns

on Bluetooth.

Bluetooth partnerships

A Bluetooth partnership is a relationship that you create between your phone and another Bluetooth-enabled device in order to exchange information in a secure manner.

Creating a partnership between two devices involves entering the same personal identification number (PIN) on both devices, and this is a one-time process. Once a partnership is created, the devices can recognize the partnership and exchange information without entering a PIN again. Make sure the two devices are within 8 meters, and that Bluetooth is turned on and in discoverable mode.

Getting Connected 81

To create a Bluetooth partnership

1. On the Home screen, click Start > Settings > Connections >

Bluetooth.

2. Click Menu > Devices.

3. Click Menu > New to search for a new device.

Your phone searches for other Bluetooth-enabled devices and lists them.

4. Select the desired device name in the list.

5. Click Next.

6. Enter a passkey (of between 1 and 16 characters) to establish a

secure connection, then click Next.

7. Wait for the paired device to accept the partnership:

• If you are creating a Bluetooth partnership between your

phone and another Bluetooth-enabled Pocket PC or phone, the receiving party needs to enter the same passkey that you specified.

• If you are creating a Bluetooth partnership between your

phone and computer, a balloon message will appear at the bottom-right of the computer screen, prompting your computer to accept the partnership. Click the message and then enter the passkey.

8. On your phone, a message will appear, indicating that your phone

has connected with the paired device. Click OK.

9. The name of the paired device is then displayed. You may edit

and enter a new name for that device, then click Next.

10. Select the check boxes of services that you want to use from the

paired device.

11. Click Done.

82 Getting Connected

To accept a Bluetooth partnership

1. Ensure that Bluetooth is turned on and in discoverable mode.

2. Click Yes when prompted to establish a partnership with another

device.

3. Enter a passkey (the same passkey that is entered on the device

requesting the partnership) to establish a secure connection. The passkey must be between 1 and 16 characters long.

4. Click Next.

5. A message will appear indicating that your phone has connected

with the paired device. Click OK.

6. The name of the paired device is then displayed. You may edit

and enter a new name for that device. Then click Next.

7. Select the check boxes of services that you want to use from the

paired device.

8. Click Done. You can now exchange information with another

device.

To change the display name of a Bluetooth device

1. On the Home screen, click Start > Settings > Connections >

Bluetooth.

2. Click Menu > Devices.

3. Select a detected Bluetooth device.

4. Click Menu > Edit.

5. Enter a new display name for the Bluetooth device, then click

Next.

6. Click Done.

To delete a Bluetooth partnership

1. On the Home screen, click Start > Settings > Connections >

Bluetooth.

2. Click Menu > Devices.

3. Select a Bluetooth device.

4. Click Menu > Delete.

5. Click Done.

Getting Connected 83

Connect a Bluetooth handsfree or stereo headset

For handsfree phone conversations, you can use a Bluetooth handsfree headset such as a car kit with your phone.

Your phone also supports A2DP (Advanced Audio Distribution Profile) which is for stereo audio over Bluetooth. This means that you can use a Bluetooth stereo headset with your phone for handsfree phone conversations as well as for listening to stereo music. Make sure that your stereo headset also supports A2DP.

Just like when connecting to any Bluetooth device, you also need to enter a passkey when connecting to a Bluetooth handsfree or stereo headset. The passkey is fixed and cannot be changed on a Bluetooth headset. Before you connect it with your phone, check for the proper passkey in the manufacturer’s documentation.

To connect a Bluetooth handsfree or stereo headset

1. Make sure that both your phone and the Bluetooth headset

are turned on and within close range, and that the headset is discoverable. Refer to the manufacturer’s documentation to ﬁnd out how to set the headset in discoverable mode.

2. On the Home screen, click Start >

Settings > Connections.

3. Click Bluetooth > Menu > Devices.

4. Click Menu > New. Your device

searches for other Bluetooth-enabled devices and displays them in the list.

5. Select the name of the headset and

click Add.

6. In Passkey, enter the alphanumeric

passkey for the Bluetooth headset, then click Next.

7. Select the check box for the hands-free service and click Finish.

84 Getting Connected

Note If the Bluetooth headset becomes disconnected, turn the headset on

and repeat steps 1 to 3 above. Select the headset and click Menu > Set

as Hands-free or Set as Wireless Stereo.

Beam information using Bluetooth

You can beam information, such as contacts, calendar items and tasks, as well as files from your phone to your computer or to another Bluetooth-enabled device.

Note If your computer does not have built-in Bluetooth capabilities, you need

to connect and use a Bluetooth adapter or dongle on your computer.

To beam information from your phone to a computer

1. Set Bluetooth on your phone to discoverable mode. For

information about this, see “To make your phone discoverable”.

2. Next, set Bluetooth on your computer to discoverable mode,

create a Bluetooth partnership, then enable your computer to receive Bluetooth beams.

If your computer has Windows XP SP2 and your computer’s built-

in or external Bluetooth adapter is supported by Windows XP SP2, do the following steps:

• On your computer, open Bluetooth Devices from the Control

Panel and then click the Options tab.

• Select the Turn discovery on and the Allow Bluetooth

devices to connect to this computer options.

Getting Connected 85

• Create a Bluetooth partnership between your phone and your

computer. For information about creating a partnership, see “Bluetooth partnerships”.

• In the Options tab of Bluetooth Devices, select Show the

Bluetooth icon in the notiﬁcation area.

• To allow your computer to receive Bluetooth beams, right-

click the Bluetooth icon at the bottom-right of your computer screen. A menu then opens. Click Receive a File.

If the Bluetooth adapter on your computer is installed by a third-

party provided driver, do the following steps:

• Open the Bluetooth software that comes with the Bluetooth

adapter. This software varies by manufacturer, but in most cases, you will find a Bluetooth Configuration utility which you can open from the Control Panel.

• Click the Accessibility tab in the Bluetooth Configuration

dialog box, then select Let other Bluetooth devices to discover this computer.

• Create a Bluetooth partnership between your device and

computer. For information about creating a partnership, see “Bluetooth partnerships”.

• Refer to the Bluetooth adapter’s documentation for

instructions on how to allow your computer to receive Bluetooth beams.

3. Now you’re ready to beam. On your phone, select an item to

beam. The item can be an appointment in your calendar, a task, a contact card or a file.

4. Click Menu > Beam [type of item].

5. Select the device name to which you want to beam.

6. Click Beam.

7. If you beam a calendar, task or contact item to your computer and

it is not automatically added to Outlook, click File > Import and Export to import it to Microsoft Outlook on your computer.

86 Getting Connected

To beam information to a Bluetooth-enabled device such as another phone, create a Bluetooth partnership and then do steps 3 to 6 in the above procedure.

Notes

• If the computer or device you want to beam to cannot be detected by

your phone, make sure that it is turned on, discoverable and within close range (8 meters) of your phone.

• The default folder on your computer where beamed items are stored

may be C:\Documents and Settings\your_username\My Documents.

• If your computer’s Bluetooth adapter is installed using a third-party

provided driver, the folder location where it stores beamed items will be indicated in the Information Exchange tab of the Bluetooth

Configuration utility.

Use the phone as a Bluetooth modem

You can connect your phone to a notebook or desktop computer through Bluetooth and use the phone as a modem for the computer.

To connect your phone to the computer through Bluetooth, you need a Bluetooth radio adapter (or USB Bluetooth dongle) for your computer.

To set up a Bluetooth connection between the phone and the computer (in Windows XP SP2)

1. On the phone, turn on Bluetooth and set it to discoverable mode.

2. Connect a Bluetooth radio adapter to your computer. (Refer to

the manufacturer’s documentation for details on how to install.)

After a Bluetooth radio adapter is installed on your computer, the

Bluetooth Devices icon appears on the Control Panel and System Tray.

3. In the Bluetooth Devices window, click Add.

4. The Add Bluetooth Device Wizard opens. Select the My device

is set up and ready to be found check box, then click Next.

5. The wizard then detects your phone as a new device and

displays its name in the dialog box. Select the device name, then click Next.

Getting Connected 87

6. Select Let me choose my own passkey, then enter a passkey

(between 1 and 16 digits) that serves as an identiﬁcation number for establishing a secure connection between the phone and the computer. Click Next.

7. A conﬁrmation message then appears on your phone. Click Yes

to accept the connection. Enter the same passkey, then click

Next.

8. On the computer, click Finish to exit the wizard.

9. On the phone’s Device Added screen, click OK.

10. Enter a display name for the computer, then click Next.

11. On the Services screen, click Done.

12. On the Home screen of your phone, click Start > Accessories >

Wireless Modem.

13. Select Bluetooth as the Connection type.

14. To use your phone as a GPRS modem, set the Access point

name (APN). To set, click Menu > APN Setting and enter the

access point name.

15. On your notebook, disable ActiveSync.

Note To disable ActiveSync on your computer, click File > Connection

Settings and then clear Allow connections to one of the following.

16. Click Menu > Start on your phone.

After successfully connecting your phone to the computer via Bluetooth, the next thing to do is to add your phone as a Bluetooth modem to your computer.

To add the phone as a Bluetooth modem

1. On the computer, click Start > Control Panel > Phone and

Modem Options.

2. Click the Modems tab. Check if there is a Bluetooth modem,

“Generic Bluetooth Modem” or “Standard Modem over Bluetooth Link” listed. If there is, skip to step 6.

3. If there is no Bluetooth modem listed in the Modems tab, click

Add.

88 Getting Connected

4. In the Add Hardware Wizard, click Next.

5. In the Select Bluetooth Device screen, select the phone name

and then click OK.

6. In the Modems tab, select the Bluetooth modem listed and then

click Properties.

7. Click the Advanced tab, then in the Extra initialization

commands text box, enter:

AT+CGDCONT=1,“IP”,“APN”

where APN is the access point name provided by your mobile

network operator to give you access to the Internet. Then click

OK.

8. Click OK to exit the Phone and Modem Options.

Your phone is now set up as a Bluetooth modem. For details about how to connect to the Internet, see “Dial-up and connect to the Internet” in this chapter.

Chapter 6

Exchanging Messages

and Using Outlook

6.1 Using Email and Text Messages

6.2 Using MMS Messages

6.3 Using Pocket MSN Messenger

6.4 Using Calendar

6.5 Using Contacts

6.6 Using Tasks

6.7 Using Voice Notes

90 Exchanging Messages and Using Outlook

6.1 Using Email and Text Messages

Messaging is where all of your email accounts and your text message

account are located. You can send and receive Outlook email, Internet email through an Internet service provider (ISP) and text messages. You can also access email from work using a virtual private network (VPN) connection.

Set up Outlook E-mail

When starting ActiveSync on your computer for the first time, the Synchronization Setup Wizard prompts you to set up a synchronization relationship. This allows you to synchronize Outlook email and other information between your phone and your computer or the Exchange Server. If you have already set up synchronization through the wizard, then your phone is ready to send and receive Outlook email. For information about the Synchronization Setup Wizard, see “To install and set up ActiveSync on the computer” in Chapter 3.

If you have not set up a synchronization relationship yet, do the following to set up your device to synchronize Outlook email:

1. To set up and connect to an over-the-air connection (GPRS or

ISP dial-up) to synchronize remotely, follow the procedures in “Connecting to the Internet” in Chapter 5.

2. Disconnect your phone from your computer or LAN. (If you have

an over-the-air connection, there is no need to disconnect.)

3. Click Start > ActiveSync.

4. If you want to synchronize emails directly with the Exchange

Server on a private network such as your corporate network, follow the steps in “Synchronize Outlook information with Exchange Server” in Chapter 3.

5. Choose the information types to synchronize. Make sure E-mail

is selected. For details, follow the steps in “To change which information is synchronized” in Chapter 3.

Exchanging Messages and Using Outlook 91

Every time you want to manually send or receive Outlook email on your phone, just connect your phone to your computer, LAN or over-the-air connection, then click Sync on the ActiveSync screen or click Menu > Send/Receive in Outlook on your phone.

For details about scheduling automatic synchronization or setting a synchronization time with the Exchange Server, see “Schedule synchronization with Exchange Server” in Chapter 3.

Set up a POP3/IMAP4 email account

You need to set up an email account that you have with an Internet service provider (ISP) or an account that you access using a VPN server connection (typically a work account) before you can send and receive email.

1. On the Home screen, click Start > Messaging and click any item

on the Messaging screen.

2. Click Menu > Options > New Account.

3. In Your name, enter your display name for email messages.

4. In E-mail address, enter the email address for this account.

5. Select Attempt to obtain e-mail settings from the Internet and

click Next.

Auto Setup attempts to download necessary email server settings so

that you do not need to enter them manually. If the account is set up successfully, you will be prompted to send and receive email.

If Auto Setup is unsuccessful or you have an account you access using a VPN server connection, contact your ISP or network administrator for the following information and enter it manually:

92 Exchanging Messages and Using Outlook

Setting Description

User name Enter the user name assigned to you by your ISP or network

Password Choose a strong password. You have the option to save your

Domain Not required for an account with an ISP. May be required for a work

Server type Select POP3 or IMAP4. Account name Enter a unique name for the account, such as “Work” or “Home”.

Network Enter the type of network your email server connects to. Incoming

server Require SSL

connection

Outgoing server

Outgoing server requires authentication

Outgoing server settings

Use different user name for outgoing server

User name: Enter your user name for the outgoing email server. Password: Enter your password for the outgoing email server. Domain: Enter the domain of the outgoing email server. Require SSL

connection: (Outgoing mail server only)

administrator. This is often the first part of your email address, which appears before the at sign (@).

password so you do not need to enter it each time you connect to your email server.

account.

This name cannot be changed later.

Enter the name of your email server (POP3 or IMAP4).

Select this to ensure you always receive email for this account using an SSL connection. This enables you to receive personal information more securely. Please note that if you select this and your ISP does not support an SSL connection, you will not be able to connect to receive email.

Enter the name of your outgoing email server (SMTP).

Select this if your outgoing email server (SMTP) requires authentication. Your user name and password from above will be used.

Your outgoing email server may require different authentication settings to those of your incoming email server.

Select this if your outgoing email server requires a different user name and password than the ones you entered before.

Select this to ensure you always send email from this account using an SSL connection. This enables you to send personal information more securely. Please note that if you select this and your ISP does not support an SSL connection, you will not be able to send email.

Exchanging Messages and Using Outlook 93

Send and receive messages

To compose and send an email or text message

1. On the Home screen, click Start > Messaging.

2. Select an email account or select Text Messages. Then, click

Select.

3. Click New.

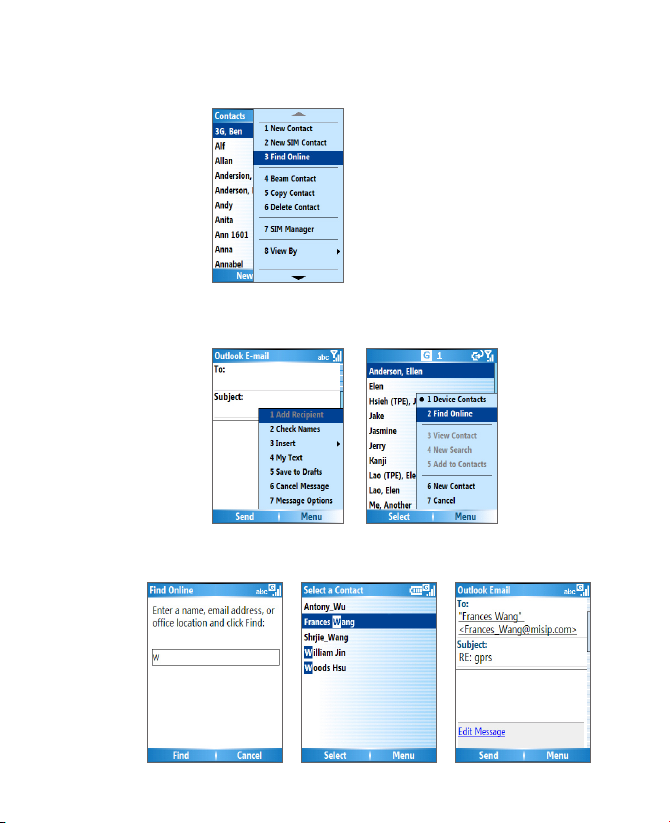

4. Enter the email address or phone number of one or more

recipients, separating them with a semicolon (;). To access addresses and phone numbers from Contacts, in To, press ENTER and select a recipient from the list.

5. Enter a message.

6. Click Send.

Note If you are working offline, email messages are moved to the Outbox

folder and will be sent the next time you connect. Text messages are sent immediately.

Tips

• To set the priority of an email message, click Menu > Message

Options.

• To cancel any message, click Menu > Cancel Message.

• If you are sending a text message and want to know if it is received,

before sending the message, click Menu > Message Options. Select Request message delivery notification.

To reply to or forward a message

1. From an open message, click Reply, or click Menu > Reply All

or Forward.

2. Enter a message in the message area.

3. Click Send.

Note If you are replying to or forwarding email from Outlook E-mail, you will

send less data if you do not edit the original message. This may reduce data transfer costs based on your rate plan.

94 Exchanging Messages and Using Outlook

To exclude your email address when replying to all

When you reply to all the recipients of an email, your own email address will also be added to the recipient list. You can customize ActiveSync so that your email address will be excluded from the recipient list.

1. On the Home screen, click Start > ActiveSync.

2. Click Menu > Options.

3. Select Email and click Settings.

4. Click Menu > Advanced.

5. In the Primary e-mail address text box, enter your email

address.

6. Click Done.

To add an attachment to an email message

1. In a new message, click Menu > Insert and then click Picture or

Voice Note.

2. Select the picture you want to attach or record a voice note.

To download attachments

• In an open message with an attachment, select the attachment.

The attachment is downloaded the next time you synchronize or connect to your email server when sending and receiving email.

Exchanging Messages and Using Outlook 95

Download messages

The manner in which you download messages depends on the type of account you have:

• To send and receive email for an Outlook E-mail account, begin

synchronization using ActiveSync. For more information, see “Set up Outlook E-mail” in this chapter.

•

To send and receive email messages for an email you have with an Internet Service Provider (ISP) or that you access using a VPN server connection (typically a work account), download messages through a remote email server. For more information, see “To download messages from the server” below.

• Text messages are automatically received when your phone is

turned on. When your phone is in ﬂight mode, messages are held by your service provider until you turn off ﬂight mode.

To download messages from the server

To send and receive email messages for an email account that you have with an Internet Service Provider (ISP) or that you access using a VPN server connection (typically a work account), you first need to connect to the Internet or your corporate network, depending on the account.

1. On the Home screen, click Start > Messaging.

2. Select the email account.

3. Click Menu > Send/Receive. The messages on your phone and

email server are synchronized as follows: new messages are downloaded to the phone Inbox folder, messages in the phone Outbox folder are sent, and messages that have been deleted from the server are removed from the phone Inbox folder.

Tip If you want to download the entire message, select the message and

click Menu > Download Message. The remainder of the message will be downloaded the next time you send and receive email.

account that

96 Exchanging Messages and Using Outlook

Individually sign and encrypt a message

Encrypting an Outlook email message protects the privacy of the message by converting it from plain, readable text into cipher (scrambled) text. Only the recipient who has the authorization key can decipher the message.

Digitally signing a message applies your certificate with the authorization key to the message. This proves to the recipient that the message is from you and not from an imposter or a hacker, and that the message has not been altered.

To digitally sign and encrypt a new message

1. In the message list, select Outlook E-mail.

2. Click New.

3. Click Menu > Message Options.

4. In the Security ﬁeld, select the Encrypt message and Sign

message check boxes. Then click Done.

Verify the digital signature on a signed message you receive

To verify a digital signature in a message that you receive, do the following:

1. Open the Outlook email message that has been digitally signed.

2. At the top of the message, click View Signature Status.

Exchanging Messages and Using Outlook 97

3. Click Menu > Check Certiﬁcate.

4. To view the details of the certiﬁcate in the message, click Menu >

View Certiﬁcate.

Note There can be several reasons why a digital signature is not valid.

For example, the sender’s certificate may have expired, it may have been revoked by the certificate authority or the server that verifies the certificate is unavailable. Contact the sender to report the problem.

Manage folders

Each Messaging account has its own folder hierarchy with five default Messaging folders: Inbox, Outbox, Deleted Items, Drafts and Sent Items. The messages you receive and send through the account are stored in these folders. You can also create additional folders within each hierarchy. Folders for email accounts behave differently depending on the type of email account you have.

If you set up an Outlook E-mail account to sync with Exchange Server or a desktop PC, email messages in the Inbox folder in Outlook will be synchronized automatically with your phone. You can select to synchronize additional folders by designating them for synchronization. The folders you create and the messages you move will then be mirrored on the email server. For example, if you move two messages from the Inbox folder to a folder named Family and you have designated Family for synchronization, the server creates a copy of the Family folder and copies the messages to that folder. You can then read the messages while you are away from your PC. You can only create and delete folders on devices when you are connected to an Exchange email server.

As with an Outlook account, if you set up an account to send and receive mail using an IMAP4 email server, all messages on the phone are copies of the messages on the server. The folders you create locally on the phone and the email messages you move to these folders are mirrored on the email server. Moving a message on the phone moves the copy on the server the next time you send and receive email for that account. Therefore, messages are available to you any time you connect to your email server, whether it is from your

98 Exchanging Messages and Using Outlook

phone or PC. This synchronization of folders occurs whenever you connect to your email server, create new folders or rename/delete folders when connected. You can also set different download options for each folder.

If you set up an account to send/receive mail using a POP3 email server, email messages you move to the Deleted Items folder on the phone will break the link between the messages on the phone and their copies on the email server. The next time you connect to send and receive mail, the email server will detect the messages that are in the Deleted Items folder on the phone and will delete those messages from the email server. All other messages in other folders remain on both the phone and the email server.

6.2 Using MMS Messages

Creating and sending Multimedia Message Service (MMS) messages to your friends and family is fun and easy. You can include or capture photos or video clips, include or record audio, add text, then send them along with your MMS message.

To access MMS

Do any of the following:

• On the Home screen, click Start > Messaging > MMS.

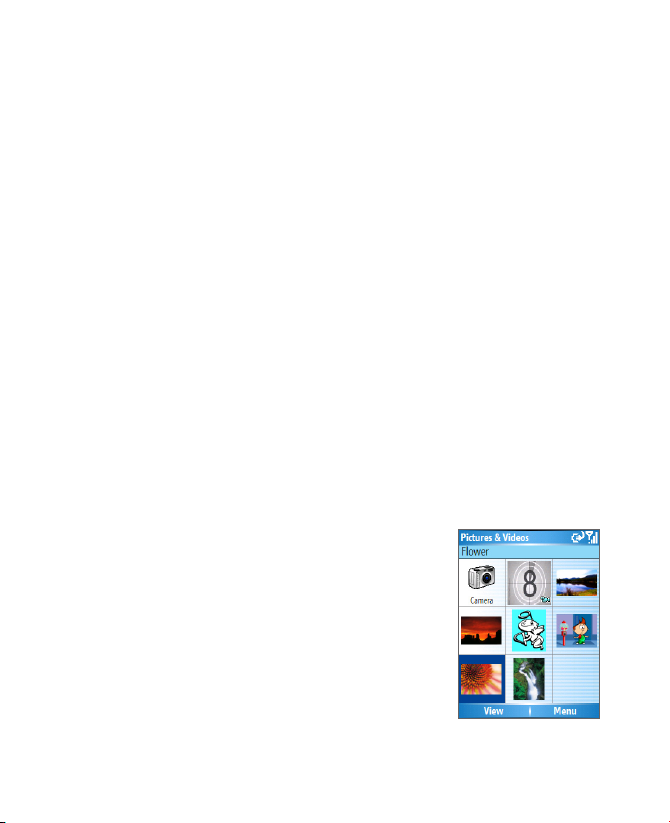

• From the Pictures & Videos program, select a picture in My

Pictures and click Menu > Send. Select MMS as the messaging account to send the picture along with the message.

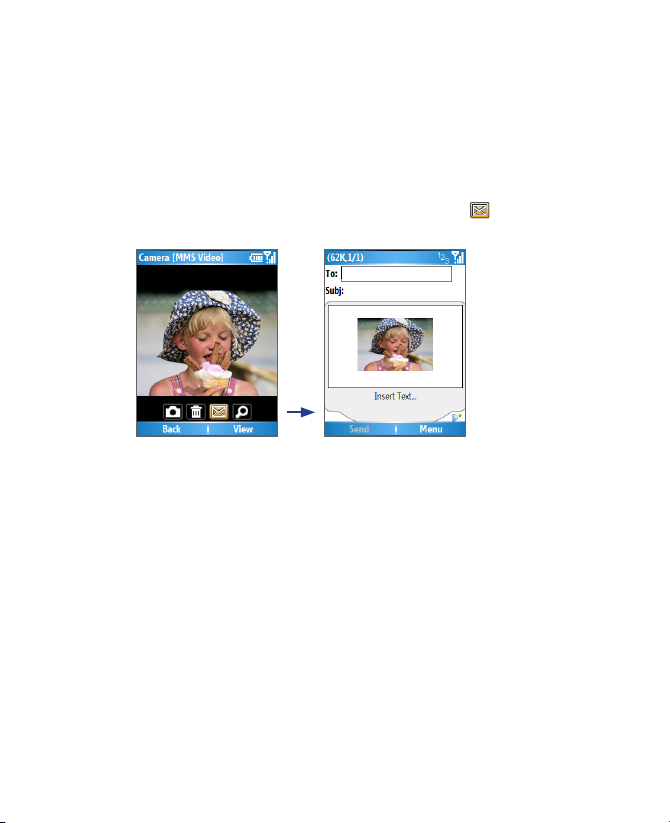

• From the Camera program, capture a photo and then click the

Send icon ( ), select Send via MMS and click Send; or record an MMS video clip and then click the Send icon ( ).

Exchanging Messages and Using Outlook 99

To access MMS message folders

• Click Start > Messaging > MMS, then click Menu > Folders.

MMS Message Folders

Edit MMS settings

When you send an MMS message, an SMS notification message will first be sent to the recipient, while your MMS message will be temporarily stored on an MMS server of your wireless service provider. Similarly, when others send you an MMS message, the MMS message will be stored on the MMS server, waiting for you to retrieve it. Hence, your phone must be configured with the location of the MMS server for you to be able to send and receive MMS messages on your phone.

When you purchase your phone, it is already preset with your wireless service provider’s MMS server settings. If you accidentally lose the preset settings or if you change to another wireless service provider, follow the steps below to configure MMS settings.

To conﬁgure MMS settings

1. On the MMS main screen, click Menu > Options > Account

Options > MMS to open the Preferences screen.

2. Select or clear the provided check boxes according to your

needs. You can choose to keep track of your MMS messages, retrieve messages immediately, accept or reject messages and request a delivery or read receipt. You can also specify a resolution for images you send and message delivery attempts.

3. On the Preferences screen, click Menu > MMSC Settings >

100 Exchanging Messages and Using Outlook

Edit to access Multimedia Messaging Service Center (MMSC) settings.

4. Check if your phone is preset with MMS server settings.

If there are no preset settings, click Menu > New on the MMSC

Settings screen and enter the following information, which you can get from your wireless service provider:

• Name. A descriptive name, such as your wireless service

provider name.

• MMSC URL. URL address of the MMS server.

• WAP Gateway. Location of the MMS server, which is usually

in the form of an IP address.

• Port. HTTP port number used for connecting to the MMS

server and for file transfer.

• Connect Via. Select The Internet from the list.

• Max. Sending Size. Select the maximum MMS message size

allowed by your wireless service provider.

• WAP Version. Select either WAP 1.2 or WAP 2.0, depending

on which one is being used by your wireless service provider.

5. Click Done.

The MMS server settings will then be added as an entry on the

MMS Conﬁguration screen.

Exchanging Messages and Using Outlook 101

Note If you add several MMS service providers to the MMSC Settings screen,

you can choose one as your default MMS provider. Select the MMS provider’s name in the list, then click Menu > Set as Default.

Create and send MMS messages

You can compose MMS messages in a combination of various slides, where each slide can consist of a photo, audio/video clip and/or text.

Notes

• Please note that MMS is a charged service. In order to use MMS

successfully, this has to be provisioned on your mobile account. Please contact the wireless service provider to have this provisioned as part of your calling plan.

• Please ensure the size of the MMS is within the limits of the wireless service provider if sending to another mobile phone user or sending to an email address.

To start composing an MMS message

1. On the Home screen, click Start > Messaging > MMS > New.

2. In To, enter the recipient’s phone number or email address

directly, or press ENTER to choose a phone number or an email address from Contacts. You can also click Menu > Recipients >

Add to add a new contact entry.

3. In Subject, enter a subject for your message.

4. Click Insert Picture/Video to select a photo or video clip from the

Select Media screen and insert it.

5. Enter text and insert audio clips by clicking the respective ﬁelds.

6. Click Send to send the message.

Note To send a copy of this message to others, access Cc and Bcc by

clicking Menu > Send Options. In these fields, enter the recipient's phone number or email address or click Menu > Recipients > Add to add from Contacts.

102 Exchanging Messages and Using Outlook

The following symbols act as shortcuts to some of the options on the MMS Message screen.

• Press NAVIGATION left ( ) to go to the previous slide.

• Press NAVIGATION right ( ) to go to the next slide.

Composing an MMS Message

To create an MMS message from a template

• On the blank MMS message screen, click Menu > Template >

New from Template to compose a message using a predeﬁned

template.

Note To save a message as a template, create a message or open an

existing message and click Menu > Template > Save as Template.

To insert a photo or video clip into an MMS message

You can add either a still image or a video clip to each individual slide on the MMS message screen.

Click Insert Picture/Video to insert a photo or video clip.

2. Select a picture or video clip on the Select Media screen. This

is the My Pictures folder where images and video clips are displayed in thumbnail view. To navigate to any other folder containing pictures or videos, click Menu > Change Folder.

3. Select a photo or video clip by using NAVIGATION and click

Select or Menu > Select to insert it.

Exchanging Messages and Using Outlook 103

On the Select Media screen, you can view the thumbnails in list view, open an item to view it or delete an item by clicking Menu and choosing the appropriate option. You can even discard this photo or video clip by pressing BACK. To capture a new photo or video clip and send it immediately with the message, click Menu > Capture Picture or Menu > Capture Video. The newly captured photo or video clip is automatically inserted into your message.

To add predeﬁned text to an MMS message

You can instantly add text to any slide from a list of predefined words or phrases, called Canned Text.

• On the MMS message screen, click Menu > Insert Object >

Canned Text and then click Select or Menu > Select to add a

text string from the Canned Text list.

Note To edit or delete a phrase on the Canned Text list, select a text string

and click Menu > Edit or Menu > Delete. To create and add a new phrase to the list, click Menu > New.

To add an audio clip to an MMS message

You can add audio clips to your MMS messages. However, you can add only one audio clip per slide.

1. Click Insert Audio to insert an audio clip.

Select an audio clip on the Select Audio screen.

Note By default, the audio clips listed on the Select Audio screen are from the

My Sounds folder. To navigate to any other folder containing audio clips, click Menu > Change Folder.

2. Select an audio clip using NAVIGATION and click Select or

Menu > Select to insert it.

Note You can play and listen to the audio clip by clicking Menu > Play before

you insert it.

Otherwise, to record a new audio clip, click Menu > Capture

Audio. Then click Record to start recording and Stop to stop

recording. Click Play to listen to the new audio clip you captured, then click Done.

104 Exchanging Messages and Using Outlook

The new audio clip is then added to your MMS message.

To set options for an MMS message

While composing an MMS message, you can set the following options for the message by clicking Menu.

Option Allows you to

Recipients Specify the phone number or email address of the

Insert Object Choose to insert a picture/video, audio or predefined text. Capture Capture a photo, audio or video clip to be inserted into the

Attachments Choose to attach a vCard, vCalendar or other file. Remove Picture/

Remove Video Remove Audio Delete an audio clip from the message. Remove Text Delete text from the message. Slides Add and remove slides, view the next/previous slides and

Cancel Message Cancel the message and go back to the MMS Messaging

Background Choose a background color from the list. Template Compose a message using a predefined template and save

Send Options Specify the message delivery time, validity, priority, class and

Preview Message

Send Message Send the message to the recipients.

recipient(s).

message.

Delete a photo/video from the message.

specify the duration of slides.

folders screen.

a composed or existing message as a template.

other settings for a message. Playback the contents of the MMS message before sending

it.

View and reply to MMS messages

To receive MMS messages

• On any MMS message folder screen, click Menu > Send/

Receive.

By default, messages are automatically downloaded to your phone.

+ 66 hidden pages
