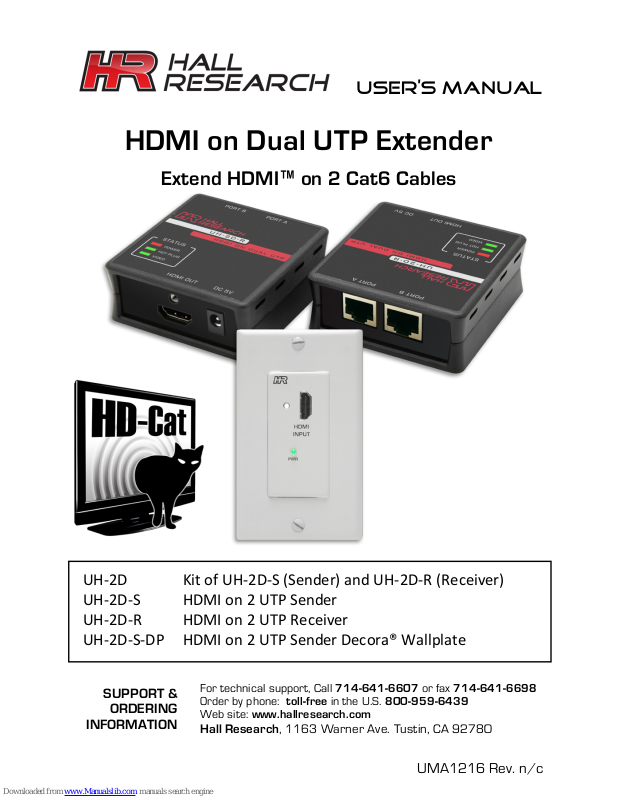

HR UH-2D, UH-2D-S, UH-2D-R, UH-2D-S-DP User Manual

User’s Manual

HDMI on Dual UTP Extender

Extend HDMI™ on 2 Cat6 Cables

UMA1216 Rev. n/c

UH-2D Kit of UH-2D-S (Sender) and UH-2D-R (Receiver)
UH-2D-S HDMI on 2 UTP Sender
UH-2D-R HDMI on 2 UTP Receiver
UH-2D-S-DP HDMI on 2 UTP Sender Decora® Wallplate

For technical support, Call 714-641-6607 or fax [phone]
Order by phone: toll-free in the U.S. 800-959-6439
Web site: www.hallresearch.com

Hall Research, 1163 Warner Ave. Tustin, CA 92780

SUPPORT &

ORDERING

INFORMATION

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo

are trademarks of Hall Research.

Any other trademarks mentioned in this manual are acknowledged as the
property of the trademark owners.

FCC RADIO FREQUENCY STATEMENT

This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been designed to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC
rules, which are intended to provide reasonable protection against such
interference when the equipment is operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause
interference, in which case the user at their own expense will be required to
take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Model UH-2D

1

1. Introduction

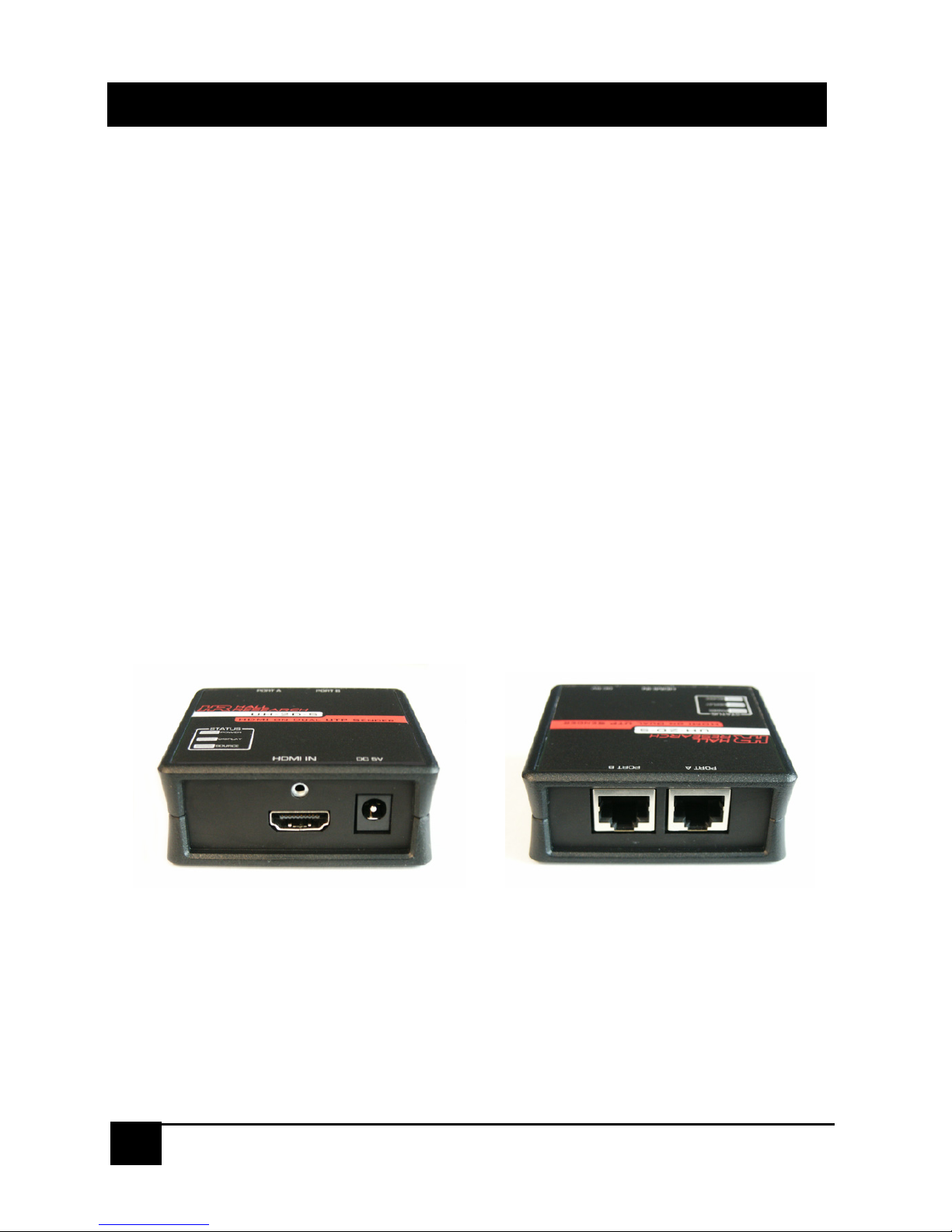

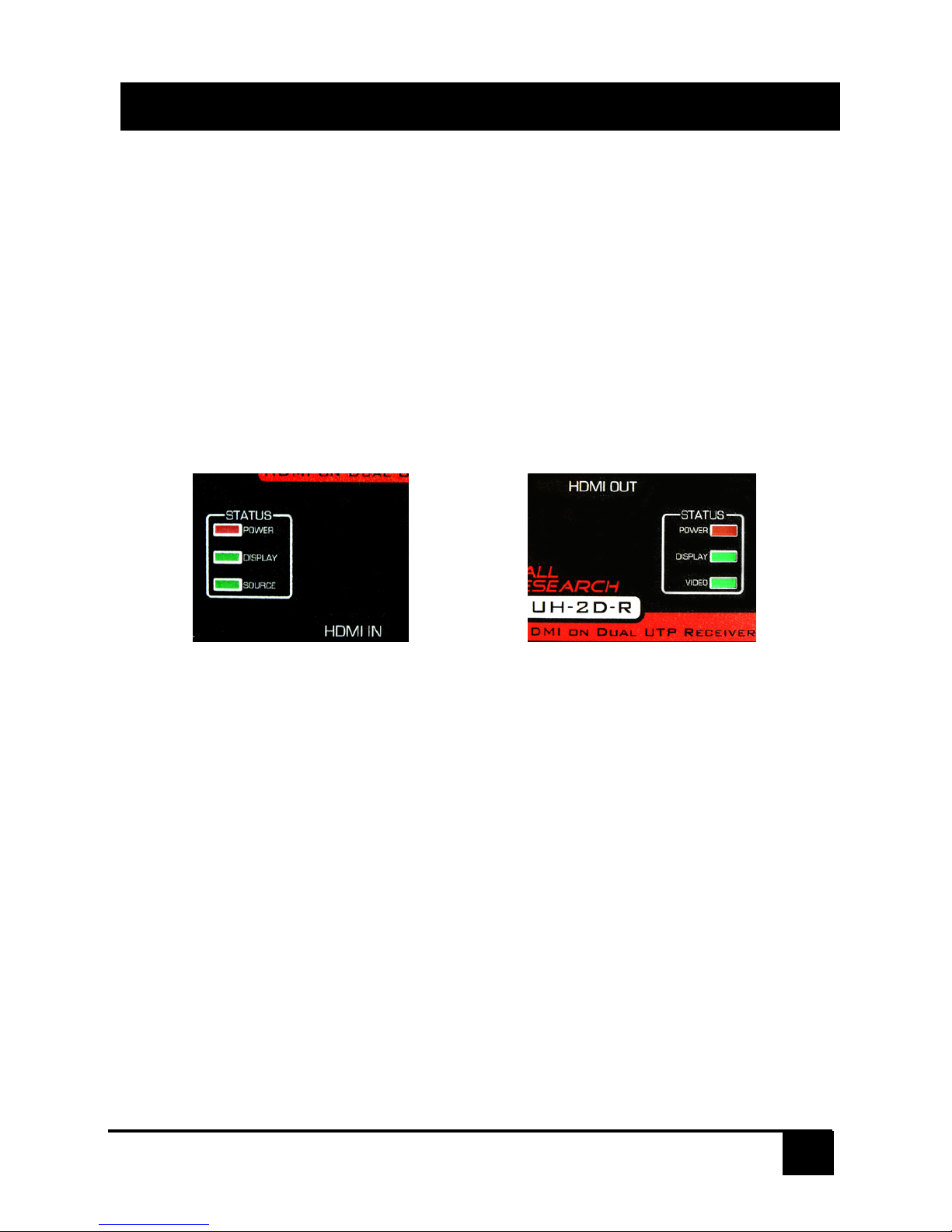

Hall Research’s Model UH-2D is a member of the Hall Research HD-Cat™ video extension product
line. The HD-2D extender kit uses two Cat6 cables to extend high definition video well beyond the
limitations of HDMI cable. The Sender and Receiver set support HDCP, Deep-Color, 3D and can
achieve a distance of up to 170 ft @ 1080i/720p or 130 ft @ 1080p resolution.

A single power supply is provided that can be plugged at either end for easy installation. The
extender equalizes TMDS video using state of the art technology for a crisp image, and buffers the
DDC channel for error free EDID and HDCP operation that help prevent image dropouts. The
extender can also extend single link DVI video from any PC.

The HD-Cat™ family of products are designed and manufactured in the USA. They offer a reliable
and low-cost alternative to HDBaseT extenders for shorter distances.

The HD-2D extender is typically sold as a kit, however senders and receivers are also separately
available for purchase. There is also a single-gang Decora® style wall-plate of the sender side.

Figure 1 – Block Diagram
