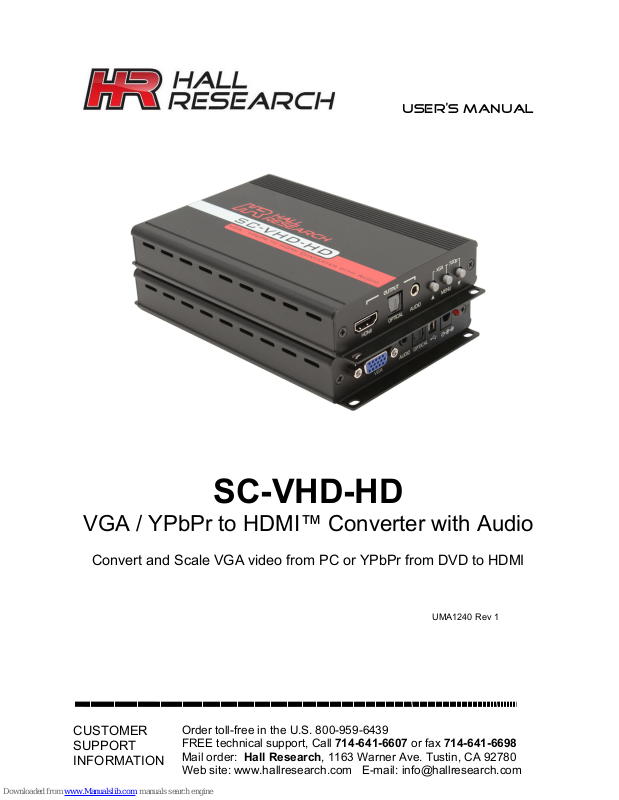

HR SC-VHD-HD User Manual

User’s Manual

SC-VHD-HD

VGA / YPbPr to HDMI™ Converter with Audio

Convert and Scale VGA video from PC or YPbPr from DVD to HDMI

Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax [phone]
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: [e-mail]

CUSTOMER

SUPPORT
INFORMATION

UMA1240 Rev 1

VGA to HDMI Converter / Scaler with Audio

1

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo are trademarks of Hall Research. Any other trademarks
mentioned in this manual are acknowledged as the property of the trademark owners.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may
cause undesired operation

Contents

1. Introduction .......................................................................... 2

1.1 General ................................................................................ 2

1.2 Features ............................................................................... 2

2. Installation ............................................................................ 3

2.1 Connections ......................................................................... 3

2.2 Connection Block Diagram ................................................... 3

2.3 Package Contents ................................................................ 3

3. Configuration & Operation .................................................. 4

3.1 Input and Output ................................................................... 4

3.2 OSD Menu............................................................................ 4

4. Troubleshooting ................................................................... 6

4.1 Contacting Hall Research ..................................................... 6

5. Specifications ....................................................................... 7

6. Supported Input and Output Resolutions .......................... 8

SC-VHD-HD

2

1. Introduction

1.1 General

Thank you for purchasing Hall Research’s SC-VHD-HD. This unit can
convert and scale Component Video (YPbPr) or VGA video from PC along
with audio into an HDMI™ signal. The unit takes advantage of the HDMI™
signal's ability to embed audio with video. For convenience, both stereo
analog and optical digital audio inputs and outputs are provided.

The SC-VHD-HD has the ability to output a wide range of resolutions and
refresh rates regardless of the input timing and resolution. The output
resolution can automatically match the native resolution of the display
connected to its output (based on the EDID setting of the display), or it can
be specified by the user.

The video processor combines the functions of a video scaler, scan­converter, and format transformer. The SC-VHD-HD also includes a
horizontal mirroring feature, which is useful for Teleprompters and rear
projection systems.

The unit encodes the audio input signal from TOSLink (Optical) or Analog
(L/R) to both digital and analog formats and outputs it on HDMI™ along with
video. For convenience, the unit features integrated mounting brackets.

The SC-VHD-HD features an OSD menu for configuration, picture setup,
system information and other advanced options.

1.2 Features

• HDMI™, HDCP, and DVI Compliant

• Any PC or HDTV video signal can be scaled up or down to any other

PC or HDTV resolution

• State-of-the-art video scaling for real-time frame rate capture &
conversion

• OSD adjustment of contrast, brightness, color, size, sampling clock,
phase, position, audio source and delay

• Horizontal mirroring (X-axis flip)

• Analog and digital (LPCM) audio inputs and outputs
