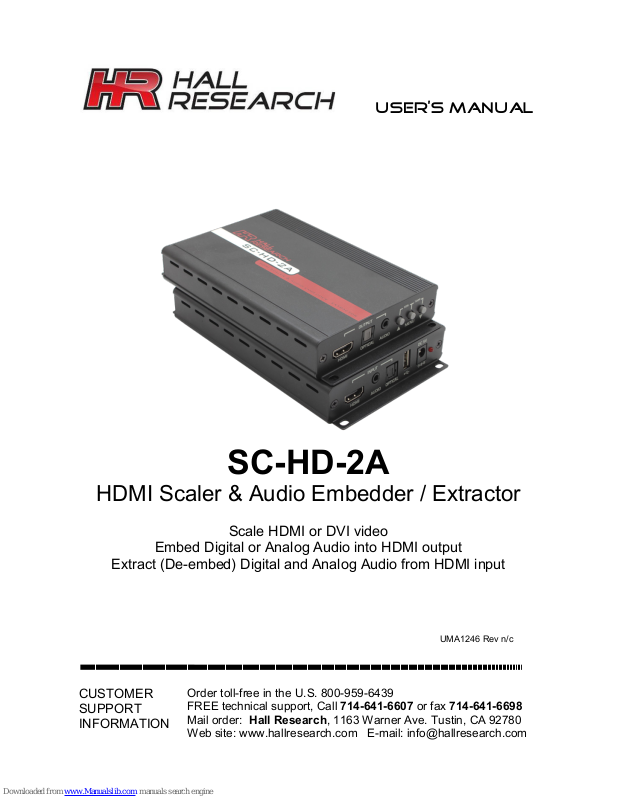

HR SC-HD-2A User Manual

User’s Manual

SC-HD-2A

HDMI Scaler & Audio Embedder / Extractor

Scale HDMI or DVI video

Embed Digital or Analog Audio into HDMI output

Extract (De-embed) Digital and Analog Audio from HDMI input

UMA1246 Rev n/c

Order toll-free in the U.S. 800-959-6439

FREE technical support, Call 714-641-6607 or fax [phone]
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: [e-mail]

CUSTOMER

SUPPORT
INFORMATION

HDMI Scaler & Audio Embedder / Extractor

3

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo are trademarks of Hall Research. Any other trademarks
mentioned in this manual are acknowledged as the property of the trademark owners.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may
cause undesired operation

Contents

1. Introduction .......................................................................... 4

1.1 General ................................................................................ 4

1.2 Features ............................................................................... 4

2. Installation ............................................................................ 5

2.1 Connections ......................................................................... 5

2.2 Connection Block Diagram ................................................... 5

2.3 Package Contents ................................................................ 5

3. Configuration & Operation .................................................. 6

3.1 Input and Output ................................................................... 6

3.2 OSD Menu............................................................................ 6

4. Troubleshooting ................................................................... 8

4.1 Contacting Hall Research ..................................................... 8

5. Specifications ....................................................................... 9

6. Supported Input and Output Resolutions ........................ 10

SC-HD-2A

4

1. Introduction

1.1 General

Thank you for purchasing Hall Research’s SC-HD-2A. This unit can convert
and scale DVI or HDMI video in to various output resolutions. Video can be
manipulated is several ways. For example, the output can be horizontally
flipped (mirrored along x-axis), or hue, saturation, and other salient
parameters of video can be manipulated. The mirroring feature is useful for
teleprompter and rear projection systems.

The unit takes advantage of the HDMI signal's ability to embed audio with
video. For convenience, both stereo analog and optical digital audio inputs
and outputs are provided. The audio from the input HDMI signal can be
extracted (de-embedded) and output on both digital as well as stereo analog
signal. The audio embedded in the HDMI output can be selected from 3
sources: HDMI input, analog L/R input, or digital optical input.

The SC-HD-2A has the ability to output a wide range of resolutions
regardless of the input timing and resolution. The output resolution can
automatically match the native resolution of the display connected to its
output (based on the EDID setting of the display), or it can be specified by
the user.

The SC-HD-2A features an OSD menu for configuration, picture setup,
system information and other advanced options. The compact and sturdy
enclosure features integrated mounting brackets.

1.2 Features

• Any PC or HDTV video signal can be scaled up or down to any other
PC or HDTV resolution

• Analog and digital audio inputs and outputs

• Embeds audio to HDMI from analog or digital audio source

• Horizontal mirroring (x-axis flip)

• Advanced scaling for real-time frame rate capture & conversion

• Selectable audio delay up to 150ms (for lip sync)

• OSD adjustment of contrast, brightness, color, size, sampling clock,

phase, position, audio source and delay

• HDMI, HDCP, and DVI Compliant

• Supports 50/60Hz frame rate conversion

• Quick Select button combinations for setting output resolution
