HP Z30i Specification

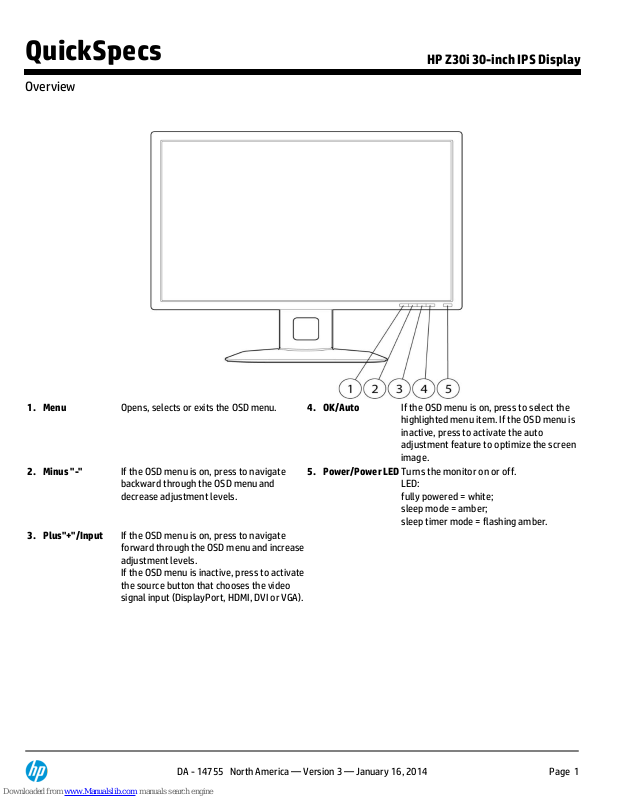

1.
Menu
Opens, selects or exits the OSD menu.
4.
OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu is
inactive, press to activate the auto
adjustment feature to optimize the screen
image.
2.
Minus "-"
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
5.
Power/Power LED
Turns the monitor on or off.
LED:
fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.
3.
Plus"+"/Input
If the OSD menu is on, press to navigate
forward through the OSD menu and increase
adjustment levels.
If the OSD menu is inactive, press to activate
the source button that chooses the video
signal input (DisplayPort, HDMI, DVI or VGA).
QuickSpecs
HP Z30i 30-inch IPS Display
Overview
DA - 14755 North America — Version 3 — January 16, 2014
Page 1
Use two HP Z30i 30-inch IPS Displays for a high
productivity work solution.
(Multi-monitor support depends on your PC capability.)
Model
: D7P94A4, D7P94A8, D7P94AS, D7P94AT
QuickSpecs
HP Z30i 30-inch IPS Display
Overview
DA - 14755 North America — Version 3 — January 16, 2014
Page 2
Panel
Type
30-inch IPS Gen 2, LED Backlit
Screen Size
(diagonal)
75,78 cm
(29.83 in.) widescreen; diagonally measured
Panel Active Area
(W x H)
64,12 x 40,08 cm
(25.24 x 15.78 in)
Panel Type
Gen 2 IPS (Gen 2 technology, also called AH-IPS, enables lower power
consumption).
Resolution
2560 x 1600 @ 60 Hz
Aspect Ratio
16:10
Viewing Angle
(typical)
Up to 178° horizontal/178° vertical (10:1 minimum contrast ratio)
Brightness
(typical)
*
350 cd/m
2
Contrast Ratio
(typical)*1,000:1
Dynamic Contrast Ratio
(typical)
*
5,000,000:1
Response Time
(typical)*8 ms gray to gray
Pixel Pitch
0.250 mm
Backlight Lamp Life
(to half brightness)
30,000 hours minimum
Color Support
**
16.7 million colors
Color Gamut
Size vs. NTSC (CIE 1931)
Size vs. NTSC (CIE 1976)
Coverage of sRGB (CIE
1976)
Coverage of Adobe RGB
(CIE 1976)
104%
121%
100%
100%
*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
** With the use of FRC technology.
User Controls
Buttons or Switches
Menu, Minus ("-"), Plus ("+") /Input, OK/Auto, Power
Languages
10 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese,
T-Chinese and S-Chinese)
On Screen Display
(OSD)
User Controls
Brightness, Contrast, Color, Image Control, OSD control, Management, Language,
Information, Factory Reset, Input Control
Signal Interface/
Performance
Horizontal Frequency
31 - 80 KHz (VGA) ; 24 - 98 KHz (DVI / DP / HDMI)
Vertical Frequency
60 - 70 Hz (VGA) ; 50 - 70 Hz (DVI / DP / HDMI)
Native Resolution
2560 x 1600 @ 60 Hz
Preset VESA Graphic
Modes
(non-interlaced)
640 x 480 @ 60Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
QuickSpecs
HP Z30i 30-inch IPS Display
Technical Specifications
DA - 14755 North America — Version 3 — January 16, 2014
Page 3
