Page 1
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 1
HP Z27q G3 QHD Display

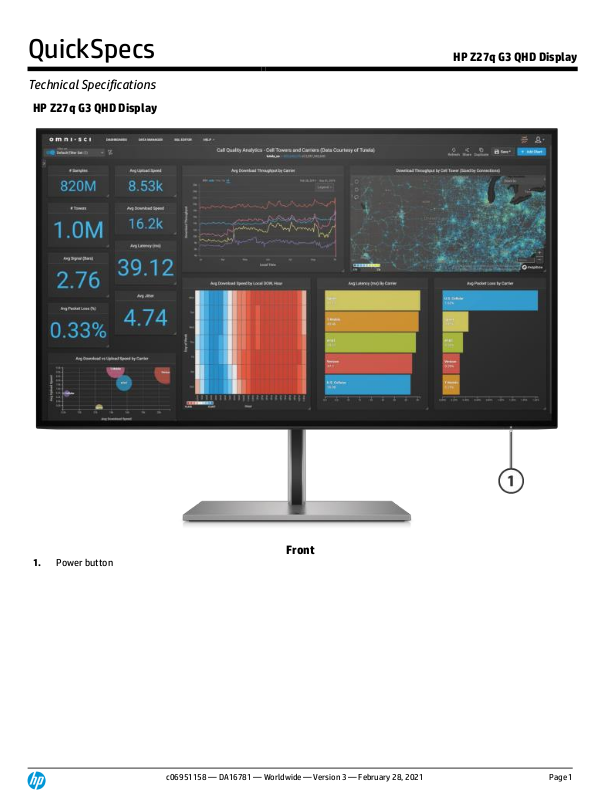

Front
1.
Power button
Page 2
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 2
HP Z27q G3 QHD Display
Back
1.
OSD control
7.
DisplayPort™ connector (out)
2.
Security cable slot
8.
USB Type-B port (upstream)
3.
Master power switch
9.
USB port
4.
Power connector
10.
USB port (Battery charging 1.2, 7.5W)
5.
HDMI port
11.
USB Port
6.
DisplayPort™ connector
12.
USB port (Battery charging 1.2, 7.5W)
Page 3
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 3
Panel Specifications
Display Size (Diagonal)
27" Panel Technology
IPS Refresh Rate
60 Hz
Panel Bit Depth
8 bit
Aspect Ratio
16:9
Brightness (Typical)
350 nits
Contrast Ratio (Static)
1000:1
Dynamic Contrast Ratio
10M:1
Flicker Free
Yes Pixel Pitch
0.2331mm
Pixels Per Inch (Ppi)
109 PPI
Backlight Lamp Life Minimum (To Half
Brightness - In Hours)
40k
Backlight Type
Edge-lit
Screen Treatment
Anti-glare
Hardness
3H Haze
25%
Response Time (Typical)
5ms GtG (with overdrive)
Horizontal Viewing Angle (Typical
Cr>10)
178°
Vertical Viewing Angle (Typical Cr>10)
178°
Panel Active Area (W X H)
596.736(H)*335.664(V)
NOTE: Performance Specifications Represent The Typical Specifications Provided By HP's Component
Manufacturers; Actual Performance May Vary Either Higher Or Lower.
Color Management
Factory Color Calibrated
Yes (Delta E <=2)
Calibrated Color Presets
sRGB, BT.709, (Color Match)
RGB Channel Adjust
Yes, Gain
Default Color Temperature
sRGB
Color
sRGB
99 %
P3 D65
85%
Monitor Specifications
Bezel
4-sided Micro Edge
Color
(Head) Turbo Silver ; (Stand) Turbo Silver
Tilt
-5 to +20°
Swivel
±45°
Pivot
±90 Height Adjust Range
150mm
VESA Mounting
100 mm x 100 mm (bracket included)
Security Lock Ready
Standard Security Lock Slot
Detachable Stand
Yes Warranty (Number Of Years)
3/3/0 for LA, NA, EMEA, APJ; (3/3/3 in select APJ Countries)
Low Blue Light Mode
Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution
certified)
Display Management Software
HP Display Center
On Screen Display
Joystick
On Screen Controls
Brightness +, Color, Image, Input, Power, Menu,
Management, Information, Exit
User-Assignable Function Buttons
Yes, 4 buttons
Native Resolution
QHD (2560 x 1440)
Maximum Resolution
2560 x 1440 @ 60HZ
Page 4
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 4
Preset Graphic Modes/Suppored
Resolutions
640 x 480@60Hz
800 x 600@60Hz
1024 x 768@60HZ
1280 x 720@60Hz
1280 x 1024@60Hz
1440 x 900@60Hz
1600 x 900@60Hz
1600 x 1200@60Hz
1680 x 1050@60Hz
1920 x 1080@60Hz
1920 x 1200@60Hz
2560 x 1440@60Hz
High Definition Video Formats
720 x 480p@60Hz
720 x 480i@60Hz
1280 x 720p@60Hz
720 x 576i@50Hz
720 x 576p@50Hz
1280 x 720p@50Hz
1920 x 1080p@50Hz
1920 x 1080p@60Hz
1920 x 1080i@50Hz
1920 x 1080i@60Hz
640 x 480p@60Hz
Minimum Vertical Scan Rate
50 Hz
Maximum Vertical Scan Rate
60 Hz
Minimum Horizontal Scan Rate
30.0 kHz
Maximum Horizontal Scan Rate
90.0 kHz
Maximum Pixel Clock
250 MHz
User Programmable Modes
10
Languages
10 (English, Spanish, German, French, Italian, Netherlands,
Portuguese, Japanese, T-Chinese and S-Chinese)
Connector Types
DisplayPort™
1 DisplayPort™ 1.4
DisplayPort™ Out
1 DisplayPort™ 1.4 out
HDMI
1 HDMI 2.0
USB- A
4 USB-A 3.2 Gen1 (2 for battery charging 1.2, 7.5W)
USB-B (Hub enablement)
1 USB-B
Special Features
Picture-in-Picture, Picture-by-Picture
Yes
DaisyChain/DisplayPort Multi stream
Transport (MST)
Yes
User Updateable Firmware
Yes
Power & Operating
Specs
Power Supply
Internal
Power Source
100 – 240 VAC 50/60 Hz
Power Consumption- MAX
69 W
Energy Saving/Stand By Mode
0.5 W
Power Consumption- Typical
35 W
Power Cable Length
1.9m
ENERGY STAR Data
Operational Mode at 100 VAC
18.36 W
Operational Mode at 115 VAC
18.28 W
Operational Mode at 230 VAC
18.34 W
Page 5
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 5
EU Energy Efficiency
Class (ERP Lot-5)
On-mode Power Consumption
23 W
Annual Power Consumption
34 kWh
Energy Efficiency Class
F
Operating Conditions
Operating Temperature - Celsius
5° – 35°C
Operating Temperature - Fahrenheit
41° – 95°F
Non-Operating Temperature - Celsius
–34° – 60°C
Non-Operating Temperature Fahrenheit
29° – 140°F
Operating Humidity
20 – 80% Relative Humidity (non-condensing)
Non-Operating Humidity
5 – 95%
Operating Altitude
0 – 5,000 m (16,400 ft.)
Non-operating Altitude
0 – 12.192 m (40,000 ft.)
Environmental
Features and
Certifications
Mercury-free LED display backlighting
Yes, Mercury-free LED backlighting
Arsenic-Free Display Glass
Yes
Low Halogen
Yes
Agency Approvals And Certifications
WW application
CE,CB,KC/KCC/NOM/PSB/EAC/GS/TUV-S/ISO 9241-307/
Low Blue Light/ BIS/cTUVus/CCC/CEL/CECP/SEPA/Energy
Star/TCO/TCO Certified
Edge/VCCI/FCC/BSMI/WEEE/UAE/Ukraine/ERP/ISC
Microsoft WHQL Certification
Yes ENERGY STAR® Certified
Yes
EPEAT® Registered
Regions need to verify by country
Yes
China Energy Label
CEL Grade 1
TCO Certified Edge
Yes TCO Certified
Yes
SmartWay Transport Partnership - NA
only
Yes (NA sku)
Contains Recycled
Plastics
Contains Recycled Plastics
81.40%
Recyclable Packaging (Box, packing
materials)
100% recyclable packaging.
Unit Product/Package
Specifications
Product Dimensions
(Unpacked with stand) (W x D x H)
61.23 x 20.5x 53.04 cm
24.11x8.07 x 20.88 in
Product Dimensions
(Packed) (W x D x H)
69.8*42.3*16.3 cm
27.48 x 16.65 x 6.42 in
Display Head Dimensions
(Unpacked without stand) (W x D x H)
61.23x3.89x 35.61 cm
24.11x 1.53 x 14.02 in
Base Area Footprint
(w x d mm)
246 x 205 mm
9.69 x 8.07 in
Bezel Measurements - Metric
Bottom Cover : 601.8mm
Bottom Cover : 23.69in
Product Weight
(Unpacked with stand)
5.8 kg
12.8 lb
Product Weight
(Packed)
9.1 kg
19.8 lb
Product Weight
(Head Only)
4.3 kg
9.48lb
What's in the box?
Documentation kit
DP1.4 Cable (1.8m)
Page 6
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 6
USB3.0 Type A to B (1.8m)
Power cable
VESA Adapter
Cable Holder
User Guide and
Warranty Languages
User Guide Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish,
Dutch, Finnish, French, German, Greek, Hungarian, Italian,
Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian
Portuguese, Russian, Slovenian, Spanish, Swedish and
Turkish.
Warranty Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish,
Dutch, Finnish, French, German, Greek, Hungarian, Italian,
Japanese, Kazakh, Korean, Norwegian, Polish, Brazilian
Portuguese, Russian, Slovenian, Spanish, Swedish and
Turkish.
Page 7
QuickSpecs
HP Z27q G3 QHD Display
Technical Specifications
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 7
Copyright © 2021 HP Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.
ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency.
Page 8
QuickSpecs
HP Z27q G3 QHD Display
Summary
c06951158 — DA16781 — Worldwide — Version 3 — February 28, 2021
Page 8
Change Log
January 12, 2021
V1 to V2
Update
Technical Specifications
February 28, 2021
V2 to V3
Update
Energy Efficiency Class
