HP Z27 Disassembly Instructions Manual

EL-MF877-00 Page 1 Template Revision C

Last revalidation date 04-01-2018

HPI instructions for this template are available at EL-MF877-01

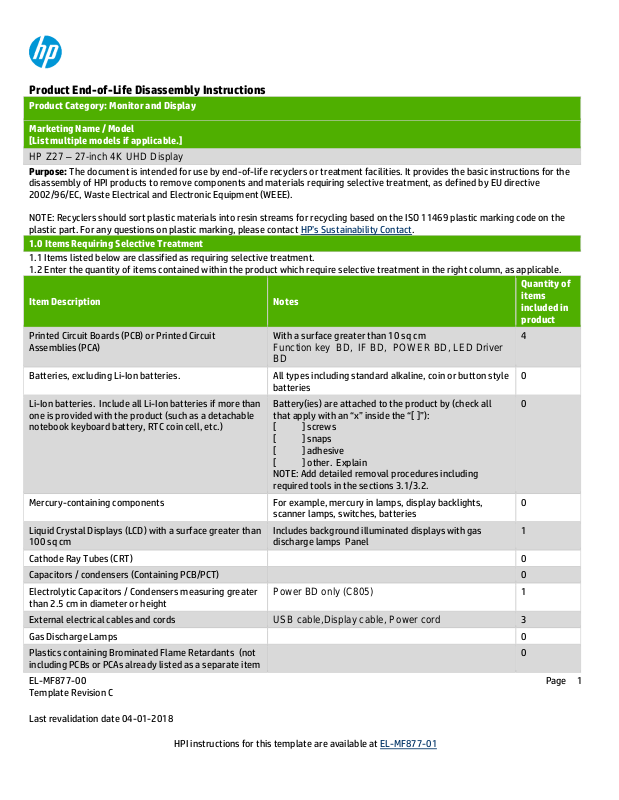

Product End-of-Life Disassembly Instructions

Product Category: Monitor and Display

Marketing Name / Model [List multiple models if applicable.]

HP Z27 – 27-inch 4K UHD Display

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions for the disassembly of HPI products to remove components and materials requiring selective treatment, as defined by EU directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

NOTE: Recyclers should sort plastic materials into resin streams for recycling based on the ISO 11469 plastic marking code on the plastic part. For any questions on plastic marking, please contact HP’s Sustainability Contact.

1.0 Items Requiring Selective Treatment

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as applicable.

Item Description

Notes

Quantity of items included in product

Printed Circuit Boards (PCB) or Printed Circuit Assemblies (PCA)

With a surface greater than 10 sq cm

Function key BD, IF BD, POWER BD, LED Driver BD

4 Batteries, excluding Li-Ion batteries.

All types including standard alkaline, coin or button style batteries

Li-Ion batteries. Include all Li-Ion batteries if more than one is provided with the product (such as a detachable notebook keyboard battery, RTC coin cell, etc.)

Battery(ies) are attached to the product by (check all that apply with an “x” inside the “[ ]”): [ ] screws [ ] snaps [ ] adhesive [ ] other. Explain NOTE: Add detailed removal procedures including required tools in the sections 3.1/3.2.

Mercury-containing components

For example, mercury in lamps, display backlights, scanner lamps, switches, batteries

Liquid Crystal Displays (LCD) with a surface greater than 100 sq cm

Includes background illuminated displays with gas discharge lamps Panel

1 Cathode Ray Tubes (CRT)

Capacitors / condensers (Containing PCB/PCT)

Electrolytic Capacitors / Condensers measuring greater than 2.5 cm in diameter or height

Power BD only (C805)

1 External electrical cables and cords

USB cable,Display cable, Power cord

Gas Discharge Lamps

Plastics containing Brominated Flame Retardants (not including PCBs or PCAs already listed as a separate item

EL-MF877-00 Page 2 Template Revision C

Last revalidation date 04-01-2018

HPI instructions for this template are available at EL-MF877-01

Item Description

Notes

Quantity of items included in product

above)

Components and parts containing toner and ink, including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent chambers, and service stations.

0 Components and waste containing asbestos

Components, parts and materials containing refractory ceramic fibers

Components, parts and materials containing radioactive substances

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components and materials requiring selective treatment can be removed.

Tool Description

Tool Size (if applicable)

Description #1 SCREW DRIVER(PHILLIPS HEAD)

Description #2 SCREW DRIVER(PHILLIPS HEAD)

Description #3 SCREW DRIVER(PHILLIPS HEAD)

3.0 Product Disassembly Process

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment including the required steps to remove the external enclosure:

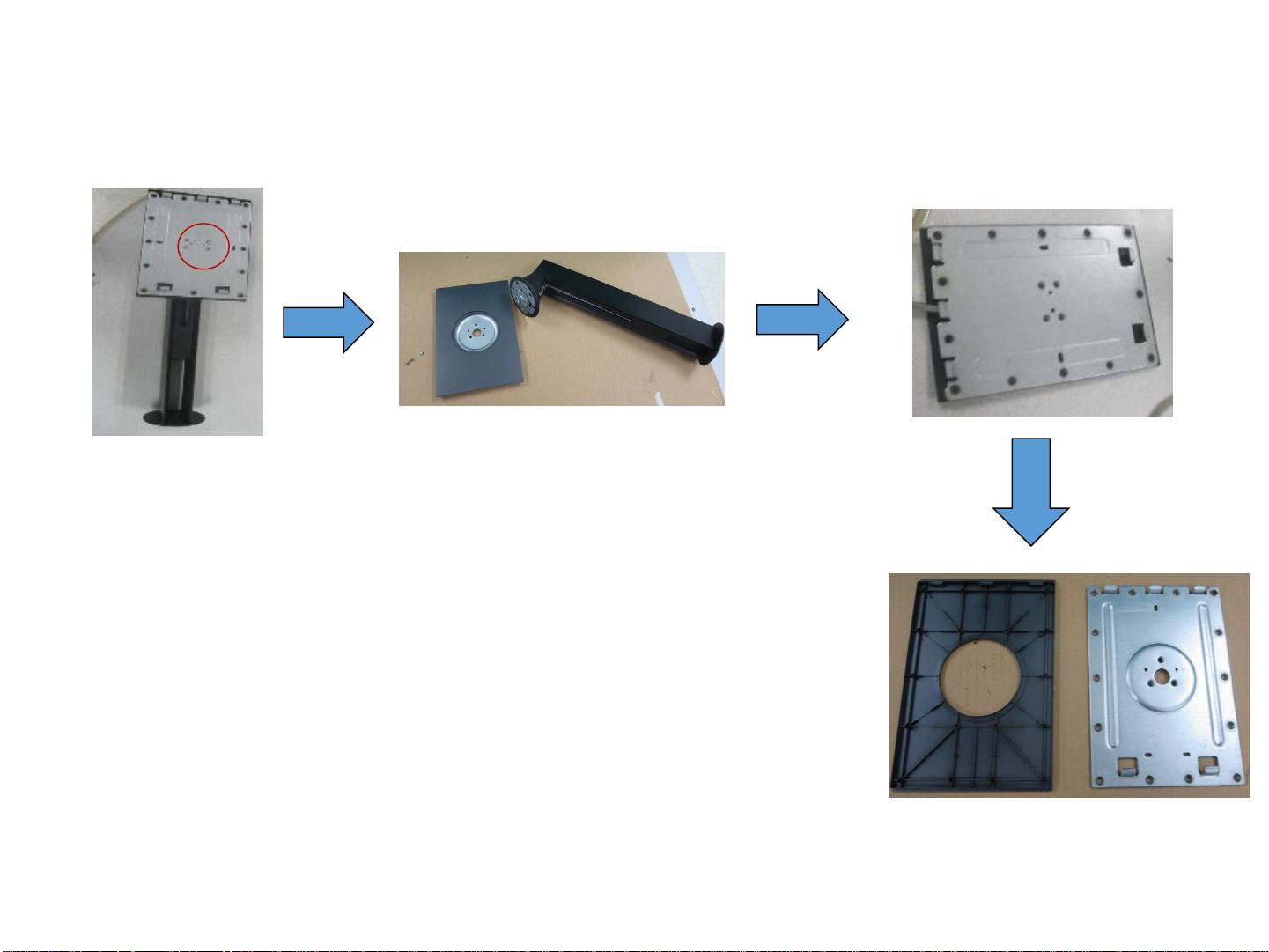

1. Remove Stand Base From Display Head

2. Remove Rear Cover From Display Head

3. Remove Bracket Assy From Display Head

4. Remove Mid cover From Display Head

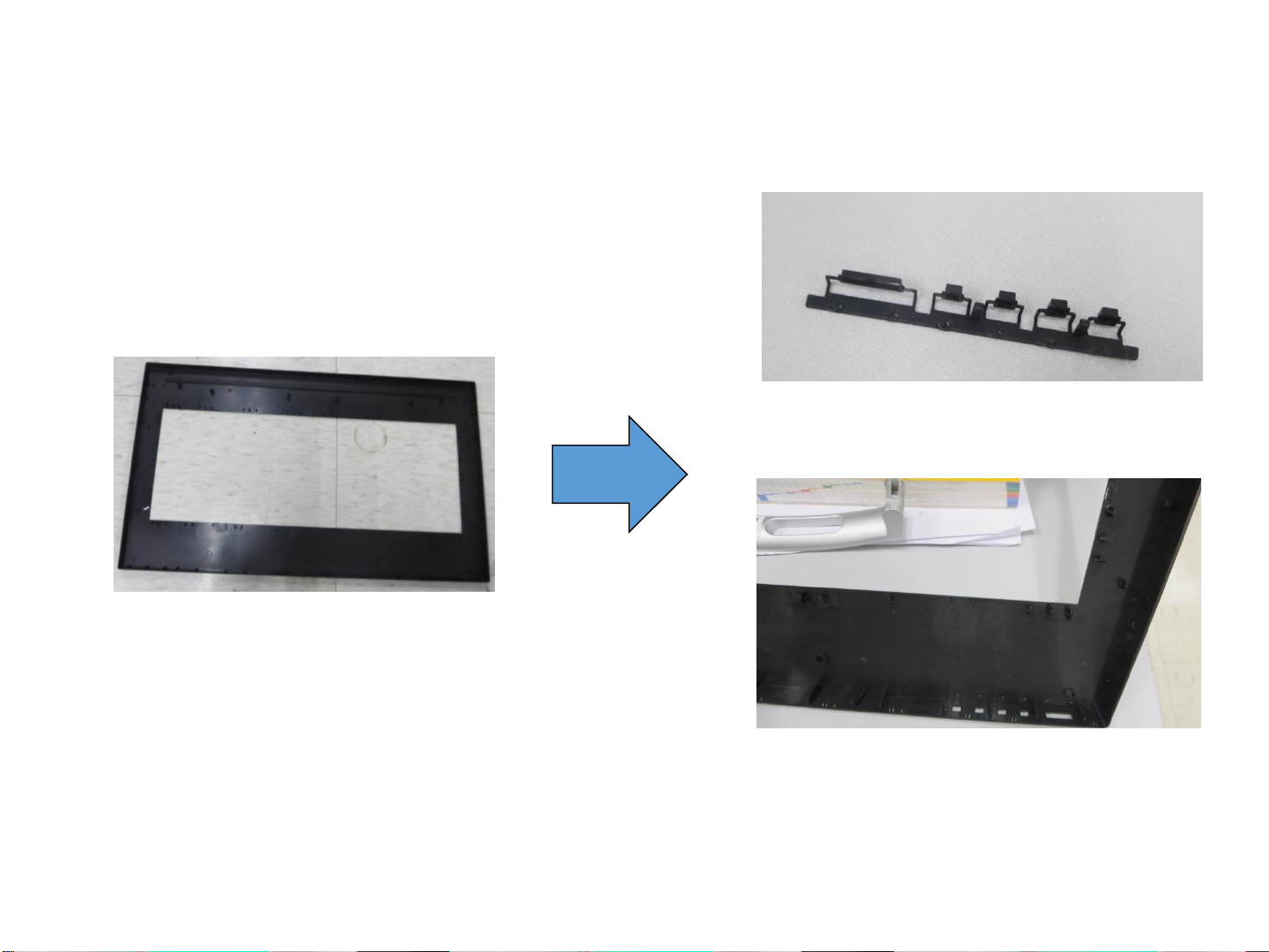

5. Remove Front Cover From Display Head

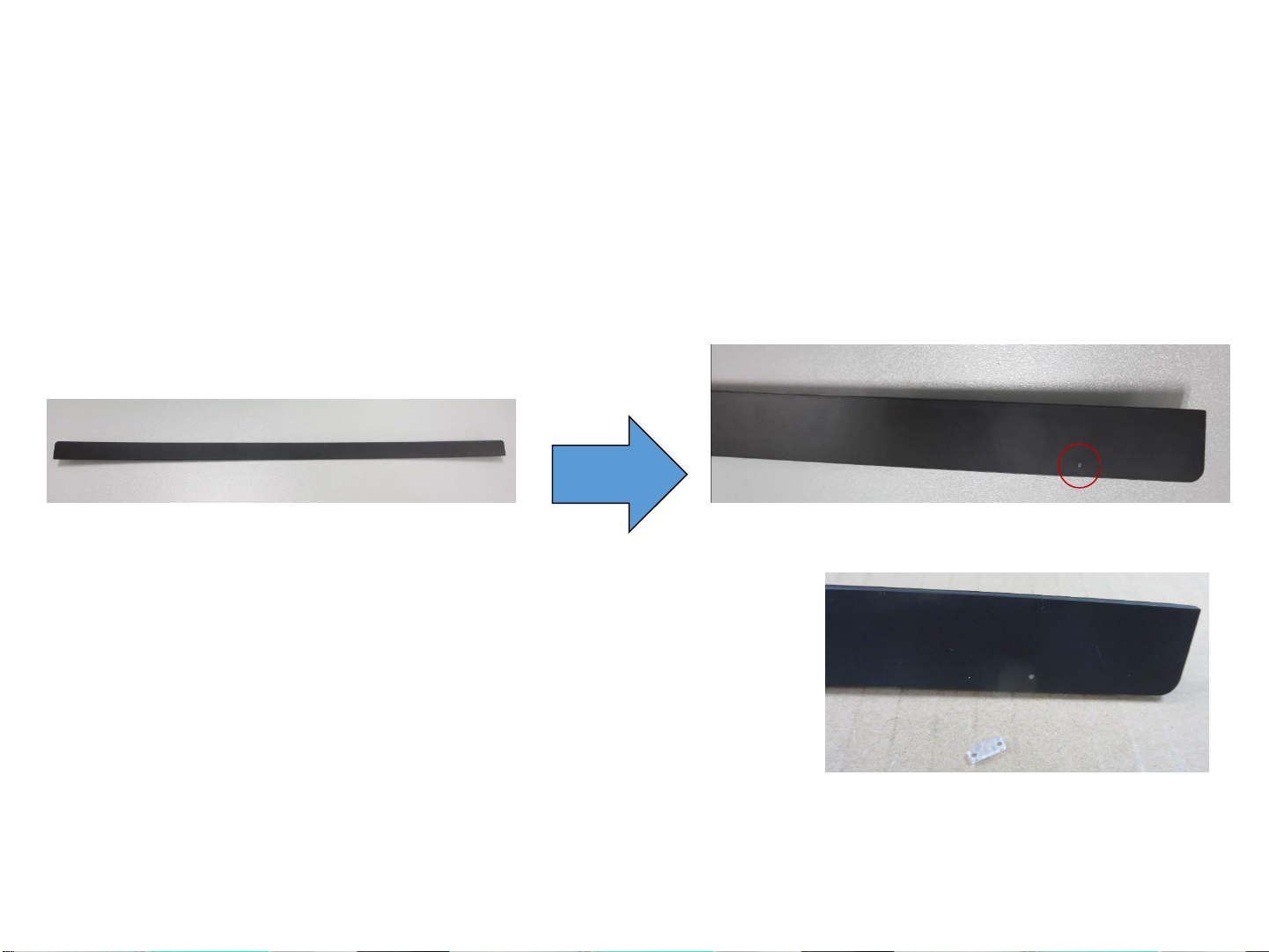

6. Disassemble Front Chin

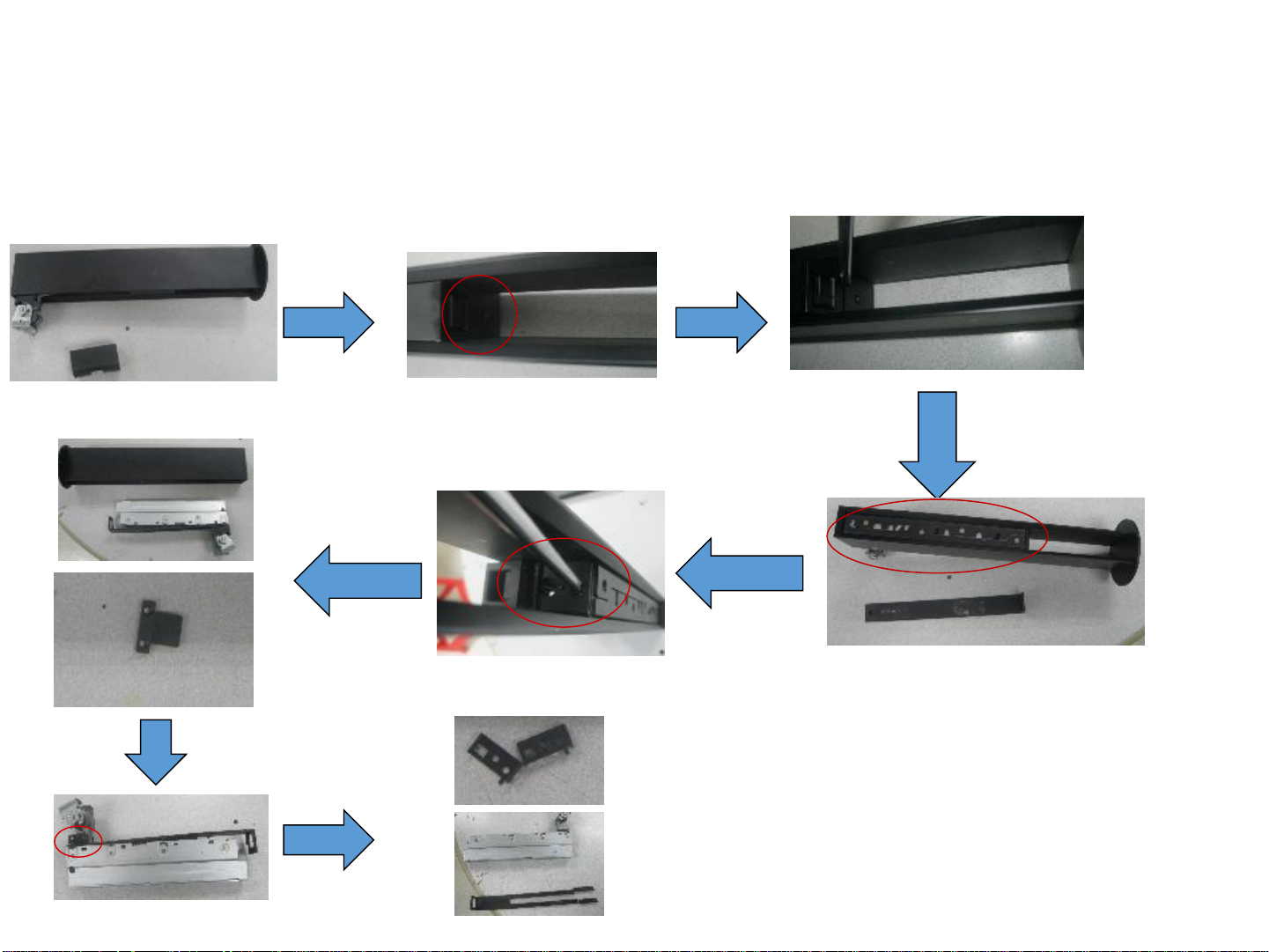

7. Disassemble Bracket ASSY

8. Disassemble Stand ASSY

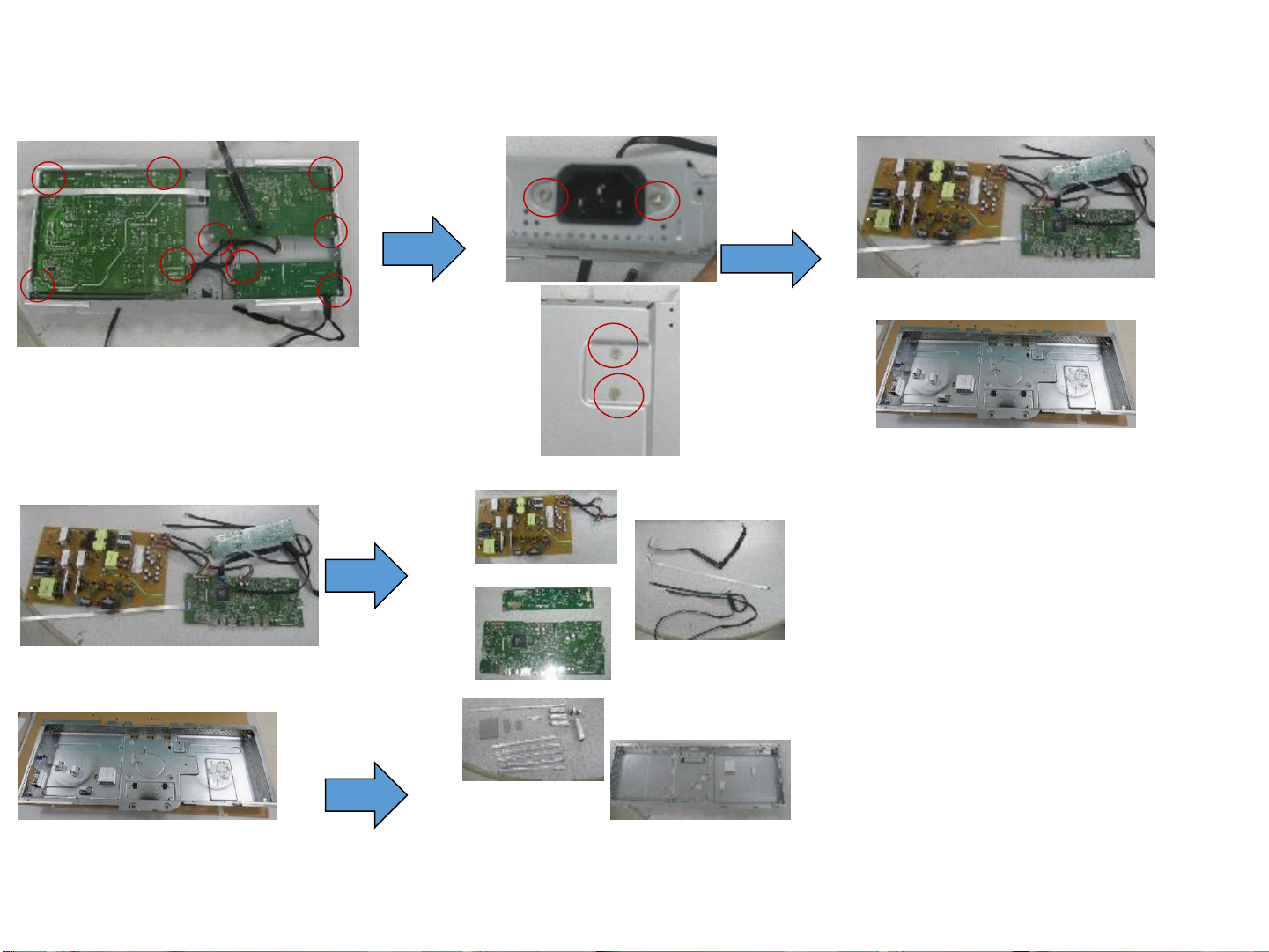

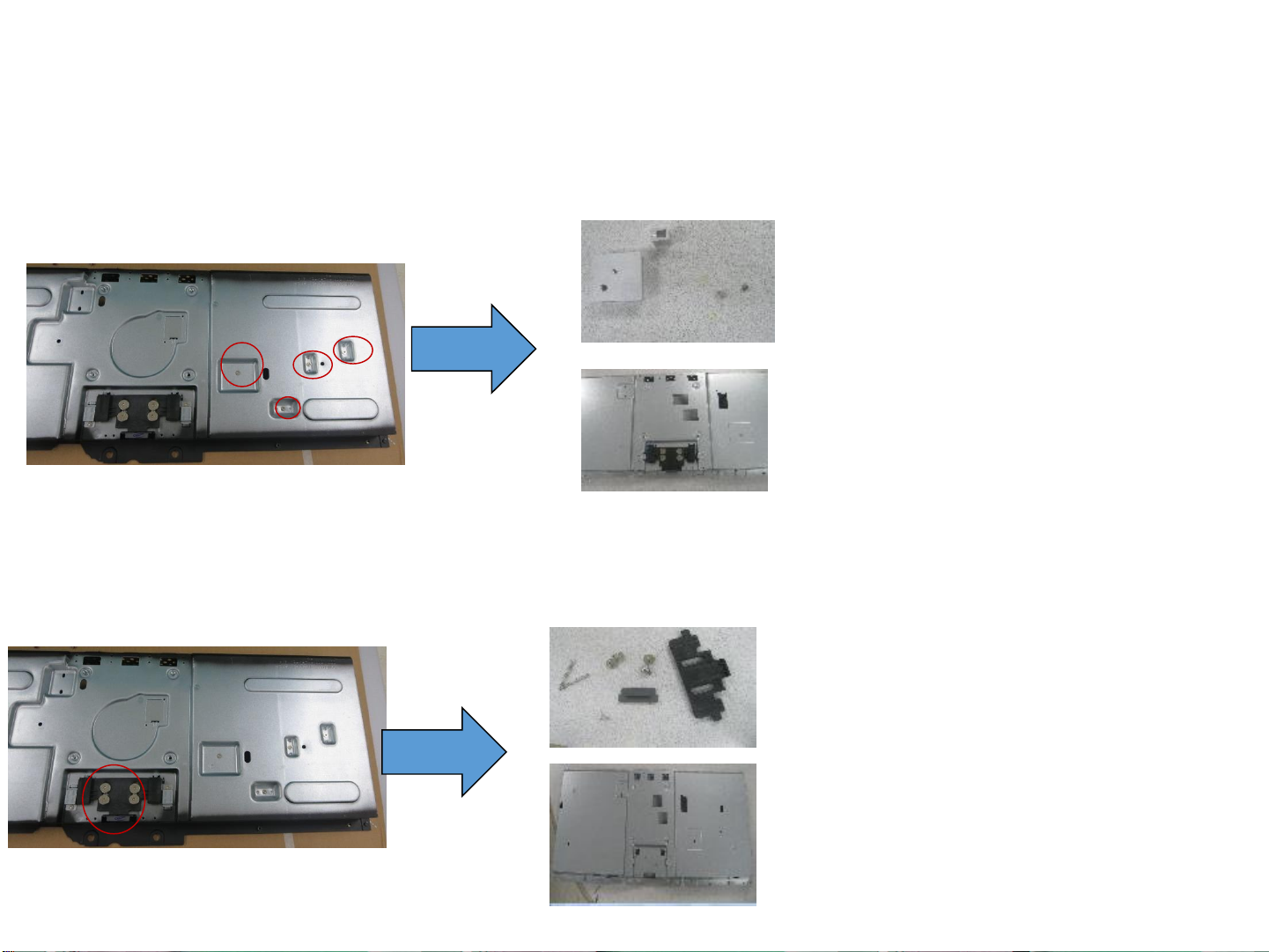

9. Disassemble Panel ASSY

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the product that require selective treatment (with descriptions and arrows identifying locations).
